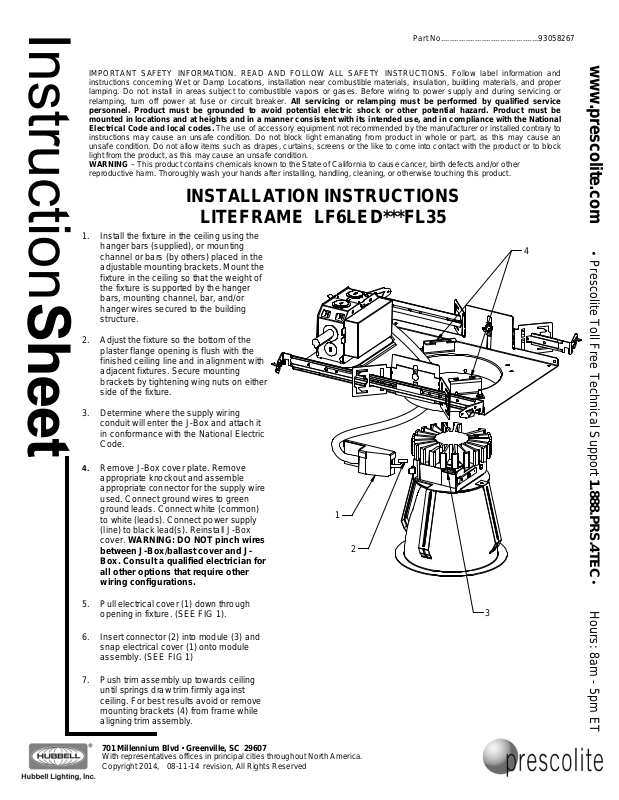

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and prope
lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing o
relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by qualified service
personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be
mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National
Electrical Code and local codes. The use of accessory equipment not recommended by the manufacturer or installed contrary to
instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an
unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to bloc
light from the product, as this may cause an unsafe condition.
WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash your hands after installing, handling, cleaning, or otherwise touching this product.
93058267
INSTALLATION INSTRUCTIONS
LITEFRAME LF6LED***FL35
1. Install the fixture in the ceiling using the
hanger bars (supplied), or mounting
channel or bars (by others) placed in the
adjustable mounting bra ckets. Mount the
fixture in the ceiling so that the weight of
the fixture is supported by the hanger
bars, mounting channel, bar, an d/or
hanger wires secured to the building
structure.
2. Adjust the fixture so the bottom of the
plaster flange opening is flush with the
finished ceiling line and in alignment with
adjacent fixtures. Secure mounting
brackets by tightening wing nuts on eithe
side of the fixture.
3. Determine where the supply wiring
conduit will enter the J-Box and attach it
in conformance with the National Electric
Code.
4. Re move J-Box cover plate. Remove
appropriate knockout and assemble
appropriate connector for the supply wire
used. Connect ground wires to green
ground leads. Connect white (common)
to white (leads). Connect power supply
(line) to black lead(s). Reinstall J-Box
cover. WARNING: DO NOT pinch wires
between J-Box/ballast cover and JBox. Consult a qualified electrician for
all other options that require other
wiring configurations.

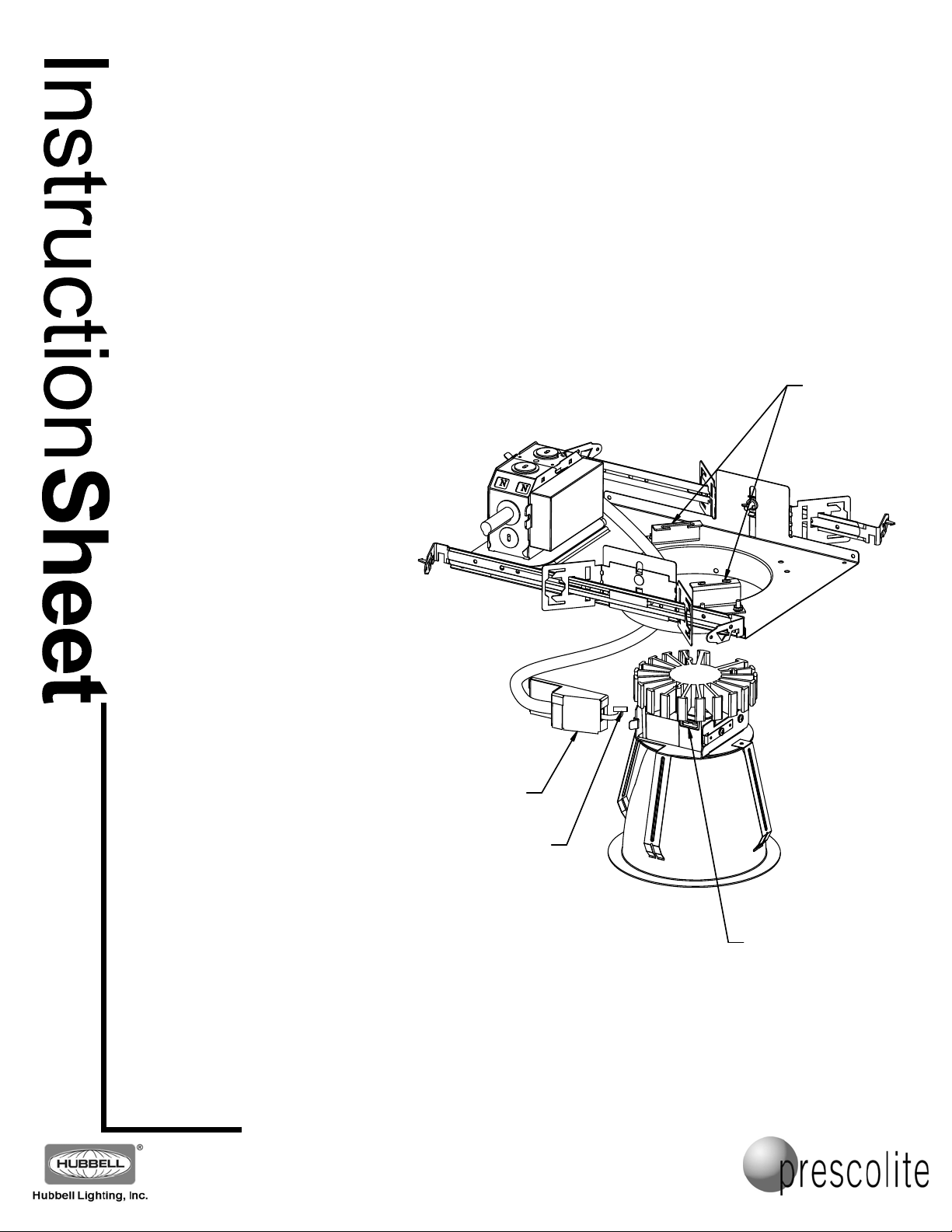

5. Pull electrical cover (1) down through
opening in fixture. (SEE FIG 1).
6. Insert connector (2) into module (3) and
snap electrical cover (1) onto module
assembly. (SEE FIG 1)
7. Push trim assembly up towards ceiling
until springs draw trim firmly against
ceiling. For best results avoid or remove
mounting brackets (4) from frame while
aligning trim assembly.
1
2
3
4
