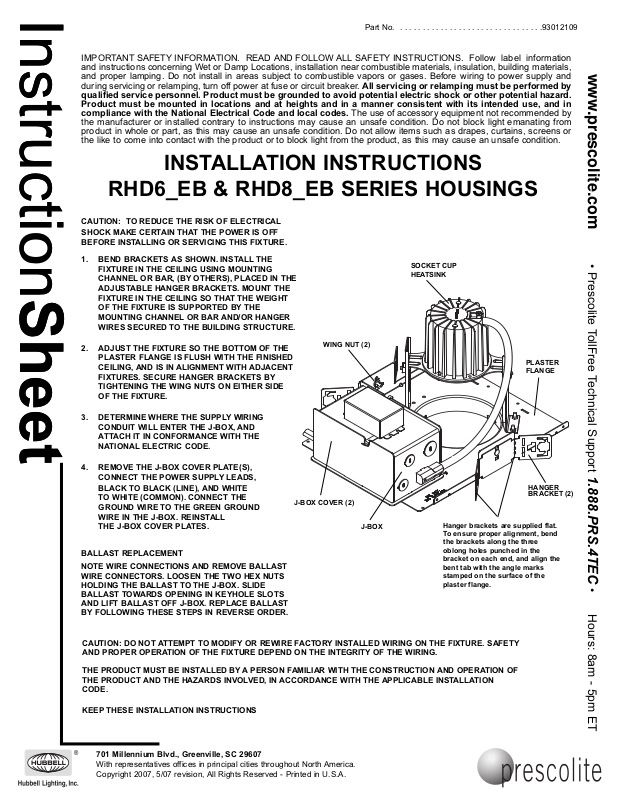

InstructionSheet

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93012109

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

INSTALLATION INSTRUCTIONS

RHD6_EB & RHD8_EB SERIES HOUSINGS

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK MAKE CERTAIN THAT THE POWER IS OFF BEFORE INSTALLING OR SERVICING THIS FIXTURE.

1. BEND BRACKETS AS SHOWN. INSTALL THE FIXTURE IN THE CEILING USING MOUNTING CHANNEL OR BAR, (BY OTHERS), PLACED IN THE ADJUSTABLE HANGER BRACKETS. MOUNT THE FIXTURE IN THE CEILING SO THAT THE WEIGHT OF THE FIXTURE IS SUPPORTED BY THE MOUNTING CHANNEL OR BAR AND/OR HANGER WIRES SECURED TO THE BUILDING STRUCTURE.

2. ADJUST THE FIXTURE SO THE BOTTOM OF THE PLASTER FLANGE IS FLUSH WITH THE FINISHED CEILING, AND IS IN ALIGNMENT WITH ADJACENT FIXTURES. SECURE HANGER BRACKETS BY TIGHTENING THE WING NUTS ON EITHER SIDE OF THE FIXTURE.

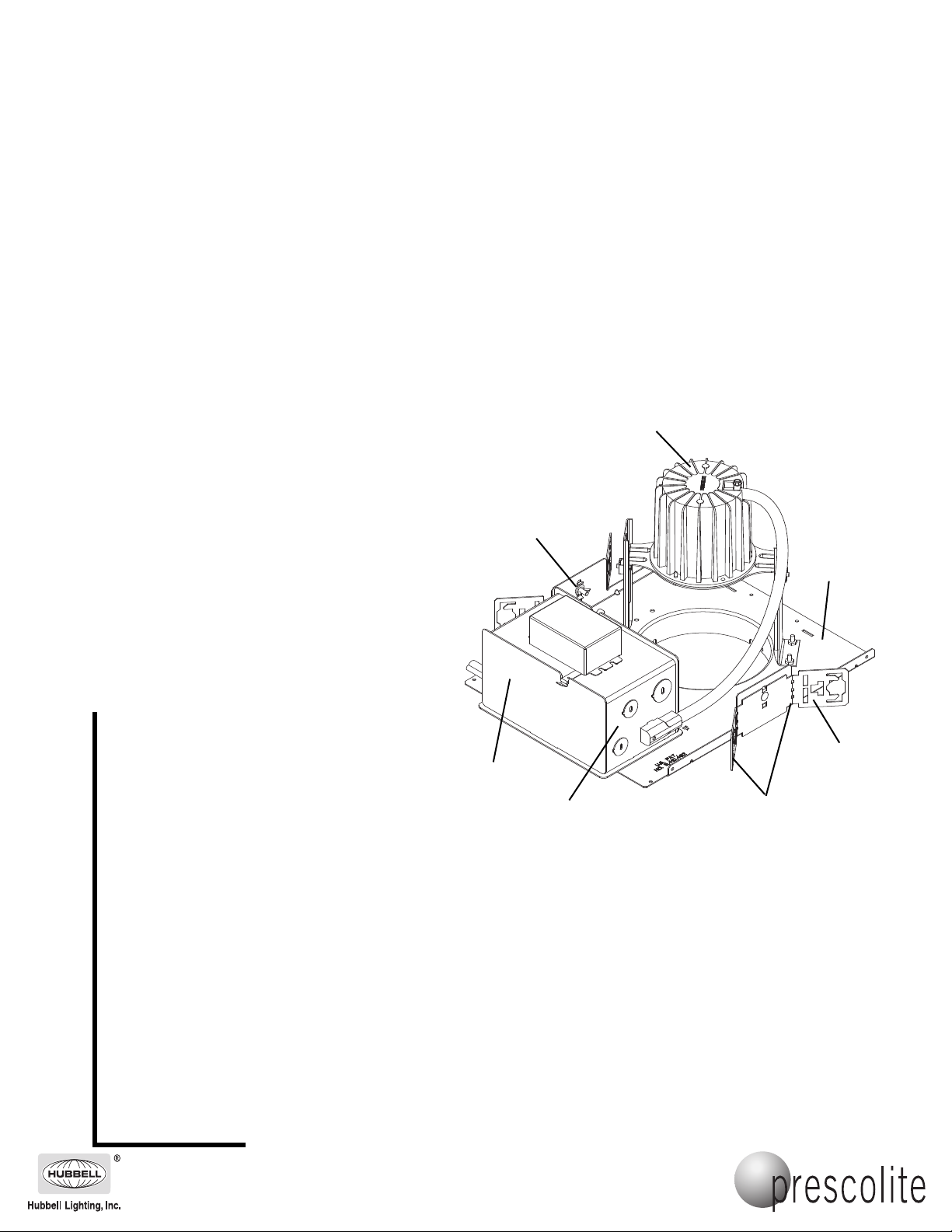

WING NUT (2)

OCKET CUP

EATSINK

PLASTER FLANGE

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

3. DETERMINE WHERE THE SUPPLY WIRING CONDUIT WILL ENTER THE J-BOX, AND ATTACH IT IN CONFORMANCE WITH THE NATIONAL ELECTRIC CODE.

4. REMOVE THE J-BOX COVER PLATE(S), CONNECT THE POWER SUPPLY LEADS, BLACK TO BLACK (LINE), AND WHITE TO WHITE (COMMON). CONNECT THE GROUND WIRE TO THE GREEN GROUND WIRE IN THE J-BOX. REINST THE J-BOX COVER PLATES.

BALLAST REPLACEMENT NOTE WIRE CONNECTIONS AND REMOVE BALLAST

WIRE CONNECTORS. LOOSEN THE TWO HEX NUTS HOLDING THE BALLAST TO THE J-BOX. SLIDE BALLAST TOWARDS OPENING IN KEYHOLE SLOTS AND LIFT BALLAST OFF J-BOX. REPLACE BALLAST BY FOLLOWING THESE STEPS IN REVERSE ORDER.

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY INSTALLED WIRING ON THE FIXTURE. SAFETY

AND PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

THE PRODUCT MUST BE INSTALLED BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF

THE PRODUCT CODE.

AND THE HAZARDS INVOL

ALL

VED, IN

J-BOX COVER (2)

J-BOX

ACCORDANCE WITH THE

Hanger brackets are supplied flat. To ensure proper alignment, bend the brackets along the three oblong holes punched in the bracket on each end, and align the bent tab with the angle marks stamped on the surface of the plaster flange.

APPLICABLE INST

ALLA

TION

HANGER BRACKET (2)

KEEP THESE INST

701 Millennium Blvd., Greenville, SC 29607

ALLATION INSTRUCTIONS

fices in principal cities throughout North

America.
