Page 1
InstructionSheet
Fig. 2
2
1
Fig. 1
1
2
2
1
Fig. 3 Fig. 4
5
6
3
4
TANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning wet or
IMPOR
damp locations, installation near combustible insulation or building materials, and proper lamping. Do not install in areas subject to combustible vapors or
gases. Before wiring to power supply and during servicing or relamping, turn of
formed by qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in
locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of
accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light ema
nating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into
contact with the product or to block light from the product, as this may cause an unsafe condition.

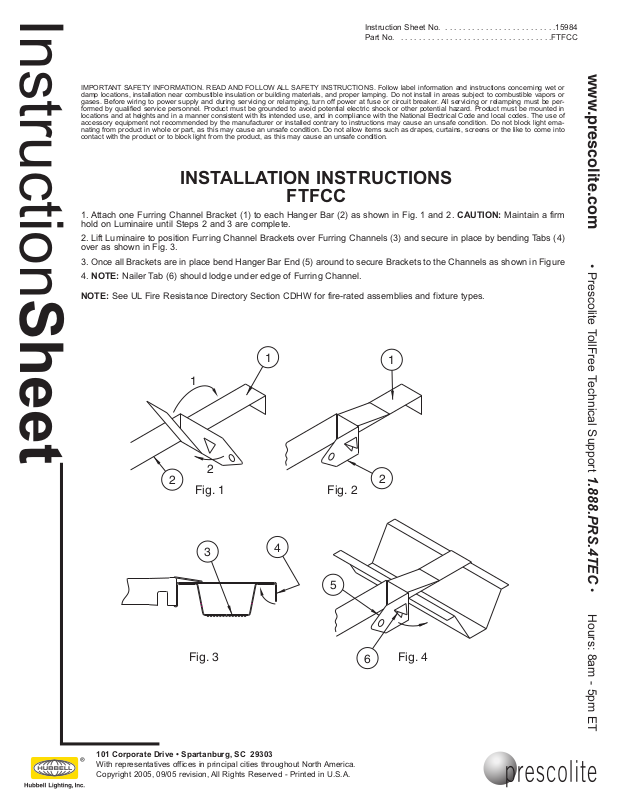

1. Attach one Furring Channel Bracket (1) to each Hanger Bar (2) as shown in Fig. 1 and 2. CAUTION: Maintain a firm
hold on Luminaire until Steps 2 and 3 are complete.
2. Lift Luminaire to position Furring Channel Brackets over Furring Channels (3) and secure in place by bending Tabs (4)
over as shown in Fig. 3.
3. Once all Brackets are in place bend Hanger Bar End (5) around to secure Brackets to the Channels as shown in Figure
NOTE: Nailer Tab (6) should lodge under edge of Furring Channel.
4.
NOTE: See UL Fire Resistance Directory Section CDHW for fire-rated assemblies and fixture types.
Instruction Sheet No. . . . . . . . . . . . . . . . . . . . . . . . . .15984
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FTFCC
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
f power at fuse or circuit breaker. All servicing or relamping must be per-
-
INSTALLATION INSTRUCTIONS
FTFCC
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2005, 09/05 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
