InstructionSheet
Media Holder Bottom
Lens Retainer Ring
Media Holder Top
InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93001353
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker.
All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

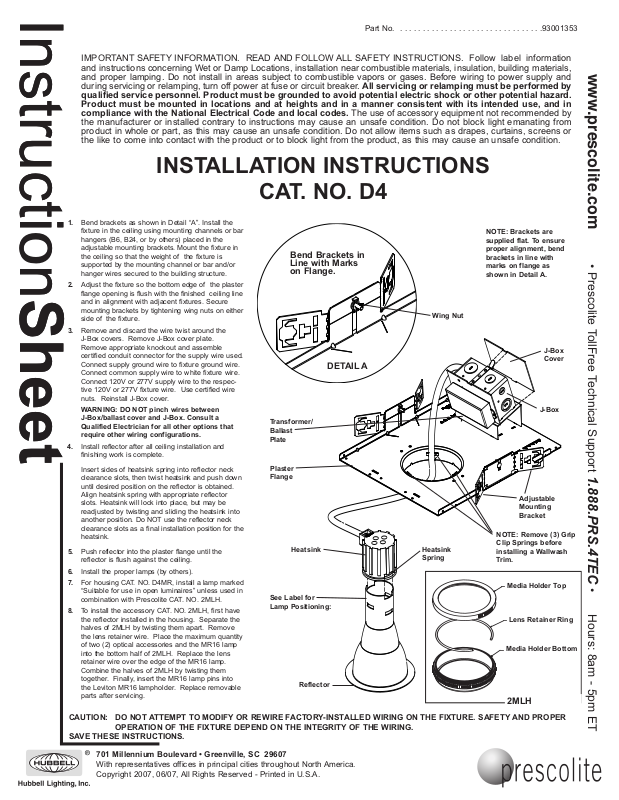

INSTALLATION INSTRUCTIONS
CAT. NO. D4
end brackets as shown in Detail “A”. Install the
1.B
ixture in the ceiling using mounting channels or bar
f
hangers (B6, B24, or by others) placed in the
djustable mounting brackets. Mount the fixture in
a
the ceiling so that the weight of the fixture is
supported by the mounting channel or bar and/or
anger wires secured to the building structure.
h
2. Adjust the fixture so the bottom edge of the plaster
flange opening is flush with the finished ceiling line
nd in alignment with adjacent fixtures. Secure
a
mounting brackets by tightening wing nuts on either
side of the fixture.
3. Remove and discard the wire twist around the
-Box covers. Remove J-Box cover plate.
J
Remove appropriate knockout and assemble
certified conduit connector for the supply wire used.
Connect supply ground wire to fixture ground wire.
Connect common supply wire to white fixture wire.
Connect 120V or 277V supply wire to the respective 120V or 277V fixture wire. Use certified wire
nuts. Reinstall J-Box cover.
WARNING: DO NOT pinch wires between
J-Box/ballast cover and J-Box. Consult a
Qualified Electrician for all other options that
require other wiring configurations.
Install reflector after all ceiling installation and
4.
finishing work is complete.
Insert sides of heatsink spring into reflector neck
clearance slots, then twist heatsink and push down
until desired position on the reflector is obtained.
Align heatsink spring with appropriate reflector
slots. Heatsink will lock into place, but may be
readjusted by twisting and sliding the heatsink into
another position. Do NOT use the reflector neck
clearance slots as a final installation position for the
heatsink.
5. Push reflector into the plaster flange until the
reflector is flush against the ceiling.
6. Install the proper lamps (by others).
. NO. D4MR, install a lamp marked
7. For housing CA
“Suitable for use in open luminaires” unless used in
combination with Prescolite CAT. NO. 2MLH.
8. To install the accessory CAT. NO. 2MLH, first have
the reflector installed in the housing. Separate the
halves of 2MLH by twisting them apart. Remove
the lens retainer wire. Place the maximum quantity
of two (2) optical accessories and the MR16 lamp
into the bottom half of 2MLH. Replace the lens
retainer wire over the edge of the MR16 lamp.
Combine the halves of 2MLH by twisting them
together. Finally, insert the MR16 lamp pins into
the Leviton MR16 lampholder. Replace removable
parts after servicing.
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER
SAVE THESE INSTRUCTIONS.
T
TION OF THE FIXTURE DEPEND ON THE INTEGRITY
OPERA

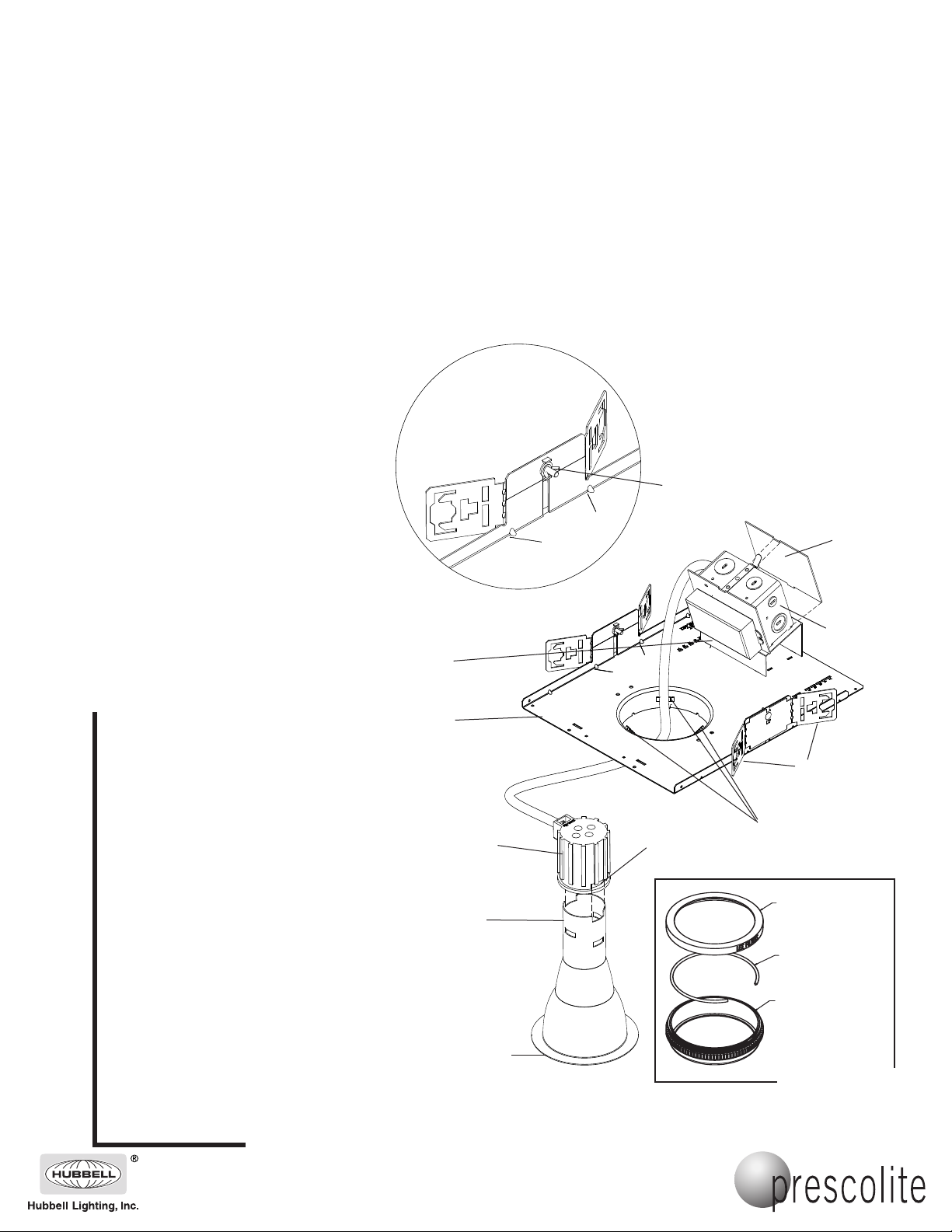

Bend Brackets in
Line with Marks
on Flange.
Transformer/
Ballast
Plate
Plaster
Flange
Heatsink
See Label for
Lamp Positioning:
Reflector
DETAIL A
OF THE WIRING.
ing Nut
W
Heatsink
Spring
OTE: Brackets are
N
supplied flat. To ensure
roper alignment, bend
p
rackets in line with
b
marks on flange as
hown in Detail A.
s
J-Box
Cover
J-Box
Adjustable
Mounting
Bracket
NOTE: Remove (3) Grip
Clip Springs before
installing a Wallwash
Trim.
2MLH
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
701 Millennium Boulevard • Greenville, SC 29607
With representatives of
Copyright 2007, 06/07, All Rights Reserved - Printed in U.S.A.
