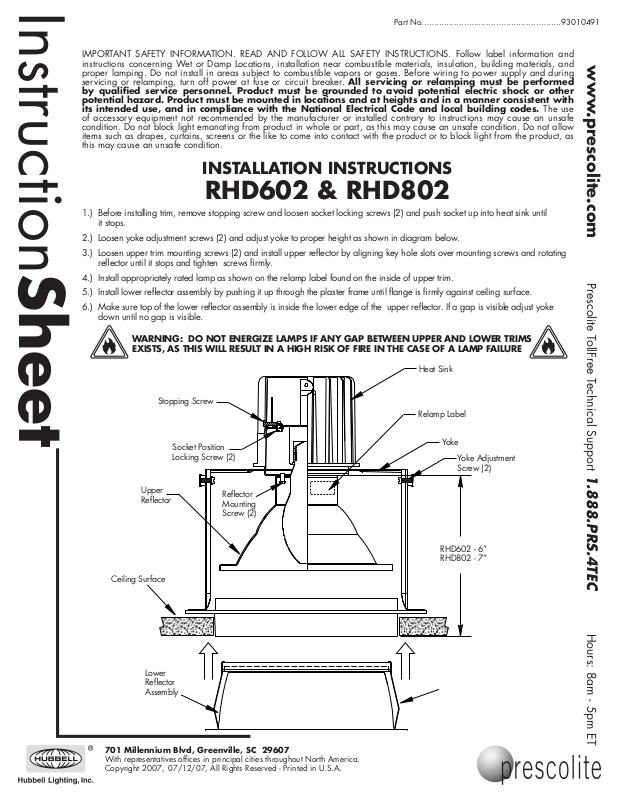

InstructionSheet
Part No........................................................93010491
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed
by qualified service personnel. Product must be grounded to avoid potential electric shock or other
potential hazard. Product must be mounted in locations and at heights and in a manner consistent with
its intended use, and in compliance with the National Electrical Code and local building codes. The use
of accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe
condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow
items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as
this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
RHD602 & RHD802
1.) Before installing trim, remove stopping screw and loosen socket locking screws (2) and push socket up into heat sink until
it stops.
2.) Loosen yoke adjustment screws (2) and adjust yoke to proper height as shown in diagram below.
3.) Loosen upper trim mounting screws (2) and install upper reflector by aligning key hole slots over mounting screws and rotating
reflector until it stops and tighten screws firmly.
4.) Install appropriately rated lamp as shown on the relamp label found on the inside of upper trim.
5.) Install lower reflector assembly by pushing it up through the plaster frame until flange is firmly against ceiling surface.
6.) Make sure top of the lower reflector assembly is inside the lower edge of the upper reflector. If a gap is visible adjust yoke
down until no gap is visible.
WARNING: DO NOT ENERGIZE LAMPS IF ANY GAP BETWEEN UPPER AND LOWER TRIMS
EXISTS, AS THIS WILL RESULT IN A HIGH RISK OF FIRE IN THE CASE OF A LAMP FAILURE
www.prescolite.com Prescolite TollFree Technical Support 1.888.PRS.4TEC Hours: 8am - 5pm ET

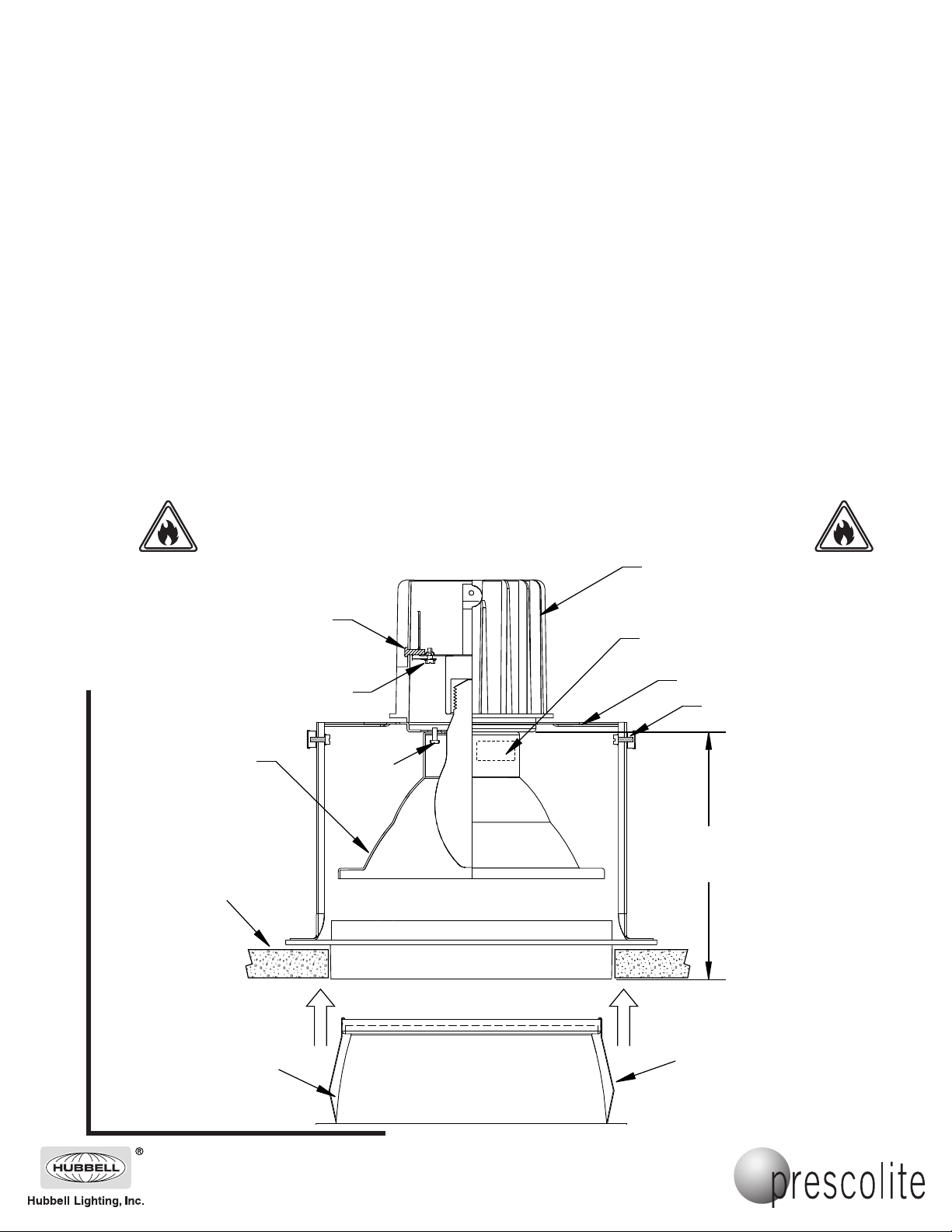

Upper
Reflector
Ceiling Surface
Stopping Screw
Socket Position
Locking Screw (2)
Heat Sink
Relamp Label
Yoke
Yoke Adjustment
Screw (2)
Reflector
Mounting
Screw (2)
RHD602 - 6”
RHD802 - 7”
Lower
Reflector
Assembly
701 Millennium Blvd, Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2007,
07/12/07
, All Rights Reserved - Printed in U.S.A.
