Prescolite EM Vertical User Manual

Download

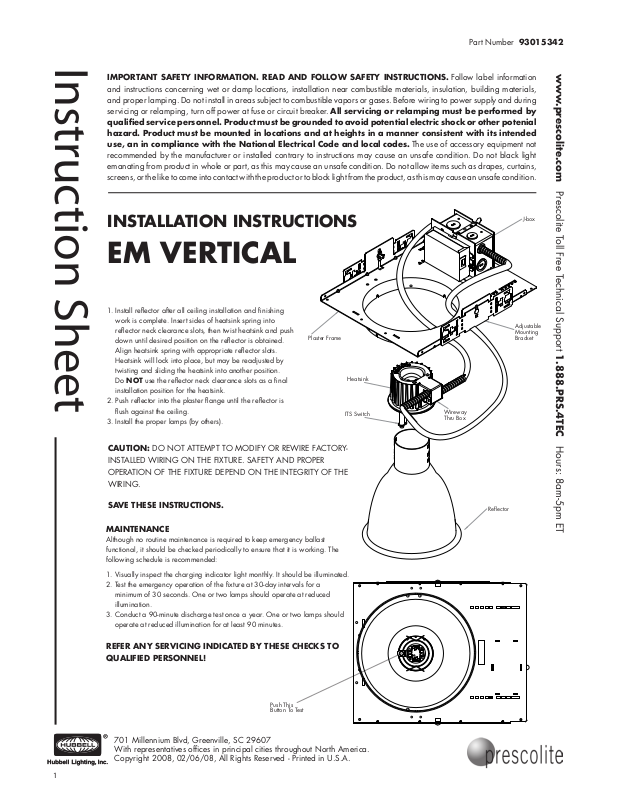

Page 1

Part Number 93015342

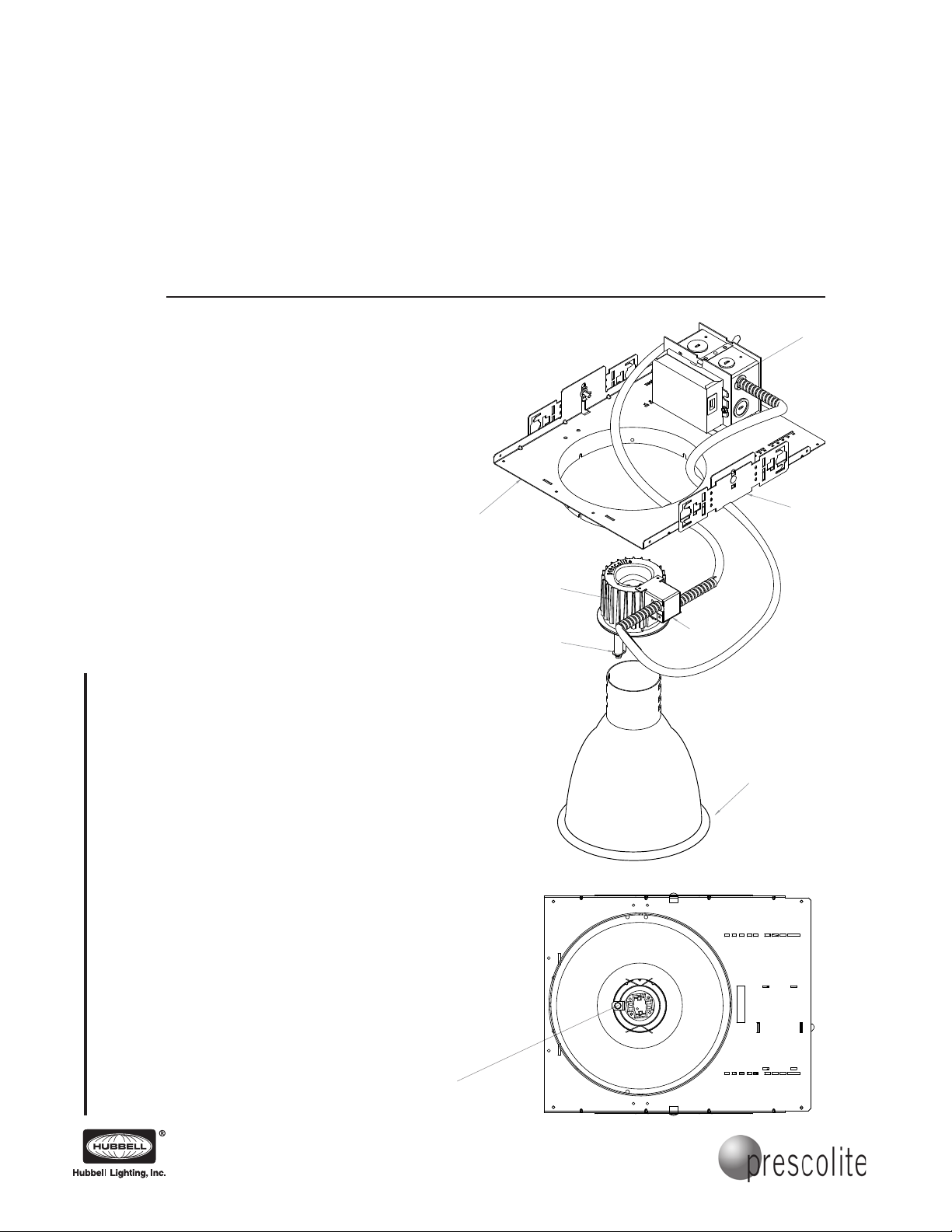

Reﬂector

Heatsink

Plaster Frame

J-box

Adjustable Mounting Bracket

ITS Switch

Wireway Thru Box

Push This Button To Test

Instruction Sheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW SAFETY INSTRUCTIONS. Follow label information and instructions concerning wet or damp locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualiﬁed service personnel. Product must be grounded to avoid potential electric shock or other potenial hazard. Product must be mounted in locations and at heights in a manner consistent with its intended use, an in compliance with the National Electrical Code and local codes. The use of accessory equipment not

recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not black light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens, or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

INSTALLATION INSTRUCTIONS

EM VERTICAL

1. Install reﬂector after all ceiling installation and ﬁnishing work is complete. Insert sides of heatsink spring into reﬂector neck clearance slots, then twist heatsink and push down until desired position on the reﬂector is obtained. Align heatsink spring with appropriate reﬂector slots. Heatsink will lock into place, but may be readjusted by twisting and sliding the heatsink into another position. Do NOT use the reﬂector neck clearance slots as a ﬁnal installation position for the heatsink.

2. Push reﬂector into the plaster ﬂange until the reﬂector is ﬂush against the ceiling.

3. Install the proper lamps (by others).

www.prescolite.com Prescolite Toll Free Technical Support 1.888.PRS.4TEC Hours: 8am-5pm ET

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORYINSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

SAVE THESE INSTRUCTIONS.

MAINTENANCE

Although no routine maintenance is required to keep emergency ballast functional, it should be checked periodically to ensure that it is working. The following schedule is recommended:

1. Visually inspect the charging indicator light monthly. It should be illuminated.

2. Test the emergency operation of the ﬁxture at 30-day intervals for a

minimum of 30 seconds. One or two lamps should operate at reduced illumination.

3. Conduct a 90-minute discharge test once a year. One or two lamps should

operate at reduced illumination for at least 90 minutes.

REFER ANY SERVICING INDICATED BY THESE CHECKS TO QUALIFIED PERSONNEL!
