Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93011921
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

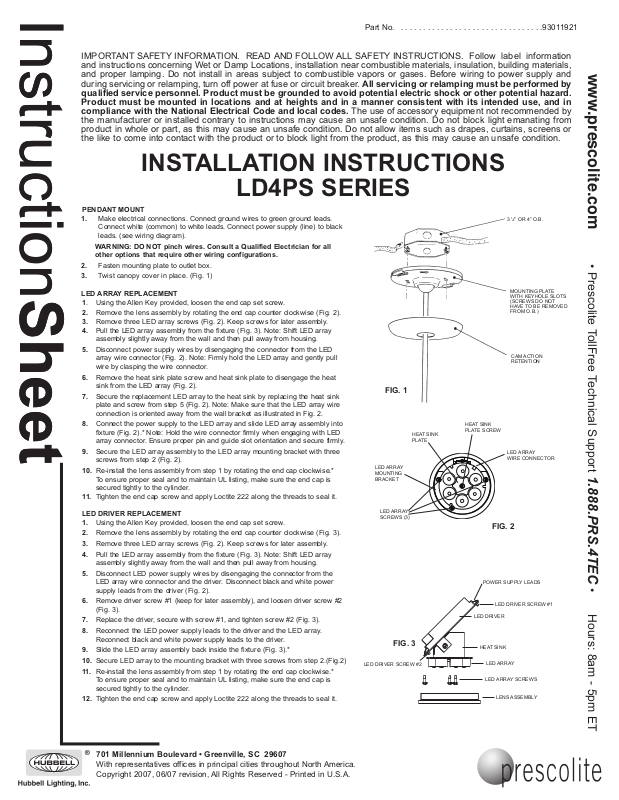

INSTALLATION INSTRUCTIONS
LD4PS SERIES
PENDANT MOUNT
.
1
ake electrical connections. Connect ground wires to green ground leads.
M
Connect white (common) to white leads. Connect power supply (line) to black
leads. (see wiring diagram).
ARNING: DO NOT pinch wires. Consult a Qualified Electrician for all
W
other options that require other wiring configurations.
.
asten mounting plate to outlet box.
2
F
3. Twist canopy cover in place. (Fig. 1)
ED ARRAY REPLACEMENT
L
Using the Allen Key provided, loosen the end cap set screw.
.
1
emove the lens assembly by rotating the end cap counter clockwise (Fig. 2).
2.R
3. Remove three LED array screws (Fig. 2). Keep screws for later assembly.
4. Pull the LED array assembly from the fixture (Fig. 3). Note: Shift LED array
ssembly slightly away from the wall and then pull away from housing.
a
5. Disconnect power supply wires by disengaging the connector from the LED
array wire connector (Fig. 2). Note: Firmly hold the LED array and gently pull
wire by clasping the wire connector.
6. Remove the heat sink plate screw and heat sink plate to disengage the heat
sink from the LED array (Fig. 2).
7. Secure the replacement LED array to the heat sink by replacing the heat sink
plate and screw from step 5 (Fig. 2). Note: Make sure that the LED array wire
connection is oriented away from the wall bracket as illustrated in Fig. 2.
8. Connect the power supply to the LED array and slide LED array assembly into
fixture (Fig. 2).* Note: Hold the wire connector firmly when engaging with LED
array connector. Ensure proper pin and guide slot orientation and secure firmly.
9. Secure the LED array assembly to the LED array mounting bracket with three
screws from step 2 (Fig. 2).
10. Re-install the lens assembly from step 1 by rotating the end cap clockwise.*
To ensure proper seal and to maintain UL listing, make sure the end cap is
secured tightly to the cylinder.
11. Tighten the end cap screw and apply Loctite 222 along the threads to seal it.
LED DRIVER REPLACEMENT
1.
Using the Allen Key provided, loosen the end cap set screw.
2. Remove the lens assembly by rotating the end cap counter clockwise (Fig. 3).
3. Remove three LED array screws (Fig. 2). Keep screws for later assembly.
4. Pull the LED array assembly from the fixture (Fig. 3). Note: Shift LED array
assembly slightly away from the wall and then pull away from housing.
5. Disconnect LED power supply wires by disengaging the connector from the
LED array wire connector and the driver. Disconnect black and white power
supply leads from the driver (Fig. 2).
6. Remove driver screw #1 (keep for later assembly), and loosen driver screw #2
(Fig. 3).
7. Replace the driver, secure with screw #1, and tighten screw #2 (Fig. 3).
8. Reconnect the LED power supply leads to the driver and the LED array
Reconnect black and white power supply leads to the driver.
9. Slide the LED array assembly back inside the fixture (Fig. 3).*
10. Secure LED array to the mounting bracket with three screws from step 2.(Fig.2)
11. Re-install the lens assembly from step 1 by rotating the end cap clockwise.*
To ensure proper seal and to maintain UL
secured tightly to the cylinder.
12. Tighten the end cap screw and apply Loctite 222 along the threads to seal it.
listing, make sure the end cap is
.
FIG. 1
HEA
PLATE
RRAY
A
LED
MOUNTING
BRACKET
LED ARRAY
SCREWS (3)
FIG. 3
LED DRIVER SCREW #2
HEAT SINK
SINK
T
PLATE SCREW
LED DRIVER
HEA
1
3
OR 4” O.B.
⁄4”
MOUNTING PLATE
ITH KEYHOLE SLOTS
W
(SCREWS DO NOT
HAVE TO BE REMOVED
ROM O.B.)
F
AM ACTION
C
RETENTION
RRAY
A
LED
WIRE CONNECT
FIG. 2
POWER SUPPLY LEADS
LED DRIVER SCREW #1
SINK
T
LED ARRAY
SCREWS
Y
ARRA
LED
LENS ASSEMBLY
OR
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
701 Millennium Boulevard • Greenville, SC 29607
With representatives of
fices in principal cities throughout North
America.
Copyright 2007, 06/07 revision, All Rights Reserved - Printed in U.S.A.
