InstructionSheet

TANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information

IMPOR and instructions concerning W and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn of

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by

the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

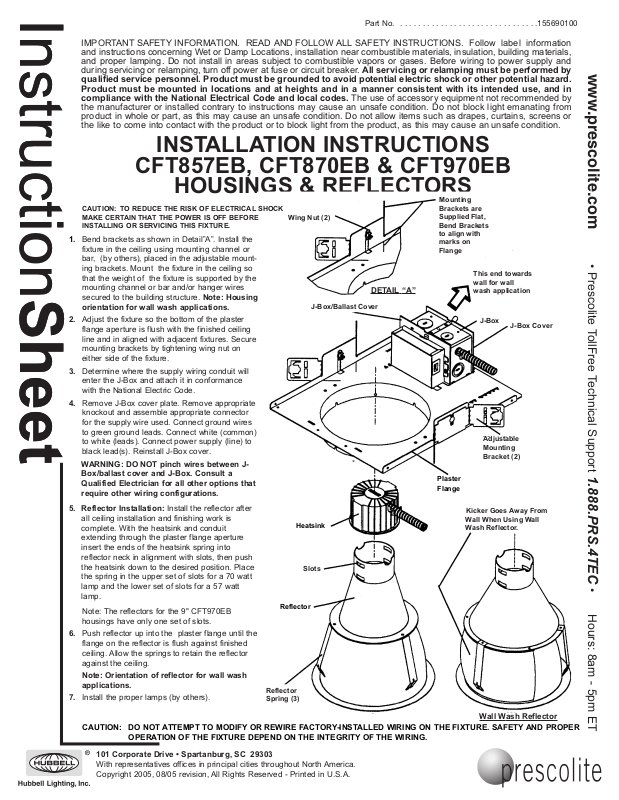

INSTALLATION INSTRUCTIONS

CFT857EB, CFT870EB & CFT970EB

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155690100

et or Damp Locations, installation near combustible materials, insulation, building materials,

f power at fuse or circuit breaker.

All servicing or relamping must be performed by

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

HOUSINGS & REFLECTORS

CAUTION: MAKE CERTAIN THAT THE POWER IS OFF BEFORE INST

Bend brackets as shown in Detail”A”. Install the fixture in the ceiling using mounting channel or bar ing brackets. Mount the fixture in the ceiling so that the weight of the fixture is supported by the mounting channel or bar and/or hanger wires secured to the building structure.

orientation for wall wash applications.

Adjust the fixture so the bottom of the plaster

flange aperture is flush with the finished ceiling line and in aligned with adjacent fixtures. Secure mounting brackets by tightening wing nut on either side of the fixture.

3. Determine where the supply wiring conduit will enter the J-Box and attach it in conformance with the National Electric Code.

4. Remove J-Box cover plate. Remove appropriate knockout and assemble appropriate connector for the supply wire used. Connect ground wires to green ground leads. Connect white (common) to white (leads). Connect power supply (line) to black lead(s). Reinstall J-Box cover.

WARNING: DO NOT pinch wires between JBox/ballast cover and J-Box. Consult a Qualified Electrician for all other options that require other wiring configurations.

5. Reflector Installation:

all ceiling installation and finishing work is complete. With the heatsink and conduit extending through the plaster flange aperture insert the ends of the heatsink spring into reflector neck in alignment with slots, then push the heatsink down to the desired position. Place the spring in the upper set of slots for a 70 watt lamp and the lower set of slots for a 57 watt lamp.

Note: housings have only one set of slots.

6. Push reflector up into the plaster flange until the flange on the reflector is flush against finished ceiling. Allow the springs to retain the reflector against the ceiling.

Note: Orientation of reflector for wall wash applications.

7. Install the proper lamps (by others).

TO REDUCE THE RISK OF ELECTRICAL SHOCK

ALLING OR SERVICING THIS FIXTURE.

, (by others), placed in the adjustable mount-

Note: Housing

Install the reflector after

The reflectors for the 9" CFT970EB

Reflector

Reflector Spring (3)

ing Nut (2)

J-Box/Ballast Cover

Heatsink

Slots

DETAIL “A”

Mounting Brackets are Supplied Flat, Bend Brackets to align with marks on Flange

This end towards wall for wall wash application

Plaster Flange

Kicker Goes Wall When Using Wall Wash Reflector.

J-Box

Adjustable Mounting Bracket (2)

J-Box Cover

way From

TTEMPT T

CAUTION:

101 Corporate Drive • Spartanburg, SC 29303

DO NOT OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

O MODIFY

fices in principal cities throughout North

OR REWIRE F

ACT

Wall Wash Reflector

-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER

America.

Page 2

InstructionSheet

Install the Housing Per Instructions on Page 1

1. Reflector Istallation, 2-Piece Reflector:

the reflector after all ceiling installation and finishing work is complete. Separate the upper and lower reflectors by disengaging the two reflect or clamps. Apply thumb pressure up and outwards to release the clamps. With the heatsink and conduit extending through the plaster flange aperture insert the ends of the heatsink spring into upper reflector neck in alignment with slots, push the heatsink down to the desired position. Place the heatsink spring in the upper set of slots for a 70 watt lamp and the lower set of slots for a 57 watt lamp.

Note: The reflectors for the 9" CFT970EB housing have only one set of slots.

2. Install the lamp(s).

3. Re-assemble the upper and lower reflectors with

the reflector clamps.

4. Push the assembled reflector up into the plaster

flange until the flange on the reflector is flush against the finished ceiling. Allow the three reflector springs to retain the reflector against the ceiling.

Install

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155690100

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

Heatsink

Upper Reflector

Reflector Clamp (2)

Lower Reflector

Slots

Lens

Reflector Spring (3)

101 Corporate Drive • Spartanburg, SC 29303

fices in principal cities throughout North

America.
