Mini Hi-Fi System

C505

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM1

3139 115 21451

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Minisistema de Audio Modelo : FW-C505/21 Alimentación: 110–127 / 220–240V~; 50–60 Hz Consumo: 100 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Norte 45, # 669,

Localidad y Tel: C.P. 02300 México D.F.,

Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________

ATENCIÓN

Col. Industrial Vallejo

Tel. 5728-4200

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM2

3139 115 21451

2 1

STANDBY-ON

CHANGE

DISC

DISC DIRECT PLAY

DISC

OPEN• CLOSE

CHANGER

CD/CD-R/CD-RW COMPATIBLE

CD SYNCHRO RECORDING

MINI HIFI SYSTEM

FW-

VOLUME

™ ¡ ) (

& $

TAPE 1

0 ! @

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

•

MAX BASS PORT

CDR/DVD

INTERACTIVE VU METER

MAX

SOUND

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

TUNER

TAPE AUX

TAPE 1•2

TAPE 2

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM3

3139 115 21451

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM4

3139 115 21451

English ------------------------------------------------ 6

Français -------------------------------------------- 29

Español --------------------------------------------- 52

-------------------------------------------------------- 75

English

Français

Español

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM5

3139 115 21451

Contents

English

General Information

Environmental Information ................................ 7

Supplied Accessories ........................................... 7

Safety Information ................................................ 7

Preparations

Rear Connections ............................................ 8–9

Optional Connections ........................................ 9

Inserting batteries into the remote

control .................................................................... 9

Controls

Controls on the system and remote

control ........................................................... 10–11

Basic Functions

Plug and Play ........................................................ 12

Demonstration mode ........................................ 13

Switching the system on ................................... 13

Switching the system to Standby mode ........ 13

Power Saving Automatic Standby .................... 13

Display mode....................................................... 13

Volume Control .................................................. 14

Sound Navigation ......................................... 14-15

CD Operation

Discs for Playback .............................................. 16

Loading Discs ...................................................... 16

Disc Playback ....................................................... 17

Programming the disc tracks .................... 17–18

Repeat ................................................................... 18

Shuffle .................................................................... 18

Radio Reception

Storing Preset Radio Stations ................... 19–20

Tuning to Preset Radio Stations ...................... 20

Erasing a Preset Radio Station ........................ 20

Changing Tuning Grid ........................................ 20

Tape Operation/Recording

Tape Playback ............................................... 21–22

General Information on Recording ................ 22

Preparation for Recording ............................... 22

One Touch Recording ........................................ 22

CD Synchro Recording ..................................... 23

Dubbing Tapes ..................................................... 23

External Sources

Listening to External Sources .......................... 23

Clock/Timer

View Clock .......................................................... 24

Clock Setting ....................................................... 24

Timer Setting ................................................ 24–25

Sleep Timer Setting ............................................ 25

Specifications ........................................... 26

Maintenance.............................................. 27

Troubleshooting ............................. 27–28

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM6

3139 115 21451

General Information

IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Supplied accessories

– Remote control – Batteries (two AA size) for remote control – AM loop antenna – FM wire antenna – AC power cord

Safety Information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

● If the system is brought directly from a cold to a

warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or lubricated.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM7

3139 115 21451

Preparations

English

AM loop

antenna

FM wire antenna

speaker

(right)

SUBWOOFER

Rear Connections

The type plate is located at the rear of the system.

A Pow er

Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. – All other connections have been made.

WARNING! – For optimal performance, use only the original power cable. – Never make or change any connections with the power switched on.

AUX/ CDR

OUT

— —

SPEAKERS 6Ω

AM ANTENNA

VOLTAGE

SELECTOR

110V127V

220V240V

FM ANTENNA

MAINS

VOLTAGE SELECTOR

110V127V

220V240V

(left)

AC power cord

B Antennas Connection

Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.

AM Antenna

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

FM Antenna

speaker

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM8

● For better FM stereo reception, connect an

outdoor FM antenna to the FM ANTENNA terminal.

3139 115 21451

Preparations

C Speakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS (FRONT) terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".

● Fully inser t the stripped por tion of the speaker

wire into the terminal as shown.

Notes: – For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Optional Connections

The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.

Inserting batteries into the Remote Control

Insert two batteries (Type R06 or AA) into the remote control with the correct polarity as indicated| by the + and - symbols inside the battery compar tment.

CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed off properly.

English

Connecting other equipment to your system

Connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals.

Notes: – If you are connecting equipment with a mono output (a single audio out terminal), connect it to the AUX/CDR IN left terminal. Alternatively, you can use a “single to double” cinch cable (still be mono sound).

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM9

3139 115 21451

Controls (main system’s illustration on page 3)

English

Controls on the system and remote control

1 STANDBY ON y

– to switch the system on or to Standby mode.

2 DISPLAY SCREEN

– to view the cur rent status of the system.

3 DISC TRAY 4 DISC CHANGE

– to change disc(s).

5 DISC 1 / DISC 2 / DISC 3 (CD DIRECT)

– to select a disc tray for playback.

6 OPEN•CLOSE

– to open or close the disc tray.

7 INTERACTIVE VU METER

– to show the VU (volume unit) meter in music or

volume mode depending on the display mode selected.

8 VOLUME

– to increase or decrease the volume.

9 Tape Deck Operation

AUTO REPLAY

– to select continuous playback in either AUTO

PLAY or ONCE mode only.

DUBBING

– to dub a tape .

REC

– to star t recording on tape deck 2.

0 SOUND NAVIGATION

– to select the desired sound feature : DSC, VAC,

or DBB.

! JOG CONTROL

– to select the desired sound effect for the

selected sound feature.

DSC ..................DIGITAL, ROCK, POP, NEWAGE,

CLASSIC or ELECTRIC.

VAC .................. HALL, CONCERT, CINEMA,

DISCO, ARCADE or CYBER.

DBB .................. BEAT, PUNCH or BLAST.

@ INCREDIBLE SURROUND (IS)

– to activate or deactivate the surround sound

effect.

# MAX SOUND (MAX ON/OFF)

– to activate or deactivate the optimal mix of

various sound features.

$ ç

– to open the tape deck door.

% TAPE DECK 2 ^ TAPE DECK 1 & SOURCE – to select the following:

CD / (CD 1•2•3)

– to select disc tray 1, 2 or 3.

TUNER / (BAND)

– to select waveband : FM or MW.

TAPE / (TAPE 1• 2)

– to select tape deck 1 or 2.

AUX / (CDR/DVD)

– to select a connected external source :

CDR/DVD or AUX (auxiliary) mode.

* n

– to connect headphones.

( Mode Selection

PLAY PAUSE ÉÅ

for CD .................to start or interrupt playback.

for TAPE .............. to start playback.

for PLUG & PLAY…(on the system only) to

initiate and start plug & play mode.

SEARCH• TUNING à á

for CD .................to search backward/forward.

for TUNER ........ to tune to a lower or higher

radio frequency.

for TAPE .............. to rewind or fast forward.

for CLOCK ....... (on the system only) to set the

hour.

DEMO STOP/CLEAR Ç

for CD .................to stop playback or to clear a

programme.

for TUNER ........ to stop programming.

................................. (on the system only) to delete the

preset radio station.

for TAPE .............. to stop playback or recording.

................................. to reset tape counter number.

for DEMO .........(on the system only) to activate/

deactivate the demonstration.

for CLOCK ....... (on the system only) to exit clock

setting or cancel timer. for PLUG & PLAY…(on the system only) to exit

plug & play mode.

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM10

3139 115 21451

) 9 8

(

∞

•

≥ (

5 ≤

PREV / PRESET / NEXT í ë

for CD ................. to skip to the beginning of the

current, previous, or next track.

for TUNER ........ to select a preset radio station.

for CLOCK .......(on the system only) to set the

minute.

) DISPLAY

– to select different screen display mode :

NORMAL, MODE 1, MODE 2, or MODE 3.

¡ PROG (PROGRAM)

for CD ................. to programme disc tracks.

for TUNER ........ to programme preset radio

stations.

for CLOCK .......(on the system only) to select 12-

or 24-hour clock mode.

™ CLOCK•TIMER

– to view the clock, set the clock or set the timer.

£ MUTE

– to interrupt or resume sound reproduction.

≤ CLOCK

– to view the clock display.

∞ REPEAT

– to playback track(s)/disc(s)/programme

repeatedly.

§ SHUFFLE

– to playback all available discs and their tracks/

programme in random order.

≥ TIMER ON/OFF

– to activate or deactivate the timer.

• SLEEP

– to activate, deactivate or set the sleep timer.

ª B

– to switch the system to Standby mode.

Controls

English

Notes for remote control: – First, select the source you wish to control by pressing one of the source select keys on the remote control (CD 123 or TUNER, for example). – Then select the desired function (É,

, for example).

pg 001-028/C505/21-Eng 12/27/01, 10:56 AM11

3139 115 21451

Basic Functions

English

STANDBY-ON

DEMO STOP/

CLEAR

MINI HIFI SYSTEM

FW-

DISPLAY

PLAY•

PAUSE

•

IMPORTANT! Before you operate the system, complete the preparation procedures.

Plug and Play

Plug and Play allows you to store all available radio stations automatically.

If Plug and Play has not been installed

1 When you turn on the system, "AUTO

INSTALL - PRESS PLAY" will be displayed.

2 Press PLAYÉ on the system to start

installation. ➜ "INSTALL" will be displayed and followed by "TUNER" and then "AUTO".

➜ PROG will start flashing. ➜ The system will search for all radio stations

on the FM band, then the MW band. ➜ All available radio stations with sufficient signal strength will be stored automatically. ➜ The system will stop searching when all the available radio stations are stored or when the memory for 40 preset radio stations is used. ➜ The last preset radio station will play when Plug and Play is completed.

CLOCK•

PROG

TIMER

CD 1•2•3

TAPE AUX

TAPE 1•2

VOLUME

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

•

MAX BASS PORT

CDR/DVD

INTERACTIVE VU METER

MAX

SOUND

AUTO

DUBBING REC

REPLAY

TUNER

To reinstall Plug and Play

1 In Standby or Demonstration mode, press and

hold PLAYÉ on the system until "AUTO INSTALL - PRESS PLAY" is displayed.

2 Press PLAYÉ again to start installation.

➜ All previously stored radio stations will be replaced.

To exit without storing the Plug and Play

● Press Çon the system.

Notes: – When the power is turned on, the disc tray may open and close to initialise the system. – If you do not complete Plug and Play installation, Plug and Play will be reinitiated the next time you turn on the power. – If no stereo frequency is detected during Plug and Play, "CHECK ANTENNA" will be displayed. – During Plug and Play, if no button is pressed within 15 seconds, the system will exit Plug and Play mode automatically.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM12

3139 115 21451

Basic Functions

Demonstration mode

The system has a demonstration mode that shows the various features offered by the system.

To activate the demonstration

● In Standby mode, press and hold DEMO

STOPÇon the system until "DEMO ON" is

displayed. ➜ The demonstration will begin.

To deactivate the demonstration

● Press and hold DEMO STOP Çon the system

until "DEMO OFF" is displayed. ➜ The system will switch to Standby mode.

Note: – Even if you remove the AC power cord and reconnect it to the wall socket, the demonstration will remain off until you activate it again.

Switching the system on

In Standby/Demonstration mode

● Press STANDBY ON. ➜ The system will switch to the last selected

source.

● Press CD, TUNER, TAPE, AUX (or CD 123, TUNER, TAPE 1/2 or AUX/CDR on the

remote control).

➜ The system will switch to the selected source.

● Press any one of the DISC DIRECT PLAY

buttons or OPEN•CLOSE. ➜ The system will switch to CD mode.

Switching the system to Standby mode

In Demonstration mode

● Press and hold DEMO STOP Ç on the system.

In any other source mode

● Press STANDBY ON (or B on the remote

control). ➜ The clock will appear on the display when the system is in Standby mode.

Power Saving Automatic Standby

As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 30 minutes after a disc or tape has stopped playing.

Display mode

There are four different display modes for selection.

● Press DISPLAY repeatedly to select NORMAL,

MODE 1, MODE 2, or MODE 3.

NORMAL ........All available LEDs will light up

and the display screen will have full brightness. The VU meter will be in music mode.

MODE 1 ..........All available LEDs will light up

and the display screen will have full brightness. The VU meter will be in volume mode.

MODE 2 ..........All available LEDs will light up

and the display screen will be at half brightness. The VU meter will be in music mode.

MODE 3 ..........The display screen will be at half

brightness. The VU meter and all LEDs will be off.

English

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM13

3139 115 21451

Basic Functions

English

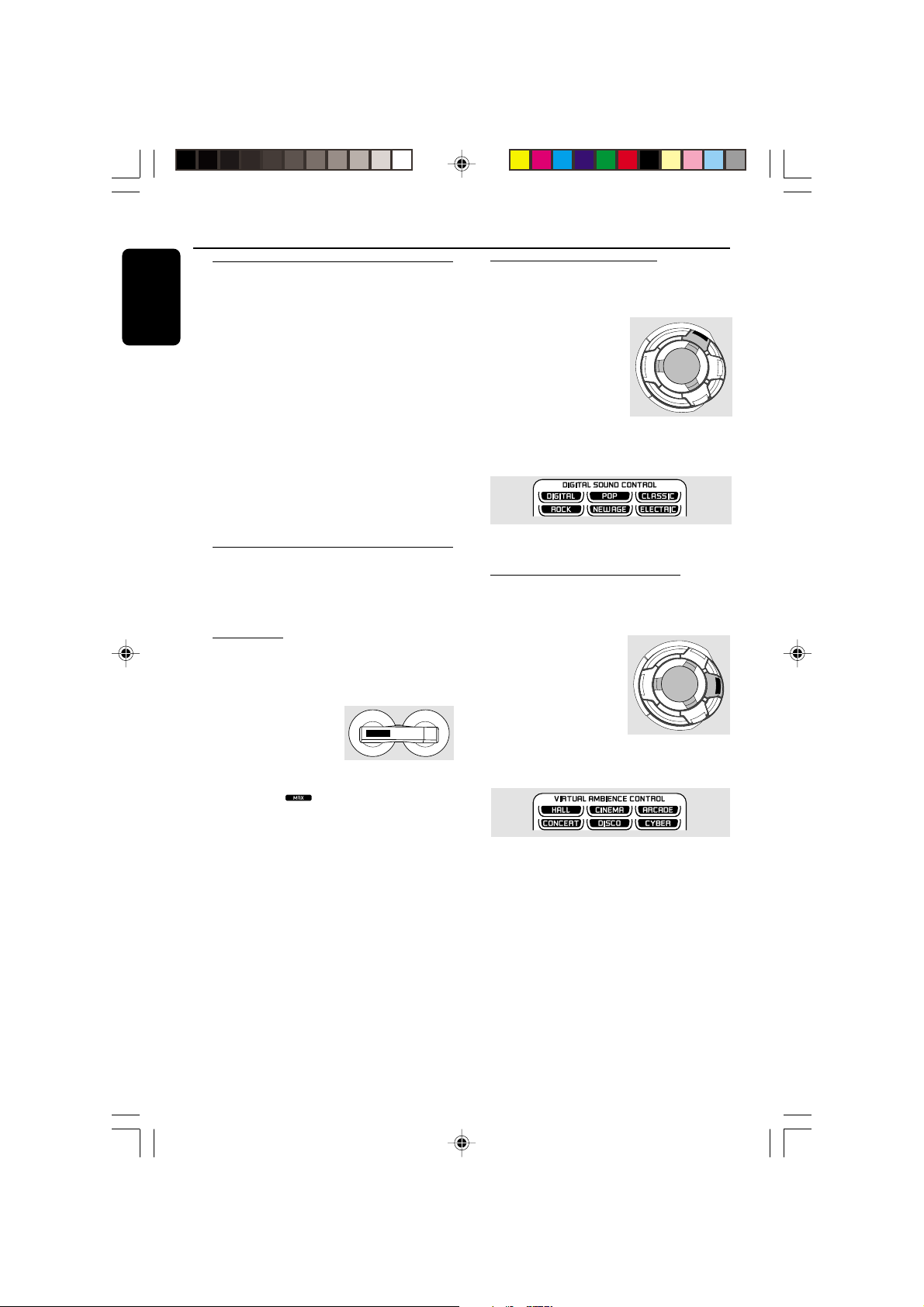

Volume Control

Adjust VOLUME to increase (turn knob clockwise or press VOLUME +) or decrease (turn knob anti-clockwise or press VOLUME -) the sound level.

To listen through the headphones

● Connect the headphones plug to the n socket at the front of the system. ➜ The speakers will be muted.

To switch off the volume temporarily

● Press MUTE on the remote control. ➜ Playback will continue without sound and

"MUTE" will be displayed.

● To restore the volume, press MUTE again or increase the VOLUME level.

Sound Navigation

For optimal sound listening, select only one of the following navigation sound controls at a time : MAX sound, DSC or VAC.

MAX Sound

MAX sound provides the best mixture of various sound features (DSC, VAC, DBB for example).

● Press MAX SOUND (or MAX ON/OFF on the

remote control) repeatedly to activate/ deactivate the optimal sound. ➜ If activated, will appear on the display and the MAX SOUND button lights up. ➜ If deactivated, “MAX OFF” will be displayed.

Note: – When MAX sound is selected, all other sound navigation will switch off automatically.

MAX

SOUND

DSC (Digital Sound Control)

The DSC feature enables you to adjust the system to suit your type of music.

1 Press DSC.

➜ DSC button lights up

2 Adjust the JOG

CONTROL (or press DSC on the remote

control repeatedly) to select the desired Digital Sound Control effect : DIGITAL, ROCK, POP, NEWAGE, CLASSIC or ELECTRIC. ➜ The selected DSC will be highlighted.

Note: – For a neutral sound effect, select CLASSIC.

VAC (Virtual Ambience Control)

The VAC feature enables you to adjust the system to select a type of environment.

1 Press VAC .

➜ VAC button lights up.

2 Adjust the JOG

CONTROL (or press VAC on the remote

control repeatedly) to select the desired Vir tual Ambience Control effect : HALL, CONCERT, CINEMA, DISCO, ARCADE or CYBER. ➜ The selected VAC will be highlighted.

Note: – When you select VAC, Incredible Surround will switch on automatically.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM14

3139 115 21451

Basic Functions

DBB (Dynamic Bass Boost)

There are three DBB settings to enhance the bass response.

1 Press DBB.

➜ DBB button lights up.

2 Adjust the JOG

CONTROL (or press DBB on the remote

control repeatedly) to select the desired Dynamic Bass Boost level : BEAT, PUNCH, BLAST or DBB OFF. ➜ If “BEAT“ is selected, will appear on the display. ➜ If “PUNCH“ is selected, will appear on the display. ➜ If “BLAST“ is selected, will appear on the display. ➜ If “DBB OFF” is selected, DBB will be deactivated.

Note: – Some discs or tapes might be recorded in high modulation, which causes a distortion at high volume. If this occurs, deactivate DBB or reduce the volume.

Automatic DSC-DBB / VAC-DBB selection

The best DBB setting is generated automatically for each DSC or VAC selection. You can manually select the DBB setting that best suits your listening environment.

Incredible Surround

The Incredible Surround magnifies the virtual distance between the front speakers for an incredibly wide, enveloping, stereo effect.

● Press INCREDIBLE

SURROUND (or IS on

the remote control) repeatedly to activate/ deactivate the surround sound effect.

English

➜ If activated, will appear on the display and the INCREDIBLE SURROUND button lights up. ➜ If deactivated, “IS OFF” will be displayed.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM15

3139 115 21451

CD Operation

CD CHANGER

CLOCK.TIMER

VOLUME

DEMO

PRESET TUNING

SHUFFLE TIMER

PLAY MODE

SIDE

SET CLOCK

TIMER SET

BAND

RECORD

DUBBING

CD TAPE

PROGRAM

CLEAR

RDS MODE

TIMER

DBB

PROGRAM

AMPM

SHUFFLE FMMW

LWSW

STEREO

FRONT BACK

RECORD

HSD

DISC CHANGE

DISC 1 DISC 2 DISC 3

OPEN•CLOSE

English

CHANGE

DISC

DISC DIRECT PLAY

DISC

OPEN•

CHANGER

MINI HIFI SYSTEM

FW-

STANDBY-ON

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

•

MAX BASS PORT

CDR/DVD

INTERACTIVE VU METER

MAX

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

TAPE AUX

TAPE 1•2

TUNER

IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the changer mechanism. – Do not load more than one disc into each tray.

Discs for Playback

This system can playback all digital audio CD, finalised digital audio CD-Recordable (CDR) discs and finalised digital audio CD-Rewritable (CDRW)discs.

CD/CD-R/CD-RW COMPATIBLE

CD SYNCHRO RECORDING

VOLUME

SOUND

Loading Discs

1 Press CD to select CD mode. 2 Press OPEN•CLOSE to open the disc tray. 3 Load up to two discs on the individual disc trays.

To load the third disc, press DISC CHANGE.

➜ The disc tray will rotate until the empty tray is ready for loading.

4 Press OPEN•CLOSE to close the disc tray.

➜ "READING" will be displayed. The selected disc, total number of tracks and the playing time will appear on the display. ➜ A lighted button indicates that a disc is loaded on the disc tray.

Notes:

– Load the discs with the label side facing up. – To ensure good system performance, wait until

the disc tray completely reads the disc(s) before proceeding.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM16

3139 115 21451

CD Operation

Disc Playback

a disc is loaded in the disc tray

the current selected disc tray is empty

the current selected disc tray is loaded or playing

To play all discs on the disc tray

● Press PLAYÉ. ➜ All the available discs will play once, then stop. ➜ During playback, the selected disc tray, track

number and elapsed playing time of the current track will appear on the display.

To play one disc only

● Press the DISC DIRECT PLAY button : DISC 1, DISC 2 or DISC 3.

➜ The selected disc will play once, then stop.

To interrupt playback

● Press PAUSEÅ.

● To resume playback, press PLAYÉ again.

To stop playback

● Press Ç.

To search for a particular passage during playback

● Press and hold à or á and release it when the desired passage is located. ➜ During searching, the volume will be reduced.

To select a desired track

● Press í or ë repeatedly until the desired track appears on the display.

● If playback is stopped, press PLAYÉ to start playback.

Note: – In Shuffle mode, pressingí will cause the player to skip only to the beginning of the current track.

To skip to the beginning of the current track during playback

● Press í once.

Replace discs during playback

1 Press DISC CHANGE. 2 To change the inner disc, press DISC

CHANGE again.

➜ "DISC CHANGE" will be displayed and the disc will stop playing. ➜ The disc tray will close to retrieve the inner disc, then reopen with the inner disc accessible.

Programming the disc tracks

Programming tracks is possible when playback is stopped. Up to 40 tracks can be stored in the memory in any order.

1 Load the desired discs on the disc tray (refer to

“Loading Discs”).

2 Press PROG to start programming.

➜ PROG will start flashing.

3 Press CD (CD 1•2•3) or DISC 1/2/3 button

to select a disc.

4 Press í or ë repeatedly to select the desired

track.

5 Press PROG to store the track.

¶ Repeat steps 3–5 to store other discs and

tracks.

6 Press PLAYÉ to start programme playback.

➜ "PLAY PROGRAM" will be displayed.

● To end programming without star ting playback,

press Ç once . ➜ The total number of tracks programmed and the total playing time will appear on the display.

Notes: – If the total playing time is more than "99:59" or if one of the programmed tracks has a number greater than 30, then "--:--" will appear on the display instead of the total playing time. – If you attempt to programme more than 40 tracks, "PROGRAM FULL" will be displayed. – If you press any of the DISC DIRECT PLAY buttons, the system will play the selected disc or track, and the stored programme will be ignored temporarily. The PROG symbol also will disappear temporarily from the display. It will reappear when playback of the selected disc ends. – During programming, if no button is pressed within 20 seconds, the system will exit the Programme mode automatically.

English

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM17

3139 115 21451

CD Operation

English

To review the programme

● Stop playback and press í or ë repeatedly.

● To exit review mode, press Ç.

To erase the entire programme

● Press Ç once when playback is stopped or twice during playback.

➜ "PROGRAM CLEARED" will be displayed. ➜ PROG will disappear from the display.

Note: – The programme will be erased when the system is disconnected from the power supply or when the disc tray is opened.

Repeat

The current track, a disc, all available discs or all programmed tracks can be played repeatedly.

1 Press REPEAT on the remote control

repeatedly to select various repeat modes.

● In normal playback ➜ "TRACK" – to repeat the current track.

"DISC" – to repeat the entire disc. "ALL DISC" – to repeat all available discs.

➜ RPT appears on the display.

● In programme playback ➜ "TRACK" – to repeat the current

programmed track. "PROGRAM" – to repeat all programmed tracks.

➜ RPT and PROG will appear on the display.

● The selected track/disc(s)/programme will now

be played repeatedly until you press Ç.

2 To resume normal playback, press REPEAT

until the "OFF" mode is displayed. ➜ RPT will disappear from the display.

Note: – Selecting SHUFFLE during repeat playback will cancel all repeat modes.

Shuffle

All the available discs and their tracks or all the programmed tracks can be played in random order.

1 Press SHUFFLE on the remote control.

➜ "SHUFFLE" and SHUFF will appear on the display.

● The discs and the tracks will be played in

random order until you press Ç.

2 To resume normal playback, press SHUFFLE

again. ➜ SHUFF will disappear from the display.

When you select REPEAT mode during shuffling

● In normal shuffled playback

➜ "TRACK" and "ALL DISC" repeat modes are

available for selection. ➜ RPT and SHUFF will appear on the display.

● In programme shuffled playback

➜ "TRACK" or "PROGRAM" repeat modes are

available for selection. ➜ RPT , SHUFF and PROG will appear on the display.

For Recording, please refer to “Tape Operation/Recording”.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM18

3139 115 21451

STANDBY-ON

Radio Reception

MINI HIFI SYSTEM

FW-

VOLUME

English

BAND

SOURCE

CDR/DVD

•

CONTROL (DAC)

•

INTERACTIVE VU METER

MAX

SOUND

MAX BASS DYNAMIC AMPLIFICATION

MAX BASS PORT

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

TAPE AU X

TAPE 1•2

TUNER

Storing Preset Radio Stations

You can store up to 40 preset radio stations in the memory.

Automatic Preset Programming

● Plug and Play setting (refer to “Basic Functions Plug and Play”).

1 Press TUNER (BAND) to select TUNER mode.

➜ "TUNER" will be displayed. A few seconds later, the current radio frequency will appear on the display. ➜ If an FM station is received in stereo, will appear on the display.

To begin automatic preset from a desired preset number

● Press í or ë to select the desired preset number. ➜ If a radio station has been stored in one of the presets, it will not be stored again under another preset number.

2 Press and hold PROG until "AUTO" appears on

the display.

➜ PROG will start flashing. ➜ The system will start searching for all radio

stations on the FM band, then the MW band. ➜ All available radio stations with sufficient signal strength will be stored automatically. ➜ The system will stop searching when all the available radio stations are stored or when the memory for 40 preset radio stations is used. ➜ The last preset radio station will then be played when completed.

To stop storing the automatic preset

● Press PROG or Ç on the system.

Note: – If no preset number is selected, automatic preset will begin from preset (1) and all your former presets will be overridden.

Manual Preset Programming

1 Press TUNER (BAND) repeatedly to select the

desired waveband : FM or MW.

2 Press PROG.

➜ PROG will start flashing. ➜ The next available preset number will be

displayed for selection.

3 Press and hold à or á until the frequency

indication starts to change, then release. ➜ The display will show "SEARCH" until a radio station with sufficient signal strength is found.

To store the radio station to another preset number

● Press í or ë to select the desired preset

number.

4 Press PROG again to store the radio station.

➜ PROG will disappear from the display.

● Repeat steps 2–4 to store other preset radio

stations.

Tuning to a weak radio station

● Press à or á briefly and repeatedly until the

optimal reception is found.

To stop storing the manual preset

● Press Ç on the system.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM19

3139 115 21451

Radio Reception

English

Notes: – If you attempt to store more than 40 preset radio stations, "PROGRAM FULL" will be displayed. – During programming, if no button is pressed within 20 seconds, the system will exit the Programme mode automatically.

Tuning to Preset Radio Stations

● Once you’ve preset the radio stations, press í or ë to select the desired preset number. ➜ The preset number, radio frequency, and waveband will appear on the display.

Erasing a Preset Radio Station

1 Press í or ë to select the preset radio station

to be erased.

2 Press and hold Çon the system until “PRESET

DELETED” appears on the display.

➜ The radio frequency remain on the display. ➜ The preset numbers of all other preset radio

stations in the band with higher numbers are also decreased by one.

● Repeat steps 1–2 to erase other preset radio stations.

For Recording, please refer to “Tape Operation/Recording”.

Changing Tuning Grid (not available for

all versions)

In North and South America, the frequency step between adjacent channels in the MW band is 10 kHz (9 kHz in some areas). The preset frequency step in the factory is 9 kHz.

Changing the tuning grid will erase all previously stored preset radio stations.

1 Disconnect the system from the AC power

supply (pull out the AC power cord).

2 While holding down TUNER and á on the

system, reconnect the system to the AC power supply.

➜ The display will show "GRID 9" or "GRID 10".

Notes: – GRID 9 and GRID 10 indicate that the tuning grid is in step of 9 kHz and 10 kHz respectively. – The FM tuning grid also will be changed from 50 kHz to 100 kHz or vice versa.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM20

3139 115 21451

STANDBY-ON

Tape Operation/Recording

MINI HIFI SYSTEM

FW-

VOLUME

English

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

•

MAX BASS PORT

CDR/DVD

INTERACTIVE VU METER

MAX

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

TAPE AU X

TAPE 1•2

TUNER

TAPE 1

IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged. It is not recommended for use in this system. – Store the tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV or speaker).

SOUND

TAPE 2

Tape Playback

1 Press çto open the tape deck door. 2 Insert a recorded tape and close the tape door.

● Load the tape with the open side down and the

full spool to the left.

3 Press TAPE (TAPE 1•2) repeatedly to select

tape deck 1 or tape deck 2. ➜ The selected tape deck number is displayed.

4 Press PLAYÉ to start playback.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM21

To stop playback

● Press Ç.

3139 115 21451

Tape Operation/Recording

English

To change the playback mode

● Press AUTO REPLAY repeatedly to select the different playback modes. ➜ "AUTO REPLAY" ( å ) or "ONCE" will appear on the display.

AUTO REPLAY …the tape will rewind

automatically at the end of playback and replay again. It will replay up to a maximum of 20 times until you press Ç.

ONCE ..............the tape will playback the

selected side once and then stop.

To rewind or fast forward when playback is stopped

1 Press à or á. 2 Press Ç when you reached the desired passage.

To reset tape counter number

● When in stop mode, pressÇ. ➜ “T1 000” or “T2 000” will be displayed.

Notes: – The tape counter will automatically set to zero after detecting end of tape.

General Information on Recording

● For recording, use only tape of IEC type I (normal tape).

● The recording level is set automatically, regardless of the position of the Volume, VAC, DSC and so forth.

● The tape is secured at both ends with leader tape. At the beginning and end of the tape, nothing will be recorded for six to seven seconds.

● To prevent accidental recording, break out the tab on the left shoulder of the tape side you want to protect.

● If “CHECK TAPE” is displayed, the protection

tab has been broken. Put a piece of clear adhesive tape over the opening.

IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only on tape deck 2.

Preparation for Recording

1 Press TAPE (TAPE 1•2) to select TAPE 2. 2 Load a recordable tape into tape deck 2 with full

spool to the left.

3 Prepare the source to be recorded.

CD – load the disc(s). TUNER – tune to the desired radio station. TAPE – load the prerecorded tape into tape

deck 1 with the full spool to the left.

AUX – connect external equipment.

When recording is in progress

➜ starts flashing.

● It is not possible to listen to another sources

except when dubbing tapes.

● It is not possible to activate the timer function.

One Touch Recording

1 Press CD, TUNER or AUX to select the

source.

2 Start playback of the selected source. 3 Press REC to start recording.

To stop recording

● Press Ç on the system.

Note: – One Touch Recording is not possible in TAPE mode, "SELECT SOURCE" will be displayed.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM22

3139 115 21451

Tape Operation/Recording

CD Synchro Recording

Press CD 1•2•3 to select the disc.

● Press í or ë to select the desired track to

start recording.

● You can programme the tracks in the order you

want them to be recorded (refer to “CD Operation - Programming the disc tracks”).

2 Press REC to start recording.

➜ The disc will start playback automatically.

To select another track during recording

1 Press PAUSEÅ to interrupt recording. 2 Pressí or ë to select the desired track. 3 Press PLAYÉ to resume recording.

To stop recording

● Press Ç.

➜ Recording and disc playback will stop

simultaneously.

Dubbing Tapes

1 Load the prerecorded tape in tape deck 1.

● You can set the tape to the desired passage

where recording will start.

2 Press DUBBING.

➜ Playing and recording will start simultaneously. ➜ "DUB OOO" will be displayed.

● Dubbing of tapes is possible on one side of the

tape only. To continue recording on the reverse side, at the end of side A, flip the tapes to side B and repeat the procedure.

To stop dubbing

● Press Ç.

Notes: – Dubbing of tapes is possible only from tape deck 1 to tape deck 2. – To ensure good dubbing, use tapes of the same length. – You can listen to another source while dubbing.

External Sources

English

SOURCE

CDR/DVD

BAND

•

CONTROL (DAC)

•

INTERACTIVE VU METER

MAX

SOUND

MAX BASS DYNAMIC AMPLIFICATION

MAX BASS PORT

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

PLAY•

PAUSE

•

CD 1•2•3

TAPE AUX

TAPE 1•2

TUNER

Listening to External Sources

1 Connect the audio out terminals of the external

equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX/CDR IN terminals of your system.

2 Press AUX (CDR/DVD) repeatedly to select

CDR/DVD mode or normal AUX mode. ➜ "CDR/DVD" or "AUX" will be displayed.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM23

● If the sound from the external source is

distorted, select CDR/DVD mode for listening.

Notes: – You are advised not to listen to and record from

the same source simultaneously.

– All the navigation sound control features (DSC or VAC for example) are available for selection. – Refer to the operating instructions for the connected equipment for details.

For Recording, please refer to “Tape Operation/Recording”.

3139 115 21451

Clock/Timer

English

MINI HIFI SYSTEM

FW-

STANDBY-ON

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

TIMER

REPLAY

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

TUNER

TAPE AU X

TAPE 1•2

View Clock

The clock (if it is set) will be shown in Standby mode.

To view the clock in any source mode (CD or TUNER for example)

● Press CLOCK•TIMER (or CLOCK on the

remote control).

➜ The clock will be displayed for a few seconds. ➜ If the clock has not been set, "--:--" will be

displayed.

Clock Setting

The clock can be set in either 12-hour or 24-hour mode ("AM 12:00" or "00:00" for example)

1 Press CLOCK•TIMER twice. 2 Press PROG on the system repeatedly to select

clock mode. ➜ If 12-hour mode is selected, "AM 12:00" will start flashing. ➜ If 24-hour mode is selected, "00:00" will start flashing.

3 Press à or á on the system repeatedly to set

the hour.

4 Press í or ë on the system repeatedly to set

the minute.

5 Press CLOCK•TIMER again to store the

setting. ➜ The clock will start working.

BAND

SOURCE

CDR/DVD

•

CONTROL (DAC)

•

MAX BASS PORT

INTERACTIVE VU METER

MAX

SOUND

MAX BASS DYNAMIC AMPLIFICATION

VOLUME

To exit without storing the setting

● Press Çon the system.

Notes: – The clock setting will be cancelled when the power cord is disconnected or if a power failure occurs. – During clock setting, if no button is pressed within 90 seconds, the system will exit clock setting mode automatically.

Timer Setting

The system can switch on to CD, TUNER, or TAPE 2 mode automatically at a preset time, serving as an alarm to wake you up.

IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. – The timer will always be switched on after it has been set. – The timer will not start if a recording is in progress. – The volume of the timer will increase gradually from the minimum level to the last tuned volume level.

1 Press and hold CLOCK•TIMER for more than

two seconds to select timer mode.

➜ "AM 12:00" or "00:00" or the last timer setting will start flashing.

➜ TIMER will start flashing. ➜ The selected source will be lighted while

other available sources are flashing.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM24

3139 115 21451

Clock/Timer

2 Press CD, TUNER or TAPE to select the

desired source.

● Before setting the timer, make sure the music

source has been prepared. CD – Load the disc(s). To start from a specific track, make a programme (refer to “CD Operation - Programming the disc tracks”).

TUNER – tune to the desired radio station. TAPE – load the prerecorded tape into tape

deck 2.

3 Press à or á on the system repeatedly to set

the hour for the timer to start.

4 Press í or ë on the system repeatedly to set

the minute for the timer to start.

5 Press CLOCK•TIMER to store the start time.

➜ "TIMER ON" will be displayed and followed by the set timer "XX:XX" and then the selected source.

➜ TIMER will remain on the display.

● At the preset time, the selected source will play.

To exit without storing the setting

● Press Çon the system.

Notes: – If CD is the selected source and it is not available when the preset time is reached, Tuner will be selected automatically. – During timer setting, if no button is pressed within 90 seconds, the system will exit timer setting mode automatically.

To deactivate the TIMER

● Press TIMER ON/OFF on the remote control.

➜ The display will show "CANCEL" and TIMER

will disappear from the display.

Sleep Timer Setting

The sleep timer enables the system to switch to Standby mode automatically within a preset amount of time.

1 Press SLEEP on the remote control repeatedly

to select a preset amount of time. ➜ The selections are as follows (time in minutes):

15 ™ 30 ™ 45 ™ 60 ™ OFF ™ 15 …

➜ "SLEEP XX" or "OFF" will be displayed. "XX" is the time in minutes.

2 When you reach the desired length of time, stop

pressing the SLEEP button.

➜ SLEEP will appear on the display, except for "OFF" mode. ➜ The Sleep Timer is now set. Before the system switches to standby mode, a countdown of 10 seconds will be displayed.

"SLEEP 10" ™ "SLEEP 9".... ™ "SLEEP 1"

™ "SLEEP"

While SLEEP mode is activated

To check the remaining length of time

● Press SLEEP once.

To change the preset sleep timer

● Press SLEEP twice. ➜ The display will show the remaining time

followed by the sequence of sleep timer options.

To deactivate the Sleep Timer

● Press SLEEP repeatedly until "OFF" is displayed, or press the STANDBY ON button.

English

To activate the TIMER

● Press TIMER ON/OFF on the remote control. ➜ The last set timer information will be shown

for a few seconds and TIMER will appear on the display.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM25

3139 115 21451

Specifications

English

AMPLIFIER

Output power ........................................................................

............................. 2000 W PMPO / 2 x 60 W RMS

Signal-to-noise ratio .......................... ≥ 75 dBA (IEC)

Frequency response ......... 50 – 20000 Hz, ± 3 dB

Input sensitivity

AUX In / CDR/DVD In .................... 500 mV / 1V

Output

Speakers ....................................................................≥ 6 Ω

Headphones ...................................... 32 Ω – 1000 Ω

(1) (6 Ω, 1 kHz, 10% THD)

CD PLAYER

Number of programmable tracks ......................... 40

Frequency response .......................... 20 – 20000 Hz

Signal-to-noise ratio ....................................... ≥ 76 dBA

Channel separation ..........................≥ 79 dB (1 kHz)

Total harmonic distortion ............ < 0.02% (1 kHz)

TUNER

FM wave range ...................................87.5 – 108 MHz

MW wave range (9 kHz) ............. 531 – 1602 kHz

MW wave range (10 kHz) ........... 530 – 1700 kHz

Tuning grid ............................................................ 9/10 kHz

Number of presets ........................................................ 40

Antenna

FM ....................................................................... 75 Ω wire

AM .............................................................. Loop antenna

SPEAKERS

(1)

Front left/right

System ................................................. 3-way; Bass reflex

Impedance ........................................................................ 6 Ω

Woofer ............................................. 1 x 5.25" full range

Tweeter .......................................................................... 1 x 2"

Polydome Tweeter ...................................................1 x 1"

Dimensions (w x h x d) . 240 x 310 x 290 (mm)

Weight................................................................ 3.7 kg each

GENERAL

Material/finish ................................... Polystyrene/Metal

AC Power

For Version /21-21M .. 110 – 127 / 220 – 240 V;

....................................................... 50/60 Hz Switchable

For Version /30 ....................... 230 – 240 V; 50 Hz

Power Consumption

Active ...................................................................... 100 W

Standby ..................................................................... 10 W

Dimensions (w x h x d) .. 265 x 310 x 390 (mm)

Weight (without speakers) ................................. 7.5 kg

Specifications and external appearance are subject to change without notice.

TAPE PLAYER

Frequency response

Normal tape (type I) ...... 80 – 10000 Hz (8 dB)

Signal-to-noise ratio

Normal tape (type I) ................................. ≥ 48 dBA

Wow and flutter ......................................... ≤ 0.4% DIN

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM26

3139 115 21451

Maintenance

C CB

Cleaning the Cabinet

● Use a soft cloth slightly moistened with a mild

detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

● When a disc becomes dir ty,

clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in circular motion.

● Do not use solvents such as

benzine, thinner, commercially available cleaners, or antistatic spray intended for analogue records.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

● To ensure good recording and playback quality,

clean the heads A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You also can clean the heads by playing a

cleaning tape once.

Demagnetising the heads

● Use a demagnetising tape available at your

dealer.

Troubleshooting

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

Problem Solution

CD OPERATION

“NO DISC” is displayed. – Insert a disc.

– Check if the disc is inserted upside down. – Wait until the moisture condensation at the lens

has cleared.

– Replace or clean the disc, see “Maintenance”.

“DISC NOT FINALIZED” is displayed. – Use a finalised CD-R(W) or CD-R.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM27

3139 115 21451

Troubleshooting

English

RADIO RECEPTION

Radio reception is poor. – If the signal is too weak, adjust the antenna or

connect an external antenna for better reception.

– Increase the distance between the Mini HiFi

System and your TV or VCR.

TAPE OPERATION/RECORDING

Recording or playback cannot be made. – Clean deck parts, see “Maintenance”.

– Use only NORMAL (IEC I) tape. – Apply a piece of adhesive tape over the missing

tab space.

The tape deck door cannot open. – Remove and reconnect the AC power plug and

switch on the system again.

GENERAL

The system does not react when buttons – Remove and reconnect the AC power plug and are pressed. switch on the system again.

Sound cannot be heard or is of poor – Adjust the volume. quality. – Disconnect the headphones.

– Check that the speakers are connected correctly. – Check if the stripped speaker wire is clamped.

The left and right sound outputs are – Check the speaker connections and location. reversed.

The remote control does not function – Select the source (CD or TUNER, for example) properly. before pressing the function button (É,í,ë).

– Reduce the distance between the remote control

and the system.

– Insert the batteries with their polarities

(+/– signs) aligned as indicated. – Replace the batteries. – Point the remote control directly toward

IR sensor on the front of the system.

The timer is not working. – Set the clock correctly.

– Press TIMER ON/OFF to switch on the timer. – If a recording is in progress, stop the recording.

Not all lighted buttons are showing light. – Press DISPLAY to select NORMAL or MODE 1

display mode.

The Clock/Timer setting is erased. – Power has been interrupted or the power cord

has been disconnected. Reset the clock/timer.

The system displays features – Press and hold DEMO STOP Çon the system automatically and buttons start flashing. to switch off the demonstration.

pg 001-028/C505/21-Eng 12/27/01, 10:57 AM28

3139 115 21451

Philips FW-C505/19 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
