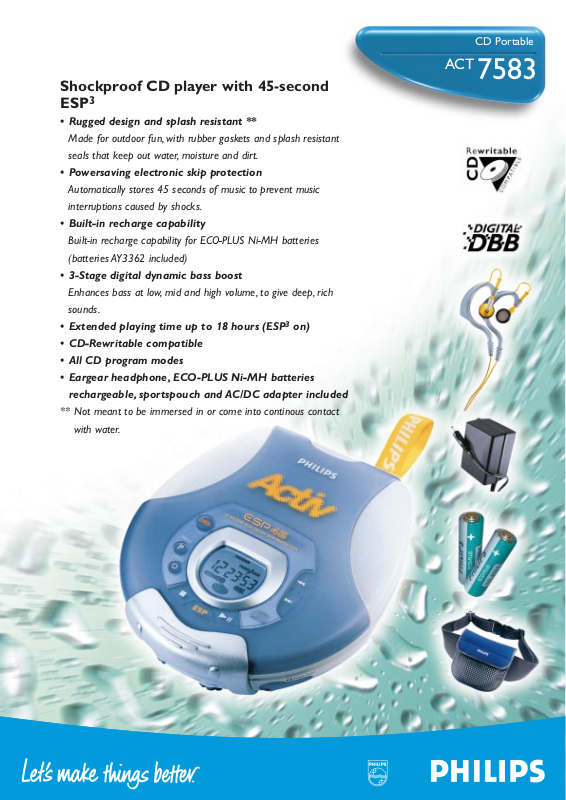

Philips ESP3 User Manual

CD Portable

Shockproof CD player with 45-second ESP

• Rugged design and splash resistant **

Made for outdoor fun, with rubber gaskets and splash resistant

seals that keep out water, moisture and dirt.

• Powersaving electronic skip protection

Automatically stores 45 seconds of music to prevent music

interruptions caused by shocks.

• Built-in recharge capability

Built-in recharge capability for ECO-PLUS Ni-MH batteries

(batteries AY3362 included)

• 3-Stage digital dynamic bass boost

Enhances bass at low, mid and high volume, to give deep, rich

sounds.

• Extended playing time up to 18 hours (ESP3on)

• CD-Rewritable compatible

• All CD program modes

• Eargear headphone, ECO-PLUS Ni-MH batteries

rechargeable, sportspouch and AC/DC adapter included

** Not meant to be immersed in or come into continous contact

with water.

7583

ACT

CD Portable

Standard product information

http://www.philips.com

1999-12-10 Printed in Hong Kong Subject to modification without notice

Product highlights

• Compact disc audio player

Compact Disc technology that provides uncompressed superb digital sound quality.

• ECO-PLUS Ni-MH rechargeable battery

Durable and environmental friendly rechargeable battery type which is quick and easy to charge.

• Heat resistant body

Unique composite material enables the CD player to withstand very high temperatures for in-car use.

• 1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sound.

• Hold

Locks all buttons electronically to prevent interruption of play or change of program settings.

• Resume

Ensures the CD starts precisely from the point it was stopped.

• Automatic power off

Automatically switches off the CD player at the end of a compact disc.

• CD next/ previous

Plays the next or previous track at the touch of a button

• CD music search

Searches the CD at high speed while still producing low-volume sound so you know exactly when to stop

• Repeat one/ all

Repeat the current track or the total CD

• Shuffle

Plays disc selection randomly, giving you each time a new sequence of tracks

• 99-track programmable

Stores up to 99 of your favourite tracks for playing back in your order of preference

• Acoustic feedback

Confirms any key-push with friendly beep to acknowledges that a command has been given.

Amplifier/ system

• Output power (in-ear headphone) 2 x 3mW RMS

• 1-Bit D/A convertor for pure sound reproduction

• 3-Stage digital dynamic bass boost

• Rotary volume control

• S/N ratio (A weighted) : >100 dB

• Frequency response : 20 Hz - 20 kHz

• Acoustic feedback

CD player

• 99-Track programmable, shuffle, repeat 1/all and introscan

• Search forward/backward with sound

• Resume and hold

ESP - Electronic skip protection

• Electronic skip protection with 45 second memory

LCD display

• Indications for track, time, DBB, CD functions, ESP and battery status

Connections

• Headphone/ line out : stereo, 3.5 mm

• DC in : 4.0 mm, 4.5V, centre ‘+’

Power supply

• Batteries : 2 x 1.5V, type AA/LR6/UM3 cell

• Battery playing time : 18 hours (Alkaline) / 9 hours (Ni-MH)

• Built-in battery recharge function for ECO-PLUS Ni-MH batteries

• Automatic power switch-off

General

• Material : High temperature resistant plastic

• Weight : 230 g (excluding batteries)

• Product dimensions : 132 mm W x 30 mm H x 143 mm D

• D-box dimensions : 256 mm L x 145 mm W x 54 mm H

• Master carton dimensions : 303 mm L x 210 mm W x 199 mm H

• Quantity/ mastercarton : 3

Accessories

• Stereo in-ear headphone

• AC/DC adapter

• ECO-PLUS rechargeable Ni-MH batteries

• Joggable neoprene pouch with wearing belt

Optional accessories (contact your dealer or service center)

• AY3501 Car cassette adapter

• AY3545 4.5V Car cigarette lighter DC/DC adapter

Power supply adapter

• /00, /05, /09 : 230V/50Hz to 4.5V

• /01, /11 : 120/230V 50/60Hz (switchable) to 4.5V
