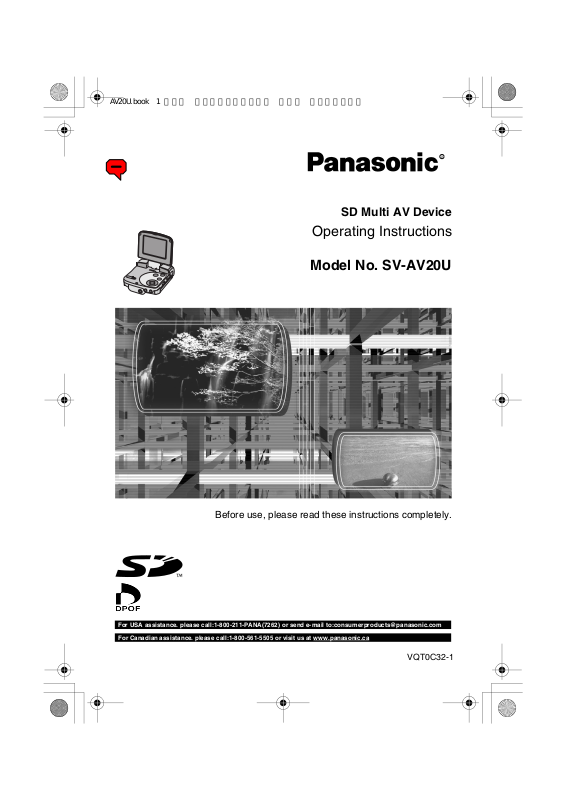

Panasonic SV-AV20U User Manual

R

SD Multi AV Device

Operating Instructions

Model No. SV-AV20U

Before use, please read these instructions completely.

For USA assistance. please call:1-800-211-PANA(7262) or send e-mail to:[e-mail]

For Canadian assistance. please call:1-800-561-5505 or visit us at www.panasonic.ca

VQT0C32-1

Before opening the CD-ROM package, please read the following.

End User License Agreement

You (“Licensee”) are granted a license for the Software defined in this End User License Agreement
(“Agreement”) on condition that you agree to the terms and conditions of this Agreement. If Licensee
does not agree to the terms and conditions of this Agreement, promptly return the Software to Matsushita
Electric Industrial Co., Ltd. (“Matsushita”), its distributors or dealers from which you made the purchase.

Article 1 License

Licensee is granted the right to use the Software, including the information recorded or described on the
CD-ROM, instruction manuals, and any other media provided to Licensee (collectively “Software”), but all
applicable rights to patents, copyrights, trademarks and trade secrets in the Software are not transferred
to Licensee.

Article 2 Use by a Third Party

Licensee may not use, copy, modify, transfer or allow any third party, whether free of charge or not, to
use, copy or modify the Software, except as expressly provided for in this Agreement.

Article 3 Restrictions on Copying the Software

Licensee may make a single copy of the Software in whole or a part solely for back-up purpose.

Article 4 Computer

Licensee may use the Software only on one computer, and may not use it on more than one computer.

Article 5 Reverse Engineering, Decompiling or Disassembly

Licensee may not reverse engineer, decompile, or disassemble the Software, except to the extent either
of them is permitted under law or regulation of the country where Licensee resides. Matsushita, or its
distributors will not be responsible for any defects in the Software or damage to Licensee caused by
Licensee’s reverse engineering, decompiling, or disassembly of the Software.

Article 6 Indemnification

The Software is provided “AS-IS” without warranty of any kind, either expressed or implied, including, but
not limited to, warranties of non-infringement, merchantability and/or fitness for a particular purpose.
Further, Matsushita does not warrant that the operation of the Software will be uninterrupted or error free.
Matsushita or any of its distributors will not be liable for any damage suffered by Licensee arising from or
in connection with Licensee’s use of the Software.

Article 7 Export Control

Licensee agrees not to export or re-export to any country the Software in any form without the appropriate
export licenses under regulations of the country where Licensee resides, if necessary.

Article 8 Termination of License

The right granted to Licensee hereunder will be automatically terminated if Licensee contravenes any of
the terms and conditions of this Agreement. Upon termination hereof, Licensee must destroy the
Software and related documentation together with all the copies thereof at Licensee’s own expense.

2

Contents

End User License Agreement......... 2

Information for Your Safety ............. 4

Introduction..................................... 7

Preparation

Standard Accessories..................... 8

Optional Accessory......................... 8

Controls and Components.............. 9

Power Supply................................ 10

Inserting a Memory Card .............. 11

Attaching the Hand Strap.............. 11

Using the LCD Monitor ................. 12

Using the Earphones .................... 12

Turning the Power On/Selecting

Operation Modes .......................... 13

Using the Menu Screen ................ 14

List of Menus ................................ 15

Setting Date and Time .................. 17

Setting the Power Supply

Frequency..................................... 18

Adjusting Brightness and Color

Level on the LCD Monitor ............. 19

Basic Functions

Recording Still Pictures................. 20

Playing back Still Pictures............. 21

Recording Moving Pictures

(MPEG4)...................................... 22

Playing Back Moving Pictures

(MPEG4)....................................... 23

Recording Voice

(Voice Recording Function) .......... 24

Hearing the Voice Recorded

(Voice Playback) ........................... 25

Listening to Music

(Music Playback) .......................... 26

Adjusting the Volume.................... 27

Advanced Functions

Backlight Compensation

Function ........................................28

Adjusting White Balance ...............28

Erasing the Files Recorded on a

Memory Card ................................29

Protecting files

(File Protection).............................30

Writing Printing Data on a

Memory Card (DPOF Setting)......31

Playing back still pictures one by one

(P.Slide Show)...............................32

Formatting the Memory Card ........ 33

On a Personal Computer

About the supplied software.......... 34

USB Driver ....................................35

SD-MovieStage.............................36

SD-Jukebox...................................37

Installing USB Driver.....................38

Installing SD-MovieStage Ver.2.0..38

Installing SD-Jukebox Ver.3.0 ....... 39

Connecting with the PC.................40

Starting the Software.....................40

Disconnecting the USB Cable

safely.............................................41

If you no longer need software

(Uninstall)......................................41

Constructing a Folder when the

Memory Card is used with a PC....42

Others

Charge the built-in battery for
maintaining the date

information ....................................43

After Use .......................................43

3

Indications .....................................44

Notes & Precautions......................46

Notes and Hints.............................49

Before Requesting Service............57

Specifications................................59

Limited Warranty

(For U.S.A. Only)...........................60

Customer Services Directory

(For U.S.A. Only)...........................62

Dear Customer,

We would like to take this opportunity to
thank you for purchasing this Panasonic SD
Multi AV Device. Please read these
Operating Instructions carefully and keep
them handy for future reference.

Information for Your
Safety

Spanish Quick Use Guide/
Guía española para el uso

rápido

Alimentación eléctrica ...................63

Inserción de la Tarjeta de

memoria ........................................64

Encendido/Selección modos de

funcionamiento..............................64

Grabación de imágenes estáticas/

imágenes dinámicas/la voz ...........65

Reproducción de imágenes estáticas/
imágenes dinámicas/la voz grabada/la

música...........................................65

WARNING
TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES
AND DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
DO NOT REMOVE THE COVER (OR
BACK); THERE ARE NOT USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

Notice:

This product has parts that contain a
small amount of mercury. It also contains
lead in some components. Disposal of
these materials may be regulated in your
community due to environmental
considerations. For disposal or recycling
information please contact your local
authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.>

IMPORTANT
Please respect all copyrights.
Whatever you have recorded and
created can be used for your personal
entertainment only. Under copyright
laws, other materials cannot be used
without obtaining permission from the
holders of the copyrights.

4

≥Injury or material damage resulting

from any kind of use that is not in
accordance with the operating
Instructions are the sole responsibility
of the user.

Extremely high precision technology is
employed to produce the LCD Monitor
screen featuring a total of approximately
200,000 pixels. The result is more than

99.99% effective pixels with a mere

0.01% of the pixels inactive or always lit.
However, this is not a malfunction and
does not affect the recorded picture.

≥If the SD Multi AV Device is used

continuously for a long time or used at a
high ambient temperature, red, blue,
green or white dots may appear on the
screen and be recorded on a still picture.
This is due to the rise of the temperature
inside the body. This is caused by a
characteristic of the C-MOS sensor and is
not a failure. Under this condition, turn the
SD Multi AV Device off and leave it for a
while.

≥The manufacturer shall in no event be

liable for the loss of recordings due to
malfunction or defect of this SD Multi AV
Device, its accessories or Memory Card.

≥Please note that the actual controls and

components, menu items, etc. of your SD
Multi AV Device may look somewhat
different from those shown in the
illustrations in these Operating
Instructions.

≥

SD logo is a trademark.

:

≥The SD Multi AV Device uses copyright-

protected technologies and is protected by
the patented technologies and intellectual
properties of Japan and the U.S. To use
these copyright-protected technologies,
authorization of the Macrovision Company
is required. It is prohibited to disassemble
or modify the SD Multi AV Device.

≥(l 00) indicates the page to be referred

to.

≥Note that the SD Multi AV Device may not

play back the data recorded or created on
another product and another product may
not play back the data recorded on the SD
Multi AV Device.

≥The nameplate of the SD Multi AV Device

is fixed on the bottom of the battery
compartment.

≥MPEG Layer-3 audio decoding technology

licensed from Fraunhofer IIS and
Thomson multimedia.

A lithium ion/polymer battery that is recyclable powers the product you

RBRC

have purchased. Please call 1-800-8-BATTERY for information on how to

TM

Li-ion

recycle this battery.

5

FCC Note: (U.S. only)

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation

instructions and use only shielded interface cables with ferrite
core when connecting to computer or peripheral devices.
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate this equipment.

Trade Name: Panasonic
Model No.: SV-AV20U
Resposible party: Matsushita Electric Corporation of America One Panasonic

Way, Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company

1-800-211-PANA(7262)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

This Class B digital apparatus complies with Canadian ICES-003.

SV-AV20U

6

Introduction

This SD Multi AV Device can record MPEG4 moving
pictures, still picture and voice data. Additionally, it
can play back a high quality music file of the MPEG2­AAC and MP3 format (Records files with the supplied
SD- Jukebox Ver.3.0). And using the viewer software
SD-MovieStage Ver.2.0 (supplied accessory), the
MPEG4 moving picture data can be edited on the
personal computer.

ª Clock setting

When you purchase the SD Multi AV Device, the
clock setting has not been performed. To start,
please set the year, month, date and time.(l 17)

ª Power supply frequency

Under fluorescent lighting, horizontal stripes
consisting of light and dark patterns may appear
on the screen as illustrated below.
To reduce the effect of the horizontal stripes,
switch the power supply frequency to 50 Hz or
60 Hz. (l 18)

7

Preparation

Standard Accessories

1 AC Adaptor (VSK0626) (l 10)

≥Supplies power to the SD Multi AV

Device.

CAUTION:

This unit will operate on 110/120/220/
240 V AC. An AC plug adaptor may be
required for voltages other than 120 V
AC. Please contact either a local or
foreign electrical parts distributor for
assistance in selecting an alternate AC
plug. We recommend using the
accessory power plug adaptor
(VJSS0070) in an area which has
special AC outlets.

2 Battery Pack (CGA-S301A1) (l 10)

≥Supplies power to the SD Multi AV

Device.

6 Hand Strap (VFC3803) (l 11)

7 CD-ROM (l 34)

USB Driver,
SD-MovieStage Ver.2.0,
SD-Jukebox Ver.3.0,
Adobe Acrobat Reader

(VFF0177)

≥For using the SD-MovieStage Ver.2.0

and SD-Jukebox Ver.3.0, refer to the
PDF manual. This manual describes
installation only.

8 Carrying Case (RFC0069-H)

≥Put the SD Multi AV Device in the

Carrying Case supplied after use or
when carrying it.

3 SD Memory Card (32 MB)

(RP-SD032BVE0) (l 11)

4 USB Cable (K2KZ4CB00002) (l 40)

5 Stereo earphones (LOBAB0000172)

(l 12)

8

Optional Accessory

1 Battery Pack (CGA-S301) (l 10)

≥Supplies power to the SD Multi AV

Device.

Controls and Components

1 LCD Monitor (l 12)

Mode Button [MODE] (l13)

2

Recording Start/Stop Button (l20, 22, 24)

3

Menu Button [MENU] (l14)

4

Multi-Function Button

5

Operating/Select Function
[:/;/9/

Horizontal Stripes Reduction [ ] (l18)
Double zoom [2k] (l20, 22)
Backlight Compensation [
White Balance setting [1] (l28)
Card Access Lamp (l49)

6

Memory Card Slot (l11)

7

DC Input Socket [DC IN 4.8V] (l10)

8

Card Eject Lever [CARD EJECT 1] (l11)

9

Earphone Terminal [

10

Volume Adjustment Button [sVOLr] (l27)

11

Speaker

12

Power Lamp (l10)

13

USB Terminal (l40)

14

USB Terminal Cover (l40)

15

Power/Mode Switch [OFF/PLAY/REC] (l13)

16

Recording Start/Stop Button (l20, 22, 24, 51)

17

Microphone (built-in, monaural) (l24)

18

Flash (l20)

19

Lens (l47)

20

Battery Compartment (l10)

21

Battery Compartment Cover (l10)

22

Strap Holder (l11)

23

____

/1 SET] (l14, 21, 23, 25, 26)

ª

] (l28)

] (l12)

6789

18 19

14

20

13

15

21

1

10 11

OFF

23

22

MODE

MENU

SET

12

PLAY

REC

16 17

2
3

4

5

9

Power Supply

ª Using AC Adaptor

Connect the AC Adaptor to AC Main

1111

socket.
Connect the DC Input Lead to the

2222

[DC IN 4.8V] socket on the SD Multi AV
Device.

THE SOCKET OUTLET SHALL BE
INSTALLED NEAR THE EQUIPMENT AND
SHALL BE EASILY ACCESSIBLE

ª Charging the Battery

While holding the [

1

it to remove the Battery Compartment
Cover.

Press the terminals of the battery onto

2

the terminals of the Battery
Compartment and set the battery.

≥Fit the battery with its label facing upward.
≥After the battery is set, close the cover.

Connect the AC Adaptor to AC Main

3

socket.
Connect the DC Input Lead to the [DC IN

4

4.8V] socket on the SD Multi AV Device.

≥Power Lamp flashes, and Charging starts.
≥When recharging, turn the power of the SD Multi

AV Device off.

Wait until Power Lamp 1 goes off.

5

≥When recharging is completed, Power Lamp

goes off.

.

] part, slide

1

2

1111

DC IN 4.8V

2222

≥If the Power Lamp flashes quickly (or slowly) when

recharging, recharging is not normal. (llll 49)

10

3

1

DC IN 4.8V

4

CAUTION

Danger of explosion if battery is incorrectly
replaced.

Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.

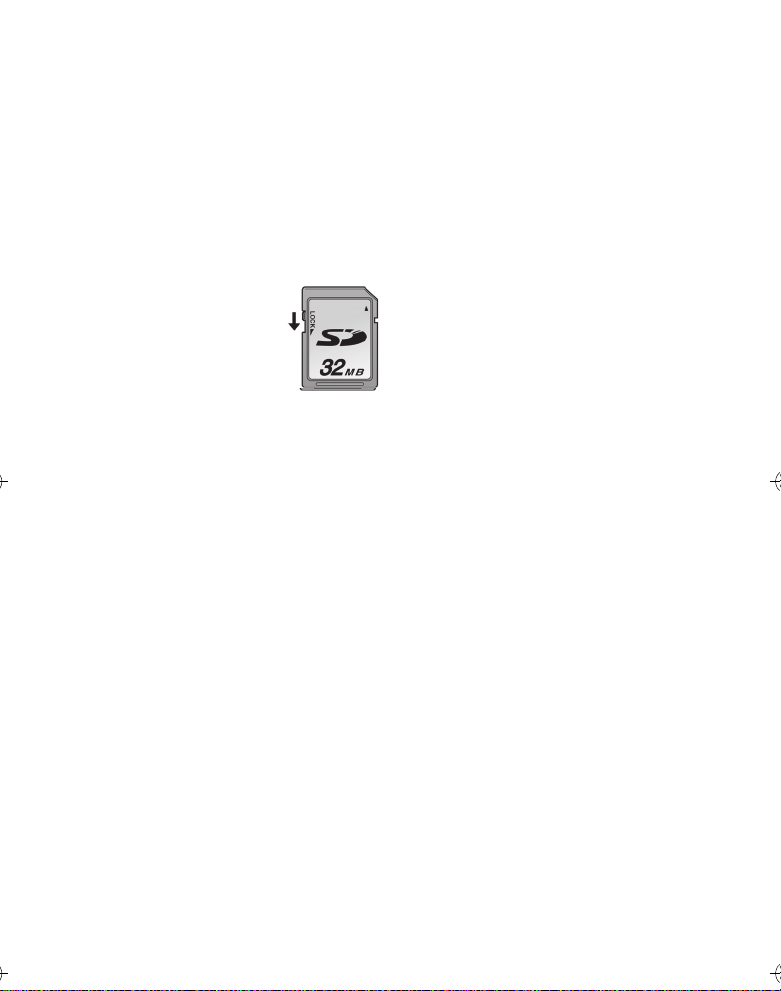

Inserting a Memory Card

An SD Memory Card can be used for this SD Multi AV
Device.

1111 Hold the Memory Card placing the cut off

corner
facing up, and then insert it fully into the
Memory Card Slot horizontally.

≥Turn off the SD Multi AV Device before inserting

a Card.

ª Removing the Memory Card

Slide the Card Eject Lever 3 to remove the
Memory Card and pull it out.

at the front with the label 2

1

Attaching the Hand Strap

Pass the shorter loop of the Hand Strap

1

through the Strap Holder.
Pass the big loop of the Strap through

2

the small loop.

1

2

1111

2

1

3

CARD EJECT

11

Using the LCD Monitor

Record and play the video image while viewing the
LCD Monitor.

Put your finger on the groove 1 to open

1111

the LCD Monitor.
Adjust the LCD Monitor angle according

2222

to the desired recording/playing angle.

≥The LCD Monitor can rotate up to the angles

illustrated.

1 : Up to 120
2 : Up to 180
3 : Up to 90

°

maximum

°

maximum

°

maximum

Using the Earphones

Plug the Earphone Terminal into the [ ]

1

terminal.

1,2

1,2

1,21,2

1

3

2

1

12

Turning the Power On/
Selecting Operation Modes

Select a desired mode on the mode selection screen.

Set the Power/Mode Switch to [PLAY] or

1111

[REC].

≥The SD Multi AV Device is turned on.

Set to [REC] to select Record Mode.

2222

Set to [PLAY] to select Play Mode.
Press the [MODE] Button to select a

3333

Operation Mode.

≥Every time the [MODE] Button is pressed, the

Operation Mode changes as followed.

≥After several seconds, only icons are displayed.

1

[REC] mode

[PICTURE]l[MPEG4]l[VOICE]l[PICTURE]

[PLAY] mode

[PICTURE]l[MPEG4]l[VOICE]l[MUSIC]l
[PICTURE]

ª About the Operation Modes

Seven operation modes are provided as follows.
≥Still picture (JPEG format still picture) record mode

(llll 20)

≥Still picture (JPEG format still picture) play mode

(llll 21)

≥Moving picture (MPEG4 format) record mode

(llll 22)

≥Moving picture (MPEG4 format) play mode (llll 23)
≥Sound (VOICE format) record mode (llll 24)
≥Sound (VOICE format) play mode (llll 25)
≥Music (MPEG2-AAC/MP3 format) play mode (llll 26)

1111

PLAY

REC

OFF

PLAY

REC

3333

2222

OFF

MODE

1

13

Using the Menu Screen

Allows the functions usable in the selected mode to
be set from the menu.

Select a desired mode. (l13)

1111

Press the [MENU] Button.

2222

≥The menu in the selected mode is displayed.

Press the UP/DOWN side of the Multi-

3333

function Button to select a desired item.
Press the [1 SET] Button.

4444

For selecting an item, press the UP/

5555

DOWN side of the Multi-function Button
to select a desired item and then press
the LEFT/RIGHT side to set the item.
For conducting an item, press the UP/
DOWN side of the Multi-function Button
to select a desired item and then press
the [1 SET] Button.

Press the [MENU] Button.

6666

≥Menu screen disappears, and the selected item

is now being set.

≥Press the [MENU] Button when playing back the

moving picture, still picture or sound to edit the file
being played back.

2

1

1111

PLAY

RECOFF

2222

MENU

MENU

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

FINE

OFF

OFF

MENU

EXIT

3333

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

FINE

OFF

OFF

MENU

EXIT

14

5555

4444

6666

INITIAL SETUP

AC MAINS

CLOCK SET

CARD FORMAT

MENU

1

50Hz

2

List of Menus

The figures of the Menus are for explanation
purposes only, and they are different from the actual
Menus.

ª REC MODE

1 Still Picture Record Menu

Picture quality [QUALITY] (llll 20)
Flash setting [FLASH] (l 20)
Beep sound [BEEP SOUND]
When it is set to [ON], beeps for confirmation or
alarm.
Initial setup [INITIAL SETUP] 1
Display setup [DISPLAY SETUP] 2
Return to the previous screen [RETURN]

2 MPEG4 Moving Picture Record Menu

Moving picture quality [MPEG4 MODE] (l 22)
Beep sound [BEEP SOUND]
Initial setup [INITIAL SETUP]
Display setup [DISPLAY SETUP]
Return to the previous screen [RETURN]

3 Voice Record Menu

Initial setup [INITIAL SETUP]
Display [DISPLAY]
When it is set to [ON], superimposed indications
such as playback status and picture quality will be
displayed.
Return to the previous screen [RETURN]

Sub-Menu for [REC] Mode

1 Initial setup [INITIAL SETUP]

AC mains [AC MAINS] (llll 18)
Clock setting [CLOCK SET] (llll 17)
Card format [CARD FORMAT] (llll 33)
Return to the previous screen [RETURN]

2 Display setup [DISPLAY SETUP]

Display [DISPLAY]
When it is set to [ON], superimposed indications
such as playback status and picture quality will be
displayed.
Brightness [BRIGHTNESS] (llll 19)
Color level [COLOR] (llll 19)
Return to the previous screen [RETURN]

1

2

3

1

2

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

SETUP MENU

MPEG4 MODE

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

SETUP MENU

INITIAL SETUP

DISPLAY

RETURN

INITIAL SETUP

AC MAINS

CLOCK SET

CARD FORMAT

RETURN

DISPLAY SETUP

DISPLAY

BRIGHTNESS

COLOR

FINE

OFF

OFF

MENU

FINE

ON

MENU

OFF

MENU

60Hz

MENU

OFF

EXIT

EXIT

EXIT

EXIT

1
2

RETURN

MENU

EXIT

15

ª PLAY MODE

1 Still Picture Playback Menu

Beep sound setting [BEEP SOUND] (llll 15)
Card editing [CARD EDITING] 1
Display setup [DISPLAY SETUP] (llll 15)
P.Slide show [P.SLIDE SHOW] (llll 32)
Return to the previous screen [RETURN]

2 MPEG4 Moving Picture Playback Menu

Playback size [SCREEN] (llll 23)
MPEG4 repeat [REPEAT] (llll 23)
Beep sound [BEEP SOUND] (llll 15)
Card editing [CARD EDITING]
Display setup [DISPLAY SETUP] (llll 15)
Return to the previous screen [RETURN]

3 Voice Playback Menu

Beep sound [BEEP SOUND] (llll 15)
Erase all files [ERASE ALL FILES] (llll 29)
File protection [FILE PROTECTION] (llll 30)
Display [DISPLAY]
When it is set to [ON], superimposed indications
such as playback status and picture quality will be
displayed.
Return to the previous screen [RETURN]

4 Music Playback Menu

Select playlist [SELECT PLAYLIST] 2 (llll 27)
Music repeat [REPEAT] (llll 26)
Power save [POWER SAVE]
When it is set to [ON], the LCD Monitor is turned
off in approx. 5 seconds after playing a music file.
Beep sound setting [BEEP SOUND] (llll 15)
Display setup [DISPLAY SETUP] (llll 15)
Return to the previous screen [RETURN]

Sub-Menu for [PLAY] Mode

1 Card Editing [CARD EDITING]

Erase all files [ERASE ALL FILES] (llll 29)
File protection [FILE PROTECTION] (llll 30)
DPOF check [DPOF CHECKING] (llll 31)
DPOF reset [DPOF RESETTING] (llll 31)
Return to the previous screen [RETURN]

2 Select Playlist [SELECT PLAYLIST]

Default playlist [DEFAULT PLAYLIST] (llll 27)
Playlist [PLAYLIST] (llll 27)

1

2

3

4

1

2

SETUP MENU

BEEP SOUND

CARD EDITING

DISPLAY SETUP

P.SLIDE SHOW

RETURN

SETUP MENU

SCREEN

REPEAT

BEEP SOUND

CARD EDITING

DISPLAY SETUP

RETURN

SETUP MENU

BEEP SOUND

ERASE ALL FILES

FILE PROTECTION

DISPLAY

RETURN

SETUP MENU

SELECT PLAYLIST

REPEAT

POWER SAVE

BEEP SOUND

DISPLAY SETUP

RETURN

CARD EDITING

ERASE ALL FILES

FILE PROTECTION

DPOF CHECKING

DPOF RESETTING

RETURN

SELECT PLAYLIST

DEFAULT PLAYLIST

PLAYLIST-1

PLAYLIST-2

PLAYLIST-3

ON

MENU

FULL

ALL

OFF

MENU

ON

ON

MENU

ALL

ON

ON

MENU

MENU

1

EXIT

EXIT

EXIT

2

EXIT

EXIT

16

Setting Date and Time

At the time of purchase of the SD Multi AV Device, the
date and time are not set ([PRESS MENU TO SET
CLOCK] is displayed). First, set the date and time,
then use the SD Multi AV Device.

1111

2222

OFF

MENU

PLAY

REC

Set the Power/Mode Switch to [REC].

1111

Press the [MENU] Button.

2222

Select [INITIAL SETUP] and press the

3333

[1 SET] Button.
Select [CLOCK SET] and press the

4444

[1 SET] Button.
Select [YEAR] and press the LEFT/RIGHT

5555

side of the Multi-function Button to set a
desired value, and select [MONTH].

In the same way, set [MONTH], [DAY],

6666

[HOUR], [MINUTE] to a desired value.
Press the [MENU] Button.

7777

≥When the built-in battery has been exhausted, set

the date and time after the battery has charged.

(llll 43)

3333

4444

5,6

5,6

5,65,6

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

INITIAL SETUP

AC MAINS

CLOCK SET

CARD FORMAT

RETURN

FINE

OFF

OFF

MENU

60Hz

MENU

EXIT

EXIT

7777

CLOCK SET

YEAR

MONTH

DAY

HOUR

MINUTE

RETURN

MENU

2003

DEC

15

PM 8

14

MENU

EXIT

17

Setting the Power Supply
Frequency

Set the power supply frequency before using the SD
Multi AV Device. The power supply frequency is
different depending on the country or region.
Adjustment of the frequency will help reduce the
appearance of horizontal stripes consisting of light
and dark patterns under fluorescent lighting.

Set the Power/Mode Switch to [REC].

1111

(l 13)
Press the [MENU] Button.

2222

Select [INITIAL SETUP] and press the

3333

[1 SET] Button.
Set [AC MAINS] to [50Hz] or [60Hz].

4444

ª To Reduce the Appearance of

Horizontal Stripes Consisting of Light
and Dark Patterns

If adjustment of the frequency does not have much
effect on reducing horizontal stripes, operate the SD
Multi AV Device as follows. (for MPEG4 mode and
PICTURE mode)

Set the Power/Mode Switch to [REC].

1

(l 13)
Press [ ] for approx. 1 second.

2

≥The [ ] Indication appears when the

horizontal stripes reduction function is activated.

1111

2222

3333

4444

PLAY

OFF

MENU

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

INITIAL SETUP

AC MAINS

CLOCK SET

CARD FORMAT

RETURN

REC

FINE

OFF

OFF

MENU

60Hz

MENU

EXIT

EXIT

To Release this mode

Press [ ] again.
≥Turning the power off will release this mode.

18

1

2

OFF

PLAY

REC

Adjusting Brightness and
Color Level on the LCD
Monitor

LCD Brightness [BRIGHTNESS]

It adjusts the brightness of the image on the LCD
screen.

LCD Color Level [COLOR]

It adjusts the color saturation of the image on the LCD
screen.

Set the Power/Mode Switch to [REC] and

1111

set the operation mode to [PICTURE] or
[MPEG4].

Press the [MENU] Button.

2222

Select [DISPLAY SETUP] and press the

3333

[1 SET] Button.
Select [BRIGHTNESS] or [COLOR].

4444

Press the LEFT/RIGHT side of the Multi-

5555

function Button for adjustment.

≥If [BRIGHTNESS] is selected, the brightness

can be increased by moving the [3] to the right.

≥If [COLOR] is selected, the color can become

darker by moving the [3] to the right.

Press the [MENU] Button.

6666

≥The [MENU] screen disappears. (If left unused

for approx. 5 seconds, the display will
automatically revert to the [DISPLAY SETUP]
screen.)

≥These adjustments do not affect the recorded

images.

1111

2222

3333

4444

5555

PLAY

OFF

MENU

DISPLAY SETUP

REC

SETUP MENU

QUALITY

FLASH

BEEP SOUND

INITIAL SETUP

DISPLAY SETUP

RETURN

DISPLAY

BRIGHTNESS

COLOR

RETURN

MODE

FINE

OFF

OFF

MENU

OFF

MENU

EXIT

EXIT

BRIGHTNESS

6666

MENU

19
