SD Multi Camera

Operating Instructions

Model No. SV-AS10

Before use, please read these instructions completely.

EB GC GN

VQT0F03

Contents

Preparation

Standard Accessories . . . . . . . . . . . . . . . . . . . . 4

Information for Your Safety . . . . . . . . . . . . . . . . . 6

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Insert the Battery . . . . . . . . . . . . . . . . . . . . . . . 10

Remove the Battery . . . . . . . . . . . . . . . . . . . . . 11

Charging the Battery . . . . . . . . . . . . . . . . . . . . 12

About Charging . . . . . . . . . . . . . . . . . . . . . . . . 13

Insert the Card . . . . . . . . . . . . . . . . . . . . . . . . . 14

Remove the Card . . . . . . . . . . . . . . . . . . . . . . . 15

About Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Basic Menu Operation . . . . . . . . . . . . . . . . . . . 17

About the Setup Menu . . . . . . . . . . . . . . . . . . . 18

Setting the Date/Time . . . . . . . . . . . . . . . . . . . 19

Basic (Recording)

Taking a Picture (Still Picture) . . . . . . . . . . . . . 20

Recording Still Picture with Audio . . . . . . . . . . 23

Taking Pictures in Burst Mode . . . . . . . . . . . . . 24

Recording Motion Images . . . . . . . . . . . . . . . . 25

Recording Voice . . . . . . . . . . . . . . . . . . . . . . . . 26

Basic (Play back)

Playing Back Still Pictures . . . . . . . . . . . . . . . . 27

Playing Back Still Picture with Audio . . . . . . . . 28

Playing Back Motion Images . . . . . . . . . . . . . . 29

Playing Back Voice . . . . . . . . . . . . . . . . . . . . . . 30

Playing Back Music . . . . . . . . . . . . . . . . . . . . . 31

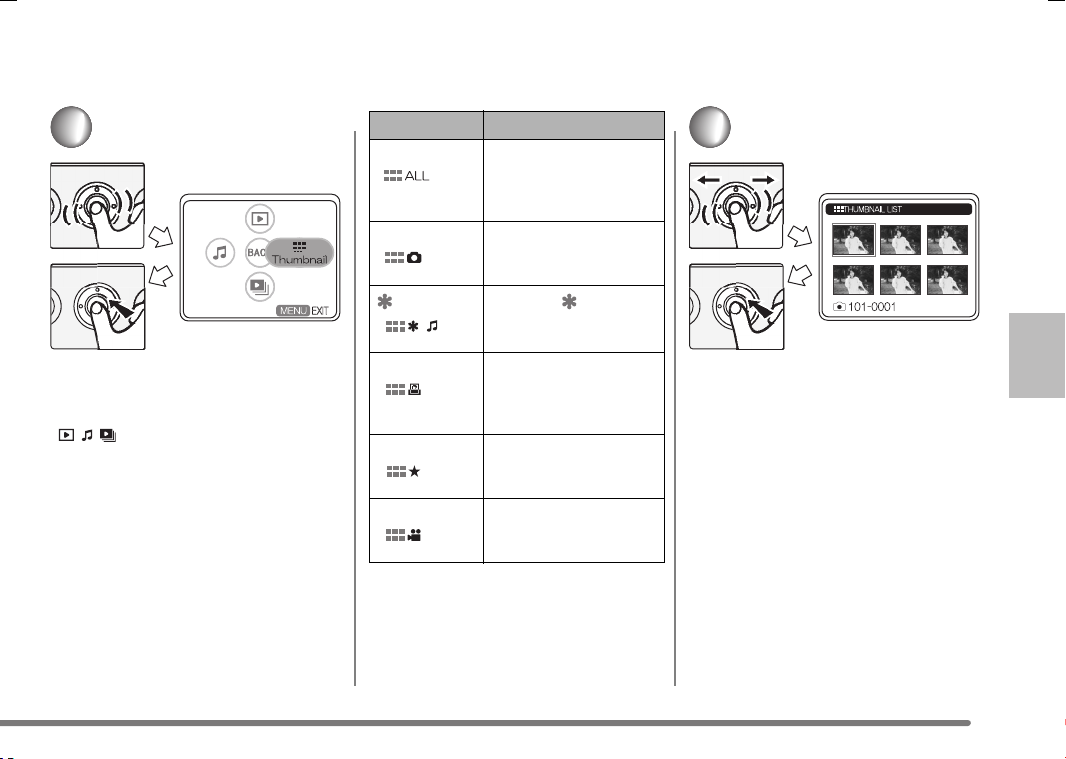

Multi File Playback (Thumbnail display) . . . . . . 35

Erasing Files . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Advanced (Recording)

Others

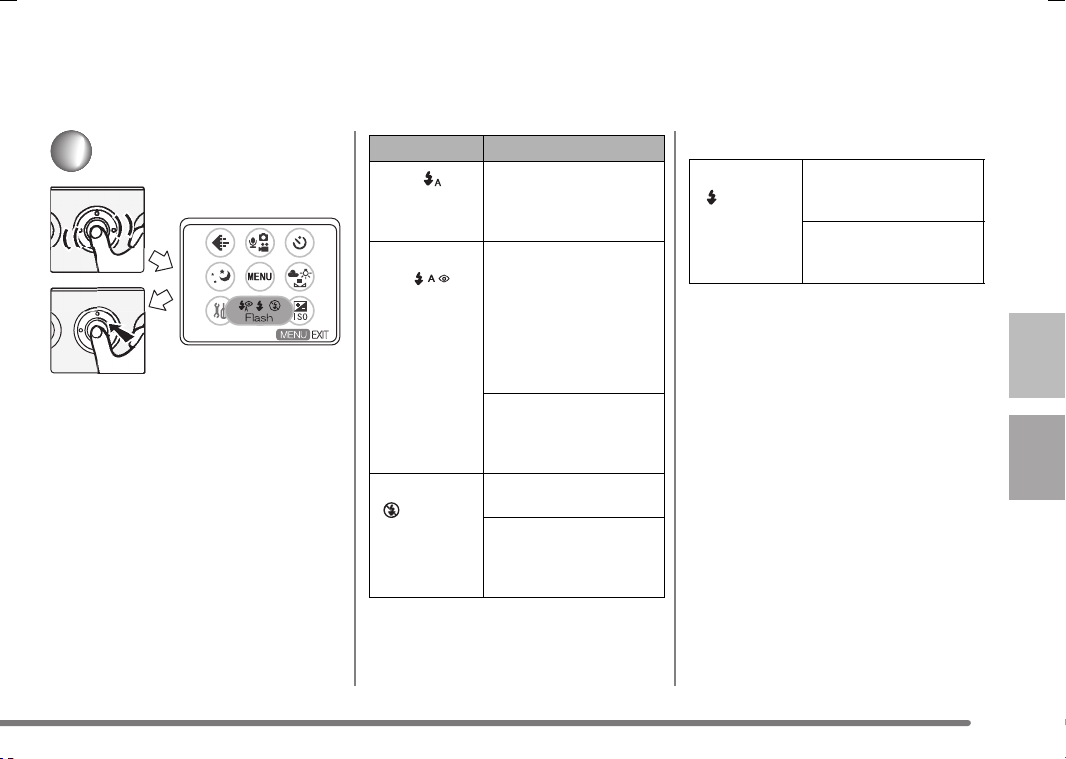

Setting Flash . . . . . . . . . . . . . . . . . . . . . . . . . . 37

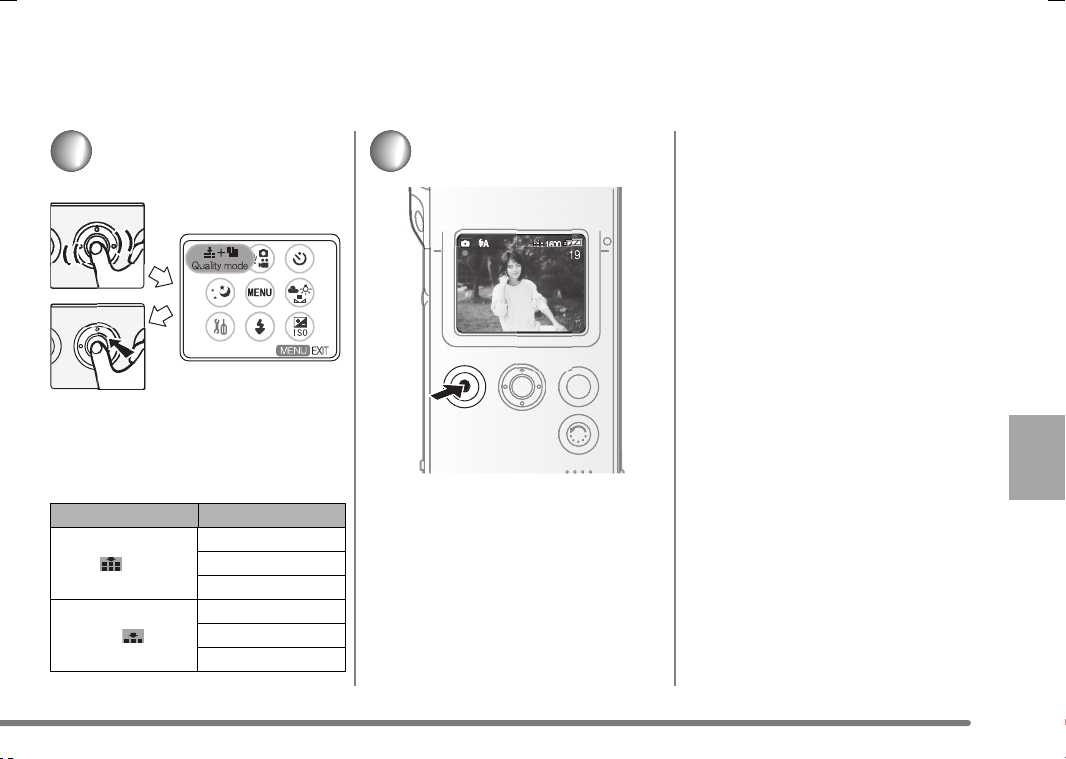

Changing the Quality and Size of Picture . . . . . 39

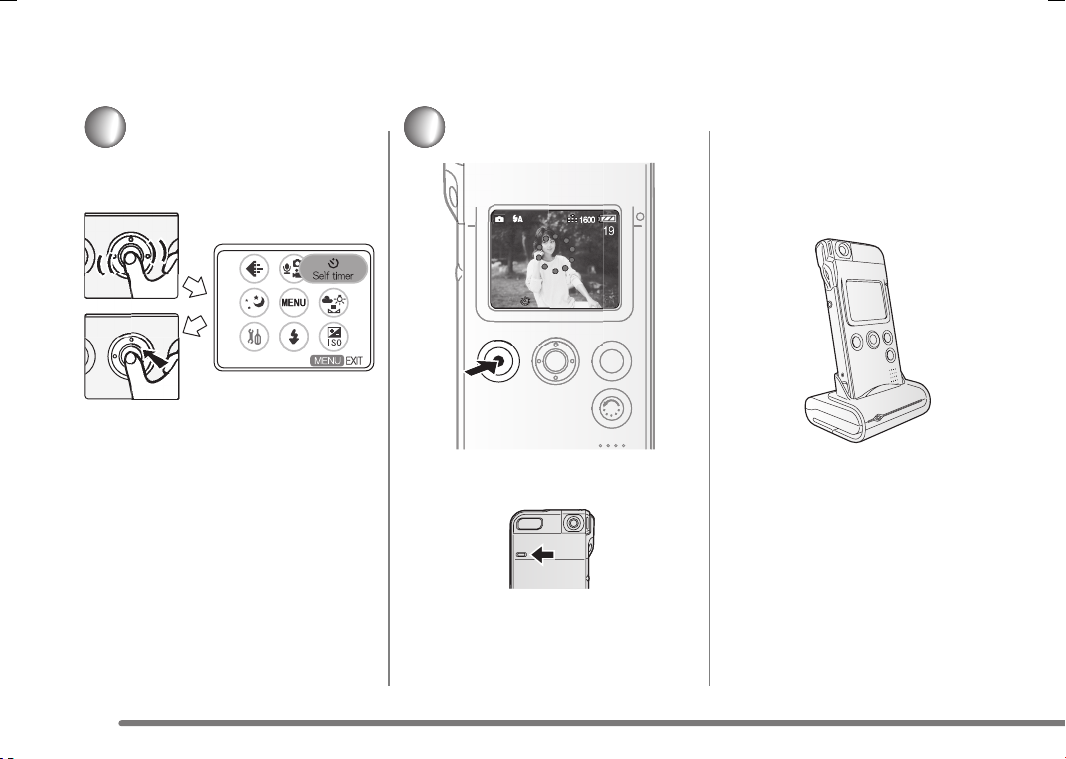

Taking Pictures with the Self Timer . . . . . . . . . 40

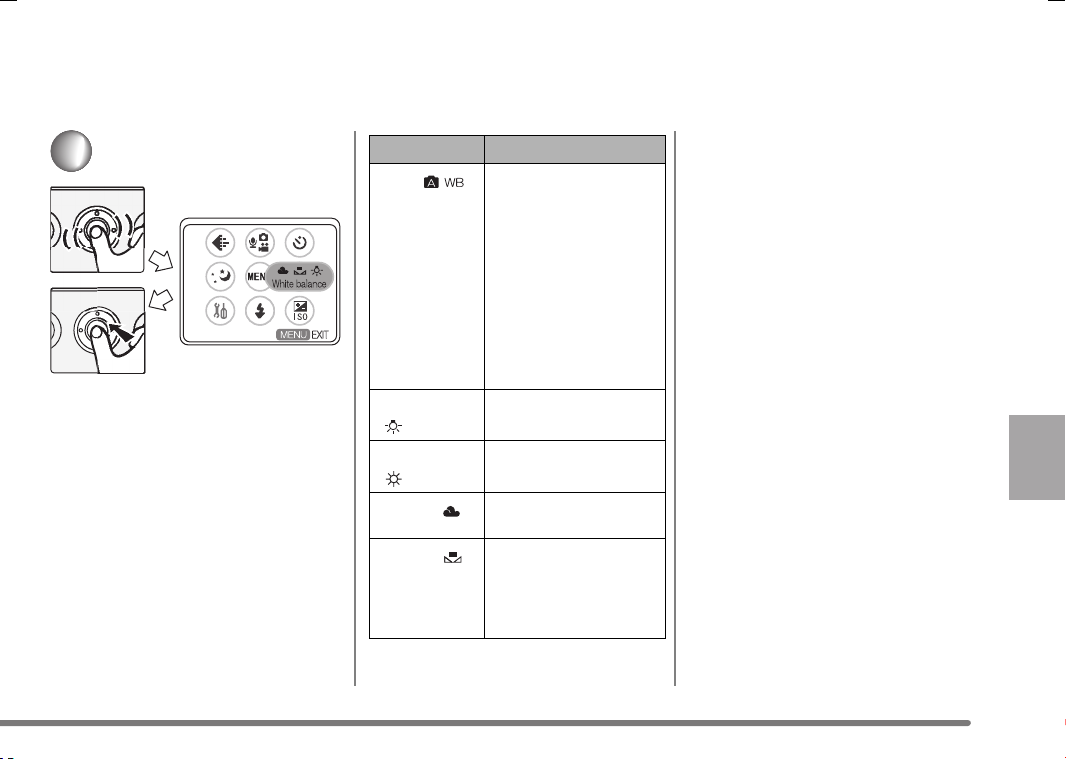

Setting the White Balance . . . . . . . . . . . . . . . . 41

Setting the White Balance (Manual) . . . . . . . . . 42

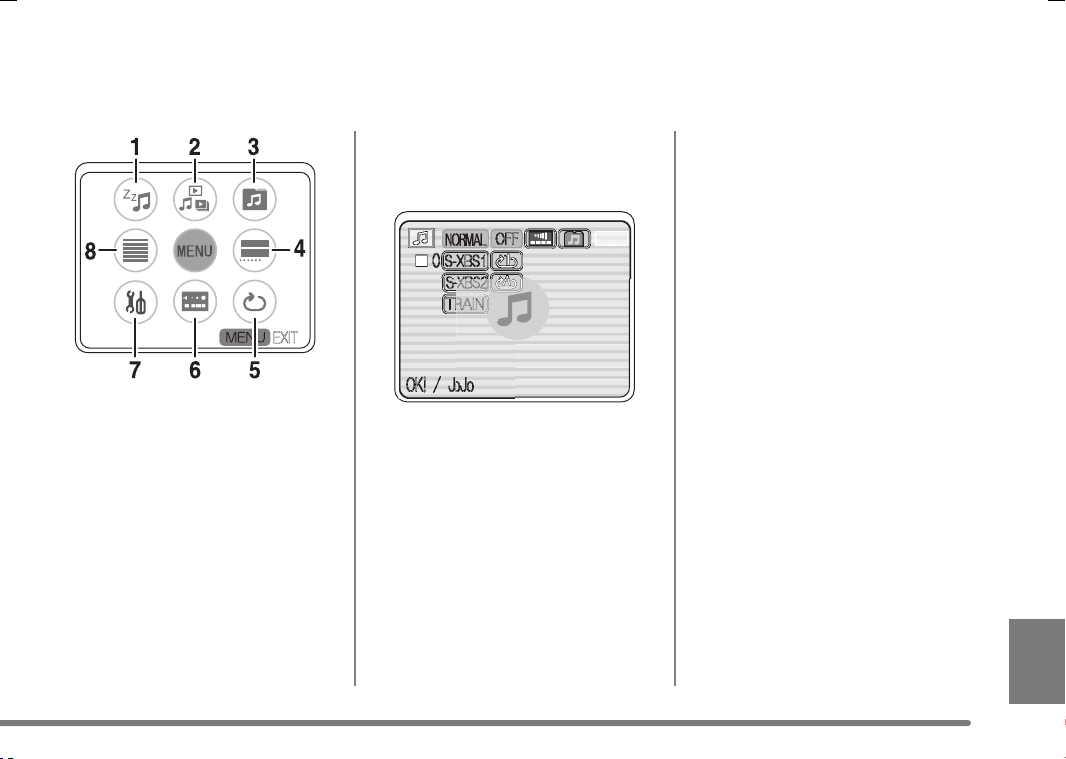

Setting the Application Menu . . . . . . . . . . . . . . 43

Advanced (Play back)

Using the Playback Zoom . . . . . . . . . . . . . . . . . 45

Marking the Picture as a “Favorite” . . . . . . . . . 46

Playing back Still Pictures on the Slide Show Setting the Still Pictures to be Printed

(DPOF print) . . . . . . . . . . . . . . . . . . . . . . . . . 48

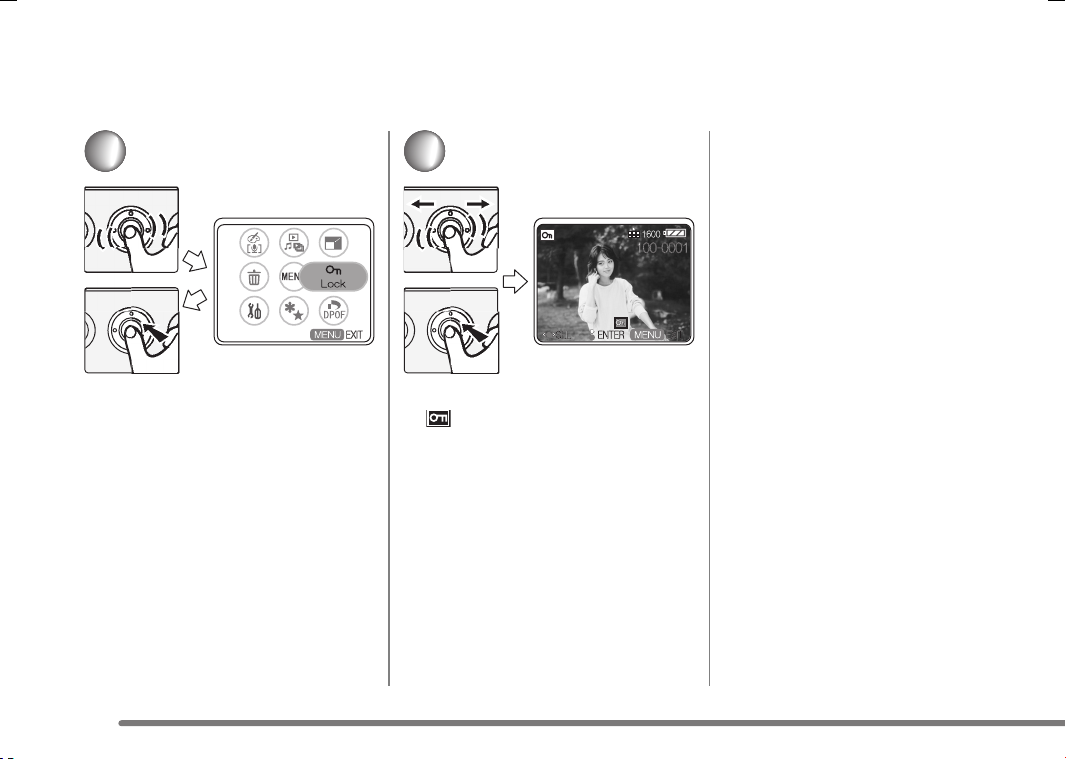

Preventing Accidental Erasure of Files

(Lock setting) . . . . . . . . . . . . . . . . . . . . . . . . . 50

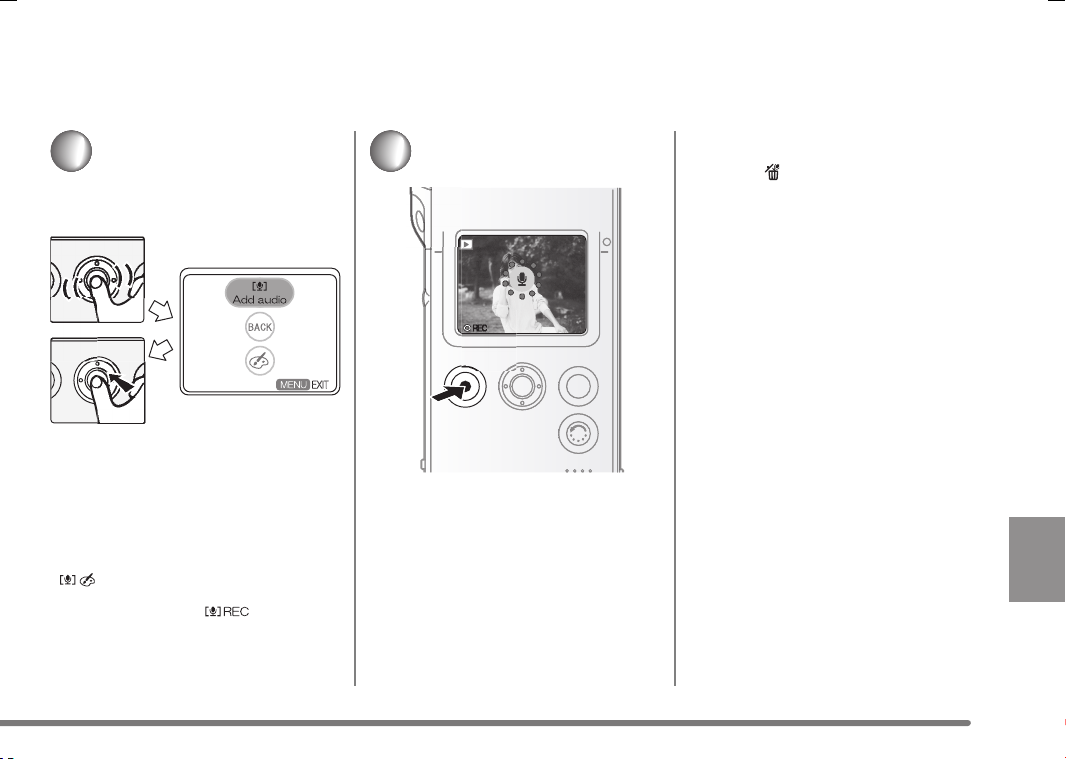

Adding Audio to the Still Picture

(Audio dubbing) . . . . . . . . . . . . . . . . . . . . . . . 51

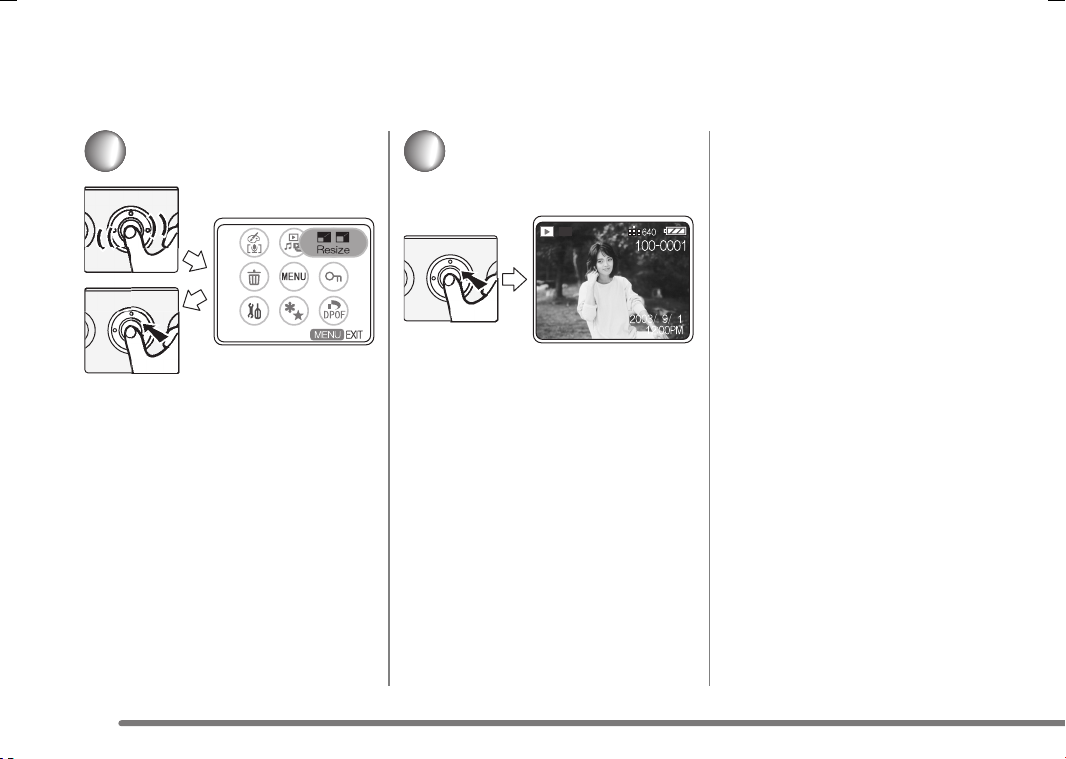

Resizing the Still Picture . . . . . . . . . . . . . . . . . . 52

Altering the Colour of the Still Picture

(Colour Creator) . . . . . . . . . . . . . . . . . . . . . . 53

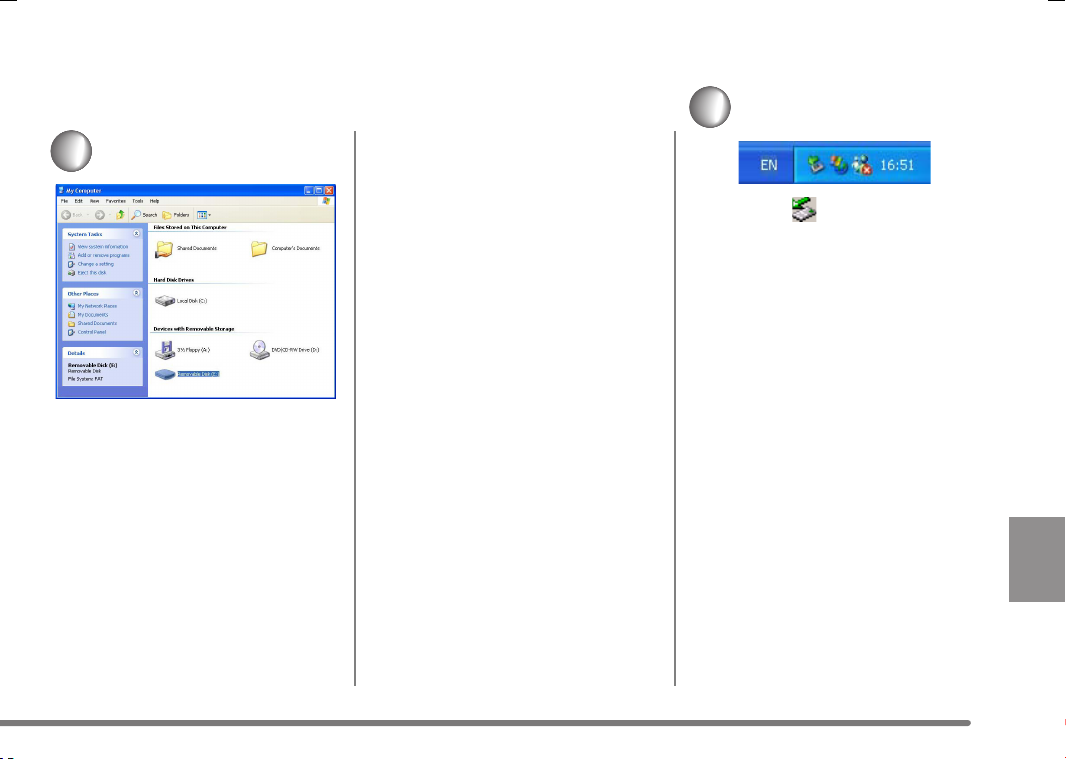

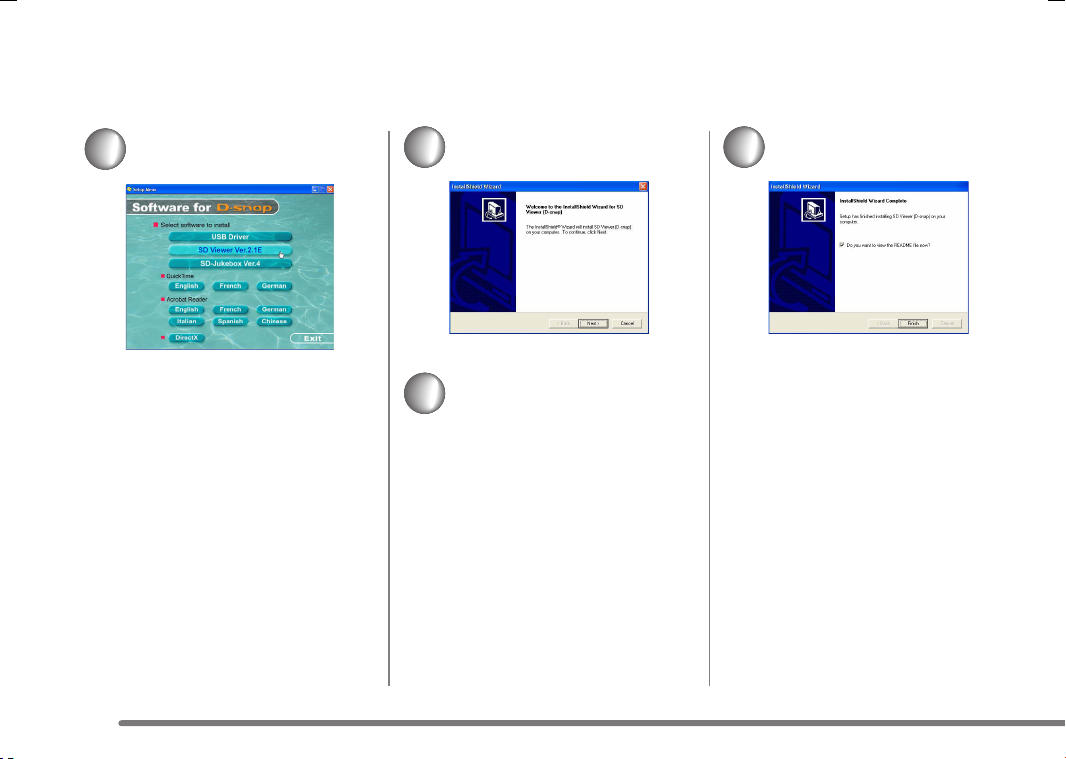

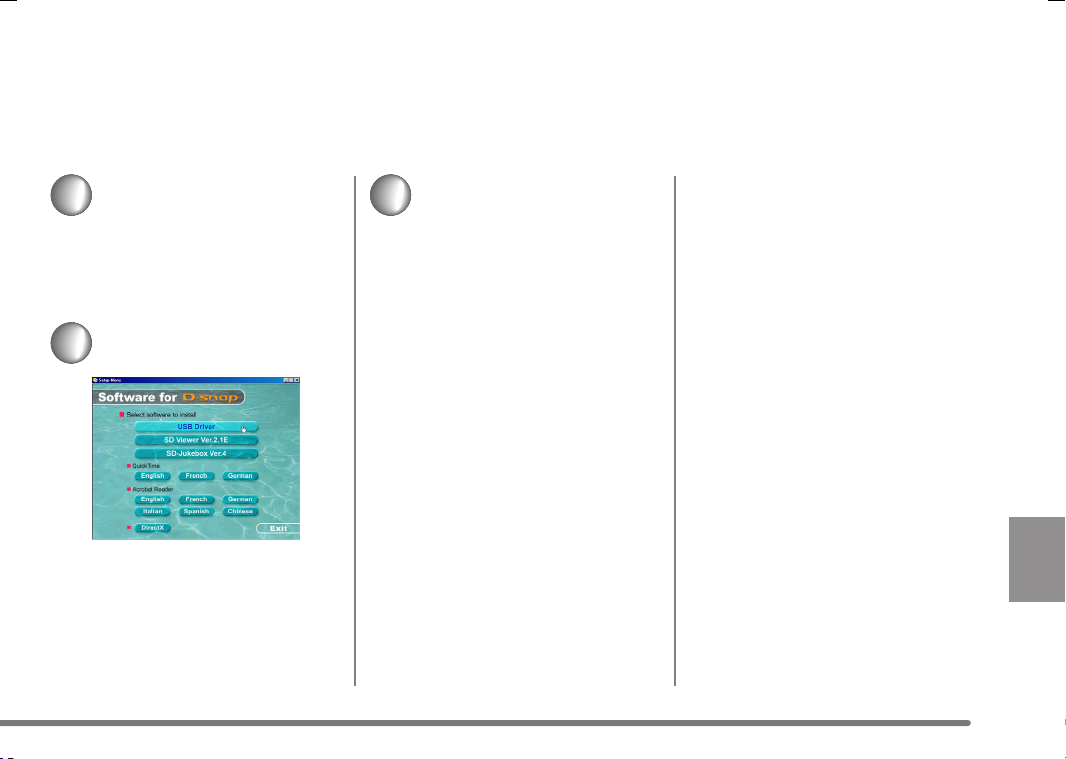

Connecting to PC . . . . . . . . . . . . . . . . . . . . . . . 54

. . . 47

LCD Monitor Display . . . . . . . . . . . . . . . . . . . . 64

Menu Screen Display . . . . . . . . . . . . . . . . . . . . 65

Cautions for Use . . . . . . . . . . . . . . . . . . . . . . . 68

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . 76

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 78

End User License Agreement . . . . . . . . . . . . . 83

Standard Accessories

Sales and Support Information

Customer Care Centre

• For UK customers: 08705 357357

• For Republic of Ireland customers: 01 289 8333

• Visit our website for product information

•E-mail: customer.care@panasonic.co.uk

Technical Support for AV Software

• For callers in UK: 08701 505610

• For callers in ROI: 0044 8701 505610

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday–Friday 9:00am– 5:30pm. (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Before using your camera, check the contents.

_ SD Memory Card (8MB)

RP-SD008BVE0

Battery Pack

The optional battery pack (CGA-S003E/1B) is also available.

_ .USB Cradle

VSK0643

_ AC Adaptor

VSK0621 (EG/EB) VSK0646 (GC/GN)

_ AC Mains Lead

A:SV-AS10EG/GC (K2CR2DA00004)

B:SV-AS10EB (For UK) only (K2CT3DA00003)

C:SV-AS10GN only (K2CJ2DA00002)

D:SV-AS10GC only (K2CA2CA00020)

ABCD

_ Remote Controller

VYC0902

_ Stereo Earphones

L0BAB0000173

_ USB Cable

K1HA09BD0001

_ CD-ROM

_ Hand Strap

VFC4012

_ Carrying Case

VFC4013

_ Cleaning Cloth

VFC1792

Information for Your Safety

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic SD Multi Camera. Please read these Operating Instructions carefully and keep them handy for future reference.

WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES AND DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

• Please note that the actual controls and components, menu items, etc. of your SD Multi Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

(For UK only)

Caution for AC mains lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three-pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5-amperes and it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

_ IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three-pin plug, marked with the letter E or the Earth Symbol Ó.

Before Use

Remove the Connector Cover as follows.

Connector Cover

_ How to replace the Fuse

1 Remove the Fuse Cover with a

screwdriver.

Fuse Cover

2 Replace the fuse and attach the Fuse

Cover.

Fuse

Components

_ Body

1 Self timer Lamp 2 Flash 3 Lens 4 Terminal (Headphone/Remote

Controller) [ ]

5 Strap Attachment 6 Shutter Button [[] 7 Jog Ball 8 LCD Monitor

9 Macro Switch [ ]

10 Speaker

• For confirming voice and music.

11 Screen Reversal Button/HOLD

Button (when playing music) [REV]

12 MENU Button [MENU]

13 Shutter Button [[]

14 Power Button [ ] 15 Record/Playback mode Switch

[/]

16 Microphone 17 Power/Card Access Lamp 18 Lock Release Lever 19 Battery Slot 20 Card Slot 21 Connector for USB Cradle 22 Card/Battery Door 23 Battery Lock

_ Operating Jog Ball

Roll the ball to select items. 1 Press to select items. 2

_ Operating Power Button

Hold for about 1 second to turn the power on. Hold for about 2 seconds to turn the power off.

_ USB Cradle

Use this to charge the battery installed in this unit. When connecting an USB cable (supplied) to a socket, you can playback the pictures or voice and edit music on your PC.

_ Remote Controller

You can play back pictures, sounds and music, and control the volume of the sound and music. You can also take pictures by using this remote controller.

_ Stereo Earphones

When using earphones, be sure to connect to the supplied remote controller.

1 Charge Lamp [CHG] 2 Connector 3 Release Button [RELEASE] 4 USB Socket [USB] 5 DC Input Socket [DC IN 4.8V]

1 Stereo Earphone Socket 2 Volume Button [j VOL i]

3 Playback/Stop/Shutter Button

/∫/µ]

4 Fast-forward Button [9] 5 Fast-rewind Button [:] 6 Clip 7 Hold Switch [HOLD]

• The buttons on the main unit cannot

be locked.

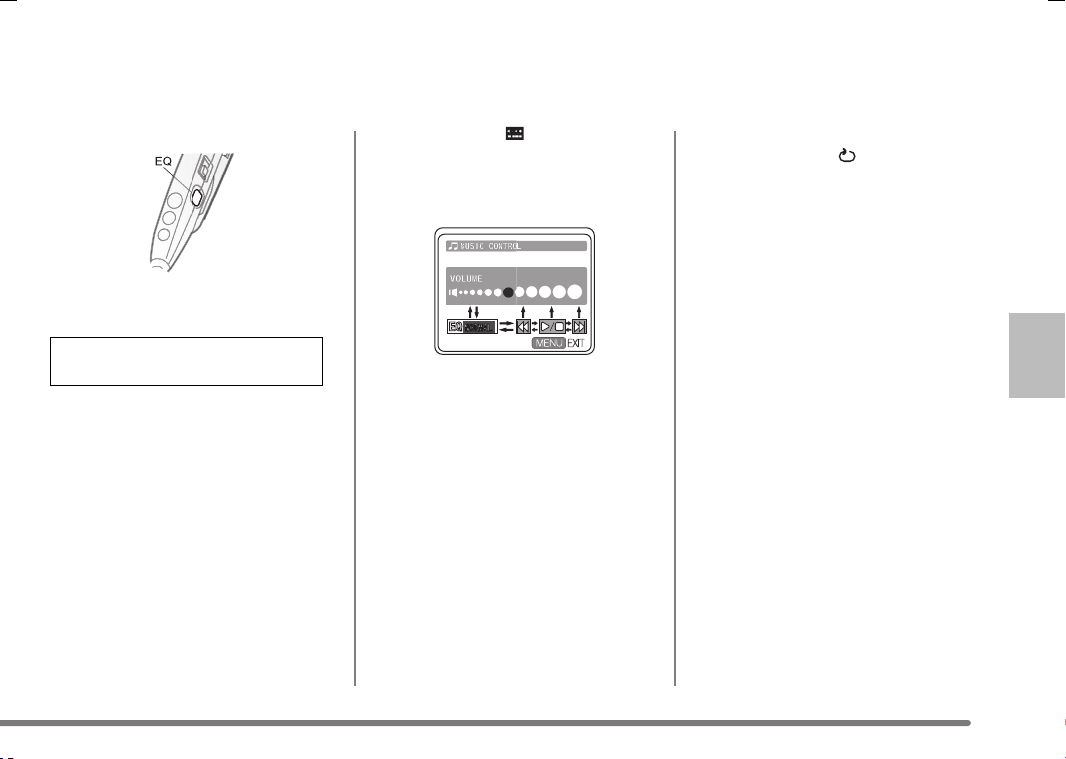

8 Equalizer Button [EQ]

1 Stereo Earphones 2 Remote Controller

• If you use earphones other than the ones supplied, use 3 m or less length of earphones (including the remote controller).

Insert the Battery

Slide the door while releasing the lock. 1

Open the door. 2

Insert the battery all the way.

• Confirm the direction of the battery.

Close the door. 1 Lock the door while sliding it. 2

Remove the Battery

Be sure to turn the power off when you remove the battery.

Slide the door while releasing the lock. 1

Open the door. 2

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Tilting this unit with facing the battery slot to the bottom, remove the battery with lifting the Battery lock A.

• When you cannot remove the battery, pull out the projection part remove it.

B to

Close the door. 1 Lock the door while sliding it. 2

• When you do not use the camera for a long time, remove the battery.

• Never open the Card/Battery door during the access. (P16) Otherwise, the data on the card may be damaged.

• The supplied battery is only for this camera. Do not use it for other devices.

Charging the Battery

DC IN 4.8V

Connect the AC Mains Lead to the AC Adaptor and the AC mains socket.

• The AC Mains Lead does not fit entirely into the AC Adaptor socket. A gap will remain as shown 1.

And then connect the DC input lead to the USB cradle.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

Charge the battery.

• Align the connections.

• Be sure to turn the power off when charging the battery.

• Do not insert this unit in a wrong direction.

• The charge lamp blinks in about 3 seconds after connecting this unit with USB cradle.

When the charge lamp turns off, the battery is charged fully.

• It takes about 120 minutes.

Remove this unit from the cradle while pressing the RELEASE button.

About Charging

• The battery is warmed during and after charging, and after use. The camera is also warmed during the operation, however, it is not malfunction.

• Use the supplied cradle or AC adaptor for this unit.

• Pull the plug out of the electrical outlet after completing the charge.

• Do not disassemble or alter the cradle or AC adaptor.

• Disconnect the USB cable from the USB cradle before charging.

_ Battery indicator

The remaining battery power is displayed on the LCD monitor in use. The indication is changed as follows

##(blinking)

according to the consumption of the battery. When the indicator is shown as

(blinking), the battery will be exhausted in a few minutes. Charge the battery.

_ Charging time and available

recording time

(Recording condition)

• Shooting once every 30 seconds, flash every other shot

• Temperature 25°C/Humidity 60%

• Using the supplied battery and the SD Memory Card

Charging time Approx. 120 minutes

Continuous recording time (recordable number)

Playback time (Still Picture)

Continuous music playback time

The times shown above may vary depending on the condition.

Approx. 59 minutes (Approx. 110 still pictures)

Approx. 121 minutes

Approx. 10 hours (When setting the power save to ON and using supplied stereo earphones.)

_ Charging environment and

charging error

• Charge the battery in a place with the temperature 10 - 35°C. (The battery should also be the same temperature)

• The charge Lamp blinks while charging. (Blinks approx. every 2

seconds (lighting approx. 1 second, turning off approx. 1 second) when charging is normal.) When the charge Lamp blinks more quickly or slowly (or turns off), some abnormality may have occurred. The blinking speed suggests the following states.

Blinking approx. every 6 seconds (lighting approx. 3 seconds, turning off approx. 3 seconds):

• The ambient temperature or that of

the battery itself is too high or too low. Charging proceeds, but will take a longer time.

Blinking approx. every 0.5 seconds (lighting approx. 0.25 seconds, turning off approx. 0.25 seconds):

Refer to P70.

Turning off:

Charging is completed.

• If the charge Lamp turns off when

charging is not completed, the AC Adaptor or the battery is probably defective. Contact your nearest Panasonic dealer.

• For details, refer to P69.

Insert the Card

Be sure to turn the power off when you insert the card.

Slide the door while releasing the lock. 1

Open the door. 2

Insert the card all the way in until it clicks.

• Check the direction of the card.

• Do not touch the connecting terminal on the rear of the card.

• If you do not insert the card all the way, it may be broken.

Close the door. 1 Lock the door while sliding it. 2

• If you cannot close the Card/Battery door completely, remove the card once, then insert it again.

• We recommend using the cards made by Panasonic. (Use genuine card only)

Remove the Card

Be sure to turn the power off when you remove the card.

Slide the door while releasing the lock. 1

Open the door. 2

Press the card until it clicks to release and pull out the card.

Close the door. 1 Lock the door while sliding it. 2

About Cards

_ Access to the card

When you access the card, (recognition/recording/reading/deleting) the Power/Card Access lamp blinks quickly.

When the Power/Card Access lamp is blinking, do not turn the power off or do not remove the battery and the card. Otherwise, the card or its contents may be damaged, or the camera may not work properly. The data of the card may be damaged or lost because of the electrical noise, static or breakdown of the camera or the card. Save your precious data to your PC. (P54)

_ SD Memory Card (supplied)

The SD Memory Card is a small, lightweight, removable external card. The SD Memory Card is equipped with a write-protect switch 1 that can inhibit writing and formatting. (When the switch is moved towards the LOCK side, it is not possible to write or delete data on the card and format it. When the switch is unlocked, these functions become available.)

• Keep the Memory Card out of reach of children to prevent swallowing.

Basic Menu Operation

Press the Power Button for 1 second to turn the power on. 1

Select the recording mode [ ] or playback mode [ ]. 2

Select the desired item.

Press the MENU button to access the menu.

Press the Jog Ball to set.

Select the menu item as above.

• To stop the operation, Press the

MENU button.

• If the Jog Ball is left without any operation for about 30 seconds, the unit exits the menu automatically.

• When you press the MENU button for about 1 second, the short cut menu appears. (P65, 66, 67)

About the Setup Menu

Items Details of the setting

Volum e [ ]

Format card [ ]

Icon display [ ]

• Beep ON: The operational sound turns on.

• Beep OFF: The operational sound turns off.

• Main volume: Adjust the volume of the speaker.

• You cannot recover all the data including the protected data once you format. Check the data before formatting.

• ON: Display the icon on the LCD monitor.

• OFF: Does not display the icon on the LCD monitor.

A: Recording mode B: Playback mode

Clock set [ ]

Reset file No. [ ]

Reset settings [ ]

Display setup [ ]

Auto power off [ ]

• Change the date and display style. (P19)

• The number of the file to be recorded in the next time starts from 0001.

• Reset to the initial setting of recording and setup menu. The clock setting does not change.

• Brightness: Adjust the brightness of the LCD monitor.

• Colour: Adjust the saturation of the LCD monitor.

• 5 min: No operation for about 5 minutes leads to power off.

• Cancel: Not lead to power off until the battery is exhausted.

• This function does not work when connecting to PC, recording/playing back the motion

image, playing the slideshow or music, or recording/playing back the voice memo.

Setting the Date/Time

Access the menu. (P17)

Select Clock set from Clock set [ ] on the Setup menu.

Set the year, month, day and time.

• When pressing the jog ball, year, month, day and time is set. When rolling it up and down, the number is set.

• Press the MENU button to exit from the menu.

_ After purchase

The clock is not set when shipping. When you turn the power on, the clock setting screen appears. Adjust the time here.

• If you do not set the clock here, the clock is automatically set to “January 1st, 2000 0:00”.

• You can set the year from 2000 to

2099.

• When you select Display style from Clock set in step 1, you can choose the indication style from the following. (e.g. September 1st, 2003 PM12:00)

• [Y/M/D]:2003/9/1 12:00

• [D/M/Y]:1/9/2003 12:00

• [M/D/Y]:Sep/1/2003 12:00PM

• When the fully charged battery is

inserted in the camera for 1 hour or more, the clock setting is stored in the camera for about 10 hours even after the battery is removed. (It is

stored for about a maximum of 3 months according to the time when the battery is inserted. If a battery which is not fully charged is inserted, time may become shorter.) However, the clock setting is cancelled if more time has passed without the battery inserted. In this case, please set the date/time again.

Taking a Picture (Still Picture)

Turn the power on. 1

• The power/card access lamp is lit in red.

Switch to the recording mode [ ].

Access the menu. (P17) Select Still picture from REC mode

[].

Press the shutter button to take a picture.

_ Self-Recording

Turn the lens.

• Do not touch the lens.

Press the screen reversal button to reverse a picture.

• If you take a picture without pressing the button, the picture is displayed upside down.

Take a picture.

• The recorded picture is horizontally reversed.

• You can take reverse the picture only in still picture mode.

• The flash setting is fixed to Flash off.

_ Digital zoom

You can record the picture enlarging it up to 4 times.

Press the jog ball.

Roll the jog ball up and down to set the zoom magnification.

• Press the jog ball again to cancel the digital zoom.

• The more the picture is enlarged, the more the picture quality is deteriorated.

• You can zoom only in still picture mode.

Taking a Picture (Still Picture) (Continued)

_ Macro

Slide the Macro switch to left side to take pictures of the subjects at a distance of

10 cm

about

• If you slide the Macro switch to the left but the subject is further away than 10 cm sharply.

, you cannot focus on the subject

_ When the lens is facing down

Rotate the lens to prepare for taking pictures.

• At purchase, the lens is facing down.

_ How to hold the camera

• Put your arm on the side of your body.

• Fix the camera with your right hand and put your left hand on the camera.

• In this unit, the shutter speed is automatically adjusted according to the brightness of the subject. Press the shutter button not to shake the camera.

_ When taking a horizontal picture

It is convenient to use the shutter button on the side of the camera.

• Be careful not to touch the lens or flash when taking pictures using the shutter button on the side of the camera.

• Distances for optimum focus Normal: About 50 cm Macro: About 10 cm

• The brightness of the LCD monitor may differ from that of the recorded pictures. In particular, when taking pictures in dark places with a long exposure time, darkness appears on the LCD monitor, but the recorded pictures are bright.

• When taking the picture from a distance, it is more convenient to use the shutter button on the remote controller.

• The LCD color and the brightness may be different under the fluorescent lamp.

• When taking pictures in very dark places, the shutter speed becomes slow. Be careful not to shake the camera. When taking pictures of the subjects in quick motion, the picture may be blurred or the image of the subject may persist.

Recording Still Picture with Audio

• You do not have to keep the shutter button pressed.

• The audio is recorded with the microphone on this unit. Do not cover it with your finger.

• Auto review (P44) does not work in this mode.

• Be careful not to touch the jog ball or any other buttons. The noise may be recorded.

Access the menu in the recording

. (P17)

mode Select Still picture + Audio from

REC mode [].

Take a picture.

• You can record audio for about 10 seconds. (The recording is automatically stopped.)

• You can also stop recording of the audio by pressing the shutter button within 10 seconds. You cannot stop recording within 2 seconds after recording has started.

Taking Pictures in Burst Mode

Access the menu in the recording

. (P17)

mode Select Burst []

from REC mode

Take a picture.

Burst speed 3 frames/sec.

Burst number Max. 3 frames

• Flash setting is fixed to Flash off.

• Self timer (P40) does not work in this mode.

• Auto review does not work in this mode.

Recording Motion Images

Access the menu in the recording

. (P17)

mode Select Video from REC mode []

Start recording.

• µ this symbol is displayed.

• The audio recording starts simultaneously from the microphone. (The audio is recorded with the microphone on this unit.)

• You can record up to about 60 seconds.

Stop recording.

• - this symbol is displayed.

• If the memory of the card becomes full during the recording, the recording is stopped automatically.

• The remaining time displayed on the LCD monitor is an approximation.

• When the motion image recorded with this unit is played back on other equipment, the quality of pictures and sounds may be deteriorated or pictures may not be able to be played back.

• When setting REC mode to Video

• Flash setting is fixed to Flash off.

• Digital zoom does not work in this

mode.

• Night mode (P44) does not work in

this mode.

• Auto review does not work in this

mode.

• The picture size is fixed to 320a240

pixels.

• You cannot use the Screen Reversal

Button/HOLD Button.

• Be careful not to touch the jog ball or any other buttons. The noise may be recorded.

• When the remaining time is lower than 1 minute, R 0h00m is displayed in red.

• After recording motion images, it may take time to read the data. This is not a

malfunction.

Recording Voice

• The remaining time displayed on the LCD monitor is an approximation.

• Recording could suddenly stop when recording voice depending on the brand of card.

• The audio recorded with this unit cannot be played back by other equipment.

• Be careful not to touch the jog ball or any other buttons. The noise may be recorded.

Access the menu in the recording

. (P17)

mode Select Voice memo mode []

from REC

Start recording.

• µ this symbol is displayed.

• The audio is recorded from the microphone on this unit.

• The LCD monitor is turned off within about 5 seconds after recording has started. Roll the jog ball gently to turn it on.

Stop recording.

• The LCD monitor is turned on again.

• - this symbol is displayed.

• You cannot stop recording within 2 seconds after recording has started.

• If the memory of the card becomes full during the recording, the recording is stopped automatically.

Playing Back Still Pictures

• This unit complies with DCF standards (Design rule for Camera File system) established by the

and Information Technology Industries Association (JEITA).

• If you change the folder name or the file name of a picture on your PC, the picture may not be played back.

• The file format that can be played back with this unit is JPEG. (There are also pictures that cannot be played back in JPEG format.)

• When the still picture recorded with other equipment is played back on this unit, the following may occur.

• The quality of pictures may be

deteriorated.

• The picture cannot be played back.

• The file size may not be displayed.

Japan Electronics

Switch to the playback mode [ ].

• The file recorded last is displayed.

Select the still pictures.

• When rolling the jog ball to the left, the previous picture is displayed. When rolling the jog ball to the right, the next picture is displayed.

Playing Back Still Picture with Audio

• The still picture with audio recorded with other equipment cannot be played back by this unit.

Switch to the playback mode [ ].

• The file recorded last is displayed.

Select the picture with the audio icon [ ] and press the jog ball to play

back the audio.

• 1 this symbol is displayed.

• To adjust the volume, refer to P30.

Playing Back Motion Images

Switch to the playback mode [ ].

• The file recorded last is displayed.

Select the picture with the motion image icon [ ] and press the jog

ball to play back the motion image.

• 1 this symbol is displayed.

• During playback, the motion image stops when pressing the jog ball. Press it again to play back.

• You cannot use fast-forward or fast-rewind.

• To adjust the volume, refer to P30.

• After finishing playback, the motion image stops at the beginning of the file.

• The file format which can be played back on this unit is QuickTime Motion JPEG.

• The QuickTime Motion JPEG files recorded by PC or other equipment may not be played back.

• When the motion image recorded with other equipment is played back on this unit, the quality of pictures may be deteriorated or pictures may not be able to be played back.

Playing Back Voice

Switch to the playback mode [ ].

• The file recorded last is displayed.

Select the picture with the voice icon [ ] and press the jog ball to play

back the voice.

• 1 this symbol is displayed.

• During playback, the motion image stops when pressing the jog ball. Press it again to playback.

• You cannot use fast-forward or fast-rewind.

• After finishing playback, the audio stops at the beginning of the file.

• The LCD monitor is turned off within about 5 seconds after playback has

started. Roll the jog ball gently to turn it on.

_ Adjusting the volume

• You can adjust the volume on the Setup menu (P17, 18). Turn the jog ball right and left to adjust the volume.

• The volume adjustment screen also appears when pressing the MENU button during play back.

• If the volume adjustment screen is not operated for a while after adjustment, it

will automatically disappear.

• You can also adjust the volume on the remote controller. (P32)

Playing Back Music

Insert the card which includes music files. Connect the remote controller and the stereo earphones to this unit. (P9)

• The MPEG2-AAC files, MP3 files or WMA files recorded with SD-Jukebox Ver.4 (supplied) can be played. (Depending on the quality of the files, they may not be played even if they are recorded under MPEG2-AAC, MP3 or WMA format.)

Access the menu in the playback mode. (P17)

Select Audio player from Play

mode [].

Select List from the menu.

• When you do not select the List, the music is played back from the track displayed.

Playing Back Music (Continued)

_ With the remote controller

Select the file and play it back.

• 1

• ∫

• :

, 9：

(Press the button gently)

• :

, 9：

(Keep pressing the button)

• You can fast-forward or fast-rewind

in 1 track.

Playback Stop Index search

fast- rewind/forward

_ With this unit Roll the jog ball up and down to select the file and play it back.

• Playback (Stop):

• Index search: Roll the jog ball right

Press the jog ball.

and left.

_ Adjusting the volume using

Remote Controller

• Turn up the volume with i, turn down the volume with j.

• If the volume adjustment screen is not operated for a while after adjustment, it

will automatically disappear.

_ Saving power consumption

(Power save)

Power save [] is set to ON just after purchasing this unit. If you operate nothing, the LCD monitor is turned off in about 5 seconds.

• If you turn the LCD monitor on again, operate the button of this unit (except for the jog ball and the power button).

If you want to cancel the power save mode, select Power save [] from the

menu in Audio player mode and then select OFF.

_ Switching the sound quality (EQ)

using Remote Controller

The indication changes as follows each time you press the Equalizer [EQ] button.

NORMAL l S-XBS1 l S-XBS2 l TRAIN l NORMAL

• NORMAL: The sound quality is normal.

• S-XBS1: The audio sounds lower and heavier.

• S-XBS2: The audio sounds even lower and heavier than when in S-XBS1.

• TRAIN: The audio sounds soft and will not be heard by those around you.

_ Controller

Select Controller [ ] from the menu when in Audio player mode and then roll the jog ball to adjust the volume and switch the sound quality. You can also select Playback, Stop, Index search.

• Volume: Roll the jog ball right

• Sound quality (EQ):

and left to adjust the volume.

Press the jog ball to switch the sound quality.

• Operation:

ress the jog ball to

operate

(Stop), Index search

playback

_ Playing back repeatedly

(Repeat play)

Select Repeat play [ ] from the menu in Audio player mode and then select the desired setting.

• OFF: Does not repeat

• Single song repeat:

• All song repeat:

playback. Repeats the music being played only. Repeats all music tracks. (When selecting a playlist, all music in the playlist is played)

Playing Back Music (Continued)

_ Selecting playlist

You can select and play back the playlist set on SD-Jukebox Ver.4 (supplied).

Select Playlist [] from the menu in Audio player mode and then select the desired playlist.

• When you select the item on the top of the list, all music files recorded are played back.

• For details about recording of music file and playlist, refer to the operating instructions of SD-Jukebox Ver.4 (supplied).

• When adding picture files to a music file on SD-Jukebox Ver.4, the first added picture is displayed as a thumbnail of the music file.

• This unit is not capable of recording and deleting music.

• Using its formatting function, all the data on the card can be deleted.

• A title and an artist name may not be displayed in some cases.

• When pressing Screen Reversal Button/HOLD Button for about 2 seconds or more, HOLD appears on the display and then the button operations of this unit (except for the power button) are disabled. When you repeat the same procedure, the button operations are enabled. When you turn the power on again, the button operations are enabled.

• The remote controller can be connected even when using the carrying case (supplied).

Multi File Playback (Thumbnail display)

Access the menu in the playback mode. (P17) Select Thumbnail from Play mode

[].

Select the type of the file.

• Select the item from the table on the right.

• 6 thumbnails appear on the LCD monitor.

Item Details of Setting

All files

[]

Still picture []

Mark

[]

DPOF print

[]

¡Mark []

Video

[]

All kinds of files (except for music files) are displayed as thumbnails.

Still picture files are displayed as thumbnails.

Files with mark (P46) are displayed as thumbnails.

Files with DPOF printing (P48) are displayed as thumbnails.

Files with ¡ mark (P46) are displayed as thumbnails.

Movie files are displayed as thumbnails.

Select the file and press the jog ball.

• The selected file appears on the LCD monitor.

• When displaying the music file as thumbnail, select Audio player from

Play mode and then select Thumbnail.

Erasing Files

Access the menu in the playback mode. (P17) Select the desired setting from Erase file.

• Select the item from the following items.

Item Details of Setting

Erase one [ ]

Erase all [ ]

• Music file cannot be erased by this unit.

Erases only 1 file.

Erases all of picture, motion image, voice files in a card.

Select the file. (Only when selecting Erase one) Select Yes on the confirmation screen and then press the jog ball.

• Once deleted, pictures cannot be recovered. Check the picture before deleting.

• You cannot delete protected files. Cancel the protection before deleting files. (P50)

• Be sure to delete audio files with this unit only.

• When you delete files on this unit, the DPOF information set on other equipment can be also deleted.

• Still pictures which cannot be played on this unit (other than JPEG) can be deleted.

• Do not turn the power off or remove the card when deleting.

• When you delete many files at the same time, use a fully charged battery.

• Even if selecting Erase all, locked files (P50) or out of DCF standards are not deleted.

• Still pictures can be deleted during auto review in recording mode. (P44)

Setting Flash

Confirm that the lens is facing the front. Otherwise, the flash does not fire.

Access the menu in the recording

. (P17)

mode Select the desired item from Flash.

• Select the item from the table on the right.

Item Details of Setting

Auto [ ]

Reduced red eye [ ]

Flash off

[]

The flash fires automatically according to the lighting conditions.

The flash fires automatically according to the recording situation. It reduces the red eye phenomenon (When a subject’s eyes appear red in flash light).

Use it when you take pictures of people or animals in low lighting conditions.

Even in dark places, the flash does not fire.

hen you take

Use it w pictures in places where using flash is not allowed.

Flash on

[]

The flash fires every time a picture is captured.

Use it when is back-lit or under fluorescent light.

your subject

Setting Flash (Continued)

• When setting REC mode to Video or Burst, the flash setting is fixed to Flash off.

• When rotating the lens, an orange flash off mark [ ] appears.

When setting to Auto or Reduced red eye in the bright place, flash off mark appears.

When using the flash,

• Do not stare at the flash light from close proximity.

• Do not let subjects get too close to the flash. The shape or colour of subjects may be changed because of the heat and light of the flash.

• Do not cover the flash with your fingers.

• The available flash range is about 50 cm - 1 m.

• If the subject is too close to the camera when taking a picture, the exposure value may not be set properly and the picture may appear washed out.

• The flash indication blinks red during charge. You cannot take a picture even when you press the shutter button.

• When taking a picture with the flash, the white balance will be automatically adjusted, but the white balance may not be properly adjusted when the flash light is insufficient.

• When taking a picture with the flash after setting the white balance manually (P42), the white balance may not be properly adjusted. We recommend setting the white balance to Auto when using the flash. (P41)

Changing the Quality and Size of Picture

You can change quality and size of a picture according to its use (e.g. printing, e-mail, etc.).

• Fine gives priority to picture quality to

Access the menu in the recording

. (P17)

mode Select the desired item from Quality

mode.

Quality Size

1600a1200

1280

Fine [ ]

Normal [ ]

a960

640

a480

1600a1200

1280

a960

640

a480

Take a picture.

record high quality pictures.

• Normal gives priority to the number of recordable pictures and records standard quality pictures.

• The smaller the picture size you select, the more pictures you can store on the card. In addition, a small data volume allows you to attach the picture to an e-mail or post it on a website.

• If you select a larger picture size, the printed picture will be clearer, especially with larger sized prints.

• When setting REC mode to Video, you cannot change the quality and size of picture. (The picture size is fixed to 320a240 pixels.)

• Pictures may be shown in mosaic-like pattern depending on the scene.

Taking Pictures with the Self Timer

• If you press the MENU button while the self timer is activated, the self timer is cancelled.

• When setting REC mode to Video or Burst, you cannot set the self timer.

• Use USB cradle when taking pictures with the self timer.

Access the menu in the recording mode. (P17)

ON from Self timer.

Select

Take a picture.

• The self timer lamp blinks.

• This unit start taking a picture in about 10 seconds.

Setting the White Balance

Use this function to adjust the whiteness when a recorded scene looks bluish or reddish.

• The setting of the white balance is reflected to other REC mode. And it is retained even if the power is turned off. When turning the power on again in different lighting conditions, set the white balance again.

• When taking a picture with the flash, the white balance will be automatically adjusted, but the white balance may not be properly adjusted when the flash light is insufficient.

• The white balance may not be adjusted correctly in dark places.

• Adjustment of white balance in Manual (P42) is effective under the following conditions.

• When recording under reddish

lighting (halogen light bulb, incandescent light bulb, etc.).

• When recording under multiple light

sources.

• When recording a picture of

mono-tone colour.

Access the menu in the recording

. (P17)

mode Select the desired item from White

balance.

• Select the item from the table on the right.

Item Details of Setting

Auto [ ]

Incandescent []

Daylight

[]

Cloudy [ ]

Manual [ ]

It is designed to automatically adjust the camera to produce natural tones. In most situations it works fine. In some situations where several different types of lighting are present, enhanced performance can be achieved by setting the white balance manually.

For recording under incandescent lighting

For recording outdoors on a bright day

For recording under a cloudy and shady sky

For manual setting (Read the following page where the manual setting is explained in detail)

Setting the White Balance (Manual)

• When taking a picture with the flash after setting the white balance manually, the white balance may not be properly adjusted. We recommend setting the white balance to Auto when using the flash.

• The white balance may not be able to be set manually in too bright or dark places. In this case, set the white balance to the mode other than Manual.

Access the menu in the recording

. (P17)

mode Select Manual from White balance.

Aim the unit at a sheet of white paper A or similar object so that it completely fills the frame to white on the LCD monitor and press the jog ball.

• White balance is set.

Setting the Application Menu

Access the menu in the recording

. (P17)

mode Select the desired item from

Advanced setup.

• Select one from the items below.

• Exposure [ ]

• ISO Sensitivity [ ]

• Auto review [ ]

‑

_ Exposure Compensation [ ]

In some situations the illumination of the background and your subject may differ. Auto exposure systems may not always calculate the exposure correctly. This feature allows you to manually compensate the exposure.

Item Details of Setting

EV auto

[]

EV manual

[]

The compensation is automatically adjusted according to the brightness of the subject and the background.

You can compensate from j2 EV to i2 EV with 1/3 EV step by rotating the jog ball. Compensating to i side brightens the picture and to j side darkens it.

‑

• When compensating the exposure, the brightness of the LCD monitor may differ from that of the recorded pictures. Check the brightness by playing back the picture.

Setting the Application Menu (Continued)

_ ISO Sensitivity [ ]

ISO is the sensitivity to light. It is convenient to take pictures without the flash.

Item Details of Setting

Auto [ ]

ISO 100/ ISO 200/ ISO 400

• When you take a picture in high ISO sensitivity, picture noise appears and the picture quality is deteriorated.

The ISO setting is automatically increased according to the brightness. If the picture is still dim, use the flash.

Increasing the ISO value will make the camera more sensitive in low light.

_ Auto Review [ ]

When setting the Auto review to ON, you can check the picture for about 2 seconds after taking the picture. You can delete the picture by pressing the jog ball and selecting Yes on the confirmation screen.

• Auto review is not activated for the following materials.

• Video

• Burst

• Still Picture with Audio

_ Night mode

Access the menu in the recording mode. (P17) Select ON from Night mode.

• The shutter speed becomes slow and the night scene is exposured to natural brightness.

• When the REC mode is set to Video, you cannot select the Night mode.

• When taking pictures outdoors at night, be careful of camera shake.

• You can take a picture of people with the night view background using the flash.

Using the Playback Zoom

Select the picture in the playback mode. (P27)

Move the target zoom frame to the position to magnify.

Roll the jog ball upwards to display the target zoom frame

Press the jog ball.

• The picture in the target zoom frame is enlarged on the whole of LCD monitor.

Set the zoom magnification.

• After enlarging the picture, The magnification is restored by pressing the jog ball.

• You can playback the picture enlarging up to 10 times.

• The more the picture is enlarged, the more the picture quality is deteriorated.

• You can cancel the playback zoom by pressing the MENU button.

• Playback zoom may not be done on a picture recorded with other equipment.

Marking the Picture as a “Favorite”

Pictures registered as a Favorite can be displayed as thumbnails (P35) or watched on the Slide show (P47).

_ Attaching the Background music

Access the menu in the playback mode. (P17) Select the desirable setting from

Mark.

Item Details of Setting

¡Select/

Unselect [ ]

Select/

Unselect []

You can register the picture as favorite. 999 files can be registered.

You can attach the Background music to the picture. 36 files can be registered.

Select the picture and press the jog ball. (Only when selecting ¡,

Select/Unselect)

• ¡ or appears on the LCD monitor.

If you select the picture again, the marking is cancelled.

• Press the MENU button to exit from the menu.

After selecting Select/Unselect in step 1, select Ye s in Background music select screen. If you are inserting the card with music files, the list of the Background music appears. Select 1 Background music and press the jog ball.

_ Cancelling all marks

Select the mark [ ] [ ] to be deleted in step 1. All pictures registered

in ¡ or are cancelled.

Playing back Still Pictures on the Slide Show

Still pictures are automatically played in sequence. This function is suitable for making a story with still pictures.

• You cannot watch a slide show of the

Access the menu in the playback

. (P17)

mode Select Slide show from Play mode

[].

Select the desired item from Slide show.

• Select the item from the table on the right.

Item Details of Setting

Slide show []

Slide

show

[]

SD slide show

[]

¡Slide show []

All the pictures are played back for about 5 seconds per 1 picture in the order of the file number.

The pictures set on Mark are played back for about 5 seconds per 1 picture. Background music can be attached. (P46)

The pictures set by SD Viewer (supplied software on the CD-ROM) are played back for about 5 seconds per 1 picture.

The pictures set on ¡ Mark are played back for about 5 seconds per 1 picture.

motion image.

• You can stop slide show when pressing the jog ball during slide show.

• You can adjust the volume with the volume button on the remote controller

during the Mark slide show with Background music. (The volume control screen does not appear. You cannot adjust the volume by keeping the button pressed.)

• Still pictures recorded with other equipment may not be displayed on the Slide show or they may take time to be displayed.

• It may take time to display the Mark slide show with Background music. But this is not a malfunction.

Setting the Still Pictures to be Printed (DPOF print)

You can tell others which and how many pictures are to be printed by setting DPOF printing.

Access the menu in the playback

. (P17)

mode

Select the desired item from DPOF

print.

Item Details of Setting

Single print []:

All prints

[]:

Print date

[]

Set DPOF printing for each files.

Set DPOF printing for all files in the card.

Refer to P49.

Select the picture. (Only when selecting Single print)

Select the number of printing and press the jog ball.

• You can set the number up to 999.

• When setting to 0, DPOF setting is cancelled.

_ About printing with date

When selecting ON from Print date of Step 1, you can print all the pictures that DPOF setting is designated on Steps 1 to 3 with the date and time.

• All pictures will print with the date. You cannot choose which pictures are printed without the date when it is set to ON.

• You cannot print the date on the pictures that DPOF setting is not designated.

• You cannot print the date on the pictures without setting of the recording date.

• The date may be cut or not be displayed depending on the printer.

• When selecting OFF, the setting of all pictures is cancelled.

_ About DPOF

DPOF is the abbreviation for Digital Print Order Format. This feature allows

you to designate which pictures will be printed. Some photo printers as well as many commercial photo-processing companies support DPOF. If the DPOF setting is determined, you do not need to indicate which or how many pictures are to be printed.

• If the file is not based on the DCF standard, the DPOF setting cannot be designated.

DCF is the abbreviation for Design rule for Camera File system, stipulated by JEITA (Japan Electronics and Information Technology Industries Association).

• When using the DPOF feature, this unit will overwrite any previous DPOF settings made by other products.

• When the message of CARD FULL is displayed, delete the unnecessary files and designate DPOF again.

• When designating or cancelling many files, use a fully charged battery or AC adaptor and USB cradle.

• DPOF setting may not be added on a picture recorded with other equipment.

Preventing Accidental Erasure of Files (Lock setting)

We recommend locking your precious files without fail.

_ To cancel all locked files

Access the menu in the playback

. (P17)

mode Select

Lock/Unlock from Lock.

Select the file and press the jog ball.

• [ ] is displayed on the LCD monitor. The setting is cancelled when selecting the picture again.

When you select Unlock all in step 1 and then select Yes on the confirmation screen, all the lock settings are cancelled.

• Formatting the card will delete all the data on the card, even if you protect the files in this procedure. (P18)

• You cannot delete the locked files. If you want to delete the file, cancel the lock setting first.

• The lock setting may not be effective in other products.

• Sliding the SD Memory Card Write-Protect switch to LOCK prevents the picture from deletion even if the protection is not set. (P16)

• Audio dubbing, resizing and altering the colour cannot be done with locked pictures. (P51, 52, 53)

Adding Audio to the Still Picture (Audio dubbing)

This is an enjoyable function to add a narration or sound to still pictures.

• When you delete the audio added or

already included in the picture, select Erase [ ] on Step 1. And then

select Yes.

• You can record up to a 10-second narration to a recorded picture.

• You can stop recording when pressing the shutter button again.

• The audio dubbing cannot be used with the motion images or locked pictures.

• Be careful not to touch the jog ball or any other buttons. The noise may be recorded.

Select the desired picture and then access the menu in the playback

. (P17)

mode Select Add audio from Arrange [].

Select Recording [] from Add audio.

Press the shutter button to start.

• When audio has already been recorded, the message is displayed. Select Yes to start recording. The audio that has already been recorded will be overwritten. Select No to cancel the recording.

Resizing the Still Picture

This function is useful when you want to reduce the volume of still pictures for e-mail or website.

• It is not possible to resize pictures in a

size lower than/equal to 320a240 or with an aspect ratio that is not 4:3.

• It is not possible to resize motion images, still pictures with audio or a locked picture.

• It may not be possible to resize pictures recorded with other equipment.

• The quality of resized picture may be deteriorated.

• The date and time when a picture is resized is recorded.

Select the desired picture and then access the menu in the playback mode. (P17) Select the desirable size from Resize.

• 640a480

• 320

a240

Press the jog ball to resize it.

• Confirm the message and select Yes or No. When selecting Yes, the source picture is deleted. When selecting No, the source picture is not deleted.

• You cannot retrieve the original state after resizing pictures.

Altering the Colour of the Still Picture (Colour Creator)

You can add a nostalgic effect to still pictures with this function.

• Motion images, still pictures with audio

or Locked picture cannot be altered.

• Pictures recorded with other equipment may not be altered.

• The quality of altered picture may be deteriorated.

• The date and time when a picture has been altered is recorded.

Select the desired picture and then access the menu in the playback mode. (P17)

Select Colour creator from Arrange [].

Select the effect (Monochrome, Sepia) and press the jog ball.

• Monochrome: The picture turns black and white.

• Sepia: The picture turns brownish/red to create an aged look.

• Confirm the message and select Yes or No. When selecting Yes , the source picture is deleted. When selecting No, the source picture is not deleted.

Connecting to PC

_ Operating Environment

SD Viewer Ver.2.1 SD-Jukebox Ver.4

OS Windows 98SE, Windows Me,

CPU

RAM 64 MB or more (Windows 98SE, Me)

Display High Colour (16 bit) or more

Free hard disk space

Drive CD-ROM drive

Interface USB port Sound Creative Labs Sound Blaster 16 or compatible device

• Even if the system requirements mentioned in these operating instructions are fulfilled, some personal computers cannot be used.

• This software cannot be used on Microsoft Windows 3.1, Windows 95, Windows 98, Windows NT and Macintosh.

• Operation on an upgraded OS is not guaranteed.

• Operation on an OS other than the one pre-installed is not guaranteed.

• Multi-CPUs environment is not supported.

• Multi-boot environment is not supported.

Windows 2000, Windows XP

Intel® Pentium® II 300 MHz or higher

(128 MB or more recommended)

128 MB or more (Windows 2000, XP)

(256 MB or more recommended)

Desktop resolution of 800 a 600 pixels or more

(True Colour (24 bit) or more recommended) (1024 a 768 pixels or more recommended)

40 MB or more Free hard disk

- required to install this program

OS Windows 98SE, Windows Me,

CPU (Windows 98SE, Me)

RAM 128 MB or more (Windows 98SE, Me)

Display High Colour (16 bit) or more

space

Necessary software

Drive CD-ROM drive

Interface USB port

Windows 2000 SP2 or later, Windows XP

Intel® Pen ti um® II 333 MHz or higher (Windows 2000, XP)

Intel® Pen ti um® II 500 MHz or higher

256 MB or more (Windows 2000, XP)

Desktop resolution of 800 a 600 pixels or more

(True Colour (24 bit) or more recommended) (1024 a 768 pixels or more recommended)

100 MB or more

DirectX 8.1 or later

(required to install this program) / A CD-ROM drive capable of digital recording is required. Four-speed or higher is recommended. (Recording may not work properly with CD-ROM drives connected through an IEEE1394 or USB connection.)

_ Installing the USB driver (Only for Windows 98SE/Me)

Be sure to install the USB driver from the provided CD-ROM before connecting this unit to the PC. Close all software programs (even permanently resident software) running on Windows.

• If you click on icons other than the

Insert the CD-ROM.

• The Set Up menu starts automatically.

• If the Set Up menu does not start automatically, double-click on the [Autorun.exe] from the CD-ROM.

Click on [USB Driver].

If the [Restarting Windows] dialog box appears, click on [Finish].

• After restarting the PC, installation of the driver will be finished.

USB driver, installation of the respective software begins.

• For details about how to use the supplied software, please refer to the Help for the respective software.

• When starting [SD Viewer], if a message stating that there is no supported Memory Card is displayed, confirm whether installation of the USB driver has been finished.

Connecting to PC (Continued)

_ Installing the SD Viewer

When the Set Up menu started, click on [SD Viewer Ver.2.1E]

• The Set Up menu starts automatically.

• If the Set Up menu does not start automatically, double click on the [Autorun.exe] from the CD-ROM.

Click on [Next].

Carefully read End User Licence Agreement, and click on [I agree]. Then choose the target folder and click on [Next].

Click on [Finish].

• The installation of SD Viewer is completed.

• The “SD Viewer Font” and the “SD Viewer Edge Font” installed with SD Viewer are only used for SD Viewer. If they are used in other software, some characters may not be displayed.

_ Features of SD-Jukebox Ver.4

• Records high quality music onto an SD Memory Card that can be played back on this unit.

• Allows Playlists to be created containing your favorite tracks. (If a Playlist is selected, only the tracks in the Playlist are played back.)

• Allows a still picture to be associated with the music data.

_ Installing SD-Jukebox Ver.4

Insert the supplied CD-ROM into the personal computer’s CD-ROM drive.

• The launcher for the installation is activated automatically.

Click [SD-Jukebox Ver.4].

• When [Welcome] screen appears, click [Next].

• If the confirmation whether you have the right to administrate the personal computer is displayed, click [OK] and continue with installation.

Read License Agreement carefully, and click [Yes], if you accept the terms of the agreement.

Enter your name and the serial No. described on the CD-ROM casing and click [Next].

Complete the installation according to the message.

• When the setup screen for the Media Format 7.1 is displayed, install the Media Format 7.1 according to the message.

• When the DirectX 8.1 setup screen appears, install it. (Failure to install DirectX 8.1 disables you from using SD-Jukebox Ver.4.)

• After rebooting the computer, the SD-Jukebox Ver.4 is enabled.

_ Uninstalling the software

Click on [Start] # [Control Panel], and select [Add/Remove Programs].

Select the software you want to uninstall and click on [Add/Remove].

• Depending on the OS, the uninstallation procedure may vary. For details, please refer to operating instructions of the OS used.

Connecting to PC (Continued)

_ Connecting this unit to PC

When using Windows 98SE/Me, connect only after installing the driver. (P55)

Be sure to insert the battery and connect the AC adaptor.

Connect the USB cable and the AC adapter to the USB cradle.

• Be sure to insert the AC adaptor in a outlet.

Insert the card in this unit. (P14)

Turn this unit on, and set to the playback mode.

Attach this unit to the USB cradle.

• This unit turns to the USB connection mode. In this mode, you cannot turn the power off. If you turn the power off, disconnect the USB cable first.

• When the Power/Card Access Lamp of this unit is blinking, do not remove this unit from the USB cradle nor disconnect the USB cable. The software may not function correctly and the transmitting data may be damaged.

• Use the supplied USB cable only.

• Do not disconnect the AC adaptor from the PC during connection.

• When the USB connection mode (displayed as PC ACCESSING) is not canceled even if you turn the PC off, disconnect the USB cable.

• If the PC is in the Standby mode while connecting to the camera, the PC may not recognize the camera when recovering from the Standby mode. In this case, restart the PC.

_ Checking that this unit is

recognized correctly by the PC

Ensure that the [Removable Disk] is included in [My Computer].

• Drive name (E: etc.) varies with the PC being used.

• If this unit does not operate correctly, please check the connection again.

_ Removing the USB connection

cable safely

If the USB connection cable is removed or the power switched off while the PC is working, an error dialog box may appear. In such cases, click on [OK] to close the dialog box. To remove the USB connection cable without the error dialog box being displayed, proceed as follows.

Double click icon on the task tray.

• The Hardware removal dialog box appears.

• Depending on OS Windows 98SE, etc. the icon for safe removal may not be displayed in the task tray. (There will be no display depending on the set up of the OS) Make sure that the Power/Card access lamp of this unit is off, then remove the cable.

Connecting to PC (Continued)

Click on [USB Mass Storage Device], and click on [Stop].

Confirm that the [USB Mass Storage Device] is selected, click on [OK].

Click on [OK].

• The USB connection cable can be safely removed.

_ Starting SD Viewer

• Thumbnail of the pictures in the Memory Card can be displayed.

• You can input the recorded date to the still pictures.

• Pictures in a memory card can be copied to a PC.

• You can create slide shows easily.

• You can change the brightness and the hue of the pictures, and add some characters to the pictures.

• You can print out pictures checking them on a display of a PC.

• Install the SD Viewer from the Set Up menu (P55) before starting. Before using for the first time, click on [Readme] from [Start] #[All Programs] # [Panasonic] # [SD Viewer (D-snap)], please read the supplementary explanation or updated information.

Select [Start] # [All Programs] # [Panasonic] # [SD Viewer (D-snap)] # [SD Viewer for DSC]. Or when the removable disc display appears after connecting, select [View all images] and then click on [OK].

Connecting to PC (Continued)

Closing the SD Viewer

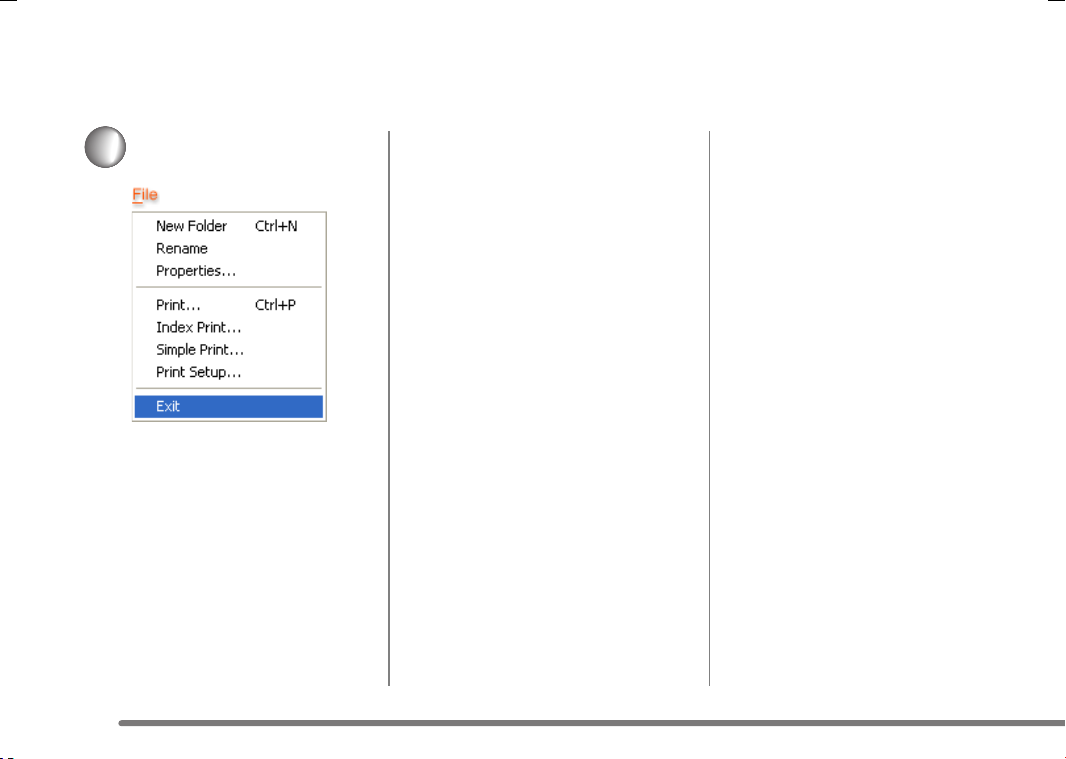

Click on [File] # [Exit].

• It is also possible to close by clicking on the [

k] in the top right-hand corner

of the SD Viewer.

If the Memory card has been inserted, the pictures in the Memory card are displayed.

• If the Memory card is not inserted, this message “There is no supported memory card” is displayed. Click on [OK] to start the SD Viewer.

• It is also possible to start by double-clicking on the short cut icon on the desktop.

• Do not remove this unit from the USB cradle nor disconnect the USB cable when SD Viewer is in use. The software may not function correctly and the transmitting data may be damaged.

_ About data in the card The following files are included in the folders on the card.

• You can record up to 9999 pictures in the folders such as 100_PANA folder.

• The files in DPOF setting are recorded in MISC folder.

• Format the card with this unit or SD-Jukebox Ver.4.

• [SD_AUDIO] folder are set as hidden files. Therefore, they may not be displayed on the Explorer or [My Computer].

• If you recorded data not compatible with this unit on the PC, this unit cannot recognize the data.

• Do not delete the folders in the card on the PC. You may not be able to read the card with this unit.

• To read the PDF operating instructions, Adobe Acrobat Reader

5.0 or higher is needed. (It is included in the supplied CD-ROM.) If it is not installed in the PC used, double-click [AR505ENU.EXE] in [Acrobat Reader] folder on the supplied CD-ROM and follow the displayed message to install it.

• To play motion images or voice memo, install QuickTime from the supplied CD-ROM.

• If malfunctions occur when playing back motion pictures or audio, uninstall

[DCIM]：

[SD_AUDIO]：

DCIM

100_PANA

MISC SD_AUDIO

Still pictures recorded under JPEG format (P1000001.JPG, etc.) Motion image data, voice data recorded under MOV format (P1000001.MOV, V1000001.MOV, etc.)

Music data (AOB001.SA1, etc.) recorded by SD audio PC recording software such as SD-Jukebox Ver.4 (supplied), etc.

QuickTime in the PC (P57), then reinstall QuickTime in the supplied CD-ROM before playing them. (However, some functions in QuickTime may be disabled.)

• When using SD Viewer, if you save still pictures with audio or voice memos recorded by this unit to PC and then copy them onto the SD Memory Card again, they may be recognized as motion image files. However, you can play back them as usual. If you edit files with a software other than SD Viewer, they may not be played on this unit.

• To create the music, install SD-Jukebox Ver.4. from the supplied CD-ROM.

• When you saved image files on a PC and rewrite them on the memory card again to play back on this unit, we recommend copying and moving manually, not using “Copy of Memory card” function or “Copy” button on the Tool bar of the SD Viewer.

LCD Monitor Display

_ When taking pictures

1 Recording mode 2 Flash mode 3 Night mode 4 White balance 5 Picture quality setting 6 Picture size 7 Battery remaining 8 Remaining pictures/time

9 Counter display 10 Digital zoom 11 Self timer mode 12 Exposure compensation 13 ISO Sensitivity 14 Date/Time (It is displayed for about 5

seconds after turning on the power or setting the clock.)

_ When playing back pictures

1 Playback mode 2 Stop/Play/Reading display [ ] 3 Still picture with audio/Motion

image/Voice

4 Picture quality 5 Picture size 6 Battery remaining 7 Folder / File number 8 Counter display 9 No. of DPOF printing

10 ¡ mark 11 Protected file 12 Recorded date and time

_ When playing back music

1 Audio player mode 2 Stop/Play/Fast-forward/Fast-rewind 3 Audio quality (EQ) 4 Repeat playback 5 Battery remaining 6 Playback time 7 Title/Artist name

Menu Screen Display

_ Menu in the recording mode

1 Quality mode (P39) 2 REC mode (Refer to next column) 3 Self timer (P40) 4 White balance (P41) 5 Advanced setup (P43) 6 Flash (P37) 7 Setup (P18) 8 Night mode (P44)

• Some items may not be displayed on the menu when recording except still pictures.

REC mode

1 Still picture (P20) 2 Still picture + Audio (P23) 3 Burst (P24) 4 Video (P25) 5 Voice memo (P26)

Short cut menu When you press the MENU button for about 1 second, the short cut menu appears. It can carry out menu functions quickly.

Menu Screen Display (Continued)

_ Menu in the playback mode

1 Arrange (P51, 53) 2 Play mode (Refer to next column) 3 Resize (P52) 4 Lock (P50) 5 DPOF print (P48) 6 Mark (P46) 7 Setup (P18) 8 Erase file (P36)

Play mode

1 Play (P27, 28, 29, 30) 2 Thumbnail (P35) 3 Slide show (P47) 4 Audio player (P31)

Short cut menu When you press the MENU button for about 1 second, the short cut menu appears. It can carry out menu functions quickly.

_ Menu in the music playback mode

1 Power save (P32) 2 Play mode (P66) 3 Playlist (P34) 4 Thumbnail (P35) 5 Repeat play (P33) 6 Controller (P33) 7 Setup (P18) 8 List (P31)

Short cut menu When you press the MENU button for

about 1 second, the short cut menu appears. It can carry out menu functions quickly.

Cautions for Use

_ About this unit

Keep this unit away from magnetized equipment (such as a microwave oven, TV, video game equipment, etc.).

• If you use this unit on or near a TV, images and sounds may be disturbed due to electromagnetic wave radiation.

• Recorded data may be damaged, or images may be distorted by strong magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation generated by a digital circuit (including a microprocessor) may adversely affect this unit, causing the disturbance of images and sounds.

• If this unit is affected by magnetically charged equipment and does not function properly, turn the power off and detach the battery and then connect it again. Thereafter, turn the power on.

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, recorded images or sounds may be adversely affected.

Do not spray insecticides or volatile chemicals onto this unit.

• If this unit is sprayed with such chemicals, the camera body may be damaged and the surface finish may peel off.

• Do not keep rubber or plastic products in contact with this unit for a long period of time.

When you use this unit on a beach or similar place, do not let sand or fine dust get into the camera. Do not wet this unit with seawater or other liquid.

• Sand or dust may damage this unit. The lens may be scratched, fogged or other damages may be caused.

• In case this unit was drenched with seawater, wipe with a well wrung cloth, and then wipe with a dry cloth.

When carrying this unit, take care not to drop or hit it. Do not carry this unit in a pocket.

• The outer case may be destroyed by the strong shock, and it may cause malfunction of this unit. Store this unit in the carrying case (supplied). To protect the lens, rotate it.

Do not use benzine, thinner or alcohol for cleaning this unit.

• Detach the battery before cleaning this unit.

• The camera body may be deformed and the surface finish may peel off.

• Wipe this unit with a soft, dry cloth. To remove stubborn stains, wipe with a cloth that is soaked in a detergent diluted with water and afterward finish wiping with a soft, dry cloth.

• When you use a chemical cloth, read the instructions of the cloth.

• Wipe the stains on the lens and the LCD monitor with the cleaning cloth

(supplied).

_ Battery

The battery is a rechargeable lithium ion battery. Its ability to generate power is based upon the chemical reaction that takes place inside it. This reaction is susceptible to the surrounding temperature and humidity, and, if the higher or lower the temperature becomes, the more the battery will be affected.

Be sure to detach the battery after use.

• If it is left attached to this unit, a minute amount of current is consumed even when this unit power is off. If it is left for a long time, over discharge takes place. The battery may become unusable even after it is charged.

Have spare batteries on hand when you use this unit outdoors.

• In a cold place, the recordable time will be shorter.

• When you travel, be sure to bring the supplied AC adapter and USB cradle for charging in the place you are visiting.

If the battery is dropped, check that the terminal is not deformed.

• If the battery attached to this unit with the terminal is deformed, it may damage the body of SD Multi Camera.

Be sure to pull out the battery and the card, disconnect the plug after use.

• Store the battery in a cool and dry place with a relatively stable temperature. (recommended temperature: 15 25oC, recommended humidity: 40 60%)

• Extremely high or low temperatures will shorten the life of the battery.

• If the battery is kept in hot, humid, smoky or dusty places, the terminals may rust and cause malfunctions.

• Store the battery in a completely discharged state. To store the battery for a long period of time, we recommend charging it once every year and storing it again after you completely use up the charged capacity.

Do not throw the battery into a fire.

• If you heat or burn the battery, it may cause an explosion.

• The battery has a limited life.

Cautions for Use (Continued)

_ AC adaptor

• If you use the AC adaptor near a radio (especially when you are tuning in AM stations), radio reception may be disturbed. Keep the AC adaptor 1 m or more away from radio.

• When the AC adaptor is in use, it may generate whirring sounds. However, this is normal.

• Keep the electrodes of the AC adaptor clean at all times.

Put this SD Multi Camera near the outlet to make it easy to reach for the interrupting device (plug).

_ Charging error

When the charge lamp blinks approx. every

0.5 seconds (lighting approx. 0.25 seconds,

turning off approx. 0.25 seconds), it suggests the following states.

• The ambient temperature or that of the battery itself is too high or too low. Charge the battery after warming the temperature of periphery or battery adequately.

• The SD Multi Camera, battery or AC adaptor may be defective. Contact your nearest Panasonic dealer.

_ Condensation

When using the camera outdoors during very cold weather, dews can be formed on the camera and the lens when you return to a warm place. If condensation takes place, the lens may be fogged or the camera may not properly operated. Take care not to cause condensation and take the appropriate countermeasures.

Causes of condensation

Differences in temperature and humidity as shown below cause condensation.

• When this unit is brought into a warm room from outdoors in the cold.

• When this unit is brought inside a car from outside.

• When warming a cold room suddenly.

• When cool air from an air conditioner is directly blowing on the unit.

• When the place is humid.

When condensation has taken place:

• Turn the power off and leave this unit in this condition for about 1 hour. When the camera become close to the ambient temperature, the fog disappears naturally.

• When you move this unit from a cold place to a warm place, enclose the camera in a plastic bag, wait until the camera is warmed, and then take it out of the bag.

_ Memory card

When the power/card access lamp is Blinking (when the card is being read), do not remove the card, turn the power off, or subject it to vibration or impact. Do not leave the card in places where there is high temperature or direct sunlight, or where electromagnetic waves or static electricity are easily generated. Do not bend, drop, or subject it to strong vibration.

• If the above precautions are not taken, the card or the recorded content may be damaged.

Be sure to pull out and store the card after use.

• Keep the card in the storage bag to store or carry the card around.

• Do not allow dirt, dust or water to enter the terminals on the back of the card. Do not touch it with your fingers.

_ Picture data

• As a result of improper operations, recorded data may be damaged or erased. We are not responsible for the loss caused by the erasure of the recording data.

• When this message is displayed “PLEASE WAIT”, never remove the battery or the card, and do not disconnect the AC adapter (supplied) out. It may cause damage to the data and malfunctions.

Cautions for Use (Continued)

_ Maximum number of still pictures recordable on an SD Memory Card

Picture size 1600 a 1200 1280 a 960 640 a 480

Picture quality Fine Normal Fine Normal Fine Normal

8MB 81713273362

16MB 21 42 33 65 78 144

32MB 47 89 71 139 165 304

64MB 102 190 152 294 348 639

128MB 209 388 310 598 707 1299

256MB 419 777 621 1196 1414 2595

512MB 847 1568 1254 2414 2853 5233

• The number of remaining recording indication on the LCD monitor may not be decreased by taking pictures.

• These figures vary depending on the subject being photographed.

_ Maximum recording time of motion

picture on an SD Memory Card

Picture size

8MB 33 sec.

16MB 1 min. 17 sec.

32MB 2 min. 42 sec.

64MB 5 min. 41 sec.

128MB 11 min. 33 sec.

256MB 23 min. 04 sec.

512MB 46 min. 31 sec.

• These figures vary depending on the subject being photographed.

320 a 240

(QVGA)

_ Maximum recording time of Voice

on an SD Memory Card

8MB 13 min. 17 sec.

16MB 30 min. 10 sec.

32MB 1 h. 02 min. 46 sec.

64MB 2 h. 11 min. 25 sec.

128MB 4 h. 26 min. 25 sec.

256MB 8 h. 51 min. 38 sec.

512MB 17 h. 51 min. 46 sec.

• “1 h. 02 min. 46 sec.” indicates 1 hour 2 minutes and 46 seconds.

• The numbers shown in the table are approximations.

_ LCD monitor

• In a place with drastic temperature changes, condensation may form on the LCD monitor. Wipe it with a soft, dry cloth.

• Do not push the LCD monitor strongly. It may cause unevenness and malfunctions to the monitor.

• If this unit is extremely cold when you turn the power on, the image on the LCD monitor is slightly darker than usual at first. However, as the internal temperature increases, it goes back to the normal brightness.

• Extremely high precision technology is employed to produce the LCD monitor screen featuring a total of approximately 76,800 pixels. The result is more than

99.99% effective pixels with a mere

0.01% of the pixels inactive or always lit. However, this is not a malfunction and does not affect the recorded picture.

_ Format

• Format the card on this unit. If formatting the card using PC, use SD-Jukebox Ver.4 (supplied). Particularly for the Card containing music files, check in the card using SD-Jukebox Ver.4, with which the music files were recorded, then format it. (For details, read the operating instructions for SD-Jukebox Ver.4.)

• Do not use PC (Explorer) to format it. Otherwise, it may not be recognized by this unit.

• When using the card formatted with PC or the other equipment, format the card using this unit again.

Messages

The confirmation/error message is displayed on the LCD monitor.

Messages Countermeasures

NO CARD Insert the memory card.

NO TRACK Insert the card with music files.

NO PICTURE NO VOICE Insert the card with the file recorded.

CHECK CARD Remove the card once and then clean its terminal.

CARD ERROR Remove the card once and then clean its terminal. If the error persists,

UNPLAYABLE FILE Cannot play back the file which is out of standards.

CARD LOCKED Release the lock of the write-protect switch on the memory card.

ERROR EMERGENCY STOP

Check your data, backup the data you need, and format the card with this unit.

Turn the power off and turn it on again or remove and insert the battery. If the error persists, consult your nearest dealer.

Messages Countermeasures

PLEASE WAIT Processing the data. Please wait for a while.

LOW BATTERY The battery remaining is insufficient. Recharge the battery.

NO SELECTED DATA

CARD FULL Change the card or delete unnecessary data.

FILE LOCKED

NO TARGET DATA

CANNOT RESIZE FILE

CANNOT ARRANGE

INSERT BATTERY

SET TO PLAY MODE

CONNECT TO AC ADAPTOR

CANNOT RESET FILE NUMBER

There is no data that can be displayed as a thumbnail.

Delete the file after releasing the protection.

There is no favorite (mark) on the card.

Select the still picture recorded by this unit. The picture should be larger than the size you select.

Select the still picture recorded by this unit.

Insert the battery and insert this unit into the cradle.

Switch to the playback mode [] when connecting this unit to PC.

Connect the AC adaptor to USB cradle when connecting this unit to PC.

When 999 folders have been created, you cannot reset the file number. Replace the card.

Trouble Shooting

Question Answer

The power is not turned on. Is the battery inserted correctly? Check the direction of the battery.

Is the battery remained enough?

The power is immediately turned off. Is the battery exhausted? Recharge the battery or insert the fully charged battery.

Cannot record. Is the card inserted?

Is the memory of the card full? Delete some pictures before recording.

The LCD monitor is too bright or dark. Adjust the brightness of the LCD monitor properly.

The flash does not fire. Is the flash set to Flash off? Change the flash mode.

The pictures recorded with a flash are dark. Is flash covered with your finger?

Cannot playback the card. Is the card inserted?

Is there playable pictures on the card?

Is the mode set to the playback mode?

When connecting to a PC, images cannot be transferred.

The clock is not set correctly. If you do not use this unit for a long time, the clock may be reset. In this case, this

Cannot play back music. Is there any effective music file on the card?

Is this unit connected to the PC correctly?

Does the PC recognize this unit properly?

message “SET THE CLOCK” will appear. Set the clock again.

If you record pictures without the clock setting, the date is recorded as [1/1/2000 0:00].

Question Answer

Cannot remove the battery. Pull out the projection part to remove it.

During Playback an [k] Indication is displayed.

Playing back or recording do not function and the screen has frozen. The LCD Monitor remains dark when recording the still picture or motion image.

Sound is not heard while a still picture is played back.

While playing back a Voice file or a Music file, the LCD Monitor is suddenly turned off.

The data was either recorded in a different format, or data is damaged.

Turn the power off. If this unit is not turned off, remove and insert the battery.

Sound is not presented when recording or playing back of still pictures.

The LCD Monitor is automatically turned off approx. 5 seconds after starting playback or recording a Voice file. Rolling the jog ball gently turns on the LCD Monitor. However, in the case of not conducting any operation for approx. 5 seconds, the LCD Monitor is turned off again. (The LCD Monitor is on while stopping playback (or pausing).)

When the Power Save is set to ON, the LCD Monitor is turned off 5 seconds after starting playback of a Music file.

Specifications

SD Multi Camera Information for your safety

Power sou rce

Power consumption

Image sensor 1/3.2q CCD, Primary colour filter

Pixels Total number of pixels: Approx. 2,110,000

Standard Illumination 3,000 lx

Minimum Required Illumination

Lens F4, Focal Length; 4.5 mm

Monitor 1.5-inch LCD

Microphone Mono

Recording Media SD Memory Card

DC 4.8 V (AC Adaptor) DC 3.7 V (Battery)

1.6 W (When recording the still picture)

1.0 W (When playing back the still picture)

0.20 W (When playing back music, setting power save to ON, using supplied stereo earphones)

Effective number of pixels: Approx. 2,000,000

80 lx

Shortest Image Distance; Approx. 50 cm from Lens (Macro: Approx. 10 cm)

Image Compression JPEG

Video Compression QuickTime Motion JPEG

Voice Compression QuickTime Linear PCM

Music Expansion AAC, MP3, WMA

Dimensions (WaHaD) Approx.51.5 a 103.7 a 13.5 mm (Thinnest part 9.9 mm)

Weight Approx. 57 g (without Battery and Memory Card)

Operating Temperature

Operating Humidity 10% - 80%

Approx. 74 g (with Battery and Memory Card)

0oC–40oC

Specifications (Continued)

USB Cradle Information for your safety

Input Output

AC Adaptor Information for your safety

Power sou rce DC Output

DC 4.8 V 1.0 A DC 4.8 V 530 mA

AC110-240 V 50/60 Hz DC 4.8 V 1.0 A

Battery Pack

Voltage/capacity 3.7 V, 530 mAh

Information for your safety

Memo

Before opening the CD-ROM package, please read the following.

End User License Agreement

You (“Licensee”) are granted a license for the Software defined in this End User License Agreement (“Agreement”) on condition that you agree to the terms and conditions of this Agreement. If Licensee does not agree to the terms and conditions of this Agreement, promptly return the Software to Matsushita Electric Industrial Co., Ltd. (“Matsushita”), its distributors or dealers from which you made the purchase.

Article 1 License

Licensee is granted the right to use the Software, including the information recorded or described on the CD-ROM, instruction manuals, and any other media provided to Licensee (collectively “Software”), but all applicable rights to patents, copyrights, trademarks and trade secrets in the Software are not transferred to Licensee.

Article 2 Use by a Third Party

Licensee may not use, copy, modify, transfer or allow any third party, whether free of charge or not, to use, copy or modify the Software, except as expressly provided for in this Agreement.

Article 3 Restrictions on Copying the

Software

Licensee may make a single copy of the Software in whole or in part solely for backup purpose.

Article 4 Computer

Licensee may use the Software only on one computer, and may not use it on more than one computer.

Article 5 Reverse Engineering,

Decompiling or Disassembly

Licensee may not reverse engineer, decompile, or disassemble the Software, except to the extent either of them is permitted under law or regulation of the country where Licensee resides. Matsushita, or its distributors will not be responsible for any defects in the Software or damage to Licensee caused by Licensee’s reverse engineering, decompiling, or disassembly of the Software.

Article 6 Indemnification

The Software is provided “AS-IS” without warranty of any kind, either expressed or implied, including, but not limited to, warranties of non-infringement, merchantability and/or fitness for a particular

purpose. Further, Matsushita does not warrant that the operation of the Software will be uninterrupted or error free. Matsushita or any of its distributors will not be liable for any damage suffered by Licensee arising from or in connection with Licensee’s use of the Software.

Article 7 Export Control

Licensee agrees not to export or re-export to any country the Software in any form without the appropriate export licenses under regulations of the country where Licensee resides, if necessary.

Article 8 Termination of License

The right granted to Licensee hereunder will be automatically terminated if Licensee contravenes any of the terms and conditions of this Agreement. Upon termination hereof, Licensee must destroy the Software and related documentation together with all the copies thereof at Licensee’s own expense.

VQT0F03 F0903Sn0 ( 13500 A )

Matsushita Electric Industrial Co., Ltd.

Web Site: http://www.panasonic.co.jp/global/

Panasonic SV-AS10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
