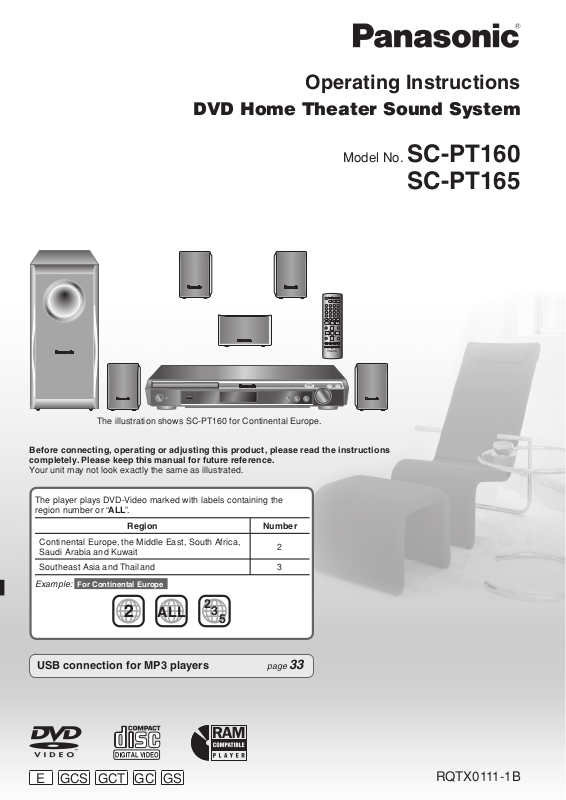

Panasonic SC-PT165 Operating Instructions

Operating Instructions

DVD Home Theater Sound System

Model No. SC-PT160

SC-PT165

The illustration shows SC-PT160 for Continental Europe.

Before connecting, operating or adjusting this product, please read the instructions
completely. Please keep this manual for future reference.

Your unit may not look exactly the same as illustrated.

The player plays DVD-Video marked with labels containing the
region number or “ALL”.

Region Number

Continental Europe, the Middle East, South Africa,
Saudi Arabia and Kuwait

Southeast Asia and Thailand 3

Example:

USB connection for MP3 players page 33

For Continental Europe

2 ALL

2

3

5

2

E GCS GCT GC GS

RQTX0111-1B

ENGLISH

System

Main unit

Front speakers
Center speaker
Surround speakers
Subwoofer

GETTING STARTED

*1

*2

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Operations in these instructions are described mainly with the remote control,

but you can perform the operations on the main unit if the controls are the same.

Unless otherwise indicated, all illustrations shown are of SC-PT160 for Continental Europe.

SC-PT160 SC-PT165
SA-PT160 SA-PT160

SB-HF150 SB-HF165
SB-HC150 SB-HC150

*1 *2

SB-HW150 (Black) or

For Continental Europe

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

Caution for AC Mains Lead

SB-HS151 SB-HS151

*1

SB-W340 (Silver)

*1 *2

SB-HW150 (Black) or

*1

SB-W340 (Silver)

Figure A

Figure B

Fuse cover

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse
(5 ampere)

Figure B

Fuse
(5 ampere)

2

RQT8043

RQTX0111

ENGLISH

GETTING STARTED

RQTX0111

3

RQT8043

This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.

For Southeast Asia, Thailand, the Middle East, South Africa,
Saudi Arabia and Kuwait

THIS UNIT IS INTENDED FOR USE IN TROPICAL

ENGLISH

CLIMATES.

For Continental Europe

THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI

GETTING STARTED

LEUDOSSA ILMASTOSSA.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER
MODERATE KLIMAFORHOLD.

Safety precautions

Placement

Set the unit up on an even surface away
from direct sunlight, high temperatures,
high humidity, and excessive vibration.
These conditions can damage the cabinet
and other components, thereby shortening
the unit’s service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources.
This can overload the unit and cause a fire.

Do not use a DC power source. Check
the source carefully when setting the unit
up on a ship or other places where DC is
used.

AC mains lead protection

Ensure the AC mains lead is connected
correctly and not damaged. Poor
connection and lead damage can cause
fire or electric shock. Do not pull, bend, or
place heavy items on the lead.

Grasp the plug firmly when unplugging the
lead. Pulling the AC mains lead can cause
electric shock.

Do not handle the plug with wet hands.
This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the
unit. This can cause electric shock or
malfunction.

Do not let liquids get into the unit. This can
cause electric shock or malfunction. If this
occurs, immediately disconnect the unit
from the power supply and contact your
dealer.

Do not spray insecticides onto or into the
unit. They contain flammable gases which
can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by
yourself. If sound is interrupted, indicators
fail to light, smoke appears, or any other
problem that is not covered in these
instructions occurs, disconnect the AC
mains lead and contact your dealer or an
authorized service center. Electric shock
or damage to the unit can occur if the unit
is repaired, disassembled or reconstructed
by unqualified persons.

Extend operating life by disconnecting the
unit from the power source if it is not to be
used for a long time.

4

RQT8043

RQTX0111

Table of contents

GETTING STARTED

Caution for AC Mains Lead ............................................................................2

Safety precautions ......................................................................................4

Accessories ..............................................................................................6

Preparing the remote control .........................................................................6

Placement of speakers .................................................................................7

Assembling the front speakers ...............................................................8

Speaker installation options ..........................................................................9

Simple setup .......................................................................................... 10

Making the connections ........................................................................................................................ 10

Optional antenna connections ..............................................................................................................12

Performing QUICK SETUP ........................................................................... 13

Disc information ...................................................................................... 14

Discs that can be played ....................................................................................................................... 14

Overview of controls ................................................................................. 15

Main unit / Remote control .................................................................................................................... 15

DISC OPERATIONS

Disc — Basic play .................................................................................... 16

Using the main unit / Using the remote control ..................................................................................... 16

Advanced play ......................................................................................... 18

Displaying current playback condition ................................................................................................... 18

Program and Random play ................................................................................................................... 18

Playing data discs using navigation menus ...................................................... 19

Playing data discs ................................................................................................................................. 19

Playing RAM and DVD-R/-RW (DVD-VR) discs ................................................................................... 19

Using on-screen menus .............................................................................. 20

Functions menu ....................................................................................................................................20

Changing the player settings ........................................................................ 23

MAIN menu ........................................................................................................................................... 23

Changing the delay time of the speakers .............................................................................................. 25

About DivX VOD content ......................................................................................................................26

Tips for making data discs .................................................................................................................... 26

OTHER OPERATIONS

Using the radio ........................................................................................ 28

Manual tuning .......................................................................................................................................28

Automatic presetting ............................................................................................................................. 28

Selecting the preset channels ............................................................................................................... 28

Using sound effects................................................................................... 29

Enhancing the sound from the center speaker: Center Focus .............................................................. 29

Adjusting the amount of bass: Subwoofer level .................................................................................... 29

Changing the sound quality: Equalizer Mode (EQ) ............................................................................... 29

Enhancing the stereo sound: Dolby Pro Logic II .................................................................................. 29

Enhancing the stereo sound: Super Surround ...................................................................................... 29

Adjusting the volume of each speaker: Speaker level adjustments ...................................................... 30

Enjoying Karaoke ..................................................................................... 30

Enjoying karaoke with karaoke DVD and VCD ..................................................................................... 30

Enjoying karaoke with other sources .................................................................................................... 31

Mic volume adjustment ......................................................................................................................... 31

Adding an echo effect ........................................................................................................................... 31

Vocal cancel function ............................................................................................................................ 31

Changing the pitch ................................................................................................................................ 31

Operating other equipment .......................................................................... 32

Optional audio connection for video cassette recorder or television ..................................................... 32

Optional connection for set top box, cable TV box or video cassette recorder ..................................... 32

Optional USB connection and operation ............................................................................................... 33

Operating the television ........................................................................................................................ 34

Changing the main unit and remote control .......................................................................................... 34

REFERENCE

Troubleshooting guide ............................................................................... 35

Language code list ................................................................................... 38

Glossary ................................................................................................ 39

Specifi cations ......................................................................................... 40

Maintenance ........................................................................................... 42

ENGLISH

GETTING STARTED

RQTX0111

5

RQT8043

Accessories

Please check and identify the supplied accessories.

1 Remote control

For Continental Europe

(N2QAYB000091)

For Southeast Asia,

ENGLISH

Thailand, the Middle East,
South Africa, Saudi Arabia
and Kuwait

(N2QAYB000092)

GETTING STARTED

2 Remote control bat teries

1 FM indoor antenna

1 Sheet of speaker cable stickers

1 AC mains lead

For Saudi Arabia and Kuwait

For Continental Europe,
Southeast Asia, Thailand,
the Middle East, South
Africa, Saudi Arabia and
Kuwait

1 Vi deo cab le

For Southeast Asia,
Thailand, the Middle East,
South Africa, Saudi Arabia
and Kuwait

2 Cover plates

Speaker stands

2 Stands (with cable)

2 Bases

8 Screws

Preparing the remote control

1 Insert so the

poles (+ and –)
match those in the
remote control.

R6/LR6, AA

CAUTION

Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.

• Do not use rechargeable type batteries.

• Do not heat or expose to fl ame.

• Do not leave the battery(ies) in an automobile exposed
to direct sunlight for a long period of time with doors
and windows closed.

RQTX0111

Do not:

• mix old and new batteries.

• use different types of batteries at the same time.

• take apart or short circuit the batteries.

• attempt to recharge alkaline or manganese batteries.

• use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage
which can severely damage the remote control.

Remove the batteries if the remote control is not going
to be used for a long period of time. Store in a cool, dark
place.

7 Use

Aim at the remote control signal sensor (\ page 15),
avoiding obstacles, at a maximum range of 7 m directly
in front of the unit.

6

RQT8043

Placement of speakers

How you set up your speakers can affect the bass and the sound fi eld. Note the following points:

• Place speakers on fl at secure bases.

• Placing speakers too close to fl oors, walls, and corners can result in excessive bass. Cover walls and windows with thick
curtains.

Setup example

Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in
the diagram are approximate.

ENGLISH

1

FRONT

(L, R)

2

SURROUND

(L, R)

3

CENTER

4

SUBWOOFER

1

FRONT

(L, R)

• Use only supplied speakers

Using other speakers can damage the unit, and sound

quality will be negatively affected.

• Set the speakers up on an even surface to prevent them
from falling. Take proper precautions to prevent the
speakers from falling if you cannot set them up on an
even surface.

Main unit

• Keep your speakers at least 10 mm away from the
system for proper ventilation.

• To allow proper ventilation and to maintain good airfl ow
around the main unit, position it with at least 5 cm of
space on all sides.

• Do not block the ventilation holes of the main unit.

Caution

• Do not stand on the
base. Be cautious when
children are near.

e.g. Front

speaker

2

SURROUND

(L, R)

3

CENTER

4

SUBWOOFER

• Do not touch the front
netted area of the
speakers. Hold by the
sides.

e.g. Center speaker

Main unit

Main unit

Center speaker

• Vibration caused by the center speaker can disrupt the
picture if it is placed directly on the television. Put the
center speaker on a rack or shelf.

• To prevent the speakers from falling, do not place directly
on top of the television.

Subwoofer

• Place to the right or left of the television, on the fl oor or
a sturdy shelf so that it will not cause vibration. Leave a
space of 30 cm from the television.

GETTING STARTED

RQTX0111

7

RQT8043

Placement of speakers (continued)

Note

• You can damage your speakers and shorten their useful life if

you play sound at high levels over extended periods.

• Reduce the volume in the following cases to avoid damage:

– When playing distorted sound.
– When the speakers are reverberating due to a record player,

a microphone (except

ENGLISH

broadcasts, or continuous signals from an oscillator, test disc,

or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.

For Continental Europe

), noise from FM

If irregular coloring occurs on your television

The front and center speakers are designed to be used
close to a television, but the picture may be affected with
some televisions and setup combinations.

If this occurs, turn the television off for about 30
minutes.

The television’s demagnetizing function should correct the
problem. If it persists, move the speakers further away from
the television.

Assembling the front speakers

Preparation

• To prevent damage or scratches, lay down a soft cloth and perform assembly on it.

GETTING STARTED

• For assembly, use a Phillips-head screwdriver.

• For optional wall mount, refer to page 9.

Make sure you have all the indicated components before starting assembly, setup, and connection.

2 Front speakers
(with cover plate)

1

W

2 Stands (with cable) 2 Bases 8 Screws

Q

Cover plate

2

Q

Position the
cable between
the ridges.

Remove using a fl at
object.

E

Keep for wall-mount

•

use (

\ page 9).

W

■ Preventing the speakers from falling

• You will need to obtain the appropriate screw eyes to
match the walls or pillars to which they are going to be
fastened.

• Consult a qualifi ed housing contractor concerning the
appropriate procedure when attaching to a concrete
wall or a surface that may not have strong enough
support. Improper attachment may result in damage to
the wall or speakers.

RQTX0111

R

E Tighten securely.

R Tighten securely.

T Slide into the groove.

T Insert the wire fully.

+: White

−: Blue

Push!

Y Press into the groove.

String (not included)
Thread from the wall to the
speaker and tie tightly.

Rear of the speaker

Screw eye

(not included)

2

1

Wall

Approx.
150 mm

8

RQT8043

Speaker installation options

7 Attaching to a wall

You can attach all of the speakers (except subwoofer) to
a wall.

• The wall or pillar on which the speakers are to be
attached should be capable of supporting 10 k
screw. Consult a qualifi ed building contractor when
attaching the speakers to a wall. Improper attachment
may result in damage to the wall and speakers.

per

Preparation for front speakers

Cover plate

W Tighten securely.

Q

E Connect the cable

*

Use the cable from the stand by releasing it from the

grooves at both ends.

*

(\ page 8).

ENGLISH

1 Drive a screw (not included) into the wall.

At least 30 mm

Ø4.0 mm

Wall or pillar

Ø7.0 to 9.4 mm

4 to 6 mm

2 Fit the speaker securely onto the screw(s) with the hole(s).

Center speaker

7 Reattaching the speaker cable to the stand

Front and surround
speakers

Surround speaker

1 Remove the eight screws from the stand,

and remove the speaker net.

Screw

Attach to a wall without the
base and the stand

106 mm

Example:

In this position, the
speaker will likely
fall if moved to the
left or right.

2 Position the cable.

Front speaker

340 mm

Press the cable into
the groove.

Move the speaker
so that the screw is
in this position.

GETTING STARTED

Approx.
15 cm

Cable

3 Attach the speaker net with the screws.

RQTX0111

9

RQT8043

Simple setup

Making the connectionsMaking the connections

Connect the AC mains lead only after all other connections have been made.

• Ensure that you have the complete accessories before making the connections.

Conserving power

The main unit consumes a small amount of power, even when it is in standby mode (approx. 1 W). To save power when the
unit is not to be used for a long time, unplug it from the household mains socket. You will need to reset some memory items
after plugging in the unit.

ENGLISH

Connect to the power supply.

For Saudi Arabia and Kuwait

BE SURE TO READ THE NOTE ON AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.

GETTING STARTED

Note

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

To household mains socket

Connect to the speakers.

Attach the speaker-cable stickers to make connection easier.

Be careful not to cross (short­circuit) or reverse the polarity of
the speaker wires as doing so may
damage the speakers.

Do not insert the
wires beyond the
wire insulation.

6 SUBWOOFER

5 CENTER

Speaker-cable sticker

2 FRONT (R)

1 FRONT (L)

4 SURROUND (R)

10

RQT8043

3 SURROUND (L)

RQTX0111

Push!

+ : White

− : Blue

Connect to the antenna.

Adhesive tape

7 FM indoor antenna

Tape the antenna where reception is
the best.

Connect to the various television terminals.

• Do not connect the unit through a video cassette recorder.

• Due to copy guard protection, the picture may not be displayed correctly.

• Turn the television off before connecting, and refer to the television’s operating instructions.

ENGLISH

For Continental Europe

7 Television with SCART terminal

Television

(not included)

SCART cable

(not included)

Using the SCART (AV) terminal

To improve picture quality, you can change the video signal output from the SCART (AV) terminal from “VIDEO”
to either “S-VIDEO” or “RGB” to suit the type of television you are using. Select “S-VIDEO” or “RGB” from
“VIDEO OUT-SCART” in “VIDEO” tab (\ page 24).
This connection will also enable you to play audio from your television through your home theater system. Refer to
“Operating other equipment” (\ page 32).

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

7 Television with a VIDEO IN terminal

Video cable

Television

(not included)

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

(included)

7 Television with COMPONENT VIDEO IN terminals

Video cables

(not included)

GETTING STARTED

Television

(not included)

Using the COMPONENT VIDEO OUT terminals

The COMPONENT VIDEO OUT terminals provides a purer picture. These terminals can be used for either
interlaced or progressive output. Connection using these terminals outputs the color difference signals (PB /PR)
and luminance signal (Y) separately in order to achieve high fi delity in reproducing colors.

• The description of the component video input terminals depends on the television or monitor (example: Y/PB /PR,
Y/B-Y/R-Y, Y/CB /CR).

• Connect to terminals of the same color.

RQTX0111

11

RQT8043

Simple setup (continued)

Optional antenna connectionsOptional antenna connections

Use outdoor antennas if radio reception is poor.

Note

• Disconnect the outdoor antenna when the unit is not in use.

• Do not use the outdoor antenna during a lightning storm.

FM outdoor antenna

ENGLISH

(Using a television antenna)

GETTING STARTED

• Disconnect the FM indoor antenna.

• The outdoor antenna should be installed by a competent technician.

Rear panel of
this main unit

FM outdoor antenna
(not included)

75
coaxial cable
(not included)

12

RQT8043

RQTX0111

Performing QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

To display the picture from this main unit, switch on the television and change the television’s input mode which is
connected to this main unit (example : VIDEO 1, AV 1, etc.).

To change your television’s input mode, refer to its operating instructions.

• This remote control is able to perform some basic television operations (\ page 34).

2

Select
“DVD/CD”.

1

Switch on the
main unit.

3

Shows the QUICK SETUP
screen.

(Press and hold)

4

Follow the messages and
make the setting.

5

Finish the QUICK SETUP.

6

Press to exit.

ENGLISH

GETTING STARTED

To change these settings later

Select “QUICK SETUP” in “OTHERS” tab (\ page 25).

7 Details of settings

Menu language

Choose the language for the
on-screen messages.

TV Type

Select to suit the type of television.

TV’s Aspect Ratio

Choose the setting to suit your television
and preference.

*

Language options :

For Continental Europe, the Middle East, South Africa, Saudi Arabia and Kuwait

FRANÇAIS, ESPAÑOL, DEUTSCH, РУCCКИЙ, MAGYAR, ČESKY, POLSKI

For Southeast Asia and Thailand

• Underlined items in the above table are the factory preset.

• ENGLISH • (Language options)

• STANDARD • CRT • LCD

• PROJECTION • PLASMA

• 4:3 PAN&SCAN • 4:3 LETTERBOX • 4:3 ZOOM

• 16:9 NORMAL • 16:9 SHRINK • 16:9 ZOOM

: 繁體中文

*

:

RQTX0111

13

RQT8043

Disc information

Discs that can be playedDiscs that can be played

7 Commercial discs

Disc Logo

ENGLISH

DVD-Video

Indicated in

these

instructions by

Remarks

High quality movie and music discs.

Video CD

CD

Music discs with video.
Including SVCD (Conforming to IEC62107).

Music discs.

GETTING STARTED

7 Recorded discs (‡: Playable, *: Not playable)

Recorded on a DVD

Disc Logo

DVD-RAM

DVD-R/ RW

DVD-R DL

+R/+RW —

+R DL —

CD-R/RW

*1

———

video recorder, etc.

* 2

‡

* 4

—

‡‡

* 3

‡

*

*

‡

* 5

(

‡)

* 5

(

‡)

• It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the

recording, the recording method, or how the fi les were created (\ page 26, Tips for making data discs).

*1

This unit can play CD-R/RW recorded with CD-DA or Video CD format.

*2

Discs recorded on DVD video recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unifi ed video

recording standard).

*3

Discs recorded on DVD video recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unifi ed video

recording standard).

*4

Discs recorded on DVD video recorders or DVD video cameras using DVD-Video Format.

*5

Recorded using a format different from DVD-Video Format, therefore, some functions cannot be used.

*6

A process that allows play on compatible equipment. To play a disc that is displayed as “Necessary” on this unit, the disc must fi rst be

fi nalized on the device it was recorded on.

*7

Closing the session will also work.

*8

MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifi cations (ASF

standard)/ MPEG4 (Simple Profi le) video system/G.726 audio system].

*9

Functions added with DivX ultra are not supported.

Recorded on a personal computer, etc.

* 9

*

*

*****

*****

*****

‡‡‡

‡‡‡‡

* 8

‡

‡‡‡‡‡

Finalizing

Necessary

*6

Not

necessary

Necessary

Necessary

Necessary

Necessary

*7

14

RQT8043

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the
technical specifi cations of the Compact Disc Digital Audio
(CD-DA) format so playback may not be possible.

7 Discs that cannot be played

DVD-RW version 1.0, DVD-Audio, DVD-ROM, CD-ROM,
CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be
removed from their cartridge, 2.6-GB and 5.2-GB DVD­RAM, and “Chaoji VCD” available on the market including
CVD, DVCD and SVCD that do not conform to IEC62107.

RQTX0111

7 Video systems

• This unit can play PAL and NTSC, but your television
must match the system used on the disc.

• PAL discs cannot be correctly viewed on an NTSC
television.

• This unit can convert NTSC signals to PAL 60 for
viewing on a PAL television (\ page 24, “NTSC DISC
OUT” in “VIDEO” tab).

Overview of controls

Main unitMain unit

For Southeast Asia, Thailand, the Middle

Standby/on switch [y/I] (16)

Press to switch the unit from on
to standby mode or vice versa.
In standby mode, the unit is still
consuming a small amount of
power.

AC supply indicator [AC IN]

This indicator lights when the unit is
connected to the AC mains supply.

USB port

Connect a USB device (33)

7/-TUNE MODE/–FM MODE

Stop playback, Select the tuning mode (28),
Adjust the FM reception condition (28)

3

/MEMORY

Disc playback (16),
Memorize the receiving radio stations (28)

East, South Africa, Saudi Arabia and Kuwait

MIC jack

Connect a microphone (30)

MIC LEVEL

Adjust the microphone volume (30)

Remote control
signal sensor

4/1, ¡/¢ / 4 TUNING 3

Skipping or slow-search play,
Select the radio stations (28)

0 OPEN/CLOSE

Open or close the
disc tray (16)

Display

SELECTOR (16, 28)

For Continental Europe

DVD/CD = USB = FM = AV *2 = AUX =
Returns to DVD/CD

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia and Kuwait

DVD/CD = USB = FM = AUX =
Returns to DVD/CD

ENGLISH

GETTING STARTED

+, – VOLUME

Turn the volume up
or down (16)

Remote controlRemote control

Telev ision operations (34)

Switch the main unit on or off (13)

Change the television’s video input mode (34)

Select disc’s title numbers and etc.,

Select preset radio stations (28)

Show on-screen menu (20),

Show the display on the main unit (17),

This function enables you to turn off the unit

automatically after the set time.

SLEEP 30 SLEEP 60 SLEEP 90

OFF

Press and hold [−SLEEP] to select “OFF”.

To confi rm the remaining time

Press and hold [−SLEEP] again.

1

*

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

2

*

“AV” works only when the scart cable is connected (\ page 32).

Enter numbers (17)

Show a disc top menu (17)

or program list (17)

*1

Karaoke (30)

Set the sleep timer

SLEEP 120

To cancel the timer

Adjust the television volume (34)
Select the source

DVD: DVD/CD (13)
FM (28)

For Continental Europe

EXT-IN: AV

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia and Kuwait

*2

(34), AUX (32), USB (33)

EXT-IN: AUX (32), USB (33)

Show the current disc’s playback condition (18)
Adjust the volume of the main unit (30)
Basic operations for play (17)
Show a disc menu or play list (17)
Select or confi rm menu items on the television

screen (13), Frame-by-frame (17)
Return to previous screen (17),

Show the Setup menu (13)

(29)

(29, 31)

(29) (29)

(30) (18, 30)

(29)

To mute the sound

To cancel

• Press [MUTING] again or adjust the
volume.

• Muting is cancelled when you switch the
unit to standby.

RQTX0111

15

RQT8043

Disc — Basic play

Using the main unitUsing the main unit

ENGLISH

2

Select “DVD/CD”.

3

Load a disc in the tray.

• Load double-sided discs so the label for the side you
want to play is facing up.

• For DVD-RAM, remove the disc from its cartridge before
use.

1

Power on.

DISC OPERATIONS

Using the remote controlUsing the remote control

Numeric buttons

CANCEL

4, ¢ ,

4, 3, SKIP

7, STOP

8, PAUSE

TOP MENU,

DIRECT NAVIGATOR

4

Adjust the volume and start playback.

y

DVD

1, ¡ ,
SLOW/SEARCH

3, PLAY

MENU,
PLAY LIST

5, ∞, 2, 3,

ENTER

-RETURN

16

RQT8043

FL DISPLAY

RQTX0111

Stop

Pause

The position is memorised while “RESUME” is
on the display.

• Press [ 3, PLAY] to resume.

• Press [ 7, STOP] again to clear the position.

• Press [ 3, PLAY] to resume playback.

Enter numbers

(while stopped)

Example: To select 12,

with Playback control (PBC)
Press [ 7 , STOP] and then press the
numeric buttons to cancel the PBC
functions.

Note

• The numeric buttons that can function

depend on the number of tracks on the
VCD.

Search (during play)

• Play speed increases up to 5 steps.

• Press [ 3, PLAY] to resume normal
playback.

Slow-motion play (during pause)

• Play speed increases up to 5 steps.

• Slow motion play is for forward
direction only.

• Except .

• Press [ 3, PLAY] to resume normal
playback.

Main unit display

Time display Information display

SLIDE Information display

Skip

Cancel the numbers

Disc menus

Shows a disc top menu.

Shows the program (\ page 19).

Shows a disc menu.

Shows the playlist (\ page 19).

with Playback control (PBC)

Shows a disc menu.

Frame-by-frame (during pause)

• Forward
direction only.

ENGLISH

DISC OPERATIONS

On-screen item select

Select

Confi rm

Select

Return to previous screen

Note

• D ISC CONTINUES TO ROTATE WHILE MENUS ARE

DISPLAYED.

Press [7, STOP] when you fi nish to preserve the unit’s motor

and your television screen.

• Total title number may not be displayed properly on +R/+RW.

RQTX0111

17

RQT8043

Advanced play

Displaying current playback condition

(during play)

Example:

1

2 3 4

T1 C TIME 0:13:032

5 6

3

T1 C TIME 2:30:212

The OSD’s (on-screen display) abbreviations are as
described below;
1 Current playback item

ENGLISH

example: T = Title ( ) or Track ( )
C = Content (
PG = Program or PL = Playlist (

2 Current playback chapter
example: C= Chapter ( )
3 Elapsed or remaining play time
(Press [5, ∞] to view the elapsed or remaining play

DISC OPERATIONS

time.)

4 Play mode condition
5 Playback condition
6 Current playback position

Note

Remaining play time cannot be viewed.

)

Example:

VD V PROGRAMD

SELECT T I TLE T I T L CEH .AP

TITLE 1

T
TITLE 2
TITLE 3
TITLE 4
TITLE 5
TITLE 6
TITLE 7

RT :STA PLAY CLE ALLAR

1
2
3
4
5
6
7

8

9

10

VD V PROGRAMD

SELECT CHAPTER T I TL CEH .AP

ALL

CHA

P. 1
CHAP . 2
CHAP . 3
CHAP . 4
CHAP . 5
CHAP . 6
CHAP . 7
CHAP . 8
CHAP . 9

RT :STA PLAY CLE ALLLAR

2

1
2

2

3

3

4

3

5

5

6

5

7

5

8

5

9

2

10

2

1

2
6
3
1
5
7

8

1
4

2

)

To select all the Items

Press [5, ∞] to select “ALL”.
Then press [ENTER] again to confi rm.

To clear the selected program

1.

Press [3, 5, ∞] to select the program number.

2. Press [CANCEL].

To clear the whole program

Select “CLEAR ALL” with [3 ] and press [ENTER].
The whole program is also cleared when the unit is
turned off, the disc tray is opened or another source is
selected.

18

RQT8043

Program and Random play

(during stop)

Example:

Program Random

Off (Normal play)

To exit program or random play mode while stopped.

(several times)

•

• Program and random play functions only within the

Some items cannot be played even if you

have programmed them.

selected “AUDIO”, “PICTURE” and “VIDEO” folder.

Program play (up to 30 items)

1 To select the items.

• Press [-RETURN] to select from the previous
folders.

• Repeat this step to program other items.

RQTX0111

Random play

1 To select a title.

Example:

• Press [ENTER] again to cancel the selection.

VD V RANDOMD

SELECT T I TLE

TITLE 1

TITLE 2
TITLE 3
TITLE 4
TITLE 5
TITLE 6
TITLE 7

SSPRE RTSTAPLAY TO

VD V RANDOMD

SELECT T I TLE

TITLE 1

✱

TITLE 2
TITLE 3
TITLE 4
TITLE 5
TITLE 6
TITLE 7

SSPRE RTSTAPLAY TO

2

Playing data discs using navigation menus

Playing data discs

Select “DATA” in “OTHERS” tab (\ page 25) to play
WMA, MP3, JPEG, MPEG4 or DivX content.

Playing items in order (PLAYBACK MENU)

LAYBACK MENUP

AUD I O

/

PCTURE

I

VIDEO

To select “AUDIO/PICTURE” or “VIDEO”.

Playing from the selected item

1

ATA– D I SCD

OROT

Baby

Bike & ar

C

Ca r too

n

Ca t & D g

o

Hams t r

e

Mi ckey Fr

&

Othe r A

nimal

Othe r C te

u
Panda
Pooh da

n~Fr

Au t umn

*

Files are treated as contents and folders are treated as groups

~

Pho ost

o

Pok em n
disney 2005

–

disney 2005

–

disney 2005

–

disney 2005

–

disney 2005

–

disney 2005

–

~
~
~
~
~
~

: Group (Folder)
: JPEG
: WMA/MP3

content (File)

: MPEG4 and

DivX video
content (File)

in these instructions.
Maximum fi le or folder name: approximate 12 characters

2 To select the group.

3 To start play from the selected content.

To exit the screen

Press [MENU].

Playing RAM and DVD-R/-RW (DVD-VR) discs

• Titles appear only if the titles are recorded on the
disc.

• You cannot edit programs, play lists and disc titles.

Playing the programs

1

(during stop)

GDATELENTH TI

02/

10:00:00

19 : 3 3

07/

20:00:06

16 : 4 7

02/

30:00:00

19 : 3 4

02/

40:00:00

19 : 3 4

G

21

20

21

21

TELP

0123 4567 8 90123
4567 8 901234. . .

ABCD E F GH I J K LMN
OPQR ST UVWXY . . .

ENGLISH

2 To select from the program.

3

*

To exit the screen

*

*

Press [DIRECT NAVIGATOR].

Playing a play list

Applicable only when the disc contains a play list.

1

(during stop)

LDATELENTH TI

09/

10:00:06

0 8 :50

09/

20:02:00

0 8 :50

09/

30:00:21

0 8 :54

09/

40:00:10

0 8 :54

G

60

60

60

60

TELP

PL# 0 1

PL# 0 2

DISC OPERATIONS

2 To select from the play list.

3

To exit the screen

Press [PLAY LIST].

RQTX0111

19

RQT8043

Using on-screen menus

2

1

ENGLISH

Functions menu

DISC OPERATIONS

TRACK SEARCH
TITLE SEARCH
CONTENT SEARCH
CHAPTER SEARCH
PG (Program) SEARCH
PL (Playlist) SEARCH

AUDIO

DATE DISPLAY

Select the item.

Select

Display the functions

Confi rm

Select

screen.

Items shown differ depending on the type of disc as well as the recording format.

To start from a specifi c item

Example:

T

2 C 1 1: ENG /3 2.1c h

OFF

TITLE SEARCH

Example:

T2 C1

OFF

AUD I O

(with multiple soundtracks)

To select audio soundtrack

To select “L”, “R” , “L+R” or “L R”

To select “ON” or “OFF” for vocals
To select “OFF”, “V2”, “V1” or “V1+V2” for different vocal selections

• Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/
channels)
Example: 3 /2 .1ch

.
0: No surround
1: Mono surround
2:
1: Center
2: Front left + Front right
3: Front left + Front right + Center

•

(Karaoke disc) (\ page 30, Enjoying Karaoke)

It may take some time for play to start if you change the audio on a DivX video disc.

: OFF ON

C

8 OFF

OFF

DAT E D I SP L AY

3

Make the settings.

Select

Confi rm

4

Press to exit.

OFF

1: ENG /3ch2.1

OFF

ŸDigital /DTS/MP3/MPEG: Signal type kHz (Sampling frequency)/bit /ch (Number of

1: Low frequency effect (not displayed if there is no signal)

Stereo surround (left/right)

x1 . 0

x1.0

1

1

0

20

RQT8043

RQTX0111

Functions menu (continued)

PLAY SPEED

ROTATION

REPEAT MODE

SUBTITLE

ANGLE

PICTURE MODE

To c han g e p l ay s peed

– from “x0.6” to “x1.4” (in 0.1-unit steps)
Example:

T

2C2 1:✱✱✱ /20ch

OFF

PLAY SPEED

• Press [3, PLAY] to resume normal playback.

• After you change the speed.
– Dolby Pro Logic II has no effect.
– Audio output switches to 2-channel stereo.
– Sampling frequency of 96 kHz is converted to 48 kHz.

• This function may not work depending on the disc’s recording.

To rotate a picture (during pause)

0 90 18 0 270

:

C

8 OFF 0

OFF

ROT A T I ON

Example:

T

2C2 1:✱✱✱ /20ch x1.0

OFF

REP EAT MODE

(Only when the elapsed play time can be displayed.)

: OFF TITLE CHAP. (Chapter) A–B

: OFF ALL PG (Program) or PL (Playlist) A–B

: OFF ALL TRACK A–B

: OFF ALL GROUP*1 CONTENT A–B

: OFF ALL GROUP*1 CONTENT

: OFF ALL GROUP

*1

“GROUP” will not be displayed during program or random play.

To select subtitle language

Example:

T

2C2 1:✱✱✱ /20ch

OFF

SUBT I T EL

(with multiple subtitles)

(SVCD only)

• On +R/+RW, a subtitle number may be shown for subtitles that are not displayed.

•
information cannot be recorded using Panasonic DVD Recorders).

(with multiple angles) To select a video angle
Example:

T

ANGL E

Example:

“ON” or “OFF” appears only with discs that contain subtitle on/off information (Subtitle on/off

2C2 1:✱✱✱ /20ch

OFF

N

ORMA L NO R AML

: 1ENG

: 1 E NG 1

: 1ENG 1

: 1 1ENG

x1 . 0

1

*1

x1 . 0

x1 . 0

PICTURE M EOD

NORMAL : Normal images.
CINEMA1 : Mellows images and enhances detail in dark scenes.
CINEMA2 : Sharpens images and enhances detail in dark scenes.
DYNAMIC : Enhances the contrast for powerful images.
ANIMATION : Suitable for animation.

ENGLISH

DISC OPERATIONS

RQTX0111

21

RQT8043

Using on-screen menus (continued)

Functions menu (continued)

ZOOM

SOURCE SELECT

ENGLISH

DIALOGUE ENHANCER

DISC OPERATIONS

Dolby PLII

KARAOKE MODE

TRANSFER MODE

To select various zoom sizes

Example:

N

ORMA L NO R AML

ZOOM

NORMAL
AUTO
x2
x4

When you select “AUTO” the constructing method of the DivX contents is automatically distinguished
and output. If the picture is distorted, select “INTERLACE” or “PROGRESSIVE” depending on which
constructing method was used when the contents were recorded to disc.

AUTO
INTERLACE
PROGRESSIVE

Example:

N

ORMA L NO R AML

SOURCE ESCLE T

To make the dialogue in movies easier to hear

Example:

O

FF

OFF

DIALOGUE AENH RNCE

(Dolby Digital, DTS, MPEG, 3-channel or higher, with the dialogue recorded in the center

channel)

(Dolby Digital, 3-channel or higher, with the dialogue recorded in the center channel)

OFF ON

OFF MOVIE MUSIC

Example:

O

FF

OFF

Do l by PLII

OFF ON (\ page 30, Enjoying Karaoke)

*2

Example:

O

FF

UA T O

(\ page 29, Enhancing the stereo sound : Dolby Pro Logic II)

KARAOKE MODE

Example:

N

ORMA L

AUTO

TRANSFER DMO E

If you have set “VIDEO OUT (I/P)” to “PROGRESSIVE” ( page 24, “VIDEO” tab), press [5, ∞] to
select the method of conversion for progressive output to suit the type of material.

• The setting will return to AUTO or AUTO1 when the disc tray is opened.

*2

When playing PAL discs or MPEG4 or DivX video contents

AUTO : Automatically detects the fi lm and video content, and appropriately converts it.
VIDEO : Select when using AUTO, and the content is distorted.
FILM : Select this if the edges of the fi lm content appear jagged or rough when

AUTO is selected.However, if the video content is distorted as shown in the
illustration to the right, then select AUTO.

NO R AML

22

RQT8043

When playing NTSC discs

AUTO1 : Automatically detects the fi lm and video content, and appropriately converts it.
AUTO2 : In addition to AUTO1, automatically detects fi lm contents with different frame rates and

VIDEO : Select when using AUTO1 and AUTO2, and the content is distorted.

*2

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

RQTX0111

appropriately converts it.

Changing the player settings

AINM

DISC
VIDEO
AUD IO
DISPLAY
OTHERS

SELECT :
SET : ENTER EX I ETUPT:S

Ta b

ISCD

SETT ING STATE
AUTO ENGL I SH
SUBT IT L AUTO
MENU S ENG L I SH
RAT INGS 8 NO L I M I
PASSWORED

SEL ECT : RETU RN T URN:RE
SET : ENTER EX I ETUPT:S

Item

• If you have not performed
QUICK SETUP
(\ page 13), the QUICK
SETUP screen appears.

T

Setting

1

Display the
MAIN menu.

(Press and hold)

2

Select the tab.

Select

Confi rm

3

Select the item.

Select

Confi rm

Select

4

Make the settings.

Select

Confi rm

5

Press to exit.

(Press and hold)

ENGLISH

DISC OPERATIONS

The settings remain intact even if you switch the unit to standby.

•

• Underlined items are the factory settings in the following table.

QUICK SETUP enables successive settings of the items in the shaded area.

MAIN menu

7 “DISC” tab

AUDIO

Choose the audio language.

SUBTITLE

Choose the subtitle language.

MENUS

Choose the language for disc menus.
Changing the menu language in QUICK
SETUP also changes this setting.

RATINGS

Set a ratings level to limit DVD-Video
play.

PASSWO RD

Change the password for “RATINGS”.

*1

Language options :

For Continental Europe, the Middle East, South Africa, Saudi Arabia and Kuwait

• ENGLISH • (Language options)

*4

• ENGLISH • (Language options)*1 • OTHER – – – –

• AUTO

• ENGLISH • (Language options)

• OTHER – – – –

Setting ratings (When level 8 is selected)

• 0 LOCK ALL: To prevent play of discs without rating levels.

• 1 to 7: To prohibit play of DVD-Video with corresponding ratings recorded on them.

• 8 NO LIMIT

When you select your ratings level, a password screen is shown.
Enter your password and then follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the ratings level is inserted in
the unit.
Follow the on-screen instructions.

• SETTING

Changing ratings (When level 0 to 7 is selected)

• CHANGE
Follow the on-screen instructions.

*3

FRENCH, SPANISH, GERMAN, RUSSIAN, HUNGARIAN, CZECH and POLISH.

For Southeast Asia and Thailand

*2

The original language designated on the disc is selected.

*3

Input a code number referring to the table (\ page 38).

*4

If the language selected for “AUDIO” is not available, subtitle appears in that language (if available on the disc).

: CHINESE TRAD.

*1

• ORIGINAL*2 • OTHER – – – –

*1

:

*3

*3

RQTX0111

23

RQT8043

Changing the player settings (continued)

QUICK SETUP enables successive settings of the items in the shaded area.

MAIN menu (continued)

7 “VIDEO” tab

TV ASPECT

Choose the setting to suit your television
and preference.

ENGLISH

TV TYPE

Select to suit the type of television.

TIME DELAY

When connected with a Plasma display,
adjust if you notice the audio is out of
sync with the video.

NTSC DISC OUT

Choose PAL 60 or NTSC output when

DISC OPERATIONS

playing NTSC discs (\ page 14, Video
systems).

STILL MODE

Specify the type of picture shown when
paused.

VIDEO OUT – SCART

Choose the video signal format to be
output from the SCART (AV) terminal.

VIDEO OUT (I/P)

Select “PROGRESSIVE” only if
connecting to a progressive output
compatible television.

*7

*9

• 4 : 3 PAN&SCAN: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fi lls the screen (unless

prohibited by the disc).

• 4 : 3 LETTERBOX: Regular aspect television (4:3)
Widescreen picture is shown in the letterbox style.

• 4 : 3 ZOOM: Regular aspect television (4:3)
The picture zooms in and out.

• 16 : 9 NORMAL: Widescreen television (16:9)
Laterally stretches image.

• 16 : 9 SHRINK: Widescreen television (16:9)
Images appear in the center of the screen.

• 16 : 9 ZOOM: Widescreen television (16:9)
Expands to 4:3 aspect ratio.

• STANDARD • CRT • LCD

• PROJECTION • PLASMA

• 0 ms • 20 ms • 40 ms • 60 ms • 80 ms • 100 ms

• NTSC: When connected to a NTSC television.

• PAL60: When connected to a PAL television.

*5

“NTSC” is the factory preset.)

(

• AUTO

*6

• FIELD

• FRAME

: The picture is not blurred, but picture quality is lower.

*6

: Overall quality is high, but the picture may appear blurred.

• VIDEO • S–VIDEO • RGB

• INTERLACE

• PROGRESSIVE (a message screen will appear, follow the on-screen instructions)

24

RQT8043

7 “AUDIO” tab

DYNAMIC RAN GE

SPEAKER SETTINGS (\ page 25)

Set the delay time for your center and
surround speakers

• ON: Adjust for clarity even when the volume is low by compressing the range of the lowest
sound level and the highest sound level. Convenient for late night viewing.

(Only works with Dolby Digital)

• OFF

• SETTINGS

• C DELAY: • 0ms • 1ms • 2ms • 3ms •4ms • 5ms

• SL/SR DELAY: • 0ms • 5ms • 10ms • 15ms

7 “DISPLAY” tab

LANGUAGE

*5

For Southeast Asia and Thailand

*6

Refer to “Frame still and fi eld still” (\ page 39, Glossary).

*7

For Continental Europe

*8

For Continental Europe , the Middle East, South Africa, Saudi Arabia and Kuwait

*9

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

RQTX0111

*8

• ENGLISH • FRANÇAIS • ESPAÑOL • DEUTSCH • РУССКИЙ

• MAGYAR • ČESKY • POLSKI

*5

• ENGLISH • 繁體中文

MAIN menu (continued)

7 “OTHERS” tab

REGISTRATION

Displays the unit’s registration code.

JPEG TIME

Set the speed of the slideshow.

FL DIMMER

Change the brightness of the unit’s
display.

QUICK SETUP

DVD-VR / DATA

Select to play only DVD-VR or DATA
format (\ page 19).

DEFAULTS

This returns all values in the MAIN menu
to the default settings.

• SHOW CODE
You need this registration code to purchase and play DivX Video-on-Demand (VOD) content.
(\ page 26, “About DivX VOD content”)

• 1 SEC • 2 SEC • 3 SEC • 4 SEC to 15 SEC

• 15 SEC to 60 SEC (in 5-unit steps)

• 60 SEC to 180 SEC (in 30-unit steps)

• BRIGHT

• DIM

• AUTO: The display is dimmed, but brightens when you perform some operations.

• SET

• YES

• NO

• DVD-VR

• DATA

• RESET
The password screen is shown if “RATINGS” (\ page 23) is set. Please enter the same

password, then turn the unit off and on again.

Changing the delay time of the speakers

Effective when playing multi-channel audio

(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the
speakers, except for the subwoofer, should be the
same distance from the seating position. If you have
to place the center or surround speakers closer to the
seating position, adjust the delay time to make up for the
difference.

: Actual speakers

position

: Ideal speakers

position

Circle of

constant

primary
listening
distance

Approximate room
dimensions

If either distance a or b is less than c, fi nd the
difference in the table and change to the recommended
setting.

a Center speaker

Difference (Approx.) Setting

30 cm 1 ms
60 cm 2 ms

90 cm 3 ms
120 cm 4 m s
150 cm 5 ms

b Surround speaker

Difference (Approx.) Setting

150 cm 5 ms
300 cm 10 ms
450 cm 15 ms

: Primary

listening
distance

7 To enter the speaker setting

1 To select the speaker.

OR

C DELAY = Center delay
SL / SR DELAY = Surround left / Surround right delay

2 To select the delay time.

To exit the setup

Press and hold [–SETUP].

OR

UD I O SP EAKER SA

––ETT I NGS C

SETT ING STATE

CDELAY 0ms

SL / SR D LAY

E

SELECT : RETURN TURN:RE
SET : ENTER EX I ETUPT:S

1ms
2ms
3ms
4ms
5ms

ENGLISH

DISC OPERATIONS

RQTX0111

25

RQT8043

Changing the player settings (continued)

About DivX VOD contentAbout DivX VOD content

DivX Video-on-Demand (VOD) content is encrypted for
copyright protection. In order to play DivX VOD content on
this unit, you fi rst need to register the unit.

Follow the online instructions for purchasing DivX VOD
content to enter the unit’s registration code and register the
unit. For more information about DivX VOD, visit
www.divx.com/vod.

7 Display the unit’s registration code

(\ page 25, “REGISTRATION (DIVX)” in “OTHERS” tab)

THERS - REG I STRAT I ON I V(DX

O

()

IVXDR

VIDEO NODEMAND

YOUR RE I S TRA T I ON CODE I S

G

X

XXXXXXX

TO L EAR MORE V I S I T
www . d i vNx.com/vod

ENGLISH

SSPRE T ICON U ENOYTENTER KE

• We recommend that you make a note of this code for
future reference.

• After playing DivX VOD content for the fi rst time,
another registration code is then displayed in
“REGISTRATION (DIVX)”. Do not use this registration
code to purchase DivX VOD content. If you use this
code to purchase DivX VOD content, and then play

DISC OPERATIONS

the content on this unit, you will no longer be able to
play any content that you purchased using the previous
code.

)

8 alphanumeric
characters

• If you purchase DivX VOD content using a registration
code different from this unit’s code, you will not be able
to play this content. (“Authorization Error” is displayed.)

7 Regarding DivX content that can only be played

a set number of times

Some DivX VOD content can only be played a set number
of times. When you play this content, the remaining
number of plays is displayed. You cannot play this content
when the number of remaining plays is zero. (“RENTAL
EXPIRED” is displayed.)

When playing this content

• The number of remaining plays is reduced by one if

– you press [ ] or press and hold [–SETUP].
– you press [7, STOP].
– you press [4, ¢] (skip) or [1, ¡] (slow/search)

and arrive at another content.

• Resume (\ page 17, Stop) function does not work.

etc.

Tips for making data discsTips for making data discs

• When there are more than eight groups, the eighth group onwards will be displayed on one vertical line in the menu
screen.

• There may be differences in the display order on the menu screen and computer screen.

• This unit cannot play fi les recorded using packet write.

DVD-RAM

• Discs must conform to UDF 2.0.

DVD-R/RW

• Discs must conform to UDF bridge (UDF 1.02/ISO9660).

• This unit does not support multi-session. Only the default session is played.

CD-R/RW

• Discs must conform to ISO9660 level 1 or 2 (except for extended formats).

• This unit supports multi-session but if there are many sessions it takes more time for play to start. Keep the number of
sessions to a minimum to avoid this.

26

RQT8043

RQTX0111

Naming folders and fi les

Files are treated as contents and folders are treated as groups on this unit.

At the time of recording, prefi x folder and fi le names. This should be with numbers that have an equal number of digits,
and should be done in the order you want to play them (this may not work at times). Files must have the extension (\ see
below).

(Extension: “.WMA” or “.wma”)

• Compatible compression rate: between 48 kbps and 320 kbps.

• You cannot play WMA fi les that are copy-protected.

• This unit does not support Multiple Bit Rate (MBR).

(Extension: “.MP3” or “.mp3”)

• Compatible compression rate: between 32 kbps and 320 kbps.

• This unit does not support ID3 tags.

• Compatible sampling rates:
– DVD-RAM, DVD-R/RW: 11.02, 12, 22.05, 24, 44.1 and 48 kHz
– CD-R/RW: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz

(Exten sion: “.JPG”, “.jpg”, “.JPEG” or “.jp eg” )

• JPEG fi les taken on a digital camera that conform to DCF Standard (Design rule for Camera File system) Version 1.0 are
displayed. Files that have been altered, edited or saved with computer picture editing software may not be displayed.

• This unit cannot display moving pictures, MOTION JPEG and other such formats, and still pictures other than JPEG
(Example: TIFF), or play pictures with attached audio.

(Extension: “.ASF” or “.asf”)

• You can play MPEG4 data [conforming to SD VIDEO specifi cations (ASF standard)/MPEG4 (Simple Profi le) video
system/G.726 audio system] recorded with Panasonic SD multi cameras or DVD video recorders with this unit.

• The recording date may differ from that of the actual date.

(Exten sion: “.DIVX”, “.div x”, “.AVI” or “.avi”)

• You can play all versions of DivX® video (including DivX®6) [DivX video system/MP3, Dolby Digital or MPEG audio
system] with standard playback of DivX® media fi les. Functions added with DivX Ultra are not supported.

• DivX fi les greater than 2 GB or have no index may not be played properly on this unit.

• This unit supports all resolutions up to maximum of 720 x 480 (NTSC)/720 x 576 (PAL).

• You can select up to eight types of audio and subtitles on this unit.

ENGLISH

DISC OPERATIONS

Disc handling precautions

• Do not attach labels or stickers to discs. This may cause
disc warping, rendering it unusable.

• Do not write on the label side with a ball-point pen or
other writing instrument.

• Do not use record cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other solvent.

• Do not use scratch-proof protectors or covers.

• Do not use the following discs:

– Discs with exposed adhesive from removed stickers or

labels (rented discs, etc).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as heart shapes.

7 To clean discs

Wipe with a damp cloth and then wipe dry.

RQTX0111

27

RQT8043

Using the radio

Manual tuning

1 To select “FM”.

(main unit) (remote control)

OR

2 To select “MANUAL”.

(main unit)

3 To select the frequency.

(main unit) (remote control)
Press and hold [4 TUNING 3] until the frequency

starts scrolling to start automatic tuning. Tuning stops
when a station is found.

OR

Presetting the channel

Remote control only

Up to 30 stations can be set for FM.

1.

While listening to the radio broadcast

Press [ENTER].

2. While the frequency and “PGM” are fl ashing on the

display

Press the numeric buttons to select a channel.

• To select a 2-digit number
Example: To select 12,

ENGLISH

• Alternatively, press [4, 3], then press [ENTER].
The station occupying a channel is erased if another

station is preset to that channel.

OTHER OPERATIONS

Automatic presetting

1 To select “FM”.

(main unit) (remote control)

OR

2 Press and hold.

OR

(main unit)

The tuner tunes to the lowest frequency and starts to
preset all the stations it can receive into the channels
in ascending order.

• “SET OK” is displayed when the stations are set,

• “ERROR” is displayed when automatic presetting

(remote control)

and the radio tunes to the last preset station.

is unsuccessful. Preset the channels manually
(\ see left).

Selecting the preset channels

Release the button
when “FM AUTO” is
displayed.

1 To select “FM”.

2 To select the channel.

TO

• Alternatively, press [4, 3].

• To perform the step on the main unit, fi rst press
[-TUNE MODE] to select “PRESET”, and then press
[4 TUNING 3] to select the channel.
When a stereo FM broadcast is being received,
“ST” lights in the display.

28

RQT8043

If noise is excessive in FM

Main unit only
Press and hold [– FM MODE] to display “MONO”.

Press and hold [– FM MODE] again to cancel the mode.
The mode is also cancelled when you change the
frequency.

RQTX0111

Using sound effects

Note

• The following sound effects may not be available or have no
effect depending on the type of source.

• You may experience a reduction in sound quality when these
sound effects are used with some sources. If this occurs, turn
the sound effects off.

Enhancing the sound from the center speaker:
Center Focus

This applies to discs where the dialogue is recorded
in the center channel.

You can make the sound of the center speaker seem
like it is coming from within the television.

C FOCUS ON C FOCUS OFF

• This also works when Dolby Pro Logic II is turned on.

Adjusting the amount of bass: Subwoofer level

You can adjust the amount of bass. The unit
automatically selects the most suitable setting
according to the type of playback source.

•

For Southeast Asia, Thailand, the Middle East,
South Africa, Saudi Arabia and Kuwait

SUB W 4 (factory preset) SUB W 1

When AV or AUX source is selected

•

For Continental Europe

SUB W 1 (factory preset) SUB W 2

When another source is selected

•
SUB W 2 (factory preset) SUB W 3

• To check the current setting, press [SW.LEVEL].

•

The setting you make is retained, and recalled every

time you play the same type of source.

SUB W 3

SUB W 2

SUB W 4 SUB W 3

SUB W 1 SUB W 4

Changing the sound quality: Equalizer Mode (EQ)

SOFT* : For background music .
HEAVY : Adds punch to rock.
CLEAR : Clarifi es higher sounds.
FLAT : Cancel (no effect is added)

(factory preset).

• To check the current setting, press [EQ].

• You can adjust the volume of the surround speakers
to get the best surround effect (\ page 30,
Adjusting the volume of each speaker: Speaker level
adjustments).

Enhancing the stereo sound: Dolby Pro Logic II

Except
Dolby Pro Logic II is an advanced decoder that derives
5-channel surround (Left and Right Front, Center,
Left and Right Surround) from stereo sound sources,
whether or not it has been specifi cally Dolby Surround
encoded.

MOVIE : Movie software, recorded in

Dolby Surround.

MUSIC : Stereo sources.
OFF : Cancel.

• This function is only available for DVD/CD and USB
mode.

• “ŸPL II” lights when there is effect.

Enhancing the stereo sound: Super Surround

MOVIE : Use this mode when playing

movie software.

MUSIC : Adds surround effects to stereo

sources.

OFF : Cancel.

• Super Surround and EQ can be turned on

simultaneously.

• This function is only available for FM, AV and AUX
mode.

ENGLISH

OTHER OPERATIONS

For Continental Europe

Factory preset when AV or AUX source is selected.

RQTX0111

29

RQT8043

Using sound effects (continued)

Enjoying Karaoke

Adjusting the volume of each speaker:
Speaker level adjustments

This is one of the ways to get appropriate surround
effects.

Preparation

1 While stopped and no on-screen display is shown

To output a test signal.

L: Front left C: Center
R: Front right RS: Right surround
LS: Left surround

• There is no output from SW (subwoofer) channel.

2 To set the volume level normally used for listening.

3 To adjust the speaker level for each speaker.

OR

• Adjust the speaker levels to the same level as the
front speakers.

C, RS, LS: −6 dB to +6 dB

To stop the test signal

Press [TEST] again.

To adjust speaker level during play

ENGLISH

(Effective when playing multi-channel audio or when
Dolby Pro Logic II is on.)

1. Press and hold [– CH SELECT] to select the

speaker.

L C R RS LS SW

SW: Subwoofer

OTHER OPERATIONS

• You can adjust SW only if the disc includes a
subwoofer channel.

• “SW” does not appear on the display and is not
adjustable when “ŸPL II” is lit.

• “S” appears on the display when “MOVIE”,
“MUSIC” is selected with Super Surround
(\ page 29).

In this case, you can adjust both surround speaker

levels at the same time using [5, ∞].

S: −6 dB to +6 dB

2. Press [5] (increase) or [∞] (decrease) to adjust

the speaker level for each speaker.

C, RS, LS, SW: −6 dB to +6 dB
(L, R: Only the balance is adjustable.)

• To adjust the balance of the front speakers, while
“L” or “R” is selected, press [2 , 3].

For Southeast Asia, Thailand, the Middle East, South Africa,
Saudi Arabia and Kuwait

Preparation

1

Lower the microphone
volume to “MIN”.

2

Connect the microphone
to the jack.

Use a dynamic microphone.
Microphone plug type: Ø6.3 mm

monaural (not included).

Note

• If a strange noise (howling) is emitted during use, move
the microphone away from the speakers, or turn down the
microphone volume.

• When you are not using the microphone, disconnect it from the
microphone jack, and turn down the microphone volume level to
“MIN”.

• While karaoke mode is turned on, multi channel signals will be
down-mixed to 2 channel signals.

• Karaoke function will automatically turn off when the tray opens,
when you change the source or when the unit is turned off.

Enjoying karaoke with karaoke DVD and VCD

1 Start playback.

2 To display the audio menu on the television.

(Press and hold)

3 To switch on the karaoke function.

OFF ON

OR

O

N OFF OFF

LR

KARAOKE MODE

4 Adjust the mic volume and sing along.

To exit the screen

Press [–KARAOKE].

30

RQT8043

RQTX0111

Enjoying karaoke with other sources

You can also perform karaoke with discs other than
those described and also in USB mode.

1 Start play.

Refer to the pages for the source
– Discs: (\ page 16), Disc – Basic play
– Optional USB connection and operation (audio

mode does not work) (\ page 33).

2 Make the selection (\ see below, Audio mode).

Only necessary if the vocals and melody are spilt
between the left and right channels.

3 Start singing (\ see right, Mic volume adjustment).

Even if the vocals and melody are not split, you
may still be able to lower the volume of the vocals.
(\ see right, Vocal cancel function)

Mic volume adjustment

Main unit only

Turn to adjust the microphone’s volume level.

Adding an echo effect

ECHO OFF ECHO 1 ECHO 2

(Press and hold)
The effect increases with the level.

ECHO 4 ECHO 3

Audio mode (AUDIO CHANGE)

1 Repeat steps 1 to 3 of Enjoying karaoke with

karaoke DVD and VCD (\ page 30).

2 To select “AUDIO CHANGE”.

O

NOFFOFF

LR

AUD I O HCANGE

3 To select audio mode.

OR

(Karaoke discs)

Solo

Off : No vocal
On : Vocal

Duet

Off : No vocal
V1+V2 : Vocal 1 and 2
V1 : Vocal 1
V2 : Vocal 2

• Choose “Off” for karaoke.

• Choose “V1” or “V2” to duet with the player.

and other sources

L R: Left channel sound is heard from the left speaker

and right channel sound is heard from the right

speaker — vocal and accompaniment
L: Only left channel sound — no vocal
R: Only right channel sound — vocal
L + R: Left and right channel sounds are mixed and

heard from both speakers

Select no vocal for karaoke.

•

• Vocal and no vocal may be reversed.

Vocal cancel function

Use this function on stereo sources to block out the
vocals so you can sing along to the music.

1 Repeat steps 1 to 3 of Enjoying karaoke with

karaoke DVD and VCD (\ page 30).

2 To select “VOCAL CANCEL”.

ON OFF ON
LR

VOCAL ACNCEL

3 To switch the function on or off.

OFF ON

OR

This function is not suitable for the following sources.

• Monaural recordings

• Chorus works or duets

Changing the pitch

Use this function to change the pitch level.

1 Repeat steps 1 to 3 of Enjoying karaoke with

karaoke DVD and VCD (\ page 30).

2 To select “KEY CONTROL”.

ON

LR

KEY CO TNROL

1

#

OFF

3 To select the pitch level.

ENGLISH

OTHER OPERATIONS

OR

I6 ... OFF ... #6

RQTX0111

31

RQT8043

Operating other equipment

Optional audio connection for video cassette recorder or televisionOptional audio connection for video cassette recorder or television

Press [EXT-IN] (\ page 15) to select “AUX” as the source to operate the audio input.

For Continental Europe

This audio connection will enable you to play audio
from your video cassette recorder through your home
theater system.

Video cassette

recorder

(not included)

Audio cable

(not included)

Rear panel of
this main unit

For Southeast Asia, Thailand, the Middle East, South Africa,
Saudi Arabia and Kuwait

This audio connection will enable you to play audio from
your television through your home theater system.

Television

(not included)

Audio cable

(not included)

Video cable

(included)

Optional connection for set top box, cable TV box or video cassette recorderOptional connection for set top box, cable TV box or video cassette recorder

For Continental Europe

Set top box

(not included)

ENGLISH

Television

(not included)

Rear panel of
this main unit

For Southeast Asia, Thailand, the Middle East, South Africa,
Saudi Arabia and Kuwait

To your cable TV service or television antenna

RF cable

(not included)

Television

(not included)

Audio cable

(not included)

Rear panel of
this main unit

Rear panel of
this main unit

32

RQT8043

SCART cable (not included)

OTHER OPERATIONS

SCART cable (not included)

• To listen to the sound from the television, select the appropriate
audio out (example: Monitor) on the television.

Sound from the television

• Press [EXT-IN] (\ page 34) to select the “AV” audio input from
the remote control.

RQTX0111

Cable TV
box or video
cassette
recorder

(not included)

Video cable

(included)

Optional USB connection and operationOptional USB connection and operation

The USB connectivity enables you to connect and play
tracks or fi les from USB mass storage class devices.
Typically, USB memory devices. (Bulk only transfer)

Preparation

Before connecting any USB mass storage device to the
unit, ensure that the data stored therein has been backed
up.

It is not recommended to use a USB extension cable. The
USB device is not recognised by this unit.

1 Connect the USB mass storage device (not included).

USB enabled device

(not included)
It is not recommended to use a USB
extension cable. The device connected
via the cable will not be recognised by
this unit.

2 To select “USB” as the source, press several times.

3 Adjust the volume of the main unit.

4 Begin playback by selecting the track from the USB

mass storage device.

Example:

SBU

OR OT/FI

HSLENGO

TRACK 0 1

TRACK 0 2
TRACK 0 3
TRACK 0 4
TRACK 0 5
TRACK 0 6
TRACK 0 7
TRACK 0 8
TRACK 0 9
TRACK 1 0

OR

To return to the previous screen

Press [-RETURN].

For other operating functions, they are similar as those
described on “DISC OPERATIONS” (\ page 16 to 27).

TRACK 1 1
TRACK 1 2
TRACK 1 3
TRACK 1 4
TRACK 1 5
TRACK 1 6
TRACK 1 7
TRACK 1 8

OR

USB AV 1 AUX

Select the desired item for playback.

OR

Example:

LAYBACK MENUP

AUD I O/PCTURE

VIDEO

SBU

OROT

Fish eLong

MP 3 I 3DTAG

jpeg

MPEG 4

WMA

I

*1

For Continental Europe

Compatible Devices

• Devices which are defi ned as USB mass storage

class:

– USB devices that support bulk only transfer.
– USB devices that support USB 2.0 full speed.

Supported Formats

File name File extension

WMA

*2

.jpg .jpeg

.mp3

.wma

*3

.asf

Still pictures JPG

Music MP3

Video MPEG4

*2

It may not be possible to play all the fi les due to the condition on
how they were created.

*3

For Panasonic D-Snap/DIGA.

ENGLISH

OTHER OPERATIONS

RQTX0111

33

RQT8043

Operating other equipment (continued)

Optional USB connection and operation (continued)Optional USB connection and operation (continued)

Note

• CBI (Control/Bulk/Interrupt) is not supported.

• Digital Cameras that use PTP protocol or which require
additional program installation when connected to a PC are not
supported.

• A device using NTFS fi le system is not supported.

[O nly FAT 12/16 /32 (File Alloc ati on Table 12 /16/32) fi le system is

supported].

• Depending on the sector size, some fi les may not work.

• It will not operate with Janus enabled MTP (Media Transfer
Protocol) devices.

Operating the televisionOperating the television

You can use the remote control to operate a Panasonic
television.
Aim the remote control at the television.

To switch the television on or off

To switch the television’s video input mode

Adjust the volume

ENGLISH

• Maximum folder: 256 folders

• M a x i m u m fi l e : 4 0 0 0 fi l e s

• Maximum fi le name: 12 characters

• Maximum folder name: 12 characters

• Only one memory card will be selected when connecting a
multiport USB card reader. Typically the fi rst memory card
inserted.

To play audio from your television through your home
theater system

Preparation

Connect your equipment referring to
various television terminals” (\ page 11) and

*1

“Connect to the

*2

“Optional
audio connection for video cassette recorder or television”
(\ page 32).

*1

For Continental Europe

Press [EXT-IN] to select “AV” as the source. Then reduce
the volume on the television to its minimum, and control
the volume on this main unit.

*2

For Southeast Asia, Thailand, the Middle East, South Africa,
Saudi Arabia and Kuwait

Press [EXT-IN] to select “AUX” as the source. Then
reduce the volume on the television to its minimum, and
control the volume on the main unit.

Note

• The remote control may not work properly with some models.

•

You can enjoy 5.1-channel surround sound when you turn on

Super Surround (MOVIE, MUSIC) (\ page 29).

34

RQT8043

OTHER OPERATIONS

Changing the main unit and remote controlChanging the main unit and remote control

The remote control and main unit are factory-set to
“REMOTE 1” mode.
If your remote control affects other equipment during
operation, you can switch to operate in “REMOTE 2” mode.

To switch to “REMOTE 2” mode

1 While pressing and holding [¡/ ¢] on the main unit

“REMOTE 2” appears on the main unit display.
2 To operate in “REMOTE 2” mode

+

(Press and hold for 2 seconds)

RQTX0111

To return to “REMOTE 1” mode

Perform steps 1 and 2 but use [1] instead of [2] for both
steps. (“REMOTE 1” appears on the main unit during
step 1.)

The remote control cannot work with the main unit if
their modes are different.

“REMOTE 1” or “REMOTE 2” appears on the main unit
display when you operate the remote control.

• If “REMOTE 1” appears (The main unit is in “REMOTE 1”

mode.)

Press and hold [ENTER] and [1] on the remote control for

at least 2 seconds.

• If “REMOTE 2” appears (The main unit is in “REMOTE 2”

mode.)

Press and hold [ENTER] and [2] on the remote control

for at least 2 seconds.

Note

You can still operate a television using the remote control
(\ see above) even after switching the mode.

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions
indicated in the chart do not solve the problem, consult your dealer for instructions.

7 Power Page

No power.

The unit is automatically
switched to the standby mode.

7 Unresponsive or inoperable function

No response when any buttons are
pressed.

No response when remote control
buttons are pressed.

Other products respond to the
remote control.

No picture or sound.

You have forgotten your ratings
password.

Reset all the settings to Factory
Preset.

7 Specifi c operation undesirable or unexpected

It takes time before play starts.

Folders on a data CD are not
displayed correctly.

A menu screen appears during
skip or search.

Playback control menu does not
appear.

The program and random play
functions do not work.

Play does not start.

with playback control

7 Subtitle

No subtitles.

• Insert the AC mains lead securely. 10

• The Sleep timer was working and had reached the set time limit. 15

• This unit cannot play discs other than the ones listed in these operating
instructions.

• The unit may not be operating properly due to lightning, static electricity or some
other external factor. Turn the unit off and then back to on. Alternatively, turn the
unit off, disconnect the AC mains lead, and then reconnect it.

• Condensation has formed: Wait 1 to 2 hours for it to evaporate.

• Check that the batteries are installed correctly.

• The batteries are depleted. Replace them with new ones.

• Aim the remote control at the remote control signal sensor and operate.

• Change the remote control operating mode. 34

• Check the video or speaker connection.

• Check the power or input setting of the connected equipment and the main unit.

• Check that the disc has something recorded on it.

• While stopped and “DVD/CD” is the source, press and hold [ 7 ] on the main
unit and [
disappears from the television. Turn the unit off and on again.

All settings will return to the default values.

• Play may take time to begin when an MP3 track has still picture data. Even after
the track starts, the correct play time will not be displayed. This is normal.

• This is normal on DivX video.

• Folders deeper than the eighth layer are displayed as the eighth layer. —

• This is normal for Video CDs. —

• Press [7, STOP] twice and then press [ 3, PLAY]. —

• These functions do not work with some DVD-Videos. —

• This unit may not play WMA and MPEG4 that contains still picture data.

• If playing DivX VOD content, refer to the homepage where you purchased the
DivX VOD content. (Example: www.divx.com/vod)

• If a disc contains CD-DA and other formats, proper playback may not be possible.

• Display the subtitles. (“SUBTITLE” in Functions menu)

• Subtitles may not be displayed depending on the disc.

h

10] on the remote control until “INITIALIZED” (or “INITIALISED”)

10, 11

14

—

—

6
6

15

—
—

—

—

—

—
—

—

21
21

ENGLISH

7 A-B repeat

Point B is automatically set.

7 Menus

The Setup menu cannot be
accessed.

7 Sound abnormal or improper

Sound is distorted.

Effects do not work.

Humming is heard during play.

No sound.

• The end of an item becomes point B when it is reached. —

• Select “DVD/CD” as the source.

• Cancel program and random play.

• Cancel JPEG’s playback.

• Noise may occur when playing WMA. —

• Some audio effects do not work or have less effect with some discs.

• Dolby Pro Logic II does not work if you have changed the play speed.

• An AC mains lead or fl uorescent light is near the main unit. Keep other
appliances and cables away from the main unit.

• There may be a slight pause in sound when you change the play speed.

• Audio may not be output due to how fi les were created.

—
18
—

—
—

—

—
—

REFERENCE

RQTX0111

35

RQT8043

Troubleshooting guide (continued)

7 Picture abnormal or unviewable Page

The picture on the television is
not displayed correctly or
disappears.

Picture stops

Picture size does not fi t the screen.

Menu is not displayed correctly.

Auto zoom function does not work
well.

When playing PAL disc, picture is
distorted.

7 Progressive video

3

*

3

*

Pictures not in progressive output.

• The unit and television are using different video systems.

1

*

Use a multi-system or NTSC television.

2

*

Use a multi-system or PAL television.

• The system used on the disc does not match your television.
– PAL discs cannot be correctly viewed on an NTSC television.
– This unit can convert NTSC signals to PAL 60 for viewing on a PAL television
(“NTSC DISC OUT” in “VIDEO” tab).

• Ensure that the unit is connected directly to the television, and is not connected
through a video cassette recorder.

• Mobile telephone chargers can cause some disturbance.

• If you are using an indoor television antenna, change to an outdoor antenna.

• The television antenna wire is too close to the unit. Move it away from the unit.

• Change “SOURCE SELECT” in Functions menu.

• Picture may stop if the DivX fi les are greater than 2 GB. —

• Change “TV ASPECT” in the “VIDEO” tab.

• Use the television to change the aspect.

• Change the zoom setting. (“ZOOM” in Functions menu.)

• Restore the zoom ratio to “NORMAL”. (“ZOOM” in Functions menu.) 22

• Turn off television zoom function.

• Zoom function may not work well, especially in dark scenes and may not work
depending on the type of disc.

• Set “TRANSFER MODE” in Functions menu to “AUTO”. 22

• Select “PROGRESSIVE” in “VIDEO OUT (I/P)” in the “VIDEO” tab.

• The unit’s VIDEO OUT terminal outputs the interlaced signal even if “PRG” is
displayed.

—

—
24

32

—
—
—
22

24
—
22

—
—

24
11

7 Unit displays

The display is dark.

“NO PLAY”

“NO DISC”

“OVER CURRENT ERROR”

“F61”

“F76”

“DVD U11”

“ERROR”

ENGLISH

“DVD H & &”
“DVD F & & &”
& stands for a number.

“REMOTE 1” or “REMOTE 2”

REFERENCE

1

For Southeast Asia and Thailand

2

For the Middle East, South Africa, Saudi Arabia, Kuwait and Continental Europe

3

*

For Southeast Asia, Thailand, the Middle East, South Africa, Saudi Arabia and Kuwait

• Select “BRIGHT” in “FL DIMMER” in the “OTHERS” tab. 25

• You inserted a disc the unit cannot play; insert one it can.

• You inserted a blank disc.

• You inserted a disc that has not been fi nalized.

• You have not inserted a disc; insert one.

• You have not inserted the disc correctly; insert it correctly.

• The USB device is drawing too much power. Switch to DVD/CD mode, remove
the USB and turn the unit off.

• Check and correct the speaker cable connections.

If this does not fi x the problem, consult the dealer.

• There is a power supply problem. Consult the dealer. —

• Disc may be dirty. Wipe it clean. 27

• Incorrect operation performed. Read the instructions and try again. —

• Trouble may have occurred. The numbers following “H” and “F” depend on the
status of the unit. Turn the unit off and then back on. Alternatively, turn the unit
off, disconnect the AC mains lead, and then reconnect it.

• If the service numbers fail to clear, note the service number and contact a
qualifi ed service person.

• Match the modes on the main unit and remote control. Depending on the number
being displayed (“1” or “2”), press and hold [ENTER] and the corresponding
numbered button ([1] or [2]) for at least 2 seconds.

14
—
—

—
16

—

10

—

—

34

36

RQT8043

RQTX0111

7 Television displays Page

“”

“ERROR”

“Check the disc”

“This disc may not be played in
your region”

“Authorization Error”

“RENTAL EXPIRED”

• The operation is prohibited by the unit or disc. —

• You are trying to display an incompatible group or content.

• You are trying to play a protected group or content. You cannot play it.

• This disc may be dirty. —

• Only DVD-Video discs that include or have the same region number as the one
on the rear panel of this unit can be played.

• You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit.

• The DivX VOD content has zero remaining plays. You cannot play it. 26

Cover

page

—
—

26

7 USB

The USB drive or its contents
cannot be read.

Slow operation of the USB device.

• The USB drive format or its contents is/are not compatible with the system.

• The USB host function of this product may not work with some USB devices.

• USB devices with storage capacity of more than 32 GB may not work in some
instances.

• Large fi le size or high memory USB fl ash drive takes longer time to read and
display on the TV.

—
—

—

—

7 Listening to the radio

Distorted sound or noise is heard.
“ST” fl ickers or does not light.

A beat sound is heard.

• Adjust the position of the FM antenna.

• Use an outdoor antenna.

• Turn the television off or move it away from the unit. —

—
12

ENGLISH

REFERENCE

RQTX0111

37

RQT8043

ENGLISH

38

RQT8043

Language code list

Abkhazian: 6566 Hausa: 7265 Romanian: 8279

Afar: 6565 Hebrew: 7387 Russian: 8285

Afrikaans: 6570 Hindi: 7273 Samoan: 8377

Albanian: 8381 Hungarian: 7285 Sanskrit: 8365

Ameharic: 6577 Icelandic: 7383 Scots Gaelic: 7168

Arabic: 6582 Indonesian: 7378 Serbian: 8382

Armenian: 7289 Interlingua: 7365 Serbo-Croatian: 8372

Assamese: 6583 Irish: 7165 Shona: 8378

Aymara: 6589 Italian: 7384 Sindhi: 8368

Azerbaijani: 6590 Japanese: 7465 Singhalese: 8373

Bashkir: 6665 Javanese: 7487 Slovak: 8375

Basque: 6985 Kannada: 7578 Slovenian: 8376

Bengali; Bangla: 6678 Kashmiri: 7583 Somali: 8379

Bhutani: 6890 Kazakh: 7575 Spanish: 6983

Bihari: 6672 Kirghiz: 7589 Sundanese: 8385

Breton: 6682 Korean: 7579 Swahili: 8387

Bulgarian: 6671 Kurdish: 7585 Swedish: 8386

Burmese: 7789 Laotian: 7679 Tagalog: 8476

Byelorussian: 6669 Latin: 7665 Tajik: 8471

Cambodian: 7577 Latvian, Lettish: 7686 Tamil: 8465

Catalan: 6765 Lingala: 7678 Tatar: 8484

Chinese: 9072 Lithuanian: 7684 Telugu: 8469

Corsican: 6779 Macedonian: 7775 Thai: 8472

Croatian: 7282 Malagasy: 7771 Tibetan: 6679

Czech: 6783 Malay: 7783 Tigrinya: 8473

Danish: 6865 Malayalam: 7776 Tonga: 8479

Dutch: 7876 Maltese: 7784 Turkish: 8482

English: 6978 Maori: 7773 Turkmen: 8475

Esperanto: 6979 Marathi: 7782 Twi: 8487

Estonian: 6984 Moldavian: 7779 Ukrainian: 8575

Faroese: 7079 Mongolian: 7778 Urdu: 8582

Fiji: 7074 Nauru: 7865 Uzbek: 8590

Finnish: 7073 Nepali: 7869 Vietnamese: 8673

REFERENCE

French: 7082 Norwegian: 7879 Volapük: 8679

Frisian: 7089 Oriya: 7982 Welsh: 6789

Galician: 7176 Pashto, Pushto: 8083 Wolof: 8779

Georgian: 7565 Persian: 7065 Xhosa: 8872

German: 6869 Polish: 8076 Yiddish: 7473

Greek: 6976 Portuguese: 8084 Yoruba: 8979

Greenlandic: 7576 Punjabi: 8065 Zulu: 9085

Guarani: 7178 Quechua: 8185

RQTX0111

Gujarati: 7185 Rhaeto-Romance: 8277

Glossary

Decoder

A decoder restores the coded audio signals on DVDs to
normal. This is called decoding.

DivX

DivX is a popular media technology created by DivX, Inc.
DivX media fi les contain highly compressed video with high
visual quality that maintains a relatively small fi le size.

Dolby Digital

This is a method of coding digital signals developed by
Dolby Laboratories. Apart from stereo (2-channel) audio,
these signals can also be multi-channel audio. A large
amount of audio information can be recorded on one disc
using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters
around the world. There is good separation between the
channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment
and the highest level of sound before distortion occurs.

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color
still pictures. If you select JPEG as the storage system
on digital cameras, etc., the data will be compressed to
1/10–1/100 of its original size. The benefi t of JPEG is less
deterioration in picture quality considering the degree of
compression.

Linear PCM (Pulse Code Modulation)

These are uncompressed digital signals, similar to those
found on CDs.

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to
approximately one tenth of its size without any considerable
loss of audio quality.

MPEG4

A compression system for use on mobile devices or a
network, that allows highly effi cient recording at a low bit
rate.

Playback control (PBC)

If a Video CD has playback control, you can select scenes
and information with menus.

Film and video

DVD-Videos are recorded using either fi lm or video. This
unit can determine which type has been used, then uses
the most suitable method of progressive output.
Film: Recorded at 25 frames per second (PAL discs)

or 24 frames per second (NTSC discs). (NTSC
discs recorded at 30 frames per second as well).
Generally appropriate for motion picture fi lms.

Video: Recorded at 25 frames/50 fi elds per second

(PAL discs) or 30 frames/60 fi elds per second
(NTSC discs). Generally appropriate for TV drama
programs or animation.

Frame still and fi eld still

Frames are the still pictures that go together to make a
moving picture.
There are about 30 frames shown each second.
One frame is made up of two fi elds. A regular television
shows these fi elds one after the other to create frames.
A still is shown when you pause a moving picture. A frame
still is made up of two alternating fi elds, so the picture may
appear blurred, but overall quality is high.
A fi eld still is not blurred, but it has only half the information
of a frame still so picture quality is lower.

I/P/B

MPEG 2, the video compression standard adopted for use
with DVD-Video, codes frames using these 3 picture types.
I: Intra coded picture
This picture has the best quality and is the best to use

when adjusting the picture.
P: Predictive coded picture
This picture is calculated based on past I or P-pictures.
B: Bidirectionally-predictive coded picture
This picture is calculated by comparing past and

future I and P-pictures so it has the lowest volume of

information.

Progressive/Interlaced

For Southeast Asia, Thailand, the Middle East,
South Africa, Saudi Arabia and Kuwait

The PAL video signal standard has 576 interlaced (i) scan
lines, whereas progressive scanning, called 576p, uses
twice the number of scan lines. For the NTSC standard,
these are called 480i and 480p respectively.
Using progressive output, you can enjoy the high-resolution
video recorded on media such as DVD-Video. Your
television must be compatible to enjoy progressive video.

Sampling frequency

Sampling is the process of converting the heights of sound
wave (analog signal) samples taken at set periods into
digits (digital encoding).
Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction
of the original sound.

TM

WMA (Windows Media

WMA is a compression format developed by Microsoft
Corporation. It achieves the same sound quality as MP3
with a fi le size that is smaller than that of MP3.

Audio)

ENGLISH

REFERENCE

RQTX0111

39

RQT8043

Specifi cations

AMPLIFIER SECTION

For Continental Europe

RMS Output Power: Dolby Digital Mode

Front Ch
55 W per channel (5 ), 1 kHz, 10 % THD
Surround Ch
55 W per channel (5

), 1 kHz, 10 % THD
Center Ch
55 W per channel (5 ), 1 kHz, 10 % THD
Subwoofer Ch
55 W per channel (5 ), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power 330 W

DIN Output Power: Dolby Digital Mode

Front Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Surround Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Center Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Subwoofer Ch
25 W per channel (5 ), 100 Hz, 1 % THD
Total DIN Dolby Digital mode power 150 W

For Southeast Asia, Thailand, the Middle East,
South Africa, Saudi Arabia and Kuwait

RMS Output Power: Dolby Digital Mode

Front Ch
55 W per channel (5 ), 1 kHz, 10 % THD
Surround Ch
55 W per channel (5 ), 1 kHz, 10 % THD
Center Ch
55 W per channel (5 ), 1 kHz, 10 % THD
Subwoofer Ch
55 W per channel (5 ), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power 330 W

PMPO output power 2800 W

DIN Output Power: Dolby Digital Mode

Front Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Surround Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Center Ch
25 W per channel (5 ), 1 kHz, 1 % THD
Subwoofer Ch
25 W per channel (5 ), 100 Hz, 1 % THD

ENGLISH

Total DIN Dolby Digital mode power 150 W

FM TUNER, TERMINALS SECTION

Preset Memory FM 30 stations
Frequency Modulation (FM)

REFERENCE

Frequency range

87.50 to 108.00 MHz (50-kHz step)
Sensitivity 1.8 µV (IHF)
S/N 26 dB 1.4 µV
Antenna terminals 75 (unbalanced)

Mic jack

For Southeast Asia, Thailand, the Middle East,
South Africa, Saudi Arabia and Kuwait

Sensitivity 0.7 mV, 1.2 k
Terminal Mono, 6.3 mm jack (1 system)

DISC SECTION

Discs played (8 cm or 12 cm)

(1) DVD (DVD-Video, DivX
(2) DVD-RAM (DVD-VR, MP3

*1, *2

DivX

(3) DVD-R (DVD-Video, DVD-VR, MP3

MPEG4

)

*2, *4

, DivX
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, MP3

MPEG4

*2, *4

, DivX
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW (CD-DA, Video CD, SVCD*5, MP3

*1

*2, *7

WMA

, JPEG

Plays all versions of DivX® video (including DivX®6) with

standard playback of DivX® media fi les. Certifi ed to the
DivX Home Theater Profi le.

*2

The total combined maximum number of recognizable

audio, picture and video contents and groups: 4000
audio, picture and video contents and 400 groups.

*3

Exif Ver 2.1 JPEG Baseline fi les

Picture resolution: between 160 x 120 and 6144 x 4096

pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4).
Extremely long and narrow pictures may not be
displayed.

*4

MPEG4 data recorded with the Panasonic SD multi

cameras or DVD video recorders

Conforming to SD VIDEO specifi cations (ASF standard)/

MPEG4 (Simple Profi le) video system/G.726 audio
system

*5

Conforming to IEC62107

*6

MPEG-1 Layer 3, MPEG-2 Layer 3

*7

Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

Pick up

Wavelength (DVD/CD) 662/785 nm
Laser power (DVD/CD) CLASS 1/CLASS 1M

Audio output (Disc)

Number of channels 5.1ch (FL, FR, C, SL, SR, SW)

*1, *2

*1, *2

*2, *3

*1, *2

)

*2, *6

)

)

, MPEG4

, JPEG

*2, *6

*2, *4

, DivX

*2, *3

*2, *6

, MPEG4

, JPEG

, JPEG

*1, *2

*2, *3

)

*2, *3

*2, *6

*2, *4

,

,

,

USB SECTION

USB Port

USB Standard USB 2.0 full speed
Media fi le format support

MP3 (*.mp3)
WMA (*.wma)
JPEG (*.jpg, *.jpeg)
MPEG4 (*.asf)

USB device fi le system

FAT12
FAT16
FAT32

USB port power 500 mA (Max)

,

40

RQT8043

RQTX0111

VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC
Composite video output

Output level 1 Vp-p (75 )
Terminal

For Continental Europe

Scart jack (1 system)

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia, Kuwait

Pin jack (1 system)

For Continental Europe

S-video output

Y output level 1 Vp-p (75 )
C output level PAL; 0.3 Vp-p (75 )

NTSC; 0.286 Vp-p (75 )

Terminal Scart jack (1 system)

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia, Kuwait

Component video output
(NTSC: 480p/480i, PAL: 576p/576i)

Y output level 1 Vp-p (75 )
PB output level 0.7 Vp-p (75 )
PR output level 0.7 Vp-p (75 )
Terminal
Pin jack (Y: green, PB: blue, PR: red) (1 system)

For Continental Europe

RGB video output

R output level 0.7 Vp-p (75 )
G output level 0.7 Vp-p (75 )
B output level 0.7 Vp-p (75 )
Terminal Scart jack (1 system)

SPEAKER SECTION

*

Rating with low-cut fi lter equipped amplifi er.

Front speakers SB-HF150

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 5

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 96 Hz to 25 kHz (–16 dB)

120 Hz to 22 kHz (–10 dB)

Center speaker SB-HC150

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 5

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 91 Hz to 25 kHz (–16 dB)

120 Hz to 22 kHz (–10 dB)

Dimensions (W x H x D) 135 mm x 92 mm x 95.4 mm
Mass 0.6 kg

For Continental Europe

Subwoofer SB-W340 (Silver) or SB-HW150 (Black)

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia, Kuwait

Subwoofer SB-HW150

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 5

Woofer 12 cm Cone type

Input power (IEC) 55 W (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 31 Hz to 173 Hz (–16 dB)

40 Hz to 148 Hz (–10 dB)

Dimensions (W x H x D) 152 mm x 339 mm x 258 mm
Mass 3 kg

GENERAL

Power supply

For Continental Europe

For Southeast Asia, Thailand, the Middle
East, South Africa, Saudi Arabia, Kuwait

AC 110 to 240 V, 50/60 Hz

Power consumption
Main unit 105 W
Dimensions (W x H x D)

430 mm x 60 mm x 342 mm

Mass

Main unit 3 kg

Operating temperature range

0 °C to +40 °C

Operating humidity range

35 % to 80 % RH (no condensation)

Dimensions (W x H x D) 92 mm x 135 mm x 95.4 mm
Mass 0.6 kg

Front speakers SB-HF165

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 5

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)
Output sound pressure 80 dB/W (1.0 m)

Power consumption in standby mode approx. 1 W

Note

1. Specifi cations are subject to change without notice.
Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Frequency range 87 Hz to 25 kHz (–16 dB)

98 Hz to 22 kHz (–10 dB)

Dimensions (W x H x D) 252 mm x 1123 mm x 234 mm
Mass 3.7 kg

Surround speakers SB-HS151

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 5

Full range 6.5 cm Cone type

Input power (IEC) 55 W* (Max)
Output sound pressure 80 dB/W (1.0 m)
Frequency range 96 Hz to 25 kHz (–16 dB)

120 Hz to 22 kHz (–10 dB)

Dimensions (W x H x D) 92 mm x 135 mm x 95.4 mm
Mass 0.6 kg

AC 230 V, 50 Hz

ENGLISH

REFERENCE

RQTX0111

41

RQT8043

Maintenance

Clean this unit with a soft, dry cloth.

– Never use alcohol, paint thinner or benzine to clean this unit.
– Before using chemically treated cloth, carefully read the instructions that came with the cloth.
– Do not use commercially available lens cleaners as they may cause malfunction. (Cleaning the lens is generally not

necessary although this depends on the operating environment.)

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered
trademarks of DTS, Inc.

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698;
6,516,132; and 5,583,936.

This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

Windows Media and the Windows logo are trademarks
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.

This product is protected by certain intellectual property
rights of Microsoft Corporation and third parties. Use or
distribution of such technology outside of this product
is prohibited without a license from Microsoft or an
authorized Microsoft subsidiary and third parties.

WMA is a compression format developed by Microsoft
Corporation. It achieves the same sound quality as MP3
with a file size that is smaller than that of MP3.

This product is licensed under the MPEG-4 Visual patent
portfolio license for the personal and non-commercial
use of a consumer for (i) encoding video in compliance
with the MPEG-4 Visual Standard (“MPEG-4 Video”)
and/or (ii) decoding MPEG-4 Video that was encoded by
a consumer engaged in a personal and non-commercial
activity and/or was obtained from a video provider
licensed by MPEG LA to provide MPEG-4 Video. No
license is granted or shall be implied for any other
use. Additional information including that relating to
promotional, internal and commercial uses and licensing
may be obtained from MPEG LA, LLC. See
http://www.mpegla.com.

Official DivX® Certified
product.

Plays all versions of DivX
video (including DivX®6) with
standard playback of DivX®
media files.

DivX, DivX Certified, and
associated logos are
trademarks of DivX, Inc. and
are used under license.

®

ENGLISH

42

RQT8043

REFERENCE

RQTX0111

MEMO

ENGLISH

REFERENCE

RQTX0111

43

RQT8043

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable
collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement
set by the Directive for the chemical involved.

Cd

Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net

Pursuant to at the directive 2004/108/EC, article 9 (2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany

En

RQTX0111-1B

L1107NC1028
