Panasonic SC-HT920 User Manual

Operating Instructions

DVD Home Theater Sound System

Model No. SC-HT920

RQT7696-1P

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

System SC-HT920

Main unit SA-HT920

Front speakers SB-PF920

Center speaker SB-PC920

Surround speakers SB-PS920

Active subwoofer SB-WA920

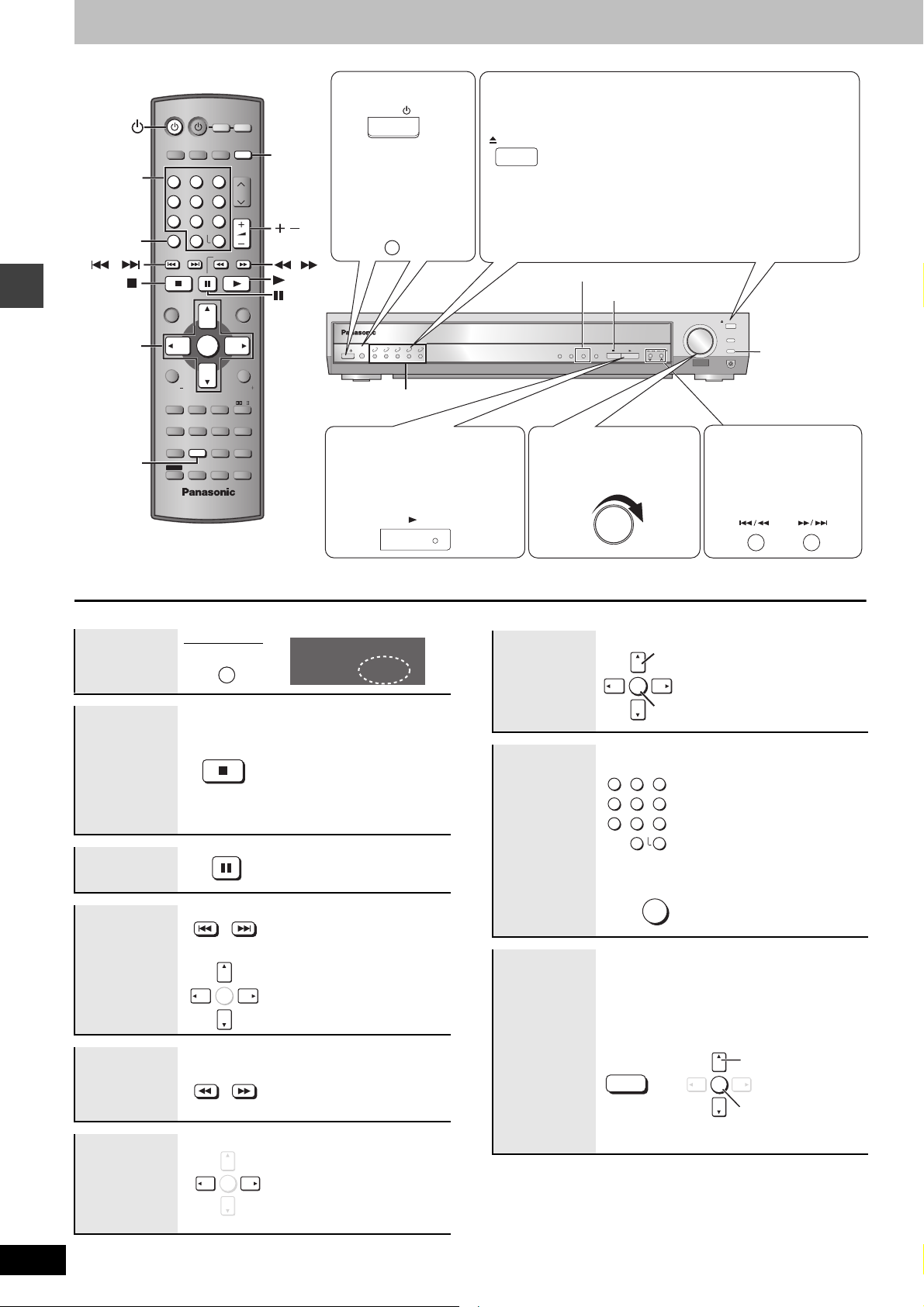

Operations in these instructions are described mainly with the remote control, but you can perform operations on the main unit if the controls are the same.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for

help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RQT7696

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.

Only for U.S.A.: To order accessories, refer to “Accessory Purchases” on page 35. For other areas: To order accessories, call the dealer from whom you made your purchase.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS/Accessories

∏ 1 Remote control

(EUR7722X50)

∏ 2 Remote control batteries

∏ 1 Video cable

(RJL1P016B15A)

∏ 1 Sheet of speaker-cable

stickers

∏ 1 AC power supply cord

(K2CB2CB00006)

∏ 1 AM loop antenna

(N1DAAAA00001)

∏ 1 FM indoor antenna

(RSA0007-J)

∏ 1 System cable

(K1HA25HA0001)

∏ 3 Speaker cables

4-m (13-foot) cable (REE1203A-J)

2k10-m (33-foot) cables (REE1203C-J)

∏ 1 Antenna plug

(K2RC021B0001)

∏ 4 Large screws

(XSS6+14FZ)

∏ 4 Small screws

(XSN5+10FN)

[Note]

The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

RQT7696

Simple setup

STEP1

Front speaker assembly

Make sure you have all the indicated components before starting assembly, setup, and connection.

Front speaker units

Pipes

Bases

Large screws

Small screws

Preparation

≥To prevent damage or scratches, lay down a soft cloth and

perform assembly on it.

≥For assembly, use a Phillips-head screwdriver.

1 Attach the pipe to the base.

1 Thread the speaker cable through the base.

Front speaker assembly

Lessen excess speaker cable.

Cable

Groove

2 Insert the pipe.

Insert the pipe while gently pulling on the speaker cable.

Secure the pipe to the base.

Ensure the screws are securely fastened by lightly tightening the left and right side screws alternately until fully tightened. (The heads of the screws protrude slightly even if you have fully tightened them.)

The supplied stands are specially designed for attachment to Panasonic SB-PF920 front speakers. Only use as indicated in this setup.

Holes for screws

Thread the speaker cable through here.

Rear side of base

Large screws

Cable

∫ Front speaker height

(Assembled diagram)

1,138 mm

(44

/16z)

Speaker

968 mm

(38

/8z)

Pipe

Base

Attach to lower rear of speaker

You can adjust within this range.

678 mm (26

796 mm

(31

/32z)

Attach to upper rear of speaker

625 mm

(24

/32z)

Stopper screw

Do not remove.

/16z)

3 Adjust the speaker height.

≥Check the screws you tightened in procedures 1 and 2 if the pipe

and speaker are loose.

e.g. Attaching the stand to the lower rear

1 Loosen the attached speaker mounting

plate screw until the attached speaker is slightly loose and adjustable.

Be careful not to loosen the screw too much or the speaker may detach and fall.

2 With one hand on the base and the other

holding the speaker adjust the height of the speaker up and down.

≥After adjusting the height tighten the screw

on the mounting plate securely.

Phillips-head screwdriver

2 Attach the stand to the speakers.

≥

There is no difference between the right and left speakers and stands.

≥Using the polyfoam included with this unit may be convenient.

Ensure the stand is fastened on straight by lightly tightening the top and bottom screws alternately until fully tightened.

Small screws

Front speaker

Stopper screw

Screw to stop mounting plate from moving or sliding below this point.

RQT7696

Poly foam

Connection terminals

You can also attach to the upper rear of the speaker.

The height of the speaker is indicated in the diagram on the right when attaching the stand to the upper rear or lower rear of the speaker.

Mounting plate

For your reference

You can enjoy good acoustics by adjusting the height of the speaker to the height of the television so the center positions of both are approximately the same.

4 Connect the speaker cables.

Twist off the vinyl ends of the speaker cables.

_: Copper `: Silver

Push !

2 Press the speaker cable into the groove.

If there is any excess speaker cable, thread the speaker cable into the opening near the top of the pipe while pulling the speaker cable from the bottom of the base.

Rear of the speaker

Other speaker setup options

∫ Attaching to a wall

1 Drive a screw (not included)

into a wall.

2 Fit the speaker securely onto

the screw(s) with the hole(s).

Wall or pillar

≥

The wall or pillar on which the speakers are to be attached should be capable of supporting 10 k building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.

≥When mounting the front speaker to a wall, we recommend using

a string (not included) to prevent it from falling ( ‹ left).

≥Use of optional speaker cables is recommended for wall mounted

front speakers. (You can also remove the speaker cables from the pipes supplied with this system).

e.g.

Front speaker Center speaker

(22 lb.) per screw. Consult a qualified

30–35 mm

‰7.5–9.4 mm

(

8–11 mm

(

/8q–7/16q)

/16q–13/8q)

/64q–3/8q)

5 Fasten the speaker cable to the base.

≥Using the same polyfoam as in procedure 2 will assist you in

safely and securely fastening the speaker cables.

1 Press the speaker

cable and thread between the hooks.

Rear side of base

∫ Preventing the speakers from falling over

Preparation

Attach screw eyes (not included) to secure the speakers to the wall (‹diagram below)

≥You will need to obtain the appropriate screws to match the walls

and pillars to which the screw eyes are going to be fastened.

≥Consult with a qualified housing contractor concerning the

appropriate procedure when attaching to a concrete wall or a surface that may not have strong enough support. Improper attachment may result in damage to the wall or speakers.

1 Thread the string (not included) through the slot on the

rear of the speaker to prevent it from falling over.

2 Loop the string through the screw eye and tie tightly.

e.g.

String (not included)

2 Fit the speaker

cable into the base cover groove as far as possible.

Cable

Wall

230 mm

/16z)

In this position, the speaker will likely fall if moved to the left or right.

Move the speaker so the screw is in this position.

150 mm

/32z)

∫ Fitting speaker stands (not included)

Ensure the stands meet these conditions before purchasing them. Note the diameter and length of the screws and the distance between screws as shown in the diagram.

≥The stands must be able to support over 10 kg (22 lb.). ≥

The stands must be stable even if the speakers are in a high position.

e.g. Surround speaker

5 mm ( pitch 0.8 mm (

/64z),

60 mm (2

/32z)

/64z)

Front speaker assembly/Other speaker setup options

Screw eye (not included)

Rear of the speaker

Approx. 150 mm

/16z)

Attach the stands to these metal screw holes.

Speaker stand (not included)

Plate thickness plus 7 to 10 mm

/32z to 25/64z)

(plus

RQT7696

How you set up your speakers can affect the bass and the sound field. Note the following points.

STEP2 Locating

≥Place speakers on flat secure bases. ≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover

walls and windows with thick curtains.

≥The left and right speaker pairs are the same with respect to the front and surround speakers.

Locating

RQT7696

FRONT

(L, R)

≥Place the front, center, and surround speakers at approximately the same distance from the seating position.

The angles in the diagrams are approximate.

SURROUND

(L, R)

Setup example

Main unit

≥Use only supplied speakers

Using other speakers can damage the unit and sound quality will be negatively affected.

≥Set the speakers up on an even surface to prevent them from

falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

Main unit

[Note]

Keep your speakers at least 10 mm (13/32q) away from the system for proper ventilation.

Center speaker

≥Vibration caused by the center speaker can disrupt the picture if it

is placed directly on the television. Put the center speaker on a rack or shelf.

≥To prevent the speakers from falling, do not place directly on top

of the television.

Subwoofer

Place to the right or left of the television, on the floor or a sturdy shelf so that it won’t cause vibration. Leave 10 cm (4q) at the rear for ventilation.

CENTER

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you

play sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage.

– When playing distorted sound. – When the speakers are receiving howling from a record player,

noise from FM broadcasts, or continuous signals from an

oscillator, test disc, or electronic instrument. – When adjusting the sound quality. – When turning the unit on or off.

If irregular coloring occurs on your television

The supplied speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem. If it persists, move the speakers farther away from the television.

Caution

≥Do not touch the netted area of the

surround speakers.

SUBWOOFER

Caution

≥The main unit and supplied speakers are

only to be used as indicated in this setup. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥Do not attempt to attach these speakers to

walls using methods other than those described in this manual.

STEP3 Connecting speakers with the subwoofer

≥Attach the speaker-cable stickers to make connection easier. ≥The terminals of the subwoofer have high output power. Carefully connect the speaker wires.

Connecting speakers with the subwoofer

[Note]

≥Never short-circuit positive (i) and negative (j) speaker wires. ≥Be sure to connect only positive (copper) wires to positive (i) terminals and negative (silver) wires to negative (j) terminals. Incorrect

connection can damage the speakers.

RQT7696

STEP4 Video connections

Video connections

≥Do not connect through the video cassette recorder.

Due to copy guard protection, the picture may not be displayed properly.

≥Turn the television off before connecting, and refer to the

television’s operating instructions.

∫ Television with a VIDEO IN terminal

Television

(not included)

Back of the main unit

VIDEO IN

COMPONENT

VIDEO OUT

(480P/480I)

VIDEO

OUT

S-VIDEO

OUT

Video cable

(included)

∫ Television with an S-VIDEO IN terminal

Television

(not included)

S-VIDEO

Video cable

∫

Television with COMPONENT VIDEO IN terminals

COMPONENT

VIDEO IN

Tel ev is io n

(not included)

Video cables

(not included)

COMPONENT

VIDEO OUT

(480P/480I)

VIDEO

OUT

S-VIDEO

OUT

Back of the main unit

COMPONENT

VIDEO OUT

(480P/480I)

VIDEO

OUT

S-VIDEO

OUT

S-video cabl

(not included)

S-VIDEO OUT terminal

The S-VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance (Y) signals. (Actual results depend on the television.)

COMPONENT VIDEO OUT terminals

These terminals can be used for either interlace or progressive output and provide a purer picture than the S-VIDEO OUT terminal. Connection using these terminals outputs the color difference signals (P

B/PR) and luminance signal (Y) separately in

order to achieve high fidelity in reproducing colors. ≥The description of the component video input terminals depends

on the television or monitor (e.g. Y/P

B/PR, Y/B-Y/R-Y, Y/CB/CR).

Connect to terminals of the same color.

≥After making this connection, select “Darker” from the “Black

Level Control” in the “Video” tab (‹ page 20).

To enjoy progressive video

≥Connect to the component video input terminals on a 480P

compatible television. (Video will not be displayed correctly if connected to an incompatible television.)

≥All Panasonic televisions that have 480P input connectors

are compatible. Consult the manufacturer if you have another brand of television.

RQT7696

STEP5 Radio and system connection

OPTICAL

FM ANT

(75h)

AM ANT

LOOP

EXT

VCR

COMPONENT VIDEO OUT

LINE

AUDIO

AUX

(480P/480I)

OUT

S-VIDEO

OUT

VIDEO

OUT

Radio and system connection/The remote control

Do not:

≥mix old and new batteries. ≥use different types at the same time. ≥heat or expose to flame. ≥take apart or short circuit. ≥attempt to recharge alkaline or manganese batteries. ≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

∫ Use

Aim at the sensor (‹ page 10), avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

RQT7696

STEP7 QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

Turn on the television and select the appropriate video input on the television.

123 4 5 6

Select

SETUP MUTING

ENTER

RETURN

ENTER

SHIFT

DVD/CD

SHIFT

SETUP MUTING

QUICK SETUP/Control reference guide

Turn on the unit.

Select “DVD/CD”.

Shows QUICK SETUP screen.

To change these settings later

Select “QUICK SETUP” in “Others” tab (‹ page 21).

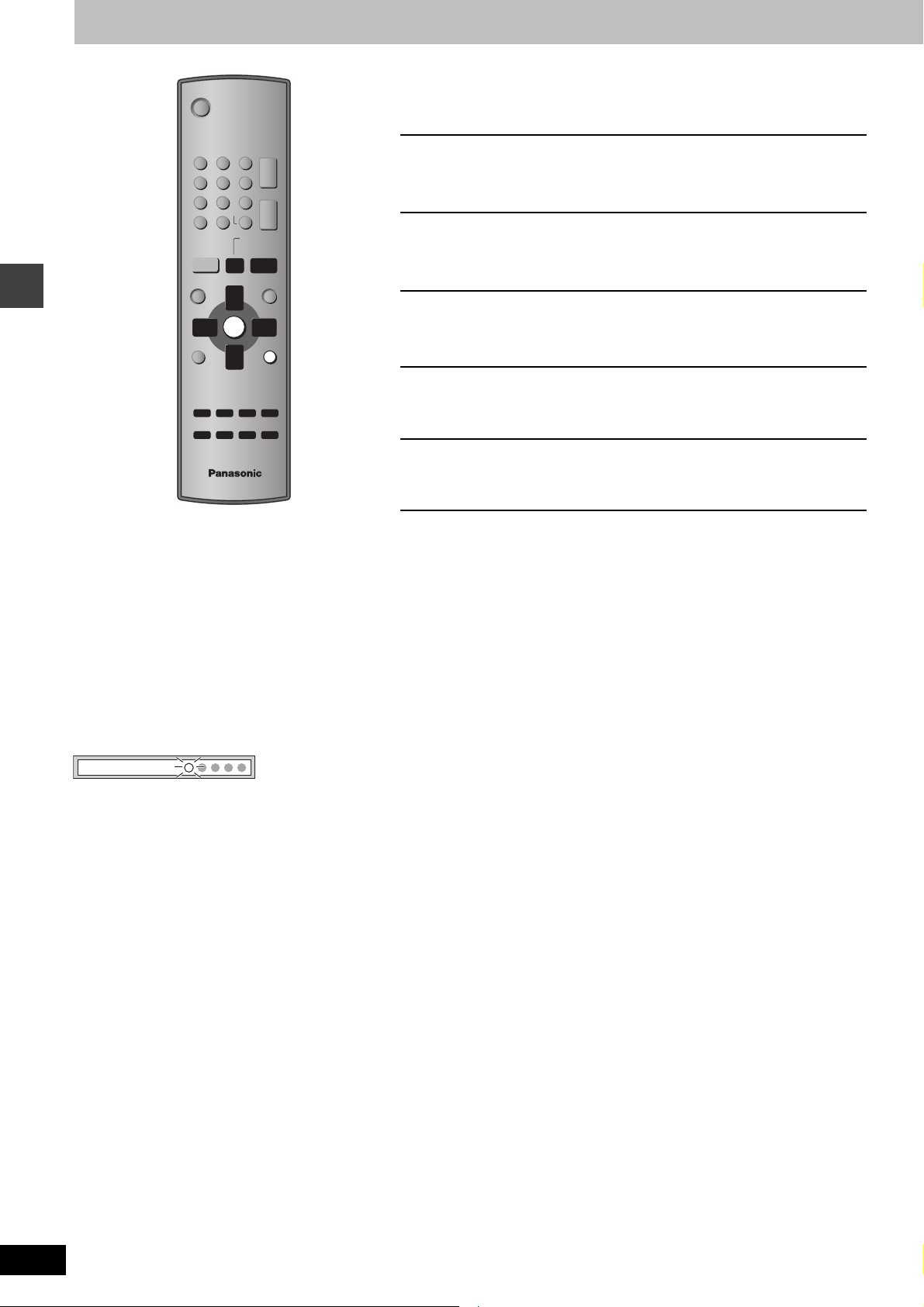

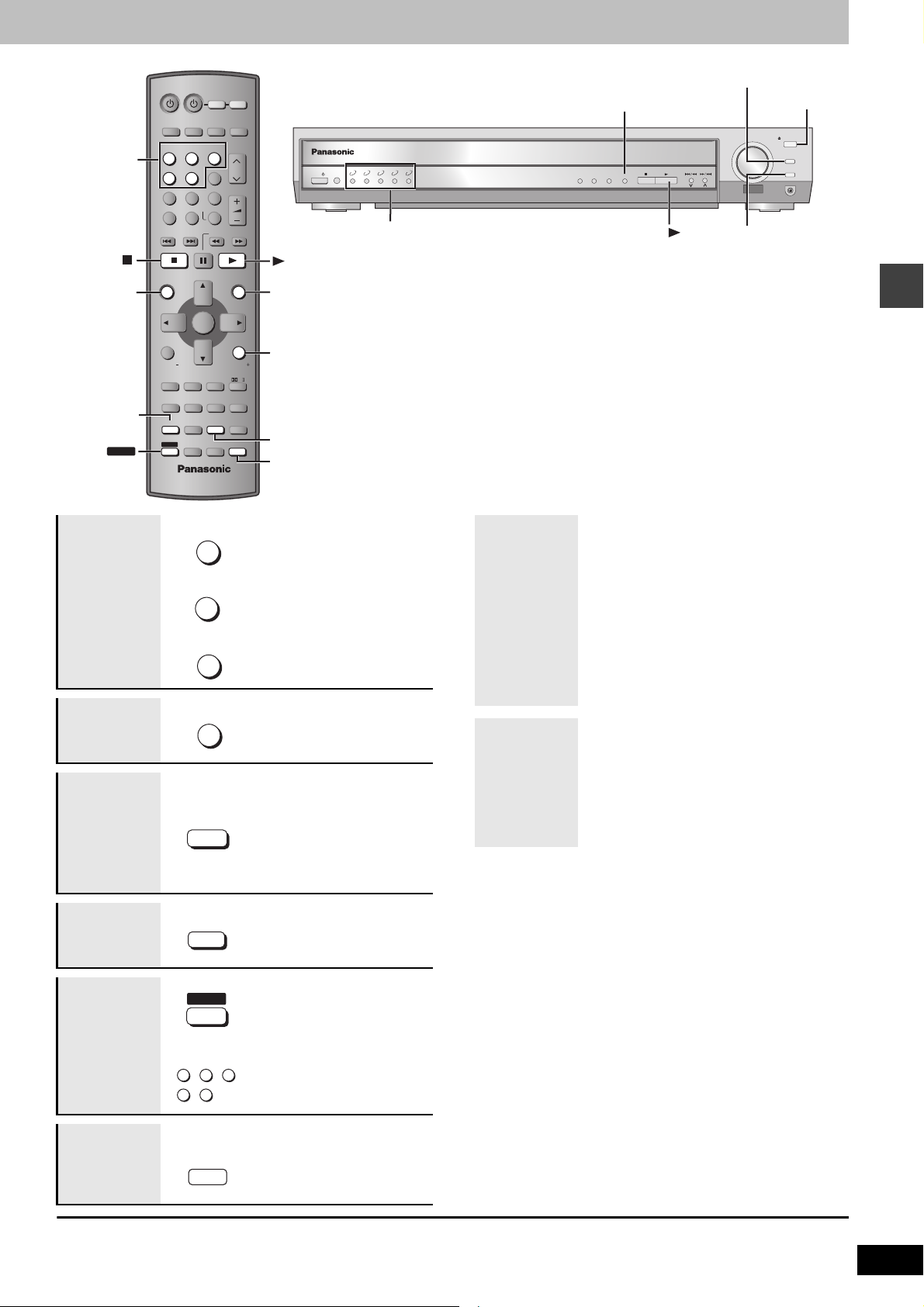

Control reference guide

See reference pages in brackets.

Power on/off

the unit.

Switch the television’s video input

mode.

(29)

(12, 13)

(12)

(13, 16, 17)

(10)

(18, 29)

AV SYSTEM

DIGITAL

AUX

TV/VIDEO

DISC 1 DISC 2 DISC 3

123

DISC 4 DISC 5

456

7809

CANCEL

SKIP

TOP MENU

TUNER/BAND

ENTER

S10

SLOW/SEARCH

VCR

DVD/CD

VOLUM E

(29)

Select the source

DIGITAL, AUX (29) TUNER/BAND (22) DVD/CD (10)

(22, 29)

Adjust the volume.

(13, 16, 17)

ENTER

C.FOCUS

SUPER SRND

AV EFFECT CD MODE

QUICK REPLAY

ZOOM

AUDIO

PLAY

LIST

RETURN

TV VOL

MIX 2CH

SETUP

MUTING

REPEAT

PLAY MODE

SUBTITLE

(13, 29)

SUBWOOFER

LEVEL

(26) (24) (24)

SLEEP

C.S.M

(26, 27)

FL DISPLAY

DIRECT

NAVIGATOR

DISPLAY

TV VOL

SUBWOOFER

LEVEL

SLEEP C.S.M

FL DISPLAY

SHIFT

SFC

POSITION MEMORY

PAG E

GROUP

TEST

CH SELECT

(13) (

To use functions labeled in orange:

While pressing [SHIFT], press the corresponding button.

Follow the messages and make the settings.

Standby/on indicator

When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on.

Source select button [INPUT SELECTOR] (22)

DVD/CD#FM#AM#TV#VCR#AUX

D-IN (Digital In)#Return to DVD/CD

POWER

Standby/on switch [Í/I, POWER]

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

C.FOCUS

SUPER SRND

ZOOM

AUDIO

AV EFFECT

CD MODE

(13, 25)

MIX 2CH

(24, 25)

SETUP MUTING

(20, 27)

REPEAT

PLAY MODE

SUBTITLE

SFC

POSITION MEMORY

(14) (14)

PAG E

GROUP

12, 14

) (15)

TEST

QUICK REPLAY

CH SELECT

(25) (14) (14)

Press to finish QUICK SETUP.

Digital in button [DIGITAL IN] (29)

INPUT

1 2 3 4 5

SELECTOR

V.R.S, M.R.S indicators (25)

V.R.S M.R.S

5 DISC SELECTOR

AC supply indicator [AC IN]

This indicator lights when the unit is connected to the AC mains supply.

Press to exit.

VOLUME

PROGRESSIVE

C.S.M

DIGITAL IN

CD MODE

TUNE MODE

FM MODE MEMORY

Remote control signal sensor

DOWN

TUNING

PHONES

OPEN/CLOSE

DISC EXCHANGE

DISC SKIP

RQT7696

Disc Logo

DVD-RAM

DVD-Audio

DVD-Video

Indication

used in

operating

instructions

[RAM]

[JPEG]

[DVD-A] —

[DVD-V]

Remarks

Recorded using Version 1.1 of the Video Recording Format (a unified video recording standard).

Recorded using the DCF (Design rule for Camera File system) standard.

Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video” in Other Menu (‹ page 19)

—

≥Recorded with DVD-Video recorders, DVD-

Video cameras, personal computers, etc.

≥Remove TYPE 2

and 4 discs from their cartridges before use.

≥Recorded with Panasonic DVD-Video

recorders.

≥To play JPEG files, select “Play as Data Disc”

in Other Menu (‹ page 19).

[DVD-V]

DVD-R

Video CD

[VCD]

SVCD

CD [CD]

[WMA]

CD-R CD-RW

A process that allows play on compatible equipment.

≥It may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.

—

[MP3]

[JPEG]

[CD]

[VCD]

∫ Discs that cannot be played

PAL discs (except DVD-Audio), DVD-ROM, CD-ROM, CDV, CD-G, DVD+R, iRW, DVD-RW, SACD, Divx Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and

5.2-GB DVD-RAM, and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

Panasonic DVD-R recorded and finalized DVD-Video cameras are played as DVD-Video on this unit.

—

Conforming to IEC62107

This unit is compatible with HDCD, but does not support the Peak Extend function. (A function which expands the dynamic range of high level signals) HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.

≥During HDCD play, “HDCD” lights on the unit’s display. ≥This unit can play CD-R/RW (audio recording disc) recorded with the formats on

the left. Close the sessions or finalize

≥HighMAT discs

WMA, MP3 or JPEG files only. To play without using the HighMAT function, select “Play as Data Disc” in Other Menu (‹ page 19).

∫ Audio format of DVDs

This unit automatically recognizes and decodes discs with these symbols.

on Panasonic DVD-Video recorders or

the disc after recording.

Discs that can be played/Main unit and disc caution

∫ To prevent damage

Do not; –load more than one disc per tray. –touch the drawer or the carousel while they are in motion. –rotate the carousel by hand. –close the drawer by hand.

∫ To clean discs

[DVD-A] [DVD-V] [VCD[ [CD]

Wipe with a damp cloth and then wipe dry.

[RAM] [DVD-R]

≥Clean with an optional DVD-RAM/PD disc cleaner

(LF-K200DCA1, where available).

≥Never use cloths or cleaners for CDs, etc.

∫ Disc handling precautions

≥Do not attach labels or stickers to discs (This may cause disc

warping, rendering it unusable).

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, static

electricity prevention liquids or any other solvent.

≥Do not use scratch-proof protectors or covers. ≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels

(rented discs, etc). – Discs that are badly warped or cracked. – Irregularly shaped discs, such as heart shapes.

RQT7696

+ 25 hidden pages
