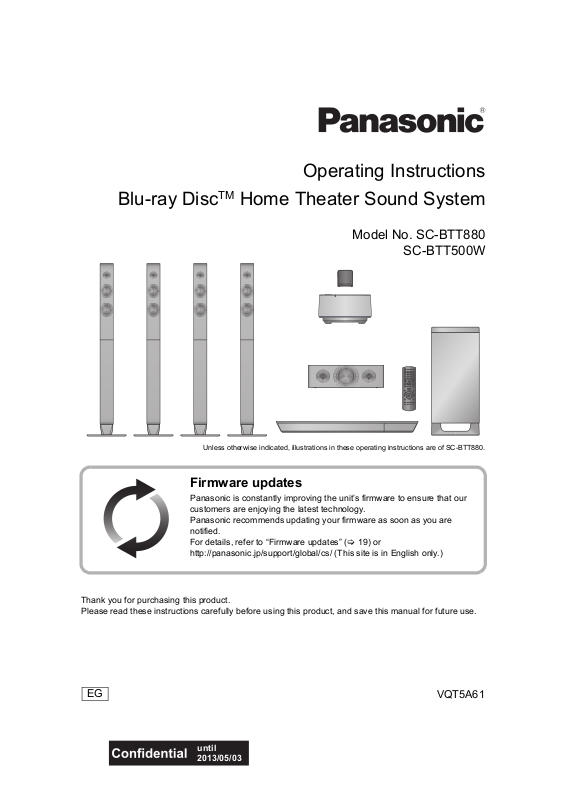

Operating Instructions
Blu-ray DiscTM Home Theater Sound System
Model No. SC-BTT880
SC-BTT500W
Unless otherwise indicated, illustrations in these operating instructions are of SC-BTT880.
Firmware updates
Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology.
Panasonic recommends updating your firmware as soon as you are notified.
For details, refer to “Firmware updates” (> 19) or http://panasonic.jp/support/global/cs/ (This site is in English only.)
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
EG |
VQT5A61 |
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
≥Do not expose this unit to rain, moisture, dripping or splashing.
≥Do not place objects filled with liquids, such as vases, on this unit.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified service personnel.
≥Do not let metal objects fall inside this unit.
≥Do not place heavy items on this unit.
AC mains lead
To reduce the risk of fire, electric shock or product damage,
≥Ensure that the power supply voltage corresponds to the voltage printed on this unit.
≥Insert the mains plug fully into the socket outlet.
≥Do not pull, bend, or place heavy items on the lead.
≥Do not handle the plug with wet hands.
≥Hold onto the mains plug body when disconnecting the plug.
≥Do not use a damaged mains plug or socket outlet.
The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from the socket outlet immediately.
Small object
≥Keep the Memory Card out of reach of children to prevent swallowing.
≥Keep the screws out of reach of children to prevent swallowing.
CAUTION
Unit

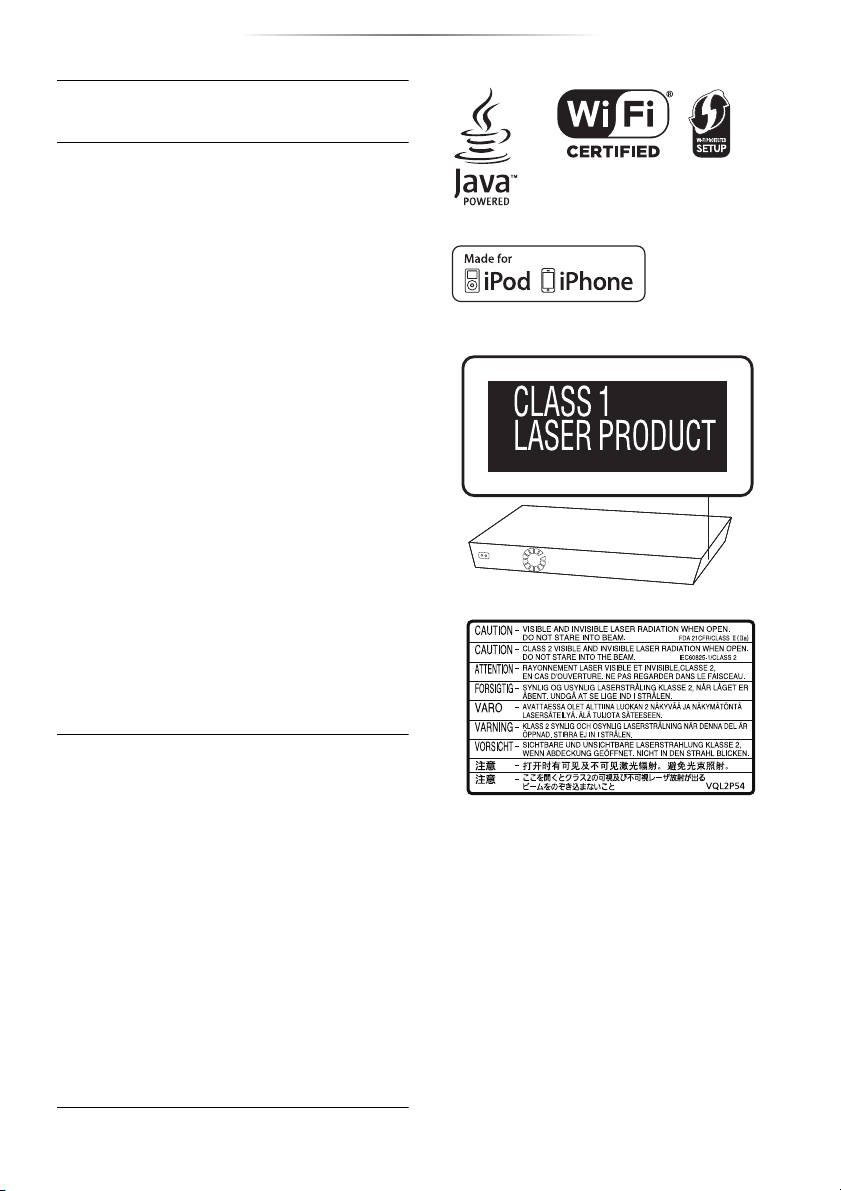

≥This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
≥Do not place sources of naked flames, such as lighted candles, on this unit.
≥This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
≥This unit is intended for use in moderate climates.
≥For wireless system
Product Identification Marking is located on the bottom of the wireless system.
Placement
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,
≥Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
≥Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.
≥Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.
Speaker
≥Use only supplied speakers
The main unit and supplied speakers are to be used only as indicated in these operating instructions. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.
≥Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the speakers.
≥Hold the speaker firmly to avoid injury by dropping the speaker when carrying.
≥You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
≥Do not touch the front area of the speakers. Hold by the sides.
≥Place speakers on flat, secure surfaces.
≥To avoid injury by falling or dropping the speaker, place the speaker cables with care not to stumble or hook.
≥Do not stand on the speaker. Be cautious when children are near.
Batteries
Mishandling of batteries can cause electrolyte leakage and may cause a fire.
≥Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
≥When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
≥Do not mix old and new batteries or different types at the same time.
≥Do not heat or expose to flame.
≥Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
≥Do not take apart or short circuit.
≥Do not recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.
Wireless LAN connection
The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.
≥Data transmitted and received over radio waves may be intercepted and monitored.
≥This unit contains delicate electronic components.
Please use this unit in the manner in which it was intended and follow the following points:
–Do not expose this unit to high temperatures or direct sunlight.
–Do not bend, or subject this unit to strong impacts.
–Keep this unit away from moisture.
–Do not disassemble or alter this unit in any way.
(SA-BTT880/SA-BTT500) (SH-FX71/RFAX1012)
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de
Contact to Authorized Representative:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
This product is intended to be used in the following countries: AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, HR, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR
This product is intended for general consumer. (Category 3) This product shall exclusively be used inside buildings.
- 2 -
To dispose or transfer this unit
The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. (> 43, "To return all settings to the factory preset.")
≥ The operation history may be recorded in the memory of this unit.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/ 96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
Cd
Restriction on use of unauthorized copied content
This unit adopts the following technology for copyright protection.
Cinavia Notice
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.
More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to:
Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.
- 3 -
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting started
Package contents and accessories . . . . . . . . 5 Unit and media care . . . . . . . . . . . . . . . . . . . . 6 Playable media. . . . . . . . . . . . . . . . . . . . . . . . 7 Control reference guide . . . . . . . . . . . . . . . . . 9
STEP 1: Positioning . . . . . . . . . . . . . . . . . . . |
11 |
STEP 2: Preparing the speakers . . . . . . . . . |
12 |
STEP 3: Connections. . . . . . . . . . . . . . . . . . |
13 |

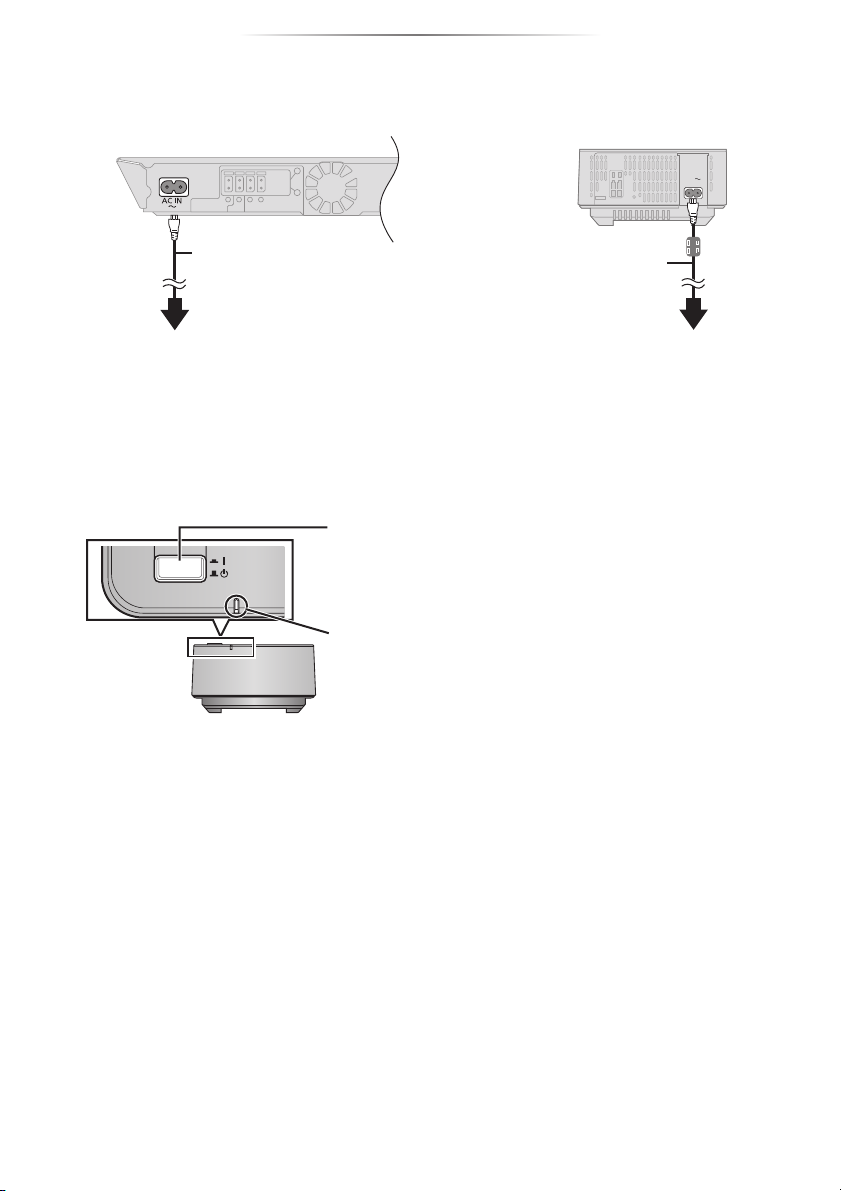

STEP 4: Connecting the AC mains lead . . . |
17 |
STEP 5: Preparing the wireless system. . . . |
17 |
STEP 6: Settings . . . . . . . . . . . . . . . . . . . . . |
18 |
Inserting or removing media. . . . . . . . . . . . . 20 Enjoying TV with unit’s speakers . . . . . . . . . 20 HOME menu . . . . . . . . . . . . . . . . . . . . . . . . 21 Multi User Mode . . . . . . . . . . . . . . . . . . . . . . 22
Playback
Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

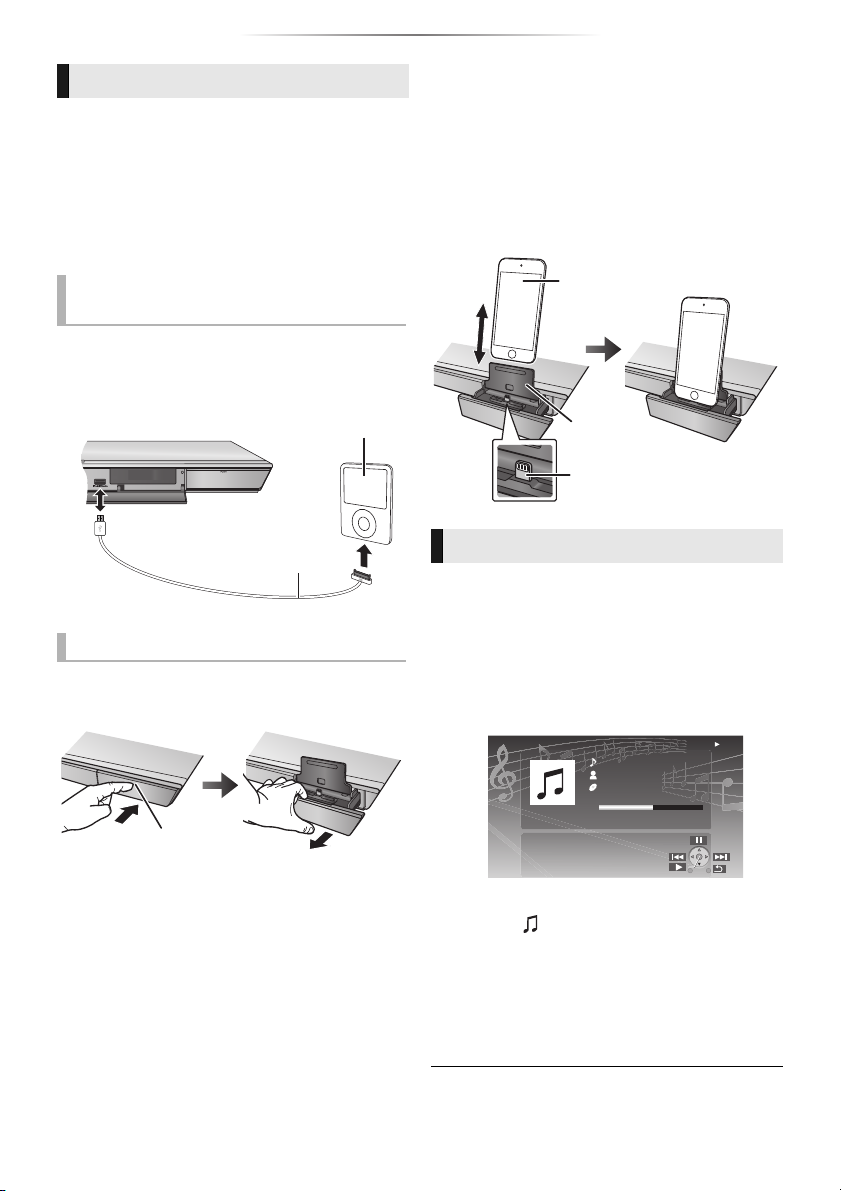

Using the iPod/iPhone . . . . . . . . . . . . . . . . . 25
TV & Radio
VIERA Link “HDAVI Control™” . . . . . . . . . . 27
•Enjoying TV and STB with unit’s speakers . . . . . . 28
Listening to the Radio . . . . . . . . . . . . . . . . . 29
Advanced operations

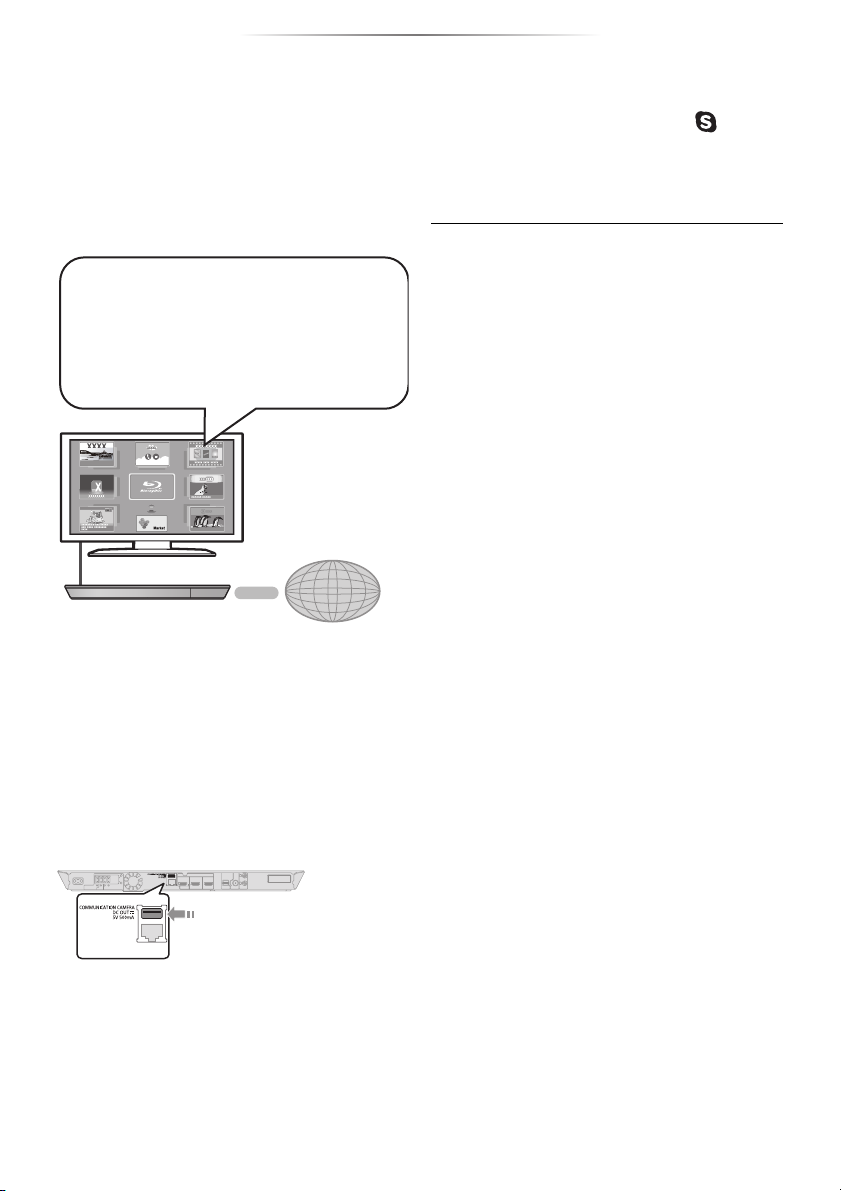

VIERA Connect

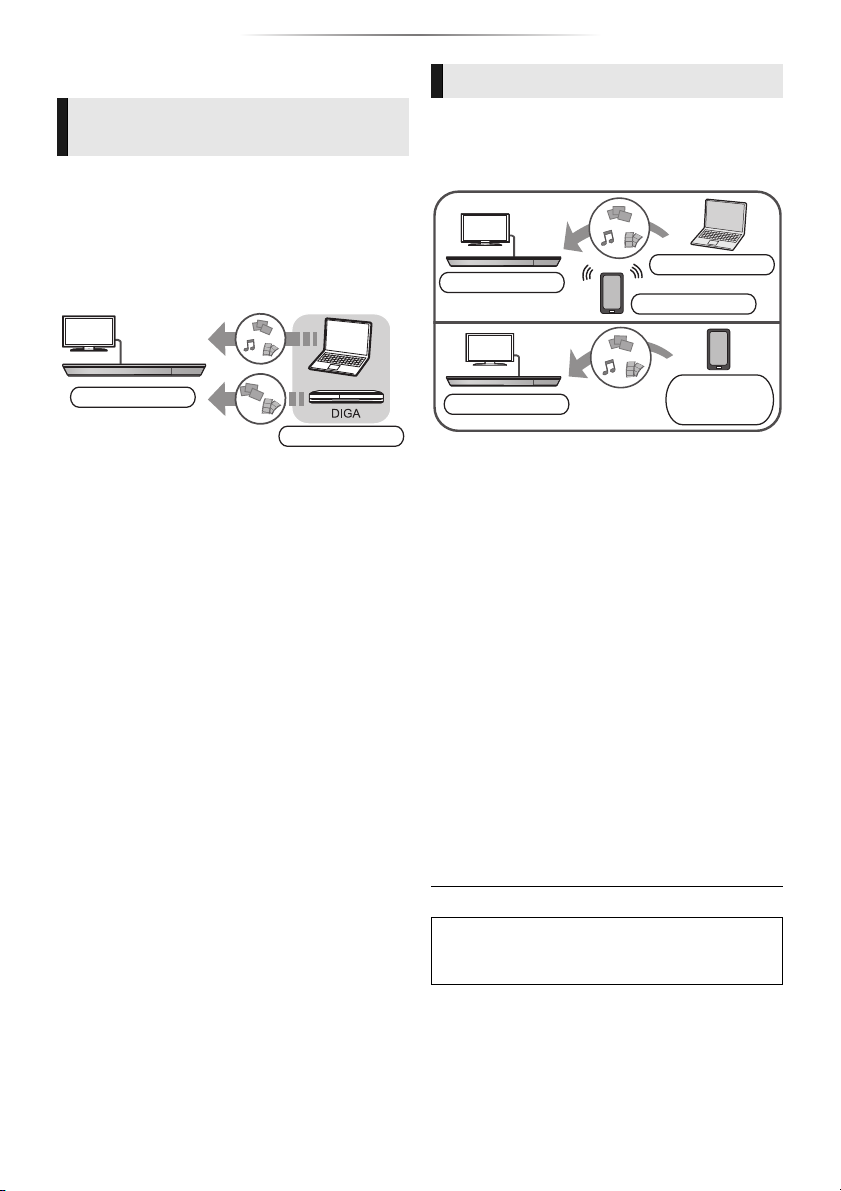

(Enjoying Internet Service). . . . . . . . . . . . . . 30 Home Network feature . . . . . . . . . . . . . . . . . 31 Option menu. . . . . . . . . . . . . . . . . . . . . . . . . 32 Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . 35
•Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the sound settings . . . . . . . . . . . . 41 Speaker installation option . . . . . . . . . . . . . . 41
Reference
Troubleshooting guide . . . . . . . . . . . . . . . . . 43 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 48
- 4 -
Check the package contents and supplied accessories before using this unit.
Package contents
Main unit |
Main unit |
|||||
(SA-BTT880) |
(SA-BTT500) |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRONT |
SURROUND |
CENTER |
FRONT |
SURROUND |
CENTER |
(SB-HF5600) |
(SB-HS8800) |
(SB-HC5600) |
(SB-HF5000) |
(SB-HS5000) |
(SB-HC5000) |
(Speakers) |
|
|
|
|
|
(Speaker cable) |
|
(Stands) |
SUBWOOFER |
SUBWOOFER |
|
||
|
(SB-HW490) |
(SB-HW190) |
|
|
(Speaker cables) |
(Bases) |
|
|
|
Wireless system |
Wireless system |
(Screws) |
(SH-FX71) |
(SH-FX71) |
- 5 -
Accessories
∏1 Remote control
(N2QAYB000729)
∏2 Batteries for remote control
∏2 AC mains leads
∏1 FM indoor antenna
Getting started
∫Clean this unit with a soft, dry cloth
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the instructions that came with the cloth.
∫This unit’s lens
Lens cleaner: RP-CL720AE
≥This lens cleaner may not be available for sale in all countries, e.g. not available in Germany, please consult your Panasonic dealer for advice.
≥This lens cleaner is sold as specific for DIGA, but can be used on this unit as well.
|
|
|
∫ Clean discs |
|
∏ |
1 |
Digital transmitter |
DO |
DO NOT |
∏ |
1 |
Sheet of speaker cable sticker |
Wipe with a damp cloth and then wipe dry. |
|
|
|
|
∏1 CD-ROM
≥Product numbers provided in these operating instructions correct as of March 2013. These may be subject to change.
≥Do not use AC mains lead with other equipment.
≥Please note that the actual controls and components, menu items, etc. may look somewhat different from those shown in the illustrations in these Operating Instructions.
∫ Disc and card handling precautions
≥Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.
≥Do not attach labels or stickers to discs.
≥Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
≥Clean any dust, water, or foreign matter from the terminals on the rear side of the card.
≥Do not use the following discs:
–Discs with exposed adhesive from removed stickers or labels (rented discs etc.).
–Discs that are badly warped or cracked.
–Irregularly shaped discs, such as heart shapes.
- 6 -
Getting started
Device |
Disc markings |
Device types |
Contents format |
|||
|
|
|
|
|
|
|
|
|
|
|
|
BD-Video |
Video |
|
|
|
|
|
|
|
|
BD |
|
|
|
BD-RE |
Video, JPEG, MPO |
|
|
|
|
|
BD-R |
Video, MKV, Xvid |
|
|
|
|
|
|
|
|
|
|
|
|
DVD-Video |
Video |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD-R |
|
|
|
|
|
|
|
Video, AVCHD, MKV, |
|
|
|
|
|
|
Xvid, JPEG, MPO, |
|
|
|
|
|
|
|
|
DVD |
|
|
|
DVD-R DL |
FLAC, MP3, WAV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD-RW |
Video, AVCHD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
— |
+R/+RW/+R DL |
|
|
|
|
|
|
|
|
|
|
|
|
|
Music CD |
Music [CD-DA] |
|
|
|
|
|
|
|
|
CD |
|
— |
CD-R |
MKV, Xvid, JPEG, |
|
|
|
|
|
MPO, FLAC, MP3, |
||
|
|
|
|
CD-RW |
||
|
|
|
|
|
Music [CD-DA], WAV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SD Memory Card (from 8 MB to 2 GB) |
AVCHD, AVCHD 3D, |
|
|
|
|
|
SDHC Memory Card (from 4 GB to 32 GB) |
|
|
SD |
|
|
|
MP4, MPEG2, JPEG, |
|
|
|
|
|
|
SDXC Memory Card (48 GB, 64 GB) |
MPO |
|
|
|
|
|
(Compatible with both mini and micro types) |
|
|
|
|
|
|
|
|
|
|
|
|
|
USB devices |
MKV, MP4, MPEG2, |
|
USB |
|
|
— |
Xvid, JPEG, MPO, |
|
|
|
|
(up to 2 TB) |
|||
|
|
|
|
|
|
FLAC, MP3, WAV |
|
|
|
|
|
|
|
≥ See pages 8 and 49 for more information on the types of content that can be played.
- 7 -
Getting started
∫Discs that cannot be played by this unit
≥DVD-RAM
≥Super Audio CD
≥Photo CD
≥DVD-Audio
≥Video CD and Super Video CD
≥WMA discs
≥DivX discs
≥HD DVD
∫ Region management information
BD-Video
This unit can play BD-Video discs supporting the region code “B”.
Example:
DVD-Video
This unit can play DVD-Video discs supporting the region number “2” or “ALL”.
Example:
∫ Music CD
Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.
∫ SD card
≥ miniSD Cards, microSD Cards, microSDHC Cards and microSDXC Cards can be used, but must be used with an adaptor card. These are usually supplied with such cards, or otherwise customer provided.
≥To protect the card’s contents, move
the record prevention tab (on the SD card) to “LOCK”.
≥This unit is compatible with SD Memory Cards that meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC Memory Cards in FAT32 format and SDXC Memory Cards in exFAT.
≥If the SD card is used with incompatible computers or devices, recorded contents may be erased due to the card being formatted etc.
≥Usable memory may be slightly less than the card capacity.
2 ALL 124
∫ Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by a recorder, etc. needs to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions.
∫ BD-Video
This unit supports high bit rate audio (Dolby® Digital Plus, Dolby® TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in BD-Video.
∫ 3D
≥3D videos and 3D still pictures can be played back when this unit is connected to a 3D compatible TV using a High Speed HDMI Cable.
≥2D video can be enjoyed as 3D virtually. (> 34)
∫ USB device
≥This unit does not guarantee connection with all USB devices.
≥This unit does not support USB device charging.
≥FAT12, FAT16, FAT32, and NTFS file systems are supported.
≥This unit supports USB2.0 High Speed.
≥This unit can support an HDD formatted to FAT32 and NTFS.
Some types of HDD may require the use of its external power supply unit.
∫ BD-RE, BD-R
Discs recorded in DR mode using Panasonic Blu-ray Disc recorders may not play back the audio etc., correctly.
≥It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method, and how the files were created.
≥The producers of the disc can control how discs are played, so you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.
- 8 -
Getting started
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
Turn the unit on and off |
|
Remote control |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
Select title numbers, etc./Enter numbers or |
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
|
characters |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[CANCEL]: Cancel |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
Select the source |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
Basic playback control buttons (> 23) |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
Select preset radio stations (> 29) |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
Show status messages (> 24) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
7 |
Show the Home screen of the VIERA |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Connect (> 30) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
8 |
[3, 4, 2, 1] : Move the highlight for selection |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
[OK] : Confirm the selection |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(2;)(;1) : Frame-by-frame (> 23) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
9 |
Show OPTION menu (> 32) |
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
4 |
|
|
|
|
|
|
|
|
|
|
18 |
10 |
Coloured buttons (red, green, yellow, blue) |
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Used for various purposes depending on the |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
display |
||||||||||||||||||||
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
Set the sound mode (> 41) |
||
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
19 |
12 |
Select surround sound effects (> 41)/Set the |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
sleep timer |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
1 Press and hold [jSLEEP]. |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 While “SLEEP ££” is displayed, press |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[jSLEEP] several times to select the |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
time (in minutes). |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≥ Timer selection is up to 120 minutes. |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≥ Select “OFF” when cancelling the setting. |
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≥ To confirm the remaining time |
|||||||||
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
Press and hold the button again. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
23 |
TV operation buttons |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Í TV]: Turn the television on and off |
||||||
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
|
[AV, INPUT]: Switch the input select |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[i j VOL] : Adjust the volume |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
Adjust the volume of the main unit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
Select audio (> 23) |
∫ Using the remote control |
|
|
|
|
|
|
|
16 |
Mute the sound |
|||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
≥ “MUTE” flashes on the unit’s display, while |
||||||||||||||||||||||||||||||
Insert so the poles (i and j) match those in the |
|
the function is on. |
||||||||||||||||||||||||||||||||||||
remote control. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≥ To cancel, press the button again or adjust |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the volume. |
≥ Muting is cancelled if the unit is turned off.
|
17 |
Switch on/off Secondary Video |
|
|
(Picture-in-picture) |
|
18 |
Select radio stations manually (> 29) |
|
19 |
Exit the menu screen |
R6/LR6, |
20 |
Show HOME menu (> 21) |
(Alkaline or manganese |
21 |
Show Pop-up Menu/Top Menu (> 24) |
batteries) |
22 |
Return to previous screen |
Point it at the remote control signal sensor on this |
23 |
Start up a video communication (> 30) |
unit. (> 10) |
24 |
Select speaker channel (> 41) |
- 9 -
Getting started
Main unit (Front)
1 |
2 |
3 |
|
|
|
|
|
SD CARD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
|
|
11 |
|
||||||
1 |
Standby/on switch (Í/I) (> 18) |
|
|
|
|
6 |
|
Start play (> 23) |
|
|
|
|||||||
|
Press to switch the unit from on to standby |
|
|
7 |
|
SD card slot (> 20) |
|
|
|
|||||||||
|
mode or vice versa. In standby mode, the unit |
8 |
|
USB port (> 20, 26) |
|
|
|
|||||||||||
|
is still consuming a small amount of power. |
|
|
9 |
|
Remote control signal sensor |
||||||||||||
2 |
Open or close the disc tray (> 20) |
|
|
|
|
|
|
Distance: within approx. 7 m. |
||||||||||
3 |
Adjust the volume of the main unit |
|
|
|
|
|
|
Angle: Approx. 20e up and down, 30e left and right |
||||||||||
4 |
Disc tray |
|
|
|
|
10 |
Display |
|
|
|
|
|
|
|
|
|||
5 |
Stop (> 23) |
|
|
|
|
11 |
|
Dock for iPod/iPhone (> 26) |
Main unit (Rear)
e.g., [BTT880]
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 11 |
12 |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
AC IN terminal (> 17) |
7 |
HDMI1 IN (CABLE/SAT) terminal (> 15) |
2 |
Speaker terminals (> 13) |
8 |
HDMI2 IN terminal (> 15) |
3 |
Cooling fan |
9 |
DIGITAL AUDIO IN terminal (> 14, 15) |
4 |
LAN port (> 16) |
10 |
FM radio antenna terminal (> 15) |
5 |
USB port (> 30) |
11 |
AUX terminal (> 14) |
6 |
HDMI AV OUT (ARC) terminal (> 14, 15) |
12 |
Digital transmitter dock for wireless system |
- 10 -
Getting started
For optimum position
Place the front, centre and surround speakers at approximately the same distance from the seating position.
≥Adjust the volume using the Delay time function if the distance between each speaker and the seating position is not equal. (> 40)
e.g., [BTT880]
|
|
|
|
|
|
|
60° |
|
|
120° |
ACentre speaker
≥Put on a rack or shelf not to interfere with the TV’s various sensors (ambient light, etc.). Vibration caused by the speaker can disrupt
the picture if it is placed directly on the TV. B Front speakers
C Subwoofer
DSurround speakers
≥Place the speakers at the same height or higher than ear level.
EWireless system
≥To avoid interference, separate the wireless system from the other electronic devices that use the same radio frequency (2.4 GHz band).
Wireless |
Wireless LAN |
system |
|
|
Cordless phone |
≥[BTT500W] The surround speakers can be connected to the main unit without using the wireless system. In that case, the following steps are not required.
–Digital transmitter connection (> 16)
–Connecting the AC mains lead to the wireless system (> 17)
–Preparing the wireless system (> 17)
≥Place the wireless system within approximately 10 m from the main unit.
≥To allow for proper ventilation and to maintain good airflow around the wireless system, position it with at least 5 cm of space on all sides.
≥Do not use the wireless system or the digital transmitter in a metal cabinet or bookshelf.
≥Keep your speakers at least 10 mm away from the system to avoid noise generated by resonance.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.

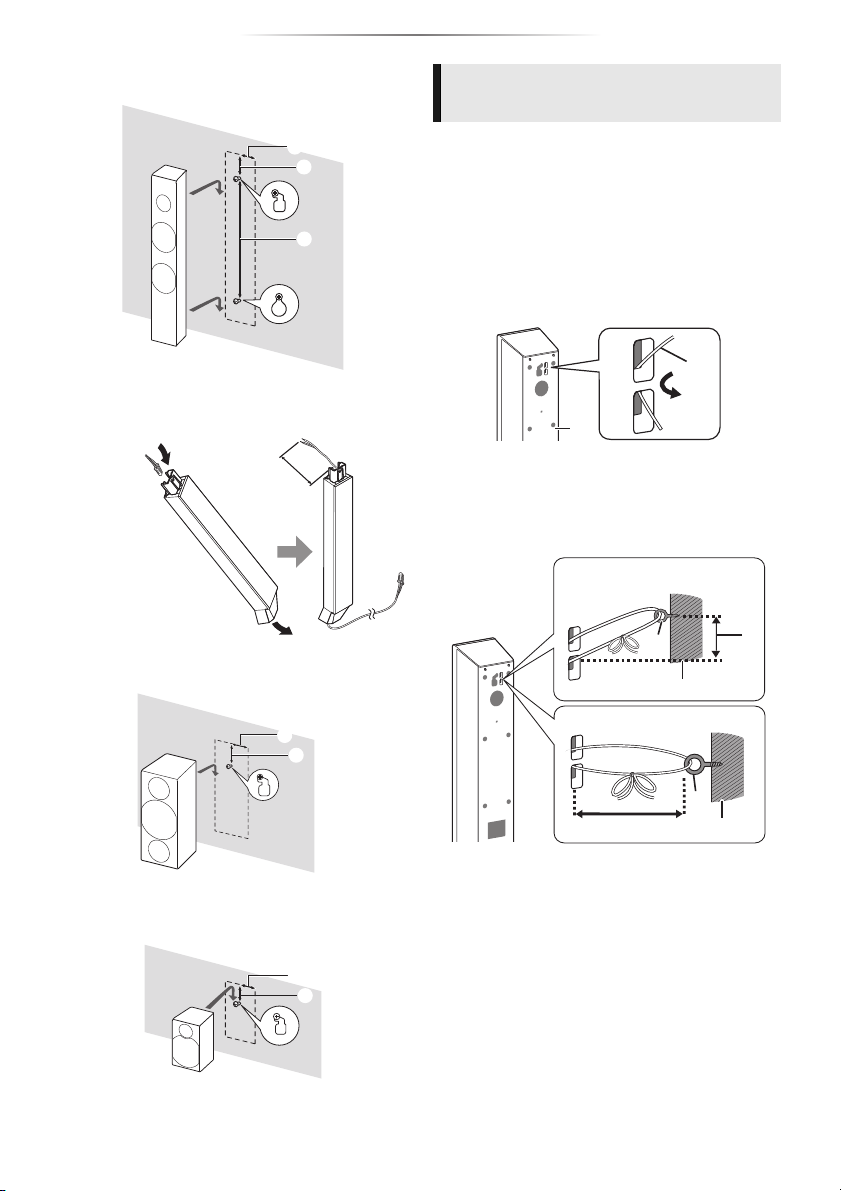

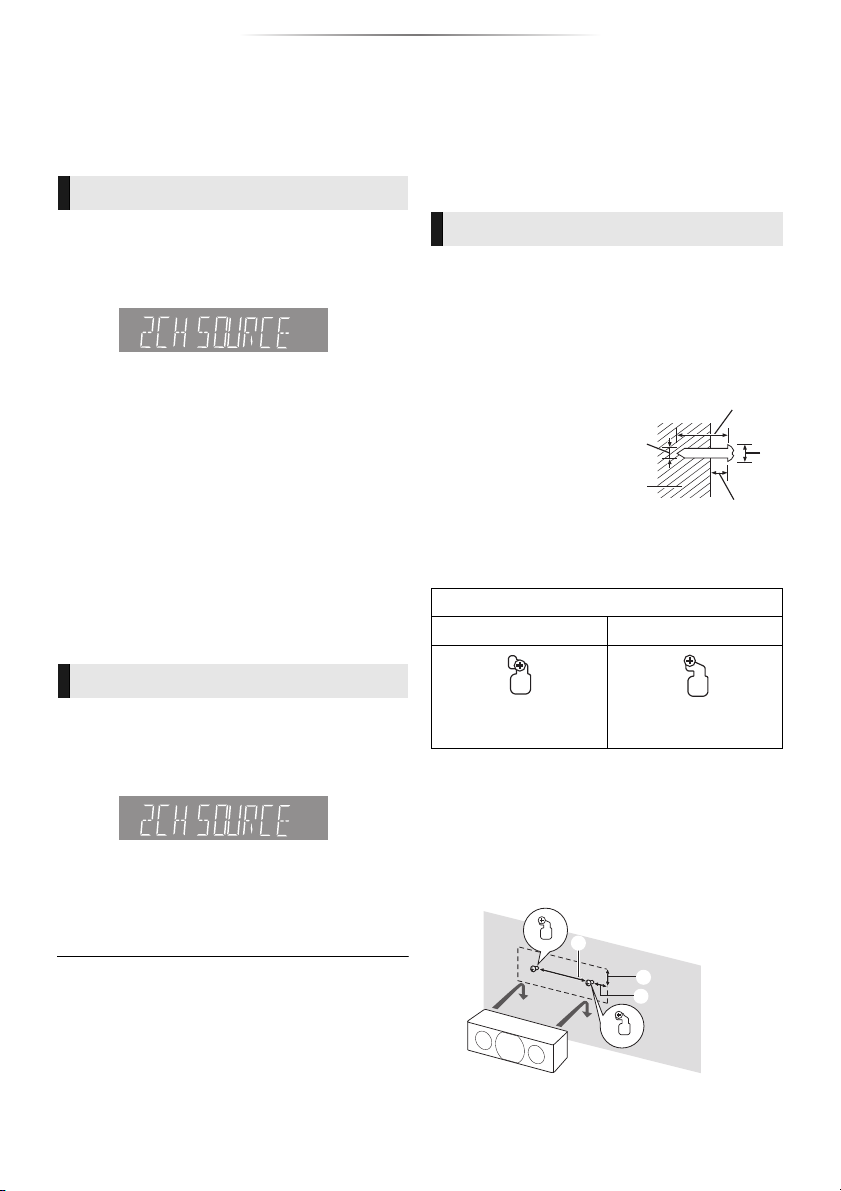

≥For optional wall mount, refer to page 41.
∫ Upgrade to 7.1-channel system
The main unit is designed to enjoy the 7.1ch surround sound. A more theatre-like effect is possible with a wireless connection.
Necessary equipment:
≥Wireless system (SH-FX71) 1 optional system
≥2 additional speakers [Impedance: 3 ≠ to 6 ≠, Speaker input power: 100 W (Min)]
≥[BTT500W] Even when the surround speakers are connected to the main unit, the 7.1-channel system cannot be used.
≥For more details, refer to the operating instructions for SH-FX71.
≥The WIRELESS LINK indicator lights green when this unit and SH-FX71 are connected wirelessly. You can also check the
link status if you press and hold the [SOUND] of this unit. When WIRELESS LINK is turned on, the main unit's display shows the message, “WIRELESS SPEAKERS LINKED”.
- 11 -
|
|
Getting started |
STEP 2: Preparing the speakers |
||
|
|
|
|
Assembling the speakers |
|
[BTT880] Front speakers, Surround speakers |
|
|
1 Attach the stand to the base. |
4 Attach the speaker. |
Thread the speaker cable through the base.
2 Tighten the 3 screws (supplied) securely.
5 Tighten the screw (supplied) securely.
|
|
3 Slide the speaker cable into the groove.
Groove |
≥After connecting the speaker cable (> 13), press the cable into the groove.
≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
- 12 -
Getting started
Connecting the speaker cables
Attach the speaker cable sticker (supplied) and connect the speaker cables to the speakers.
≥[BTT500W]
When connecting the surround speakers to the wireless system: use the speaker cables A. When connecting the surround speakers to the main unit: use the speaker cables B.
e.g., [BTT500W] Surround speaker |
|
||
|
|
|
r: White |
|
SURROUND |
|
s: Blue line |
|
Lch |
|
|
|
|
|
|
Connector |
|
|
|
Speaker cable sticker (supplied) |
Push |
||
|
Speaker indication |
||
|
|
||
Speaker cable sticker |
Connector |
|
|
1 |
FRONT Lch 1 |
White |
|
2 |
FRONT Rch 2 |
Red |
|
3 |
SURROUND Lch 3 |
Blue |
|
4 |
SURROUND Rch 4 |
Grey |
|
5 |
CENTER 5 |
Green |
|
6 |
SUBWOOFER 6 |
Purple |
|
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
Speaker connection
[BTT880]
[BTT500W] When connecting the surround speakers to the wireless system
Connect the speaker cables to the terminals of the same colour.
SPEAKERS
ENCEINTES
LS / RB LB / RS
Surround selector
Set in the centre position. SURR
|
|
|
SURROUND (3 - 6 ) |
L |
R |
||
SIDE |
SIDE |
AMBIOPHONIQUES |
Wireless system
- 13 -
Getting started
[BTT500W] When connecting the surround speakers to the main unit
Connect the speaker cables to the terminals of the same colour.
Connecting to a TV
∫ HDMI
≥ Use the ARC compatible High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters or less.
≥ Audio will be output through the system’s speakers when “Off” is selected in “HDMI Audio Output”. (> 36)
∫ TV Audio
≥To output TV audio from this unit's speakers, you need to switch the selector. (> 20)
∫ OPTICAL IN
≥After making the digital audio connection, make settings to suit the type of audio from your digital equipment. (> 36)
HDMI cable (not supplied)
|
OPTICAL |
AUDIO OUT |
|
AV IN |
OUT |
||
|
L
R
Audio cable*2 (not supplied)
Optical digital audio cable*1 (not supplied)
*1 If the HDMI terminal on the TV is labelled “HDMI (ARC)”, the connection of the optical digital audio cable is not required. *2 It is also possible to use an audio cable instead of the optical digital audio cable. In this case, connect the AUX terminal on
the main unit with the audio output terminal on the TV.
What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. This feature allows a home theatre system to receive and play audio from the TV through a single HDMI cable without additional wiring.
- 14 -
Getting started
FM antenna connection
Affix this end of the antenna to a wall or pillar where
the reception is best.
FM indoor antenna (supplied)
≥ Use an FM outdoor antenna if radio reception is poor.
Other device connection
∫ When the connecting devices have an HDMI terminal
e.g.,
AV OUT |
|
AV OUT |
AV IN |
Set Top Box, etc. |
|
(ARC) |
Video game, etc. |
|
HDMI cable |
|
|
|
|
|
(not supplied) |
|
|
|
|
HDMI cable |
|
|
(not supplied) |
HDMI standby pass-through
Even if this system is in standby mode, the audio and/or video signal from the device connected to the HDMI1 IN (CABLE/SAT) or HDMI2 IN terminal will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this system). Even while the unit is in the standby mode, you can change the input signal HDMI1 IN (CABLE/SAT) or HDMI2 IN by pressing [EXT-IN] on the remote control.
∫ When the connecting devices do not have an HDMI terminal
e.g.,
Set Top Box, etc.
OPTICAL
OUT
Optical digital audio cable (not supplied)
- 15 -
Getting started
Digital transmitter connection
Do not insert or remove while the |
DO |
DO NOT |
home theatre unit is on. |
|
|
|
Make sure that the digital transmitter is fully inserted. |
|
Insert fully until |
If the digital transmitter is not fully inserted, the sound |
|
you hear a click. |
may not be available from the surround speakers. |
Connecting to the network
The following services can be used when this unit is connected to broadband.
≥ Firmware can be updated (> 19) |
≥ This unit supports Wi-Fi DirectTM and can make |
≥ You can enjoy BD-Live (> 24) |
a wireless connection to wireless devices |
≥ You can enjoy VIERA Connect (> 30) |
without router. You can use this function when |
≥ You can access other devices (Home Network) |
enjoying Home Network feature, etc. Internet |
(> 31) |
access is not available while connected via |
|
Wi-Fi DirectTM. (> 31, 37) |
For details about connection method, refer to the instructions supplied with the connected equipment.
Wireless LAN connection
This unit has built in Wi-Fi® and can be connected to a wireless router.
Wireless router, etc.
Internet
≥For up-to-date compatibility information on your wireless router, refer to http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.
≥See page 2 for the precautions of wireless LAN connection.
LAN cable connection
LAN Cable (not supplied)
Broadband router, etc. |
Internet |
|
≥Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
≥Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
-16 -
