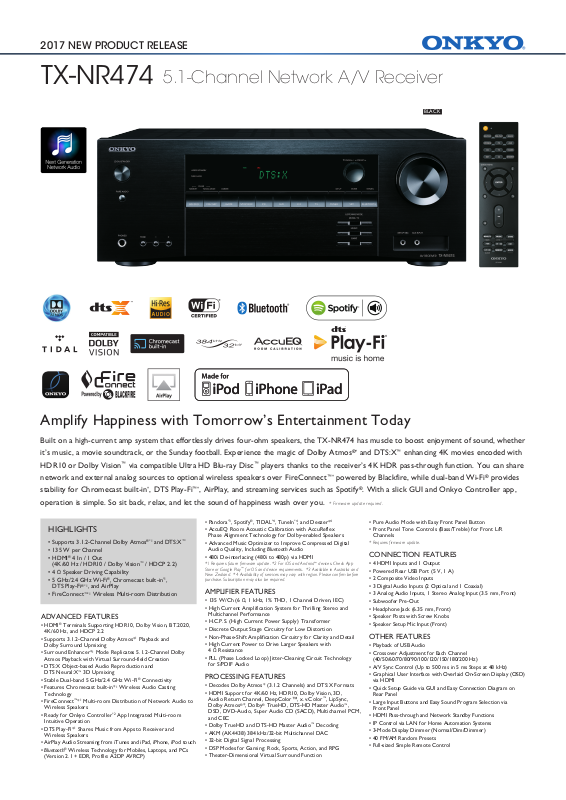

Onkyo TX-NR474B Product Sheet

2017 NEW PRODUCT RELEASE

TX-NR474

5.1-Channel Network A/V Receiver

BLACK

Amplify Happiness with Tomorrow’s Entertainment Today

Built on a high-current amp system that effortlessly drives four-ohm speakers, the TX-NR474 has muscle to boost enjoyment of sound, whether

it’s music, a movie soundtrack, or the Sunday football. Experience the magic of Dolby Atmos

HDR10 or Dolby Vision

™

via compatible Ultra HD Blu-ray Disc™ players thanks to the receiver’s 4K HDR pass-through function. You can share

network and external analog sources to optional wireless speakers over FireConnect

stability for Chromecast built-in

, DTS Play-Fi™*, AirPlay, and streaming services such as Spotify®. With a slick GUI and Onkyo Controller app,

operation is simple. So sit back, relax, and let the sound of happiness wash over you.

, Spotify®, TIDAL*4, TuneIn*4, and Deezer*

• Pandora

HIGHLIGHTS

• Supports 3.1.2-Channel Dolby Atmos

• 135 W per Channel

• HDMI

4 In / 1 Out

(4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)

• 4 Ω Speaker Driving Capability

• 5 GHz/2.4 GHz Wi-Fi

DTS Play-Fi

• FireConnect

®*1

, Chromecast built-in*1,

, and AirPlay

™*1

Wireless Multi-room Distribution

ADVANCED FEATURES

• HDMI® Terminals Supporting HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2

• Supports 3.1.2-Channel Dolby Atmos*

Dolby Surround Upmixing

• Surround Enhancer*

Atmos Playback with Virtual Surround-field Creation

• DTS:X Object-based Audio Reproduction and

DTS Neural:X

• Stable Dual-band 5 GHz/2.4 GHz Wi-Fi

• Features Chromecast built-in*

Technology

• FireConnect

Wireless Speakers

• Ready for Onkyo Controller

Intuitive Operation

• DTS Play-Fi*

Wireless Speakers

• AirPlay Audio Streaming from iTunes and iPad, iPhone, iPod touch

• Bluetooth (Version 2.1 + EDR, Profile: A2DP AVRCP)

Mode Replicates 5.1.2-Channel Dolby

™

3D Upmixing

Wireless Audio Casting

™*1

Multi-room Distribution of Network Audio to

App Integrated Multi-room

Shares Music from Apps to Receiver and

Wireless Technology for Mobiles, Laptops, and PCs

®*1

and DTS:X

Playback and

Connectivity

• AccuEQ Room Acoustic Calibration with AccuReflex

Phase Alignment Technology for Dolby-enabled Speakers

™

• Advanced Music Optimizer to Improve Compressed Digital Audio Quality, Including Bluetooth Audio

• 480i De-interlacing (480i to 480p) via HDMI

*1 Requires future firmware update. *2 For iOS and Android™ devices. Check App Store or Google Play™ for OS and device requirements. *3 Available in Australia and New Zealand. *4 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required.

AMPLIFIER FEATURES

• 135 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)

• High Current Amplification System for Thrilling Stereo and Multichannel Performance

• H.C.P.S. (High Current Power Supply) Transformer

• Discrete Output Stage Circuitry for Low Distortion

• Non-Phase-Shift Amplification Circuitry for Clarity and Detail

• High Current Power to Drive Larger Speakers with 4 Ω Resistance

• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology

for S/PDIF Audio

PROCESSING FEATURES

• Decodes Dolby Atmos* (3.1.2 Channels) and DTS:X Formats

• HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D,

Audio Return Channel, DeepColor™, x.v.Color Dolby Atmos

DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM,

and CEC

• Dolby TrueHD and DTS-HD Master Audio

• AKM (AK4438) 384 kHz/32-bit Multichannel DAC

• 32-bit Digital Signal Processing

• DSP Modes for Gaming: Rock, Sports, Action, and RPG

• Theater-Dimensional Virtual Surround Function

*, Dolby® TrueHD, DTS-HD Master Audio™,

™

Decoding

®*

and DTS:X™ enhancing 4K movies encoded with

™*

* Firmware update required.

• Pure Audio Mode with Easy Front Panel Button

• Front Panel Tone Controls (Bass/Treble) for Front L/R

Channels

* Requires firmware update.

CONNECTION FEATURES

• 4 HDMI Inputs and 1 Output

• Powered Rear USB Port (5 V, 1 A)

• 2 Composite Video Inputs

• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)

• 3 Analog Audio Inputs, 1 Stereo Analog Input (3.5 mm, Front)

• Subwoofer Pre-Out

• Headphone Jack (6.35 mm, Front)

• Speaker Posts with Screw Knobs

• Speaker Setup Mic Input (Front)

OTHER FEATURES

• Playback of USB Audio

• Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)

• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)

• Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI

• Quick Setup Guide via GUI and Easy Connection Diagram on

, LipSync,

Rear Panel

• Large Input Buttons and Easy Sound Program Selection via

Front Panel

• HDMI Pass-through and Network Standby Functions

• IP Control via LAN for Home Automation Systems

• 3-Mode Display Dimmer (Normal/Dim/Dimmer)

• 40 FM/AM Random Presets

• Full-sized Simple Remote Control

TX-NR474

5.1-Channel Network A/V Receiver

Unlock Dolby Atmos® and DTS:X™ Playback

Object-based mixing lets sounds play through any speaker independently. Effects move above and around you as in real life. Enjoy movies and games with

3.1.2-channel Dolby Atmos* sound, and DTS:X through any speaker layout, and discover a new sonic dimension.

Surround Enhancer* Mode

Based on technology developed by Dolby Laboratories, Inc., Surround Enhancer Mode augments the object-based soundfield with virtual channels that emulate a 5.1.2-channel Dolby Atmos experience as delivered by a comparable

7.1-channel receiver. With Surround Enhancer Mode, you can enjoy a 5.1.2-channel 3D soundfield easily without need of rear speakers.

Music Made Easy with Chromecast built-in*

Stream any music from your smartphone, laptop, or PC to the TX-NR474 with ease. Control playback from Chromecastenabled apps you know and love from your iPhone, iPad,

™

phone or tablet,

Android

or Windows® laptop, or

Mac Chromebook.

Stream Anything with DTS Play-Fi®

DTS Play-Fi* is a wireless protocol that works with any app and smart device. Flick whatever’s playing to your home cinema, even different sources to different speakers at the same time.

Wi-Fi®, AirPlay, Spotify®, and Bluetooth

Selectable 5 GHz/2.4 GHz Wi-Fi assures stable connectivity so you can enjoy smooth streaming over AirPlay, the Spotify app, and the local network. Bluetooth wireless technology also provides quick and simple wireless streaming from your choice of music application.

Internet Radio and Streaming Services

TIDAL, Deezer, and TuneIn are baked into the GUI, making it easy to select from a massive range of music and radio programs using Onkyo Controller.

FireConnect™ Wireless Multi-room Audio

FireConnect™ mirrors network audio and external analog sources connected to master component—from streaming services to vinyl records—on FireConnect speakers in other rooms. Music selection, speaker grouping, and playback management across the home are built into Onkyo Controller app for iOS and Android

Note: FireConnect™ is enabled with a firmware update. Sharing audio from external inputs depends on the model and is enabled with a future firmware update. Sampling rates of 44.1 kHz and 48 kHz are supported. FireConnect™ is a technology based on Blackfire provided by Blackfire Research Corp., USA.

™

-compatible

™

Onkyo Controller Supports Next Generation Network Audio

Onkyo Controller collects streaming services and networkattached audio into an intuitive smartphone app. Control playback, explore services, and distribute audio all over the home via FireConnect interface. Alternatively, you can use familiar

™

from one easy

music apps now supported within this next-generation network ecosystem.

Powerful Amplification for Dynamic Sound

High current power is proven by the TX-NR474’s ability to drive four-ohm speaker loads, which will severely test the strongest amp. Heaps of muscle means superior control for outstanding clarity and transient response, restoring energy to music and the surround-sound experience.

Supports 4K HDR and BT.2020 Video Pass-through

Connect up to four media players to the receiver’s HDCP

2.2-compliant HDMI pass-through of 4K/60 Hz video in HDR10 or Dolby Vision formats, as well as BT.2020 4K video standard. Enjoy premium 4K Ultra HD content untouched from source to screen.

inputs. The terminals support

™

SPECIFICATIONS

Amplifier Section

Power Output

All Channels 135 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)

Dynamic Power 160 W (3 Ω, Front) 125 W (4 Ω, Front) 85 W (8 Ω, Front)

THD+N (Total Harmonic Distortion + Noise)

0.08% (20 Hz–20 kHz, Half Power)

Damping Factor Over 49 (Front, 1 kHz, 8 Ω) Input Sensitivity and Impedance

200 mV/47 kΩ (Line)

Rated RCA Output Level and Impedance

1 V/470 Ω (Subwoofer Pre Out)

Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) Tone Control ±10 dB, 90 Hz (Bass)

±10 dB, 7.5 kHz (Treble)

Signal-to-Noise Ratio 106 dB (Line, IHF-A) Speaker Impedance 4 Ω–16 Ω

Video Section

Input Sensitivity/Output Level and Impedance

Video 1.0 Vp–p/75 Ω (Composite)

Tuner Section

Tuning Frequency Range

FM 87.5 MHz–108 MHz AM 522 kHz–1,611 kHz 530 kHz–1,710 kHz

FM/AM Preset Memory 40 Stations

General

Power Supply AC 220–240 V~, 50/60 Hz Power Consumption 400 W No-Sound Power Consumption

40 W Standby Power Consumption

0.15 W

Dimensions (W x H x D) 435 x 160 x 328 mm

Weight 8.6 kg

CARTON

Dimensions (W x H x D) 539 x 244 x 400 mm

Weight 11.0 kg

Supplied Accessories

• Indoor FM antenna • AM loop antenna

• Speaker setup microphone • Quick Start Guide • Basic Manual

• Remote controller • AAA (R03) batteries x 2

Graphical Interface with Easy Setup

With your speakers and media players connected, plug in the AccuEQ mic and let the intuitive GUI guide you through initial setup, from speaker calibration to network connection. The interface eliminates frustration and makes everyday control simple and enjoyable.

* Requires a future firmware update.

Text on receiver may vary with region.

Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. Dolby, Dolby Atmos, Dolby Surround, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, DTS:X, the DTS:X logo, Play-Fi, and the Play-Fi logo are registered trademarks or trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved. The terms HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Bluetooth Mac are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. "Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance. AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later. Android, Google Play and Chromecast are trademarks of Google Inc. Wi-Fi The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. Spotify and the Spotify logo are trademarks of the Spotify Group, registered in the U.S. and other countries. Products displaying the Hi-Res Audio logo conform to the Hi-Res Audio standard as defined by Japan Audio Society. The Hi-Res Audio logo is used under license from Japan Audio Society. FireConnect other trademarks and registered trademarks are the property of their respective holders.

™

is a technology based on Blackfire provided by Blackfire Research Corp., USA. Onkyo Controller, Music Optimizer, Theater-Dimensional, and AccuEQ are trademarks of Onkyo Corporation. All

http://www.onkyo.com/

word mark and logos are owned by the Bluetooth SIG, Inc. AirPlay, iPad, iPhone, iPod, iPod touch, iTunes, and

is a registered trademark of the Wi-Fi Alliance.

NPR No. 17N06 02/17
