B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-40ZOOM/D-40ZOOM
B. DISASSEMBLY AND ASSEMBLY
PROCEDURE
[1] REMOVAL OF CABINET BACK AND CABINET FRONT .......................................B-2
[2] REMOVAL OF PW1 BOARD, TB1 BOARD,
SY1 BOARD, CA2 BOARD AND LCD ........................................B-3
[3] REMOVAL OF CA1 BOARD, LENS ASSEMBLY AND BOARD LOCATION ...........B-4
B-1 Ver.1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-40ZOOM/D-40ZOOM
[1] REMOVAL OF CABI BACK AND CABI FRONT
Disassembly perform as follows and assembly perform by reversing the disassembly steps.
Be sure to discharge the main capacitor, then continue to disassembling.
✳ In case of repairing CA2 board, repair within two days after leaving it at 60 degrees centigrade environment for 3-4 hours
to prevent a crack generating inside the substrate by the heat at the time of soldering.
! Beware of electric shock
Danger of electric shock.
Use a discharging tool to remove
the electrical charge before working.
1. Two screws 1.7 x 5
2. Screw 1.7 x 5
3. Screw 1.7 x 4
4. Cabi back
5. FPC
6. Screw 1.7 x 4
7. Open the cover.
8. Screw 1.7 x 4
9. FPC
10. Three connectors
11. Cabi front
12.Discharge both edge of C5412.
2
A
B
5
4
7
9
8
10
A
B
12
3
6
11
1
12.Discharge both edge of C5412.
B-2 Ver. 1

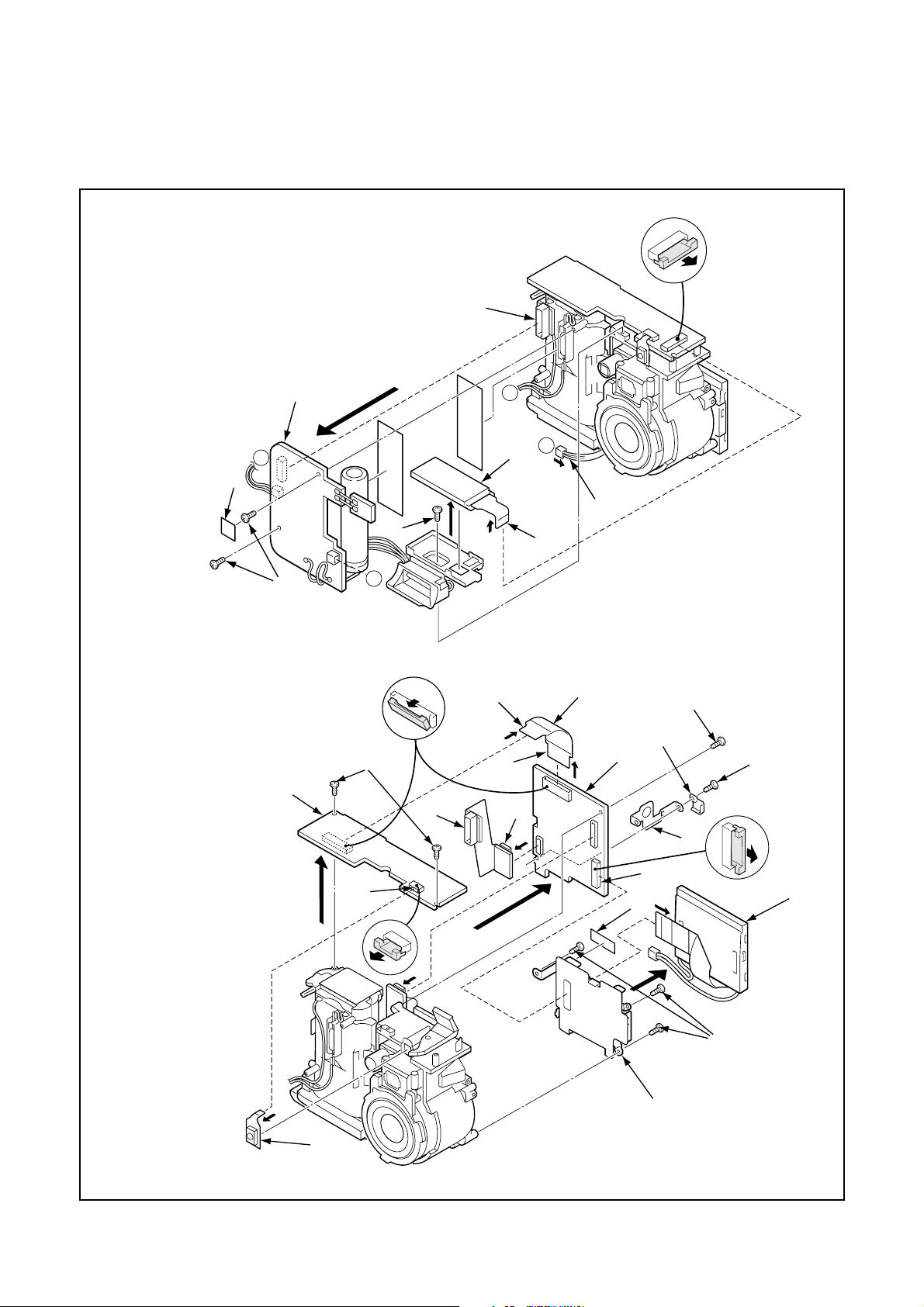

1. Spacer PW1
2. Two screws 1.7 x 4
3. Connector
4. Connector
5. PW1 board and TB1 board
6. FPC
7. Mode LCD
8. Screw 1.7 x 4
C
1
B. DISASSEMBLY AND ASSEMBLY PROCEDUREC-40ZOOM/D-40ZOOM
4
5
C
D
7
3
8
6
2
9. Two screws 1.7 x 4
10. FPC
11. Flexible PWB 553 remocon
12. SY1 board
13. FPC
14. Screw 1.7 x 4
15. Screw 1.7 x 5
16. Cover tact switch
17. Earth CA2-ST1
18. FPC
19. Flexible PWB 553
CA2-SY1
20. CA2 board
21. PAD
22. Connector
23. Flexible PWB
553 CA2-PW1
24. FPC
25. LCD
26. Three screws
1.7 x 4
27. Holder monitor
12
10
D
13
9
23
18
22
19
20
21
14
16
15
17
24
25
26
27
11
B-3 Ver. 1

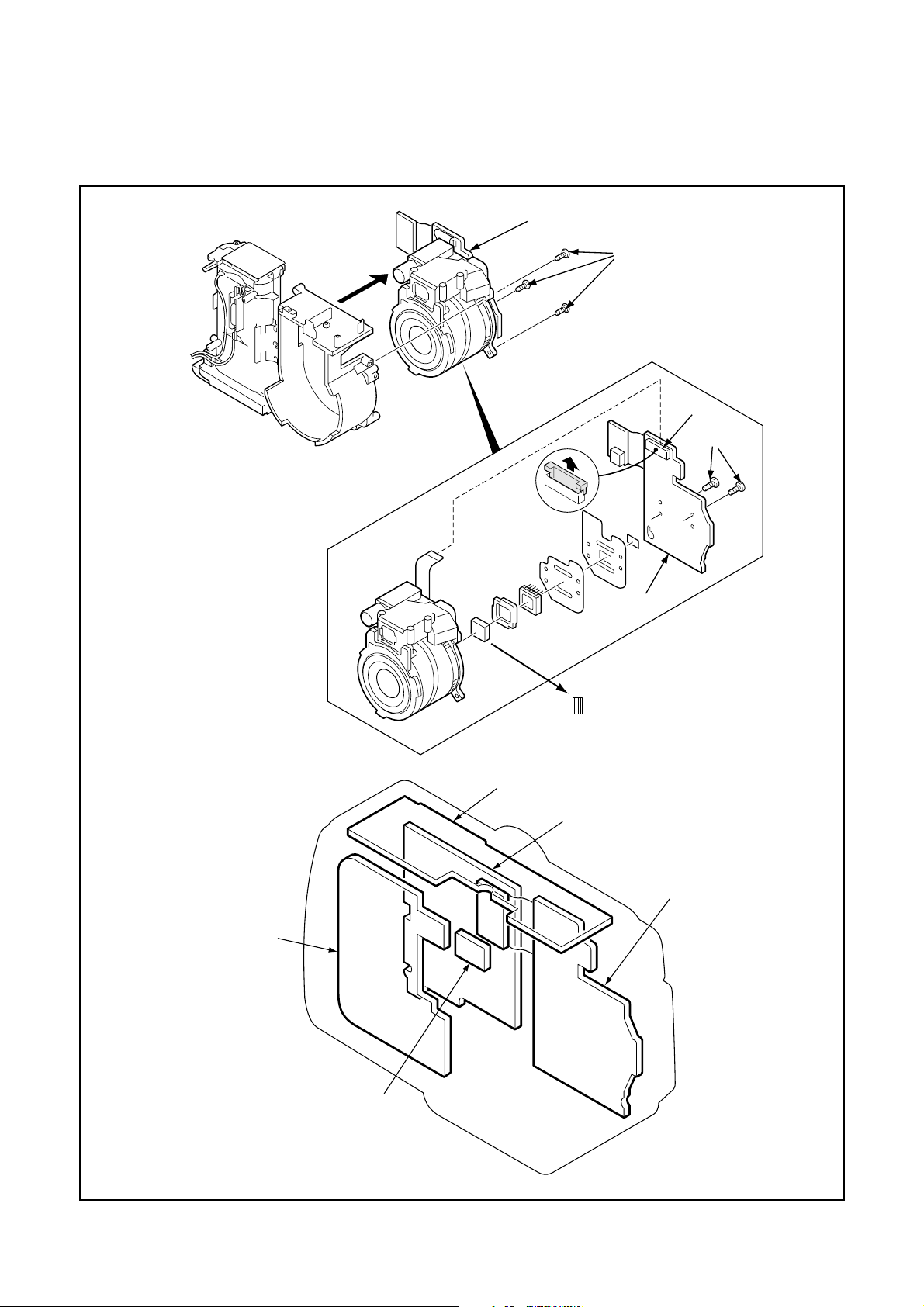

1. Two screws 1.7 x 5
P
2. FPC
3. CA1 board
4. Three screws 1.7 x 5
5. Lens assembly
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-40ZOOM/D-40ZOOM
5
4
2
1
W1 board
SY1 board
Lens
3
CCD
CA2 board
CA1 board
TB1 board
B-4 Ver. 1
