BACD
Cabinet 2
VC197000
1
VC197900
VC197800
VC889200
VC889300
VC889400
2
VC197700
VC197500
VC962800
VC197500
VC192300
VC272500
VC253600
VC190700
VC272600
3
VC197100
VC194700
VC197300
VC253600
VC264100
4
VC270500
VC272500
VC270500
VC190600
VC272500
VC272500
Ver.1
2002.10
VC190800

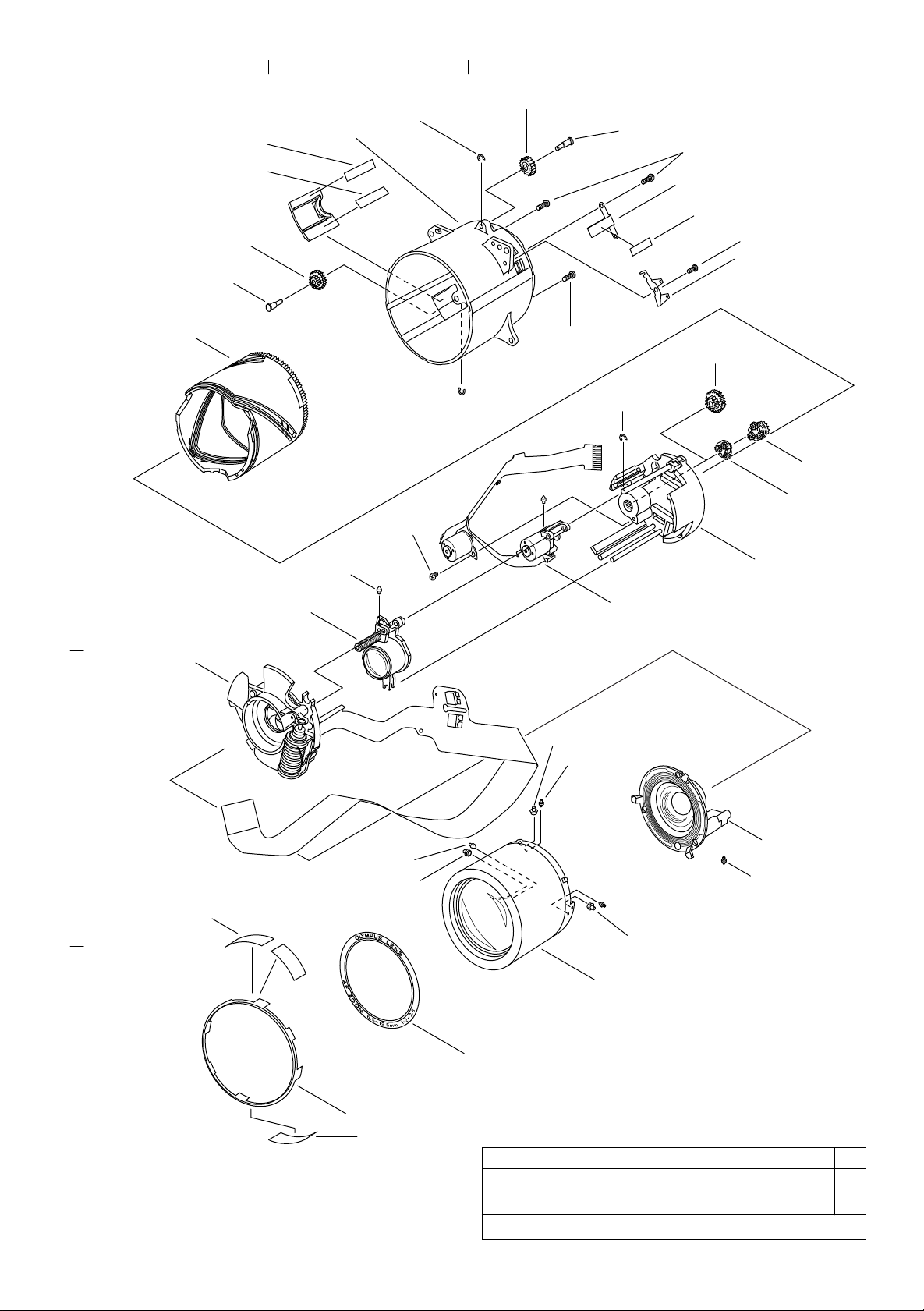

EXPLODED PARTS DIAGRAM
OLYMPUS OPTI
VC190900
VC963500
VC197200
C-5050 ZOOM
CAL C
VC197400
MODEL
O.,LTD.TOKYO,JAP
FIG.
2/4
AN
1
VC196800
VC193000
VC193600
Cabinet 1
VC272300
VC194100
VE209900
VE089300
VC195300
VC266300
VC194900
VC272900
VE210000
VC193200
BACD
VC888400
VC264800
VC196900
VC272700
VC196400
VE253700
VC272300
2
3
VC272200
VC272900
VC196500
VC194500
VC194200
VC889100
VC272900
VC962900
VC962400
VC196700
VE461100
VC191100
VC272900
VC191000
VC193300
VE147700
VC272300
VC266000
VC963000
VC250300
VC191600
VC195000
VC194300
VC191400
VC272900
VC193300
VC272800
VC191500
VC272300
VC196300
VC888300
VC272900
VC272900
VC272000
VC272100
VC272000
VE255900
VE255800
VC196200
VE089300
VC266300
VC195300
VC193200
VE210000
VE209900
VC193700
VC195200
VC270600
VC193400
VC194600
VC197600
VC198100
VC888800
VC272300
VC196000
VC888600
VC195600
VC196100
VC194400
VC198200
4
VC190500
VC193300
VC191200
VC250300
461200
VC191300
Ver.1
2002.10
VC193300
VC198400
VC272800
OLYMPUS OPTI
EXPLODED PARTS DIAGRAM
MODEL
C-5050 ZOOM
CAL C
O.,LTD.TOKYO,JAP
FIG.
1/4
AN
Cabinet 3
BACD
VC889500
VC888100
1
VE460800
VC272300
VC888700
VC272300
2
VC193900(ENGLISH)
VC198300(JAPANESE)
VC272300
VC888900
VC273000
VC192700
VC266000
VC194000
VC888500
VC889000
VC272300
VC889600
VC266000
VC266000
VC193100
VC192200
VJ442000
VC962700
VC882100
VC195700
VC193800
VE253600
VC196600
VC962200
VC963400
VC272600
VC266000
VC192500
VC266000
VC272400
VC266000
VC962500
VC962300
VC195100
3
4
VC888900
VC192000
VC963100
VC194800
VC266000
VC272300
VC273000
VC266000
VJ188300
VC192900
VC194200
VC192600
VC192000
VC272300
VC267300
VE084000
VC192100
VC192400
VE083901
VC888200
VE294200
VC195900
VC786500
VC153800
Ver.1
2002.12
VC192800
VC195400
VC130200
VE441500
EXPLODED PARTS DIAGRAM
OLYMPUS OPTI
VC264600
VC191700
MODEL
C-5050 ZOOM
CAL C
VC258000
VC962600
VC963200
O.,LTD.TOKYO,JAP
FIG.
3/4
AN
A
B
C
D
VE083800
CG317700
VE121100
VE292900
VE120900
1
VE121000
VE136900
VE083900
WE126081
VE081700
Double Coated tape (12x3.5)
WE132065
VE081900
VE137000
VJ188100
WE126081
VE136900
CG317700
VE295500
VE081200
VJ131200
2
CU740700
WE126202
VJ188200
VE081200
VJ187600
VJ187900
VJ187800
VE293600
VE081000
3
VJ187200
VE081000
VE296100
Tape (33x10)
Tape (33x10)
VE293600
VE081000
VE293600
VJ187100
VE294300
4
VE089200
Tape (33x10)
Ver.1/Rev.4
2003.06
OLYMPUS OPTICAL CO,,LTD.TOKYO,JAPAN
EXPLODED PARTS DIAGRAM
MODEL
C-5050 ZOOM
FIG.
4/4
PARTS LIST C-5050 ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
CG317700 3G STOPPER 4-B1,B2
CU740700 CARRIER A# 4-D2
VC130200 SPACER INSULATOR 3-C4
VC153800 SPACER 3-C4
VC190400 SHIELD TAPE CP1 CP-1 NEW
VC190500 STAND COVER A 1-B4 NEW
VC190600 TOP FPC COVER 2-B3 NEW
VC190700 BACK LCD COVER 2-D3 NEW
VC190800 JOINT COVER 2-C4 NEW
VC190900 BACK FPC COVER 2-C3 NEW
VC191000 BACK BUTTON 1-B2 NEW
VC191100 AEL BUTTON 1-B2 NEW
VC191200 RING BASE 1-A4 NEW
VC191300 FRONT RING 1-A4 NEW
VC191400 FRONT HOLDER 1-B3 NEW
VC191500 TOP BUTTON 1-C3 NEW
VC191600 STAND COVER B 1-B2 NEW
VC191700 SHILED TAPE 3-C4 NEW
VC191800 SPACER CA1 CA-1 NEW
VC191900 SHIELD TAPE CA1 CA-1 NEW
VC192000 SPACER WIRE C 3-A3 NEW
VC192100 SPACER LENS FPC 3-B4 NEW
VC192200 SPACER SPRING C 3-B2 NEW
VC192300 PAD 2-C2 NEW
VC192400 ADHESIVE CN FPC 3-B3 NEW
VC192500 ADHESIVE IR FPC 3-C2 NEW
VC192600 AF LED SPRING 3-A3 NEW
VC192700 SPACER MODE 3-A1 NEW
VC192800 SPACER FPC 3-C3 NEW
VC192900 SPACER WIRE 3-A4 NEW
VC193000 CARD SHAFT 1-A1 NEW
VC193100 SPACER TOP FPC 3-B2 NEW
VC193200 SPRING CLICK 1-B1,D2 NEW
VC193300 STAND COVER C 1-B2,C2 NEW
VC193400 SPACER SIDE 1-D3 NEW
VC193500 SPACER PW1 PW-1 NEW
VC193600 SPACER HL SP 1-A1 NEW
VC193700 SHIELD TAPE 1-D3 NEW
VC193800 SHIELD TAPE PW1_A 3-C2 NEW
VC193900 CARD HOLDER U 3-A2 NEW
VC194000 ADHESIVE FLASH 3-A1 NEW
VC194100 CARD LABEL 1-A1 NEW
VC194200 BATTERY LABEL 1-A3 NEW
VC194200 BATTERY LABEL 3-B3 NEW
VC194300 SPRING PLATE CARD 1-C3 NEW
VC194400 BATTERY SHAFT 1-D4 NEW
VC194500 SPEAKER HOLDER 1-A2 NEW
VC194600 DC JACK COVER 1-D3 NEW
VC194700 FPC SHAFT 2-B2 NEW
VC194800 TRANS COVER 3-A3 NEW
VC194900 LED DEC 1-A2 NEW
VC195000 EARTH CABI 1-B2 NEW
VC195100 EARTH B 3-C3 NEW
- 1/4 -
Ver1.0
PARTS LIST C-5050 ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VC195200 USB COVER 1-D3 NEW
VC195300 STRAP HOLDER 1-B1,D2 NEW
VC195400 JACK HOLDER 3-C3 NEW
VC195500 CN HOLDER PW-1 NEW
VC195600 BATTERY KNOB 1-D4 NEW
VC195700 EARTH A 3-C2 NEW
VC195900 CHASSIS HOLDER 3-B3 NEW
VC196000 IR DEC 1-C4 NEW
VC196100 BATT COVER 1-D4 NEW
VC196200 TOP CABINET 1-D2 NEW
VC196300 TOP SPACER 1-C2 NEW
VC196400 MODE LCD DEC 1-D1 NEW
VC196500 GRIP COVER ASSY 1-A3 NEW
VC196600 TOP HOLDER 3-C1 NEW
VC196700 BATTERY HOLDER A 1-A3 NEW
VC196800 CARD COVER 1-A1 NEW
VC196900 VF COVER 1-D1 NEW
VC197000 LCD DEC 2-B1 NEW
VC197100 BACK CABINET 2-A3 NEW
VC197200 LCD FPC SPACER 2-C4 NEW
VC197300 JOINT ASSY 2-C3 NEW
VC197400 FPC BTM COVER 2-D3 NEW
VC197500 MONITOR HL SPACER 2-C2,D2 NEW
VC197600 PIX BADGE 1-A4 NEW
VC197700 MONITOR HOLDER 2-B2 NEW
VC197800 MONITOR SPACER 2-B2 NEW
VC197900 LCD FRONT COVER 2-B1 NEW
VC198100 PAD 1-B4 NEW
VC198200 IR ADHESIVE 1-C4 NEW
VC198300 CARD HOLDER J 3-A2 NEW
VC198400 FRONT CABINET 1-C4 NEW
VC250300 SCR PAN PCS 2X3 1-B2,B4
VC253600 SCR PAN PCS 1.7X4 2-B3,D3
VC258000 SCR S-TPG PAN 2X6 3-D3
VC264100 SCR S-TPG PAN PCS 1.7X6 2-D3
VC264600 SCR PAN 2X2.5 3-D3
VC264800 SCR S-TPG PAN PCS 1.7X8.0 1-C1
VC266000 SCR S-TPG PAN PCS 1.7X3.5 1-B3
VC266300 SPECIAL SCREW 1.4X5 1-A1,D2
VC267300 SECIAL SCREW 1.7X9.0 3-B3
VC270500 SCR S-TPG PAN PCS 1.4X4.0 2-A4
VC270600 SPECIAL SCREW 1.7X2.5 1-D3
VC272000 SCR S-TPG PAN PCS 1.7X3.0 1-C3 NEW
VC272100 SCR PAN PCS 1.4X4.0 1-C3 NEW
VC272200 SPECIAL SCREW 1.7X2.5 1-A2 NEW
VC272300 SCR S-TPG PAN PCS 1.7X4.0 1-A1,C1 NEW
VC272400 SCR PAN PCS 1.7X2.5 3-D2 NEW
VC272500 SCR PAN PCS 1.7X2 2-A4,B3 NEW
VC272600 SCR PAN PCS 1.7X2.0 2-C3 NEW
VC272700 SCR FLT PCS 1.6X5 1-D1 NEW
VC272800 SPECIAL SCREW 1.7X3.5 1-C2,C4 NEW
VC272900 SPECIAL SCREW-1.7X3.5 1-B1,A2 NEW
VC273000 SCR S-TPG PAN PCS 1.7X3.5 3-A3 NEW
- 2/4 -
Ver1.0
PARTS LIST C-5050 ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
PR502 VC775400 FUSE 32V 1.5A PW-1
VC786500 CCD 3-C4 NEW
S3001 VC863300 PUSH SWITCH CP-1
PR501 VC865800 FUSE 32V 2A PW-1
PR503 VC865900 FUSE 32V 1A PW-1
PR504 VC865900 FUSE 32V 1A PW-1
VC882100 MICROPHONE 3-C2
VC888100 LCD 3-A1 NEW
VC888200 OPTICAL FILTER 3-B4 NEW
VC888300 CONTROL UNIT 1-C2 NEW
VC888400 CMD UNIT 1-C1 NEW
VC888500 REFLECTOR COMPL 3-A1 NEW
VC888600 BATT TERMINAL A 1-D4 NEW
VC888700 SLD UNIT 3-A2 NEW
VC888800 BATT TERMINAL B 1-C4 NEW
VC888900 BATT TERMINAL C 3-A2.A3 NEW
VC889000 PROTECTOR 3-B2 NEW
VC889100 SPEAKER 1-A2 NEW
VC889200 WIRE TB1-LCD1 2-D1 NEW
VC889300 WIRE TB1-LCD2 2-D2 NEW
VC889400 LCD 2-B2 NEW
VC889500 TERMINAL H B 3-C1 NEW
VC889600 TERMINAL H A 3-B1 NEW
VC962200 FLEXIBLE PWB CP1-PW1 3-D1 NEW
VC962300 FLEXIBLE PWB PW1-FLASH 3-D2 NEW
VC962400 FLEXIBLE PWB CP1-TB2 1-A3 NEW
VC962500 CP-1 COMPL PWB 3-D2 NEW
VC962600 CA-1 COMPL PWB 3-D3 NEW
VC962700 PW-1 COMPL PWB 3-B2 NEW
VC962800 TB-1 COMPL PWB 2-C2 NEW
VC962900 TB-2 COMPL PWB 1-A3 NEW
VC963000 TB-3 COMPL PWB 1-B2 NEW
VC963100 ST-1 COMPL PWB 3-A3 NEW
VC963200 FLEXIBLE PWB CP1-CA1 3-D3 NEW
VC963400 FLEXIBLE PWB ASSY 3-C1 NEW
VC963500 FLEXIBLE PWB CP1-TB1 2-C4 NEW
VE081000 CAM PIN A 4-B3,C3
VE081200 CAM PIN C 4-B2,C2
VE081700 FPC PLATE 4-D1
VE081900 PR PLATE 4-D1
VE083800 CAM GEAR 4-C1
VE083900 CAM GEAR SHAFT 4-C1
VE083901 GEAR 3-B3
VE084000 GEAR SHAFT 3-B3
VE089200 L FRAME 4-B4
VE089300 CLICK BALL VF 1-A1,D2
VE120900 G COVER TAPE L 4-A1
VE121000 G COVER 4-A1
VE121100 G COVER TAPE R 4-A1
VE136900 Z GEAR 4-A1,D2
VE137000 Z GEAR SHAFT 4-A1
VE147700 STAND 1-B2
VE209900 MOUNTING STRAP R 1-B1,D3
- 3/4 -
Ver1.0
PARTS LIST C-5050 ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VE210000 MOUNTING STRAP 1-B1,D2
VE253600 BASE HOLDER H 3-C1 NEW
VE253700 X COVER 1-D1
VE255800 HOLDER TERMINAL H 1-D2 NEW
VE255900 SPRING TERMINAL H 1-D2 NEW
VE292900 C HOLDER 4-B1
VE293600 1Z PIN 4-B3,C3
VE294200 SPACER 3-B4
VE294300 DEC LENS 4-C4
VE295500 S STOPPER 4-C2
VE296100 CAM PIN D 4-D3
VE441500 LENS MOUNTING 3-C4
VE460800 DEC FLASH 3-A1 NEW
VE461100 VF FRONT DEC 1-A3 NEW
VE461200 COVER RING 1-A4 NEW
VJ131200 CARRIER B# 4-D2
VJ187100 1Z FRAME# 4-C4
VJ187200 2Z FRAME# 4-D3
VJ187600 4G FRAME#-2 4-B2
VJ188100 CAM FRAME# 4-A1
VJ188200 LENS BARREL# 4-D2
VJ188300 LENS 3-A4
VJ396300 K FPC# 4-C2 NEW
VJ396600 S FRAME# 4-A3 NEW
VJ442000 VF LENS 3-B2 NEW
VT4043 Rated Label J (For JO)
VT4045 Rated Label EＧ (For EXO/GXO/PXO)
VT4046 Rated Label Cc (For CO)
WE126081 PUTB1.6X4SN 4-C1,D1
WE126202 PUTB1.4X3SB 4-B2
WE132065 3PUTB1.6X3SB 4-D1
- 4/4 -
Rev.3
Ver.1
