C-3030ZOOM/C-3000ZOOM
EXPRODED PARTS DIAGRAM.PARTS LIST
EXPRODED PARTS DIAGRAM.PARTS LIST C-3030ZOOM/C-3000ZOOM
EXPRODED PARTS DIAGRAM
PARTS LIST
SERVER_DIS Ver.3
Page 2
BA C D
VE208600
VC266200
VC264500
VC264500
VE209200
VE087800
1
VE209800
VE210000
VE089300
VE210200
VC266300
VE202200
VC130600
VC264500
VE087400
VC114700
VC129900[C-3030Z]
VE288600[C-3000Z]
2
VC264500
VC114800[C-3030Z]
VC131300[C-3000Z]
VE202500
VC265900
VC264500
VC115700
VC126700
VC265500
VC115500
VC130300
VE203100
VC114900
VE202400
VC115800
VE088500
VC864400
VE087600
VC264500
VE209400
VE089900
VC264500
VC115400
VC116400
VC114700
VJ214700
VC264500
VC131000
VE210600[C-3030Z]
VE288800[C-3000Z]
3
VE209700[C-3030Z]
VE288700[C-3000Z]
4
SERVER_DIS
VE209300
VC114600
VC115300
VC264500
VC264500
Ver.3/Rev.5
2001.08
VC266300
VC130400[C-3030Z]
VC136600[C-3000Z]
VE210200
VE089300
VE210000
VE209900
VE210300
1
VC260300
VJ143000
VE210400
VC264500
1
VC130000

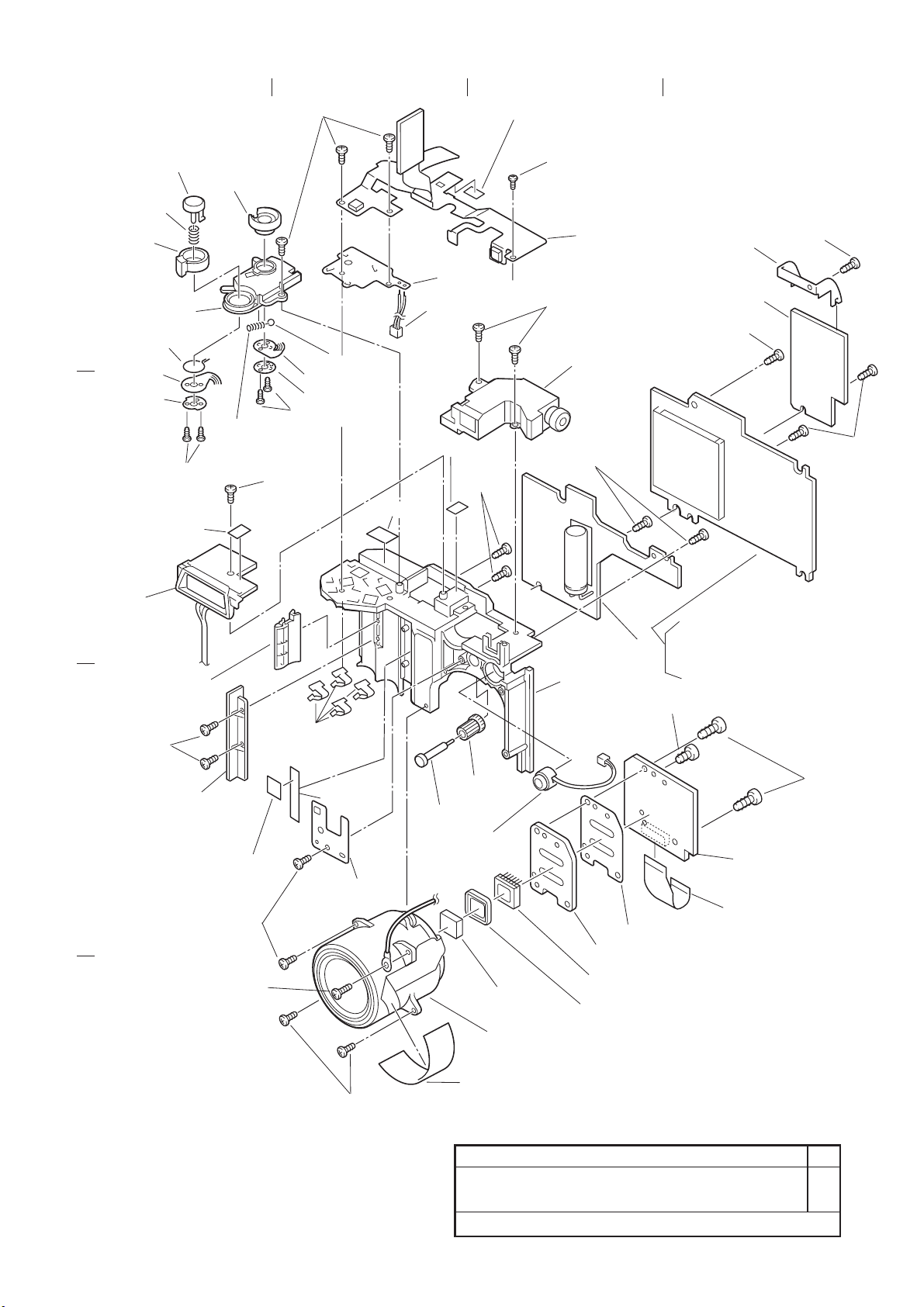

EXPLODED PARTS DIAGRAM
MODEL HOUSE CODE or UNIT FIG.
C-3030ZOOM/C-3000ZOOM
OLYMPUS OPTICAL CO.,LTD.TOKYO,JAPAN
1
VE208900
D4835/D4881
1
VC260300
1
VE209000
1
VE209100
1
VE208800
1/3
Page 3
VC264500
BACD
VC114800
1
2
3
VC114100
VE086200
VE210900
VE084700
VE085900
VE208700
VE203300
VC264900
VC114800
VC861400
VC265300
VE208500
VE085600
VE209500
VE209600
VC130900
VC264500
VE085500
VE085400
VE203400
VC264900
VC264500
VE208300(OLD)
VE297300(NEW)
VC131100
VE121500
VC126600
VE084000
VC129800
VC130100
VC114800
VC265300
VE083901
VC131200
VC266200
VC937100
VC264500
VJ140600
VC264500
VC937000
VE311700
VC113700
VC264600
VC130200
VC114000
VC264500
VC936900
VC264500
VC264500
VC936600[C-3030Z(J)NTSC]
VC937200[C-3030Z(U)(G)NTSC]
VC936800[C-3030Z(E)(G)PAL]
VC937300[C-3000Z(U)NTSC]
VC937400[C-3000Z(E)PAL]
VC940300[C-3000Z(J)NTSC]
VC258000
VC936700
VC130800
4
SERVER_DIS
VC264100
VC264500
Ver.3/Rev.8
2003.5
VC866500
VC746600
VC126800
VJ140200
VC130700
EXPLODED PARTS DIAGRAM
MODEL HOUSE CODE or UNIT FIG.
C-3030ZOOM/C-3000ZOOM
OLYMPUS OPTICAL CO.,LTD.TOKYO,JAPAN
D4835/D4881
2/3
Page 4
A
B
C
D
VE083800
CG317700
VE121100
VE124200
VE120900
1
VE121000
VE136900
VE083900
WE126081
VE081700
Double Coated tape (12x3.5)
WE132065
VE081900
VE137000
VJ130200
WE126081
VE136900
CG317700
WE307002
VE081200
VJ131200
2
CU740700
WE126202
VJ130100
VE081200
VJ130900
VJ140300
VJ131500
VE081000
(VE124400)
1
VE124600
3
VJ140400
1
(VE124400)
VE081200
Tape (33x10)
Tape (33x10)
VE081000
1
(VE124400)
VE081000
1
VJ140500
VE124300
4
VE089200
Tape (33x10)
Ver.3/Rev.6
2002.12
OLYMPUS OPTICAL CO,,LTD.TOKYO,JAPAN
EXPLODED PARTS DIAGRAM
MODEL
C-3030ZOOM/C-3000ZOOM
FIG.
3/3
Page 5
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
CG317700 3G STOPPER 3-B1,B2
CU740700 CARRIER A# 3-D2
VC113700 MOUNTING,LENS 2-C3
VC114000 HOLDER BRKT SY 2-D1
VC114100 ASSY,BUTTON RELEASE 2-A1
VC114600 ADHESIVE TAPE FRONT 1-A3
VC114700 ADHESIVE TAPE,D 1-D1
VC114800 ADHESIVE TAPE F 1-B2,2-A2,B2,C1
VC114900 ADHESIVE TAPE G 1-B2
VC115300 SHIELD TAPE 1-B4
VC115400 SHIELD TAPE 1-C3
VC115500 SPACER MONITOR LIGHT 1-B2
VC115700 SPACER MON LIGHT,B 1-B2
VC115800 SPACER MON LIGHT,C 1-B2
VC116400 PAD(L=15) 1-C3
VC126600 ADHESIVE TAPE H,B 2-B2
VC126700 SPACER SHIELD M,B 1-B2
VC126800 SPACER 2-B3
VC129800 DENCHIBAN FLEX 2-B1 NEW
VC129900 ASSY,CABNET TOP 1-A1 NEW
VC130000 COMPL,COVER BATTERY 1-D4 NEW
VC130100 ASSY,WIRE BATTERY&ST1 2-B1 NEW
VC130200 SPACER INSULATOR 2-C3 NEW
VC130300 FLEXIBLE PWB2,JOINT 1-B2 NEW
VC130400 SHIELD TAPE 1-C3 NEW
VC130600 COVER BUTTON J 1-C1 NEW
VC130700 SHIELD TAPE 2-B4 NEW
VC130800 FLEXIBLE PWB, CA1-CA2 2-C3 NEW
VC130900 SPACER CHASSIS 2-B3 NEW
VC131000 SHAFT JACK 1-D2 NEW
VC131100 SPACER SHEET 2-B3 NEW
VC131200 MICROPHONE 2-C3 NEW
VC131300 ADHESIVE TAPE [C-3000ZOOM] 1-B2 NEW
VC136600 SHIELD TAPE 1-C3 NEW
VC258000 SCR S-TPG PAN 2X6 2-D3
VC260300 SCR S-TPG PAN PCS 1.4X2 1-D4
VC264100 SCR S-TPG PAN PCS 1.7X6 2-B4
VC264500 SCR S-TPG PAN PCS 1.7X4.0 1-A1
VC264600 SCR PAN 2X2.5 2-C3
VC264900 SCR S-TPG PAN PCS 1.4X2.5 2-A2
VC265300 SCR S-TPG PAN PCS 1.7X4 2-A3,2-C2
VC265500 SPECIAL SCREW 1.4X2 1-B2
VC265900 SPECIAL SCREW1.6X3.5 1-B2
VC266200 SCR S-TPG PAN PCS 1.4X3.5 1-A1,2-C2 NEW
VC266300 SPECIAL SCREW 1.4X5 1-C3,1-B1 NEW
VC746600 IC ICX252AK-B 2-B3 NEW
VC861400 COMPL,REFLECTOR 2-A2
VC864400 LCD 1-C2
VC866500 OPTICAL FILTER 2-B4 NEW
VC936600 COMPL PWB CA-2 [C-3030 ZOOM(J)NTSC] 2-D2 NEW
VC936700 COMPL PWB,CA-1 2-C3 NEW
VC936800 COMPL PWB,CA-2 [C-3030 ZOOM(E),(G)PAL] 2-D2 NEW
VC936900 COMPL PWB,SY-1 2-D1 NEW
VC937000 COMPL PWB,ST-1 2-C2 NEW
SERVER_DIS
- 1/6 - Ver.3/Rev.8
Page 6
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VC937100 ASSY,UNIT,FLEXIBLE PWB 2-B1 NEW
VC937200 COMPL PWB,CA-2 [C-3030 ZOOM(U),(G)NTSC] 2-D2 NEW
VC937300 COMPL PWB,CA-2 [C-3000ZOOM(U)] 2-D2 NEW
VC937400 COMPL PWB,CA-2 [C-3000ZOOM(E)] 2-D2 NEW
VC940300 COMPL PWB,CA-2 [C-3000ZOOM(J)] 2-D2 NEW
VE081000 CAM PIN A 3-B3,C3
VE081200 CAM PIN C 3-B2.C2
VE081700 FPC PLATE 3-D1
VE081900 PR PLATE 3-D1
VE083800 CAM GEAR 3-C1
VE083900 CAM GEAR SHAFT 3-C1
VE083901 GEAR SR951/JO 2-B3
VE084000 SHAFT GEAR SR951/JO 2-B3
VE084700 HOLDER MODE 2-A1
VE085400 TERMINAL MD 2-A2
VE085500 BALL CLICK 2-A2
VE085600 SPRING M 2-A1
VE085900 SPRING Z 2-A2
VE086200 SPRING R 2-A1
VE087400 DEC MONITOR 1-D1
VE087600 HOLDER MONITOR 1-B2
VE087800 SHAFT CARD 1-B1
VE088500 BUTTON LM 1-C2
VE089200 L FRAME 3-B4
VE089300 BALL CLICK VF 1-C3,1-B1 NEW
VE089900 STAND 1-B3
VE120900 G COVER TAPE L 3-A1
VE121000 G COVER 3-A1
VE121100 G COVER TAPE R 3-A1
VE121500 HOLDER LED 2-B3
VE124200 C HOLDER 3-B1 NEW
VE124300 DEC LENS 3-C4 NEW
VE124600 SG SPONGE 3-B3 NEW
VE136900 Z GEAR 3-A1,D2
VE137000 Z GEAR SHAFT 3-A1
VE202200 BUTTON J 1-C1
VE202400 BUTTON OK 1-B2
VE202500 HOLDER BRKT JSW 1-B2
VE203100 SPACER BUTTON OK 1-B2
VE203300 GUIDE LEVER Z 2-A2
VE203400 GUIDE DIAL M 2-A2
VE208300 TERMINAL BATTERY 2-B3 OLD
VE208500 KNOB DIAL 2-A1 NEW
VE208600 COVER MD 1-A1 NEW
VE208700 TERMINAL Z 2-A2 NEW
VE208800 COVER BATTERY 1-D4 NEW
VE208900 TERMINAL CB,A 1-D4 NEW
VE209000 TERMINAL CB,B 1-D4 NEW
VE209100 SLIDE LOCK 1-D4 NEW
VE209200 COVER CARD 1-B1 NEW
VE209300 CABINET FRONT 1-B3 NEW
VE209400 HOLDER BATTERY 1-B3 NEW
VE209500 HOLDER BATTERY A 2-B2 NEW
VE209600 HOLDER BATTERY B 2-A3 NEW
SERVER_DIS
- 2/6 - Ver.3/Rev.8
Page 7
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VE209700 COVER FRONT 1-A4 NEW
VE209800 MOUNTING STRAP,L 1-B1 NEW
VE209900 MOUNTING STRAP,R 1-C3 NEW
VE210000 MOUNTING STRAP 1-C3,1-B1 NEW
VE210200 SPRING CLICK 1-C3,1-B1 NEW
VE210300 HOLDER BTKT STCN 1-C4 NEW
VE210400 CAP STROBO 1-C4 NEW
VE210600 COVER JACK 1-D2 NEW
VE210900 LEVER Z 2-A1 NEW
VE288600 ASSY,CABINET TOP [C-3000ZOOM] 1-A1 NEW
VE288700 COVER FRONT [C-3000ZOOM] 1-A4 NEW
VE288800 COVER JACK [C-3000ZOOM] 1-D2 NEW
VE297300 TERMINAL BATTERY 2-B3 NEW
VE311700 HOLDER CHASSIS 2-B2
VJ130100 LENS BARREL# 3-D2
VJ130200 CAM FRAME# 3-A1
VJ130900 4G FRAME#-2 3-B2
VJ131200 CARRIER B# 3-D2
VJ131500 S FRAME# 3-A3
VJ140200 LENS(ASSY) 2-B4 NEW
VJ140300 4Z FRAME# 3-C2 NEW
VJ140400 2Z FRAME# 3-D3 NEW
VJ140500 1Z FRAME# 3-C4 NEW
VJ140600 LENS,VF 2-C2 NEW
VJ143000 SOCKET,SYNCHRO 1-C4 NEW
VJ214700 ASSY,CABINET BACK 1-C1
WE126081 PUTB1.6X4SN 3-C1,D1
WE126202 PUTB1.4X3SB 3-B2
WE132065 3PUTB1.6X3SB 3-D1
WE307002 ER1.2UO 3-C2
A3101 VC866600 LCD(LM-7086C) PWB NEW
A3102 VC866200 UNIT,IR RECEIVER PACK REMOCON PWB NEW
BZ311 VC856900 PZ BZR PKM13EPY-4002 PWB
CN110 VC866800 USB JACK CA-2 NEW
CN141 VC864300 SOCKET,CARD 24P TO SMARTMEDIA CA-2
F5001 VC865800 FUSE 32V 2A ST-1 NEW
F5002 VC865800 FUSE 32V 2A ST-1 NEW
F5003 VC865900 FUSE 32V 1A ST-1 NEW
IC101 VC742400 IC MB86836PMT2-G-BND CPU CA-2
IC102 VC747100 IC KS5M9U1262CBP CA-2 NEW
IC103 VC746900 IC HM5225325FBP-B60 CA-2 NEW
IC103 VC747500 IC HM5212325FBP-B60 [C-3000ZOOM] CA-2 NEW
IC106 VC746800 IC SN74LV273ADB CA-2 NEW
IC107 VC746800 IC SN74LV273ADB CA-2 NEW
IC111 VC742300 IC IMISG589BTB CLOCK-GENERATOR CA-2
IC121 VC747300 IC 26302351D [C-3030ZOOM(E),(G)PAL] CA-2 NEW
IC121 VC747400 IC 26301351F [C-3030ZOOM(U),(G)NTSC] CA-2 NEW
IC121 VC747600 IC 27300353DN [C-3000ZOOM(U)] CA-2 NEW
IC121 VC747700 IC 27302353D [C-3000ZOOM(E)] CA-2 NEW
IC121 VC748600 IC 27301353E [C-3000ZOOM(J)] CA-2 NEW
IC131 VC735100 IC ADM3202ARU CA-2
IC145 VC735000 IC TK11348BM CA-2
IC146 VC741900 IC TC7S32FU CA-2
IC152 VC736900 IC TK15405M VIDEO AMP CA-2
SERVER_DIS
- 3/6 - Ver.3/Rev.8
Page 8
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
IC153 VC735000 IC TK11348BM CA-2
IC171 VC740000 IC LV4131W LCD DRIVER CA-2
IC174 VC740300 IC TK11330BM REGULATOR CA-2
IC175 VC738900 IC TC7SET08FU CA-2
IC183 VC746200 IC LMV321M7X CA-2 NEW
IC184 VC732900 IC TK11331BM CA-2
IC185 VC746200 IC LMV321M7X CA-2 NEW
IC186 VC746300 IC ADG701BRT CA-2 NEW
IC301 VC747200 IC UPD78063GC-A33-8EU SY-1 NEW
IC302 VC727100 S-8423NFS BACKUP SY-1
IC501 VC735300 IC BA9737KV ST-1
IC502 VC734800 IC TC7S08FU ST-1
IC503 VC727900 IC MB3800PNF--G ST-1
IC902 VC739200 IC 74ACT04MTC (H.DRIVER) CA-1
IC904 VC740100 IC CXD3400N (H.DRIVER) CA-1
IC905 VC746700 IC AD9842JST CA-1 NEW
IC909 VC746400 IC TK11333BM CA-1 NEW
IC951 VC746500 IC S-8520B33MC CA-2 NEW
IC952 VC743500 IC NJM2125F CA-2
IC953 VC746100 IC LB1846M ZOOM DRIVER CA-2 NEW
IC954 VC746100 IC LB1846M FOCUS DRIVER CA-2 NEW
IC955 VC742200 IC TC7W66FK ANALOG SW CA-2
IC956 VC742200 IC TC7W66FK ANALOG SW CA-2
IC957 VC746100 IC LB1846M IRIS DRIVER CA-2 NEW
JK112 VC866000 JACK,PHONE D3.6 CA-2 NEW
JK131 VC859500 JACK,PHONE D2.6 PC JACK CA-2
JK501 VC857100 SOCKET,DC DC JACK ST-1
Q1111 VC609300 TR UN5213 CA-2
Q1111 VC618200 TR DTC144EUA CA-2
Q1301 VC609300 TR UN5213 CA-2
Q1301 VC618200 TR DTC144EUA CA-2
Q1303 VC609200 TR UN5113 CA-2
Q1303 VC618300 TR DTA144EUA CA-2
Q1304 VC609300 TR UN5213 CA-2
Q1304 VC618200 TR DTC144EUA CA-2
Q1305 VC620000 TR UMD3N CA-2
Q1501 VC619000 TR UMT1N CA-2
Q1502 VC609800 TR XP4601 CA-2
Q1502 VC615800 TR UMZ1N CA-2
Q1503 VC609800 TR XP4601 CA-2
Q1503 VC615800 TR UMZ1N CA-2
Q1509 VC609300 TR UN5213 CA-2
Q1509 VC618200 TR DTC144EUA CA-2
Q1601 VC617500 TR DTC114EUA CA-2 NEW
Q1601 VC621700 TR UN5211 CA-2 NEW
Q1602 VC609400 TR 2SA1745-7 CA-2
Q1602 VC609500 TR 2SA1745-6 CA-2
Q1701 VC609800 TR XP4601 CA-2
Q1701 VC615800 TR UMZ1N CA-2
Q1702 VC609800 TR XP4601 CA-2
Q1702 VC615800 TR UMZ1N CA-2
Q1803 VC621800 TR UMX1N CA-2 NEW
Q1806 VC621800 TR UMX1N CA-2 NEW
Q1807 VC620000 TR UMD3N CA-2
SERVER_DIS
- 4/6 - Ver.3/Rev.8
Page 9
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
Q3001 VC603600 TR 2SA1677 SY-1
Q3001 VC614800 TR DTA124EU SY-1
Q3001 VC615300 TR UN5112 SY-1
Q3002 VC602600 TR 2SA1676 SY-1
Q3002 VC609200 TR UN5113 SY-1
Q3002 VC611800 TR DTA144EU SY-1
Q3003 VC604100 TR 2SC4396 SY-1
Q3003 VC604700 TR DTC144EU SY-1
Q3003 VC609300 TR UN5213 SY-1
Q3004 VC619500 TR DTC144EE SY-1
Q3005 VC620900 TR DTA114EE SY-1
Q3006 VC620900 TR DTA114EE SY-1
Q3008 VC619500 TR DTC144EE SY-1
Q3031 VC603200 TR 2SC4081-R SW SY-1
Q3031 VC607900 TR 2SD1819A-R SW SY-1
Q5001 VC619300 TR CPH3109 ST-1
Q5002 VC621400 TR 2SA1774 R ST-1 NEW
Q5003 VC618600 TR 2SC4617 R ST-1
Q5004 VC616900 TR UMC2N ST-1
Q5005 VC622000 TR 2SA2018 ST-1 NEW
Q5006 VC616700 TR UMH11N ST-1
Q5007 VC619700 TR CPH5701 SW ST-1
Q5008 VC619300 TR CPH3109 ST-1
Q5009 VC622000 TR 2SA2018 ST-1 NEW
Q5010 VC618900 TR DTA114YE ST-1
Q5011 VC618600 TR 2SC4617 R ST-1
Q5012 VC618700 TR DTC114EE ST-1
Q5013 VC619200 TR CPH3205 ST-1
Q5014 VC622000 TR 2SA2018 ST-1 NEW
Q5015 VC618700 TR DTC114EE ST-1
Q5016 VC615900 TR UMY1N ST-1
Q5017 VC619800 TR FTS2005 ST-1
Q5018 VC619700 TR CPH5701 SW ST-1
Q5019 VC618700 TR DTC114EE ST-1
Q5401 VC618800 TR DTC123JE ST-1
Q5402 VC618700 TR DTC114EE ST-1
Q5405 VC619200 TR CPH3205 ST-1
Q5406 VC619300 TR CPH3109 ST-1
Q5407 VC618600 TR 2SC4617 R ST-1
Q5409 VC622100 TR CY25AAJ-8 ST-1 NEW
Q5450 VC621500 TR DTA143ZE ST-1 NEW
Q5451 VC621600 TR DTC143ZE ST-1 NEW
Q5452 VC618600 TR 2SC4617 R ST-1
Q5453 VC619100 TR UMC5N ST-1
Q5454 VC621600 TR DTC143ZE ST-1 NEW
Q9001 VC603200 TR 2SC4081-R CA-1
Q9001 VC607900 TR 2SD1819A-R CA-1
Q9002 VC620700 TR 2SC3931-D CA-1
Q9003 VC603200 TR 2SC4081-R CA-1
Q9003 VC607900 TR 2SD1819A-R CA-1
Q9005 VC607800 TR 2SB1218A-R CA-1
Q9503 VC603200 TR 2SC4081-R CA-2
Q9503 VC607900 TR 2SD1819A-R CA-2
Q9504 VC621900 TR CPH3105 CA-2 NEW
SERVER_DIS
- 5/6 - Ver.3/Rev.8
Page 10
PARTS LIST C-3030ZOOM/C-3000ZOOM
REF NO PARTS NO DESCRIPTION REMARKS NOTE
Q9505 VC619300 TR CPH3109 CA-2
Q9506 VC614300 TR DTC115EU CA-2
Q9509 VC621000 TR UMH10N CA-2
Q9510 VC621000 TR UMH10N CA-2
Q9512 VC609300 TR UN5213 CA-2
Q9512 VC618200 TR DTC144EUA CA-2
Q9513 VC614700 TR 2SC4399-4 CA-2
Q9514 VC602900 TR 2SC4399-5 CA-2
Q9514 VC614300 TR DTC115EU CA-2
S3001 VC861500 SWITCH,PUSH SY-1
S3002 VC861500 SWITCH,PUSH SY-1
S3003 VC861500 SWITCH,PUSH SY-1
S3004 VC863300 SWITCH,PUSH 1P-1TX1 SY-1
S3011 VC866100 SWITCH,PUSH 1P-2TX1 SHUTTER PWB NEW
T5001 VC866300 TRANS,POWER,PULSE ST-1 NEW
T5002 VC866400 TRANS,POWER,PULSE ST-1 NEW
T5003 VC862400 TRANS,POWER,PULSE ST-1
T5401 VC861800 TRANS,STEP UP ST-1
T5402 VC861700 TRANS,STEP UP ST-1
X1101 VC857600 OSC,CRYSTAL 14.31818MHZ [(U),(G)NTSC] RIVER CA-2
X1101 VC858200 OSC,CRYSTAL 17.734476MHZ [(E),(G)PAL] RIVER CA-2
X1101 VC864500 OSC,CRYSTAL 14.31818MHZ [(U),(G)NTSC] RIVER CA-2
X1701 VC861600 OSC,CRYSTAL 3.579545MHZ [(U),(G)NTSC] RIVER CA-2
X1701 VC862500 OSC,CRYSTAL 4.433619MHZ [(E),(G)PAL] RIVER CA-2
X3001 VC864200 OSC,CERAMIC 4.00MHZ SY-1
X3002 VC862000 OSC,CRYSTAL 32.768KHZ SY-1
Y1001 VC126400 SHIELD TAPE CA-2
Y1103 VC126500 SPACER CA2-B,SIDE-B CA-2
VC126200 SPACER SHEET ST-1 C5412 ST-1
VC130500 SHIELD TAPE CA-1 NEW
VE2890 SERIAL NUMBER SEAL FOR OE (Made in Japan) (C-3000ZOOM)
VE3051 SERIAL NUMBER SEAL FOR OE (Made in Korea) (C-3000ZOOM)
VE2889 SERIAL NUMBER SEAL FOR OAI (Made in Japan) (C-3000ZOOM)
VE3050 SERIAL NUMBER SEAL FOR OAI (Made in Korea) (C-3000ZOOM)
SERVER_DIS
- 6/6 - Ver.3/Rev.8
Page 11
EXPRODED PARTS DIAGRAM.PARTS LIST C-3000ZOOM2
EXPRODED PARTS DIAGRAM
PARTS LIST
C-3000ZOOM2
EXPRODED PARTS DIAGRAM.PARTS LIST
SERVER_DIS Ver.3
Page 12
BA C D
VE208600
VC266200
VC264500
VC264500
VE209200
VE087800
1
VE209800
VE210000
VE089300
VE210200
VC266300
VE202200
VC130600
VC264500
VE087400
VC114700
VE288600
VC131300
VE202500
VC264500
VC130300
VE203100
VC114700
VC264500
VC131000
VE088500
VC265900
VJ214700
VC114900
VC265500
2
VC264500
VE202400
VC115700
VC115500
VC872300
VE288800
VC126700
VE297200
VC115800
VC264500
VE209400
VE089900
VC264500
VC115400
VC116400
3
4
SERVER_DIS
VE209300
VC114600
VE288700
VC115300
VC264500
VC264500
Ver.3/Rev.5
2001.02
VC266300
VC136600
VE210200
VE089300
VE210000
VE209900
VE210300
1
VC260300
VJ143000
VE210400
VC264500
1
VC130000
EXPLODED PARTS DIAGRAM
MODEL
C-3000ZOOM2
OLYMPUS OPTICAL CO.,LTD.TOKYO,JAPAN
1
VE208900
1
VC260300
1
VE209000
1
VE209100
1
VE208800
FIG.
1/3
Page 13
VC264500
BACD
VC114800
VE086200
1
VE210900
VE085900
VE208700
VE203300
2
VC861400
VC114100
VE084700
VC264900
VC114800
VE208500
VE085600
VE085500
VE085400
VE203400
VC264900
VC264500
VC130100
VC126600
VC129800
VC114800
VC265300
VC266200
VC937100
VC264500
VJ140600
VC264500
VC114000
VC936900
VC264500
VC264500
VC264500
VC265300
3
4
VE209500
VE209600
VC154000
VC264500
VC264100
VE208300(OLD）
VE297300(NEW）
VC130900
VE121500
VC264500
VE083901
VE084000
VC131200
VC866500
VJ140200
VC130700
VC937000
VE311700
VC113700
VC746600
VC126800
VC955200 [for C-3000Z(J)2]
VC955400 [for C-3000Z(U)2,(G)NTSC2]
VC955500 [for C-3000Z(E)2,(G)PAL2]
VC264600
VC258000
VC955300
VC130800
VC130200
SERVER_DIS
Ver.3/Rev.8
2003.5
EXPLODED PARTS DIAGRAM
MODEL FIG.
C-3000ZOOM2
OLYMPUS OPTICAL CO.,LTD.TOKYO,JAPAN
2/3
Page 14
A
B
C
D
VE083800
CG317700
VE121100
VE124200
VE120900
1
VE121000
VE136900
VE083900
WE126081
VE081700
Double Coated tape (12x3.5)
WE132065
VE081900
VE137000
VJ130200
WE126081
VE136900
CG317700
WE307002
VE081200
VJ131200
2
CU740700
WE126202
VJ130100
VE081200
VJ130900
VJ140300
VJ131500
VE081000
(VE124400)
1
VE124600
3
VJ140400
1
(VE124400)
VE081200
Tape (33x10)
Tape (33x10)
VE081000
1
(VE124400)
VE081000
1
VJ140500
VE124300
4
VE089200
Tape (33x10)
Ver.3/Rev.6
2002.12
OLYMPUS OPTICAL CO,,LTD.TOKYO,JAPAN
EXPLODED PARTS DIAGRAM
MODEL
C-3000ZOOM2
FIG.
3/3
Page 15
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
CG317700 3G STOPPER 3-B1.B2
CU740700 CARRIER A# 3-D2
VC113700 MOUNTING,LENS 2-C3
VC114000 HOLDER BRKT SY 2-D1
VC114100 ASSY,BUTTON RELEASE 2-A1
VC114600 ADHESIVE TAPE FRONT 1-A3
VC114700 ADHESIVE TAPE,D 1-D2
VC114800 ADHESIVE TAPE F 2-A2
VC114900 ADHESIVE TAPE G 1-B2
VC115300 SHIELD TAPE 1-A4
VC115400 SHIELD TAPE 1-C3
VC115500 SPACER MONITOR LIGHT 1-B2
VC115700 SPACER MON LIGHT,B 1-A2
VC115800 SPACER MON LIGHT,C 1-B2
VC116400 PAD(L=15) 1-C3
VC126600 ADHESIVE TAPE H,B 2-B2
VC126700 SPACER SHIELD M,B 1-A2
VC126800 SPACER 2-C4
VC129800 DENCHIBAN FLEX 2-B1
VC130000 COMPL,COVER BATTERY 1-D4
VC130100 ASSY,WIRE BATTERY&ST1 2-B1
VC130200 SPACER INSULATOR 2-C3
VC130300 FLEXIBLE PWB2,JOINT 1-B1
VC130600 COVER BUTTON J 1-C1
VC130700 SHIELD TAPE 2-C4
VC130800 FLEXIBLE PWB,SX351CA1-CA2 2-D3
VC130900 SPACER CHASSIS 2-B3
VC131000 SHAFT JACK 1-D2
VC131200 MICROPHONE 2-C3
VC131300 ADHESIVE TAPE ZYUZI 1-A2
VC136600 SHILED TAPE 1-C3
VC154000 SPACER SHEET 2-A3
VC258000 SCR S-TPG PAN 2X6 2-D3
VC260300 SCR S-TPG PAN PCS 1.4X2 1-D3
VC264100 SCR S-TPG PAN PCS 1.7X6 2-A4
VC264500 SCR S-TPG PAN PCS 1.7X4.0 1-B4
VC264500 SCR S-TPG PAN PCS 1.7X4.0 2-B4
VC264600 SCR PAN 2X2.5 2-D3
VC264900 SCR S-TPG PAN PCS 1.4X2.5 2-B2
VC265300 SCR S-TPG PAN PCS 1.7X4 2-A3
VC265500 SPECIAL SCREW-1.4X2 1-B2
VC265900 SPECIAL SCREW-1.6X3.5 1-A2
VC266200 SCR S-TPG PAN PCS 1.4X3.5 1-A1
VC266200 SCR S-TPG PAN PCS 1.4X3.5 2-C1
VC266300 SPECIAL SCREW-1.4X5 1-C3
VC746600 IC ICX252AK-B 2-C4
VC861400 COMPL,REFLECTOR 2-A2
VC866500 OPTICAL FILTER 2-C4
VC872300 LCD 1-C2
VC936900 COMPL PWB,SY-1 2-D1
VC937000 COMPL PWB,ST-1 2-C2
VC937100 ASSY,UNIT,FLEXIBLE PWB 2-C1
SERVER_DIS
- 1/6 - Ver.3/Rev.8
Page 16
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VC955200 COMPL PWB,CA-2 [C-3000ZOOM(J)2] 2-D2 NEW
VC955300 COMPL PWB,CA-1 2-D3 NEW
VC955400 COMPL PWB,CA-2 [C-3000ZOOM(U)2,(G)NTSC2] 2-D2 NEW
VC955500 COMPL PWB,CA-2 [C-3000ZOOM(E)2,(G)PAL2] 2-D2 NEW
VE081000 CAM PIN A 3-B3,C3
VE081200 CAM PIN C 3-B2.C2
VE081700 FPC PLATE 3-D1
VE081900 PR PLATE 3-D1
VE083800 CAM GEAR 3-C1
VE083900 CAM GEAR SHAFT 3-C1
VE083901 GEAR 2-C3
VE084000 SHAFT GEAR 2-B3
VE084700 HOLDER MODE 2-A1
VE085400 TERMINAL MD 2-B2
VE085500 BALL CLICK 2-B2
VE085600 SPRING M 2-B1
VE085900 SPRING Z 2-A1
VE086200 SPRING R 2-A1
VE087400 DEC MONITOR 1-D1
VE087800 SHAFT CARD 1-B1
VE088500 BUTTON LM 1-C2
VE089200 L FRAME 3-B4
VE089300 BALL CLICK VF 1-C3
VE089900 STAND 1-C3
VE120900 G COVER TAPE L 3-A1
VE121000 G COVER 3-A1
VE121100 G COVER TAPE R 3-A1
VE121500 HOLDER LED 2-B3
VE124200 C HOLDER 3-B1 NEW
VE124300 DEC LENS 3-C4 NEW
VE124600 SG SPONGE 3-B3 NEW
VE136900 Z GEAR 3-A1,D2
VE137000 Z GEAR SHAFT 3-A1
VE202200 BUTTON J 1-C1
VE202400 BUTTON OK 1-B2
VE202500 HOLDER BRKT JSW 1-A2
VE203100 SPACER BUTTON OK 1-B2
VE203300 GUIDE LEVER Z 2-A2
VE203400 GUIDE DIAL M 2-B2
VE208300 TERMINAL BATTERY 2-B3 OLD
VE208500 KNOB DIAL 2-A1
VE208600 COVER MD 1-A1
VE208700 TERMINAL Z 2-A2
VE208800 COVER BATTERY 1-D4
VE208900 TERMINAL CB,A 1-D3
VE209000 TERMINAL CB,B 1-D3
VE209100 SLIDE LOCK 1-D4
VE209200 COVER CARD 1-B1
VE209300 CABINET FRONT 1-A3
VE209400 HOLDER BATTERY 1-C3
VE209500 HOLDER BATTERY A 2-A3
VE209600 HOLDER BATTERY B 2-A3
SERVER_DIS
- 2/6 - Ver.3/Rev.8
Page 17
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
VE209800 MOUNTING STRAP,L 1-B1
VE209900 MOUNTING STRAP,R 1-C3
VE210000 MOUNTING STRAP 1-C3
VE210200 SPRING CLICK 1-C3
VE210300 HOLDER BTKT STCN 1-C4
VE210400 CAP STROBO 1-C4
VE210900 LEVER Z 2-A1
VE288600 ASSY,CABINET TOP 1-A1
VE288700 COVER FRONT 1-A3
VE288800 COVER JACK 1-D2
VE297200 HOLDER MONITOR 1-C2
VE297300 TERMINAL BATTERY 2-B3 NEW
VE311700 HOLDER CHASSIS 2-C3
VJ130100 LENS BARREL# 3-D2
VJ130200 CAM FRAME# 3-A1
VJ130900 4G FRAME#-2 3-B2
VJ131200 CARRIER B# 3-D2
VJ131500 S FRAME# 3-A3
VJ140200 LENS(ASSY) 2-C4
VJ140300 4Z FRAME# 3-C2 NEW
VJ140400 2Z FRAME# 3-D3 NEW
VJ140500 1Z FRAME# 3-C4 NEW
VJ140600 LENS,VF(ASSY) 2-C1
VJ143000 SOCKET,SYNCHRO 1-C4
VJ214700 ASSY,CABINET BACK 1-D2 NEW
WE126081 PUTB1.6X4SN 3-C1,D1
WE126202 PUTB1.4X3SB 3-B2
WE132065 3PUTB1.6X3SB 3-D1
WE307002 ER1.2UO 3-C2
A3101 VC866600 LCD(LM-7086C) PWB
A3102 VC866200 UNIT,IR RECEIVER PACK REMOCON PWB
BZ311 VC856900 PZ BZR PKM13EPY-4002 PWB
CN110 VC866800 PLUG,4P TO USB CA-2
CN141 VC864300 SOCKET,CARD 24P TO SMARTMEDIA CA-2
F5001 VC865800 FUSE 32V 2A ST-1
F5002 VC865800 FUSE 32V 2A ST-1
F5003 VC865900 FUSE 32V 1A ST-1
IC101 VC742400 IC MB86836PMT2-G-BND CPU CA-2
IC102 VC772600 IC KS5M0U1338CBP CA-2
IC103 VC747500 IC HM5212325FBP-B60 CA-2
IC106 VC746800 IC SN74LV273ADB CA-2
IC107 VC746800 IC SN74LV273ADB CA-2
IC111 VC742300 IC IMISG589BTB CLOCK-GENERATOR CA-2
IC121 VC774700 IC 27307353A [C-3000ZOOM(J)2] PROGRAM FLASH CA-2 NEW
IC121 VC774900 IC 27306353A [C-3000ZOOM(U)2,(G)NTSC2] PROGRAM FLASH CA-2 NEW
IC121 VC774800 IC 27308353A [C-3000ZOOM(E)2,(G)PAL2] PROGRAM FLASH CA-2 NEW
IC131 VC735100 IC ADM3202ARU CA-2
IC131 VC774200 IC SP3232ECY CA-2
IC145 VC735000 IC TK11348BM CA-2
IC146 VC741900 IC TC7S32FU CA-2
IC152 VC736900 IC TK15405M VIDEO AMP CA-2
IC153 VC735000 IC TK11348BM CA-2
SERVER_DIS
- 3/6 - Ver.3/Rev.8
Page 18
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
IC171 VC740000 IC LV4131W LCD DRIVER CA-2
IC174 VC740300 IC TK11330BM REGULATOR CA-2
IC175 VC738900 IC TC7SET08FU CA-2
IC182 VC746200 IC LMV321M7X CA-2
IC183 VC746200 IC LMV321M7X CA-2
IC184 VC732900 IC TK11331BM CA-2
IC185 VC746200 IC LMV321M7X CA-2
IC186 VC746300 IC ADG701BRT CA-2
IC301 VC747200 IC UPD78063GC-A33-8EU SY-1
IC302 VC727100 S-8423NFS BACKUP SY-1
IC501 VC735300 IC BA9737KV ST-1
IC502 VC734800 IC TC7S08FU ST-1
IC503 VC727900 IC MB3800PNF--G ST-1
IC901 VC745100 IC TC7W14FK SCHMITT INVERTER CA-1
IC902 VC739200 IC 74ACT04MTC CA-1
IC904 VC740100 IC CXD3400N CA-1
IC905 VC746700 IC AD9842JST CA-1
IC909 VC746400 IC TK11333BM CA-1
IC951 VC746500 IC S-8520B33MC CA-2
IC952 VC743500 IC NJM2125F CA-2
IC953 VC746100 IC LB1846M ZOOM DRIVER CA-2
IC954 VC746100 IC LB1846M FOCUS DRIVER CA-2
IC955 VC742200 IC TC7W66FK ANALOG SW CA-2
IC956 VC742200 IC TC7W66FK ANALOG SW CA-2
IC957 VC746100 IC LB1846M IRIS DRIVER CA-2
JK112 VC866000 JACK,PHONE D3.6 CA-2
JK131 VC859500 JACK,PHONE D2.6 PC JACK CA-2
JK501 VC857100 SOCKET,DC DC JACK ST-1
Q1111 VC622200 TR DTC115EUA CA-2
Q1111 VC614300 TR DTC115EU CA-2
Q1301 VC618200 TR DTC144EUA CA-2
Q1301 VC609300 TR UN5213 CA-2
Q1303 VC618300 TR DTA144EUA CA-2
Q1303 VC609200 TR UN5113 CA-2
Q1304 VC618200 TR DTC144EUA CA-2
Q1304 VC609300 TR UN5213 CA-2
Q1305 VC620000 TR UMD3N CA-2
Q1501 VC619000 TR UMT1N CA-2
Q1502 VC615800 TR UMZ1N CA-2
Q1502 VC609800 TR XP4601 CA-2
Q1503 VC615800 TR UMZ1N CA-2
Q1503 VC609800 TR XP4601 CA-2
Q1509 VC618200 TR DTC144EUA CA-2
Q1509 VC609300 TR UN5213 CA-2
Q1601 VC617500 TR DTC114EUA CA-2
Q1601 VC621700 TR UN5211 CA-2
Q1602 VC609400 TR 2SA1745-7 CA-2
Q1602 VC609500 TR 2SA1745-6 CA-2
Q1701 VC615800 TR UMZ1N CA-2
Q1701 VC609800 TR XP4601 CA-2
Q1702 VC615800 TR UMZ1N CA-2
Q1702 VC609800 TR XP4601 CA-2
SERVER_DIS
- 4/6 - Ver.3/Rev.8
Page 19
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
Q1803 VC621800 TR UMX1N CA-2
Q1806 VC621800 TR UMX1N CA-2
Q1807 VC620000 TR UMD3N CA-2
Q3001 VC603600 TR 2SA1677 SY-1
Q3001 VC614800 TR DTA124EU SY-1
Q3001 VC615300 TR UN5112 SY-1
Q3002 VC602600 TR 2SA1676 SY-1
Q3002 VC611800 TR DTA144EU SY-1
Q3002 VC609200 TR UN5113 SY-1
Q3003 VC604100 TR 2SC4396 SY-1
Q3003 VC604700 TR DTC144EU SY-1
Q3003 VC609300 TR UN5213 SY-1
Q3004 VC619500 TR DTC144EE SY-1
Q3005 VC620900 TR DTA114EE SY-1
Q3006 VC620900 TR DTA114EE SY-1
Q3008 VC619500 TR DTC144EE SY-1
Q3031 VC607900 TR 2SD1819A-R SW SY-1
Q3031 VC603200 TR 2SC4081-R SW SY-1
Q5001 VC619300 TR CPH3109 ST-1
Q5002 VC621400 TR 2SA1774 R ST-1
Q5003 VC618600 TR 2SC4617 R ST-1
Q5004 VC616900 TR UMC2N ST-1
Q5005 VC622000 TR 2SA2018 ST-1
Q5006 VC616700 TR UMH11N ST-1
Q5007 VC619700 TR CPH5701 SW ST-1
Q5008 VC619300 TR CPH3109 ST-1
Q5009 VC622000 TR 2SA2018 ST-1
Q5010 VC618900 TR DTA114YE ST-1
Q5011 VC618600 TR 2SC4617 R ST-1
Q5012 VC618700 TR DTC114EE ST-1
Q5013 VC619200 TR CPH3205 ST-1
Q5014 VC622000 TR 2SA2018 ST-1
Q5015 VC618700 TR DTC114EE ST-1
Q5016 VC615900 TR UMY1N ST-1
Q5017 VC619800 TR FTS2005 ST-1
Q5018 VC619700 TR CPH5701 SW ST-1
Q5019 VC618700 TR DTC114EE ST-1
Q5401 VC618800 TR DTC123JE ST-1
Q5402 VC618700 TR DTC114EE ST-1
Q5405 VC619200 TR CPH3205 ST-1
Q5406 VC619300 TR CPH3109 ST-1
Q5407 VC618600 TR 2SC4617 R ST-1
Q5409 VC622100 TR CY25AAJ-8 ST-1
Q5450 VC621500 TR DTA143ZE ST-1
Q5451 VC621600 TR DTC143ZE ST-1
Q5452 VC618600 TR 2SC4617 R ST-1
Q5453 VC619100 TR UMC5N ST-1
Q5454 VC621600 TR DTC143ZE ST-1
Q9001 VC607900 TR 2SD1819A-R CA-1
Q9001 VC603200 TR 2SC4081-R CA-1
Q9002 VC620700 TR 2SC3931-D CA-1
Q9003 VC607900 TR 2SD1819A-R CA-1
SERVER_DIS
- 5/6 - Ver.3/Rev.8
Page 20
PARTS LIST C-3000ZOOM2
REF NO PARTS NO DESCRIPTION REMARKS NOTE
Q9003 VC603200 TR 2SC4081-R CA-1
Q9005 VC607800 TR 2SB1218A-R CA-1
Q9503 VC607900 TR 2SD1819A-R CA-2
Q9503 VC603200 TR 2SC4081-R CA-2
Q9504 VC621900 TR CPH3105 CA-2
Q9505 VC619300 TR CPH3109 CA-2
Q9506 VC614300 TR DTC115EU CA-2
Q9509 VC621000 TR UMH10N CA-2
Q9510 VC621000 TR UMH10N CA-2
Q9512 VC618200 TR DTC144EUA CA-2
Q9512 VC609300 TR UN5213 CA-2
Q9513 VC614700 TR 2SC4399-4 CA-2
Q9513 VC602900 TR 2SC4399-5 CA-2
Q9514 VC614300 TR DTC115EU CA-2
S3001 VC861500 SWITCH,PUSH SY-1
S3002 VC861500 SWITCH,PUSH SY-1
S3003 VC861500 SWITCH,PUSH SY-1
S3004 VC863300 SWITCH,PUSH 1P-1TX1 SY-1
S3011 VC866100 SWITCH,PUSH 1P-2TX1 SHUTTER PWB
T5001 VC866300 TRANS,POWER,PULSE ST-1
T5002 VC866400 TRANS,POWER,PULSE ST-1
T5003 VC862400 TRANS,POWER,PULSE ST-1
T5401 VC861800 TRANS,STEP UP ST-1
T5402 VC861700 TRANS,STEP UP ST-1
X1101 VC857600 OSC,CRYSTAL 14.31818MHZ [C-3000ZOOM(U),(G)NTSC] CA-2
X1101 VC864500 OSC,CRYSTAL 14.31818MHZ [C-3000ZOOM(U),(G)NTSC] CA-2
X1101 VC858200 OSC,CRYSTAL 17.734476MHZ [C-3000ZOOM(E),(G)PAL] CA-2
X1701 VC861600 OSC,CRYSTAL 3.579545MHZ [C-3000ZOOM(U),(G)NTSC] CA-2
X1701 VC862500 OSC,CRYSTAL 4.433619MHZ [C-3000ZOOM(E),(G)PAL] CA-2
X3001 VC864200 OSC,CERAMIC 4.00MHZ SY-1
X3002 VC862000 OSC,CRYSTAL 32.768KHZ SY-1
Y1001 VC126400 SHIELD TAPE SHIELDTAPE CA-2
Y1103 VC126500 SPACER CA2-B,SIDE-B SPACER SHILD CA2-SIDE-B CA-2
VC130500 SHIELD TAPE CA-1
VC126200 SPACER SHEET ST-1 C5412 ST-1
VE2890 SERIAL NUMBER SEAL FOR OE (Made in Japan)
VE3051 SERIAL NUMBER SEAL FOR OE (Made in Korea)
VE2889 SERIAL NUMBER SEAL FOR OAI (Made in Japan)
VE3050 SERIAL NUMBER SEAL FOR OAI (Made in Korea)
SERVER_DIS
- 6/6 - Ver.3/Rev.8
Loading...
