Nec AUDIOBASE User Manual

USER'S MANUAL

Audio Base

To learn about other special offers, register online at www.necmitsubishi.com/ produc tregistration

AudioBase 10/24/00, 3:13 PM1

Index

Warning.................................................................................................. 1

Contents ............................................................................................... 2

Quick Start .......................................................................................... 2

Controls ................................................................................................ 4

Specifications...................................................................................... 4

Recommended Use ............................................................................. 5

Troubleshooting .................................................................................. 6

Avertissement ......................................................................................7

Contenu ................................................................................................ 8

Mise en marche rapide ...................................................................... 8

Commandes ........................................................................................ 10

Fiche technique ................................................................................. 10

Usage recommandé ........................................................................... 11

Dépannage .......................................................................................... 12

AudioBase 10/24/00, 3:13 PM2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This

symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

CSA: Bears the CSA Mark and is in compliance with Canadian Safety Regulations according to

C.S.A. 22.2 #950.

FCC Information

1.

Use the attached specified cables with the
television reception.
(1) Please use the supplied power cable or equivalent to ensure FCC compliance.
(2) Shielded captive type signal cable.

Use of other cables and adapters may cause interference with radio and television
reception.

2.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for
additional suggestions. The user may find the following booklet, prepared by the Federal Communica­tions Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet
is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000­00345-4.

N9001 Audio Base so as not to interfere with radio and

AudioBase 10/24/00, 3:13 PM3

1

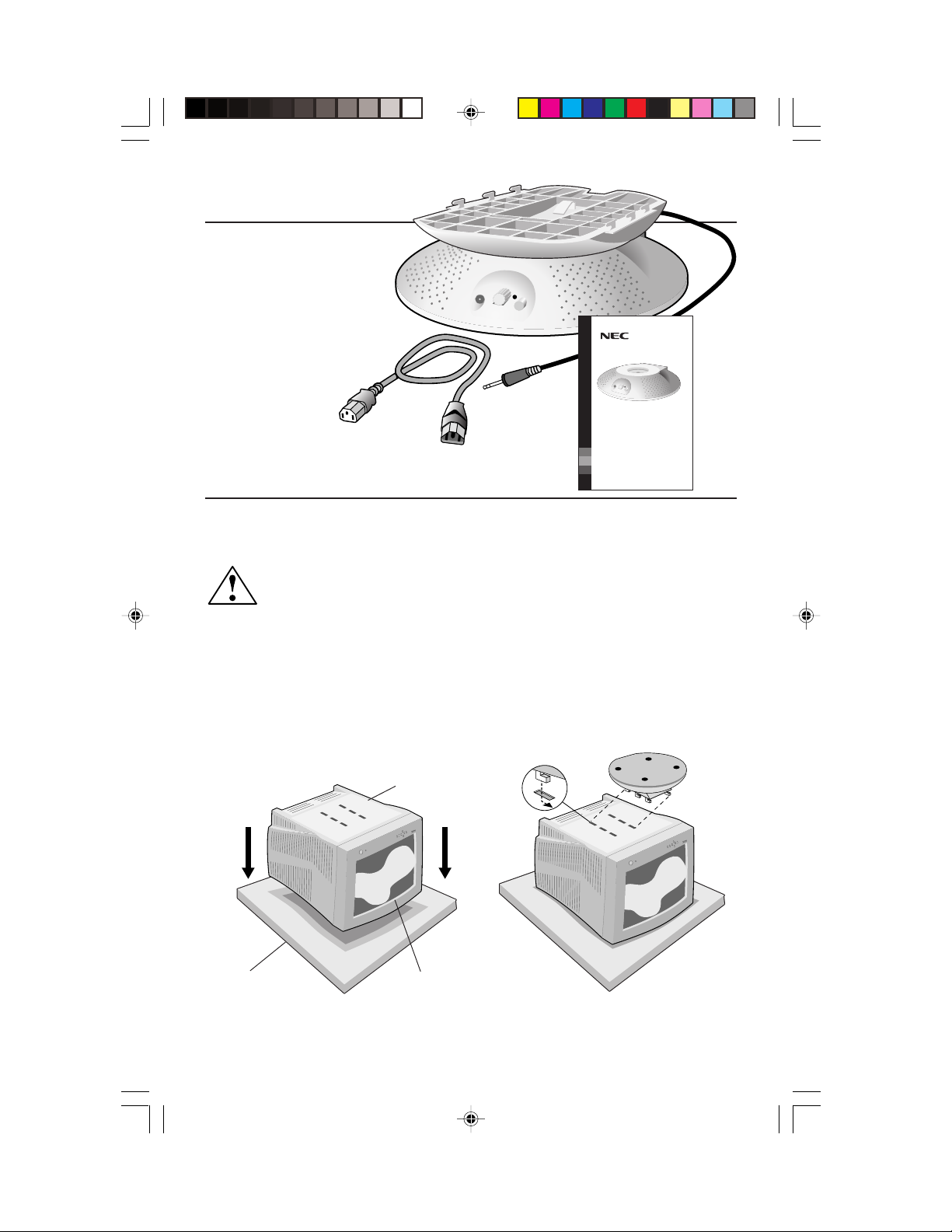

Contents

Audio Base

USER'S MANUAL

To learn about other special offers, register online at www.necmitsubishi.com/ productregistration

The audio base contains the
following additional items.

• Audio Base

• Captive Audio Cable

• Audio Base Manual

• Power Cord

Quick Start

If the audio base is not attached to the monitor, please use the following steps to
attach the audio base to the monitor.

If the audio base is already attached to the monitor proceed to Step 1-B.

MAKE SURE THE MONITOR IS DISCONNECTED FROM THE SYSTEM AND
IS UNPLUGGED FROM THE WALL OUTLET BEFORE ANY WORK IS DONE
ON THE MONITOR.

STEP 1-A. With the monitor unplugged from your system and the wall outlet,

carefully turn the monitor upside down on a firm table (Figure 1-A).

STEP 2-A. Position the locking tabs on the audio base with the holes in the

monitor and slide the audio base in place (Figure 2-A).

Figure 1-A

Bottom of monitor

Firm Table

AudioBase 10/24/00, 3:13 PM4

Figure 2-A

Top of monitor

2

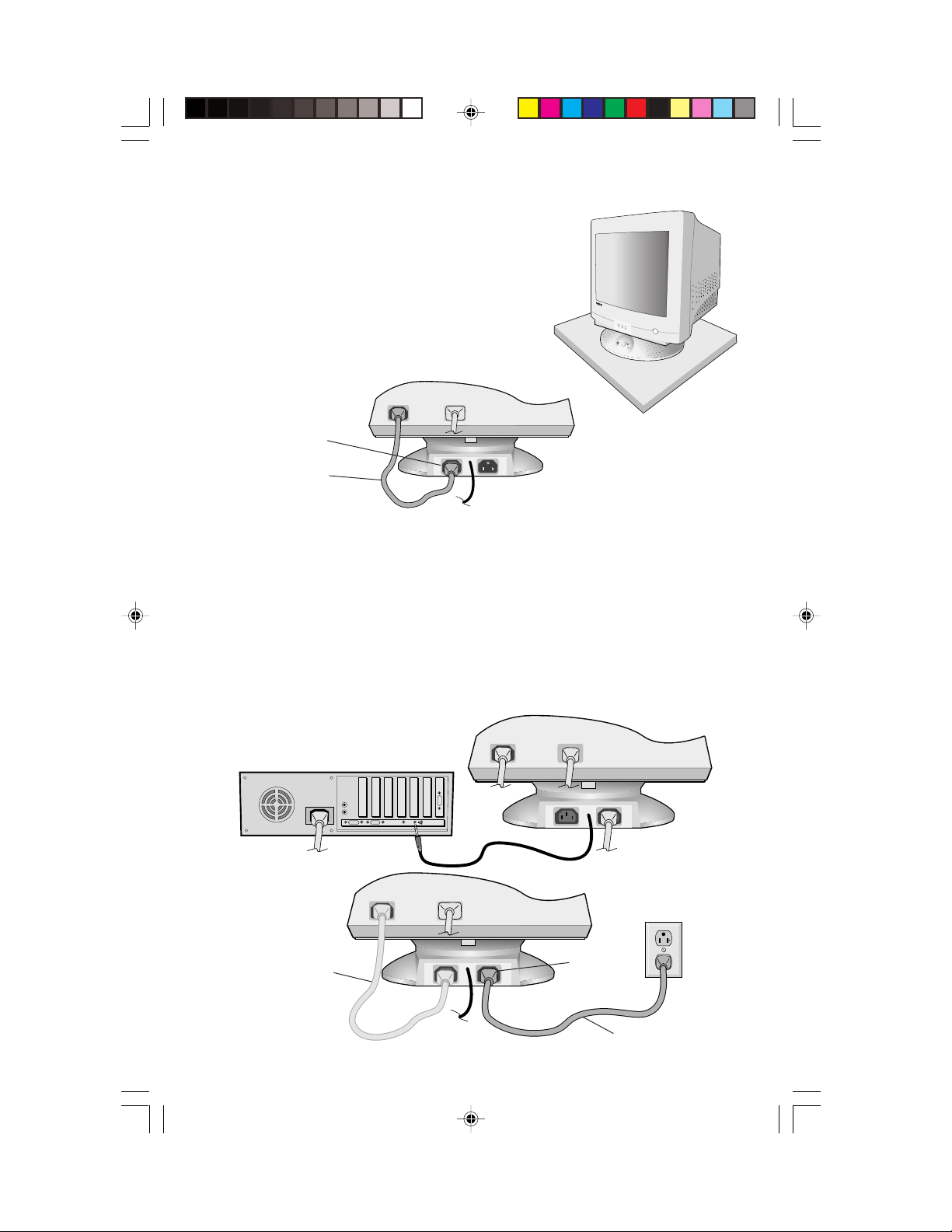

Figure 3-A

STEP 3-A. Having successfully installed your

audio base, carefully turn the monitor
right side up (Figure 3-A).

STEP 4-A. Connect one end of the short power

cord to the connector on the
audio base and the other end to
the monitor (Figure 4-A).

Figure 4-A

AC OUT

Short Power Cord

STEP 1-B. Connect one end of the short power cord to the connector on the

audio base and the other end to the monitor (Figure 4-A).

STEP 2-B. Connect the captive audio cable to the audio (line) output jack of

your computer system (Figure 1-B).

STEP 3-B. Connect one end of the long power cord to the AC-IN connector on

the audio base and the other end into the AC wall outlet (Figure 2-B).

STEP 4-B. Reconnect your monitor to your computer system as shown in the

monitor User’s Manual.

STEP 5-B.

Turn on the audio base and adjust the controls for best
sound performance.

Figure 1-B

Figure 2-B

Short Power Cord

AudioBase 10/24/00, 3:13 PM5

AC IN

Long Power Cord

3
