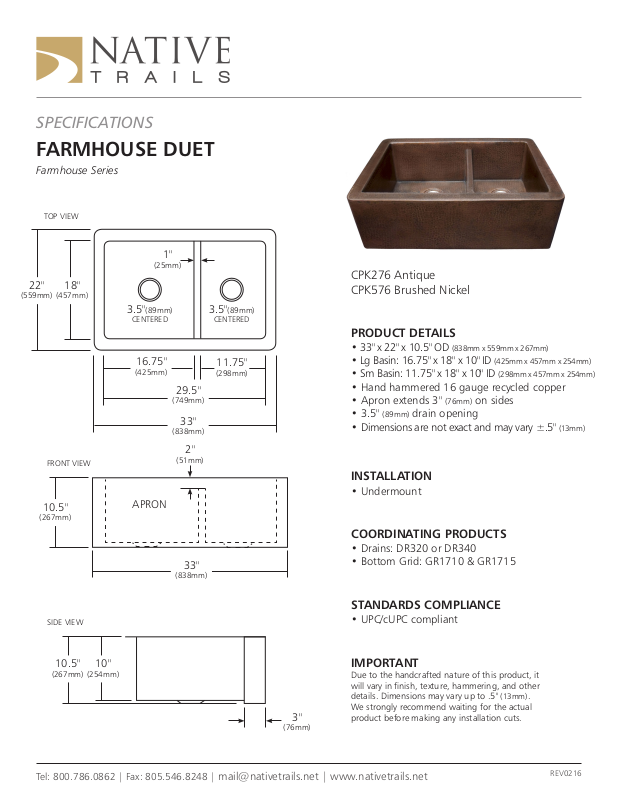

SPECIFICATIONS
FARMHOUSE DUET
Farmhouse Series
TOP VIEW
1"
(25mm)
22"
(559mm)
18"
(457mm)
3.5"(89mm)
CENTERED
16.75"
(425mm)
(749mm)
(838mm)
29.5"
33"
3.5"(89mm)
CENTERED
11.75"
(298mm)
CPK276 Antique
CPK576 Brushed Nickel
PRODUCT DETAILS
• 33" x 22" x 10.5" OD (838mm x 559mm x 267mm)
• Lg Basin: 16.75" x 18" x 10" ID (425mm x 457mm x 254mm)
• Sm Basin: 11.75" x 18" x 10" ID (298mm x 457mm x 254mm)
• Hand hammered 16 gauge recycled copper
• Apron extends 3" (76mm) on sides
• 3.5" (89mm) drain opening
• Dimensions are not exact and may vary ±.5" (13mm)
FRONT VIEW
10.5"
(267mm)
SIDE VIEW
10.5"
(267mm)
10"
(254mm)
APRON
2"
(51mm)
33"
(838mm)
3"
(76mm)
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grid: GR1710 & GR1715
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248 | mail@nativetrails.net | www.nativetrails.net
REV0216
