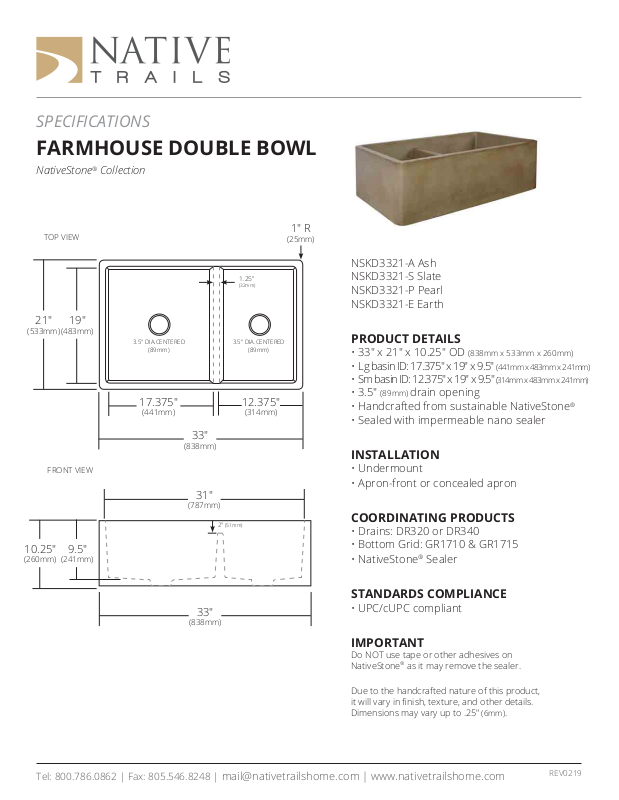

Native Trails XNT1708 Specifications

SPECIFICATIONS
FARMHOUSE DOUBLE BOWL
NativeStone® Collection
TOP VIEW
21"
(533mm)
FRONT VIEW
10.25"
(260mm)
19"
(483mm)
9.5"
(241mm)
3.5" DIA.CENTERED (89mm)
17.375"
(441mm)
33"
(838mm)
31"
(787mm)
1.25"
(32mm)
3.5" DIA.CENTERED
12.375"
(314mm)
2" (51mm)
(89mm)
1" R
(25mm)
NSKD3321-A Ash NSKD3321-S Slate NSKD3321-P Pearl
NSKD3321-E Earth
PRODUCT DETAILS
• 33" x 21" x 10.25" OD (838mm x 533mm x 260mm)
• Lg basin ID: 17.375" x 19" x 9.5" (441mm x 483mm x 241mm)
• Sm basin ID: 12.375" x 19" x 9.5" (314mm x 483mm x 241mm)
• Handcrafted from sustainable NativeStone
®
• Sealed with impermeable nano sealer
INSTALLATION
• Undermount
• Apron-front or concealed apron
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grid: GR1710 & GR1715
• NativeStone
®
Sealer
STANDARDS COMPLIANCE
33"
(838mm)
• UPC/cUPC compliant
IMPORTANT
Do NOT use tape or other adhesives on NativeStone® as it may remove the sealer.
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details. Dimensions may vary up to .25″
Tel: 800.786.0862 | Fax: 805.546.8248 | mail@nativetrailshome.com | www.nativetrailshome.com
(6mm).
REV0219
