MANUAL
The information in this document is subject to change without notice and does not represent a
commitment on the part of Native Instruments GmbH. The software described by this document is subject to a License Agreement and may not be copied to other media. No part of this
publication may be copied, reproduced or otherwise transmitted or recorded, for any purpose,
without prior written permission by Native Instruments GmbH, hereinafter referred to as Native
Instruments.
“Native Instruments”, “NI” and associated logos are (registered) trademarks of Native Instruments GmbH.
ASIO, VST, HALion and Cubase are registered trademarks of Steinberg Media Technologies
GmbH.
All other product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Document authored by: David Gover and Nico Sidi.
Software version: 2.7.6 (05/2018)
Hardware version: MASCHINE MIKRO MK1
Disclaimer
Special thanks to the Beta Test Team, who were invaluable not just in tracking down bugs, but
in making this a better product.
Contact
NATIVE INSTRUMENTS GmbH
Schlesische Str. 29-30
D-10997 Berlin
Germany
www.native-instruments.de
NATIVE INSTRUMENTS K.K.
YO Building 3F
Jingumae 6-7-15, Shibuya-ku,
Tokyo 150-0001
Japan
www.native-instruments.co.jp
NATIVE INSTRUMENTS FRANCE SARL
113 Rue Saint-Maur
75011 Paris
France
www.native-instruments.com
NATIVE INSTRUMENTS North America, Inc.
6725 Sunset Boulevard
5th Floor
Los Angeles, CA 90028
USA
www.native-instruments.com
NATIVE INSTRUMENTS UK Limited
18 Phipp Street
London EC2A 4NU
UK
www.native-instruments.co.uk
SHENZHEN NATIVE INSTRUMENTS COMPANY Limited
203B & 201B, Nanshan E-Commerce Base Of
Innovative Services
Shi Yun Road, Shekou, Nanshan, Shenzhen
China
www.native-instruments.com
© NATIVE INSTRUMENTS GmbH, 2018. All rights reserved.
Table of Contents
Table of Contents
1 Welcome to MASCHINE .............................................................................................
1.1 MASCHINE Documentation .......................................................................................................... 23
1.2 Document Conventions ............................................................................................................... 24
1.3 New Features in MASCHINE 2.7.4 ............................................................................................... 25
1.4 New Features in MASCHINE 2.7.3 ............................................................................................... 28
2 Basic Concepts .........................................................................................................
2.1 Important Names and Concepts ................................................................................................. 30
2.2 Adjusting the MASCHINE User Interface ..................................................................................... 33
2.3 Common Operations ................................................................................................................... 37
2.4 Native Kontrol Standard ............................................................................................................. 54
2.5 Stand-Alone and Plug-in Mode ................................................................................................... 55
2.2.1 Adjusting the Size of the Interface ............................................................................. 33
2.2.2 Switching between Ideas View and Arranger View ..................................................... 34
2.2.3 Showing/Hiding the Browser ...................................................................................... 35
2.2.4 Minimizing the Mixer ................................................................................................. 35
2.2.5 Showing/Hiding the Control Lane .............................................................................. 36
2.3.1 Pinning a Mode on the Controller ............................................................................... 37
2.3.2 Undo/Redo ................................................................................................................. 38
2.3.3 Focusing on a Group or a Sound ................................................................................ 40
2.3.4 Switching Between the Master, Group, and Sound Level ........................................... 45
2.3.5 Navigating Channel Properties, Plug-ins, and Parameter Pages in the Control Area . 46
2.3.6 Using Two or More Hardware Controllers ................................................................... 52
2.5.1 Differences between Stand-Alone and Plug-in Mode ................................................. 56
2.5.2 Switching Instances .................................................................................................. 57
2.5.3 Controlling Various Instances with Different Controllers ........................................... 58
22
30
MASCHINE MIKRO - Manual - 4
2.6 Preferences .................................................................................................................................58
2.7 Integrating MASCHINE into a MIDI Setup .................................................................................... 92
2.6.1 Preferences – General Page ....................................................................................... 59
2.6.2 Preferences – Audio Page .......................................................................................... 63
2.6.3 Preferences – MIDI Page ............................................................................................ 66
2.6.4 Preferences – Default Page ....................................................................................... 69
2.6.5 Preferences – Library Page ........................................................................................ 73
2.6.6 Preferences – Plug-ins Page ..................................................................................... 81
2.6.7 Preferences – Hardware Page .................................................................................... 86
2.6.8 Preferences – Colors Page ......................................................................................... 89
2.7.1 Connecting External MIDI Equipment ........................................................................ 92
2.7.2 Sync to External MIDI Clock ....................................................................................... 92
2.7.3 Send MIDI Clock ......................................................................................................... 93
3 Browser ....................................................................................................................
Table of Contents
95
3.1 Browser Basics ........................................................................................................................... 95
3.2 Searching and Loading Files from the Library ............................................................................ 97
3.1.1 The MASCHINE Library ............................................................................................... 95
3.1.2 Browsing the Library vs. Browsing Your Hard Disks ................................................... 96
3.2.1 Overview of the LIBRARY Pane ................................................................................... 97
3.2.2 Selecting or Loading a Product and Selecting a Bank from the Browser .................... 101
3.2.3 Selecting a Product Category, a Product, a Bank, and a Sub-Bank ........................... 106
3.2.3.1 Selecting a Product Category, a Product, a Bank, and a Sub-Bank on the
3.2.4 Selecting a File Type .................................................................................................. 112
3.2.5 Choosing Between Factory and User Content ............................................................. 113
3.2.6 Selecting Type and Mode Tags ................................................................................... 113
Controller ...................................................................................................111
MASCHINE MIKRO - Manual - 5
Table of Contents
3.3 Additional Browsing Tools .......................................................................................................... 126
3.4 Using Favorites in the Browser ................................................................................................... 132
3.5 Editing the Files’ Tags and Properties ........................................................................................ 138
3.6 Loading and Importing Files from Your File System .................................................................... 144
3.7 Locating Missing Samples .......................................................................................................... 154
3.8 Using Quick Browse .................................................................................................................... 156
3.2.7 Performing a Text Search ........................................................................................... 120
3.2.8 Loading a File from the Result List ............................................................................ 120
3.3.1 Loading the Selected Files Automatically .................................................................. 126
3.3.2 Auditioning Instrument Presets ................................................................................. 127
3.3.3 Auditioning Samples ................................................................................................. 129
3.3.4 Loading Groups with Patterns ................................................................................... 130
3.3.5 Loading Groups with Routing .................................................................................... 131
3.3.6 Displaying File Information ........................................................................................ 131
3.5.1 Attribute Editor Basics .............................................................................................. 138
3.5.2 The BANK Page .......................................................................................................... 140
3.5.3 The TYPES and MODES Pages .................................................................................... 140
3.5.4 The PROPERTIES Page ............................................................................................... 143
3.6.1 Overview of the FILES Pane ........................................................................................ 144
3.6.2 Using Favorites .......................................................................................................... 146
3.6.3 Using the Location Bar .............................................................................................. 147
3.6.4 Navigating to Recent Locations ................................................................................. 148
3.6.5 Using the Result List ................................................................................................. 149
3.6.6 Importing Files to the MASCHINE Library ................................................................... 152
4 Managing Sounds, Groups, and Your Project ...............................................................
159
4.1 Overview of the Sounds, Groups, and Master .............................................................................. 159
MASCHINE MIKRO - Manual - 6
Table of Contents
4.2 Managing Sounds .......................................................................................................................167
4.3 Managing Groups ....................................................................................................................... 181
4.4 Exporting MASCHINE Objects and Audio ..................................................................................... 195
4.5 Importing Third-Party File Formats ............................................................................................. 205
4.1.1 The Sound, Group, and Master Channels ................................................................... 160
4.1.2 Similarities and Differences in Handling Sounds and Groups ................................... 161
4.1.3 Selecting Multiple Sounds or Groups ......................................................................... 162
4.2.1 Loading Sounds ......................................................................................................... 169
4.2.2 Pre-listening to Sounds ............................................................................................. 170
4.2.3 Renaming Sound Slots .............................................................................................. 171
4.2.4 Changing the Sound’s Color ...................................................................................... 172
4.2.5 Saving Sounds ........................................................................................................... 173
4.2.6 Copying and Pasting Sounds ..................................................................................... 175
4.2.7 Moving Sounds .......................................................................................................... 178
4.2.8 Resetting Sound Slots ............................................................................................... 179
4.3.1 Creating Groups ........................................................................................................ 182
4.3.2 Loading Groups ......................................................................................................... 184
4.3.3 Renaming Groups ...................................................................................................... 185
4.3.4 Changing the Group’s Color ....................................................................................... 186
4.3.5 Saving Groups ........................................................................................................... 187
4.3.6 Copying and Pasting Groups ..................................................................................... 189
4.3.7 Reordering Groups ..................................................................................................... 193
4.3.8 Deleting Groups ......................................................................................................... 194
4.4.1 Saving a Group with its Samples ............................................................................... 195
4.4.2 Saving a Project with its Samples ............................................................................. 197
4.4.3 Exporting Audio ......................................................................................................... 199
MASCHINE MIKRO - Manual - 7
Table of Contents
4.5.1 Loading REX Files into Sound Slots ........................................................................... 205
4.5.2 Importing MPC Programs to Groups ........................................................................... 206
5 Playing on the Controller ...........................................................................................
5.1 Adjusting the Pads ..................................................................................................................... 210
5.2 Adjusting the Key, Choke, and Link Parameters for Multiple Sounds .......................................... 221
5.3 Adjusting the Base Key ............................................................................................................... 222
5.4 Playing Tools .............................................................................................................................. 223
5.5 Performance Features ................................................................................................................. 235
5.1.1 The Pad View in the Software .................................................................................... 210
5.1.2 Choosing a Pad Input Mode ....................................................................................... 212
5.1.3 Adjusting the Base Key .............................................................................................. 215
5.1.4 Using Choke Groups .................................................................................................. 216
5.1.5 Using Link Groups ..................................................................................................... 219
5.4.1 Mute and Solo ............................................................................................................ 224
5.4.2 Choke All Notes .......................................................................................................... 228
5.4.3 Groove ....................................................................................................................... 229
5.4.4 Level, Tempo, Tune, and Groove Shortcuts on Your Controller .................................... 231
5.5.1 Overview of the Perform Features .............................................................................. 235
5.5.2 Selecting a Scale and Creating Chords ..................................................................... 237
5.5.3 Scale and Chord Parameters ..................................................................................... 238
5.5.4 Creating Arpeggios and Repeated Notes ................................................................... 249
5.5.5 Swing on Note Repeat / Arp Output ........................................................................... 250
6 Working with Plug-ins ...............................................................................................
210
251
6.1 Plug-in Overview ........................................................................................................................ 251
6.1.1 Plug-in Basics ........................................................................................................... 251
6.1.2 First Plug-in Slot of Sounds: Choosing the Sound’s Role ........................................... 255
MASCHINE MIKRO - Manual - 8
Table of Contents
6.2 The Sampler Plug-in ................................................................................................................... 0
6.3 Using Native Instruments and External Plug-ins ........................................................................ 0
6.1.3 Loading, Removing, and Replacing a Plug-in ............................................................ 256
6.1.4 Adjusting the Plug-in Parameters ............................................................................. 0
6.1.5 Bypassing Plug-in Slots ............................................................................................ 0
6.1.6 Using Side-Chain ...................................................................................................... 0
6.1.7 Moving Plug-ins ........................................................................................................ 0
6.1.8 Alternative: the Plug-in Strip ..................................................................................... 0
6.1.9 Saving and Recalling Plug-in Presets ....................................................................... 0
6.1.9.1 Saving Plug-in Presets .............................................................................. 0
6.1.9.2 Recalling Plug-in Presets .......................................................................... 0
6.1.9.3 Removing a Default Plug-in Preset ............................................................ 0
6.2.1 Page 1: Voice Settings / Engine ................................................................................. 0
6.2.2 Page 2: Pitch / Envelope ............................................................................................ 0
6.2.3 Page 3: FX / Filter ...................................................................................................... 0
6.2.4 Page 4: Modulation .................................................................................................... 0
6.2.5 Page 5: LFO ............................................................................................................... 0
6.2.6 Page 6: Velocity / Modwheel ...................................................................................... 0
6.3.1 Opening/Closing Plug-in Windows ............................................................................. 0
6.3.2 Using the VST/AU Plug-in Parameters ....................................................................... 0
6.3.3 Setting Up Your Own Parameter Pages ...................................................................... 0
6.3.4 Using VST/AU Plug-in Presets .................................................................................... 0
6.3.5 Multiple-Output Plug-ins and Multitimbral Plug-ins ................................................. 0
7 Using the Audio Plug-in .............................................................................................
0
7.1 Loading a Loop into the Audio Plug-in ........................................................................................ 0
7.2 Using Loop Mode ........................................................................................................................ 0
MASCHINE MIKRO - Manual - 9
7.3 Using Gate Mode ........................................................................................................................ 306
8 Using the Drumsynths ................................................................................................
8.1 Drumsynths – General Handling ................................................................................................. 309
8.2 The Kicks .................................................................................................................................... 313
8.3 The Snares ..................................................................................................................................332
8.1.1 Engines: Many Different Drums per Drumsynth ......................................................... 309
8.1.2 Common Parameter Organization .............................................................................. 309
8.1.3 Shared Parameters .................................................................................................... 312
8.1.4 Various Velocity Responses ....................................................................................... 312
8.1.5 Pitch Range, Tuning, and MIDI Notes ........................................................................ 312
8.2.1 Kick – Sub ................................................................................................................. 315
8.2.2 Kick – Tronic .............................................................................................................. 317
8.2.3 Kick – Dusty .............................................................................................................. 320
8.2.4 Kick – Grit ................................................................................................................. 321
8.2.5 Kick – Rasper ............................................................................................................ 324
8.2.6 Kick – Snappy ............................................................................................................ 325
8.2.7 Kick – Bold ................................................................................................................ 327
8.2.8 Kick – Maple .............................................................................................................. 329
8.2.9 Kick – Push ............................................................................................................... 330
8.3.1 Snare – Volt ............................................................................................................... 334
8.3.2 Snare – Bit ................................................................................................................ 336
8.3.3 Snare – Pow .............................................................................................................. 338
8.3.4 Snare – Sharp ........................................................................................................... 339
8.3.5 Snare – Airy ............................................................................................................... 341
8.3.6 Snare – Vintage ......................................................................................................... 343
8.3.7 Snare – Chrome ......................................................................................................... 345
Table of Contents
308
MASCHINE MIKRO - Manual - 10
Table of Contents
8.4 The Hi-hats .................................................................................................................................353
8.5 The Toms .................................................................................................................................... 363
8.6 The Percussions ..........................................................................................................................374
8.7 The Cymbals ............................................................................................................................... 385
8.3.8 Snare – Iron ............................................................................................................... 347
8.3.9 Snare – Clap ............................................................................................................. 349
8.3.10 Snare – Breaker ......................................................................................................... 351
8.4.1 Hi-hat – Silver ........................................................................................................... 354
8.4.2 Hi-hat – Circuit ......................................................................................................... 356
8.4.3 Hi-hat – Memory ........................................................................................................ 358
8.4.4 Hi-hat – Hybrid ......................................................................................................... 360
8.4.5 Creating a Pattern with Closed and Open Hi-hats ..................................................... 362
8.5.1 Tom – Tronic .............................................................................................................. 365
8.5.2 Tom – Fractal ............................................................................................................ 367
8.5.3 Tom – Floor ................................................................................................................ 371
8.5.4 Tom – High ................................................................................................................ 373
8.6.1 Percussion – Fractal .................................................................................................. 376
8.6.2 Percussion – Kettle .................................................................................................... 379
8.6.3 Percussion – Shaker .................................................................................................. 381
8.7.1 Cymbal – Crash ......................................................................................................... 387
8.7.2 Cymbal – Ride ........................................................................................................... 389
9 Using the Bass Synth .................................................................................................
392
9.1 Bass Synth – General Handling .................................................................................................. 393
9.1.1 Parameter Organization ............................................................................................. 393
9.1.2 Bass Synth Parameters ............................................................................................. 395
MASCHINE MIKRO - Manual - 11
Table of Contents
10 Working with Patterns ...............................................................................................
10.1 Pattern Basics ............................................................................................................................ 397
10.2 Recording Patterns in Real Time ................................................................................................ 417
10.3 Recording Patterns with the Step Sequencer .............................................................................. 425
10.4 Editing Events ............................................................................................................................ 433
10.1.1 Pattern Editor Overview ............................................................................................. 398
10.1.2 Navigating the Event Area ......................................................................................... 401
10.1.3 Following the Playback Position in the Pattern .......................................................... 403
10.1.4 Jumping to Another Playback Position in the Pattern ................................................. 405
10.1.5 Group View and Keyboard View .................................................................................. 406
10.1.6 Adjusting the Arrange Grid and the Pattern Length ................................................... 409
10.1.7 Adjusting the Step Grid and the Nudge Grid .............................................................. 412
10.2.1 Recording Your Patterns Live ..................................................................................... 417
10.2.2 The Record Prepare Mode .......................................................................................... 420
10.2.3 Using the Metronome ................................................................................................. 421
10.2.4 Recording with Count-in ............................................................................................ 422
10.2.5 Quantizing while Recording ....................................................................................... 424
10.3.1 Step Mode Basics ...................................................................................................... 425
10.3.2 Editing Events in Step Mode ...................................................................................... 431
10.4.1 Editing Events with the Mouse: an Overview ............................................................. 434
10.4.2 Creating Events/Notes ............................................................................................... 437
10.4.3 Selecting Events/Notes .............................................................................................. 438
10.4.4 Editing Selected Events/Notes ................................................................................... 441
10.4.5 Deleting Events/Notes ............................................................................................... 444
10.4.6 Cut, Copy, and Paste Events/Notes ............................................................................ 447
10.4.7 Quantizing Events/Notes ........................................................................................... 450
397
MASCHINE MIKRO - Manual - 12
Table of Contents
10.5 Recording and Editing Modulation ............................................................................................. 458
10.6 Creating MIDI Tracks from Scratch in MASCHINE ....................................................................... 467
10.7 Managing Patterns ..................................................................................................................... 469
10.8 Importing/Exporting Audio and MIDI to/from Patterns ................................................................ 488
10.4.8 Quantization While Playing ........................................................................................ 452
10.4.9 Doubling a Pattern .................................................................................................... 453
10.4.10 Adding Variation to Patterns ..................................................................................... 453
10.5.1 Which Parameters Are Modulatable? ......................................................................... 459
10.5.2 Recording Modulation ................................................................................................ 460
10.5.3 Creating and Editing Modulation in the Control Lane ................................................ 462
10.7.1 The Pattern Manager and Pattern Mode .................................................................... 470
10.7.2 Selecting Patterns and Pattern Banks ....................................................................... 472
10.7.3 Creating Patterns ...................................................................................................... 474
10.7.4 Deleting Patterns ....................................................................................................... 476
10.7.5 Creating and Deleting Pattern Banks ........................................................................ 478
10.7.6 Naming Patterns ....................................................................................................... 480
10.7.7 Changing the Pattern’s Color .................................................................................... 483
10.7.8 Duplicating, Copying, and Pasting Patterns .............................................................. 484
10.7.9 Moving Patterns ........................................................................................................ 487
10.7.10 Adjusting Pattern Length in Fine Increments ............................................................. 488
10.8.1 Exporting Audio from Patterns ................................................................................... 488
10.8.2 Exporting MIDI from Patterns ..................................................................................... 490
10.8.3 Importing MIDI to Patterns ........................................................................................ 492
11 Audio Routing, Remote Control, and Macro Controls ....................................................
501
11.1 Audio Routing in MASCHINE ....................................................................................................... 502
11.1.1 Sending External Audio to Sounds ............................................................................. 503
MASCHINE MIKRO - Manual - 13
Table of Contents
11.2 Using MIDI Control and Host Automation .................................................................................... 526
11.3 Creating Custom Sets of Parameters with the Macro Controls ................................................... 548
11.1.2 Configuring the Main Output of Sounds and Groups ................................................. 508
11.1.3 Setting Up Auxiliary Outputs for Sounds and Groups ................................................. 513
11.1.4 Configuring the Master and Cue Outputs of MASCHINE ............................................. 517
11.1.5 Mono Audio Inputs ..................................................................................................... 522
11.1.5.1 Configuring External Inputs for Sounds in Mix View ..................................523
11.1.5.2 Configuring External Inputs for Sounds in MASCHINE MIKRO ....................526
11.2.1 Triggering Sounds via MIDI Notes .............................................................................. 527
11.2.2 Triggering Scenes via MIDI ........................................................................................ 534
11.2.3 Controlling Parameters via MIDI and Host Automation .............................................. 535
11.2.4 Selecting VST/AU Plug-in Presets via MIDI Program Change ..................................... 543
11.2.5 Sending MIDI from Sounds ........................................................................................ 544
11.3.1 Macro Control Overview ............................................................................................. 549
11.3.2 Assigning Macro Controls Using the Software ........................................................... 550
12 Controlling Your Mix ..................................................................................................
12.1 Mix View Basics .......................................................................................................................... 557
12.2 The Mixer .................................................................................................................................... 560
12.1.1 Switching between Arrange View and Mix View ......................................................... 557
12.1.2 Mix View Elements ..................................................................................................... 558
12.2.1 Displaying Groups vs. Displaying Sounds .................................................................. 561
12.2.2 Adjusting the Mixer Layout ........................................................................................ 563
12.2.3 Selecting Channel Strips ........................................................................................... 564
12.2.4 Managing Your Channels in the Mixer ....................................................................... 565
12.2.5 Adjusting Settings in the Channel Strips ................................................................... 567
12.2.6 Using the Cue Bus ..................................................................................................... 572
557
MASCHINE MIKRO - Manual - 14
12.3 The Plug-in Chain .......................................................................................................................574
12.4 The Plug-in Strip ........................................................................................................................ 575
12.4.1 The Plug-in Header .................................................................................................... 577
12.4.2 Panels for Drumsynths and Internal Effects .............................................................. 579
12.4.3 Panel for the Sampler ................................................................................................ 580
12.4.4 Custom Panels for Native Instruments Plug-ins ........................................................ 583
12.4.5 Undocking a Plug-in Panel (Native Instruments and External Plug-ins Only) ............ 587
13 Using Effects .............................................................................................................
13.1 Applying Effects to a Sound, a Group or the Master .................................................................... 590
13.2 Applying Effects to External Audio .............................................................................................. 604
13.3 Creating a Send Effect ............................................................................................................... 611
13.4 Creating Multi-Effects ................................................................................................................ 618
13.1.1 Adding an Effect ........................................................................................................ 590
13.1.2 Other Operations on Effects ....................................................................................... 599
13.1.3 Using the Side-Chain Input ....................................................................................... 601
13.2.1 Step 1: Configure MASCHINE Audio Inputs ................................................................ 604
13.2.2 Step 2: Set up a Sound to Receive the External Input ................................................ 607
13.2.3 Step 3: Load an Effect to Process an Input ................................................................ 609
13.3.1 Step 1: Set Up a Sound or Group as Send Effect ........................................................ 611
13.3.2 Step 2: Route Audio to the Send Effect ...................................................................... 615
13.3.3 A Few Notes on Send Effects ...................................................................................... 617
14 Effect Reference ........................................................................................................
Table of Contents
590
621
14.1 Dynamics ....................................................................................................................................622
14.1.1 Compressor ............................................................................................................... 622
14.1.2 Gate ........................................................................................................................... 626
14.1.3 Transient Master ....................................................................................................... 629
MASCHINE MIKRO - Manual - 15
Table of Contents
14.2 Filtering Effects .......................................................................................................................... 639
14.3 Modulation Effects ..................................................................................................................... 648
14.4 Spatial and Reverb Effects ......................................................................................................... 656
14.5 Delays .........................................................................................................................................670
14.1.4 Limiter ....................................................................................................................... 631
14.1.5 Maximizer .................................................................................................................. 636
14.2.1 EQ .............................................................................................................................. 639
14.2.2 Filter .......................................................................................................................... 642
14.2.3 Cabinet ...................................................................................................................... 646
14.3.1 Chorus ....................................................................................................................... 648
14.3.2 Flanger ...................................................................................................................... 649
14.3.3 FM ............................................................................................................................. 651
14.3.4 Freq Shifter ................................................................................................................ 653
14.3.5 Phaser ....................................................................................................................... 654
14.4.1 Ice ............................................................................................................................. 656
14.4.2 Metaverb ................................................................................................................... 657
14.4.3 Reflex ........................................................................................................................ 659
14.4.4 Reverb (Legacy) ......................................................................................................... 660
14.4.5 Reverb ....................................................................................................................... 662
14.4.5.1 Reverb Room .............................................................................................663
14.4.5.2 Reverb Hall ................................................................................................666
14.4.5.3 Plate Reverb ..............................................................................................668
14.5.1 Beat Delay ................................................................................................................. 670
14.5.2 Grain Delay ................................................................................................................ 673
14.5.3 Grain Stretch ............................................................................................................. 675
14.5.4 Resochord .................................................................................................................. 677
MASCHINE MIKRO - Manual - 16
14.6 Distortion Effects ........................................................................................................................ 679
14.7 Perform FX .................................................................................................................................. 688
14.6.1 Distortion ................................................................................................................... 679
14.6.2 Lofi ............................................................................................................................ 681
14.6.3 Saturator ................................................................................................................... 682
14.6.4 Analog Distortion ....................................................................................................... 686
14.7.1 Filter .......................................................................................................................... 689
14.7.2 Flanger ...................................................................................................................... 691
14.7.3 Burst Echo ................................................................................................................. 693
14.7.4 Reso Echo .................................................................................................................. 695
14.7.5 Ring ........................................................................................................................... 698
14.7.6 Stutter ....................................................................................................................... 700
14.7.7 Tremolo ...................................................................................................................... 703
14.7.8 Scratcher ................................................................................................................... 706
15 Working with the Arranger .........................................................................................
Table of Contents
709
15.1 Arranger Basics .......................................................................................................................... 709
15.2 Using Ideas View ........................................................................................................................ 717
15.1.1 Navigating the Arranger ............................................................................................ 712
15.1.2 Following the Playback Position in Your Project ......................................................... 714
15.1.3 Jumping to Other Sections ......................................................................................... 715
15.2.1 Scene Overview .......................................................................................................... 718
15.2.2 Creating Scenes ........................................................................................................ 719
15.2.3 Assigning and Removing Patterns ............................................................................. 720
15.2.4 Selecting Scenes ....................................................................................................... 723
15.2.5 Deleting Scenes ......................................................................................................... 724
15.2.6 Creating and Deleting Scene Banks .......................................................................... 726
MASCHINE MIKRO - Manual - 17
Table of Contents
15.3 Using Song View ......................................................................................................................... 734
15.2.7 Clearing Scenes ......................................................................................................... 726
15.2.8 Duplicating Scenes .................................................................................................... 727
15.2.9 Reordering Scenes ..................................................................................................... 728
15.2.10 Making Scenes Unique .............................................................................................. 729
15.2.11 Appending Scenes to Arrangement ............................................................................ 730
15.2.12 Naming Scenes .......................................................................................................... 732
15.2.13 Changing the Color of a Scene .................................................................................. 733
15.3.1 Section Management Overview .................................................................................. 734
15.3.2 Creating Sections ...................................................................................................... 736
15.3.3 Assigning a Scene to a Section .................................................................................. 737
15.3.4 Selecting Sections and Section Banks ....................................................................... 738
15.3.5 Reorganizing Sections ............................................................................................... 742
15.3.6 Adjusting the Length of a Section .............................................................................. 744
15.3.6.1 Adjusting the Length of a Section Using the Software ...............................745
15.3.6.2 Adjusting the Length of a Section Using the Controller .............................747
15.3.7 Clearing a Pattern in Song View ................................................................................ 747
15.3.8 Duplicating Sections ................................................................................................. 747
15.3.8.1 Making Sections Unique ............................................................................749
15.3.9 Removing Sections .................................................................................................... 750
15.3.10 Renaming Scenes ...................................................................................................... 751
15.3.11 Clearing Sections ...................................................................................................... 752
15.3.12 Creating and Deleting Section Banks ........................................................................ 753
15.3.13 Working with Patterns in Song view ........................................................................... 753
15.3.13.1 Creating a Pattern in Song View ................................................................753
15.3.13.2 Selecting a Pattern in Song View ...............................................................754
MASCHINE MIKRO - Manual - 18
Table of Contents
15.4 Playing with Sections ................................................................................................................. 759
15.5 Triggering Sections or Scenes via MIDI ....................................................................................... 761
15.6 The Arrange Grid .........................................................................................................................763
15.7 Quick Grid ...................................................................................................................................765
15.3.14 Enabling Auto Length ................................................................................................ 755
15.3.15 Looping ...................................................................................................................... 757
15.4.1 Jumping to another Playback Position in Your Project ............................................... 759
15.3.13.3 Clearing a Pattern in Song View ................................................................754
15.3.13.4 Renaming a Pattern in Song View ............................................................. 754
15.3.13.5 Coloring a Pattern in Song View ................................................................ 754
15.3.13.6 Removing a Pattern in Song View ..............................................................755
15.3.13.7 Duplicating a Pattern in Song View ...........................................................755
15.3.15.1 Setting the Loop Range in the Software .....................................................757
15.3.15.2 Setting the Loop Range Using the Controller .............................................758
16 Sampling and Sample Mapping ..................................................................................
16.1 Opening the Sample Editor ......................................................................................................... 767
16.2 Recording Audio ......................................................................................................................... 769
16.3 Editing a Sample ........................................................................................................................ 787
16.4 Slicing a Sample ........................................................................................................................ 802
16.2.1 Opening the Record Page .......................................................................................... 770
16.2.2 Selecting the Source and the Recording Mode ........................................................... 771
16.2.3 Arming, Starting, and Stopping the Recording .......................................................... 779
16.2.5 Checking Your Recordings ......................................................................................... 783
16.2.6 Location and Name of Your Recorded Samples .......................................................... 787
16.3.1 Using the Edit Page ................................................................................................... 788
16.3.2 Audio Editing Functions ............................................................................................. 794
767
MASCHINE MIKRO - Manual - 19
Table of Contents
16.5 Mapping Samples to Zones ........................................................................................................ 822
16.4.1 Opening the Slice Page .............................................................................................. 803
16.4.2 Adjusting the Slicing Settings ................................................................................... 804
16.4.3 Live Slicing ................................................................................................................ 809
16.4.3.1 Live Slicing Using MASCHINE MIKRO .........................................................809
16.4.3.2 Delete All Slices .........................................................................................810
16.4.4 Manually Adjusting Your Slices ................................................................................. 811
16.4.5 Applying the Slicing ................................................................................................... 816
16.5.1 Opening the Zone Page .............................................................................................. 822
16.5.2 Zone Page Overview ................................................................................................... 823
16.5.3 Selecting and Managing Zones in the Zone List ........................................................ 825
16.5.4 Selecting and Editing Zones in the Map View ............................................................ 830
16.5.5 Editing Zones in the Sample View ............................................................................. 834
16.5.6 Adjusting the Zone Settings ...................................................................................... 837
16.5.7 Adding Samples to the Sample Map .......................................................................... 844
17 Appendix: Tips for Playing Live ..................................................................................
17.1 Preparations ............................................................................................................................... 847
17.2 Basic Techniques ....................................................................................................................... 849
17.1.1 Focus on the Hardware .............................................................................................. 847
17.1.2 Customize the Pads of the Hardware ......................................................................... 847
17.1.3 Check Your CPU Power Before Playing ....................................................................... 847
17.1.4 Name and Color Your Groups, Patterns, Sounds and Scenes ..................................... 848
17.1.5 Consider Using a Limiter on Your Master ................................................................... 848
17.1.6 Hook Up Your Other Gear and Sync It with MIDI Clock ................................................ 848
17.1.7 Improvise ................................................................................................................... 848
17.2.1 Use Mute and Solo ..................................................................................................... 849
847
MASCHINE MIKRO - Manual - 20
Table of Contents
17.3 Special Tricks ............................................................................................................................. 850
17.2.2 Use Scene Mode and Tweak the Loop Range .............................................................. 849
17.2.3 Create Variations of Your Drum Patterns in the Step Sequencer ................................ 849
17.2.4 Use Note Repeat ........................................................................................................ 849
17.2.5 Set Up Your Own Multi-effect Groups and Automate Them ........................................ 850
17.3.1 Changing Pattern Length for Variation ...................................................................... 850
17.3.2 Using Loops to Cycle Through Samples ..................................................................... 850
17.3.3 Load Long Audio Files and Play with the Start Point .................................................. 850
18 Troubleshooting ........................................................................................................
18.1 Knowledge Base ......................................................................................................................... 851
18.2 Technical Support .......................................................................................................................851
18.3 Registration Support .................................................................................................................. 852
18.4 User Forum ................................................................................................................................. 852
19 Glossary ...................................................................................................................
Index ........................................................................................................................
851
853
861
MASCHINE MIKRO - Manual - 21
Welcome to MASCHINE
1 Welcome to MASCHINE
Thank you for buying MASCHINE!
MASCHINE is a groove production studio that implements the familiar working style of classical groove boxes along with the advantages of a computer based system. MASCHINE is ideal
for making music live, as well as in the studio. It’s the hands-on aspect of a dedicated instrument, the MASCHINE hardware controller, united with the advanced editing features of the
MASCHINE software.
Creating beats is often not very intuitive with a computer, but using the MASCHINE hardware
controller to do it makes it easy and fun. You can tap in freely with the pads or use Note Repeat to jam along. Alternatively, build your beats using the step sequencer just as in classic
drum machines.
Patterns can be intuitively combined and rearranged on the fly to form larger ideas. You can try
out several different versions of a song without ever having to stop the music.
Since you can integrate it into any sequencer that supports VST, AU, or AAX plug-ins, you can
reap the benefits in almost any software setup, or use it as a stand-alone application. You can
sample your own material, slice loops and rearrange them easily.
However, MASCHINE is a lot more than an ordinary groovebox or sampler: it comes with an
inspiring 7-gigabyte library, and a sophisticated, yet easy to use tag-based Browser to give you
instant access to the sounds you are looking for.
What’s more, MASCHINE provides lots of options for manipulating your sounds via internal effects and other sound-shaping possibilities. You can also control external MIDI hardware and
3rd-party software with the MASCHINE hardware controller, while customizing the functions of
the pads, knobs and buttons according to your needs utilizing the included Controller Editor
application. We hope you enjoy this fantastic instrument as much as we do. Now let’s get going!
—The MASCHINE team at Native Instruments.
MASCHINE MIKRO - Manual - 22
Welcome to MASCHINE
MASCHINE Documentation
1.1 MASCHINE Documentation
Native Instruments provide many information sources regarding MASCHINE. The main documents should be read in the following sequence:
1. MASCHINE Getting Started: This document provides a practical approach to MASCHINE via
a set of tutorials covering easy and more advanced tasks in order to help you familiarize
yourself with MASCHINE.
2. MASCHINE Manual (this document): The MASCHINE Manual provides you with a compre-
hensive description of all MASCHINE software and hardware features.
Additional documentation sources provide you with details on more specific topics:
▪ Controller Editor Manual: Besides using your MASCHINE hardware controller together with
its dedicated MASCHINE software, you can also use it as a powerful and highly versatile
MIDI controller to pilot any other MIDI-capable application or device. This is made possible
by the Controller Editor software, an application that allows you to precisely define all MIDI
assignments for your MASCHINE controller. The Controller Editor was installed during the
MASCHINE installation procedure. For more information on this, please refer to the Controller Editor Manual available as a PDF file via the Help menu of Controller Editor.
▪ Online Support Videos: You can find a number of support videos on The Official Native In-
struments Support Channel under the following URL: https://www.youtube.com/NIsupport-
EN. We recommend that you follow along with these instructions while the respective ap-
plication is running on your computer.
Other Online Resources: If you are experiencing problems related to your Native Instruments
product that the supplied documentation does not cover, there are several ways of getting help:
▪ Knowledge Base
▪ User Forum
▪ Technical Support
▪ Registration Support
You will find more information on these subjects in the chapter Troubleshooting.
MASCHINE MIKRO - Manual - 23
Welcome to MASCHINE
Document Conventions
MASCHINE documents are available in PDF. You can also access these documents from the application’s Help menu or the following location:
www.native-instruments.com.
Please check the Native Instruments website regularly for up-to-date and localized versions of these
documents.
1.2 Document Conventions
This section introduces you to the signage and text highlighting used in this manual. This manual uses particular formatting to point out special facts and to warn you of potential issues.
The icons introducing these notes let you see what kind of information is to be expected:
This document uses particular formatting to point out special facts and to warn you of potential issues. The icons introducing the following notes let you see what kind of information can
be expected:
The speech bubble icon indicates a useful tip that may often help you to solve a task more efficiently.
The exclamation mark icon highlights important information that is essential for the given context.
The red cross icon warns you of serious issues and potential risks that require your full attention.
Furthermore, the following formatting is used:
▪ Text appearing in (drop-down) menus (such as Open…, Save as… etc.) in the software and
paths to locations on your hard disk or other storage devices is printed in italics.
▪ Text appearing elsewhere (labels of buttons, controls, text next to checkboxes etc.) in the
software is printed in blue. Whenever you see this formatting applied, you will find the
same text appearing somewhere on the screen.
MASCHINE MIKRO - Manual - 24
Welcome to MASCHINE
New Features in MASCHINE 2.7.4
▪ Text appearing on the displays of the controller is printed in light grey. Whenever you see
this formatting applied, you will find the same text on a controller display.
▪ Text appearing on labels of the hardware controller is printed in orange. Whenever you see
this formatting applied, you will find the same text on the controller.
▪ Important names and concepts are printed in bold.
▪ References to keys on your computer’s keyboard you’ll find put in square brackets (e.g.,
“Press [Shift] + [Enter]”).
► Single instructions are introduced by this play button type arrow.
→ Results of actions are introduced by this smaller arrow.
Naming Convention
Throughout the documentation we will refer to MASCHINE controller (or just controller) as the
hardware controller and MASCHINE software as the software installed on your computer.
The term “effect” will sometimes be abbreviated as “FX” when referring to elements in the MASCHINE software and hardware. These terms have the same meaning.
Button Combinations and Shortcuts on Your Controller
Most instructions will use the “+” sign to indicate buttons (or buttons and pads) that must be
pressed simultaneously, starting with the button indicated first. E.g., an instruction such as:
“Press SHIFT + PLAY”
means:
1. Press and hold SHIFT.
2. While holding SHIFT, press PLAY and release it.
3. Release SHIFT.
1.3 New Features in MASCHINE 2.7.4
The following new features have been added to MASCHINE:
MASCHINE MIKRO - Manual - 25
Welcome to MASCHINE
New Features in MASCHINE 2.7.4
Audio Plug-in Improvements
▪ Added a new Target parameter to the Loop recording mode of the Sampling Page which de-
termines what should be done with a new recording when the recording is complete. Take
simply adds the new recording to the Audio Pool of the current plug-in, Sound puts the
new recording into an Audio plug-in in the next unoccupied Sound Slot (useful for layering
the recording with whatever else is in the current Pattern, like a guitar looper pedal), and
Pattern puts the new recording into an Audio plug-in in the next unoccupied Sound Slot
and additionally creates a new Pattern where only this loop is being played (useful for capturing different versions of a part and quickly reviewing them by switching Patterns). For
more information, refer to ↑16.2, Recording Audio.
▪ Added a new workflow to MASCHINE JAM which automates the use of the new Target pa-
rameter for fast sampling and layering. Holding the IN 1 button enables this new Loop Recording mode (it’s also helpful to pin this mode on by holding IN 1 and pressing the SONG
button). While this new Loop Recording mode is active, pressing an existing Pattern will
trigger a recording of a new loop which is then added as a new Sound in the existing Pattern; doing this repeatedly allows you to quickly layer recordings on top of each other. Alternatively, pressing an empty Pattern button will trigger a recording and will then place
that recording in a new Sound Slot and a new Pattern will be created where only the new
loop is playing back. When pressing the IN 1 button, External Input 1 is selected as the
source for the recording. Pressing GRP while in the Loop Recording mode will select the
focused Group as the source. Pressing MST will select MASCHINE’s Master output as the
source (for resampling what is currently playing). For more information, refer to the MASCHINE JAM Manual available from Help menu.
▪ Added footswitch control of Sampling. When in the Sampling page, or when the Loop Re-
cording mode is enabled on MASCHINE JAM, a connected footswitch can be used to control recording. Pressing the footswitch will arm a recording according to the current settings. Pressing the footswitch again before recording has actually started will cancel the recording. If recording is in progress, pressing the footswitch once will stop the recording,
double-pressing will abort the recording (any recorded audio to that point will be discarded). If the recording is complete, holding the footswitch down for a few moments will trigger Undo so you can try another take. For more information, refer to the MASCHINE JAM
Manual available from Help menu, or to the following section when using MASCHINE MK3
or MASCHINE STUDIO: Using the Footswitch for Recording Audio.
MASCHINE MIKRO - Manual - 26
Welcome to MASCHINE
New Features in MASCHINE 2.7.4
▪ Improved the automatic tempo detection of the Audio plug-in so that it now chooses a tem-
po that’s closest to your current project tempo. For example, if your project tempo is 170
BPM and you load a loop which should be 174 BPM, MASCHINE will now set the Source
Tempo as 174 BPM instead of 87 BPM as it did previously.
▪ Added a Re-Pitch sync mode to the Audio plug-in which simply retunes/repitches the loop
(like speeding up or slowing down a record) to make it conform to the Project tempo. This
mode requires significantly less CPU power than the default mode, but you will not be able
to retune the loop at all (any pitches programmed in Gate mode will be ignored—only the
timing of the programmed notes will be used to gate the playing audio). For more information refer to ↑7, Using the Audio Plug-in.
MASCHINE MK3 Improvements
▪ Added Ableton Live DAW Integration for MASCHINE MK3 - Mixer and basic DAW Control.
Access Ableton Live Mixer via MASCHINE MK3 hardware: Volume, Pan, Mute / Solo / Arm
states are visible on screens. Also access essential controls: Play / Stop / Record / Session
record, Clip Navigation, Launch & Record, Quantize, Undo / Redo, Automation Toggle, Tap
Tempo, and Loop Toggle. For more information refer to Host Integration.
General Improvements
▪ Improved the Take management system (previously called “Recording History”) for the
Sampler and Audio plug-ins such that Takes are now saved and recalled as part of the
Project.
▪ Improved external audio recording by implementing basic recording latency compensation.
This compensation will be in effect when recording from an External Input and with the
Monitoring parameter turned Off. The system currently works based upon the overall latency reported by the selected audio interface.
▪ Removed the function where a right click will remove Events in the Pattern Editor. Instead,
the context menu is opened. Events can still be deleted using double-click as well as using
the "Paint" and "Erase" tools. For more information refer to ↑10.4.5, Deleting Events/Notes.
▪ Changed the behavior of right-click in the Arranger. This no longer removes Patterns from
Scenes. It now opens a context menu with many useful options for arranging. For more information on using the Pattern context menu within Song view refer to ↑15.3.13, Working
with Patterns in Song view.
MASCHINE MIKRO - Manual - 27
Welcome to MASCHINE
New Features in MASCHINE 2.7.3
▪ Improved behavior and cursor icons for resizing Events in the Pattern Editor. The active
area for resizing Events is increased.
1.4 New Features in MASCHINE 2.7.3
The following new features have been added to MASCHINE:
Audio Plug-in Improvements
▪ Added the ability to enable and disable Audio plug-in playback per Pattern when in Loop
mode. Double-clicking the waveform will toggle playback for the selected Pattern. Alternatively, the loops can be enabled or disabled via the STEP page on the hardware controllers.
For more details see ↑7.2, Using Loop Mode.
▪ Added a Loop recording mode to the Record tab, and the Record tab is now available for
both Sampler and Audio plug-ins. When choosing the new Loop mode, the start of recording will be quantized to the start of the Pattern. Furthermore, when the recording is complete, the loop will automatically be loaded into an Audio plug-in and will immediately begin playback. For more details see ↑16.2, Recording Audio.
MASCHINE Controller Improvements
▪ Added Ideas View on MASCHINE MK3 and MASCHINE STUDIO. Access Ideas view with
the MASCHINE MK3 hardware. For more details see ↑15.2, Using Ideas View.
▪ Added Event Editing on MASCHINE MK3 with 4-Directional Encoder. Select, nudge, pitch-
shift and change the length of notes with the 4-Directional Encoder in the events window
(on hardware screens). For more details see ↑10.4, Editing Events.
▪ Added Apple Logic DAW Integration for MASCHINE MK3, Mixer and basic DAW Control.
◦ Access Logic Mixer via MASCHINE MK3 hardware (Volume, Pan, Mute / Solo states
are visible on screens).
◦ Access Essential Controls: Play / Stop / Record / Quantize, Undo / Redo, Automation
Toggle, Tap Tempo, and Loop Toggle.
MASCHINE MIKRO - Manual - 28
Welcome to MASCHINE
New Features in MASCHINE 2.7.3
General Improvements
▪ Added additional Scales from KOMPLETE KONTROL into MASCHINE. For more details see
↑5.5.2, Selecting a Scale and Creating Chords.
▪ Added loading of Perform FX at the end of a Group plug-in chain.
▪ Fixed an issue the broke Pattern Duplicate on the MASCHINE MIKRO.
▪ Fixed an issue where the MASCHINE Transport Loop would influence Ideas View playback
when hosted in a DAW.
▪ Fixed a crash that could occur when zooming horizontally in the Arranger with special char-
acters in Section names.
▪ Fixed some issues around renaming Scenes and Sections.
▪ Removed 32-bit versions of standalone application and plug-in.
▪ Added Velocity Curves to Controller Editor for MASCHINE MK3.
▪ Removed the modal dialog at startup that suggests to download sound preview files from
Native Access. The preview files are still available for installation in Native Access.
MASCHINE MIKRO - Manual - 29
Basic Concepts
Important Names and Concepts
2 Basic Concepts
This chapter will reintroduce you to MASCHINE’s main elements and terminology and explain
how they relate to one another. You will also learn how to set up your audio interface and how
to connect MIDI devices.
Before reading this chapter it is strongly recommended that you read the MASCHINE Getting Started first.
2.1 Important Names and Concepts
We will start with a list defining the most important concepts and names.
Arranger View
The Arranger is the big area located in the upper part of the MASCHINE window, right under
the Header. On its left you can select Groups. The Arranger allows you to combine Sections
(references to Scenes), and arrange them into a song.
Browser
The Browser is the front end for accessing all the elements of your MASCHINE Projects:
Projects, Groups, Sounds, instruments and effect presets, and Samples. Each of these can be
stored and tagged in a way that allows you easy access to all of them. MASCHINE’s factory
library is already completely tagged, as well as factory libraries of any Native Instruments products installed on your computer. You can also import your own files to the Library and tag them
as well. To learn more about the Browser, please read chapter ↑3, Browser.
Ideas View
The Ideas view allows you to experiment with your musical ideas without being tied to a timeline or arrangement. You can create Patterns for each Group and combine them into a Scene.
Scenes can then be added to Sections in the Arranger view to create a larger musical structure.
MASCHINE MIKRO - Manual - 30
Basic Concepts
Important Names and Concepts
Project
A Project contains all data needed for a song: Groups with their Patterns, all Scenes and all
settings, modulation, effects, routings, Sounds and Samples. It’s like a snapshot of the entire
state of MASCHINE. Please read the MASCHINE Getting Started for a complete overview of
the MASCHINE Project structure.
Sound
Sounds are the building blocks of all sound content in MASCHINE. A Sound is made up of any
number of Plug-ins. Each Sound of the selected Group is mapped to one of the 16 pads on the
hardware controller, so you can play the Sounds by pressing the pads. Refer to chapter ↑4,
Managing Sounds, Groups, and Your Project for more information on Sounds.
Group
A Group contains 16 Sound slots. In addition to the Effect Plug-ins applied to each individual
Sound, a Group can have its own insert effect. These affect all the Sounds in the Group. A
Group can also contain any number of Patterns (grouped into banks of 16 Patterns each). Refer to chapter ↑4, Managing Sounds, Groups, and Your Project for more information on Groups.
Master
This is where all audio signals from each of the Groups and Sounds come together and get
mixed. The Master channel can also host any number of insert effects of its own, these effects
are applied to all Groups and the Sounds within them. More information on the Master can be
found in chapter ↑4, Managing Sounds, Groups, and Your Project.
Pattern
A Pattern is a sequence that plays Sounds from a Group. It belongs to that Group and will be
saved together with the Group. In every Scene you can choose for each Group which of its Patterns has to be played. More information on Patterns can be found in chapter ↑10, Working
with Patterns.
MASCHINE MIKRO - Manual - 31
Basic Concepts
Important Names and Concepts
Scene
A Scene is a combination of Patterns for each Group. They can be used to combine Patterns in
order to create musical ideas. Scenes are created in the Ideas view and then added to Sections
in the Arranger view to create an arrangement. Refer to chapter ↑15.3, Using Song View for
more information on Scenes.
Section
A Section is a reference to a specific Scene on the Timeline of the Arranger view. They are
used to arrange the Scenes into a larger musical structure. The benefit of using Sections is
that any changes made to a Scene are replicated in each Section where the Scene is referenced therefore making the process of changing parts of a song quick and easy.
Event
Events are the individual drum hits or notes that make up a Pattern. In the Pattern Editor,
events are visually represented by rectangles in the Event area. Depending on the current view
in the Pattern Editor, you can see events for all Sounds slots (Group view) or for the selected
Sound slot only (Keyboard view). Events are described in more detail in chapter ↑10, Working
with Patterns.
Plug-in
Each Sound, each Group, and the Master can hold any number of Plug-ins. Plug-ins can be
instruments or effects, and they can be internal (included with MASCHINE), from other Native
Instruments products (instruments or effects), or external (third-party VST/AU plug-ins). Instrument and Effect Plug-ins can be loaded in the first Plug-in slot of Sounds. The other Plug-in
slots of Sounds, as well as the Plug-in slots of Groups and of the Master can hold Effect Plugins only. At each level (Sound, Group, and Master), Plug-ins process the audio in series, according to the order in which they are stacked up. Refer to chapter ↑6, Working with Plug-ins.
Effect
MASCHINE comes with many different effects in the form of Internal Plug-ins. You may also
use Native Instruments or third-party VST/AU effect plug-ins. Each Sound, each Group, and
the Master can hold any number of effects that will be applied as insert effects. The flexible
routing system also allows you to create send effects, multi-effects, and side-chains. For more
MASCHINE MIKRO - Manual - 32
Basic Concepts
Adjusting the MASCHINE User Interface
details on using effects in MASCHINE, refer to chapter ↑13, Using Effects. You will find an
exhaustive description of all internal effects included in MASCHINE in chapter ↑14, Effect
Reference.
Please refer to chapter ↑19, Glossary at the end of this Manual for more definitions!
2.2 Adjusting the MASCHINE User Interface
The MASCHINE software user interface is very flexible. You can choose what to display and
what not, allowing you to focus on your workflow. This section shows you how to adjust the MASCHINE GUI to suit your needs.
2.2.1 Adjusting the Size of the Interface
From the View menu in the Application Menu Bar and from the View submenu in the MASCHINE menu you can select one of four different sizes to display MASCHINE’s software GUI:

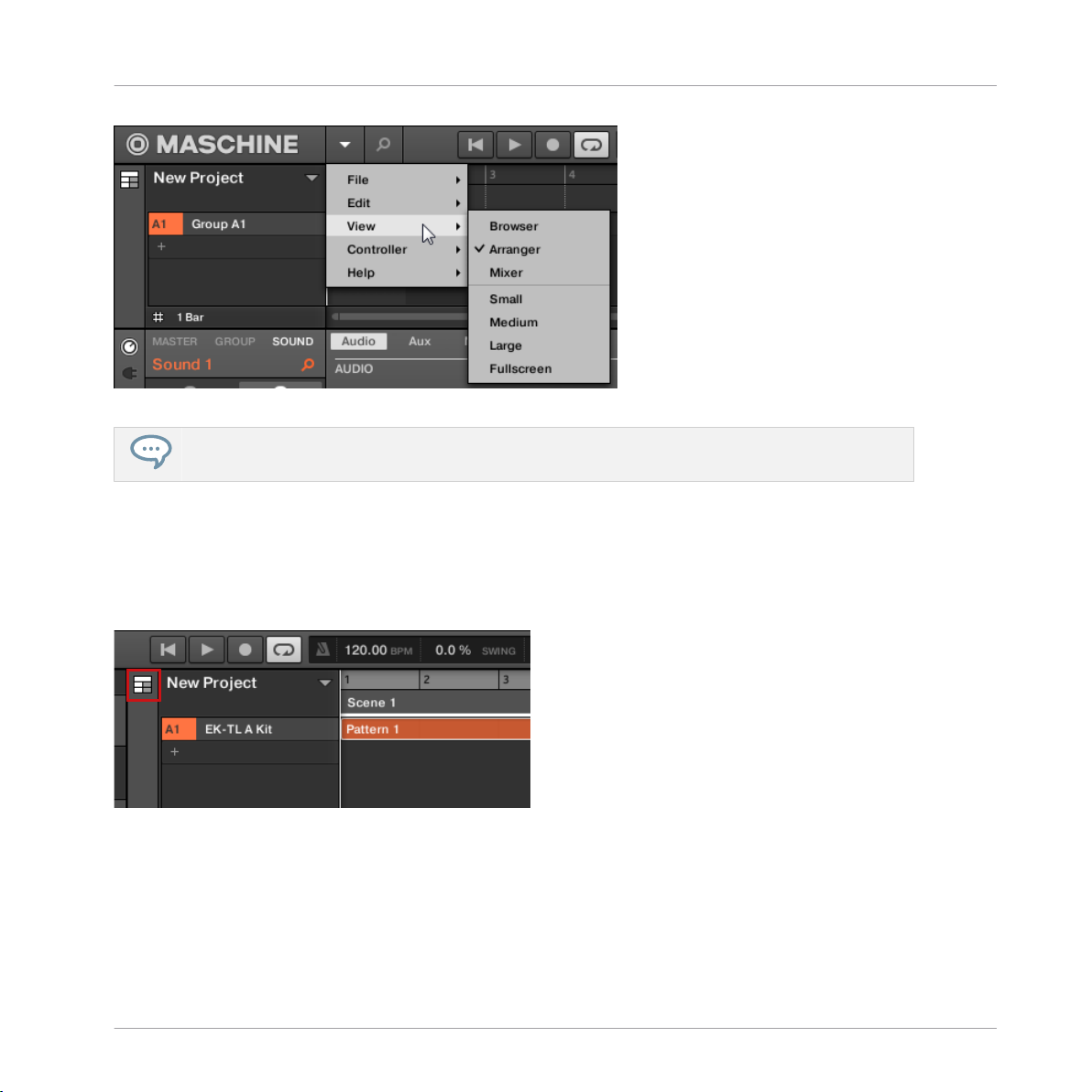

The View menu in the Application Menu Bar (Windows depicted).
MASCHINE MIKRO - Manual - 33
Basic Concepts
Adjusting the MASCHINE User Interface
The View submenu in the MASCHINE menu.
Full screen view is also available from your computer keyboard via [Ctrl]+[F] (macOS: [Cmd]+[F]).
2.2.2 Switching between Ideas View and Arranger View
At any time you can quickly switch between the Ideas view and the Arranger view, using the
Arranger View button.
The Arranger View button in the top left corner.
► Click the Arranger View button to toggle between the Ideas view and Arranger view.
→ The Arrangement area switches from Ideas view (default view) to Arranger view. Click the
button again to return back to Ideas view.
MASCHINE MIKRO - Manual - 34
Basic Concepts
Adjusting the MASCHINE User Interface
For more information about Ideas view and Arranger view see ↑15.3, Using Song View.
Switching between Ideas View and Arranger View using the Controller
On your controller:
▪ Press SHIFT + SCENE to quickly toggle between Ideas view and Arranger view.
▪ The software switches between Ideas view and Arranger view.
2.2.3 Showing/Hiding the Browser
► Click the Browser button (with the magnifier symbol) in the Header to show and hide the
Browser. You can also select Browser from the View menu in the Application Menu Bar or
from the View submenu in the MASCHINE menu.
The Browser button in the Header.
You can also show/hide the Browser from your computer keyboard via the [F4] function key.
Showing/Hiding the Browser on the Controller
Press VIEW + pad 13 to show/hide the Browser.
2.2.4 Minimizing the Mixer
When MASCHINE is in Mix view, you can minimize/maximize the Mixer in the top part of the
MASCHINE window:
► Click the arrow button at the bottom left of the Mixer to show and hide the channel de-
tails in the Mixer.
MASCHINE MIKRO - Manual - 35
Minimizing/maximizing the Mixer.
Minimizing the Mixer on the MASCHINE Controller
Press VIEW + pad 15 to show/hide the channel details in the Mixer.
Basic Concepts
Adjusting the MASCHINE User Interface
2.2.5 Showing/Hiding the Control Lane
When MASCHINE is in Arrange view, you can show/hide the Control Lane under the Pattern
Editor:
► Click the arrow button on the bottom left of the Pattern Editor to show and hide the Con-
trol Lane.
MASCHINE MIKRO - Manual - 36
Click the arrow button at the bottom left of the Pattern Editor to show/hide the Control Lane.
Showing/Hiding the Control Lane on the Controller
► Press VIEW + pad 14 to show/hide the Control Lane.
Basic Concepts
Common Operations
2.3 Common Operations
This sections introduces a few very common operations in MASCHINE you will encounter in
numerous situations.
2.3.1 Pinning a Mode on the Controller
Besides the default Control mode, your controller has various other modes of operation, which
you can enter by pressing their dedicated buttons. Depending on their purpose and workflow,
these controller modes are of two types:
▪ Temporary modes only stay active as long as you hold down their button on the controller.
When you release the button, your controller returns to Control mode. This is for example
the case with the MUTE button.
MASCHINE MIKRO - Manual - 37
Basic Concepts
Common Operations
▪ Permanent modes stay active even if you release their button. To deactivate them, you must
press their button a second time. This is for example the case with the BROWSE button.
But in some situations you might want to release the mode button of a temporary mode without leaving that mode, e.g., to free your hand and tweak other controls more easily. For this
purpose, MASCHINE lets you pin (or “lock”) temporary modes so that they behave like permanent modes.
► To pin a mode on your controller, press the relevant mode button (SCENE, PATTERN,
etc.) + MAIN.
→ Now the mode is always pinned when you select it.
► To unpin a mode (i.e. make it a temporary mode again), press its mode button + MAIN
again.
→ Now the mode will only be active as long as you hold the mode button.
Here is a list of all buttons on your controller that you can pin by pressing MAIN simultaneously:
▪ All buttons in the column at the left of the pads (SCENE, PATTERN, …, SOLO, MUTE)
▪ GRID button
▪ NOTE REPEAT button
2.3.2 Undo/Redo
Undoing and re-doing your last actions can be useful to cancel operations you have performed
or to compare two versions before and after a change. You can undo nearly everything you did
after loading or creating your Project.
Note: If you save your Project, you will no longer be able to undo or redo any actions performed before saving!
MASCHINE provides two different undo/redo features, each of them being suited for specific
situations:
▪ Step Undo allows you to cancel your last single action.
MASCHINE MIKRO - Manual - 38
Basic Concepts
Common Operations
▪ Take Undo allows you to cancel your last group of actions.
Step Undo
Step Undo/Redo is the classic undo/redo found in most applications. It cancels or re-executes
each single action you have performed.
In the software use the following keyboard shortcuts for the Step Undo and Step Redo functions:
► To cancel your last action (Step Undo), press [Ctrl]+[Shift]+[Z] ([Cmd]+ [Shift]+ [Z] on
macOS). To re-execute your last action (Step Redo), press [Ctrl]+ [Shift]+ [Y] ([Cmd]+
[Shift]+ [Y] on macOS). You can also select Undo Step and Redo Step from the Edit
menu in the Application Menu Bar or from the Edit submenu in the MASCHINE menu.
The commands in the Edit menu additionally shows which action will be undone/redone!
Take Undo
Suppose you have just recorded a 16th-note hi-hat beat over four bars, but then decide to cancel it. Normally you would have to cancel the 64 notes one at a time, repeatedly calling the
undo function 64 times in a row. This is what Take Undo has been made for!
Take Undo/Redo is an extended undo/redo available while recording that allows you to cancel
or re-execute a whole group of actions at once.
Take Undo/Redo is the default undo/redo in MASCHINE. In the software use the common keyboard shortcuts for the Undo and Redo functions:
► To cancel your last group of actions, press [Ctrl]+[Z] ([Cmd]+[Z] on macOS). To re-exe-
cute your last group of actions, press [Ctrl]+[Y] ([Cmd]+[Y] on macOS). You can also select Undo and Redo from the Edit menu in the Application Menu Bar or from the Edit
submenu in the MASCHINE menu.
The commands in the Edit menu additionally shows which action will be undone/redone!
MASCHINE MIKRO - Manual - 39
Basic Concepts
Common Operations
Undo/Redo on the Controller
Both Step Undo and Take Undo are also available on your controller:
1. On the MASCHINE MIKRO hardware controller, perform the Take Undo operation by
pressing SHIFT + pad 1 (UNDO). To perform the Take Redo operation, press SHIFT + pad
2 (REDO).
2. On the MASCHINE MIKRO hardware controller, perform the Step Undo operation by
pressing SHIFT + pad 3 (STEP UNDO). To perform the Step Redo operation, press SHIFT
+ pad 4 (STEP REDO).
Take Undo is available in following situations:
▪ Recording in Control mode
▪ Recording in Step mode
▪ Recording modulation
Outside of these three situations, Take Undo has the same effect as Step Undo (see above).
2.3.3 Focusing on a Group or a Sound
To display the content and parameters of a particular Sound or Group, you first need to put it
in focus.
Setting the focus on a Sound or Group is slightly different than selecting it: The focus defines
what will be displayed, whereas the selection defines what will be affected by your edits. Note
that a focused Sound/Group is always selected. The distinction is of importance because you
can select multiple Sounds or Groups to apply your edits to all of them at once! See section
↑4.1.3, Selecting Multiple Sounds or Groups for more on this.
We show here how to put Sounds and Groups in focus when the MASCHINE software is in Arrange
view (default view). For instructions on putting Sounds and Groups in focus in Mix view, please refer to chapter ↑12.2.3, Selecting Channel Strips.
MASCHINE MIKRO - Manual - 40
Basic Concepts
Common Operations
Setting the Focus on a Group
► To put a Group in focus, click this Group in the Group List of the Arranger:
→ The focused Group is highlighted. The Pattern Editor displays the Sounds and Patterns of
that Group.
MASCHINE MIKRO - Manual - 41
Basic Concepts
Common Operations
The focused Group is highlighted and the Pattern Editor show its content.
If the desired Group does not appear in the Group List, use the scroll bar at the right end of the
Arranger or turn your mouse wheel while hovering the Arranger to display any hidden Groups. You
can also extend the Arranger by dragging its lower right corner vertically with the mouse.
You can also select multiple Groups at once to apply changes to all of them. See section ↑4.1.3,
Selecting Multiple Sounds or Groups for more information.
Setting the Focus on a Sound
To put a Sound in focus:
MASCHINE MIKRO - Manual - 42
Basic Concepts
Common Operations
1. Set the focus to the Group containing the desired Sound by clicking it in the Group List
on the left of the Arranger (see above).
The focused Group is highlighted. The Pattern Editor displays the Sounds and Patterns of
that Group.
2. Click the desired Sound slot in the Sound List of the Pattern Editor:
→ The focused Sound slot is highlighted.
The focused Sound slot is highlighted.
MASCHINE MIKRO - Manual - 43
Basic Concepts
Common Operations
If the desired Sound does not appear in the Sound List, use the scroll bar at the right end of the
Pattern Editor or turn your mouse wheel while hovering the Pattern Editor to display any hidden
Sounds.
You can also select multiple Sounds at once to apply changes to all of them. See section ↑4.1.3,
Selecting Multiple Sounds or Groups for more information.
Focusing on a Group using the Hardware
1. If necessary, press GROUP + the Left or Right Arrow button below the display to switch to
the Group bank containing that Group.
2. Press GROUP + the pad 9–16 of the desired Group.
→ The corresponding Group is now in focus.
Once the Group is focused you can use F1–F3 above the display to quickly switch between the
Master, the focused Group and the last focused Sound in that Group! See section ↑2.3.4,
Switching Between the Master, Group, and Sound Level for more information.
You can also select multiple Groups at once to apply changes to all of them. See section ↑4.1.3,
Selecting Multiple Sounds or Groups for more information.
Setting the Focus on a Sound using the Hardware
1. If you want to set the focus on a Sound located in another Group, first select its Group as
described above.
2. Hold SELECT.
3. While holding SELECT, press F1 (QUIET) to enter Sound selection.
4. While holding SELECT, press the pad of the desired Sound.
→ The selected Sound is now in focus.
If the pads on your controller are in Group mode, simply press the pad of the desired Sound to set
the focus on that Sound!
MASCHINE MIKRO - Manual - 44
Basic Concepts
Common Operations
Once the Sound is focused you can use F1–F3 above the display to quickly switch between the
Master, the containing Group and the focused Sound!
You can also select multiple Sounds at once to apply changes to all of them. See section ↑4.1.3,
Selecting Multiple Sounds or Groups for more information.
2.3.4 Switching Between the Master, Group, and Sound Level
At any time you can quickly switch the Control area between the parameters of the Master, the
focused Group, and the focused Sound.
Click the desired tab to switch the display of the Control area.
► Click the MASTER, GROUP or SOUND tab in the top left corner of the Control area to dis-
play the Plug-in parameters or Channel properties of the Master, the focused Group or the
focused Sound, respectively.
→ The selected tab lights up. The name of your Project, the focused Group or the focused
Sound appears under the MASTER, GROUP, and SOUND tabs (the Muddy Matt Sound in
the picture above), and the rest of the Control area displays the Plug-in parameters and
Channel properties of the Master, the focused Group or the focused Sound, respectively.
Switching Between the Master, Group, and Sound Level using the Controller
On your controller:
1. Press the MAIN button once or twice (it must be unlit) to enter Control mode.
2. Press F1 (MASTER), F2 (GROUP) or F3 (SOUND) above the display to show the Plug-in
parameters and Channel properties of the Master, the focused Group or the focused
Sound, respectively.
MASCHINE MIKRO - Manual - 45
Basic Concepts
Common Operations
→ The selected tab lights up. The name of your Project, the focused Group or the focused
Sound appears on the display (under the MASTER, GROUP, and SOUND tabs), and the
display shows the Plug-in parameters and Channel properties of the Master, the focused
Group or the focused Sound, respectively.
2.3.5 Navigating Channel Properties, Plug-ins, and Parameter Pages in the Control Area
We describe here how to display/edit any Plug-in parameters or Channel properties located in
any Sound, Group or the Master.
To select a particular Plug-in or a particular set of Channel properties, you first need to display
the parameters of the Master, the desired Group or Sound.
1. To display the parameters of a particular Group or Sound, put it in focus by clicking it in
the Group List or Sound List, respectively (see section ↑2.3.3, Focusing on a Group or a
Sound).
2. In the top left corner of the Control area, click the MASTER, GROUP or SOUND tab to
display the parameters of the Master, the focused Group or the focused Sound, respectively.
→ The Control area now displays the Plug-in parameters and Channel properties of the de-
sired Sound, desired Group or the Master.
Selecting Channel Properties
1. At the far left of the Control area, click the Channel icon (showing a little knob) to display
the Channel properties:
The button lights up. The Channel Property selector appears in the left part of the Control
MASCHINE MIKRO - Manual - 46
Basic Concepts
Common Operations
area, showing a square of four buttons representing the various sets of Channel properties
available for the selected Sound, Group or the Master:
2. Click the desired button (Input, Output, Groove, or Macro) in the Channel Property selector to select that set of Channel properties.
→ The selected button is highlighted and the parameters of the selected Channel properties
appear in the Parameter area (the right and biggest part of the Control area).
Selecting a Plug-in
1. At the far left of the Control area, click the little Plug-in icon to display the Plug-ins:
The icon lights up. The Plug-in List appears in the left part of the Control area, showing a
stack of all Plug-ins loaded in the selected Sound, Group or the Master:
2. Click the desired Plug-in slot in the Plug-in List to select that Plug-in.
→ The parameters of the selected Plug-in appear in the Parameter area (the right and biggest
part of the Control area).
MASCHINE MIKRO - Manual - 47
Basic Concepts
Common Operations
If the Plug-in List only shows a “+” sign, it means that there are no Plug-ins loaded in this Sound,
Group or the Master. Clicking the “+” sign allows you to load a new Plug-in: see section ↑6.1.3,
Loading, Removing, and Replacing a Plug-in for more on this.
Navigating Parameter Pages
In some situations, the selected Plug-in or Channel properties provide more parameters than
the display(s) of your controller and the Parameter area in the software can show at once. Examples of this are the parameters for the Groups’ or Sounds’ Output properties and those for
the Sampler Plug-in. In these cases, the parameters are divided into several Parameter pages
that you can easily navigate with the hardware and software.
In the software the names of the available pages are displayed at the top of the Parameter
area. The name of the page currently displayed is highlighted.
► Click the desired page name at the top of the Parameter area to show the corresponding
Parameter page.
The Parameter pages of the Sound’s Output properties: Audio (currently displayed), Aux, and MIDI.
If all page names cannot be displayed at once at the top of the Parameter area, two small arrows are displayed on the left to click through the pages:
► Click the left or right arrow to access additional pages.
MASCHINE MIKRO - Manual - 48
Basic Concepts
Common Operations
Adjusting the Parameters
In the Parameter area, each parameter includes a control element and a label. Following types
of control elements are available:
Element Action
Knob: Click the knob and drag your mouse vertically to change
the parameter value. Hold [Shift] on your computer keyboard and
drag your mouse to adjust the value in finer increments.
Button: Click the button to switch its state. When the button is
enabled, it shows a small colored LED.
Selector: Click the displayed value to open the drop-down list,
and click another value in the list to select it.
Navigating Channel Properties, Plug-ins, and Parameter Pages using the Controller
On the MASCHINE MIKRO controller in Control mode you can use the buttons below and
above the display along with the Control encoder on its right to navigate through the parameters and Parameter pages of any Channel properties or Plug-in:
MASCHINE MIKRO - Manual - 49
Basic Concepts
Common Operations
The control elements around the display.
Depending on what is shown on the display, some of the buttons might be inactive — in that
case they are off. The active buttons (i.e. those that would do something if you would press
them) are always dimmed or fully lit.
To see and edit any parameter of any Channel properties or Plug-in in any Sound, Group, or
the Master, do the following:
1. Set the focus on the Sound, Group or the Master containing the desired Channel properties or Plug-in (see section ↑2.3.3, Focusing on a Group or a Sound).
2. Press F1 (MASTER), F2 (GROUP) or F3 (SOUND) to display the Plug-ins and Channel
properties of the Master, the focused Group or the focused Sound, respectively.
MASCHINE MIKRO - Manual - 50
Basic Concepts
Common Operations
3. Press NAV + F2 (CHNL.) to navigate Channel properties or NAV + F3 (PLUG-IN) to navigate Plug-ins.
4. While holding NAV, turn the Control encoder or press the dimmed pads to select another
set of Channel properties or another Plug-in.
5. Press NAV + Left/Right Arrow button to switch to another Parameter page of the selected
Channel properties or Plug-in.
When you release NAV you see the selected Parameter page of the selected Channel properties or Plug-in in the display:
MASCHINE MIKRO - Manual - 51
Basic Concepts
Common Operations
6. Press the Left/Right Arrow buttons under the display to select the previous/next parameter
of the selected page, if any.
7. Turn the Control encoder to change the value of the selected parameter. For continuous
parameters, press and turn the Control encoder to change the value in finer increments.
2.3.6 Using Two or More Hardware Controllers
If two or more MASCHINE controllers of different types (MASCHINE STUDIO, MASCHINE MK3, MASCHINE MK2, MASCHINE MIKRO MK2, MASCHINE, MASCHINE MIKRO,
and MASCHINE JAM) are connected to your computer, only one controller can be used to control the MASCHINE software at a time.
If you have more than one instance of the MASCHINE software running on your computer, you can
control each instance with a different controller. See ↑2.5.3, Controlling Various Instances with Dif-
ferent Controllers for more information.
A controller not connected to any MASCHINE software instance can be used in MIDI mode (i.e. as a
MIDI controller) at the same time as the other controller(s). See the Controller Editor Manual for
more information on MIDI mode.
You can choose which controller you want to use with the MASCHINE software. This can be
done both from your controller and in the software.
MASCHINE MIKRO - Manual - 52
Basic Concepts
Common Operations
You can select the desired controller from the Controller menu in the Application Menu Bar or
from the Controller submenu in the MASCHINE menu:
Click the MASCHINE menu and select the controller you want to use.
Hardware
On the controller you want to use with the MASCHINE software, do the following:
▪ MASCHINE (MK3) controller: Press SHIFT + PLUG-IN, turn the 4-D encoder to select the
desired instance, and press the 4-D encoder or Button 4 to load it.
▪ MASCHINE STUDIO controller: Press SHIFT + PLUG-IN, turn the jog wheel to select the
desired instance, and press the jog wheel or Button 8 to load it.
▪ MASCHINE (MK1 & MK2) controller: Press SHIFT + STEP, turn Knob 8 (or press But-
ton 5/6) to select the desired instance, and press Button 8 to load it.
▪ MASCHINE MIKRO (MK1 & MK2) controller: Press SHIFT + F2, turn the Control encoder
to select the desired instance, and press the Control encoder to load it.
MASCHINE MIKRO - Manual - 53
Basic Concepts
Native Kontrol Standard
▪ MASCHINE JAM controller: Press SHIFT + H (INSTANCE), turn the Control encoder to se-
lect the desired instance, and press the Control encoder to load it.
▪ KOMPLETE KONTROL Keyboard MK1: Press INSTANCE and turn the Control encoder to
select the desired instance, and press the Control encoder to load it.
▪ KOMPLETE KONTROL Keyboard MK2: Press INSTANCE and turn the 4-D encoder to se-
lect the desired instance, and press the 4-D encoder to load it.
2.4 Native Kontrol Standard
Native Kontrol Standard (NKS) is a software instrument format that allows third-party developers to integrate with MASCHINE and KOMPLETE KONTROL hardware and software at the
same deep level as KOMPLETE Instruments.
The Native Kontrol Standard includes:
▪ Seamless integration into the MASCHINE and KOMPLETE KONTROL Browser for a unified
browsing experience.
▪ Full parameter mapping for instant hands-on control.
▪ Support of KOMPLETE KONTROL S-SERIES features such as the Light Guide.
NKS instruments can be found in the MASCHINE Browser next to your KOMPLETE Instruments. All of their presets are fully tagged, so filtering in the Browser gives you matching results from both KOMPLETE Instruments and NKS instruments (see section ↑3.2.6, Selecting
Type and Mode Tags). And when you load a preset from an NKS instrument, its parameters are
mapped to the controls on your KOMPLETE KONTROL S-SERIES keyboard in a meaningful
way, just like any preset from your KOMPLETE Instruments.
NKS instruments are automatically added to your Library when you start MASCHINE or KOMPLETE KONTROL for the first time after installing the instrument (except KONTAKT instruments with NKS support, see below). The folders containing the preset files for NKS support
can be managed in the Factory pane on the Library page of the Preferences (see section
↑2.6.5, Preferences – Library Page).
MASCHINE MIKRO - Manual - 54
Basic Concepts
Stand-Alone and Plug-in Mode
Installing KONTAKT Instruments with NKS Support
Third-party developers of KONTAKT instruments provide you with a folder that contains all instrument files, including presets and samples. Instead of running an installer, this folder needs
to be stored on the hard drive. The instrument can then be activated with Native Access, which
also adds it to the MASCHINE and KOMPLETE KONTROL Libraries. If you are using KONTAKT, the instrument is automatically added to your KONTAKT Browser too.
To activate your KONTAKT instrument with NKS support and add it to the MASCHINE Library,
follow the steps below:
1. Start the stand-alone version of the MASCHINE software.
2. In the File menu click on Manage Products….
3. Click on Add a serial in the top-left corner of Native Access.
4. Enter the serial number of the instrument and click ADD SERIAL.
5. Click BROWSE and open the folder containing the instrument files in the file dialog.
6. Click on INSTALL to add the instrument to your MASCHINE Library.
→ The instrument is installed. MASCHINE automatically scans for the new content and adds
it to the MASCHINE Browser.
The MASCHINE, and KOMPLETE KONTROL Libraries, and the KONTAKT Browser reference the instrument files contained in the folder. It is recommended to not delete or move the folder afterwards, or otherwise MASCHINE, KOMPLETE KONTROL, and KONTAKT will not be able to find the
instrument files. If an instrument cannot be found, use the Rescan function on the Preferences’
Library page to update the Library with the correct folder location (see section ↑2.6.5, Preferences
– Library Page).
2.5 Stand-Alone and Plug-in Mode
You can run the MASCHINE software as a stand-alone application or integrate it into your favorite host by loading it as a plug-in. The MASCHINE software is available in the VST, Audio
Unit, and AAX plug-in formats. For further information on plug-in compatibility and for a detailed description of how to use plug-ins in your host, please refer to the documentation included with your host software.
MASCHINE MIKRO - Manual - 55
Basic Concepts
Stand-Alone and Plug-in Mode
2.5.1 Differences between Stand-Alone and Plug-in Mode
Transport Functions
The most noticeable difference between the stand-alone and plug-in mode of MASCHINE relates to the interaction with MASCHINE’s sequencer. Indeed, when MASCHINE is used as a
plug-in within a host sequencer software (e.g., Cubase or Pro Tools), MASCHINE’s sequencer
is exclusively controlled by the host application: you cannot, e.g., manually start, stop or restart the playback in MASCHINE, nor modify the tempo or the time signature of your Project
within the MASCHINE plug-in itself — these are synchonized to your host’s own transport
functions and tempo settings. As a direct consequence, when MASCHINE is used as a plug-in
the Restart and Play buttons as well as the Tempo and Time Signature fields are grayed out
and inactive in the MASCHINE Header. Obviously you cannot control MASCHINE’s playback
and tempo settings from your MASCHINE controller either.
However from your controller you can directly control the transport functions of your host application instead. See section Controlling your Host’s Transport Functions in Plug-in Mode for more information.
Audio and MIDI Handling
When MASCHINE is used in stand-alone mode, it directly communicates with your audio and
MIDI interface. You can select which physical audio/MIDI ports have to be used on your interface, and configure crucial audio settings like the sample rate. All this is done via the Audio
and MIDI Settings panel (for more information on this, please refer to ↑2.7, Integrating MA-
SCHINE into a MIDI Setup).
On the contrary, When MASCHINE is used as a plug-in within a host application, the communication with your audio and MIDI interfaces is managed by the host — the MASCHINE plugin only communicates with the host. Native Instruments’ Online Knowledge Base provides
how-tos that will help you route the MASCHINE plug-in to multiple tracks/outputs in the major
hosts:
▪ How to route MASCHINE to multiple outputs in Ableton Live:
http://www.native-instruments.com/knowledge/questions/1705
MASCHINE MIKRO - Manual - 56
Basic Concepts
Stand-Alone and Plug-in Mode
▪ How to route MASCHINE to multiple outputs in Cubase:
http://www.native-instruments.com/knowledge/questions/1707
▪ How to route MASCHINE to multiple outputs in Pro Tools:
http://www.native-instruments.com/knowledge/questions/1709
▪ How to route MASCHINE to multiple outputs in Logic Pro:
http://www.native-instruments.com/knowledge/questions/1711
For all details on the audio and MIDI configuration of your host application, please refer to its documentation.
Multiple Plug-in Instances
When you are using MASCHINE as a plug-in within a host application, you can open multiple
MASCHINE instances. Actually, you can load as many instances of MASCHINE as your computer and your host application can handle CPU-wise. In contrast to the stand-alone application, they are always synced to the host. In plug-in mode you can also send MIDI Program
Change messages from your host to switch between MASCHINE’s Scenes or between patches
of other plug-ins loaded into MASCHINE, or record automation for MASCHINE parameters. To
learn more about these, have a look at chapter ↑15.5, Triggering Sections or Scenes via MIDI
and ↑11.2, Using MIDI Control and Host Automation.
2.5.2 Switching Instances
When two or more instances of the MASCHINE software are running (e.g., as plug-ins on different tracks of your DAW), you must choose which instance you want to control from your
hardware controller. You can do this both from your controller and in the software.
► To select your controller from a particular MASCHINE instance, click the Connect button
in the MASCHINE Header of that instance.

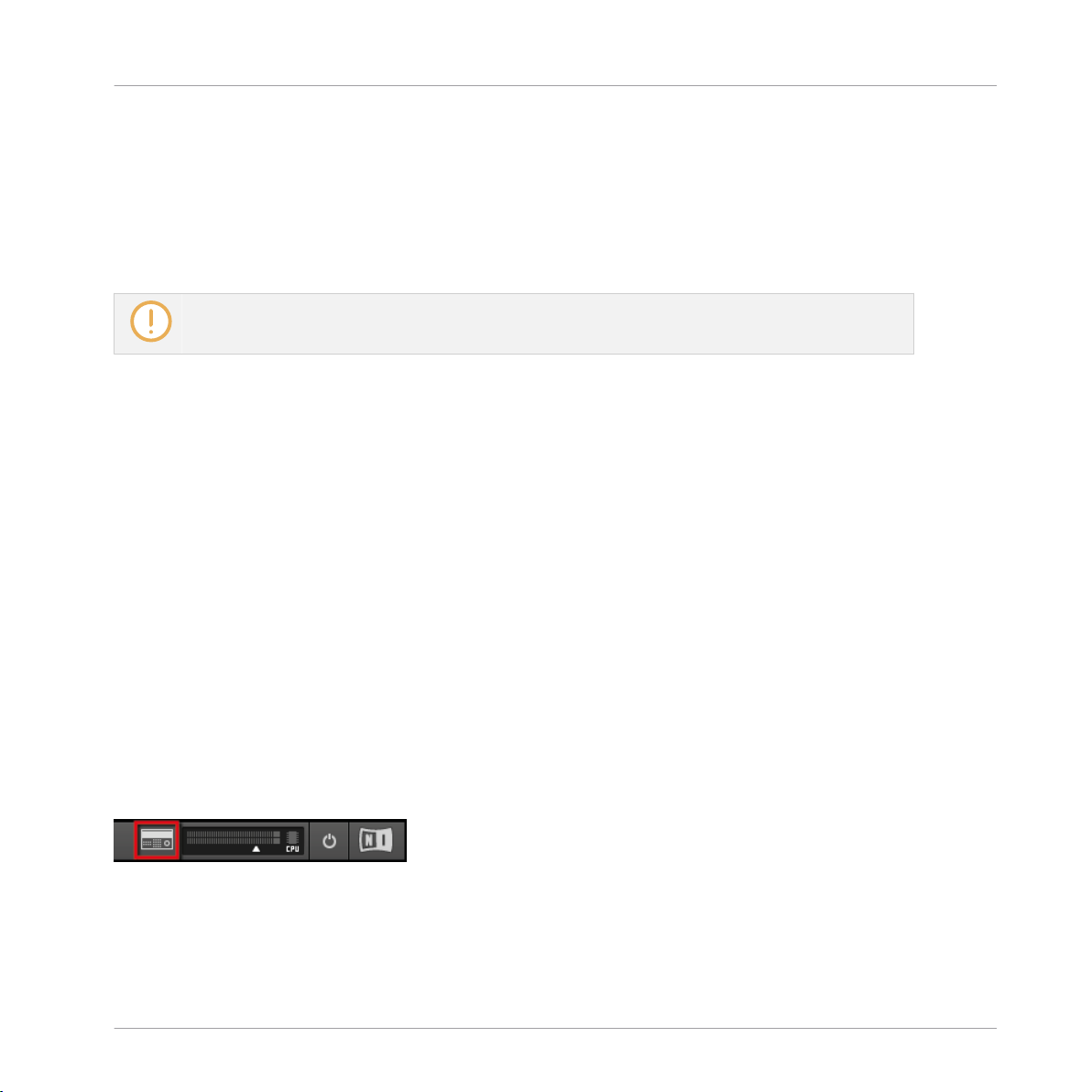

Click the Connect button to connect the controller to that instance.
Switching Instances using the Controller
To switch from one MASCHINE instance to another:
MASCHINE MIKRO - Manual - 57
Basic Concepts
Stand-Alone and Plug-in Mode
1. Press SHIFT + F2.
2. Turn the Control encoder to select the desired instance.
3. Press the Control encoder to load that instance.
2.5.3 Controlling Various Instances with Different Controllers
You can use two or more MASCHINE controllers of different types (MASCHINE STUDIO, MASCHINE MK3, MASCHINE MK2, MASCHINE MIKRO MK2, MASCHINE, and MASCHINE MIKRO) simultaneously with different instances of the MASCHINE software (possibly with one instance in stand-alone mode). In doing so, the following applies:
▪ Only one MASCHINE controller of any type can be connected to an instance at a time. You
can choose which instance you want to control from each controller as described in ↑2.5.2,
Switching Instances.
▪ When you start a new instance of the MASCHINE software, it connects to one of the MA-
SCHINE controllers according to following precedence rules:
◦ Rule 1: The MASCHINE STUDIO controller focus has priority over the MK3 controller,
which takes priority over all legacy controllers (MASCHINE MK2, MASCHINE MIKRO
MK2, MASCHINE and MASCHINE MIKRO).
◦ Rule 2: The MASCHINE controllers (legacy and MK3) have priority focus over MA-
SCHINE MIKRO controllers.
◦ Rule 1 has priority over rule 2.
2.6 Preferences
The Preferences panel lets you specify various settings for MASCHINE.
► To open the Preferences panel, click Preferences… in the Maschine menu (macOS) or
File menu (Windows) of the Application Menu Bar, or in the File submenu of the MA-
SCHINE menu:
MASCHINE MIKRO - Manual - 58
Basic Concepts
Preferences… in the File menu of the Application Menu Bar (Windows depicted), and in the File submenu of the MASCHINE menu.
The following pages are available in the Preferences panel:
▪ General: see ↑2.6.1, Preferences – General Page.
▪ Audio: see ↑2.6.2, Preferences – Audio Page.
Preferences
▪ MIDI: see ↑2.6.3, Preferences – MIDI Page.
▪ Default: see ↑2.6.4, Preferences – Default Page.
▪ Library: see ↑2.6.5, Preferences – Library Page.
▪ Plug-ins: see ↑2.6.6, Preferences – Plug-ins Page.
▪ Hardware: see ↑2.6.7, Preferences – Hardware Page.
▪ Colors: see ↑2.6.8, Preferences – Colors Page.
2.6.1 Preferences – General Page
The General page holds all of the global settings for MASCHINE.
► To display the General page, click the General tab on the left of the Preferences panel.
MASCHINE MIKRO - Manual - 59
Basic Concepts
Preferences
The Preferences – General page.
Setting
Description
Startup
Reload Last Project Click this checkbox to automatically reload the last Project on
startup.
Recording Audio
MASCHINE MIKRO - Manual - 60
Setting Description
Prefer Project Folder If this checkbox is marked, the Samples you record will be put
in a subdirectory of the folder where your Project is saved. If
not, your recordings will be saved in the generic Recordings
folder in your standard user directory (see section ↑2.6.4,
Preferences – Default Page).
Metronome
Enabled Check this box to activate the metronome. You can also enable
the metronome by clicking the Metronome button in the
MASCHINE Header, for more information see section: ↑10.2.3,
Using the Metronome.
Basic Concepts
Preferences
Auto-Enable when
Recording
Click the checkbox to enable the Auto-Enable option. This
automatically turns on the metronome when you start recording
a Pattern.
When you start recording a Pattern (typically by pressing REC on
your controller), the metronome is automatically enabled. When
you exit recording (e.g., by pressing the lit REC button) the
metronome returns to its state before the recording (this can be
on or off).
The Auto-Enable option can be activated/deactivated both in the
software and from your controller.
The Auto-Enable option does not affect the Count-in: Even if
Auto-Enable is disabled, the metronome turns on when you
press SHIFT + REC to start the Count-in. For more information
on configuring Count-in, refer to section: ↑10.2.4, Recording
with Count-in.
Volume
Click the slider to adjust the volume of the metronome.
Signature Select the time interval between each tick of the metronome. By
default the metronome indicates the beats (the quarter notes,
1/4). Here you can select another note value for the ticks.
MASCHINE MIKRO - Manual - 61
Setting Description
Count-in Length Select the duration of the Count-in, i.e. how long the
metronome will sound before the recording actually starts.
Link
Enabled Click the checkbox to enable the Link protocol by default.
Applications that support Ableton Link can join a Link session
when connected to the same network. For more information on
Link please refer to section: Syncing MASCHINE using Ableton
Link.
Input
Quantize Input Quantize automatically quantizes your input to
MASCHINE as you record.
Select one of the following Input Quantization modes:
None: Input Quantization is disabled. Events you play or record
on the pads are not quantized.
Record: Input Quantization is applied only when you record the
pads.
Play/Rec: Input Quantization is applied both when you play on
the pads and when you record them.
Basic Concepts
Preferences
In Play/Rec mode the quantization applied while playing is
slightly different from the quantization applied while recording:
When recording, all events are quantized to the closest step —
possibly ahead of the event. When playing, on the other hand,
events occurring in the first half of the steps are left untouched
(since you cannot bring them forward in the timeline!) whereas
events occurring in the second half of the steps are quantized to
the next step.
MASCHINE MIKRO - Manual - 62
Setting Description
Usage Data Tracking
Allow usage data tracking Here you can select to enable or disable Usage Data Tracking.
Usage Data Tracking technology enables MASCHINE to
automatically track anonymous usage data that you can choose
to share with us.
All users should keep Data Tracking enabled as it provides a
valuable tool for understanding the performance of Native
Instruments applications when they are used in real life
situations. The data sent to Native Instruments is one hundred
percent anonymous and will not affect performance.
For more detailed information about Usage Data Tracking,
please refer to the following Knowledge Base article on the
Native Instruments website:
https://support.native-instruments.com/hc/en-us/articles/
209545029
Basic Concepts
Preferences
2.6.2 Preferences – Audio Page
The Audio page holds settings related to your audio interface.
The Routings section allows you to configure the connections between the virtual inputs/outputs of MASCHINE and the physical inputs/outputs of your audio interface.
► To display the Audio page, click the Audio tab on the left of the Preferences panel.
MASCHINE MIKRO - Manual - 63
Basic Concepts
Preferences
Preferences – Audio page.
Setting
Description
Interface
Driver Select your audio driver from the drop-down menu.
Device Select the available devices if you have more than one audio
interface connected.
MASCHINE MIKRO - Manual - 64
Setting Description
Status This confirms whether your audio interface is currently running.
Sample Rate This displays the selected sample rate of your audio interface.
Please restart MASCHINE after changing the sample rate.
ASIO Config (Windows only) Click Open Panel to access specific controls related to your
audio interface. Please consult the documentation that came
with your audio interface for more information.
Latency macOS: This slider allows you to adjust the latency of your audio
interface in samples. Lower values result in a more immediate
playing response but are heavier on both the CPU and the audio
driver, and may result in audible clicks and pops. Larger values
are easier on the CPU, but introduce a larger latency (i.e., there
may be a small delay in sound playback when you play on the
pads). You should therefore experiment with this setting so that
it is as low as possible without overloading your CPU or
introducing any audio artifacts.
Windows: When using an ASIO driver, the Audio and MIDI
Settings panel displays an ASIO Config button instead of the
Latency slider. Click this button to open the settings window of
the selected ASIO driver.
Basic Concepts
Preferences
Routings
MASCHINE MIKRO - Manual - 65
Basic Concepts
Setting Description
Input Click Inputs to display the Routing Inputs. Here you can select
which inputs on your audio interface should be used for the four
stereo inputs of MASCHINE. Select the inputs of your audio
interface on the right column by clicking the fields: you will be
presented with a drop-down menu with all the available Inputs.
The choices made here will determine which inputs can be used
when sampling external sources, for example.
Output Click Output to display the Routing Outputs. Here you are
presented with a list of the 16 stereo outputs from MASCHINE:
In the right column, you can assign them to the outputs of your
audio interface. Click the fields in the right column to select the
desired outputs via a drop-down menu.
2.6.3 Preferences – MIDI Page
The MIDI page allows you to set up the MIDI input and output ports that you want to use with
MASCHINE.
Preferences
► To display the MIDI page, click the MIDI tab on the left of the Preferences panel.
MASCHINE MIKRO - Manual - 66
Basic Concepts
Preferences
The Preferences – MIDI page.
MASCHINE MIKRO - Manual - 67
Setting Description
Sync
Mode Click the drop-down menu to set the MIDI Sync mode preference
for MASCHINE:
Off: No MIDI sync mode is selected.
Master (Send Clock): If MASCHINE is running as a stand-alone
application, it can also send a MIDI Clock signal to any device that
is capable of receiving MIDI Clock. This could be hardware such as
a drum machine, another groove box, or even another software
sequencer.
Slave (Receive Clock): If MASCHINE is running as a stand-alone
application, it can be controlled externally via MIDI Clock by any
device that is capable of sending MIDI Clock. This could be
hardware such as a drum machine, another groove box or
sequencer, or even another software sequencer.
Please note that the Slave (Receive Clock) option is not available
when LINK is active. For more information on Link see Syncing
MASCHINE using Ableton Link.
Basic Concepts
Preferences
Clock Offset (appears
when Mode is set to
Slave)
Click and move the Clock Offset slider to compensate for delay that
may occur during MIDI data transmission. Delayed MIDI Clock data
will cause external devices to respond too late, thus making your
track sound out of sync.
By adjusting the Clock Offset value you can set an amount of
latency to be compensated (in milliseconds). MASCHINE will then
send MIDI Clock events ahead of time as defined.
Devices
Inputs Click Input to display a list of all the available MIDI inputs of your
system. You can activate/deactivate each input by clicking the
fields in the Status column, which displays the current status of the
corresponding port.
MASCHINE MIKRO - Manual - 68
Basic Concepts
Setting Description
Outputs Click Output to display a list of all the available MIDI outputs of
your system. You can activate/deactivate each output by clicking
the fields in the Status column, which displays the current status of
the corresponding port.
2.6.4 Preferences – Default Page
The Default page allows you to define the default settings that will be used for each new
Project.
► To display the Default page, click the Default tab on the left of the Preferences panel.
Preferences
MASCHINE MIKRO - Manual - 69
Basic Concepts
Preferences

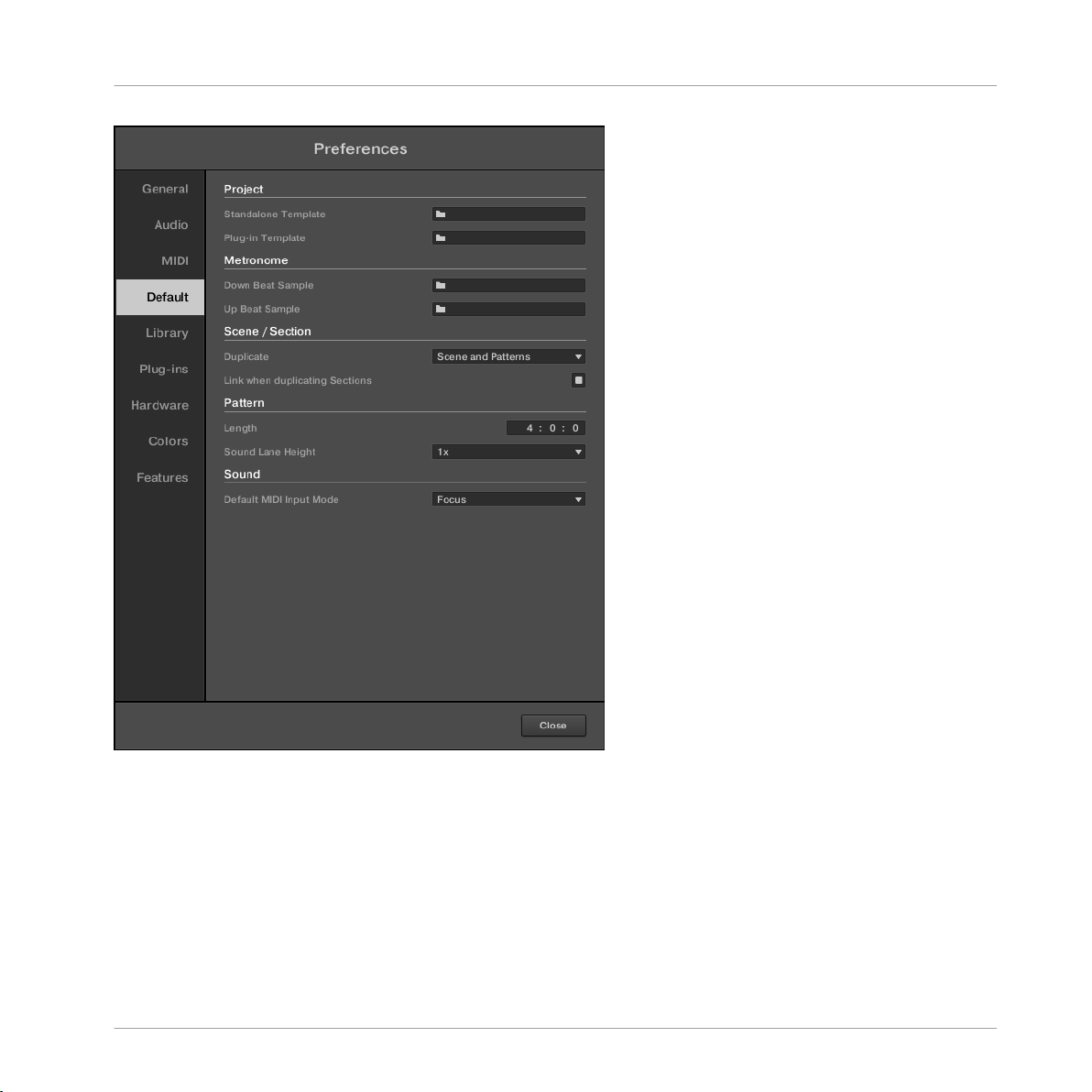

The Preferences – Default page.
MASCHINE MIKRO - Manual - 70
Setting Description
Project
Standalone Here you can select a Project to load automatically when you
start a new Project in MASCHINE used as a stand-alone
application. The field displays the location of the Template
Project selected for use. Click the folder icon to select another
Template Project. Any Project file can be used as a template;
this can be from the MASCHINE Library, or you could create a
file, for example with your preferred instruments and effects
already loaded into the Plug-in slots. If you have already set a
Template Project, click the cross icon to unset it and start new
Projects from scratch instead.
Plug-in Here you can select a Project to load automatically when
MASCHINE is used as a plug-in within a Digital Audio
Workstation. The field displays the location of the Template
Project selected for use. Click the folder icon to select another
Template Project. Any Project file can be used as a template;
this can be from the MASCHINE Library, or you can create a
file, for example with your preferred instruments and effects
loaded into the Plug-in slots. If you have already set a Template
Project, click the cross icon to unset it and start new Projects
from scratch instead.
Basic Concepts
Preferences
Metronome Settings
Down Beat Sample and Up
Beat Sample
Scene / Section
Here you can select audio files to be used as up and down beat
of the metronome, respectively. The fields display the locations
of the audio files selected for use. Click the fields to select
other files. Click the little crosses on the right of the fields to
remove the custom audio files and use the default metronome
sounds instead.
MASCHINE MIKRO - Manual - 71
Setting Description
Duplicate Select from the drop-down menu how the Duplicate function in
MASCHINE will operate when duplicating Scenes.
Scene Only
Only the Scene is duplicated. The result is a new unlinked
Scene with the same Patterns referenced.
Scene and Patterns
The Scene itself and additionally all Patterns are duplicated.
The new Scene and Patterns are now completely independent
from the originals.
Basic Concepts
Preferences
Link when duplicating
Sections
Click the checkbox to enable a linked copy of a Section when
using the Duplicate function. By default this feature is disabled.
When enabled, the Duplicate function will create a linked copy
of a Section. A linked copy will automatically be updated when
any instance of a linked Section is edited. This way, you don’t
need to keep track of which Section is the “original.”
Pattern
Length Enter the default length of new Patterns. The length is
measured in bars, beats, and sixteenths. To adjust the value,
click the desired number (bars, beats or sixteenths) and drag
your mouse vertically. For more information on Pattern Length
refer to: ↑10.1.6, Adjusting the Arrange Grid and the Pattern
Length.
Sound Lane Height Select the default height of the Sound lane in the Pattern Editor
by choosing between normal 1x or 2x zoom from the menu. 1x
displays all sixteen sounds, and 2x displays only the first eight
Sounds of a Group, making it easier to edit events.
MASCHINE MIKRO - Manual - 72
Basic Concepts
Setting Description
Sound
Default MIDI Input Mode MASCHINE allows you to play your Sound(s) via MIDI notes, for
example, from a MIDI keyboard. By default and without any
configuration, incoming MIDI notes on any MIDI port and any
MIDI channel will trigger the pitch of the focused Sound. In
addition, you can select that a Sound receives no MIDI input,
and also define the default setting for MIDI input by selecting
the Default MIDI Input Mode preference.
Select one of the following MIDI input mode options from the
drop-down menu:
Focus: MIDI input from any connected controller can be used to
trigger the focused (selected) Sound slot.
None: The selected Sound will not receive MIDI data.
2.6.5 Preferences – Library Page
The Library page allows you to edit the locations of all MASCHINE library files (both factory
and user) that appear in the LIBRARY pane of the Browser.
Preferences
The LIBRARY pane of the Browser is described in section ↑3.2, Searching and Loading Files from
the Library.
► To display the Library page click the Library tab on the left of the Preferences panel.
At the top of the page, the Factory and User buttons allow you to switch between the Factory
pane and the User pane.
Factory Pane
► To display the Factory pane, click the Factory button at the top of the Library page.
MASCHINE MIKRO - Manual - 73
Basic Concepts
Preferences
The Preferences panel – the Library page’s Factory pane.
The Factory pane displays all factory libraries available. These includes the MASCHINE Factory
Library, libraries imported from other NI products, as well as installed MASCHINE EXPANSIONS.
These libraries will appear in the Factory view of the Browser’s Library pane.
MASCHINE MIKRO - Manual - 74
Element Description
Location column Displays the path of each library. If you have moved any library to
another location on your computer, click the folder icon on the left of
that library and select its new path.
Product column Displays the name of each product. These names cannot be edited.
Rescan button If you have made any change to a library (e.g., changed its location),
select it in the list and click the Rescan button to rescan that library.
User Pane
► To display the User pane, click the User button at the top of the Library page.
Basic Concepts
Preferences
MASCHINE MIKRO - Manual - 75
Basic Concepts
Preferences
The Preferences panel – the Library page’s User pane.
The User pane displays all user libraries currently in use. This includes the standard MASCHINE user directory as well as any other user directory you might have defined. These libraries will appear in the User view of the Browser’s Library pane.
MASCHINE MIKRO - Manual - 76
Element Description
Location column Displays the path of each library. If you have moved any library to
another location on your computer, click the folder icon on the left of
that library and select its new path.
Alias column Displays the alias stored for each library. Click an alias to edit it.
Defining aliases for your user folders is not mandatory, but it can be
of great help when working on different computers (see description
below). After adding a location (see Add below), click the field in the
new row and in the Alias column to set the alias for that new
location. The alias of the default user folder, Standard User
Directory, cannot be edited — this is the location where all your user
files will be stored by default.
Add button Click Add to manually add directories to the user library. See below
for more details.
Remove button Click Remove to remove the selected user library. Files will only be
removed from the MASCHINE Browser, not from your hard disk.
Rescan button If you have made any change to a library (e.g., added/removed files),
select it in the list and click the Rescan button to rescan that library.
Basic Concepts
Preferences
Scan user content for
changes at start-up
Click this checkbox to allow MASCHINE to scan for changes to the
User content directory during start-up.
checkbox
You can resize the Preferences panel at your convenience using the usual method on your operating
system. You can also resize each column by clicking and dragging the border between both column
headers.
User Content Folder Included in MASCHINE’s User Paths
Products from Native Instruments will store user-generated content in a centralized User Content folder. In MASCHINE this User Content folder is automatically added to the list of user
directories in the User pane of the Library page in the Preferences panel, and as a consequence its files are available in the MASCHINE Browser.
MASCHINE MIKRO - Manual - 77
Basic Concepts
The User Content folder can neither be renamed nor removed from the list. You can modify its
path in the Location column.
Standard User Directory Cannot Be Removed
The Standard User Directory can neither be renamed nor removed from the list in the User
pane of the Library page in the Preferences panel. You can modify its path in the Location column.
Cancelling Library Rescan
In the Library page of the Preferences panel, the Rescan button allows you to rescan the selected library (or all your libraries if none is selected) so that the MASCHINE Browser mirrors
any changes you have made to the files. Clicking this Rescan button triggers the scan and an
Updating Database dialog shows you the progress of the scan.
The Updating Database dialog includes a CANCEL button allowing you to interrupt the scanning process without harming the database permanently:
Preferences
The Updating Database dialog now includes a Cancel button.
MASCHINE MIKRO - Manual - 78
Basic Concepts
► Click CANCEL in the Updating Database dialog to interrupt the scan.
A Cancel Rescan dialog opens up asking you to confirm that you want to cancel the scan:
The dialog warns you that cancelling the scan may lead to inconsistencies or missing
items in your MASCHINE Library.
▪ If you still want to cancel the scan, click CANCEL RESCAN at the bottom right, and the
scan will be cancelled.
▪ If you prefer instead not to cancel the scan, click CONTINUE or press [Esc] on your com-
puter keyboard, and the scan will go on.
If you cancelled the scan, any inconsistencies or missing items in your MASCHINE Library will
be resolved by rescanning the same path(s) again (via the Rescan button mentioned above).
Preferences
In opposition to the rescan process described here, you cannot cancel the import of files into the
MASCHINE Library (via the FILES pane of the Browser or via the Library page of the Preferences
panel) nor the process of applying changes to the file tags and properties (via the Attribute Editor in
the Browser).
Using Aliases
The aliases available in the Alias column act as references to the paths shown in the Location
column. When you save a Project, the saved data includes both the path and the alias for each
file used in the Project. This will allow you to use a Project on different computers even if the
files used in the Project (e.g., Samples) are stored in different locations on each computer:
Simply define the same alias for these locations on each computer, and MASCHINE will replace the path saved on the first computer with the path set to the same alias on the second
computer in order to retrieve the files on this second computer, therefore avoiding the possibility of missing Samples.
MASCHINE MIKRO - Manual - 79
Basic Concepts
Adding Folders to the User Library
In the User pane of the Library page, you can add other folders to the user content of your MASCHINE Library. To do this:
1. Click Add at the bottom of the pane.
A folder selection dialog opens up.
2. In the dialog, navigate to the desired folder on your computer and click OK (Choose on
macOS).
→ All MASCHINE-compatible files found in the selected folder are added to your user con-
tent in MASCHINE.
Furthermore, the imported files will have their attributes (product/bank/sub-bank, Type/SubType/Mode tags, as well as properties) set as follows:
▪ For all file types, any attributes already in the files will be retained.
▪ For Samples, if the product/bank/sub-bank attributes are empty, they will be set to the
folders in which the Samples are located:
◦ The product will be set to the name of the folder you have selected.
Preferences
◦ If Samples reside in a subfolder of this folder, the subfolder name will be used as
bank.
◦ If Samples reside in a subfolder of this subfolder, the name of the lower subfolder will
be used as sub-bank.
By adding a folder to the user content of your MASCHINE Library, you make their files available in the Browser’s LIBRARY pane for quick searching and loading! For more information on
how to use the LIBRARY pane of the Browser, please refer to section ↑3.2, Searching and
Loading Files from the Library.
Paths to folders added via the IMPORT button in the Browser’s FILES pane will also show up here.
The only difference between adding folders via the Add button in Preferences panel, described
here, and via the IMPORT button in the FILES pane of the Browser is that the latter allows you to
directly tag the files as they are imported. See section ↑3.6.5, Using the Result List for more information on how to import folders via the FILES pane.
MASCHINE MIKRO - Manual - 80
Basic Concepts
Please note that the selected folder cannot contain, or be contained within, a folder already
listed in the User or Factory pane. If MASCHINE detects such a folder as you press OK
(Choose on macOS) in the folder selection dialog, a Duplicate Location message appears: Click
OK to return to the folder selection dialog and select another folder on your computer.
Removing Folders from the User Library
You can also remove any user folder from your Library — except the default user.
2.6.6 Preferences – Plug-ins Page
The Plug-ins page allows you to manage the Native Instruments and External Plug-ins you want
to use in MASCHINE.
► To display the Plug-ins page, click the Plug-ins tab on the left of the Preferences panel.
At the top of the page, the Manager and Locations buttons allow you to switch between the
Manager pane and the Locations pane.
Manager Pane
► To display the Manager pane, click the Manager button at the top of the Plug-ins page.
Preferences
In the Manager pane of the Plug-ins page, you can enable/disable VST/AU plug-ins, rescan
their directories, and set default presets for your Native Instruments and External Plug-ins.
When a Native Instruments or External Plug-in is disabled, it will not be available for loading
(from the various Plug-in menus in the software and from the Plug-in Browser on your controller). If, for example, you do not use certain VST plug-ins in MASCHINE, it could be useful to
disable them so that they do not overload the list of available Plug-ins.
For more information on Native Instruments Plug-ins, External Plug-ins, and other Plug-ins in MASCHINE, please refer to chapter ↑6, Working with Plug-ins.
MASCHINE MIKRO - Manual - 81
Basic Concepts
Preferences
The Preferences panel – the Plug-ins page’s Manager pane.
MASCHINE MIKRO - Manual - 82
Element Description
Plug-in column Lists all available VST/AU plug-ins from the directories specified in
the Locations pane (see below). This includes all enabled or disabled
32-bit VST/AU plug-ins, when MASCHINE is running in 32-bit mode
or otherwise all enabled or disabled VST/AU 64-bit plug-ins, when
MASCHINE is running in 64-bit mode.
On the left of each plug-in in the list, a checkbox allows you to
enable/disable this plug-in in MASCHINE. When a plug-in is disabled,
it will not be available for loading in MASCHINE.
Default Config column For each plug-in you can set a default preset that will be loaded with
this plug-in when you load it. Click the folder icon on the left to
choose a default plug-in preset. You can also save a preset as default
for the plug-in via the Save As Default… entry in the Plug-in menu. If
no default is set here, the parameters of this plug-in will be automapped when loading it into a plug-in slot.
To remove a default plug-in preset, click the little cross on the right.
Rescan button If you have changed the content of any directory specified in the
Locations pane (see below), you should rescan your plug-in
directories in order to keep the list of available external plug-ins up to
date. Clicking Rescan will check the integrity of your plug-ins and
allow you to automatically detect plug-ins that were added or
removed, or deselect any plug-ins that are not working correctly for
any reason. Note that the scan will ignore the plug-ins that are
disabled in the list above.
Basic Concepts
Preferences
Always Use Latest
Version of NI Plug-Ins
checkbox
The option to Always Use Latest Version of NI Plug-Ins selects
whether or not your Library content is always loaded with the latest
version of the associated plug-in. If this option is disabled, your
Library content is loaded with the lowest required version of the
associated plug-in found on the computer.
MASCHINE MIKRO - Manual - 83
Basic Concepts
Manager Pane: Use NI Audio Units Checkbox (macOS Only)
On macOS, the Manager pane contains an additional Use NI Audio Units checkbox. Check this
box to include the Audio Units (AU) versions of your Native Instruments plug-ins in the software’s Plug-in menus and in the controller’s Plug-in Browser:
▪ If this checkbox is disabled (default setting), the AU versions of your Native Instruments
plug-ins are still listed in the list above but they are disabled (checkbox unchecked): These
plug-ins won’t appear in the Native Instruments submenu of the Plug-in menus (software)
or in the Plug-in Browser (controller). Additionally, the remaining entries for Native Instruments plug-ins (all of them VST) won’t display the (VST) mention next to their name.
▪ If you enable the Use NI Audio Units checkbox, all Native Instruments’ AU plug-ins are en-
abled in the list above and are available for loading in MASCHINE. In order to distinguish
them from the VST versions, plug-in entries in the Native Instruments submenu of the
Plug-in menus and in the Plug-in Browser will display either (VST) or (AU) after their name.
You can also enable or disable Native Instruments’ AU plug-ins individually in the list via the
checkboxes described above — as soon as you enable one of them, the Use NI Audio Units
checkbox is automatically activated.
The Use NI Audio Units checkbox relates only to AU plug-ins from Native Instruments. AU plug-ins
from third-party manufacturers are not affected by this setting.
Preferences
When the Use NI Audio Units checkbox is disabled or the AU version of a Native Instruments plugin is disabled, you can still load Projects that use AU plug-ins.
Location Pane
► To display the Location pane, click the Location button at the top of the Plug-ins page.
In the Locations section of the Plug-ins page, you can manage the various plug-in directories
you want to use in MASCHINE.
MASCHINE MIKRO - Manual - 84
Basic Concepts
Preferences
The Preferences panel – the Plug-ins page’s Locations pane.
The Locations pane also contains the following controls:
Element
Description
Plug-in column Lists all plug-in directories used in MASCHINE. Click the folder icon
on the left of an entry to change the path of that plug-in directory.
Add button Click Add to add plug-in directories.
MASCHINE MIKRO - Manual - 85
Basic Concepts
Element Description
Remove button Click Remove to remove the selected directory.
Rescan button If you have changed the content of a directory (such as installed or
removed plug-ins), you should rescan your plug-in directories in order
to keep the list of available plug-ins up to date. Click Rescan to
check the integrity of your plug-ins, this will allow you to
automatically detect plug-ins that are added or removed, or disable
any plug-ins that are not working correctly for any reason.
2.6.7 Preferences – Hardware Page
The Hardware page enables you to customize how the pads react to your playing and to adjust
the brightness of the displays.
► To display the Hardware page, click the Hardware tab on the left of the Preferences panel.
→ The settings of connected Native Instruments controllers can be selected and adjusted.
Preferences
MASCHINE MIKRO - Manual - 86
Basic Concepts
Preferences
The Preferences panel – Hardware page.
MASCHINE MIKRO - Manual - 87
Setting Description
Controller The Controller menu allows you to select a connected device
and modify its settings. You can have two devices
simultaneously focused on a MASCHINE instance: a controller
from the MASCHINE family and a KOMPLETE KONTROL SSERIES keyboard. After a new device has been selected from
the Controller menu, the Hardware page will update to display
the available options.
Pads
Sensitivity Use the Sensitivity slider to adjust how sensitive the pads
respond to your touch. This sets the minimum threshold at
which the MASCHINE MIKRO controller will register a “hit.”
Velocity Scaling Velocity Scaling determines how your playing is translated into
velocity values: starting from Soft 3 (a soft touch is enough to
get a big velocity value) through Linear to Hard 3 (you really
have to hit the pad hard to get a big velocity value).
Display
Basic Concepts
Preferences
Brightness The Brightness slider allows you to adjust the brightness of the
display on your MASCHINE MIKRO controller.
Contrast With this slider you can adjust the contrast of the display.
Adjusting the Settings from the Hardware
You also have access to the Sensitivity, Brightness, and Contrast settings from your controller.
To do this, you first have to enter MIDI mode:
1. Press SHIFT + F1 (MIDI) to switch your controller to MIDI mode.
2. Press NAV + F3 (SETUP) to show the Setup Display mode.
▪ Press the Left Arrow button repeatedly until BRIGHTNESS appears in the display, and turn
the Control encoder to adjust the Brightness parameter described above.
▪ Press the Right Arrow button to show the CONTRAST parameter in the display, and turn
the Control encoder to adjust the Contrast parameter described above.
MASCHINE MIKRO - Manual - 88
Basic Concepts
▪ Press the Right Arrow button to show the PAD SENSIVITY parameter in the display, and
turn the Control encoder to adjust the Sensitivity parameter described above.
► When you’re done, press SHIFT + F1 (MIDI) again to quit the MIDI mode and get back to
MASCHINE mode.
For more information on the MIDI mode, please refer to the Controller Editor Manual.
2.6.8 Preferences – Colors Page
The Colors page enables you to choose default colors for your Scenes, Groups, and Sounds.
► To display the Colors page click the Colors tab on the left of the Preferences panel.
Preferences
MASCHINE MIKRO - Manual - 89
Basic Concepts
Preferences
The Preferences panel – Colors page.
MASCHINE MIKRO - Manual - 90
Setting Description
Scene Default Select the default color for your Scenes. In the menu, you can
select the desired color from the 16-color palette or White
(default setting). The color selected as default is highlighted in
the menu. If you select Auto each Scene will have a different
default color.
Group Default Select the default color for your Groups. In the menu, you can
choose the desired color from the 16-color palette. The color
selected as default is highlighted in the menu. If you select
Auto (default setting) each Group will have a different default
color.
Sound Default Select the default color for your Sounds. In the menu, you can
choose the desired color from the 16-color palette. The color
selected as default is highlighted in the menu. If you select
Auto each Sound will have a different default color. If you select
Use Group Color (default setting) Sounds will by default mirror
the color of the Group to which they belong.
Basic Concepts
Preferences
Load with Colors Click the checkbox to save your Color settings with your
MASCHINE files (Projects, Groups, Sounds, etc.). If you
uncheck Load with Colors (checked by default), saved colors will
not be used next time you load the files. The default colors set
in this Colors page will be used instead.
Please note that the settings in this Colors page define default colors: These colors will only be used
when creating a new Project, resetting a Group/Sound, or when Load with Colors is unchecked (see
above). To change the color of particular objects (Sounds, Groups, Patterns, and Scenes) in your
Project, use the Color submenu in the object’s context menu in the software. See ↑4.2.4, Changing
the Sound’s Color, ↑4.3.4, Changing the Group’s Color, ↑10.7.7, Changing the Pattern’s Color, and
↑15.2.13, Changing the Color of a Scene for more information, respectively.
As long as an object (Scene, Sound, Group or Pattern) has the default color, this color is not attached to the object but instead to its “position” in the respective list: In particular, if you move the
object to another position the default color will not follow the object — the object will instead take
the default color of its new position.
MASCHINE MIKRO - Manual - 91
Integrating MASCHINE into a MIDI Setup
2.7 Integrating MASCHINE into a MIDI Setup
You can quickly integrate MASCHINE into a MIDI setup.
You can use MIDI in MASCHINE in various ways. Notably:
▪ You can synchronize a MIDI Clock signal between MASCHINE and other MIDI devices:
↑2.7.2, Sync to External MIDI Clock and ↑2.7.3, Send MIDI Clock.
▪ If you connect a MIDI keyboard to the MIDI IN, you can directly play the focused Sound
with it without having to set anything up.
▪ You can let particular Sounds and Groups react to incoming MIDI data and send MIDI data
to the desired port. More on these in section ↑11.2, Using MIDI Control and Host Automa-
tion.
▪ You can also switch Scenes remotely by sending MIDI Note or MIDI Program Change mes-
sages to MASCHINE. More on this in section ↑15.5, Triggering Sections or Scenes via
MIDI.
Basic Concepts
2.7.1 Connecting External MIDI Equipment
To connect your external MIDI equipment, hook it up to your MIDI interface and activate the
corresponding MIDI inputs and/or outputs in the MIDI page of the Preferences panel (see
↑2.6.3, Preferences – MIDI Page).
2.7.2 Sync to External MIDI Clock
If MASCHINE is running as a stand-alone application, it can be controlled externally via MIDI
Clock by any device that is capable of sending MIDI Clock. This could be hardware such as a
drum machine, another groovebox or sequencer, or even another software sequencer.
If you use MASCHINE as a plug-in, it is automatically synced to the host application so you don’t
have to activate external MIDI sync! See section ↑2.5, Stand-Alone and Plug-in Mode for more information on using MASCHINE as a plug-in.
To configure MASCHINE to receive MIDI Clock from an external device:
MASCHINE MIKRO - Manual - 92
Basic Concepts
Integrating MASCHINE into a MIDI Setup
1. Select Preferences entry from the File menu.
2. Select the MIDI page.
3. In the Sync section select Slave (Receive Clock) from the menu.
4. Select the Input button to see a list of connected devices.
5. Check the name of the device sending MIDI clock (the device you want MASCHINE to
sync with).
→ MASCHINE can now receive MIDI Clock from an external device
You must define at least one MIDI input device in the Devices section of the MIDI page to enable
MASCHINE to sync.
When Slave (Receive Clock) is selected, the Play button in the MASCHINE Header and the
PLAY button on your controller are deactivated.
If you want to configure MASCHINE to react to other MIDI messages than MIDI Clock, in particular
if you want to control MASCHINE notes and parameters via MIDI, please refer to section ↑11.2, Us-
ing MIDI Control and Host Automation, where this is described in detail.
2.7.3 Send MIDI Clock
If MASCHINE is running as a stand-alone application, it can also send a MIDI Clock signal to
any device that is capable of receiving MIDI Clock. This could be hardware such as a drum
machine, another groovebox, or even another software sequencer.
If you use MASCHINE as a plug-in, it cannot send any MIDI Clock signal. See section ↑2.5, Stand-
Alone and Plug-in Mode for more information on using MASCHINE as a plug-in.
To configure MASCHINE to receive MIDI Clock from an external device:
1. Select Preferences entry from the File menu.
2. Select the MIDI page.
3. In the Sync section select Master (Send Clock) from the menu.
MASCHINE MIKRO - Manual - 93
Basic Concepts
Integrating MASCHINE into a MIDI Setup
→ MASCHINE will send a MIDI Clock signal to any connected device that is capable of re-
ceiving MIDI Clock.
You can adjust the MIDI Clock offset in the MIDI page of the Preferences panel. See ↑2.6.3, Prefer-
ences – MIDI Page for more information.
If you want MASCHINE to send other MIDI messages than MIDI Clock, in particular if you want to
control other MIDI-capable devices via the notes played in MASCHINE, please refer to section
↑11.2.5, Sending MIDI from Sounds.
MASCHINE MIKRO - Manual - 94
3 Browser
The Browser is the place where you can organize and categorize all of your Projects, Groups,
Sounds, Plug-in presets, and Samples. This is done by tagging them, which means categorizing them by using keywords. Given that the MASCHINE software has some advantages over the
hardware in this case, such as a very big screen and a QWERTY-keyboard, we will start with the
software first.
3.1 Browser Basics
This section describes some general concepts about the Browser.
3.1.1 The MASCHINE Library
To organize, find, keep track of, and provide you thousands of files at any time ready for loading, MASCHINE makes use of a Library. The MASCHINE Library not only contains the factory
content included with MASCHINE, but also any other factory content (e.g., from MASCHINE
EXPANSIONS or other Native Instruments products) as well as your own user content.
Browser
Browser Basics
To help you find the right file quickly and efficiently, the Library implements various techniques that go far beyond the classic folder structure of your operating system. For example,
each file included in the Library can be described according to following aspects:
▪ The file type: Project, Group, Sound, etc.
▪ The content type of the file, i.e. whether it originates from a product’s factory library or if it
was created by a user.
▪ The product which the files comes from — this can include, e.g., a hierarchical structure
with a product category, a particular product, and possibly a bank and sub-bank of this
product.
▪ A variable amount of tags used to describe various characteristics of the file, for example,
the type of effect, the sonic character, the context in which it is used — in a word, anything that might help you find the file.
MASCHINE MIKRO - Manual - 95
Note that the Library is the only other way to display and access your files: You could also navigate
to the same files in your file system. The (substantial) difference lies in the fact that the Library
organizes your files in a musically relevant way.
Which Files are Included in the MASCHINE Library?
The files included in the MASCHINE Library are all MASCHINE-relevant files found in the folders whose paths are listed in the Library page of the Preferences panel. For more information
on how to manage these library folders, please refer to ↑2.6.4, Preferences – Default Page.
3.1.2 Browsing the Library vs. Browsing Your Hard Disks
The Browser is your interface to the MASCHINE Library. It provides all necessary tools to
search for the files you require — and suggest other files you might not have thought of. Beside this, the Browser also allows you to navigate your file system in a classic way. Both are
described in the next section.
The Browser provides two operation modes, each of them providing its own tools:
▪ The LIBRARY pane allows you to browse the MASCHINE Library. This is the preferred way
to search for files meeting particular musical requirements. This pane also allows you to
tag your own files to your liking.
Browser
Browser Basics
▪ The FILES pane allows you to browse your hard disks by using the hierarchical folder struc-
ture of your operating system. For example you can use it to navigate files that have not
been imported into the MASCHINE Library — and you can import them from there!
In contrast to the software, the Browser on your controller can only load files that have already been
added to the Library. You cannot directly access specific directories on your hard disks with the
Browser using the controller. This is why you should always import all your files to the Library and
tag them using the software beforehand.
Switching Between LIBRARY and FILES Pane
► To show the LIBRARY pane or the FILES pane of the Browser, click the corresponding tab
at the top of the Browser.
MASCHINE MIKRO - Manual - 96
Searching and Loading Files from the Library
Click the desired tab to show the corresponding pane of the Browser.
The LIBRARY pane is described in section ↑3.2, Searching and Loading Files from the Library,
and the FILES tab is described in section ↑3.6, Loading and Importing Files from Your File
System.
3.2 Searching and Loading Files from the Library
The Browser’s LIBRARY pane allows you to search for any file in the MASCHINE Library.
► To display the LIBRARY pane, click the LIBRARY tab in the top left corner of the Brows-
er.
Browser
3.2.1 Overview of the LIBRARY Pane
The LIBRARY pane contains following elements:
MASCHINE MIKRO - Manual - 97
1 2 3
4
5
6
7
8
9
Browser
Searching and Loading Files from the Library
The elements of the LIBRARY pane.
(1) LIBRARY tab: Click the LIBRARY tab to open the LIBRARY pane described here.
(2) File Type selector: This contains six icons, each representing the different files types of MASCHINE. From the left to right the file types are Project, Group, Sound, Instrument preset, Effect preset, and Sample. By clicking one of them it causes only the files of the selected type to
be displayed in the Result list (8). See section ↑3.2.4, Selecting a File Type.
MASCHINE MIKRO - Manual - 98
Searching and Loading Files from the Library
(3) Content selector: Click the NI icon (on the left) to select factory content or the User icon (on
the right) to select user content instead. Only the files of the content selected here will be displayed in the Result list (8). See section ↑3.2.5, Choosing Between Factory and User Content.
(4) Product selector: Click to open a drop-down menu where you can select a particular product, product category, and sometimes the bank and sub-bank of the selected product. Again,
only the files matching your selection will be displayed in the Result list (8). See section
↑3.2.3, Selecting a Product Category, a Product, a Bank, and a Sub-Bank.
(5) TYPES filter: allows you to search for files based on Type and Sub-Type tags that have been
applied to them. See section ↑3.2.6, Selecting Type and Mode Tags.
(6) MODES filter (Instrument/Effect presets only): allows you to search for files based on Mode
tags that have been applied to them. See section ↑3.2.6, Selecting Type and Mode Tags.
(7) Search field: Enter any character string into the Search field to limit the search results to
the files containing this string. See section ↑3.2.7, Performing a Text Search.
(8) Result list: The Result list displays all files that match your query, as specified via the various tools above. See section ↑3.2.8, Loading a File from the Result List.
(9) Control bar: At the bottom of the Browser, the Control bar provides a few useful tools when
browsing the MASCHINE Library, some of them depending on your selection in the File Type
selector (2):
Browser
▪ For all file types except Project, click the Autoload button at the far left of the Control bar to
automatically load the selected file in order to hear it in context with the rest of your
Project while it is playing. See section ↑3.3.1, Loading the Selected Files Automatically.
▪ For Instruments Presets and Samples, enable the Prehear button and adjust the volume fad-
er next to it in order to pre-listen to the selected items directly from the Browser in order to
make a quick selection. See section ↑3.3.3, Auditioning Samples and ↑3.3.2, Auditioning
Instrument Presets.
▪ For Groups, enable the Load Patterns checkbox to load the Group’s Patterns together with
the Group. See section ↑3.3.4, Loading Groups with Patterns.
▪ For all files, click the Information button (showing a little “i”) near the EDIT button to dis-
play more information on the selected file(s). See section ↑3.3.6, Displaying File Informa-
tion.
MASCHINE MIKRO - Manual - 99
Searching and Loading Files from the Library
▪ For all files, click the EDIT button at the far right of the bar to open the Attribute Editor and
modify the tags and properties assigned to the selected file(s). See section ↑3.5, Editing
the Files’ Tags and Properties.
Overview of the Search Workflow in the LIBRARY Pane
When searching for files via the LIBRARY pane, you can progressively refine your search by following this typical top-to-bottom workflow.
The first two steps are mandatory:
1. Choose a file type in the File Type selector (2).
2. Select between factory content and user content in the Content selector (3).
The next steps are optional. They can be useful to further refine your search and limit the
number of search results to a reasonable amount:
1. Choose a product category or a product in the Product selector (4). If you have selected a
product you can further choose a particular bank and sub-bank of this product, if any.
2. Select tags in the TYPES filter (5) — and the MODES filter (6) for Instrument and Effect
presets — describing what you are looking for.
Browser
At any time in the procedure described above, you can use the Search field (7) to quickly perform a text search among the entries in the Result list (8).
The above steps are described in detail in the following sections.
3.2.1.1 Browsing the Library on the MASCHINE MIKRO Controller
► To enter or leave the Browser press BROWSE.
The Browser on your controller (showing the FILTER page).
MASCHINE MIKRO - Manual - 100
