Mindray Accutor VII User manual

Download

/VS-900c

Vital Signs Monitor

Service Manual

Intellectual Property Statement

SHENZHEN MINDRAY BIO-MEDICAL ELECTRONICS CO., LTD. (hereinafter called Mindray) owns the intellectual property rights to this product and this manual. This manual may refer to information protected by copyrights or patents and does not convey any license under the patent rights of Mindray, nor the rights of others. Mindray does not assume any liability arising out of any infringements of patents or other rights of third parties.

Mindray intends to maintain the contents of this manual as confidential information. Disclosure of the information in this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden. Release, amendment, reproduction, distribution, rent, adaption and translation of this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden.

, , and are the registered trademarks or trademarks owned by Mindray in China and other countries. All other trademarks that appear in this manual are used only for editorial purposes without the intention of improperly using them. They are the property of their respective owners.

This posting serves as notice under 35 U.S.C.§287(a) for Mindray patents:

http://www.mindrayna.com/patents.

The issued date for this manual is May 2019 (Version 11.0).

WARNING

 Federal Law (USA) restricts this device to sale by or on the order of a

physician.

NOTE

 This manual describes all features and options. The equipment may not have

all of them. Contact Mindray service department for any questions.

Manufacturer’s Responsibility

Contents of this manual are subject to changes without prior notice.

All information contained in this manual is believed to be correct. Mindray shall not be liable for errors contained herein nor for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.

Mindray is responsible for safety, reliability and performance of this product only in the condition that:

 All installation operations, expansions, changes, modifications and repairs of this

product are conducted by Mindray authorized personnel; and

 The electrical installation of the relevant room complies with the applicable

national and local requirements; and

 This product is operated under strict observance of this manual.

Return Policy

In the event that it becomes necessary to return a unit to Mindray, follow the instructions below.

1. Obtain a return authorization. Contact the Mindray Service Department and obtain a Mindray Customer Service

Authorization Number. The Mindray Customer Service Authorization Number must appear on the outside of the shipping container. Return shipments will not be accepted if the Mindray Customer Service Authorization Number is not clearly visible. Please provide the model number, serial number, and a brief description of the reason for return.

2. Freight policy The customer is responsible for freight charges when this product is shipped to

Mindray for service (including any relevant customs fees or other freight related charges).

3. Return address Please send the part(s) or equipment to the address offered by Customer Service

Department.

Contact Information

Manufacturer:

Address:

Tel :

Fax:

Website:

Distributor:

Address:

Tel :

Website:

Shenzhen Mindray Bio-Medical Electronics Co., Ltd.

Mindray Building, Keji 12th Road South, Hi-tech Industrial Park, Nanshan, Shenzhen 518057 P.R. China

+86 755 81888998

+86 755 26582680

www.mindray.com

Mindray DS USA, Inc.

800 MacArthur Boulevard Mahwah, New Jersey 07430 USA

1.800.288.2121, 1.201.995.8000

www.mindray.com

III

Preface

Manual Purpose

This manual provides detailed information about the assembling, dissembling, testing and troubleshooting of the equipment to support effective troubleshooting and repair. It is not intended to be a comprehensive, in-depth explanation of the product architecture or technical implementation.

Observance of the manual is a prerequisite for proper equipment maintenance and prevents equipment damage and personnel injury.

Intended Audience

This manual is for biomedical engineers, authorized technicians or service representatives responsible for troubleshooting, repairing and maintaining the equipment.

Passwords

A password may be required to access different modes of the following equipment. The passwords are listed below:

 User maintenance: 888888  Configuration mode: 315666  Demo mode : Contact Mindray service personnel for the password  Factory maintenace: Contact Mindray service personnel for the password

It is recommended that the user should change the passwords for user maintenance and configuration mode once they take ownership of the equipment.

Contents

1 Introduction .............................................................................................................. 1-1

1.1 Manual Information ................................................................................................................. 1-1

1.2 Safety Information .................................................................................................................... 1-1

1.2.1 Warnings ......................................................................................................................... 1-2

1.2.2 Cautions .......................................................................................................................... 1-2

1.2.3 Notes ................................................................................................................................ 1-2

1.3 Equipment Symbols ................................................................................................................ 1-2

2 Theory of Operation ................................................................................................. 2-1

2.1 Overview ...................................................................................................................................... 2-1

2.2 Connectors for Peripheral Devices ..................................................................................... 2-2

2.3 Main Unit ..................................................................................................................................... 2-2

2.4 Front Housing Assembly ........................................................................................................ 2-4

2.5 Main Board .................................................................................................................................. 2-4

2.6 Rear Housing Assembly .......................................................................................................... 2-5

2.7 External Module ........................................................................................................................ 2-6

3 Equipment Installation ............................................................................................ 3-1

3.1 Unpacking the Equipment .................................................................................................... 3-1

3.2 Preparation for Installation ................................................................................................... 3-1

3.2.1 Preparation for Installation Site .............................................................................. 3-1

3.2.2 Environmental Requirements ................................................................................. 3-1

3.2.3 Electrical Requirements ............................................................................................ 3-2

3.3 Equipment Installation ........................................................................................................... 3-2

3.3.1 Preparation for Power on .......................................................................................... 3-3

4 Testing and Maintenance ......................................................................................... 4-1

4.1 Introduction ................................................................................................................................ 4-1

4.2 Performance Tests .................................................................................................................... 4-1

4.2.1 Performance Test Frequencies ................................................................................ 4-2

4.2.2 Visual Inspection .......................................................................................................... 4-2

4.2.3 SpO2 test ......................................................................................................................... 4-2

4.2.4 NIBP Test ......................................................................................................................... 4-4

4.2.5 CO2 Test (Only Available For Accutorr 7).............................................................. 4-7

4.2.6 Exergen TemporalScanner Thermometer Test .................................................. 4-9

4.2.7 SmarTempTM Module Test ......................................................................................... 4-9

4.3 Electrical Safety and Other Tests ...................................................................................... 4-10

4.3.1 Electrical Safety and Other Test Frequencies .................................................. 4-10

4.3.2 Electric Safety Tests .................................................................................................. 4-10

4.3.3 Power-on Test............................................................................................................. 4-10

4.3.4 Touchscreen Calibration ......................................................................................... 4-11

4.3.5 Recorder check .......................................................................................................... 4-11

4.3.6 Bar Code Scanner Test ............................................................................................. 4-11

4.3.7 Battery Check ............................................................................................................. 4-12

4.3.8 Nurse Call Reply Performance Test ..................................................................... 4-12

4.4 Factory Maintenance ............................................................................................................ 4-13

4.4.1 Accessing Factory Maintenance Menu ............................................................ 4-13

4.4.2 Drawing Waves .......................................................................................................... 4-13

4.4.3 Software Version ....................................................................................................... 4-14

4.4.4 Monitor Information ............................................................................................... 4-15

5 Troubleshooting ....................................................................................................... 5-1

5.1 Overview ..................................................................................................................................... 5-1

5.2 Part Replacement ..................................................................................................................... 5-1

5.3 Checking Equipment Status ................................................................................................. 5-1

5.4 Checking Software Version ................................................................................................... 5-1

5.5 Checking Technical Alarms ................................................................................................... 5-2

5.6 Troubleshooting Guide .......................................................................................................... 5-2

5.6.1 Power On/Off Failure ................................................................................................. 5-2

5.6.2 Display Failures ............................................................................................................ 5-3

5.6.3 Alarm Lamp Failures ................................................................................................... 5-4

5.6.4 Button and Encoder Failures ................................................................................... 5-4

5.6.5 Sound Failures .............................................................................................................. 5-5

5.6.6 Battery Failures ............................................................................................................. 5-5

5.6.7 Recorder Failures ......................................................................................................... 5-6

5.6.8 Output Interface Failure............................................................................................ 5-7

5.6.9 Data Storage Failure ................................................................................................... 5-7

5.6.10 Wired Network Related Problems ....................................................................... 5-8

5.6.11 Wi-Fi Related Problems (Only Available for Accutorr 7) .............................. 5-9

5.6.12 Module defective ...................................................................................................... 5-9

5.6.13 Exergen TemporalScanner Thermometer Module Problems ................ 5-10

5.6.14 CO2 Module Problems (Only Available for Accutorr 7) ............................. 5-11

5.6.15 Technical Alarm Messages .................................................................................. 5-11

6 Disassembly and Repair .......................................................................................... 6-1

6.1 Tools Required ........................................................................................................................... 6-1

6.2 Preparations for Disassembly .............................................................................................. 6-1

6.3 Disassembling the Main Unit ............................................................................................... 6-2

6.3.1 Disassembling the Temperature Module (Optional) ...................................... 6-2

6.3.2 Removing the Recorder ............................................................................................ 6-3

6.3.3 Separating the Front and Rear Half of the Monitor ........................................ 6-3

6.3.4 Removing the Parameter Connector Panel Assembly ................................... 6-5

6.3.5 Disassembling the Main Bracket Assembly ....................................................... 6-6

6.3.6 Removing the Parameter Board (SpO2 Optional) and Power Management

Board .......................................................................................................................................... 6-8

6.3.7 Removing the Parameter Connector Panel Assembly (With CO2, Only

Available for Accutorr 7) ...................................................................................................... 6-9

6.3.8 Disassembling the CO2 Module Assembly (Only Available for Accutorr 7)6-10

6.3.9 Disassembling CO2 main Module (Only Available for Accutorr 7) ......... 6-10

6.3.10 Disassembling the Main Bracket Assembly (With CO2, Only Available for

Accutorr 7) ............................................................................................................................. 6-11

6.3.11 Disassembling Pumps and Valves ................................................................... 6-12

6.3.12 Disassembling AC/DC Power Board and Battery Converter Board ..... 6-12

6.4 Disassembling the Front Housing Assembly .............................................................. 6-13

6.4.1 Removing the Touchscreen Control Board ..................................................... 6-13

6.4.2 Removing the 2.4G Wi-Fi Module (Optional, Only Available for Accutorr 7)

................................................................................................................................................... 6-14

6.4.3 Removing the 5G Wi-Fi Module (Optional, Only Available for Accutorr 7)6-15

6.4.4 Removing the Main Control Board .................................................................... 6-17

6.4.5 Removing SD Card ................................................................................................... 6-17

6.4.6 Removing the Touchscreen .................................................................................. 6-18

6.4.7 Disassembling the Display .................................................................................... 6-18

6.4.8 Removing the Keypad ............................................................................................ 6-19

6.4.9 Removing the Encoder ........................................................................................... 6-19

6.4.10 Removing the Alarm Lamp................................................................................. 6-19

6.5 Disassembling the SmarTempTM Module (Optional) ................................................. 6-20

6.5.1 Removing the SmarTempTM Module PCBA and Module Power Board PCBA

................................................................................................................................................... 6-20

6.5.2 Disassembling the Temperature On-Position Detection Board PCBA .. 6-21

6.6 Disassembling the Exergen TemporalScanner Themometer Module (Optional)6-22

7 Parts ........................................................................................................................... 7-1

7.1 Introduction ................................................................................................................................ 7-1

7.2 Main Unit ..................................................................................................................................... 7-1

7.2.1 Exploded View .............................................................................................................. 7-1

7.2.2 Parts List .......................................................................................................................... 7-2

7.3 Front Housing Subassembly (Touchscreen) ................................................................... 7-3

7.3.1 Exploded View .............................................................................................................. 7-3

7.3.2 Parts List .......................................................................................................................... 7-4

7.4 Rear Housing Assembly (without CO2 module, CO2 Only Available for Accutorr 7)

................................................................................................................................................................ 7-5

7.4.1 Exploded View .............................................................................................................. 7-5

7.4.2 Parts List .......................................................................................................................... 7-5

7.5 Rear Housing Assembly (with CO2 module, Only Available for Accutorr 7) ........ 7-7

7.5.1 Exploded View .............................................................................................................. 7-7

7.5.2 Parts List .......................................................................................................................... 7-7

7.6 Main Bracket Assembly .......................................................................................................... 7-9

7.6.1 Exploded View .............................................................................................................. 7-9

7.6.2 Parts List .......................................................................................................................... 7-9

7.7 Power Management Board Assembly ............................................................................ 7-10

7.7.1 Exploded View ........................................................................................................... 7-10

7.7.2 Parts List ....................................................................................................................... 7-10

7.8 Parameter Connector Panel Assembly (without CO2 module, CO2 Only Available for

Accutorr 7) ....................................................................................................................................... 7-11

7.8.1 Exploded View ........................................................................................................... 7-11

7.8.2 Parts List ....................................................................................................................... 7-11

7.9 Parameter Connector Panel Assembly (with CO2 module, Only Available for

Accutorr 7) ....................................................................................................................................... 7-12

7.9.1 Exploded View ........................................................................................................... 7-12

7.9.2 Parts List ....................................................................................................................... 7-12

7.10 Predictive Temperature Assembly ................................................................................ 7-13

7.10.1 Exploded View ......................................................................................................... 7-13

7.10.2 Parts List .................................................................................................................... 7-13

7.11 Exergen TemporalScanner Thermometer Assembly .............................................. 7-14

7.11.1 Exploded View ......................................................................................................... 7-14

7.11.2 Parts List .................................................................................................................... 7-15

7.12 Exergen frame Assembly .................................................................................................. 7-16

7.12.1 Exploded View ......................................................................................................... 7-16

7.12.2 Parts List .................................................................................................................... 7-16

8 Hardware and Software Upgrade ........................................................................... 8-1

8.1 Hardware Upgrade .................................................................................................................. 8-1

8.1.1 Upgrade Package ........................................................................................................ 8-1

8.1.2 Upgrading Parameter Modules ............................................................................. 8-1

8.1.3 Upgrading Temperature ........................................................................................... 8-2

8.1.4 Upgrading Wi-Fi (Only Available for Accutorr 7) .............................................. 8-2

8.1.5 Enabling Parameter Functions ............................................................................... 8-3

8.2 Software Upgrade .................................................................................................................... 8-3

A Electrical Safety Inspection .................................................................................... A-1

A.1 Power Cord Plug ..................................................................................................................... A-1

A.2 Device Enclosure and Accessories ................................................................................... A-2

A.3 Device Labeling ...................................................................................................................... A-2

1 Introduction

1.1 Manual Information

Version Revision History

1.0 New

2.0 Modify temperature module test method, update parts list

3.0 Modify the Wi-Fi content

4.0 Delete the equipment symbols

5.0

6.0 Add CO2 description

7.0 Update parts list for new cleaning and disinfecting agents

8.0 Add VS-900c

9.0 Add the VS-900c silicon button.

10.0 Delete the warranty and exemption information

11.0 Add Exergen TemporalScannerTM Themometer contents

1.2 Safety Information

Modify the description of equipment symbols, add the patent information

WAR NIN G

 Indicates a potential hazard or unsafe practice that, if not avoided, will result

in death or serious injury.

CAUTION

 Indicates a potential hazard or unsafe practice that, if not avoided, could

result in minor personal injury or product/property damage.

NOTE

 Provides application tips or other useful information to ensure that you get

the most from your product.

1-1

1.2.1 Warnings

WAR NIN G

 All installation operations, expansions, changes, modifications and repairs of

this product are conducted by Mindray authorized personnel.

 There is high voltage inside the equipment. Never disassemble the

equipment before it is disconnected from the AC power source or the battery.

 When you disassemble/reassemble a parameter module, a patient leakage

current test must be performed before it is used again for monitoring.

 The equipment must be connected to a properly installed power outlet with

protective earth contacts only. If the installation does not provide for a protective earth conductor, disconnect it from the power line and operate it on battery power, if possible.

 Disposal of the packaging material should observe the applicable waste

control regulations and keeping it out of children’s reach.

1.2.2 Cautions

CAUTION

 Make sure that no electromagnetic radiation interferes with the

performance of the equipment when preparing to carry out performance tests. Mobile phone, X-ray equipment or MRI devices are a possible source of interference as they may emit higher levels of electromagnetic radiation.

 Before connecting the receiver to the power line, check that the voltage and

frequency ratings of the power line are the same as those indicated on the unit’s label or in this manual.

 Protect the equipment from damage caused by drop, impact, strong

vibration or other mechanical force during servicing.

1.2.3 Notes

NOTE

 Refer to the operator’s manual for detailed operation and other information.

1.3 Equipment Symbols

See theapplicable Operator’s Manual for information about the symbols used on this product and its packaging.

1-2

2 Theory of Operation

2.1 Overview

The Monitor is intended for monitoring physiologic parameters, including SpO2, Pulse Rate, NIBP and Temperature, on adult, pediatric, and neonatal patients in healthcare facilities by clinical physicians or appropriate medical staff under the direction of physicians.

The equipment also:

 Provides audible and visual alarm indications in case of patient or equipment

problems;

 Provides display, review, storage and printing of monitored information;  Incorporates multiple input devices such as buttons, knob, and touchscreen; and,  Enables program upgrade over the network.

Monit or

Nurse Call

Reserved port

Other device

The above figure shows a system consisting of the vital signs monitor and its peripheral

Mindray Proprietary LAN

EMR Server

CMS/Gatewa

devices. The vital signs monitor:

 Can be used for monitoring the physiological parameters, giving alarms and

reviewing patient data, etc.

 Supports recorder.  Supports nurse call function.  Supports Wi-Fi module, wired network, remote view, and communication with the

BeneVision Central Monitoring System (hereinafter called CMS) (only available for the Accutorr 7).

 Supports external AC power source and an internal battery.  Supports clinical data acquisition: by SD card

or by USB drive.

NOTE

 Wi-Fi module is only available for the Accutorr 7.

2-1

2.2 Connectors for Peripheral Devices

1. Connector for Temperature probe

2. Network connector: It is a standard RJ45 connector used to communicate with external devices, such as central monitoring system, e-Gateway, or used to export data or upgrade the system.

3. Multi-function connector: connects to the hospital's nurse call system, or connects external devices through DIAP protocol.

4. USB connector: connects to barcode scanner or USB disk.

5. AC Power Input

6. Equipotential grounding terminal: When the equipment and other devices are to be used together, their equipotential grounding terminals should be connected together to eliminate the potential difference between them.

2.3 Main Unit

The main unit of the vital signs monitor consists of three parts:

 Front housing assembly: main board, Wi-Fi module (only available for Accutorr 7),

keypad board assembly (knob), display, touchscreen, and alarm lamp board.

 Rear housing assembly: power module (AC/DC), power management and

interface board (including SpO module, and SpO

board.

 External module:Temperature module.

isolation power), recorder, speaker, battery, NIBP

2-2

The following figure shows the main unit architecture of the vital signs monitor.

Front Housing Assembly

Alarm lamp

board

Knob

Power On/Off

keypad

(Indicator)

SD card

Main board

Wi-Fi module

I2C

LVD

Backlight

Touchscree

n control

board

LCD display

Touch

screen

Rear Housing Assembly

Speaker

Recorder

2600mAh

battery

15V

AC-DC power

module

AC-IN

Power management and interface

board

SpO

isolation power

External interface

RJ45/USB/Multifunctional

(nurse call, extended ports)

Pump

NIBP module

SpO2 board

（Standard

Mindray, OEM

optional）

NIBP socket

SpO2socket

External Module

Predictive

Temp

module

Temp probe

2-3

2.4 Front Housing Assembly

Alarm lamp board

ouchscreen control board

Main board

Keypad

Screws securing the front and rear housing

2.5 Main Board

The main board is the control center of the equipment. It provides communication, display, and data storage functions, including:

 Communication with SpO

through connector;

 Communication with power management board, keypad board, and recorder

through connectors;

 Providing drive for display and backlight;  Providing 2 USB connectors, a network connector, and a multifunctional

connector;

 Communication with touchscreen control board through I2C;  Providing drive for SD card; and,  Providing drive for Wi-Fi module(only available for Accutorr 7).

board, NIBP module, and Temperature module

2-4

ypad

The keypad scans and detects the input of keys and encoder, integrates the power on/off key, and connects AC and battery indicators.

Alarm Lamp Board

The alarm lamp board is located at the top of front housing. It has two-color indicators, red and yellow. The alarm lamp board directly connects the main board through a cable. It is controlled directly by the main board.

Touchscreen and Touchscreen Control Board

The touchscreen control board drives the touchscreen and implements communication with the vital signs monitor.

Wi-Fi Module (Optional, Only Available for Accutorr 7)

The Wi-Fi Module enables the equipment to connect to an 802.11 a/b/g/n Mindray proprietary network.

2.6 Rear Housing Assembly

Speaker

Power

NIBP module

management and interface board

Recorder

AC/DC power module

SpO2 board

Rear housing assembly consists of power module (AC/DC), power management and interface board (including SpO and SpO

board.

isolation power), recorder, speaker, battery, NIBP module,

2-5

AC/DC Power Module

The AC/DC power board transforms the input AC into DC power, which is the power source for all voltages in the equipment.

Power Management

and Interface Board

The power management and interface board provides the following functions:

 Charge and discharge of battery and charge detection;  DC/DC conversion: outputs 12V and 5V DC power;  Control over power on/off key and AC, BAT indicator;  Communication transmission among parameter modules;  Providing isolation power for SpO  Providing external connectors

module; and,

, filter and protection for these connectors.

Recorder

The recorder receives data from the main board and sends them to the thermal printhead for printing.

NIBP Module

The NIBP module consists of blood pressure measurement board and pump and valve assembly, providing measurement acquisition of blood pressure data. The main functions of the NIBP module are:

 NIBP measurement; and,  Data exchange with the main board.

Board

SpO

The SpO2 board collects SpO2 signals, processes SpO2 algorithm and sends measurement results to the main board. The power management interface board provides isolation power for it.

Module (Only Available for Accutorr 7)

CO concentration of CO of specific wavelengths. The main functions of the CO

monitoring is a continuous, non-invasive technique for determining the

in the patient’ airway by measuring the absorption of infrared (IR) light

module are:

 Provides a CO2 waveform, and EtCO2, FiCO2, awRR measurement; and  Data exchange with the main board through the serial ports.

2.7 External Module

An external Temp module can be attached to the monitor.

The independently developed Mindray Temperature module consists of an isolation power board, Temperature measurement board, and probes. The Temperature measurement board collects Temperature signals, processes algorithm and sends measurement results to the main board.

2-6

3 Equipment Installation

3.1 Unpacking the Equipment

Open the package and take out the packing list. Check that all the articles included in the packing list are available and the quantity and specification are correct. Make sure that:

 All the optional parts purchased by the customer  Notify Mindray North America if your order is incorrect or is incomplete.  In case of damage during transportation, keep the packing material and notify

Mindray North America immediately.

 Keep the packing material until all equipment is checked and accepted.

3.2 Preparation for Installation

3.2.1 Preparation for Installation Site

1. Ensure that the site meets all safety, environmental and power requirements.

2. Ensure that a network connector is available if the equipment needs to be connected to network.

3.2.2 Environmental Requirements

To avoid explosion hazard, do not use the equipment in the presence of flammable anesthetics, vapors or liquids. The environment where the equipment will be used should be reasonably free from vibration, dust and corrosive substances. If these conditions are not met, the system may not function normally.

The environmental specification is as follows:

Main Unit

Item

Operating environment

Storage environment

NOTE

 The environmental specifications of unspecified accessories are the same as

Temperature (℃)

0 to 40 (without Temp module)

5 to 40 (with SmarTemp module) 16 to 40 (with Exergen Temp

module)

-30 to 70

-20 to 50 (with Exergen Temp module)

erature

have been received.

Relative humidity (noncondensing)

15% to 95% 427.5 to 805.5

10% to 95% 120.0 to 805.5

Altitude (mmHg)

3-1

those of the main unit.

3.2.3 Electrical Requirements

Check cables and power cords. Make sure that:

1. System cables, power cords, and power plugs are not damaged, and that the pins are not loose. If damage is noted, discontinue use and replace.

2. Patient cables and connections are secure.

WARNING

 Use only properly grounded power outlets.  Use the supplied power cord only!

Vol tage

Current

Frequency

100 to 240V AC

to 0.5A

0.9

50/60 Hz

3.3 Equipment Installation

Follow the procedure below to install the equipment:

1. Ensure the unit and accessories are not damaged.

2. Install the battery (optional). For detailed operations, please refer to the operator’s manual.

3. Connect AC power.

4. Connect the accessories.

Installation Support

The vital signs monitor can be mounted on a wall bracket or on a rolling stand. The wall bracket or rolling stand can be ordered optionally. Each type of mounting bracket is delivered with a complete set of mounting hardware and instructions. For detailed installation information, please refer to Wall-mount Bracket Instructions for Use (PN: 0010-20-42933) and Rollstand Instructions for Use (PN: 0010-20-42934).

CAUTION

 Use only Mindray supplied or approved mounting solutions.  The mounting bracket should be installed by qualified service personnel.

3-2

3.3.1 Preparation for Power on

1. Before using the equipment, check for any mechanical damage and make sure that all external cables, plug-ins and accessories are properly connected.

2. Plug the power cord into the AC power source. If you run the equipment on battery power, ensure that the battery is sufficiently charged.

3. Press the Power ON/OFF button ( equipment.

) on the front panel to turn on the

3-3

FOR YOUR NOTES

3-4

4 Testing and Maintenance

4.1 Introduction

The expected service life of the equipment is five years. To ensure the equipment always functions normally, qualified service personnel should perform regular inspection, maintenance and test. This chapter provides a checklist of the testing procedures for the equipment with recommended test equipment and frequency. The service personnel should perform the testing and maintenance procedures as required and use appropriate test equipment.

The testing procedures provided in this chapter are intended to verify that the equipment meets the performance specifications. If the equipment or a module fails to perform as specified in any test, repairs or replacements must be done to correct the problem. If you have any question, contact our Technical Support Department.

CAUTION

 All tests should be performed by qualified service personnel only.  Care should be taken to avoid changing the settings in [User Settings >>] and

[Factory Maintenance >>] menus to avoid loss of data.

 Service personnel should acquaint themselves with the test tools and make

sure that test tools and cables are available.

4.2 Performance Tests

Performance test are designed to ensure that measurement results are accurate. The following sections provide a list of performance and accuracy tests and their recommended frequencies.

4-1

4.2.1 Performance Test Frequencies

Check/Maintenance Item Frequency

Visual inspection 1. When first installed or reinstalled.

SpO2test

Leakage test

NIBP test

CO2 test (Accutorr 7 only)

TEMP test

Accuracy test

NIBP cuff overpressure test Performance test

Calibration Exergen

TemporalScanner thermometer

1. If the user suspects that the measurement is incorrect.

2. Following any repairs or replacement of relevant module.

Every two years for SmarTemp

and SpO

test.

Per year is recommended for NIBP and CO

module test

tests.

SmarTempTM module

4.2.2 Visual Inspection

Perform an overall inspection on the appearance of the equipment. The test is passed if the equipment has no obvious signs of damage. Follow these guidelines when inspecting the equipment:

 Carefully inspect the case, display screen, buttons, and knob for obvious signs of

damage.

 Inspect all external connections for loose connectors, bent pins or frayed cables.  Inspect all connectors on the equipment for loose connectors or bent pins.  Make sure that safety labels and data plates on the equipment are clearly legible.

4.2.3 SpO

Test Met ho d 1

Tool required:

 None

Test procedure:

1. Connect SpO

2. Place the SpO

3. Verify the Pleth Wave and Pulse Rate are displayed on the screen.

4. Remove the SpO

test

sensor for adult to the SpO2 connector of the monitor. Set [Patient

Category

] to [Adult].

sensor on your finger.

alarm is triggered.

sensor from your finger and make sure that the SpO2 Sensor Off

4-2

Measurement validation

The SpO2 accuracy has been validated in human studies against arterial blood sample reference measured with a CO-oximeter. Pulse oximeter measurements are statistically distributed, and only about two-thirds of the measurements can be expected to fall within the specified accuracy compared to CO-oximeter measurements.

NOTE

 The SpO2 simulator can only be used to verify that the pulse oximeter

operates properly. It cannot be used to verify the accuracy of the pulse oximeter or the SpO2 sensor. To verify the accuracy, clinical tests are required.

Test Met ho d 2

Tool required:

 SpO

simulator, Index-2 recommended

Test procedure:

1. Connect the SpO

sensor to the SpO2 simulator.

2. Selected the model and manufacturer of the SpO2 module to be tested on the simulator, and set the simulator as follows: SpO

to 96% and Pulse Rate to 80 bmp.

3. Set the patient type to [Adult], [Pediatric], and [Neonatal] respectively. Observe the monitor and make sure the displayed SpO

and Pulse Rate value fall in the

following range.

Manufacturer SpO2 Pulse Rate

Nellcor

Masimo

96% ± 2% (Adult, pediatric) 96% ± 3% (Neonate)

80 ± 3 bpm

4-3

4.2.4 NIBP Test

Leakage Test

NOTE

 Perform NIBP leakage test before any other NIBP test and calibration.

ools required:

 Adult NIBP Cuff  NIBP Hose  Cylinder

Follow this procedure to perform the

leakage test:

1. In the [Patient Demographics] menu, set [Patient Category] to [Adult].

2. Connect the NIBP cuff to the NIBP connector on the monitor.

3. Apply the cuff to the cylinder as shown below.

Monitor

Connector for NIBP cuff

NIBP Hose

Cylinder

Cuff

4. Select [Main]→[Maintenance >>]→[User Settings>>]→Enter required password→→[

Leakage Testing…] is displayed in the NIBP parameter area.

[

Module Maintenance >>]→[NIBP Leakage Test]. The message

After about 20 seconds, the monitor will automatically deflate. This means the test is complete. If no message is displayed in the NIBP parameter area, it indicates that the system has no leakage. If the message [

NIBP Pneumatic Leak] is displayed, it indicates that the

system may have a leak. Check the tubing and connections for leakages. Ensure that the tubing and connections are all correct, perform a leakage test again. If the problem persists, contact our Technical Support Department.

You may also perform a manual leakage test:

1. Perform steps 1 to 4 in the NIBP Accuracy Test section.

2. Raise the pressure in the rigid vessel to 250 mmHg with the manometer bulb. Then, wait for 5 seconds to allow the pressure to stabilize.

3. Record the current pressure value, wait 60 seconds and record the pressure again.

4. Compare the two pressure values and verify the difference is 6mmHg or less.

4-4

NIBP Accuracy Test

Tool required:

 T-shape connector  Appropriate tubing 

Manometer bulb

 Rigid Vessel with volume 500 ± 25 ml  Reference manometer (calibrated with accuracy equal to or better than 0.75

mmHg)

Follow this procedure to perform the accuracy test:

1. Connect the equipment as shown below.

Monitor

Standard sphygmomanometer

Connector for NIBP cuff

Manometer bulb

Appropriate tubing

Rigid Vessel

2. Before inflation, check that the reading of the manometer is 0. If not, turn off the manometer bulb to let the whole airway open to the atmosphere. Turn on the manometer bulb after the reading is 0.

3. Select [Main]→[Maintenance >>]→[User Settings>>]→Enter required password→[

Module Maintenance >>]→[NIBP Accuracy Test].

4. Check the manometer values and the monitor values. Both should be 0 mmHg.

5. Raise the pressure in the rigid vessel to 50 mmHg with the manometer bulb. Then, wait for 10 seconds to let the measured values become stable.

6. Compare the manometer values with the monitor values. The difference between the manometer and displayed values should be ± 3 mmHg. If it is greater than ± 3 mmHg, contact Mindray Technical Support.

7. Raise the pressure in the rigid vessel to 200 mmHg with the manometer bulb. Then, wait for 10 seconds to let the measured values become stable. Repeat step

NOTE

 You can use an NIBP simulator to replace the manometer bulb and the

reference manometer to perform the test.

4-5

Cuff Overpressure Tes t

NIBP

Tools required:

 T-shape connector  Appropriate tubing 

Manometer bulb

 Metal Vessel with volume 500 ± 25 ml  Reference manometer (calibrated, with accuracy equal to or better than 0.75

mmHg)

Follow this procedure to perform the calibration:

1. Perform steps 1 to 4 in the NIBP Accuracy Test section.

2. Select [

Main]→[Maintenance >>]→[Factory Maintenance >>]→enter the required

password→[

Calibrate NIBP >>]→[Overpressure Protection Circuit].

3. In [Overpressure Protection Circuit] menu, set [Patient Category] to [Adu/Ped]. Raise the pressure to 330 mmHg. After the pressure value is stabilized, select [Calibrate] to start calibration.

4. In the [

Overpressure Protection Circuit] menu, set [Patient Category] to

Neonatal]. Raise the pressure to 165 mmHg. When the pressure value is stabilized,

[ select [

Calibrate] to start calibration.

5. All calibration results are displayed in the [Calibrate NIBP] menu. If the calibration fails, check the test system for leakage and perform another calibration.

4-6

4.2.5 CO

Test (Only Available For Accutorr 7)

Accuracy Te s t

Tools required:

 A steel gas cylinder with 5% CO

2 , 21% O

, and balance gas N2 (P/N 0075-00-0033-01)

 T-shape connector  Tubing

1. Select [Main]→ [Maintenance >>]→[User Maintenance>>]→enter the required password→ [Module Maintenance>>]→[Calibrate CO2>>]

2. Connect the test system as follows:

Relief valve

-shape connector

Cylinder

3. Open the valve to start flowing CO to atmosphere.

4. Verify the realtime CO

2 value is within 5.0 ± 0.3% in the [Calibrate CO2] menu.

Tubing

Monitor

2 and make sure that there is sufficient flow to vent

4-7

CO2 Calibration

Tools required:

 A steel gas cylinder with 5% CO

2, 21% O2, and balance gas N2 (P/N 0075-00-0033-01)

 T-shape connector  Tubing

1. Select [

Main]→ [Maintenance >>]→[User Maintenance>>]→enter the required

password→ [

Module Maintenance>>]→[Calibrate CO2>>].

2. In the [Calibrate CO2] menu, select [Zero].

3. After the zero calibration is finished successfully, connect the equipment as follows:

Relief valve

-shape connector

ubing

Monitor

Cylinder

4. Open the valve to start flowing CO

2 and make sure that there is sufficient flow to vent

to atmosphere.

5. In the [Calibrate CO2] menu, enter the CO

6. In the [Calibrate CO2] menu, the measured CO measured CO

2 module.

2 concentration becomes stable, select [Calibrate CO2] to calibrate the

2 concentration in the [CO2] field.

2 concentration is displayed. After the

If the calibration is completed successfully, the message [Calibration Completed!] is displayed in the [Calibrate CO2] menu. If the calibration fails, the message [Calibration Failed ] is displayed. In this case, attempt to calibrate the CO

2 module again.

4-8

4.2.6 Exergen TemporalScanner Thermometer Test

Tool required:

 Water bath

 Blackbody as specified in EN 12470-5-2003

 Four-channel thermometer (model: 1529-R)

1. Put the probe of four-channel thermometer into water bath, and then put the blackbody into water bath, set the water bath to 37.0℃. allow the water bath sufficient time to equilibrate.

2. Set the Exergen TemporalScanner Themometer to EAR mode and “℃”.

3. Install a new probe cover. Measure and record the target temperature of blackbody with the Exergem thermometer and four-channel thermometer.

4. Verify accuracy of temperature on monitor(subtract temperature value on

four-channel thermometer from temperature value on monitor) is within±0.1℃.

5. Repeat sections 1 to 4. For water bath set to 42.0℃.

6. Verify accuracy of temperature on monitor is within ±0.2℃.

Please contact our service personnel if the Temp test fails.

4.2.7 SmarTemp

Required Tool:

 Thermostatic oil tank (HART 7102 recommended) or Water Bath and Precision

Thermometer for reference

Test procedure:

1. Set the temperature of the oil tank or water bath to 37°C and conduct the test

after the temperature stabilizes.

2. Set temperature unit to °C.

3. Select temperature parameter area to access [

temperature type to [

4. In Monitor Mode, remove the Temperature probe from the probe sheath, insert a

probe cover, and place the probe into the oil tank or water bath.

5. Wait till the Temp value displayed on the monitor stabilizes. Verify that the

displayed value is ±0.1°C of the oil bath thermostat setting or reference thermometer.

Contact our Technical Support Department if the Temperature test fails.

NOTE

 Due to the different application environment and the test object in vivo and

vitro conditions, there are deviations in the measurement result. The

Module Test

Monitor].

Temp Setup] menu, and then set

4-9

maximum deviation of 2.5℃ may exist in predictive Temperature measurement by liquid bath techniques.

4.3 Electrical Safety and Other Tests

4.3.1 Electrical Safety and Other Test Frequencies

Check/Maintenance Item Frequency

1. Following any repair or replacement of any

module

Electric Safety Tests

Power-on test

Touchscreen calibration

Recorder check

Bar code scanner test

Functional test

Battery check

Performance test

Nurse call function test

4.3.2 Electric Safety Tests

See Appendix A Electrical Safety Inspection for electrical safety tests.

4.3.3 Power-on Test

This test is to verify that the equipment can power up correctly. This test is passed if the equipment starts up by following this procedure:

1. Insert the battery in the battery compartment, and connect the equipment to the AC mains. The AC mains indicator and battery indicator light up.

2. If monitor is physically damaged.

3. Every two years. For details, refer to A Electrical Safety Inspection.

1. When first installed or reinstalled.

2. Following any repairs or replacement of any main unit parts.

1. When the touchscreen appears abnormal.

2. After the touchscreen is replaced.

Following any repair or replacement of the recorder.

Following any repair or replacement of the

code scanner

1. When first installed.

2. Whenever a battery is replaced.

Once per year or if the battery run time reduced significantly.

If the user suspects that the nurse call function does not work well.

bar

2. Press the Power ON/OFF button ( equipment. The work status indicator lights up inside the Power ON/OFF button.

) on the front panel to turn on the

4-10

3. The equipment gives a beep, which indicates that the selftest for alarm audio is passed, and the alarm lamp turns yellow, then red, and then off, which indicates that the selftest for alarm lamp has passed.

4. The welcome screen clears and the normal operation screen is displayed.

4.3.4 Touchscreen Calibration

Tool required:

 None

Test procedure:

1. Select [

Main]→[Maintenance >>]→[Calibrate Touchscreen].

2. The

3. Select, in turn, the central point of the

4. After the calibration is completed, the message [Screen Calibration Completed!]. Select [

symbol will appear at different positions of the screen.

symbol.

Ok] to confirm the completion of calibration.

4.3.5 Recorder check

Tool required:

 None

Test procedure:

1. Print SpO should be clear.

2. Remove the paper from the recorder then try to print and verify that an error message (recorder out of paper) appears. Reinstall the paper and verify the recorder functions properly.

3. Set the recorder to print trend data. Verify the recorder prints trends correctly.

Contact our Technical Support Department if the recorder test fails.

Pleth waveform. The recorder should print correctly and the printout

4.3.6 Bar Code Scanner Test

Tool required:

 None

Test procedure:

1. Aim the bar code scanner at the target bar code. Adjust the field of view to capture the bar code.

2. Hold the trigger until the bar code scanner gives a beep, indicating the bar code is successfully decoded. Meanwhile, the scanned characters are displayed on the monitor.

Please contact our service personnel if the bar code scanner fails to work normally.

4-11

4.3.7 Battery Check

Tool required:

 None

Func tional Te st

1. Remove the battery (if equipped), then connect the equipment to AC power.

2. Verify that the equipment works correctly when powered form an AC source.

3. Disconnect AC power and reinstall the battery.

4. Verify the equipment functions properly on battery power.

Performance Test

Run the equipment on battery power and verify it performs in accordance to the specifications stated in the Battery chapter in the operator’s manual (P/N: 046-004882-00 or P/N: 046-013024-00).

4.3.8 Nurse Call Reply Performance Test

Tool required:

 Oscilloscope

Test procedure:

1. Connect the nurse call cable to the Multi-function connector on the rear panel.

2. Select [

3. In the [

4. Click

5. Select [

6. Make the monitor to generate an alarm and check that the oscilloscope outputs

7. Quit the demo mode, and repeat step 2.

8. In the [

9. Repeat steps 4 and 5.

10. Create an alarm condition and verify that the oscilloscope displays positive pulses

Main]→[Maintenance >>]→[User Settings >>]→enter the required

password→[

set [

Conta ct Type] to [Normally Open, and [Signal Type] to [Continuo us].

Ok]→[Nurse Call >>].

Nurse Call Setup] menu, select the [Alarm Level] and [Alarm Category], and

to save the changes and quit the menu.

Main]→[Maintenance >>]→[Demo >>]→enter the required

password→[

Ok] to enter demo mode.

continuous high level when there is an alarm.

Nurse Call Setup] menu, select the [Alarm Level] and [Alarm Category], and

set [

Conta ct Type] to [Normally Open], and [Signal Type] to [Pulse].

of 1 second width when there is an alarm.

4-12

4.4 Factory Maintenance

4.4.1 Accessing Factory Maintenance Menu

Select [Main]→[Maintenance >>]→[Factory Maintenance >>]→enter the required password→[

Ok] to access the Factory Maintenance menu.

4.4.2 Drawing Waves

There are two methods for drawing waves: [Color] and [Mono].

 Color: selecting Color will have smoother waveforms.  Mono: selecting Mono will have a wider viewing angle.

4-13

4.4.3 Software Version

Selecting the [Software Version >>] will show software version information, as shown below:

1. System software version

2. Power software version

3. Module software version

4-14

4.4.4 Monitor Information

Selecting [Monitor Information >>] will show the status of the monitor as shown below:

NOTE

 If the main board is replaced, the serial number of the monitor must be

entered on the new main board in the Electronic SN Setup menu.

4-15

FOR YOUR NOTES

4-16

5 Troubleshooting

5.1 Overview

In this chapter, equipment problems are listed along with possible causes and recommended corrective actions. Refer to the tables to check the monitor, identify and correct problems.

The tables provided are meant as a general guide. For more detailed troubleshooting assistance, contact our Technical Support Department.

5.2 Part Replacement

Printed circuit boards (PCBs), major parts and components in the monitor are replaceable. Once you isolate a PCB you suspect defective, follow the instructions in chapter 6 Disassembly and Repair to replace the PCB with a known good one and check that the trouble disappears or the equipment passes all performance tests.

To obtain information on replacement parts or order them, refer to chapter 7 Parts.

5.3 Checking Equipment Status

Some troubleshooting tasks may require you to identify the hardware version and status of your monitor. To check equipment status:

1. Select [

2. Select [

5.4 Checking Software Version

Some troubleshooting may involve software compatibility. Thus it requires you to know your monitor configuration and software version. For detailed information on version compatibility, please contact our Customer Service Department. To view information on the system configuration and system software version,

Select [

Main]→[Maintenance >>]→[Factory Maintenance >>]→Enter the required

password→[ system software version and module software version.

Main]→[Maintenance >>]→[Monitor Information >>]. Then you can

view the information on system start time, selfcheck, etc.

Main]→[Maintenance >>]→[Factory Maintenance >>]→enter the

required password→[ information on the monitor’s current status.

Ok]→[Software Version >>]. You can also view the information on

Ok]→[Monitor Information >>]. You can also view the

5-1

5.5 Checking Technical Alarms

Before troubleshooting the monitor, check for technical alarm messages. Correct all Technical Alarms before continuing.

For detailed information on technical alarm message, possible cause and corrective action, refer to the monitor’s operation manual.

5.6 Troubleshooting Guide

5.6.1 Power On/Off Failure

Symptoms Possible Cause Troubleshooting

AC mains not connected or battery too low

Cable defective

The monitor fails to start.

Power board defective

Power management board defective

The main board failed.

Check that AC mains is properly connected or battery capacity is sufficient.

1. Check that the cable between the keypad board and main board is correctly connected.

2. Check that the cable between the power board and power management board is correctly connected.

3. Check that the cable between the main board and power management board is correctly connected.

Replace the power board.

Replace the power management board.

Replace the main board.

5-2

5.6.2 Display Failures

Symptoms Possible Cause Troubleshooting

1. Check if the cable between the display and main board and the backlight cable are

The display is blank or black.

Images overlapped or distorted

Cable defective

Main board defective Replace the main board.

Display defective Replace the display.

Main board error

Cable defective

correctly connected.

2. Check that the cables and connectors are not damaged.

Replace the main board, or upgrade the main board with the upgrade software.

Check if the cable between the display and main board and the backlight cable are correctly connected.

Touchscreen does not respond.

Touch position invalid

Touchscreen disabled

Cable defective

Touchscreen control board defective

Touchscreen defective

The main board failed.

Touchscreen not calibrated

Check if there is a above the [ hold the [

Main] quickkey. If yes, press and

Main Menu] quickkey for more

symbol displayed

than 3 seconds to enable the touchscreen.

1. Check that the cable between the touchscreen and touchscreen control board is correctly connected.

2. Check that the cable between the touchscreen control board and main board is correctly connected.

Replace the touchscreen control board

Replace the touchscreen.

Replace the main board.

Calibrate the touchscreen.

5-3

5.6.3 Alarm Lamp Failures

Symptoms Possible Cause Troubleshooting

1. Check that the cable between the alarm lamp board and main board is correctly

The Alarm Lamp does not illuminate properly or not at all.

Cable defective

Alarm lamp board defective

The main board failed.

connected.

2. Check that the cables and connectors are not damaged.

Replace the alarm lamp board

Replace the main board.

5.6.4 Button and Encoder Failures

Symptoms Possible Cause Troubleshooting

Check that the cable between the keypad

Buttons do not work

Encoder does not work

Cable defective

Keypad board failure Replace the keypad board.

Cable defective

Knob failure Replace the encoder.

Keypad board failure Replace the keypad board.

board and main board is correctly connected.

Check that the cable between the knob

1. and keypad board is correctly connected.

2. Check that the cable between the keypad board and main board is correctly connected.

5-4

5.6.5 Sound Failures

Symptoms Possible Cause Troubleshooting

No hardkey or encoder sound, or hardkey or encoder sound abnormal

No alarm sound or alarm sound abnormal

The key volume is set to 0.

Cable defective

Speaker defective Replace the speaker.

The main board failed.

Power management board defective

The alarm volume is set to 0.

Cable defective

Select [

Main]→[General Setup >>] to adjust

the key volume.

Check that the cable between the speaker and interface board is properly connected.

Replace the main board.

Replace the power management board.

Select [

Main]→[Maintenance >>]→]User

Settings >>

password the [

]→enter the required

→[Ok]→[Alarm Setup >>] and set

Minimum Alarm Volume] to a proper

level in the prompt menu. Select

Main]→[General Setup >>] to adjust the

[ key volume.

1. Check that the cable between the speaker and interface board is properly connected.

Speaker defective Replace the speaker.

The main board failed.

Power management board defective

Replace the main board.

Replace the power management board.

5.6.6 Battery Failures

Symptoms Possible Cause Troubleshooting

Battery defective Replace the battery.

Check that the cable between the battery

Battery cannot be charged

Cable defective

Power management board defective

Battery interface board defective

interface board and power management board is correctly connected.

Replace the power management board.

Replace the battery interface board.

5-5

NOTE

 If the Battery Module fails, it may affect other modules or boards in the

main unit.

 Components of the main unit are powered by the power module. In the

event that a component malfunctions, check if the operating voltage is correct.

5.6.7 Recorder Failures

Symptoms Possible Cause Troubleshooting

1. Check if the recorder status indicator lights.

2. If yes, select [

Main]→[Maintenance >>]→[Factory

Maintenance >>

]→enter the required password→[Ok]→[Device Config. >>] and check the recorder box in the prompt menu to enable the recorder. Otherwise, check for other possible causes.

Check that the cable between the recorder and main board is correctly connected.

Stop the recorder and re-install the paper roll.

1. Check the thermal print head and the paper roller for foreign matter.

2. Clean the thermal print head with an appropriate cleaning solution such as contact cleaner or isopropal alcohol

No printout

Poor print quality or paper not feeding properly

Recorder module disabled

Paper reversed Re-install the paper roll.

Cable defective

Recorder defective Replace the recorder.

Paper roll not properly installed

Print head dirty

Recorder defective Replace the recorder.

5-6

5.6.8 Output Interface Failure

Symptoms Possible Cause Troubleshooting

1. Check that the cable between the power management board and main board is correctly connected.

2. Check that the cable between power management board and interface board is correctly connected.

Replace the connector board.

Replace the power management board.

Main]→ [Transfer Data to USB]

Select [

Unable to use the USB devices; USB drive data transfer failure

Cable defective

The connector board failed.

Power management board defective

The main board failed. Replace the main board.

Improper setup

5.6.9 Data Storage Failure

Symptoms Possible Cause Troubleshooting

Fails to review archived patient data

SD card failure

Abnormal patient admitting

SD card full; unavailable for more patient data

The main board failed. Replace the main board.

SD card not formatted Format the SD card.

SD card failure Replace the SD card.

SD card is locked Unlock the SD card.

Main board defective Replace the main board.

Admit the patient properly.

uneeded patient data, clear the

Delete related alarm, and readmit the patient.

5-7

5.6.10 Wired Network Related Problems

Symptoms Possible Cause Troubleshooting

Check LAN cable connection. LAN cable shall not be longer than 50 m

eters.

Check for IP address conflict. If yes, reconfigure the IP address.

1. Check that the cable between the power management board and main board is correctly connected.

2. Check that the cable between power management board and interface board is correctly connected.

Replace the connector board.

Replace the power management board.

Replace the main board.

Check LAN cable connection. LAN cable shall not be longer than 50

eters.

Check LAN cable connection. LAN cable shall not be longer than 50 m

eters.

A monitor can only be viewed by

four other monitors at the same time

under the View Others mode. The excessive view requests system will be ignored.

Check for IP address conflict. If yes, reconfigure the IP address.

Unable to connect the wired network

The monitor is frequently off line or disconnects from the network.

The monitor is connected to a LAN but cannot view other patients under the View Others mode

Incorrect LAN cable connection

Incorrect IP address configuration

Cable defective

The connector board failed.

Power management board defective

The main board failed.

Incorrect LAN cable connection

Excessive requests for viewing the monitor at the same time

Incorrect IP address configuration

5-8

5.6.11 Wi-Fi Related Problems (Only Available for Accutorr 7)

Symptoms Possible Cause Troubleshooting

The monitor is frequently off line or disconnects from the Wi-Fi network.

Unable to connect the Wi-Fi network.

The Wi-Fi signal is unstable in the operating area.

The monitor's Wi-Fi antenna is detached or not properly connects the Wi-Fi module.

Antenna damaged Replace the Wi-Fi antenna.

Wi-Fi module defective Replace the Wi-Fi module.

Incorrect IP address configuration

The Wi-Fi signal is unstable in the operating area.

The monitor's Wi-Fi antenna is detached or not connected to the Wi-Fi module.

Antenna damaged Replace the Wi-Fi antenna.

Wi-Fi module defective Replace the Wi-Fi module.

Main board defective Replace the main board.

Check the signal quality of the

Mindray Wi-Fi network.

Disassemble the monitor and fix the Wi-Fi antenna.

Check for IP address conflict. If yes, reconfigure the IP address.

Check the signal quality of the

Mindray Wi-Fi network.

Fix the Wi-Fi antenna.

5.6.12 Module defective

Symptoms Possible Cause Troubleshooting

1. Check that the cable between the external converter board inside the module and the converter board is correctly connected.

2. Replace the converter board.

1. Check that the cable between the main board and power management board is correctly connected.

2. Replace the power management board.

3. Replace the main board.

Check the cables connecting the converter board and corresponding parameter module.

Failed to connect the external parameter modules

Module can be

loaded, but "XX communication

Module defective

Main unit defective

Cable defective inside the module

5-9

Symptoms Possible Cause Troubleshooting

stopped" is reported or some parameters cannot be used

"XX" indicates the configured modules, such as NIBP, SpO2 and Temperature.

Parameter module defective

Converter board defective inside the module

Replace the corresponding module.

Replace corresponding converter board.

5.6.13 Exergen TemporalScanner Thermometer Module Problems

Symptoms Possible cause Troubleshooting

Dirty Lens

Releasing the button before finished measuring

Measuring when an ice pack

or wet compress is on the forehead

Abnormally low Temperature

Measuring a completely diaphoretic patient

Improperly scanning down the side of the face

Anything covering the area to be measured would

Abnormally high temperature

Processing Error Error

insulate and prevent heat from dissipating, resulting

in false high readings.

Clean lens of scanner every two weeks.

Release the button after finished measuring.

Remove ice pack or wet compress, wait 2 minutes, and re-take temperature.

Complete diaphoresis includes diaphoresis of area behind the ear and suggests that the temperature is rapidly dropping. Use an alternative method of temperature measurement in these cases until the patient is dry and the temporal artery measurement can be repeated.

Scan straight across forehead. The temporal artery is closest to skin in that area.

Confirm measurement site has not recently been in contact with heat insulators such as hats, blankets, and hair.

Scan the area not covered or wait about 30 seconds for the previously covered area to equilibrate to the environment.

Restart. Return for repair if error message persists

5-10

5.6.14 CO

Symptoms Possible Cause Troubleshooting

CO2 Sensor High Tem p

CO2 Zero Failed The zeroing failed.

CO2 No Filterline

CO2 FilterLine Occluded

CO2 frequently zeroes during the first hour after start-up.

Module Problems (Only Available for Accutorr 7)

Ambient temperature is too high or there is a module failure.

Lower the operating temperature. If the alarm persists, the CO2 module may have a failure. Change the CO module.

Wait for the next successful zeroing, or repower the module.

The mini water trap disconnected.

The airway or mini water tarp is occluded.

The CO

module

temperature is not stable.

Make sure that the mini watertrap and sampling line is connected.

Check the airway and remove the occlusion.

No action is required. The zeroing does not affect measurement accuracy. The zeroing frequency will decrease over time.

5.6.15 Technical Alarm Messages

Please refer to the operator’s manual.

5-11

FOR YOUR NOTES

5-12

6 Disassembly and Repair

6.1 Tools Required

To disassemble and replace the parts and components, the following tools may be required:

 Philips screwdrivers  Tweezers  Sharp nose pliers  Clamp 

Slot-type screwdriver

6.2 Preparations for Disassembly

Before disassembling the equipment, finish the following preparations:

 Stop monitoring, turn off the equipment, and disconnect all the accessories and

peripheral devices.

 Disconnect the AC power source and remove the battery.

WARNING

 Before disassembling the equipment, be sure to eliminate the static charges

first. When disassembling the parts labeled with static-sensitive symbols, make sure you are wearing electrostatic discharge protection such as antistatic wristband or gloves to avoid damaging the equipment.

 Properly connect and route the cables and wires when reassembling the

equipment to avoid short circuit.

 Follow correct sequence to disassembly the equipment. Otherwise, the

equipment may be damaged permanently.

 Be sure to disconnect all the cables before disassembling any parts. Be sure

not to damage any cables or connectors.

 Place the screws and parts from the same module together to facilitate

reassembling.

 Use care during reassembly to ensure cables are properly routed and all

gaskets are intact and correctly positioned.

6-1

6.3 Disassembling the Main Unit

NOTE

 The recorder can be disassembled separately.  To disassemble the equipment, place the equipment on a work surface free

from foreign material, avoiding damaging the antiglare screen, touchscreen and the knob. Be careful not to break the two cotters on the front ends of rear housing.

 All repairs should be performed in an anti-static environment by qualified

service personnel.

6.3.1 Disassembling the Temperature Module (Optional)

1. Lay the monitor on a table as shown below. Unscrew the three M3×6 screws, pull the Temperature module up, and disconnect the Temperature cable.

emperature

cable

6-2

6.3.2 Removing the Recorder

Unscrew the two M3×6 screws and pull the clamps as indicated to remove the recorder. Then disconnect the cable.

Clamps

NOTE

 The recorder can be disassembled separately.

6.3.3 Separating the Front and Rear Half of the Monitor

1. Lay the monitor on a table as shown below. Unscrew the four M3 screws.

6-3

2. Remove the recorder or recorder cover, and pull the rear housing out as indicated below to separate the front and rear housing.

3. Stand the monitor and separate the front housing assembly and rear housing assembly with caution. Disconnect the cable between the main board and power management board and then take off the front panel.

Cable

NOTE

 When reassembling the equipment, be sure to check if the front housing

waterproof strip is correctly placed.

6-4

6.3.4 Removing the Parameter Connector Panel Assembly

Lay the rear housing assembly of the equipment on a table. Disconnect the cable for AC receptacle and SpO2 cable, and then the silicon tube.

Cable for AC input receptacle

SpO2 signal cable

Parameter connector panel assembly

Silicon tube

6-5

6.3.5 Disassembling the Main Bracket Assembly

1. For monitors without a multi-function connector, use a flat blade screwdriver to gently lift the cover release on the inside of the unit, and then remove the cover.

Cover

6-6

2. Disconnect the speaker cable, recorder cable, power cord and battery interface board cable.

3. Unscrew the five self-tapping screws and one grounding screw. Then remove the main bracket assembly.

Battery interface board cable

5 self-tapping screws

Speaker cable

Recorder cable

Grounding screw

Power cord

6-7

6.3.6 Removing the Parameter Board (SpO

Optional) and Power

Management Board

1. Unscrew the three screws and remove the power management board assembly from the main bracket assembly.

2. Unscrew the two M3 screws and remove the parameter board from the power management board assembly.

Parameter Board

6-8

2 M3 screws

3. Unscrew the two M3 screws and remove the power management board assembly.

2 M3 screws

Power management board

6.3.7 Removing the Parameter Connector Panel Assembly (With CO

Only Available for Accutorr 7)

1. Lay the rear housing assembly of the equipment on a table.

2. Pull out the AC receptacle, SpO outlet tube and CO

connection cable.

Gas inlet tube

CO2 connection cable

Gas outlet

Parameter connector panel assembly

cable, and then the silicon tube, gas inlet tube, gas

SpO2 signal cable

Silicon tube

6-9

6.3.8 Disassembling the CO

Module Assembly (Only Available for

Accutorr 7)

1. Pull out the AC receptacle, NIBP connection cable, CO2 connection cable.

2. Unscrew two M3X6 screws.

3. Remove the CO

module.

NIBP connection cable

AC receptacle

Screw

connection cable

Screw

6.3.9 Disassembling CO2 main Module (Only Available for Accutorr 7)

3XM2.5 screws

6-10

6.3.10 Disassembling the Main Bracket Assembly (With CO

, Only

Available for Accutorr 7)

1. Disconnect the speaker cable, recorder cable, power cable, and battery interface board cable. Unscrew the five PT3×8 screws and M4 screw.

2. Take out the main bracket assembly.

Speaker cable

Recorder cable

Battery interface board

Power cord

One grounding screw

Five self-tapping screws

6-11

6.3.11 Disassembling Pumps and Valves

1. Cut the two cable ties and remove the pump.

Cable tie

2. Unscrew the three screws as indicated and remove the NIBP board.

6.3.12 Disassembling AC/DC Power Board and Battery Converter

Board

1. Unscrew the four screws as indicated and remove the AC/DC power board.

6-12

2. Unscrew the two M3 nuts to remove the battery interface board.

6.4 Disassembling the Front Housing Assembly

NOTE

 To disassemble the equipment, place the equipment on a work surface free

from foreign material, avoiding damaging the antiglare screen, touchscreen and the knob.

 Remember to install the screen support pad properly during reassembly.  Operations relating to optional parts may not apply to your equipment.  Position the touchscreen properly with the flexible cable facing down.

6.4.1 Removing the Touchscreen Control Board

Remove the two M3 screws as shown below. Disconnect the cable between main board and touchscreen board, and the touchscreen control board cable, and then remove the touchscreen control board.

ouchscreen Control Board cable

Cable between the main board and touchscreen board

2 M3 screws

6-13

6.4.2 Removing the 2.4G Wi-Fi Module (Optional, Only Available for

Accutorr 7)

1. Remove the two antennas on the front panel from the slots as shown below:

Antenna

2. Remove the antennas from the Wi-Fi module PCBA.

3. Push the clamps aside to remove the Wi-Fi module.

Antenna

Clamps

6-14

6.4.3 Removing the 5G Wi-Fi Module (Optional, Only Available for

Accutorr 7)

1. Remove the antennas on the front panel from the slots as shown below:

Antenna

2. Remove the antennas from the Wi-Fi module PCBA.

Antenna

6-15

3. Remove the antennas from antenna sleeve.

Antenna

Antenna sleeve

4. Push the clamps aside to remove the Wi-Fi module.

5. Remove the Wi-Fi module.

Clamps

6-16

Wi-Fi module

6.4.4 Removing the Main Control Board

Disconnect the alarm lamp cable, cable for display backlight, display cable, and the cable between the main board and keypad board respectively. Unscrew the four M3×8 screws and remove the main board, as shown below:

Cable

6.4.5 Removing SD Card

Remove the main board, and push the SD card as indicated below to remove the SD card.

6-17

SD card

6.4.6 Removing the Touchscreen

Unscrew the seven PT3×8 screws as indicated below. Remove the touchscreen assembly and then the touchscreen.

Touchscreen

6.4.7 Disassembling the Display

Unscrew the four M3×6 screws indicated below to remove the screen.

6-18

6.4.8 Removing the Keypad

Unplug the encoder cable and unscrew the three PT3×8 screws indicated below. Remove the keypad.

6.4.9 Removing the Encoder

Pull the knob off the encoder shaft. Remove the retaining nut. Then remove the encoder.

Knob

Encoder shaft

6.4.10 Removing the Alarm Lamp

Unscrew the four PT2×6 screws indicated below and remove the alarm lamp board and alarm lamp.

6-19

Temp

6.5 Disassembling the SmarTemp

6.5.1 Removing the SmarTemp

Module (Optional)

Module PCBA and Module Power

Board PCBA

Unscrew the two M3×6 screws and the two M3 screws. Remove the cover board and metal sheet. Disconnect the Temperature board cable and the cable between Temperature isolation power board and Temperature board. Unscrew the four M3×6 screws, you can remove the Temperature module PCBA. Then unscrew the three M3×6 screws, you can remove the Temperature module power board PCBA.

4 M3x6 screws

Screw for cover

Cover

emperature module power board PCBA

3 M3X6

Screw for cover

Metal sheet

emperature

board cable

Cable between the isolation power board and

board

emperature

module PCBA

Screw for metal

6-20

6.5.2 Disassembling the Temperature On-Position Detection Board

PCBA

1. Unscrew the four M3×6 screws as indicated and remove the temperature module housing.

2. Unscrew the four M2 screws as indicated below and remove the Temperature on-position detection board PCBA.

emperature on-position detection board PCBA

NOTE

 Remember to assemble the silicon button for the Temperature on-position

detection switch during reassembly.

6-21

6.6 Disassembling the Exergen TemporalScanner Themometer

Module (Optional)

1. Unscrew three M3×6 screws, and then remove the panel.

M3×6 screws

2. Pull out the thermometer cable, unscrew two M3X6 screws, and then take out the bottom panel.

M3×6 screws

Connection cable

6-22

3. Unscrew four M3X6 screws, and then take out the metal bracket.

M3×6 screws

4. Unscrew three M3X6 screws, and then take out the power isolation board.

6-23

FOR Y

OUR NOTES

6-24

7 Parts

7.1 Introduction

This section contains the exploded views and parts lists of the main unit to identify the parts during disassembly of the monitor and replacing the parts.

This manual is based on a fully loaded configuration. Your equipment may not contain all options and therefore may not be appear the same as the unit in this manual.

NOTE

 For parts in the Parts List below that contain two part numbers, the first part

number is for patient monitors built with one version of plastic material, the second part number is for patient monitors built with another version of plastic material. The way to distinguish which material your monitor is built

from is if it contains the symbol

7.2 Main Unit

7.2.1 Exploded View

7-1

7.2.2 Parts List

Item No.

1 Accutorr 7 Front Housing Assembly

1 VS-900c Front Housing Assembly 115-057544-00 Touch screen

2 TR6F recorder for Accutorr 7

2 TR6F recorder for VS-900c 115-046892-00 N/A

3 Rear Housing Assembly

5 Screw, pan head Phillips, M3×8 M04-000605--- N/A

6 Temperature module

Description FRU part number Remarks

115-022922-00/ 115-050858-00

115-001290-00/ 115-046892-00

115-017698-00/

Touch screen

N/A

Cover assembly

115-048904-00

Screw, Pan head with washer, Phillips M3×8

M04-004015--- N/A

115-017716-00/ 115-048910-00

N/A

7-2

7.3 Front Housing Subassembly (Touchscreen)

7.3.1 Exploded View

7-3

7.3.2 Parts List

Item No.

1 Accutorr 7 Front housing

Description FRU part number Remarks

3 Silicon water-proof strip

4 Alarm lamp

5 Silicon water-proof strip

115-022921-00/ 115-050857-00

Accutorr 7 front housing service kit

8 Touchscreen position pad (8")

1 VS-900c Front housing

3 Silicon water-proof strip

4 Alarm lamp

5 Silicon water-proof strip

115-057546-00

VS-900c front housing service kit

8 Touchscreen position pad (8")

2.4G: 0012-00-1730-01

2 Antenna cable

5G: 115-035362-00/ 115-048914-00

N/A

6 Alarm Lamp Board 051-001362-00 N/A

9 Touch-panel, resistive-type, 8.4”

Cross recessed pan head self-tapping screw PT2X6

M04-051003--- N/A

021-000058-00 or 021-000271-00

N/A

10 8” display-short

115-018259-00 N/A 12 8” display-long

13 LCD TFT 8.4”

11 Screw, pan head Phillips, M3×6 M04-002505--- N/A

14 Touchscreen control board PCBA 051-000881-00 N/A

15 Main board PCBA 115-023203-00 N/A

Screw, Pan Head W/Washer Phillips M3X6

M04-004012--- N/A

17 ST3.3X8 screw 030-000338-00 N/A

18 Keypad board adjusting sleeve

115-020467-00 N/A

19 Keypad board cushion

7-4

Item No.

20 Keypad PCBA 051-001359-00 N/A

21 Encoder 801-0010-00010-00 N/A

22 Accutorr 7 silicon buttons 049-000607-00 Accutorr 7

22 Silicon buttons 049-000998-00 VS-900c

23 Knob 043-003372-01 Accutorr 7

23 Knob 043-010368-00 VS-900c

7.4 Rear Housing Assembly (without CO

Description FRU part number Remarks

module, CO2 Only

Available for Accutorr 7)

7.4.1 Exploded View

7.4.2 Parts List

Item

Description FRU part number Remarks

No.

1 Rear Housing Subassembly for Accutorr

1 Rear Housing Subassembly for VS-900c 115-048904-00 N/A

2 Battery door assembly

115-017698-00/ 115-048904-00

043-003359-01/

7-5

N/A

Item

Description FRU part number Remarks

No.

043-008878-01

3 AC socket assembly 115-017699-00 N/A

4 Parameter connector panel assembly

115-017711-00/ 115-048908-00

115-017706-00/ 115-048906-00

115-017707-00/ 115-048907-00

Without SpO2

With Masimo SpO2

With Nellcor SpO2

5 Parameter connector board support 043-003168-00 N/A

6 Power management board 115-018262-00 With multi-IO

Screw, Pan head w

M3X6

ith washer, Phillips

M04-004012--- N/A

8 Valve assembly 115-063257-00 N/A

9 Pump

801-9261-0004000

NIBP pump service kit

10 Shock absorption cushion for pump 047-005212-01 N/A

11 ST3.3X8 screw 030-000338-00 N/A

12 Speaker

13 Speaker pad

14 Handle

801-9261-0001000

043-003165-01/

N/A

043-008828-00

Cable between the power

management board and power board

Cable between the interface board and

main board

Cable between NIBP module and

power management board

009-003237-00 N/A

9211-20-87225 N/A

009-003238-00 N/A

/ Recorder cable 009-001969-00 N/A

/ multifunctional connector cap 043-003311-01 N/A

7-6

7.5 Rear Housing Assembly (with CO

Accutorr 7)

7.5.1 Exploded View

module, Only Available for

7.5.2 Parts List

Item

Description FRU part number Remarks

No.

1 Rear Housing Subassembly

2 Battery door assembly

3 AC socket assembly 115-017699-00 N/A

Parameter connector panel assembly

5 Parameter connector board support 043-003168-00 N/A

115-017698-00/ 115-048904-00

043-003359-01/ 043-008878-00

115-038391-00/ 115-051242-00

115-038392-00/ 115-051243-00

7-7

N/A

Nellcor SpO2

Masimo SpO2

Item

Description FRU part number Remarks

No.

6 Power management board 115-018262-00 With multi-IO

Screw, Pan head w

M3X6

ith washer, Phillips

M04-004012--- N/A

8 Valve assembly 115-063257-00 N/A

9 Pump

10 Shock absorption cushion for pump

801-9261-00040-00

NIBP pump service kit

/ Fixing strip

11 M02D CO2 module 115-038402-00 /

12 Main bracket assembly 115-038394-00 N/A

13 Speaker bolster plate 042-008296-00 N/A

14 Speaker

15 Speaker pad

Cable between the power

management board and power board

Cable between the interface board and

main board

Cable between NIBP module and

power management board

020-000027-00 N/A

009-003237-00 N/A

9211-20-87225 N/A

009-003238-00 N/A

/ Recorder cable 009-001969-00 N/A

/ multifunctional connector cap 043-003311-01 N/A

7-8

7.6 Main Bracket Assembly

7.6.1 Exploded View

7.6.2 Parts List

Item No. Description FRU part number

1 Screw, Pan head w/washer M04-004012---

2 Power board insulator 047-010575-00

3 Power board 022-000125-00

4 Knob, Battery latch 0380-00-0593

5 Nut with washer

115-018254-00 6 Battery spring

7 6301 battery interface PCBA

7-9

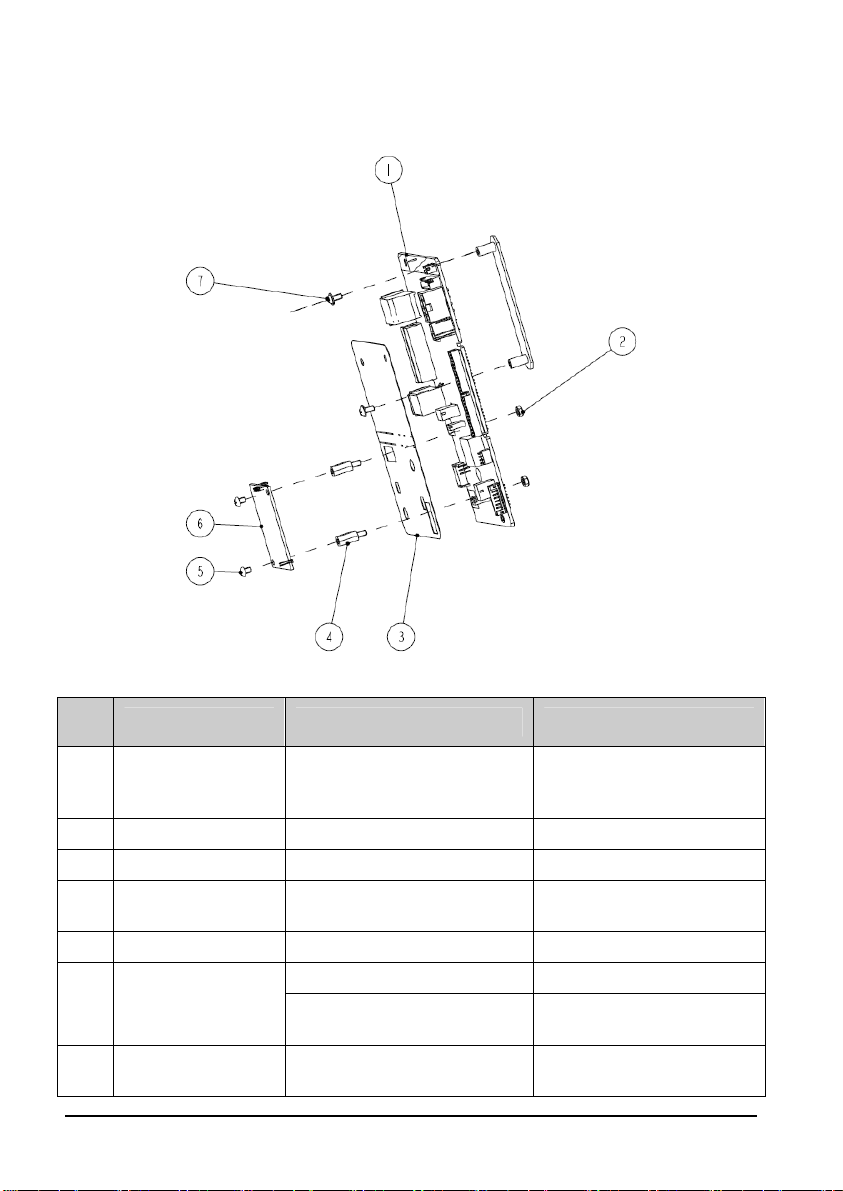

7.7 Power Management Board Assembly

7.7.1 Exploded View

7.7.2 Parts List

Item

Description FRU part number Remarks

No.

Power

management board

service kit

115-018262-00

2 Plastic hexagon nut M90-000156--- N/A

3 SpO2 shield 047-010576-00 N/A

Plastic hexagon

bolt

099-000129-00 N/A

5 Screw, pan head M04-051001-01 N/A

100-000106-00 Nellcor SpO

6 SpO

board

Screw, Pan head w/washer

040-000109-01

M04-004012--- N/A

7-10

with multifunctional connector

SpO

board, Masimo

MS-2013

board (MDU)

7.8 Parameter Connector Panel Assembly (without CO

Only Available for Accutorr 7)

7.8.1 Exploded View

module,

7.8.2 Parts List

Item

Description FRU part number Remarks

No.

1 Parameter panel

2 NIBP fitting

1 Parameter panel

2 NIBP fitting

1 Parameter panel

2 NIBP fitting

3 SpO

signal cable

/ Decorative NIBP socket 043-003304-01 N/A

/ Decorative IBP socket

115-017711-00/ 115-048908-00

115-017706-00/ 115-048906-00

115-017707-00/ 115-048907-00

without

Masimo SpO2

Nellcor SpO2

SpO2

009-003243-00 Masimo SpO

009-003244-00 Nellcor SpO2 module

043-001893-01/ 043-008498-00

N/A

module

7-11

7.9 Parameter Connector Panel Assembly (with CO

Only Available for Accutorr 7)

7.9.1 Exploded View

module,

7.9.2 Parts List

Item

Description FRU part number Remarks

No.

1 Parameter panel 043-006643-00

2 Hand feel spring 042-013555-00 N/A

3 NIBP fitting

115-010541-00/ 115-046902-00

4 SpO

signal cable

009-003243-00 Masimo SpO

009-003244-00 Nellcor SpO2 module

5 1 slot CO2+O2 outlet nipple 041-017255-00 N/A

DRYLINE PRIME Receptacle

with no panel

115-036134-00 N/A

/ Decorative NIBP socket 043-003304-01 N/A

/ Decorative IBP socket

043-001893-0 043-008498-00

Applicable for Nellcor or Masimo SpO

N/A

module

7-12

7.10 Predictive Temperature Assembly

7.10.1 Exploded View

7.10.2 Parts List

Item No.

1 Screw, Pan head w/washer M04-004012---

2 Predictive Temperature module power board PCBA 801-6006-00043-00

3 Predictive Temperature housing

4 Temperature on-position detection board PCBA 051-001419-00

5 External compartment for Temperature module

6 Temperature cover 049-000547-01

7 Silicon buttons M09A-20-62064

8 Screw, Pan head Self-Tapping PT2X6 M04-051003---

Description FRU part number

043-003326-01/ 043-008862-00

043-003312-01/ 043-008842-00

7-13

Item No.

9 Screw, Flat Head Phillips, M3X6 M04-005005---

10 Predictive Temperature module PCBA 051-001435-00

/ Predictive Temperature board cable 009-003368-00

Description FRU part number

Cable between the Temp management board

Cable between the isolation power board and Temp

erature board

erature module and power

009-003239-00

009-003240-00

7.11 Exergen TemporalScanner Thermometer Assembly

7.11.1 Exploded View

7-14

7.11.2 Parts List

SN Description FRU part number Remarks

1 Temp connection cable, 009-006361-00 /

2 Lower cover

3 Fixed screw 041-023435-00 /

4 Spacer gasket 047-016529-00 /

5 7 X 12 Base 047-010577-00 /

6 Pin buckle 041-022395-00 /

7 Cover 115-038403-00 /

8 Temp holder 042-016758-00 /

9 Screw, flat head Philips M3 X 6 M04-005005--- /

10 Stop cover 043-006888-00 /

11 Insulated sheet 047-017159-00 /

12 Insulated sheet connection cable 009-006362-00 /

Screw, pan head W/Washer Philips M3 X 6

043-008823-00

M04-004012--- /

7-15

7.12 Exergen frame Assembly

7.12.1 Exploded View

7.12.2 Parts List

1 Exergen frame cover

2 Lower cover /

3 spring holder /

4 Exergen frame base /

5 7 X 12 Base /

6 tail bed antiskid pad /

Description

FRU part

045-003420-00

7-16

number

Remar

8 Hardware and Software Upgrade

8.1 Hardware Upgrade

The monitor supports upgrade of the following functions:

 SpO2 measurement  Tem p

8.1.1 Upgrade Package

Upgrade package Description of upgrade package PN of upgrade

SpO2 Masimo SpO2 upgrade kit 115-027698-00

Temp(SmarTempTM module)

Tem p (Exe rge n TemporalScanner™ Thermometer module)

Note: measurement accessories are not included in the above upgrade packages.

8.1.2 Upgrading Parameter Modules

8.1.2.1 Upgrading Nellcor SpO

Contents of upgrade package:

 A Nellcor SpO2 board;  An SpO  A connector panel assembly for Nellcor SpO  Two M3×6 screws

1. Remove the power management board and connector panel assembly as

2. Assemble the SpO

3. Install the power management board assembly with the SpO

erature measurement

package

Nellcor SpO2 upgrade kit 115-027699-00

SmarTemp

module 115-027700-00

Exergen module (FDA) 115-062403-00

insulator;

board; and,

described in section 6.3 Disassembling the Main Unit.

board and insulator onto the power management board as

described in section 6.3.6 Removing the Parameter Board (SpO2 Optional) and Power Management Board.

board and the

connector panel assembly in the service kit into the main unit as described in section 6.3 Disassembling the Main Unit.

8-1

8.1.2.2 Upgrading Masimo SpO

Contents of upgrade package:

 A power management board assembly with Masimo SpO2; and,  A Masimo SpO

connector panel assembly.

1. Remove the power management board, connector panel assembly and the

stopple of multifunctional connector (if there is one) as described in section 6.3 Disassembling the Main Unit.

2. Install the power management board assembly with the SpO2 board and the

connector panel assembly in the service kit into the main unit as described in section 6.3 Disassembling the Main Unit.

8.1.3 Upgrading Temperature

Contents of upgrade package:

 A Temp

erature module with cables; and,

 Two M3×6 screws.

Remove the decorative cover from the Temperature module connector. Install the Temperature module onto the main unit as described in section 6.5 Disassembling the SmarTempTM Module (Optional).

8.1.4 Upgrading Wi-Fi (Only Available for Accutorr 7)

Contents of upgrade package:

 Antenna sleeve  Wi-Fi antenna  Carrier board of wireless module (PCBA)  Radio module support IEEE 802.11a/b/g/n  Wi-Fi label  Three cross pan head screw M2X4

Follow this procedure to upgrade:

1. Install the Wi-Fi module onto the main unit as described in section 6.4

Disassembling the Front Housing Assembly.

2. Paste the Wi-Fi label.

8-2

3. Upgrade software.

4. Test that the wireless network can be connected. Refer to the operator’s manual for wireless network connection.

8.1.5 Enabling Parameter Functions

1. Select [Main]→[Maintenance >>]→[Factory Maintenance >>]→enter the required password→[

2. In the prompt menu, check the upgraded functions.

3. Click to save the changes and quit the menu.

4. Restart the monitor and the software for upgraded parameters are enabled.

Ok]→[Device Config. >>].

8.2 Software Upgrade

Software upgrades must be performed by Mindray, NA authorized service personnel. Call Service Dispatch 1 800 288-2121 ext: 7875.

NOTE

 The software upgrading could result in clearing the historical patient data. It

is recommended to export patient data before upgrading software.

8-3

FOR YOUR NOTES

8-4

A Electrical Safety Inspection

The following electrical safety tests are recommended as part of a comprehensive preventive maintenance program. They are a proven means of detecting abnormalities that, if undetected, could prove dangerous to either the patient or the operator. Additional tests may be required according to local regulations.

All tests can be performed using commercially available safety analyzer test equipment. Follow the instructions of the analyzer manufacturer.

The consistent use of a safety analyzer as a routine step in closing a repair or upgrade is emphasized as a mandatory step if an approved agency status is to be maintained. The safety analyzer also proves to be an excellent troubleshooting tool to detect abnormalities of line voltage and grounding, as well as total current loads.

A.1 Power Cord Plug

A.1.1 The Power Plug

Tes t Item Acceptance Criteria

The power plug pins No broken or bent pin. No discolored pins.

The plug body No physical damage to the plug body.

The power plug

The power cord

The strain relief

The power plug No loose connections.

No physical damage to the strain relief. No plug warmth for device in use.

No physical damage to the cord. No deterioration to the cord.

For devices with detachable power cords, inspect the connection at the device.

For devices with non-detachable power cords, inspect the strain relief at the device.

A-1

A.2 Device Enclosure and Accessories

A.2.1 Visual Inspection

Tes t Item Acceptance Criteria

No physical damage to the enclosure and accessories.

The enclosure and accessories

No physical damage to meters, switches, connectors, etc.

No indication of exposure to fluid spills (e.g., water, coffee, chemicals, etc.).

No loose or missing parts (e.g., knobs, dials, terminals, etc.).

A.2.2 Physical Inspection

Tes t Item Acceptance Criteria

No unusual noises (e.g., a rattle inside the case).

No unusual smells (e.g., burning or smoky smells,

The enclosure and accessories

particularly from ventilation holes).

No taped notes that may suggest device deficiencies or operator concerns.

A.3 Device Labeling

Check the labels provided by the manufacturer or the healthcare facility are present and legible.

 Main unit label  Integrated warning labels

A-2
