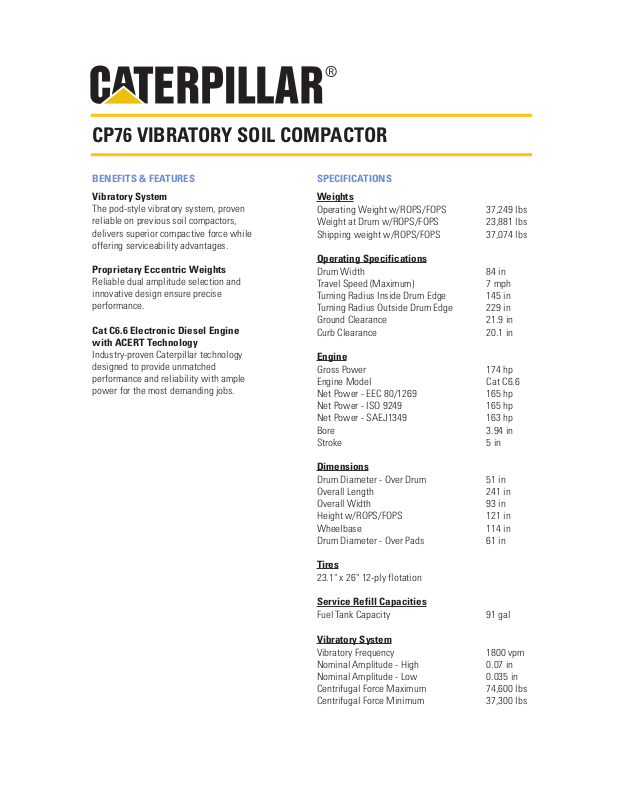

CP76 VIBRATORY SOIL COMPACTOR

BENEFITS & FEATURES

Vibratory System

The pod-style vibratory system, proven
reliable on previous soil compactors,
delivers superior compactive force while
offering serviceability advantages.

Proprietary Eccentric Weights

Reliable dual amplitude selection and
innovative design ensure precise
performance.

Cat C6.6 Electronic Diesel Engine
with ACERT Technology

Industry-proven Caterpillar technology
designed to provide unmatched
performance and reliability with ample
power for the most demanding jobs.

SPECIFICATIONS

Weights

Operating Weight w/ROPS/FOPS 37,249 lbs
Weight at Drum w/ROPS/FOPS 23,881 lbs
Shipping weight w/ROPS/FOPS 37,074 lbs

Operating Specifications

Drum Width 84 in
Travel Speed (Maximum) 7 mph
Turning Radius Inside Drum Edge 145 in
Turning Radius Outside Drum Edge 229 in
Ground Clearance 21.9 in
Curb Clearance 20.1 in

Engine

Gross Power 174 hp
Engine Model Cat C6.6
Net Power - EEC 80/1269 165 hp
Net Power - ISO 9249 165 hp
Net Power - SAEJ1349 163 hp
Bore 3.94 in
Stroke 5 in

Dimensions

Drum Diameter - Over Drum 51 in
Overall Length 241 in
Overall Width 93 in
Height w/ROPS/FOPS 121 in
Wheelbase 114 in
Drum Diameter - Over Pads 61 in

Tires

23.1" x 26" 12-ply flotation

Service Refill Capacities

Fuel Tank Capacity 91 gal

Vibratory System

Vibratory Frequency 1800 vpm
Nominal Amplitude - High 0.07 in
Nominal Amplitude - Low 0.035 in
Centrifugal Force Maximum 74,600 lbs
Centrifugal Force Minimum 37,300 lbs
