Operating instructions
for condenser tumble dryer
T 699 C
It is essential to read these
operating instructions before
installing or using the machine
to avoid the risk of accident,
or damage to the machine. M.-Nr. 04 943 440
Q\
Contents
Contents
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brief instruction s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to dry correctly
Hints on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on and loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting additional options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
After drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Altering a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Programmable functions
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Activating and storing in the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2
Contents
Cleaning and care
Cleaning the fluff filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Problem solving guide
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
After sales service
Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Future updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fitting or changing the decor panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Fitting the plinth facia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3
Guide to the appliance
Guide to the appliance
General view
Supply cable for electrical connection
1
2 Condensed water container
3 Door
4 Control panel
5 Drain hose for condensed water (if fitted)
6 Four height-adjustable screw feet
4
Control panel
Guide to the appliance
b “I-On/0-Off”button
to switch the appliance on and off.
When the machine is switched on, the
drum light will come on as you open
the door.
c“Door” button
to open the door/cancel a programme.
This button does not stay pushed in.
dCHECK LIGHTS
See the section “Problem solving” for
an explanation of the check lights.
eProgramme selector buttons
Indicator light: on= programme selected
off= programme not selected
fADDITIONAL OPTION buttons
Indicator light: on= option selected
off= option not selected
gSEQUENCE indicator lights
show the stage the drying programme
has reached.
hDisplay
performs several functions:
– shows how long the programme still
has to run;
– shows the time set for the pro-
gramme to begin when using the
“Delay start” option;
– shows the programmable functions
called up.
i“START” button
starts a drying programme.
The indicator light:
– flashes to indicate that the pro-
gramme can be started;
– remains on once the programme has
commenced.
j“Buzzer” button
k“Delay start” button
The start of the programme can be delayed for up to 24 hours.
l _ buttons
for keying in:
– the time for the Delay start option
– the programme length for timed drying
5
Caring for the environment
Caring for the environment
Disposal of packing
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these materials away, please ensure they are offered for recycling.
Disposal of your old
machine/appliance
Old machines/appliances contain materials which can be recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes. Ensure that the machine/appliance presents no danger to children while being
stored for disposal. See the appropriate advice in the “Warning and safety”
instructions.
6
Warning and safety instructions
Warning and safety instructions
Please read the operating instructions before using the tumble dryer
for the first time. They contain important information about the safety,
use and maintenance of the
machine. This will avoid the risk of
accidents and damage to the machine. Keep these operating instructions in a safe place and ensure that new users are familiar with
the content. Pass them on to any future owners of the machine.
Correct usage
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution and are
marked on the manufacturer’s wash
care label as being suitable for tumble
drying.
Any other applications may be dangerous. The manufacturer is not liable
for damage resulting from improper
use or operation.
Do not let small children play with
the machine and its controls or
operate it. Please supervise its use by
the elderly or infirm.
Technical safety
Check for visible external damage
before installation.
Do not install or operate a damaged
machine or appliance.
Before connecting the machine, en-
sure that the connection data on
the data plate (fusing, voltage and frequency) matches the mains electricity
supply. If in any doubt, consult a qualified electrician.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most important that this basic safety requirement is
regularly tested by a qualified electrician. The manufacturer cannot be held
responsible for the consequences of an
inadequate earthing system.
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in unforeseen dangers for the user, for which
the manufacturer cannot accept responsibility. Repairs should only be undertaken by a Miele approved engineer.
In the event of a fault, or for clean-
ing purposes, the machine is only
completely isolated from the electricity
supply when:
– the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn.
7
Warning and safety instructions
For safety reasons, do not use an extension cable. There is a danger of
overheating.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the machine be guaranteed.
Use
Do not install the machine in a
room where the temperature may
drop below freezing, as temperatures
below zero could damage the machine.
Frozen condensed water in the pump,
hose and condensed water container
could also lead to damage.
If the water is drained externally
through the drain hose instead of
being collected in the condensed
water container, make sure the drain
hose is securely attached if you hang it
in a sink or basin to avoid the hose slipping and the water causing damage.
Condensed water is not drinking
water. It can cause health prob-
lems in people and animals.
Always close the door after use to
avoid the danger of:
– someone leaning on the door which
could cause the machine to tip;
– children climbing into the machine or
hiding objects in it.
There is a danger of fire with fabrics which:
– contain rubber, foam rubber or rub-
ber-like materials;
– have been treated with inflammable
cleaning agents;
– have been splashed with hair lac-
quer, hair spray, nail varnish remover
or similar;
– also padded items (eg cushions,
jackets) which have been damaged,
as the padding could fall out and
catch fire.
8
Warning and safety instructions
Using accessories
Accessory parts may only be fitted
when expressly approved by
Miele. If other parts are used, guarantee, performance and product liability
claims may be invalidated.
Disposing of your old machine
Before discarding an old machine,
unplug it and render the plug useless. Cut off the cable directly behind
the appliance to prevent misuse.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be
covered by the appliance guarantee.
9
Brief instructions
Brief instructions
Brief description
When the machine is switched on, the
indicator lights for all programmes will
come on. Programmes are selected by
pressing the appropriate button and
can be supplemented by pressing the
additional option buttons. The indicator
lights show which programmes/options
have been selected and the lights for
the other programmes will go out.
Press the “START” button to begin the
programme.
The sequence indicator lights show
which stage has been reached in the
drying programme.
The Sensitive system automatically adjusts drying to suit the water quality
and ensure more precise results.
The Novotronic controls measure and
register the conductivity of the water
and compensate for variations to
achieve a uniform residual moisture
level.
The automatic reversing action turns
the drum clockwise and anti-clockwise
to loosen the laundry and prevent
uneven drying, ensuring good results.
Once the required degree of dryness is
achieved, the laundry is allowed to cool
down.
At the end of the programme the anti-
crease action period begins. The drum
turns intermittently to reduce the formation of creases and folds.
Programmable functions can be used
to select or de-select some of the additional options and introduce further
functions. These combinations can be
stored in the machine’s memory and
called up.
Please read the sections on “Warning and safety” and “Notes on
laundry care”.
1 Switching the machine on and
loading the laundry
Switch on by pressing the “I-On/0Off” button.
Press the “Door” button to open the
door.
Place the laundry loosely in the drum.
Swing the door shut but do not slam
it. Do not push on the door to shut it.
2 Selecting a programme
Press the appropriate touch pad to
select a programme.
If selecting a timed drying programme, use the _ buttons to
enter the drying time.
3 Selecting additional options
Press the buttons to switch additional options on or off as required.

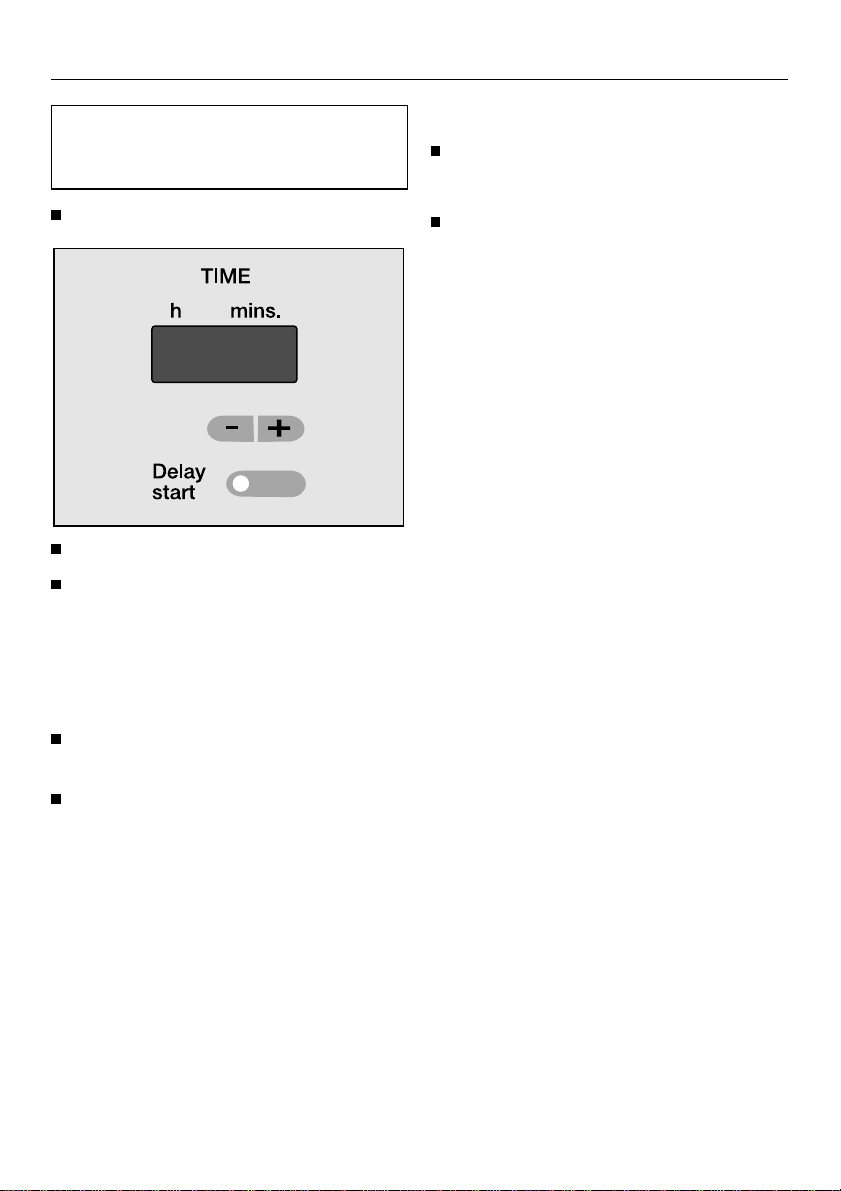

If required, press the “Delay start”
button and enter the number of
hours using the _ buttons.
4 Starting the programme
Press the “START” button.
10
Notes on laundry care
Before drying, check the drying symbol on the textile care label.
Significance of symbols:
q = Dry at normal temperature
r = Dry at low temperature
(also push in the “Low temperature”
button if required)
s = Do not tumble dry
t = Can be tumble dried
If no symbol is featured, dry at your own
risk applying the following principles:
Cotton and minimum iron items should
be dried in the appropriate programme
(see programme charts).
For delicate fabrics, eg acrylic, select
"Minimum iron" and also press the "Low
temperature" button.
The following fabrics should not
be dried in a tumble dryer:
– Woollens and wool blends
These fabrics tend to become matted
and shrink. These fabrics can, however, be partially dried using the
“Woollens hand care” programme.
– Down-filled items*
The fine fabric interior tends to
shrink, depending on the quality.
– Pure linen*
These items should only be machine dried if specified as suitable
by the manufacturer on the textile
care label, as the surface of the fabric may otherwise “roughen”.
* Linen and down-filled items can,
however, be partially dried using
the “Smoothing” programme.
Notes on laundry care
Notes:
Some woven and loopknit materials
(eg T-shirts, cotton jersey material)
have a tendency to shrink, depending
on their quality, and this is often made
worse by over-drying. When purchasing woven materials, it is advisable to
take their shrinkage properties into account.
Starched washing can be dried in the
tumble dryer. In order to achieve the
usual finish, double the amount of
starch should be used.
Minimum iron shirts or blouses in 100%
cotton may crease badly, depending
on the quality and weave. Try drying
these items using the “Hand iron” setting but if this is unsatisfactory use the
"Smoothing" setting, then hang the garments on a hanger to dry.
Minimum iron fabrics tend to crease
more, the larger the drying load, particularly when the weave of the fabric is very
fine. The load should be reduced to
1.5 kg or, if necessary, to 1 kg.
New dark-coloured fabrics should be
dried separately from light-coloured
fabrics to avoid colours running.
11
How to dry correctly
How to dry correctly
Hints on saving energy
Make sure that your laundry has
been thoroughly spun at the highest
appropriate spin speed before
drying. Spinning at 1600 rpm, for
example, saves approximately 30%
energy and time compared with 800
rpm.
Load the full amount of laundry according to the programme chosen
(see “Programme chart”) for the
most economical drying related to
the size of the load. Make sure that
the drum is not over- or underloaded.
As far as possible, sort fabrics for:
– the type of fibre or weave
– the degree of drying required
– similar size of items
– the moisture content after spinning.
This will help towards an even drying
result.
Make sure there is no washing
detergent dispenser among the
laundry, as this could melt and damage the machine and the laundry.
Load the laundry very loosely into
the drum.
Do not overload the drum. Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
Shut the door with a light swing but
do not slam it. Do not push on the
door to shut it.
Ensure the room is well ventilated.
1Switching on and loading
Fasten duvet covers etc to prevent
small items from being rolled up inside them.
Do up zips and tie fabric belts and
apron strings.
Press the “l-On / 0-Off” button.
Press the “Door” button and open
the door.
12
Important: Please check that items
of laundry cannot be trapped by the
door, as this will cause damage to
the fabric.
How to dry correctly
2Selecting a programme
See the “Programme chart” for a description of each programme.
COTTONS; MINIMUM IRON; SPECIAL CARE
Press the touch pad for the required
programme.
The length of the programme is determined by the electronics according to
each load.
TIMED DRYING
Press the touch pad for the required
programme:
the programme length chosen when
the programme was last used will appear in the display.
To alter the programme length
Press the > touch pad repeatedly
until the correct length of time appears in the display.
Times from i5 minutes up to 30 minutes
are chosen in 5 minute stages
Times from 30 minutes up to 2 hours
are selected in 10 minute stages.
To reduce the length of the programme press the $ button.
Note
The indicator lights show which programmes and additional options have
been selected.
13
How to dry correctly
3Selecting additional options
One or more additional options can
now be switched on or off.
If required, the delay start option can
be selected.
See the “Additional options” and “Delay
start” sections for further information.
4Starting a programme
Press the “START” touch pad.
The drying stage reached display will
indicate which drying stage the programme has reached.
The memory function:
If the memory function has been activated, the machine will automatically
call up the additional options selected
for the previous programme. The indicator lights will indicate which options
are selected and, if using timed drying,
the programme length selected last
time will appear in the display. For further details on the memory function,
please see the section “Programmable
functions”.
"Clean out airways" indicator light
This indicator light shows that the dryer
is not working most efficiently or economically.
After drying
When the drying programme has finished the “Anti-crease” sequence indicator light comes on.
Press the “Door” button to open the
door.
Remove the laundry.
Make sure that the drum is empty.
If items are left in the dryer, they
could be damaged by overdrying
when the dryer is next used.

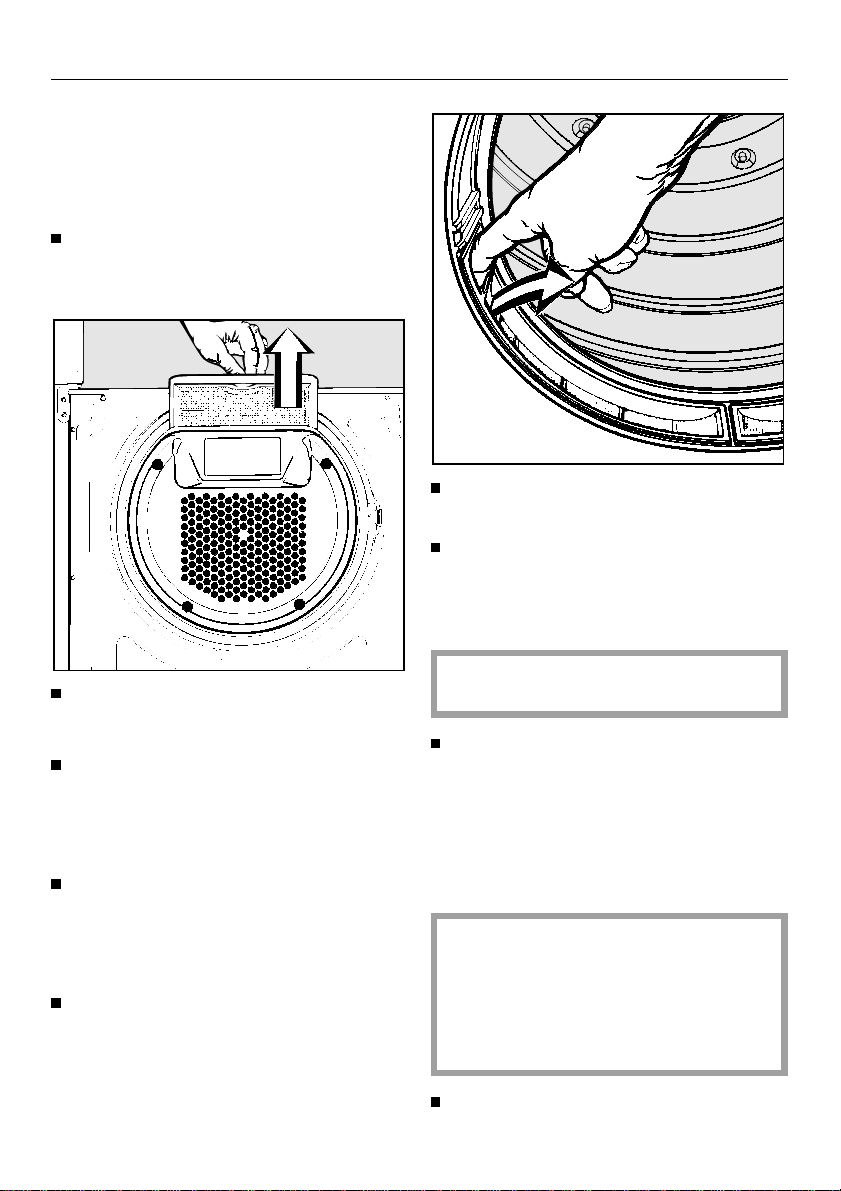

After every cycle remove the fluff
from
– the fluff filter in the door
– the filters in the door opening
(See the section on “Cleaning and
care”).

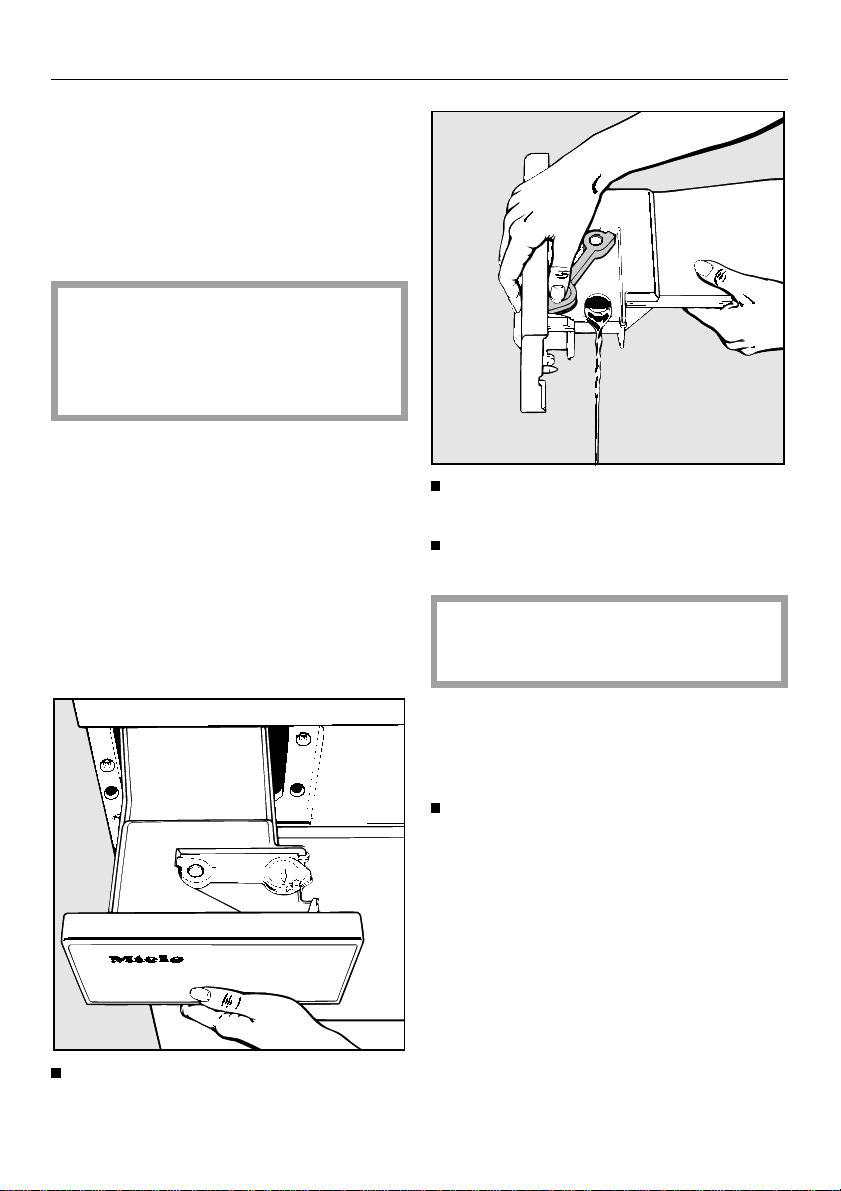

Empty the condensed water container (where there is no external
drainage of the water). See the section on “Cleaning and care”.
Close the door and switch off the machine after each use.
Press the “l-On / 0-Off” button to
switch off.
The causes of this check message can
be:
– the fluff filters in the door and the
door opening are blocked;
– the condenser unit is blocked.
14
Additional options
Additional options can be switched
on or off by pressing the relevant but-
before the start of a programme.
ton
Indicator lights:
– on= additional option switched on
– off= additional option switched off
Additional options
Anti-crease
Once a programme has ended the
drum will turn at regular intervals to
prevent the laundry from settling into
creases and folds.
It is not possible to activate additional
options which are incompatible with the
basic drying programme selected. The
indicator light will go out when the option button is released.
If an inappropriate combination of options is selected (eg “Short” and “Low
temperature”) only the option that was
selected last will be activated.
Short
The programme running time is reduced.
– For drying fabrics that are not deli-
cate.
Low temperature
The drying temperature is reduced.
– For delicate fabrics (drying symbol
r), eg acrylic.
The programme running time is increased.
Buzzer
An audible tone sounds repeatedly
at the end of a programme during
the Anti-crease phase.
The volume of the buzzer can be adjusted:
1 Select the programme.
2 Press the “Buzzer” button
(the “Buzzer” indicator light will
come on) until the desired volume
is achieved. The pitch of the buzzer
will rise at the same time.
3 Release the “Buzzer” button and
start the programme.
15
Programme chart
Programme chart
Programme Fabric type maximum
load
(2)
COTTONS
Extra dry
Multi-layered fabrics, not
thoroughly dried with
5 kg Do not dry jersey wear in the
“Normal +”
Normal +
Mixed load of cotton fabrics,
eg towelling, jerseywear, ie
5 kg –
single and multi-layered
fabrics
Normal
(1)
Load of similar fabrics (jersey
wear, flannelette sheets,
5 kg If fabrics are too damp,
towelling).
Hand iron
r
Hand iron rr
Machine iron
Cotton or linen fabrics (eg
(1)
table linen, bedlinen,
starched laundry etc)
Cotton or linen fabrics,
including starched laundry,
5 kg –
5 kg If fabrics are too damp to
5 kg The laundry should be rolled
for machine ironing
(1)
Note for Test Institutes: These are the programmes that should be tested according to the EN
61121/A11 Standard.
(2)
Weight of laundry when dry
Special notes
Extra dry programme –
tendency to shrink.
select “Normal +”.
hand iron, select Hand iron r.
up to prevent it from drying
out until it can be ironed.
16
Programme chart
Programme Fabric type Maximum
load
(2)
Special notes
MINIMUM IRON
Normal+
Minimum iron items which are
made of synthetics or blended
fabrics, (eg pullovers,
2.5 kg Spin minimum iron fabrics for at
least 30 seconds in the
washing machine before drying
dresses, trousers) which are
not dried adequately in the
“Normal” programme
Normal
(1)
Minimum iron shirts, Table cloths
etc made of blended fabrics, (eg
2.5 kg
cotton/synthetics) .
Hand iron
Minimum iron shirts, Table
cloths etc made of blended
2.5 kg
fabrics, (eg cottons and
synthetics), which are still to
be hand ironed
TIMED DRYING
Warm air
Individual items, (eg bathing
costumes, bath towels, tea
5 kg –
towels)
Multi-layered fabrics whose
layers have different drying
characteristics
Cool air
Items which are only to be
aired
5 kg –
Special care programmes
Woollens
hand care
Woollen fabrics 1 kg To refresh and fluff up woollen
garments quickly.
Remove garments immediately
at the end of the programme.
Do not repeat. Woollen fabrics
are not dried completely by this
programme.
Smoothing
Minimum iron items made of
cotton, blended fabrics or
synthetics
2.5 kg Smooths out creases resulting
from the spin cycle in the
washing machine.
Remove garments immediately
at the end of the programme
(1)
Note for Test Institutes: These are the programmes to be used when testing according to the EN
61121/A11 Standard
(2)
Weight of the washing when dry
17
Display
Display
Various pieces of information are
shown in the display:
- the length of time a programme still
has to run (time left);
- the length of programme selected
for timed drying;
- the number of hours selected for the
delay start option;
- programmable functions as they are
switched on or off.
Time left indicator
Once a programme has started, the
electronics calculate how long the programme will last and the following symbols: === ... -== ... appear in the display.
After approximately a minute the length
of the programme will appear and a
countdown in minutes will commence.
The time left can vary with each programme because it is dependent on
several factors:
Each load should ideally be made
up of items of the same size. The
time left will vary more if items are of
very different sizes. In this case the
time may stop counting down
shortly before the end of the programme, (see the "Problem solving
guide").
– the quantity, type and residual mois-
ture of the various items in the load;
– variations in electrical current;
– the surrounding temperature.
The time left should therefore only be
regarded as an estimate. However, to
make this estimate as precise as
possible, the machine has intelligent
electronics that are capable of “learning”. During the first 10-15 programmes
run in the machine, the electronics will
monitor your individual laundry items
and adapt accordingly.
18
Delay start
Once a programme has been selected, the start can be delayed from
30 minutes (30) up to 24 hours (24h).
Select a programme.
Press the “Delay start” button.
Press the > button repeatedly until
the required time appears in the dis-
play:
Delay start
To cancel delayed start
Press the “Delay start” button;
or, if the “START” button has already
been pressed:
switch the machine off using the
“I-On/0-Off” button.
–up to i0h in 30 minute stages;
–from i0h to 24h in 1 hour stages.
To reduce the length of time, press
the $ button.
Press the “START” button.
The chosen time will be counted down:
–from 24h to i0h in 1 hour stages;
– less than i0h in 1 minute stages.
Approximately 1 minute after the pro-
gramme starts the time left will appear
in the display.
19
Altering a programme
Altering a programme
Once a programme has started, no
changes to the programme or additional options will be accepted.
To open the door during a programme to add or remove
garments
To cancel a programme
Open the door or switch the machine
off.
To select a different programme
Turn the machine off and on again.
Select the required programme by
pressing the appropriate button.
Select the additional options re-
quired.
Press the “START” button.
Cancel the programme by:
Pressing the “Door” button and opening the door.
– Items can now be added or removed
early.
Restart the programme by:
Closing the door.
Selecting the programme.
Selecting the additional options.
Pressing the “START” button.
– The programme will restart.
– The time left shown in the display
may now vary from the actual drying
time.
If there is a power cut, TIMED
DRYING programmes have to be restarted once the power supply is restored.
20
Electronic system lock
The system lock prevents anyone
from interfering with the dryer.
To activate the system lock
1 Close the door.
2 Turn the machine on.
3 Press the “Short” button and keep it
pressed in while carrying out steps
4 to 7.
4 Press the “Machine iron” button.
5 Release the “Machine iron” button.
6 Press the “MINIMUM IRON, normal”
button.
7 Release the “MINIMUM IRON, nor-
mal” button.
8 Release the “Short” button.
The “Locked” indicator light will flash.
Electronic system lock
9 Switch the machine off.
To de-activate the system lock
Repeat steps 1-8.
The “Locked” indicator light will go out
after step
8.
21
Programmable functions
Programmable functions
Notes
The programmable functions can be
used to create drying programmes to
suit your individual requirements.
They will remain in the machine’s
memory until cancelled.
One or all of the programmable func-
tions can be activated or cancelled.
(See following page).
Programmable function 0i: “Correcting the drying level”
The Sensitive System aims to dry
using as little energy as possible.
However, if you require the washing
to be drier, it is possible to reduce
the final moisture level on all programmes.
The machine is delivered with this function switched off.
Programmable function 03: “Memory”
The additional options chosen for the
last drying programme are stored in
the machine’s memory.
The memory programmable function
can be used to switch the memory on
or off. The machine is delivered with
the memory function activated.
22
Programmable functions
Activating and storing in the
memory
The programmable functions are activated using the additional option buttons in special combinations with the
programme selector buttons to introduce extra features not marked up
on the control panel.
1 Switch the machine off and shut the
door.
2 Press the “COTTONS, extra dry” and
the “MINIMUM IRON, normal+”
touch pads. Keep them pressed in
and ...
3 ... switch the machine on by pressing
the “I-On/0-Off” touch pad.
4 Release all the buttons.
– P will appear in the display.
5 Press the > button to select the pro-
grammable functions as follows:
Press > once =
programmable function 0I
("Correcting the drying level")
or
press > twice =
programmable function 03
("Memory function")
Use the $ button to go back a step
if necessary.
6 The number of the programmable
function will flash in the display, alternating with the P.
Example:
0i0... P 0... 0i0... P 0... .
The number on the
stantly and means:
0 = Programmable function
i = Programmable function
right will show con-
off
on
7 Press the “START” touch pad to
change the number on the right from
0 to i =
i to 0 =
on or from
off.
8 If you wish to activate a further pro-
grammable function, repeat from
step
5. If not:
9 To store in the memory: Press the
“Buzzer” button.
Switch the machine off by pressing
the “I-On/0-Off” button.
To de-select a programmable function
Carry out steps 1 to 9.
To check whether a programmable
function is activated:
Carry out steps 1 to 6.
Switch the machine off.
This completes the check.
23
Cleaning and care
Cleaning and care
Cleaning the fluff filters
The fluff which is created by the drying
process is collected in the fluff filters in
the door and door opening.
Clean the filters after every pro-
gramme to reduce drying time and
save energy.
These filters should only be removed
for cleaning with water.
Dry the filters well after rinsing and
put back in place.
Cleaning the tumble dryer
Open the door. Grip the filter by the
recessed handle and pull upwards
to remove.
Remove the fluff from:
– the filter in the door
– the filters in the door opening
Do not use any sharp or pointed ob-
jects.
Remove any fluff from the hollow part
of the door holder through the wide slit
at the bottom. A cleaning brush is
available at extra cost from the Miele
Spare Parts Department.
Push the cleaned filter back into the
door holder and close the door.
If there is a great deal of compacted fluff
on the filters, they can be cleaned under
hot running water.
24
Disconnect the machine from the
power supply.
Clean . . .
. . . the housing and control panel:
with a mild detergent or soapy water;
. . . the drum and other stainless
steel parts: with a suitable proprie-
tary stainless steel cleaner following
the manufacturer’s instructions.
Never use abrasive substances,
scouring pads, glass or general purpose cleaners. These could damage
plastic surfaces and other parts.
The machine must never be hosed
down.
Dry all parts with a soft cloth.
Emptying the condensed
water container
If the hose drain has not been fitted
and connected, the condensed water
will be collected in the condensed
water container.
The condensed water container
should be emptied after every
drying cycle, or as soon as the
“Empty out container” indicator light
comes on.
If . . .
. . . the condensed water container is
full when a programme is started or
. . . it becomes full during a drying cycle:
– the “Empty out container” light will
come on,
– the buzzer will sound,
– the programme will be stopped,
– the washing will be cooled down and
the “Cool air” light will come on.
Cleaning and care
Slide back the cap and pour the
water away.
Push the container back into the machine until it engages into place.
Condensed water should not be
drunk. It could lead to health problems for humans and animals.
Pull the container out of the machine,
gripping it firmly with both hands.
Condensed water can be put to household use, eg used in a steam iron or humidifier.
Note:
To ensure that no particles of fluff are
left which could damage the appliance, pass the condensed water
through a fine sieve or paper filter.
25
Cleaning and care
Cleaning the condenser unit
The machine must be disconnected
from the electricity supply before
cleaning.
The condenser unit should be
cleaned at least four times a year.
Pull the cover off.
Open the door.
Turn the cover lock downwards to
the vertical position.
26
Turn both levers on the condenser
unit to the vertical position.
Cleaning and care
Pull the condenser unit out.
Clean the condenser unit at both
ends (front and back).
Wipe the rubber seals at both ends
gently but thoroughly.
Clean the two long sides of the unit.
Stand the condenser unit lengthwise
on a towel until it is quite dry.
Replace the condenser unit (see il-
lustration above left).
Return both levers on the condenser
unit to the horizontal position.
Pull forwards on the unit to check
that it is firmly in place.
Replace the cover and check that it
is also firmly in place, otherwise
water may leak from the machine.
Close the door.
27
Problem solving guide
Problem solving guide
What to do if ...
Electrical appliances should only be repaired by qualified personnel. Incorrectly repaired machines may pose a considerable risk to the user.
What to do if . . . Cause . . . Remedy . . .
. . . the tumble dryer fails to
start when switched on
. . . items made of synthetic
fibres are charged with static
electricity after drying
. . . the laundry is not sufficiently dry
. . . there is a build-up of fluff
This may be due to an incorrect
selection procedure sequence
when switching on the machine.
The load consists of different
fabrics.
Fluff is principally the result of friction when garments are being
worn and washed. Machine drying hardly causes any fluff to form
and, as has been established by research institutes, has no effect
on the lifetime of fabric.
Repeat the switch-on procedure
(see section on “Drying
correctly”). Also check the
following:
–
Is the machine plugged in at
the mains switch?
–
Is the door closed properly?
– Was the “”I-On/0-Off” button
pushed in?
– Was the “START” button
pushed in?
– Has the delay start been
activated? The programme
will start once the time delay
has expired.
– Has the fuse or circuit
breaker tripped? If so,
contact the Miele Service
Department.
Static charge can be reduced
by adding a fabric conditioner
for the final rinse in the washing
machine.
Select a more suitable drying
programme next time.
28
Problem solving guide
What to do if . . . Cause . . . Remedy . . .
. . . the drying process goes
on too long.
. . . water droplets appear at
the upper edge of the drum
aperture.
. . . water leaks from the machine after the condenser unit
has been cleaned.
. . . the interior drum lighting
does not come on.
. . . you need to open the door
during a power cut.
Ventilation to and from the dryer
is insufficient (eg in a small
room). This could cause the
room temperature to rise sharply.
The vent below the door is
blocked.
The dryer cannot blow air out
correctly.
The laundry was not sufficiently
spun.
A double filter system with dual
insulation prevents fluff from
being deposited in the
condenser unit. This insulation
can lead to a build-up of
condensation.
The condenser unit has not
been correctly locked into place.
It only lights up when the
machine is switched on. The
bulb may be defective.
Open a door or window while
the machine is in operation for
increased air flow.
Remove any objects that are
blocking the vent below the
door.
– Clean the fluff filters in the
door and the door opening.
– Clean the condenser unit.
Spin the laundry in the washing
machine at the highest possible
spin speed.
Laundry being removed from
the machine may come into
contact with these water
droplets, but they will dry off in
a matter of minutes.
Ensure that the condenser unit
and cover are firmly in position
and lock into place again.
Change the bulb. See
instructions at the end of this
section.
See instructions at the end of
this section.
29
Problem solving guide
Check and indicator lights and display messages:
What to do if . . . Cause . . . Remedy . . .
. . . the “Locked” indicator
light flashes when the machine is switched on.
. . . the “Locked” indicator
light comes on during drying.
. . . the “Anti-crease” indicator
light flashes.
. . . the “Empty out container”
light comes on.
. . . the “Clean out airways”
light comes on.
. . . once the programme has
started the following symbols
appear in the display:
"=== ... -== ...== ... -= ...“
. . . the programme is interrup t e d , the “Anti-crease” indicator light comes on and 0 appears in the display.
. . . the programme is interrupted and "---" appears in
the display.
. . . shortly before the end of
the programme the count
down of the time left to run
halts at "10", but the dryer
continues to dry.
The system lock is activated.
The programme cannot be
started.
That is not a fault. The light will go out at the end of
Cold surrounding temperatures
below freezing are affecting the
machine (frozen condensed
water).
The condensed water container
is full.
The fluff filters or the condenser
unit are blocked.
The electronics are registering
that the machine is
underloaded.
This is not a fault. See the “Display” section.
If there is no laundry in the drum when the programme is started, the
electronics will register this and stop the programme. The
programme will also be interrupted if the laundry placed in the drum
is already dry.
See the section on “What to do if the drying process goes on too
long”.
This is not a fault.
One of the pieces being dried is
considerably larger than items
that have been dried in
previous programmes. The time
left may vary from that
calculated by the machine for a
normal load.
See section “Electronic system
lock”.
the programme.
Install the appliance in a
warmer room.
If the indicator light continues to
flash there is a technical
problem. Contact the Miele
Service Department.
Empty the container.
Check that the condensed
water container is correctly
positioned.
– When the programme has
ended, clean the filters (see
section “Cleaning and care”).
– Clean the condenser unit
and check that it is correctly
positioned.
Always load the machine to full
capacity for economical drying.
The drying process is not yet
complete. The programme
needs more time than the
electronic unit had calculated at
the start of the programme.
The time count down is
suspended until the degree of
drying selected has been
reached.
30
Problem solving guide
The interior drum lighting does not
come on: changing the bulb
Open the door.
Before changing the bulb, disconnect the machine from the mains
power supply.
Unscrew the plastic cover above the
door inside the drum.
The cover must be fixed securely
otherwise moisture may seep in and
cause a short circuit.
The temperature resistant bulb should
only be ordered from your Miele dealer
or the Miele Spare Parts Department.
Opening the door in the event of a
power failure.
Replace the bulb.
The light bulb must not exceed the
maximum wattage quoted on the
data plate and the light cover.
Replace the plastic cover and screw
back on.
31
After sales service
After sales service
Repairs
In the event of any fault which you cannot remedy yourself, please contact:
– your Miele dealer
or
– your nearest Miele Service Depart-
ment (see back cover for the ad-
dress).

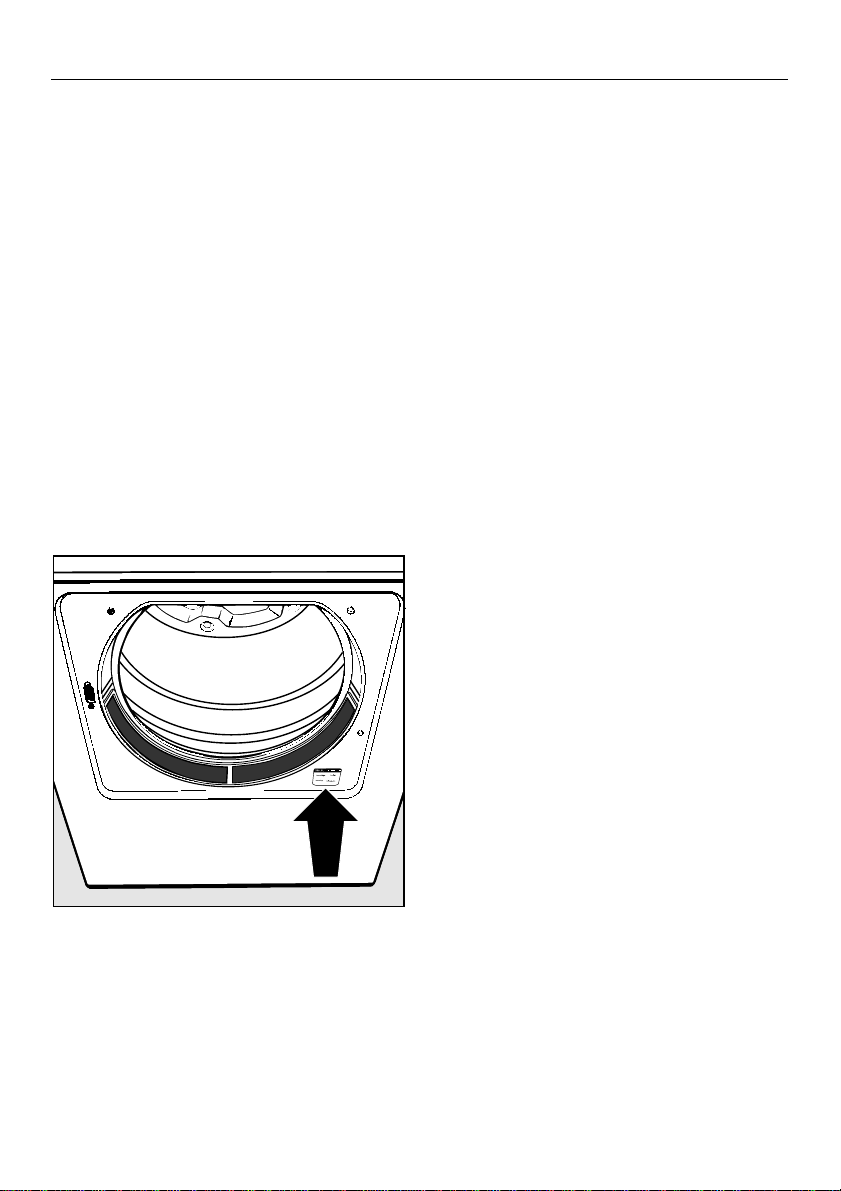

When contacting the Service Department, please quote the model and serial numbers of your appliance, both of
which are shown on the data plate
which is located beneath the drum
opening on the right.
Future updates
The indicator or check light marked PC
allows a service engineer to update
your machine in future years.
When, for example, new programmes
are developed or new fabrics are introduced, a service engineer will be able
to modify existing programme cycles
accordingly.
Miele will provide information when
such possibilities become available.
32
Installation
The machine must be perfectly level to
ensure safe and proper operation.
Minor differences do not, however,
have an adverse effect on operation.
Installation
The ventilation slots beneath the door
must on no account be blocked as
this will prevent a sufficient intake of
cold air.
Installation

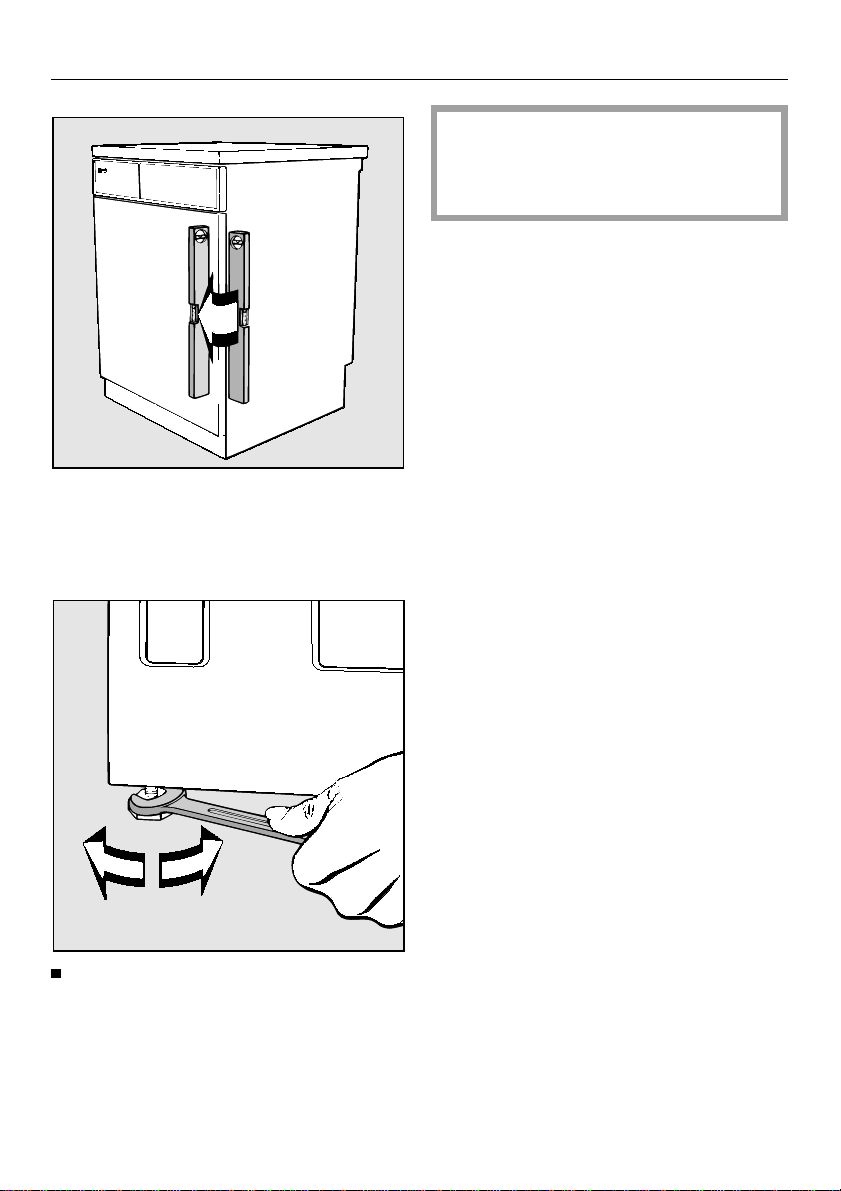

Building under a continuous worktop/in a row of kitchen units
A special conversion kit* is necessary.
– The machine lid is replaced by a
coverplate which must be fitted by a
suitable competent person to ensure
electrical safety.
– When installing under a worktop with
a working height of 900/910 mm, a
spacer kit* is necessary.
When built under, the running times
may be longer.
The tumble dryer can also be combined with a Miele washing machine in
a washer and dryer stack. For this purpose the appropriate stacking kit* to
match your washing machine is required.
*These items are available from your Miele
dealer.
(N.B. If you wish to push your machine
under a worktop and there is space to
do this without removing the lid, the
conversion kit is not necessary. Otherwise the conversion kit is essential).
The screw feet can be adjusted to
compensate for any uneveness in
the floor surface.
33
Installation
Fitting or changing the decor
panel
Note: The door should be shut for fitting or changing the decor panel.
Remove the 4 screws from the decor
strip on the door catch side of the
door and remove the decor strip.
Decor panel dimensions
The figures given in brackets indicate
the tolerance level in mm:
Width = 587 (-1) mm
Height = 602 (-1.5) mm
Thickness = 1 (+0.5) mm
Panels more than 1.5 mm thick require
an “adapter strip for a 4 mm thick
decor panel”. This is available from
your Miele Dealer or the Miele Spare
Parts Department.
Note: The decor panel height required for the adapter strip must not
exceed 596.5 (-1.5) mm.
Unscrew the remaining 7 screws
from the lower and side decor strip
until the decor panel bows slightly
and can then be taken out or put in
place.
Reassemble in the reverse order and
tighten the screws.
34
Installation
Fitting the plinth facia
– The appliance plinth below the door
can be concealed using a plinth
facia.
– The height and return of the ap-
pliance plinth cannot be altered.
– A taller plinth facia can only be in-
stalled if the overall niche height is
higher.
Plinth height Niche height
100 mm
(standard)
150 mm 870 mm a spacer
200 mm 920 mm 2 spacer
A plinth facia (60 cm long) can be ordered from your kitchen dealer or
manufacturer.
A cut-out must be made in the
plinth facia around the ventilation
slots otherwise the air flow to the appliance will be blocked and the machine will not work.
820 mm –
frame is
required
frames are
required
Fitting the plinth facia:
Place the small template supplied on
the back of the upper edge of the
plinth facia and fasten with sticky
tape.
Cut out the plinth facia according to
the template.
Cover the cut surface with the strip
supplied.
Stick the velcro fastener supplied to
the appliance plinth.
For this the following procedure is recommended:
Press the two halves of the velcro
fastener together lengthwise.
Cut into 2 or 3 pieces.
Peel off the protective backing from
one half of the velcro fastener
pieces.
Stick the pieces along the appliance
plinth, at the left and right hand edge
and in the middle. Press firmly into
place.
Peel off the remaining protective
backing strips.
Press the plinth facia firmly onto the
sticky surface of the velcro.
35
Installation
External condensed water outlet
The condensed water can be drained off
directly if the machine is installed near a
sink, drain outlet etc.
Maximum drain hose length: 3.00
metres
Maximum delivery head: 1.00 metre
Accessories supplied:
– 2 metre drain hose
– Hose clamp
– Adapter sleeve
– Hose clip
Push the drain hose onto the drain
outlet.
Secure the hose firmly with the clip.
Make sure that the hose is not
kinked.
Unscrew the hose clip from the drain
outlet at the back of the machine.
Remove the rubber plug.
36
Installation
The dryer is fitted with a non-return
valve as standard to prevent water from
flowing back into the machine.
Close the water inlet port to the con-
densed water container with the bot-
tom part of the rubber plug.
The plug must face towards the inte-
rior of the machine so that the con-
densed water container can be
pushed in easily.
Connection to wash basin drain outlet (where appropriate)
Push the hose clip (1) and the
knurled nut connector from the sink
drain outlet (2) over the drain hose.
Push the adapter sleeve (3) into the
hose.
Screw the drain hose to the drain outlet with the knurled nut connector.
Tighten the hose clip up close to the
nut.
37
Electrical connection
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
only by a suitably competent person, in
strict accordance with national and
local safety regulations.
The appliance is supplied with a mains
cable with moulded plug for connection
to a 230-240V mains supply. The voltage,
rated load and fuse rating are given on
the data plate. Please ensure these
match the household mains supply.
Connection should be made via a
fused plug and suitable switched
socket which is easily accessible after
installation. For extra safety it is advisable to install a residual current device
(RCD), with a trip current of 30 mA. Do
not connect via an extension lead.
Important
The wires in the mains lead are coloured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live
Where it is necessary to change plugs,
if the colours of the wires in the mains
lead of this appliance do not correspond with the coloured markings identifying the terminals of your plug, proceed as follows:
The wire which is coloured green and
yellow must be connected to the terminal in the plug which is marked with the
letter E or by the earth symbol z or coloured green, or green and yellow.
The wire which is coloured blue must
be connected to the terminal in the
plug which is marked with the letter N
or coloured black.
The wire which is coloured brown must
be connected to the terminal in the
plug which is marked with the letter L
or coloured red.
WARNING: THI S APPLIANCE
MUST BE EARTHED
Ensure power is not restored to the appliance while installation work is being
carried out.
Non-rewireable plugs BS 1363
If this machine is fitted with a non-rewireable plug, the following information
applies:
If the socket outlets are not suitable for
the plug supplied with the product, it
must be cut off and an appropriate
plug fitted.
The plug cut from the flexible cord should
be disposed of and on no account be inserted into any socket elsewhere in the
house (electric shock hazard).
The fuse cover must be refitted when
changing the fuse, and if the fuse cover is
lost, the plug must not be used until a suitable replacement is obtained. The colour
of the correct replacement cover is that of
the coloured insert in the base of the plug,
or the colour that is embossed in words on
the base of the plug (as applicable to the
design of plug fitted).
Replacement fuses should be ASTA approved to BS 1362 and have the correct rating. Replacement fuse covers
may be purchased from your local electrical supplier or Service agent.
38
Consumption data
Programme Cap-
COTTONS
Extra dry
Normal +
(1)
Normal
Normal
Hand iron rr
Hand iron
(1)
rr
Machine iron
acity
Consumption data
Final spin speed
(in a domestic
washing machine)
kg rpm kWh 10 A
51200
1400
1600
51200
1400
1600
5 800 (70 % residual moisture) 3.5 109 88
51200
1400
1600
5 800 (70 % residual moisture) 2.85 91 74
51200
1400
1600
51200
1400
1600
Electricity
consump-
tion
3.0
2.9
2.6
2.9
2.7
2.5
2.8
2.6
2.3
2.1
1.95
1.6
1.7
1.6
1.3
Drying time incl.
cooling down time
Minutes
(2)
16 A
95
92
82
92
88
79
88
85
77
66
66
56
59
55
47
(2)
77
74
67
74
71
64
71
68
62
56
54
46
48
44
38
MINIMUM IRON
Normal +
Normal
Hand iron
(1)
2.5 1000 1.4 55 46
2.5 1000 (50 % residual moisture) 1.3 52 44
2.5 1000 1.1 47 39
Special care
Woollens, Hand care
Smoothing
(1)
Test performance in accordance with EN 61121/A11.
(2)
Drying times may vary slightly. For fuse rating see data plate.
1– 0.233
2.5 – 0.3 8 8
All values obtained in accordance with standard test EN 61121/A11.
Different types of fabric, the load and residual moisture after spinning may affect the figures given.
39
Technical data
Technical data
Height. . . . . . . . . . . . . . . . . . . . . . . . . .
850 mm (adjustable +10/-5 mm)
Width . . . . . . . . . . . . . . . . . . . . . . . . . .
Depth . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . .
Drum volume . . . . . . . . . . . . . . . . . . . .
Maximum capacity. . . . . . . . . . . . . . . .
Capacity of condensed
water container . . . . . . . . . . . . . . . . . .
Maximum delivery head. . . . . . . . . . . .
Maximum drain hose length. . . . . . . . .
Voltage . . . . . . . . . . . . . . . . . . . . . . . . .
Rated load . . . . . . . . . . . . . . . . . . . . . .
Fuse rating . . . . . . . . . . . . . . . . . . . . . .
Electricity consumption . . . . . . . . . . . .
Test certificates awarded . . . . . . . . . . .
595 mm
600 mm (incl. distance from wall)
57 kg
103 l
5 kg dry weight
approx 4 l
1 m
3 m
see data plate
}
see section “Consumption data”
Radio/TV suppressed, VDE
404142
43
Alteration rights reserved/002 3198
This paper is made from 100% chlorine free bleached cellulose and is recyclable.
Loading...
