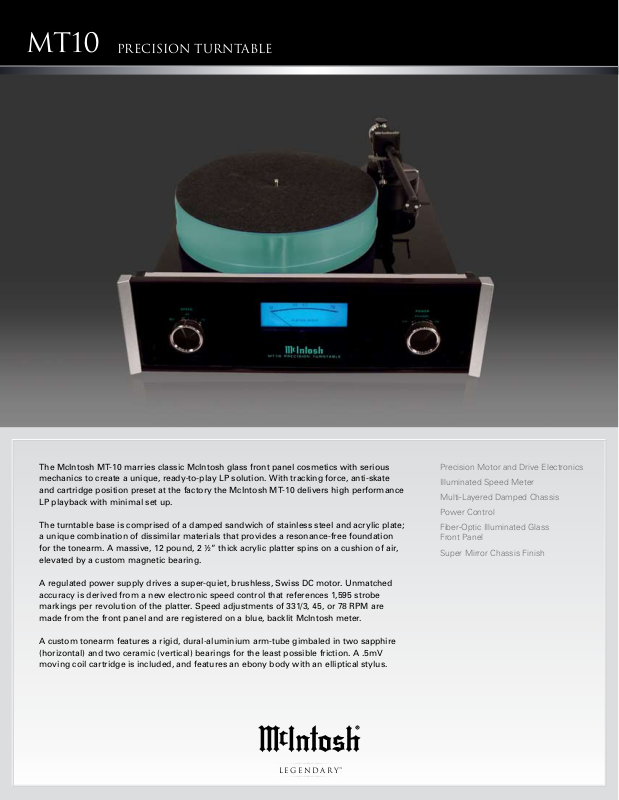

McIntosh MT-10 Brochure
Mt10
l e g e n d a r y
precision turntable
The McIntosh MT-10 marries classic McIntosh glass front panel cosmetics with serious
mechanics to create a unique, ready-to-play LP solution. With tracking force, anti-skate
and cartridge position preset at the factory the McIntosh MT-10 delivers high performance
LP playback with minimal set up.
The turntable base is comprised of a damped sandwich of stainless steel and acrylic plate;
a unique combination of dissimilar materials that provides a resonance-free foundation
for the tonearm. A massive, 12 pound, 2 ½” thick acrylic platter spins on a cushion of air,
elevated by a custom magnetic bearing.
A regulated power supply drives a super-quiet, brushless, Swiss DC motor. Unmatched
accuracy is derived from a new electronic speed control that references 1,595 strobe
markings per revolution of the platter. Speed adjustments of 331/3, 45, or 78 RPM are
made from the front panel and are registered on a blue, backlit McIntosh meter.
A custom tonearm features a rigid, dural-aluminium arm-tube gimbaled in two sapphire
(horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV
moving coil cartridge is included, and features an ebony body with an elliptical stylus.
Precision Motor and Drive Electronics
Illuminated Speed Meter
Multi-Layered Damped Chassis
Power Control
Fiber-Optic Illuminated Glass
Front Panel
Super Mirror Chassis Finish
Mt10
precision turntable
ready To play
Tracking force, anti-skate and cartridge
position are all preset. The MT-10 is ready
to use just moments after unpacking.
MaTched Tone arM and
carTridge
The MT10 tone arm features a specially
dampened Dural-Aluminium armtube.
The light weight and rigidity of the tone
arm is an ideal mate for the custom,
medium-weight moving coil cartridge.
MaSSiVe plaTTer
The platter is CNC machined from
a special silicone acrylic material to a
weight of twelve pounds and a thickness
of two and one-half inches for near
immunity to bass-robbing resonances.
MagneTic air daMped
bearing
The MT10 Turntable Platter rotates
on a special magnetic bearing; literally
suspended on a cushion of air for near
friction-free performance.
Mcc10 carTridge SpecificaTionS
ouTpuT leVel 0.5 mV at 5 cm/s
load iMpedance
Greater than 200 Ohms, 500 Ohms recommended
frequency reSponSe
20Hz to 50,000Hz
coMpliance
6 x 10-6 cm/dyne
recoMMended Tracking force 2.4 g
channel difference
Less than 0.3 dB
ToTal MaSS 11 g
STyluS
Elliptical Diamond
canTileVer MaTerial
Aluminum
body
Ebony wood tone
MT10 TonearM SpecificaTionS
bearing
Sapphire and Ceramic
arM Tube
Dural-Aluminum
counTerweighT
Eccentric
adjuSTMenTS
VTA, Antiskate, Azimuth
MT10 TurnTable SpecificaTionS
playback SpeedS
33-1/3 rpm, 45 rpm and 78rpm
MoTor Type
DC Brushless
Speed conTrol
Electronic w/ braking feature
plaTTer
Silicon Acrylic
plaTTer bearing
Magnetic
MT10 exTernal power Supply
SpecificaTionS
ouTpuT VolTage
24 Volts, 625ma
power requireMenT
100 Volts, 50/60Hz at 400ma
110 Volts, 50/60Hz at 400ma
120 Volts, 50/60Hz at 400ma
220 Volts, 50/60Hz at 400ma
230 Volts, 50/60Hz at 400ma
240 Volts, 50/60Hz at 400ma
general SpecificaTionS
MT10 TurnTable SpecificaTionS
oVerall diMenSionS
Width is 17-1/2 inches (44.45cm)
Height is 8-13/16 inches (22.38cm)
Depth is 21 inches (53.34cm)
Note: Tone Arm Height will vary depending on
type of Cartridge installed.
for The conSuMer’S
proTecTion
In order to ensure the highest level
of customer satisfaction, “new” McIntosh
products may only be purchased over-thecounter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be “used” and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or products that have had their serial number
altered or defaced.
To experience the legendary performance of McIntosh, please call on us at 1-800-538-6576
35010700 MT10
