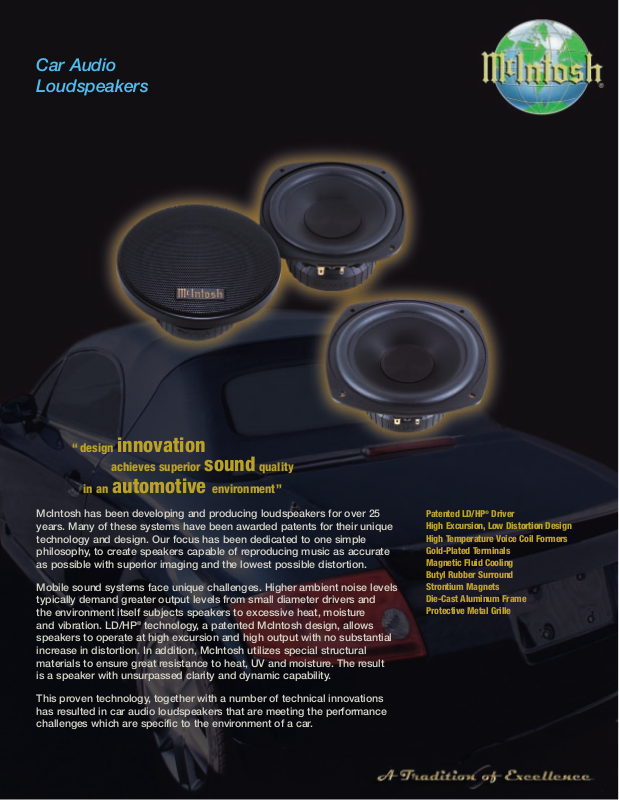

Mcintosh MSS630, MSS530 DATASHEET
Car Audio
Loudspeakers
“ design innovation
achieves superior sound quality
in an
automotive environment”
McIntosh has been developing and producing loudspeakers for over 25
years. Many of these systems have been awarded patents for their unique
technology and design. Our focus has been dedicated to one simple
philosophy, to create speakers capable of reproducing music as accurate
as possible with superior imaging and the lowest possible distortion.
Mobile sound systems face unique challenges. Higher ambient noise levels
typically demand greater output levels from small diameter drivers and
the environment itself subjects speakers to excessive heat, moisture
and vibration. LD/HP
®
technology, a patented McIntosh design, allows
speakers to operate at high excursion and high output with no substantial
increase in distortion. In addition, McIntosh utilizes special structural
materials to ensure great resistance to heat, UV and moisture. The result
is a speaker with unsurpassed clarity and dynamic capability.
This proven technology, together with a number of technical innovations
has resulted in car audio loudspeakers that are meeting the performance
challenges which are specific to the environment of a car.
Patented LD/HP®Driver
High Excursion, Low Distortion Design
High Temperature Voice Coil Formers
Gold-Plated Terminals
Magnetic Fluid Cooling
Butyl Rubber Surround
Strontium Magnets
Die-Cast Aluminum Frame
Protective Metal Grille
McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699
Tel (607) 723-3512 • US Toll-Free (800) 538-6576 • Fax: (607) 724-0549 • www.mcintoshlabs.com
For the Consumer’s Protection: In order to ensure the highest level of customer satisfaction, “new” McIntosh
products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer.
McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be “used” and
do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased
from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
Car Audio
Loudspeakers
5 1/4" woofer/midranges, 1" tweeter drivers,
MN530 crossover networks
6 1/2" woofer/midranges, 1" tweeter drivers,
MN630 crossover networks
80Hz to
20kHz
85dB
9.5 lbs.
(4.3kg.)
1 20w
Woofer
7.62" (19.4cm)/3" (7.6cm)
Tweeter
2.12" (5.4cm)/.56" (1.4cm)
4Ω
Rubber
MSS530
MSS630
Crossover networks
for use in
MSS530 system
2400Hz 12dB/
octave
5.2" x 2.7" x 1.4"
(1.32cmx .686cm
x .34cm)
12dB/
octave
1.6 lbs.
(0.7kg.)
Crossover networks
for use in
MSS630 system
2500Hz 12dB/
octave
5.2" x 2.7" x 1.4"
(1.32cmx .686cm
x .34cm)
12dB/
octave
1.6 lbs.
(0.7kg.)
MN630
MN530
DESCRIPTION
DIMENSIONS
HxWxD
CROSSOVER
FREQUENCY
LOW-PASS
SLOPE
HIGH-PASS
SLOPE WEIGHT
Crossover
Networks
WEIGHT
MOUNTING
DIAMETER/DEPTH
CONE
MATERIAL SURROUND
8.6 lbs.
(3.9kg.)
Woofer
6.56" (16.7cm)/2.75" (7.0cm)
Tweeter
2.12" (5.4cm)/.56" (1.4cm)
Woofer:
Mica-filled
polypropylene
Tweeter:
soft-dome
WEIGHT
MOUNTING
DIAMETER/DEPTH
CONE
MATERIAL SURROUND
Woofer:
Mica-filled
polypropylene
Tweeter:
soft-dome
Rubber
DESCRIPTION
POWER
HANDLING
FREQUENCY
RESPONSE SENSITIVITY IMPEDANCE MAGNET
80Hz to
20kHz
85dB 120w4Ω Strontium,
Neodymium
POWER
HANDLING
FREQUENCY
RESPONSE SENSITIVITY IMPEDANCE MAGNET
Strontium,
Neodymium
03.04.CARSPKR.20k 35006700
