Model PV5580/PV6080 User Guide

HD Widescreen Television

Once your MARANTZ purchase is registered, you’re eligible to receive all the privileges of owning a

MARANTZ product. So complete and return the Warranty Registration Card enclosed with your

purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

For Customer Use

Enter below the Serial Number which is located on the rear of the cabinet. Retain this information for future reference.

Model Number: ________________________________ Serial Number: ______________________________

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical shock. For the safety of everyone in your

household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance

problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au

fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your MARANTZ warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits

a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

(NEC SECTION 810-20)

TABLE OF CONTENTS

Getting Started

Welcome/Product Registration ...................2

Safety/Precautions .....................................................3

Table of Contents.......................................................4

Features, Model and Cabinet Information.................5

On-Screen Features

PICTURE MENU

✧Adjusting Color, Brightness, Sharpness,

Tint, Picture, and Color Temperature Controls ..6

✧Using Clearview and Video Enhance Controls...7

✧Adjusting the TV's Convergence Control...........8

✧Using the Flesh Correction Control ....................9

FEATURES MENU

✧Using the Analog Format Screen Control.........10

✧Setting the TV for Closed Captioning...............11

✧Setting the TV for Cable or Antenna Signals....12

✧Adding Channels in Memory (Automatically) .13

✧Adding Channels in Memory (Manually).........14

✧Setting the TV Clock.........................................15

✧Using the Sleep Timer Control .........................16

✧Adjusting the Channel Display Control............17

✧Using the Time/Channel Reminder Control......18

✧Using Parental Control/Content Advisory:

• Code Setup/Blocking Channels...............19-20

• Content Advisory - Movie Ratings .........21-22

• Parental Guidelines.......................................23

• Blocking Options/Review Settings...............24

✧Using the Channel Label Control......................25

✧Using the Language Selection Control..............26

SOUND MENU

✧Adjusting Bass, Treble, and Balance Sound

Controls.............................................................27

✧Setting the Bass Boost Control ........................27

✧Setting the TV for Stereo and SAP Programs ..28

✧Using the Incredible Surround Control.............29

✧Using the Volume Display Control...................29

✧Using the TV Speaker On/Off Control with

the Audio Output jacks .....................................30

✧Surround Sound Speaker Connections and

Variable Audio Output Control ........................31

✧Optional Surround Sound Connections ............32

✧Using the TV's Audio/Video Input and

Output Jacks ...............................................33-37

Monitor (HD) Control Operation

Connection of VGA and High Definition (HD)

Component Video Equipment .................................38

Adjusting of Monitor Display Controls...................39

Remote Control Operation

Setting the Auto Picture Control.............40-41

Using the Auto Sound Control.................................42

Using the Auto Surf Control....................................43

Picture-In-Picture (PIP)

How to Use PIP (Connections) ............44-45

How to Use PIP with the TV Remote......................46

Selecting the Picture Source for PIP........................47

Adjusting PIP Color, Tint, and Size ........................48

More PIP Connections (Cable Converter)...............49

General Information

Tips if Something Isn’t Working ..............50

Glossary of TV Terms .............................................51

Index ........................................................................52

Factory Service Locations..................................53-54

Warranty ..................................................................56

Use the simple Set-Up Guide (supplied with your TV information packet) for details on:

• Antenna Hook-ups

• First Time Set-Up (Automatic Settings)

• Basic TV and Remote Control Operation

• On-Screen Menu Use

SET-UP AND QUICK USE GUIDE

BEGIN

STOP

NOTE: The universal learn remote supplied with this HD PTV features a LCD window display set for a variety of accessory product functions. Due to the amount of optional components available within the remote’s Device Reference and Learn Code Lists, please refer to the separate full-use Remote Control Owner’s Manual for complete details on its use and operation.

BRIGHTNESS

PICTURE SHARPNESS SVM OFF COLOR TINT VOLUME BARON

SET-U

P ANDQUICKUSEGUIDE

HD Widescreen Television

ANTENNAOR

CABLETV

ANT(ENNA) A& B INPUTS

our TVhas two sepa-

rate ANT(enna)/Cable

inputs on the rear of the

set. These two signal inputs offer convenient hook-up options for both normal TVprogram viewing and Picture-In-Picture (PIP) features.

The ANT(enna) Ainput is intendedfor use and view-

ing on the TV’s main screen. Your home’s primary Antenna, or Cable TVsignal, should be connected to this input for normal TVsetup, use and feature operation.

The ANT(enna) B input is a second, or auxiliary sig-

nal source, designed to

Aand B connection (using a common signal source and an optional Signal Splitter):

If yourAntenna orCable TV signal has a round cableconnector(75 ohm) on the end,

then you're ready to connect it to the 75ohm Signal Splitter.

If yourantenna has flat twinlead wire (300 ohm), you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter before connecting to the 75ohm Signal Splitter.

’

11 10 9 8

How to Use the First Time Set-Up Control ..............2

Basic TVand Remote Control Operation.................3

How to Use the Onscreen Menu Controls.................4

WARNING: TO PREVENTFIRE OR SHOCK HAZARD DO NOTEXPOSE THIS UNITTO RAIN OR EXCESSIVE MOISTURE.

Atypical ANT(enna)

300 to 75ΩAdapter (483521827003)

Twin Lead

Wire

Round Cable 75ΩOhm

Getting Started

12 1

2 3 4

Warning/Precautions..................................1

5 7 6

Hooking Up Your TV................................1

Connect yourAntenna or

Cable TVsignal to the single

75 ohm input plug on the twoway Signal Splitter (optional). Then connect two lengths of RF Coaxial Cable to the two Output plugs on the two-way Signal Splitter (F-type connector on both ends).

Combination VHF/UHFAntenna

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

TABLEOF CONTENTS

• For details on product registration, warranty,

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with yourtelevision set. This is normal and does not require you contacting yourdealeror requesting service.

Connect the twin Output

plugs on the Signal Splitter to

the ANTAand ANT B inputs on the rear of the TV. Push the round connector end of the RF Coaxial Cable onto the ANT(enna) plug and screw it down tight (if using threaded cables).

and service refer to the other literature included with your TVinformation packet. Please retain all these materials and keep them handy for future reference.

SMART HELP

Note: Your HD Widescreen model TVis also capable for connection and use with digital signal Set Top Box providers. These optional Advanced Television Systems Committee (ATSC) equipment convert-

Back of TV

ers can be used to display digital broadcast system programming on your High Definition ready Widescreen TV. Be sure to set the TVfor the type signal you've connected (see "SETUP" on page 2 of this Guide.)

First Time Set Up - automatically sets the TV for local channels, the correct picture signal (antenna or cable), and assists in the setting of TV’s Guide Plus+ feature.

Infrared Remote Control - operates your TV set and a variety of wireless remote control VCRs, Cable TV Converters, and other accessory equipment.

Standard TV broadcast (VHF/UHF) or Cable TV (CATV) channel capability as well as advanced

connectivity for high definition video and VGA. Closed Captioning - allows the viewer to read TV

program dialogue or voice conversations as on-screen text.

Automatic Programming of channels - for quick and easy selection of favorite stations available in your area.

Picture-In-Picture (PIP) - can show a TV program and the direct video output from an accessory (VCR, etc.) onto the TV screen at the same time.

Parental Control for “Censoring” - this feature can block out channels to keep children from watching undesirable programming. Parental Guideline and Movie Rating settings can also be used as part of the new Content Advisory Data system available with TV programming.

Stereo TV - with a built-in audio amplifier and a twin speaker system, reception of TV programs in both broadcast stereo sound or (SAP) bilingual broadcast are available.

Twin Antenna (A/B) Inputs - for easy displaying of two separate signal sources on the TV. An A/B button on the remote control switches the TV’s Main screen between the two Antenna (A & B) Input options.

Audio/Video Jacks - for direct connections with VCRs (and other accessories) for quality TV picture and sound playback.Component Video Input connectors are also available for high fidelity color and picture resolution when using digital video source material, such as DVD.

Surround Sound - this TV set contains external; audio speaker connections for a more dynamic sound effect capable within the today’s Home Cinema environment.

Sleep-Timer - automatically turns the TV OFF at preset time intervals.

Smart/Auto Button - for the control of TV Sound and Picture levels. Use the Smart/Auto Button on the remote to quickly select various audio modes matched to specific types of TV programming; to select video level adjustments for a variety of program sources; and to make quick one button channel selection of up to 10 of your favorite channels.

FEATURES

As you unpack your TV please note that the following items have been included with your set:

• Owner's Manual

- Safety Tip Information

- Factory Service Center Locations

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use Refer to the back of this manual for instructions

on the cleaning and care of the TV.

End-of-Life disposal

Your new projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.

Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

Please find out about the local regulations on how to dispose of your old television, batteries, and packaging materials whenever you replace existing equipment.

High Definition Digital - Projection Television capable of 1500x1080i interlaced imaging for superior resolution and performance. Line doubling circuitry and video processing technology able to output progressive scan material with clean, stable widescreen images. Triple lens system matched to first surface mirror and fine pitched lenticular screen methods which amounts to an incredible 1,620,000 pixels of display capability. High Definition Component and RGB Inputs are available as well for Y, Pb, Pr; horizontal/vertical sync, and RGB/VGA monitor input operation modes.

Automatic Phosphor Aging Compensation (APAC)

- Automatic incremental shifting of TV screen

elements to prevent any onscreen image outline retention or “screen burn” problems.

GUIDE Plus+®- Electronic TV Program guide which provides for daily television channel listings, descriptions of program content, sorting of shows by subject themes, and a variety of other VCR programming options. (See your separate GUIDE Plus+®Owner’s Manual for further details.)

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

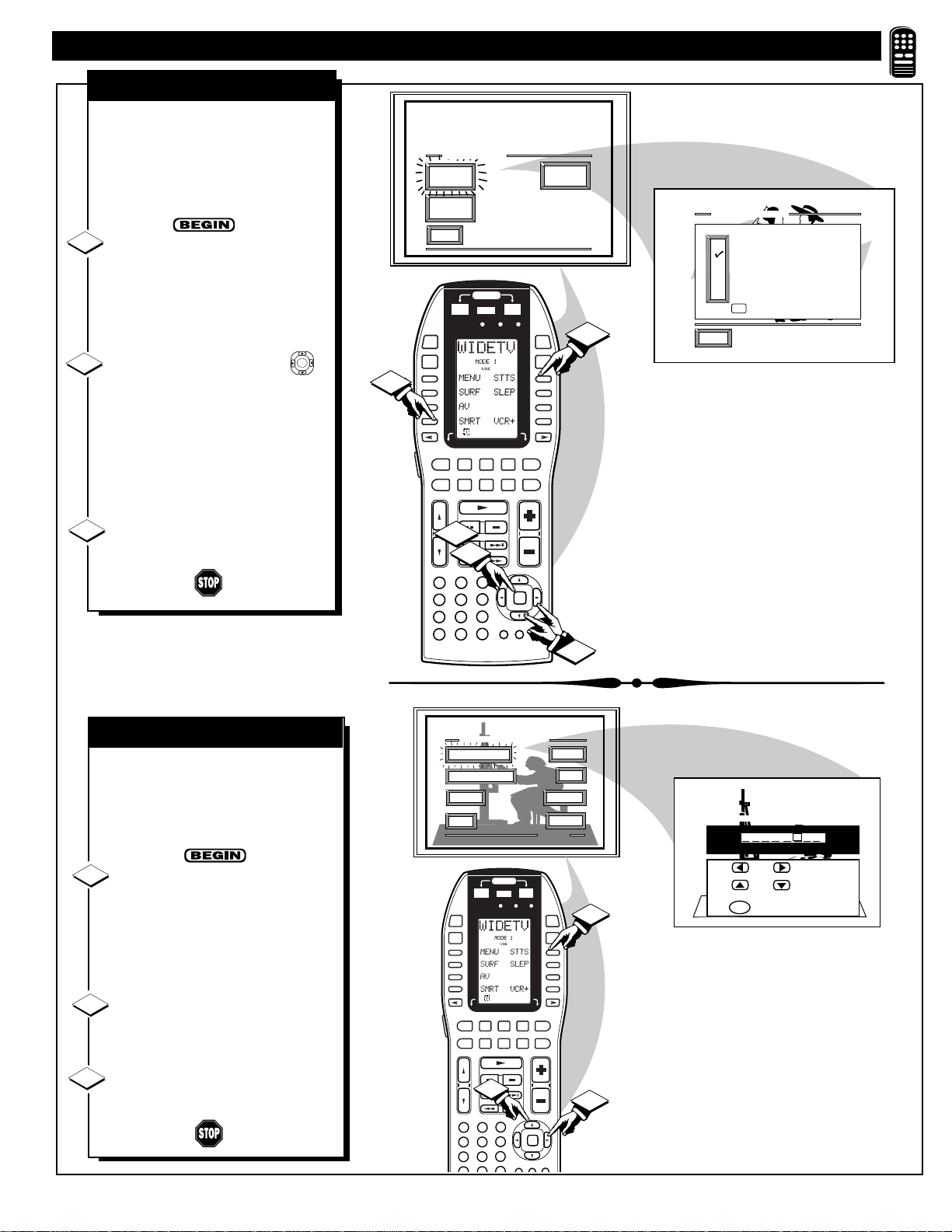

PICTURE MENU CONTROL ADJUSTMENTS

COLOR, BRIGHTNESS,

SHARPNESS, TINT, PICTURE

o adjust your TV color and

picture controls, select a TV channel and follow the steps shown below:

Select BRIGHTNESS, PICTURE, COLOR, TINT, or SHARPNESS picture control.

With the PICTURE MENU on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to adjust the selected control.

Press the STATUS button to

clear the screen.

SMART HELP

Remember. When the bar

scale is centered, control settings are at normal mid-range levels.

BRIGHTNESS Press (-) or (+) until dark parts of the picture show good detail.

PICTURE Press (-) or (+) until whitest parts of the picture are as bright as you prefer.

COLOR Press (-) or (+) to add or eliminate color.

TINT Press (-) or (+) to obtain natural skin tones. (Also see Flesh Correction on page 9 for more information).

SHARPNESS Press (-) or (+) to improve detail in the picture.

Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Tint, Brightness, Picture, etc.

Note: A Color Temperature control is also available to set the level or degree of color intensity (especially on white picture screen elements). For example, use the Color Temperature (Picture Menu 3 of 3) for the following settings:

COOL – makes whites, bluish NORMAL – keeps whites, white.

WARM – makes whites, reddish.

PICTURE MENU

EXIT

3 OF 3

COLOR TEMPERATURE

MORE...

EXIT

NORMAL

WARM

COOL

COLOR TEMPERATURE

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

1 4 7

PIP

MUTE

GUIDEAMP

SOUND

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT


CLEARVIEW

MORE...

1 OF 3

COLOR

MIN

EXIT

MAX

NEXT...

PICTURE MENU CONTROLS (CONTINUED)

learview is a sharpness feature

which smoothes out background snow (or picture noise) without losing picture image detail or crispness.

Select CLEARVIEW control.

With the PICTURE MENU on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the outer OK arrow

buttons to move the RED highlight. Press the center OK button to select (

U) the ENHANCED mode.

Press the STATUS button to

clear the screen.

CLEARVIEW

Note: An additional Picture Menu “VIDEO ENHANCEMENT” control (similar in function and use as the Sharpness control) is also available to further improve picture intensity and detail, particularly for the playback of DVD player source material. Selection and adjustment of the Video Enhancement control (Picture Menu 2 of 3) is the same as with other Color and Picture Menu control options.

PICTURE MENU

FLESH CORRECTION

EXIT

2 OF 3

MORE...

CONVERGENCE

VIDEO ENHANCEMENT

EXIT

MIN

MAX

VIDEO ENHANCEMENT

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

POSITIONDNPIP

6 9 C

MUTE

GUIDEAMP

SOUND

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT


CLEARVIEW

MORE...

1 OF 3

CLEARVIEW

NORMAL

ENHANCED

EXIT

NEXT...

PICTURE MENU CONTROLS (CONTINUED)

RED/BLUE CONVERGENCE

onvergence is the correct

lining up of the red and blue light paths on the TV screen. NOTE: If no color fringing (see Smart Help) shows, then no Convergence adjustments are necessary for your TV.

Select CONVERGENCE

control. With PICTURE MENU (2 of 3) on

screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

If there is RED or BLUE color

fringing (see note below) on your TV, press the outer OK arrow buttons to move the highlight. Press the center OK button to select the Align Red or Align Blue Convergence control.

Press the OK arrow

buttons to move the red or blue

cross directly over the white cross on the TV screen.

The red or blue cross is properly adjusted when it is completely merged with the white cross. (No color appears around the edge of the white cross).

Press the STATUS button to

clear the screen when convergence adjustments are complete.

SMART HELP

Remember. Convergence

has been set at the factory for best viewing, but if one or more of the (red or blue) colors appear around the edges of objects (color fringing) follow the steps given in this section.

NOTE: Adjustments for “Multi-Point” on-screen color fringing can also be made as part of the TV’s Convergence control system. Follow the TV’s on-screen menu directions to select individual screen areas that can be readjusted and set for varying red/blue color fringing conditions. These multi-point settings can then be “Saved” to memory for the specific areas of the TV screen (or Factory Settings for convergence can be recalled and put back into place for use).

CONVERGENCE MULTI POINT CONVERGE RED POINTS

CONVERGE BLUE POINTS RESTORE FACTORY SETTINGS SAVE ADJUSTMENTS BACK

CONVERGE RED POINTS

USE TO ADJUST

DIGIT 2, 4, 6, 8 TO MOVE CURSOR

PRESS MENU TO RETURN

PRESS MENU NOW TO CONTINUE

MULTI-POINT

CONVERGENCE

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

DSS/

VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO MACRO

SOUND

OFFON

VCR1

CD-R

AUX

/MD

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION

VIDEO ENHANCEMENT

EXIT


CLEARVIEW

MORE...

1 OF 3

MORE...

2 OF 3

VOLCH

POSITIONDNPIP

6 9

MUTE

GUIDEAMP

CONVERGENCE MENU ALIGN RED

ALIGN BLUE CONVERGE MULTI POINT BACK

PRESS TO ALIGN RED PRESS MENU TO RETURN

se the Flesh Correction

control to keep skin tone hues (or facial tint) from varying from TV channel to TV channel.

Select FLESH

CORRECTION control.

With PICTURE MENU (2 of 3) on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED

highlight. Press the center OK button to turn (

U) the FLESH

CORRECTION control ON.

Press the STATUS button to

clear the screen.

FLESH CORRECTION

PICTURE MENU CONTROLS (CONTINUED)

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

DSS/

VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

MACRO

POSITIONDNPIP

ON/OFF

RC-18SR

LD DVD

TAPE

3 6 9

SOUND

PICTURE MENU

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION

VIDEO ENHANCEMENT

EXIT

FLESH CORRECTION

OFF


CLEARVIEW

MORE...

1 OF 3

MORE...

2 OF 3

EXIT

FEATURE MENU CONTROL ADJUSTMENTS

ANALOG FORMAT

our TV is able to deliver

lifelike, widescreen picture (or “home cinema” experience) that is promised with High Definition TV viewing. The Analog Format control can be used to expand conventional 4:3 aspect ratio (width-to-height) broadcasts in order to fit your TV’s widescreen format; or to reset the screen to best match the current programming.

Select ANALOG FORMAT

control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED

highlight. Press the center OK button to select (U) the desired screen aspect ratio or screen display control.

Press the STATUS button to

clear the screen.

Note: The LCD Display MODE 2 screen on the remote control can also be used to quickly select various aspect ratio screen control settings for TV viewing. Press the LCD screen direction (< or >) buttons on the remote to select the WideTV Mode 2 display for use. Then press the correct (D) callout button to select the desired screen aspect ratio. Note: Not all of the MODE 2 LCD display settings may be available for use with your select model HD PTV.

SMART HELP

Note: In the past the

relationship between a TV screen’s width to height, or aspect ratio, has historically been 33% wider than the picture screen height (or a 4:3 aspect ratio). The widescreen format of your TV screen is nearly 80% greater than its measure height (which accounts for a 16:9 aspect ratio). The reason for the 16:9 aspect ratio screen is that it allows for the dramatic and lifelike viewing of original version movies and cinemas (similar to the type found in your local theaters). And the 16:9 aspect ratio widescreen is also a good visual match for how our eyes work in a horizontally oriented field of view and action plane.

Panoramic - Conventional picture is expanded to fill the full 16:9 aspect ratio screen area. Most of the non-linear picture expansion is performed toward the outer edges so that correct proportions are retained in the center of the screen.

4:3 (Standard) Conventional TV picture format shows on the screen. Black bar areas show on the side margins of the screen.

16:9 (Expand) - Full widescreen mode with linear expansion to view HD program broadcasts. Used for material originally produced in 16:9 format.

Theater 1/2 - Expanded zoom modes with picture images increased in magnification. Designed for use with “letterbox” or cropped movie images such as found with Cinemascope or Cinerama type program material. Note: With the Theater modes there can be some loss of information at the edges as the picture expands to fill the screen.

Building Trade News

PANORAMIC

4 X 3

16 X 9

THEATER 1/2

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

LEARNING REMOTE CONTROL

DSS/ VCR2

TUNER

CLONE MACRO MODE

MACRO

ON/OFF

RC-18SR

LD DVD

TAPE

SOUND

FEATURE MENU

ANALOG

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

FORMAT

CLOSED

CAPTIONS

EXIT

ANALOG FORMAT

PANORAMIC 4 X 3 16 X 9 THEATER 1 THEATER 2

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

VOLCH

POSITIONDNPIP

4 7

8 0

6 9

MUTE

GUIDEAMP

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.

Select CLOSED

CAPTIONING control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED highlight.

Press the center OK button to select (U) the desired Closed Caption mode - For Example: "ALWAYS ON" and "CAPTION 1".

CAPTION 1, 2, 3, 4:

dialogue (and descriptions) for the action on the captioned TV program shows on-screen. (See Important Note on this page.)

TEXT 1, 2, 3, 4:

often used for channel guide, schedules, or bulletin board information for CC programs.

After making your Caption mode

selection, press the STATUS

button to clear the TV screen. The selected Closed Caption mode will be active.

To cancel, set the Closed Captioned feature to OFF when finished.

FEATURE MENU CONTROLS (CONTINUED)

NOTE: Not all TV programs and product commercials are made for broadcast

with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4; or TEXT 1-4) necessarily being used by a broadcast station during the transmission of a closed caption program. Usually "CAPTION 1" is the most used mode to view captioned material. Refer to your area's TV program listings for the stations and times of Closed Caption shows.

CAPTION 1 mode

Example Screen Display

FULL SCREEN TEXT

will block TV screen from viewing

Closed Caption information will usually appear in black and white (although some broadcasters or networks may occasionally use color to highlight or draw attention to certain areas.)

CLOSED CAPTION

NOTE: The ON DURING MUTE ONLY control can be

used to set the TV to turn the Closed Caption mode "ON" whenever the MUTE button on the remote is pressed.

SMART HELP

Remember. Broadcast

stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the TV.

MAIN MENU


FEATURES

1ST TIME SETUP

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

RC-18SR

LD DVD

AUX

TAPE

VOLCH

VCR1

MACRO

CD-R

/MD

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

CLOSED CAPTION

ALWAYS ON ALWAYS OFF ON DURING MUTE ONLY

CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4

EXIT

CABLE TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

TEXT 1 TEXT 2 TEXT 3 TEXT 4

POSITIONDNPIP

6 9 C

MUTE

GUIDEAMP

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING

10:00 THE BEST LITTLE CALL-IN SHOW EVER

12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND 6:00 WORLD NEWS FOR TODAY

9:00 PLAYHOUSE MOVIE OF THE WEEK

FEATURE MENU CONTROLS (CONTINUED)

ou need to make sure the TV is

set to pick up either Cable TV or Antenna signals. In other words, the TV needs to know if you connected a Cable TV signal or a normal antenna to its ANTENNA plug.

NOTE: If you went through First Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CABLE CHANNEL

TUNING control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons

to move the RED highlight. Press the center OK button to select (U) the desired mode - For Example: CABLE.

CABLE- If you DO have

Cable TV

connected to the TV. Channels 1-125 available.

NORMAL- If you have an

Antenna connected

to the TV. Channels 2-69 available.

Press the STATUS button to

clear the screen.

CABLE TUNING

Note: Both ANT(enna) A and ANT B inputs on the rear of the TV can be set for the correct connected signal (either an Antenna or Cable TV source).

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

DSS/

VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

MACRO MACRO

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

CABLE TUNING

CABLE ANT A NORMAL ANT A

CABLE ANT B NORMAL ANT B

CABLE

TUNING

CHANNEL MEMORY

MORE...

1 OF 5

POSITIONDNPIP

4 7

VOLCH

6 9

MUTE

GUIDEAMP

EXIT

our TV can automatically set itself

for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CHANNEL

▲▼

buttons are pressed. NOTE: If you went through First

Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CHANNEL MEMORY

(START AUTO-PROGRAMMING)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the center OK button to

turn AUTO-PROGRAMMING ON .

The TV shows which channel numbers are "SAVED" (U) as they are added into memory.

"Auto-programming CHANNEL MEMORY is finished" shows when the TV is through adding channels.

Press the STATUS button to clear

the screen.

CHANNEL MEMORY

AUTO-PROGRAMMING

FEATURE MENU CONTROLS (CONTINUED)

U Channel Numbers are Saved in Memory

SMART HELP

Try it out. Press the

CHANNEL▲▼ buttons

and see which channels you can select.

Remember, an Antenna or Cable TV signal must first be connected to your TV so that channels can be saved.

If you want to delete any unwanted channels from the TV's memory, see "ADD/DELETE CHANNELS" on the next page.

MAIN MENU


FEATURES

1ST TIME SETUP

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CABLE

TUNING

MACRO

LEARNING REMOTE CONTROL

DSS/ VCR2

TUNER

POSITIONDNPIP

4 7 M

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

RC-18SR

TAPE

LD DVD

CLOSED

CAPTIONS

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

AUTO-PROGRAMMING CHANNEL

MEMORY FOR ANT A

1 2 3 4 5 6 7 8 9 1O 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Press "M" to

Stop Auto-Program

CHANNEL

MEMORY

MORE...

1 OF 5

FEATURE MENU CONTROLS (CONTINUED)

uto-Programming (see

previous page) adds all the channels it can find (on your Antenna or Cable TV system) into the TV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the TV's memory.

Select CHANNEL MEMORY

(ADD/DELETE CHANNELS)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the CHANNEL ▲▼ or

number buttons to select the

channel you want to add or delete.

Press the outer OK arrow

button (on the Right) to ADD the

channel into the TV's memory. Press the outer OK arrow button

(on the Left) to DELETE the channel from memory.

Repeat steps 2 and 3 for each channel you wish to add or delete.

Press the STATUS button to

clear the screen when through.

ADD/DELETE CHANNELS

SMART HELP

Remember. A separate

ADD/DELETE CHANNEL memory may also be created for the ANT(enna) B Input on the rear of the set (if an Antenna or Cable TV signal has been connected). Press the “SOURCE” button on the remote, while in the ADD/DELETE CHANNEL mode, to switch between the ANT A and ANT B channel memory lists. Then follow steps 2 and 3 as shown to the left to add or delete the desired channels.

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO MACRO

SOUND

OFFON

VCR1

CD-R

AUX

/MD

EXIT

FEATURE MENU

ANALOG

FORMAT

CLOSED

CAPTIONS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

POSITIONDNPIP

VOLCH

6 9

MUTE

GUIDEAMP

ADD/DELETE CHANNEL

Channel 19 Added for ANT A

SELECT CHANNEL to DELETE CHANNEL

SOURCE

for ANT B

when FINISHED

FEATURE MENU CONTROLS (CONTINUED)

SET CLOCK

our TV comes with an on-

screen clock. During normal operation the clock appears on the screen with every channel change (and when the STATUS button is pressed).

Select SET CLOCK control.

With the FEATURES MENU (2 of

5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the remote's number

buttons to set the time clock.

Press the STATUS button to

set the clock in operation and clear the screen.

Remember, be sure to

press "0" first and then the hour number for single digit entries.

The remote's OK arrow buttons can also be used to set the hours, minutes and AM/PM portions of the clock.

TV Clock settings may be lost when the TV is unplugged (or AC power to the set is interrupted).

SMART HELP

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO MACRO

POSITIONDNPIP

FEATURE MENU

ANALOG

SOUND

EXIT

OFFON

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

PLEASE ENTER THE

CURRENT HOUR

SET CLOCK

9 : 19 AM

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

FEATURE MENU CONTROLS (CONTINUED)

ave you ever fallen asleep in

front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Press the SLEEP button on the

remote control (LCD Display Mode 1 screen - D6 button).

Press the SLEEP button

repeatedly to pick the amount of time (15 minutes to 2 hours ahead) before the TV will turn itself off.

Press the STATUS button to

clear the screen after you have set the time for the TV to turn off.

Remember, to see how

many minutes are left before the TV shuts itself off, reselect the SLEEP TIMER control screen.

To stop a SLEEP TIMER setting, reset the timer back to OFF. (Turning the TV off and on, or pressing a button during the last minute of a timer setting, will also cancel a setting.)

A few seconds before the TV is to shut off a message will come on the screen telling you GOOD NIGHT.

SMART HELP

SLEEP TIMER

SET SLEEP TIMER

1 : 15

PRESS "SLEEP" TO CHANGE

POWER

SOURCE

OFFON

ON/OFF

LEARNING REMOTE CONTROL

DSS/ VCR2

TUNER

1 4 7

CLONE MACRO MODE

RC-18SR

LD DVD

TAPE

AUX

MACRO

VCR1

CD-R

/MD

VOLCH

MUTE

GUIDEAMP

FEATURE MENU CONTROLS (CONTINUED)

ith the Channel Display

control you can change the size and location of the on screen channel and clock information.

Select CHANNEL DISPLAY

control. With the FEATURES MENU (2

of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the LARGE or

SMALL display control.

Press the STATUS button to

clear the screen.

CHANNEL DISPLAY

SMART HELP

Try it out. Press the

CHANNEL ▲▼ buttons and

you should see the Display Size you selected.

Remember. The SMALL SIZE display shows only the channel number, not the time (or clock).

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

MACRO

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

FEATURE MENU

ANALOG

SOUND

EXIT

OFFON

MACRO

FORMAT

CLOSED

CAPTION

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

8 0

LD DVD

TAPE

3 6 9

VCR1

CD-R

AUX

/MD

VOLCH

CHANNEL DISPLAY

LARGE

MUTE

GUIDEAMP

SMALL - Channel/Label

EXIT

ith the Half Hour Reminder

control the TV automatically shows you the current time and channel every thirty minutes.

Select HALF HOUR

REMINDER control.

With the FEATURES MENU (2 of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the EVERY HALF

HOUR item.

Press the STATUS button to

clear the screen.

HALF HOUR REMINDER

FEATURE MENU CONTROLS (CONTINUED)

SMART HELP

Remember. The Time

and Channel Reminders will show on the hour and the halfhour for about five seconds.

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

DSS/

VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO MACRO

SOUND

OFFON

VCR1

CD-R

AUX

/MD

VOLCH

POSITIONDNPIP

6 9 C

MUTE

GUIDEAMP

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

HALF HOUR REMINDER

OFF

EVERY HALF HOUR

EXIT

CABLE

TUNING

CHANNEL MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

FEATURE MENU CONTROLS (CONTINUED)

arental Control allows parents

to block out, or "censor", any channels they think children should not watch. A channel placed under Parental Control cannot be viewed until a correct access code is used to unlock the channel for viewing.

First let's set your Parental Code:

Select the PARENTAL

CONTROL.

With the FEATURES MENU (3 of

5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

"CHANNEL BLOCKING" and "SETUP CODE" show on screen.

Press the OK arrow and center

OK buttons to highlight and select

the SETUP CODE item.

Press 0, 7, 1, 1 on the remote.

"XXXX" shows on the ACCESS

CODE SETUP screen as you press the number buttons.

"INCORRECT ACCESS CODE TRY AGAIN" will also show on the screen.

Press 0, 7, 1, 1 on the remote

again.

"Next Enter Your New Access Code" shows on the screen.

Enter a new four digit number

code using the remote.

"Access Code Changed" shows on

the screen to let you know the new code has been set.

Continue to the next page to find out how to "BLOCK" channels from viewing.

SMART HELP

Parents - it isn't possible

to unlock or defeat your Censor Code without changing to a new code number. So if your Code number changes, and you didn't change it yourself, then you will know that someone has altered the code and the blanked out channel has been viewed.

NOTE:Your TV left the factory with the Parental Code set to "0000". If you are using your TV and the Parental Control for the first time, and don't want to SETUP a new Access code number, you can use the "0000" number to block channels - see next page. The "0711" Parental Code (shown on this page) is given as a default or way to reset the Code when the current Access number is not known.

• Press outer OK arrow button (on the Right)

to go on and start to

"block" channels.

• Press outer OK arrow button (on the Left)

to go to "Content Advisory"

(or TV and Movie Ratings system of channel blocking).

• Press the center OK button to return to the Parental Control Menu screen.

• Press STATUS to clear the screen.

PARENTAL CONTROL

SETUP CODE NUMBER

FEATURE MENU

MAIN MENU


FEATURES

1ST TIME SETUP

MACRO MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

RC-18SR

LD DVD

AUX

TAPE

SOUND

VCR1

CD-R /MD

VOLCH

POSITIONDNPIP

MUTE

GUIDEAMP

EXIT

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

ACCESS CODE SETUP

X X X X

First Enter Your Current Access Code.

to EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

PARENTAL CONTROL

CONTENT

ADVISORY

CHANNEL

BLOCKING

EXIT

ACCESS CODE SETUP

X X X X

INCORRECT ACCESS CODE

TRY AGAIN. If You've Forgotten Your Access Code go to SETUP CODE and see Owner's Manual.

to EXIT

ACCESS CODE SETUP

X X X X

Next Enter Your New Access Code.

to EXIT

ACCESS CODE SETUP

X X X X

Access Code Changed.

for CHANNEL BLOCKING for CONTENT ADVISORY

to EXIT

SETUP

CODE

FEATURE MENU CONTROLS (CONTINUED)

fter your personal Parental

Code number has been set (see previous page), you are now ready to select the channels you want to block out or censor.

Select the BLOCK

CHANNELS control.

With the FEATURES MENU (3 of

5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK

buttons to highlight and select the CHANNEL BLOCKING item.

Enter the correct Parental

Code number.

Press Channel ▲▼ or Channel

Number buttons to select the channel you want to block.

Press the outer OK arrow

button

(on the right) to "BLOCK VIEWING" on the selected channel. Press the outer OK arrow button (on the left) to "ALLOW VIEWING" on a blocked channel.

Repeat steps 3 and 4 for any other channels you wish to block out.

SMART HELP

Remember, once set

Parental Control blocks out the selected channel number on both the ANT A and ANT B channel rings. Also, to make TV viewing easier all channels (for both ANT A/B) will be unblocked, once the correct Parental Code number has been entered. When the TV is turned OFF and then back ON again, is when Parental Control is back in place for all blocked out channels.

BLOCKED CHANNEL SCREEN MESSAGE (Appears when an attempt to select a blocked channel is made and Parental Control is ON.)

PARENTAL CONTROL CHANNEL BLOCKING

MAIN MENU


FEATURES

1ST TIME SETUP

MACRO MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

8 0

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

RC-18SR

LD DVD

AUX

TAPE

3 6 9

GUIDEAMP

SOUND

EXIT

VCR1

CD-R /MD

VOLCH

MUTE

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

CHANNEL BLOCKING MEMORY

To Block or Un-Block channels First Enter your Access Code.

to EXIT

CHANNEL 19 CHANNEL BLOCKING ACTIVE

X X X X

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

PARENTAL CONTROL

CONTENT

ADVISORY

CHANNEL BLOCKING

EXIT

CHANNEL BLOCKING MEMORY

Channel 19 blocked

CHOOSE CHANNEL to ALLOW VIEWING

to EXIT

SETUP

CODE

Please enter Access Code

-ORSelect another Channel for viewing.

FEATURE MENU CONTROLS (CONTINUED)

PARENTAL CONTROL

CONTENT ADVISORY

nother new area available to

parents for the censoring of program material is through the TV Guidelines and Movie Ratings system. Program Content Advisory data will soon be contained within the broadcast signals of received TV programs. When setup by the parent or viewer, the TV can respond to transmitted advisory data by blocking out or denying access to TV shows (based on whether the program meets or exceeds the limitations you select as viewable). The TV program can then only be viewed by entering the correct and current Parental Code Access number.

The Content Advisory system uses both “Movie Ratings” and a “Parental Guidelines” form of censoring. Refer to the following page sections for explanations on the different Rating system levels and their uses.

Select the CONTENT

ADVISORY Menu option

With PARENTAL CONTROL Menu on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

A Parental Guideline/Movie Rating status screen will appear with a review of currently BLOCKED Content Advisory categories.

Press the outer OK arrow

button (on the right) to select the

ENTER ACCESS CODE Menu item.

Enter the correct Parental

Code number (see note at the top

of this page). “CONTENT ADVISORY” Menu

screen appears. Parental Guidelines, Movie Ratings and other blocking control items are ready for selection and use.

Note: Please remember that a valid and current Access Code number will be required in the setup and use of the TV’s “Content Advisory” system. Review the previous SETUP CODE section on how to obtain a valid Parental Access Code number before attempting to make adjustments within the Movie Ratings and Parental Guidelines system.

NOTE: In normal Content Advisory system operation the TV screen will display a message when programming is blocked by a Movie Rating, Parental Guideline, or Blocking Option control feature. Entering the correct ACCESS CODE number will unblock all the blocked Content Advisory Rated channels until the TV is turned Off. The blocked Advisory Ratings will be back in place when the TV is turned back On again.

Please enter Access Code

-ORSelect another Channel for viewing.

CHANNEL 8 BLOCKED BY CONTENT ADVISORY TV GUIDELINES TV-14 D

X X X X

PARENTAL CONTROL

to EXIT

X X X X

DISABLED

MOVIE RATINGS BLOCKED PG PG-13 R NC-17 X

MOVIE

RATINGS

BLOCKING

OPTIONS

CONTENT

ADVISORY

CHANNEL BLOCKING

EXIT

MACRO

DSS/

VCR2

TUNER

1 4 7 M

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

POSITIONDNPIP

SETUP

CODE

OFFON

AUX

GUIDEAMP

CONTENT ADVISORY

TV PARENTAL GUIDELINES BLOCKED TV-Y TV-Y7 FV TV-G TV-PG DLSV TV-14 DLSV TV-MA LSV

to ENTER ACCESS CODE

MACRO

VCR1

CD-R /MD

VOLCH

MUTE

CONTENT ADVISORY ACCESS

To Block or Un-Block Programs, First Enter your Access Code.

to EXIT

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

MOVIE RATINGS

ovie Ratings set viewing

access levels for TV programming according to current Motion Picture Association of America (MPAA) ratings. These ratings are similar to the categories used with the rated movies appearing in cinema theaters and with video rental material.

Select the MOVIE RATINGS

Menu option. With CONTENT ADVISORY

Menu on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and select (U) the desired MOVIE BLOCKING level.

When in operation a “Blocked Movie Rating” TV screen appears when movies are received which include the same selected rating as the Movie Blocking setting(s). Only the correct Access Code number, entered by the viewer, will unblock or allow the viewing of a block rated program.

• G - General Audience: Most parents would find this

program suitable for all ages. This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

• PG - Parental Guidance:

This programming contains material that parents may find unsuitable for younger children. It may contain one or more of the following: Moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

• PG-13:

This programming contains material that parents may find unsuitable for children under the age of 13. It contains one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

• R - Restricted:

This programming is specifically designed for adults. Anyone under the age of 17 should only view this programming with an accompanying parent or adult guardian. It contains one or more of the following: intense violence, intense sexual situations, strong coarse language, or intensely suggestive dialogue.

• NC-17 - No one under 17 admitted:

This type of programming should be viewed by adults only. It contains graphic violence, explicit sex, or crude indecent language.

• X - Mature audience only:

This type of programming contains one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, very coarse and intensely suggestive language.

SMART HELP

Note: When a Movie

Rating is selected (U) all higher level ratings are automatically blocked (although each individual Movie Rating can be manually selected and turned On or Off as desired). Programs with lower than the selected rating level are allowed for viewing or unblocked.

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

8 0

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

RC-18SR

LD DVD

AUX

TAPE

3 6 9

MOVIE

RATINGS

BLOCKING

OPTIONS

MACRO

VCR1

CD-R

/MD

VOLCH

MUTE

GUIDEAMP

MOVIE BLOCKING

G PG PG-13 R NC-17 X

EXIT

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

PARENTAL GUIDELINES

arental Guidelines can be

even more defined and specific in the degree and extent of material parents may allow for TV program viewing. Sub-settings for Language, Violence, and other blocking factors can be manually switched On or Off for use within the major Parental Guideline categories (TV-Y7, TV-PG, etc.).

Select the PARENTAL

GUIDELINES Menu option.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow (Left

and Right side) buttons to

highlight and select the desired PARENTAL GUIDELINE rating level (TV-Y, TV-Y7, etc.).

Press the OK arrow and

center OK buttons

to Block (U) the selected Parental Guideline category (or to set other individual blocking feature items available within that Guideline category (L, V. S, D, etc.) as desired).

Note: Selecting “ALWAYS BLOCKED” (or individually adjusting the L, V, S, D settings) for any one rating will set all other higher level ratings to be automatically blocked as well.

• TV-Y - Appropriate for all children:

Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

• TV-Y7 -Appropriate for children seven and older:

It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

• TV-G - General Audience:

This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

• TV-PG - Parental Guidance suggested:

This type of programming contains one or more of the following: Moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

• TV-14 - Unsuitable for children under 14:

This type of programming contains one or more of the following: intense violence (V), intense sexual situations (S), strong coarse language (L), or intensely suggestive dialogue (D).

• TV-MA - Mature audience only:

This type of programming contains one or more of the following: graphic violence (V), explicit sexual situations (S), or crude indecent language (L).

• (V) - Violence

• (S) - Sexual situations

• (L) - Language

• (D) - Inappropriate dialogue

• (FV) - Fantasy Violence may frighten children under

seven. Some cartoons may have this rating. Available in the TV-Y7 category only.

SMART HELP

The TV-Y7; TV-PG;

TV-14; and TV-MA guidelines also include customized settings for various additional items such as V (violence), S (sexual situations), L (coarse language), D (suggestive dialogue), and FV (fantasy violence). These additional settings are category specific and can be individually selected for use as desired.

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

POWER

SOURCE

OFFON

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

MACRO MACRO

POSITIONDNPIP

MOVIE

RATINGS

BLOCKING

OPTIONS

VCR1

CD-R /MD

VOLCH

MUTE

GUIDEAMP

PARENTAL GUIDELINES

To Select Rating

TVY7TV GTVPGTV14TV

TV Y

To Select Blocking

NOT BLOCKED ALWAYS BLOCKED (FV) FANTASY VIOLENCE

EXIT

PARENTAL GUIDELINES

TV Y

EXIT

HELP

To Select Rating

TVY7TV GTVPGTV14TV

To Select Blocking

NOT BLOCKED ALWAYS BLOCKED (L) LANGUAGE (V) VIOLENCE (S) SEXUAL CONTENT (D) SUGGESTIVE DIALOG

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

REVIEW SETTINGS

se the Review Settings control

to quickly check the status for Content Advisory system Parental Guidelines and Movie Rating “Blocked” program levels.

Select the REVIEW

SETTINGS Menu option.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature. The TV screen will display the current Parental Guideline and Movie Ratings Blocked program settings. Content Advisory system status will also be shown (Enabled

-On, or Disabled - Off).

CONTENT ADVISORY

BLOCKING OPTIONS

he Content Advisory system

also has “Blocking Option”controls which can be used to deny viewing access for channel programs and movies even when they are “unrated”, or contain “no rating” information as broadcasted.

Select the BLOCKING

OPTIONS Menu control.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to turn the

Blocking System On (highlight and select

U ENABLED). Then use the remote OK arrow buttons to select the desired programming and information blocking options.

Please refer to Note shown with this page section for details on “unrated” and “no rating” program control options.

Note: Remember that Content Advisory data or encoded information is not available with all received TV programming (this also includes commercials, and other program spot announcements). Broadcaster’s can decide

not to encode any kind of content advisory ratings with their programming, or they can actually choose to encode programs to be “unrated.” The TV Blocking Options allow the viewer to block any program without content advisory data with the use of its “NO RATING INFORMATION” control. And to block programs that are encoded as “unrated” with its “UNRATED PROGRAMMING” control option.

Since the reception of Content Advisory data can take a few seconds, you may want to use the “CHANNEL CHANGE” option to be sure no viewing is allowed during blocked program channel changes. This can eliminate the display of a few seconds of undesirable video on the TV, or receiving scenes from a Ratings blocked channel source.

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

POWER

SOURCE

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

ON/OFF

RC-18SR

LD DVD

TAPE

3 6 9

AUX

OFFON

GUIDEAMP

RATINGS

BLOCKING

OPTIONS

MACRO

VCR1

CD-R

/MD

VOLCH

MUTE

MOVIE

BLOCKING OPTIONS

Blocking System:

DISABLED ENABLED

Set To Block On:

CHANNEL CHANGE UNRATED PROGRAMMING NO RATING INFORMATION

EXIT

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

RC-18SR

DSS/

LD DVD

VCR2

TAPE

CDTVTUNER

AUX

POSITIONDNPIP

OFFON

GUIDEAMP

MOVIE

RATINGS

BLOCKING

OPTIONS

VCR1

CD-R

/MD

VOLCH

MUTE

CONTENT ADVISORY TV PARENTAL

GUIDELINES BLOCKED TV-Y TV-Y7 FV TV-G TV-PG DLSV TV-14 DLSV TV-MA LSV

ENABLED MOVIE

RATINGS BLOCKED PG PG-13 R NC-17 X

to EXIT

FEATURE MENU CONTROLS (CONTINUED)

o you ever have trouble

remembering on which channel a particular station or network is located? The Channel Labels Control is a quick way to view and select channels from a list of Labeled channels.

A Label is a four letter callout you can set to appear with the on screen channel number. Example Label: WXYZ - for a TV station's call letters.

To select channels from the Channel Labels Control:

With the FEATURE MENU (3

of 5) on the TV screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select CHANNEL LABELS.

Press the OK arrow and

center OK buttons to highlight

and select either: "MANUAL" to create your own

label for a channel. "PRESETS" to choose from a list

of prewritten channel labels. (See instruction details on this

page.)

Press the STATUS button to

clear the screen.

CHANNEL LABELS

MANUAL- To create your own Channel Label:

Press the Channel ▲▼ or Number buttons to select

desired station. A red highlight shows the

active letter space for the channel label.

Press the outer OK arrow (top or bottom) buttons on

the remote to pick any of the letters or symbols that are given for your use.

Press the outer OK arrow (Left and Right) buttons

on the remote to move the red highlight to the other letter spaces and repeat.

Press the STATUS button to clear the screen when finished.

PRESETS -To pick a Label from the "LABEL" list:

Press the Channel ▲▼ or Number buttons to select

desired station.

Press the outer OK arrow (top or bottom) buttons to

move up and down the Channel Label list.

Just stop on any label you might want to use.

The selected label automatically appears with channel changes and when the STATUS button is pressed.

Press the STATUS button to clear the screen when finished.

FEATURE MENU

CHANNEL

LABELS

MACRO

VCR2

TUNER

DSS/

1 4 7

LANGUAGE

SELECTION

EXIT

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MORE...

3 OF 5

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

CHANNEL GUIDE LABEL

C H 1 0 C B S

ANTENNA A LABELS

to SELECT

to CHANGE

when FINISHED

CHANNEL LABELS

MANUAL

PRESETS

EXIT

Create Your Own

Choose From List

Channel 1 0

CHOOSE ANTENNA A CHANNEL

to SELECT LABEL to EXIT

BRV CBN CBS CNBC CMT

ote: If you went through First Time Setup, This task has

already been completed for you. For our Spanish and French

speaking TV owners an on-screen LANGUAGE option is present. With the LANGUAGE control you can set the TV’s on-screen features to be shown in either English, Spanish or French.

Select the LANGUAGE

DISPLAY control.

With FEATURES MENU (3 of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and select (U) English, Español, or Francais on the display control.

Text for the on-screen Menu will change to the selected language.

Press the STATUS button to

clear the screen.

LANGUAGE

Remember, the

Language control only makes the TV’s on-screen (MENU) items appear in English, Spanish, or French text. It does not change the other on-screen text features such as Closed Captioned (CC) TV shows.

SMART HELP

FEATURE MENU CONTROLS (CONTINUED)

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

POSITIONDNPIP

4 7

6 9 C

MUTE

GUIDEAMP

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

FEATURE MENU

CHANNEL

LABELS

LANGUAGE SELECTION

EXIT

LANGUAGE SELECTION

ENGLISH ESPANOL FRANCAIS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

MORE...

3 OF 5

HELP

he BASS BOOST control

increases the low frequency audio range of the TV. This creates a deeper, fuller playback sound which can be heard through the TV's speakers.

Select BASS BOOST sound

control. With the SOUND MENU on the

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and turn ON (

U) the BASS

BOOST control.

Press the STATUS button to

clear the screen.

BASS BOOST

SOUND MENU CONTROL ADJUSTMENTS

our TV also has individual

sound adjustment controls. The BASS (low frequency), TREBLE (high frequency) , and Speaker BALANCE may all be used to adjust the sound playback of TV programs.

Select BASS, or TREBLE, or

BALANCE sound control.

With the SOUND MENU on the screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the outer OK arrow

(Left and Right) buttons to adjust

the sound control to levels you prefer.

Press the STATUS button to

clear the screen.

BASS, TREBLE, BALANCE

Select “Next” and then press the MENU (M) button to view and adjust additional Audio controls. For Example: Treble, Balance, etc.

Note: Audio Menu controls can be set separately dependent upon the current TV operating mode (NTSC/ANTENNA, AUX 4, AUX 5, etc.). For instance, the TV Speaker On/Off control can be set to “ON” for normal NTSC TV viewing playback operation; while the same Audio control can also be set to “OFF” in a AUX 4 or AUX 5 Input Source mode.

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

DSS/ VCR2

CDTVTUNER

POSITIONDNPIP

4 7

ON/OFF

RC-18SR

LD DVD

TAPE

3 6 9

SOUND

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE SURROUND

EXIT

MIN

EXIT

BASS BOOST

MORE...

1 OF 3

BASS

MAX

NEXT...

MUTE

GUIDEAMP

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

ON/OFF

RC-18SR

LD DVD

TAPE

3 6 9 C

SOUND

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE SURROUND

EXIT

BASS BOOST

OFF

EXIT

BASS BOOST

MORE...

1 OF 3

NEXT...

MUTE

GUIDEAMP

SOUND MENU CONTROLS (CONTINUED)

STEREO

our TV is able to receive

broadcast stereo TV programs. The TV is equipped with an amplifier and twin speaker system through which the stereo sound can be heard. Note: STEREO will appear on the TV’s channel status screen to indicate when a stereo broadcast signal is available and received.

Select STEREO sound control.

With the SOUND MENU on the screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and turn ON (U) the STEREO mode.

Press the STATUS button to

clear the screen.

SECOND AUDIO PROGRAM

EXIT

NORMAL SOUND

SECOND PROGRAM SOUND

SOUND MENU

SECOND AUDIO PROGRAM

EXIT

2 OF 3

TV SPEAKERS

MORE...

DISPLAY VOLUME

STEREO

SECOND PROGRAM SOUND CAN ONLY BE SELECTED (

U) WHEN SAP INFORMATION IS PRESENT ON CURRENT CHANNEL.

Remember. If a stereo signal is not available and the TV is placed in the STEREO mode, sound coming from the TV will remain monaural (mono).

SMART

HELP

Second Audio Program (SAP) is part of the stereo broadcast system. Sent as a additional audio channel SAP can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes, but many experts believe it will be used for foreign language translations of TV shows (or for weather and news bulletins.)

NOTE: If a SAP signal is not present with a selected program, the SAP option can not be selected. "This program does not contain SAP information" will show on the TV screen.

SECOND AUDIO PROGRAM

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO

POSITIONDNPIP

4 7

LD DVD

TAPE

3 6 9 C

SOUND

SOUND MENU

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

BASS TREBLE

BALANCE

INCREDIBLE SURROUND

EXIT

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

STEREO

MONO AT ALL TIMES

STEREO IF AVAILABLE

BASS BOOST

MORE...

1 OF 3

STEREO

MORE...

2 OF 3

EXIT

SOUND MENU CONTROLS (CONTINUED)

he Incredible Surround control

can be used to add greater depth and dimension to both monaural (MONO) and STEREO TV sound.

Select the INCREDIBLE

SURROUND control.

With the SOUND MENU on the screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and center

OK buttons to highlight and turn

ON (

U) the INCREDIBLE

SURROUND mode.

Press the STATUS button to

clear the screen.

INCREDIBLE SURROUND

se the DISPLAY VOLUME

control to see the TV's volume level settings on the TV screen. Once set the Volume Display will be seen each time the VOLUME buttons (on the TV or remote) are pressed.

Select DISPLAY VOLUME

control.

With SOUND MENU (2 of 3) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK

buttons to highlight and turn ON (U) the DISPLAY VOLUME control.

Press the STATUS button to

clear the screen.

DISPLAY VOLUME

Remember, "DURING ADJUSTMENT" means the volume level will be on screen whenever the Volume buttons are pressed.

SMART

HELP

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

ON/OFF

RC-18SR

LD DVD

TAPE

3 6 9

SOUND

SOUND MENU

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

BASS TREBLE

BALANCE

INCREDIBLE SURROUND

EXIT

INCREDIBLE SURROUND

OFF

EXIT

BASS BOOST

MORE...

1 OF 3

NEXT...

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

RC-18SR

DSS/

VCR2

TUNER

LD DVD

TAPE

VCR1

CD-R

AUX

/MD

VOLCH

POSITIONDNPIP

4 7

6 9

MUTE

GUIDEAMP

SOUND

EXIT

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE SURROUND

EXIT

BASS BOOST

1 OF 3

MORE...

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

DISPLAY VOLUME

NEVER

DURING ADJUSTMENT

EXIT

STEREO

MORE...

2 OF 3

SOUND MENU CONTROLS (CONTINUED)

TV SPEAKERS

ould you like to hear TV

programs through your audio hi-fi system? The TV's Variable Audio Output jacks and TV Speaker On/Off control work together to offer you this TV sound option.

Connect the R(ight) and L(eft)

VARIABLE AUDIO OUT jacks

on the TV to the R and L Audio Input jacks on your amplifier or sound system.

Set the audio system's volume to normal listening level.

Turn the TV and audio system

ON. You can now adjust the sound level coming from the audio system with the Volume ▲▼

buttons on the TV or remote.

To hear the TV sound from only

the audio system speakers, select TV SPEAKERS control.

With SOUND MENU (2 of 3) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and turn OFF (U) the TV SPEAKERS control.

You should now only hear TV sound coming from the audio system speakers.

Press the STATUS button to

clear the screen.

BACK OF TV

AUDIO SYSTEM

AUDIO IN

(RED/WHITE)

VARIABLE

AUDIO

OUTPUT JACKS

SMART HELP

Remember, the audio

system may have to be in

AUX(iliary) mode to play sound from the TV (Outputs).

Note: When the TV SPEAKER control is set to "NORMAL" (for TV speaker operation) make sure the VARIABLE AUDIO OUTPUT control (see next page) is also set to "STEREO" in order for the TV's AUDIO OUTPUT jacks to work properly.

NOTE: The TV’s FIXED AUDIO OUTPUT jacks can also be used for the playback of TV program sound with an external audio amplifier, or home theater hi-fi system, Connection of the FIXED AUDIO OUT(puts) is similar

to the Variable Audio Outputs (as shown above). However, specific sound level adjustments will be made with the controls at the external amplifier or home sound system (instead of through the TV’s audio level controls.)

NOTE: The TV’s PIP AUDIO OUTPUT jacks can also be used for additional stereo playback options such as wireless transmitter headphone hook-up, or as an external amplifier connection source. However, with normal PIP feature operations (when

the ANT A and ANT B Input sources are connected for use), the PIP AUDIO OUTPUTs will switch from stereo to monaural (mono) sound. Stereo sound will only be available with the TV’s Main screen (or ANT A supplied signal) at that time.

Note: Audio Menu controls can be set separately dependent upon the current TV operating mode (NTSC/ANTENNA, AUX 4, AUX 5, etc.). For instance, the TV Speaker On/Off control can be set to “OFF” for normal NTSC TV viewing playback operation; while the same TV Speaker Audio control can also be set to “ON” in a AUX 4 or AUX 5 Input Source mode.

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

POSITIONDNPIP

4 7

RC-18SR

LD DVD

TAPE

3 6 9 C

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

STEREO

MORE...

TV SPEAKERS

2 OF 3

NORMAL

TV SPEAKERS OFF

EXIT

AUX/TV INPUT

PHONO INPUT

FIXED

VAR

PIP

AUDIO OUT

ANT A/CABLE 75 V UHF/VHF

VIDEO OUT

G-LINK

SOUND MENU CONTROLS (CONTINUED)

SURROUND SOUND

y adding optional external

speakers to the TV's sound system, you can create the feeling of reflected sound that surrounds you at a movie theater or concert hall.

Connect both external

speakers to the speaker wire

terminals on the TV. Recommended speakers: 8 ohm, 15

watt minimum. Be sure the (+) and (-) speaker wires are connected to the correct R(ight) and L(eft) speaker terminals on the TV.

Place the speakers so the

viewing area is between the TV and the rear surround speakers. (See overhead view drawing.)

Turn TV ON and place the

STEREO control to the "STEREO IF AVAILABLE" (U) position.

After setup whenever a stereo signal is received the audio will be heard in Surround Sound.

BACK OF TV

REAR SURROUND SOUND SPEAKERS

Note: The rear Surround Sound speakers will not be heard at the same volume level as the front TV speakers. It is intended for the rear speakers to give a background noise effect which requires a lower volume level than the TV's front speakers.

PRIMARY VIEWING AREA

REAR SPEAKER

VARIABLE AUDIO OUTPUT

he TV's Variable Audio Output

jacks can also be used for Surround Sound. Once they are connected to an external hi-fi system its speakers can be used for the playback of Surround Sound.

Connect the R(ight) and L(eft)

VARIABLE AUDIO OUT jacks

on the TV to the R and L Audio Input jacks on your amplifier or sound system.

Turn TV ON and place the

VARIABLE AUDIO OUTPUT on screen control to the SURROUND (

U) position. (Sound Menu 3 of 3).

Note:This will change the Left/Right channel audio line level signal at the Audio Output jacks to the same signal found at the TV's Surround Sound Speaker terminals.

AUDIO SYSTEM SPEAKERS USED AS REAR

SURROUND SOUND SPEAKERS

BACK OF TV

REAR SURROUND SOUND

SPEAKER TERMINALS

VARIABLE AUDIO

OUTPUT JACKS

AUDIO

INPUT JACKS

Remember, Surround Sound will not work with only one speaker connected; or with monaural audio material (unless Variable Audio Surround control is turned ON - see section below).

SMART

HELP

SUBWOOFER

SUBWOOFER OUTPUT Use the Subwoofer Output (RCA plug connector) to send the subwoofer audio channel signal (at line level) to an optional external powered Subwoofer speaker. The Subwoofer audio signal is for the playback of only the lowest frequency notes (under 100 Hz).

SOUND MENU

VARIABLE AUDIO OUTPUT

EXIT

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

RC-18SR

DSS/

LD DVD

VCR2

TAPE

CDTVTUNER

VARIABLE AUDIO OUTPUT

EXIT

OFFON

VCR1

CD-R

AUX

/MD

MORE...

3 OF 3

STEREO

SURROUND

AUX/TV INPUT

PHONO INPUT

POSITIONDNPIP

1 4 7 M

VOLCH

8 0

MUTE

GUIDEAMP

OPTIONAL SURROUND SOUND CONNECTIONS

xtra speaker connections have

been supplied on the rear of the TV. These extra connections are especially important for some of the optional Amplifier and multispeaker arrangements that are possible with Dolby Pro Logic Surround Sound audio features.

For example: With the Surround mode multiple speakers are needed to complete the setup for proper DOLBY SURROUND sound playback-

2 Front Left/Right Speakers

1 Center Channel Speaker 2 Rear Surround Speakers

The Front Left/Right, Center, and Rear Surround Speakers have their signals supplied by the connections located on the back of the Dolby ProLogic Audio Receiver.

Note: A CENTER CHANNEL AMP(plifier) INPUT is also located on the TV. This input can be used to connect the external Audio Receiver's Center Channel Output in order to play Center Channel sound through the internal TV speakers.

When an Audio Receiver is used as the audio source for the CENTER CHANNEL AMP INPUT:

• Place the TV's AMP SWITCH

to the EXTERNAL position

REAR OF TV

TV’S INTERNAL SPEAKERS

USED FOR SURROUND SOUND

CENTER CHANNEL

DOLBY PROLOGIC AUDIO AMPLIFIER

LEFT FRONT

SPEAKER

RIGHT FRONT

SPEAKER

REAR SURROUND

SPEAKERS

SURROUND

SPEAKERS

+ R -

- L +

CENTR CH

OUT

AMP SWITCH

EXT

MAXIMUM 30 WATT INPUT TO SPEAKERS

EXT CENTER CHANNEL AMP INPUT

INT

USING THE AUDIO/VIDEO INPUT JACKS

ANTENNA

OUT

AUDIO R

VIDEO

OUT

POSITIONDNPIP

ANT A

AUX 1 DVD VIDEO

AUX 2 VIDEO AUX 2 Y P

B PR

AUX 3 VIDEO

ANT B

AUX 1 DVD Y P

B PR

AUX 4 HD Y P

B PR

AUX 5 HD RGB-VGA

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO MACRO

VOLCH

LD DVD

AUX

TAPE

TUNER

CD-R /MD

DSS/ VCR2

VCR1

MUTE

GUIDEAMP

1 4 7 M

2 5 8 0

3 6 9

he TV's Audio/Video Input

jacks are for direct picture and sound connections between the TV and a DVD (or VCR, etc.) that has Audio/Video (Composite) Output jacks. To view the playback of a DVD program disc by using the Audio/Video Input jacks on the TV:

Connect the VIDEO OUT jack

from the DVD to the AUX 1

VIDEO IN jack on the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the DVD to the AUX 1 AUDIO IN jacks on the TV.

Select the “AUX 1 DVD

VIDEO” Picture Source control

on the TV. Press the A/V button on the remote

(or the Source Select button on the front of the TV) to display the TV’s Input Source control screen.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the AUX 1 DVD

VIDEO mode.

Turn the DVD ON and press

PLAY to view the playback disc tape on the TV.

AUX 1 VIDEO INPUTS

BACK OF TV

VIDEO IN

(YELLOW)

AUDIO IN

(RED/WHITE)

DVD

PICTURE AND SOUND FROM

PLAYBACK OF DVD

SMART HELP

Remember, if you have

need for any connecting cables or devices contact your dealer or our Parts Information center (1-800-851-8885) to order any optional accessories.

AUDIO/VIDEO

OUTPUT JACKS

ON DVD

NOTE: Connections and use of the TV's rear AUX 2 VIDEO Input jacks are the same as for the AUX 1 jacks (except “AUX 2 VIDEO” is selected as the Picture Source in step 3).

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

VOL

STATUS/EXIT

ANT A

AUX 1 DVD VIDEO

AUX 2 VIDEO AUX 2 Y P

B PR

AUX 3 VIDEO

ANT B

AUX 1 DVD Y P

B PR

AUX 4 HD Y P

B PR

AUX 5 HD RGB-VGA

AUDIO

VIDEO

S-VIDEO

POSITIONDNPIP

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO

VOLCH

LD DVD

AUX

TAPE

TUNER

CD-R /MD

DSS/

VCR2

VCR1

MUTE

GUIDEAMP

1 4 7

2 5 8 0

3 6 9 C

or more convenient Direct playback connections the TV's

Side Video (AUX 3) Input panel can be used. Located on the TV's right side panel (angled toward the front for easy access) these Audio/Video Input jacks allow for quick connections, particularly for the playback of Camcorder tape recordings.

To view the playback of a Camcorder recording using the Audio/Video Input jacks on the side of the TV:

Connect the VIDEO OUT jack

from the Camcorder to the VIDEO IN jack on the side of the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the Camcorder to the AUDIO IN jacks on the side of the TV.

Select the "AUX 3 VIDEO"

Picture Source control on the TV. Press the A/V button on the remote

(or the Source Select button on the front of the TV) to display the TV’s Input Source control screen.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the AUX 3 VIDEO

mode.

Turn the Camcorder ON and

press PLAY to view the tape on the TV.

AUX 3 VIDEO INPUTS

SIDE PANEL AUDIO/VIDEO

INPUT JACKS

(S-VIDEO Input plug also provided for possible S-VHS tape playback material.)

VIDEO IN

(YELLOW)

AUDIO IN

(RED/WHITE)

CAMCORDER

PICTURE AND SOUND FROM PLAYBACK

OF CAMCORDER TAPE

AUDIO/VIDEO

OUTPUT JACKS

ON CAMCORDER

SMART HELP

Remember, if you have a

single (monaural) Audio Output Camcorder, "Y" connectors are available to completeyour connection. Contact your dealer or our Parts Information center (1800-851-8885) to order any optional accessories.

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

he S(uper)-Video connection on

the rear (and Side Panel) of the TV can give you better picture detail and clarity for the playback of SVHS VCR tapes or DVDs than the normal antenna (RF Signal) or Video (Composite) picture connections.

Note: The VCR or DVD Player) must have a S-VIDEO OUT(put) jack in order for you to complete the connections shown on this page.

Connect the S-VIDEO (S-

VHS) OUT jack from the VCR to

the S-VIDEO AUX 1 IN(put) jack on the TV. The S-VIDEO connecting cable will be supplied with the S-VHS VCR (or DVD Player).

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the VCR to the AUDIO AUX 1 IN(put) jacks on the TV.

Select the "AUX 1 S-VIDEO"

Picture Source control.

Press the A/V button on the remote (or the Source Select button on the front of the TV) to display the TV’s Input Source control screen.

The "AUX 1 S-VIDEO" picture source option appears only when a S-VIDEO cable has been connected to the TV’s AUX 1 IN(puts).

Press the OK arrow and

center OK buttons to highlight and

select (

U) the AUX 1 S-VIDEO

mode.

Turn the VCR ON and place it

in the S-VIDEO (or S-VHS) playback mode. Insert S-VHS cassette tape and playback in a normal manner.

AUX 1 - S-VIDEO INPUTS

S-VHS VCR

AUDIO OUT

(RED/WHITE)

S-VIDEO OUT

BACK OF TV

PICTURE AND SOUND FROM

PLAYBACK OF S-VHS VCR TAPE

S-VIDEO

CABLE

NOTE: A CD-i (Compact Disc Interactive) player, Video Game, or other S-VIDEO accessory can be hooked up to the TV using this type of connection. Please be aware that such video sources, which show a constant non-moving pattern on the TV screen, can cause picture tube damage. When not in use turn your video accessories OFF. Also, regularly alternate the use of video sources with normal TV viewing.

NOTE: Connections and use of the TV's AUX 2 and AUX 3 S-VIDEO Input jacks are the same as for the AUX 1 S-VIDEO jacks (except “AUX 2 or AUX 3 S-VIDEO” is selected as the Picture Source in step 3).

ANT A ANT B AUX 1 S-VIDEO

AUX 1 DVD Y P AUX 2 VIDEO

B PR

AUX 2 Y P AUX 3 VIDEO

AUX 4 HD Y P

AUX 5 HD RGB-VGA

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

VCR2

TUNER

RC-18SR

DSS/

LD DVD

TAPE

AUX

POSITIONDNPIP

6 9

GUIDEAMP

B PR

OUT

AUDIO

OUT

S-VIDEO

VCR1

CD-R /MD

ANTENNA

VIDEO

VOLCH

MUTE

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

FIXED

OUT

AUDIO

S-VIDEO

OUT

VIDEO OUT

VIDEO 1

VIDEO 2

OUT

POSITIONDNPIP

ANT A

AUX 1 DVD VIDEO

AUX 2 VIDEO AUX 2 Y P

B PR

AUX 3 VIDEO

ANT B

AUX 1 DVD Y P

B PR

AUX 4 HD Y P

B PR

AUX 5 HD RGB-VGA

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO

VOLCH

LD DVD

AUX

TAPE

TUNER

CD-R

/MD

DSS/ VCR2

VCR1

MUTE

GUIDEAMP

1 4 7 M

2 5 8 0

3 6 9

omponent Video Inputs

provide for the highest possible color and picture resolution in the playback of digital signal source material such as with DVD players. The color difference signals (PB, PR) and the luminance (Y) signal are connected and received separately which permits for improved color bandwidth information (not possible when using composite video or S-Video connections).

Connect the Component (Y PB

PR) VIDEO OUT jacks from the

DVD player to the (Y PB PR) VIDEO IN(put) jacks on the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the DVD player to the AUX 1 AUDIO IN jacks on the TV.

Select the "AUX 1 Y PB PR"

Picture Source control on the TV. Press the A/V button on the remote

(or the Source Select button on the front of the TV) to display the TV’s Input Source control screen.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the AUX 1 Y PB PR

mode.

Turn the DVD player ON and

press PLAY to view the source

material playback on the TV.

COMPONENT VIDEO INPUTS

COMPONENT

VIDEO OUTPUTS

AUDIO OUT (L/R)

(RED/WHITE)

Optional Video/Audio Cables (with standard RCA plug connectors) are available to complete your Component Input Jack connections. Contact your dealer, or our Parts Information Center (1-800-851-8885) to order any optional accessories.

DVD PLAYER

(equipped with Component Color

& Luminance Outputs)

PICTURE AND SOUND FROM PLAYBACK

OF DVD SOURCE MATERIAL

SMART HELP

The description for the

component video connectors

may differ depending on the DVD player or accessory digital source equipment used (e.g. Y PB PR; R-Y/BY/Y; Cr/Cb/Y, etc.). Although abbreviations and terms may vary, the letters “B” and “R” stand for the blue and red color component signal connectors, and “Y” indicates the luminance signal. Refer to your DVD or digital accessory Owner’s Manual for definitions and connection details.

BACK OF TV

NOTE: Connections and use of the TV's rear AUX 2 Y P

B PR

Input jacks are the same as for the AUX 1 jacks (except "AUX 2" Y PB PR is selected as the Picture Source in step 3).

USING THE AUDIO/VIDEO OUTPUT JACKS (CONTINUED)

ANTENNA

OUT

AUDIO

VIDEO

OUT

ANT A

AUX 1 DVD VIDEO

AUX 2 VIDEO AUX 2 Y P

B PR

AUX 3 VIDEO

ANT B

AUX 1 DVD Y P

B PR

AUX 4 HD Y P

B PR

AUX 5 HD RGB-VGA

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO MACRO

VOLCH

LD DVD

AUX

TAPE

TUNER

CD-R

/MD

DSS/

VCR2

VCR1

MUTE

GUIDEAMP

1 4 7

2 5 8 0

3 6 9

AUDIO/VIDEO OUTPUTS

he Audio/Video Output jacks

on the TV can be used to record TV programs on VCRs which have Audio/Video Input jacks.

To record TV programs by using the Audio/Video jacks on the TV:

Connect the VIDEO OUT jack

from the TV to the VIDEO IN jack on the VCR.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the TV to the AUDIO IN jacks on the VCR.

Select the "ANTENNA A"

Picture Source control on the TV. Press the A/V button on the remote

(or the Source Select button on the front of the TV) to display the TV’s Input Source control screen.

Press the OK arrow and center OK buttons to highlight

and select (

U) the ANTENNA A

mode.

Select the channel on the TV

that you want to record.

Turn the VCR ON. Put a

cassette tape in the unit and place the VCR in the RECORD mode.

BACK OF TV

VIDEO OUT

(YELLOW)

VCR

PICTURE AND SOUND BEING RECORDED

ON VCR.

AUDIO/VIDEO INPUT

JACKS ON VCR

AUDIO

OUT

(RED/

WHITE)

SMART HELP

Remember, If the VCR

has an INPUT SELECTOR switch, place it in the LINE or CAMERA position.

Unattended Timer Recordings with a VCR are possible, but not recommended with this connection since the TV must be left ON for the VCR to record.

MONITOR FEATURES MENU CONTROLS

VGA/RGB/HDCOMPONENT

BRIGHTNESS

nother function with your TV is for the connection and use

of Personal Computers (PCs), and other High Definition (HD) digital source equipment (through the use TV’s Monitor inputs and display mode). Dedicated HD Audio Input jacks (located on the rear of the TV) are also paired to the external source Monitor Video Inputs (VGA and HD Component Video In) for audio playback connections as well.

For example: To connect a Philips DVX8000 Multimedia Home Theater (MMHT) for monitor mode display use on the TV:

Connect a 15 pin VGA signal

cable (optional) from the VGA

(or SVGA) jack on the select auxiliary equipment (example: DVX8000 MMHT) to the VGA Input jack on the TV.

Connect the Left/Right HD

INPUT AUDIO IN jacks on the

TV to the (L/R) Audio Output jacks (labeled Front) on the DVX8000 MMHT.

Press the A/V button on the

remote (or the Source Select button on the front of the TV) to select the AUX 5 HD RGB/VGA Monitor Input mode.

Press the OK arrow and center OK buttons to highlight

and select (U) the AUX 5 HD RGB/VGA mode.

Use the DVX8000 MMHT as

the video (and/or audio) playback source for material to be displayed on the TV’s screen.

REAR OF TV

REAR OF DVX8000 MMHT

15 PIN VGA

Connection Cable

Left/Right

Audio IN

HD COMPONENT VIDEO IN

• Separate Red/Green/Blue (Luminance-Y and Color Difference-Pr/Pb) Component Video Inputs provide for improved color bandwidth

information and highest possible picture resolution for digital source connections.

• H/H + V (for combined Horizontal/Vertical

sync signals) or V(ertical) sync inputs control the display of a RBG sourced picture in the leftto-right dimension and from top-to-bottom.

Note: The TV will display any Television compatible VGA or SVGA (60Hz only) signal input.

SMART HELP

Note: The TV’s video

display may temporarily appear

misconverged during the initialization of certain VGA input connected PC programs (i.e., DOS). Once the PC program has completed its “bootup” phase, normal signal level processing will reoccur and the TV display will return to normal.

REAR OF TV

PICTURE SHARPNESS SVM OFF COLOR TINT VOLUME BARON

ANT A ANT B AUX 1 DVD VIDEO

AUX 1 DVD Y P AUX 2 VIDEO AUX 2 Y P AUX 3 VIDEO AUX 4 HD Y P AUX 5 HD RGB-VGA

MACRO

DSS/ VCR2

B PR

VOL

STATUS/EXIT

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

CDTVTUNER

AUX

OFFON

MACRO

VCR1

CD-R

/MD

VOLCH

PIP

8 0

MUTE

GUIDEAMP

VIDEO

GND

ANTENNA

IN-TAPE-OUT DSSLDVCR 2

OFF

DSS

USB

LD VCR 2 IN-VCR-OUT

IN-VCR-OUT

MONT

MULTI

MULTI REMOTE

AC-3 RF

AC-3/ PCM COAX

AUDIO OUTPUT

OUT

AC-3/PCM

OPT IN

SUB

WOOFER CENTER

CENTERSURROUNDFRONT

PHONE

TV/CABLE

ANT

RGB

SVGA

LINE

R DATA

(RGB)

MIC

LINE IN

MONITOR FEATURES MENU CONTROLS

MONITOR MENU CONTROLS

he Monitor Menu feature

controls are to aid you in setting up the TV for the best in display image quality. Generally, the Monitor feature controls cover the basics in color and video image screen adjustments. A variety of Monitor Audio Input controls are also available for various TV speaker sound adjustments. (See the Audio Adjustments note to the right for further details on AUX(iliary) and NTSC/Antenna mode sound controls.

Press the A/V button (or the

Select Source button on the front of the TV) to place the TV in the desired High Definition (HD) display mode (AUX 4 HD Y PB PR; or AUX 5 HD RGB-VGA).

Press the OK arrow

buttons to choose any of the individual controls you wish to adjust for the selected HD mode. Then press the center OK button to select the highlighted control.

Press the OK arrow and

center OK buttons to adjust the

selected control.

Press the STATUS button on

the remote to clear the screen after you have finished with all of your feature control adjustments.

• Use the Brightness and other

Monitor picture features (such as Picture, Sharpness, etc.) to adjust overall TV screen intensity for optimum light/dark screen areas and shading details.

• Turn the Volume Bar Sound

Menu control ON to display the volume level settings for external audio sourced material on the TV screen.

• Select the Bass/Treble/Balance

Sound Menu controls to adjust low/high frequency sound and speaker balance for external input audio source material played through the TV’s audio system.

• Use the Display Mode and Format Feature Menu controls

to set the TV for the type of external monitor display mode source (VGA, AUTO, SVGA, EXT HD); and the TV’s display screen format used (PC, NORMAL, WIDESCREEN).

• Additional Sync Type, Horizontal Phase, Back Porch (BP) Width Feature Menu

controls can be used to adjust for color shifts, black level, and various other display screen imagery.

• Use the LANGUAGE control to set the HD Menu control screens for English, Spanish (Espanol), or French (Francais) language term displays.

• Note: The list of Monitor Menu features (and their individual

control settings) will change or readjust according to the capabilities of the selected Display Mode (AUX 4, AUX 5, etc.) .

SMART HELP

Certain barscale Monitor

Feature Menu adjustments (such as Brightness, Picture, etc.) will display separate control panel screens for individual settings. Repress the OK button on the remote (or Menu on the local keyboard) to return the TV to the Monitor Menu when control adjustments are complete.

BRIGHTNESS

PICTURE SHARPNESS SVM OFF COLOR TINT VOLUME BARON

BRIGHTNESS


SHARPNESS COLOR TINT BACK

BASS TREBLE BALANCE BASS BOOST ON INCR SURROUND ON STEREO STEREO

MORE....

MAIN MENU

PICTURE SOUND FEATURE EXIT

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

VCR2

TUNER

RC-18SR

DSS/

TAPE

LD DVD

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

4 7

PIP

MUTE

GUIDEAMP

(OR OFF) (OR OFF) (OR MONO)

AUTO SOUND ON TV SPEAKERS NORMAL VAR AUDIO OUT STEREO VOLUME BAR ON BACK

DISPLAY MODE VGA DISPLAY FORMAT PC SYNC TYPE AUTO HOR PHASE BP WIDTH LANGUAGE ENGLISH BACK

(OR OFF) (OR OFF) (OR SURROUND) (OR OFF)

(OR SVGA/AUTO/HD) (OR VIDEO) (OR MODE 1-5)

(OR ESPANOL/FRANCAIS

ith Auto Picture you can set a

number of video and audio controls to your own personal preference. Once the individual controls have been adjusted to the levels you desire, use the list of Auto Picture feature category titles to quickly reselect these “personalized” settings contained within the memory of the TV. (See the next page for more details on the labeling options and use of Auto Picture.)

Press the SMART/AUTO button

on the remote (LCD Display D4 button).

Press the center OK button on the remote to select the Auto Picture feature (highlighted in RED).

Press the outer OK arrow

buttons to highlight the category list for Auto Picture. Press the center OK button to select (U) the desired title.

Press the OK arrow buttons

to choose any of the individual controls you wish to adjust for the Auto Picture selected title. Then press the center OK button to select the highlighted control.

Press the OK arrow and

center OK buttons to adjust the

selected control.

Press the STATUS button on the

remote to clear the screen after you have finished with all of your Auto Picture feature control adjustments.

REMOTE CONTROL OPERATION

SMART/AUTO PICTURE

SMART HELP

Note: Select the

“FACTORY SETTINGS” category to automatically return the TV to the video and audio control levels preset at the factory prior to product shipment.

AUTO MENU

AUTO PICTURE

AUTO SURF

EXIT

MACRO MACRO

DSS/ VCR2

TUNER

POSITIONDNPIP

4 7 M

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

AUX

AUTO SOUND

OFFON

VCR1

CD-R

/MD

VOLCH

MUTE

GUIDEAMP

AUTO PICTURE

SPORTS MOVIES WEAK SIGNAL CARTOONS CUSTOM FACTORY SETTINGS

M to SELECT

EXIT

AUTO PICTURE MENU

CHANGE LABEL

ANALOG FORMAT

BRIGHT

EXIT

AUTO PICTURE MENU

SHARP

FLESH CORRECTION

BASS

EXIT

COLOR

TINT


MORE...

1 OF 3

CLEARVIEW

SAP

TREBLE

MORE...

2 OF 3

AUTO PICTURE MENU

BALANCE

STEREO

INC. SURR

EXIT

BASS BOOST

VID ENHANCE

COLOR TEMP

MORE...

3 OF 3

ollowing your initial setup

adjustments (see previous page), just select the desired Auto Picture category in order to place the TV to the personalized set of audio and video control settings for that title.

Press the SMART/AUTO button

on the remote. Then press the center OK button to

select the AUTO PICTURE control feature.

Press the outer OK arrow

buttons with the list of “AUTO PICTURE” categories on the TV screen to highlight the desired category. Then press the center OK button to select the audio and video control settings for that particular title.

Press the STATUS button on the

remote to clear the screen.

SMART/AUTO PICTURE

REMOTE CONTROL OPERATION (CONTINUED)

he "CHANGE LABEL" control

can be used to change the title of

a AUTO PICTURE setting into a name or label that may be easier for you to remember.

With the AUTO PICTURE

“CHANGE LABEL" control on the

screen, press the outer OK arrow (top and bottom) buttons to spell out a new label or title for the selected AUTO PICTURE category.

Press the outer OK arrow (left

and right) buttons to move the red

highlight to each letter space.

Press the STATUS button to clear

the screen when the new label is finished.

CHANGE LABEL

AUTO PICTURE LABEL

when FINISHED

to SELECT

M Y O W N

to CHANGE

TINT

AUTO PICTURE MENU


EXIT

1 OF 3

COLOR

MORE...

BRIGHT

CHANGE LABEL

ANALOG FORMAT

POSITIONDNPIP

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

MACRO MACRO

VOLCH

LD DVD

AUX

TAPE

TUNER

CD-R /MD

DSS/ VCR2

VCR1

MUTE

GUIDEAMP

1 4 7

2 5 8

3 6 9

AUTO MENU

AUTO PICTURE

AUTO SURF

EXIT

POWER

SOURCE

ON/OFF

DSS/ VCR2

TUNER

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO

AUTO SOUND

SMART PICTURE

SPORTS MOVIES WEAK SIGNAL CARTOONS CUSTOM FACTORY SETTINGS

OFFON

MACRO

VCR1

CD-R

AUX

/MD

M to SELECT

EXIT

POSITIONDNPIP

4 7

VOLCH

2 5 8 0

6 9

MUTE

GUIDEAMP

REMOTE CONTROL OPERATION (CONTINUED)

re you tired of the sound of

commercials following you throughout the house? Auto Sound allows you to preset a desired volume level that the TV sound will not go above. This makes for an even, more consistent sound by reducing the “peaks” and “valleys” that can occur during commercials.

Press the SMART/AUTO

button on the remote.

With the AUTO Menu on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the highlighted Auto Sound control.

Press the OK arrow and the

center OK buttons to turn the Auto

Sound control ON (or OFF.)

Press the STATUS button to

clear the screen when completed.

SMART/AUTO SOUND

Remember, Auto Sound

works for sound levels coming from either the Antenna/Cable input on the rear of the TV (RF audio); or the Auxiliary (VCR/AUX IN) audio inputs. When using a Cable Converter Box with the Auto Sound Control ON, the TV’s volume level may take up to ten seconds to gradually increase to normal listening levels (when the TV’s first turned on). This is considered NORMAL with various Cable Converter Box use.

SMART HELP

AUTO PICTURE

AUTO SURF

EXIT

POWER

SOURCE

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

MACRO

AUTO SOUND

OFFON

MACRO

VCR1

CD-R

AUX

/MD

✓

OFF

EXIT

POSITIONDNPIP

4 7

8 0

VOLCH

6 9

MUTE

GUIDEAMP

REMOTE CONTROL OPERATION (CONTINUED)

“list” or series of previously

viewed channels can be selected with the SURF button on your remote control. With this feature you can easily switch between different TV programs that currently interest you. The Auto Surf control allows you to set up to 10 channels in its quick viewing “list”.

Press the SMART/AUTO

button on the remote.

With the AUTO Menu on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the highlighted Auto Surf control.

Press the OK arrow then the

center OK button to select either

Auto Surf or 2-Channel Surf. (See explanation of Surf options with the illustration on this page.)

Press STATUS button on the

remote control to clear the screen.

2-CHANNEL SURF/AUTO SURF

2 CHANNEL SURF- Current and

one previous channel in the ring. AUTO SURF - Current and up to

nine additional channels available in the ring. Note: The Channel Surf ring can be used with fewer than ten channels. In this way, the number of Surf channels can match or fit your present viewing interests.

With the Auto Surf control ON (see above), select a desired channel for viewing. You can use

the number buttons on the remote (or the Channel ▲▼ buttons).

Press the SURF button on the

remote. (Some channel numbers may already appear within the Surf channel list.)

Press the center OK button to

"ADD" the selected channel to the Surf list.

Select the next desired channel and repeat steps 2 and 3. Continue until all desired channels are on the Surf list.

Press the SURF button on the

remote to quickly review current action on channels contained within the Surf list.

To Use 2Channel Surf:

With the 2-Channel Surf control ON, select the two desired channels for viewing

with the number buttons on the remote control. Then press the SURF button on the remote to "toggle" between the two selected channels.

SMART

HELP

HOW TO USE AUTO SURF

Note: To Delete a channel from the Surf list just press the SURF button to select the desired channel. Then press the Menu (or center OK) button and the channel will be immediately dropped from the on-screen Surf list.

AUTO PICTURE

AUTO SURF

EXIT

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

MACRO

LEARNING REMOTE CONTROL

RC-18SR

AUTO SOUND

AUTO SURF

OFFON

MACRO

✓

2-CHANNEL SURF

EXIT

DSS/ VCR2

CDTVTUNER

POSITIONDNPIP

LD DVD

TAPE

3 6 9 C

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

SURF

8 10 14 18

M to ADD

6 to List

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

MACRO MACRO

LEARNING REMOTE CONTROL

RC-18SR

DSS/ VCR2

LD DVD

VCR1

CD-R

AUX

TAPE

CDTVTUNER

/MD

VOLCH

POSITIONDNPIP

4 7 M

GUIDEAMP

SURF

8 10 14 18

M to DELETE

6 to List

MUTE

SURF

8 10 14 18

M to DELETE

3 to List

SURF

10 14 18

M to DELETE

6 to List

SURF

14 18

M to DELETE

10 to List

HOW TO USE THE PICTURE-IN-PICTURE (PIP) FEATURE

icture-in-Picture (PIP) is the

showing of two pictures on the TV screen at the same time. (One main screen picture and one small inset picture - or PIP). For your ease and convenience this TV has two separate inputs (ANTenna A and ANTenna B) for your home’s Antenna and/or Cable TV system signal.

The ANT A input is primarily for the TV’s main screen picture. The ANT B input is provided as a second, dedicated source option for the TV’s PIP “window” and

its feature operations. The signal connected to the ANT B input can be either a Split Signal Input (as described in the section on this page), or another type of external signal source (such as a satellite dish system, additional home antenna, video accessory, etc.).

See the following steps on how channels connected to the ANT(enna) B Input can be shown and used within the PIP window:

Connect your Antenna or

Cable TV signal to the single 75

ohm INPUT plug on a two-way Signal Splitter (not supplied).

Connect two lengths of RF Coaxial Cable (F-type connectors on both ends) to the two OUTPUT plugs on the two-way Signal Splitter.

Connect the twin OUTPUT

plugs on the Signal Splitter to the

ANT A and ANT B Inputs on the rear of the TV.

continue to next page

- PIP WINDOW -

Display signal supplied primarily through ANT B Input on rear of TV.

BACK OF TV

SMART HELP

For other possible PIP

connections see page 53 for the "More PIP Connections" section.

If you need any accessories or parts to complete the described PIP connections, contact your dealer, or our Parts Information Center at (1-800-851-8885) for details.

See the Set-Up Guide also provided with your TV set for further Cable TV connection options and accessories.

VOL

STATUS/EXIT

- MAIN SCREEN -

Display signal supplied primarily through ANT A Input on rear of TV.

Round Cable

75(Ω) Ohm

Cable TV

Company

Cable TV Signal

300 to 75Ω Adapter

(483521827003)

Twin Lead

Wire

Round Cable

75(Ω) Ohm

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

Note: The purpose of the ANT B input is to provide an easily connected, dedicated picture source for PIP feature use. Other signal source options (such as a satellite dish system, additional external antenna, VCR, or Video Game) could also be connected and displayed on the TV’s PIP screen window through the use of the ANT B input.

OPTIONAL TWO-WAY

SIGNAL SPLITTER

Combination VHF/UHF Antenna

(single 75ohm Input to twin 75 ohm Outputs optional RF Coaxial connecting cables also required)

ANT(enna) A

Input

ANT(enna)

B Input

ow that you have completed

the required connections on the previous page you are ready to follow the simple steps shown below.

Turn the TV ON.

Place the TV's PIP SOURCE SELECT control to "ANT B"-

• Press the PIP Source (D7 -

LCD PIP Display) button on the remote to select “ANT B” as the PIP source, (or use the FEATURES MENU 4 of 5 control screen to select the PIP Source Select item as ANT B.

Also be sure the TV's Main screen PICTURE SOURCE SELECT control is "ANT A"-

• Use the remote’s A/V button

to set the TV to ANT A mode.

Press the STATUS button to clear the screen when the above Menu items have been set.

Press the PIP ON/OFF (D1 -

LCD PIP Display) button on the

remote. The PIP window will show in one

of the corners of the TV screen.

Press the SWAP (D2 - LCD

PIP Display) button on the

remote to move the ANT B and ANT A Input pictures between the PIP window and Main screen.

Use the PIP CH(annel) Up (+) and Down (-) (D5 and D6 - LCD PIP Display) buttons to select desired programs for viewing in the PIP window. Program Sound occurs with the channels displayed on the Main screen.

PIP SOURCE SELECT SET TO "ANT B"

NOTE: Sound for TV programs displayed in the PIP window can also be heard through the use of PIP AUDIO OUT jacks on the rear of the TV. Just connect the TV’s Left/Right PIP AUDIO OUTPUTs to the correct AUX(iliary) Inputs on an external stereo sound system (through which the PIP audio will be played).

SMART HELP

Remember, if you see the

same picture on the main screen and in the PIP window, check to be sure the TV's PIP Source Select and Main screen Picture Source select are set for ANT B and ANT A respectively.

See the following page on how to operate other PIP features with the TV’s remote control.

- PIP WINDOW -

- MAIN SCREEN -

MAIN PICTURE SOURCE SELECT

SET TO "ANT A"

12:34

STEREO

PIP: 8

PIP: 5

• Main Screen is CH 5 from ANT A input.

• PIP is CH 8 from ANT B input

• Main Screen shows CH 8 from ANT B input.

• PIP is CH 5 from ANT A input.

WHITE frame around the PIP window appears

when the ANT B Input is on the Main screen.

BLACK frame around the PIP window appears

when the ANT A Input is on the Main screen.

(D2 - LCD PIP Display) button on the remote to switch programs shown on the Main screen and in the PIP window.

AUX/TV INPUT

PHONO INPUT

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

G-LINK

PIP AUDIO OUTPUT will

be monaural (mono) when both ANT A and ANT B are being used for normal PIP operation. See page 30 for details on other stereo sound uses for the PIP Audio Output jacks.

REAR OF TV

Press SWAP

MACRO

LEARNING REMOTE CONTROL

DSS/

VCR2

TUNER

4 7

POWER

CLONE MACRO MODE

SOURCE

OFFON

ON/OFF

RC-18SR

LD DVD

AUX

TAPE

3 6 9 C

PIP SOURCE SELECT

ANT A

ANT B

AUX 1 VIDEO AUX 2 VIDEO AUX 3 VIDEO SIDE VIDEO

EXIT

MACRO

VCR1

CD-R

/MD

VOLCH

MUTE

GUIDEAMP

5. PIP SOURCE & PIP CH UP/DN

3. PIP FREEZE

USING PIP WITH THE REMOTE CONTROL

y using the PIP buttons (D1 -

D7) on the remote (LCD PIP Display) the PIP picture can be moved and swapped with the main TV screen. The main screen picture can also be frozen in the PIP window.

Press the PIP ON/OFF (D1)

button to show the PIP picture.

PIP appears in a corner of TV screen. Press PIP ON/OFF again to remove PIP from the main screen.

With PIP on the TV screen,

press the SWAP (D2) button to swap the main screen picture with the PIP picture. See "Smart Help" note on this page.

Press FREEZE (D3) to hold

the current MAIN screen picture in the PIP window (Main picture is still active).

If PIP is currently OFF, the PIP window will automatically appear.

Press FRZ repeatedly to update the frozen PIP with current pictures from the Main screen.

You cannot reposition a frozen PIP picture.

Press the PIP ON/OFF button to drop the frozen PIP picture from the screen.

Press the PIP POSITION (D4)

button to move the PIP picture

(from corner-to-corner on the TV screen.)

This feature allows you to move PIP and avoid blocking off any main screen action.

Press the PIP SOURCE (D7)

button to change the signal input source (ANT B, etc.) for the PIP window shown on the TV screen.

Press the PIP CH(annel) Up (+) and Down (-) (D5 and D6) buttons to select channels shown within the PIP window (when an antenna/cable signal source is connected for use with PIP).

1. PIP ON / OFF

4. PIP POSITION

2. PIP SWAP

Remember, if the TV’s Main screen picture is being supplied by an AUX VIDEO connected VCR (or other external accessory source); and then both the TV and VCR are turned OFF, a blank screen will appear when the TV is turned back ON again. If this happens, just reselect the TV’s ANT A source mode to return to normal TV viewing.

SMART

HELP

Note: Use the CH(annel) + and CH - (D5 and D6) buttons on the remote display to change the channels within the PIP window.

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

TAPE

POSITION

LD DVD

LIGHT

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

MACRO MACRO

DSS/ VCR2

TUNER

1 4 7

PIP SOURCE SELECT

ANT A ANT B AUX 1 VIDEO AUX 2 VIDEO AUX 2 VIDEO SIDE VIDEO

he picture for the PIP window

can come through either the ANT(enna) A / B Inputs or the AUX Video Inputs (on the rear and side of the TV). PIP Picture Source simply tells the TV which one of these sources it is to show in the PIP window.

Select PIP SOURCE control.

With FEATURES MENU (4 of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Note: The remote control’s PIP SOURCE (D7 on LCD PIP Display) button can also be used to quickly select picture source inputs on the rear of the TV for the PIP window.

Press the OK arrow and center

OK buttons to highlight and select

the desired (

U) PIP Picture Source.

ANT A or B- for a picture signal coming from either the ANT(enna) A or B Input plug on the TV.

AUX 1 (or 2) VIDEO - for a picture signal coming from the AUX 1 (or 2) VIDEO IN jack on the rear of the TV.

AUX 3 VIDEO - for a picture signal coming from the SIDE VIDEO Input jack on the right side of the TV cabinet.

Press the STATUS (D5 on

Mode 1 LCD Display) button to clear the screen.

SELECTING THE PICTURE SOURCE FOR PIP

PIP SOURCE

SMART HELP

Remember, the PIP

window will be blank unless a signal is connected to the selected PIP Picture Source (ANT B, AUX 1 VIDEO, AUX 2 VIDEO, etc.) on the set.

If you see the same picture on the main screen and in the PIP window, you may have the Main Screen and PIP window set to the same video input source.

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

TUNER

DSS/ VCR2

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

POSITIONDNPIP

6 9 C

MUTE

GUIDEAMP

SOUND

EXIT

FEATURE MENU

ANALOG

FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

FEATURE MENU

CHANNEL

LABELS

LANGUAGE

SELECTION

EXIT

FEATURE MENU

PIP

SOURCE

PIP

POSITION

CABLE TUNING

CHANNEL MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

MORE...

3 OF 5

PIP

SIZE

EXIT

MORE...

4 OF 5

PIP SOURCE SELECT

ANT A ANT B AUX 1 VIDEO AUX 2 VIDEO AUX 3 VIDEO

EXIT

ADJUSTING PICTURE-IN-PICTURE COLOR AND TINT

he Picture-In-Picture (PIP)

Color and Tint controls are used to make fine tune adjustments to the color settings for PIP (when it is shown on the TV screen).

Select PIP COLOR (or PIP

TINT) control.

With FEATURES MENU (5 of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the outer OK arrow

buttons to move the RED highlight. Press the OK button to turn (U) the PIP COLOR or TINT control ON.

The PIP automatically comes on to show the PIP window on the TV screen.

Press the outer OK arrow

(Left and Right) buttons to adjust

the PIP for Color (or Tint) levels you prefer.

Press the STATUS button to

clear the screen.

PIP COLOR / PIP TINT

SMART HELP

Remember. Although

there are separate COLOR and TINT controls for PIP, the adjustment levels for these controls depend on the TV's main picture. For example: If the main screen is showing a black and white picture, PIP would also be in black and white (even though its source is in color).

Note: The PIP SIZE Menu option can be used to change the size of the PIP window shown on the TV screen. Compare the Large and Small size displays to see which size you prefer for onscreen PIP use. (You cannot change the size of a frozen PIP picture.)

EXIT

4 OF 5

FEATURE MENU

PIP

SOURCE

MORE...

PIP

SIZE

PIP

POSITION

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEARNING REMOTE CONTROL

RC-18SR

LD DVD

TAPE

VCR1

CD-R

AUX

/MD

VOLCH

MACRO MACRO

POSITIONDNPIP

6 9 C

MUTE

GUIDEAMP

SOUND

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

CABLE TUNING

CHANNEL MEMORY

MORE...

1 OF 5

FEATURE MENU

CHANNEL

LABELS

ACCESSORY

RF SWITCH

FEATURE MENU

PIP

SOURCE

PIP

POSITION

EXIT

FEATURE MENU

PIP

COLOR

PIP

SIZE

MORE...

4 OF 5

MORE...

3 OF 5

PIP COLOR

MIN

EXIT

PIP

TINT

EXIT

MAX

MORE...

5 OF 5

MORE PIP CONNECTIONS

he following example is for an

alternative PIP connection hookup using an external Cable Converter Box and a VCR (as the picture source for the PIP window).

First use an optional signal

splitter and connect the original

cable TV signal to both the CABLE IN on the Cable Converter and the ANTENNA A plug on the rear of the TV.

Connect the CABLE OUT on

the Converter to the ANT. IN on the VCR.

Connect the VIDEO OUT jack

on the VCR to the VIDEO IN

jack on the TV. Also connect the AUDIO OUT (R

and L) jacks from the VCR to the AUDIO IN jacks on the TV.

SIGNAL

SPLITTER

Contact the Parts Information Center 1 800 851-8885 to order any optional accessories

CABLE TV CONVERTER

VCR

REAR OF TV

AUDIO VIDEO CABLES

(RCA Plug Cables - optional)

Remember to use the Cable TV Converter Box to select channels for PIP, the VCR must be set to the same channel as the channel selection switch on the rear of the Cable Converter (either channel 3 or

4).

SMART

HELP

The ANTENNA A signal input supplies the TV’s Main screen picture, and the AUX 1 VIDEO Input connection from the VCR serves as the picture source for PIP. Be sure to set the TV’s PIP SOURCE SELECT control to the “AUX 1 VIDEO” mode in order to display the Audio/Video Input signals within the PIP window.

ANTENNA

OUT

ANTENNA

OUT OUT

VIDEO AUDIO

CABLE OUT

CABLE IN

TIPS IF SOMETHING ISN'T WORKING

• Check the TV power cord. Unplug the TV, wait 1 minute, then reinsert plug into outlet and push POWER button again.

• Check to be sure outlet is not on a wall switch.

• Check antenna connections on the rear of the TV. Are they properly secured to the antenna plug on the TV?

• Check the CABLE TUNING control for correct position.

• Check Picture Source (A/V Button) for correct position ANT A or B; AUX 1/2/3 VIDEO; AUX 1/2 Y PB PR; etc. position without a signal source will result in a blank screen.

• Check the CLOSED CAPTIONS control. Some TEXT modes could block the screen.

• Check Product “System” buttons on the remote. Press the remote’s TV System button to send commands to the TV; VCR System to sent to VCR; etc. Check the separate Remote Control Owner’s Manual for further operation details.

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary.

• Clean the remote and the remote sensor window on the TV.

• Check the VOLUME and MUTE buttons on the TV and remote.

• Check the TV SPEAKER NORMAL/OFF sound control for the correct position.

• If attempting auxiliary equipment hook-ups, check audio jack connections and that the auxiliary equipment is on and in the proper operating modes.

• Check AMP Switch on rear of TV. Place in INT(ernal) position for normal TV sound. EXT(ernal) for optional Dolby ProLogic Surround Sound connections using the TV’s speakers as Center channel.

• Repeat channel selection.

• Add desired channel numbers (ADD/DELETE CHANNELS control) into TV memory.

• Check CABLE TUNING control for correct position.

lease make these simple

checks before calling for service. These tips can save you time and money since charges for TV installation and adjustment of customer controls are not covered under your warranty.

No Power

No Picture

No Sound

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

This TV is equipped with protective circuitry that shuts the TV off in case of moderate power surges. Should this occur turn the TV back on by pressing the POWER button once or twice, or unplug and then replug the power cord at the AC outlet. This feature is NOT designed to prevent damage due to high power surges such as those caused by lightning, which is not covered by your warranty.

Cleaning and Care

• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive- do not use household cleaners). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Specially designed screen cleaning kits are also available which contain anti-static cleaners and cloths designed to get into the ridges of the TV screen. If interested, ask your dealer about an optional Projection TV Screen Cleaning Kit or call our toll-free Accessory Parts ordering number 1-800-851-8885.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water and a mild soap or detergent. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source the pattern of the non-moving portion of the game (CDI, etc.) could leave an image permanently on the picture tube. When not in use, turn the video source OFF. Regularly alternate the use of such video sources with normal TV viewing.

GLOSSARY TO TELEVISION TERMS

Aspect Ratio * The proportions of a rectangular display screen. NTSC television has a 4:3 ratio; HDTV is 16:9.

Audio/Video Inputs * Located on the rear of the TV these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

Coaxial Cable * A single solid antenna wire normally matched with a metal plug (F-type) end connector that screws (or pushes) directly onto a 75 Ohm input found on the Television or VCR.

Display * An on screen message or graphics that help the user operate and adjust TV feature controls. See On Screen Displays (OSD).

HDTV * High Definition Television which offers approximately twice the vertical/horizontal resolution of NTSC video, and sound quality approaching that of compact disc. (Usually taken to mean a picture of 1920 x 1080 pixels in a 16:9 aspect ratio.)

Identify* Method by which a remote control searches and finds an operating code for another product (such as a VCR or Cable Converter). Once the code has been "identified" then the TV remote can operate and send commands to the other product.

LED * Light Emitting Diode or indicator. Menu * An on-screen listing of feature controls shown on the TV

screen that are made available for user adjustments. Multichannel Television Sound (MTS) * The broadcast standard

that allows for stereo sound to be transmitted with the TV picture. NTSC * National Television Standards Committee format devised

for TV broadcasting signals in the 1940s (525 lines; 30Hz.) On Screen Displays (OSD) * Refers to the wording or messages

generated by the TV to help the user with specific feature controls (color adjustment, programming, etc.).

Picture -In-Picture (PIP) * Term used when two pictures are shown on the TV screen at the same time. The smaller PIP picture is supplied by a VCR (or other tuner/video playback source). The PIP picture can also be moved and swapped with the TV's main screen picture.

Programming * The procedure of adding or deleting channel numbers into the TV’s memory circuits. In this way the TV “remembers’’ only the locally available or desired channel numbers and skips over any unwanted channel numbers.

Remote Sensor Window * A window or opening found on the TV control panel through which infrared remote control command signals are received.

RGB * Red, Green, Blue color component inputs used for connection purposes with personal computers (PCs) and other high definition video devices.

RF * Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Second Audio Program (SAP) * Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. A monaural soundtrack included within the recorded or video signal (usually containing a second language translation for the displayed programming.)

Status * Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the TV of on-screen displays or information (rather than waiting for the displays to “time out” or automatically disappear from the screen).

SVGA * Super Video Graphics Array S-Video Input * Allows direct connection of high-resolution video

sources, such as a Super VHS videocassette recorder, Laser Disc player, etc. Provides improved picture resolution, sharpness, and clarity.

Twin Lead Wire * The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems. In many cases this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more recent Televisions and VCRs.

Variable Audio Output * An adjustable audio output which allows for volume variations at the source.

VGA * Video Graphics Array

INDEX

Accessories/Optional........................ 33-37, 38, 44, 49, *Q/U-1

Add/Delete Channels ..........................................13-14, *Q/U-2

Audio Controls..................................................................27-32

Audio/Video Input ..................................33-37, 44, 49, *Q/U-2

Automatic Programming..........................................13, *Q/U-2

Auto Picture.......................................................................40-41

Auto Sound.............................................................................42

Auto Surf ................................................................................43

Battery Installation .........................................................*Q/U-3

Blocking Channels ............................................................19-20

Cable TV Connections/Settings ................12, 44, 49 *Q/U-1, 2

Channel/Time Display..................................15, 16, 17, *Q/U-3

Channel Label.........................................................................25

Channel Memory.................................................13-14, *Q/U-2

Channel/Time Reminder.........................................................18

Clock Setting ..........................................................................15

Closed Captioning ..................................................................11

Content Advisory ..............................................................19-24

Convergence.............................................................................8

Controls/TV............................................................*Q/U-2, 3, 4

Controls/Remote ...................................40-43, 46, *Q/U-2, 3, 4

Exit .................................................................................*Q/U-4

Features.....................................................................................5

First Time Set Up ...........................................................*Q/U-2

Inputs/Audio and Video ........................................33-37, 44, 49

Language...........................................................................26, 39

Menu...........................................................................*Q/U-2, 4

Minus(-)/Plus (+) Buttons...........................................*Q/U-3, 4

Monitor HD Features.........................................................38-39

Movie Ratings ...................................................................21-22

Parental Control.................................................................19-24

Parental Guidelines.................................................................23

Picture-In-Picture (PIP).......................................44-49, *Q/U-2

PIP Audio Output jacks...............................................30-31, 45

Programming Channels............................................13, *Q/U-2

Remote Control.....................................40-43, 46, *Q/U-2, 3, 4

Requesting Service............................................... 50, 53-54, 56

Reminder/Time and Channel..................................................18

Safety/Precautions............................................2, 3, 50, *Q/U-1

Second Audio Program (SAP)................................................28

Sensor Remote................................................................*Q/U-3

Sleep Timer.............................................................................16

Surround Sound.................................................................31-32

Speaker Terminals..................................................................31

Time/Channel Display..............................................18, *Q/U-3

Variable Audio Output .....................................................31, 39

Video Enhancement..................................................................7

VCR/TV Connections.............................33-37, 44, 49, *Q/U-1

Tips for Service...........................................................50, 53-54

TV Speaker Control..........................................................30, 39

Volume Display................................................................29, 39

Warranty.................................................................................56

* Q/U indicates page number reference in the separate Quick Use Guide

•

★ Miami/SE Florida

•

Chicago

Cleveland/

N Ohio

•

Tampa/W Florida

Ft. Myers/SW Florida

•

San Francisco/Metro Area

•

Detroit/Toledo

★ Pittsburgh/WV Area

•

Philadelphia/S New Jersey

•

See Reverse Side for More Details.

Atlanta/N Georgia

Houston/Galveston

Beaumont/Austin

San Antonio

★ Seattle/Tacoma Area

Knoxville/E Tennessee

•

Charlotte

Los Angeles★

★

Dallas

★ Columbus

★ Wash/Balt

★ Orlando

★ Indicates In-Home Service Only

1-800-242-9225

• Indicates In-Home/Carry-In Service

MAC2929 1/98

NOTE: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.

NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.

NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame al lugar más cercano de los abajo indicados.

Philips Consumer Electronics Company

Factory Service Center Locations

In Canada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking)

1-800-363-7278 (English speaking)

Au Canada

Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile Veuillez contacter philips á: 1-800-661-6162 (Francophone)

1-800-363-7278

En el Canadá

Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (francófono)

1-800-363-7278 (anglófono)

QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER

NEAR YOU

. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,

KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE. AND, IF THE PHONE NUMBER LISTED FOR YOUR AREA

IS LONG DISTANCE

, CALL 1-800-242-9225 FOR FACTORY SERVICE.

COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES DE

RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPOTS DANS

UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.

CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR

TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO

DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.

GEORGIA

Philips Factory Service of Georgia 200 N. Cobb Pkwy., Suite 120 Marietta, GA 30062 (770) 795-0085

FLORIDA

Philips Factory Service of Florida 1911 US Highway 301 North Tampa, FL 33619 (813) 621-8181

WESTERN U.S.A.

Philips Factory Service Western Region 681 East Brokaw Rd. San Jose, CA 95112 (408) 436-8566

TEXAS

Philips Factory Service of Texas 1110 N. Post Oak Rd., Suite 100 Houston, TX 77055 (713) 682-3990

CENTRAL U.S.A.

Philips Factory Service Central US 950 Keynote Circle Brooklyn Heights, OH 44131 (216) 741-3334

MICHIGAN

Philips Factory Service of Michigan 25173 Dequindre Madison Heights, MI 48071 (248) 544-2110

DALLAS AREA

Philips Factory Service of Dallas 415 N. Main Street, #107 Euless, TX 76040 (713) 682-3990

ILLINOIS

Philips Factory Service of Illinois 1279 W. Hamilton Pkwy. Itasca, IL 60143 (630) 775-0990

TENNESSEE

Philips Factory Service of East Tennessee 6700 D Papermill Rd. Knoxville, TN 37919 (423) 584-6614

MID-ATLANTIC

Philips Factory Service Mid-Atlantic 352 Dunks Ferry Rd. Bensalem, PA 19020 (215) 638-7500

NOTES

3135 015 20891

DIGITAL PROJECTION TELEVISION

Two Years Free Labor

Two Years Free Service on Parts

Two Years Free Service on Cathode Ray Tube Parts / 30 days Free Service on Projection TV Screen

This product can be repaired in-home.

LIMITED WARRANTY

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product for two years thereafter (30 days for the digital projection TV screen), all parts will be repaired or replaced, and labor and transportation are free. After two years from the day of purchase, you pay for the replacement or repair of all parts except the “Clear-Vu” lens (which is guaranteed against manufacturer’s defects for the life of the product), and for all labor and transportation charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE...

Repair must be performed by an authorized service center or a factory service center. If you do not live near a factory service center, contact your dealer. If your dealer is an authorized service center, he will arrange repair. If your dealer is not an authorized service center, he will direct you to the authorized service center engaged by him to service the products he sells.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

IF YOU HAVE QUESTIONS IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________________________ SERIAL # ________________________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips Service Company, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

1-800-531-0039

Marantz PV5580W, PV6080W user guide

Specifications and Main Features

Frequently Asked Questions

User Manual
