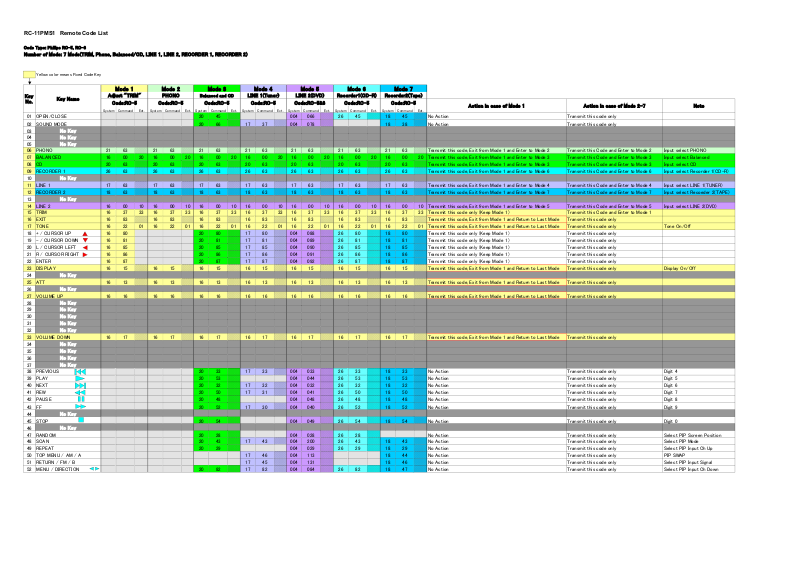

RC-11PMS1 Remote Code List

Code Type: Philips RC-5, RC-6

Number of Mode: 7 Mode(TRIM, Phono, Balanced/CD, LINE 1, LINE 2, RECORDER 1, RECORDER 2)

Yellow color means Fixed Code Key

			Mode 1			Mode 2			Mode 3			Mode 4			Mode 5			Mode 6			Mode 7
Key	Key Name	Adjust "TRIM"				PHONO		Balanced and CD			LINE 1(Tuner)			LINE 2(DVD)			Recorder1(CD-R)			Recorder2(Tape)
No.	Key Name	Code:RC-5			Code:RC-5				Code:RC-5		Code:RC-5			Code:RC-5&6			Code:RC-5			Code:RC-5			Action in case of Mode 1	Action in case of Mode 2-7	Note
No.


		System	Command	Ext.	System	Command	Ext.	System Command		Ext.	System	Command	Ext.	System	Command	Ext.	System	Command	Ext.	System	Command	Ext.
01	OPEN/CLOSE							20	45					004	066		26	45		18	45		No Action	Transmit this code only
02	SOUND MODE							20	66		17	37		004	078					18	38		No Action	Transmit this code only
03	No Key
04	No Key
05	No Key
06	PHONO	21	63		21	63		21	63		21	63		21	63		21	63		21	63		Transmit this code, Exit from Mode 1 and Enter to Mode 2	Transmit this Code and Enter to Mode 2	Input select PHONO
07	BALANCED	16	00	20	16	00	20	16	00	20	16	00	20	16	00	20	16	00	20	16	00	20	Transmit this code, Exit from Mode 1 and Enter to Mode 3	Transmit this Code and Enter to Mode 3	Input select Balanced
08	CD	20	63		20	63		20	63		20	63		20	63		20	63		20	63		Transmit this code, Exit from Mode 1 and Enter to Mode 3	Transmit this Code and Enter to Mode 3	Input select CD
09	RECORDER 1	26	63		26	63		26	63		26	63		26	63		26	63		26	63		Transmit this code, Exit from Mode 1 and Enter to Mode 6	Transmit this Code and Enter to Mode 6	Input select Recorder 1(CD-R)
10	No Key
11	LINE 1	17	63		17	63		17	63		17	63		17	63		17	63		17	63		Transmit this code, Exit from Mode 1 and Enter to Mode 4	Transmit this Code and Enter to Mode 4	Input select LINE 1(TUNER)
12	RECORDER 2	18	63		18	63		18	63		18	63		18	63		18	63		18	63		Transmit this code, Exit from Mode 1 and Enter to Mode 7	Transmit this Code and Enter to Mode 7	Input select Recoeder 2(TAPE)
13	No Key
14	LINE 2	16	00	10	16	00	10	16	00	10	16	00	10	16	00	10	16	00	10	16	00	10	Transmit this code, Exit from Mode 1 and Enter to Mode 5	Transmit this Code and Enter to Mode 5	Input select LINE 2(DVD)
15	TRIM	16	37	33	16	37	33	16	37	33	16	37	33	16	37	33	16	37	33	16	37	33	Transmit this code only (Keep Mode 1)	Transmit this Code and Enter to Mode 1
16	EXIT	16	83		16	83		16	83		16	83		16	83		16	83		16	83		Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only
17	TONE	16	22	01	16	22	01	16	22	01	16	22	01	16	22	01	16	22	01	16	22	01	Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only	Tone On/Off
18	+ / CURSOR UP	16	80					20	80		17	80		004	088		26	80		18	80		Transmit this code only (Keep Mode 1)	Transmit this code only
19	- / CURSOR DOWN	16	81					20	81		17	81		004	089		26	81		18	81		Transmit this code only (Keep Mode 1)	Transmit this code only
20	L / CURSOR LEFT	16	85					20	85		17	85		004	090		26	85		18	85		Transmit this code only (Keep Mode 1)	Transmit this code only
21	R / CURSOR RIGHT	16	86					20	86		17	86		004	091		26	86		18	86		Transmit this code only (Keep Mode 1)	Transmit this code only
22	ENTER	16	87					20	87		17	87		004	092		26	87		18	87		Transmit this code only (Keep Mode 1)	Transmit this code only
23	DISPLAY	16	15		16	15		16	15		16	15		16	15		16	15		16	15		Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only	Display On/Off
24	No Key
25	ATT	16	13		16	13		16	13		16	13		16	13		16	13		16	13		Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only
26	No Key
27	VOLUME UP	16	16		16	16		16	16		16	16		16	16		16	16		16	16		Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only
28	No Key
29	No Key
30	No Key
31	No Key
32	No Key
33	VOLUME DOWN	16	17		16	17		16	17		16	17		16	17		16	17		16	17		Transmit this code, Exit from Mode 1 and Return to Last Mode	Transmit this code only
34	No Key
35	No Key
36	No Key
37	No Key
38	PREVIOUS							20	33		17	33		004	033		26	33		18	33		No Action	Transmit this code only	Digit 4
39	PLAY							20	53					004	044		26	53		18	53		No Action	Transmit this code only	Digit 5
40	NEXT							20	32		17	32		004	032		26	32		18	32		No Action	Transmit this code only	Digit 6
41	REW							20	50		17	31		004	041		26	50		18	50		No Action	Transmit this code only	Digit 7
42	PAUSE							20	48					004	048		26	48		18	48		No Action	Transmit this code only	Digit 8
43	FF							20	52		17	30		004	040		26	52		18	52		No Action	Transmit this code only	Digit 9
44	No Key
45	STOP							20	54					004	049		26	54		18	54		No Action	Transmit this code only	Digit 0
46	No Key
47	RANDOM							20	28					004	028		26	28					No Action	Transmit this code only	Select PIP Screen Position
48	SCAN							20	43		17	43		004	200		26	43		18	43		No Action	Transmit this code only	Select PIP Mode
49	REPEAT							20	29					004	029		26	29		18	29		No Action	Transmit this code only	Select PIP Input Ch Up
50	TOP MENU / AM / A										17	46		004	113					18	44		No Action	Transmit this code only	PIP SWAP
51	RETURN / FM / B										17	45		004	131					18	46		No Action	Transmit this code only	Select PIP Input Signal
52	MENU / DIRECTION							20	82		17	82		004	084		26	82		18	47		No Action	Transmit this code only	Select PIP Input Ch Down
