Magellan 7771T LM, 7722 LM, 6722 LM, 7732T LM User Manual

RoadMate

User Manual

Safety.

This Magellan device is a dashboard camera and recording device designed to assist you in recording videos, taking photos, and managing the content stored on the device.

Please check with your state or local law enforcement for applicable regulations regarding mounting to the windshield. Go to the Magellan store at magellanGPS.com for alternate mounting solutions.

The driver should enter data or program the Magellan receiver only when the vehicle is stopped. Only a vehicle passenger should enter data or program the device while the vehicle is moving. It is your responsibility to comply with all trafﬁc laws.

Every attempt is made to ensure that the database is accurate. However, roadways, points of interest (POIs), and business and service locations may change over time.

Keep the receiver safe from extreme temperature conditions. For example, do not leave it exposed to direct sunlight for an extended period of time. The maximum operating temperature is 140°F (60°C).

Take care when mounting the device in your vehicle, whether using the windshield mount or other mount or accessories, that it does not obstruct the driver’s view of the road, interfere with the operation of the vehicle’s safety devices such as air bags, or present a hazard to occupants of the vehicle should the receiver be dislodged while driving.

You assume the risks associated with damage to your vehicle or vehicle occupants as the result of your choices in mounting the receiver.

The battery is rechargeable and should not be removed. In the event it should need to be replaced, please contact Magellan Technical Support at support.magellanGPS.com or 800-707-9971.

In some jurisdictions, audio recordings require the consent of all parties before you begin recording. It is your responsibility to know and comply with applicable audio recording consent laws in your jurisdiction.

In some jurisdictions, it could be considered an invasion of privacy rights to take or publicly display photographs or videos of people or their vehicles using this product. It is your responsibility to know and comply with applicable laws and rights to privacy in your jurisdiction.

Before using the suction cup mount on your windshield, check the state and local laws and ordinances where you drive. Some state laws prohibit or restrict drivers from using suction mounts on their windshields while operating motor vehicles.

IT IS THE USER’S RESPONSIBILITY TO MOUNT AND OPERATE THE DEVICE IN COMPLIANCE WITH ALL APPLICABLE LAWS AND ORDINANCES.

FCC RF Radiation Exposure Statement

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Wi-Fi 5G Band 1 is for indoor use only.

Magellan Take-Back Program

Magellan’s Take-Back Program provides a way for customers to recycle certain Magellan equipment. As part of this program, all Magellan GPS models will be accepted.

Visit support.magellangps.com for more information.

Table of Contents.

Getting To Know Your RoadMate ....................................................4

Hardware ........................................................................................................................4

Software .........................................................................................................................4

Setting Up .....................................................................................5

Mounting Your RoadMate In A Vehicle ..............................................................................6

Registering Your Device ..................................................................................................7

Connecting To Wi-Fi ........................................................................................................8

Update Your Maps and Software ......................................................................................9

Set Up Bluetooth .............................................................................................................10

Using the Headlight Reminder .........................................................................................11

Using the Driving Break Reminder ..................................................................................11

Using Your RoadMate ....................................................................12

Searching For And Routing To An Address .......................................................................12

Routing To A Location ......................................................................................................13

Using the OneTouch Menu ................................................................................................15

Using MyPlaces Menu ......................................................................................................15

Using Multi-Destination Routes .......................................................................................15

Using DVR Recording .....................................................................16

Make An Emergency Recording .......................................................................................17

Access Recorded Videos and Photos ................................................................................17

Set Video Recording Limits ..............................................................................................17

Changing System Settings .............................................................18

General ...........................................................................................................................18

Network ..........................................................................................................................18

Navigation + Maps ...........................................................................................................18

Safety + Security .............................................................................................................19

DVR Recordings ...............................................................................................................19

Information .....................................................................................................................20

Registration ....................................................................................................................20

Using MiVue Manager ....................................................................21

Installing MiVue Manager ................................................................................................21

Playing Recorded Files .................................................................................................... 22

Warranty .......................................................................................24

Setting Up.

123

214

Thank you for purchasing a Magellan RoadMate Navigation Device, or the GPS receiver with Digital Video Recorder (DVR) functionality.

This User Manual describes every function you need to know in order to operate your RoadMate. Go to magellangps.com/Vehicle-Navigation for more information about RoadMate products as well as Magellan's complete line of vehicle navigation products.

Speaker Power Button

Dash Camera

AUX Out SD Card Slot

Only available on select models.

For best performance, use a Class 10 SD card with at least 8GB of storage capacity.

Be sure to use the included power adapters, which are specially rated for your device.

USB Power Input

Reset Button

Navigation Bar

On-Screen Icons

Menu Bar Dashboard

Setting Up.

1. Power On.

Press and hold the Power button on the top of your device. Within seconds, you’ll see the Magellan logo, and your device will boot up.

Press and hold.

2. Charge the Device.

Using the included AC Adapter or Vehicle Power Adapter (VPA):

1. Insert AC adapter into wall outlet or insert VPA plug into vehicle power outlet.

2. Insert mini-USB connector end of AC adapter or VPA into the left side of the device.

Insert mini-USB

cable here.

Note: Your device may take several hours to reach a full charge.

Setting Up.

3. Mount the Device.

Attach your device to the included cradle and mount and use suction cup base to adhere your device to your vehicle’s windshield or dashboard.

For best image quality, mount your device as follows:

Windshield Dashboard

Affix to

windshield.

Move arm away

from suction cup.

Push lever

down to lock.

Tilt device

up towards

mount arm.

Tilt device up

away from

mount arm.

Push lever

down to lock.

Move arm

upright.

Affix to

dashboard.

WARNING: Observe local laws and regulations regarding proper mounting of devices.

Setting Up.

Registering Your Device.

1. Select Language.

Tap on the Welcome screen > select a language > tap OK.

2. Read End-User License Agreement (EULA).

Read the End User License Agreement > tap I’ve read and agree to the terms to continue or tap I disagree to delay setup.

Note: You cannot proceed with setup until you’ve read and agreed to the EULA.

Setting Up.

3. Connect to WiFi.

Tap on a WiFi network from the list > enter password (if applicable) > tap

Done + Connect.

4. Log In Or Create New ID.

Tap Create a New ID to create a new account > enter account details > tap .

If you already have a Magellan account, tap Log-in with Existing ID > enter your account details > tap

To log in or register later, tap Skip this, I’ll do it later. When you’re ready to complete registration, tap

from the Map screen > tap Registration.

5. Initial Setup Complete!

Updating Maps and Software.

Download any available maps and software updates for your RoadMate via WiFi:

1. Tap

2. Tap Updates when you see a notiﬁcation (e.g. 2 New Updates).

3. Tap

4. Wait for the new map or software to download.

from the Map screen.

on Map Update or Software Update.

Updated maps or software are now downloaded.

Setting Up Bluetooth.

213

Note: This feature is only available on select models.

Note: Make sure that Bluetooth is enabled on your phone or other mobile device before

attempting to activate Bluetooth on your RoadMate device.

1. Tap from the Map screen. Your screen will display a PIN number.

2. Open your phone’s Bluetooth menu > select Magellan RoadMate from the device list.

3. Enter the PIN displayed on your RoadMate as the Bluetooth pin on your mobile device.

Your RoadMate device is now connected to your phone or mobile device via Bluetooth.

Use the Headlight Reminder.

The Headlight Reminder alerts you to turn on your vehicle headlights around sunset.

To set the Headlight Reminder:

1. Tap

2. Tap

from the Map screen.

Safety and Security.

3. Tap the check box next to Headlight Reminder to turn the Headlight Reminder on

(checked) or off (unchecked).

Headlight Reminder Icon

Use the Driving Break Reminder.

The Driving Break Reminder alerts you with an icon to take a break after driving for a speciﬁed duration of time.

To set the Driving Break Reminder:

1. Tap from the Map screen.

2. Tap Safety and Security.

3. Tap Driving Break Reminder.

4. Choose a duration: 1 hour, 2 hours, or 3 hours.

Driving Break Reminder Icon

Using Your Device.

Searching For And Routing To An Address.

To ﬁnd and route to a nearby location while in Free-Driving Mode:

1. Tap

2. Tap on a category (e.g. Gas, Coffee Shops, etc.).

2a. Tap on a location in the category list. 2b. Tap

2c. Tap

from the Map screen.

to store the location in My Places OR

to view routing details.

Note: Tap ... to change Routing Options. 2d. Tap

to begin routing to the location.

3. Tap What's Nearby? to see locations around you.

3a. Tap on a location in the Search Results. 3b. Tap

3c. Tap Note: Tap 3d. Tap

to begin routing to the location.

to store the location in My Places OR

to view routing details.

to change Routing Options.

Routing To A Location.

Follow the on-screen map and voice prompts as you drive to the location you entered. You can change routing options while driving or walking to a location.

Note: DO NOT operate your RoadMate while driving. Always be fully aware of all driving conditions.

Using Your Device.

While routing, you can:

Tap a Manuever at the top of the screen to open the Turn List. Tap on any turn in the Turn List to view the details of that turn.

Note: Tap

Tap

Estimated Time of Arrival (ETA) Remaining Duration of Route Remaining Distance of Route Vehicle

Tap Tap Start Recording to activate DVR Recording while you're driving.

Take Take a Photo to take and save a photo to your device.

to view route information (tap on any option to change the display):

Direction of Travel (N, E, S, or W)

to open the Camera (Only applies to all-in-one models):

to stop navigating and return to Free-Driving Mode.

Speed

Tap Recording List to see all Looped Videos, Impact Videos, and Photos.

Tap information about setting system preferences on your RoadMate.

to open the Settings menu. Refer to Changing System Settings for more

Using the OneTouch Menu.

The OneTouch menu gives you quick access to your home address, emergency services, gas stations, and any searched locations you've saved to the OneTouch menu.

To access the OneTouch menu:

1. Tap

2. Tap the Home icon to add your home address. Now, whenever you tap the Home icon, you'll immediately begin receiving routing instructions to your home.

3. Tap the Emergency icon to see the closest emergency locations (e.g. Sheriff's ofﬁce, Fire Station, Hospital, etc.) and begin routing to that location.

4. Tap on any of the empty boxes to add a new OneTouch location.

5. Tap the Pencil button to edit or remove a location from the OneTouch menu. Tap the Checkmark to ﬁnish editing OneTouch menu items.

from the Map screen.

Using My Places Menu.

The My Places menu allows you to route to any location you've saved to My Places.

To use My Places:

1. Tap

2. Select a location from My Places, Recent, or Trips.

3. Tap

from the Free Driving Map screen.

to route to that location.

Note: Tap remove the location from My Places.

to change Routing Options. Tap the Pencil button > tap Delete to

Using Multi-Destination Routes.

The Multi-Destination Routes menu allows you to modify and add locations to your route.

To add multiple destinations to your active route:

1. Tap

2. Tap the Pencil button > tap Add.

3. Select a destination from the menu > tap Add.

4. Tap the Check Mark when you're ﬁnished adding destinations > tap Back to return to the Routing screen.

from the Map screen while routing.

Using DVR Recording.

Tap from the Map screen to open the device camera.

From here, you can:

• Tap Recording to end DVR video recording.

• Tap

• Tap Recording List to view a list of your photos and videos.

To edit your recorded photos and videos:

1. Tap

2. Tap Recording List.

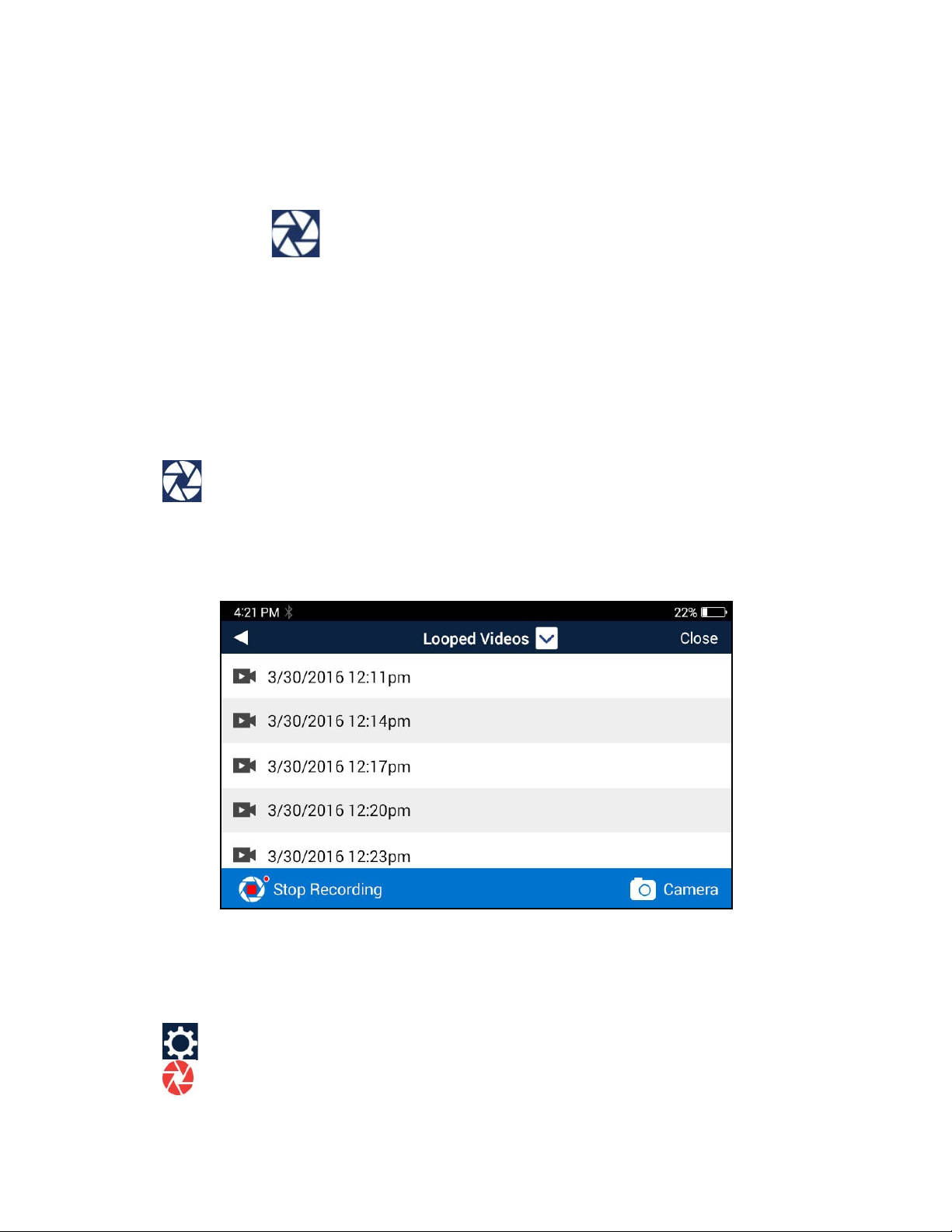

3. Tap Looped Videos for Continuous recordings, Impact Videos for emergency recordings, or Photos.

4. Tap on an item to watch a video or view a photo.

5. Tap Delete to remove the video or photo, and tap Lock to keep a video from being recorded over by new video.

from the Map screen.

to begin recording DVR video while you're driving. Tap Stop

to capture a photo of the current view from the camera.

Make An Emergency Recording.

Emergency recordings, are recorded, locked, and saved as three consecutive videos to Impact Videos when the G-Sensor detects impacts from collisions or similar events.

Tap and hold

to manually record an emergency video.

Access Recorded Videos and Photos.

All recorded videos and photos are time-stamped and saved to one of three categories under Recording List: Looped Videos, Impact Videos, and Photos. To access recordings:

1. Tap

2. Tap on a folder > select a time-stamped ﬁle to view a photo or video.

3. Tap Delete to remove the video, or Lock to keep the ﬁle from being recorded over.

from the Map screen > Recording List.

Set Video Recording Limits.

To set a time limit for video recordings:

1. Tap

2. Tap

3. Tap Video Time > select 1 min, 3 min, or 5 min.

This time limit also applies to Impact Recording.

from the Map screen.

DVR Recordings.

Changing System Settings.

Tap Settings from the Map screen to access the Settings menu.

General: Set general device preferences.

• Screen Brightness: Change brightness level for Day Mode, Night Mode, and Auto Brightness.

• Auto Power Off: Change the duration of time of inactivity before your RoadMate powers off (10 mins, 20 mins, and 30 mins).

• Disable Auto Power Off: Disable the Auto Power Off function (checked) or enable the function (unchecked).

• Sounds: Select Sound options for your device:

• Volume: Change overall system volume.

• Button Sounds: On (checked) or Off (unchecked).

• Turn Warnings: Receive notiﬁcations of upcoming turns while routing (None, Bells, Chimes, Beeps, or Voice).

• Spoken Street Names: Turn On (checked) or Off (unchecked) voice notiﬁcations of

street names while routing.

• Audible Speed Warning: Turn On (checked) or Off (unchecked) audible warnings when you drive above the speed limit.

Network: Find and connect to Wi-Fi networks.

To connect to a Wi-Fi network:

1. Scan for nearby Wi-Fi networks until you locate a network.

2. Tap on a Wi-Fi network.

3. Enter the Wi-Fi network password (if applicable) > tap Connect.

Navigation + Maps: Set GPS navigation, mapping, and routing preferences.

• Navigation: Change routing preferences.

• Minimize U-Turns: Avoid U-Turns where possible (checked) or allow U-Turns

while routing (unchecked).

• Minimize toll road usage: Avoid toll roads where possible (checked) or allow toll roads while routing (unchecked).

• Minimize unpaved road usage: Avoid unpaved roads where possible (checked) or allow unpaved roads while routing (unchecked).

• Simulation Control: Enable options for simulating your entire route while routing (checked) or disable simulation options (unchecked).

• Map Display: Set map interface and display preferences.

• Map Orientation: 3D, 2D, or 2D North Up.

• Night Mode: Auto, On, or Off.

• Auto-Zoom on Turns: On (checked) or Off (unchecked).

• Lane Assist: On (checked) or Off (unchecked).

• Junction View: On (checked) or Off (unchecked).

• Live Traffic: On (checked) or Off (unchecked).

• Points of Interest Visibility: Tap to select which POIs you want displayed on the

Map screen (check/uncheck each type you want displayed/not displayed, or tap

Check all to display all POIs on the Map).

• GPS Position: Change GPS positioning settings.

• Set position by GPS: Set to GPS or Manual (set position by What's Nearby?, My Places, or OneTouch).

• Region: View which geographical area you're located in (e.g. US48 AK HI PR CAN).

• PhantomALERT: Set PhantomALERT warnings on your device.

• Standard Alerts: Turn PhantomALERT warnings for Red light cameras or Fixed

speed cameras On (checked) or Off (unchecked).

• Premium Alerts: Turn PhantomALERT Premium alerts On or Off. Purchase PhantomALERT subscriptions at magellangps.com/premiumalerts in order to use this feature.

Safety + Security: Set safety and driving assistance features.

• Headlight Reminder: Alerts you to turn on your headlights when your device

switches to Night Mode. Turn the Headlight Reminder On (checked) or Off (unchecked).

• Driving Break Reminder: Alerts you to take a break after driving for a set duration. Set the Driving Break Reminder to 1 hour, 2 hours, 3 hours, or Off.

DVR Recordings: Set video recording preferences.

• Auto Record: Set DVR to begin recording automatically when you turn on your device. Turn Auto Record On (checked) or Off (unchecked).

• All Watermarks: Set watermarks for recorded videos: Timestamp, Speed Information, and GPS Location. Turn all watermarks On (checked), Off (unchecked),

or turn on individual watermarks.

• Recording Sound: Set DVR to record sound (checked) or not record sound to accompany video recordings.

• Video Time: Set how long you want individual video ﬁles to record before starting a new Looped Video. Set to 1 min, 3 min, or 5 min.

• SD Card Storage Information: View how much space each type of video/photo takes up on your SD card.

• Format Card: Clears your SD card so that it can be optimized for use with your RoadMate device. This erases all data on the SD card.

Information: View product details, legal documentation, support information, and more.

• Product Information: View product details, including Serial Number, Software Versions, and more.

• Check for Updates: Check for the latest Software and Map Updates.

• If you have the latest versions, you'll see Latest next to each type of update.

• If you need to download a new Software or Map update, tap the Download button to wirelessly download the newest version.

• End-User License Agreement: View the full End-User License Agreement (EULA).

• Acknowledgements: View copyright information for map data providers.

• Support: View contact information for Magellan GPS technical support.

• Reset to Factory Default: Restore your device to factory default settings. This erases

all data saved to your device.

Registration: View Magellan GPS account details.

• Create New ID: Create a new Magellan GPS account to use with your device. Enter your account details > tap Sign up to create a new account.

• Log-in with Existing ID: Log in with your existing Magellan GPS account to use with

your device.

Using MiVue Manager.

MiVue Manager™ allows you to view the videos recorded on your dashcam.

Note: Not all features are available for every RoadMate model.

Installing MiVue Manager.

Download MiVue Manager from support.magellangps.com and follow the on-screen prompts to install it. Make sure to download the correct software version (Windows or Mac) according to your computer's operating system.

Playing recorded files.

12345

712

1. Remove the memory card from the recorder and access the card on the computer via a card reader.

2. Copy the recording files to your computer for backup and playback.You may also leave the memory card inserted in the MiVue device and connect the device to your computer via a USB cable.

3. Start MiVue Manager on the computer. By default, MiVue Manager shows the calendar and the file list on the right. When a recording file exists you will see the date marked with “ date. You can choose the file type to display: Event / Normal / Parking.

4. Click All to display all files in the current folder,. To return to the calendar view, click Calendar. Double-click a file on the file list to start playback.

5. The playback controls are described as follows:

”. Click that date to display the files that were recorded on that

Skip to next or previous file.

Start/pause playback.

Change playback speed.

Mute/unmute volume.

Adjust volume level.

Play full-screen video.

Display playback progress. Click along the bar or drag the slider to move directly to that point in the video.

6. During playback, you can check more driving information from the dashboard panel and the G sensor chart that are displayed below the video playback screen.

7. Click

on the Dashboard panel to display the Map screen.

8. G sensor chart displays data in 3-axis waveform about the car’s shift forward/ backward (X), to the right/left (Y) and upward/downward (Z).

The tool bar allows you to do the following:

23456

Select folder that stores files.

Preview/print current image.

Save files to your computer.

Capture/save video image to your computer.

Open Settings menu.*

Export and save GPS info as KML format to your computer.

Upload files to Facebook and YouTube.

*Settings menu:

• Change Language: Sets the display language of MiVue Manager.

• Change Skin: Sets the colour scheme of MiVue Manager.

• Check for Update: Checks if there is any new version of MiVue Manager. Internet access required.

• About: Displays the version and copyright information of MiVue Manager.

Warranty.

Magellan Limited Warranty

All Magellan global positioning system (GPS) receivers are navigation aids, and are not intended to replace other methods of navigation. The purchaser is advised to perform careful position charting and use good judgment. READ THE USER GUIDE CAREFULLY BEFORE USING THE PRODUCT.

1. MAGELLAN WARRANTY

(a) MiTAC Digital Corp. (“Magellan”) warrants its GPS receivers and hardware accessories to be free from defects in material and workmanship and will conform to its published specifications for the product for a period of one year from the date of original purchase. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL CONSUMER PURCHASER OF THIS PRODUCT.

(b) In the event of a defect, Magellan will, at its discretion, repair or replace the hardware product with a product of like kind or quality, which may be new or reconditioned, with no charge to the purchaser for parts or labor. Magellan’s limit of liability under the limited warranty shall be the actual cash value of the product at the time the purchaser returns the product to Magellan for repair less a reasonable amount for usage, as determined by Magellan in its sole discretion. The repaired or replaced product will be warranted for 90 days from the date of return shipment, or for the balance of the original warranty, whichever is longer.

(c) Magellan warrants that software products or software included in hardware products will be free from defects in the media for a period of 30 days from the date of shipment and will substantially conform to the then current user documentation provided with the software (including updates thereto). Magellan’s sole obligation shall be the correction or replacement of the media or the software so that it will substantially conform to the then- current user documentation. Magellan does not warrant the software will meet purchaser’s requirements or that its operation will be uninterrupted, error-free or virus-free. The purchaser assumes the entire risk of using the software.

2. PURCHASER’S REMEDY

PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT, AT MAGELLAN’S OPTION, OF ANY DEFECTIVE PART OF THE RECEIVER OR ACCESSORIES WHICH ARE COVERED BY THIS WARRANTY. REPAIRS UNDER THIS WARRANTY SHALL ONLY BE MADE AT AN AUTHORIZED MAGELLAN SERVICE CENTER. ANY REPAIRS BY A SERVICE CENTER NOT AUTHORIZED BY MAGELLAN WILL VOID THIS WARRANTY.

3. PURCHASER’S DUTIES

For repair or replacement on a Magellan product the purchaser must obtain a Return Materials Authorization (RMA) number from Magellan Technical Support or by submitting a repair request through our website at www.magellanGPS.com, prior to shipping. The purchaser must return the product postpaid with a copy of the original sales receipt, purchaser’s return address and the RMA number clearly printed on the outside of the package to the Authorized Magellan Service Center address provided by Magellan with the RMA number. Magellan reserves the right to refuse to provide service free-of-charge if the sales receipt is not provided or if the information contained in it is incomplete or illegible or if the serial number has been altered or removed. Magellan will not be responsible for any losses or damage to the product incurred while the product is in transit or is being shipped for repair. Insurance is recommended. Magellan recommends the use of a trackable shipping method such as UPS or FedEx when returning a product for service.

4. LIMITATION OF IMPLIED WARRANTIES

Except as set forth in item 1 above, all other expressed or implied warranties, including those of fitness for any particular purpose or merchantability, are hereby disclaimed AND IF APPLICABLE, IMPLIED WARRANTIES UNDER ARTICLE 35 OF THE UNITED NATIONS CONVENTION ON CONTRACTS FOR THE INTERNATIONAL SALE OF GOODS. Some national, state, or local laws do not allow limitations on implied warranty on how long an implied warranty lasts, so the above limitation may not apply to you.

5. EXCLUSIONS

The following are excluded from the warranty coverage:

(a) periodic maintenance and repair or replacement of parts due to normal wear and tear;

(b) batteries;

(d) installations or defects resulting from installation;

(e) any damage caused by (i) shipping, misuse, abuse, negligence, tampering, moisture, liquids, proximity or exposure to heat, or improper use; (ii) disasters such as fire, flood, wind, and lightning; (iii) unauthorized attachments or modification;

+ 54 hidden pages
