Logitech RALLY CAMERA Installation Manual
RALLY CAMERA
Setup Guide | Guide d’installation
English . . . . . . . . . . . . . 3
Français . . . . . . . . . . . . 10
Español. . . . . . . . . . . . . 17
Português . . . . . . . . . . . 24
2
WHAT’S IN THE BOX
right
1
4
1. Camera
2. Camera Mount
3. Power Splitter Case
4. Remote
2 3
5 6 7 8
5. Power Splitter
6. Power Adapter
7. USB Cable
8. Documentation
Important Safety, Compliance and Warranty Information
Informations importantes concernant la sécurité, la mise en conformité et la garantie
FCC statement
English
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
Read Manual Before Product Use.
two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply
a commercial environment. This equipment generates, uses, and can radiate radio frequency
included with your product. Do not attempt to repair or use a damaged power supply. Do not
energy and, if not installed and used in accordance with the instruction manual, may cause
immerse the power supply in water or subject it to physical abuse. Inspect the power supply
harmful interference to radio communications. Operation of this equipment in a residential
regularly for cable, plug, and casing damage.
area is likely to cause harmful interference in which case the user will be required to correct
BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion
the interference at his own expense.
and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical
Warning: Where shielded interface cables or accessories have been provided with the
burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above
product or specified additional components or accessories elsewhere defined to be used with
54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,
the installation of the product, they must be used in order to ensure compliance with FCC.
or in any way abnormal. Do not leave your battery discharged or unused for extended periods.
Changes or modifications to product not expressly approved by Logitech, Inc could void your
Do not short circuit. Your device may contain an internal, rechargeable battery that is not
to use or operate your product by the FCC.
replaceable. Battery life varies with usage. Non-operational batteries should be discarded
Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure
according to local laws. If no laws or regulations govern, dispose of your device in a waste bin
limits set forth for an uncontrolled environment. This equipment should be installed and operated
for electronics. Keep batteries away from children.
with minimum distance 20cm between the radiator & your body.
BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,
Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce
which may cause personal injury and death in children and senior citizens. Keep these batteries
the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power
away from children! Do not allow children to play with or be in contact with these batteries
radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
or this product at any time. Add further security to the battery compartment as necessary.
5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Never place batteries in your mouth for any reason as they may be swallowed accidentally.
IC statement: CAN ICES-3 (A) / NMB-3 Class (A)
Always check medication before ingesting as adults have mistaken button batteries for pills or
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the
tablets. If a button battery is ingested, seek medical attention immediately. Contact the National
following two conditions: (1) This device may not cause interference; and (2) This device must
Battery Ingestion Hotline at (202) 625-3333. It is available 24 hours a day.
accept any interference, including interference that may cause undesired operation of the device.
Safe Usage Guidelines for Products
Warning
• Do not open or modify the product except for battery removal and replacement.
This is a class A product. In a domestic environment this product may cause radio interference
• Do not disassemble or attempt to service this product.
in which case the user may be required to take adequate measures.
• This product is safe under normal and reasonably foreseeable operating conditions.
Logitech Limited Hardware Product Warranty – A Summary
• If product is operating improperly, please contact Logitech support.
Logitech warrants that its hardware product shall be free from defects in materials and
• Product must be returned to the manufacturer for any service or repair.
workmanship for the length of time identified on your product package beginning from the date
• This is not a Children's Product and is not intended for use by children under 14 years old.
of the original retail purchase. See support.logitech.com for specific warranty information about
• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.
your product and procedures to act on a warranty claim.
• Mount device properly according to the provided instructions. Improper installation of
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,
this product may cause damage or injury.
at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund
Logitech Compliance. For Product Safety, EMC, RF and Energy information,
the price paid, if the hardware is returned to the point of purchase or such other place as Logitech
go to www.logitech.com/compliance. Maintenance is not required for product compliance.
may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.
Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com
English 3
WHAT’S WHAT
CAMERA
1. Remote Pairing Button
2. USB
3. Status LED
4 English
1
2
3
4
5
6
7
4. Security Slot
5. MIPI
6. Tripod Thread
7. Expansion Slot
REMOTE
1
2
3
4 5
1. Video Mute
2. Pan/Tilt
3. Camera Home
4. Camera Presets
5. Zoom In/Out
English 5
CONNECT YOUR CAMERA
Connecting Rally Camera is the same
whether you plan on using a dedicated
computer in the room, or your team
members bring a laptop to the room
to run the meeting.
1. Plug the power splitter USB pigtail
into the USB port of the camera.
2. Connect the power adapter from
the power splitter to a wall outlet.
3. Connect the USB cable from
the power splitter to your computer.
4. The status LED will ash when
the camera is connecting.
Once complete, the camera head
will rotate.
5. If issues persist, consult
www.logitech.com/support/
rallycamera or call technical support.
6 English
MOUNT YOUR CAMERA
We oer a numer of options to mount
your Rally Camera. For video calls,
we recommend placing the camera as
close to eye level as possible. Best results
typically come from mounting below
the T V.
1. Place on a table or shelf near the TV.

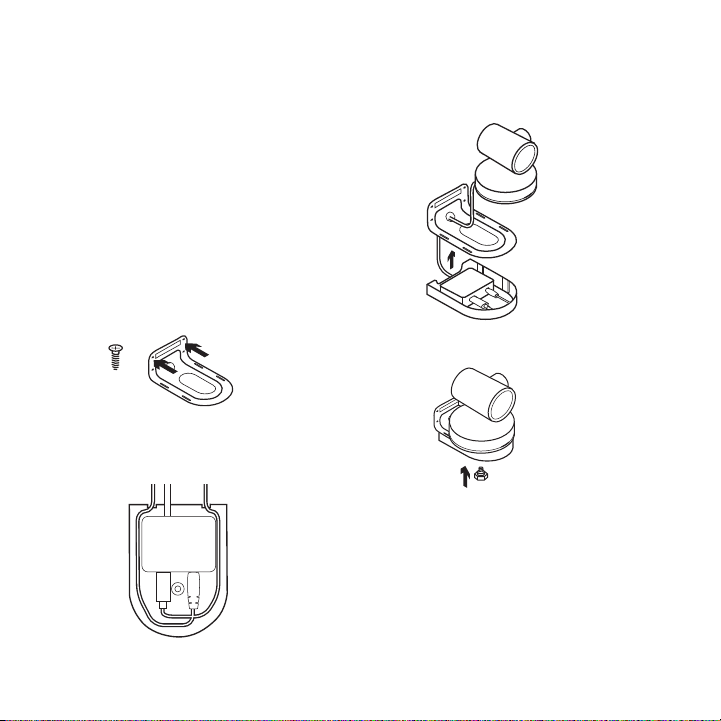

2. Mount on the wall:
a. Attach wall mount to the wall.
Please use the appropriate screw
type for your wall type.
c. Thread the USB pigtail through
the hole in the bottom of
the mount and connect to
the camera.
x2
b. Insert the power splitter into
the power splitter case and route
cables as shown.
d. Latch the power splitter case
to the mount.
e. Secure the camera to the mount
via the tripod screw.
3. Mount to the TV: An optional
TV mount bracket is available
at www.logitech.com.
English 7
STARTING THE VIDEO CALL
To start a video call/capture session, start
your application of choice and select
the Rally Camera. The status LED will
illuminate when video is streamed.
PAN AND TILT
Press once for incremental movement or
press and hold for continuous pan and tilt.
Caution: Manually rotating camera
head may damage the device.
CAMERA PRESETS
Set up to 2 preset positions. Once in the
desired position, save a preset by pressing
and holding the button for 3 seconds.
Return to the desired position at any time
by pressing the button once
HOME
Home will be the position the camera
moves to when the camera is started.
Save a new Home position by holding
the button for 10 seconds.
CAMERA SETTINGS
APPLICATION
Use this program to control the camera
pan, tilt, zoom, focus, and image
quality (like brightness and contrast).
The software can be downloaded from
www.logitech.com/support/rallycamera
RIGHTSIGHT
RightSight automatically moves
the camera and adjusts the zoom to
comfortably frame meeting participants.
RightSight is available on Windows 10
and macOS 10.14+. To enable or disable
RightSight, download the Logitech Sync
application. Pressing the pan, tilt or
zoom buttons on the remote will disable
RightSight. Pressing the home button will
restart RightSight.
8 English
PAIRING THE REMOTE
Your camera and remote control are paired at the factory. However, if you need to pair
a remote to the camera (such as when replacing a lost remote) do the following:
1. Press and hold button on the back of the camera until LED ashes blue.
2. Press and hold the Video Mute button on the remote for 10 seconds to place it
in pairing mode.
3. Once the remote and camera are paired the LED will stop ashing
4. If the pairing fails, the LED will keep ashing. Start from step 2 and repeat.
FOR MORE INFORMATION
You can nd additional information on Rally including:
– FAQ s
– Firmware Upgrades
– Software Downloads
– Support Community
– Warranty Information
– Replacement Parts
– And more at
www.logitech.com/support/rallycamera
English 9
CONTENU DU COFFRET
right
1
4
5 6 7 8
2 3
1. Caméra
2. Support de caméra
3. Boitier pour répartiteur de puissance
4. Télécommande
10 Français
Important Safety, Compliance and Warranty Information
Informations importantes concernant la sécurité, la mise en conformité et la garantie
English
Read Manual Before Product Use.
POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply
included with your product. Do not attempt to repair or use a damaged power supply. Do not
immerse the power supply in water or subject it to physical abuse. Inspect the power supply
regularly for cable, plug, and casing damage.
BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion
and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical
burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above
54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,
or in any way abnormal. Do not leave your battery discharged or unused for extended periods.
Do not short circuit. Your device may contain an internal, rechargeable battery that is not
replaceable. Battery life varies with usage. Non-operational batteries should be discarded
according to local laws. If no laws or regulations govern, dispose of your device in a waste bin
for electronics. Keep batteries away from children.
BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,
which may cause personal injury and death in children and senior citizens. Keep these batteries
away from children! Do not allow children to play with or be in contact with these batteries
or this product at any time. Add further security to the battery compartment as necessary.
Never place batteries in your mouth for any reason as they may be swallowed accidentally.
Always check medication before ingesting as adults have mistaken button batteries for pills or
tablets. If a button battery is ingested, seek medical attention immediately. Contact the National
Battery Ingestion Hotline at (202) 625-3333. It is available 24 hours a day.
Safe Usage Guidelines for Products
• Do not open or modify the product except for battery removal and replacement.
• Do not disassemble or attempt to service this product.
• This product is safe under normal and reasonably foreseeable operating conditions.
• If product is operating improperly, please contact Logitech support.
• Product must be returned to the manufacturer for any service or repair.
• This is not a Children's Product and is not intended for use by children under 14 years old.
• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.
• Mount device properly according to the provided instructions. Improper installation of
this product may cause damage or injury.
Logitech Compliance. For Product Safety, EMC, RF and Energy information,
go to www.logitech.com/compliance. Maintenance is not required for product compliance.
5. Répartiteur de puissance
6. Adaptateur secteur
7. Câble USB
8. Documentation
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Warning: Where shielded interface cables or accessories have been provided with the
product or specified additional components or accessories elsewhere defined to be used with
the installation of the product, they must be used in order to ensure compliance with FCC.
Changes or modifications to product not expressly approved by Logitech, Inc could void your
to use or operate your product by the FCC.
Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure
limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power
radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 56505850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
IC statement: CAN ICES-3 (A) / NMB-3 Class (A)
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause interference; and (2) This device must
accept any interference, including interference that may cause undesired operation of the device.
Warning
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Logitech Limited Hardware Product Warranty – A Summary
Logitech warrants that its hardware product shall be free from defects in materials and
workmanship for the length of time identified on your product package beginning from the date
of the original retail purchase. See support.logitech.com for specific warranty information about
your product and procedures to act on a warranty claim.
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,
at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund
the price paid, if the hardware is returned to the point of purchase or such other place as Logitech
may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.
Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com
Loading...
