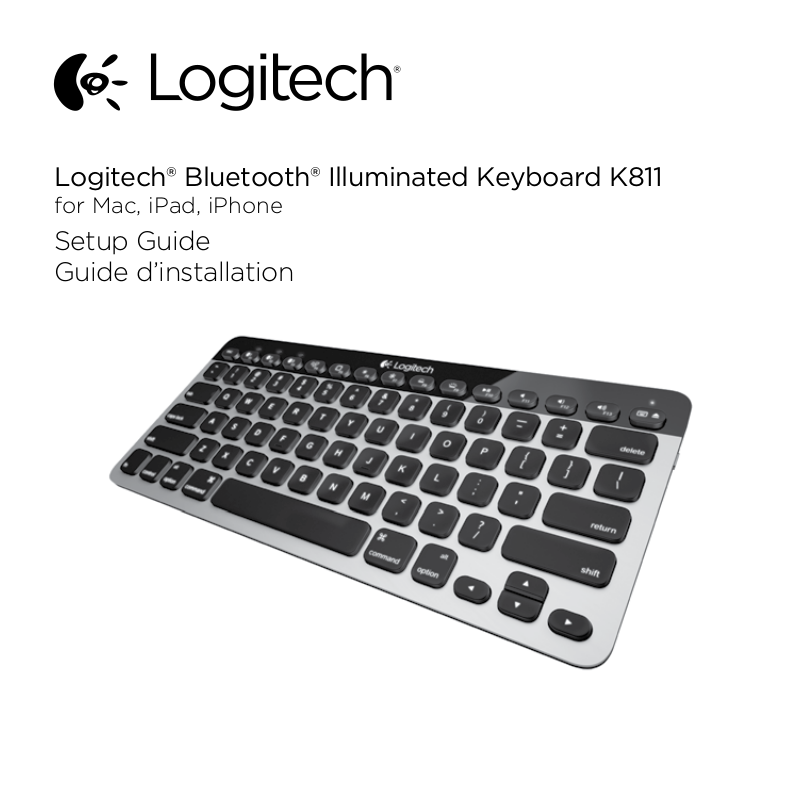

Logitech® Bluetooth® Illuminated Keyboard K811 for Mac, iPad, iPhone

Setup Guide Guide d’installation

Logitech Bluetooth Illuminated Keyboard K811

English . . . . . . . . . . . . . . . . .

3

Español . . . . . . . . . . . . . . . .

27

Français. . . . . . . . . . . . . . . . .

15

Português . . . . . . . . . . . . . . .

39

www.logitech.com/support  . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

2

Logitech Bluetooth Illuminated Keyboard K811

Know your product

1





2

3

4

































































































































































































































































































5

6

7

8

1.

















5.







































































































































































Bluetooth® status lights

On/Off switch



2.

Bluetooth keys

6.

Bluetooth connect button



3.

Function keys

7.

Micro-USB port



4.

Battery status light

8.

Micro-USB charging cable



English  3

Logitech Bluetooth Illuminated Keyboard K811

Set up your product

Pair your first Apple® device

1. Turn on the keyboard.

2. Press the Bluetooth connect button. The lights above the Bluetooth keys rapidly blink blue.

3. Press a Bluetooth key to assign your first Apple device to that key:

• The light above the selected key continues to blink blue.

• The keyboard is discoverable for 15 minutes.

4  English

Logitech Bluetooth Illuminated Keyboard K811

4. Complete Bluetooth pairing on your Apple device:

Mac OS® X:

a.Go to System Preferences > Bluetooth.

b.Click the “Setup new device” (+) button, and follow the on-screen instructions.

c.Choose “Logitech K811” from the device list.

d.Click “Continue.”

Apple iOS® (iPad® or iPhone®):

a.In Settings, choose General > Bluetooth, and then turn on Bluetooth.

b.Choose “Logitech K811” from the Devices menu.

Note: If your Apple device requests a PIN, enter the code using the keyboard and not the virtual keyboard on your Apple device.

The keyboard and your Apple device are now paired. The light above the Bluetooth key you have selected turns blue for 30 seconds.

5.Go to www.logitech.com/support/k811 to download and install software for your Mac to fully activate the function keys and to specify backlight settings.

English  5

Logitech Bluetooth Illuminated Keyboard K811

Pair or reassign a Bluetooth key to another Apple device

Pair up to three compatible Apple devices with the keyboard.

1. Make sure the keyboard is on.

2. Press the Bluetooth connect button. The lights above the Bluetooth keys rapidly blink blue.

3. Press a Bluetooth key to assign your Apple device to that key. For example, if you already paired

an Apple device to Bluetooth key 1, press the Bluetooth key 2.

• The light above the selected key continues to blink blue.

• The keyboard is discoverable for 3 minutes.

4. Go to “Pair your first Apple device” and follow step 4 to complete Bluetooth pairing.

Note: After you press the Bluetooth connect button, the lights above the Bluetooth keys rapidly blink blue. All three Bluetooth keys can be assigned or reassigned, and the keyboard is discoverable for 3 minutes.

6  English

Logitech Bluetooth Illuminated Keyboard K811

Switching among paired Apple devices

1. To select an Apple device to use, press the Bluetooth key (1, 2, or 3) associated with it.

2. The light above the selected Bluetooth key slowly blinks blue to show it is connecting. Then it turns solid blue for 5 seconds to confirm that the Bluetooth connection has been made. For example, if an iPad is paired with the Bluetooth 2 key, press that key

to use the iPad with the keyboard.

Note: Only one Apple device can be active at a time.

English  7

Logitech Bluetooth Illuminated Keyboard K811

Charge the batteries

A three-hour charge provides up to 10 days of use when you type about two hours a day with backlight on, or about one year without backlight. You can use the keyboard while it charges.

To check battery power and to charge the keyboard, do the following:

1. Turn on the keyboard.

• Battery Status light flashes green:

the battery has an adequate charge.

• Battery Status light flashes red: recharge the battery. Go to step 2.

2. Connect the keyboard to a computer using the Micro-USB charging cable. Charge for 1 to 3 hours, or until the Battery Status light turns solid green.

Note: If the battery power is critically low, the keyboard backlight is disabled and

the battery status light will blink red.

USB

8  English

Logitech Bluetooth Illuminated Keyboard K811

Visit Product Central

There’s more information and support online for your product. Take a moment

to visit Product Central to learn more about your new keyboard.

Browse online articles for setup help, usage tips, or information about additional features. If your keyboard has optional software, learn about its benefits and how it can help you customize your product.

Connect with other users in our Community Forums to get advice, ask questions,

and share solutions.

At Product Central, you’ll find a wide selection of content

Tutorials

Troubleshooting

Support community

Software downloads

Online documentation

Warranty information

Spare parts (when available)

Go to www.logitech.com/support/k811

English  9

Logitech Bluetooth Illuminated Keyboard K811

Use your product

1





2

3





4

















Function and media keys

1.Bluetooth keys 1, 2 and 3 Pair up to three compatible Apple devices (Mac®, iPad, or iPhone)

2.Mission control Only works with Mac OS X v10.7 (Lion).

3.Multifunction key

Home Only works with iPad and iPhone

Launchpad Only works with a Mac and requires the Logitech® Software for Mac. See “Software for your Mac”.

5





6

7

8

9

10

















4.Decrease (F6) and Increase (F7) screen brightness Only works with Mac computers and Apple displays.

5.Decrease (F8) and Increase (F9) keyboard backlight intensity

6.Play/Pause

7.Mute

8.Volume down

9.Volume up

10.Multifunction key

Virtual keyboard Only works with iPad and iPhone.

Eject Only works with Mac.

10  English

Logitech Bluetooth Illuminated Keyboard K811

Software for your Mac

Download and install the Logitech Software for your Mac to:

Fully activate the function keys

Use the Launch pad

Adjust settings for the keyboard backlight

Go to www.logitech.com/support/k811

Keyboard backlight

Keyboard sensors detect your hands, turning the backlight on and off.

The backlight adjusts automatically to the level of your room light. Bright light

and low battery power cause the backlight to turn off, which helps conserve battery power. In bright light, the F8 and F9 keys are disabled.

Automatic backlight control turns off when you use the F8 or F9 keys to adjust backlight intensity. You can restore automatic backlight control by turning the keyboard off then on. If the keyboard is idle for two hours or more, automatic backlight control is restored automatically.

English  11

Logitech Bluetooth Illuminated Keyboard K811

Troubleshooting

Keyboard not working

Slide the On/Off switch to Off then to On.

If the Battery Status light flashes red, recharge the batteries. For more

information, see “Charge the batteries.”

Restart your Apple device.

Go to Bluetooth settings on your Apple device to check if “Logitech K811”

is present. If it is, remove it. Then follow steps 2–4 in “Pair your first Apple device” to redo Bluetooth pairing.

Mission Control (F4 key) is not working

Downloading and installing available Logitech software will solve the issue.

What do you think?

Please take a minute to tell us. Thank you for purchasing our product.

www.logitech.com/ithink

12  English

Logitech K811 User Manual

Logitech Bluetooth Illuminated Keyboard K811

Battery disposal at product end of life

1

2

3

4





5

6

1.On keyboard bottom, pry off cover and remove 4 screws.

2.On keyboard top, pry off cover surrounding F-keys and remove 5 screws.

3.Separate top and bottom cases.

4.Remove 5 screws securing circuit board.

5.On bottom of circuit board,

remove battery cable. Remove battery from bottom case.

6.Dispose of battery and product according to local laws.

English  13

Logitech Bluetooth Illuminated Keyboard K811

Présentation du produit

1





2

3

4

































































































































































































































































































5

6

7

8

1.

















5.







































































































































































Témoins d'état de Bluetooth®

Commutateur Marche/Arrêt



2.

Touches Bluetooth

6.

Bouton de connexion Bluetooth



3.

Touches de fonction

7.

Port micro-USB



4.

Témoin de charge de la batterie

8.

Câble de charge micro-USB



Français  15

Logitech Bluetooth Illuminated Keyboard K811

Installation du produit

Coupler un premier dispositif Apple®

1. Mettez le clavier sous tension.

2. Appuyez sur le bouton de connexion Bluetooth. Les témoins situés au-dessus des touches Bluetooth clignotent rapidement en bleu.

3. Appuyez sur une touche Bluetooth pour l'assigner à votre premier dispositif Apple:

• Le témoin de la touche sélectionnée continue de clignoter en bleu.

• Le clavier passe en mode de détection pendant 15 minutes.

16  Français
