Liebherr MF3051 Specifications

30"

MF 3051

Features & Benefi ts

SuperQuiet: Noise levels are kept to a minimum thanks to virtually silent, speed-controlled, and

sound absorbing compressors.

InfinitySwipe: Intuitive electronic touch-control panel features a full-color 3.5-inch touch & swipe
screen that allows you to control every function.

InfinityLight: Casts beautiful and even side lighting that can tuned according to personal taste,
including a soft brightening effect upon opening the doors.

SuperFrost: Quick freeze just-bought groceries to preserve optimum food freshness, while
sealing in flavors and maintaining essential vitamins and minerals.

Warranty terms

Full 2-Year Warranty, full 5 -Year Warranty in the Sealed System and limited 6 -12 Year Warranty.

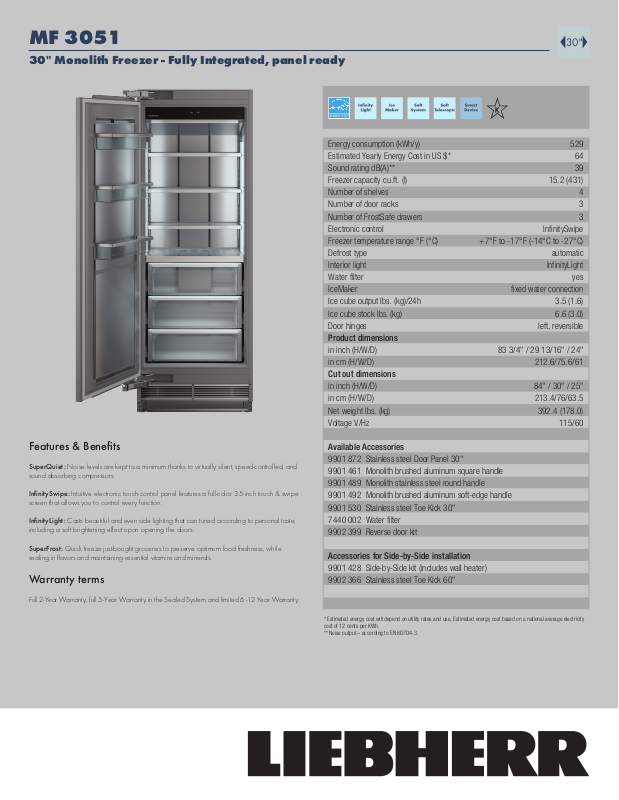

30" Monolith Freezer - Fully Integrated, panel ready

Energy consumption (kWh/y)
Estimated Yearly Energy Cost in US $*
Sound rating dB(A)**
Freezer capacity cu.ft. (l)
Number of shelves
Number of door racks
Number of FrostSafe drawers
Electronic control
Freezer temperature range °F (°C)
Defrost type
Interior light
Water filter
IceMaker
Ice cube output lbs. (kg)/24h
Ice cube stock lbs. (kg)
Door hinges

Product dimensions

in inch (H/W/D)
in cm (H/W/D)

Cut out dimensions

in inch (H/W/D)
in cm (H/W/D)
Net weight lbs. (kg)
Voltage V/Hz

529

64
39

15.2 (431)
4
3
3

InfinitySwipe

+7°F to -17°F (-14°C to -27°C)

automatic

InfinityLight

yes

fixed water connection

3.5 (1.6)

6.6 (3.0)

left, reversible

83 3/4" / 29 13/16" / 24"

212.6/75.6/61

84" / 30" / 25"

213.4/76/63.5

392.4 (178.0)
115/60

Available Accessories

9901 872 Stainless steel Door Panel 30"
9901 461 Monolith brushed aluminum square handle
9901 489 Monolith stainless steel round handle
9901 492 Monolith brushed aluminum soft-edge handle
9901 530 Stainless steel Toe Kick 30"
7440 002 Water filter
9902 399 Reverse door kit

Accessories for Side-by-Side installation

9901 428 Side-by-Side kit (includes wall heater)
9902 366 Stainless steel Toe Kick 60"

* Estimated energy cost will depend on utility rates and use. Estimated energy cost based on a national average electricity
cost of 12 cents per KWh.
** Noise output – according to EN 60704-3.

Product Dimensions

30"

IMPORTANT!
Stated minimum height dimensions include
when the leveled feet are fully inserted.

Height can be increased by a maximum of
1" (26 mm) by turning the adjust able feet.
When the appliance is fitted in the recess,
the appliance must be raised by turning the
adjustable feet so that the appliance top
has contact with the anti-tipping bracket.
This results in a 4" (102 mm) Toe Kick
height.

Cut out Dimensions

Continuous Toe Kick

Individual Toe Kick

Inset

A = 13 1/4" (337 mm)
B = 1/2" (12.5 mm)
C = 31 7/8" (810 mm)

Frameless

A = 13 1/2" (343 mm)
B = 1/2" (12.5 mm)
C = 32 3/8" (822 mm)

Dimension A = without
mounted door handle

A
This is the point where the power cord exits from the
appliance rear. 3/4" (19 mm) from the left and 5"
(127 mm) from the floor. Free length of the power cord
is 98" (2.5 m).
We recommend power outlet to be placed outside of
the applicance opening.
A 15 or 20 A, 110-120 VAC circuit grounded and
protected by a circuit breaker or fuse is required.

B

The appliance has a recess in this area for cable and
waterline laying. 1" (25 mm) in depth and 5 1/2"
(140 mm) in height over the whole width of the appliance.
With the water filter installed, the pressure must be
40-90 psi, without the water filter installed the acceptable
pressure is 22-87 psi. A shut-off valve must be installed
between the water line and the main water supply. It must
be easily accessible so the water supply can be stopped
immediately if necessary.

Powered by TCPDF (www.tcpdf.org)

Door Panel Dimensions

30" recess

Inset installation style

H = 79 7/8" (2029 mm)
W = 29 3/4" (756 mm)

Frameless installation style

H = 80" (2032 mm) Add overlapping
dimension to the panel on the top.
W = 30" (762 mm) Add overlapping
dimension to the panel on both sides.

Min. suggested panel thickness = 5/8" (16 mm)
Max. suggested panel thickness = 1" (25.4 mm)
Max. panel weight = 66 lbs. (30 kg)

home.liebherr.com/monolith

C
This surface is visible when the appliance door is open.
Designed finish is required.

Specifi cations are for planning purposes only.
For more detailed information refer to installation instructions
or Design Guide. Liebherr reserves the right to change
product specifi cations without notice.
Other product downloads are available at
home.liebherr.com/monolith.

Subject to modifi cation. For up-to-date information, visit home.liebherr.com/monolith.
