KROHNE Optiwave 5400 C Operating Manual

Handbook

OPTIWAVE 5400 C

OPTIWAVE 5400 COPTIWAVE 5400 C

24 GHz Radar (FMCW) Level Transmitter for liquids in basic process applications

HandbookHandbook

IMPRINT

:::::::::::::::::::::::::::::::::::::::

Subject to change without notice.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

CONTENTS

1 Safety instructions 7

1.1 Software history ............................................................................................................... 7

1.2 Intended use ..................................................................................................................... 7

1.3 Certification ...................................................................................................................... 8

1.4 Radio approvals ................................................................................................................ 8

1.4.1 European Union (EU)............................................................................................................... 8

1.4.2 U.S.A. and Canada................................................................................................................. 11

1.5 Safety instructions from the manufacturer................................................................... 14

1.5.1 Copyright and data protection .............................................................................................. 14

1.5.2 Disclaimer ............................................................................................................................. 14

1.5.3 Product liability and warranty .............................................................................................. 15

1.5.4 Information concerning the documentation......................................................................... 15

1.5.5 Warnings and symbols used................................................................................................. 16

1.6 Safety instructions for the operator............................................................................... 16

2 Device description 17

2.1 Scope of delivery............................................................................................................. 17

2.2 Device description .......................................................................................................... 18

2.3 Visual Check ................................................................................................................... 19

2.4 Nameplates .................................................................................................................... 20

2.4.1 Nameplate (examples).......................................................................................................... 20

3 Installation 21

3.1 General notes on installation ......................................................................................... 21

3.2 Storage ........................................................................................................................... 21

3.3 Transport ........................................................................................................................ 22

3.4 Pre-installation requirements ....................................................................................... 22

3.5 Pressure and temperature ranges ................................................................................ 23

3.6 Recommended mounting position ................................................................................. 24

3.6.1 General notes........................................................................................................................ 24

3.6.2 Tanks with dish-shaped and conical bottoms ...................................................................... 26

3.7 Mounting restrictions ..................................................................................................... 27

3.7.1 General notes........................................................................................................................ 27

3.7.2 Process connections............................................................................................................. 29

3.7.3 LPR devices: recommendations for pits and tanks made of non-conductive materials .... 35

3.7.4 Standpipes (stilling wells and bypass chambers) ................................................................ 36

3.8 How to attach antenna extensions ................................................................................. 40

3.9 How to turn or remove the display module (option) ...................................................... 43

3.10 Weather protection....................................................................................................... 44

3.10.1 How to attach the weather protection to the device........................................................... 44

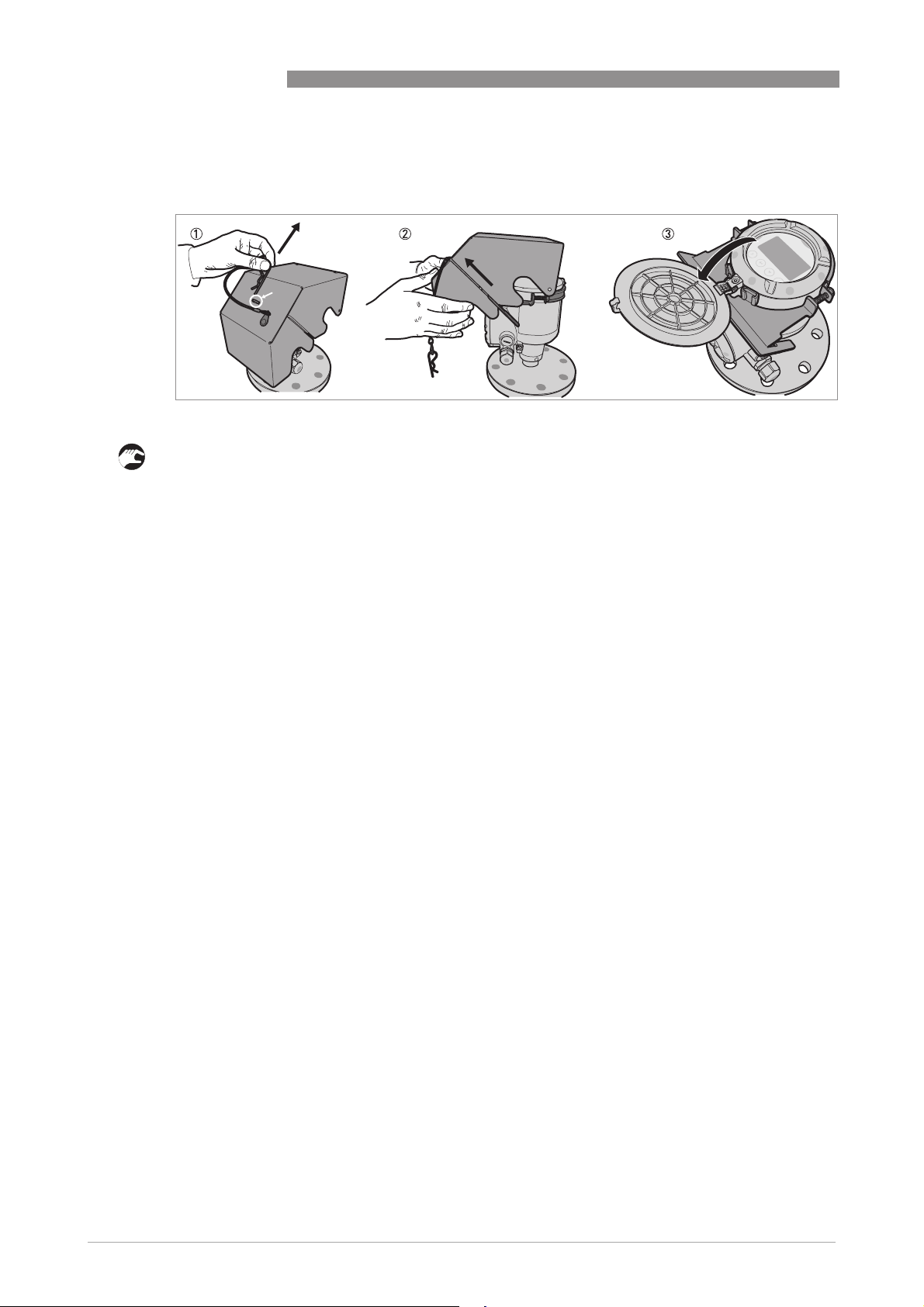

3.10.2 How to open the weather protection .................................................................................. 46

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

CONTENTS

OPTIWAVE 5400 C

4 Electrical connections 47

4.1 Safety instructions.......................................................................................................... 47

4.2 General notes ................................................................................................................. 47

4.3 Electrical installation: 2-wire, loop-powered ................................................................ 47

4.4 Electrical connection for current output ....................................................................... 51

4.4.1 Non-Ex devices ..................................................................................................................... 51

4.4.2 Devices for hazardous locations........................................................................................... 51

4.5 Ingress protection .......................................................................................................... 52

4.6 Networks ........................................................................................................................ 53

4.6.1 General information.............................................................................................................. 53

4.6.2 Point-to-point connection..................................................................................................... 53

4.6.3 Multi-drop networks ............................................................................................................. 54

5 Start-up 55

5.1 Start-up checklist........................................................................................................... 55

5.2 How to start the device................................................................................................... 55

5.3 Operating concept ..........................................................................................................55

5.4 Digital display screen .....................................................................................................56

5.4.1 Display screen layout............................................................................................................ 56

5.4.2 Keypad buttons ..................................................................................................................... 57

5.5 Remote communication with PACTware™ .................................................................... 59

5.6 Remote communication with the AMS™ Device Manager............................................. 60

6 Operation 61

6.1 User modes .................................................................................................................... 61

6.2 Normal mode.................................................................................................................. 61

6.3 Program mode................................................................................................................ 65

6.3.1 General notes........................................................................................................................ 65

6.3.2 Protection of the device settings (access levels) ................................................................. 66

6.3.3 How to get access to the Quick Setup menu ........................................................................ 68

6.3.4 Keypad functions................................................................................................................... 69

6.3.5 How to save settings changed in Program mode................................................................. 72

6.3.6 Menu overview ...................................................................................................................... 73

6.3.7 Function description ............................................................................................................. 79

6.4 Further information on device configuration in Program mode ................................... 99

6.4.1 Standard setup...................................................................................................................... 99

6.4.2 Empty spectrum recording................................................................................................. 102

6.4.3 HART® network configuration ........................................................................................... 105

6.4.4 Distance measurement ...................................................................................................... 106

6.4.5 Level measurement ............................................................................................................ 108

6.4.6 How to configure the device to measure volume or mass................................................. 110

6.4.7 How to measure correctly in tanks with curved or conical bottoms ................................. 112

6.4.8 How to make a filter to remove radar signal interference ................................................ 113

6.5 Status messages and diagnostic data.......................................................................... 114

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

CONTENTS

7 Service 121

7.1 Periodic maintenance................................................................................................... 121

7.1.1 General notes...................................................................................................................... 121

7.1.2 Maintenance of the O-rings for the housing covers........................................................... 121

7.1.3 How to clean the top surface of the device......................................................................... 122

7.1.4 How to clean horn antennas under process conditions..................................................... 122

7.2 Service warranty...........................................................................................................123

7.3 Spare parts availability................................................................................................. 123

7.4 Availability of services .................................................................................................. 123

7.5 Returning the device to the manufacturer................................................................... 124

7.5.1 General information............................................................................................................ 124

7.5.2 Form (for copying) to accompany a returned device.......................................................... 125

7.6 Disposal ........................................................................................................................ 125

8 Technical data 126

8.1 Measuring principle...................................................................................................... 126

8.2 Technical data............................................................................................................... 128

8.3 Measuring accuracy ..................................................................................................... 134

8.4 Minimum power supply voltage ................................................................................... 135

8.5 Guidelines for maximum operating pressure.............................................................. 136

8.6 Dimensions and weights .............................................................................................. 138

9 Description of HART interface 147

9.1 General description ...................................................................................................... 147

9.2 Software history ...........................................................................................................148

9.3 Connection variants...................................................................................................... 148

9.3.1 Point-to-Point connection – analogue / digital mode ........................................................ 148

9.3.2 Multi-Drop connection (2-wire connection) ....................................................................... 149

9.4 HART® device variables............................................................................................... 149

9.5 Field Communicator 475 (FC 475)................................................................................ 149

9.5.1 Installation .......................................................................................................................... 149

9.5.2 Operation............................................................................................................................. 150

9.6 Asset Management Solutions (AMS®) ......................................................................... 150

9.6.1 Installation .......................................................................................................................... 150

9.6.2 Operation............................................................................................................................. 150

9.6.3 Parameter for the basic configuration ............................................................................... 150

9.7 Field Device Tool / Device Type Manager (FDT / DTM)................................................ 151

9.7.1 Installation .......................................................................................................................... 151

9.7.2 Operation............................................................................................................................. 151

9.8 Process Device Manager (PDM)................................................................................... 151

9.8.1 Installation .......................................................................................................................... 151

9.8.2 Operation............................................................................................................................. 151

9.9 HART® menu tree for AMS .......................................................................................... 152

9.9.1 Overview AMS menu tree (positions in menu tree)............................................................ 152

9.9.2 AMS menu tree (details for settings).................................................................................. 153

9.10 HART® menu tree for PDM........................................................................................ 156

9.10.1 Overview PDM menu tree (positions in menu tree).......................................................... 156

9.10.2 PDM menu tree (details for settings) ............................................................................... 158

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

CONTENTS

OPTIWAVE 5400 C

10 Appendix 161

10.1 Order code .................................................................................................................. 161

10.2 Spare parts ................................................................................................................. 166

10.3 Accessories................................................................................................................. 169

10.4 Glossary ...................................................................................................................... 169

11 Notes 174

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

1.1 Software history

"Firmware revision" agrees with NAMUR NE 53. It is a series of numbers used to record the revision status of embedded software (firmware) in electronic equipment assemblies. It gives data on the type of changes made and the effect that changes have on compatibility.

SAFETY INSTRUCTIONS

Release date

Data about software revisions is shown in menu 1.1.0 IDENT. For more data, refer to

description

on page 79. If it is not possible to refer to the device menu, record the serial number

of the device (given on the device nameplate) and speak to the supplier.

Changes and effect on compatibility

1 Downwards compatible changes and fault repair with no effect on operation (e.g. spelling

mistakes on display)

2-_ Downwards compatible hardware and/or software change of interfaces:

H HART®

P Profibus

F FOUNDATION fieldbus

3-_ Downwards compatible hardware and/or software change of inputs and outputs:

CO Current output

FO, POFrequency output / pulse output

SO Status output

LS Limit switch

CI Current input

D Display

Printed circuit assembly

Firmware revision

Electronic revision

Hardware revision

Changes and compatibility

Documentation

Function

2017-02-02 HMI (LCD display

option)

Main and Support 4002815701d

Sensor 4002859301a

1 If the device does not have the display module option, the module reference number is 4002905802a

BL1.24.04 ER1.0.06 4002905801a

— MA OPTIWAVE

1.2 Intended use

CAUTION!

Responsibility for the use of the measuring devices with regard to suitability, intended use and corrosion resistance of the used materials against the measured fluid lies solely with the operator.

INFORMATION!

The manufacturer is not liable for any damage resulting from improper use or use for other than the intended purpose.

This radar level transmitter measures distance, level, mass, volume and reflectivity of liquids, pastes and slurries.

It can be installed on tanks, reactors and open channels.

5400 R01

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

SAFETY INSTRUCTIONS

1.3 Certification

DANGER!

For devices used in hazardous areas, additional safety notes apply; please refer to the Ex documentation.

CE marking

The device meets the essential requirements of the EU Directives:

• Electromagnetic Compatibility (EMC) directive

• The safety part of the Low-Voltage directive

• For devices used in hazardous locations: ATEX directive

The manufacturer certifies successful testing of the product by applying the CE marking. For more data about the EU Directives and European Standards related to this device, refer to the EU Declaration of Conformity. You can find this documentation on the DVD-ROM supplied with the device or it can be downloaded free of charge from the website (Download Center).

OPTIWAVE 5400 C

All devices are based on the CE marking and meet the requirements of NAMUR Recommendations NE 21, NE 43, NE 53 and NE 107.

1.4 Radio approvals

1.4.1 European Union (EU)

INFORMATION!

LPR (Level Probing Radar)

LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic

LPR (Level Probing Radar)LPR (Level Probing Radar) tank etc.). TLPR (Tank Level Probing Radar) can use LPR devices for TLPR applications. The LPR and TLPR devices meet the requirements of the RED (Radio Equipment Directive) for use in the member countries of the EU.

For more data about the order code, refer to Order code on page 161

This level transmitter is approved to be used outside metallic tanks. If you use the device in the open air, read the device nameplate to make sure that the device can be used for your application. Only the antennas that follow are permitted for open-air applications:

316L / DN80 (3¨) Metallic Horn VFDBxxxxxxxxxxxxx4xxx...

316L / DN100 (4¨) Metallic Horn VFDBxxxxxxxxxxxxx5xxx...

316L / DN150 (6¨) Metallic Horn VFDBxxxxxxxxxxxxx6xxx...

316L / DN200 (8¨) Metallic Horn VFDBxxxxxxxxxxxxx7xxx...

PP / DN80 (3¨) Drop VFDBxxxxxxxxxxxxxAxxx...

PP / DN100 (4¨) Drop VFDBxxxxxxxxxxxxxBxxx...

PP / DN150 (6¨) Drop VFDBxxxxxxxxxxxxxCxxx...

TLPR (Tank Level Probing Radar) devices measure level in a closed space only. You

TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)

Antenna type Order code

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

Figure 1-1: European Union: radio approval information on the nameplate

1 Type code (defined in order). For more data, refer to 2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24G = 24 GHz), the lo-

cation of the device (T=TLPR or L=LPR) and the type of signal converter (compact (C)) TLPR device: HVIN: 24G-T-C LPR device: HVIN: 24G-L-C

3 CE sign

S/N: xxxxxxxxxxxxxxxxxxx Manufacturing date: YYYY-MM-DD Tag No:

Order code

SAFETY INSTRUCTIONS

on page 161.

TLPR (Tank Level Probing Radar) devices only

Use approved personnel to install the device. The device and the tank agree with the RED (Radio Equipment Directive) if you obey the instructions that follow:

• TLPR (Tank Level Probing Radar) are required to be installed at a permanent fixed position at a closed (not open) metallic tank or reinforced concrete tank, or similar enclosure structure made of comparable attenuating material;

• flanges and attachments of the TLPR equipment shall provide the necessary microwave sealing by design;

• sight glasses shall be coated with a microwave-proof coating when necessary (i.e. electrically conductive coating);

• manholes or connection flanges at the tank shall be closed to ensure a low-level leakage of the signal into the air outside the tank;

• whenever possible, mounting of the TLPR equipment shall be on top of the tank structure with the orientation of the antenna to point in a downward direction;

• installation and maintenance of the TLPR equipment shall be performed by professionally trained individuals only.

For data about how to install EMI/RFI shielding gaskets, refer to the instructions supplied with this accessory.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

SAFETY INSTRUCTIONS

OPTIWAVE 5400 C

LPR (Level Probing Radar) devices only

Use approved personnel to install the device. If the device is operated in the open air (outdoors), it agrees with the RED (Radio Equipment Directive) if you obey these instructions:

• The antenna must always point downwards. The boresight direction of the antenna must be

vertical. No other angles are permitted.

• Install the device more than 4 km / 2.485 mi away from radio astronomy sites.

• If the device is 4...40 km / 2.485...24.855 mi away from radio astronomy sites, do not install the

device more than 15 m / 49.21 ft above the ground.

CAUTION!

If it is necessary to install the device less than 4 km / 2.485 mi from radio astronomy sites, you must get the approval of the national regulatory authority before installation (e.g. ANFR (France), Bundesnetzagentur (Germany), Ofcom (United Kingdom) etc.).

Radio quiet zones: locations of radio astronomy sites (stations) in Europe and northern Eurasia

Country Name of the station Location

Latitude, ϕ Longitude, λ

Finland Metsähovi 60°13'04" N 24°23'37" E

Tuorla 60°24'56" N 22°26'31" E

France Plateau de Bure 44°38'01" N 05°54'26" E

Germany Effelsberg 50°31'32" N 06°53'00" E

Hungary Penc 47°47'22" N 19°16'53" E

Italy Medicina 44°31'14" N 11°38'49" E

Noto 36°52'34" N 14°59'21" E

Sardinia 39°29'50" N 09°14'40" E

Latvia Ventspils 57°33'12" N 21°51'17" E

Poland Kraków – Fort Skala 50°03'18" N 19°49'36" E

Russia Dmitrov 56°26'00" N 37°27'00" E

Kalyazin 57°13'22" N 37°54'01" E

Pushchino 54°49'00" N 37°40'00" E

Zelenchukskaya 43°49'53" N 41°35'32" E

Spain Yebes 40°31'27" N 03°05'22" W

Robledo 40°25'38" N 04°14'57" W

Switzerland Bleien 47°20’26" N 08°06’44" E

Sweden Onsala 57°23’45" N 11°55’35" E

UK Cambridge 52°09'59" N 00°02'20" E

Darnhall 53°09'22" N 02°32'03" W

Jodrell Bank 53°14'10" N 02°18'26" W

Knockin 52°47'24" N 02°59'45" W

Pickmere 53°17'18" N 02°26'38" W

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

1.4.2 U.S.A. and Canada

INFORMATION!

LPR (Level Probing Radar)

LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic

LPR (Level Probing Radar)LPR (Level Probing Radar) tank etc.). TLPR (Tank Level Probing Radar)

TLPR (Tank Level Probing Radar) devices measure level in a closed space only.

TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)

SAFETY INSTRUCTIONS

For more data about the order code, refer to Order code on page 161

Antenna type Order code

316L / DN80 (3¨) Metallic Horn VFDBxxxxxxxxxxxxx4xxx...

316L / DN100 (4¨) Metallic Horn VFDBxxxxxxxxxxxxx5xxx...

316L / DN150 (6¨) Metallic Horn VFDBxxxxxxxxxxxxx6xxx...

316L / DN200 (8¨) Metallic Horn VFDBxxxxxxxxxxxxx7xxx...

PP / DN80 (3¨) Drop VFDBxxxxxxxxxxxxxAxxx...

PP / DN100 (4¨) Drop VFDBxxxxxxxxxxxxxBxxx...

PP / DN150 (6¨) Drop VFDBxxxxxxxxxxxxxCxxx...

LEGAL NOTICE!

FCC

FCCFCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference which may cause un-

desired operation.

Changes or modifications made to this equipment not expressly approved by the manufacturer may void the FCC authorizations to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

SAFETY INSTRUCTIONS

LEGAL NOTICE!

ICIC This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause un-

desired operation.

This device and the handbook complies with the requirements of RSS-Gen. Operation is subject to the conditions that follow:

1. The installation of the LPR/TLPR device shall be done by trained installers, in strict compliance

with the manufacturer

2. The use of this device is on a "no-interference, no-protection" basis. That is, the user shall ac-

cept operations of high-powered radar in the same frequency band which may interfere with or damage this device. However, devices found to interfere with primary licensing operations will be required to be removed at the user

3. The TLPR device shall be installed and operated in a completely enclosed container to prevent

RF emissions, which can otherwise interfere with aeronautical navigation.

4. LPR devices: Ensure a vertically downward orientation of the transmit antenna and an instal-

lation only at fixed locations.

5. The installer / user of this device shall ensure that it is at least 10 km from the Dominion Radio

Astrophysical Observatory (DRAO) near Penticton, British Columbia. The coordinates of the DRAO are latitude 49

separation (e.g. those in the Okanagan Valley, British Columbia) the installer / user must coordinate with, and obtain the written concurrence of, the Director of the DRAO before the equipment can be installed or operated. The Director of the DRAO may be contacted at 250-497-2300 (tel.) or 250-497-2355 (fax). Alternatively, the Manager, Regulatory Standards, Industry Canada, may be contacted.

OPTIWAVE 5400 C

’

s instructions.

’

s expense.

19'15" N and longitude 119°37'12" W. For devices not meeting this 10 km

The Product Marketing Name (PMN) of this device is "Optiwave x400 series".

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

S/N: xxxxxxxxxxxxxxxxxxx Manufacturing date: YYYY-MM-DD Tag No:

SAFETY INSTRUCTIONS

Figure 1-2: U.S.A. and Canada: radio approval information on the nameplate

1 Type code (defined in order). For more data, refer to 2 HVIN (Hardware Version Identification Number). This number gives the radar signal frequency (24G = 24 GHz), the lo-

cation of the device (T=TLPR or L=LPR) and the type of signal converter (compact (C)) TLPR device: HVIN: 24G-T-C LPR device: HVIN: 24G-L-C

3 FCC ID and IC number

TLPR device: FCC-ID:Q6BFMCW24G74T, IC number: 1991D-FMCW24G74T LPR device: FCC-ID: Q6BFMCW24G74L, IC number:1991D-FMCW24G74L

Order code

on page 161.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

SAFETY INSTRUCTIONS

1.5 Safety instructions from the manufacturer

1.5.1 Copyright and data protection

The contents of this document have been created with great care. Nevertheless, we provide no guarantee that the contents are correct, complete or up-to-date.

The contents and works in this document are subject to copyright. Contributions from third parties are identified as such. Reproduction, processing, dissemination and any type of use beyond what is permitted under copyright requires written authorisation from the respective author and/or the manufacturer.

The manufacturer tries always to observe the copyrights of others, and to draw on works created in-house or works in the public domain.

The collection of personal data (such as names, street addresses or e-mail addresses) in the manufacturer's documents is always on a voluntary basis whenever possible. Whenever feasible, it is always possible to make use of the offerings and services without providing any personal data.

OPTIWAVE 5400 C

We draw your attention to the fact that data transmission over the Internet (e.g. when communicating by e-mail) may involve gaps in security. It is not possible to protect such data completely against access by third parties.

We hereby expressly prohibit the use of the contact data published as part of our duty to publish an imprint for the purpose of sending us any advertising or informational materials that we have not expressly requested.

1.5.2 Disclaimer

The manufacturer will not be liable for any damage of any kind by using its product, including, but not limited to direct, indirect or incidental and consequential damages.

This disclaimer does not apply in case the manufacturer has acted on purpose or with gross negligence. In the event any applicable law does not allow such limitations on implied warranties or the exclusion of limitation of certain damages, you may, if such law applies to you, not be subject to some or all of the above disclaimer, exclusions or limitations.

Any product purchased from the manufacturer is warranted in accordance with the relevant product documentation and our Terms and Conditions of Sale.

The manufacturer reserves the right to alter the content of its documents, including this disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable in any way for possible consequences of such changes.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

1.5.3 Product liability and warranty

The operator shall bear responsibility for the suitability of the device for the specific purpose. The manufacturer accepts no liability for the consequences of misuse by the operator. Improper installation or operation of the devices (systems) will cause the warranty to be void. The respective "Standard Terms and Conditions" which form the basis for the sales contract shall also apply.

1.5.4 Information concerning the documentation

To prevent any injury to the user or damage to the device it is essential that you read the information in this document and observe applicable national standards, safety requirements and accident prevention regulations.

If this document is not in your native language and if you have any problems understanding the text, we advise you to contact your local office for assistance. The manufacturer can not accept responsibility for any damage or injury caused by misunderstanding of the information in this document.

This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. Special considerations and precautions are also described in the document, which appear in the form of icons as shown below.

SAFETY INSTRUCTIONS

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

SAFETY INSTRUCTIONS

1.5.5 Warnings and symbols used

Safety warnings are indicated by the following symbols.

DANGER!

This warning refers to the immediate danger when working with electricity.

DANGER!

This warning refers to the immediate danger of burns caused by heat or hot surfaces.

DANGER!

This warning refers to the immediate danger when using this device in a hazardous atmosphere.

DANGER!

These warnings must be observed without fail. Even partial disregard of this warning can lead to serious health problems and even death. There is also the risk of seriously damaging the device or parts of the operator's plant.

OPTIWAVE 5400 C

WARNING!

Disregarding this safety warning, even if only in part, poses the risk of serious health problems. There is also the risk of damaging the device or parts of the operator's plant.

CAUTION!

Disregarding these instructions can result in damage to the device or to parts of the operator's plant.

INFORMATION!

These instructions contain important information for the handling of the device.

LEGAL NOTICE!

This note contains information on statutory directives and standards.

• HANDLING

HANDLING

HANDLINGHANDLING

This symbol designates all instructions for actions to be carried out by the operator in the specified sequence.

i RESULT

RESULT

RESULTRESULT This symbol refers to all important consequences of the previous actions.

1.6 Safety instructions for the operator

WARNING!

In general, devices from the manufacturer may only be installed, commissioned, operated and maintained by properly trained and authorized personnel. This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

2.1 Scope of delivery

INFORMATION!

Do a check of the packing list to make sure that you have all the elements given in the order.

DEVICE DESCRIPTION

Figure 2-1: Scope of delivery

1 Signal converter, process connection and antenna in the ordered version 2 Antenna extensions (option). These are supplied attached to the device. If the antenna extensions are too long, the de-

vice will be supplied in two parts.

3 Certificates: calibration etc. (if the device has the appropriate options) 4 DVD-ROM (including handbook, technical data sheet and related software) 5 Bar magnet 6 Display extractor (for removal of the optional display module) 7 Cover wrench (for removal of the device covers)

INFORMATION!

Antenna extensions are available for this device. These are supplied attached to the device. If the antenna extensions are too long, the device will be supplied in two parts. For more data about the assembly procedure, refer to How to attach antenna extensions on page 40

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

DEVICE DESCRIPTION

2.2 Device description

This device is a 24 GHz FMCW-radar level transmitter. It is a non-contact technology and is 2wire loop-powered. It is designed to measure the distance, level, mass, volume and reflectivity of liquids, pastes and slurries. For more data about the measuring principle, refer to

principle

Radar level transmitters use an antenna to emit a signal to the surface of the measured product. The device has many antennas available. Thus, it can measure most products even in difficult conditions. Also refer to

If the device is ordered with the applicable options, it can be certified for use in hazardous areas.

The signal converter is attached directly to the process connection and the antenna. The illustration that follows shows the types of antenna.

on page 126.

Technical data

OPTIWAVE 5400 C

Measuring

on page 126.

Figure 2-2: Types of antenna

1 Metallic Horn antennas (available antenna sizes: DN40 (1½¨), DN50 (2¨), DN65 (2½¨), DN80 (3¨), DN100 (4¨), DN150 (6¨)

and DN200 (8¨)) made of 316L stainless steel. Antenna extensions are available for high nozzles.

2 Drop antennas (available antenna sizes: DN80 (3¨) DN100 (4¨) and DN150 (6¨)) made of PP. Antenna extensions are

available for high nozzles.

INFORMATION!

½¨

The DN65 (2

) Metallic Horn antenna option is specially made for the BM 26 A magnetic level

indicator.

INFORMATION!

For more data about accessories, refer to Accessories on page 169

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

2.3 Visual Check

WARNING!

If the display screen glass is broken, do not touch.

INFORMATION!

Inspect the packaging carefully for damages or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer.

DEVICE DESCRIPTION

Figure 2-3: Visual check

1 Device nameplate (for more data refer to 2 Process connection data (size and pressure rating, material reference and heat number) 3 Gasket material data – refer to the illustration that follows

Figure 2-4: Symbols for the supplied gasket material (on the side of the process connection)

1 EPDM 2 Kalrez® 6375

Nameplate (examples)

on page 20)

If the device is supplied with an FKM/FPM gasket, there is no symbol on the side of the process connection.

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate.

INFORMATION!

Compare the material references on the side of the process connection with the order.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

DEVICE DESCRIPTION

2.4 Nameplates

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate.

2.4.1 Nameplate (examples)

OPTIWAVE 5400 C

Figure 2-5: Non-Ex nameplate attached to the housing

1 Cable entry size 2 Electronic revision (according to NAMUR NE 53) 3 Signal output (analog, HART®, fieldbus, etc.), input voltage and maximum current (fieldbus options: basic current) 4 Degree of ingress protection (according to EN 60529 / IEC 60529) 5 Customer tag number 6 Date of manufacture 7 Serial number 8 Type code (defined in order). For more data, refer to 9 Model name and number. C = compact version. 10 Company logo, name and postal address

Country of manufacture / Company web address

Order code

on page 161.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

3.1 General notes on installation

INFORMATION!

Inspect the packaging carefully for damages or signs of rough handling. Report damage to the carrier and to the local office of the manufacturer.

INFORMATION!

Do a check of the packing list to make sure that you have all the elements given in the order.

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate.

3.2 Storage

WARNING!

Do not keep the device in a vertical position. This will damage the antenna and the device will not measure correctly.

INSTALLATION

Figure 3-1: Storage conditions

1 When you put the device into storage, do not keep it in a vertical position. 2 Put the device on its side. We recommend that you use the packaging in which it was delivered. 3 Storage temperature range: -40...+85°C / -40...+185°F

• Store the device in a dry and dust-free location.

• Keep the converter out of the sunlight.

• Store the device in its original packing.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

INSTALLATION

3.3 Transport

Figure 3-2: How to lift the device

WARNING!

Lift the device carefully to prevent damage to the antenna. If you remove the signal converter to lift the device, do not interchange this part with a different signal converter. This can have an effect on the performance of the device.

OPTIWAVE 5400 C

3.4 Pre-installation requirements

INFORMATION!

Obey the precautions that follow to make sure that the device is correctly installed.

• Make sure that there is sufficient space on all sides.

• Protect the signal converter from direct sunlight. If necessary, install the weather protection

accessory.

• Do not subject the signal converter to heavy vibrations. The devices are tested for vibration and agree with EN 50178 and IEC 60068-2-6.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

3.5 Pressure and temperature ranges

Figure 3-3: Pressure and temperature ranges

1 Temperature at the process connection

Non-Ex devices: The temperature range depends on the type of antenna, process connection and the seal material. Refer to the table that follows. Devices with Hazardous Location approvals: see supplementary instructions

2 Ambient temperature for operation of the display

-20...+70°C / -4...+158°F If the ambient temperature is not between these limits, then it is possible that the display screen will not operate temporarily. The device continues to measure level and send an output signal.

3 Ambient temperature

Non-Ex devices: -40...+80°C / -40...+176°F Devices with Hazardous Location approvals: see supplementary instructions

4 Process pressure

Depends on the type of antenna and process connection. Refer to the table that follows.

INSTALLATION

WARNING!

The process connection temperature range must agree with the temperature limits of the gasket material. The operating pressure range is subject to the process connection used and the flange temperature.

Maximum process connection temperature and operating pressure

Antenna type Maximum process connection

temperature

[°C] [°F] [barg] [psig]

PP Drop +100 +212 16 232

Metallic Horn +130

1 The maximum process connection temperature must agree with the temperature limits of the gasket material

For more data on pressure ratings, refer to

+266

Guidelines for maximum operating pressure

136.

Maximum operating pressure

16 232

on page

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

INSTALLATION

3.6 Recommended mounting position

CAUTION!

Follow these recommendations to make sure that the device measures correctly. They have an effect on the performance of the device.

We recommend that you prepare the installation when the tank is empty.

3.6.1 General notes

Recommended nozzle position for liquids, pastes and slurries

OPTIWAVE 5400 C

Figure 3-4: Recommended nozzle position for liquids, pastes and slurries

1 Nozzle or socket for the DN40 or DN50 Metallic Horn antennas 2 Nozzle or socket for the DN80 or DN100 Metallic Horn antenna, and the DN80 Drop antenna 3 Nozzle or socket for the DN150 or DN200 Metallic Horn antenna, and the DN100 or DN150 Drop antenna 4 Tank diameter 5 Minimum distance of the nozzle or socket from the tank wall (depends on the antenna type and size – refer to items

1, 2 and 3 in this list):

– DN40 or DN50 Metallic Horn: 1/5 × tank height – DN80 or DN100 Metallic Horn: 1/10 × tank height – DN80 Drop: 1/10 × tank height – DN150 or DN200 Metallic Horn: 1/20 × tank height – DN100 or DN150 Drop: 1/20 × tank height Maximum distance of the nozzle or socket from the tank wall (depends on the antenna type and size – refer to items

1, 2 and 3 in this list):

– Metallic Horn or Drop: 1/3 × tank diameter

6 Tank height

INFORMATION!

If there is a nozzle on the tank before installation, the nozzle must be a minimum of 200 mm /

from the tank wall. The tank wall must be flat and there must not be obstacles adjacent to

7.9

the nozzle or on the tank wall.

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

Point the device in the correct direction to get the best performance

Figure 3-5: Point the device in the correct direction to get the best performance

1 Cable entry 2 Nearest tank wall 3 Tank centerline

Point the cable entries on the housing in the direction of the tank centerline.

INSTALLATION

Number of devices that can be operated in a tank

Figure 3-6: There is no maximum limit to the number of devices that can be operated in the same tank

There is no maximum limit to the number of devices that can be operated in the same tank. They can be installed adjacent to other radar level transmitters.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

INSTALLATION

3.6.2 Tanks with dish-shaped and conical bottoms

Dish-shaped or conical bottoms have an effect on the measuring range. The device cannot measure to the bottom of the tank. If possible, install the device as shown in the illustration that follows:

OPTIWAVE 5400 C

Figure 3-7: Tanks with dish-shaped or conical bottoms

1 Axis of radar beam 2 Minimum level reading

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

3.7 Mounting restrictions

CAUTION!

Follow these recommendations to make sure that the device measures correctly. They have an effect on the performance of the device.

We recommend that you prepare the installation when the tank is empty.

3.7.1 General notes

LPR and TLPR devices

WARNING!

LPR (Level Probing Radar)

LPR (Level Probing Radar) devices measure level in the open air or in a closed space (a metallic

LPR (Level Probing Radar)LPR (Level Probing Radar) tank etc.). TLPR (Tank Level Probing Radar) can use LPR devices for TLPR applications. For more data, refer to Radio approvals on page 8

Causes of interference signals

• Objects in the tank or pit.

• Sharp corners that are perpendicular to the path of the radar beam.

• Sudden changes in tank diameter in the path of the radar beam.

TLPR (Tank Level Probing Radar) devices measure level in a closed space only. You

TLPR (Tank Level Probing Radar)TLPR (Tank Level Probing Radar)

INSTALLATION

CAUTION!

Do not install the device above objects in the tank (ladder, supports etc.) or pit. Objects in the tank or pit can cause interference signals. If there are interference signals, the device will not measure correctly. If it is not possible to install the device on another part of the tank or pit, do an empty spectrum scan. For more data, refer to Empty spectrum recording on page 102

Equipment and obstacles: how to prevent measurement of interference signals

Do not put the device immediately above equipment and obstacles in a tank or pit. This can have an effect on the performance of the device.

INFORMATION!

If possible, do not install a nozzle on the tank centerline.

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

INSTALLATION

OPTIWAVE 5400 C

Figure 3-8: Equipment and obstacles: how to prevent measurement of interference signals

1 Do not tilt the device more than 2° 2 We recommend that you do an empty spectrum recording if there are too many obstacles in the radar beam ( refer to

Empty spectrum recording

3 If there are too many obstacles in the tank, you can install the device on a standpipe. For more data about how to install

the device on standpipes, refer to

4 Beam radius of the antenna: refer to the table below. The beam radius increases by increments of "x" mm for each

metre of distance from the antenna.

on page 102).

Standpipes (stilling wells and bypass chambers)

on page 36.

Beam radius of the antenna

Antenna type Beam angle Beam radius, x

[mm/m] [in/ft]

Metallic Horn, DN40 (1½¨) 17° 150 1.8

Metallic Horn, DN50 (2¨) 16° 141 1.7

Metallic Horn, DN65 (2½¨) 10°

Metallic Horn, DN80 (3¨) 9° 79 0.9

Metallic Horn, DN100 (4¨) 8° 141 0.8

Metallic Horn, DN150 (6¨) 6° 53 0.6

Metallic Horn, DN200 (8¨) 5° 44 0.5

PP Drop DN80 (3¨) 9° 79 0.9

PP Drop, DN100 (4¨) 7° 61 0.7

PP Drop, DN150 (6¨) 5° 44 0.5

1 This antenna option is specially made for the BM 26 A

1 1

www.krohne.com 04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

OPTIWAVE 5400 C

Product inlets

Figure 3-9: Product inlets

1 The device is in the correct position. 2 The device is too near to the product inlet.

CAUTION!

Do not put the device near to the product inlet. If the product that enters the tank touches the antenna, the device will measure incorrectly. If the product fills the tank directly below the antenna, the device will also measure incorrectly.

INSTALLATION

INFORMATION!

For more data about the measuring range of each type of antenna, refer to Measuring accuracy on page 134

3.7.2 Process connections

INFORMATION!

All the procedures that follow are applicable to Metallic Horn and Drop antennas.

Flange connections: installation procedure

Figure 3-10: Flange connections: installation procedure

Ød = nozzle diameter h = nozzle height

www.krohne.com04/2017 - 4005813701 - MA OPTIWAVE 5400 R01 en

INSTALLATION

Recommended nozzle size for flange connections

The nozzle must be as short as possible. Refer to the table below for the maximum height of the nozzle:

OPTIWAVE 5400 C

Nozzle and antenna diameter,

Maximum nozzle height, h

Ød

Metallic Horn antenna Drop antenna

[mm] [inch] [mm] [inch] [mm] [inch]

40 1½ 140

50 2 150

80 3 260

100 4 330

150 6 490

200 8 660

1 If the device has antenna extensions, this option extends the maximum nozzle height. Add the length of the antenna

extensions attached to the device to this value.

5.51

5.91

10.24

12.99

19.29

25.98

— —

100

— —

2.36

2.76

3.94

Equipment needed:

• Device

• Flange gasket (not supplied)

• Wrench (not supplied)

If the antenna diameter is smaller than the process connection size (flange):

• Make sure the flange on the nozzle is level.

• Make sure that you use the applicable gasket for the flange dimensions and the process.

• Align the gasket correctly with the flange facing of the nozzle.

• Put the device carefully on the tank flange. Do not attach the device flange to the tank yet

• Make sure that you point the device in the correct direction. For more data, refer to

on page 24 ("Point the device in the correct direction").

notes

General

• Tighten the flange bolts. Refer to local rules and regulations for the correct torque to apply to

the bolts.

i End of the procedure.
