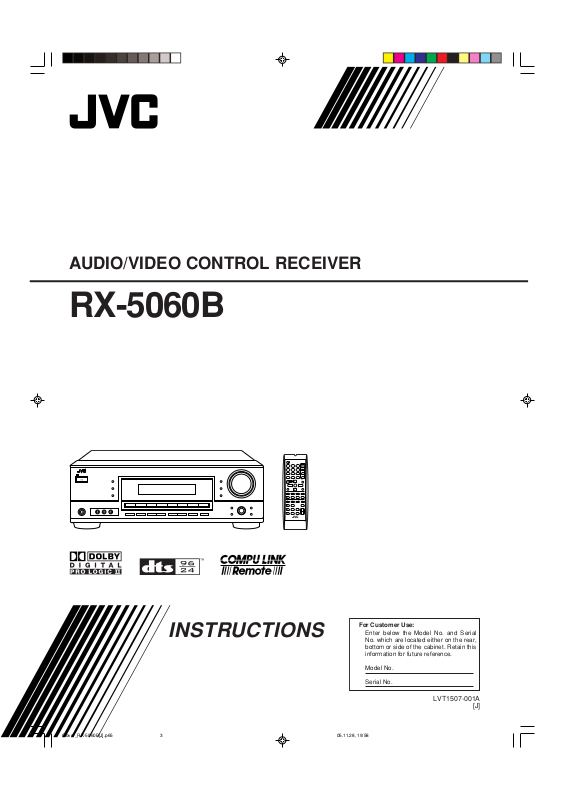

JVC RX-5060B User Manual

AUDIO/VIDEO CONTROL RECEIVER

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

RX-5060B

TA/NEWS/INFO

DISPLAY MODE

INSTRUCTIONS

LVT1507-001A

[J]

Warnings, Cautions and Others/

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

For U.S.A

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Mises en garde, précautions et indications diverses

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution––STANDBY/ON button! Disconnect the mains plug to shut the power off completely

(the STANDBY lamp goes off). The STANDBY/ON

button in any position does not

disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

Attention––Touch STANDBY/ON Déconnectez la fiche d’alimentation secteur pour mettre

l’appareil complètement hors tension (le témoin STANBY est éteint). La touche STANDBY/ON position, ne déconnecte pas l’appareil du secteur.

• Quand l’appareil est en mode d’attente, le témoin STANDBY est allumé en rouge.

• Quand l’appareil est sous tension, le témoin STANBY est éteint.

L’alimentation peut être télécommandée.

G-1

, dans n’importe quelle

!

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only] [Union européenne seulement]

Parts Identification

STANDBY

STANDBY/ON

PHONES

SURROUND

DSP

SPEAKERS

ON/OFF

SUBWOOFER OUT FM MODE MEMORY

ON/OFF

FM/AM TUNING

SURROUND/DSP

OFF

DIMMER

MASTER VOLUME

INPUT DIGITAL

RX—6030V

AUDIO/VIDEO CONTROL RECEIVER

SETTING

MULTI JOG

PUSH SET

QUICK SPEAKER

SETUP

ADJUST

EXIT

INPUT ANALOG

INPUT ATT

FM/AM PRESET

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

3D - PHONIC

DUAL

MONO

H.PHONESBDSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

1

2

3

4

5

w

r

t

i

o

;a

d

f

ye

u

6

7 8 9 p

q

s

3D - PHONIC

DUAL

MONO

H.PHONE

SB

DSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

-

$%

!

@

1324567890=~

#

Front Panel

See pages in parentheses for details.

1 STANDBY/ON

button and STANDBY lamp (9)

2 SURROUND/DSP OFF button (25, 27) 3 DSP button (26, 27) 4 SURROUND button (25) 5 Remote sensor 6 Display (For details, see “Display” below.) 7 Source selection buttons (9, 12)

AUX, DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE NAME), FM, AM

8 INPUT ANALOG button (12)

INPUT ATT button (12)

9 INPUT DIGITAL button (11) p DIMMER button (12)

Display

q MASTER VOLUME control (10) w PHONES jack (11) e AUX input jacks (7) r SPEAKERS ON/OFF button (11) t SUBWOOFER OUT ON/OFF button (11) y FM/AM TUNING 5/∞ buttons (14) u FM/AM PRESET 5/∞ buttons (14) i FM MODE button (15) o MEMORY button (14) ; SETTING button (17) a QUICK SPEAKER SETUP button (16) s MULTI JOG (PUSH SET) dial (16, 17, 21) d EXIT button (17, 21) f ADJUST button (21)

See pages in parentheses for details.

1 ANALOG indicator (12) 2 DUAL MONO indicator (24) 3 H.PHONE indicator (11, 24, 26) 4 3D-PHONIC indicator (24, 26, 27) 5 VIRTUAL SB indicator (20)

PRO LOGIC II indicator (23, 25, 26)

6 7 DSP indicator (24, 26, 27) 8 DIGITAL EQ indicator (22) 9 TUNED indicator (14)

2

0 STEREO indicator (14)

- INPUT ATT indicator (12) = AUTO MUTING indicator (15) ~ SLEEP indicator (13) ! VOLUME indicator (9, 10) @ Digital signal format indicators (11) # Speaker indicators and signal indicators (10) $ CH– indicator (14) % Main display

Remote Control

AUDIO

TV/CATV

VCR

DVD

TEST

EFFECT

MENU

ENTER LEVEL

RETURN

SURROUND/

DSP

CD-DISC

SLEEP

REC PAUSE

FM MODE

SURROUND

DSP

DIMMER TV/VIDEO MUTING

OFF

VCR CH

TV/CATV CH

VOLUME

SURR R

SURR L

SUBWFR

CENTER

FRONT R

FRONT L

100

1

4

7/P

10

2

5

8

0

3

6

9

10

TV VOLUME

STANDBY/ON

TV CATV

A/V CONTROL

RECEIVER

TAPE/CDR CD DVD AUX

FM/AM TV SOUND VCR

ANALOG/

DIGITAL

REW FF

2

5

=

$ %

#

@

^

4

8

7

0

-

*

&

6

9

~

3

1

!

CD IN

OUT

(REC)

IN

(PLAY)

OUT

(REC)

VCR

TV SOUND

IN

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

AUDIO

RIGHT LEFT

IN

(PLAY)

TAPE /CDR

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

SUBWOOFER

OUT

AUDIO

MONITOR

OUT

DVD

IN

OUT

(REC)

VCR

IN

(PLAY)

DVD

IN

RIGHT LEFT

COMPU LINK-4

(SYNCHRO)

AM

LOOP

AM EXT

ANTENNA

816–

CAUTION:SPEAKER IMPEDANCE

15

96 78

2 43

See pages in parentheses for details.

1 TV/CATV selector (31) 2 Number buttons for selecting preset channels (15, 29)

Number buttons for sound adjustment (22, 29) Number buttons for operating audio/video components (29 – 32)

3 SOUND button (22, 29) 4 REC PAUSE button (30, 32) 5 Source selection buttons (9, 10)

TAPE/CDR, CD, DVD, AUX, FM/AM, TV SOUND, VCR

6 FM MODE button (15, 29) 7 SURROUND button (25, 29) 8 DIMMER button (12, 29) 9 TV/VIDEO button (30, 31) 0 VCR CH +/– buttons (30, 32)

- TV/CATV CH +/– buttons (30, 31) = STANDBY/ON

buttons (9, 29 – 32)

AUDIO, TV/CATV, VCR, DVD

~ SLEEP button (13, 29) ! Operating buttons for audio/video components

3, 8, 7, ¢/4, FF/REW (29, 30, 32)

@ CD-DISC button (30) # ANALOG/DIGITAL button (11, 12, 29) $ SURROUND/DSP OFF button (25, 27, 29) % DSP button (26 – 27, 29) ^ MUTING button (13, 29) & VOLUME +/– button (10, 29) * TV VOLUME +/– buttons (30, 31)

Rear Panel

See pages in parentheses for details.

1 DIGITAL IN terminals (8)

• Coaxial: DIGITAL 1 (DVD)

• Optical: DIGITAL 2 (CD)

2 AUDIO input/output jacks (6, 7)

• Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY),

• Output: TAPE/CDR OUT (REC), VCR OUT (REC),

TV SOUND IN, DVD IN

SUBWOOFER OUT

Note:

When you press the one of the audio source selection buttons— TAPE/CDR, CD, and FM/AM—on the remote control, the receiver automatically turns on.

3 VIDEO input/output jacks (7)

• Input: DVD IN, VCR IN (PLAY)

• Output: MONITOR OUT, VCR OUT (REC)

4 COMPU LINK-4 (SYNCHRO) jacks (28) 5 ANTENNA terminals (4, 5) 6 CENTER SPEAKER terminals (5) 7 SURROUND SPEAKERS terminals (5) 8 FRONT SPEAKERS terminals (5) 9 AC power cord (8)

3

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

Do not connect the AC power cord until all other connections have been made.

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General Precautions

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.

• The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Notes:

• Supplied batteries are for the initial setup. Replace for continued use.

• After replacing the batteries, set the manufacturers’ codes again (see pages 31 and 32).

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the

polarity: (+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar

may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Connecting the FM and AM Antennas

FM antenna connections

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

1

2

R6(SUM-3)/

3

AA(15F)

1 Press and slide the battery cover on the back of

the remote control.

2 Insert the batteries.

• Make sure to match the polarity: (+) to (+) and (–) to (–).

A

B

Extend the supplied FM antenna horizontally.

FM Antenna (supplied)

Outdoor FM Antenna Cable (not supplied)

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—A

If reception is poor, connect the outdoor FM antenna (not supplied)—B 1 Disconnect the supplied FM antenna. 2 Connect a 75 Ω coaxial cable (with the standard type connector).

3 Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

4

AM

LOOP

AM EXT

ANTENNA

CENTER

SPEAKER

SURROUND SPEAKERS

RIGHT

LEFT

FRONT

SPEAKERS

RIGHT

LEFT

CAUTION:SPEAKER IMPEDANCE

+

–

+

–

To center speaker

To right front speaker

To right surround speaker

To left surround speaker

To left front speaker

RIGHT

LEFT

+

–

RIGHT

LEFT

+

–

RIGHT

LEFT

+

–

Do not connect the AC power cord until all other connections have been made.

AM antenna connections

1

Outdoor single vinyl-covered wire (not supplied)

AM Loop Antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

2

Connecting the Speakers and Subwoofer

You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer.

CAUTIONS:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.

• Do not connect more than one speaker to each speaker terminal.

Connecting the speakers

1

2

3

4

1 Twist and remove the insulation at the end of

each speaker cord. 2 Press and hold the clamp of the speaker terminal. 3 Insert the speaker cord. 4 Release the finger from the clamp.

Turn the loop until you have the best reception.

Notes:

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)

For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

5

SUBWOOFER

OUT

(REC)

IN

(PLAY)

TAPE /CDR

L

R

L

CD

IN

R

L

Getting Started

45 – 60

Do not connect the AC power cord until all other connections have been made.

Connecting the subwoofer

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

Powered subwoofer

Placing speakers

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.

• Array across the front of the viewing area.

Surround speakers (LS/RS)

• Place these speakers alongside and slightly to the rear of (but not behind) the listening position; well above ear level (60 cm (2 ft) to 90 cm (3 ft) higher).

• Point these speakers directly across the listening area, but not at the listener’s ears.

Subwoofer (S.WFR)

• You can place it wherever you like since bass sound is nondirectional. Normally place it in front of you.

Connecting Audio/Video Components

When connecting individual components, refer also to the manuals supplied with them.

Analog Connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

• Connect the white plug to the audio left jack, and the red plug to the audio right jack.

If your audio components have a COMPU LINK jack

See also page 28 for detailed information about the connection and the COMPU LINK remote control system.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player

To audio

output

L

R

C

S.WFR

LS

RS

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 16).

Cassette deck/CD recorder

Cassette deck or CD recorder

To audio input

To audio output

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name to “CDR,” which will be shown on the display when it is selected as the source. See page 12 for details.

6

AUDIO

DVD

IN

RIGHT LEFT

A

B

DVD

IN

DVD

R

L

MONITOR

OUT

TV SOUND

IN

AUDIO

RIGHT LEFT

A

B

R

L

OUT

(REC)

VCR

IN

(PLAY)

OUT

(REC)

VCR

IN

(PLAY)

R

L

R

L

A B DC

Do not connect the AC power cord until all other connections

R

L

A

B

have been made.

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

VCR

DVD player

Å To composite video output ı To left/right front channel audio output (or to audio-mixed

VCR

output if necessary)

Å To audio input ı To audio output Ç To composite video input Î To composite video output

Note:

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital input/ output terminals.

TV

Video camera, etc.

The AUX input jacks on the front panel are convenient when connecting and disconnecting the component frequently.

Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

Å To audio output ı To composite video input

TV

Video camera, etc.

Å To audio output ı To composite video output

7

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

Getting Started

Do not connect the AC power cord until all other connections have been made.

Digital Connections

By connecting the receiver and the source component through the digital terminals, sound reproduction quality will be much improved. In addition, you can enjoy multi-channel reproduction and some other convenient functions.

IMPORTANT:

• When connecting a video component using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly.

For details, see “Setting the Digital Input Terminals” on page 20.

– Select the digital input mode correctly. For details, see

“Selecting the Analog or Digital Input Mode” on page 11.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital optical cable (not supplied) between digital optical terminals

Notes:

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:

– DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player

• When you want to operate the CD player or CD recorder using the

COMPU LINK remote control system (see page 28), connect it also as described in “Audio component connections” of “Analog Connections” (see page 6).

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using a digital optical cable (not supplied).

Before connecting a digital optical cable, unplug the protective plug.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When

unplugging the cord, always grasp the plug so as not to damage the cord.

8

Basic Operations

VOLUME

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

TAPE/CDR CD DVD

FM/AM TV SOUND VCR

AUX

VOLUME

The following operations are commonly used when you play any sound sources.

Operations hereafter will be explained using the buttons on the front panel. You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.

Daily Operational Procedure

1 Turn on the power.

• See “Turning On the Power” below.

2 Select the source.

• See “Selecting the Source to Play” to the right.

3 Adjust the volume.

• See “Adjusting the Volume” on page 10.

4 Select the Surround or DSP modes.

• See “Activating the Surround Modes” (page 25) and “Activating the DSP Modes” (page 27).

Turning On the Power

Selecting the Source to Play

When you have connected digital source components using the digital terminals, first change the input mode for these components to the digital input mode (see page 11).

Press one of the source selection buttons.

Selected source name appears.

On the front panel

Press STANDBY/ON (or STANDBY/ON AUDIO on the remote control).

The STANDBY lamp goes off.

Current source name appears.

Current volume level appears.

To turn off the power (into standby mode),

press STANDBY/ON (or STANDBY/ON AUDIO on the remote control) again. The STANDBY lamp lights up.

Note:

A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.

On the remote control

Notes:

• When connecting a CD recorder to the TAPE/CDR jacks, change the source name shown on the display. For details, see page 12.

• By pressing the one of the audio source selection buttons—TAPE/ CDR, CD, and FM/AM—on the remote control, you can turn on the receiver and select the audio source.

9

SB SB

TAPE/CDR CD DV D

FM/AM TV SOUND VCR

AUX

Basic Operations

Speaker and signal indicators on the display

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Signal indicatorsSpeaker indicators

What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 18).

• The frames of “L,” “C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL.” Sounds come out of the speakers whose speaker indicators is lit on the display.

• The pages 11 and 18).

The signal indicators light up to show the incoming signals.

L:•When digital input is selected: Lights up when the left

R:•When digital input is selected: Lights up when the right

C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal

SB: Lights up when the surround back channel signal comes in.

How to understand the speaker and signal indicator illumination

indicator lights up when the subwoofer is activated (see

channel signal comes in.

• When analog input is selected: Always lights up.

channel signal comes in.

• When analog input is selected: Always lights up.

comes in.

Ex. No sound comes out of the

center speaker and surround speakers though center channel and surround channel signals are coming into this receiver.

Selecting different sources for picture and sound

While watching pictures from a video source, you can listen to sound of an audio source.

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.

CD AMTAPE/CDR

SOURCE NAME

On the front panel

FM

On the remote control

Adjusting the Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/ or ruin your speakers.

Note:

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

10

Listening with headphones:

Remote

NOT

Remote

NOT

You can enjoy not only stereo software but also multichannel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

1 Press SPEAKERS ON/OFF to deactivate the speakers.

“HEADPHONE” appears for a while, and the H.PHONE indicator lights on the display.

• If the Surround or DSP mode has been activated, “3D H PHONE” appears for a while (and the DSP indicator also lights up on the display)—3D Headphone Mode (3D H PHONE). For details, see pages 24 and 26.

2 Connect the headphones to the PHONES jack on the front

panel.

• If you do not deactivate the speakers, no sound comes out of the headphones.

After using the headphones, disconnect the headphones, then press SPEAKERS ON/OFF again to activate the speakers.

CAUTION:

Be sure to turn down the volume....

• Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.

• Before turning on speakers again, as its high volume may come out of the speakers.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the both analog and digital terminals (see pages 6 to 8), you can select the input mode—either digital or analog—for these components.

Before you start, remember... The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see “Setting the Digital Input Terminals” on page 20).

1 Press one of the source selection buttons (DVD,

TV SOUND, CD, TAPE/CDR*) for which you want to change the input mode.

*

If “TAPE” is selected as the source, digital input mode is not available. To change the source name, see “Changing the Source Name” on page 12.

2 Press INPUT DIGITAL to select “DIGITAL AUTO.”

The DIGITAL AUTO indicator lights up on the display.

• When using the remote control, press ANALOG/DIGITAL repeatedly to select “DIGITAL AUTO.”

Turning On and Off the Subwoofer Sound

You can cancel the subwoofer output even though you have connected a subwoofer and have set “SUBWOOFER” to “SUBWOOFER YES” (see page 18).

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer output.

Each time you press the button, subwoofer output is deactivated (“SUBWOOFER OFF”) and activated (“SUBWOOFER ON”) alternately.

• When subwoofer output is canceled, the Bass sounds (and LFE signals) will be emitted through the front speakers.

Notes:

• When subwoofer output is activated, you can also adjust the

subwoofer output level. For details, see page 22.

• You cannot deactivate the subwoofer output when you set “SMALL”

for the front speakers on the speaker size setting (see page 18) or using Quick Speaker Setup (see page 16).

• You cannot activate the subwoofer output when you have set

“SUBWOOFER” to “SUBWOOFER NO” (see page 18).

• When you change the “SUBWOOFER” setting from “SUBWOOFER

NO” to “SUBWOOFER YES” (see page 18), subwoofer output is automatically activated.

indicator goes off.

• When selecting “DIGITAL AUTO,” the following indicators indicate the digital signal format of the incoming signal.

: Lights up when Linear PCM signals come

in.

: Lights up when Dolby Digital signals

come in.

: Lights up when conventional DTS signals

come in.

: Lights up when DTS 96/24 signals come

in.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For details about the digital signal formats, see pages 23 and 24.

Continued on the next page

11

DIGITAL AUTO DOLBY DIGITAL

DTS SURROUND

Remote

NOT

Remote

NOT

Basic Operations

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.”

• Each time you press INPUT DIGITAL, the input mode changes as follows:

• When using the remote control, press ANALOG/DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.” Each time you press ANALOG/DIGITAL on the remote control, the input mode changes as follows:

DIGITAL AUTO=DOLBY DIGITAL=DTS SURROUND =ANALOG=(back to the beginning)

When “DOLBY DIGITAL” or “DTS SURROUND” is selected,

the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.

• If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash.

Attenuating the Input Signal

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• Once you have made adjustment, it is memorized for each analog source.

Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.

• Each time you press and hold the button, the input attenuator mode turns on (“INPUT ATT ON”) and off (“INPUT NORMAL”).

Changing the Source Name

When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

Note:

When you turn off the power or select another source, “DOLBY DIGITAL” and “DTS SURROUND” settings are canceled and the digital input mode is automatically reset to “DIGITAL AUTO.”

To select the analog input mode

Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

Changing the Display Brightness

You can dim the display.

When changing the source name from “TAPE” to “CDR”: 1 Press TAPE/CDR (SOURCE NAME).

• Make sure “TAPE” appears on the display.

2 Press and hold SOURCE NAME (TAPE/CDR) until

“ASSIGN CDR” appears on the display.

To change the source name back to “TAPE,” repeat the same

procedure above.

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience. – “TAPE” will appear on the display when you select the CD recorder. – You cannot use the digital input (see page 11) for the CD recorder.

Press DIMMER.

• Each time you press the button, the display dims and brightens alternately.

12

The following basic operations are possible only using the

2010 30 40 50 60 70 80 90

(Canceled)

OFF

remote control.

Recording a source

You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time. While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording.

TA/NEWS/INFO

REW

REC PAUSE

FF

SLEEP

CD-DISC

MUTING

Using the Sleep Timer

Muting the Sound

Press MUTING to mute the sound through all speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the VOLUME indicator and its level indication go off).

To restore the sound, press MUTING again.

• Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound.

Note:

The output volume level, Midnight Mode (see page 19), Equalization patterns (see page 22), Surround modes and DSP modes (see pages 23 to 26) cannot affect the recording.

Basic adjustment auto memory

This receiver memorizes sound settings for each source—

• when you turn off the power,

• when you change the source,

• when you change the analog/digital input modes, and

• when you assign the source name (see page 12).

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 11)

• Input attenuator mode (see page 12)

• Equalization pattern (see page 22)

• Speaker output levels (see page 22)

• Surround and DSP mode selection (see pages 23 and 26)

Notes:

• If the source is FM or AM, you can assign a different setting for each band.

• A sound setting assigned for a digital component is valid for both the analog and digital input modes.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:

To check or change the time remaining until the shut-off time:

Press SLEEP once. The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP OFF” appears on the display. The SLEEP indicator goes off.

• Turning off the power also cancels the Sleep Timer.

13

Receiving Radio Broadcasts

Remote

NOT

Remote

NOT

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

You can browse through all the stations or use the preset function to go immediately to a particular station.

Tuning in to Stations Manually

1 Press FM or AM to select the band.

The last received station of the selected band is tuned in.

2 Press FM/AM TUNING 5 or ∞ repeatedly until

you find the frequency you want.

• Pressing FM/AM TUNING 5 increases the frequency.

• Pressing FM/AM TUNING ∞ decreases the frequency.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

1 Tune in the station you want to preset (see

“Tuning in to Stations Manually”).

• If you want to store the FM reception mode for this station,

select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 15.

2 Press MEMORY.

Notes:

• To select the band from the remote control, press FM/AM repeatedly. Each time you press the button, the band alternates

between FM and AM.

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator also lights up (except when selecting “MODE MONO” as the FM reception mode).

• When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.

The channel number position starts flashing on the display for about 5 seconds.

3 Press FM/AM PRESET 5 or ∞ to select a

channel number while the channel number position is flashing.

4 Press MEMORY again while the selected channel

number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

5 Repeat steps 1 to 4 until you store all the stations

you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

14

To tune in a preset station

CD-DISC

REC PAUSE

1

4

7

10

2

5

8

3

6

9

10

REW

FF

TA/NEWS/INFO

FM/AM

TUNED

STEREO

AUTO MUTING

AUTO MUTING MODE MONO

On the front panel:

1 Press FM or AM to select the band.

2 Press FM/AM PRESET 5 or ∞ until you find the

channel you want.

• Pressing FM/AM PRESET 5 increases the number.

• Pressing FM/AM PRESET ∞ decreases the number.

On the remote control:

Selecting the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

• You can store the FM reception mode for each preset station (see page 14).

While listening to an FM station, press FM MODE.

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MODE MONO.”

1 Press FM/AM to select the band (FM or AM).

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM.

2 Press the number buttons to select a preset

channel number.

• For channel number 5, press 5.

• For channel number 15, press +10 then 5.

• For channel number 20, press +10 then 10.

• For channel number 30, press +10, +10, then 10.

Note:

When you use the number buttons on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page

29.)

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)

MODE MONO: Select this to improve the reception (but

stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)

Note:

After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE.

15

Basic Settings

Remote

NOT

5.0CH “ 5.1CH “ 2.0CH “ 2.1CH “ 3.0CH “

3.1CH “ 4.0CH “ 4.1CH “ (Back to the beginning)

L (Large) S (Small)

M (Medium)

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.

Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.

• You can also register each speaker’s information manually. For details, see page 18.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1 Press QUICK SPEAKER SETUP.

“SPK=” and the initial speaker channel number appear.

2 Turn MULTI JOG to select an appropriate

number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

• For the details of speaker channel number, see “Speaker channel number and speaker size.”

5 Press in MULTI JOG (PUSH SET).

“COMPLETE” appears on the display, then goes back to the source indication.

Note:

This procedure will not be completed if you stop in the middle of the setting process.

Speaker channel number and speaker size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “CH” number) you select.

• Subwoofer (S.WFR) is counted as 0.1 channel.

CH

2.0CH LARGE NONE NONE NO

2.1CH SMALL NONE NONE YES

3.0CH LARGE SMALL NONE NO

3.1CH SMALL SMALL NONE YES

4.0CH LARGE NONE SMALL NO

4.1CH SMALL NONE SMALL YES

5.0CH LARGE SMALL SMALL NO

5.1CH SMALL SMALL SMALL YES

Room size and speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

The size of the connected speakers

L/R C LS/RS S.WFR

3 Press in MULTI JOG (PUSH SET).

“ROOM SIZE=” and the initial room size setting appear.

4 Turn MULTI JOG to select an appropriate room

size to match to your listening room.

As you turn the jog, the room size changes as follows.

• To select your appropriate room size, see “Room size and speaker distance/output level.”

Room

size

L L/R 3.0 m (10 ft) 0 dB

(Large) C 3.0 m (10 ft) 0 dB

M L/R 2.7 m (9 ft) 0 dB

(Medium) C 2.4 m (8 ft) –2 dB

S L/R 2.4 m (8 ft) 0 dB

(Small) C 2.1 m (7 ft) –2 dB

Notes:

• In the tables above, “L” stands for the left front speaker, “R” for the right front speaker, “C” for the center speaker, “LS” for the left surround speaker, “RS” for the right surround speaker, and “S.WFR” for the subwoofer.

•

Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the Speaker Output Levels” on page 22.

Speaker Distance

LS/RS 3.0 m (10 ft) 0 dB

LS/RS 2.1 m (7 ft) –3 dB

LS/RS 1.5 m (5 ft) –4 dB

Output

level

16

Basic Setting Items

Remote

NOT

On the following pages, you can adjust the following items:

• You can only select the items currently available. For details, see the explanation of each item.

Items To do See page

SUBWOOFER*

FRNT SPEAKERS*

CNTR SPEAKER*

SURR SPEAKERS*

DISTANCE UNIT

FRONT L DIST*

FRONT R DIST*

CENTER DIST*

SURR L DIST*

SURR R DIST*

SUBWOOFER OUT

CROSSOVER

LFE ATTENUATE

MIDNIGHT MODE

DUAL MONO

VIRTUAL SBACK

DIGITAL IN

Register your subwoofer. 18

Register your front speaker size. 18

Register your center speaker size. 18

Register your surround speaker size. 18

Select the measuring unit for the speaker distance. 18

Register the distance from the left front speaker to your listening point. 18

Register the distance from the right front speaker to your listening point. 18

Register the distance from the center speaker to your listening point. 18

Register the distance from the left surround speaker to your listening point. 18

Register the distance from the right surround speaker to your listening point. 18

Select the type of the sounds emitted from the subwoofer. 18

Select the cutoff frequency to the subwoofer. 19

Attenuate the bass (LFE) sounds. 19

Reproduce a powerful sound at night. 19

Select the Dual Mono sound channel. 19

Turn on or off Virtual Surround Back. 20

Select the component connected to digital input terminal. 20

Basic Procedure

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When setting Virtual Surround Back to “VRTL SB ON.”

1 Press SETTING.

The last selected item appears on the display.

2 Turn MULTI JOG until an item you want

appears on the display.

• In this example, select “VIRTUAL SBACK.” For available items, see the list “Basic Setting Items.”

3 Press in MULTI JOG (PUSH SET).

The current setting for the selected item appears on the display.

Note:

*

These items can be set using Quick Speaker Setup.

4 Turn MULTI JOG until a setting you want

appears on the display.

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

17

Basic Settings

Setting the Speakers

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.

• If you have used Quick Speaker Setup on page 16, this setting is not required.

¶

Speaker distance—FRONT L DIST, FRONT R DIST, CENTER DIST, SURR L DIST, SURR R DIST

Set the distance from the listening point within the range of

0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.

• When shipped from the factory, distance for each speaker is set to “3.0m (10FT).”

¶

Subwoofer setting—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWOOFER YES: Select when a subwoofer is connected.

SUBWOOFER NO: Select when no subwoofer is used.

Note:

If you have selected “SUBWOOFER NO” for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.

¶

Speaker size—FRNT SPEAKERS, CNTR SPEAKER, SURR SPEAKERS

Select the size for each connected speaker.

LARGE: Select when the speaker size is relatively large.

SMALL: Select when the speaker size is relatively small.

NONE: Select this when you have not connected a

speaker. (Not selectable for the front speakers.)

Notes:

• Keep the following comments in mind as reference when adjusting. – If the size of the cone speaker unit built in your speaker is

larger than 12 cm (4 3/4 inches), select “LARGE,” and if it is smaller than 12 cm (4 3/4 inches), select “SMALL.”

• If you have selected “SUBWOOFER NO” for the subwoofer setting, you can only select “LARGE” for the front speakers.

• If you have selected “SMALL” for the front speakers, you cannot select “LARGE” for the center and surround speakers.

Setting the Speaker Distance

The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers. By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you with the same timing.

• If you have used Quick Speaker Setup on page 16, this setting is not required.

Measuring unit—DISTANCE UNIT

¶

Select which measuring unit you use.

Note:

You cannot set the speaker distance for the speakers you have selected “NONE.”

C

LR

2.4 m (8 ft)

2.1 m (7 ft)

LS

Ex. In the above case, set the speaker distance as follows:

Front speakers: 3.0m (10FT) Center speaker: 3.0m (10FT) Surround speakers: 2.7m (9FT)

2.7 m (9 ft)

3.0 m (10 ft)

RS

3.3 m (11 ft)

Setting the Bass Sounds

You can adjust subwoofer and bass sounds precisely according to your preference.

¶

Subwoofer output—SUBWOOFER OUT

You can select the type of the signal which can be transmitted through the subwoofer. In other words, you can determine whether or not the bass elements of the front speaker channels are transmitted through the subwoofer regardless of the front speaker size setting (either “SMALL” or “LARGE”).

Select one of the following:

SWFR LFE: Select to emit only the LFE signals (while

playing Dolby Digital and DTS software) or the bass elements of the “SMALL” front speakers (while playing any source other than the above).

SWFR LFE+MAIN: Select to always emit the bass elements of

the front speaker channels (MAIN). While playing Dolby Digital and DTS software, the bass element and the LFE signals are both emitted.

UNIT METER: Select to set the distance in meters.

UNIT FEET: Select to set the distance in feet.

18

Note:

If you have selected “SUBWOOFER NO” for the subwoofer, this function is not available.

¶

Crossover frequency—CROSSOVER

You can select the crossover frequency for the small speakers used. The signals below the preset frequency level will be sent to and be reproduced by the subwoofer (or by “LARGE” speakers when “SUBWOOFER” is set to “SUBWOOFER NO”).

Select one of the crossover frequency levels according to the size of the small speaker connected.

CROSS 80HZ: Select when the cone speaker unit built in the

speaker is about 12 cm (4

3

/4 inches).

CROSS 100HZ: Select when the cone speaker unit built in the

15

speaker is about 10 cm (3

/16 inches).

CROSS 120HZ: Select when the cone speaker unit built in the

3

speaker is about 8 cm (3

CROSS 150HZ: Select when the cone speaker unit built in the

speaker is about 6 cm (2

/16 inches).

3

/8 inches).

CROSS 200HZ: Select when the cone speaker unit built in the

speaker is about 5 cm (2 inches).

Notes:

• If you have selected “LARGE” for all activated speakers (see page

18), this function is fixed to “CROSS OFF.”

• Crossover frequency is not valid for “HEADPHONE” and “3D H PHONE.”

¶

Low frequency effect attenuator—LFE ATTENUATE

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

• This function takes effect only when the LFE signals come in.

Select one of the following:

LFE ATT 0dB: Normally select this.

LFE ATT −10dB: Select when the bass sound is distorted.

Selecting the Main or Sub Channel

You can select the playback sound (channel) you want while playing digital software recorded (or broadcast) in Dual Mono mode (see page 24), which includes two monaural channels separately.

¶

Dual Mono—DUAL MONO

Select the playback sounds (channel).

MONO MAIN: Select to play back the main channel (Ch 1).*

Signal indicator “L” lights up while playing back this channel.

MONO SUB: Select to play back the sub-channel (Ch 2).*

Signal indicator “R” lights up while playing back this channel.

MONO ALL: Select to play back both the main and sub-

channels (Ch 1/Ch 2).* Signal indicators “L” and “R” light up while playing back these channels.

Notes:

• The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.

*

Dual Mono signals can be heard from the following speakers—L (left front speaker), R (right front speaker), and C (center speaker)—with respect to the current Surround setting.

With Surround Activated

Dual Mono

Setting SMALL/LARGE NONE

MAIN Ch 1 Ch 1 — Ch 1 — Ch 1 Ch 1

SUB Ch 2 Ch 2 — Ch 2 — Ch 2 Ch 2

ALL Ch 1 Ch 2 — Ch 1+Ch 2 — Ch 1+Ch 2 Ch 1+Ch 2

Without Surround

LRLCRL R

Center speaker setting

Midnight mode—MIDNIGHT MODE

¶

You can enjoy a powerful sound at night using Midnight Mode.

Select one of the following:

MIDNIGHT 1: Select when you want to reduce the

dynamic range a little.

MIDNIGHT 2: Select when you want to apply the

compress effect fully (useful at midnight).

MIDNIGHT OFF: Select when you want to enjoy playback

with its full dynamic range (no effect applied).

19

Basic Settings

Setting for Effective Surround Operations

¶

Virtual Surround Back—VIRTUAL SBACK

You can enjoy the surround back channel while playing back Dolby Digital Surround EX software or DTS-ES software without the surround back speakers. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Select “VRTL SB ON” to activate Virtual Surround Back.

VRTL SB ON: While you play Dolby Digital Surround EX

software or DTS-ES software, the VIRTUAL SB (Surround Back) indicator lights up.

VRTL SB OFF: Select to deactivate Virtual Surround Back.

Notes:

• When you have set “NONE” for “SURR SPEAKERS,” this function is not available.

• While playing back DTS-ES Matrix software with DTS 96/24, DTS 96/24 processing will not be performed with Virtual Surround Back activated. To apply the processing, deactivate Virtual Surround Back.

• Virtual Surround Back may not be applied to some software.

• Virtual Surround Back only works for Surround modes (see page

25). This function does not work when activating the DSP mode (see page 27).

Setting the Digital Input Terminals

When you use the digital input terminals, register which components you have connected to the digital input terminals.

¶

Digital Input terminal—DIGITAL IN

Set the components connected to the digital terminals.

• As you rotate MULTI JOG, the digital input terminals are set to used for the following digital components:

1DVD 2CD “ 1DVD 2TV “ 1DVD 2CDR “

1CD 2DVD “ 1CD 2TV “ 1CD 2CDR “

1TV 2DVD “ 1TV 2CD “ 1TV 2CDR “

1CDR 2DVD “ 1CDR 2CD “ 1CDR 2TV “

(back to the beginning)

20

Adjusting Sound

Remote

NOT

You can make sound adjustment to your preference after completing basic settings.

Basic Adjustment Items

On the following pages, you can adjust the following items:

• You can adjust only the items applicable to the current sound mode.

Items To do See page

DEQ 63HZ Adjust equalizer pattern at 63 Hz. 22

DEQ250HZ Adjust equalizer pattern at 250 Hz. 22

DEQ 1KHZ Adjust equalizer pattern at 1 kHz. 22

DEQ 4KHZ Adjust equalizer pattern at 4 kHz. 22

DEQ16KHZ Adjust equalizer pattern at 16 kHz. 22

SUBWFR LEVEL Adjust the subwoofer output level. 22

FRONT L LEVEL Adjust the left front speaker output

level. 22

FRONT R LEVEL Adjust the right front speaker output

level. 22

CENTER LEVEL Adjust the center speaker output

level. 22

SURR L LEVEL Adjust the left surround speaker

output level. 22

SURR R LEVEL Adjust the right surround speaker

output level. 22

EFFECT*

CENTER TONE Make the center tone soft or sharp. 22

PANORAMA CTRL

1

Adjust the effect level. 22

*2Add “wraparound” sound effect with

side-wall image. 22

Basic Procedure

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When adjusting the subwoofer level to “–3.”

1 Press ADJUST.

The last selected item appears on the display.

2 Turn MULTI JOG until an item you want

appears on the display.

• In this example, select “SUBWFR LEVEL.” For available items, see the list “Basic Adjustment Items.”

Notes:

1

*

Adjustable when one of the DAP modes or Mono Film (see pages 26 and 27) is in use.

2

*

Adjustable when Pro Logic II Music is in use.

3 Press in MULTI JOG (PUSH SET).

The current setting (or level) for the selected item appears on the display.

4 Turn MULTI JOG to select a setting you want or

to make an adjustment as you like.

5 Press in MULTI JOG (PUSH SET).

6 Repeat steps 2 to 5 to set other items if necessary.

7 Press EXIT.

The source indication resumes on the display.

21

Adjusting Sound

Adjusting the Equalization Patterns

You can adjust the equalization patterns to your preference.

• Once you have made adjustment, it is memorized for each source.

¶

Equalization adjustment—DEQ 63HZ, DEQ250HZ, DEQ 1KHZ, DEQ 4KHZ, DEQ16KHZ

You can adjust five frequencies (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of –8 dB to +8 dB in 2 dB

steps.

• When adjustment is made, the DIGITAL EQ indicator lights up on the display.

To flat the equalization pattern, set all the frequencies to “0 (0 dB)” in step 4 of “Basic Procedure” (on page 21). The DIGITAL EQ indicator goes off from the display.

Note:

The equalization patterns affect the front speaker sounds only.

Adjusting the Speaker Output Levels

You can adjust the speaker output levels.

• Once you have made adjustment, it is memorized for each source.

Adjustable speakers—SUBWFR LEVEL,

¶

FRONT L LEVEL, FRONT R LEVEL, CENTER LEVEL, SURR L LEVEL, SURR R LEVEL

You can adjust the connected speakers’ output levels within the range of –10 dB to +10 dB.

Note:

If you have deactivated a speaker (see page 18), the output level adjustment for the speaker is not adjustable.

Adjusting the Sound Parameters for the

Surround and DSP Modes

You can adjust the Surround and DSP sound parameters to your preference. (For Surround and DSP modes, see pages 23 and 26.)

¶

Adjustable parameters

You can adjust the following parameters:

For DAP modes and Mono Film

• Once you have made adjustment, it is memorized for each mode.

EFFECT: Adjust the effect level. As the number increases,

the effect becomes stronger. (Adjustable range: 1 to 5. Normally select “3.” )

For Surround and DSP modes (when the center speaker is connected)

CENTER TONE: Adjust the center tone. As the number

increases, the dialogue becomes clearer so that the human voices change from soft to sharp. (Adjustable range: 1 to 5. Normally select “3.”)

For Pro Logic II Music only

PANORAMA CTRL: Select “PANORAMA ON” to add

“wraparound” sound effect with side-wall image.

• To cancel it, select “PANORAMA OFF.”

You can also use the remote control for adjusting the speaker output level using the test tone.

• You can also adjust the effect level

for DAP modes and Mono Film.

To adjust the speaker output level: 1 Press SOUND.

The number buttons are activated for sound adjustments.

TEST

EFFECT

REC PAUSE

FRONT L

CENTER

SURR L

TA/NEWS/INFO

REW

FRONT R

SUBWFR

SURR R

LEVEL

2 Press TEST to check if you can

hear the sounds through all the speakers at equal level.

Test tone (TEST TONE) comes out of the speakers in the following order.

• No test tone comes out of the speakers for which the speaker setting is set to “NONE” (or “SUBWOOFER NO” for the subwoofer).

L (Left front) = C (Center) = R (Right front) RS (Right surround) = LS (Left surround) SW (Subwoofer) =(Back to the beginning)

=

3 Adjust the speaker output level (–10 dB to +10 dB).

• For the left front speaker: Press FRONT L, then LEVEL +/–.

• For the center speaker: Press CENTER, then LEVEL +/–.

• For the right front speaker: Press FRONT R, then

LEVEL +/–.

• For the right surround speaker: Press SURR R, then

LEVEL +/–.

• For the left surround speaker: Press SURR L, then

LEVEL +/–.

• For the subwoofer: Press SUBWFR, then LEVEL +/–.

Note:

When you press LEVEL +/– once, the current level for the selected speaker appears on the display, and the test tone comes out of the selected speaker. If no adjustment is done for about 4 seconds, the adjustment mode for the selected speaker is canceled.

4 Press TEST again to stop the test tone.

To adjust the effect level: 1 Press SOUND.

The number buttons are activated for sound adjustments.

2 Press EFFECT repeatedly to select the effect level

(EFFECT 1 to EFFECT 5).

The source indication resumes about 4 seconds after the adjustment.

FF

CD-DISC

Note:

This setting is common to all Surround modes, and is memorized separately for DSP modes.

22

Using the Surround Modes

PRO LOGIC

This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

Reproducing Theater Ambience

In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions. With these many speakers, sound localization and sound movement can be expressed.

Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theater—with only a limited number of the speakers.

Introducing the Surround Modes

Dolby Digital*

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).

• When Dolby Digital signal is detected through the digital input, the

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY DIGITAL) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.

Another digital surround encoding format introduced by Dolby Laboratories is Dolby Digital EX, which adds the third surround channels, called “surround back.” Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.

• You can use Virtual Surround Back (see page 20) when playing back Dolby Digital Surround EX software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

1

indicator lights up on the display.

Left front

speaker

(L)

Left surround speaker (LS)

Center speaker

(C)

Right front

speaker

(R)

Right surround

speaker (RS)

Subwoofer

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrixbased conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

• This receiver provides three types of Dolby Pro Logic II modes—Pro Logic II Movie (PLII MOVIE), Pro Logic II Music (PLII MUSIC), and Pro Logic II Game (PLII GAME). When Dolby Pro Logic II is activated, the indicator lights up on the display.

PLII MOVIE: Suitable for playing any Dolby Surround

encoded software. You can enjoy a sound field very close to the one created with discrete 5.1channel sounds.

PLII MUSIC: Suitable for playing any 2-channel stereo

software. You can enjoy wide and deep sounds.

PLII GAME: Suitable for playing a video game. You can

enjoy sounds with “being there” feeling.

1

*

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

23

Using the Surround Modes

2

DTS*

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

• When DTS signal is detected through the digital input, the indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS SURROUND) is another discrete

5.1-channel digital audio format available on CD, LD, and DVD

software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

Another multi-channel digital encoding format introduced by Digital Theater Systems, Inc. is DTS Extended Surround (DTS-ES). It greatly improves the 360-degree surround impression and space expression by adding the third surround channel—surround back channel. DTS-ES includes two signal formats with different surround signal recording methods—DTS-ES Discrete 6.1ch and DTS-ES Matrix

6.1ch.

• You can use Virtual Surround Back (see page 20) when playing back DTS-ES software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

DTS 96/24

In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range. DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “betterthan-CD sound quality” into the home.

• When DTS 96/24 signal is detected, the lights up. You can enjoy its 5.1-channel sound with full-quality.

indicator

What is Linear PCM?

Uncompressed digital audio data used for DVDs, CDs and Video CDs. DVDs support 2 channels with sampling rates of 48/96 kHz, at quantization of 16/20/24 bits. On the other hand, CDs and Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

• When Linear PCM signal is detected, the indicator lights up.

What is Dual Mono?

Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) format used for TV programs (however, the Dual Mono format is not identical with those analog formats). This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and subchannel) to be recorded separately.

• When Dual Mono signal is detected, the lights up. You can select either channel you want to listen to (see page 19).

When using the Surround mode, the sounds come out of the activated speakers which the Surround mode requires.

• If either the surround speakers or center speaker is set to “NONE” in the speaker setting, the corresponding channel signals are allocated to and emitted through the front speakers.

• If both the surround speakers and center speaker are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

indicator

3D Headphone Mode—3D H PHONE

If you activate Surround when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators also light up.

24

2

*

“DTS” and “DTS 96/24” are trademarks of Digital Theater Systems, Inc.

Activating the Surround Modes

PRO LOGIC

PLII MOVIE

(Dolby Pro Logic II Movie)

PLII MUSIC

(Dolby Pro Logic II Music)

PLII GAME

(Dolby Pro Logic II Game)

AUTO SURROUND

(2-channel sound remains.)

DUAL

MONO

SB

VIRTUAL SB

Available Surround modes vary depending on the incoming signals.

Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to

22).

• For DTS multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are

automatically detected and “DTS SURROUND” is activated.

Auto Surround Function

This receiver has Auto Surround Function, which allows you to enjoy the Surround mode simply by selecting the source (with digital input selected for that source).

Auto Surround works...

• When multi-channel signal is detected, an appropriate Surround mode will be turned on.

• When Dolby Digital 2-channel with surround signals is detected, “PLII MOVIE” will be selected.

• When Dolby Digital 2-channel without surround signals is detected, “SURROUND OFF” will be selected.

• When Linear PCM signal is detected, nothing will change.

Note:

This function does not take effect in the following cases: – While playing an analog source, – While selecting any of DSP modes (see page 26), or one of the

fixed digital input mode—“DOLBY DIGITAL” or “DTS SURROUND” (see page 12), and

– While listening with the headphones—“HEADPHONE” or

“3D H PHONE” (see pages 11 and 24).

Activating the Surround Modes Manually

Note:

When the Dolby Digital or DTS multi-channel digital signal stops coming in, “PLII MOVIE” will be activated.

• For analog sources and digital 2-channel software, you can

select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:

• For Dual Mono software, you can select the channel you

listen to. (See page 19.)

1 Select and play any source.

• Make sure you have selected the analog or digital input mode correctly.

2 Press SURROUND to activate the Surround

mode.

• For Dolby Digital multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are

automatically detected and “DOLBY DIGITAL” is activated.

To adjust the speaker output level, center tone, and sound effect of Dolby Pro Logic II Music, see page 22.

To cancel the Surround mode

Press SURROUND/DSP OFF.

When playing Dolby Digital Surround EX or DTS-ES software

You can enjoy Virtual 6.1-channel playback using Virtual Surround Back.

To activate Virtual Surround Back, see page 20.

Note:

When “DOLBY DIGITAL,” “DTS SURROUND,” or “DUAL MONO” is selected as the Surround mode, pressing SURROUND changes the indication on the display alternately between “AUTO SURROUND” and each Surround mode. (The surround effect does not change.)

25

Using the DSP Modes

PRO LOGIC

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 16 to

22) are applied automatically.

Reproducing the Sound Field

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. DSP modes can create these important elements, and give you a real “being there” feeling.

Reflections from

Early reflections

Direct sounds

behind

Introducing the DSP Modes

DSP modes include the following modes—

• Digital Acoustic Processor (DAP) modes—HALL 1, HALL 2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2

• ALL CH STEREO

• MONO FILM—Used for all types of 2-channel signals (including Dual Mono signal)

To use DSP modes, press DSP so that the DSP modes change as follows. The DSP indicator also lights up on the display.

=

HALL 1 = HALL 2 = LIVE CLUB

=

DANCE CLUB = PAVILION = ALL CH STEREO

= THEATER 1 =

=

(Back to the beginning)

THEATER 2 = MONO FILM

: Suitable for audio sources

: Suitable for video sources

Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.

HALL 1: Reproduces the spatial feeling of a large shoebox-

shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)

HALL 2: Reproduces the spatial feeling of a large vineyard-

shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)

LIVE CLUB: Reproduces the spatial feeling of a live music club

with a low ceiling.

DANCE CLUB: Reproduces the spatial feeling of a rocking dance

club.

PAVILION: Reproduces the spatial feeling of an exhibition hall

with a high ceiling.

THEATER 1*: Reproduces the spatial feeling of a large theater

where the seating capacity is about 600.

THEATER 2*: Reproduces the spatial feeling of a small theater

where the seating capacity is about 300.

*

The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The indicator lights up.

26

3D Headphone Mode—3D H PHONE

If you press DSP when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators light up.

When using the DAP mode, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting,

JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

DSP

All Channel Stereo

This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers.

• If the surround speakers are set to “NONE,” you cannot select

“ALL CH STEREO.”

Sound reproduced from normal stereo

Activating the DSP Modes

Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to

22).

1 Select and play any source.

2 Press DSP repeatedly until the DSP mode you

want appears on the display.

• Each time you press the button, the DSP modes change as follows:

Sound reproduced from All Channel Stereo mode

Mono Film

In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2-channel digital signals), you can use this mode. The surround effect will be added, and the sound localization of actor’s words will be improved. This mode cannot be used for

multi-channel digital signals.

When “MONO FILM” is used, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting,

JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

• If incoming signals change from 2-channel digital signal to another digital signal type, “MONO FILM” is canceled and an appropriate Surround mode is activated.

=

HALL 1 = HALL 2 = LIVE CLUB

=

DANCE CLUB = PAVILION = ALL CH STEREO

= THEATER 1 =

=

(Back to the beginning)

THEATER 2 = MONO FILM

Note:

When the surround speakers are set to “NONE,” the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).

To adjust the effect level (except All Channel Stereo) and center tone, see page 22.

To cancel the DSP mode

Press SURROUND/DSP OFF.

27

COMPU LINK Remote Control System

COMPU LINK-4

(SYNCHRO)

The COMPU LINK remote control system allows you to operate JVC’s audio components through the remote sensor on the receiver.

To use this remote control system, you need to connect JVC’s audio components through the COMPU LINK (SYNCHRO) jacks using the cables with monaural mini-plugs (not supplied, see below) in addition to the connections using cables with RCA pin plugs (see page 6).

• Make sure that the AC power cords of these components are unplugged before connection. Plug the AC power cords only after all connections are complete.

Cassette deck

or

CD recorder CD player

Automatic Source Selection

When you press the play ( on its own remote control, the receiver automatically turns on and changes the source to the component. On the other hand, if you select a new source on the receiver or on the remote control, the selected component begins playing immediately. In both cases, the previously selected source continues playing without sound for a few seconds.

33

3) button on a connected component or

33

Automatic Power On/Off (standby)—only possible with the COMPU LINK-3 and COMPU LINK-4

The connected components turn on and off (standby) along with the receiver. When you turn on the receiver, one of the connected components will turn on automatically, depending on which component has been previously selected. When you turn off the receiver, the connected components will turn off (standby).

Synchronized Recording

Synchronized recording means the cassette deck starts recording as soon as a CD begins playing.

To use synchronized recording, follow these steps:

1 Put a tape in the cassette deck, and a disc in the

CD player.

Notes:

• There are four versions of COMPU LINK remote control system.

This receiver is equipped with the fourth version—COMPU LINK-4. This version is added systematic operations with the CD recorder to the previous version—COMPU LINK-3.

• If your audio component has two COMPU LINK jacks, you can use

either one. If it has only one COMPU LINK jack, connect it so that it is the last item in the series of components.

• To operate the cassette deck or CD recorder using the COMPU

LINK remote control system, set the source name correctly if required. (See page 12.)

• Refer also to the manuals supplied with your audio components.

This remote control system allows you to use four functions listed below.

Remote Control through the Remote Sensor on the Receiver

You can control the connected audio components through the remote sensor on the receiver using this remote control. Aim the remote control directly at the remote sensor on the receiver. For details, see pages 29 and 30.

2 Press the record (¶) button and the pause (8)

button on the cassette deck at the same time.

This puts the cassette deck into recording pause. If you do not press the record (¶) button and pause (8) button at the same time, the synchronized recording feature will not operate.

3 Press the play (3) button on the CD player.

The source changes on the receiver, and as soon as play starts, the cassette deck starts recording. When the play ends, the cassette deck enters recording pause, and stops about 4 seconds later.

Notes:

• During synchronized recording, the selected source cannot be changed.

• If the power of any component is shut off during synchronized recording, the COMPU LINK remote control system may not operate properly. In this case, you must start again from the beginning.

28

Operating JVC’s Audio/Video Components

You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC’s components are preset in the remote control.

Operating Audio Components

IMPORTANT:

To operate JVC’s audio components using the supplied remote control:

• You need to connect JVC’s audio components through the COMPU LINK (SYNCHRO) jacks (see page 28) in addition to the connections using cables with RCA pin plugs (see page 6).

• Aim the remote control directly at the remote sensor on the receiver.

• To operate the target component using the COMPU LINK remote control system, set the source name correctly if required. (See page 12.)

• Refer also to the manuals supplied with your components.

Sound control section (Amplifier)

You can always perform the following operations:

STANDBY/ON AUDIO:

Turn on or off the receiver.

VOLUME +/–: Adjust the volume level. MUTING: Turn on or off sound muting. ANALOG/DIGITAL: Switch the analog and digital input

alternately.

DIMMER: Dim or brighten the display. SLEEP: Set the Sleep Timer. SURROUND: Turn on and select Surround modes. DSP: Turn on and select DSP modes. SURROUND/DSP OFF:

Turn off the Surround and DSP mode.

After pressing SOUND, you can perform the following operations by using the number buttons:

FRONT L then LEVEL +/–: Adjust the left front speaker output

level.

FRONT R then LEVEL +/–: Adjust the right front speaker output

level.

CENTER then LEVEL +/–: Adjust the center speaker output level. SURR L then LEVEL +/–: Adjust the left surround speaker

output level.

SURR R then LEVEL +/–: Adjust the right surround speaker

output level.

SUBWFR then LEVEL +/–: Adjust the subwoofer output level. EFFECT: Adjust the effect level. TEST: Turn on or off test tone output.

Note:

After adjusting sounds, press the corresponding source selection button to operate your target source by using the number buttons; otherwise, the number buttons cannot be used for operating your target source.

Tuner

You can always perform the following operations:

FM/AM: Alternate between FM and AM.

After pressing FM/AM, you can perform the following operations on a tuner:

1 – 10, +10: Select a preset channel number directly.

For channel number 5, press 5. For channel number 15, press +10, then 5. For channel number 20, press +10, then 10.

FM MODE: Change the FM reception mode.

CD player

After pressing CD, you can perform the following operations on a CD player:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing. 8: Pause playing. To resume, press 3.

1 – 10, +10: Select a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

CD recorder

After pressing TAPE/CDR, you can perform the following operations on a CD recorder:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing and recording. 8: Pause playing or recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

Cassette deck

After pressing TAPE/CDR, you can perform the following operations on a cassette deck:

3: Start playing. REW: Fast-wind the tape from right to left. FF: Fast-wind the tape from left to right.

7: Stop playing and recording or fast-wind the tape. 8: Pause playing or recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

Continued on the next page

29

MENU

ENTER

4

7/P

10

2

8

6

Operating JVC’s Audio/Video Components

CD changer

After pressing CD-DISC, you can perform the following operations on a CD changer:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing. 8: Pause playing. To resume, press 3.

1 – 6, 7/P: Select the number of a disc installed in a CD

changer.

After pressing CD, you can perform the following operations on a CD changer:

1 – 10, +10: Select a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

Example:

• Selecting disc number 4, track number 12, and starting playback.

1 Press CD-DISC, then press 4. 2 Press CD, then press +10, 2.

If your CD changer is of 200-disc loading capability (except for XL-MC100 and XL-MC301), you can do the following operations

using the number buttons after pressing CD.

1 Select a disc number. 2 Then select a track number (always enter two digits). 3 Press 3 to start playback.

Examples:

• Selecting disc number 3, track number 2, and starting playback. Press 3, then, 0, 2, then 3.

• Selecting disc number 10, track number 5, and starting playback. Press 1, 0, then, 0, 5, then 3.

• Selecting disc number 105, track number 12, and starting playback. Press 1, 0, 5, then 1, 2, then 3.

Operating Video Components

IMPORTANT:

To operate JVC’s video components using the supplied remote control:

• Some JVC’s VCRs can accept two types of the control signals— remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code “A.”

• When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.

• Refer also to the manuals supplied with your components.

VCR

You can always perform the following operations:

STANDBY/ON VCR: Turn on or off the VCR. VCR CH +/–: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

3: Start playing. REW: Rewind the tape. FF: Fast-forward the tape.

7: Stop playing, recording, rewind and fast forward. 8: Pause playing and recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

DVD player

You can always perform the following operation:

STANDBY/ON DVD: Turn on or off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

3: Start playing. 4: Return to the beginning of the current (or previous) chapter. ¢: Skip to the beginning of the next chapter. 7: Stop playing. 8: Pause playing. To resume, press 3.

Note:

It is required to press each button within 4 seconds in the above procedure.

30

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

TV

Set TV/CATV selector to “TV.”

You can always perform the following operations:

STANDBY/ON TV/CATV CH +/–: Change the channels. TV VOLUME +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 – 9, 0, 100+ (+10): Select the channels. RETURN (10): Alternate between the previously selected

TV/CATV: Turn on or off the TV.

channel and the current channel.

Operating Other Manufacturers’ Video Equipment

This remote control supplied for the receiver can transmit control signals for other manufacturers’ TVs, CATV converters, VCRs and DVD players.

When operating the other manufacturers’ components, refer also to the manuals supplied with them.

• After replacing batteries for the remote control, you need to set the manufactures’ codes again.

To change the transmittable signals for operating another manufacturer’s TV

1 Set the TV/CATV selector to “TV.”

2 Press and hold STANDBY/ON

TV/CATV.

3 Press TV SOUND.

4 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01* Hitachi 10 Magnavox 02 Mitsubishi 03 Panasonic 04, 11 RCA 05 Samsung 12 Sanyo 13 Sharp 06 Sony 07 Toshiba 08 Zenith 09

* “01” is the initial setting.

5 Release STANDBY/ON TV/CATV.

Now you can perform the following operations on the TV:

STANDBY/ON TV/CATV CH +/–: Change the channels. TV VOLUME +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 – 9, 0, 100+ (+10):

TV/CATV: Turn on and off the TV.

Select the channels. The 10 (ENTER) button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.

To change the transmittable signals for operating a CATV converter

1 Set the TV/CATV selector to “CATV.”

2 Press and hold STANDBY/ON

TV/CATV.

3 Press TV SOUND.

4 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

Echostar 01* General Instrument 02, 03, 04, 05, 06, 07, 08, 09 Hamlin 16, 17, 18, 19 Pioneer 14, 15 RCA 20 Scientific Atlanta 10, 11 Sony 21 Zenith 12, 13

* “01” is the initial setting.

5 Release STANDBY/ON TV/CATV.

Now you can perform the following operations on the CATV converter:

STANDBY/ON

TV/CATV CH +/–: Change the channels.

After pressing TV SOUND, you can perform the following operations on the CATV converter:

1 – 9, 0, 100+ (+10):

TV/CATV:

Turn on and off the CATV converter.

Select the channels. The 10 (ENTER) button will function as the ENTER button if your CATV converter requires pressing ENTER after selecting a channel number.

6 Try to operate your CATV converter by pressing

STANDBY/ON

When your CATV converter on or off, you have entered the correct code.

If there are more than one code listed for your brand of CATV converter, try each one until the correct one is entered.

TV/CATV.

Notes:

• All the functions listed above may not be assigned to the buttons for some TVs.

• If you cannot change the channels of some TVs by pressing the number buttons, press TV/CATV CH +/– for changing the channels.

6 Try to operate your TV by pressing

STANDBY/ON

When your TV turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of TV,

try each one until the correct one is entered.

TV/CATV.

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Continued on the next page

31

MENU

ENTER

4

7/P

10

2

8

6

Operating Other Manufacturers’ Video Equipment

To change the transmittable signals for operating another manufacturer’s VCR

1 Press and hold STANDBY/ON VCR.

2 Press VCR.

3 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01*, 02, 03 Emerson 10, 22 Gold Star 11 Hitachi 04 Mitsubishi 12 NEC 21 Panasonic 07, 13 Philips 09 RCA 05, 06 Samsung 20 Sanyo 17, 18, 19 Sony 14, 15, 16 Zenith 08

* “01” is the initial setting.

4 Release STANDBY/ON VCR.

Now you can perform the following operations on the VCR:

STANDBY/ON VCR CH +/–: Change the TV channels on the

After pressing VCR, you can perform the following operations on the VCR:

3: Start playing. REW: Rewind the tape. FF: Fast-forward the tape.

7: Stop playing or recording. 8: Pause playing. To resume, press 3.

REC PAUSE: Enter recording pause.

VCR: Turn on and off the VCR.

VCR.

To start recording, press this button then 3.

5 Try to operate your VCR by pressing

STANDBY/ON

When your VCR turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

VCR.

To change the transmittable signals for operating another manufacturer’s DVD player

1 Press and hold STANDBY/ON DVD.

2 Press DVD.

3 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01* Panasonic 02 Philips 04 Pioneer 03 Sony 05 Toshiba 06 Yamaha 07

* “01” is the initial setting.

4 Release STANDBY/ON DVD.

Now you can perform the following operations on the DVD player:

STANDBY/ON DVD: Turn on and off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

3: Start playing. 4: Return to the beginning of the current (or previous)

chapter (or fast reverse for some models).

¢: Skip to the beginning of the next chapter (or fast

forward for some models).

7: Stop playing. 8: Pause playing. To resume, press 3.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

5 Try to operate your DVD player by pressing

STANDBY/ON

When your DVD player turns on or off, you have entered the correct code.

DVD.

32

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC’s service center.

PROBLEM

The display does not light up.

No sound from speakers.

“NO SUBWOOFER” appears on the display.

Continuous hiss or buzzing during FM reception.

Noise is heard during FM/AM reception.

“OVERLOAD” starts flashing on the display.

“DSP NG” appears on the display.

The STANDBY lamp lights up after turning on the power, and soon the receiver turns off again (into standby mode).

Remote control does not work.

Remote control does not work as you intend.

POSSIBLE CAUSE

The power cord is not plugged in.

Speaker signal cables are not connected.

The SPEAKERS ON/OFF button is not set correctly.

An incorrect source is selected.

Muting is activated.

An incorrect input mode (analog or digital) is selected.

The SUBWOOFER OUT ON/OFF button is pressed while “SUBWOOFER” is set to “SUBWOOFER NO.”

Incoming signal is too weak.

The station is too far away.

An incorrect antenna is used.

Antennas are not connected properly.

Ignition noise from automobiles.

Speakers are overloaded because of high volume.

Speakers are overloaded because of short circuit of speaker terminals.

The built-in microcomputer is not functioning correctly.

The receiver is overloaded because of a high voltage.

There is an obstruction between the remote sensor on the receiver and the remote control.

Batteries are weak.

An incorrect remote control operation mode is selected.

SOLUTION

Plug the power cord into an AC outlet.

Check speaker wiring and reconnect if necessary. (See page 5.)

Press SPEAKERS ON/OFF so that the sounds come out of the speakers. (See page 11.)

Select the correct source.

Press MUTING to cancel the mute. (See page 13.)

Select the correct input mode (analog or digital). (See pages 11 and 12.)

If subwoofer is connected, set “SUBWOOFER YES” so that the SUBWOOFER OUT ON/OFF button works.

Connect an outdoor FM antenna or contact your dealer. (See page 4.)

Select a new station.

Check with your dealer to be sure you have the correct antenna.

Check connections. (See pages 4 and 5.)

Move the antenna farther from automobile traffic.

1. Press STANDBY/ON turn off the receiver.

2. Stop the playback source.

3. Turn on the receiver again, and adjust the volume.

Press STANDBY/ON off the receiver, then check the speaker wiring. If “OVERLOAD” does not disappear, unplug the AC power cord, then plug it back again. If speaker wiring is not short-circuited, contact your dealer.

Press STANDBY/ON on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.

Press STANDBY/ON off the receiver. After unplugging the AC power cord, contact your dealer.

Remove the obstruction.

Replace batteries. (See page 4.)

Select the correct remote control operation mode. (See pages 29 to 32.)

on the front panel to

on the front panel to turn

33

Specifications

Amplifier

Output Power

Front channels: 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no

more than 10% total harmonic distortion.

Center channel: 100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10%

total harmonic distortion.

Surround channels: 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no

more than 10% total harmonic distortion.

Audio

Audio Input Sensitivity/Impedance (1 kHz)

CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX: 220 mV/47 kΩ

Audio Input (DIGITAL IN)*

Coaxial DIGITAL 1 (DVD): 0.5 V(p-p)/75 Ω Optical DIGITAL 2 (CD): –21 dBm to –15 dBm (660 nm ±30 nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency—32 kHz, 44.1 kHz,

48 kHz)

Recording Output Level TAPE/CDR, VCR: 220 mV

Signal-to-Noise Ratio (’66 IHF/’78 IHF)

CD, TAPE/CDR, VCR, TV SOUND, DVD: 62 dB/71 dB

Frequency Response (8 Ω)

CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX: 20 Hz to 20 kHz (±1 dB)

Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz: ±8 dB (in 2 dB steps)

Video

Video Input Sensitivity/Impedance

Composite video DVD, VCR, AUX: 1 V(p-p)/75 Ω

Video Output Level

Composite video VCR, MONITOR OUT: 1 V(p-p)/75 Ω

Synchronization: Negative

Signal-to-Noise Ratio: 45 dB

34

FM tuner (IHF)

Tuning Range: 87.5 MHz to 108.0 MHz

Usable Sensitivity Monaural: 12.8 dBf (1.2 µV/75 Ω)

50 dB Quieting Sensitivity Monaural: 16.0 dBf (1.7 µV/75 Ω)

Stereo: 37.5 dBf (20.5 µV/75 Ω)

Stereo Separation at OUT (REC): 35 dB at 1 kHz

AM tuner

Tuning Range: 530 kHz to 1 710 kHz

General

Power Requirements: AC 120V , 60 Hz

Power Consumption: 155 W/200 VA (at operation)

0.8 W (in standby mode)

Dimensions (W x H x D): 435 mm x 146.5 mm x 369.5 mm

Mass: 7.0 kg (15.5 lbs)

3

/16 in. x 5 13/16 in. x 14 5/8 in.)

(17

Designs and specifications are subject to change without notice.

35

RX-5060B

AUDIO/VIDEO CONTROL RECEIVER

EN

1205YHMMDWJEIN

AUDIO/VIDEO CONTROL RECEIVER

RECEPTEUR DE COMMANDE AUDIO/VIDEO

RX-5060B

English

Français

TA/NEWS/INFO

DISPLAY MODE

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

LVT1507-002A

[C]

Warnings, Cautions and Others/

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

For U.S.A

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Mises en garde, précautions et indications diverses

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution––STANDBY/ON button! Disconnect the mains plug to shut the power off completely

(the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

Attention––Touch STANDBY/ON Déconnectez la fiche d’alimentation secteur pour mettre

l’appareil complètement hors tension (le témoin STANBY est éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit facilement accessible. La touche STANDBY/ON position, ne déconnecte pas l’appareil du secteur.

• Quand l’appareil est en mode d’attente, le témoin STANDBY est allumé en rouge.

• Quand l’appareil est sous tension, le témoin STANBY est éteint.

L’alimentation peut être télécommandée.

G-1

, dans n’importe quelle

!

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only] [Union européenne seulement]

Parts Identification

STANDBY

STANDBY/ON

PHONES

SURROUND

DSP

SPEAKERS

ON/OFF

SUBWOOFER OUT FM MODE MEMORY

ON/OFF

FM/AM TUNING

SURROUND/DSP

OFF

DIMMER

MASTER VOLUME

INPUT DIGITAL

RX—6030V

AUDIO/VIDEO CONTROL RECEIVER

SETTING

MULTI JOG

PUSH SET

QUICK SPEAKER

SETUP

ADJUST

EXIT

INPUT ANALOG

INPUT ATT

FM/AM PRESET

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

3D - PHONIC

DUAL

MONO

H.PHONESBDSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

1

2

3

4

5

w

r

t

i

o

;a

d

f

ye

u

6

7 8 9 p

q

s

3D - PHONIC

DUAL

MONO

H.PHONE

SB

DSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

-

$%

!

@

1324567890=~

#

English

See pages in parentheses for details.

1 STANDBY/ON 2 SURROUND/DSP OFF button (25, 27) 3 DSP button (26, 27) 4 SURROUND button (25) 5 Remote sensor 6 Display (For details, see “Display” below.) 7 Source selection buttons (9, 12)

AUX, DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE NAME), FM, AM

8 INPUT ANALOG button (12)

INPUT ATT button (12)

9 INPUT DIGITAL button (11) p DIMMER button (12)

button and STANDBY lamp (9)

Front Panel

q MASTER VOLUME control (10) w PHONES jack (11) e AUX input jacks (7) r SPEAKERS ON/OFF button (11) t SUBWOOFER OUT ON/OFF button (11) y FM/AM TUNING 5/∞ buttons (14) u FM/AM PRESET 5/∞ buttons (14) i FM MODE button (15) o MEMORY button (14) ; SETTING button (17) a QUICK SPEAKER SETUP button (16) s MULTI JOG (PUSH SET) dial (16, 17, 21) d EXIT button (17, 21) f ADJUST button (21)

Display

See pages in parentheses for details.

1 ANALOG indicator (12) 2 DUAL MONO indicator (24) 3 H.PHONE indicator (11, 24, 26) 4 3D-PHONIC indicator (24, 26, 27) 5 VIRTUAL SB indicator (20)

PRO LOGIC II indicator (23, 25, 26)

6 7 DSP indicator (24, 26, 27) 8 DIGITAL EQ indicator (22) 9 TUNED indicator (14)

2

0 STEREO indicator (14)

- INPUT ATT indicator (12) = AUTO MUTING indicator (15) ~ SLEEP indicator (13) ! VOLUME indicator (9, 10) @ Digital signal format indicators (11) # Speaker indicators and signal indicators (10) $ CH– indicator (14) % Main display

Remote Control

AUDIO

TV/CATV

VCR

DVD

TEST

EFFECT

MENU

ENTER LEVEL

RETURN

SURROUND/

DSP

CD-DISC

SLEEP

REC PAUSE

FM MODE

SURROUND

DSP

DIMMER TV/VIDEO MUTING

OFF

VCR CH

TV/CATV CH

VOLUME

SURR R

SURR L

SUBWFR

CENTER

FRONT R

FRONT L

100

1

4

7/P

10

2

5

8

0

3

6

9

10

TV VOLUME

STANDBY/ON

TV CATV

A/V CONTROL

RECEIVER

TAPE/CDR CD DVD AU X

FM/AM TV SOUND VCR

ANALOG/

DIGITAL

REW FF

2

5

=

$ %

#

@

^

4

8

7

0

-

*

&

6

9

~

3

1

!

CD IN

OUT

(REC)

IN

(PLAY)

OUT

(REC)

VCR

TV SOUND

IN

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

AUDIO

RIGHT LEFT

IN

(PLAY)

TAPE /CDR

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

SUBWOOFER

OUT

AUDIO

MONITOR

OUT

DVD

IN

OUT

(REC)

VCR

IN

(PLAY)

DVD

IN

RIGHT LEFT

COMPU LINK-4

(SYNCHRO)

AM

LOOP

AM EXT

ANTENNA

816–

CAUTION:SPEAKER IMPEDANCE

15

96 78

2 43

See pages in parentheses for details.

1 TV/CATV selector (31) 2 Number buttons for selecting preset channels (15, 29)

Number buttons for sound adjustment (22, 29) Number buttons for operating audio/video components (29 – 32)

3 SOUND button (22, 29) 4 REC PAUSE button (30, 32) 5 Source selection buttons (9, 10)

TAPE/CDR, CD, DVD, AUX, FM/AM, TV SOUND, VCR

6 FM MODE button (15, 29) 7 SURROUND button (25, 29) 8 DIMMER button (12, 29) 9 TV/VIDEO button (30, 31) 0 VCR CH +/– buttons (30, 32)

- TV/CATV CH +/– buttons (30, 31) = STANDBY/ON

buttons (9, 29 – 32)

AUDIO, TV/CATV, VCR, DVD

~ SLEEP button (13, 29) ! Operating buttons for audio/video components

3, 8, 7, ¢/4, FF/REW (29, 30, 32)

@ CD-DISC button (30) # ANALOG/DIGITAL button (11, 12, 29) $ SURROUND/DSP OFF button (25, 27, 29) % DSP button (26 – 27, 29) ^ MUTING button (13, 29) & VOLUME +/– button (10, 29) * TV VOLUME +/– buttons (30, 31)

English

Rear Panel

See pages in parentheses for details.

1 DIGITAL IN terminals (8)

• Coaxial: DIGITAL 1 (DVD)

• Optical: DIGITAL 2 (CD)

2 AUDIO input/output jacks (6, 7)

• Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY),

• Output: TAPE/CDR OUT (REC), VCR OUT (REC),

TV SOUND IN, DVD IN

SUBWOOFER OUT

Note:

When you press the one of the audio source selection buttons— TAPE/CDR, CD, and FM/AM—on the remote control, the receiver automatically turns on.

3 VIDEO input/output jacks (7)

• Input: DVD IN, VCR IN (PLAY)

• Output: MONITOR OUT, VCR OUT (REC)

4 COMPU LINK-4 (SYNCHRO) jacks (28) 5 ANTENNA terminals (4, 5) 6 CENTER SPEAKER terminals (5) 7 SURROUND SPEAKERS terminals (5) 8 FRONT SPEAKERS terminals (5) 9 AC power cord (8)

3

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

Do not connect the AC power cord until all other connections have been made.

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

English

Before Installation

General Precautions

• Be sure your hands are dry.

•Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.

•The temperature around the receiver must be between –5˚C and 35˚C.

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Notes:

• Supplied batteries are for the initial setup. Replace for continued use.

• After replacing the batteries, set the manufacturers’ codes again (see pages 31 and 32).

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the

polarity: (+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar

may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Connecting the FM and AM Antennas

FM antenna connections

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

1

1Press and slide the battery cover on the back of

the remote control.

2

R6(SUM-3)/ AA(15F)

3

2 Insert the batteries.

• Make sure to match the polarity: (+) to (+) and (–) to (–).

A

Extend the supplied FM antenna horizontally.

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—A

If reception is poor, connect the outdoor FM antenna (not supplied)—B 1 Disconnect the supplied FM antenna. 2 Connect a 75 Ω coaxial cable (with the standard type connector).

B

FM Antenna (supplied)

Outdoor FM Antenna Cable (not supplied)

3Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

4

AM

LOOP

AM EXT

ANTENNA

CENTER

SPEAKER

SURROUND SPEAKERS

RIGHT

LEFT

FRONT

SPEAKERS

RIGHT

LEFT

CAUTION:SPEAKER IMPEDANCE

+

–

+

–

To center speaker

To right front speaker

To right surround speaker

To left surround speaker

To left front speaker

RIGHT

LEFT

+

–

RIGHT

LEFT

+

–

RIGHT

LEFT

+

–

Do not connect the AC power cord until all other connections have been made.

AM antenna connections

1

Outdoor single vinyl-covered wire (not supplied)

AM Loop Antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

2

Connecting the Speakers and Subwoofer

You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer.

CAUTIONS:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.

• Do not connect more than one speaker to each speaker terminal.

Connecting the speakers

1

2

3

4

1Twist and remove the insulation at the end of

each speaker cord. 2Press and hold the clamp of the speaker terminal. 3 Insert the speaker cord. 4 Release the finger from the clamp.

English

Turn the loop until you have the best reception.

Notes:

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)

For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

5

SUBWOOFER

OUT

(REC)

IN

(PLAY)

TAPE /CDR

L

R

L

CD

IN

R

L

Getting Started

45 – 60

Do not connect the AC power cord until all other connections have been made.

Connecting the subwoofer

English

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

Powered subwoofer

Placing speakers

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.

•Array across the front of the viewing area.

Surround speakers (LS/RS)

• Place these speakers alongside and slightly to the rear of (but not behind) the listening position; well above ear level (60 cm to 90 cm higher).

•Point these speakers directly across the listening area, but not at the listener’s ears.

Subwoofer (S.WFR)

•You can place it wherever you like since bass sound is nondirectional. Normally place it in front of you.

Connecting Audio/Video Components

When connecting individual components, refer also to the manuals supplied with them.

Analog Connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

• Connect the white plug to the audio left jack, and the red plug to the audio right jack.

If your audio components have a COMPU LINK jack

See also page 28 for detailed information about the connection and the COMPU LINK remote control system.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player

To audio

output

L

R

C

S.WFR

LS

RS

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 16).

Cassette deck/CD recorder

Cassette deck or CD recorder

To audio input

To audio output

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name to “CDR,” which will be shown on the display when it is selected as the source. See page 12 for details.

6

AUDIO

DVD

IN

RIGHT LEFT

A

B

DVD

IN

DVD

R

L

MONITOR

OUT

TV SOUND

IN

AUDIO

RIGHT LEFT

A

B

R

L

OUT

(REC)

VCR

IN

(PLAY)

OUT

(REC)

VCR

IN

(PLAY)

R

L

R

L

A B DC

Do not connect the AC power cord until all other connections

R

L

A

B

have been made.

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

VCR

DVD player

English

DVD player

Å To composite video output ı To left/right front channel audio output (or to audio-mixed

VCR

output if necessary)

Å To audio input ı To audio output Ç To composite video input Î To composite video output

Note:

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital input/ output terminals.

TV

Video camera, etc.

The AUX input jacks on the front panel are convenient when connecting and disconnecting the component frequently.

Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

Å To audio output ı To composite video input

TV

Video camera, etc.

Å To audio output ı To composite video output

7

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

Getting Started

Do not connect the AC power cord until all other connections have been made.

Digital Connections

English

By connecting the receiver and the source component through the digital terminals, sound reproduction quality will be much improved. In addition, you can enjoy multi-channel reproduction and some other convenient functions.

IMPORTANT:

• When connecting a video component using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly.

For details, see “Setting the Digital Input Terminals” on page 20.

– Select the digital input mode correctly. For details, see

“Selecting the Analog or Digital Input Mode” on page 11.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital optical cable (not supplied) between digital optical terminals

Notes:

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components: – DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player

• When you want to operate the CD player or CD recorder using the COMPU LINK remote control system (see page 28), connect it also as described in “Audio component connections” of “Analog Connections” (see page 6).

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using a digital optical cable (not supplied).

Before connecting a digital optical cable, unplug the protective plug.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

8

Basic Operations

VOLUME

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

TAPE/CDR CD DVD

FM/AM TV SOUND VCR

AUX

VOLUME

The following operations are commonly used when you play any sound sources.

Operations hereafter will be explained using the buttons on the front panel. You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.

Daily Operational Procedure

Selecting the Source to Play

When you have connected digital source components using the digital terminals, first change the input mode for these components to the digital input mode (see page 11).

1 Tu rn on the power.

• See “Turning On the Power” below.

Press one of the source selection buttons.

2 Select the source.

• See “Selecting the Source to Play” to the right.

Selected source name appears.

3 Adjust the volume.

• See “Adjusting the Volume” on page 10.

4 Select the Surround or DSP modes.

• See “Activating the Surround Modes” (page 25) and “Activating the DSP Modes” (page 27).

English

Turning On the Power

Press STANDBY/ON (or STANDBY/ON AUDIO on the remote control).

The STANDBY lamp goes off.

Current source name appears.

Current volume level appears.

To turn off the power (into standby mode),

press STANDBY/ON (or STANDBY/ON AUDIO on the remote control) again. The STANDBY lamp lights up.

On the front panel

On the remote control

Notes:

• When connecting a CD recorder to the TAPE/CDR jacks, change the source name shown on the display. For details, see page 12.

• By pressing the one of the audio source selection buttons—TAPE/ CDR, CD, and FM/AM—on the remote control, you can turn on the receiver and select the audio source.

Note:

A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.

9

SB SB

TAPE/CDR CD DV D

FM/AM TV SOUND VCR

AUX

Basic Operations

Speaker and signal indicators on the display

English

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Signal indicatorsSpeaker indicators

What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 18).

•The frames of “L,” “C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL.” Sounds come out of the speakers whose speaker indicators is lit on the display.

•The pages 11 and 18).

The signal indicators light up to show the incoming signals.

L:•When digital input is selected: Lights up when the left

R:•When digital input is selected: Lights up when the right

C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal

SB: Lights up when the surround back channel signal comes in.

How to understand the speaker and signal indicator illumination

indicator lights up when the subwoofer is activated (see

channel signal comes in.

• When analog input is selected: Always lights up.

channel signal comes in.

• When analog input is selected: Always lights up.

comes in.

Ex. No sound comes out of the

center speaker and surround speakers though center channel and surround channel signals are coming into this receiver.

Selecting different sources for picture and sound

While watching pictures from a video source, you can listen to sound of an audio source.

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.

CD AMTAPE/CDR

SOURCE NAME

On the front panel

FM

On the remote control

Adjusting the Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/ or ruin your speakers.

Note:

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

10

Listening with headphones:

Remote

NOT

Remote

NOT

You can enjoy not only stereo software but also multichannel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

1Press SPEAKERS ON/OFF to deactivate the speakers.

“HEADPHONE” appears for a while, and the H.PHONE indicator lights on the display.

• If the Surround or DSP mode has been activated, “3D H PHONE” appears for a while (and the DSP indicator also lights up on the display)—3D Headphone Mode (3D H PHONE). For details, see pages 24 and 26.

2 Connect the headphones to the PHONES jack on the front

panel.

• If you do not deactivate the speakers, no sound comes out of the headphones.

After using the headphones, disconnect the headphones, then press SPEAKERS ON/OFF again to activate the speakers.

CAUTION:

Be sure to turn down the volume....

• Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.

• Before turning on speakers again, as its high volume may come out of the speakers.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the both analog and digital terminals (see pages 6 to 8), you can select the input mode—either digital or analog—for these components.

Before you start, remember... The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see “Setting the Digital Input Terminals” on page 20).

1Press one of the source selection buttons (DVD,

TV SOUND, CD, TAPE/CDR*) for which you want to change the input mode.

*

If “TAPE” is selected as the source, digital input mode is not available. To change the source name, see “Changing the Source Name” on page 12.

2Press INPUT DIGITAL to select “DIGITAL AUTO.”

The DIGITAL AUTO indicator lights up on the display.

•When using the remote control, press ANALOG/DIGITAL repeatedly to select “DIGITAL AUTO.”

English

Turning On and Off the Subwoofer Sound

You can cancel the subwoofer output even though you have connected a subwoofer and have set “SUBWOOFER” to “SUBWOOFER YES” (see page 18).

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer output.

Each time you press the button, subwoofer output is deactivated (“SUBWOOFER OFF”) and activated (“SUBWOOFER ON”) alternately.

•When subwoofer output is canceled, the Bass sounds (and LFE signals) will be emitted through the front speakers.

Notes:

• When subwoofer output is activated, you can also adjust the

subwoofer output level. For details, see page 22.

•You cannot deactivate the subwoofer output when you set “SMALL”

for the front speakers on the speaker size setting (see page 18) or using Quick Speaker Setup (see page 16).

•You cannot activate the subwoofer output when you have set

“SUBWOOFER” to “SUBWOOFER NO” (see page 18).

• When you change the “SUBWOOFER” setting from “SUBWOOFER

NO” to “SUBWOOFER YES” (see page 18), subwoofer output is automatically activated.

indicator goes off.

•When selecting “DIGITAL AUTO,” the following indicators indicate the digital signal format of the incoming signal.

: Lights up when Linear PCM signals come

in.

: Lights up when Dolby Digital signals

come in.

: Lights up when conventional DTS signals

come in.

: Lights up when DTS 96/24 signals come

in.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For details about the digital signal formats, see pages 23 and 24.

Continued on the next page

11

DIGITAL AUTO DOLBY DIGITAL

DTS SURROUND

Remote

NOT

Remote

NOT

Basic Operations

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

English

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.”

• Each time you press INPUT DIGITAL, the input mode changes as follows:

•When using the remote control, press ANALOG/DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.” Each time you press ANALOG/DIGITAL on the remote control, the input mode changes as follows:

DIGITAL AUTO=DOLBY DIGITAL=DTS SURROUND =ANALOG=(back to the beginning)

When “DOLBY DIGITAL” or “DTS SURROUND” is selected,

the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.

• If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash.

Attenuating the Input Signal

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• Once you have made adjustment, it is memorized for each analog source.

Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.

• Each time you press and hold the button, the input attenuator mode turns on (“INPUT ATT ON”) and off (“INPUT NORMAL”).

Changing the Source Name

When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

Note:

When you turn off the power or select another source, “DOLBY DIGITAL” and “DTS SURROUND” settings are canceled and the digital input mode is automatically reset to “DIGITAL AUTO.”

To select the analog input mode

Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

Changing the Display Brightness

You can dim the display.

When changing the source name from “TAPE” to “CDR”: 1Press TAPE/CDR (SOURCE NAME).

• Make sure “TAPE” appears on the display.

2Press and hold SOURCE NAME (TAPE/CDR) until

“ASSIGN CDR” appears on the display.

To change the source name back to “TAPE,” repeat the same

procedure above.

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience. –“TAPE” will appear on the display when you select the CD recorder. –You cannot use the digital input (see page 11) for the CD recorder.

Press DIMMER.

• Each time you press the button, the display dims and brightens alternately.

12

The following basic operations are possible only using the

2010 30 40 50 60 70 80 90

(Canceled)

OFF

remote control.

Recording a source

You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time. While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording.

English

TA/NEWS/INFO

REW

REC PAUSE

FF

SLEEP

CD-DISC

MUTING

Using the Sleep Timer

Muting the Sound

Press MUTING to mute the sound through all speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the VOLUME indicator and its level indication go off).

To restore the sound, press MUTING again.

•Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound.

Note:

The output volume level, Midnight Mode (see page 19), Equalization patterns (see page 22), Surround modes and DSP modes (see pages 23 to 26) cannot affect the recording.

Basic adjustment auto memory

This receiver memorizes sound settings for each source—

•when you turn off the power,

• when you change the source,

• when you change the analog/digital input modes, and

• when you assign the source name (see page 12).

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 11)

• Input attenuator mode (see page 12)

• Equalization pattern (see page 22)

• Speaker output levels (see page 22)

• Surround and DSP mode selection (see pages 23 and 26)

Notes:

• If the source is FM or AM, you can assign a different setting for each band.

•A sound setting assigned for a digital component is valid for both the analog and digital input modes.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:

To check or change the time remaining until the shut-off time:

Press SLEEP once. The remaining time until the shut-off time appears in minutes.

•To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP OFF” appears on the display. The SLEEP indicator goes off.

•Turning off the power also cancels the Sleep Timer.

13

Receiving Radio Broadcasts

Remote

NOT

Remote

NOT

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

You can browse through all the stations or use the preset function to go immediately to a particular station.

English

Tuning in to Stations Manually

1Press FM or AM to select the band.

The last received station of the selected band is tuned in.

2Press FM/AM TUNING 5 or ∞ repeatedly until

you find the frequency you want.

•Pressing FM/AM TUNING 5 increases the frequency.

•Pressing FM/AM TUNING ∞ decreases the frequency.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

1Tune in the station you want to preset (see

“Tuning in to Stations Manually”).

• If you want to store the FM reception mode for this station,

select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 15.

2Press MEMORY.

Notes:

•To select the band from the remote control, press FM/AM repeatedly. Each time you press the button, the band alternates

between FM and AM.

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator also lights up (except when selecting “MODE MONO” as the FM reception mode).

• When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.

The channel number position starts flashing on the display for about 5 seconds.

3Press FM/AM PRESET 5 or ∞ to select a

channel number while the channel number position is flashing.

4Press MEMORY again while the selected channel

number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

5Repeat steps 1 to 4 until you store all the stations

you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

14

To tune in a preset station

CD-DISC

REC PAUSE

1

4

7

10

2

5

8

3

6

9

10

REW

FF

TA/NEWS/INFO

FM/AM

TUNED

STEREO

AUTO MUTING

AUTO MUTING MODE MONO

On the front panel:

1Press FM or AM to select the band.

2Press FM/AM PRESET 5 or ∞ until you find the

channel you want.

•Pressing FM/AM PRESET 5 increases the number.

•Pressing FM/AM PRESET ∞ decreases the number.

On the remote control:

Selecting the FM Reception Mode

English

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

•You can store the FM reception mode for each preset station (see page 14).

While listening to an FM station, press FM MODE.

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MODE MONO.”

1Press FM/AM to select the band (FM or AM).

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM.

2Press the number buttons to select a preset

channel number.

•For channel number 5, press 5.

•For channel number 15, press +10 then 5.

•For channel number 20, press +10 then 10.

•For channel number 30, press +10, +10, then 10.

Note:

When you use the number buttons on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page

29.)

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)

MODE MONO: Select this to improve the reception (but

stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)

Note:

After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE.

15

Basic Settings

Remote

NOT

5.0CH “ 5.1CH “ 2.0CH “ 2.1CH “ 3.0CH “

3.1CH “ 4.0CH “ 4.1CH “ (Back to the beginning)

L (Large) S (Small)

M (Medium)

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.

English

Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.

•You can also register each speaker’s information manually. For details, see page 18.

5Press in MULTI JOG (PUSH SET).

“COMPLETE” appears on the display, then goes back to the source indication.

Note:

This procedure will not be completed if you stop in the middle of the setting process.

Speaker channel number and speaker size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “CH” number) you select.

• Subwoofer (S.WFR) is counted as 0.1 channel.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1Press QUICK SPEAKER SETUP.

“SPK=” and the initial speaker channel number appear.

2Turn MULTI JOG to select an appropriate

number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

•For the details of speaker channel number, see “Speaker channel number and speaker size.”

3Press in MULTI JOG (PUSH SET).

“ROOM SIZE=” and the initial room size setting appear.

4Turn MULTI JOG to select an appropriate room

size to match to your listening room.

As you turn the jog, the room size changes as follows.

•To select your appropriate room size, see “Room size and speaker distance/output level.”

CH

2.0CH LARGE NONE NONE NO

2.1CH SMALL NONE NONE YES

3.0CH LARGE SMALL NONE NO

3.1CH SMALL SMALL NONE YES

4.0CH LARGE NONE SMALL NO

4.1CH SMALL NONE SMALL YES

5.0CH LARGE SMALL SMALL NO

5.1CH SMALL SMALL SMALL YES

Room size and speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

Room

size

L L/R 3.0 m (10 ft) 0 dB

(Large) C 3.0 m (10 ft) 0 dB

M L/R 2.7 m (9 ft) 0 dB

(Medium) C 2.4 m (8 ft) –2 dB

S L/R 2.4 m (8 ft) 0 dB

(Small) C 2.1 m (7 ft) –2 dB

The size of the connected speakers

L/R C LS/RS S.WFR

Speaker Distance

LS/RS 3.0 m (10 ft) 0 dB

LS/RS 2.1 m (7 ft) –3 dB

LS/RS 1.5 m (5 ft) –4 dB

Output

level

16

Notes:

• In the tables above, “L” stands for the left front speaker, “R” for the right front speaker, “C” for the center speaker, “LS” for the left surround speaker, “RS” for the right surround speaker, and “S.WFR” for the subwoofer.

•

Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the Speaker Output Levels” on page 22.

Basic Setting Items

Remote

NOT

On the following pages, you can adjust the following items:

•You can only select the items currently available. For details, see the explanation of each item.

Items To do See page

SUBWOOFER*

FRNT SPEAKERS*

CNTR SPEAKER*

SURR SPEAKERS*

DISTANCE UNIT

FRONT L DIST*

FRONT R DIST*

CENTER DIST*

SURR L DIST*

SURR R DIST*

SUBWOOFER OUT

CROSSOVER

LFE ATTENUATE

MIDNIGHT MODE

DUAL MONO

VIRTUAL SBACK

DIGITAL IN

Register your subwoofer. 18

Register your front speaker size. 18

Register your center speaker size. 18

Register your surround speaker size. 18

Select the measuring unit for the speaker distance. 18

Register the distance from the left front speaker to your listening point. 18

Register the distance from the right front speaker to your listening point. 18

Register the distance from the center speaker to your listening point. 18

Register the distance from the left surround speaker to your listening point. 18

Register the distance from the right surround speaker to your listening point. 18

Select the type of the sounds emitted from the subwoofer. 18

Select the cutoff frequency to the subwoofer. 19

Attenuate the bass (LFE) sounds. 19

Reproduce a powerful sound at night. 19

Select the Dual Mono sound channel. 19

Turn on or off Virtual Surround Back. 20

Select the component connected to digital input terminal. 20

Basic Procedure

English

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When setting Virtual Surround Back to “VRTL SB ON.”

1Press SETTING.

The last selected item appears on the display.

2Turn MULTI JOG until an item you want

appears on the display.

• In this example, select “VIRTUAL SBACK.” For available items, see the list “Basic Setting Items.”

3Press in MULTI JOG (PUSH SET).

The current setting for the selected item appears on the display.

Note:

*

These items can be set using Quick Speaker Setup.

4Turn MULTI JOG until a setting you want

appears on the display.

5Press in MULTI JOG (PUSH SET).

6Repeat steps 2 to 5 to set other items if necessary.

7Press EXIT.

The source indication resumes on the display.

17

Basic Settings

Setting the Speakers

English

To obtain the best possible surround effect from the Surround and DSP modes, register the setting about the speaker arrangement after all connections are completed.

• If you have used Quick Speaker Setup on page 16, this setting is not required.

¶

Speaker distance—FRONT L DIST, FRONT R DIST, CENTER DIST, SURR L DIST, SURR R DIST

Set the distance from the listening point within the range of

0.3 m (1 ft) to 9.0 m (30 ft), in 0.3 m (1 ft) intervals.

•When shipped from the factory, distance for each speaker is set to “3.0m (10FT).”

¶

Subwoofer setting—SUBWOOFER

Select whether you have connected a subwoofer or not.

SUBWOOFER YES: Select when a subwoofer is connected.

SUBWOOFER NO: Select when no subwoofer is used.

Note:

If you have selected “SUBWOOFER NO” for the subwoofer, you cannot use the SUBWOOFER OUT ON/OFF button on the front panel.

¶

Speaker size—FRNT SPEAKERS, CNTR SPEAKER, SURR SPEAKERS

Select the size for each connected speaker.

LARGE: Select when the speaker size is relatively large.

SMALL: Select when the speaker size is relatively small.

NONE: Select this when you have not connected a

speaker. (Not selectable for the front speakers.)

Notes:

•Keep the following comments in mind as reference when adjusting. – If the size of the cone speaker unit built in your speaker is

larger than 12 cm, select “LARGE,” and if it is smaller than 12 cm, select “SMALL.”

• If you have selected “SUBWOOFER NO” for the subwoofer setting, you can only select “LARGE” for the front speakers.

• If you have selected “SMALL” for the front speakers, you cannot select “LARGE” for the center and surround speakers.

Setting the Speaker Distance

The distance from your listening point to the speakers is another important element to obtain the best possible sound of the Surround and DSP modes. Set the distance from your listening point to the speakers. By referring to the speaker distance setting, this unit automatically sets the delay time of the sound through each speaker so that sounds through all the speakers can reach you with the same timing.

• If you have used Quick Speaker Setup on page 16, this setting is not required.

Note:

You cannot set the speaker distance for the speakers you have selected “NONE.”

C

LR

2.4 m (8 ft)

2.1 m (7 ft)

LS

Ex. In the above case, set the speaker distance as follows:

Front speakers: 3.0m (10FT) Center speaker: 3.0m (10FT) Surround speakers: 2.7m (9FT)

2.7 m (9 ft)

3.0 m (10 ft)

RS

3.3 m (11 ft)

Setting the Bass Sounds

You can adjust subwoofer and bass sounds precisely according to your preference.

¶

Subwoofer output—SUBWOOFER OUT

The subwoofer emits the LFE signals* and the bass elements of each speaker set to “SMALL.” You can make the bass elements of the front speaker channels (MAIN) emitted through the subwoofer.

Select one of the following:

SWFR LFE: Select to emit the LFE signals and the bass

elements of each speaker set to “SMALL.”

SWFR LFE+MAIN: Select to emit the bass elements of the

front speakers’ channels (MAIN) adding to the effect of “SWFR LFE” when no bass elements are emitted through the subwoofer.

Measuring unit—DISTANCE UNIT

¶

Select which measuring unit you use.

UNIT METER: Select to set the distance in meters.

UNIT FEET: Select to set the distance in feet.

18

Notes:

• When “SUBWOOFER” is set to “SUBWOOFER NO” (see the left column), this function is not available.

* The LFE signals are emitted only when playing the following

software with the LFE signals: – Dolby Digital multi channel software – DTS multi channel software When playing an analogue source or a linear PCM software, no LFE signals are emitted.

¶

Crossover frequency—CROSSOVER

You can select the crossover frequency for the small speakers used. The signals below the preset frequency level will be sent to and be reproduced by the subwoofer (or by “LARGE” speakers when “SUBWOOFER” is set to “SUBWOOFER NO”).

Select one of the crossover frequency levels according to the size of the small speaker connected.

CROSS 80HZ: Select when the cone speaker unit built in the

speaker is about 12 cm.

CROSS 100HZ: Select when the cone speaker unit built in the

speaker is about 10 cm.

CROSS 120HZ: Select when the cone speaker unit built in the

speaker is about 8 cm.

CROSS 150HZ: Select when the cone speaker unit built in the

speaker is about 6 cm.

CROSS 200HZ: Select when the cone speaker unit built in the

speaker is about 5 cm.

Notes:

• If you have selected “LARGE” for all activated speakers (see page

18), this function is fixed to “CROSS OFF.”

• Crossover frequency is not valid for “HEADPHONE” and “3D H PHONE.”

¶

Low frequency effect attenuator—LFE ATTENUATE

If the bass sound is distorted while playing back software encoded with Dolby Digital or DTS, set the LFE level to eliminate distortion.

•This function takes effect only when the LFE signals come in.

Select one of the following:

LFE ATT 0dB: Normally select this.

LFE ATT −10dB: Select when the bass sound is distorted.

Selecting the Main or Sub Channel

You can select the playback sound (channel) you want while playing digital software recorded (or broadcast) in Dual Mono mode (see page 24), which includes two monaural channels separately.

¶

Dual Mono—DUAL MONO

Select the playback sounds (channel).

MONO MAIN: Select to play back the main channel (Ch 1).*

Signal indicator “L” lights up while playing back this channel.

MONO SUB: Select to play back the sub-channel (Ch 2).*

Signal indicator “R” lights up while playing back this channel.

MONO ALL: Select to play back both the main and sub-

channels (Ch 1/Ch 2).* Signal indicators “L” and “R” light up while playing back these channels.

Notes:

• The Dual Mono format is not identical with bilingual broadcasting or the MTS (Multichannel Television Sound) format used for TV programs. So this setting does not take effect while watching bilingual or MTS programs.

*

Dual Mono signals can be heard from the following speakers—L (left front speaker), R (right front speaker), and C (center speaker)—with respect to the current Surround setting.

With Surround Activated

Dual Mono

Setting SMALL/LARGE NONE

MAIN Ch 1 Ch 1 — Ch 1 — Ch 1 Ch 1

SUB Ch 2 Ch 2 — Ch 2 — Ch 2 Ch 2

ALL Ch 1 Ch 2 — Ch 1+Ch 2 — Ch 1+Ch 2 Ch 1+Ch 2

Without Surround

LRLCRL R

Center speaker setting

English

Midnight mode—MIDNIGHT MODE

¶

You can enjoy a powerful sound at night using Midnight Mode.

Select one of the following:

MIDNIGHT 1: Select when you want to reduce the

dynamic range a little.

MIDNIGHT 2: Select when you want to apply the

compress effect fully (useful at midnight).

MIDNIGHT OFF: Select when you want to enjoy playback

with its full dynamic range (no effect applied).

19

Basic Settings

Setting for Effective Surround Operations

English

¶

Virtual Surround Back—VIRTUAL SBACK

You can enjoy the surround back channel while playing back Dolby Digital Surround EX software or DTS-ES software without the surround back speakers. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

Select “VRTL SB ON” to activate Virtual Surround Back.

VRTL SB ON: While you play Dolby Digital Surround EX

software or DTS-ES software, the VIRTUAL SB (Surround Back) indicator lights up.

VRTL SB OFF: Select to deactivate Virtual Surround Back.

Notes:

• When you have set “NONE” for “SURR SPEAKERS,” this function is not available.

• While playing back DTS-ES Matrix software with DTS 96/24, DTS 96/24 processing will not be performed with Virtual Surround Back activated. To apply the processing, deactivate Virtual Surround Back.

• Virtual Surround Back may not be applied to some software.

• Virtual Surround Back only works for Surround modes (see page

25). This function does not work when activating the DSP mode (see page 27).

Setting the Digital Input Terminals

When you use the digital input terminals, register which components you have connected to the digital input terminals.

¶

Digital Input terminal—DIGITAL IN

Set the components connected to the digital terminals.

• As you rotate MULTI JOG, the digital input terminals are set to used for the following digital components:

1DVD 2CD “ 1DVD 2TV “ 1DVD 2CDR “

1CD 2DVD “ 1CD 2TV “ 1CD 2CDR “

1TV 2DVD “ 1TV 2CD “ 1TV 2CDR “

1CDR 2DVD “ 1CDR 2CD “ 1CDR 2TV “

(back to the beginning)

20

Adjusting Sound

Remote

NOT

You can make sound adjustment to your preference after completing basic settings.

Basic Adjustment Items

On the following pages, you can adjust the following items:

•You can adjust only the items applicable to the current sound mode.

Items To do See page

DEQ 63HZ Adjust equalizer pattern at 63 Hz. 22

DEQ250HZ Adjust equalizer pattern at 250 Hz. 22

DEQ 1KHZ Adjust equalizer pattern at 1 kHz. 22

DEQ 4KHZ Adjust equalizer pattern at 4 kHz. 22

DEQ16KHZ Adjust equalizer pattern at 16 kHz. 22

SUBWFR LEVEL Adjust the subwoofer output level. 22

FRONT L LEVEL Adjust the left front speaker output

level. 22

FRONT R LEVEL Adjust the right front speaker output

level. 22

CENTER LEVEL Adjust the center speaker output

level. 22

SURR L LEVEL Adjust the left surround speaker

output level. 22

SURR R LEVEL Adjust the right surround speaker

output level. 22

EFFECT*

CENTER TONE Make the center tone soft or sharp. 22

PANORAMA CTRL

1

Adjust the effect level. 22

*2Add “wraparound” sound effect with

side-wall image. 22

Basic Procedure

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Ex. When adjusting the subwoofer level to “–3.”

1Press ADJUST.

The last selected item appears on the display.

2Turn MULTI JOG until an item you want

appears on the display.

• In this example, select “SUBWFR LEVEL.” For available items, see the list “Basic Adjustment Items.”

English

Notes:

1

*

Adjustable when one of the DAP modes or Mono Film (see pages 26 and 27) is in use.

2

*

Adjustable when Pro Logic II Music is in use.

3Press in MULTI JOG (PUSH SET).

The current setting (or level) for the selected item appears on the display.

4Turn MULTI JOG to select a setting you want or

to make an adjustment as you like.

5Press in MULTI JOG (PUSH SET).

6Repeat steps 2 to 5 to set other items if necessary.

7Press EXIT.

The source indication resumes on the display.

21

Adjusting Sound

Adjusting the Equalization Patterns

English

You can adjust the equalization patterns to your preference.

• Once you have made adjustment, it is memorized for each source.

¶

Equalization adjustment—DEQ 63HZ, DEQ250HZ, DEQ 1KHZ, DEQ 4KHZ, DEQ16KHZ

You can adjust five frequencies (63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) within the range of –8 dB to +8 dB in 2 dB

steps.

•When adjustment is made, the DIGITAL EQ indicator lights up on the display.

To flat the equalization pattern, set all the frequencies to “0 (0 dB)” in step 4 of “Basic Procedure” (on page 21). The DIGITAL EQ indicator goes off from the display.

Note:

The equalization patterns affect the front speaker sounds only.

Adjusting the Speaker Output Levels

You can adjust the speaker output levels.

• Once you have made adjustment, it is memorized for each source.

Adjustable speakers—SUBWFR LEVEL,

¶

FRONT L LEVEL, FRONT R LEVEL, CENTER LEVEL, SURR L LEVEL, SURR R LEVEL

You can adjust the connected speakers’ output levels within the range of –10 dB to +10 dB.

Note:

If you have deactivated a speaker (see page 18), the output level adjustment for the speaker is not adjustable.

Adjusting the Sound Parameters for the

Surround and DSP Modes

You can adjust the Surround and DSP sound parameters to your preference. (For Surround and DSP modes, see pages 23 and 26.)

¶

Adjustable parameters

You can adjust the following parameters:

For DAP modes and Mono Film

• Once you have made adjustment, it is memorized for each mode.

EFFECT: Adjust the effect level. As the number increases,

the effect becomes stronger. (Adjustable range: 1 to 5. Normally select “3.” )

For Surround and DSP modes (when the center speaker is connected)

CENTER TONE: Adjust the center tone. As the number

increases, the dialogue becomes clearer so that the human voices change from soft to sharp. (Adjustable range: 1 to 5. Normally select “3.”)

For Pro Logic II Music only

PANORAMA CTRL: Select “PANORAMA ON” to add

“wraparound” sound effect with side-wall image.

•To cancel it, select “PANORAMA OFF.”

You can also use the remote control for adjusting the speaker output level using the test tone.

•You can also adjust the effect level

for DAP modes and Mono Film.

To adjust the speaker output level: 1Press SOUND.

The number buttons are activated for sound adjustments.

TEST

EFFECT

REC PAUSE

FRONT L

CENTER

SURR L

TA/NEWS/INFO

REW

FRONT R

SUBWFR

SURR R

LEVEL

2Press TEST to check if you can

hear the sounds through all the speakers at equal level.

Test tone (TEST TONE) comes out of the speakers in the following order.

• No test tone comes out of the speakers for which the speaker setting is set to “NONE” (or “SUBWOOFER NO” for the subwoofer).

L (Left front) = C (Center) = R (Right front) RS (Right surround) = LS (Left surround) SW (Subwoofer) =(Back to the beginning)

=

3 Adjust the speaker output level (–10 dB to +10 dB).

•For the left front speaker: Press FRONT L, then LEVEL +/–.

•For the center speaker: Press CENTER, then LEVEL +/–.

•For the right front speaker: Press FRONT R, then

LEVEL +/–.

•For the right surround speaker: Press SURR R, then

LEVEL +/–.

•For the left surround speaker: Press SURR L, then

LEVEL +/–.

•For the subwoofer: Press SUBWFR, then LEVEL +/–.

Note:

When you press LEVEL +/– once, the current level for the selected speaker appears on the display, and the test tone comes out of the selected speaker. If no adjustment is done for about 4 seconds, the adjustment mode for the selected speaker is canceled.

4Press TEST again to stop the test tone.

To adjust the effect level: 1Press SOUND.

The number buttons are activated for sound adjustments.

2Press EFFECT repeatedly to select the effect level

(EFFECT 1 to EFFECT 5).

The source indication resumes about 4 seconds after the adjustment.

FF

CD-DISC

Note:

This setting is common to all Surround modes, and is memorized separately for DSP modes.

22

Using the Surround Modes

PRO LOGIC

This unit activates a variety of Surround modes automatically. The basic settings and adjustments stored (see pages 16 to 22) are applied automatically.

English

Reproducing Theater Ambience

In a movie theater, many speakers are located on the walls to reproduce impressive multi-surround sounds, reaching you from all directions. With these many speakers, sound localization and sound movement can be expressed.

Surround modes built in this receiver can create almost the same surround sounds as you can feel in a real movie theater—with only a limited number of the speakers.

Introducing the Surround Modes

Dolby Digital*

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).

• When Dolby Digital signal is detected through the digital input, the

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY DIGITAL) encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being-there” feeling are enhanced much more than Dolby Pro Logic.

Another digital surround encoding format introduced by Dolby Laboratories is Dolby Digital EX, which adds the third surround channels, called “surround back.” Compared to the conventional Dolby Digital 5.1CH, these newly added surround back channels can reproduce more detailed movements behind you while viewing the video software. In addition, surround sound localization will become more stable.

•You can use Virtual Surround Back (see page 20) when playing back Dolby Digital Surround EX software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

1

indicator lights up on the display.

Left front

speaker

(L)

Left surround speaker (LS)

Center speaker

(C)

Right front

speaker

(R)

Right surround

speaker (RS)

Subwoofer

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrixbased conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

•This receiver provides three types of Dolby Pro Logic II modes—Pro Logic II Movie (PLII MOVIE), Pro Logic II Music (PLII MUSIC), and Pro Logic II Game (PLII GAME). When Dolby Pro Logic II is activated, the indicator lights up on the display.

PLII MOVIE: Suitable for playing any Dolby Surround

encoded software. You can enjoy a sound field very close to the one created with discrete 5.1channel sounds.

PLII MUSIC: Suitable for playing any 2-channel stereo

software. You can enjoy wide and deep sounds.

PLII GAME: Suitable for playing a video game. You can

enjoy sounds with “being there” feeling.

1

*

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

23

Using the Surround Modes

2

DTS*

English

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

• When DTS signal is detected through the digital input, the indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS SURROUND) is another discrete

5.1-channel digital audio format available on CD, LD, and DVD

software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

Another multi-channel digital encoding format introduced by Digital Theater Systems, Inc. is DTS Extended Surround (DTS-ES). It greatly improves the 360-degree surround impression and space expression by adding the third surround channel—surround back channel. DTS-ES includes two signal formats with different surround signal recording methods—DTS-ES Discrete 6.1ch and DTS-ES Matrix

6.1ch.

•You can use Virtual Surround Back (see page 20) when playing back DTS-ES software. This function creates the great surround effect from the behind as if you have connected the surround back speakers.

DTS 96/24

In recent years, there has been increasing interest in higher sampling rates both for recording and for reproducing at home. Higher sampling rates allow wider frequency range and greater bit depths provide extended dynamic range. DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24 bits) introduced by Digital Theater Systems, Inc. to deliver “betterthan-CD sound quality” into the home.

• When DTS 96/24 signal is detected, the lights up. You can enjoy its 5.1-channel sound with full-quality.

indicator

What is Linear PCM?

Uncompressed digital audio data used for DVDs, CDs and Video CDs. DVDs support 2 channels with sampling rates of 48/96 kHz, at quantization of 16/20/24 bits. On the other hand, CDs and Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

• When Linear PCM signal is detected, the indicator lights up.

What is Dual Mono?

Dual Mono can be easily understood when you think of the bilingual broadcast or the MTS (Multichannel Television Sound) format used for TV programs (however, the Dual Mono format is not identical with those analog formats). This format is now adopted in Dolby Digital, DTS, and so on. It allows two independent channels (called main channel and subchannel) to be recorded separately.

• When Dual Mono signal is detected, the lights up. You can select either channel you want to listen to (see page 19).

When using the Surround mode, the sounds come out of the activated speakers which the Surround mode requires.

• If either the surround speakers or center speaker is set to “NONE” in the speaker setting, the corresponding channel signals are allocated to and emitted through the front speakers.

• If both the surround speakers and center speaker are set to “NONE” in the speaker setting, JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

indicator

3D Headphone Mode—3D H PHONE

If you activate Surround when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators also light up.

24

2

*

“DTS” and “DTS 96/24” are registered trademarks of Digital Theater Systems, Inc.

Activating the Surround Modes

PRO LOGIC

PLII MOVIE

(Dolby Pro Logic II Movie)

PLII MUSIC

(Dolby Pro Logic II Music)

PLII GAME

(Dolby Pro Logic II Game)

AUTO SURROUND

*

DUAL

MONO

SB

VIRTUAL SB

Available Surround modes vary depending on the incoming signals.

Activating one of the Surround modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to

22).

• For DTS multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are

automatically detected and “DTS SURROUND” is activated.

English

Auto Surround Function

This receiver has Auto Surround Function, which allows you to enjoy the Surround mode simply by selecting the source (with digital input selected for that source).

Auto Surround works...

• When multi-channel signal is detected, an appropriate Surround mode will be turned on.

• When Dolby Digital 2-channel with surround signals is detected, “PLII MOVIE” will be selected.

• When Dolby Digital 2-channel without surround signals or Linear PCM signal is detected, “SURROUND OFF” will be selected.

Note:

This function does not take effect in the following cases: – While playing an analog source, – While selecting any of DSP modes (see page 26), and – While listening with the headphones—“HEADPHONE” or

“3D H PHONE” (see pages 11 and 24).

Activating the Surround Modes Manually

Note:

When the Dolby Digital or DTS multi-channel digital signal stops coming in, “PLII MOVIE” will be activated.

• For analog sources and digital 2-channel software, you can

select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows:

*The receiver automatically changes the Surround mode to “PLII

MOVIE” or “SURROUND OFF” according to the input signal.

• For Dual Mono software, you can select the channel you

listen to. (See page 19.)

1 Select and play any source.

• Make sure you have selected the analog or digital input mode correctly.

2Press SURROUND to activate the Surround

mode.

•When “DOLBY DIGITAL,” “DTS SURROUND,” or “DUAL MONO” is selected as the Surround mode, pressing SURROUND changes the indication on the display alternately between “AUTO SURROUND” and each Surround mode. (The surround effect does not change.)

• For Dolby Digital multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and “DOLBY DIGITAL” is activated.

To adjust the speaker output level, center tone, and sound effect of Dolby Pro Logic II Music, see page 22.

To cancel the Surround mode

Press SURROUND/DSP OFF.

When playing Dolby Digital Surround EX or DTS-ES software

You can enjoy Virtual 6.1-channel playback using Virtual Surround Back.

To activate Virtual Surround Back, see page 20.

25

Using the DSP Modes

PRO LOGIC

This unit activates a variety of DSP modes automatically. The basic settings and adjustments stored (see pages 16 to

22) are applied automatically.

English

Reproducing the Sound Field

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound—early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. DSP modes can create these important elements, and give you a real “being there” feeling.

Reflections from

Early reflections

Direct sounds

behind

Introducing the DSP Modes

DSP modes include the following modes—

• Digital Acoustic Processor (DAP) modes—HALL 1, HALL 2, LIVE CLUB, DANCE CLUB, PAVILION, THEATER 1, THEATER 2

• ALL CH STEREO

• MONO FILM—Used for all types of 2-channel signals (including Dual Mono signal)

To use DSP modes, press DSP so that the DSP modes change as follows. The DSP indicator also lights up on the display.

=

HALL 1 = HALL 2 = LIVE CLUB

=

DANCE CLUB = PAVILION = ALL CH STEREO

= THEATER 1 =

=

(Back to the beginning)

Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a more acoustic sound field in your listening room.

HALL 1: Reproduces the spatial feeling of a large shoebox-

shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)

HALL 2: Reproduces the spatial feeling of a large vineyard-

shaped hall designed primarily for classical concerts. (Its seating capacity is about 2000.)

LIVE CLUB: Reproduces the spatial feeling of a live music club

with a low ceiling.

DANCE CLUB: Reproduces the spatial feeling of a rocking dance

club.

PAVILION: Reproduces the spatial feeling of an exhibition hall

with a high ceiling.

THEATER 1*: Reproduces the spatial feeling of a large theater

where the seating capacity is about 600.

THEATER 2*: Reproduces the spatial feeling of a small theater

where the seating capacity is about 300.

*

The built-in Dolby Pro Logic II decoder is activated when playing back 2-channel analog or digital source. The indicator lights up.

THEATER 2 = MONO FILM

: Suitable for audio sources

: Suitable for video sources

26

3D Headphone Mode—3D H PHONE

If you press DSP when the front speakers are deactivated, 3D Headphone Mode is activated without respect to the type of software played back. “3D H PHONE” appears on the display and the DSP and H.PHONE indicators light up.

When using the DAP mode, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting,

JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

DSP

All Channel Stereo

This mode can reproduce a larger stereo sound field using all the connected (and activated) speakers.

• If the surround speakers are set to “NONE,” you cannot select

“ALL CH STEREO.”

Sound reproduced from normal stereo

Activating the DSP Modes

English

Activating one of the DSP modes for a source automatically recalls the memorized settings and adjustments (see pages 16 to

22).

1 Select and play any source.

2Press DSP repeatedly until the DSP mode you

want appears on the display.

• Each time you press the button, the DSP modes change as follows:

Sound reproduced from All Channel Stereo mode

Mono Film

In order to reproduce a more acoustic sound field in your listening room while viewing monaural sound video software (analog and 2-channel digital signals), you can use this mode. The surround effect will be added, and the sound localization of actor’s words will be improved. This mode cannot be used for

multi-channel digital signals.

When “MONO FILM” is used, the sounds come out of all the connected and activated speakers.

• If surround speakers are set to “NONE” in the speaker setting,

JVC’s original 3D-PHONIC processing (which has been developed to create the surround effect through the front speakers only) is used. The 3D-PHONIC indicator lights up on the display.

• If incoming signals change from 2-channel digital signal to another digital signal type, “MONO FILM” is canceled and an appropriate Surround mode is activated.

=

HALL 1 = HALL 2 = LIVE CLUB

=

DANCE CLUB = PAVILION = ALL CH STEREO

= THEATER 1 =

=

(Back to the beginning)

THEATER 2 = MONO FILM

Note:

When the surround speakers are set to “NONE,” the 3D-PHONIC processing is applied to the DSP modes (the 3D-PHONIC indicator also lights up).

To adjust the effect level (except All Channel Stereo) and center tone, see page 22.

To cancel the DSP mode

Press SURROUND/DSP OFF.

27

COMPU LINK Remote Control System

COMPU LINK-4

(SYNCHRO)

The COMPU LINK remote control system allows you to operate JVC’s audio components through the remote sensor on the receiver.

English

To use this remote control system, you need to connect JVC’s audio components through the COMPU LINK (SYNCHRO) jacks using the cables with monaural mini-plugs (not supplied, see below) in addition to the connections using cables with RCA pin plugs (see page 6).

• Make sure that the AC power cords of these components are unplugged before connection. Plug the AC power cords only after all connections are complete.

Automatic Source Selection

When you press the play ( on its own remote control, the receiver automatically turns on and changes the source to the component. On the other hand, if you select a new source on the receiver or on the remote control, the selected component begins playing immediately. In both cases, the previously selected source continues playing without sound for a few seconds.

33

3) button on a connected component or

33

Cassette deck

or

CD recorder CD player

Notes:

• There are four versions of COMPU LINK remote control system.

This receiver is equipped with the fourth version—COMPU LINK-4. This version is added systematic operations with the CD recorder to the previous version—COMPU LINK-3.

• If your audio component has two COMPU LINK jacks, you can use

either one. If it has only one COMPU LINK jack, connect it so that it is the last item in the series of components.

•To operate the cassette deck or CD recorder using the COMPU

LINK remote control system, set the source name correctly if required. (See page 12.)

• Refer also to the manuals supplied with your audio components.

This remote control system allows you to use four functions listed below.

Remote Control through the Remote Sensor on the Receiver

You can control the connected audio components through the remote sensor on the receiver using this remote control. Aim the remote control directly at the remote sensor on the receiver. For details, see pages 29 and 30.

Automatic Power On/Off (standby)—only possible with the COMPU LINK-3 and COMPU LINK-4

The connected components turn on and off (standby) along with the receiver. When you turn on the receiver, one of the connected components will turn on automatically, depending on which component has been previously selected. When you turn off the receiver, the connected components will turn off (standby).

Synchronized Recording

Synchronized recording means the cassette deck starts recording as soon as a CD begins playing.

To use synchronized recording, follow these steps:

1 Put a tape in the cassette deck, and a disc in the

CD player.

2Press the record (¶) button and the pause (8)

button on the cassette deck at the same time.

This puts the cassette deck into recording pause. If you do not press the record (¶) button and pause (8) button at the same time, the synchronized recording feature will not operate.

3Press the play (3) button on the CD player.

The source changes on the receiver, and as soon as play starts, the cassette deck starts recording. When the play ends, the cassette deck enters recording pause, and stops about 4 seconds later.

Notes:

• During synchronized recording, the selected source cannot be changed.

• If the power of any component is shut off during synchronized recording, the COMPU LINK remote control system may not operate properly. In this case, you must start again from the beginning.

28

Operating JVC’s Audio/Video Components

You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC’s components are preset in the remote control.

English

Operating Audio Components

IMPORTANT:

To operate JVC’s audio components using the supplied remote control:

•You need to connect JVC’s audio components through the COMPU LINK (SYNCHRO) jacks (see page 28) in addition to the connections using cables with RCA pin plugs (see page 6).

• Aim the remote control directly at the remote sensor on the receiver.

•To operate the target component using the COMPU LINK remote control system, set the source name correctly if required. (See page 12.)

• Refer also to the manuals supplied with your components.

Sound control section (Amplifier)

You can always perform the following operations:

STANDBY/ON AUDIO:

Turn on or off the receiver.

VOLUME +/–: Adjust the volume level. MUTING: Turn on or off sound muting. ANALOG/DIGITAL: Switch the analog and digital input

alternately.

DIMMER: Dim or brighten the display. SLEEP: Set the Sleep Timer. SURROUND: Turn on and select Surround modes. DSP: Turn on and select DSP modes. SURROUND/DSP OFF:

Turn off the Surround and DSP mode.

After pressing SOUND, you can perform the following operations by using the number buttons:

FRONT L then LEVEL +/–: Adjust the left front speaker output

level.

FRONT R then LEVEL +/–: Adjust the right front speaker output

level.

CENTER then LEVEL +/–: Adjust the center speaker output level. SURR L then LEVEL +/–: Adjust the left surround speaker

output level.

SURR R then LEVEL +/–: Adjust the right surround speaker

output level.

SUBWFR then LEVEL +/–: Adjust the subwoofer output level. EFFECT: Adjust the effect level. TEST:Turn on or off test tone output.

Note:

After adjusting sounds, press the corresponding source selection button to operate your target source by using the number buttons; otherwise, the number buttons cannot be used for operating your target source.

Tuner

You can always perform the following operations:

FM/AM: Alternate between FM and AM.

After pressing FM/AM, you can perform the following operations on a tuner:

1 – 10, +10: Select a preset channel number directly.

For channel number 5, press 5. For channel number 15, press +10, then 5. For channel number 20, press +10, then 10.

FM MODE: Change the FM reception mode.

CD player

After pressing CD, you can perform the following operations on a CD player:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing. 8: Pause playing. To resume, press 3.

1 – 10, +10: Select a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

CD recorder

After pressing TAPE/CDR, you can perform the following operations on a CD recorder:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing and recording. 8: Pause playing or recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

Cassette deck

After pressing TAPE/CDR, you can perform the following operations on a cassette deck:

3: Start playing. REW: Fast-wind the tape from right to left. FF: Fast-wind the tape from left to right.

7: Stop playing and recording or fast-wind the tape. 8: Pause playing or recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

Continued on the next page

29

MENU

ENTER

4

7/P

10

2

8

6

Operating JVC’s Audio/Video Components

CD changer

After pressing CD-DISC, you can perform the following operations

English

on a CD changer:

3: Start playing. 4: Return to the beginning of the current (or previous)

track.

¢: Skip to the beginning of the next track. 7: Stop playing. 8: Pause playing. To resume, press 3.

1 – 6, 7/P: Select the number of a disc installed in a CD

changer.

After pressing CD, you can perform the following operations on a CD changer:

1 – 10, +10: Select a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

Example:

• Selecting disc number 4, track number 12, and starting playback.

1Press CD-DISC, then press 4. 2Press CD, then press +10, 2.

If your CD changer is of 200-disc loading capability (except for XL-MC100 and XL-MC301), you can do the following operations

using the number buttons after pressing CD.

1 Select a disc number. 2Then select a track number (always enter two digits). 3Press 3 to start playback.

Examples:

• Selecting disc number 3, track number 2, and starting playback. Press 3, then, 0, 2, then 3.

• Selecting disc number 10, track number 5, and starting playback. Press 1, 0, then, 0, 5, then 3.

• Selecting disc number 105, track number 12, and starting playback. Press 1, 0, 5, then 1, 2, then 3.

Operating Video Components

IMPORTANT:

To operate JVC’s video components using the supplied remote control:

• Some JVC’s VCRs can accept two types of the control signals— remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code “A.”

• When using the remote control, aim the remote control directly at the remote sensor on each component, not on the receiver.

• Refer also to the manuals supplied with your components.

VCR

You can always perform the following operations:

STANDBY/ON VCR:Turn on or off the VCR. VCR CH +/–: Change the TV channels on the VCR.

After pressing VCR, you can perform the following operations on the VCR:

3: Start playing. REW: Rewind the tape. FF: Fast-forward the tape.

7: Stop playing, recording, rewind and fast forward. 8: Pause playing and recording. To resume, press 3.

REC PAUSE: Enter recording pause.

To start recording, press this button then 3.

DVD player

You can always perform the following operation:

STANDBY/ON DVD:Turn on or off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

3: Start playing. 4: Return to the beginning of the current (or previous) chapter. ¢: Skip to the beginning of the next chapter. 7: Stop playing. 8: Pause playing. To resume, press 3.

Note:

It is required to press each button within 4 seconds in the above procedure.

30

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

TV

Set TV/CATV selector to “TV.”

You can always perform the following operations:

STANDBY/ON TV/CATV CH +/–: Change the channels. TV VOLUME +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 – 9, 0, 100+ (+10): Select the channels. RETURN (10): Alternate between the previously selected

TV/CATV: Turn on or off the TV.

channel and the current channel.

Operating Other Manufacturers’ Video Equipment

This remote control supplied for the receiver can transmit control signals for other manufacturers’ TVs, CATV converters, VCRs and DVD players.

When operating the other manufacturers’ components, refer also to the manuals supplied with them.

• After replacing batteries for the remote control, you need to set the manufactures’ codes again.

To change the transmittable signals for operating another manufacturer’s TV

1 Set the TV/CATV selector to “TV.”

2Press and hold STANDBY/ON

TV/CATV.

To change the transmittable signals for operating a CATV converter

1 Set the TV/CATV selector to “CATV.”

2Press and hold STANDBY/ON

TV/CATV.

3Press TV SOUND.

4 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

English

3Press TV SOUND.

4 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01* Hitachi 10 Magnavox 02 Mitsubishi 03 Panasonic 04, 11 RCA 05 Samsung 12 Sanyo 13 Sharp 06 Sony 07 Toshiba 08 Zenith 09

* “01” is the initial setting.

5 Release STANDBY/ON TV/CATV.

Now you can perform the following operations on the TV:

STANDBY/ON TV/CATV CH +/–: Change the channels. TV VOLUME +/–: Adjust the volume. TV/VIDEO: Set the input mode (either TV or VIDEO).

After pressing TV SOUND, you can perform the following operations on the TV:

1 – 9, 0, 100+ (+10):

TV/CATV: Turn on and off the TV.

Select the channels. The 10 (ENTER) button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.

Manufacturer Codes

Echostar 01* General Instrument 02, 03, 04, 05, 06, 07, 08, 09 Hamlin 16, 17, 18, 19 Pioneer 14, 15 RCA 20 Scientific Atlanta 10, 11 Sony 21 Zenith 12, 13

* “01” is the initial setting.

5 Release STANDBY/ON TV/CATV.

Now you can perform the following operations on the CATV converter:

STANDBY/ON

TV/CATV CH +/–: Change the channels.

After pressing TV SOUND, you can perform the following operations on the CATV converter:

1 – 9, 0, 100+ (+10):

TV/CATV:

Turn on and off the CATV converter.

Select the channels. The 10 (ENTER) button will function as the ENTER button if your CATV converter requires pressing ENTER after selecting a channel number.

6Try to operate your CATV converter by pressing

STANDBY/ON

When your CATV converter on or off, you have entered the correct code.

If there are more than one code listed for your brand of CATV converter, try each one until the correct one is entered.

TV/CATV.

Notes:

• All the functions listed above may not be assigned to the buttons for some TVs.

• If you cannot change the channels of some TVs by pressing the number buttons, press TV/CATV CH +/– for changing the channels.

6Try to operate your TV by pressing

STANDBY/ON

When your TV turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of TV,

try each one until the correct one is entered.

TV/CATV.

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Continued on the next page

31

MENU

ENTER

4

7/P

10

2

8

6

Operating Other Manufacturers’ Video Equipment

To change the transmittable signals for operating another manufacturer’s VCR

English

1Press and hold STANDBY/ON VCR.

2Press VCR.

3 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01*, 02, 03 Emerson 10, 22 Gold Star 11 Hitachi 04 Mitsubishi 12 NEC 21 Panasonic 07, 13 Philips 09 RCA 05, 06 Samsung 20 Sanyo 17, 18, 19 Sony 14, 15, 16 Zenith 08

* “01” is the initial setting.

4 Release STANDBY/ON VCR.

Now you can perform the following operations on the VCR:

STANDBY/ON VCR CH +/–: Change the TV channels on the

After pressing VCR, you can perform the following operations on the VCR:

3: Start playing. REW: Rewind the tape. FF: Fast-forward the tape.

7: Stop playing or recording. 8: Pause playing. To resume, press 3.

REC PAUSE: Enter recording pause.

VCR: Turn on and off the VCR.

VCR.

To start recording, press this button then 3.

5Try to operate your VCR by pressing

STANDBY/ON

When your VCR turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

VCR.

To change the transmittable signals for operating another manufacturer’s DVD player

1Press and hold STANDBY/ON DVD.

2Press DVD.

3 Enter a manufacturer’s code using buttons 1 – 9,

and 0.

Manufacturer Codes

JVC 01* Panasonic 02 Philips 04 Pioneer 03 Sony 05 Toshiba 06 Yamaha 07

* “01” is the initial setting.

4 Release STANDBY/ON DVD.

Now you can perform the following operations on the DVD player:

STANDBY/ON DVD: Turn on and off the DVD player.

After pressing DVD, you can perform the following operations on the DVD player:

3: Start playing. 4: Return to the beginning of the current (or previous)

chapter (or fast reverse for some models).

¢: Skip to the beginning of the next chapter (or fast

forward for some models).

7: Stop playing. 8:Pause playing. To resume, press 3.

After pressing DVD, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

5Try to operate your DVD player by pressing

STANDBY/ON

When your DVD player turns on or off, you have entered the correct code.

DVD.

32

Manufacturers’ codes are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC’s service center.

English

PROBLEM

The display does not light up.

No sound from speakers.

“NO SUBWOOFER” appears on the display.

Continuous hiss or buzzing during FM reception.

Noise is heard during FM/AM reception.

“OVERLOAD” starts flashing on the display.

“DSP NG” appears on the display.

The STANDBY lamp lights up after turning on the power, and soon the receiver turns off again (into standby mode).

Remote control does not work.

Remote control does not work as you intend.

POSSIBLE CAUSE

The power cord is not plugged in.

Speaker signal cables are not connected.

The SPEAKERS ON/OFF button is not set correctly.

An incorrect source is selected.

Muting is activated.

An incorrect input mode (analog or digital) is selected.

The SUBWOOFER OUT ON/OFF button is pressed while “SUBWOOFER” is set to “SUBWOOFER NO.”

Incoming signal is too weak.

The station is too far away.

An incorrect antenna is used.

Antennas are not connected properly.

Ignition noise from automobiles.

Speakers are overloaded because of high volume.

Speakers are overloaded because of short circuit of speaker terminals.

The built-in microcomputer is not functioning correctly.

The receiver is overloaded because of a high voltage.

There is an obstruction between the remote sensor on the receiver and the remote control.

Batteries are weak.

An incorrect remote control operation mode is selected.

SOLUTION

Plug the power cord into an AC outlet.

Check speaker wiring and reconnect if necessary. (See page 5.)

Press SPEAKERS ON/OFF so that the sounds come out of the speakers. (See page 11.)

Select the correct source.

Press MUTING to cancel the mute. (See page 13.)

Select the correct input mode (analog or digital). (See pages 11 and 12.)

If subwoofer is connected, set “SUBWOOFER YES” so that the SUBWOOFER OUT ON/OFF button works.

Connect an outdoor FM antenna or contact your dealer. (See page 4.)

Select a new station.

Check with your dealer to be sure you have the correct antenna.

Check connections. (See pages 4 and 5.)

Move the antenna farther from automobile traffic.

1. Press STANDBY/ON turn off the receiver.

2. Stop the playback source.

3. Turn on the receiver again, and adjust the volume.

Press STANDBY/ON off the receiver, then check the speaker wiring. If “OVERLOAD” does not disappear, unplug the AC power cord, then plug it back again. If speaker wiring is not short-circuited, contact your dealer.

Press STANDBY/ON on the front panel to turn off the receiver. After unplugging the AC power cord, contact your dealer.

Press STANDBY/ON off the receiver. After unplugging the AC power cord, contact your dealer.

Remove the obstruction.

Replace batteries. (See page 4.)

Select the correct remote control operation mode. (See pages 29 to 32.)

on the front panel to

on the front panel to turn

33

Amplifier

Output Power

English

Audio

Specifications

Front channels: 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no

more than 10% total harmonic distortion.

Center channel: 100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10%

total harmonic distortion.

Surround channels: 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no

more than 10% total harmonic distortion.

Audio Input Sensitivity/Impedance (1 kHz)

CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX: 220 mV/47 kΩ

Audio Input (DIGITAL IN)*

Coaxial DIGITAL 1 (DVD): 0.5 V(p-p)/75 Ω Optical DIGITAL 2 (CD): –21 dBm to –15 dBm (660 nm ±30 nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency—32 kHz, 44.1 kHz,

48 kHz) Recording Output Level TAPE/CDR, VCR: 220 mV Signal-to-Noise Ratio (’66 IHF/’78 IHF)

CD, TAPE/CDR, VCR, TV SOUND, DVD: 66 dB/71 dB

Frequency Response (8 Ω)

CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX: 20 Hz to 20 kHz (±1 dB)

Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz: ±8 dB (in 2 dB steps)

Video

Video Input Sensitivity/Impedance

Composite video DVD, VCR, AUX: 1 V(p-p)/75 Ω

Video Output Level

Composite video VCR, MONITOR OUT: 1 V(p-p)/75 Ω Synchronization: Negative Signal-to-Noise Ratio: 45 dB

FM tuner (IHF)

Tuning Range: 87.5 MHz to 108.0 MHz Usable Sensitivity Monaural: 12.8 dBf (1.2 µV/75 Ω) 50 dB Quieting Sensitivity Monaural: 16.0 dBf (1.7 µV/75 Ω)

Stereo: 37.5 dBf (20.5 µV/75 Ω)

Stereo Separation at OUT (REC): 35 dB at 1 kHz

AM tuner

Tuning Range: 530 kHz to 1 710 kHz

General

Power Requirements: AC 120V , 60 Hz Power Consumption: 155 W/200 VA (at operation)

0.8 W (in standby mode) Dimensions (W x H x D): 435 mm x 146.5 mm x 369.5 mm Mass: 7.0 kg

Designs and specifications are subject to change without notice.

34

RX-5060B

AUDIO/VIDEO CONTROL RECEIVER

EN, FR

0106YHMMDWJEIN

AUDIO/VIDEO CONTROL RECEIVER

RX-5062S

TA/NEWS/INFO

DISPLAY MODE

INSTRUCTIONS

LVT1507-003A

[B]

Warnings, Cautions, and Others

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution––STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible.

The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off. The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids such as vases, shall be placed on the apparatus.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage.

Locate the apparatus as follows:

Front: No obstructions open spacing.

Sides: No obstructions in 10 cm from the sides.

Top: No obstructions in 10 cm from the top.

Back: No obstructions in 15 cm from the back.

Bottom: No obstructions, place on the level surface.

In addition, maintain the best possible air circulation as illustrated.

Wall or obstructions

Spacing 15 cm or more

RX-5062S

Front

Floor

Stand height 15 cm or more

G-2

SAFETY INSTRUCTIONS

Attention:

This symbol is only valid in the European Union.

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case—this could result in a fatal

electrical shock.;

— NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the takeback of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

G-3

Parts Identification

3D - PHONIC

DUAL

MONO

H.PHONE

SB

DSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TA NEWS INFO

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

=

%^

@

#

1324567890 - ~!

$

STANDBY

STANDBY/ON

PHONES

SURROUND

DSP

SPEAKERS

ON/OFF

SUBWOOFER OUT FM MODE MEMORY

ON/OFF

FM/AM TUNING

SURROUND/DSP

OFF

DIMMER

MASTER VOLUME

INPUT DIGITAL

RX—6030V

AUDIO/VIDEO CONTROL RECEIVER

SETTING

MULTI JOG

PUSH SET

QUICK SPEAKER

SETUP

ADJUST

EXIT

INPUT ANALOG

INPUT ATT

FM/AM PRESET

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

3D - PHONIC

DUAL

MONO

H.PHONESBDSP

DIGITAL EQ

INPUT ATT

VOLUME

PRO LOGIC

VIRTUAL SB

TA NEWS INFO

TUNED

STEREO

AUTO MUTING

SLEEP

96/24

1

2

3

4

5

w

r

t

i

o

;a

d

f

ye

u

6

7 8 9 p

q

s

Front Panel

See pages in parentheses for details.

1 STANDBY/ON

button and STANDBY lamp (9)

2 SURROUND/DSP OFF button (28, 30) 3 DSP button (29, 30) 4 SURROUND button (28) 5 Remote sensor 6 Display (For details, see “Display” below.) 7 Source selection buttons (9, 12)

AUX, DVD, VCR, TV SOUND, CD, TAPE/CDR (SOURCE NAME), FM, AM

8 INPUT ANALOG button (12)

INPUT ATT button (12)

9 INPUT DIGITAL button (11) p DIMMER button (12)

Display

q MASTER VOLUME control (10) w PHONES jack (11) e AUX input jacks (7) r SPEAKERS ON/OFF button (11) t SUBWOOFER OUT ON/OFF button (11) y FM/AM TUNING 5/∞ buttons (14) u FM/AM PRESET 5/∞ buttons (14) i FM MODE button (15) o MEMORY button (14) ; SETTING button (20) a QUICK SPEAKER SETUP button (19) s MULTI JOG (PUSH SET) dial (19, 20, 24) d EXIT button (20, 24) f ADJUST button (24)

See pages in parentheses for details.

1 ANALOG indicator (12) 2 DUAL MONO indicator (27) 3 H.PHONE indicator (11, 27, 29) 4 3D-PHONIC indicator (27, 29, 30)

PRO LOGIC II indicator (26, 28, 29)

5 6 VIRTUAL SB indicator (23) 7 DSP indicator (27, 29, 30) 8 Program type (TA/NEWS/INFO) indicators (18) 9 DIGITAL EQ indicator (25)

2

0 TUNED indicator (14)

- STEREO indicator (14) = INPUT ATT indicator (12) ~ AUTO MUTING indicator (15) ! SLEEP indicator (13) @ VOLUME indicator (9, 10) # Digital signal format indicators (11) $ Speaker indicators and signal indicators (10) % CH– indicator (14) ^ Main display

Remote Control

AUDIO

TV

VCR

DVD

TEST

EFFECT

MENU

ENTER LEVEL

RETURN

SURROUND/

DSP

CD-DISC

SLEEP

REC PAUSE

FM MODE

SURROUND

DSP

DIMMER TV/VIDEO MUTING

OFF

VCR CH

TV CH

VOLUME

SURR R

SURR L

SUBWFR

CENTER

FRONT R

FRONT L

100

1

4

7/P

10

2

5

8

0

3

6

9

10

REW

FF

TV VOLUME

STANDBY/ON

A/V CONTROL

RECEIVER

TAPE/CDR CD DVD

FM/AM TV SOUND VCR

ANALOG/

DIGITAL

TA/NEWS/INFO

DISPLAY MODE

PTY-PTY SEARCH-PTY

AUX

1

4

-

# $

@

!

%

3

7

6

9

0

&

^

5

8

=

2

~

CD IN

OUT

(REC)

IN

(PLAY)

OUT

(REC)

VCR

TV SOUND

IN

AUDIO

RIGHT LEFT

IN

(PLAY)

TAPE /CDR

SUBWOOFER

OUT

AUDIO

MONITOR

OUT

DVD

IN

OUT

(REC)

IN

(PLAY)

DVD

IN

RIGHT LEFT

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

VCR

CENTER

SPEAKER

SURROUND

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

AM

LOOP

AM EXT

ANTENNA

816–

CAUTION:SPEAKER IMPEDANCE

14

85 67

2 3

See pages in parentheses for details. 1 Number buttons for selecting preset channels (15, 31)

Number buttons for sound adjustment (25, 31) Number buttons for operating audio/video components (31, 32)

2 SOUND button (25, 31) 3 REC PAUSE button (32) 4 Source selection buttons (9, 10)

TAPE/CDR, CD, DVD, AUX, FM/AM, TV SOUND, VCR

5 FM MODE button (15, 31) 6 SURROUND button (28, 31) 7 DIMMER button (12, 31) 8 TV/VIDEO button (32) 9 VCR CH +/– buttons (32) 0 TV CH +/– buttons (32)

- STANDBY/ON

buttons (9, 31, 32)

AUDIO, TV, VCR, DVD

= SLEEP button (13, 31) ~ • Operating buttons for audio/video components

3, 8, 7, ¢/4, FF/REW (31, 32)

• Operating buttons for Radio Data System (16 – 18)

TA/NEWS/INFO, PTY SEARCH, PTY 9, ( PTY, DISPLAY MODE

! CD-DISC button (32) @ ANALOG/DIGITAL button (11, 12, 31) # SURROUND/DSP OFF button (28, 30, 31) $ DSP button (29 – 31) % MUTING button (13, 31) ^ VOLUME +/– button (10, 31) & TV VOLUME +/– buttons (32)

Rear Panel

See pages in parentheses for details.

1 DIGITAL IN terminals (8)

• Coaxial: DIGITAL 1 (DVD)

• Optical: DIGITAL 2 (CD)

2 AUDIO input/output jacks (6, 7)

• Input: CD IN, TAPE/CDR IN (PLAY), VCR IN (PLAY),

• Output: TAPE/CDR OUT (REC), VCR OUT (REC),

TV SOUND IN, DVD IN

SUBWOOFER OUT

Note:

When you press the one of the audio source selection buttons— TAPE/CDR, CD, and FM/AM—on the remote control, the receiver automatically turns on.

3 VIDEO input/output jacks (7)

• Input: DVD IN, VCR IN (PLAY)

• Output: MONITOR OUT, VCR OUT (REC)

4 ANTENNA terminals (4, 5) 5 CENTER SPEAKER terminals (5) 6 SURROUND SPEAKERS terminals (5) 7 FRONT SPEAKERS terminals (5) 8 AC power cord (8)

3

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

AM

LOOP

AM EXT

ANTENNA

Do not connect the AC power cord until all other connections have been made.

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General Precautions

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture and dust.

• The temperature around the receiver must be between –5˚C and 35˚C.

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Note:

Supplied batteries are for the initial setup. Replace for continued use.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Connecting the FM and AM (MW) Antennas

FM antenna connections

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM (MW) Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

1

1 Press and slide the battery cover on the back of

the remote control.

2

R6(SUM-3)/ AA(15F)

3

2 Insert the batteries.

• Make sure to match the polarity: (+) to (+) and (–) to (–).

3 Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell batteries.

A

Extend the supplied FM antenna horizontally.

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—A

If reception is poor, connect the outdoor FM antenna (not supplied)—B 1 Disconnect the supplied FM antenna. 2 Connect a 75 Ω coaxial cable with the standard type connector

(IEC or DIN45325).

B

FM Antenna (supplied)

Outdoor FM Antenna Cable (not supplied)

4

CENTER

SPEAKER

SURROUND SPEAKERS

RIGHT

LEFT

FRONT

SPEAKERS

RIGHT

LEFT

CAUTION:SPEAKER IMPEDANCE

+

–

+

–

To center speaker

To right front speaker

To right surround speaker

To left surround speaker

To left front speaker

AM

LOOP

AM EXT

ANTENNA

RIGHT

LEFT

+

–

RIGHT

LEFT

+

–

Do not connect the AC power cord until all other connections

RIGHT

LEFT

+

–

have been made.

AM (MW) antenna connections

AM (MW) Loop Antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM (MW) loop antenna.

12

Outdoor single vinyl-covered wire (not supplied)

Connecting the Speakers and Subwoofer

You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer.

CAUTIONS:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals.

• Do not connect more than one speaker to each speaker terminal.

Connecting the speakers

1

2

3

4

1 Twist and remove the insulation at the end of

each speaker cord. 2 Press and hold the clamp of the speaker terminal. 3 Insert the speaker cord. 4 Release the finger from the clamp.

Turn the loop until you have the best reception.

Notes:

• If the AM (MW) loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM (MW) loop antenna connected.)

For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

5

SUBWOOFER

OUT

(REC)

IN

(PLAY)

TAPE /CDR

L

R

L

CD

IN

R

L

Getting Started

45 – 60

Do not connect the AC power cord until all other connections have been made.

Connecting the subwoofer

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

Powered subwoofer

Placing speakers

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.

•Array across the front of the viewing area.

Surround speakers (LS/RS)

• Place these speakers alongside and slightly to the rear of (but not behind) the listening position; well above ear level (60 cm to 90 cm higher).

•Point these speakers directly across the listening area, but not at the listener’s ears.

Subwoofer (S.WFR)

•You can place it wherever you like since bass sound is nondirectional. Normally place it in front of you.

Connecting Audio/Video Components

When connecting individual components, refer also to the manuals supplied with them.

Analog Connections

Audio component connections

Use the cables with RCA pin plugs (not supplied).

• Connect the white plug to the audio left jack, and the red plug to the audio right jack.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player

To audio

output

Cassette deck/CD recorder

L

R

C

S.WFR

LS

RS

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 19).

6

Cassette deck or CD recorder

To audio input

To audio output

Note:

When connecting a CD recorder to the TAPE/CDR jacks, change the source name to “CDR,” which will be shown on the display when it is selected as the source. See page 12 for details.

MONITOR

OUT

TV SOUND

IN

AUDIO

RIGHT LEFT

A

B

R

L

OUT

(REC)

IN

(PLAY)

OUT

(REC)

VCR

IN

(PLAY)

R

L

R

L

A B DC

VCR

AUDIO

DVD

IN

RIGHT LEFT

A

B

DVD

IN

DVD

R

L

Do not connect the AC power cord until all other connections

R

L

A

B

have been made.

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

VCR

DVD player

Å To composite video output ı To left/right front channel audio output (or to audio-mixed

VCR

output if necessary)

Å To audio input ı To audio output Ç To composite video input Î To composite video output

Note:

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital input/ output terminals.

TV

Video camera, etc.

The AUX input jacks on the front panel are convenient when connecting and disconnecting the component frequently.

Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

Å To audio output ı To composite video input

TV

Video camera, etc.

Å To audio output ı To composite video output

7

DIGITAL 1(DVD)

DIGITAL 2(CD)

DIGITAL IN

Getting Started

Do not connect the AC power cord until all other connections have been made.

Digital Connections

By connecting the receiver and the source component through the digital terminals, sound reproduction quality will be much improved. In addition, you can enjoy multi-channel reproduction and some other convenient functions.

IMPORTANT:

• When connecting a video component using the digital terminals, you also need to connect it to the video jacks on the rear. Without connecting it to the video jacks, you can view no playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly.

For details, see “Setting the Digital Input Terminals” on page 23.

– Select the digital input mode correctly. For details, see

“Selecting the Analog or Digital Input Mode” on page 11.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital optical cable (not supplied) between digital optical terminals

Note:

When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components:

– DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

• Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When

unplugging the cord, always grasp the plug so as not to damage the cord.

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using a digital optical cable (not supplied).

Before connecting a digital optical cable, unplug the protective plug.

8

Basic Operations

VOLUME

DVD VCR CD AMTV SOUND TAPE/CDR

SOURCE NAME

AUX FM

TAPE/CDR CD DVD

FM/AM TV SOUND VCR

AUX

VOLUME

The following operations are commonly used when you play any sound sources.

Operations hereafter will be explained using the buttons on the front panel. You can also use the buttons on the remote control for the same functions if they have the same and similar names/marks.

Daily Operational Procedure

1 Turn on the power.

• See “Turning On the Power” below.

2 Select the source.

• See “Selecting the Source to Play” to the right.

3 Adjust the volume.

• See “Adjusting the Volume” on page 10.

4 Select the Surround or DSP modes.

• See “Activating the Surround Modes” (page 28) and “Activating the DSP Modes” (page 30).

Turning On the Power

Selecting the Source to Play

When you have connected digital source components using the digital terminals, first change the input mode for these components to the digital input mode (see page 11).

Press one of the source selection buttons.

Selected source name appears.

On the front panel

Press STANDBY/ON (or STANDBY/ON AUDIO on the remote control).

The STANDBY lamp goes off.

Current source name appears.

Current volume level appears.

To turn off the power (into standby mode),

press STANDBY/ON (or STANDBY/ON AUDIO on the remote control) again. The STANDBY lamp lights up.

Note:

A small amount of power is consumed in standby mode. To turn off the power completely, unplug the AC power cord.

On the remote control

Notes:

• When connecting a CD recorder to the TAPE/CDR jacks, change the source name shown on the display. For details, see page 12.

• By pressing the one of the audio source selection buttons—TAPE/ CDR, CD, and FM/AM—on the remote control, you can turn on the receiver and select the audio source.

9

SB SB

Basic Operations

TAPE/CDR CD DV D

FM/AM TV SOUND VCR

AUX

Speaker and signal indicators on the display

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Signal indicatorsSpeaker indicators

What speaker indicators light depends on the speaker setting (for details, see “Setting the Speakers” on page 21).

• The frames of “L,” “C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL.” Sounds come out of the speakers whose speaker indicators is lit on the display.

• The pages 11 and 21).

The signal indicators light up to show the incoming signals.

L:•When digital input is selected: Lights up when the left

R:•When digital input is selected: Lights up when the right

C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal

SB: Lights up when the surround back channel signal comes in.

How to understand the speaker and signal indicator illumination

indicator lights up when the subwoofer is activated (see

channel signal comes in.

• When analog input is selected: Always lights up.

channel signal comes in.

• When analog input is selected: Always lights up.

comes in.

Ex. No sound comes out of the

center speaker and surround speakers though center channel and surround channel signals are coming into this receiver.

Selecting different sources for picture and sound

While watching pictures from a video source, you can listen to sound of an audio source.

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons while viewing the picture from a video component such as the VCR or DVD player, etc.

CD A MTAPE/CDR

SOURCE NAME

On the front panel

FM

On the remote control

Adjusting the Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/ or ruin your speakers.

Note:

The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

10

Listening with headphones:

Remote

NOT

Remote

NOT

You can enjoy not only stereo software but also multichannel software through the headphones. (Sounds are down-mixed to the front channels while playing multi-channel software.)

1 Press SPEAKERS ON/OFF to deactivate the speakers.

“HEADPHONE” appears for a while, and the H.PHONE indicator lights on the display.

• If the Surround or DSP mode has been activated, “3D H PHONE” appears for a while (and the DSP indicator also lights up on the display)—3D Headphone Mode (3D H PHONE). For details, see pages 27 and 29.

2 Connect the headphones to the PHONES jack on the front

panel.

• If you do not deactivate the speakers, no sound comes out of the headphones.

After using the headphones, disconnect the headphones, then press SPEAKERS ON/OFF again to activate the speakers.

CAUTION:

Be sure to turn down the volume....

• Before connecting or putting on headphones, as its high volume can damage both the headphones and your hearing.

• Before turning on speakers again, as its high volume may come out of the speakers.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the both analog and digital terminals (see pages 6 to 8), you can select the input mode—either digital or analog—for these components.

Before you start, remember... The digital input terminal setting should be correctly done for the sources you want to select the digital input mode (see “Setting the Digital Input Terminals” on page 23).

1 Press one of the source selection buttons (DVD,

TV SOUND, CD, TAPE/CDR*) for which you want to change the input mode.

*

If “TAPE” is selected as the source, digital input mode is not available. To change the source name, see “Changing the Source Name” on page 12.

2 Press INPUT DIGITAL to select “DIGITAL AUTO.”

The DIGITAL AUTO indicator lights up on the display.

• When using the remote control, press ANALOG/DIGITAL repeatedly to select “DIGITAL AUTO.”

Turning On and Off the Subwoofer Sound

You can cancel the subwoofer output even though you have connected a subwoofer and have set “SUBWOOFER” to “SUBWOOFER YES” (see page 21).

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer output.

Each time you press the button, subwoofer output is deactivated (“SUBWOOFER OFF”) and activated (“SUBWOOFER ON”) alternately.

• When subwoofer output is canceled, the Bass sounds (and LFE signals) will be emitted through the front speakers.

Notes:

• When subwoofer output is activated, you can also adjust the

subwoofer output level. For details, see page 25.

• You cannot deactivate the subwoofer output when you set “SMALL”

for the front speakers on the speaker size setting (see page 21) or using Quick Speaker Setup (see page 19).

• You cannot activate the subwoofer output when you have set

“SUBWOOFER” to “SUBWOOFER NO” (see page 21).

• When you change the “SUBWOOFER” setting from “SUBWOOFER

NO” to “SUBWOOFER YES” (see page 21), subwoofer output is automatically activated.

indicator goes off.

• When selecting “DIGITAL AUTO,” the following indicators indicate the digital signal format of the incoming signal.

: Lights up when Linear PCM signals come

in.

: Lights up when Dolby Digital signals

come in.

: Lights up when conventional DTS signals

come in.

: Lights up when DTS 96/24 signals come

in.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For details about the digital signal formats, see pages 26 and 27.

Continued on the next page

11

DIGITAL AUTO DOLBY DIGITAL

DTS SURROUND

Remote

NOT

Remote

NOT

Basic Operations

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.”

• Each time you press INPUT DIGITAL, the input mode changes as follows:

• When using the remote control, press ANALOG/DIGITAL repeatedly to select “DOLBY DIGITAL” or “DTS SURROUND.” Each time you press ANALOG/DIGITAL on the remote control, the input mode changes as follows:

DIGITAL AUTO=DOLBY DIGITAL=DTS SURROUND =ANALOG=(back to the beginning)

When “DOLBY DIGITAL” or “DTS SURROUND” is selected,

the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display.

• If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash.

Attenuating the Input Signal

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• Once you have made adjustment, it is memorized for each analog source.

Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display.

• Each time you press and hold the button, the input attenuator mode turns on (“INPUT ATT ON”) and off (“INPUT NORMAL”).

Changing the Source Name

When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

Note:

When you turn off the power or select another source, “DOLBY DIGITAL” and “DTS SURROUND” settings are canceled and the digital input mode is automatically reset to “DIGITAL AUTO.”

To select the analog input mode

Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

Changing the Display Brightness

You can dim the display.

When changing the source name from “TAPE” to “CDR”: 1 Press TAPE/CDR (SOURCE NAME).

• Make sure “TAPE” appears on the display.

2 Press and hold SOURCE NAME (TAPE/CDR) until

“ASSIGN CDR” appears on the display.

To change the source name back to “TAPE,” repeat the same

procedure above.

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience.

–“TAPE” will appear on the display when you select the CD recorder. – You cannot use the digital input (see page 11) for the CD recorder.

Press DIMMER.

• Each time you press the button, the display dims and brightens alternately.

12

The following basic operations are possible only using the

2010 30 40 50 60 70 80 90

(Canceled)

OFF

remote control.

Recording a source

You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time. While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording.

TA/NEWS/INFO

REW

REC PAUSE

FF

SLEEP

CD-DISC

MUTING

Using the Sleep Timer

Muting the Sound

Press MUTING to mute the sound through all speakers and headphones connected.

“MUTING” appears on the display and the volume turns off (the VOLUME indicator and its level indication go off).

To restore the sound, press MUTING again.

• Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound.

Note:

The output volume level, Midnight Mode (see page 22), Equalization patterns (see page 25), Surround modes and DSP modes (see pages 26 to 29) cannot affect the recording.

Basic adjustment auto memory

This receiver memorizes sound settings for each source—

• when you turn off the power,

• when you change the source,

• when you change the analog/digital input modes, and

• when you assign the source name (see page 12).

When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Analog/digital input mode (see page 11)

• Input attenuator mode (see page 12)

• Equalization pattern (see page 25)

• Speaker output levels (see page 25)

• Surround and DSP mode selection (see pages 26 and 29)

Notes:

• If the source is FM or AM, you can assign a different setting for each band.

• A sound setting assigned for a digital component is valid for both the analog and digital input modes.

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically.

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals:

To check or change the time remaining until the shut-off time:

Press SLEEP once. The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly until “SLEEP OFF” appears on the display. The SLEEP indicator goes off.

• Turning off the power also cancels the Sleep Timer.

13

Receiving Radio Broadcasts

Remote

NOT

Remote

NOT

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

VOLUME

TUNED

STEREO

AUTO MUTING

You can browse through all the stations or use the preset function to go immediately to a particular station.

Tuning in to Stations Manually

1 Press FM or AM to select the band.

The last received station of the selected band is tuned in.

2 Press FM/AM TUNING 5 or ∞ repeatedly until

you find the frequency you want.

• Pressing FM/AM TUNING 5 increases the frequency.

• Pressing FM/AM TUNING ∞ decreases the frequency.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset up to 30 FM and 15 AM (MW) stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 2 again.

1 Tune in the station you want to preset (see

“Tuning in to Stations Manually”).

• If you want to store the FM reception mode for this station,

select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 15.

2 Press MEMORY.

Notes:

• To select the band from the remote control, press FM/AM repeatedly. Each time you press the button, the band alternates

between FM and AM (MW).

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator also lights up (except when selecting “MODE MONO” as the FM reception mode).

• When you hold and then release the button in step 2, the frequency keeps changing until a station is tuned in.

The channel number position starts flashing on the display for about 5 seconds.

3 Press FM/AM PRESET 5 or ∞ to select a

channel number while the channel number position is flashing.

4 Press MEMORY again while the selected channel

number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

5 Repeat steps 1 to 4 until you store all the stations

you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

14

To tune in a preset station

CD-DISC

REC PAUSE

1

4

7

10

2

5

8

3

6

9

10

REW

FF

TA/NEWS/INFO

FM/AM

TUNED

STEREO

AUTO MUTING

AUTO MUTING MODE MONO

On the front panel:

1 Press FM or AM to select the band.

2 Press FM/AM PRESET 5 or ∞ until you find the

channel you want.

• Pressing FM/AM PRESET 5 increases the number.

• Pressing FM/AM PRESET ∞ decreases the number.

On the remote control:

Selecting the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

• You can store the FM reception mode for each preset station (see page 14).

While listening to an FM station, press FM MODE.

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MODE MONO.”

1 Press FM/AM to select the band (FM or AM).

The last received station of the selected band is tuned in.

• Each time you press the button, the band alternates between FM and AM (MW).

2 Press the number buttons to select a preset

channel number.

• For channel number 5, press 5.

• For channel number 15, press +10 then 5.

• For channel number 20, press +10 then 10.

• For channel number 30, press +10, +10, then 10.

Note:

When you use the number buttons on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page

31.)

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting)

MODE MONO: Select this to improve the reception (but

stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)

Note:

After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE.

15

Receiving Radio Broadcasts

CD-DISC

REC PAUSE

REW

FF

TA/NEWS/INFO

DISPLAY MODE

PTY-PTY SEARCH-PTY

PS

Canceled

PTY

RT

The following tuner operations are possible only using the remote control.

Switching to a Program of Your Choice Automatically

Searching for a Program by PTY Codes

Receiving FM Stations with Radio Data System (To show the Radio Data System information)

IMPORTANT:

Before using operating buttons for Radio Data System, press FM/ AM on the remote control so that those buttons work for tuner operation.

Receiving FM Stations with Radio Data System

To show the Radio Data System information

You can see the Radio Data System information the station sends on the display.

Press DISPLAY MODE on the remote control while listening to an FM station.

• Each time you press the button, the display changes to show you the following information:

PS (Program Service): While searching, “PS” appears and

then the station names will be displayed. “NO PS” appears if no signal is sent.

PTY (Program Type): While searching, “PTY” appears and

then the type of the broadcast program will be displayed. “NO PTY” appears if no signal is sent.

RT (Radio Text): While searching, “RT” appears and

then text messages the station sends will be displayed. “NO RT” appears if no signal is sent.

Notes:

• If searching finishes at once, “PS,” “PTY,” and “RT” will not appear

on the display.

• Some special characters and marks may not be displayed correctly.

(The display cannot show accented letters, “A,” for instance, may stand for accented “A’s” like “Å, Ä, Ã, Á, À, and Â.”)

Radio Data System allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

With the receiver, you can receive the following types of Radio Data System signals.

PS (Program Service): Shows commonly known station names

PTY (Program Type): Shows types of broadcast programs

RT (Radio Text): Shows text messages the station sends

Enhanced Other Networks:

Provides the information about the types of the programs sent by other Radio Data System stations of the different Networks than the one being received.

Notes:

• Radio Data System is not available for AM (MW) broadcasts.

• Not all FM stations provide Radio Data System signals, nor do all Radio Data System stations provide the same services. If in doubt, check with local radio stations for details on Radio Data System in your area.

• Radio Data System may not operate correctly if the station tuned is not transmitting Radio Data System signal properly or if the signal strength is weak.

16

Searching for a Program by PTY Codes

One of the advantages of the Radio Data System service is that you can locate a particular kind of program from the preset channels (see pages 14 and 15) by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

• To stop searching any time during the process, press PTY

SEARCH while searching.

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

1 Press PTY SEARCH while listening to an FM

station.

“PTY SELECT” flashes on the display.

2 Press PTY9 or (PTY until the PTY code you

want appears on the display, while “PTY SELECT” is flashing.

• Each time you press the button, the PTY codes change as follows:

NONE “ NEWS “ AFFAIRS “ INFO (Information) “ SPORT “ EDUCATE (Education) “ DRAMA “ CULTURE “ SCIENCE “ VARIED “ POP M (Music) “ ROCK M (Music) “ EASY M (Music) “ LIGHT M (Music) “ CLASSICS “ OTHER M (Music) “ WEATHER “ FINANCE “ CHILDREN “ SOCIAL “ RELIGION “ PHONE IN “ TRAVEL “ LEISURE “ JAZZ “ COUNTRY “ NATION M (Music) “ OLDIES “ FOLK M (Music) “ DOCUMENT “ TEST “ ALARM “ (back to the beginning)

• For details about each PTY code, see the right column.

3 Press PTY SEARCH again, while the PTY code

selected in the previous step is still on the display.

While searching, the selected PTY code and “SEARCH” alternate on the display. The receiver searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in to that station.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display are flashing. If no program is found, “NOT FOUND” appears on the display.

Description of the PTY codes:

NEWS: News.

AFFAIRS: Topical program expanding or enlarging upon the

news—debate, or analysis.

INFO: Programs the purpose of which is to impart advice in

the widest sense.

SPORT: Programs concerned with any aspect of sports.

EDUCATE: Educational programs.

DRAMA: All radio plays and serials.

CULTURE: Programs concerning any aspect of national or

regional culture, including language, theater, etc.

SCIENCE: Programs about natural sciences and technology.

VARIED: Used for mainly speech-based programs such as

quizzes, panel games, and personality interviews.

POP M: Commercial music of current popular appeal.

ROCK M: Rock music.

EASY M: Current contemporary music considered to be “easy-

listening.”

LIGHT M: Instrumental music, and vocal or choral works.

CLASSICS: Performances of major orchestral works,

symphonies, chamber music, etc.

OTHER M: Music not fitting into any of the other categories.

WEATHER: Weather reports and forecasts.

FINANCE: Stock Market reports, commerce, trading, etc.

CHILDREN: Programs targeted at a young audience.

SOCIAL: Programs about sociology, history, geography,

psychology, and society.

RELIGION: Religious programs.

PHONE IN: Involving members of the public expressing their

views either by phone or at a public forum.

TRAVEL: Travel information.

LEISURE: Programs about recreational activities.

JAZZ: Jazz music.

COUNTRY: Songs which originate from, or continue the musical

tradition of the American Southern States.

NATION M: Current popular music of the nation or region in that

country’s language.

OLDIES: Music from the so-called “golden age” of popular

music.

FOLK M: Music which has its roots in the musical culture of a

particular nation.

DOCUMENT: Programs concerning factual matters, presented in an

investigative style.

TEST: Broadcasts for testing emergency broadcast

equipment or unit.

ALARM: Emergency announcement.

NONE: No program type, undefined program, or difficult to

categorize into particular types.

Classification of the PTY codes for some FM stations may be different from the above list.

17

Receiving Radio Broadcasts

NEWSTA TA/NEWS

TA/NEWS/INFO

TA/INFO

NEWS/INFO

INFO

Canceled

Switching to a Program of Your Choice Automatically

Another convenient Radio Data System service is called “Enhanced Other Networks.” This allows the receiver to switch temporarily to a broadcast program of your choice (TA, NEWS, and/or INFO) from a different source except in the following cases:

• When you are listening to a non-Radio Data System station—all AM (MW) and some FM stations.

• When the last received FM station is a non-Radio Data System station.

• When the receiver is in standby mode.

Before you start, remember...

• The Enhanced Other Networks function is only applicable to preset FM stations.

• You can use the Enhanced Other Networks function while listening to any source. However, to use operation buttons for Radio Data System on remote control, the remote control operation mode must be set for the tuner operations mode (see page 31).

Press TA/NEWS/INFO repeatedly to select the program type(s) you want.

• Each time you press the button, the program type(s) change, and the corresponding indicators light up on the display.

When the current source is other than “FM”

CASE 3

When a station is or starts broadcasting the program you have selected, the receiver automatically switches to the station. The indicator of received program type starts flashing.

If a station starts broadcasting the program you have selected while listening to any source other than “FM”

‘

When the program is over, the receiver goes back to the previously selected source, but still remains in Enhanced Other Networks standby mode. The indicator of received program type stops flashing and remains lit.

To stop listening to the program selected by the Enhanced Other Networks function

Press TA/NEWS/INFO so that the program type (TA/NEWS/INFO) indicator stops flashing and remains lit. The unit enters the Enhanced Other Networks standby mode and goes back to the previously selected source.

If an “ALARM” (or TEST) signal is received from a station,

the receiver automatically tunes in to the station.

• While receiving an emergency broadcast, “ALARM” appears on the display.

TA: Traffic Announcement in your area. NEWS: News.

INFO: Program the purpose of which is to impart advice in

the widest sense.

When the current source is “FM”

CASE 1

The receiver continues to receive the station, but the indicator of received program type starts flashing.

If the station currently tuned in starts broadcasting the program you have selected

‘

When the program is over, the indicator of received program type stops flashing and remains lit, but the receiver remains in Enhanced Other Networks standby mode.

CASE 2

If another FM station starts broadcasting the program you have selected while you are listening to an FM station

The TEST signal is used for testing the “ALARM” signal. Therefore, it makes the unit work in the same way as the “ALARM” signal does.

Notes:

• Enhanced Other Networks data sent from some stations may not be compatible with this receiver.

• While listening to a program tuned in by the Enhanced Other Networks function, you can only use the DISPLAY MODE and TA/NEWS/INFO buttons as the tuner operation buttons.

• While listening to a program tuned in by the Enhanced Other Networks function, you cannot change to another source or station. To change it, press TA/NEWS/INFO button first to cancel Enhanced Other Networks.

CAUTION:

When the source alternates intermittently between the station tuned in by the Enhanced Other Networks function and the currently selected source, press TA/NEWS/INFO repeatedly to cancel the Enhanced Other Networks function. If you do not press the button, the currently tuned station is received finally, and one of the TA/NEWS/INFO indicators flashing on the display disappears.

The receiver automatically switches to the station. The indicator of received program type starts flashing.

When the program is over, the receiver goes back to the station previously tuned in, but still remains in Enhanced Other Networks standby mode. The indicator of received program type stops flashing and remains lit.

18

‘

Basic Settings

Remote

NOT

5.0CH “ 5.1CH “ 2.0CH “ 2.1CH “ 3.0CH “

3.1CH “ 4.0CH “ 4.1CH “ (Back to the beginning)

L (Large) S (Small)

M (Medium)

Some of the following settings are required after connecting and positioning your speakers while others will make operations easier. You can use QUICK SPEAKER SETUP to easily set up your speaker configuration.

Quick Speaker Setup

Quick Speaker Setup helps you to easily and quickly register the speaker size and speaker distance according to your listening room to create the best possible surround effect.

• You can also register each speaker’s information manually. For details, see page 21.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1 Press QUICK SPEAKER SETUP.

“SPK=” and the initial speaker channel number appear.

2 Turn MULTI JOG to select an appropriate

number of the connected speakers (speaker channel number).

As you turn the jog, the speaker channel number changes as follows.

• For the details of speaker channel number, see “Speaker channel number and speaker size.”

5 Press in MULTI JOG (PUSH SET).

“COMPLETE” appears on the display, then goes back to the source indication.

Note:

This procedure will not be completed if you stop in the middle of the setting process.

Speaker channel number and speaker size

You can find how each of the speaker size is defined according to the number of connected speakers (speaker channel “CH” number) you select.

• Subwoofer (S.WFR) is counted as 0.1 channel.

CH

2.0CH LARGE NONE NONE NO

2.1CH SMALL NONE NONE YES

3.0CH LARGE SMALL NONE NO

3.1CH SMALL SMALL NONE YES

4.0CH LARGE NONE SMALL NO

4.1CH SMALL NONE SMALL YES

5.0CH LARGE SMALL SMALL NO

5.1CH SMALL SMALL SMALL YES

Room size and speaker distance/output level

According to the selected room size, speaker distance and speaker output level for each activated speaker is set as follows:

The size of the connected speakers

L/R C LS/RS S.WFR

3 Press in MULTI JOG (PUSH SET).

“ROOM SIZE=” and the initial room size setting appear.

4 Turn MULTI JOG to select an appropriate room

size to match to your listening room.

As you turn the jog, the room size changes as follows.

• To select your appropriate room size, see “Room size and speaker distance/output level.”

Room

size

L L/R 3.0 m (10 ft) 0 dB

(Large) C 3.0 m (10 ft) 0 dB

M L/R 2.7 m (9 ft) 0 dB

(Medium) C 2.4 m (8 ft) –2 dB

S L/R 2.4 m (8 ft) 0 dB

(Small) C 2.1 m (7 ft) –2 dB

Notes:

• In the tables above, “L” stands for the left front speaker, “R” for the right front speaker, “C” for the center speaker, “LS” for the left surround speaker, “RS” for the right surround speaker, and “S.WFR” for the subwoofer.

• Once Quick Speaker Setup is performed, the speaker output levels are also set to appropriate values automatically (common to all sources). If you want to set the speaker output levels separately for each source, see “Adjusting the Speaker Output Levels” on page 25.

Speaker Distance

LS/RS 3.0 m (10 ft) 0 dB

LS/RS 2.1 m (7 ft) –3 dB

LS/RS 1.5 m (5 ft) –4 dB

Output

level

19

JVC RX-5060B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Parts Identification

Getting Started

Before Installation

Checking the Supplied Accessories

Connecting the FM and AM Antennas

Putting Batteries in the Remote Control

Connecting the Speakers and Subwoofer

Connecting Audio/Video Components

Connecting the Power Cord

Basic Operations

Daily Operational Procedure

Turning On the Power

Selecting the Source to Play

Adjusting the Volume

Selecting the Analog or Digital Input Mode

Turning On and Off the Subwoofer Sound

Attenuating the Input Signal

Changing the Source Name

Changing the Display Brightness

Using the Sleep Timer

Muting the Sound

Receiving Radio Broadcasts

Tuning in to Stations Manually

Using Preset Tuning

Selecting the FM Reception Mode

Basic Settings

Quick Speaker Setup

Basic Setting Items

Basic Procedure

Adjusting Sound

Basic Adjustment Items

Basic Procedure

Using the Surround Modes

Reproducing Theater Ambience

Introducing the Surround Modes

Activating the Surround Modes

Using the DSP Modes

Reproducing the Sound Field

Introducing the DSP Modes

Activating the DSP Modes

COMPU LINK Remote Control System

Operating JVC’s Audio/Video Components

Operating Audio Components

Operating Video Components

Operating Other Manufacturers’ Video Equipment

Troubleshooting

Specifications

Table of Contents

Parts Identification

Getting Started

Before Installation

Connecting the FM and AM Antennas

Checking the Supplied Accessories

Putting Batteries in the Remote Control

Connecting the Speakers and Subwoofer

Connecting Audio/Video Components

Connecting the Power Cord

Basic Operations

Daily Operational Procedure

Selecting the Source to Play

Turning On the Power

Adjusting the Volume

Selecting the Analog or Digital Input Mode

Turning On and Off the Subwoofer Sound

Attenuating the Input Signal

Changing the Source Name

Changing the Display Brightness

Using the Sleep Timer

Muting the Sound

Receiving Radio Broadcasts

Tuning in to Stations Manually

Using Preset Tuning

Selecting the FM Reception Mode

Basic Settings

Quick Speaker Setup
