JVC KD-R807 User manual

Instructions CD RECEIVER KD-R807

ENGLISHРУCCKИЙУКРАЇНА

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ КОМПАКТ-ДИСКІВ

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

ІНСТРУКЦІЇ

GET0601-001B

[EE]

For canceling the display demonstration, see page 4. Информацию об отмене демонстрации функций дисплея см. на стр. 4. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 4.

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре. Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства. Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

EN, RU, UK

0209DTSMDTJEIN

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего устройства

обратитесь на соответствующую страницу

Маєте ПРОБЛЕМУ з функціонуванням?

Повторно налаштуйте систему

Див. сторінку “Як повторно налаштувати пристрій”

Bіктор Компані оф Джепен Лімітед

12, 3-чоме, Морійя-чо, Канагава-ку, Йокогама, Канагава 221-8520, Японія

KD-R807

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Caution:

[European Union only]

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

If the temperature inside the car is below 0°C, the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. When the temperature increases, and the operating temperature is resumed, these functions will start working again.

appears on the display.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

For safety...

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

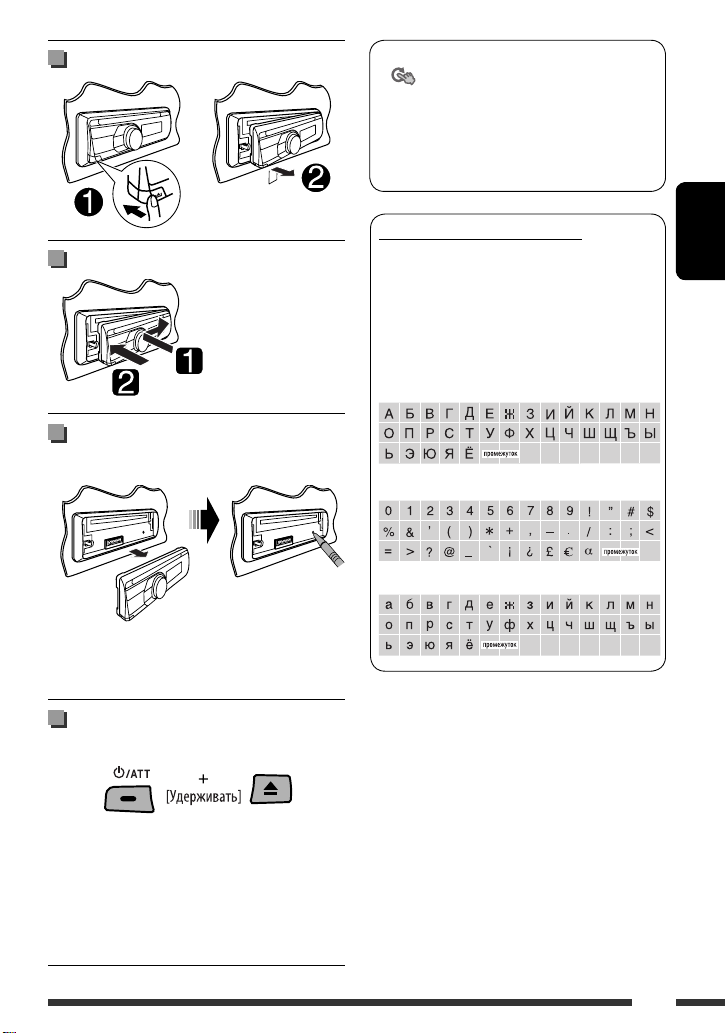

Detaching the control panel

Attaching the control panel

How to reset your unit

How to read this manual:

•

is used to indicate turn the control dial to make a selection, then press to confirm the selection.

• < > is used to indicate the available items/ settings/operations in the <SET UP> menu.

Available characters on the display

This unit can display Romans alphabets (A – Z, a – z), Cyrillic alphabets, numbers, and symbols (see below). These characters are also used to show the various information on the display.

Upper case (Cyrillic alphabets)

Numbers and symbols

Lower case (Cyrillic alphabets)

ENGLISH

• Your preset adjustments will also be erased (except the registered Bluetooth device, see pages 15 and 16).

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc, see page 12.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Preparation

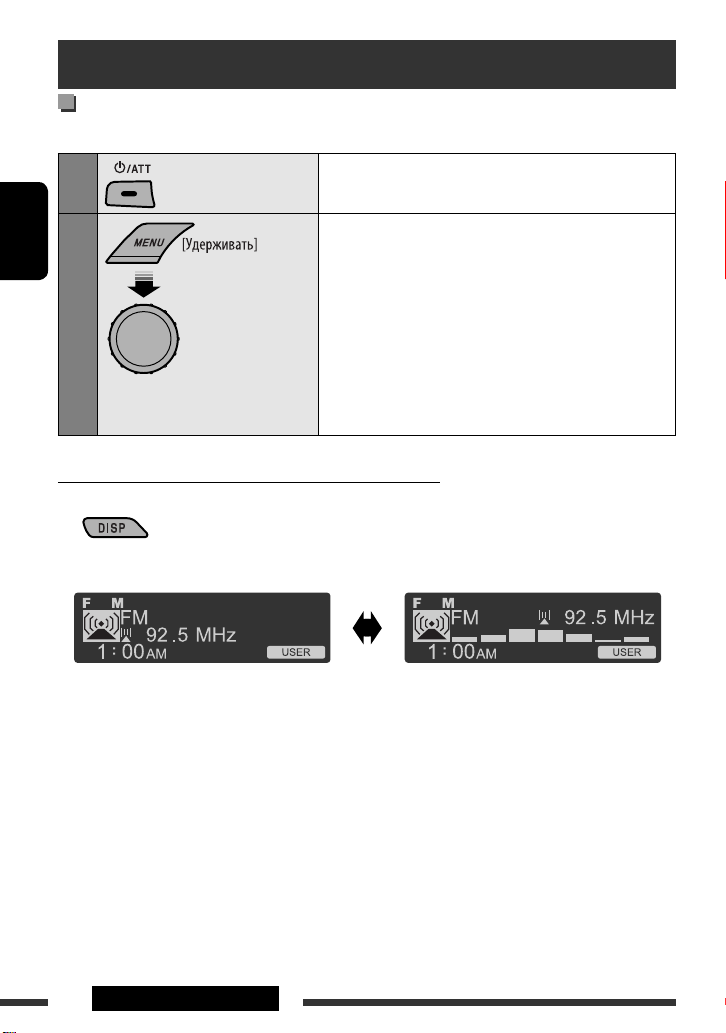

Canceling the display demonstration and setting the clock

• See also page 24.

ENGLISH

Turn on the power.

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Changing the display information and pattern

When the power is turned off: Check the current clock time

Ex.: When tuner is selected as the source

Source operation display

Cancel the display demonstrations

Select <DEMO>, then <Off>.

Set the clock

• Select <Clock>, then <Set Clock>. Adjust the hour, then press control dial once to proceed to

adjust the minute.

• Select <24H/12H> (hour), then <24Hours> or <12Hours>.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

Audio level meter display

(see <Level Meter> on page 26)

4 INTRODUCTIONS

CONTENTS

Detaching the control panel .................................................................................................................. 3

Attaching the control panel .................................................................................................................. 3

How to reset your unit .......................................................................................................................... 3

How to forcibly eject a disc .................................................................................................................... 3

INTRODUCTIONS

Preparation ........................................................................................................................................... 4

OPERATIONS

Basic operations .................................................................................................................................... 6

• Using the control panel ................................................................................................................................. 6

• Using the remote controller (RM-RK50) ........................................................................................................ 7

Listening to the radio ............................................................................................................................ 9

Disc operations ...................................................................................................................................... 12

USB operations ..................................................................................................................................... 13

Using the Bluetooth ® devices ............................................................................................................... 14

• Connecting a Bluetooth device for the first time ........................................................................................... 15

• Using the Bluetooth cellular phone .............................................................................................................. 17

• Using the Bluetooth audio player ................................................................................................................. 19

EXTERNAL DEVICES

Listening to the iPod/iPhone ................................................................................................................ 20

Listening to the other external components ......................................................................................... 22

ENGLISH

SETTINGS

Selecting a preset sound mode ............................................................................................................. 23

Menu operations ................................................................................................................................... 24

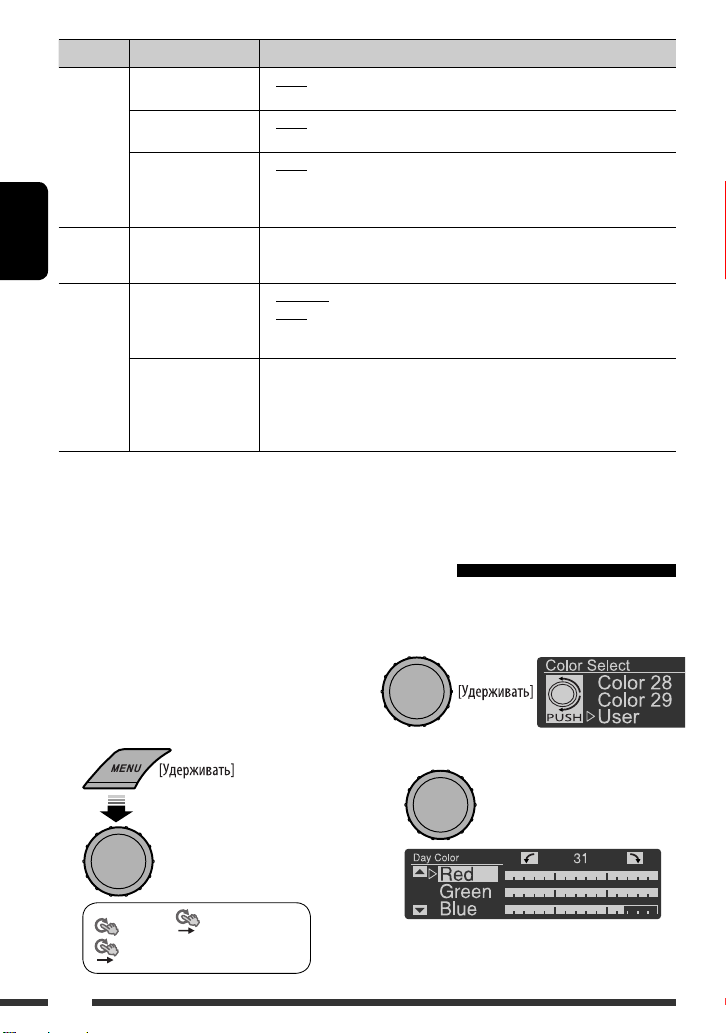

• Creating your own color—User Color .......................................................................................................... 28

• Setting the time for dimmer ......................................................................................................................... 29

• Changing the Bluetooth setting .................................................................................................................... 30

REFERENCES

More about this unit ............................................................................................................................. 32

Troubleshooting .................................................................................................................................... 37

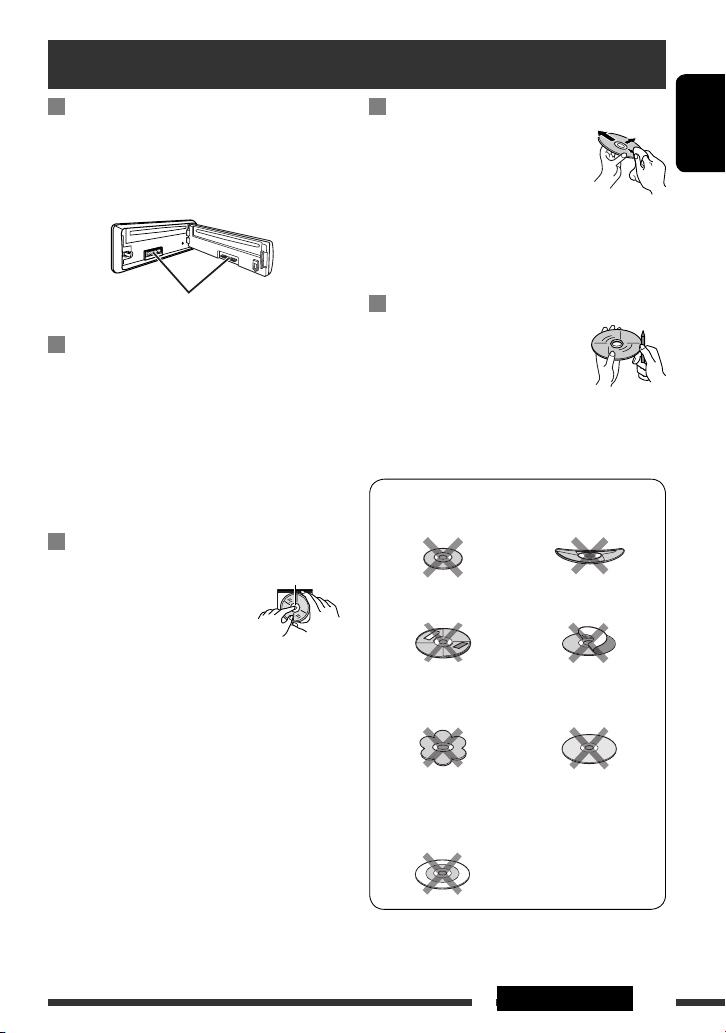

Maintenance ......................................................................................................................................... 41

Specifications ........................................................................................................................................ 42

Basic operations

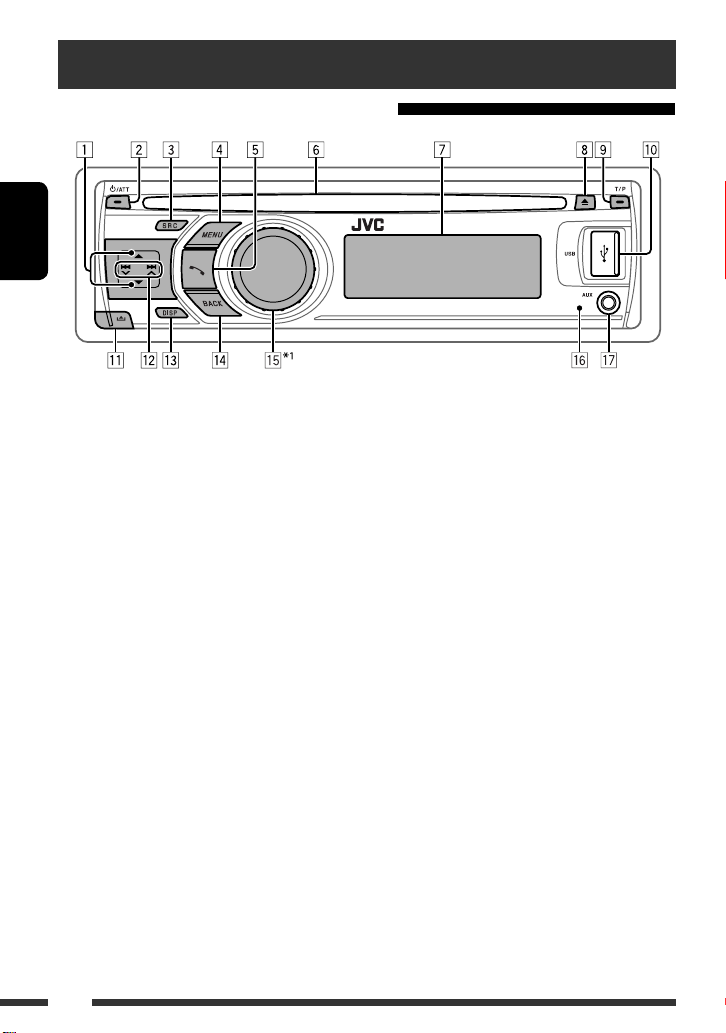

Using the control panel

ENGLISH

1 •

FM/AM/FM-LOW

•

CD/USB FRONT/USB REAR BT FRONT/BT REAR

• the microphone volume (during a phone call conversation).

BT FRONT/BT REAR

• group/folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

BT FRONT/BT REAR

• the conversation media during a phone call conversation.

3 Select the source.

= CD *3 =

*3/

FRONT REAR

*3/

iPod REAR

AUX IN

*4 = AM *4 =

the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

•

iPod FRONT/iPod REAR

menu.

: Select preset station.

USB FRONT

BT FRONT

*3/

(Phone): Adjust

(Audio) *2: Select

(Phone): Switch

3, *4

BT REAR

FM-LOW

: Enter the main

: Select folder.

*3/

iPod

USB

3, *4

* = (back to

5 • Enter “Call Menu” screen.

• Enter <Quick Call> preset method [Hold]. (See page 30.)

•

BT FRONT/BT REAR

(Phone): – Answer incoming call. – End a call [Hold].

6 Loading slot 7 Display window 8 Eject disc. 9 • Activate/deactivate TA Standby Reception.

• Enter PTY Searching mode [Hold].

p USB (Universal Serial Bus) input terminal q Detach the panel. w •

FM/AM/FM-LOW CD/USB FRONT/USB REAR/iPod

•

FRONT/iPod REAR

•

BT FRONT/BT REAR

: Search for station.

: Select track.

(Audio): Reverse skip/

forward skip.

e Change the display information.

*1 – *4 : See page 7.

r • Return to the previous menu.

iPod FRONT/iPod REAR

• setting between <Headunit Mode> and <iPod Mode> *5 [Hold].

•

BT FRONT/BT REAR

playback [Press].

t • Control the volume *

• Confirm the selection [Press] .

•

FM/FM-LOW CD/USB FRONT/USB REAR/iPod

•

FRONT/iPod REAR

playback *6 [Press].

BT FRONT/BT REAR

• playback *6 [Press].

CD/USB FRONT/USB REAR/iPod

•

FRONT/iPod REAR/BT FRONT BT REAR

[Hold].

y Remote sensor u AUX (auxiliary) input jack

: Enter SSM preset mode [Hold] .

(Audio) *2: Enter playback mode

: Switch the

(Audio): Pause

or select items [Turn].

: Pause/resume

(Audio): Resume

(Audio) *2/

*1 Also known as “Control dial” in this manual. *2 For Bluetooth devices that support AVRCP 1.3. *3 You cannot select these sources if they are not ready

*4 You cannot select these sources if they were disabled

*5 You can use this function only when <iPod Mode>

*6 You can still adjust the volume during pause when

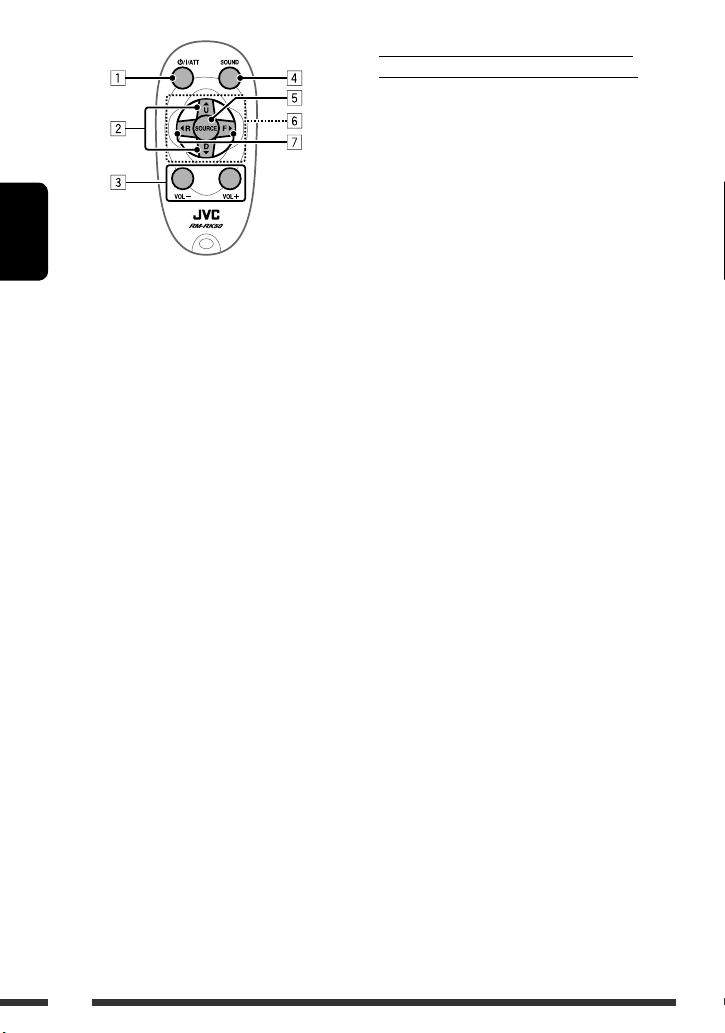

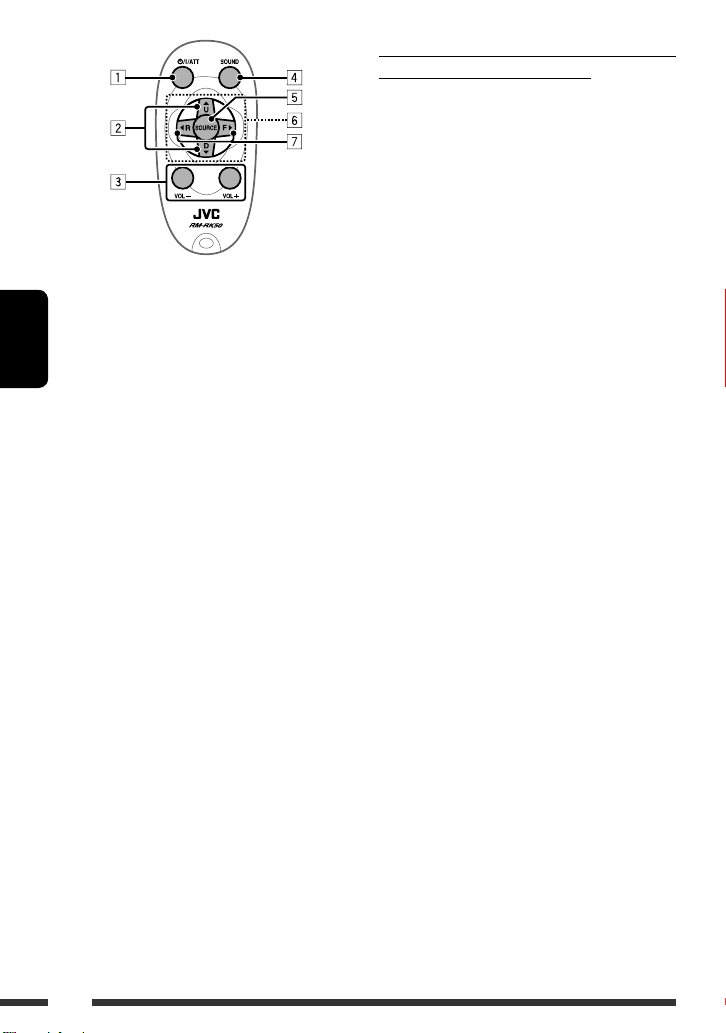

Using the remote controller (RM-RK50)

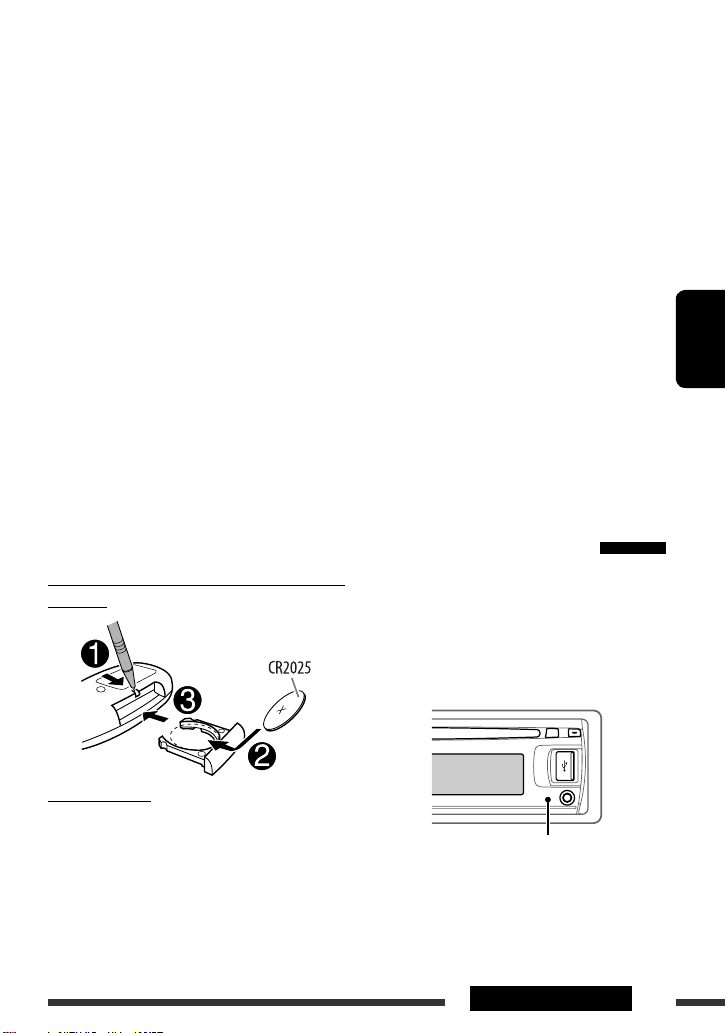

Installing the lithium coin battery (CR2025)

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

or not connected.

in the <SET UP> menu (see <Source Select> in “Menu operations” on page 28).

is available for the connected iPod (see pages 20 and 35).

the selected source is

REAR/iPod FRONT/iPod REAR/BT FRONT/ BT REAR

Before resume playback, check to be sure that you have not raise the volume level too much.

CD/USB FRONT/USB

ENGLISH

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Remote sensor

Continued on the next page

7OPERATIONS

ENGLISH

1 • Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

• Switches the conversation media during a phone call conversation if pressed briefly.

2 • Changes the preset stations.

• Changes the folder of the MP3/WMA (and WAV for USB operations).

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 For Bluetooth cellular phone:

– Answers calls if pressed briefly. – Rejects calls if pressed and held.

7 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• Reverse skip/forward skip for Bluetooth audio player.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

Listening to the radio

1 2

Select “FM,” “AM” or “

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” appears on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the indicator lights up on the display.

Note:

FM: 87.5 MHz – 108.0 MHz FM-LOW: 65.00 MHz – 74.00 MHz

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• Not applicable when the source is “FM-LOW.”

• See also page 27.

[Turn] = [Press]

<Mono>

Reception improves, but stereo effect will be lost. The

lights up on the display.

FM-LOW.”

ENGLISH

Storing stations in memory

Automatic presetting (FM/FM-LOW)— SSM (Strong-station Sequential Memory)

You can preset up to 12 stations for FM, and 6 stations for FM-LOW.

1 While listening to a station, enter “SSM”

screen.

2 Select the preset number range you want to

store.

FM:

SSM 01–06, SSM 07–12

FM-LOW:

SSM 01–06

To restore the stereo effect, repeat the same procedure to select <Stereo>.

Local FM stations with the strongest signals are

searched and stored automatically.

• To stop searching, press 4

To preset other 6 stations, repeat from step 1 again.

Continued on the next page

/¢ .

9OPERATIONS

Manual presetting (FM/AM/FM-LOW)

You can preset up to 12 stations for FM, 6 stations for FM-LOW, and 6 stations for AM. Ex.: Storing FM station of 92.5 MHz into preset number

“4.”

ENGLISH

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data

System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

2 Select preset number “4.”

Selecting preset station

[Turn] = [Press]

1 The last selected PTY code

appears.

2 Select one of your favorite programme types

or a PTY code.

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the

same PTY code as you have selected, that station is tuned in.

PTY codes

News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M (music), Rock M (music), Easy M (music), Light M (music), Classics, Other M (music), Weather, Finance, Children, Social, Religion, Phone In, Travel, Leisure, Jazz, Country, Nation M (music), Oldies, Folk M (music), Document

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM and FM-LOW. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 27).

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the Radio Data System signals required for TA Standby Reception.)

To activate the reception, tune in to another station

providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM and FM-LOW.

To activate and select your favorite PTY code for PTY Standby Reception, see page 27.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate the reception, tune in to another station

providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select <Off> for the PTY code (see page 27). The PTY indicator goes off.

• The unit will not switch to Traffic Announcement or PTY programme when a call connection is established

BT FRONT/BT REAR

through “

.”

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see <AF Regional> on page 27.

Programme A broadcasting on different frequency areas (01 – 05)

Automatic station selection—

Programme Search

Usually when you select a preset number, the station preset in that number is tuned in. If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 27.

ENGLISH

11OPERATIONS

Disc operations

ENGLISH

Stop playing and ejecting the disc

• “No Disc” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback.

MP3/WMA: Select folder

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Selecting a track/folder

[Turn] = [Press]

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

Selecting the playback modes

You can use only one of the following playback modes at a time.

1 Enter “PLAYBACK MENU” screen.

[Press] Select track [Hold] Reverse/fast-forward track

[Turn] = [Press]

Repeat

[Turn] = [Press]

Random

Track : Repeats current track

Folder : MP3/WMA: Repeats current folder

Repeat

Folder : MP3/WMA: Randomly plays all

tracks of current folder, then

Random

All : Randomly plays all tracks

• To cancel repeat play or random play, select “Off”.

• To return to the previous menu, press BACK.

tracks of next folders

USB operations

This unit is equipped with two USB input terminals (on the control panel and USB cable from the rear of the unit). You can use these two terminals at the same time.

• You can also connect a USB Bluetooth Adapter (KS-UBT1) and/or an Apple iPod/iPhone to the USB input terminal(s). For details of the operations, see pages 14 – 21.

This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such as a USB memory, Digital Audio Player , portable HDD, etc.).

ENGLISH

USB memory

and/or

USB cable from the rear of the unit

Turn on the power.

Connect a USB device.

All tracks will be played repeatedly until you change the source or disconnect a device.

Continued on the next page

13OPERATIONS

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached,

ENGLISH

playback starts from the beginning.

Stop playing and detaching the USB device

Straightly pull it out from the USB input terminal.

• “No USB” appears. Press SRC to listen to another playback source.

You can operate the USB device in the same way you operate the files on a disc. (See pages 12 and 13.)

• You can listen to WAV files by following the MP3/ WMA file operations listed on pages 12 and 13.

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• While “Reading” is shown on the display:

– Do not pull out and attach the USB device

repeatedly.

– Do not pull out or attach another USB device.

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• The detect time and response time may be very long for some USB devices (such as Digital Audio Player, HDD, etc.).

• For more details about USB operations, see pages 33 and 34.

Using the Bluetooth ® devices

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Refer also to the instructions supplied with the Bluetooth device.

Features

You can operate Bluetooth devices through the unit as follows:

• Receiving a call

• Making a call—from phone book, from call history (dialed number/received call), by dialing number, by voice command

• Informing you of the arrival of a SMS (Short Message Service)

• Play back a Bluetooth audio player

Connecting a Bluetooth device for the first time

Preparation:

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.

• Operate the device to turn on its Bluetooth function.

ENGLISH

You can perform the following operations from the <SET UP> menu.

• Pairing and delete pairing

• Connect and disconnect a registered Bluetooth device (Phone/Audio)

<Bluetooth> <Device> = Perform the following operations.

KS-UBT1

USB cable from the rear of the unit

Turn on the power.

Connect the USB Bluetooth Adapter, KS-UBT1.

• Only one USB Bluetooth Adapter can be detected at a time.

[Turn] = [Press]

Continued on the next page

15OPERATIONS

Pairing and PIN code

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate with each other.

ENGLISH

To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

1 Select <New Pairing>.

[Turn] = [Press]

2 Enter a PIN (Personal Identification Number)

code to the unit.

• You can enter any number you like (1-digit to

16-digit number). [Initial: 0000]

– Some devices have their own PIN code. Enter

the specified PIN code to the unit.

1 Move to the next (or previous) number

position.

3 Use the Bluetooth device to search and

connect.

On the device to be connected, enter the same PIN

code you have just entered for this unit.

“Wait Pair” appears, then “Pairing OK” or

“Connected [Device Name]” appears on the display when the connection is established. Now you can use the device through the unit.

appears when Bluetooth connection is

established.

The device remains registered even after you disconnect the device. Use <Connect Phone> or <Connect Audio> (or activate <Auto Connect>) to connect the same device from next time on. (See page 30.)

Deleting a registered device

1 Select <Delete Pairing>.

[Turn] = [Press]

2 Select a device you want to delete.

[Turn] = [Press]

2 Select a number.

3 Repeat steps 1 and 2 until you finish

entering a PIN code.

4 Confirm the entry.

“Wait Pair” appears on the display.

“Delete OK?” appears on the display.

3 Delete the selection.

“OK” appears on the display when the device is

deleted.

• To return to the previous menu, press BACK.

Connecting a registered device

1 Select <Connect Phone> or

<Connect Audio>.

[Turn] = [Press]

2 Select a device you want to connect.

[Turn] = [Press]

“Connecting...” appears, then “Connected [Device

Name]” appears on the display when the device is connected.

Disconnecting a registered device

Select <Disconnect Phone> or <Disconnect Audio>.

• “Dialed Calls” *: Shows the list of the phone numbers you have dialed. Go to the following step.

• “Received Calls” *: Shows the list of the received calls. Go to the following step.

• “Missed Calls” *: Shows the list of the missed calls. Go to the following step.

• “Phonebook”: Shows the name/phone number of the phone book of the unit. Go to the following step. To copy the phone book memory, see pages 30 and 31.

• “Dial Number”: Shows the “Dial Number” screen. See “How to enter phone number” on the following.

• “Voice Dial” (Only accessible when the connected cellular phone has the voice recognition system): Speak the name (registered words) you want to call.

* Displays only when the dialed or received number

is made through the unit. See also page 31 for “ Phonebook Select” settings.

ENGLISH

[Turn] = [Press]

“Disconnecting” appears, then “Disconnected [Device Name]” appears on the display when the device is disconnected.

Using the Bluetooth cellular phone

Making a call

1 Enter “Call Menu” screen.

2 Select the method to make a call.

[Turn] = [Press]

3 Select the name/phone number you want to

call.

[Turn] = [Press]

• When the sound is stopped or interrupted during the

use of a Bluetooth device, turn off, then turn on the unit.

– If the sound is not yet restored, connect the device

again. (See “Connecting a registered device” on the left column.)

How to enter phone number

1 Select a number.

Continued on the next page

17OPERATIONS

2 Move the entry position.

3 Repeat steps 1 and 2 until you finish

ENGLISH

entering the phone number.

4 Confirm the entry.

How to delete phone number

• Only when <Manual Trans> is selected for <Phonebook Select> in Bluetooth setting menu (see page 31).

1 Enter “Call Menu” screen.

2 Display the list of phone numbers using one

of the calling method (see step 2 of “Making a call” on page 17).

Receiving/ending a phone call

When a call comes in....

The source is automatically changed to “

.”

BT REAR

• The display will flash in blue (see <Ring Color> on page 25 for setting).

Name (or phone number, if acquired)

When <Auto Answer> is activated....

The unit answers the incoming calls automatically, see page 30.

• To answer the incoming call when <Auto Answer> is deactivated:

• To adjust the microphone volume during a phone call conversation:

BT FRONT/

3 Select the name/phone number you want to

delete.

4 Enter the “Delete Entries” screen.

5 • Select “Delete” to delete the selected item.

• Select “Delete All” to delete all the listed

numbers in step 2.

The adjustment will not affect the main volume. You

can preset the microphone volume (see pages 30 and

31).

To end the call or reject an incoming call

• When <Auto Answer> is set to <Reject>, the unit rejects any incoming calls.

Switching conversation media (the unit/ cellular phone)

During a phone call conversation....

Then, continue your conversation using the other media.

• Operations may be different according to the connected Bluetooth device.

Arriving of a SMS

When a SMS comes in....

If the cellular phone is compatible with SMS and <Message Notice> is set to <On> (see page 30), the unit rings to inform you of the message arrival.

• “Received Message” appears on the display and the display illuminate in blue (see <Ring Color> on page 25 for setting).

• You cannot read, edit, or send a message through the unit.

Using the Bluetooth audio player

• Operations and display indications differ depending on their availability on the connected audio player.

Select “

BT FRONT

BT REAR

“

If playback does not start automatically, operate the Bluetooth audio player to start playback.

[Press] Resume playback *

[Press] Pause playback *

” or

.”

Selecting the playback modes

You can use only one of the following playback modes at a time.

• For Bluetooth devices that support AVRCP 1.3.

1 Enter “PLAYBACK MENU” screen.

[Turn] = [Press]

Repeat Random

[Turn] = [Press]

Track : Repeats current track

All : Repeats all tracks

Repeat

Group : Repeats all tracks of current group

All : Randomly plays all tracks

Group : Randomly plays all tracks of the

Random

• To cancel repeat play or random play, select “Off”.

• To return to the previous menu, press BACK.

current group

ENGLISH

Select group/folder *

[Press] Reverse skip/forward

skip

[Hold] Reverse search/forward

* Operation maybe different according to the connected

device.

• Refer also to pages 16 and 17 for connecting/ disconnecting/deleting a registered device.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only).

19OPERATIONS

Listening to the iPod/iPhone

There are two control terminals in “

• <Headunit Mode> : Control by this unit.

• <iPod Mode> : Control by the connected iPod/iPhone.

ENGLISH

Preparation: Select the controlling terminal, <Headunit Mode> or <iPod Mode> for iPod playback:

• Press and hold BACK button.

• Make the selection from <iPod Switch> setting, see page 28.

The operations explained below are under <Headunit Mode>.

iPod/

iPhone

USB 2.0 cable

iPod FRONT/iPod REAR

” source.

Turn on the power.

Connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone).

Playback starts automatically.

USB cable from the rear of the unit

• When iPod/iPhone devices are connected to both front and rear USB input terminals, the unit only detects and charges the first connected device.

• Disconnecting the iPod/iPhone will stop playback. Press SRC to listen to another playback source.

• For details, refer also to the manual supplied with your iPod/iPhone.

Select a song.

Caution:

• Avoid using the iPod/iPhone if it might hinder your safety while driving.

• Make sure all important data has been backed up to avoid losing the data.

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback.

[Press] Select track [Hold] Reverse/fast-forward track

Selecting a track from the menu

1 Enter the main menu.

2 Select the desired menu.

[Turn] = [Press]

Playlists Ô Artists Ô Albums Ô Songs

Ô Podcasts Ô Genres Ô Composers Ô Audiobooks

Selecting the playback modes

1 Enter “PLAYBACK MENU” screen.

[Turn] = [Press]

Repeat Random

[Turn] = [Press]

One : Functions the same as

“Repeat One” of the iPod.

All : Functions the same as “Repeat

Repeat

Song : Functions the same as

Album* : Functions the same as

Random

• To cancel repeat play or random play, select “Off.”

• “Random Album” is not available for some iPod.

* Functions only if you select “All” for “Albums” in the

main menu.

• To return to the previous menu, press BACK.

All” of the iPod.

“Shuffle Songs” of the iPod.

“Shuffle Albums” of the iPod.

ENGLISH

3 Select the desired item.

[Turn] = [Press]

• Repeat this procedure until the desired track is selected.

• To return to the previous menu, press BACK.

EXTERNAL DEVICES

Listening to the other external components

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

Preparation: Make sure <Show> is selected in the <Source Select> = <AUX Source> setting, see page 28.

ENGLISH

Select “

AUX IN

1 2

—

Turn on the connected component and start playing the source.

Adjust the volume.

.”

Connecting an external component to the AUX input jack

—

Adjust the sound as you want (see page 23).

3.5 mm stereo mini plug (not supplied)

Portable audio player, etc.

EXTERNAL DEVICES

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre from the <SET UP> menu.

• See page 36 for the preset value for each sound mode.

[Turn] = [Press]

<EQ> <Off/User/Rock/Classic/Pops/Hip Hop/

Jazz>

• See page 25 for <Fad (fader)/Bal (balance)/Loud/Volume Adjust> settings.

ENGLISH

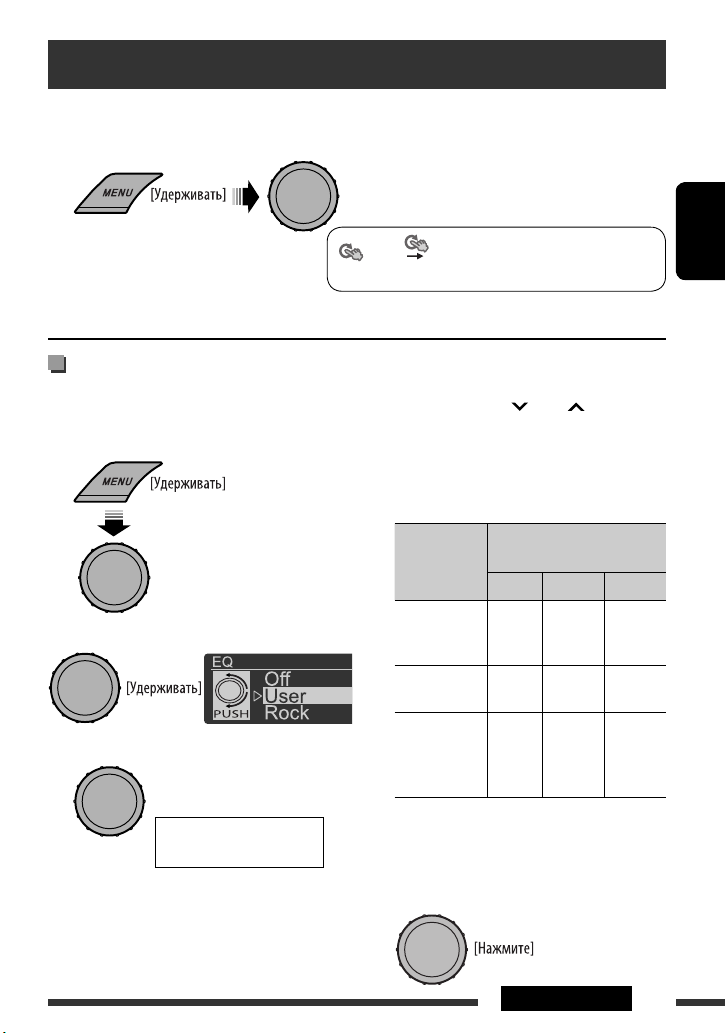

Storing your own sound mode

You can store your own adjustments in memory.

1 Select <EQ>.

[Turn] = [Press]

2 Enter <User> setting mode.

3 Select a frequency range.

[Turn] = [Press]

4 Adjust the sound elements of the selected

frequency range.

1 Press 4

frequency.

2 Press 5 / ∞ to adjust the level. 3 Turn the control dial to adjust the Q-slope.

Sound

elements

Frequency 50 Hz

Level –6 to +6 –6 to +6 –6 to +6

Q Q0.7

/ ¢ to adjust the

Range/selectable items

Low Mid High

100 Hz 200 Hz

Q1.0 Q1.4 Q2.0

0.5 kHz

1.0 kHz

2.0 kHz

Q0.7 Q1.0 Q1.4 Q2.0

5.0 kHz

10.0 kHz

15.0 kHz

Q0.7 Q1.0 Q1.4 Q2.0

5 Repeat steps 3 and 4 to adjust other

frequency ranges.

6 Store the adjustment made.

23SETTINGS

Menu operations

1 Call up the <SET UP>

menu.

ENGLISH

Category Menu items Selectable settings, [reference page]

DEMO

Display

DEMO

demonstration

Clock Display *1• On

Set Clock : Adjust the hour, then the minute, [4].

Clock

24H/12H • 12Hours

Clock Adjust *2• Auto

Equalizer

Color Select Color 01

Color

Menu Color • On

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select <Off>

to save the car’s battery.

*2 Takes effect only when CT data is received.

2 Select the desired item. 3 Repeat step 2 if necessary.

• To confirm the setting, press the

[Turn] = [Press]

• On

• Off

(Initial: 0:00AM)

• 24Hours

• Off

: Select a preset sound mode suitable to the music genre, [23]. Off, User, Rock, Classic, Pops, Hip Hop, Jazz

— Color 29, User

• Off

: Display demonstration will be activated automatically if

no operation is done for about 20 seconds, [4].

: Cancels.

: Clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off.

: Select the time display mode, [4].

: The built-in clock is automatically adjusted using the CT

(clock time) data in the Radio Data System signal.

: Cancels.

: Select one of the preset or user color for display and

button (except T/P/ (For customized color settings, <User>, see pages 28 and 29.)

: Changes the display and button (except T/P/

illumination during menu, list search and playback mode operations.

: Cancels.

control dial.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

/0) illumination.

/0)

Category Menu items Selectable settings, [reference page]

Ring Color *

• On

: When a call comes in, the display will flash in blue.

• The display will change to the original color when you answer the call or the incoming call stops.

Color

When the unit receive a SMS, the display only illuminate

in blue.

4, *5

Fad/Bal *

Fader/Balance

• Off

R6 – F6

L6 – R6

: Cancels.

: Fad: Press 5 / ∞ to adjust the front and rear speaker

output balance. (Initial: 0)

: Bal: Press 4

speaker output balance. (Initial: 0)

Loud

Loudness

Volume Adjust Level –5 —

• Loud1/Loud2/ Loud3

• Off

Level +5

(Initial: Level 0)

: Boost low and high frequencies to produce a

well-balanced sound at a low volume level.

: Cancels.

: Preset the volume adjustment level of each source

(except FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “FIX” appears on the display if “ selected as the source.

Audio

Subwoofer • LPF/Level : Press 4

the subwoofer.

• Off: All signals are sent to the subwoofer.

• LPF 55Hz/LPF 85Hz/LPF 120Hz: Frequencies higher than 55 Hz/85 Hz/120 Hz are cut off.

Turn the control dial to adjust the subwoofer output level.

• Level 00 to Level 08 (Initial: Level 04)

HPF

High pass filter

Select the cutoff frequency to the front/rear speakers. Set this to match the LPF settings.

• 62Hz/95Hz/

: Frequencies lower than 62 Hz/95 Hz/135 Hz are cut off.

135Hz

Beep

Key touch tone

• Off

• On

• Off

: All signals are sent to the front/rear speakers.

: Activates the key touch tone. : Deactivates the key touch tone.

*3 Displayed only when USB Bluetooth Adapter (KS-UBT1) is connected. *4 If you are using a two-speaker system, set the fader level to <0>. *5 This adjustment will not affect the subwoofer output.

/ ¢ to adjust the left and right

FM/FM-LOW

” is

/ ¢ to select the cutoff frequency to

ENGLISH

Continued on the next page

25SETTINGS

Category Menu items Selectable settings, [reference page]

Amplifier Gain *6• High Power

• Low Power

Audio

ENGLISH

Dimmer • On

• Off

• Auto

• Time Set

: Vol 00 – Vol 50 : Vol 00 – Vol 30 (Select if the maximum power of each

speaker is less than 50 W to prevent damaging the speaker.)

: Dims the display and button illumination. : Cancels. : Dims the display when you turn on the headlights. * : Set the timer for dimmer, [29]. Any hour – Any hour (Initial: 18–7)

Level Meter • Meter 1

• Meter 2

Scroll *

• Once

• Auto

• Off

: Select the different level meter patterns, [4].

• Press DISP to show the selected level meter.

: Scrolls the track information only once. : Repeats the scroll (in 5-second intervals). : Cancels.

Pressing DISP for more than one second can scroll the display regardless of the

Display

Tag Display • On

setting.

: Shows the Tag information while playing MP3/WMA/

WAV tracks.

• Off

LCD Type • Negative

• Positive

• Auto

: Cancels.

: Negative pattern of the display. : Positive pattern of the display. : Positive pattern will be selected during the day time *9;

while negative pattern will be used during the night time *9.

Contrast Level 01

— Level 08

: Adjust the display contrast to make the display

indications clear and legible. (Initial: Level 05)

*6 The volume level automatically changes to “Vol 30” if you change to <Low Power> with the volume level set

higher than “Vol 30.”

*7 The illumination control lead connection is required. (See “Installation/Connection Manual.”) *8 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *9 Depends on the <Dimmer> setting.

Category Menu items Selectable settings, [reference page]

Device (See pages 15 – 17 for settings.)

Settings (See pages 30 and 31 for settings.)

Bluetooth

IF Band

Intermediate frequency band

• Auto

• Wide

: Increases the tuner selectivity to reduce interference

noises between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

AF Regional *

Alternative frequency/ regionalization reception

• AF

• AF REG

: When the currently received signals become weak, the

unit switches to another station (the programme may differ from the one currently received), [11].

• The AF indicator lights up. : When the currently received signals become weak, the

unit switches to another station broadcasting the same programme.

Tuner

P-Search *

Programme search

TA Volume *

Traffic announcement

• Off

• On

• Off

Vol 00 – Vol 50 (or Vol 00 – Vol 30)*

• The REG indicator lights up. : Cancels.

: Activates Programme Search, [11]. : Cancels.

: (Initial: Vol 15)

volume

PTY-Standby *

PTY standby

Stereo/Mono *12• Stereo

Off, PTY codes : Activates PTY Standby Reception with one of the PTY

codes, [10].

: Restore the stereo effect.

• Mono

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [9].

Only for FM Radio Data System stations.

Depends on the amplifier gain control.

Displayed only when the source is “

.”

ENGLISH

Continued on the next page

27SETTINGS

Category Menu items Selectable settings, [reference page]

AM Source *

AUX Source *

ENGLISH

Source Select

Bluetooth Audio *

Drive Change : Select to change the drive when a multiple drives device is connected to the

USB *

iPod Switch

iPod/iPhone control

Audiobooks

iPod *

Speed control of “Audiobooks”

Displayed only when any source other than “

Displayed only when the source is “

• Show

• Hide

• Show

• Hide

• Show

• Hide

: Enable “AM” in source selection, [6]. : Disable “

: Enable “ : Disable “

Enable “BT FRONT/BT REAR” in source selection, [6].

: : Disable “

USB input terminal (FRONT/REAR).

• Headunit

: Controls iPod playback through the unit.

Mode

• iPod Mode

• Normal

• Faster

• Slower

: Controls iPod playback through the iPod/iPhone.

: You can select the playback speed of the “Audiobooks”

sound file in your iPod/iPhone.

• Initial selected item depends on your iPod/iPhone setting.

” is selected.

AUX IN

” is selected.

BT FRONT/BT REAR USB FRONT/USB REAR iPod FRONT/iPod REAR

Creating your own color—User Color

You can create your own colors—<Day Color> or <Night Color>. <Day Color> : Color for the display and buttons. <Night Color> : Color for the display and buttons

when the display is dimmed.

To dim the display, see <Dimmer>

on page 26.

2 Enter <User> setting mode.

3 Select <Day Color> or <Night Color>.

” in source selection.

AUX IN

” in source selection, [6].

AUX IN

” in source selection.

BT FRONT/BT REAR

” in source selection.

” is selected.

.”

[Turn] = [Press]

<User>

[Turn] = [Press]

Ex.: When <Day Color> is selected

4 Select a primary color, then adjust the level.

5 Confirm the settings.

<00> <31>

Repeat this procedure until you have adjust all the

three primary colors.

If <00> is selected for all the primary colors,

nothing appear on the display.

Setting the time for dimmer

You can set the start/end time for dimmer.

[Turn] = [Press]

6 Exit from the setting.

Select <User> to show your own colors for the

buttons and display.

2 Adjust the dimmer start time.

[Turn] = [Press]

3 Adjust the dimmer end time.

[Turn] = [Press]

4 Exit from the setting.

ENGLISH

Continued on the next page

SETTINGS

Changing the Bluetooth setting

You can change the settings listed on the following according to your preference.

Preparation:

ENGLISH

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.

[Turn] = [Press]

<Settings> menu ( : Initial)

Quick Call

You can preset the Quick Call method. Hold the selected method.

• Appears only when a Bluetooth phone is connected. Dialed Calls: Show the list of the numbers you have

dialed.

Received Calls: Show the list of the numbers you have

received.

Missed Calls: Show the list of the numbers you have

missed.

Phonebook: Show the list of the phonebook. Dial Number: Display the “Dial Number” screen. Voice Dial: Display the voice dialling screen.

to enter

2 Select a setting item.

[Turn] = [Press]

<Quick Call> Ô <Auto Connect> Ô

<Auto Answer> Ô <Message Notice>*

Ô <MIC Setting> Ô <Ringing Tone> Ô <Phonebook Trans> Ô

<Phonebook Select> Ô <Initialize> Ô <Information>Ô (back to the beginning)

* If the connected Bluetooth phone does not support

SMS notification (via Bluetooth), the unit will not receive any notification upon the arrival of a SMS even when <Message Notice> is set to <On>.

3 Change the setting accordingly.

[Turn] = [Press]

Auto Connect

When the unit is turned on, the connection is established automatically with...

Last: The last connected Bluetooth device. Off: No Bluetooth device.

Auto Answer

Only for the device being connected for “

/BT REAR

(Phone)

On: The unit answers the incoming calls

Off: The unit does not answer the calls

Reject: The unit rejects all incoming calls.

Message Notice

Only for the device being connected for “

BT REAR

On: The unit informs you of the arrival of

• The display illuminates in blue (see

Off: The unit does not inform you of the arrival of

(Phone).”

automatically.

automatically. Answer the calls manually.

(Phone).”

a message by ringing and displaying “Received Message.”

<Ring Color> on page 25).

a message.

BT FRONT

BT FRONT/

+ 97 hidden pages
