Jensen JE3208 User Manual
Specifications and Main Features
- Model: JE3208
- Panel Size: 32 inches
- Brightness: Withheld
- Contrast ratio: 1500:1
- Viewing angle: 176/176
- Input Video Ports:
- S-VIDEO Port: 1
- YPbPr (Component): 2
- AUDIO (R/L): 1
- HDMI: 2
- RF: 1
- Power Supply: AC 100 – 240V, 50 / 60HZ
- Power Dissipation: 160 W
- Dimension: 813mm (W) x 561mm (H) x 110mm (D)
- Mass: 15.5 Kg
- Comment: The ideal visual representation is complemented by the changeable cabinet design and electronics specifications that are notified with an improvement notice
Frequently Asked Questions
Q: How do I switch the television on?
A: It can be turned on from the back of the LCD TV by pressing the POWER button or using the remote control.

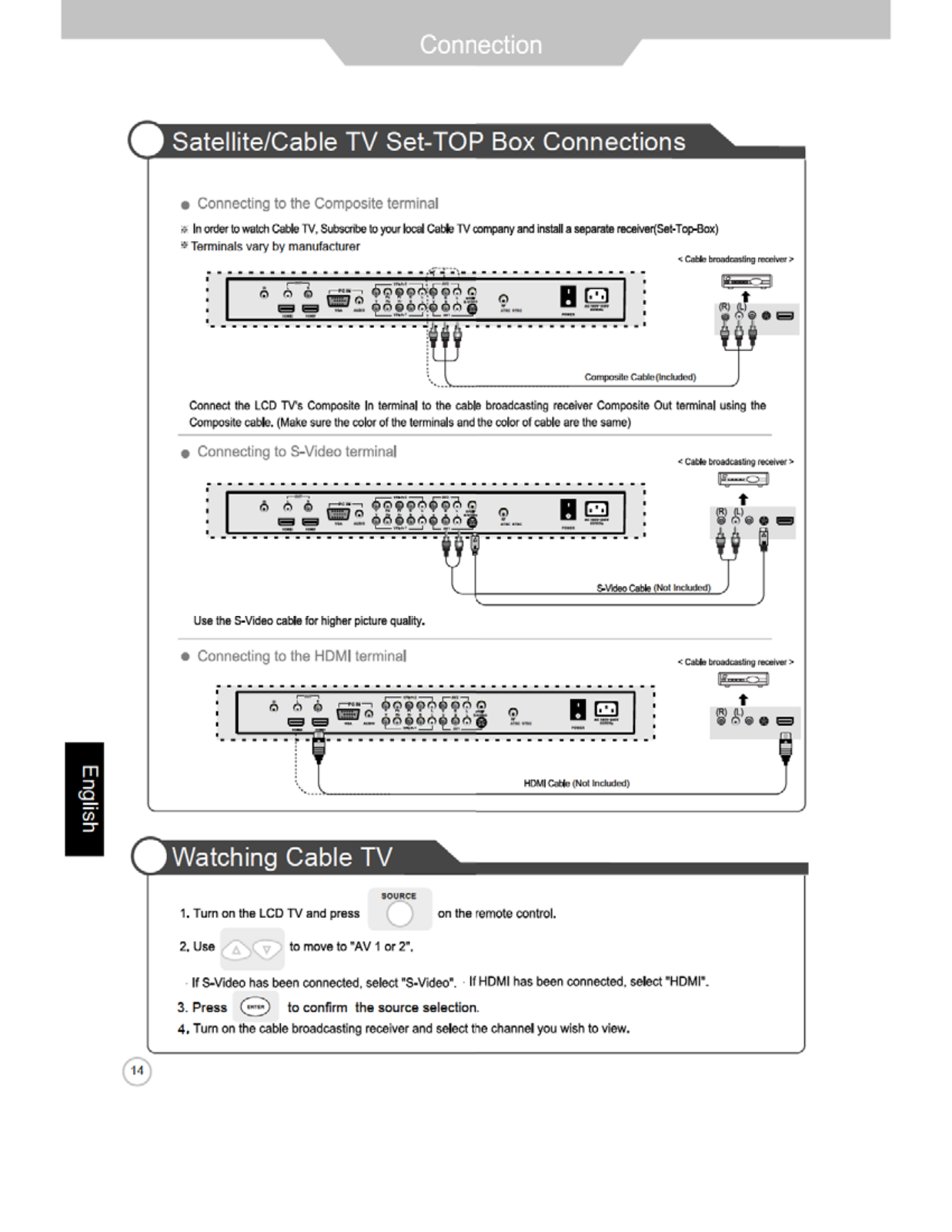

Q: What are the types of connections supported by this TV?
A: Such connections as S-VIDEO, YPbPr (Component), HDMI as well as RF input are supported by the TV set.
Q: What is the contrast ratio of the television?
A: 3D video images have a contrast ratio of about 1500:1.
Q: How do I choose the input source?
A: The input source for the television can be chosen by first pressing the SOURCE button on the remote control, then using the directional keys select the source and confirm the selection.

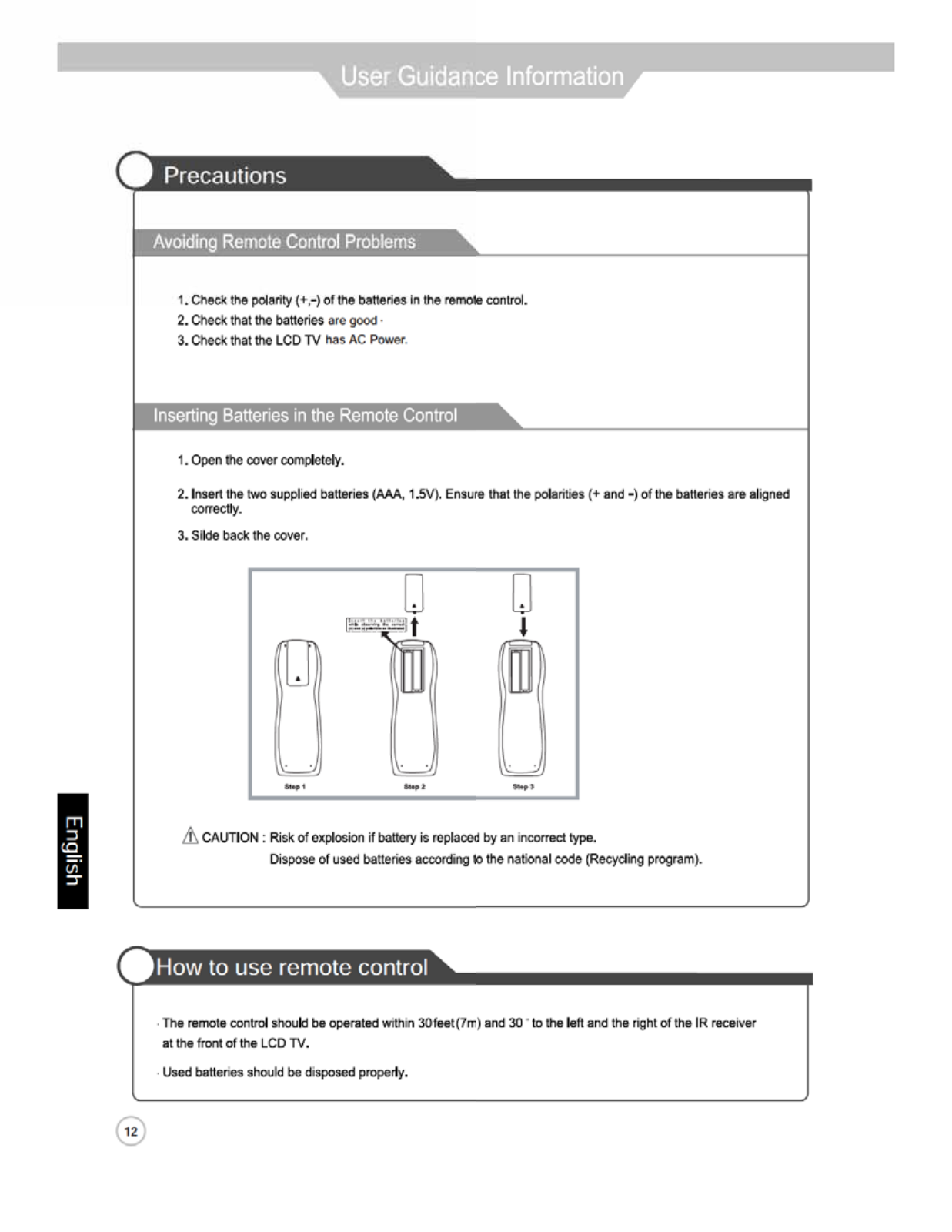

Q: What should I do if the remote control is not working?
A: The first check should be whether or not the batteries are in their respective spaces. Also, ensure that the main power is on and that there are no barriers between the remote and the tv unit.
Q: Is it possible to put up the TV on the wall?
A: The TV wall mounting can be accomplished by employing a wall mount bracket, offering the user the assurance of proper installation as instructed by the manufacturer.

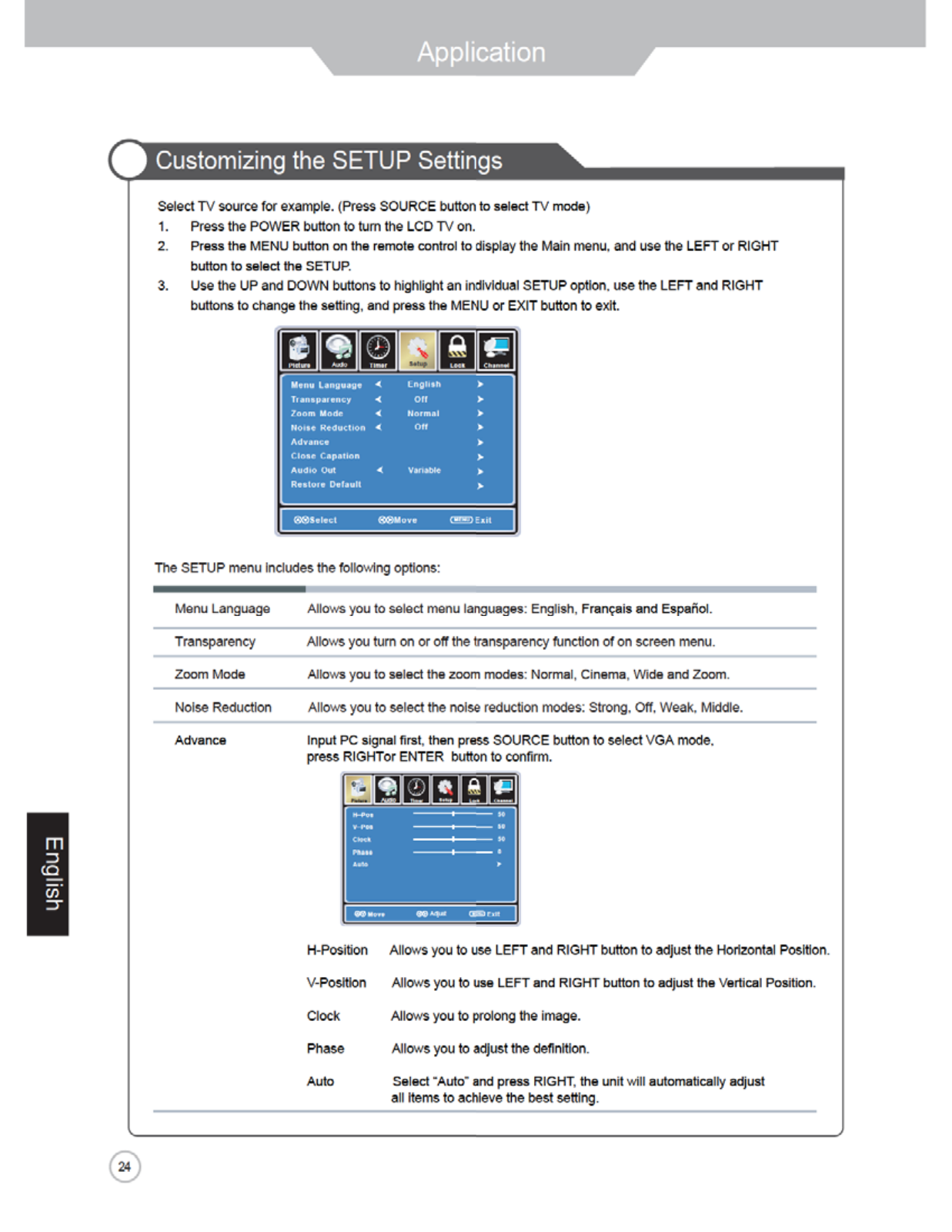

Q: How the adjustment of picture settings can be done?
A: In the control panel, press the `MENU` button, then choose and highlight ‘PICTURE’, then use the arrow buttons to change contrast, brightness among other things.
Q: Does the television come with a sleep timer feature?
A: Such sleep timers can be configured using the `TIMER' menu under settings.
