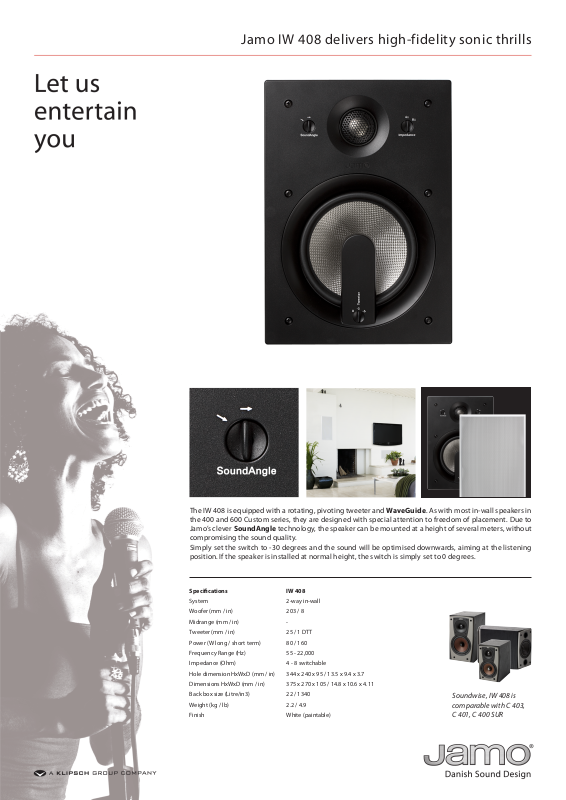

Jamo IW 408 delivers high-fidelity sonic thrills

The IW 408 is equipped with a rotating, pivoting tweeter and WaveGuide. As with most in-wall speakers in
the 400 and 600 Custom series, they are designed with special attention to freedom of placement. Due to
Jamo’s clever

SoundAngle technology, the speaker can be mounted at a height of several meters, without
compromising the sound quality.
Simply set the switch to -30 degrees and the sound will be optimised downwards, aiming at the listening
position. If the speaker is installed at normal height, the switch is simply set to 0 degrees.

Specications IW 408

System 2-way in-wall

Woofer (mm / in) 203 / 8

Midrange (mm / in) -

Tweeter (mm / in) 25 / 1 DTT

Power (W long / short term) 80 / 160

Frequency Range (Hz) 55 - 22,000

Impedance (Ohm) 4 - 8 switchable

Hole dimension HxWxD (mm / in) 344 x 240 x 95 / 13.5 x 9.4 x 3.7

Dimensions HxWxD (mm / in) 375 x 270 x 105 / 14.8 x 10.6 x 4.11

Back box size (Litre/in3) 22 / 1340

Weight (kg / lb) 2.2 / 4.9

Finish White (paintable)

Soundwise, IW 408 is
comparable with C 403,
C 401, C 400 SUR
