Integra DTR-6.9 Owner's Manual

Download

AV Receiver

DTR-6.9

Instruction Manual

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand,

PORTABLE CART WARNING

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to

S3125A

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is dam-

aged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry

Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries

Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation,

such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides

and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a fluelike gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact the dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [On/Standby] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure War nin g

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may

not work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE

LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la fiche est polarisée:

AT TE NT IO N : POUR ÉVITER LES CHOCS ÉLEC-

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Thank you for purchasing an Integra AV receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you

to obtain optimum performance and listening enjoyment from your new AV receiver.

Please retain this manual for future reference.

Supplied Accessories

Make sure you have the following accessories:

Remote controller & two batteries (AA/R6)

Speaker setup microphone

Indoor FM antenna

AM loop antenna

Power cord

(Plug type varies from country to country.)

Left

Front

Right

Zone 2

Surround

SP-B

Zone 2

Front

Right

Front

Left

SP-B

Left

SP-B

Right

Surround

Front

Right

Front

Left

SP-B

Left

SP-B

Right

Speaker Cable

Left

Right

Surround

Left

Surround

Right

Surround

Left

Surround

Right

Center

Zone 2

Surround Back

Zone 2

Right

Zone 2

Left

Center

Zone 2

Right

Zone 2

Left

Surround Back

Right

Surround Back

Left

Center

Surround Back

Right

Surround Back

Left

Speaker cable labels

* In catalogs and on packaging, the letter at the end of the product

name indicates the color. Specifications and operations are the same regardless of color.

Contents

Introduction

Important Safety Instructions .................................... 2

Precautions ............................................................... 3

Supplied Accessories................................................ 4

Features .................................................................... 6

Front & Rear Panels.................................................. 7

Front Panel............................................................ 7

Display................................................................... 9

Rear Panel .......................................................... 10

Remote Controller ................................................... 13

Installing the Batteries ......................................... 13

Aiming the Remote Controller ............................. 13

Controlling the AV Receiver ................................ 14

About Home Theater............................................... 15

Enjoying Home Theater....................................... 15

Connections

Connecting the AV Receiver ................................... 16

Connecting Your Speakers ................................. 16

Bi-amping the Front Speakers............................. 18

Connecting Antenna............................................ 19

About AV Connections ........................................ 21

Connecting Both Audio & Video .......................... 22

Which Connections Should I Use?...................... 22

Connecting a TV or Projector .............................. 24

Connecting a DVD Player ................................... 25

Connecting a VCR or DVD Recorder for Playback Connecting a VCR or DVD Recorder for Recording Connecting a Satellite, Cable, Terrestrial

Set-top box, or Other Video Source.................. 29

Connecting a Game Console .............................. 30

Connecting a Camcorder or Other Device .......... 31

Connecting Components with HDMI ................... 32

Connecting a CD Player or Turntable ................. 34

Connecting a Cassette, CDR, MiniDisc,

or DAT Recorder............................................... 35

Connecting a Power Amplifier ............................. 36

Connecting an RI Dock ....................................... 37

Connecting Integra/Onkyo u Components ....... 38

Connecting the Power Cord ................................ 38

Turning On the AV Receiver ................................... 39

Turning On and Standby ..................................... 39

... 27

.... 28

First Time Setup

First Time Setup...................................................... 40

Using the Onscreen Setup Menus ...................... 40

Using the Display to change the settings ............ 40

Video Input Setup................................................ 41

Digital Input Setup ............................................... 43

Speaker Settings ................................................. 44

TV Format Setup (not North American models) .. 45 AM Frequency Step Setup

(not North American models)............................ 46

Changing the Input Display ................................. 47

Automatic Speaker Setup (Audyssey MultEQ®).... 48

Basic Operations

Basic Operations..................................................... 53

Selecting the Input Source .................................. 53

Using the Multichannel DVD Input ...................... 54

Adjusting the Bass & Treble ................................ 54

Displaying Source Information ............................ 54

Setting the Display Brightness ............................ 54

Muting the AV receiver ........................................ 55

Using the Sleep Timer......................................... 55

Using Headphones.............................................. 55

Listening to the Radio.............................................. 56

Using the Tuner ................................................... 56

Presetting AM/FM Stations.................................. 57

Listening to XM Satellite Radio

(North American Model Only) ........................... 58

Listening to SIRIUS Satellite Radio

(North American Models Only).......................... 65

Using RDS (not North American model).............. 75

Recording ................................................................ 77

Using the Listening Modes

Using the Listening Modes ...................................... 78

Selecting Listening Modes................................... 78

Listening Modes Available for Each Source Format

About the Listening Modes .................................. 85

.... 79

Advanced Setup

Advanced Setup ...................................................... 88

Onscreen Setup Menus....................................... 88

Speaker Setup..................................................... 89

Audio Adjust Functions........................................ 97

Adjust Using the Audio Button............................. 99

Assigning Listening Modes to Input Sources..... 101

Source Setup..................................................... 102

Miscellaneous (Volume/OSD) Setup ................. 105

Hardware Setup................................................. 107

Lock Setup......................................................... 111

Automatic Audio Input Selection Setup .............112

Digital Input Signal Formats .............................. 112

Zone 2

Zone 2 ................................................................... 113

Connecting Zone 2 ............................................113

Setting the Powered Zone 2 .............................. 115

Setting the Zone2 Out ....................................... 116

Using Zone 2 .....................................................117

Using the 12V Triggers...................................... 119

Using the Remote Controller in Zone 2 and

Multiroom Control Kits..................................... 120

Controlling Other Components

Controlling Other Components.............................. 121

Preprogrammed Remote Control Codes ........... 121

Entering Remote Control Codes........................ 121

Remote Control Codes for Integra/Onkyo

Components Connected via u ..................... 122

Resetting Remote Mode Buttons....................... 122

Resetting the Remote Controller .......................122

Controlling a TV................................................. 123

Controlling a DVD Player or DVD Recorder ...... 124

Controlling a VCR or PVR .................................125

Controlling a Satellite Receiver or Cable Receiver Controlling a CD Player, CD Recorder,

or MD Player ................................................... 127

Controlling an RI Dock....................................... 128

Controlling a Cassette Recorder ....................... 129

Learning Commands ......................................... 130

Using Macros..................................................... 131

Others

Specifications ........................................................ 132

Troubleshooting..................................................... 133

Video Resolution Chart ......................................... 138

* To reset the AV receiver to its factory defaults, turn

it on and, while holding down the [VCR/DVR] button, press the [On/Standby] button (see page 133).

....... 126

Features

Amplifier

• 100 Watts/Channel (2ch Driven) @ 8 ohms (FTC)

• 160 Watts/Channel @ 6 ohms (IEC)

• 175 Watts/Channel @ 6 ohms (JEITA)

• WRAT-Wide Range Amplifier Technology (5 Hz-100 kHz bandwidth)

• Optimum Gain Volume Circuitry

• 3-Step Inverted Darlington Amplifier Design

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

Processing

• THX Select2 Plus*1 Certified

• HDMI Video Upscaling (to 1080p Compatible) with Faroudja DCDi Cinema Enhancement

• HDMI ver.1.3a with Repeater System (Deep Color, x.v.Color, Lip Sync, DTS DTS-HD High Resolusion Audio, Dolby TrueHD

-HD Master Audio,

Dolby Digital Plus, SA-CD and Multi-CH PCM)

• Non-Scaling Configuration

•Direct Mode

• 192 kHz/24-bit D/A Converters

•

Powerful and Highly Accurate 32-bit DSP Processing x 2

Connections

• 4 HDMI*4 Inputs and 1 Output (ver. 1.3a)

• Onkyo for System Control

• 6 Digital Inputs (3 Optical / 3 Coaxial)/2 Output (1 Optical/1 Coaxial)

• 5 S-Video Inputs / 2 Outputs

• Component Video Switching (3 Inputs/2 Output)

• Banana Plug-Compatible Speaker Posts

• Powered Zone 2 and Zone 2 Pre Out

• IR Input/Output and 12 V Trigger

• RS232 Port for Interface Control

• Bi-Amp Connectable for FL/FR with SBL/SBR

Miscellaneous

• SIRIUS Ready*5 / XM Ready round (North American models only)

• 40 SIRIUS/XM/AM/FM Presets (North American models)

• 40 AM/FM Presets (Australian model)

•

Audyssey

MultEQ*7 Room Correction and Speaker

Calibration

• Audyssey Dynamic EQ

• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

• A/V Sync Control Function (up to 250 ms)

• Music Optimizer

for Compressed Music

• Newly Designed GUI for System Set-up

• Compatible with RI Dock for iPod

• Aluminum Front Panel

• Preprogrammed u-Compatible Remote with 2 Macros and Mode-Key LEDs

with XMHD Sur-

Loudness Correction

*1.

*2.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. ©1996-2007 DTS, Inc. All Rights Reserved.

*3.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

*4.

HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licens-

ing, LLC.

*5.

©2005 SIRIUS Satellite Radio Inc. “SIRIUS”, SiriusConnect, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. Available only in the contiguous United States (excluding Alaska and Hawaii) and Canada.

*6.

*7.

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey MultEQ® and Dynamic

EQ are trademark of Audyssey Laboratories.

*8. Music Optimizer™ is a trademark of Onkyo Corporation.

THX Select2 Plus

Before any home theater component can be THX Select2 Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Select2 Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Select2 Plus requirements define hundreds of parameters, including power amplifier performance, and preamplifier performance and operation for both digital and analog domains. THX Select2 Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

* “Xantech” is a registered trademark of Xantech Corporation. * “Niles” is a registered trademark of Niles Audio Corporation. * Apple and iPod are trademarks of Apple Inc., registered in the

U.S. and other countries.

* “x.v.Color” is a trademark of Sony Corporation.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Front & Rear Panels

bn bobmbl523 4 6 87 91

Front Panel

North American model

bp bq

Australian model

bp bq

The actual front panel has various logos printed on it. They are not shown here for clarity.

br bs bt ck cl

Front & Rear Panels—Continued

The page numbers in parentheses show where you can find the main explanation for each item.

a On/Standby button (39)

This button is used to set the AV receiver to On or Standby.

b Standby indicator (39)

This indicator lights up when the AV receiver is in Standby mode, and it flashes while a signal is being received from the remote controller.

c Zone 2 indicator (117)

This indicator lights up when Zone 2 is selected.

d Remote control sensor (13)

This sensor receives control signals from the remote controller.

e Listening Mode buttons

Movie/TV button (78)

Selects the listening modes intended for use with movies and TV.

Music button (78)

Selects the listening modes intended for use with music.

Game button (78)

Selects the listening modes intended for use with video games.

f Display

See “Display” on page 9.

g Dimmer or RT/PTY/TP button (54, 76)

This button is used to adjust the display brightness. On the Australian model, this is the [RT/PTY/TP] button, and it’s for RDS (Radio Data System). See “Using RDS (not North American model)” on page 75.

h Memory button (57)

This button is used when storing or deleting radio presets.

Tuning Mode button (56)

This button is used to select the Auto or Manual tuning mode.

j Display button (54)

This button is used to display various information about the currently selected input source.

k Setup button

This button is used to access the onscreen setup menus that appear on the connected TV.

l Arrow, Tuning, Preset and Enter buttons

When the AM or FM input source is selected, the Tuning [q]/[w] buttons are used to tune the tuner, and the Preset [e]/[r] buttons are used to select radio presets (see page 57). When the onscreen setup menus are used, they work as arrow buttons and are used to select and set items. The [Enter] button is also used with the onscreen setup menus.

m Return button

This button is used to return to the previously displayed onscreen setup menu.

n Master Volume control (53)

This control is used to adjust the volume of the AV receiver to –∞ dB, –81.5 dB through +18.0 dB (relative display). The volume level can also be displayed as an absolute value. See “Volume Setup” on page 105.

o Zone 2 and Off buttons (117)

The [Zone 2] button is used to select the input source for Zone 2. The [Off] button is used to turn off the output of Zone 2.

p Phones jack (55)

This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening.

q Zone 2 Level button (118)

Used when adjusting the volume level of Zone 2.

r Tone, Plus [+], and Minus [–] buttons (54,

118)

Used to adjust the tone (bass and treble), and the volume and balance of Zone 2.

s Input selector buttons (53)

These buttons are used to select from the following input sources: Multi CH, DVD, VCR/DVR, CBL/SAT, Game/TV, AUX, Tape, Tuner, CD, Phono. The [Multi CH] button selects the DVD analog multichannel input.

t Setup Mic jack (48)

The included speaker setup microphone is connected here for automatic speaker setup.

u AUX I nput

This input can be used to connect a camcorder, game console, and so on. There are input jacks for optical digital audio, S-Video, composite video, and analog audio.

Front & Rear Panels—Continued

Display

23 4

For detailed information, see the pages in parentheses.

a Speaker/channel indicators (89)

Indicate the speaker configuration and channels used by the current input source.

: A box is displayed for each speaker that’s set in the Speaker Configuration. No box appears for speakers that are set to “No” or “None”. The following abbreviations indicate which audio channels are included in the current input signal.

FL: Front left C: Center FR: Front right SL: Surround left LFE: Subwoofer (Low Frequency Effects) SR: Surround right SBL: Surround back left SB: Surround back SBR: Surround back right

b ZONE 2 indicator (117)

Lights up when Powered Zone 2 is being used.

c Listening mode and format indicators (78)

Show the selected listening mode and audio input signal format.

d Tuning indicators (56)

RDS (not North American model) (75):

Lights up when tuned to a radio station that supports RDS (Radio Data System).

AUTO (56):

Lights up when Auto Tuning mode is selected for AM or FM radio. Goes off when Manual Tuning mode is selected.

TUNED (56):

Lights up when tuned to a radio station.

FM STEREO (56):

Lights up when tuned to a stereo FM station.

e SLEEP indicator (55)

Lights up when the Sleep function has been set.

f Audyssey indicator (48, 94)

Flashes during automatic speaker setup. Lights up when the “Equalizer Settings” is set to “Audyssey”.

g Headphone indicator (55)

Lights up when a pair of headphones are plugged into the Phones jack.

h Message area

Displays various information.

i Audio input indicators

Indicate the type of audio input that’s selected as the audio source: HDMI, ANALOG, or DIGITAL.

j Volume level (53)

Displays the volume level.

k MUTING indicator (55)

Flashes while the AV receiver is muted.

Front & Rear Panels—Continued

cmcl co cpcn

Rear Panel

North American model only

bnbkbl bm

bs btbqbpbo ckbr

874

Front & Rear Panels—Continued

a COMPONENT VIDEO IN 1, 2 and 3

These RCA component video inputs are for connecting components with a component video output, such as a DVD player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Component Video Setup” on page 42.

COMPONENT VIDEO MONITOR OUT

This RCA component video output is for connecting a TV or projector with a component video input.

COMPONENT VIDEO ZONE 2 OUT

This RCA component video output is for connecting a TV or projector with a component video input located in your main listening room or Zone 2.

b HDMI IN 1–4 and OUT

HDMI (High Definition Multimedia Interface) connections carry digital audio and digital video. The HDMI inputs are for connecting components with an HDMI output, such as a DVD player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “HDMI Input Setup” on page 41. The HDMI output is for connecting a TV or projector with an HDMI input.

c MONITOR OUT

The S-Video or composite video jack should be connected to a video input on your TV or projector.

d FM ANTENNA

This jack is for connecting an FM antenna.

e AM ANTENNA

These push terminals are for connecting an AM antenna.

f XM antenna (North American models only)

This jack is for connecting an XM Mini-Tuner and Home Dock, sold separately (see “Listening to XM Satellite Radio page 58).

g SIRIUS antenna (North American models

only)

This jack is for connecting a SIRIUS Satellite Radio antenna, sold separately (see “Listening to SIRIUS Satellite Radio on page 65).

h AC INLET

The supplied power cord is connected here. The other end of the power cord should be connected to a suitable wall outlet.

i DIGITAL COAXIAL IN 1, 2, and 3

These coaxial digital audio inputs are for connecting components with coaxial digital audio outputs, such as CD and DVD players. They’re assignable, which means you can assign each one to an input

(North American Model Only)” on

(North American Models Only)”

selector to suit your setup. See “Digital Input Setup” on page 43.

DIGITAL COAXIAL OUT

The coaxial digital audio output is for connecting a digital recorder with a coaxial digital input, such as a CD recorder.

j DIGITAL OPTICAL IN 1 and 2

These optical digital audio inputs are for connecting components with optical digital audio outputs, such as CD and DVD players. They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Digital Input Setup” on page 43.

DIGITAL OPTICAL OUT

The optical digital audio output is for connecting a digital recorder with an optical digital input, such as a CD recorder.

k GND screw

This screw is for connecting a turntable’s ground wire.

l PHONO IN

This audio input is for connecting a turntable.

m CD IN

This analog audio input is for connecting a CD player’s analog audio output.

n TAPE IN/OUT

This analog audio input and output are for connecting a recorder with an analog audio input and output (cassette, Mini Disc, etc.).

o GAME/TV IN

Here you can connect a game console, TV, etc. Input jacks include S-Video, composite video, and analog audio.

p CBL/SAT IN

Here you can connect a cable/satellite receiver, settop box, etc. Input jacks include S-Video, composite video, and analog audio.

q VCR/DVR IN/OUT

Here you can connect a VCR or DVR (digital video recorder). Input and output jacks include S-Video, composite video, and analog audio.

r DVD V, S, FRONT L/R

Here you can connect a DVD player. Input jacks include S-Video, composite video, and analog audio. You can connect a DVD player’s 2-channel analog audio output.

DVD FRONT L/R, CENTER, SUBWOOFER, SURR L/R, and SURR BACK L/R

This analog multichannel input is for connecting a component with a 5.1/7.1-channel analog audio output, such as a DVD player, DVD-Audio or SACDcapable player, or an MPEG decoder.

Front & Rear Panels—Continued

s PRE OUT: FRONT L/R, CENTER,

SUBWOOFER, SURR L/R, and SURR BACK L/R

This 5.1/7.1 multichannel analog audio output can be connected to the analog audio input on a multichannel power amplifier for when you want to use the AV receiver solely as a preamplifier. The SUBWOOFER jack is for connecting a powered subwoofer.

t PRE OUT: ZONE 2 L/R

This analog audio output can be connected to a line input on an integrated amplifier in Zone 2. See “Connecting Zone 2” on page 113.

u u REMOTE CONTROL

This u (Remote Interactive) jack can be connected to an u jack on another u-capable Integra/Onkyo component. The AV receiver’s remote controller can then be used to control that component. To use u, you must make an analog audio connection (RCA) between the AV receiver and the other AV component, even if they are connected digitally.

v IR IN A/B and OUT

A commercially available IR receiver can be connected to the IR IN A or B jack, allowing you to control the AV receiver while you’re in Zone 2, or control it when it’s out of sight, for example, installed in a cabinet. A commercially available IR emitter can be connected to the IR OUT jack to pass IR (infrared) remote control signals through to other components.

w 12V TRIGGER OUT (A/B/C)

This output can be connected to the 12-volt trigger input on a component in Zone 2. When Zone 2 is turned on on the AV receiver, a 12-volt trigger signal is output.

x ETHERNET

This port is for connecting the AV receiver to home automation equipment and external controllers.

y RS232

This is the RS232 port.

z FRONT L/R, CENTER, SURR L/R, and SURR

BACK L/R speakers

These terminal posts are for connecting the front L/R, center, surround L/R, and surround back L/R speakers. The FRONT L/R and SURR BACK L/R terminal posts can be used with front speakers and surround back speakers respectively, or used to bi-amp the front speakers. See “Bi-amping the Front Speakers” on page 18”.

cr ZONE 2 L/R speakers

These terminals are for connecting speakers in Zone 2. See “Connecting Zone 2” on page 113.

See pages 15-38 for connection information.

Remote Controller

Installing the Batteries

To open the battery compartment, press

the small lever and remove the cover.

Insert the two supplied batteries (AA/R6)

in accordance with the polarity diagram inside the battery compartment.

Replace the cover and push it shut.

Notes:

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Aiming the Remote Controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Remote control sensor

Standby indicator

Notes:

• The remote controller may not work reliably if the AV receiver is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the AV receiver is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the AV receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote control sensor.

• When the remote control codes have been registered and you want to operate another component (page 121), or when you want to operate an Integra/Onkyo component without u connection, point the remote controller at the other component to use it.

• When you want to operate an Integra/Onkyo component with u connection or an -compatible component connected via HDMI (page 123), point the remote controller at the AV receiver’s remote control sensor.

AV r e c eive r

Approx. 16 ft. (5 m)

Remote Controller—Continued

Controlling the AV Receiver

To control the AV receiver, press the [Receiver] button to select Receiver mode.

You can also use the remote controller to control your DVD player, CD player, and other components. See page 121 for more details.

3 4

bk bl

5 6

bm bn

For detailed information, see the pages in parentheses.

a On/Standby button (39)

Sets the AV receiver to On or Standby.

b Remote Mode/Input Selector buttons (53,

123–129)

Selects the remote controller modes and the input sources.

c Multi CH button (54)

Selects the multichannel DVD input.

d Macro buttons (131)

Used with the Macro function.

e Arrow [q]/[w]/[e]/[r] and Enter buttons

Used to select and adjust settings.

f Setup button

Used to change settings.

g Listening Mode buttons (78)

Used to select the listening modes.

h Dimmer button (54)

Adjusts the display brightness.

i Display button (54)

Displays information about the current input source.

j Muting button (55)

Mutes or unmutes the AV receiver.

k VOL [q]/[w] button (53)

Adjusts the volume of the AV receiver regardless of the currently selected remote controller mode.

l Return button

Returns to the previous display when changing settings.

m Audio button (99)

Used to change audio settings. When the “Audio TV Out” setting is set to “On” (page 109), this button is disabled.

n Sleep button (55)

Used with the Sleep function.

* SPA/B is not used in this AV receiver.

■ Controlling the tuner

To control the AV receiver’s tuner, press the [Tuner] (or [Receiver]) button. You can select AM or FM by pressing the [Tuner] button repeatedly.

1 Arrow [q]/[w] buttons

Used to tune into radio stations.

2 Number buttons (56)

Used to select radio stations directly.

3 D.TUN button (56)

Selects the Direct tuning mode.

4 Display button (62, 72)

Displays information about the band, frequency, preset number, and so on.

5 CH +/– button (57)

Used to select radio presets.

Note:

An Onkyo cassette recorder connected via u can also be controlled in Receiver mode (see page 129).

About Home Theater

Enjoying Home Theater

Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. With DVDs you can enjoy DTS and Dolby Digital. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).

Surround back left and right speakers

Front left and right speakers

These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.

Center speaker

This speaker enhances the front left and right speakers, making sound movements distinct and providing a full sound image. In movies it’s used mainly for dialog. Position it close to your TV facing forward at about ear level, or at the same height as the front left and right speakers.

Corner

These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, THX Surround EX, etc. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2–3 feet (60– 100 cm) above ear level.

Subwoofer

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown. Tip: To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

1/3 wall length

Surround left and right speakers

These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about 2–3 feet (60–100 cm) above ear level. Ideally they should be equidistant from the listener.

Connecting the AV Receiver

Connecting Your Speakers

Speaker Configuration

For 7.1-channel surround-sound playback, you need seven speakers and a powered subwoofer.

The following table indicates the channels you should use depending on the number of speakers that you have.

Number of speakers: 2 3 4 5 6 7

Front left ✓✓✓✓✓✓

Front right ✓✓✓✓✓✓

Center ✓✓✓✓

Surround left ✓✓✓✓

Surround right ✓✓✓✓

Surround back* ✓

Surround back left ✓

Surround back right ✓

* If you’re using only one surround back speaker, connect it to the

SURR BACK L terminals.

No matter how many speakers you use, a powered subwoofer is recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings. You can do this automatically (see page 48) or manually (see page 89).

Using Dipole Speakers

You can use dipole speakers for the surround left and right and surround back left and right speakers. Dipole speakers output the same sound in two directions. Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround

dipole

left and right their arrows point toward the TV/screen, while the surround back left and right dipole speakers should be positioned so that their arrows point toward each other, as shown.

Dipole speakers

TV/screen

speakers should be positioned so that

Normal speakers

TV/screen

Connecting a Powered Subwoofer

Using a suitable cable, connect the AV receiver’s PRE OUT: SUBWOOFER to an input on your powered subwoofer, as shown. If your subwoofer is unpowered and you’re using an external amplifier, connect the PRE OUT: SUBWOOFER to an input on the amp.

Powered

subwoofer

LINE INPUT

Attaching the Speaker Labels

The AV receiver’s positive (+) speaker terminals are all red (the negative (–) speaker terminals are all black).

Speaker Color

Front left, Zone 2 left White

Front right, Zone 2 right Red

Center Green

Surround left Blue

Surround right Gray

Surround back left Brown

Surround back right Tan

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the above table. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

For North American model

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

7 8

1. Subwoofer

2. Front left speaker

3. Center speaker

4. Front right speaker

5. Surround left speaker

6. Surround right speaker

7. Surround back left speaker

8. Surround back right speaker

Connecting the AV Receiver—Continued

Speaker Connection Precautions

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4ohms” (see page 44). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

Connecting the Speaker Cables

Strip about 5/8" (15 mm)

of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

Unscrew the terminal.

5/8"(15 mm)

• If you use 4 or 5 speakers, connect each of the two surround speakers to the SURR L/R terminals. Do not connect them to the SURR BACK L/R terminals.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

Fully insert the bare

wires.

Screw the terminal tight.

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK L terminals.

Center speaker Front left speakerFront right speaker

Surround back

right speaker

Surround right

speaker

Surround left

speaker

Surround back

left speaker

Connecting the AV Receiver—Continued

Bi-amping the Front Speakers

The FRONT L/R and SURR BACK L/R terminal posts can be used with front speakers and surround back speakers respectively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping, providing improved bass and treble performance.

• When bi-amping is used, the AV receiver is able to drive up to 5.1 speakers in the main room.

• For bi-amping, the FRONT L/R terminal posts connect to the front speakers’ woofer terminals. And the SURR BACK L/R terminal posts connect to the front speakers’ tweeter terminals.

• Once you’ve completed the bi-amping connections shown below and turned on the AV receiver, you must set the “Speakers Type” setting to “Bi-Amp” to enable biamping (see page 44).

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.

Bi-amping Speaker Hookup

Connect the AV receiver’s FRONT R positive (+)

terminal to the right speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT R negative (–) terminal to the right speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK R posi-

tive (+) terminal to the right speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK R negative (–) terminal to the right speaker’s negative (–) Tweeter (high) terminal.

Connect the AV receiver’s FRONT L positive (+)

terminal to the left speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT L negative (–) terminal to the left speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK L posi-

tive (+) terminal to the left speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK L negative (–) terminal to the left speaker’s negative (–) Tweeter (high) terminal.

Tweeter (high) Tweeter (high)

Woofer (low)

Right speaker Left speaker

Woofer (low)

Connecting the AV Receiver—Continued

Connecting Antenna

This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

FM ANTENNA jack

Connecting the Indoor FM Antenna

The supplied indoor FM antenna is for indoor use only.

Attach the FM antenna, as shown.

■ North American models

AM ANTENNA push terminals

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 20).

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Connect both wires of the AM loop

antenna to the AM antenna push terminals, as shown.

(The antenna’s wires are not polarity sensitive, so they can be connected either way around.) Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.

Insert the plug fully into the jack.

■ Other models

Insert the plug fully into the jack.

Once your AV receiver is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.

Use thumbtacks or something similar to

fix the FM antenna into position.

Thumbtacks, etc.

Push Insert wire Release

Once your AV receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception.

Keep the antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna (see page 20).

Caution:

Be careful that you don’t injure yourself when using thumbtacks.

Connecting the AV Receiver—Continued

Connecting an Outdoor FM Antenna

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

Notes:

• Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

• For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.

• Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.

• For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.

• Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

Connecting an Outdoor AM Antenna

If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.

Outdoor antenna

Insulated antenna cable

AM loop antenna

Outdoor AM antennas work best when installed outside horizontally, but good results can sometimes be obtained indoors by mounting horizontally above a window. Note that the AM loop antenna should be left connected. Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

■ Using a TV/FM Antenna Splitter

It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as shown.

TV/FM antenna splitter

To AV receiver To TV (or VCR)

Connecting the AV Receiver—Continued

About AV Connections

• Before making any AV connections, read the manuals supplied with your other AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

Optical Digital Jacks

The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution:

To prevent shutter damage, hold the optical plug straight when inserting and removing.

AV Cables & Jacks

Video

Cable Jack Description

HDMI

Component video cable

B/CB

PR/CR

B/CB

PR/CR

AV Connection Color Coding

RCA-type AV connections are usually color-coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Left (white)

Right (red) Right (red)

(Yellow)

•

Push plugs in all the way to make good connections (loose co nnections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

HDMI

HDMI connections can carry uncompressed standard- or high-definition digital video and audio and offer the best picture and sound quality.

Component video separates the luminance (Y) and color difference signals (P picture quality (some TV manufacturers label their component video sockets slightly differently).

Analog audio

Composite video

R, PB), providing the best

Left (white)

(Yellow)

Right!

Wrong!

S-Video cable

Composite video cable

Audio

Cable Jack Description

Optical digital audio cable

Coaxial digital audio cable

Analog audio cable (RCA)

Multichannel analog audio cable (RCA)

Note:

The AV receiver does not support SCART plugs.

S-Video separates the luminance and color signals and provides better picture quality than composite video.

Composite video is commonly used on TVs, VCRs, and other video equipment.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for coaxial.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for optical.

This cable carries analog audio. It’s the most common connection format for analog audio, and can be found on virtually all AV components.

This cable carries multichannel analog audio and it’s typically used to connect DVD players with a

7.1-channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

Connecting the AV Receiver—Continued

Connecting Both Audio & Video

By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you can select both the audio and video simultaneously simply by selecting the appropriate input source on the AV receiver.

: Signal Flow

Video

Audio

DVD player, etc.

Speakers

(see page 17 for connection information)

Video

Audio

TV, projector,

etc.

Which Connections Should I Use?

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your other components. Use the following sections as a guide.

For video components, you must make two connections—one for audio, one for video.

Video Connection Formats

Video equipment can be connected to the AV receiver by using any one of the following video connection formats: composite video, S-Video, component video, or HDMI, the latter offering the best picture quality.

For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input through to component video output). It’s also recommended that you set the “Immediate Display” preference to “Off” (see page 106), the “Picture Adjust” setting to the default (see page 104), and the “Output Resolution” setting to “Through” (see page 108).

Video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted for the HDMI output. The composite video, S-Video, and component video outputs pass through their respective input signals as they are. When you connect audio equipment to an HDMI or COMPONENT input, you must assign that input to an input selector (see pages 41 and 42).

DVD player, etc.

AV receiver

Video Signal Flow Chart

Composite

S-Video

MONITOR OUT

S-Video

Component

HDMI

TV, projector, etc.

Connecting the AV Receiver—Continued

■ Signal Selection

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, component video, S-Video, composite video.

In the Signal Selection Example shown on the right, video signals are present at both the SVideo and composite video inputs, however, the S-Video signal is automatically selected as the source and video is output by the S-Video and HDMI outputs.

The onscreen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the composite video or S-Video MONITOR OUT, or the COMPONENT VIDEO MONITOR OUT, use the AV receiver’s display when changing settings.

Audio Connection Formats

DVD player, etc.

AV receiver

TV, projector, etc.

Signal Selection Example

Composite

S-Video

MONITOR OUT

S-Video

Component

HDMI

Audio equipment can be connected to the AV

DVD player, etc.

Audio Signal Flow Chart

receiver by using any of the following audio connection formats: analog, optical, coaxial, analog multichannel, or HDMI. When choosing a connection format, bear in mind that the AV receiver does not convert digital input signals for analog line outputs and vice

AV receiver

Multichannel

Optical

Coaxial

HDMICoaxial Analog

versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog TAPE OUT.

MD recorder, etc.

Analog

*1 Depends on the “Audio TV Out” setting

(see page 109).

*2 Only the front L/R channels are output

(There will be no down mix.).

OUT

Optical Coaxial HDMI

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog (including multichannel). You can specify which audio inputs the AV receiver checks for the presence of a signal in the “Automatic Audio Input Selection Setup” on page 112.

Connecting the AV Receiver—Continued

Connecting a TV or Projector

See “Connecting Components with HDMI” on page 32 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your TV ( , , or ), and then make the connection.

Step 2: Audio Connection

Choose an audio connection that matches your TV ( , , or ), and then make the connection.

• With connection , you can listen to and record audio from your TV and listen in Zone 2.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 as well, use and , or and .)

a c

Connection AV receiver Signal flow TV

COMPONENT VIDEO MONITOR OUT ⇒ Component video input

MONITOR OUT S ⇒ S-Video input

MONITOR OUT V ⇒ Composite video input

GAME/TV IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output

A B C

a b c

b c a b

OPTICAL

OUT

Connect one or the other Connection must be assigned (see page 43)

Hint!

If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 27 and

YCOAXIAL

COMPONENT VIDEO IN

29).

R S VIDEO

AUDIO

OUT

TV, projector,

etc.

VIDEO

BCB

Connecting the AV Receiver—Continued

Connecting a DVD Player

See “Connecting Components with HDMI” on page 32 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your DVD player ( , , or

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.

a b c

), and then make the connection.

• With connection , you can listen to and record audio from a DVD and listen in Zone 2.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 as well, use and , or and .)

a c

b c a b

• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the main left and right outputs for connection .

Connection AV receiver Signal flow DVD player

COMPONENT VIDEO IN 1 (DVD) ⇐ Component video output

DVD S ⇐ S-Video output

DVD V ⇐ Composite video output

DVD FRONT L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 1 (DVD) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output

OPTICAL

OUT

Connect one or the other Connection must be assigned (see page 43)

To connect a DVD player or DVD-Audio/SACD-capable player with a multichannel analog audio output, see page 26.

YCOAXIAL

R S VIDEO

COMPONENT VIDEO OUT

AUDI O

OUT

DVD player

VIDEO

OUT

Connecting the AV Receiver—Continued

Hooking Up the Multichannel DVD Input

If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel DVD input.

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s SURR BACK L/R jacks. To select the multichannel input, see “Using the Multichannel DVD Input” on page 54. To adjust the subwoofer sensitivity for the multichannel input, see “Hardware Setup” on page 107.

7.1 ch

5.1 ch

FRONT CENTER

SUBWOOFER

SURR

DVD

SURR BACK

FRONT

CENTER SUB

WOOFER

SURROUND

SURR BACK

DVD player

Note:

When a signal from multichannel DVD input is output from HDMI OUT or analog audio output, only the front L/R channels will be output. There will be no down mix.

Connecting the AV Receiver—Continued

Connecting a VCR or DVD Recorder for Playback

Hint!

With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( , , or

A B C

), and then make the connection.

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

• With connection , you can listen to the VCR or DVD recorder even in Zone 2.

• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 as well, use and , or and

Connection AV receiver Signal flow VCR or DVD recorder

b c a b a

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

VCR/DVR IN S ⇐ S-Video output

VCR/DVR IN V ⇐ Composite video output

VCR/DVR IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output

a b c

Connection

must be

assigned (see page 42)

Connect one or the other Connection must be assigned (see page 43)

OPTICAL

OUT

YCOAXIAL

R S VIDEO

COMPONENT VIDEO OUT

DVD recorder

AUDI O

OUT

VCR,

OUT

VIDEO

OUT

Connecting the AV Receiver—Continued

Connecting a VCR or DVD Recorder for Recording

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( or ), and then make the connection. The video source to be recorded must be connected to the AV receiver via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

Connection AV receiver Signal flow VCR or DVD recorder

VCR/DVR OUT S

VCR/DVR OUT V

VCR/DVR OUT L/R

DIGITAL COAXIAL OUT ⇒ Digital coaxial input

DIGITAL OPTICAL OUT ⇒ Digital optical input

⇒

A B

a b c

S-Video input

Composite video input

Analog audio L/R input

COAXIALINOPTICAL

AUDIO

S VIDEO

VCR,

DVD recorder

VIDEO

Notes:

• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output. Similarly, video signals connected to S-Video inputs can only be recorded via S-Video outputs. If your TV/VCR is connected to an S-Video input, the recording VCR must be connected to an S-Video output.

Connecting the AV Receiver—Continued

Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video Source

Hint!

With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches the video source ( , , or ), and then make the connection.

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches the video source ( , , or ), and then make the connection.

• With connection , you can listen to and record audio from the video source and listen in Zone 2.

• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 as well, use and , or and .)

Connection AV receiver Signal flow Video source

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

CBL/SAT IN S ⇐ S-Video output

CBL/SAT IN V ⇐ Composite video output

CBL/SAT IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 2 (CD) ⇐ Digital optical output

a b c

b c a b a

OPTICAL

OUT

Connect one or the other Connection must be assigned (see page 43)

OUT

YCOAXIAL

R S VIDEO

COMPONENT VIDEO OUT

BCB

AUDI O

OUT

Satellite, cable, set-top box, etc.

OUT

VIDEO

OUT

Connecting the AV Receiver—Continued

Connecting a Game Console

Step 1: Video Connection

Choose a video connection that matches the game console ( , , or

A B C

You must connect the AV receiver to your TV with the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches the game console ( or ), and then make the connection.

a b

), and then make the connection.

• With connection , you can listen to and record audio from the game console or listen in Zone 2.

• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 as well, use and .)

b a b

Connection AV receiver Signal flow Game console

COMPONENT VIDEO IN 3 (GAME/TV) ⇐ Component video output

GAME/TV IN S ⇐ S-Video output

GAME/TV IN V ⇐ Composite video output

GAME/TV IN L/R ⇐ Analog audio L/R output

DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output

BCB

OPTICAL

OUT

YPB

COMPONENT VIDEO OUT

R S VIDEO

AUDI O

OUT

Game Console

VIDEO

OUT

Connecting the AV Receiver—Continued

Connecting a Camcorder or Other Device

Step 1: Video Connection

Choose a video connection that matches the camcorder ( or ), and then make the connection.

Step 2: Audio Connection

Choose an audio connection that matches the camcorder ( or ), and then make the connection.

A B

a b

AUX Input

Digital

S VIDEO

OUT

AUX Input

Video

VIDEO

OUT

AUX Input

S Video

OPTICAL

OUT

AUX Input LR

Audio

AUDIO

OUT

Camcorder, etc.

Connection AV receiver Signal flow Camcorder etc.

AUX INPUT S VIDEO ⇐ S-Video output

AUX INPUT VIDEO ⇐ Composite video output

AUX IN PU T L-AUD IO-R ⇐ Analog audio L/R output

AUX IN PU T DIGI TAL ⇐ Digital optical output

Connecting the AV Receiver—Continued

Connecting Components with HDMI

About HDMI

Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM). The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface) with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) The AV receiver uses HDCP (High-bandwidth Digital Content Protection)

*2,

so only HDCP-compatible components

can display the picture.

The AV receiver’s HDMI interface is based on the following standard: Repeater System, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD,

Dolby Digital Plus, SA-CD, and Multichannel PCM

Supported Audio Formats

• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)

• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)

• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTSHD Master Audio)

Your DVD player must also support HDMI output of the above audio formats.

, so TVs and displays

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP. Commercially available HDMI cables (supplied with some components) should be used to connect the AV receiver’s HDMI OUT to the HDMI input on your TV or projector.

*1 DVI (Digital Visual Interface): The digital display interface standard set by the DDWG *2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to

protect video content and requires a HDCP-compatible device to display the encrypted video.

*3 DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open

industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PCs and digital displays.

in 1999.

Connecting the AV Receiver—Continued

Making HDMI Connections

Step 1:

Use HDMI cables to connect the AV receiver’s HDMI jacks to your HDMI-compatible Blu-ray player/DVD player, TV, projector, and so on.

Step 2:

Assign each HDMI IN to an input selector in the HDMI Input Setup (see page 41).

■ Video Signals

Digital video signals received by the HDMI IN jacks are normally output by the HDMI OUT for display on your TV. Composite video, S-Video, and component video sources can be upconverted for the HDMI output. See “Video Connection Formats” on page 22 for more information.

■ Audio Signals

Digital audio signals received by the HDMI IN jacks are output by the speakers and headphones connected to the AV receiver. Normally, they are not output by the HDMI OUT, unless the “Audio TV Out” setting is set to “On” (see page 109).

Hint!

To listen to audio received by the HDMI IN jacks through your TV’s speakers, set the “Audio TV Out” setting to “On” (see page 109), and set your DVD player’s HDMI audio output setting to PCM.

HDMI

Blu-ray player/DVD player

HDMI

OUT

HDMI HDMI

IN 1

(DVD)

Notes:

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

• When the “Audio TV Out” setting is set to “On” (see page 109), or “TV Control” is set to “Enable” (see page 110) and you’re listening through your TV’s speakers, if you turn up the AV receiver volume control, the sound will be output by the AV receiver’s speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

Connecting the AV Receiver—Continued

Connecting a CD Player or Turntable

■ CD Player or Turntable (MM) with Built-in Phono Preamp

Step 1:

Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in phono preamp.

IN 2

(VCR/DVR)

COAXIAL

OUT

AUDI O

OUT

OPTICAL

IN 2

(CD)

OPTICAL

OUT

Connect one or the other Connection

must be

assigned (see page 43)

COAXIAL

a b c a

CD player

OUTPUT

Turntable (MM) with

built-in phono preamp

AUDI O

• With connection , you can listen to and record audio from the CD player and listen in Zone 2.

• To connect the CD player digitally, use connection or . (To record or listen in Zone 2 as well, use and , or and .)

b a c

b c a

Connection AV receiver Signal flow CD or turntable

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 2 (CD) ⇐ Digital optical output

CD IN L/R ⇐ Analog audio L/R output

■ Turntable (MM) with no Phono Preamp Built-in

The AV receiver’s PHONO IN is designed for use with a moving magnet (MM) type cartridge.

Use an analog audio cable to connect the AV receiver’s PHONO IN L/R jacks to the audio output on your turntable.

Notes:

• If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

• If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer. Connect your turntable to the head amp or transformer, and connect that to the AV receiver’s PHONO IN L/R jacks.

• You can also use a phono equalizer to connect a turntable

AUDIO

OUTPUT

with an MC-type cartridge. See your phono equalizer’s manual for details.

Connecting the AV Receiver—Continued

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Step 1:

Choose a connection that matches the recorder ( , , , , ), and then make the connection.

COAXIAL

IN 3

(CBL/SAT)

COAXIAL

OPTICAL

IN 1

(GAME/TV)

OPTICAL

a b c d e

TAP E

Connect one or the other Connection must be assigned

COAXIAL

OUT

COAXIAL

OPTICAL

OUT

OPTICAL

AUDI O

OUT

(see page 43)

Cassette, CDR, MD, etc.

• With connection , you can play and record and listen in Zone 2.

• To connect the recorder digitally for playback, use connections and , or and .

• To connect the recorder digitally for recording, use connections or .

a b a d

c d

Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output

TAPE IN L/R

TAPE OUT L/R

DIGITAL COAXIAL OUT ⇒ Digital coaxial input

DIGITAL OPTICAL OUT ⇒ Digital optical input

⇐ ⇒

Analog audio L/R output

Analog audio L/R input

Connecting the AV Receiver—Continued

Connecting a Power Amplifier

If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer, connect it to this AV receiver’s PRE OUT: SUBWOOFER jack.

Power amplifier

2 3 4 5 6 71

1. Front left speaker

2. Center speaker

3. Front right speaker

4. Surround left speaker

5. Surround right speaker

6. Surround back left speaker

7. Surround back right speaker

Powered subwoofer

See “Connecting a Powered Subwoofer” on page 16 for more information.

Connecting the AV Receiver—Continued

Connecting an RI Dock

Not all iPod models output video. For information about which iPod models are supported by the RI Dock, see the RI Dock’s instruction manual.

■ If Your iPod Supports Video:

Connect your RI Dock’s analog audio output jacks to the AV receiver’s GAME/TV IN L/R jacks, and connect its video output jack to the AV receiver GAME/TV IN V jack. (Onkyo DS-A2 hookup shown below.)

■ If Your iPod Doesn’t Support Video:

Connect your RI Dock’s analog audio output jacks to the AV receiver’s TAPE IN L/R jacks. (Onkyo DSA2 hookup shown below.)

AUDIO

OUT

VIDEO

OUT

AUDIO

OUT

■ If you have an Onkyo DS-A1 RI Dock

• Connect its video output jack to the AV receiver’s GAME/TV IN S jack.

Notes:

• Connect the RI Dock to the AV receiver with an u cable (see page 38).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• Set the AV receiver’s Input Display to “DOCK” (see page 47).

• By using the [Custom] button on the remote controller of the AV receiver to change the remote mode to “DOCK”, you can operate your iPod in the RI Dock (see page 128). If you cannot operate it, you will need to enter the appropriate remote control code (see page 121).

• See the RI Dock’s instruction manual for more information.

Connecting the AV Receiver—Continued

Connecting Integra/Onkyo u Components

Step 1:

Make sure that each Integra/Onkyo component is connected to the AV receiver with an analog audio cable (connection in the hookup examples) (see pages 24 to 35).

Step 2:

Make the u connection (see illustration below).

Step 3:

If you’re using an MD, CDR, or RI Dock, change the Input Display (see page 47).

With u (Remote Interactive), you can use the following special functions:

■ Auto Power On/Standby

When you start playback on a component connected via u, if the AV receiver is on Standby, it will auto-

matically turn on and select that component as the input source. Similarly, when the AV receiver is set

to Standby, all components connected via u will also go on Standby.

■ Direct Change

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source. If your DVD player is connected to the AV receiver’s DVD multichannel input, you’ll need to press the [Multi CH] button repeatedly and select “Multich” to hear all channels

(see page 54), as the Direct Change u function selects the DVD FRONT L/R jacks.

■ Remote Control

You can use the AV receiver’s remote controller to control your other u-capable Integra/Onkyo com-

ponents, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (see page 122).

Notes:

• Use only u cables for u connections. u cables are supplied with Integra/Onkyo players (DVD, CD, etc.).

• Some components have two u jacks. You can con- nect either one to the AV receiver. The other jack is for connecting additional u-capable components.

• Connect only Integra/Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your other Integra/Onkyo components.

• While Zone 2 is on, the Auto Power On/Standby and Direct Change u functions do not work.

ANALOG

AUDIO OUT

ANALOG

AUDIO OUT

FRONT

DVD

REMOTE

CONTROL

e.g., CD player

e.g., DVD player

Connecting the Power Cord

Notes:

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Step 1:

Connect the supplied power cord to the AV receiver’s AC INLET.

To AC wall outlet

Step 2:

Plug the power cord into an AC wall outlet.

Turning On the AV Receiver

Standby/On

Standby indicator

Turning On and Standby

On/Standby

Receiver

receiver

emote

controller

Press the [On/Standby] button. Alternatively, press the remote controller’s [Receiver] button, followed by

the [On/Standby] button.

The AV receiver comes on, the display lights up, and the Standby indicator goes off.

To turn the AV receiver off, press the [On/Standby] button, or press the remote controller’s [On/Standby] button. The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

Smooth Operation in a Few Easy Steps

To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the very first time. These settings only need to be made once.

■ Do the automatic speaker setup—this is essential!

See “Automatic Speaker Setup (Audyssey MultEQ

■ Have you connected a component to an HDMI input, component video input, or digital audio input?

If you have, see “HDMI Input Setup” on page 41, “Component Video Setup” on page 42, or “Digital Input Setup” on page 43 respectively.

■ Have you connected an Onkyo MD recorder, CD recorder, or RI Dock?

If you have, see “Changing the Input Display” on page 47.

)” on page 48.

HDMI

OUT IN

TAPE

CD recorder, MD recorder,

RI Dock

First Time Setup

This section explains the settings that you need to make before using the AV receiver for the very first time.

Using the Display to change the settings

The settings of the AV receiver can be changed using the Display.

Press the [Receiver] button followed by the [Setup] button.

The submenu item appears on the display.

Using the Onscreen Setup Menus

Carry out the settings for the AV receiver by using the Onscreen Setup Menu.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

1. Input Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Lock Setup

Use the Up and Down [q]/[w] buttons to select submenu and then press [Enter].

The setting item appears on the display. Press the [Setup] button to close the

menu. Press the [Return] button to return to the previous menu.

Onscreen Setup Menus and Display

As each item in the Onscreen Setup Menus is selected, the selected items will be displayed one by one.

Onscreen Setup Menus

1. Input Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Lock Setup

Display

Use the Up and Down [q]/[w] buttons to select submenu and then press [Enter].

The submenu appears. Press the [Setup] button to close the

menu. Press the [Return] button to return to the previous menu.

Note:

During the Automatic Speaker Setup, messages, etc., that are displayed on the TV screen will appear in the Display.

First Time Setup—Continued

Video Input Setup

HDMI Input Setup

If you connect a video component to HDMI IN, you must assign that input to an input selector. For example, if you connect your DVD player to HDMI IN 1, you must assign HDMI IN 1 to the DVD input selector.

If you’ve connected your TV to the AV receiver with an HDMI cable, you can set the AV receiver so that composite video, S-Video, and component video sources are upconverted* and output by the HDMI OUT. You can set this for each input selector by selecting the “- - - - -” option.

Composite video, S-Video,

component video

Composite video, S-Video,

component video

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input Assign”, and then press [Enter].

The “Input Assign” menu appears.

OUT

HDMI

Use the Up and Down [q]/[w] buttons to select “1. HDMI Input”, and then press [Enter].

The “HDMI Input” menu appears.

1–1. HDMI Input DVD VCR/DVR CBL/SAT GAME/TV

AUX TAPE TUNER CD PHONO

HDMI1 HDMI2 HDMI3 HDMI4

- - - - -

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select:

HDMI1, HDMI2, HDMI3, HDMI4:

Select the HDMI IN to which

the video component has

been connected.

-----: Output composite video, S-Video, and component video sources from the HDMI OUT. The video output signal from the HDMI OUT is the one configured in “Component Video Setup” (see page 42).

Each HDMI IN cannot be assigned to more than one input selector. When HDMI1 - HDMI4 have already been assigned (as shown in the Step 3 illustration), you must set first any unused input selectors to “- - - - -” or you will be unable to assign HDMI1 - HDMI4 to input selector.

Press the [Setup] button.

The setup menu closes.

1. Input Assign

1. HDMI Input

2. Component Video Input

3. Digital Audio Input

Notes:

• For composite video, S-Video, and component video upconversion for the HDMI OUT, the HDMI Input setting must be set to “- - - - -”. See page 22 for more information on video signal flow and upconversion.

• When an HDMI IN is assigned to an input selector as explained here, the digital audio input for that input selector is automatically set to the same HDMI IN. See “Digital Input Setup” on page 43.

• The TUNER input selector cannot be assigned and is fixed at the “- - - - -” option.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

First Time Setup—Continued

Component Video Setup

If you connect to a COMPONENT VIDEO IN, you must assign it to an input selector. For example, if you connect your DVD player to COMPONENT VIDEO IN 2, you should assign it to the DVD input selector.

Input selector Default assignment

DVD I N1

VCR/DVR -----

CBL/SAT IN2

GAME/TV IN3

AUX -----

TAPE - - - - -

TUNER - - - - - (Fixed)

CD -----

PHONO -----

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input Assign”, and then press [Enter].

The

“Input Assign”

menu appears.

Use the Up and Down [q]/[w] buttons to select an input selector, and then use the Left and Right [e]/[r] buttons to select:

IN1: Select if the video component

is connected to COMPONENT VIDEO IN 1.

IN2: Select if the video component

is connected to COMPONENT VIDEO IN 2.

IN3: Select if the video component

is connected to COMPONENT VIDEO IN 3.

-----: Select if you are using the HDMI OUT, rather than the COMPONENT VIDEO MONITOR OUT, for the output from composite video, SVideo, and component video sources.

Press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

1. Input Assign

1. HDMI Input

2. Component Video Input

3. Digital Audio Input

Use the Up and Down [q]/[w] buttons to select “2. Component Video Input”, and then press [Enter].

The “Component Video Input” menu appears.

1–2. Component Video Input DVD VCR/DVR CBL/SAT GAME/TV AUX TAPE

TUNER

CD PHONO

IN1

- - - - IN2 IN3

- - - - -

First Time Setup—Continued

Digital Input Setup

If you connect a component to a digital input jack, you must assign that jack to an input selector. For example, if you connect your CD player to the OPTICAL IN1 jack, you should assign that jack to the CD input selector. By default, the COAXIAL IN1 jack is assigned to the DVD input selector, although this can be changed. Here are the default assignments.

Input selector Default assignment

DVD COAX1

VCR/DVR COAX2

CBL/SAT COAX3

Game/TV OPT1

AUX FRONT Tape -----

TUNER ----- (Fixed)

CD OPT2

PHONO -----

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input Assign”, and then press [Enter].

The “Input Assign” menu appears.

1. Input Assign

1. HDMI Input

2. Component Video Input

3. Digital Audio Input

Use the Up and Down [q]/[w] buttons to select “3. Digital Audio Input”, and then press [Enter].

The “Digital Audio Input” menu appears.

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select “COAX1”, “COAX2”, “COAX3”, “OPT1”, “OPT2”, or “- - - - - (analog)”.

• When an HDMI IN is assigned to an input selector in “HDMI Input Setup” on page 41, this input assignment is automatically set to the same HDMI IN. And in addition to the usual inputs (e.g., COAX1, COAX2, etc.), you can also select HDMI inputs. If you change the input assignment from an HDMI IN to one of the other inputs (e.g., COAX1 or COAX2), be sure to set the “Automatic Audio Input Selection Setup” on page 112 to the same input (e.g., COAX1 (Auto) or COAX2 (Auto)).

• “AUX” is used only for digital input from the front panel terminals. When HDMI IN is assigned to “AUX” in the “HDMI Input Setup” on page 41, the same HDMI IN can be selected.

Examples:

If you connect your DVD player to the OPTICAL IN 1 jack, set “DVD” to “OPT1”.

If you want to listen to audio from the component connected to the OPTICAL IN 2 jack when the VCR/DVR input selector is selected, set “VCR/DVR” to “OPT2”.

If you want to listen to audio from the component connected to the COAXIAL IN 1 jack when the CBL/SAT input selector is selected, set “CBL/ SAT” to “COAX1”. For input selectors that you don’t want to assign a digital input jack, set to “- - - - - (analog)”.

Press the [Setup] button.

The setup menu closes.

1–3. Digital Audio Input DVD VCR/DVR CBL/SAT GAME/TV

AUX

TAPE

TUNER

CD PHONO

COAX1 COAX2 COAX3

OPT1

FRONT

- - - - -

OPT2

- - - - -

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

First Time Setup—Continued

Speaker Settings

If you change these settings, you must run the automatic speaker setup again (see page 48).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

If you’ve connected your front speakers to the FRONT L/R and SURR BACK L/R terminal posts for bi-amping, you must change the “Speakers Type” setting. For hookup information, see “Bi-amping the Front Speakers” on page 18.

Notes:

• When bi-amping is used, the AV receiver is able to drive up to 5.1 speakers in the main room.

• Before you change these settings, turn down the volume.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “Speakers Type”, and then use the Left and Right [e]/[r] buttons to select:

Normal: Select this if you’ve con-

nected your front speakers normally.

Bi-Amp:Select this if you’ve con-

nected your front speakers for bi-amped operation.

Notes:

• Powered Zone2 cannot be used if “Speakers Type” is set to “Bi-Amp”.

• The analog multichannel input cannot be used if “Speakers Type” is set to “Bi-Amp”.

Use the Up and Down [q]/[w] buttons to select “Speaker Impedance”, and then use the Left and Right [e]/[r] buttons to select:

4ohms: Select if the impedance of any

speaker is 4 ohms or more but less than 6.

6ohms: Select if the impedances of all

speakers are between 6 and 16 ohms.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Up and Down [q]/[w] buttons to select “1. Speaker Settings”, and then press [Enter].

The “Speaker Settings” menu appears.

2–1. Speaker Settings Speakers Type Speaker Impedance

Normal

6ohms

Press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

First Time Setup—Continued

TV Format Setup (not North American models)

For the onscreen setup menus to display properly, you must specify the TV system used in your area.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “6. Miscellaneous”, and then press [Enter].

The “Miscellaneous” menu appears.

6. Miscellaneous

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

Use the Up and Down [q]/[w] buttons to select “TV Format”, and then use the Left and Right [e]/ [r] buttons to select:

Auto: Select this to automatically

detect the TV system from the video input signals.

NTSC: Select if the TV system in

your area is NTSC.

PAL: Select if the TV system in

your area is PAL.

When you’ve finished, press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Use the Up and Down [q]/[w] buttons to select “2. OSD Setup”, and then press [Enter].

The “OSD Setup” menu appears.

6–2. OSD Setup Immediate Display Monitor Type Display Position TV Format Language

16 : 9

Bottom

Auto

English

First Time Setup—Continued

AM Frequency Step Setup (not North American models)

For AM tuning to work properly, you must specify the AM frequency step used in your area. Note that when this setting is changed, all radio presets are deleted.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote Control

2. Zone2

3. Tuner

4. Analog Multich

5. HDMI

6. Network

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Press the [Setup] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” menu appears.

7–3. Tuner

AM Frequency Step 9kHz

Use the Left and Right [e]/[r] buttons to select:

10kHz: Select if 10 kHz steps are

used in your area.

9kHz: Select if 9 kHz steps are used

in your area.

First Time Setup—Continued

Changing the Input Display

If you connect an u-capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the TAPE IN/OUT or GAME/TV IN jacks, for u to work properly, you must change this setting. This setting can only be changed on the AV receiver.

1, 2 1, 2

iPod photo:

If you’re using an iPod photo with the RI Dock, connect the RI Dock to the GAME/TV IN jacks.

(3 seconds)

Press the [Tape] or [Game/TV] input selector button so that “TAPE” or “GAME/TV” appears on the display.

Press and hold down the [Tape] or [Game/TV] input selector button (about 3 seconds) to change the setting.

Repeat this step to select MD, CDR, or DOCK. For the Tape input selector, the setting changes in this order:

→ MD → CDR → DOCK

TA PE

→

For the Game/TV input selector, the setting changes in this order:

GAME/TV

↔ DOCK

Note:

DOCK can be selected for the Tape input selector or Game/TV input selector, but not both at the same time.

First Time Setup—Continued

Automatic Speaker Setup

(Audyssey MultEQ

With the supplied calibrated microphone, Audyssey MultEQ automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position. Audyssey MultEQ then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Enabling Audyssey MultEQ allows you to also use Audyssey Dynamic EQ proper octave-to-octave balance at any volume level (see page 100). Before using this function, connect and position all of your speakers.

Measurement Positions

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ takes measurements at up to six positions within the listening area.

■ 1st measurement position

This is the center position of your listening area, or the listening position if there’s only one listener.

)

, which maintains the

Using Audyssey MultEQ

2, 10

3-8

−6th measurement positions

■ 2nd

These are the other listening positions (i.e., the places where the other listeners will sit). You can

measure up to six positions. The following examples show some typical home theater seating arrangements. Choose the one that best matches yours, and position the microphone accordingly when prompted.

TV TV TV

: listening area : listening position

–

Notes:

• If any of your speakers is 4 ohms, change the “Speaker Impedance” setting before running the automatic speaker setup (see page 44). If the AV receiver is muted, it will be unmuted auto-

• matically when the automatic speaker setup starts.

• Automatic speaker setup cannot be performed while a pair of headphones is connected.

• It takes about 15 minutes to complete the automatic speaker setup for three positions. Total measurement time varies depending on the number of positions and speakers.

• Do not disconnect the speaker setup microphone during the automatic speaker setup, unless you

TVTVTV

want to cancel the setup.

• Do not connect or disconnect any speakers during the automatic speaker setup.

Turn on the AV receiver and the connected TV.

On the TV, select the input to which the AV receiver is connected.

First Time Setup—Continued

Place the speaker setup microphone at measurement point 1 (page 48), and connect it to the Setup Mic jack.

Auto Speaker Setup

Please place microphone at center of listening area at ear height.

Push Enter : Next

Notes:

• Before starting Audyssey MultEQ

Automatic Speaker Setup, arrange the room and connect the speakers as you would for enjoying movies. Changes to the room after auto setup requires you run the auto setup again, as room EQ characteristics may have changed.

• When starting the automatic speaker setup, do not stand between the speakers and microphone, and avoid obstacles blocking the path between speakers and microphone. This will produce inaccurate results.

• Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce innacurate results.

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices.

• Cell phones should be turned off or placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).

Press [Enter].

The automatic speaker setup starts.

Auto Speaker Setup

Do not unplug Setup Mic. Please keep quiet. Now measuring. . .

Test tones are played through each speaker as Audyssey MultEQ Automatic Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone.

The following screen appears.

Auto Speaker Setup

Please place microphone at

2nd Position at ear height.

Push Enter : Next

Place the setup microphone at the next position (page 48), and then press [Enter].

Audyssey MultEQ performs more measurements. This takes a few minutes.

Auto Speaker Setup

Do not unplug Setup Mic. Please keep quiet. Now measuring. . .

When prompted, place the setup microphone at the next position, and repeat step 4.

First Time Setup—Continued

After the 3rd to the 5th measurement, the following screen appears.

Auto Speaker Setup

Select [Next] to measure the next position, or select [Finish] to calculate the Audyssey MultEQ room EQ solution.

Next Finish(Calculate)

Use the Up and Down [q]/[w] buttons to select an option, and then press [Enter].

Select “Next” to begin measuring the next measurement position. After the 6th measurement has been taken, the procedure automatically proceeds to step 7.

Finish (Calculate):

Select this if you don’t want to measure any more listening positions and are ready to calculate the results, then go to step 7.

Use the Up and Down [q]/[w] buttons to select an option, and then press [Enter].

The options are:

Save:

Save the calculated settings and exit the automatic speaker setup.

Cancel:

Cancel the automatic speaker setup.

Note:

You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using the Left and Right [e]/[r] buttons.

If you selected “Save”, the results are saved, and the following screen appears.

Auto Speaker Setup

Saving...

When the measurements are complete, the following screen appears.

Auto Speaker Setup

Calculating...

When the calculations are complete, the following screen appears.

Auto Speaker Setup

Review SP Configuration

Subwoofer : No Front : Full Band Center : None Surround : None Surr Back : None Surr Back Ch : - - Save Cancel

Disconnect the speaker setup microphone.

Auto Speaker Setup

Please, unplug Setup Mic.

Notes:

• When the automatic speaker setup is complete, the “Equalizer Settings” (page 94) will be set to “

sey

”.

Audys-

• You can cancel the automatic speaker setup at any point in this procedure simply by disconnecting the setup microphone.

First Time Setup—Continued

Error Messages

While the automatic speaker setup is in progress, one of the following error messages may appear:

❏ Ambient noise is too high.

Auto Speaker Setup

Ambient noise is too high.

Retry Cancel

This message appears if the background noise is too loud and the measurements cannot be performed properly.

Remove the source of the noise and try again.

Retry: Return to the measured point immediately

before and start set up again.

Cancel: Cancel the automatic speaker setup.

❏ Speaker Detect Error

This message appears if a speaker is not detected. “Yes” means that a speaker was detected. “No” means that no speaker was detected.

Auto Speaker Setup

Speaker Detect Error

FL : Yes SL : --SBL : --C : Yes

Retry Cancel

One of the front speakers has not been detected.

FL : Yes SL : --SBL : --C : Yes

Retry Cancel

FR : No SR : --SBR : --SW : ---

Auto Speaker Setup

Speaker Detect Error

FR : Yes SR : No SBR : --SW : ---

Auto Speaker Setup

Speaker Detect Error

FL : Yes SL : --SBL : No C : Yes

Retry Cancel

FR : Yes SR : Yes SBR : Yes SW : ---

The right surround back speaker has been detected but the left surround back speaker hasn’t.

Auto Speaker Setup

Speaker Detect Error

FL : Error SL : Yes SBL : Yes C : Yes

Retry Cancel

FR : Yes SR : Yes SBR : Yes SW : Yes

The speaker type detected does not match what was expected. The speaker may be or incorrect type or broken. Please check that it is the correct speaker type, or that all drivers are working.

Auto Speaker Setup

Speaker Detect Error

Retry Cancel

The number of speakers detected on the second or third measurement was different to the number detected on the first measurement.

Make sure speakers that cannot be detected are connected property.

Retry: Return to step 2 and try again.

Cancel: Cancel the automatic speaker setup.

❏ Writing Error!

Auto Speaker Setup

One of the surround speakers has not been detected.

Auto Speaker Setup

Speaker Detect Error

FL : Yes SL : --SBL : --C : Yes

Retry Cancel

FR : Yes SR : No SBR : Yes SW : ---

The surround back speakers have been detected but the surround speakers haven’t.

Writing Error!

Retry Cancel

This message appears if saving fails.

Try saving again. If this message appears after 2 or 3 attempts, the AV receiver is probably malfunctioning. Contact the dealer.

Retry: Return to step 2 and try again.

Cancel: Cancel the automatic speaker setup.

First Time Setup—Continued

Changing the Speaker Settings Manually

If you wish to make changes to the settings found during the automatic speaker setup, follow the directions on see pages 89–96.

Notes:

• Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using the Automatic Speaker Setup function, please make sure manually that any THX speakers are set to 80 Hz (THX) crossover (see page 89).

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using a Powered Subwoofer

If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by the automatic speaker setup.

If the “Subwoofer” appears on the “Review SP Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running the automatic speaker setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a lowpass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

Basic Operations

Selecting the Input Source

This section explains how to select the input source (i.e., the AV component that you want to listen to or watch).

Multi CH

AV receiver

Multi CH

Remote

controller

Use the AV receiver’s input selector buttons to select the input source.

To select the input source with the remote controller, use the Input Selector buttons.

AV receiver Remote

Start playback on the source component.

When you select DVD or another video component, on your TV, you’ll need to select the video input that’s connected to the AV receiver’s HDMI OUT, COMPONENT VIDEO MONITOR OUT or MONITOR OUT. On some DVD players, you may need to turn on the digital audio output.

controller

To adjust the volume, use the Master Volume control, or the remote controller’s VOL [q]/[w] button.

The volume can be set to play). The AV receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment. The volume level can also be displayed as an absolute value. See “Volume Setup” on page 105.

Select a listening mode and enjoy!

See “Using the Listening Modes” on page 78.

−∞ dB, −81.5 dB through +18.0 dB (relative dis-

Basic Operations—Continued

Using the Multichannel DVD Input

The multichannel DVD input is for connecting a component with a 7.1-channel analog audio output, such as a DVD-Audio or SACD-capable DVD player, or an MPEG decoder. See page 26 for hookup information.

Remote

controller

Press the [Multi CH] button.

“Multich” appears on the display. Audio from the multichannel DVD

input will now be used for the DVD input source.

Notes:

• While the multichannel DVD input is selected, the Speaker Configuration settings on page 89 are ignored, and signals from the multichannel input are fed to the speakers as they are.

• The multichannel DVD input cannot be used if “Speakers Type” is set to “Bi-Amp” (see page 44).

• This procedure can also be performed on the AV receiver by using its [Multi CH] button.

Adjusting the Bass & Treble

You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.

AV receiver

■ Bass

You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

■ Treble

You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

Notes:

• This setting is not available when the multichannel DVD input is selected.

• This procedure can also be performed on the remote controller by using [Audio] button (see page 99).

Press the [Tone] button repeatedly to select either “Bass” or “Treble”.

Use the Tone [–]/[+] buttons to adjust.

Displaying Source Information

You can display various information about the current input source as follows.

Remote

controller

Press the [Receiver] button, and then press the [Display] button repeatedly to cycle through the available information.

Note:

This procedure can also be performed on the AV receiver by using its [Display] button.

The following information can typically be displayed for input sources.

Input source

Listening

mode

Signal format*

Sampling

frequency

* If the input signal is analog, no format information is displayed.

If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format and the number of channels is displayed. For some digital input signals, including multichannel PCM, the signal format, number of channels, and sampling frequency is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

Setting the Display Brightness

You can adjust the brightness of the AV receiver’s display.

Remote

controller

Press the [Receiver] button, and then press the [Dimmer] button repeatedly to select: Normal, Dim, or Dimmer.

Alternatively, you can use the AV receiver’s [Dimmer] button (North American models only).

Basic Operations—Continued

Press [Receiver] first

Muting

Sleep

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

Press the [Receiver] button, and then press the [Sleep] button repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The Sleep indicator appears on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.

If you need to cancel the sleep timer, press the [Sleep] button repeatedly until the SLEEP indicator disappears.

To check the time remaining until the AV receiver sleeps, press the [ button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

Sleep

] button. Note that if you press the [

Sleep

]

Muting the AV receiver

You can temporarily mute the output of the AV receiver.

Press the [Receiver] button, and then press the [Muting] button.

The output is muted and the MUTING indicator flashes on the display, as shown.

To unmute the AV receiver, press the [Muting] button again, or adjust the volume.

The Mute function is cancelled when the AV receiver is set to Standby.

Tip:

You can specify how much the output is muted with the “Muting Level” setting (see page 105).

Using Headphones

You can connect a pair of stereo headphones (1/4-inch phone plug) to the AV receiver’s Phones jack for private listening, as shown.

Notes:

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the Phones jack, the speakers are turned off and the Headphone indicator lights up. (The Powered Zone 2 speakers are not turned off.)

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.

• Only the Stereo, Direct, and Mono listening modes can be used with headphones (the listening modes available also depend on the currently selected input source).

• When the multichannel input is used, only the front left and right audio can be heard in the headphones.

Listening to the Radio

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

Tuning Mode Tuning

Tuner

Listening to the Radio

Use the [Tuner] input selector button to select either AM or FM.

In this example, FM has been selected. Each time you press the [Tuner] button,

the input source changes between AM and FM.

Band Frequency

(Actual display depends on country)

TUNED

AUTO

TERE

■ Manual Tuning Mode

The North American models change FM frequency in

0.2 MHz steps, 10 kHz steps for AM. For other models it’s 0.05 MHz steps for FM and 9 kHz steps for AM.

In Manual Tuning mode, FM stations will be in mono.

Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to Manual Tuning mode and listen to the station in mono.

Press the [Tuning Mode] button so that the AUTO indicator disappears from the display.

Press and hold the Tuning Up or Down [q]/[w] buttons.

The frequency stops changing when you release the button. Press the buttons repeatedly to change the frequency one step at a time.

Tuning into Radio Stations

■ Auto Tuning Mode

When tuned into a station, the TUNED indicator appears. When tuned into a stereo FM station, the FM STEREO indicator appears on the display, as shown.

Press the [Tuning Mode] button so that the AUTO indicator appears on the display.

Press the Tuning Up or Down [q]/ [w] buttons.

Searching stops when a station is found.

■ Tuning into Stations by Frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

Remote

controller

Press the [Tuner] button repeatedly to select AM or FM, followed by the [D.TUN] button.

(Actual display depends on country.)

Within 8 seconds, use the number buttons to enter the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5.

Listening to the Radio—Continued

Presetting AM/FM Stations

32, 4

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to store as a preset.

Press the [Memory] button.

The preset number flashes.

While the preset number is flashing (about 8 seconds), use the Preset [e]/[r] buttons to select a preset from 1 through 40.

Selecting Presets

AV receiver

Remote

controller

To select a preset, use the Preset [e]/[r] buttons, or the remote controller’s CH [+/–] button.

You can also use the remote controller’s number buttons to select a preset directly.

Preset

Note:

You can name your radio presets for easy identification (see page 103). Its name is displayed instead of the band and frequency.

Press the [Memory] button again to store the station or channel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

Deleting Presets

Select the preset that you want to delete.

See the previous section.

While holding down the [Memory] button, press the [Tuning Mode] button.

The preset is deleted and its number disappears from the display.

Listening to the Radio—Continued

Listening to XM Satellite Radio

(North American Model Only)

About XM Radio

XM is North America’s number one satellite radio company, offering an extraordinary variety of commercialfree music, plus the best in premier sports, news, talk radio, comedy, children’s and entertainment programming, broadcast in superior digital audio quality coast to coast. For more information, or to subscribe, U.S. customers visit xmradio.com or call XM Listener Care at 1-800-XMRADIO (1-800-967-2346); Canadian customers visit xmradio.ca or call XM Listener Care at 1-877-GETXMSR (1-877-438-9677).

XM Ready® Legal

XM monthly service subscription sold separately. XM Mini-Tuner and Home Dock required (each sold separately) to receive XM service. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the XM satellite Radio System. Installation costs and other fees and taxes, including a one-time activation fee may apply. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (U.S. residents) and 1-877-GETXMSR (Canadian residents). Only available in the 48 contiguous United States and Canada. ©2007 XM Satellite Radio Inc. All rights reserved.

lineup. Activation normally takes 10-15 minutes, but during peak busy periods you may need to keep your XM Ready audio system on for up to an hour. When you can access the full lineup on your XM Ready audio system you are done.

Connecting the XM Mini-Tuner and Home Dock

To receive XM Satellite Radio, you need an XM MiniTuner and Home Dock, which includes a home antenna. These are sold separately. For connection information, refer to the instruction manual supplied with the XM Mini-Tuner and Home Dock.

XM Mini-Tuner jack

XM Ready® Subscription

Once you have installed the XM Mini-Tuner Home Dock, inserted the XM Mini-Tuner, connected the XM Mini-Tuner Home Dock to your XM Ready tem, and installed the antenna, you are ready to subscribe and begin receiving XM programming. There are three places to find your eight character XM Radio ID: On the XM Mini-Tuner, on the XM Mini-Tuner package, and on XM Channel 0. Record the Radio ID below for reference.

Note:

The XM Radio ID does not use the letters “I”, “O”, “S” or “F”.

Activate your XM Satellite Radio service in the U.S. online at http://activate.xmradio.com or call 1-800XMRADIO (1-800-967- 2346). Activate your XM Satellite Radio service in Canada online at https://activate.xmradio.ca or call 1-877-GET-XMSR (1-877-438-

9677). You will need a major credit card. XM will send a signal from the satellites to activate the full channel

audio sys-

Listening to the Radio—Continued

Receiver

Enter

Setup

Setting the Satellite Radio Mode

Before you can listen to XM Satellite Radio, you must set the SAT Radio Mode to “XM”.

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen.

Use the Left and Right [e]/[r] buttons to select “XM”. If there are 2 items on the Tuner screen, use Up and Down [q]/[w] buttons to select “SAT Radio Mode”.

Pressing the Left and Right [e]/[r] buttons cycles through the following options: None → XM → SIRIUS → XM/SIRIUS

None: Select if you’re not using Sat-

ellite Radio.

XM: Select to use XM Satellite

Radio.

SIRIUS: Select to use SIRIUS Satellite

Radio.

XM/SIRIUS:

Select to use XM Satellite Radio and SIRIUS Satellite Radio.

When you’ve finished, press the [Setup] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [Enter].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote Control

2. Zone2

3. Tuner

4. Analog Multich

5. HDMI

6. Network

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [Enter].

The “Tuner” screen appears.

7–3. Tuner SAT Radio Mode Antenna Aiming SURIUS Parental Lock

Enter

Tuner Setup

Selecting XM Satellite Radio

AV receiver

Remote

controller

On the AV receiver, press the [Tuner] button repeatedly to select “XM”.

On the remote controller, press the [Tuner] button repeatedly to select “XM”.

If “CHECK XM TUNER” appears on the display, make sure the XM MiniTuner is connected properly.

Tuning

Listening to the Radio—Continued

Signing Up for XM Satellite Radio

Once you have installed the XM Mini-Tuner and Home Dock, you are ready to subscribe to XM Satellite Radio.

You’ll need a major credit card and your XM Radio ID. There are three places you can find your 8-character XM Radio ID:

1. On the XM Mini-Tuner

2. On the XM Mini-Tuner packaging

3. On XM Channel 0, as explained below

Tuner

AV receiver

Notes:

• RADIO ID cannot be selected in Category Search mode. You must select Channel Search mode (see below).

• The following letters are not used in XM Satellite Radio IDs: I, O, S, F.

• XM Satellite Radio will transmit a special signal to your AV receiver to activate the full channel lineup. Activation normally takes between 10 and 15 minutes, but during busy peak periods, you may need to leave the AV receiver turned on for up to an hour.

Use the Tuning Up and Down [q]/ [w] buttons to select RADIO ID.

Your XM Radio ID number is displayed. Write it below for reference.

To sign up, go to: http://activate.xmradio.com

Or call: 1-800-967-2346 For XM Canada, go to: http://xmradio.ca Or call: 1-877-438-9677

Selecting XM Radio Channels

There are three ways to select XM radio channels:

1. Channel Search mode: select any channel.

Category Search mode:

3. Direct tuning: enter channel number.

Note:

You cannot select Channel Search or Category Search mode while the Tuning Arrow indicators are flashing, as tuning is in progress.

select channels by category.

Enter

Number

buttons

D.TUN

■ Channel Search Mode

Press the [Tuner] button, and then press the [Enter] button repeatedly to select Channel Search mode.

This procedure can also be performed on the AV receiver by using its [Tuner] button, and [Tuning Mode] button.

Use the Up and Down [q]/[w] buttons to select a channel.

Channel number

Channel name

You can also use the Left and Right [e]/[r] buttons to select a category.

Listening to the Radio—Continued

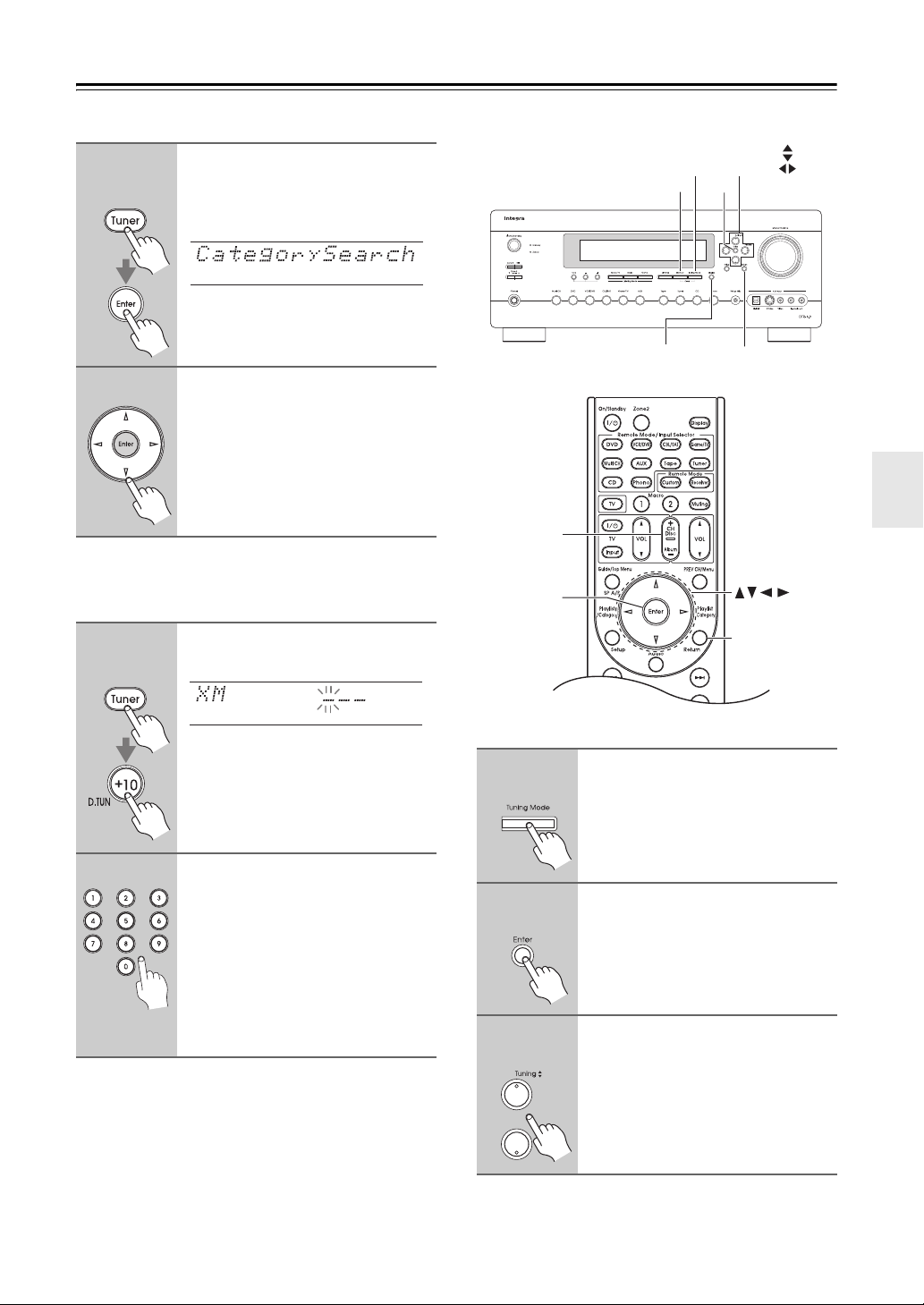

■ Category Search Mode

Remote

controller

■ Direct Tuning

You can select an XM radio channel directly by entering its number.

Remote

controller

Press the [Tuner] button, and then press the [Enter] button repeatedly to select Category Search mode.

This procedure can also be performed on the AV receiver by using its [Tuner] button, and [Tuning Mode] button.

Use the Left and Right [e]/[r] buttons to select a category, and use the Up and Down [q]/[w] buttons to select a channel in that category.

Press the [Tuner] button, followed by the [D.TUN] button.

CH + / –

Enter

Display

Tuning PresetTuning Mode

EnterMemory

Return

Within 8 seconds, use the number buttons to enter the channel number.

For example, to select channel #20, press 0, 2, 0, or 2, 0, [Enter].

Note:

While the [Tuner] button is flashing, you cannot select another input source with the remote controller.

Selecting Channels on the AV receiver:

AV receiver

Press the [Tuning Mode] button repeatedly to select Channel Search mode or Category Search mode.

Press [Enter] repeatedly to select a category.

Use the Tuning Up and Down [q]/ [w] buttons to select a channel.

In Channel Search mode, you can select any channel. In Category Search mode, you can only select channels from the currently selected category.

Listening to the Radio—Continued

Selecting the Previous Channel:

AV receiver

Remote

controller

To listen to the previously selected XM channel, press the [Return] button.

Presetting XM Channels

You can store a combination of up to 40 of your favorite XM channels and AM/FM radio stations as presets.

AV receiver

Tune into the XM channel that you want to store as a preset.

Press the [Memory] button.

The preset number flashes.

■ Deleting Presets

AV receiver

Select the preset that you want to delete.

See the previous section.

While holding down the [Memory] button, press the [Tuning Mode] button.

The preset is deleted and its number disappears from the display.

Displaying XM Radio Information

AV receiver

Remote

controller

Press the [Display] button repeatedly to cycle through the available information.

AV receiver

■ Selecting Presets

AV receiver

Remote

controller

While the preset number is flashing (about 8 seconds), use the

Preset [e]/[r] buttons to select a preset from 1 through 40.

Press the [Memory] button again to store the channel.

The channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite XM channels.

To select a preset, use the Preset [e]/[r] buttons, or the remote controller’s CH [+/–] button.

The following information can be displayed:

Channel name

Using RDS (not North American model)

RDS only works in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator appears.

RDS indicator

■ What is RDS?

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing the [Display] button will display the frequency for 3 seconds.

RT (Radio Text)

When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display (see page 76).

PTY (Program Type)

This allows you to search for RDS radio stations by type (see page 76).

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (see page 76).

Notes:

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

RDS Program Types (PTY)

Type Disp lay

None None

News reports News

Current affairs Affairs

Information Info

Sport Sport

Education Educate

Drama Drama

Culture Culture

Science and technology Science

Var ied Va rie d

Pop music Pop M

Rock music Rock M

Middle of the road music Easy M

Light classics Light M

Serious classics Classics

Other music Other M

Weather Weather

Finance Finance

Children’s programmes Children

Social affairs Social

Religion Religion

Phone in Phone In

Tr av el Tr av e l

Leisure Leisure

Jazz music Jazz

Country music Country

National music Nation M

Oldies music Oldies

Folk music Folk M

Documentary Document

Alarm test TEST

Alarm Alarm!

Listening to the Radio—Continued

When tuned to an RDS station that’s broadcasting text information, the text can be displayed.

Displaying Radio Text (RT)

RT/PTY/TP

Press the [RT/PTY/TP] button once.

The RT information scrolls across the display.

Notes:

• The message “Waiting” may appear while the AV receiver waits for the RT information.

• If the message “ no RT information is available.

Finding Stations by Type (PTY)

No Text Data” appears on the display,

Listening to Traffic News (TP)

You can search for stations that broadcast traffic news.

To start the search, press [Enter].

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press [Enter].

If no stations are found, the message “Not Found” appears.

3, 4

You can search for radio stations by type.

Press the [RT/PTY/TP] button twice.

The current program type appears on the display.

Use the Preset [e]/[r] buttons to select the type of program you want.

See the table on page 75.

Press the [RT/PTY/TP] button three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press [Enter].

The AV receiver searches until it finds a station that’s broadcasting TP.

If no stations are found, the message “Not Found” appears.

Recording

This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.

Notes:

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected DVDs cannot be recorded.

• You cannot record from the DVD analog multichannel input.

• Various restrictions apply to digital recording. Refer to the manuals supplied with your digital recording equipment for more details.

• Digital input signals are output by only the digital outputs, and analog input signals are output by only the analog outputs. There is no internal conversion from digital to analog or vice versa.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

AV Recording

Audio sources can be recorded to a recorder (e.g., cassette deck, CDR, MD) connected to the TAPE OUT, DIGITAL OPTICAL OUT or DIGITAL COAXIAL OUT jacks. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the to VCR/DVR OUT jack. See pages 22 to 38 for hookup information.

Recording Separate AV Sources

Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (i.e., Tape, Tuner, CD or Phono) is selected, the video input source remains unchanged.

In the following example, audio from the CD player connected to the CD IN, and video from the camcorder connected to the AUX INPUT VIDEO jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

Camcorder

video signal audio signal

Use the input selector buttons to select the source that you want to record.

You can watch the source while recording. The AV receiver’s Master Volume control has no effect on recording.

On your recorder, start recording.

On the source component, start playback.

If you select another input source during recording, that input source will be recorded.

VCRCD player

Prepare the camcorder and CD player for

playback.

Prepare the VCR for recording.

Press the [AUX] input selector button.

Press the [CD] input selector button.

This selects the CD player as the audio source, but leaves the camcorder as the video source.

Start recording on the VCR and start play-

back on the camcorder and CD player.

The video from the camcorder and the audio from the CD player are recorded by the VCR.

Using the Listening Modes

Selecting Listening Modes

See “About the Listening Modes” on page 85 for detailed information about the listening modes.

• The Dolby Digital and DTS listening modes can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

• The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” on page 54.

• While a pair of headphones is connected, you can only select the Mono, Direct, or Stereo listening mode.

Selecting on the AV receiver

Listening Mode

■ Listening Mode buttons

[Movie/TV] button

This button selects the listening modes intended for use with movies and TV.

[Music] button

This button selects the listening modes intended for use with music.

[Game] button

This button selects the listening modes intended for use with video games.

Selecting with the Remote Controller

Music

Movie/TV

Press the [Receiver] button, and then press the Listening Mode button repeatedly to select the listening mode.

■ Listening Mode buttons

[Movie/TV] button

This button selects the listening modes intended for use with movies and TV.

[Music] button

This button selects the listening modes intended for use with music.

[Game] button

This button selects the listening modes intended for use with video games.

[THX] button

This button selects the THX listening modes.

Game THX

Using the Listening Modes—Continued

Listening Modes Available for Each Source Format

Analog and PCM Sources

Source format

Listening Mode

Direct

Stereo

Mono

Multichannel

Neo:6

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby EX

Neo:6 Cinema

Neo:6 Music THX Cinema/Music/Games

Dolby PLII/Dolby PLIIx Movie

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx

+ THX Games

Games Neo:6 Cinema/Music

+ THX Cinema/Music

PLII Game + THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic AllChStereo

FullMono

T- D

*5*6

Media

Analog/PCM

32–96

kHz

CD, TV, radio, DVD DVD DVD

176.4/

192kHz

✔✔✔✔✔✔✔✔✔ ✔✔ ✔✔✔✔✔✔ ✔✔✔✔

✔

✔✔

✔✔ ✔✔

✔

✔ ✔

✔✔✔✔

✔✔✔✔ ✔✔✔✔

✔✔✔✔

Multi

channel

Analog

32–96 kHz

Multi

channel

✔✔ ✔

✔

*1. 32/44.1/48/88.2/96kHz *2. DVD-Audio discs output multichannel 176.4/192 kHz PCM only via HDMI. *3. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *4. Cannot be selected with some source formats. *5. Available only when using surround speakers. *6. PCM of 88.2kHz and 96kHz are processed at 44.1kHz and 48kHz respectively.

2ch

✔

Multichannel PCM

Mono/

Multiplex

✔: Available Listening Modes

2ch

Mono/

Multiplex

176.4/192 kHz

Multi

channel

: Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used. : Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

Using the Listening Modes—Continued

Dolby Digital, and Dolby Digital Plus Sources

✔: Available Listening Modes

Source format

Multichannel 2ch Mono/Multiplex Multichannel 2ch Mono/Multiplex

Media

Listening Mode

Direct ✔✔✔✔✔✔ Stereo ✔✔✔✔✔✔

Mono

Neo:6

✔

DolbyDigital ✔

DolbyDigital Plus

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby EX

✔

Neo:6 Cinema ✔✔ Neo:6 Music ✔✔

THX Cinema

Dolby PLII/Dolby PLIIx Movie

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx Game

+ THX Games

Neo:6 Cinema/Music

+ THX Cinema/Music

/Music/Games

✔✔

✔

PLII Game

+ THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic

AllChStereo ✔✔✔✔✔✔ FullMono ✔✔✔✔✔✔ T- D ✔✔✔✔✔✔

*1. If there are no surround back speakers, depending on the input signal, Dolby Digital may be used. *2. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *3. Cannot be selected with some source formats. *4. Available only when using surround speakers.

✔

✔✔✔✔✔✔

Dolby Digital Dolby Digital Plus

DVD, DTV, etc. Blu-ray, HD DVD

✔✔

✔

✔✔

✔

✔✔

✔

✔ ✔

✔

: Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used. : Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

Note:

With some HD DVD and Blu-ray discs, a noise may be heard during playback. This may occur when the audio format changes during playback. It is not a malfunction.

Using the Listening Modes—Continued

DTS Sources

✔: Available Listening Modes

Source format

Listening Mode

Media

Multichannel 2ch Mono

DTS, DTS96/24

DVD, CD, etc . DVD, CD, etc.

Direct ✔✔✔✔ Stereo ✔✔✔✔

Mono

✔

✔✔✔

DTS, DTS 96/24 ✔ ✔

DTS-ES Discrete/Matrix

Neo:6

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby EX

✔

Neo:6 Cinema ✔ Neo:6 Music ✔

THX Cinema

Dolby PLII/Dolby PLIIx Movie

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx Game

+ THX Games

Neo:6 Cinema/Music

+ THX Cinema/Music

/Music/Games

PLII Game

+ THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic

*4 *5

*4*5

✔ ✔

✔

✔✔✔✔

AllChStereo ✔✔✔✔ FullMono ✔✔✔✔

T- D

✔✔✔✔

*1. If there are no surround back speakers, or Powered Zone 2 is being used, DTS is used. *2. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *3. Cannot be selected with some source formats. *4. Available only when using surround speakers. *5. DTS 96/24 is processed as DTS.

DTS-ES

Discrete/Matrix

✔

Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.

Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

Using the Listening Modes—Continued

TrueHD Sources

✔: Available Listening Modes

Source format

Listening Mode

Direct ✔✔✔✔✔✔ Stereo ✔✔✔✔✔✔ Mono ✔✔✔

Tru eH D ✔✔

Neo:6

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby EX

Neo:6 Cinema ✔ Neo:6 Music ✔

THX Cinema

Dolby PLII/Dolby PLIIx Movie

/Music/Games

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx Game

+ THX Games

Neo:6 Cinema/Music

+ THX Cinema/Music

PLII Game

Media

Multichannel 2ch Mono/Multiplex Multichannel 2ch Mono/Multiplex

✔

+ THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic AllChStereo ✔✔✔ FullMono ✔✔✔ T- D ✔✔✔

*1. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *2. Cannot be selected with some source formats. *3. Available only when using surround speakers.

✔

✔✔✔

TrueHD TrueHD 192kHz

Blu-ray, HD DVD Blu-ray, HD DVD

✔

Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.

Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

Note:

With some HD DVD and Blu-ray discs, a noise may be heard during playback. This may occur when the audio format changes during playback. It is not a malfunction.

Using the Listening Modes—Continued

DTS-HD Sources

✔: Available Listening Modes

Source format

Listening Mode

Direct ✔✔✔✔✔✔✔✔✔ Stereo ✔✔✔✔✔✔✔✔✔

Mono

DTS-HD High Resolution ✔ DTS-HD Master Audio ✔✔

Neo:6

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby Digital EX/Dolby EX

Neo:6 Cinema

Neo:6 Music

THX Cinema

Dolby PLII/Dolby PLIIx Movie

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx Game

+ THX Games

Neo:6 Cinema/Music

+ THX Cinema/Music

PLII Game

Media

/Music/Games

+ THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic AllChStereo ✔✔✔✔✔✔ FullMono ✔✔✔✔✔✔ T- D ✔✔✔✔✔✔

DTS-HD High Resolution DTS-HD Master Audio DTS-HD Master Audio 192kHz

Multi

channel

2ch Mono

Blu-ray, HD DVD Blu-ray, HD DVD Blu-ray, HD DVD

✔✔✔

✔

✔✔

✔

✔✔✔✔✔✔

✔

✔ ✔

Multi

channel

✔✔✔

✔

2ch Mono

✔

Multi

channel

2ch Mono

Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.

Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

Note:

With some HD DVD and Blu-ray discs, a noise may be heard during playback. This may occur when the audio format changes during playback. It is not a malfunction.

Using the Listening Modes—Continued

DTS Express and DSD Sources

✔: Available Listening Modes

Source format

Listening Mode

Direct ✔✔✔✔✔ Stereo ✔✔✔✔✔ Mono ✔✔✔✔✔

DTS Express ✔

DSD

Neo:6

Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music Dolby PLII Game/ Dolby PLIIx Game

Dolby EX

Neo:6 Cinema ✔✔ Neo:6 Music ✔✔

THX Cinema

Dolby PLII/Dolby PLIIx Movie

+ THX Cinema

Dolby PLII/Dolby PLIIx Music

+ THX Music

Dolby PLII/Dolby PLIIx Game

+ THX Games

Neo:6 Cinema/Music

+ THX Cinema/Music

PLII Game

Media

/Music/Games

Multichannel 2ch Mono

✔

✔✔

✔

+ THX Select2 Cinema

THX Surround EX

THX Select2 Cinema

/Music/Games

Neo:6 + THX Games

MonoMovie

Orchestra

Unplugged

Studio-Mix

TV Logic AllChStereo ✔✔✔✔✔ FullMono ✔✔✔✔✔ T- D ✔✔✔✔✔

✔

✔✔✔✔✔

DTS Express

Multichannel

(3/2.1)

Blu-ray, HD DVD SACD

✔

✔ ✔ ✔

✔✔

✔

✔ ✔

✔✔

✔

*1. DSD sources are converted and handled as PCM. *2. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *3. Cannot be selected with some source formats. *4. Available only when using surround speakers.

Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.

Requires 7.1 speakers. Not available while Powered Zone 2 is being used.

If you can select PCM or DSD output on your SACD player, in some cases, selecting PCM will provide

Hint!

the best sound quality.

DSD

2ch

✔

Note:

With some HD DVD and Blu-ray discs, a noise may be heard during playback. This may occur when the audio format changes during playback. It is not a malfunction.

Using the Listening Modes—Continued

About the Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

The Listening Mode button illustration shows that listening modes can be selected.

Button: The Listening Mode button illustration shows the

remote controller buttons. See “Selecting Listening Modes” on page 78 for

information on the use of the Listening Mode buttons.

Direct

Button: In this mode, audio from the input source is output

directly with minimal processing, providing high-fidelity reproduction. All of the source’s audio channels are output as they are.

Stereo

Button: Sound is output by the front left and right speakers and

subwoofer.

Mono

Button: Use this mode when watching an old movie with a mono

soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Multichannel

Button: This mode is for use with analog or PCM multichannel

sources.

Dolby Pro Logic IIx

Dolby Pro Logic II

Dolby Pro Logic IIx expands any 2-channel source for

7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie

Button:

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• Dolby PLIIx Music

Button:

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• Dolby PLIIx Game

Button:

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

Dolby Digital

Button: Use this mode with DVDs that bear the Dolby Digital

logo, and Dolby Digital TV broadcasts. This is the most common digital surround-sound format, and it’ll put you right in the middle of the action, just like being in a movie theater or concert hall.

5.1-channel source + Dolby EX

Button: These modes expand 5.1-channel sources for 6.1/7.1-

channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Dolby Digital Plus

Button: Developed for use with HDTV, including the new video

disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from Dolby. It supports up to 7.1 channels with 48 kHz sampling rate.

Using the Listening Modes—Continued

Dolby TrueHD

Button: Designed to take full advantage of the additional storage

space offered by the new Blu-ray and HD DVD disc formats, this new Dolby format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

For the signals supported by the AV receiver, see page 81.

5.1-channel source + Dolby PLIIx Music

Button: These modes use the Dolby Pro Logic IIx Music mode to

expand 5.1-channel sources for 6.1/7.1-channel playback.

5.1-channel source + Dolby PLIIx Movie

Button: These modes use the Dolby Pro Logic IIx Movie mode

to expand 5.1-channel sources for 7.1-channel playback.

DTS

Button: The DTS digital surround-sound format supports up to

5.1 discrete channels and uses less compression for highfidelity reproduction. Use it with DVDs and CDs that bear the DTS logo.

DTS 96/24

Button: This mode is for use with DTS 96/24 sources. This is

high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

Button: This mode is for use with DTS-ES Discrete soundtracks,

which use a discrete surround back channel for true 6.1/

7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Discrete soundtrack.

DTS-ES Matrix

Button: This mode is for use with DTS-ES Matrix soundtracks,

which use a matrix-encoded back-channel for 6.1/7.1channel playback. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6

Button: This mode expands any 2-channel source for up to 7.1-

channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

•Neo:6 Cinema

Use this mode with any stereo movie (e.g., TV, DVD, VHS).

• Neo:6 Music

Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

5.1-channel source + Neo:6

Button: This mode uses Neo:6 to expand 5.1-channel sources for

6.1/7.1-channel playback.

DTS-HD High Resolution Audio

Button: Developed for use with HDTV, including the new video

disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from DTS. It supports up to 7.1 channels with 96 kHz sampling rate.

DTS-HD Master Audio

Button: Designed to take full advantage of the additional storage

space offered by the new Blu-ray and HD DVD disc formats, this new DTS format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

For the signals supported by the AV receiver, see page 83.

DTS Express

Button: This format supports up to 5.1 channels and a lower sam-

pling rate of 48 kHz. Applications include interactive audio and commentary encoding for HD DVD Sub Audio and Blu-ray Secondary Audio. Also broadcast and media servers.

DSD

Button: DSD stands for Direct Stream Digital and is the format

used to store digital audio on Super Audio CDs (SACD). This mode can be used with SACDs that feature multichannel audio.

Using the Listening Modes—Continued

THX

Founded by George Lucas, THX develops stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended.

THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2channel matrixed and multichannel sources.

Surround back speaker output depends on the source material and the selected listening mode.

• THX Cinema

Button:

THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active.

•THX Music

Button:

THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

•THX Games

Button:

THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

• THX Select2 Cinema

Button:

This mode expands 5.1-channel sources for 7.1channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

• THX Select2 Music

Button:

This mode is designed for use with music. It expands

5.1-channel sources for 7.1-channel playback.

• THX Select2 Games

Button:

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

• THX Surround EX

Button:

This mode expands 5.1-channel sources for 6.1/7.1channel playback. It’s especially suited to Dolby

Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

Onkyo Original DSP Modes

Mono Movie

Button: This mode is suitable for old movies and other mono

sources. The center speaker outputs the sound as it is, while reverb is applied to the sound output by the other speakers, giving presence to even mono material.

Orchestra

Button: Suitable for classical or operatic music, this mode

emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged

Button: Suitable for acoustic instruments, vocals, and jazz, this

mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Studio-Mix

Button: Suitable for rock or pop music, listening to music in this

mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic

Button: This mode adds realistic acoustics to TV shows pro-

duced in a TV studio, surround effects to the entire sound, and clarity to voices.

All Ch Stereo

Button: Ideal for background music, this mode fills the entire lis-

tening area with stereo sound from the front, surround, and surround back speakers.

Full Mono

Button: In this mode, all speakers output the same sound in

mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater-Dimensional)

Button: With this mode you can enjoy a virtual 5.1 surround

sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

Advanced Setup

Onscreen Setup Menus

The onscreen setup menus appear on the connected TV and provide a convenient way to change the AV receiver’s various settings. Settings are organized into eight categories on the main menu, most containing a submenu.

Main menu

1. Input Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Lock Setup

pages 105–106

6. Miscellaneous

1. Volume Setup

2. OSD Setup

3. 12V Trigger A Setup

4. 12V Trigger B Setup

5. 12V Trigger C Setup

pages 107–110

7. Hardware Setup

1. Remote Control

2. Zone2

3. Tuner

4. Analog Multich

5. HDMI

6. Network

page 111

8. Lock Setup

Lock Unlocked

page 119

page 115

page 46, 59, 66

Submenus

pages 41–43

1. Input Assign

1. HDMI Input

2. Component Video Input

3. Digital Audio Input

pages 89–95

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

page 97–98

3. Audio Adjust

1. Multiplex / Mono

2. PLIIx / Neo:6

3. Dolby EX

4. Theater-Dimentional

5. DSD

6. LFE Level

pages 102–104

4. Source Setup

1. IntelliVolume

2. A/V Sync

3. Name Edit

4. Picture Adjust

page 44

DVD

page 101

5. Listening Mode Preset

1. DVD

2. VCR/DVR

3. CBL/SAT

4. GAME/TV

5. AUX

6. TAPE

7. TUNER

8. CD

9. PHONO

Advanced Setup—Continued

Speaker Setup

Some of the settings in this section are set automatically by the Automatic Speaker Setup function (see page 48). Here you can check the settings made by the Automatic Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using the Automatic Speaker Setup function.

Note:

The Speaker Setup cannot be carried out while headphones are connected to the AV receiver.

Speaker Settings

See “Speaker Settings” on page 44.

Speaker Configuration

These settings are set automatically by the Automatic Speaker Setup function (see page 48).

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. The following crossover frequencies can be specified: “Full Band”, “40Hz”, “45Hz”, “50Hz”, “55Hz”, “60Hz”, “70Hz”, “80Hz (THX)”, “90Hz”, “100Hz”, “110Hz”, “120Hz”, “130Hz”, “150Hz”, or “200Hz”. Specify “Full Band” for speakers that can output lowfrequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies.

Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using the Automatic Speaker Setup function, please make sure manually that any THX speakers are set to 80 Hz (THX) crossover.

2-11

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Up and Down [q]/[w] buttons to select “2. Speaker Configuration”, and then press [Enter].

The “Speaker Configuration” menu appears.

2–2. Speaker Configuration Subwoofer Front Center Surround Surr Back Surr Back Ch LPF of LFE

Double Bass

Yes 80Hz(THX) 80Hz(THX) 80Hz(THX) 80Hz(THX)

2ch 80Hz(THX)

Off(THX)

Use the Up and Down [q]/[w] buttons to select “Subwoofer”, and then use the Left and Right [e]/ [r] buttons to select:

Ye s : Select if a subwoofer is con-

nected.

No: Select if no subwoofer is con-

nected.

2, 3

1, 12

Advanced Setup—Continued

Use the Up and Down [q]/[w] buttons to select “Front”, and then use the Left and Right [e]/[r] buttons to select a crossover frequency.

Note:

If the “Subwoofer” setting in step 4 is

“No”, this setting is fixed at “Full

set to Band”.

Use the Up and Down [q]/[w] buttons to select “Center”, and then use the Left and Right [e]/[r] buttons to select a crossover frequency.

If no center speaker is connected, select “None”.

Note:

“Front” setting in step 5 is set to

If the anything other than

Band”

cannot be selected here.

Use the Up and Down [q]/[w] buttons to select “Surround”, and then use the Left and Right [e]/ [r] buttons to select a crossover frequency.

If no surround left and right speakers are connected, select “None”.

Note:

“Front” setting in step 5 is set to

If the anything other than

Band”

cannot be selected here.

“Full Band”, “Full

Use the Up and Down [q]/[w] buttons to select “Surr Back”, and then use the Left and Right [e]/ [r] buttons to select a crossover frequency.

If no surround back speakers are connected, select “None”.

Notes:

• If the “Surround” setting in step 7 is set to “None”, this setting cannot be selected.

• If the “Surround” setting in step 7 is set to anything other than “Full Band”, “Full Band” cannot be selected here.

• If the “Speakers Type” setting is set to “Bi-Amp” (page 44), or Powered Zone 2 is being used (page 115), this setting cannot be selected.

Use the Up and Down [q]/[w] buttons to select “Surr Back Ch”, and then use the Left and Right [e]/[r] buttons to select:

1ch: Select if one surround back

speaker is connected.

2ch: Select if two (left and right)

surround back speakers are connected.

Note:

“Surr Back” Setting in step 8 is

If the

“None”, this setting cannot be

set to selected.

Continue with step 10 on the next page.

Advanced Setup—Continued

Low-Pass Filter for the LFE Channel

This setting is not set automatically by the Automatic Speaker Setup function (see page 48).

With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel.

* If you’re using THX-certified speakers, select “80Hz (THX)”.

Use the Up and Down [q]/[w] buttons to select “LPF of LFE”, and then use the Left and Right [e]/ [r] buttons to select a low-pass filter frequency.

The following low-pass filter frequencies can be selected: “80Hz (THX)” , “90Hz”, “100Hz”, or “120Hz”.

Continue with step 11 in the next column.

Double Bass

This setting is not set automatically by the Automatic Speaker Setup function (see page 48).

With the Double Bass function, you can boost bass output by feeding bass sounds from the front left and right channels to the subwoofer. This function can be set only if the “Subwoofer” setting in step 4 is set to “Yes”, and the “Front” setting in step 5 is set to “Full Band”.

In the speaker setup screen, you can choose how bass information is distributed to your speakers only if you have large front left and right speakers and a subwoofer.

* If you’re using THX-certified speakers, select “Off (THX)”.

Use the Up and Down [q]/[w] buttons to select “Double Bass”, and then use the Left and Right [e]/[r] buttons to select:

On: Double Bass function on

(default). Front left and right bass also goes to the subwoofer simultaneously.

Off (THX):

Double Bass function off.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Press the [Setup] button.

The setup menu closes.

Advanced Setup—Continued

Speaker Distance

This setting is set automatically by the Automatic Speaker Setup function (see page 48).

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.

3-7

3, 4

2, 8

Measure and make a note of the distance from each speaker to the listening position.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “3. Speaker Distance”, and then press [Enter].

The “Speaker Distance” menu appears.

2–3. Speaker Distance Unit Left Center Right Surr Right Surr Back R Surr Back L Surr Left Subwoofer

feet

12.0ft

7.0ft

12.0ft

Use the Up and Down [q]/[w] buttons to select “Unit”, and then use the Left and Right [e]/[r] buttons to select:

Select if you want to enter dis-

feet:

tances in feet. Can be set from

0.2 to 30 feet in 0.2-feet steps.

meters: Select if you want to enter

distances in meters. Can be

set from 0.06 to 9 meters in

0.06-meter steps.

Use the Up and Down [q]/[w] buttons to select “Left”, and then use the Left and Right [e]/[r] buttons to specify the distance.

Specify the distance from the front left speaker to your listening position.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Repeat step 6 for all speakers.

Note:

Speakers that you set to “No” or “None” on the Speaker Configuration page (page 89) cannot be selected.

Press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Advanced Setup—Continued

Speaker Level Calibration

This setting is set automatically by the Automatic Speaker Setup function (see page 48).

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.

Notes:

• The speakers cannot be calibrated while the output of the AV receiver is muted.

• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

2-5

2, 3

1, 6

Use the Up and Down [q]/[w] buttons to select “4. Level Calibration”, and then press [Enter].

The “Level Calibration” menu appears and the pink noise test tone is output by the front left speaker.

2–4. Level Calibration Left Center Right Surr Right Surr Back R Surr Back L Surr Left Subwoofer

0.0dB

Note:

Speakers that you set to

“No” or “None”

on the Speaker Configuration page (page 89) cannot be selected.

Use the Up and Down [q]/[w] buttons to select each speaker, and use the Left and Right [e]/[r] buttons to set the volume.

The volume can be adjusted from –12.0 to +12.0 dB (–15.0 dB to +12.0 dB for the subwoofer) in 0.5 dB steps.

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Repeat step 4 until the volume of the test tone from each speaker is the same.

If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

Press the [Setup] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Advanced Setup—Continued

Equalizer Setting

This setting is set automatically by the Automatic Speaker Setup function (see page 48).

With the Equalizer settings, you can adjust the tone of speakers individually with a 7-band equalizer. The volume of each speaker can be set on page 93.

2-7

2, 3

1, 8

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “5. Equalizer Settings”, and then press [Enter].

The

“Equalizer Settings”

appears.

2–5. Equalizer Settings

Equalizer

Off

Use the Left and Right [e]/[r] buttons to select:

Off:

Equalizer off, response flat.

Audyssey:

The tone for each speaker is set automatically by the Automatic Speaker Setup function. Be sure to select this setting after having performed the Automatic Speaker Setup.

Manual:

You can adjust the equalizer for

each speaker manually. If you select “Manual”, continue with this procedure. If you select “Off” or “Audyssey”, go to step 8.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Down [w] button to select “Channel”, and then use the Left and Right [e]/[r] buttons to select a speaker.

2–5. Equalizer Settings

Equalizer

Channel

25Hz 40Hz

63Hz 100Hz 160Hz 250Hz 400Hz 630Hz

Manual

Front

0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB

Advanced Setup—Continued

Use the Up and Down [q]/[w] buttons to select a frequency, and then use the Left and Right [e]/ [r] buttons to adjust the level at that frequency.

You can select: “25Hz”, “40Hz”, “63Hz”, “100Hz”, “160Hz”, “250Hz”, “400Hz”, “630Hz”, “1000Hz”, “1600Hz”, “2500Hz”, “4000Hz”, “6300Hz”, “10000Hz”, or “16000Hz”. And for the subwoofer, “25Hz”, “40Hz”, “63Hz”, “100Hz”, or “160Hz”.

The volume at each frequency can be adjusted from –6 to +6 dB in 1 dB steps.

Tip:

Low frequencies (e.g., 160Hz) affect bass sounds; high frequencies (e.g., 6300Hz) affect treble sounds.

Use the Up and Down [q]/[w] buttons to select “Channel”, and then use the Left and Right [e]/ [r] buttons to select another speaker.

Repeat step 6 and 7 for each speaker.

THX Audio Setup

These settings are not set automatically by the Automatic Speaker Setup function (see page 48).

With the “Surr Back Sp Spacing” setting, you can specify the distance between your surround back speakers.

If you’re using a THX-certified subwoofer, set the “THX Ultra2/Select2 Subwoofer” setting to “Yes”. You can then apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall). You can also set the THX Loudness Plus. When the “Loudness Plus” is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume. This result is only available when the THX listening mode is selected.

Remote

controller

Press the [Receiver] button, followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Press the [Setup] button.

The setup menu closes.

Notes:

• When the listening mode is set to Direct, no effect will be produced.

• The Equalizer settings have no effect on 176.4/ 192 kHz input signals.

• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [Enter].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Up and Down [q]/[w] buttons to select “6. THX Audio Setup”, and then press [Enter].

The “THX Audio Setup” screen appears.

2–6. THX Audio Setup Surr Back Sp Spacing THX Ultra2/Select2 Subwoofer

BGC

Loudness Plus

> 4ft

- - -

Advanced Setup—Continued

Use the Up and Down [q]/[w] buttons to select “Surr Back Sp Spacing”, and use the Left and Right [e]/[r] buttons to specify the distance between your surround back speakers:

< 1ft (< 0.3m):

Select this if your surround back speakers are between 0 and 1 foot (0–30 cm) apart.

1ft – 4 ft (0.3 m – 1.2 m):

Select this if your surround back speakers are between 1 and 4 feet (0.3–1.2 m) apart.

> 4ft (> 1.2m) (default):

Select this if your surround back speakers are more than 4 feet (1.2 m) apart.

Note:

This setting is only available if the “Surr Back Ch” setting in the Speaker Configuration is set to “2ch” (page 90).

Use the Up and Down [q]/[w] buttons to select “THX Ultra2/ Select2 Subwoofer”, and use the Left and Right [e]/[r] buttons to select:

No: Select this if you do not have

a THX-certified subwoofer.

Ye s: Select this if you have a THX-

certified subwoofer.

Use the Up and Down [q]/[w] buttons to select “BGC”, and use the Left and Right [e]/[r] buttons to select:

Off: Select this to turn off BGC. On: Select this to turn on BGC.

Note:

This setting is only available if “THX Ultra2/Select2 Subwoofer” is set to “Yes” (step 5).

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

THX Loudness Plus

THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™ and THX Select2 Plus™ Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

Use the Up and Down [q]/[w] buttons to select “Loudness Plus”, and use the Left and Right [e]/ [r] buttons to select:

Off: Select this to turn off Loud-

ness Plus.

On: Select this to turn on Loud-

ness Plus.

Press the [Setup] button.

The setup menu closes.

Advanced Setup—Continued

Audio Adjust Functions

Here you can set listening mode-related settings and functions.

Remote

controller

Press the [Receiver] button followed by the [Setup] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the appropriate external input is

selected on your TV.

Use the Up and Down [q]/[w] buttons to select “3. Audio Adjust”, and then press [Enter].

The “Audio Adjust” menu appears.

3. Audio Adjust

1. Multiplex / Mono

2. PLIIx / Neo:6

3. Dolby EX

4. Theater-Dimentional

5. DSD

6. LFE Level

Use the Up and Down [q]/[w] buttons to select the functions, and then press [Enter].

The function menu you selected appears.

Note:

This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.

When you’ve finished, press the [Setup] button.

The setup menu closes.

Multiplex/Mono Settings

■ Multiplex

Input Ch

This setting determines which channel is output from a stereo multiplex source. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

Main: The main channel is output (default).

Sub: The sub channel is output.

Main/Sub: Both the main and sub channels are output.

■ Mono

Input Ch

This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2channel analog/PCM source in the Mono listening mode.

Left + Right: Both the left and right channels are out-

put (default).

Left: Only the left channel is output.

Right: Only the right channel is output.

Output Speaker

This setting determines which speakers output mono audio when the Mono listening mode is selected.

Left / Right: Mono audio is output by the front left

and right speakers.

Center: Mono audio is output by the center

speaker (default).

Use the Up and Down [q]/[w] buttons to select the settings, and use the Left and Right [e]/[r] buttons to set them.

The settings are explained below.

PLIIx/Neo:6 Music Mode Settings

■ PLIIx Music (2ch Input)

These settings provide for playing any 2-channel digital source such as Dolby Digital, or 2-channel analog/PCM source in the Dolby PLIIx Music listening mode.

Panorama

With this function, you can broaden the width of the front stereo image when using the Dolby Pro Logic II Music or Dolby Pro Logic IIx Music listening mode.

On: Panorama function on.

Off: Panorama function off (default).

Advanced Setup—Continued

Dimension

With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic II Music or Dolby Pro Logic IIx Music listening mode. It can be adjusted from –3 to +3 (default is 0). Lower settings move the sound field forward. Higher settings move it backward.

If the stereo image feels too wide, or there is too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it is in mono, or there is not enough surround sound, move it backward.

Center Width

With this function, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic

II Music or Dolby Pro Logic IIx Music listening mode. Normally, if you are using a center speaker, the center channel sound is output by only the center speaker. (If you are not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center.) This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound. It can be adjusted from 0 to 7 (default is 3).

■ Neo:6 Music

Center Image

The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel (stereo) sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. It can be adjusted from 0 to 5 (default is 2). This setting is unavailable if no surround speakers are connected. When set to 0, the front left and right channel output is attenuated by half (–6 dB), giving the impression that the

sound is located centrally. This setting works well when the listening position is considerably off center. When set to 5, the front left and right channels are not attenuated, maintaining the original stereo balance.

Dolby EX Input Signal Setting

■ Dolby EX

This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.

Auto: If the source signal contains a Dolby EX

flag, the Dolby EX or THX Surround EX listening mode is used (default).

Manual:

You can select any available listening mode.

T-D (Theater-Dimensional) Listening Setting

■ Listening Angle

With this setting, you can specify the angle of the front left and right speakers relative to the listening position. Processing for the Theater-Dimensional listening mode is based on this setting. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.

Front right speakerFront left speaker

30˚

Narrow: Select if the angle is less than 30 degrees.

Wide: Select if the angle is greater than 30

degrees (default).

DSD Setting

■ DAC Direct

This setting determines whether or not DSD (SACD) audio signals are passed through the DSP for A/V Sync, delay, etc., processing when the Direct listening mode is selected.

No: DSD signals are processed by the DSP

(default).

Ye s : DSD signals are not processed by the DSP.

LFE Level Settings

With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for Dolby Digital, DTS, multichannel PCM, Dolby TrueHD, DTSHD Master Audio, and DSD sources. The level can be set to –

∞, –10 dB, or 0 dB (default).

If you find that low-frequency effects are too loud when using one of these sources, change the setting to –10 dB or –

∞ dB.

■ Dolby Digital

Sets the level of the LFE channel for Dolby Digital and Dolby Digital Plus sources.

■ DTS

Sets the level of the LFE channel for DTS and DTS-HD High Resolution sources.

■ Multich PCM

Sets the level of the LFE channel for multichannel PCM sources. (Multichannel PCM is input via HDMI.)

■ Dolby TrueHD

Sets the level of the LFE channel for Dolby TrueHD sources.

■ DTS-HD Master Audio

Sets the level of the LFE channel for DTS-HD Master Audio sources.

■ DSD

Sets the level of the LFE channel for DSD (SACD) sources.

Advanced Setup—Continued

Adjust Using the Audio Button

You can change various audio settings by pressing the [Audio] button.

Note:

When the “Audio TV Out” setting is set to “On” (page 109), the [Audio] button is disabled.

Remote

controller

Press the [Receiver] button followed by the [Audio] button.

The setting item appears on the display.

Use the Up and Down [q]/[w] buttons to select an item.

Use the Left and Right [e]/[r] buttons to change the setting.

Repeat this step for the other settings.

Late Night Function

■ Late Night

With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone. For Dolby Digital and Dolby Digital Plus sources, the options are:

Off: Late Night function off (default).

Low: Small reduction in dynamic range.

High: Large reduction in dynamic range.

For Dolby TrueHD sources, the options are:

Auto: The Late Night function is set to “On” or

“Off” automatically (default).

Off: Late Night function off.

On: Late Night function on.

Note:

The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

Re-EQ Function

With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

■ Re-EQ

This function can be used with the following listening modes:

• Dolby Digital, Dolby Digital EX, Dolby Pro Logic II Movie, Dolby Pro Logic IIx Movie

• DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24

• Multichannel

The Audio Adjust settings are explained below.

Tone Control Settings

You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.

■ Bass

You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

■ Trebl e

You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

Notes:

• This setting is not available when the multichannel DVD input is selected.

• This procedure can also be performed on the AV receiver by using its [Tone], [–], and [+] buttons (see page 54).

■ Re-EQ (THX)

This function can be used with the following listening modes:

• THX Cinema, THX Surround EX, THX Select2 Cinema

Off: Re-EQ Function off.

On: Re-EQ Function on.

Note:

Settings of “On” and “Off” for the Re-EQ function are kept in each listening mode. However, in THX listening mode, when the AV receiver is turned off, it will return to “On”.

Advanced Setup—Continued

Audyssey Dynamic EQ

■ DynamicEQ (Applies to Non-THX Listening Modes)

■ THX+DynamicEQ (Applies to THX Listening Modes)

With Audyssey Dynamic EQ, you can enjoy great sound even when listening at low volume levels.

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.

It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that

the content sounds the way it was created at any volume level—not just at reference level.

Off: Audyssey Dynamic EQ off.

On: Audyssey Dynamic EQ on.

Notes:

• Audyssey Dynamic EQ can be set only when the

“Equalizer Settings” on page 94 are set to “Audyssey”.

• When “Loudness Plus” is set to “On” (see page 96),

the THX+Dynamic EQ is not available even with THX listening mode selected.

Music Optimizer

■ M.Optimizer

The Music Optimizer function enhances the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3.

Off: Music Optimizer off (default).

On: Music Optimizer on.

Note:

The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.

Speaker Levels

You can adjust the volume of each speaker while listening to an input source.

These temporary adjustments are cancelled when the AV receiver is set to Standby.

■ Subwoofer

You can adjust the level from –15.0 dB to +12.0 dB.

■ Center

You can adjust the level from –12.0 dB to +12.0 dB.

Notes:

• You cannot use this function while the AV receiver is muted.

• Speakers that are set to “No” or “None” in the “Speaker Configuration” cannot be adjusted (see page 89).

A/V Sync

■ A/V Sync

When using progressive scanning on your DVD player, you may find that the picture and sound are out of sync.
