Integra DTR-6.8 User Manual

DTR-6.8_En.book Page 1 Wednesday, June 20, 2007 4:16 PM
DTR-6.8
AV Receiver
Instruction Manual
DTR-6.8_En.book Page 2 Wednesday, June 20, 2007 4:16 PM
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radia­tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro­vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta­cles, and the point where they exit from the appara­tus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table spec­ified by the manufacturer, or sold with the apparatus. When a cart is used, use cau­tion when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
PORTABLE CART WARNING
S3125A
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons. The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or
water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt­age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.
17. Batteries Always consider the environmental issues and fol­low local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade­quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue­like gap for warm air to escape.
2
DTR-6.8_En.book Page 3 Wednesday, June 20, 2007 4:16 PM
Precautions
1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal with­out the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not user­serviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit.
3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild deter­gent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thin­ners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel let­tering.
4. Power WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SEC­TION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.
For North American model
Pressing the [Standby/On] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.
5. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by the dealer from whom you purchased this unit.
6. Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you origi­nally bought it.
• Do not leave rubber or plastic items on this unit
for a long time, because they may leave marks on the case.
• This unit’s top and rear panels may get warm
after prolonged use. This is normal.
• If you do not use this unit for a long time, it may
not work properly the next time you turn it on, so be sure to use it occasionally.
For U.S. models
FCC Information for User
CAUTION:
The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer­ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interfer­ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter­ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dif­ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech­nician for help.
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Modèle canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE
LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la fiche est polarisée:
AT TE NT IO N : POUR ÉVITER LES CHOCS ÉLEC-
TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRE­SPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
3
DTR-6.8_En.book Page 4 Wednesday, June 20, 2007 4:16 PM
Thank you for purchasing an Integra AV Receiver. Please read this manual thoroughly before making con­nections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.
Supplied Accessories
Make sure you have the following accessories:
Remote controller & three batteries (AA/R6)
Speaker setup microphone
Indoor FM antenna
AM loop antenna
Power cord
(Plug type varies from country to country.)
Speaker terminal tool
Left
Left
Left
Left
Front
Front
Front
Front
Right
Right
Right
Right
Zone 2
Zone 2
Zone 2
Zone 2
/
/
/
/
Surround
SP-B
SP-B
SP-B
SP-B
Zone 2
Zone 2
Zone 2
Zone 2
/
/
/
/
Front
Right
Front
Left
SP-B
Left
SP-B
Right
Surround
Front
Right
Front
Left
SP-B
Left
SP-B
Right
1
2
Speaker Cable
Left
Left
Left
Left
Left
Left
Right
Right
Surround
Surround
Surround
Left
Surround
Right
Surround
Left
Surround
Right
3
Right
Right
Right
Right
Center
Center
Zone 2
Zone 2
Zone 2
Zone 2
Surround Back
Surround Back
Surround Back
Surround Back
Zone 2
Right
Zone 2
Left
Center
Zone 2
Right
Zone 2
Left
Surround Back
Right
Surround Back
Left
Center
Surround Back
Right
Surround Back
Left
Speaker cable labels
* In catalogs and on packaging, the letter at the end of the product
name indicates the color. Specifications and operations are the same regardless of color.
4
DTR-6.8_En.book Page 5 Wednesday, June 20, 2007 11:51 PM
Table of Contents
Introduction
Important Safety Instructions ....................2
Precautions ..................................................3
Supplied Accessories..................................4
Features ........................................................6
Front & Rear Panels.....................................7
Front Panel..................................................... 7
Display............................................................ 9
Rear Panel ................................................... 10
Remote Controller......................................12
Installing the Batteries .................................. 12
Aiming the Remote Controller ...................... 12
About the Remote Controller Modes............ 13
Receiver/Tape Mode .................................... 13
DVD Mode.................................................... 15
CD/MD/CDR Modes ..................................... 16
Dock Mode ................................................... 17
About Home Theater..................................18
Enjoying Home Theater................................ 18
Connections
Connecting the AV Receiver.....................19
About AV Connections ................................. 19
Connecting Your Speakers .......................... 20
Bi-amping the Front Speakers...................... 22
Connecting Antenna.....................................23
Connecting Both Audio & Video ................... 25
Which Connections Should I Use? ............... 25
Connecting a TV or Projector ....................... 27
Connecting a DVD Player ............................ 28
Connecting a VCR or DVD Recorder for
Playback .................................................... 30
Connecting a VCR or DVD Recorder for
Recording................................................... 31
Connecting a Satellite, Cable, Set-top box, or
Other Video Source ................................... 32
Connecting a Game Console ....................... 33
Connecting a Camcorder or Other Device ... 34
Connecting Components with HDMI ............ 35
Connecting a CD Player or Turntable .......... 37
Connecting a Cassette, CDR, MiniDisc, or DAT
Recorder .................................................... 38
Connecting a Power Amplifier ...................... 39
Connecting an RI Dock ................................ 40
Connecting the Power Cords of Other
Components (North American model only) Connecting
Connecting the RS232 Port.......................... 41
Connecting the Power Cord ......................... 41
Components ....................... 41
... 40
Turning On the AV Receiver .....................42
Turning On and Standby .............................. 42
First Time Setup
First Time Setup.........................................43
Using the Onscreen Setup Menus ............... 43
Speaker Settings..........................................44
HDMI Monitor Setup ..................................... 45
Video Input Setup......................................... 46
Changing the Input Display..........................48
Digital Input Setup ........................................ 49
TV Format Setup
(not North American model) ....................... 50
AM Frequency Step Setup
(Australian model) ...................................... 51
Automatic Speaker Setup (Audyssey MultEQ
XT) ............................................................. 52
Basic Operations
Basic Operations....................................... 57
Selecting the Input Source ...........................57
Using the Multichannel DVD Input................58
Adjusting the Bass & Treble ......................... 58
Displaying Source Information...................... 58
Setting the Display Brightness...................... 59
Muting the AV receiver ................................. 59
Using the Sleep Timer ..................................59
Using Headphones.......................................59
Listening to the Radio............................... 60
Using the Tuner ............................................ 60
Listening to XM Satellite Radio® (North
American Models Only)..............................61
Listening to SIRIUS Satellite Radio® (North
American Models Only)..............................67
Presetting AM, FM, XM, and SIRIUS Stations
.....76
Using the Listening Modes....................... 77
Selecting Listening Modes............................77
Listening Modes Available for Each Source
Format........................................................ 78
About the Listening Modes...........................82
Recording................................................... 85
Advanced Operations
Advanced Operations ............................... 86
Using the Late Night Function
Dolby Digital Plus, and Dolby TrueHD only)
Using the Re-EQ Function............................ 86
Adjusting Individual Speaker Levels.............86
(Dolby Digital,
..86
Advanced Setup ........................................ 87
About the Onscreen Setup Menus ...............87
Speaker Setup.............................................. 88
Multichannel DVD Input Settings..................95
Audio Adjust Functions ................................. 96
Assigning Listening Modes to Input Sources
Source Setup................................................ 99
Volume Setup/OSD Setup .......................... 103
Changing the AV Receiver’s ID..................105
HDMI Setup ................................................ 105
Network Setup ............................................ 107
Lock Setup..................................................107
Digital Input Signal Formats ....................... 108
Changing the Remote Controller’s ID.........108
...98
Zone 2....................................................... 109
Connecting Zone 2 .....................................109
Setting the Powered Zone 2 ....................... 110
Setting the Zone 2 Out ............................... 111
Using Zone 2 ..............................................112
Using the 12V Triggers in Zone 2 and the Main
Room........................................................114
Using the Remote Controller in Zone 2 and
Multiroom Control Kits .............................. 115
Controlling Other Components.............. 116
Entering Remote Control Codes................. 116
Remote Control Codes for Integra/Onkyo
Components Connected via
Resetting Remote Mode Buttons................117
Resetting the Remote Controller ................ 117
Learning Commands .................................. 119
Using Macros..............................................120
.............. 117
Others
Specifications .......................................... 121
Troubleshooting ...................................... 122
5
DTR-6.8_En.book Page 6 Wednesday, June 20, 2007 4:16 PM
Features
Amplification
• 100 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven from 20 Hz to 20 kHz with a maximum total harmonic distortion of 0.08 % (FTC rating)
• WRAT-Wide Range Amplifier Technology (5 Hz-100 kHz bandwidth)
• Optimum Gain Volume Circuitry
Processing
•THX Select2*1 Certified
• HDMI Video Upconversion with TBC
*2
•Dolby
•DTS
Digital Plus, Dolby TrueHD
*3
-HD High Resolution Audio, DTS-HD Master
Audio
• Faroudja DCDi Edge Enhancement
• Neural THX Surround
*4
Decoder
• Non-Scaling Configuration
• A-Form Listening Mode Memory
•Direct Mode
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit DSP Processing x 3
Connections
• 3 HDMI*5 Inputs and 1 Output (ver. 1.3a)
• 6 Digital Inputs (3 Optical / 3 Coaxial) / 1 Output (Optical)
• 5 S-Video Inputs / 2 Outputs
• Color-Coded Banana Plug-Compatible Speaker Posts
• Color-Coded 7.1 Multichannel Inputs and Pre Outs
• Powered Zone 2
• IR Input and 12 V Trigger
• RS232 Port for Interface Control
• Bi-Amp Connectable for FL/FR with SBL/SBR
Miscellaneous
• SIRIUS Ready*6 / XM Ready*7 with XMHD Sur­round (North American model only)
• 40 SIRIUS/XM/AM/FM Presets (North American model)
• 40 AM/FM Presets (Australian model) Audyssey
• Problems
• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)
• A/V Sync Control Function (up to 250 ms)
• New Graphic On-Screen Display
• Compatible with RI Dock for iPod
• Aluminum Front Panel
• Backlit/Preprogrammed RI-Compatible Remote with 3 Macros and Mode-Key LEDs
*1.
THX and Select2 are trademarks of THX Ltd. THX may be registered in some jurisdictions. All rights reserved. Surround EX is a trademark of Dolby Laboratories. Used with permission.
MultEQ XT*8 to Correct Room Acoustic
*2.
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
*3.
“DTS” is a registered trademark of DTS, Inc. and “DTS-HD Master Audio” is a trademark of DTS, Inc.
“DTS” and “DTS-ES | Neo: 6” are registered trademarks of DTS, Inc. “96/24” is a trademark of DTS, Inc.
*4.
Neural Surround is a trademark owned by Neural Audio Cor­poration, THX is a trademark of THX Ltd., which may be reg­istered in some jurisdictions. All rights reserved.
*5.
HDMI, the HDMI logo and High Definition Multimedia Inter­face are trademarks or registered trademarks of HDMI Licens­ing, LLC.
*6.
©2005 SIRIUS Satellite Radio Inc. “SIRIUS,” SiriusConnect, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. Available only in the contiguous United States (excluding Alaska and Hawaii) and Canada.
*7.
XM Ready® is a registered trademark of XM Satellite Radio Inc. ©2005 XM Satellite Radio Inc. All rights reserved.
*8.
Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey MultEQ® XT is a trademark of Audyssey Laboratories.
THX Select2
Before any home theater component can be THX Select2 certified, it must pass a rigorous series of quality and per­formance tests. Only then can a product feature the THX Select2 logo, which is your guarantee that the Home Theater products you purchase will give you superb per­formance for many years to come. THX Select2 require­ments define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Select2 receivers also feature proprietary THX technolo­gies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.
* “Xantech” is a registered trademark of Xantech Corporation. * “Niles” is a registered trademark of Niles Audio Corporation. * Apple and iPod are trademarks of Apple, Inc., registered in the
U.S. and other countries.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Mac­rovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
6
bn bp5
34 6 8 9 bk bl bm bo7
cn 3
DTR-6.8_En.book Page 7 Wednesday, June 20, 2007 4:16 PM
Front & Rear Panels
Front Panel
North American model
1
2
bs ck clbt cmbq br
Australian model
2
The page numbers in parentheses show where you can find the main explanation for each item.
1 Standby/On button (42)
This button is used to set the AV receiver to Standby or On.
2 Standby indicator (42)
This indicator lights up when the AV receiver is in Standby mode, and it flashes while a signal is being received from the remote controller.
3 Zone 2 indicator (112)
This indicator lights up when Zone 2 is selected.
5 Stereo button (77)
This button is used to select the Stereo listening mode.
6 Listening Mode [ ] [ ] buttons (77)
These buttons are used to select the listening modes.
7 Display
See “Display” on page 9.
8 Dimmer button (59)
This button is used to adjust the display brightness.
4 Remote control sensor (12)
This sensor receives control signals from the remote controller.
7
DTR-6.8_En.book Page 8 Wednesday, June 20, 2007 4:16 PM
Front & Rear Panels—Continued
9 Memory button (76)
This button is used when storing or deleting radio presets.
bk Tuning Mode button (60)
This button is used to select the Auto or Manual tuning mode.
bl Display button (58)
This button is used to display various information about the currently selected input source.
bm Setup button
This button is used to access the onscreen setup menus that appear on the connected TV.
bn Arrow/Tuning/Preset & Enter buttons
When the AM or FM input source is selected, the Tuning [ ] [ ] buttons are used to tune the tuner, and the Preset [ ] [ ] buttons are used to select
radio presets (see page 76). When the onscreen setup menus are used, they work as arrow buttons and are used to select and set items. The [Enter] but­ton is also used with the onscreen setup menus.
bo Return button
This button is used to return to the previously dis­played onscreen setup menu.
bp Master Volume control (57)
This control is used to adjust the volume of the AV receiver to – dB, –81 dB through +18 dB (relative display).
bq Zone 2/Off buttons (112)
The Zone 2 button is used to select the input source for Zone 2.
The Off button is used to turn off the output of Zone 2.
br Phones jack (59)
This 1/4-inch phone jack is for connecting a stan­dard pair of stereo headphones for private listening.
bs Zone 2 Level button (113)
This button is used to set the volume for Zone 2.
bt Tone, [–] & [+] buttons (58)
These buttons are used to adjust the bass and treble.
ck Input selector buttons (57)
These buttons are used to select from the following input sources: Multi CH, DVD, VCR/DVR, CBL/SAT, Game/TV, AUX, Tape, Tuner, CD, Phono.
The [Multi CH] button selects the DVD analog mul­tichannel input.
cl Setup Mic jack (52)
The included speaker setup microphone is con­nected here for automatic speaker setup.
cm AUX Input
This input can be used to connect a camcorder, game console, and so on. There are jacks for optical digital audio, S-Video, composite video, and analog audio.
cn Ready indicator (106) (not North American
model)
Enters Ready mode and lights up when the HDMI Power Control is set to Enable and the AV receiver is on Standby.
8
DTR-6.8_En.book Page 9 Wednesday, June 20, 2007 4:16 PM
Front & Rear Panels—Continued
Display
12 3 4
6 7
The page numbers in parentheses show where you can find the main explanation for each item.
1 SLEEP indicator (59)
This indicator lights up when the Sleep function has been set.
2 MUTING indicator (59)
This indicator flashes or lights up while the AV receiver is muted.
3 HDMI indicator
This indicator lights up when the HDMI audio sig­nal input is used.
4 Listening mode & format indicators
These indicators show the currently selected listen­ing mode and the format of digital input signals.
5 Tuning indicators
FM STEREO (60): This indicator lights up when the AV receiver is tuned to a stereo FM station.
AUTO (60): This indicator lights up when the Auto Tuning mode is selected, and disappears when the Manual Tuning mode is selected.
TUNED (60): This indicator lights up when the AV receiver is tuned into a radio station.
6 Message area
This area of the display shows various information about the currently selected source.
7 Audyssey indicator (52)
This indicator flashes during automatic speaker setup and stays on when the setup is complete. It also lights up when the Equalizer Settings are set to Audyssey.
5
9
3 4
DTR-6.8_En.book Page 10 Wednesday, June 20, 2007 4:16 PM
Front & Rear Panels—Continued
Rear Panel
North American model
(North American model only)
1
The page numbers in parentheses show where you can find the main explanation for each item.
52
1 DIGITAL OPTICAL IN 1, 2 and OUT
These optical digital audio inputs are for connecting components with optical digital audio outputs, such as CD and DVD players.
The optical digital audio output is for connecting a digital recorder with an optical digital input, such as a CD recorder.
2 DIGITAL COAXIAL IN 1, 2 and 3
These coaxial digital audio inputs are for connect­ing components with coaxial digital audio outputs, such as CD and DVD players.

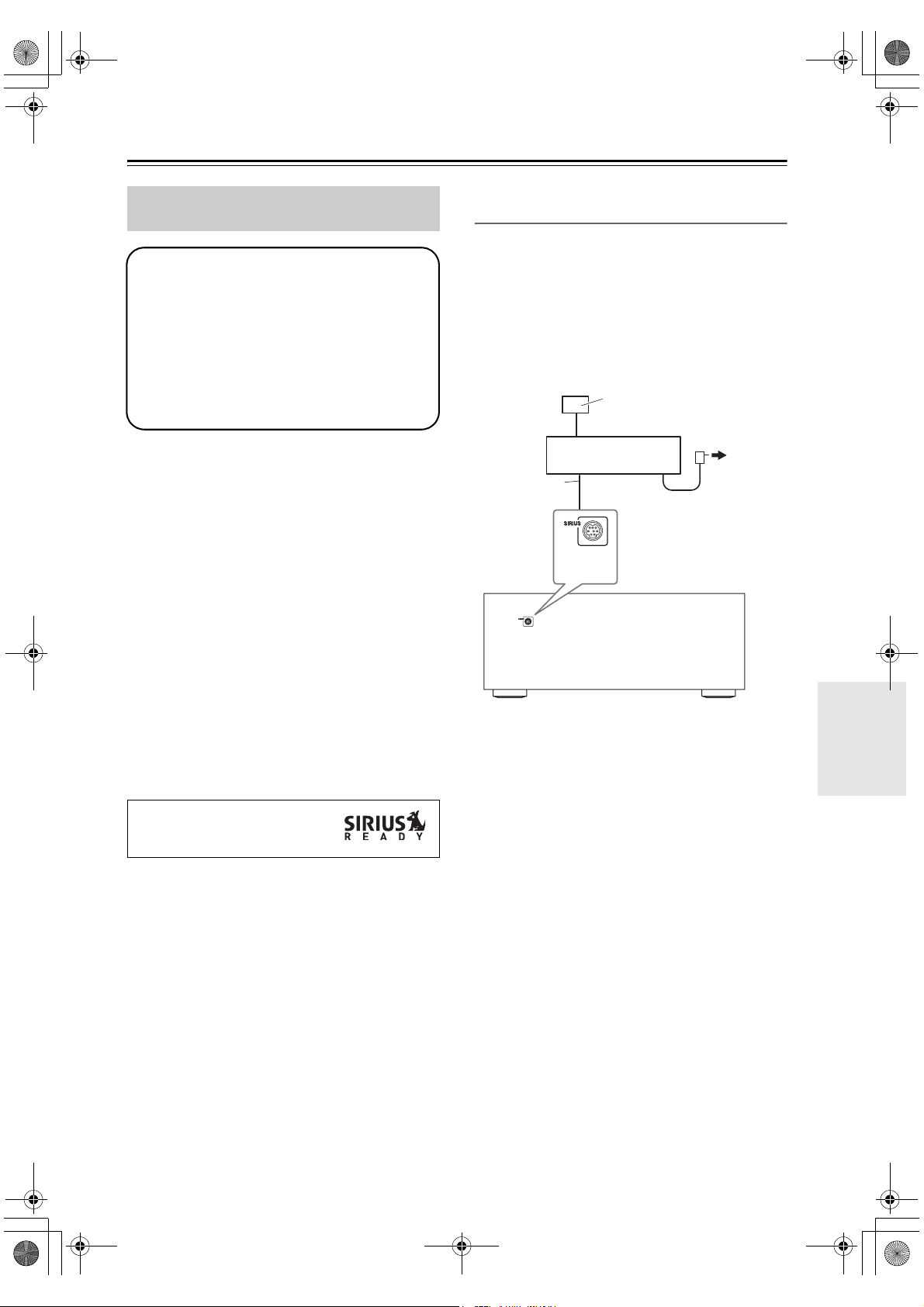

3 SIRIUS antenna (North American model
only) (67)
This jack is for connecting a SIRIUS Satellite Radio antenna.
4 XM antenna (North American model only)
(61)
This jack is for connecting an XM Minituner and Home Dock, sold separately.
5 HDMI IN 1, 2, 3, and OUT
HDMI (High Definition Multimedia Interface) con­nections carry digital audio and digital video.
The HDMI inputs are for connecting components with HDMI outputs, such as DVD players.
The HDMI output is for connecting a TV or projec­tor with an HDMI input.
6 AM ANTENNA (23)
These push terminals are for connecting an AM antenna.
67
8bp
9bk
7 FM ANTENNA (23)
This jack is for connecting an FM antenna.
8 MONITOR OUT
The S-Video or composite video jack should be connected to a video input on your TV or projector.
9 IR IN A/B and OUT
A commercially available IR receiver can be con­nected to the IR IN A or B jack, allowing you to control the AV receiver while you’re in Zone 2, or control it when it’s out of sight, for example, installed in a cabinet.
A commercially available IR emitter can be con­nected to the IR OUT jack to pass IR (infrared) remote control signals along to other components.
bk 12V TRIGGER OUT (A/B/C)
This outputs can be connected to the 12-volt trigger inputs on other components.
bl FRONT, CENTER, SURR & SURR BACK
SPEAKERS (21)
These terminal posts are for connecting your front, center, surround, and surround back speakers.
bm RS232
This port is for connecting the AV receiver to home automation equipment and external controllers.
bn ZONE 2 LINE OUT (109)
This analog audio output can be connected to a line input on an integrated amplifier in Zone 2.
bo ZONE 2 SPEAKERS (109)
These terminals are for connecting speakers in Zone 2.
bnbl bm
bo
10
DTR-6.8_En.book Page 11 Wednesday, June 20, 2007 4:16 PM
Front & Rear Panels—Continued
bp AC INLET
The supplied power cord is connected here. The other end of the power cord should be connected to a suitable wall outlet.

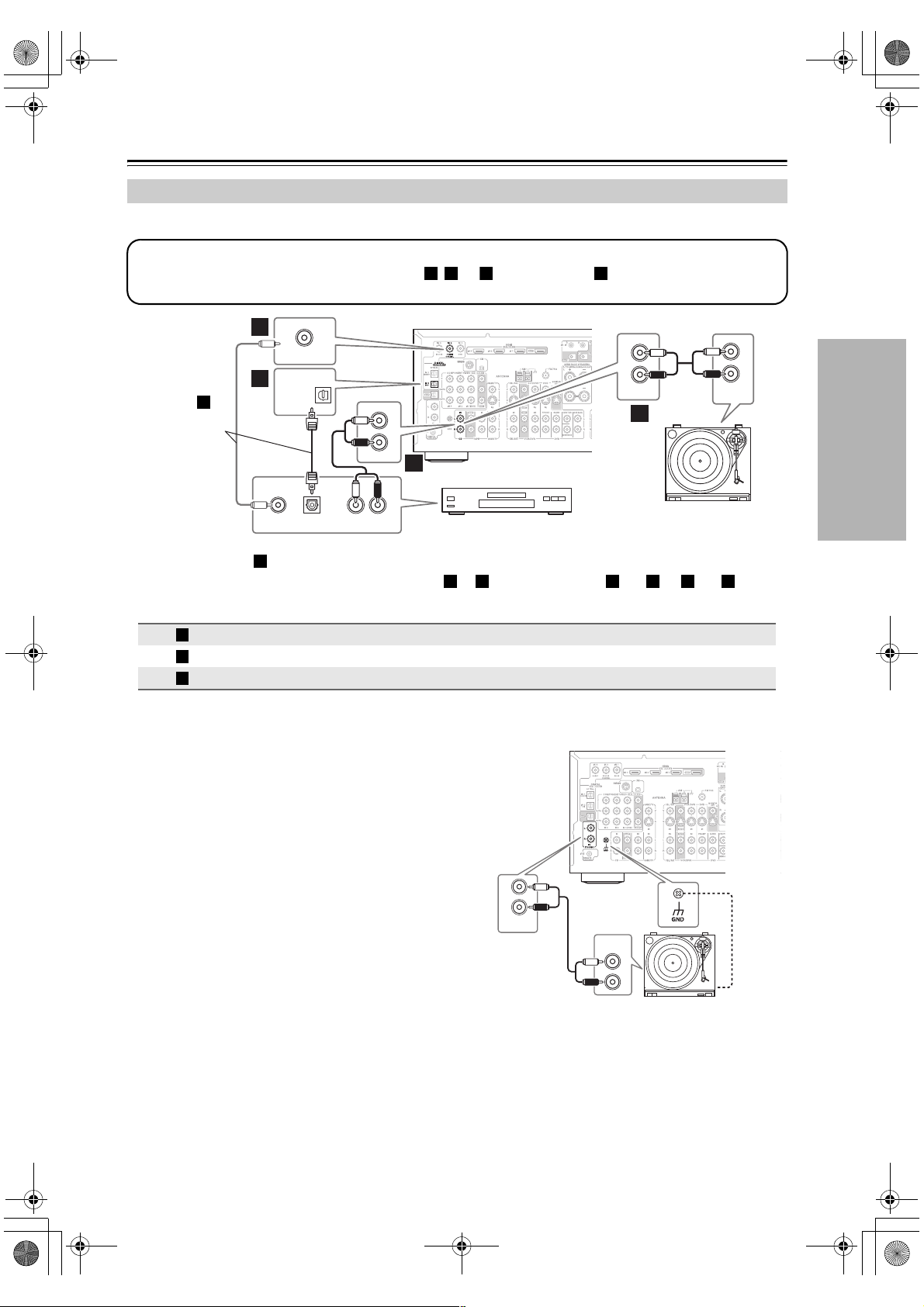

bq PHONO IN
This audio input is for connecting a turntable.
br REMOTE CONTROL
This (Remote Interactive) jack can be con­nected to an jack on another -capable Inte­gra/Onkyo component. The AV receiver’s remote controller can then be used to control that compo­nent. To use , you must make an analog audio connection (RCA) between the AV receiver and the other AV component, even if they are connected digitally.
bs COMPONENT VIDEO IN 1, 2, 3, and OUT
These component video inputs can be used to con­nect AV components with component video outputs, such as DVD players.
This component video output can be used to con­nect a TV or projector with a component video input.
bt GND screw
This screw is for connecting a turntable’s ground wire.
ck CD IN
This analog audio input is for connecting a CD player’s analog audio output.
cl TAPE IN/OUT
This analog audio input and output are for connect­ing a recorder with an analog audio input and output (cassette, Mini Disc, etc.).
cm GAME/TV IN
Here you can connect a game console, TV, etc. Input jacks include S-Video, composite video, and analog audio.
cn CBL/SAT IN
Here you can connect a cable/satellite receiver, set­top box, etc. Input jacks include S-Video, composite video, and analog audio.
co VCR/DVR IN/OUT
Here you can connect a VCR or DVR (digital video recorder). Input and output jacks include S-Video, composite video, and analog audio.
cp DVD IN
Here you can connect a DVD player. Input jacks include S-Video, composite video, and analog audio. You can connect a DVD player’s 2-channel analog audio output or 7.1-channel analog audio output.
cq PRE OUT: FRONT L/R, CENTER,
SUBWOOFER, SURR L/R, and SURR BACK L/R (20)
This 5.1/7.1 multichannel analog audio output can be connected to the analog audio input on a multi­channel power amplifier for when you want to use the AV receiver solely as a preamplifier. The SUB­WOOFER jack is for connecting a powered sub­woofer.
cr ETHERNET
This port is for connecting the AV receiver to home automation equipment and external controllers.
cs AC OUTLET (North American model only)
These switched AC outlets can be used to supply power to other AV components. The type and num­ber of outlets depends on the country in which you purchased your AV receiver.
See pages 19-41 for connection information.
11
DTR-6.8_En.book Page 12 Wednesday, June 20, 2007 4:16 PM
Remote Controller
Installing the Batteries
To open the battery compartment, press
1
the small hollow and slide off the cover.
Insert the three supplied batteries (AA/R6)
2
in accordance with the polarity diagram inside the battery compartment.
Put the cover onto the remote controller
3
and slide it shut.
Notes:
• If the remote controller doesn’t work reliably, try replacing the batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.
• Expired batteries should be removed as soon as possi­ble to prevent damage from leakage or corrosion.
Aiming the Remote Controller
To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.
Remote control sensor
AV r e ceive r
Standby indicator
Approx. 16 ft. (5 m)
Notes:
• The remote controller may not work reliably if the AV receiver is subjected to bright light, such as direct sun­light or inverter-type fluorescent lights. Keep this in mind when installing.
• If another remote controller of the same type is used in the same room, or the AV receiver is installed close to equipment that uses infrared rays, the remote control­ler may not work reliably.
• Don’t put anything, such as a book, on the remote con­troller, because the buttons may be pressed inadvert­ently, thereby draining the batteries.
• The remote controller may not work reliably if the AV receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.
• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote con­trol sensor.
12
DTR-6.8_En.book Page 13 Wednesday, June 20, 2007 4:16 PM
Remote Controller—Continued
About the Remote Controller Modes
As well as the AV receiver, you can also use the remote controller to control your other AV components. The remote controller has a specific operating mode for use with each type of component. Modes are selected by using the Remote Mode buttons.
Receiver/Tape Mode
In Receiver/Tape mode, you can control the AV receiver and an Onkyo cassette recorder connected via .
DVD Mode
By default, you can control an Integra/Onkyo DVD player in this mode. By entering the appropriate remote control code, you can control components made by other manufacturers (see page 116).
CD/CDR/MD Mode
By default, you can control an Integra/Onkyo CD player in this mode. By entering the appropriate remote control code, you can control a CD player, MD recorder, or CD recorder made by another manufacturer (see page 116).
Dock Mode
This mode is for controlling an Apple iPod in an Onkyo RI Dock.
By default, you can control an RI Dock that has a remote control sensor such as DS-A2. When operating an RI Dock with an connection, you can control it by entering the appropriate remote control code (see page
116).
TV and VCR Modes
With these modes, you can control a TV and VCR. You must enter the appropriate remote control code first (see page 116).
Cable/SAT Mode
In Cable/SAT mode, you can control a cable or satellite TV receiver. You must enter the appropriate remote con­trol code first (see page 116).
Zone 2 Mode
This mode is for controlling Zone 2 (see page 112).
Use the Remote Mode buttons to select a
1
mode.
Use the buttons supported by that mode
2
to control the component.
Receiver/Tape mode: see right column
DVD mode: see page 15
CD/MD/CDR mode: see page 16
Dock mode: see page 17
TV, VCR, Cable/SAT modes: see page 118
Receiver/Tape Mode
Receiver/Tape mode is used to control the AV receiver. It can also be used to control an Onkyo cassette recorder connected via .
To set the remote controller to Receiver/Tape mode, press the [Receiver] Remote Mode button.
1
2
bm
3
bn
4
bo
5
bp
6 7
8 9
bq br
bs
1
bk
bl
bt ck
Note:
Some of the remote controller functions described in this manual may not work as expected with other compo­nents.
13
DTR-6.8_En.book Page 14 Wednesday, June 20, 2007 4:16 PM
Remote Controller—Continued
For detailed information, see the pages in parentheses.
1 Standby button (42)
Sets the AV receiver to Standby.
2 On button (42)
Turns on the AV receiver.
3 Input Selector buttons (57)
Used to select the input source.
4 Macro buttons (120)
Used with the Macro function.
5 Dimmer button (59)
Adjusts the display brightness.
6 Arrow [ ]/[ ]/[ ]/[ ] and Enter buttons
Used to select and adjust settings.
7 CH +/– button (76)
Selects radio presets.
8 Setup button
Used to change settings.
9 Display button (58)
Displays information about the current input source.
bk Listening Mode buttons (77)
Used to select the listening modes. The [Stereo], [Surround], and Listening Mode [ ]/[ ] buttons
can be used at any time, regardless of the currently selected remote controller mode.
bl Test Tone, CH Sel, Level–, and Level+
buttons (86, 92)
Used to adjust the level of each speaker.
bm Light button
Turns the remote controller’s illuminated buttons on or off.
bn D.TUN button (60)
Selects the Direct tuning mode for radio.
bo Remote Mode buttons (13)
Used to select the remote controller modes. When you press a button, the Remote Mode button for the currently selected mode lights up.
bp Sleep button (59)
Used with the Sleep function.
bq VOL [ ]/[ ] button (57)
Adjusts the volume of the AV receiver regardless of the currently selected remote controller mode.
br Return button
Returns to the previous display when changing set­tings.
bs Muting button (59)
Mutes or unmutes the AV receiver.
bt Re-EQ button (86)
Turns the Re-EQ function on or off.
ck L Night button (86)
Turns the Late Night function on or off.
TAPE m o d e
On twin cassette decks, only Deck B can be controlled.
1 Previous and Next [ ]/[ ] buttons
The Previous [ ] button selects the previous track. During playback it selects the beginning of the current track. The Next [ ] button selects the next track.
Depending on how they were recorded, the Previous and Next [ ]/[ ] buttons may not work prop­erly with some cassette tapes.
Play [ ] button
Starts playback.
Rewind and Fast Forward [ ]/[ ] buttons
The Rewind [ ] button starts rewind. The Fast Forward [ ] button starts fast forward.
Reverse Play [ ] button
Starts reverse playback.
Stop [ ] button
Stops playback.
Rec [ ] button
Starts recording.
14
DTR-6.8_En.book Page 15 Wednesday, June 20, 2007 4:16 PM
Remote Controller—Continued
DVD Mode
To set the remote controller to DVD mode, press the [DVD] Remote Mode button.
1 2
3
bn
4
bo
5
6 7
bp
8
9
bq
bk bl
br bs
bm
bt
1 Standby button
Sets the DVD player to Standby.
2 On button
Turns on the DVD player.
3 Number buttons
Used to enter title, chapter, and track numbers, and times for locating specific points.
4 Top Menu button
Selects a DVD’s top menu.
5 Arrow [ ]/[ ]/[ ]/[ ] and Enter buttons
Used to navigate menus and select items.
6 Disc +/– button
Selects discs on a DVD changer.
7 Setup button
Used to access the DVD player’s settings.
8 Display button
Displays information about the current disc, title, chapter, or track, including elapsed time, remaining time, total time, and so on.
9 Playback buttons
From left to right: Previous, Play, Next, Rewind, Pause, Stop, Fast Forward, Slow Reverse, and Slow Forward.
bk Repeat button
Used with the repeat playback function.
bl Audio button
Selects foreign language soundtracks and audio for­mats (e.g., Dolby Digital or DTS).
bm Open/Close [ ] button
Opens and closes the disc tray.
bn Clear button
Cancels functions and clears entered numbers.
bo Menu button
Displays a DVD’s menu.
bp Return button
Exits the DVD player’s onscreen setup menu.
bq Random button
Used with the random playback function.
br Play Mode button
Selects play modes on components with selectable play modes.
bs Subtitle button
Selects subtitles.
bt Video Off button
Turns off the internal video circuitry, eliminating any possibility of interference.
15
DTR-6.8_En.book Page 16 Wednesday, June 20, 2007 4:16 PM
Remote Controller—Continued
CD/MD/CDR Modes
To control an Integra/Onkyo CD player, MD recorder, or CD recorder, or a CD or MD player/recorder made by another manufacturer, press the [CD] Remote Mode button to select the CD/MD/CDR remote controller mode.
In order to control an Onkyo MD recorder or CD recorder, or a component made by another manufacturer, you must first enter the appropriate remote control code (see page 116).
1
2
3
bl
4
5
bm
6
7
8
bn
1 Standby button
Sets the component to Standby.
2 On button
Set the component to On or Standby.
3 Number buttons
Used to enter track numbers and times for locating specific points.
4 Arrow [ ]/[ ]/[ ]/[ ] and Enter buttons
Used with some components.
5 Disc +/– button
Selects discs on a CD changer.
6 Display button
Displays information about the current disc or track, including elapsed time, remaining time, total time, and so on.
7 Playback buttons
From left to right: Previous, Play, Next, Rewind, Pause, Stop, and Fast Forward.
8 Rec [ ] button
Starts recording.
9 Repeat button
Used with the repeat playback function.
bk Open/Close [ ] button
Opens or closes the disc tray or ejects the MiniDisc.
bl Clear button
Cancels functions and clears entered numbers.
bm Return button
Used with some components.
bn Random button
Used with the random playback function.
bo Play Mode button
Selects play modes on components with selectable play modes.
16
9
bk
bo
DTR-6.8_En.book Page 17 Wednesday, June 20, 2007 4:16 PM
Remote Controller—Continued
Dock Mode
Dock mode is for controlling an Apple iPod in an Onkyo RI Dock.
When Using an RI Dock:
• Connect the RI Dock to the TAPE IN or GAME/TV IN L/R jacks.
• Set the RI Dock’s RI MODE switch to HDD or HDD/DOCK.
• Set the AV receiver’s Input Display to DOCK (see page 48).
• When operating a DS-A1 RI Dock, enter the appropri­ate remote control code for the first time (see page
116).
• See to the RI Dock’s instruction manual for more information.
To set the remote controller to DOCK mode, press the [DOCK] REMOTE MODE button.
1
2
3 4
bm
5
6 7
8 9
bk
bl
bn bo
bp bq br
bs
1 Standby button
Turns off the iPod.
2 ON button*
Turns on the iPod.
3 Top Menu button
Works as a Mode button when used with a DS-A2 RI Dock.
4 Arrow [ ]/[ ] and Enter buttons*
Used to navigate menus and select items.
5 Album +/– button*
Selects the next or previous album.
6 Display button*
Turns on the backlight for 30 seconds.
7 Previous [ ] button
Restarts the current song. Press it twice to select the previous song.
8 Pause [ ] button
Pauses playback. (With 3rd generation iPods, it works as a Play/Pause button.)
9 Rewind [ ] button
Press and hold to rewind.
bk Playlist [ ]/[ ] buttons*
Used to select the previous or next playlist on the iPod.
bl Repeat button*
Used with the repeat function.
bm Menu button*
Used to access menus.
bn Play [ ] button
Starts playback. If the component is off, it will turn on automatically. (With 3rd generation iPods, this button works as a Play/Pause button.)
bo Next [ ] button
Selects the next song.
bp Stop [ ] button
Stops playback and displays a menu.
bq Fast Forward [ ] button
Press and hold to fast forward.
br Random button*
Used with the shuffle function.
bs Play Mode button
Used to select play modes on components with selectable play modes. Works as a Resume button when used with a DS-A2 RI Dock.
* Buttons marked with an asterisk (*) are not supported
by 3rd generation iPods.
17
DTR-6.8_En.book Page 18 Wednesday, June 20, 2007 4:16 PM
About Home Theater
Enjoying Home Theater
Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. With DVDs you can enjoy DTS and Dolby Digital. With analog and digital TV you can enjoy Dolby Pro Logic IIx or Onkyo’s own DSP surround listening modes.
You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).
Front left and right speakers
These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.
Center speaker
This speaker enhances the front left and right speakers, making sound movements dis­tinct and providing a full sound image. In movies it’s used mainly for dialog.
Position it close to your TV fac­ing forward at about ear level, or at the same height as the front left and right speakers.
Subwoofer
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening posi­tion. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown.
Tip: To find the best position for your sub­woofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various posi­tions within the room, and choose the one that provides the most satisfying results.
Corner
1/3 wall length
Surround left and right speakers
These speakers are used for precise sound positioning and to add realistic ambience.
Position them at the sides of the listener, or slightly behind, about 2–3 feet (60–100 cm) above ear level. Ideally they should be equidistant from the listener.
Surround back left and right speakers
These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, THX Sur­round EX, etc. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2–3 feet (60– 100 cm) above ear level.
18
DTR-6.8_En.book Page 19 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver
About AV Connections
• Before making any AV connections, read the manuals supplied with your other AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
Optical Digital Jacks
The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.
Caution: To prevent shutter damage, hold the optical plug straight when inserting and removing.
AV Cables & Jacks
Video
Cable Jack Description
HDMI
Component video cable
AV Connection Color Coding
RCA-type AV connections are usually color-coded: red, white, and yellow. Use red plugs to connect right­channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.
Left (white)
Right (red)
(Yellow)
• Push plugs in all the way to make good connections (loose connec­tions can cause noise or malfunc­tions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
HDMI
HDMI connections can carry uncompressed stan­dard- or high-definition digital video and audio and offer the best picture and sound quality.
Component video separates the luminance (Y) and color difference signals (P picture quality (some TV manufacturers label their component video sockets slightly differently).
Analog audio
Composite video
R, PB), providing the best
Left (white)
Right (red)
(Yellow)
Right!
Wrong!
S-Video cable
Composite video cable
Audio
Cable Jack Description
Optical digital audio cable
Coaxial digital audio cable
Analog audio cable (RCA)
Multichannel analog audio cable (RCA)
Note: The AV receiver does not support SCART plugs.
S-Video separates the luminance and color signals and provides better picture quality than composite video.
Composite video is commonly used on TVs, VCRs,
V
and other video equipment. Use only dedicated composite video cables.
Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for coaxial.
Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for optical.
L
R
This cable carries analog audio. It’s the most common connection format for analog audio, and can be found on virtually all AV components.
This cable carries multichannel analog audio and it’s typically used to connect DVD players with a
7.1-channel analog audio output. Several standard analog audio cables can be used instead of a multi­channel cable.
19
DTR-6.8_En.book Page 20 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting Your Speakers
Speaker Configuration
For the best surround sound experience, you should con­nect seven speakers and a powered subwoofer.
The following table indicates the channels you should use depending on the number of speakers that you have.
Number of speakers: 2 3 4 5 6 7
Front left ✓✓✓✓✓✓
Front right ✓✓✓✓✓✓
Center ✓✓
Surround left ✓✓✓✓
Surround right ✓✓✓✓
Surround back*
Surround back left
Surround back right
*If you’re using only one surround back speaker, connect it to
the left (L) SURR BACK SPEAKERS terminals.
No matter how many speakers you use, a powered sub­woofer is recommended for a really powerful and solid bass.
To get the best from your surround sound system, you need to set the speaker settings by using the supplied speaker setup microphone (see page 52).
Using Dipole Speakers
You can use dipole speakers for the surround left and right and surround back left and right speakers. Dipole speakers output the same sound in two directions.
Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround left
dipole
and right arrows point toward the TV/screen, while the surround back left and right dipole speakers should be positioned so that their arrows point toward each other, as shown.
Dipole speakers
2
5
speakers should be positioned so that their
Normal speakers
TV/screen
3
1
4
5
6
2
TV/screen
3
1
4
6
Connecting a Powered Subwoofer
Using a suitable cable, connect the AV receiver’s PRE OUT SUBWOOFER to an input on your powered sub­woofer, as shown. If your subwoofer is unpowered and you’re using an external amplifier, connect the PRE OUT SUBWOOFER to an input on the amp.
Powered
subwoofer
LINE INPUT
LINE INPUT
Attaching the Speaker Labels
The AV receiver’s positive (+) speaker terminals are color-coded for ease of identification (the negative (–) speaker terminals are all black).
Speaker terminal Color
Front left, Zone 2 left White
Front right, Zone 2 right Red
Center Green
Surround left Blue
Surround right Gray
Surround back left Brown
Surround back right Tan
The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the above table. Then all you need to do is to match the color of each label to the corresponding speaker terminal.
Using the Speaker Terminal Tool
The supplied speaker terminal tool makes it easy to tighten and loosen the speaker terminals. If you are using
banana plugs, to ensure optimum sound quality, tighten the speaker terminal before inserting the banana plug. (In Europe, using banana plugs to connect speakers to an audio amplifier is prohibited.)
7 8
1. Subwoofer
2. Front left speaker
3. Center speaker
4. Front right speaker
5. Surround left speaker
20
78
6. Surround right speaker
7. Surround back left speaker
8. Surround back right speaker
DTR-6.8_En.book Page 21 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Speaker Connection Precautions
Read the following before connecting your speakers:
North American models: Only connect speakers with an impedance of 6 ohms or higher. If you use speakers with a lower impedance, and use the ampli­fier at high volume levels for a long period of time, the built-in protection circuit may be activated.
Other models: You can connect speakers with an impedance of between 4 and 16 ohms. If the imped­ance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4 ohms” (see page 44). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.
• Disconnect the power cord from the wall outlet before making any connections.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to nega­tive (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.
• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.
• If you use 4 or 5 speakers, connect each of the two surround speakers to the SURR SPEAKERS termi­nals. Do not connect them to the SURR BACK SPEAKERS terminals.
• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.
• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.
• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.
• Don’t connect one speaker to several terminals.
Connecting the Speaker Cables
Strip about 5/8" (15 mm)
1
of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.
Unscrew the terminal.
2
Fully insert the bare
3
wires.
Screw the terminal tight.
4
The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one surround back speaker, connect it to the left (L) SURR BACK SPEAKERS terminals.
Surround back left speaker
Surround back right speaker
Surround left speaker
5/8" 15 mm
Surround right speaker
Front right speaker
Front left speaker
Center speaker
21
DTR-6.8_En.book Page 22 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Bi-amping the Front Speakers
The FRONT SPEAKERS L/R and SURR BACK SPEAKERS L/R terminal posts can be used with front speakers and surround back speakers respectively, or bi­amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping, pro­viding improved bass and treble performance.
• When bi-amping is used, the AV receiver is able to drive up to 5.1 speakers in the main room.
• For bi-amping, the FRONT SPEAKERS L/R terminal posts connect to the front speakers’ tweeter terminals. And the SURR BACK SPEAKERS L/R terminal posts connect to the front speakers’ woofer terminals.
• Once you’ve completed the bi-amping connections shown below and turned on the AV receiver, you must set the Speakers Type setting to Bi-Amp to enable biamping (see page 44).
Important:
• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.
Bi-amping Speaker Hookup
Right speaker
Low range
(Woofer)
High range
(Tweeter)
Left speaker
Connect the AV receiver’s FRONT SPEAKERS
1
R positive (+) terminal to the right speaker’s pos­itive (+) tweeter (high) terminal. And connect the AV receiver’s FRONT SPEAKERS R negative (– ) terminal to the right speaker’s negative (–) tweeter (high) terminal.
Connect the AV receiver’s SURR BACK
2
SPEAKERS R positive (+) terminal to the right speaker’s positive (+) woofer (low) terminal. And connect the AV receiver’s SURR BACK SPEAKERS R negative (–) terminal to the right speaker’s negative (–) woofer (low) terminal.
Connect the AV receiver’s FRONT SPEAKERS L
3
positive (+) terminal to the left speaker’s positive (+) tweeter (high) terminal. And connect the AV receiver’s FRONT SPEAKERS L negative (–) ter­minal to the left speaker’s negative (–) tweeter (high) terminal.
Connect the AV receiver’s SURR BACK
4
SPEAKERS L positive (+) terminal to the left speaker’s positive (+) woofer (low) terminal. And connect the AV receiver’s SURR BACK SPEAKERS L negative (–) terminal to the left speaker’s negative (–) woofer (low) terminal.
22
DTR-6.8_En.book Page 23 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting Antenna
This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas.
The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.
AM antenna push terminals FM antenna connector
Connecting the Indoor FM Antenna
The supplied indoor FM antenna is for indoor use only.
Attach the FM antenna, as shown.
1
North American models
FM 75
If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available out­door FM antenna instead (see page 24).
Connecting the AM Loop Antenna
The supplied indoor AM loop antenna is for indoor use only.
Assemble the AM loop antenna, inserting
1
the tabs into the base, as shown.
Connect both wires of the AM loop
2
antenna to the AM antenna push termi­nals, as shown.
(The antenna’s wires are not polarity sensitive, so they can be connected either way around.) Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.
Insert the plug fully into the jack.
Other models
FM 75
Insert the plug fully into the jack.
Once your AV receiver is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.
Use thumbtacks or something similar to
2
fix the FM antenna into position.
Thumbtacks, etc.
Push Insert wire Release
Once your AV receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception.
Keep the antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.
If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commer­cially available outdoor AM antenna (see page 24).
Caution: Be careful that you don’t injure yourself when using thumbtacks.
23
DTR-6.8_En.book Page 24 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting an Outdoor FM Antenna
If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available out­door FM antenna instead.
FM 75
Notes:
• Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.
• For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.
• Outdoor antenna should be located away from possi­ble noise sources, such as neon signs, busy roads, etc.
• For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.
• Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock haz­ards.
Using a TV/FM Antenna Splitter
It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If cir­cumstances demand it, use a TV/FM antenna splitter, as shown.
Connecting an Outdoor AM Antenna
If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.
Outdoor antenna
Insulated antenna cable
AM loop antenna
Outdoor AM antennas work best when installed outside horizontally, but good results can sometimes be obtained indoors by mounting horizontally above a window. Note that the AM loop antenna should be left connected.
Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.
24
TV/FM antenna splitter
To AV receiver To TV (or VCR)
DTR-6.8_En.book Page 25 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting Both Audio & Video
By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you can select both the audio and video simultaneously simply by selecting the appropriate input source on the AV receiver.
: Signal Flow
Video
Audio
TV, projector, etc.
DVD player, etc.
Video
Audio
Speakers (see page 21 for connection infor­mation)
Which Connections Should I Use?
The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your other components. Use the following sections as a guide. For video components, you must make two connections—one for audio, one for video.
Video Connection Formats
Video equipment can be connected to the AV receiver by using any one of the following video connection formats: composite video, S-Video, component video, or HDMI, the latter offering the best picture quality. The AV receiver can upconvert and downconvert between video formats, depending on the HDMI Monitor setting, which generally determines whether video signals are upconverted for the component video output or the HDMI output.
For optimal video performance, THX recommends that video signals pass through the system without upconver­sion (e.g., component video input through to component video output). It’s also recommended that you set the Immediate Display preference to Off (page 104).
HDMI Monitor Setting Set to Yes
With the HDMI Monitor setting set to Yes (see page 45), video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted for the HDMI output. Use this set-
ting if you connect the AV receiver’s HDMI OUT to your TV.
The composite video, S-Video, and component video outputs pass through their respective input signals as they are.
DVD player, etc.
AV receiver
Video Signal Flow Chart
Composite
Composite
S-Video
MONITOR OUT
S-Video
IN
Component
Component
HDMI
HDMI
TV, projector, etc.
25
DTR-6.8_En.book Page 26 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
HDMI Monitor Setting Set to No
With the HDMI Monitor setting set to No (see page 45), video input signals flow through the AV receiver as shown, with composite video and S-Video sources being upconverted for the com­ponent video output. Use this setting if you con-
nect the AV receiver’s COMPONENT VIDEO OUT to your TV.
Composite video is upconverted to S-Video and S-Video is downconverted to composite video. Note that these conversions only apply to the MONITOR OUT V and S outputs, not the VCR/DVR OUT V and S outputs.
The composite video, S-Video, and component video outputs pass through their respective input signals as they are.
DVD player, etc.
AV receiver
TV, projector, etc.
Video Signal Flow Chart
Composite
Composite
S-Video
MONITOR OUT
S-Video
IN
Component
Component
HDMI
HDMI
Audio Connection Formats
Audio equipment can be connected to the AV receiver by using any of the following audio con­nection formats: analog, optical, coaxial, analog multichannel, or HDMI.
When choosing a connection format, bear in mind that the AV receiver does not convert digital input signals for analog line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog TAPE OUT.
DVD player, etc.
AV receiver
MD recorder, etc.
Audio Signal Flow Chart
Multichannel
Optical
IN
OUT
Optical HDMI Analog
HDMICoaxial Analog
26
DTR-6.8_En.book Page 27 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a TV or Projector
Step 1: Video Connection
Choose a video connection that matches your TV ( , , or ), and then make the connection.
Step 2: Audio Connection
Choose an audio connection that matches your TV ( , , or ), and then make the connection.
A B C
a b c
• With connection , you can listen to and record audio from your TV and listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)
a
b c a b a c
Connection AV receiver Signal flow TV Picture quality
A
B
C
a
b
c
COMPONENT VIDEO OUT
MONITOR OUT S
MONITOR OUT V
GAME/TV IN L/R
DIGITAL COAXIAL IN 3 (CBL/SAT)
DIGITAL OPTICAL IN 1 (GAME/TV)
Component video input Best
S-Video input Better
Composite video input Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
b
c
C
BCB
a
A
OPTICAL
OUT
OUT
Connect one or the other Connection must be assigned (see page 49)
b
If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver
Hint!
to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 30 and
32).
YCOAXIAL
P
B
R
COMPONENT VIDEO IN
P
LR
AUDIO
OUT
S VIDEO
IN
TV, projector, etc.
VIDEO
IN
27
DTR-6.8_En.book Page 28 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a DVD Player
Step 1: Video Connection
Choose a video connection that matches your DVD player ( , , or You must connect the AV receiver to your TV via the same type of connection.
Step 2: Audio Connection
Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.
A B C
a b c
), and then make the connection.
• With connection , you can listen to and record audio from a DVD and listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)
a
b c a b a c
• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the main left and right outputs for connection .
Connection AV receiver Signal flow DVD player Picture quality
A
B
C
a
b
c
COMPONENT VIDEO IN 1 (DVD)
DVD IN S
DVD IN V
DVD IN FRONT L/R
DIGITAL COAXIAL IN 1 (DVD)
DIGITAL OPTICAL IN 1 (GAME/TV)
a
Component video output Best
S-Video output Better
Composite video output Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
b
C
c
C
B
B
a
A
OUT
Connect one or the other Connection must be assigned (see page 49)
c
28
OPTICAL
OUT
YCOAXIAL
PB
COMPONENT VIDEO OUT
LR
R S VIDEO
P
AUDIO
OUT
DVD player
OUT
VIDEO
OUT
To connect a DVD player or DVD-Audio/SACD-capable player with a multichannel analog audio output, see page 29.
DTR-6.8_En.book Page 29 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Hooking Up the Multichannel DVD Input
If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel DVD input.
Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s SURR BACK L/R jacks.
7.1 ch
5.1 ch
FRONT
L
R
SURR
DVD
CENTER
SUBWOOFER
SURR BACK
L
R
FRONT
R
LLR
SURROUND
CENTER SUB
WOOFER
DVD player
LR
SURR BACK
29
DTR-6.8_En.book Page 30 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a VCR or DVD Recorder for Playback
Hint!
With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.
Step 1: Video Connection
Choose a video connection that matches your VCR or DVD recorder ( , , or
A B C
), and then make the connection.
You must connect the AV receiver to your TV via the same type of connection.
Step 2: Audio Connection
Choose an audio connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.
• With connection , you can listen to the VCR or DVD recorder even in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 as well, use and , or and
.)
c
Connection AV receiver Signal flow VCR or DVD recorder Picture quality
A
B
C
a
b
c
.
a
COMPONENT VIDEO IN 2
VCR/DVR IN S
VCR/DVR IN V
VCR/DVR IN L/R
DIGITAL COAXIAL IN 2 (VCR/DVR)
DIGITAL OPTICAL IN 1 (GAME/TV)
b c a b a
a b c
Component video output Best
S-Video output Better
Composite video output Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
b
c
Connection
must be
A
assigned (see page 47)
Connect one or the other Connection must be assigned (see page 49)
c
A
OPTICAL
OUT
OUT
YCOAXIAL
PB
R S VIDEO
COMPONENT VIDEO OUT
P
DVD recorder
LR
AUDI O
OUT
VCR,
OUT
C
C
B
B
a
VIDEO
OUT
30
DTR-6.8_En.book Page 31 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a VCR or DVD Recorder for Recording
Step 1: Video Connection
Choose a video connection that matches your VCR or DVD recorder ( or ), and then make the connection. The video source to be recorded must be connected to the AV receiver via the same type of connection.
Step 2: Audio Connection
Make the connection .
Connection AV receiver Signal flow VCR or DVD recorder Picture quality
A
B
a
a
VCR/DVR OUT S
VCR/DVR OUT V
VCR/DVR OUT L/R
A B
S-Video input Better
Composite video input Standard
Audio L/R input
C
B
A
B
a
LR
AUDIO
IN
Notes:
• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.
• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.
• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output. Similarly, video signals connected to S-Video inputs can only be recorded via S-Video outputs. If your TV/VCR is connected to an S-Video input, the recording VCR must be connected to an S-Video output.
• Video and audio signals that are input via the VCR/DVR IN will not be output by VCR/DVR OUT. When recording, select an input source other than VCR/DVR.
S VIDEO
DVD recorder
IN
VIDEO
VCR,
IN
31
DTR-6.8_En.book Page 32 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a Satellite, Cable, Set-top box, or Other Video Source
Hint!
With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.
Step 1: Video Connection
Choose a video connection that matches the video source ( , , or
A B C
), and then make the connection.
You must connect the AV receiver to your TV via the same type of connection.
Step 2: Audio Connection
Choose an audio connection that matches the video source ( , , or ), and then make the connection.
• With connection , you can listen to and record audio from the video source and listen in Zone 2.
a
• To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)
Connection AV receiver Signal flow Video source Picture quality
A
B
C
a
b
c
COMPONENT VIDEO IN 3
CBL/SAT IN S
CBL/SAT IN V
CBL/SAT IN L/R
DIGITAL COAXIAL IN 3 (CBL/SAT)
DIGITAL OPTICAL IN 1 (GAME/TV)
a b c
b c a b a c
Component video output Best
S-Video output Better
Composite video output Standard
Analog audio L/R output
Digital coaxial output
Digital optical output
b
c
Connection
must be
A
assigned (see page 47)
Connect one or the other Connection must be assigned (see page 49)
c
A
OPTICAL
OUT
OUT
YCOAXIAL
PB
R S VIDEO
COMPONENT VIDEO OUT
P
C
BCB
a
LR
AUDI O
OUT
Satellite, cable, set-top box, etc.
OUT
VIDEO
OUT
32
DTR-6.8_En.book Page 33 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a Game Console
Step 1: Video Connection
Choose a video connection that matches the game console ( , , or If you use connection , you must connect the AV receiver to your TV with the same type of connection.
A
A B C
Step 2: Audio Connection
Choose an audio connection that matches the game console ( or ), and then make the connection.
a b
), and then make the connection.
• With connection , you can listen to and record audio from the game console or listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 as well, use and .)
a
b a b
Connection AV receiver Signal flow Game console Picture quality
A
B
C
a
b
COMPONENT VIDEO IN 3
GAME/TV IN S
GAME/TV IN V
GAME/TV IN L/R
DIGITAL OPTICAL IN 1 (GAME/TV)
Component video output Best
S-Video output Better
Composite video output Standard
Analog audio L/R output
Digital optical output
b
C
BCB
a
A
OPTICAL
OUT
YPB
COMPONENT VIDEO OUT
R S VIDEO
P
LR
AUDI O
OUT
Game Console
OUT
VIDEO
OUT
33
DTR-6.8_En.book Page 34 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a Camcorder or Other Device
Step 1: Video Connection
Choose a video connection that matches the camcorder ( or ), and then make the connection.
Step 2: Audio Connection
Choose an audio connection that matches the camcorder ( or ), and then make the connection.
AUX Input
b
AUX Input
A B
a b
AUX Input
B
Video
a
AUX Input
LR
Audio
Digital
S Video
A
LR
OPTICAL
OUT
S VIDEO
OUT
AUDIO
OUT
Camcorder, etc.
Connection AV receiver Signal flow Camcorder or console
A
B
a
b
AUX Input S Video
AUX Input Video
AUX Input L/R
AUX Input Digital
VIDEO
OUT
S-Video output
Composite video output
Analog audio L/R output
Digital optical output
34
DTR-6.8_En.book Page 35 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting Components with HDMI
About HDMI
Designed to meet the demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).
The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)*1, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) The AV receiver uses HDCP (High-bandwidth Digital Content Protection) can display the picture.
The AV receiver’s HDMI interface is based on the following standard: High-Definition Multimedia Interface Specification Informational Version 1.3a
*2
, so only HDCP-compatible components
Supported Audio Formats
• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)
• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)
• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS­HD Master Audio)
Your DVD player must also support HDMI output of the above audio formats.
About Copyright Protection
The AV receiver supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.
Commercially available HDMI cables (supplied with some components) should be used to connect the AV receiver’s HDMI OUT to the HDMI input on your TV or projector.
*1 DVI (Digital Visual Interface): The digital display interface standard set by the DDWG*3 in 1999. *2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to
protect video content and requires a HDCP-compatible device to display the encrypted video.
*3 DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open
industry group’s objective is to address the industry's requirements for a digital connectivity specification for high-performance PCs and digital displays.
35
DTR-6.8_En.book Page 36 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Making HDMI Connections
Step 1: Use HDMI cables to connect the AV receiver’s HDMI jacks to your HDMI-compatible DVD player, TV, projector, and so on.
Step 2: Assign each HDMI IN to an input selector in the HDMI Input Setup (see page 46).
Video Signals
Digital video signals received by the HDMI IN jacks are normally output by the HDMI OUT for display on your TV. Composite video, S-Video, and component video sources can be upconverted for the HDMI output. See “Video Con­nection Formats” on page 25 for more information.
Audio Signals
Digital audio signals received by the HDMI IN jacks are output by the speakers and headphones connected to the AV receiver. Normally, they are not output by the HDMI OUT, unless the HDMI Audio Out setting is set to On (see page 106).
Note:
When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.
To listen to audio received by the HDMI IN jacks through your TV’s speakers, set the HDMI Audio
Hint!
Out setting to On (see page 106), and set your DVD player’s HDMI audio output setting to PCM.
Note:
When the HDMI Audio setting is set to On (see page 106), or TV Control is set to Enable and you’re listening through your TV’s speakers, if you turn up the AV receiver volume control, the sound will be output by the AV receiver’s speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.
HDMI
IN
TV
DVD player
HDMI
OUT
HDMI HDMI
IN 1
36
DTR-6.8_En.book Page 37 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a CD Player or Turntable
CD Player or Turntable (MM) with Built-in Phono Preamp
Step 1:
Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in phono preamp.
IN 2
b
(VCR/DVR)
Connect one or the other Connection
b
must be assigned (see page 49)
c
COAXIAL
OUT
COAXIAL
OPTICAL
IN 2 (CD)
OPTICAL
OUT
IN
CD
LR
AUDI O
OUT
a b c a
L
R
a
CD player
IN
L
R
CD
a
Turntable (MM) with built-in phono preamp
AUDI O
OUTPUT
L
R
• With connection , you can listen to and record audio from the CD player and listen in Zone 2.
• To connect the CD player digitally, use connection or . (For recording, use and , or and .)
a
b c a b a c
Connection AV receiver Signal flow CD or turntable
a
b
c
Turntable (MM) with no Phono Preamp Built-in
DIGITAL COAXIAL IN 2 (VCR/DVR)
DIGITAL OPTICAL IN 2 (CD)
CD IN L/R
Analog audio L/R output
Digital coaxial output
Digital optical output
The AV receiver’s PHONO IN is designed for use with a moving magnet (MM) type cartridge. Use an analog audio cable to connect the AV receiver’s PHONO IN L/R jacks to the audio output on your turn­table.
Notes:
• If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, con­necting the ground wire may produce an audible hum. If this happens, disconnect it.
• If your turntable has a moving coil (MC) type car­tridge, you’ll need a commercially available MC head amp or MC transformer. Connect your turntable to the head amp or transformer, and connect that to the AV receiver’s PHONO IN L/R jacks.
L
R
IN
PHONO
AUDIO
OUTPUT
L
R
• You can also use a phono equalizer to connect a turn­table with an MC-type cartridge. See your phono equalizer’s manual for details.
37
DTR-6.8_En.book Page 38 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued

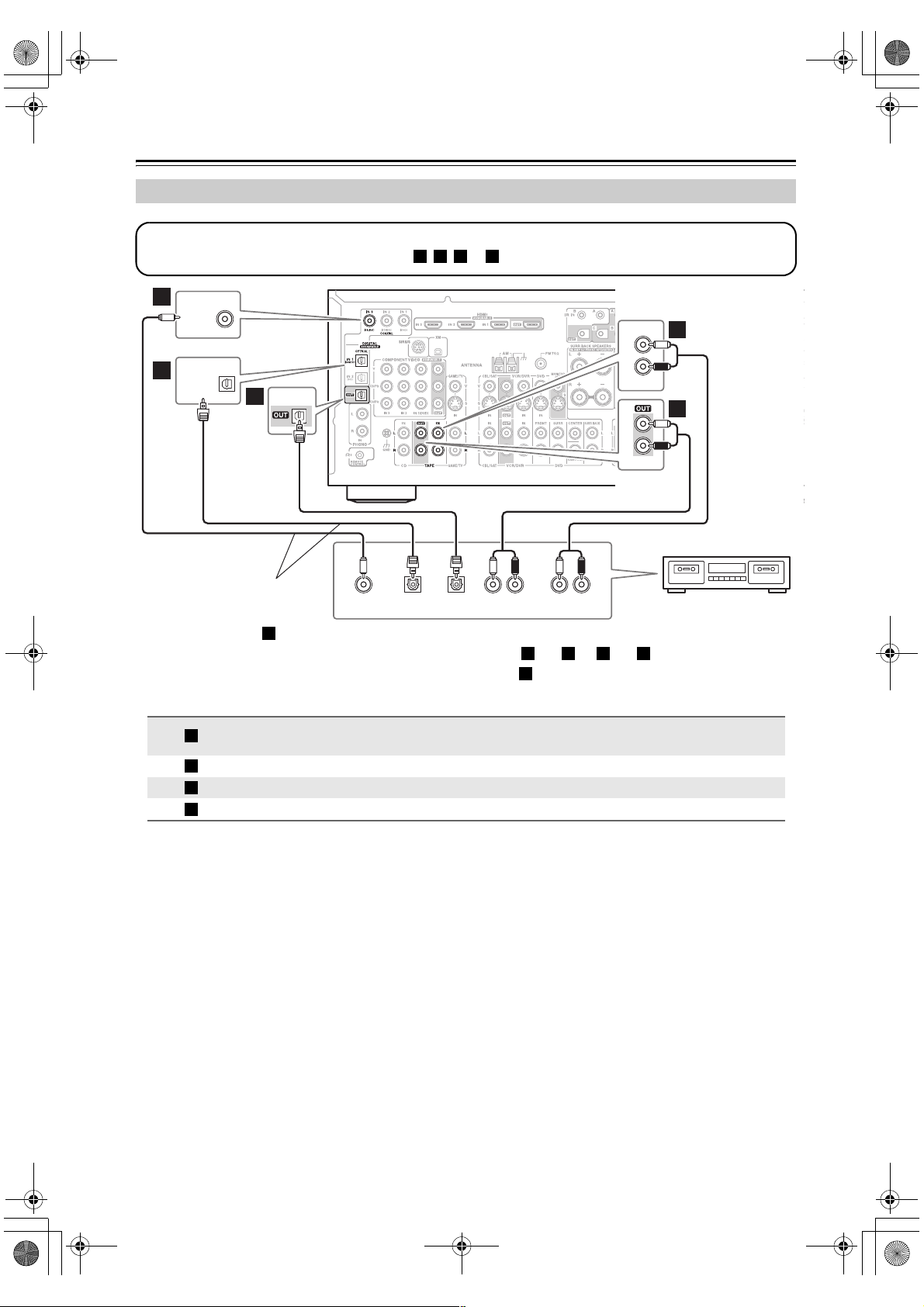

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Step 1:
Choose a connection that matches the recorder ( , , or ), and then make the connection.
b
COAXIAL
IN 3
(CBL/SAT)
OPTICAL
c
IN 1
(GAME/TV)
OPTICAL
d
a b c d
IN
L
R
L
R
a
TAP E
a
TAP E
Connect one
or the other
• With connection , you can play and record and listen in Zone 2.
a
COAXIAL
OUT
OPTICAL
OUT
• To connect the recorder digitally for playback, use connections and , or and .
• To connect the recorder digitally for recording, use connection .
LR
OPTICAL
IN
IN
LR
AUDI O
OUT
AUDI O
a b a c
d
Cassette, CDR, MD, etc.
Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder
a
b
c
DIGITAL COAXIAL IN 3 (CBL/SAT)
DIGITAL OPTICAL IN 1 (GAME/TV)
d
TAPE IN L/R
TAPE OUT L/R
DIGITAL OPTICAL OUT
⇐ ⇒
Analog audio L/R output
Analog audio L/R input
Digital coaxial output
Digital optical output
Digital optical input
38
lifi
DTR-6.8_En.book Page 39 Wednesday, June 20, 2007 4:16 PM
Connecting the AV Receiver—Continued
Connecting a Power Amplifier
If you want to use a more powerful power amp
er and use the AV receiver as a preamp, connect it to the PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer, connect it to this AV receiver’s PRE OUT SUBWOOFER jack.
1. Subwoofer
2. Front left speaker
3. Center speaker
4. Front right speaker
5. Surround left speaker
6. Surround right
speaker
7. Surround back left
speaker
8. Surround back right
speaker
1 2 3 4 5 6 7 8
Power amplifier
Note:
When the bi-amping connections have been made, there will be no sound output from the surround back speakers.
39
DTR-6.8_En.book Page 40 Wednesday, June 20, 2007 11:52 PM
Connecting the AV Receiver—Continued
Connecting an RI Dock
iPod with video
Connect your RI Dock’s analog audio output jacks and Video output jack to the AV receiver’s GAME/TV IN L/R jacks and GAME/TV IN V jack.
iPod without video
Connect your RI Dock’s analog audio output jacks to the AV receiver’s TAPE IN L/R jacks. (Onkyo DS­A2 hookup shown below.)
(Onkyo DS-A2 hookup shown below.)
AUDIO
VIDEO
OUT
AUDIO
OUT
LR
OUT
LR
If you have an Onkyo DS-A1 RI Dock
• Connect its video output jack to the AV receiver’s GAME/TV IN S jack.
• Enter the appropriate remote control code before using the AV receiver’s remote controllers for the first time (see page 117).
Notes:
• Connect the Remote Interactive Dock with an cable (see page 41).
• Set the Remote Interactive Dock’s RI MODE switch to HDD or HDD/DOCK.
• Set the AV receiver’s input display to DOCK (see page 48).
• Refer to the Remote Interactive Dock’s instruction manual.
Connecting the Power Cords of Other Components (North American model only)
The AV receiver has AC outlets on its rear panel that can be used to connect the power cords of other components that you intend to use with the AV receiver. These com­ponents can then be left turned on so that they turn on and off as and when the AV receiver is set to On or Standby.
Caution:
• Make sure that the total capacity of the components that you connect to the AC OUTLETS does not exceed the stated capacity (e.g., TOTAL 120 W).
Notes:
• Integra/Onkyo components connected via should be connected directly to a wall outlet, not an AC OUT­LET on the AV receiver.
40
DTR-6.8_En.book Page 41 Wednesday, June 20, 2007 11:52 PM
Connecting the AV Receiver—Continued
Connecting Components
Step 1: Make sure that each Integra/Onkyo compo-
nent is connected to the AV receiver with an analog audio cable (connection in the hookup examples) (see pages 27 to 40).
Step 2: Make the connection.
Step 3: If you’re using an MD, CDR, or RI Dock,
change the input display (see page 48).
With (Remote Interactive), you can use the follow­ing special functions:
Auto Power On/Standby
When you start playback on a component connected via , if the AV receiver is on Standby, it will auto­matically turn on and select that component as the input source. Similarly, when the AV receiver is set to Standby, all components connected via will also go on Standby.
Direct Change
When playback is started on a component connected via , the AV receiver automatically selects that component as the input source. If your DVD player is connected to the AV receiver’s multichannel DVD input, you’ll need to press the [Multi CH] button to hear all channels (see page 58), as the Direct Change
function only selects the DVD FRONT L/R
jacks.
Remote Control
You can use the AV receiver’s remote controller to control your other -capable Integra/Onkyo com­ponents, pointing the remote controller at the AV receiver’s remote control sensor instead of the com­ponent. You must enter the appropriate remote con­trol code first (see page 117).
Notes:
• Use only cables for connections. cables are supplied with Integra/Onkyo players (DVD, CD, etc.).
• Some components have two jacks. You can con­nect either one to the AV receiver. The other jack is for connecting additional -capable components.
• Connect only Integra/Onkyo components to jacks. Connecting other manufacturer’s components may cause a malfunction.
• Some components may not support all functions. Refer to the manuals supplied with your other Inte­gra/Onkyo components.
• While Zone 2 is on, the Auto Power On/Standby and Direct Change functions do not work.
a
IN
L
R
CD
REMOTE CONTROL
e.g., CD player
e.g., DVD player
FRONT
ANALOG
AUDIO OUT
ANALOG
AUDIO OUT
L
R
DVD
LR
LR
Connecting the RS232 Port
This port is for connecting the AV receiver to home auto­mation equipment and external controllers.
Connecting the Power Cord
Notes:
• Before connecting the power cord, connect all of your speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.
• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.
• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always discon­nect the power cord from the wall outlet first, and then the AV receiver.
Step 1 (not North American model):
Connect the supplied power cord to the AV receiver’s AC INLET.
To AC wall outlet
Step 2: Plug the power cord into an AC wall outlet.
(The Standby indicator lights up.)
41
R
DTR-6.8_En.book Page 42 Wednesday, June 20, 2007 4:16 PM
Turning On the AV Receiver
Standby/On
Standby indicator
Turning On and Standby
1
or
emote
controllerAV receiver
Receiver
On
Press the [Standby/On] button. Alternatively, press the remote controller’s [Receiver] button, followed by
the [On] button.
The AV receiver comes on, the display lights up, and the Standby indicator goes off. Pressing the remote controller’s [On] button again will turn on any components con-
nected via .
To turn the AV receiver off, press the [Standby/On] button, or press the remote control­ler’s [Standby] button. The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.
Standby
On
Receiver
Smooth Operation in a Few Easy Steps
To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the very first time. These settings only need to be made once.
Do the automatic speaker setup—this is essential!
See “Automatic Speaker Setup (Audyssey MultEQ XT)” on page 52.
Have you connected a component to an HDMI input, component video input, or digital audio input?
If you have, see “HDMI Input Setup” on page 46, “Component Video Setup” on page 47, or “Digital Input Setup” on page 49 respectively.
Have you connected an Onkyo MD recorder, CD recorder, or RI Dock?
If you have, see “Changing the Input Display” on page 48.
HDMI
OUT IN
TAPE
CD recorder, MD recorder, RI Dock
42
2
DTR-6.8_En.book Page 43 Wednesday, June 20, 2007 11:52 PM
First Time Setup
This section explains the settings that you need to make before using the AV receiver for the very first time.
Menus for First Time Setup
1
2
1
Using the Onscreen Setup Menus
Carry out the settings for the AV receiver by using the Onscreen Setup Menu.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Menu
1. Input/Output Assign
2. Speaker Setup
3. Audio Adjust
4. Source Setup
5. Listening Mode Preset
6. Miscellaneous
7. Hardware Setup
8. Lock Setup
Use the Up and Down [ ]/[ ] buttons to select submenu and then press [Enter].
The submenu appears. Press the [Setup] button to close the
menu.
Main menu
Men
u
1. Input/Output Assign
2. Speaker Setup
3. Audio Adjust
4. Source Setup
5. Listening Mode Preset
6. Miscellaneous
7. Hardware Setup
8. Lock Setup
Submenus
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
6. Miscellaneous
1. Volume Setup
2. OSD Setup
3. 12V Trigger A Setup
4. 12V Trigger B Setup
5. 12V Trigger C Setup
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
p. 4 5
p. 4 9
p. 4 4
p. 5 0
p. 5 1
43
DTR-6.8_En.book Page 44 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Speaker Settings
If you change these settings, you must run the auto­matic speaker setup again (see page 52).
If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms (not North American model).
If you’ve connected your front speakers to the FRONT SPEAKERS and SURR BACK SPEAKERS terminal posts for bi-amping, you must change the Speakers Type setting. For hookup information, see “Bi-amping the Front Speakers” on page 22.
Notes:
• When bi-amping is used, the AV receiver is able to drive up to 5.1 speakers in the main room.
• Before you change these settings, turn down the vol­ume.
1
Press the [Receiver] button, fol­lowed by the [Setup] button.
The main menu appears onscreen.
4
5
Use the Up and Down [ ]/[ ] buttons to select “Speaker Impedance,” and then use the
Left and Right [ ]/[ ] buttons to select:
4 ohms: Select if the impedance of any
speaker is 4 ohms or more but less than 6.
6 ohms: Select if the impedances of all
speakers are between 6 and 16 ohms.
Use the Up and Down [ ]/[ ] buttons to select “Speakers Type,” and then use the Left and
Right [ ]/[ ] buttons to select:
Normal: Select this if you’ve con-
nected your front speakers normally.
Bi-Amp:Select this if you’ve con-
nected your front speakers for bi-amped operation.
2
3
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
Use the Up and Down [ ]/[ ] buttons to select “1. Speaker Set­tings,” and then press [Enter].
The Speaker Settings menu appears.
2–1. Speaker Settings
Speaker Impedance 6 ohms Speakers Type Normal
6
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Press the [Setup] button.
The Setup menu closes.
44
4
DTR-6.8_En.book Page 45 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
1
2, 3
2-
1, 5

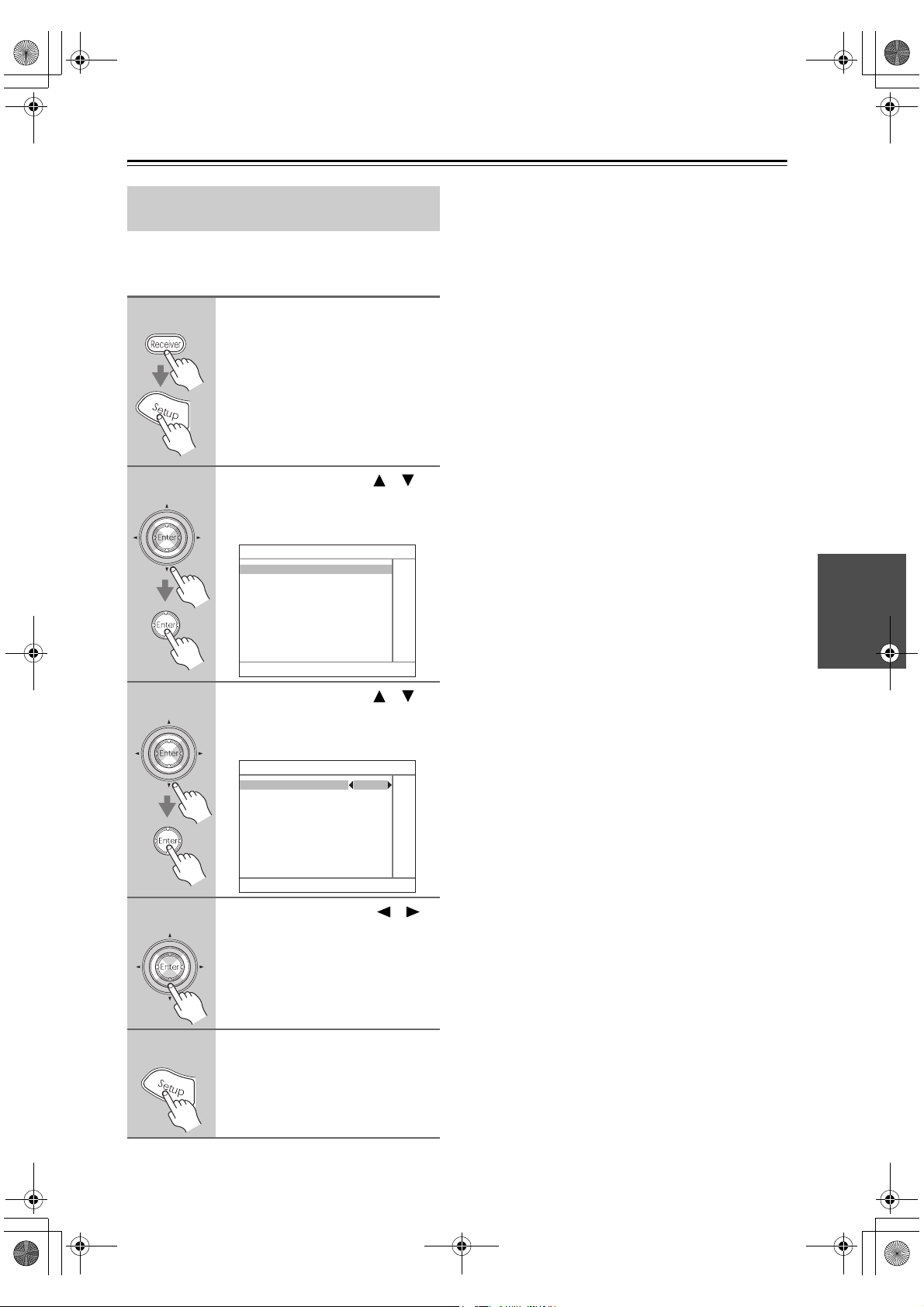

HDMI Monitor Setup
If you connect your TV to the COMPONENT VIDEO OUT, set the HDMI Monitor setting to No so that the onscreen setup menus are displayed and composite video and S-Video sources are upconverted* and output by the COMPONENT VIDEO OUT.
Composite video, S-Video
Component video
IN
1
2
3
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “1. Input/Out­put Assign,” and then press [Enter].
The Input/Output Assign menu appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
Use the Up and Down [ ]/[ ] buttons to select “1. Monitor Out,” and then press [Enter].
The Monitor Out menu appears.
1–1. Monitor Out
HDMI Monitor No
Composite video, S-Video
If you connect your TV to the HDMI OUT, set the HDMI Monitor setting to Yes so that the onscreen setup menus are displayed and composite video, S-Video, and component video sources are upconverted* and output by the HDMI OUT. The onscreen setup menus are dis­played on the HDMI OUT only.
Composite video, S-Video,
component video
Composite video, S-Video,
component video
OUT
Component video
HDMI
IN
OUT
HDMI
4
5
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Use the Left and Right [ ]/[ ] buttons to select:
No: Select this if your TV is con-
nected to the MONITOR OUT or COMPONENT VIDEO OUT.
Ye s: Select this if your TV is con-
nected to the HDMI OUT.
Press the [Setup] button.
The Setup menu closes.
45
DTR-6.8_En.book Page 46 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Video Input Setup
HDMI Input Setup
If you connect a video component to HDMI IN, you must assign that input to an input selector. For example, if you connect your DVD player to HDMI IN 1, you must assign HDMI IN 1 to the DVD input selector.
If you’ve connected your TV to the AV receiver with an HDMI cable, you can set the AV receiver so that com­posite video, S-Video, and component video sources are upconverted* and output by the HDMI OUT. You can set this for each input selector by selecting the “- - -” option.
Composite video, S-Video,
component video
Composite video, S-Video,
component video

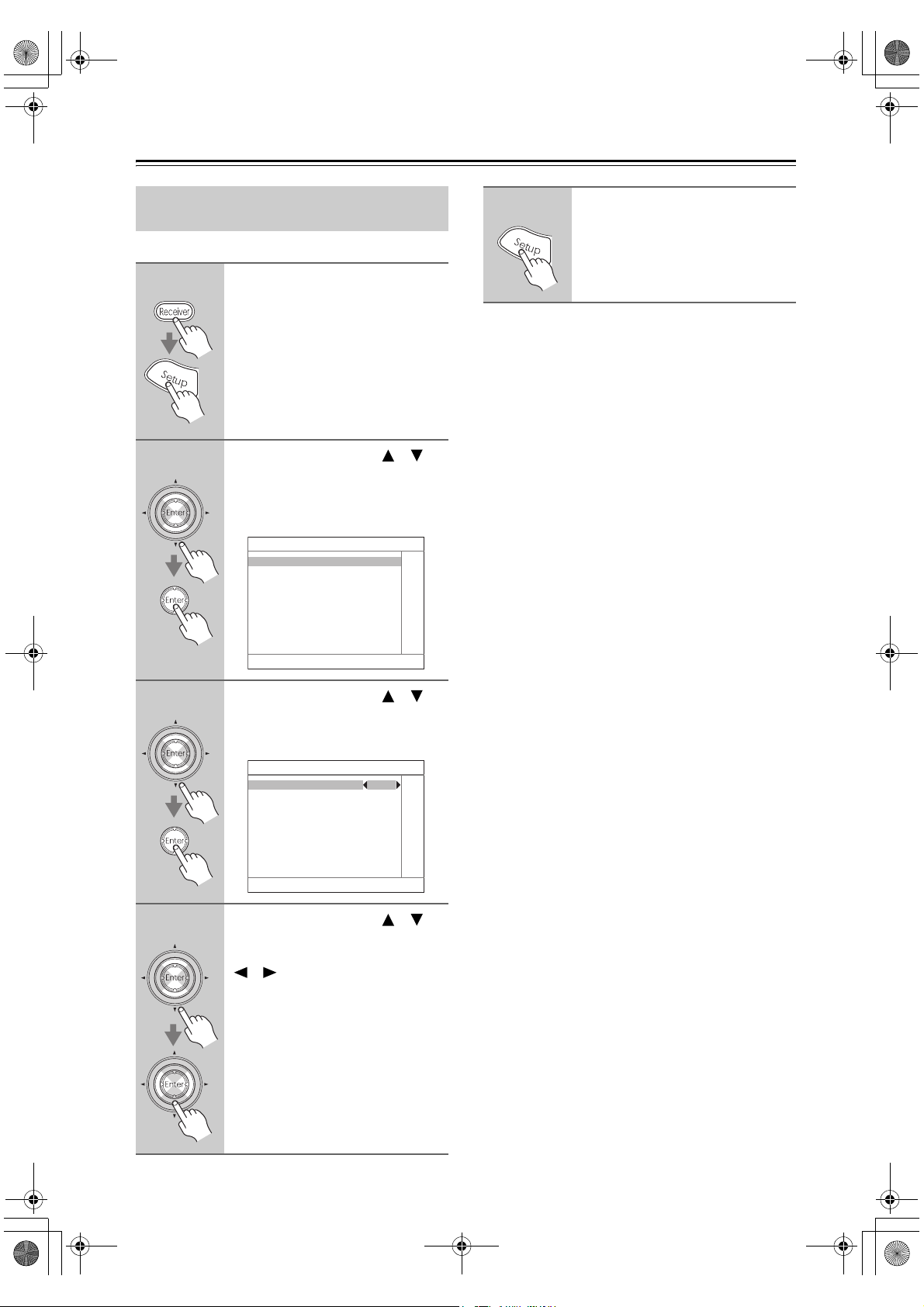

1
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
2
Use the Up and Down [ ]/[ ] buttons to select “1. Input/Out­put Assign,” and then press [Enter].
The Input/Output Assign menu appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
IN
OUT
HDMI
HDMI
3
Use the Up and Down [ ]/[ ] buttons to select “2. HDMI Input,” and then press [Enter].
The HDMI Input menu appears.
1–2. HDMI Input
DVD - - ­VCR/DVR - - ­CBL/SAT - - ­GAME/TV - - ­AUX - - ­TAPE - - -
TUNER - - -
CD - - ­PHONO - - -
4
Use the Up and Down [ ]/[ ] buttons to select an input selec­tor, and use the Left and Right
[ ]/[ ] buttons to select:
IN 1: Select if the video component
is connected to HDMI IN 1.
IN 2: Select if the video component
is connected to HDMI IN 2.
IN 3: Select if the video component
is connected to HDMI IN 3.
---: Output composite video, S-Video, and component video sources from the HDMI OUT. The video output signal from the HDMI OUT is the one configured in “Compo­nent Video Setup” (see page 47).
There are no assignments for TUNER.
5
Press the [Setup] button.
The Setup menu closes.
Notes:
• Each HDMI IN cannot be assigned to more than one input selector.
For composite video, S-Video, and component
video upconversion for the HDMI OUT, the HDMI Monitor setting must be set to Yes (see page 45), and the HDMI Input setting must be set to “- - -”.
See page 25 for more information on video signal flow and upconversion.
• When an HDMI IN is assigned to an input selector as explained here, the digital audio input for that input selector is automatically set to the same HDMI IN. See “Digital Input Setup” on page 49.
• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
46
DTR-6.8_En.book Page 47 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Component Video Setup
If you connect to a COMPONENT VIDEO IN, you must assign it to an input selector. For example, if you connect your DVD player to COMPONENT IN 3, you should assign it to the DVD input selector.
If you want to output composite and S-Video sources from the COMPONENT VIDEO OUT, select “---,” as explained below.
Input selector VIDEO IN jack
DVD IN 1
VCR/DVR - - -
CBL/SAT - - -
GAME/TV - - -
AUX - - -
TAPE - - -
CD - - -
PHONO - - -
If you’ve connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video and S-Video sources are upcon­verted* and output by the COMPONENT VIDEO OUT.
You can set this for each input selector by selecting the “- - -” option.
Composite video, S-Video
Composite video, S-Video
1
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
OUT
Component video
IN
Component video
3
4
5
Use the Up and Down [ ]/[ ] buttons to select “3. Component Video Input,” and then press [Enter].
The Component Video Input menu appears.
1–3. Component Video Input
DVD IN 1 VCR/DVR - - ­CBL/SAT - - ­GAME/TV - - ­AUX - - ­TAPE - - -
TUNER - - -
CD - - ­PHONO - - -
Use the Up and Down [ ]/[ ] buttons to select an input selec­tor, and then use the Left and
Right [ ]/[ ] buttons to select:
IN 1: Use the video component
connected to COMPO­NENT VIDEO IN 1.
IN 2: Use the video component
connected to COMPO­NENT VIDEO IN 2.
IN 3: Use the video component
connected to COMPO­NENT VIDEO IN 3.
---: Output composite video and S-Video sources from the COMPONENT VIDEO OUT.
There are no assignments for TUNER.
Press the [Setup] button.
The setup menu closes.
2
Use the Up and Down [ ]/[ ] but­tons to select “1. Input/Output Assign,” and then press [Enter].
The Input/Output Assign menu appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
Notes:
For composite video and S-Video upconversion for
the COMPONENT VIDEO OUT, the HDMI Mon­itor setting must be set to No (see page 45), and the Component Video Input setting must be set to “- -
-”. See page 26 for more information on video signal
flow and upconversion.
• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
47
DTR-6.8_En.book Page 48 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Changing the Input Display
If you connect an -capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the TAPE IN/OUT or GAME/TV IN jacks, for to work properly, you must change this setting.
This setting can only be changed on the AV receiver.
1, 2
iPod photo: If you’re using an iPod photo with the RI Dock, connect the RI Dock to the GAME/TV IN jacks.
1
or
2
or
Press the [Tape] or [Game/TV] input selector button so that “TAPE” or “GAME/TV” appears on the display.
Press and hold down the [Tape] or [Game/TV] input selector but­ton (about 3 seconds) to change the setting.
Repeat this step to select MD, CDR, or Dock. For the Tape input selector, the setting changes in this order:
1, 2
MD CDR DOCK
TA PE
For the Game/TV input selector, the setting changes in this order:
Game/TV
DOCK
Note:
Dock can be selected for the Tape input selector or Game/TV input selector, but not both at the same time.
48
DTR-6.8_En.book Page 49 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Digital Input Setup
If you connect a component to a digital input jack, you must assign that jack to an input selector. For example, if you connect your CD player to the OPTICAL IN2 jack, you should assign that jack to the CD input selector. By default, the COAXIAL IN1 jack is assigned to the DVD input selector, although this can be changed.
Here are the default assignments.
Input selector Default assignment
DVD COAX 1
VCR/DVR COAX 2
CBL/SAT COAX 3
GAME/TV OPT 1
AUX F RONT
TA PE - - -
CD OPT 2
PHONO - - -
When HDMI IN 1, 2 or 3 is assigned to an input selector in the “HDMI Input Setup” on page 46, the input selec­tor assignment on this page is automatically set to HDMI 1, HDMI 2 or HDMI 3.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “1. Input/Out­put Assign,” and then press [Enter].
The Input/Output Assign menu appears.
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
4
5
Use the Up and Down [ ]/[ ] buttons to select an input selec­tor, and use the Left and Right
[ ]/[ ] buttons to select COAX 1, COAX 2, COAX 3, OPT 1, OPT 2, or - - - (analog).
• An input selector that has been assigned to IN 1, IN 2 or IN 3 in the “HDMI Input Setup” (see page 46) can be set to HDMI here.
• There are no assignments for TUNER.
• AUX is used only for digital input from the front panel terminals. When HDMI IN 1, 2 or 3 is assigned to AUX in the “HDMI Input Setup” on page 46, IN 1, IN 2 or IN 3 can be selected.
Examples:
If you connect your DVD player to the OPTICAL IN 1 jack, set “DVD” to “OPT 1.” If you want to listen to audio from the component connected to the OPTICAL IN 2 jack when the VCR/DVR input selector is selected, set “VCR/DVR” to “OPT 2.” If you want to listen to audio from the component connected to the COAX­IAL IN 1 jack when the CBL/SAT input selector is selected, set “CBL/ SAT” to “COAX 1.” For input selectors that you don’t want to assign a digital input jack, set to “- - - (analog).”
Press the [Setup] button.
The Setup menu closes.
3
Use the Up and Down [ ]/[ ] buttons to select “4. Digital Input,” and then press [Enter].
The Digital Input menu appears.
1–4. Digital Input
DVD COAX 1 VCR/DVR COAX 2 CBL/SAT COAX 3 GAME/TV OPT 1
AUX FRONT
TAPE - - -
TUNER - - -
CD OPT 2 PHONO - - -
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
49
DTR-6.8_En.book Page 50 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
TV Format Setup (not North American model)
You must specify the TV system used in your area.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “6. Miscellaneous,” and then press [Enter].
The Miscellaneous menu appears.
6. Miscellaneous
1. Volume Setup
2. OSD Setup
3. 12V Trigger A Setup
4. 12V Trigger B Setup
5. 12V Trigger C Setup
5
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
When you’ve finished, press the [Setup] button.
The setup menu closes.
3
4
Use the Up and Down [ ]/[ ] buttons to select “2. OSD Setup,” and then press [Enter].
The OSD Setup menu appears.
6–2. OSD Setup
Immediate Display On Monitor Type 4 : 3 Display Position Bottom TV Format Auto
Use the Up and Down [ ]/[ ] buttons to select “TV Format,” and then use the Left and Right
[ ]/[ ] buttons to select:
Auto: Select this to automatically
detect the TV system from the video input signals.
NTSC: Select if the TV system in
your area is NTSC.
PAL : Select if the TV system in
your area is PAL.
50
DTR-6.8_En.book Page 51 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
AM Frequency Step Setup (Australian model)
You must specify the AM frequency step used in your area. Note that when this setting is changed, all radio presets are deleted.
1
2
Press the [Receiver] button, fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “7. Hardware Setup,” and then press [Enter].
The Hardware Setup menu appears.
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
Note:
• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
3
4
5
Use the Up and Down [ ]/[ ] buttons to select “3. Tuner,” and then press [Enter].
The Tuner menu appears.
7–3. Tuner
AM Frequency Step 9 kHz
Use the Left and Right [ ]/[ ] buttons to select:
10 kHz: Select if 10 kHz steps are
used in your area.
9kHz: Select if 9 kHz steps are used
in your area.
Press the [Setup] button.
The Setup menu closes.
51
DTR-6.8_En.book Page 52 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Automatic Speaker Setup (Audyssey MultEQ XT)
With the supplied speaker setup microphone, the Audyssey MultEQ XT function can measure the number of speakers connected, their sizes, crossover frequencies, and the distance from each speaker to the listening posi­tion and calculate the optimal speaker settings for your listening environment automatically. Before using this function, connect and position all of your speakers.
Measurement Positions
To create a listening environment in which several peo­ple can enjoy your home theater simultaneously, Audys­sey MultEQ XT takes measurements at from 3 up to a maximum of eight positions within the listening area.
1st measurement point
This is the center position of your listening area, or the listening position if there’s only one listener.
8th measurement positions
2nd
These are the other listening positions (i.e., the places where the other listeners will sit). You can measure from 3 up to a maximum of eight positions.
The following examples show some typical home theater seating arrangements. Choose the one that best matches yours, and position the microphone accordingly when prompted.
Using Audyssey MultEQ XT
1
2, 11
3-9
TV TV TV
TV TV TV
: listening area
: listening position
Notes:
• During the automatic speaker setup, a loud test sound will be emitted. If you usually listen at a low volume, please take care.
• During the automatic speaker setup, please keep quiet. If there is too much ambient noise in the
TVTVTV
test environment, the setup will fail.
• If any of your speakers is 4 ohms or more but less than 6, change the Speaker Impedance setting before running the automatic speaker setup (see page 44).
• If the AV receiver is muted, it will be unmuted automatically when the automatic speaker setup starts.
• Automatic speaker setup cannot be performed while a pair of headphones is connected.
• It takes about 15 minutes to complete the auto­matic speaker setup for three positions. Total measurement time varies depending on the num­ber of positions and speakers.
• Do not disconnect the speaker setup microphone during the automatic speaker setup, unless you want to cancel the setup.
• Do not connect or disconnect any speakers during the automatic speaker setup.
52
DTR-6.8_En.book Page 53 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
1
2
3
Turn on the AV receiver and the connected TV.
On the TV, select the input to which the AV receiver is connected.
Put the speaker setup micro­phone at measurement point
1
(page 52), and connect it to the Setup Mic jack.
Auto Speaker Setup
Please place microphone at center
of listening area at ear height.
Push Enter : Next
AUDYSSEY
Notes:
• Make sure the microphone is hori­zontal.
• If there’s an obstacle between the microphone and any speaker, the automatic setup will not work cor­rectly. Set up the room as you would when enjoying a DVD.
• Positioning the microphone close to where your ears would normally be will provide better results. You can adjust the height of the microphone by using a tripod or level table.
Press [Enter].
The automatic speaker setup starts.
Auto Speaker Setup
AUDYSSEY
4
5
The speaker detect results appear.
Auto Speaker Setup
- - - - - SP Detect Result - - - - -
: Yes
FL SL SBL C
Next Retry Cancel
: Yes
: Yes
:No
FR SR SBR SW
: Yes
: Yes
: Yes
: Yes
AUDYSSEY
“Yes” means that the speaker was detected. “No” means that no speaker was detected.
If you agree with the results, use the Up and Down [ ]/[ ] but-
tons to select Next, and then press [Enter].
The options are: Next:
Proceed to the next step.
Retry:
Return to step 2 and try again.
Cancel:
Cancel the automatic speaker setup.
The following screen appears.
Auto Speaker Setup
Please place microphone at
2nd Position at ear height.
Push Enter : Next
AUDYSSEY
Do not unplug microphone.
Please keep quiet.
Now Measuring. . .
A test tone is output by each speaker in turn, as the Audyssey MultEQ XT function determines which speakers are connected. This takes a few minutes.
Note:
If any extraneous noise is picked up by the microphone, the automatic setup may not work correctly, so don’t make any noise.
6
Place the setup microphone at the next position (page 52), and then press [Enter].
Audyssey MultEQ XT performs more measurements. This takes a few min­utes.
Auto Speaker Setup
Do not unplug microphone.
Please keep quiet.
Now Measuring. . .
AUDYSSEY
When prompted, place the setup microphone at the next position, and repeat step 5.
53
DTR-6.8_En.book Page 54 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
7
After the 3rd to the 7th measure­ment, the following screen appears.
Auto Speaker Setup
Please select “Next” , when measuring next position, and select “finish” , when ending.
Next finish (Calculate)
AUDYSSEY
Use the Up and Down [ ]/[ ] buttons to select an option, and then press [Enter].
Next: Select this if you want to mea-
sure another listening posi­tion. After the 8th measurement has been taken, the procedure automatically proceeds to step 8.
finish (Calculate): Select this if you
don’t want to measure any more listening positions and are ready to calculate the results, then go to step 8.
10
Use the Up and Down [ ]/[ ] buttons to select an option, and then press [Enter].
The options are: Save:
Save the calculated settings and exit the automatic speaker setup.
Review SP Config:
Review the speaker configuration settings (see “Reviewing the Results” on page 56).
Review SP Distance:
Review the speaker distance set­tings (see “Reviewing the Results” on page 56).
Review SP Level:
Review the speaker level settings (see “Reviewing the Results” on page 56).
Cancel:
Cancel the automatic speaker setup.
If you selected “Save,” the results are saved, and the following screen appears.
Auto Speaker Setup
AUDYSSEY
8
9
When the measurements are complete, the following screen appears.
Auto Speaker Setup
Calculating...
AUDYSSEY
When the calculations are com­plete, the following screen appears.
Auto Speaker Setup
Save Review SP Config Review SP Distance Review SP Level Cancel
AUDYSSEY
Saving...
11
Disconnect the speaker setup microphone.
Auto Speaker Setup
Please unplug microphone.
AUDYSSEY
Notes:
• When the automatic speaker setup is complete, the Equalizer Settings (page 93) will be set to “Audyssey.”
• You can cancel the automatic speaker setup at any point in this procedure simply by disconnecting the setup microphone.
54
DTR-6.8_En.book Page 55 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued
Error Messages
While the automatic speaker setup is in progress, one of the following error messages may appear:
Ambient noise is too high.
Auto Speaker Setup
Ambient noise is too high.
Retry Cancel
This message appears if the background noise is too loud and the measurements cannot be performed properly.
Remove the source of the noise and try again.
Retry: Return to the measured point immediately
before and start set up again.
Cancel: Cancel the automatic speaker setup.
Speaker Detect Error
Auto Speaker Setup
- - - - - Speaker Detect Error - - - - -
: Yes
FL SL SBL C
Retry Cancel
: ---
: ---
: Yes
FR SR SBR SW
: No
: ---
: ---
: ---
AUDYSSEY
AUDYSSEY
Auto Speaker Setup
- - - - - Speaker Detect Error - - - - -
FL
: Yes
: ---
:
: Yes
FR SR
No
SBR SW
SL SBL C
Retry Cancel
: Yes
: Yes
: Yes
: ---
AUDYSSEY
The right surround back speaker has been detected but the left surround back speaker hasn’t.
Auto Speaker Setup
- - - - - Speaker Detect Error - - - - -
FL
: Error
: Yes : Yes : Yes
FR SR SBR SW
SL SBL C
Retry Cancel
: Yes
: Yes
: Yes
: Yes
AUDYSSEY
There is a problem with a speaker. The speaker may be broken or the subwoofer may be emitting sound that is too high.
Auto Speaker Setup
Speaker Detect Error
Retry Cancel
AUDYSSEY
One of the front speakers has not been detected.
Auto Speaker Setup
- - - - - Speaker Detect Error - - - - -
: Yes
FL
: ---
SL
: ---
SBL
: Yes
C
Retry Cancel
FR SR SBR SW
: Yes : No
: ---
: ---
AUDYSSEY
One of the surround speakers has not been detected.
Auto Speaker Setup
- - - - - Speaker Detect Error - - - - -
: Yes
FL SL SBL C
Retry Cancel
: --­: --­: Yes
FR SR SBR SW
: Yes
:
: Yes
: ---
AUDYSSEY
No
The surround back speakers have been detected but the surround speakers haven’t.
The number of speakers detected on the second or third measurement was different to the number detected on the first measurement.
Make sure speakers that cannot be detected are con­nected property.
Retry: Return to step 2 and try again.
Cancel: Cancel the automatic speaker setup.
Writing Error!
Auto Speaker Setup
Writing Error!
Retry Cancel
AUDYSSEY
This message appears if saving fails.
Try saving again. If this message appears after 2 or 3 attempts, the AV receiver is probably malfunctioning. Contact the dealer from whom you purchased this unit.
Retry: Return to step 2 and try again.
Cancel: Cancel the automatic speaker setup.
55
DTR-6.8_En.book Page 56 Wednesday, June 20, 2007 4:16 PM
First Time Setup—Continued

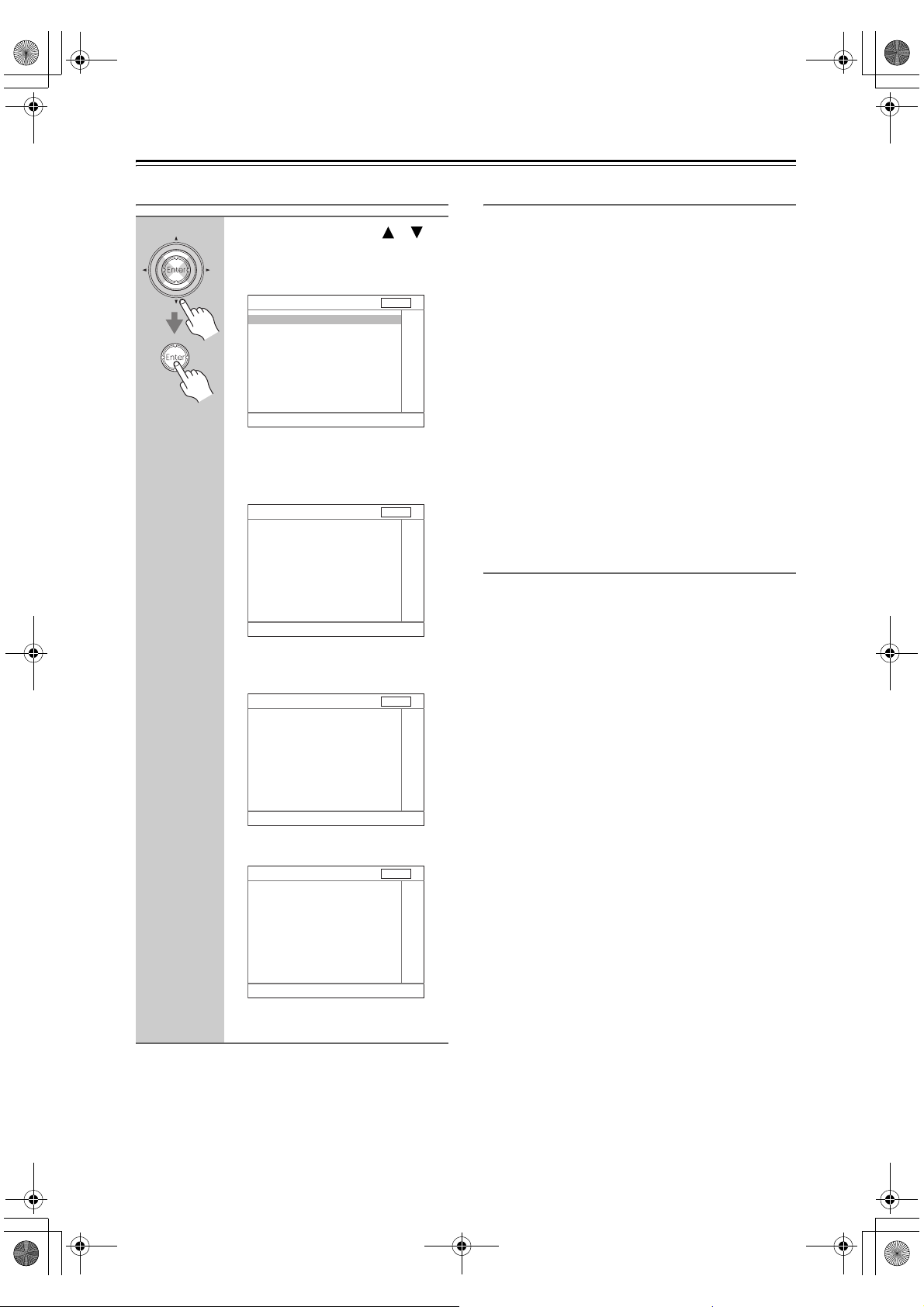

Reviewing the Results Changing the Speaker Settings Manually
Use the Up and Down [ ]/[ ] buttons to select the settings that you want to review, and then press [Enter].
Auto Speaker Setup
Save Review SP Config Review SP Distance Review SP Level Cancel
AUDYSSEY
The options are: Review SP Config:
Review the speaker configuration settings.
Auto Speaker Setup
Review SP Config
Subwoofer : Yes Front : Full Band Center : 80Hz Surround : 100Hz Surr Back : 150Hz Surr Back Ch : 2ch
AUDYSSEY
Review SP Distance:
Review the speaker distance set­tings.
Auto Speaker Setup
Review SP Distance Left : 15.0ft Center : 15.0ft Right : 15.0ft Surr Right : 7.0ft Surr Back R : 7.0ft Surr Back L : 7.0ft Surr Left : 7.0ft Subwoofer : 15.0ft
AUDYSSEY
In some situations, the measurements taken by the auto­matic speaker setup may not provide usable results. If running the speaker setup a second time still doesn’t pro­vide usable results, you’ll have to set the speaker settings manually (see pages 88–94).
Notes:
• Please note that any THX main speakers should be set to Small [80 Hz (THX)]. If you set up your speakers using the Automatic Speaker Setup function, please make sure manually that any THX speakers are set to Small with 80 Hz (THX) crossover (see page 88).
• Sometimes due to the electrical complexities of sub­woofers and the interaction with the room, THX rec­ommends setting the level and the distance of the subwoofer manually.
• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.
Using a Powered Subwoofer
If you’re using a powered subwoofer, because it outputs very low-frequency sound and its position is usually low, it may not be detected by the automatic speaker setup. If the subwoofer (SW) appears on the SP Detect Result screen as “No,” increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running the automatic speaker setup again. Note that if the volume is set too high and the sound dis­torts, it may not be detected, so use an appropriate vol­ume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruc­tion manual for details.
56
Review SP Level:
Review the speaker level settings.
Auto Speaker Setup
Review SP Level Left : +12.0dB Center : 0.0dB Right : -12.0dB Surr Right : +3.0dB Surr Back R : +4.0dB Surr Back L : -6.0dB Surr Left : -3.0dB Subwoofer : 0.0dB
AUDYSSEY
Press the [Return] button to return to the previous menu.
DTR-6.8_En.book Page 57 Wednesday, June 20, 2007 11:53 PM
Basic Operations
Selecting the Input Source
This section explains how to select the input source (i.e., the AV component that you want to listen to or watch).
Multi CH
1
Multi CH
3
1
1
1
Remote
controllerAV receiver
Receiver
or
Use the AV receiver’s input selector buttons to select the input source.
To select the input source with the remote controller, press the [Receiver] button, and then use the Input Selector buttons.
3
2
3
4
AV receiver
Start playback on the source component.
When you select DVD or another video component, on your TV, you’ll need to select the video input that’s connected to the AV receiver’s COMPONENT VIDEO OUT, HDMI OUT or MONITOR OUT. On some DVD players, you may need to turn on the digital audio output.
Remote
controller
or
VOL
To adjust the volume, use the Master Volume control, or the remote controller’s [VOL] button.
The volume can be set to The AV receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment.
Select a listening mode and enjoy!
See “Using the Listening Modes” on page 77.
dB, 81 dB through +17, +18 dB.
57
DTR-6.8_En.book Page 58 Wednesday, June 20, 2007 4:16 PM
Basic Operations—Continued
Using the Multichannel DVD Input
The multichannel DVD input is for connecting a compo­nent with a 7.1-channel analog audio output, such as a DVD-Audio or SACD-capable DVD player, or an MPEG decoder. See page 29 for hookup information.
Press the [Receiver] button, fol­lowed by the [Multi CH] button.
The MULTI CH indicator appears on the display.
MULTI CH indicator
Audio from the multichannel DVD input will now be used for the DVD input source.
Note:
While the multichannel DVD input is selected, the Speaker Configuration settings on page 88 are ignored, and signals from the multichannel input are fed to the speakers as they are.
Adjusting the Bass & Treble
You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.
1
Press the [Tone] button repeat­edly to select either Bass or Treble.
Displaying Source Information
You can display various information about the current input source as follows.
Press the [Receiver] button, and then press the [Display] button repeatedly to cycle through the available information.
Note:
This procedure can also be performed on the AV receiver by using its [Display] button.
The following information can typically be displayed for input sources.
Input source &
volume
Signal format*
or sampling
frequency
Input source & listening mode
*If the input signal is analog, no format information is
displayed. If the input signal is PCM, the sampling fre­quency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.
2
Bass
You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.
Treble
You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.
Use the Tone [–]/[+] buttons to adjust.
58
DTR-6.8_En.book Page 59 Wednesday, June 20, 2007 4:16 PM
Basic Operations—Continued
Press [Receiver] first
Dimmer
Setting the Display Brightness
Sleep
Muting
Using the Sleep Timer
With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.
Press the [Receiver] button, and then press the [Sleep] button repeatedly to select the required sleep time.
The sleep time can be set from 90 to 10 minutes in 10 minute steps.
The SLEEP indicator appears on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.
You can adjust the brightness of the display.
Press the [Receiver] button, and then press the [Dimmer] button repeatedly to select: Normal, Dim, or Dimmer.
Alternatively, you can use the AV receiver’s [Dimmer] button.
Muting the AV receiver
You can temporarily mute the output of the AV receiver.
Press the [Receiver] button, and then press the [Muting] button.
The output is muted and the MUTING indicator flashes on the display, as shown.
To unmute the AV receiver, press the [Muting] button again, or adjust the volume. The Mute function is cancelled when the AV receiver is set to Standby.
Tip:
You can specify how much the output is muted with the Muting Level setting (see page 103).
If you need to cancel the sleep timer, press the [Sleep] button repeatedly until the SLEEP indicator disappears.
To check the time remaining until the AV receiver sleeps, press the [Sleep] button. Note that if you press the [Sleep] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.
Using Headphones
You can connect a pair of stereo headphones (1/4-inch phone plug) to the AV receiver’s Phones jack for private listening, as shown.
Notes:
• Always turn down the volume before connecting your headphones.
• The speakers are turned off while the headphones plug is inserted in the Phones jack (Zone 2 speakers are not turned off).
• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono or Direct.
• Only the Stereo, Direct, and Mono listening modes can be used with headphones (the listening modes available also depend on the currently selected input source).
• When the multichannel input is used, only the front left and right audio can be heard in the headphones.
• To adjust the headphone level, press the [CH Sel] but­ton on the remote controller, and then press the [Level +]/[Level -] buttons. You can adjust the level between –12 dB and +12 dB.
59
DTR-6.8_En.book Page 60 Wednesday, June 20, 2007 4:16 PM

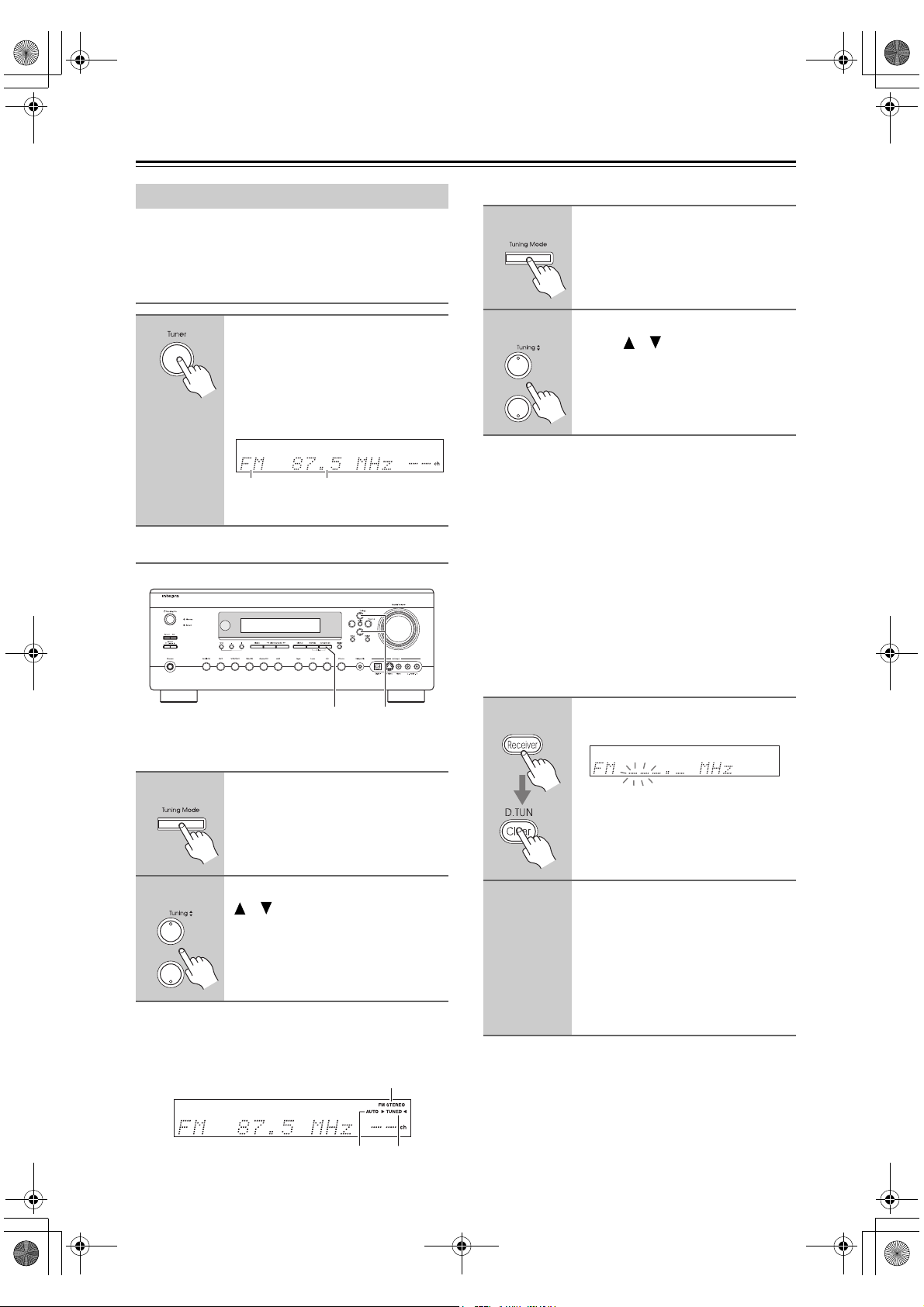

Listening to the Radio
Using the Tuner
With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.
Listening to the Radio
Use the [Tuner] input selector button to select either AM or FM.
In this example, FM has been selected. Each time you press the [Tuner] button,
the input source changes between AM and FM.
Band Frequency
(Actual display depends on country)
Tuning into Radio Stations
Manual Tuning Mode
1
2
The North American models change FM frequency in
0.2 MHz steps, 10 kHz steps for AM. For other models it’s 0.05 MHz steps for FM and 9 kHz steps for AM. In Manual Tuning mode, FM stations will be in mono.
Tuning into weak FM stereo stations
If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to
Manual Tuning mode and listen to the station in mono.
Press the [Tuning Mode] button so that the AUTO indicator disap­pears from the display.
Press and hold the Tuning Up or Down [ ]/[ ] buttons.
The frequency stops changing when you release the button. Press the buttons repeatedly to change the frequency one step at a time.
1
Auto Tuning Mode
1
2
When tuned into a station, the TUNED indicator appears. When tuned into a stereo FM station, the FM STEREO indicator appears on the display, as shown.
Press the [Tuning Mode] button so that the AUTO indicator appears on the display.
Press the Tuning Up or Down [ ]/[ ] buttons.
Searching stops when a station is found.
2
FM STEREO
Tuning into Stations by Frequency
You can tune into AM and FM stations directly by enter­ing the appropriate frequency.
1
2
Press the [Receiver] button, fol­lowed by the [D. TUN] button.
(Actual display depends on country.) The [Receiver] button flashes.
Within 8 seconds, use the num­ber buttons to enter the fre­quency of the radio station.
For example, to tune to 87.5 (FM), press 8, 7, 5. Note: While the [Receiver] button is flashing, the input source cannot be changed by using the remote controller.
60
AUTO
TUNED
DTR-6.8_En.book Page 61 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Listening to XM Satellite Radio
®
(North American Models Only)
Important XM Radio Information
XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. XM is broadcast in superior digital audio from coast to coast. From rock to reg­gae, from classical to hip hop, XM has something for every music fan. XM’s dedication to playing the richest selection of music is matched by its passion for live sporting events, talk radio, up-to-the-minute news, stand-up comedy, children’s programming, and much more. For U.S. customers, information about XM Satellite Radio is available online at www.xmradio.com. For Canadian customers, infor­mation about XM Canada is online at www.xmradio.ca.
Note:
Hardware and required monthly subscription sold sepa­rately. Other fees and taxes, including a one-time activa­tion fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receiv­ers by calling 1-800-XMRADIO (US residents) and 1-877-GET-XMSR (Canadian residents).
For a full listing of the XM commercial-free channels and advertising-supported channels, visit lineup.xmradio.com (US residents) or xmradio.ca (Canadian residents). Subscriptions subject to Customer Agreement available at xmradio.com (US residents) and xmradio.ca (Cana­dian residents). Only available in the 48 contiguous United States and Canada. ©2007 XM Satellite Radio Inc. All rights reserved. All other trademarks are the property of their respective owners.
A warning against reverse engineering:
It is prohibited to, and you agree that you will not, copy, decompile, disassemble, reverse engineer, hack, manip­ulate, or otherwise access and/or make available any technology incorporated in receivers compatible with the XM Satellite Radio system. Furthermore, the
®
AMBE product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The software is licensed solely for use within this product. The user of this or any other software contained in an XM Radio is explicitly prohibited from attempting to copy, decompile, reverse engineer, hack, manipulate or disassemble the object code, or in any other way convert the object code into human-readable form.
voice compression software included in this
Connecting the XM Mini-Tuner and Home Dock
To receive XM Satellite Radio, you need an XM Mini­Tuner and Home Dock, which includes a home antenna. These are sold separately. For connection information, refer to the instruction manual supplied with the XM Mini-Tuner and Home Dock.
XM Mini-Tuner jack
61
DTR-6.8_En.book Page 62 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
/ Enter
Tuner Setup
Setting the Satellite Radio Mode
Before you can listen to XM Satellite Radio, you must set the Satellite Radio mode to XM.
1
2
On the AV receiver, press the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “7. Hardware Setup,” and then press [Enter].
The Hardware Setup menu appears.
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
4
Use the Left and Right [ ]/[ ] buttons to select “XM.”
Pressing the Left and Right [ ]/[ ] buttons cycles through the following SAT options: None XM SIRIUS
XM/SIRIUS
None: Select if you’re not using
Satellite Radio.
XM: Select to use XM Satellite
Radio.
SIRIUS: Select to use SIRIUS Satel-
lite Radio.
XM/SIRIUS: Select to use XM Satel-
lite Radio and SIRIUS Sat­ellite Radio.
5
Press the [Setup] button.
The setup menu closes.
Selecting XM Satellite Radio
1
Press the [Tuner] input selector button repeatedly to select XM.
If “CHECK XM TUNER” appears on the display, make sure the XM Mini­Tuner is connected properly.
62
3
Use the Up and Down [ ]/[ ] buttons to select “3. Tuner,” and then press [Enter].
The Tuner menu appears.
7–3. Tuner
Satellite Radio None
Signing Up for XM Satellite Radio
Once you have installed the XM Mini-Tuner and Home Dock, you are ready to subscribe to XM Satellite Radio.
You’ll need a major credit card and your XM Radio ID. There are three places you can find your 8-character XM Radio ID:
1. On the XM Mini-Tuner
2. On the XM Mini-Tuner packaging
3. On XM Channel 0, as explained below
1
2
Use the Tuning Up and Down [ ]/ [ ] buttons to select RADIO ID.
Your XM Radio ID number is dis­played. Write it below for reference.
ID
To sign up, go to: http://activate.xmradio.com
Or call: 1-800-967-2346 For XM Canada, go to:
http://xmradio.ca Or call: 1-877-438-9677
r
DTR-6.8_En.book Page 63 Wednesday, June 20, 2007 11:53 PM
Listening to the Radio—Continued
Notes:
RADIO ID cannot be selected in Category Search mode. You must select Channel Search mode (see below).
• The following letters are not used in XM Satellite Radio IDs: I, O, S, F.
• XM Satellite Radio will transmit a special signal to your AV receiver to activate the full channel lineup. Activation normally takes between 10 and 15 minutes, but during busy peak periods, you may need to leave the AV receiver turned on for up to an hour.
Selecting XM Radio Channels
There are three ways to select XM radio channels:
Channel Search mode: select any channel.
Category Search mode: select channels by category.
Direct tuning: enter channel number.
Note:
You cannot select Channel Search or Category Search mode while the Tuning Arrow indicators are flashing, as tuning is in progress.
Number
buttons
D.TUN
Category Search Mode
1
2
Direct Tuning
You can select an XM radio channel directly by entering its number.
1
Press the [Receiver] button, fol­lowed by the [Enter] button to select “Category Search” mode.
Use the Left and Right [ ]/[ ] buttons to select a category, and
use the Up and Down [ ]/[ ] buttons to select a channel in that category.
Press the [Receiver] button, fol­lowed by the [D. TUN] button.
The [Receiver] button flashes.
Channel Search Mode
1
2
Press the [Receiver] button, fol­lowed by the [Enter] button to select “Channel Search” mode.
Use the Up and Down [ ]/[ ] buttons to select a channel.
You can also use the Left and Right [ ]/[ ] buttons to select a category.
Channel nameChannel number
Receive
Enter
2
Within 8 seconds, use the num­ber buttons to enter the channel number.
The channel is selected. For example, to select channel #20, press 0, 2, 0, or 2, 0, [Enter].
Note: While the [Receiver] button is flashing, the input source cannot be changed by using the remote controller.
63
DTR-6.8_En.book Page 64 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Tuning / Preset
Enter
Selecting the Previous Channel:
1
AV receiver
controller
Remote
To listen to the previously selected XM channel, press the [Return] button.
Memory
Tuning Mode
CH + / –
Display
Selecting XM Channels from the Front Panel:
1
Press the [Tuning Mode] button to select “Channel Search” or
Return
Display
Return
“Category Search” mode.
Displaying XM Radio Information
1
AV receiver
Remote
controller
The following information can be displayed:
Channel name
Channel number & preset number
Press the [Display] button repeatedly to cycle through the available information.
64
2
3
Press [Enter] repeatedly to select a category.
Use the Tuning Up and Down [ ]/[ ] buttons to select a chan-
nel.
In Channel Search mode, you can select any channel. In Category Search mode, you can only select channels from the currently selected category.
Category
Artist
Song title
Listening mode
Note:
If the category, artist, or song title is not available, “- - -” will be displayed instead.
DTR-6.8_En.book Page 65 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Tuning / Enter
Setup
Positioning the XM Mini-Tuner System
You can check the signal strength of the XM radio signal and adjust the position of the XM Mini-Tuner System accordingly.
1
2
On the AV receiver, press the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
4. Satellite Radio
TUNER
3
Use the Up and Down [ ]/[ ] buttons to select “4. Satellite Radio,” and then press [Enter].
The Satellite Radio menu appears.
4-4. Satellite Radio
XM Antenna Aiming
Satellite Terrestrial
Adjust the position of the XM Mini-Tuner Antenna so that the SAT/TER signal strength bar is as long as possible.
The best signal is achieved when the antenna is pointing to the southern sky through an unobstructed window.
Terrestrial (TER) signals are only avail­able in certain areas.
So long as the signal strength is good, you can enjoy XM Radio by using either satellite or terrestrial reception.
Notes:
• The XM information is only displayed when the Sat­ellite Radio mode is set to XM or XM/SIRIUS (see page 62).
• If you’re using both XM Satellite Radio and SIRIUS Satellite Radio and the Satellite mode is set to XM/ SIRIUS (see page 62), signal strength meters for both systems appear on the same screen.
Note:
If the Satellite Radio mode is set to None (see page 62), the “4. Satellite Radio” item is not available.
65
DTR-6.8_En.book Page 66 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
XM Radio Messages
The following messages may appear while using XM radio.
CHECK ANTENNA
The XM antenna is not properly connected to the Mini-Tuner Dock. Check the connection. Check the antenna cable for damage.
UPDATING
XM is updating your Mini-Tuner with the latest encryption code. Simply wait a few seconds until the update is done. Alternatively, you may be attempting to tune to a channel that is blocked or that you cannot receive with your subscription package. To receive that channel, contact XM Satellite Radio.
NO SIGNAL
The XM Mini-Tuner can not receive the satellite sig­nal. Check the XM antenna for obstructions to the southern sky. Check the antenna positioning with the Antenna Aiming feature. (see page 65)
LOADING
nected and you see this message, turn off the AV receiver, make sure the XM Mini-Tuner is properly seated in the Mini-Tuner Dock, and then turn the AV receiver back on again. If the message reappears, contact XM Listener Care and explain the issue that you’re experiencing and the corrective actions you’ve tried.
CHECK XM TUNER
The AV receiver is having difficulty communicating with the XM Mini-Tuner module. Make sure the XM Mini-Tuner is properly seated in the Mini-Tuner Dock. And make sure the Mini-Tuner Dock cable is properly connected to the AV receiver and is not damaged. If the issue persists, contact XM Listener Care. Have the AV receiver’s model name ready beforehand, and explain the issue that you’re experi­encing and the corrective actions you’ve tried.
Unavailable Channel
You may be attempting to select a channel that is unavailable or has changed to a different channel number. Check xmradio.com for the latest channel listing.
The AV receiver is tuning or decoding audio or text data. Please wait. If this occurs often, check the XM antenna position with the Antenna Aiming feature. (see page 65)
OFF AIR
The XM channel you selected is not currently broad­casting. Select another channel.
UPGRADE XM TUNER
The connected XM CNP-1000 is incompatible. The AV receiver features advanced technology that is designed for use with the XM Mini-Tuner. Contact XM Listener Care and ask about upgrading your XM CNP-1000 to an XM Mini-Tuner. Have the AV receiver’s model name and CNP-1000 XM ID num­ber ready beforehand, and explain that the AV receiver is displaying the message “Upgrade XM Tuner.” If you already have an XM Mini-Tuner con-
66
XM Listener Care phone number:
US: 1-800-967-2346
Canada: 1-877-438-9677
DTR-6.8_En.book Page 67 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Listening to SIRIUS Satellite Radio
®
(North American Models Only)
Important SIRIUS Satellite Radio Information SIRIUS is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. To Get SIRIUS Satellite Radio a subscription and compatible tuner and antenna are required and sold separately. Visit sirius.com for the most complete and up-to-date channel lineup and information. “SIRIUS” and the SIRIUS dog logo and related marks are trademarks of SIRIUS Satellite Radio Inc.
Note:
Hardware and required basic monthly subscription sold separately. Installation costs and other fees and taxes, including a one-time activation fee may apply. Subscrip­tion fee is consumer only. All fees and programming subject to change.
What is SIRIUS Satellite Radio?
Simply The Best Radio on Radio™ with all your favorite entertainment including 100% commercial-free music, plus superior sports coverage, uncensored talk and com­edy, world-class entertainment, news, weather and more for your car, home or office. For more information visit sirius.com or siriuscanada.ca
A warning against reverse engineering:
It is prohibited to copy, decompile, disassemble, reverse engineer, or manipulate any technology incorporated in receivers compatible with the SIRIUS Satellite Radio system.
Setting Up the SiriusConnect™ Home Tune r
The optional SiriusConnect Home tuner kit includes everything for easy home installation, including the Sir­iusConnect receiver, indoor/outdoor antenna with 21­foot cable, 8-pin mini DIN connector cable, and an AC power adapter. See the SiriusConnect Home tuner’s instructions for more information.
Use the 8-pin mini DIN connector cable to connect the SiriusConnect receiver to the SIRIUS jack on the rear of the AV receiver.
Indoor/outdoor antenna with 21 foot cable
SiriusConnect
receiver
8-pin mini DIN connector cable
SIRIUS
jack
AV receiver
To use the included antenna indoors, you must place it at a north-, west-, or east-facing window, depending on where you live. If this isn’t possible, you’ll need to install it outside, away from any overhead obstructions.
AC power
“SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.
67
DTR-6.8_En.book Page 68 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Positioning the Antenna
For a consistent satellite signal, the antenna must be positioned correctly. Use the following map to determine which area you are in and position the antenna accord­ingly.
SKY
NORTH
1
WEST EAST
5
2
SOUTH
4
3
HORIZON
Area 1: Point the antenna toward the sky in the east, northeast, or southeast, either through a window or out-
side.
Area 2: Point the antenna toward the sky in the north or northeast, either through a window or outside.
Area 3: Point the antenna toward the sky in the north or northwest, either through a window or outside.
Area 4: Point the antenna toward the sky in the west, northwest, or southwest, either through a window or
outside. Area 5: Put the antenna outside and point it straight up. The antenna cannot be used indoors.
/ Enter
Tuner Setup
Setting the Satellite Radio Mode
1
On the AV receiver, press the [Setup] button.
The main menu appears onscreen.
2
3
4
5
Use the Up and Down [ ]/[ ] buttons to select “7. Hardware Setup,” and then press [Enter].
The Hardware Setup menu appears.
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
Use the Up and Down [ ]/[ ] buttons to select “3. Tuner,” and then press [Enter].
The Tuner menu appears.
7–3. Tuner
Satellite Radio None
Use the Left and Right [ ]/[ ] buttons to select “SIRIUS,”
Pressing the Left and Right [ ]/[ ] buttons cycles through the following SAT options: None XM SIRIUS
XM/SIRIUS
None: Select if you’re not using
satellite radio.
XM: Select to use XM satellite
radio.
SIRIUS: Select to use SIRIUS Satel-
lite Radio.
XM/SIRIUS:Select to use XM Satel-
lite Radio and SIRIUS Sat­ellite Radio.
Press the [Setup] button.
The setup menu closes.
68
r
DTR-6.8_En.book Page 69 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Selecting SIRIUS Satellite Radio
1
Press the [Tuner] input selector button repeatedly to select “SIRIUS.”
If “CHECK SR TUNER” appears on the display, make sure the SiriusCon­nect receiver is connected properly. If “ANTENNA ERROR” appears, make sure the antenna is connected properly.
Signing Up for SIRIUS Satellite Radio
Before you can use SIRIUS Satellite Radio, you must first sign up for an account. You’ll need a major credit card and your SIRIUS Satellite Radio ID, which you can get from the AV receiver, as explained below, or from the SiriusConnect Home tuner package.
1
2
Use the Tuning Up and Down [ ]/ [ ] buttons to select channel 0.
Your SIRIUS Satellite Radio ID num­ber is displayed. Write it below.
ID
To sign up, go to: http://activate.siriusradio.com
Or call: 1-888-539-SIRIUS (7474)
Selecting SIRIUS Satellite Radio Channels
There are three ways to select SIRIUS Satellite Radio channels:
Channel Search mode: select any channel.
Category Search mode: select channels by category.
Direct tuning: enter channel number.
Number
buttons
D.TUN
Receive
Enter
Channel Search Mode
1
Press the [Receiver] button, fol­lowed by the [Enter] button to select “Channel Search” mode.
Note:
Another way to check your ID is to press the [Setup] but­ton. Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter]. Use the Up and Down [ ]/[ ] buttons to select “3. SAT Radio,” and then press [Enter]. Use the Up and Down [ ]/[ ] buttons to select “SiriusID,” and then press [Enter]. Press the [Setup] button when you’ve finished.
2
Use the Up and Down [ ]/[ ] buttons to select a channel.
Channel nameChannel number
You can also use the Left and Right [ ]/[ ] buttons to select a category.
69
DTR-6.8_En.book Page 70 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Category Search Mode
1
2
Direct Tuning
You can select a SIRIUS Satellite Radio channel directly by entering its number.
1
Press the [Receiver] button, fol­lowed by the [Enter] button to select “Category Search” mode.
Use the Left and Right [ ]/[ ] buttons to select a category, and
use the Up and Down [ ]/[ ] buttons to select a channel in that category.
Press the [Receiver] button, fol­lowed by the [D. TUN] button.
The [Receiver] button flashes.
Number
buttons
CH + / –
Memory
Enter
Display
Tuning Mode
Tuning / Preset
Return
D.TUN
Enter
2
Notes:
• If you select an unavailable channel, “INVALID CHANNEL” appears on the display.
• If you select a channel that you are not subscribed to, “CALL SIRIUS” appears on the display.
• If you select a channel that is locked, you’ll need to enter your 4-digit PIN number to listen to that channel. See “Parental Lock” on page 71 for more information.
Within 8 seconds, use the num­ber buttons to enter the channel number.
The channel is selected. For example, to select channel #20, press 0, 2, 0, or 2, 0, [Enter].
Note: While the [Receiver] button is flashing,
the input source cannot be changed by using the remote controller.
Setup
Selecting SIRIUS Satellite Radio Channels from the Front Panel:
1
2
3
Press the [Tuning Mode] button to select “Channel Search” or “Category Search” mode.
Press [Enter] repeatedly to select a category.
Use the Tuning Up and Down [ ]/ [ ] buttons to select a channel.
In Channel Search mode, you can select any channel.
In Category Search mode, you can only select channels from the currently selected category.
Return
70
DTR-6.8_En.book Page 71 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Selecting the Previous Channel:
1
AV receiver
To listen to the previously selected SIRIUS Satellite Radio channel, press the [Return] but­ton.
Remote
controller
Parental Lock
You can lock out channels that you do not want to receive.
1
2
Remote
controller
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
4. Satellite Radio
5. SIRIUS Parental Lock
TUNER
3
Note:
If the Satellite Radio mode is set to None or XM (see page 68), the “5. SIR­IUS Parental Lock” item is not avail­able.
Use the Up and Down [ ]/[ ] buttons to select “5. SIRIUS Parental Lock,” and then press [Enter].
The Enter Code screen appears.
4-5. SIRIUS Parental Lock
Enter Code
0 123456789
“Enter : <0>” appears on the display.
71
DTR-6.8_En.book Page 72 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
4
Press the [D. TUN] button, and then use the number buttons to enter the PIN number.
Or
Use the Left and Right [ ]/[ ] buttons to select the number, and then press [Enter]. Repeat this for each digit in the PIN number.
If you enter the wrong PIN number, “Wrong Code!” appears on the display. You’ll be returned to step 3, and will need to start again.
The SIRIUS Parental Lock menu appears.
4-5. SIRIUS Parental Lock
Edit Code Parental Lock
7
8
Press the Left and Right [ ]/[ ] buttons to select “Locked,” and then press [Enter].
4-5. SIRIUS Parental Lock
Parental Lock
Channel
50 ch Hot Jamz Locked
: CHANNEL : STATUS
ENT RET
Status
: SAVE : RETURN
An asterisk appears next to the name, as shown below.
Asterisk
Press the [Enter] button.
The message “Locked” will appear on the display.
Press the [Setup] button.
The setup menu closes.
5
6
Use the Up and Down [ ]/[ ] buttons to select “Parental Lock,” and then press [Enter].
The Parental Lock menu appears.
4-5. SIRIUS Parental Lock
Parental Lock
Channel
0 ch - - -
: CHANNEL : STATUS
ENT RET
Status
: SAVE : RETURN
Use the Up and Down [ ]/[ ] buttons to select the channel that you want to lock out, for exam­ple:
To unlock a previously locked channel, select the locked channel (see step 6), press the Left and Right [ ]/[ ] buttons so that the asterisk disappears (see step
7), and then press [Enter]. The message “Unlocked” will appear on the display.
72
DTR-6.8_En.book Page 73 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Changing the PIN Number
1
2
3
Remote
controller
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
4. Satellite Radio
5. SIRIUS Parental Lock
Note:
If the Satellite Radio mode is set to None or XM (see page 68), the “5. SIR­IUS Parental Lock” item is not avail­able.
Use the Up and Down [ ]/[ ] buttons to select “5. SIRIUS Parental Lock,” and then press [Enter].
The Enter Code screen appears.
4-5. SIRIUS Parental Lock
Enter Code
0 123456789
TUNER
4
5
6
Press the [D. TUN] button, and then use the number buttons to enter the PIN number.
If you enter the wrong PIN number, “Wrong Code!” appears on the display. You’ll be returned to step 3, and will need to start again.
The SIRIUS Parental Lock menu appears.
4-5. SIRIUS Parental Lock
Edit Code Parental Lock
Use the Up and Down [ ]/[ ] buttons to select “Edit Code,” and then press [Enter].
The New Code screen appears.
4-5. SIRIUS Parental Lock
Edit Code
New Code
“New : <0>” appears on the display.
Press the [D. TUN] button, and then use the number buttons to enter the new PIN number.
The Confirm screen appears.
4-5. SIRIUS Parental Lock
Edit Code
“Enter : <0>” appears on the display.
Confirm
“Confirm : <0>” appears on the dis­play.
73
DTR-6.8_En.book Page 74 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
7
Enter the new PIN number again.
If you enter the wrong PIN number, “Wrong Code!” appears on the display. You’ll be returned to step 4, and will need to start again.
8
Press the [Setup] button.
The setup menu closes.
Displaying SIRIUS Satellite Radio Information
Display
Note:
• If the category, artist/composer, or song title is not available, “- - -” will be displayed instead.
• This procedure can also be performed on the AV receiver by using its [Display] button.
Positioning the SiriusConnect Home antenna
You can check the strength of the SIRIUS Satellite Radio signal and adjust the position of the SiriusConnect Home antenna accordingly.
Tuning / Enter
Setup
1
On the AV receiver, press the [Setup] button.
The main menu appears onscreen.
1
Remote
controller
Press the [Display] button repeatedly to cycle through the available information.
The following information can be displayed:
Channel name
Channel number & preset number
Category
Artist/composer
Song title
2
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
4. Satellite Radio
5. SIRIUS Parental Lock
TUNER
Note:
If the Satellite Radio mode is set to None (see page 68), the “4. Satellite Radio” item is not available.
74
Listening mode
DTR-6.8_En.book Page 75 Wednesday, June 20, 2007 11:54 PM
Listening to the Radio—Continued
3
Use the Up and Down [ ]/[ ] buttons to select “4. Satellite Radio,” and then press [Enter].
The Satellite Radio menu appears.
4-4. Satellite Radio
SIRIUS Antenna Aiming
Satellite Terrestrial
SIRIUS ID
- - - - - - - - - - - -
Adjust the position of the Sirius­Connect Home antenna so that the SAT/TER signal strength bar is as long as possible.
Terrestrial (TER) signals are only avail- able in certain areas. So long as the signal strength is good, you can enjoy SIRIUS Satellite Radio by using either satellite or terrestrial reception.
Notes:
• The SIRIUS information on the Satellite Radio screen is only displayed when the Satellite Radio mode is set to SIRIUS or XM/SIRIUS (see page 68).
• If you’re using both XM Satellite Radio and SIRIUS Satellite Radio and the Satellite mode is set to XM/ SIRIUS (see page 68), signal strength meters for both systems appear on the same screen.
SIRIUS Satellite Radio Messages
The following messages may appear while using SIR­IUS Satellite Radio.
ACQUIRING
The SiriusConnect receiver is acquiring the signal or no signal is present. Make sure the SiriusConnect Home tuner is connected properly and that there are no obstacles close by.
ANTENNA ERROR
Make sure the SiriusConnect Home tuner is con­nected properly.
SUB UPDATED
Displayed while your subscription is being updated. No operations can be performed until this message has cleared.
UPDATING XXX%
Displayed while the channel map is being updated. Wait until the updating is complete.
UPDATING
Displayed while the SiriusConnect receiver’s firm­ware is being updated.
INVALID CHANNEL
Displayed if you select an unavailable channel.
CALL SIRIUS
Displayed when you select a channel to which you are not subscribed. Call SIRIUS if you want to sub­scribe.
CHECK SR TUNER
Displayed if the SiriusConnect receiver is not con­nected. Make sure the SiriusConnect receiver is con­nected properly, and make sure its AC adapter is plugged in.
75
DTR-6.8_En.book Page 76 Wednesday, June 20, 2007 4:16 PM
Listening to the Radio—Continued
Presetting AM, FM, XM, and SIRIUS Stations
2, 4
You can store a combination of up to 40 of your favorite AM, FM, XM, and SIRIUS radio stations as presets.
1
2
3
Tune into the AM, FM, XM, and SIRIUS station that you want to store as a preset.
Press the [Memory] button.
The preset number flashes.
While the preset number is flash­ing (about 8 seconds), use the Preset [ ]/[ ] buttons to select a preset from 1 through 40.
3
Selecting Presets
Preset
CH +/-
To select a preset, use the Preset [ ]/[ ] buttons, or the remote controller’s CH [+/–] button.
+
4
Press the [Memory] button again to store the station or channel.
The station or channel is stored and the preset number stops flashing.
Repeat this procedure for all of your favorite AM, FM, XM, and SIRIUS radio stations.
-
Deleting Presets
1
2
Select the preset that you want to delete.
See the previous section.
While holding down the [Mem­ory] button, press the [Tuning Mode] button.
The preset is deleted and its number disappears from the display.
2
76
T
DTR-6.8_En.book Page 77 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes
Selecting Listening Modes
See “About the Listening Modes” on page 82 for detailed information about the listening modes.
• The Dolby Digital and DTS listening modes
can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial or optical).
• Listening mode availability depends on the
format of the current input signal.
Selecting on the AV receiver
Stereo
Listening Mode
[Stereo] button
This button selects the Stereo listening mode.
Listening Mode [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all of the listening modes that can be used with the cur­rent input source.
Selecting with the Remote Controller
Surround
Stereo
Direct
[Stereo] button
This button selects the Stereo listening mode.
[Surround] button
This button selects the Dolby Digital and DTS listen­ing modes and the Neural THX Surround listening mode.
Listening Mode [ ]/[ ] buttons
Pressing these buttons repeatedly cycles through all of the listening modes that can be used with the cur­rent input source.
[Direct] button
This button selects the Direct listening mode.
[THX] button
This button selects the THX listening modes.
[All ST] button
This button selects the All Channel Stereo listening mode.
/
All S
THX
77
DTR-6.8_En.book Page 78 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
Listening Modes Available for Each Source Format
Analog and PCM Sources
: Can be selected.
PCM
Source format
Button
[Direct] Direct
[Stereo] Stereo
*1. DVD-Audio discs output multichannel 176.4/192 kHz PCM only via HDMI. *2. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *3. Available only when using surround speakers. *4. For T-D, Mono Movie, Orchestra, Unplugged, Studio-Mix, and TV Logic, PCM of 64 kHz, 88.2 kHz, and 96 kHz are processed at 32 kHz, 44.1 kHz,
Listening Mode
Multichannel Dolby D Dolby D Plus DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio Dolby TrueHD DSD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/
[Surround]
Dolby PLIIx Music*2 Dolby PLII Game/
Dolby PLIIx Game*2 Dolby Digital EX/Dolby EX
Neo:6
Neo:6 Cinema
Neo:6 Music
Neural THX 5.1
Neural THX 7.1
THX Cinema Dolby PLII/
Dolby PLIIx THX*3 Neo:6 THX*3 Dolby PLII THX Games
Mode
[THX]
Neo:6 THX Games Mode
THX Surround EX
THX Select2 Cinema
THX Music Mode
THX Games Mode
Mono
*4
[]/[]
Listening Mode
and 48 kHz respectively.
Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.
Requires 7.1 speakers. Not available while Powered Zone 2 is being used.
Mono Movie Orchestra Unplugged Studio-Mix TV Logic
Onkyo
All Ch Stereo
Original DSP
Full Mono T- D
*2
*3
Media
*3
32–96
kHz
176.4/
192kHz*1
CD, TV, radio, DVD DVD DVD
✔✔✔ ✔✔✔✔ ✔ ✔ ✔✔ ✔✔✔✔ ✔ ✔
✔✔
✔✔ ✔✔ ✔✔ ✔
*2
*3
✔✔
✔✔
Multi
channel
analog
except */2 */2 2ch 1/0, 1+1 Multichannel 2ch
✔✔✔
✔✔
Multichannel PCM
32–96 kHz
✔ ✔
✔ ✔ ✔ ✔
176.4/192 kHz
*1
78
DTR-6.8_En.book Page 79 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
DSD, Dolby Digital, and Dolby Digital Plus Sources
*1
DSD
Source format
Button
[Direct] Direct
[Stereo] Stereo
[THX]
*1. DSD sources are converted and handled as PCM. *2. If there are no surround back speakers, depending on the input signal, Dolby Digital may be used. *3. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *4. Available only when using surround speakers.
Listening Mode
Multichannel
Dolby D
Dolby D Plus
DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio Dolby TrueHD
DSD
Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/
[Surround]
Dolby PLIIx Music*3 Dolby PLII Game/
Dolby PLIIx Game*3
Dolby Digital EX/Dolby EX
Neo:6
Neo:6 Cinema
Neo:6 Music
Neural THX 5.1
Neural THX 7.1
THX Cinema Dolby PLII/
Dolby PLIIx THX
Neo:6 THX
Dolby PLII THX Games Mode
Neo:6 THX Games Mode
THX Surround EX
THX Select2 Cinema
THX Music Mode
THX Games Mode
Mono
Mono Movie Orchestra Unplugged
[]/[]
Listening Mode
Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.
Requires 7.1 speakers. Not available while Powered Zone 2 is being used.
Studio-Mix TV Logic
Onkyo
All Ch Stereo
Original DSP
Full Mono T- D
*3
*4
*4
Multichannel Multichannel
3/2 2ch
Media
SACD DVD, DTV, etc. Blu-ray, HD DVD
✔✔✔✔✔ ✔✔✔✔✔
✔✔✔✔✔ ✔✔✔✔✔
except
*/2
✔✔
✔✔ ✔✔
✔✔✔✔✔✔✔✔
✔✔✔✔✔✔✔✔
Dolby D Dolby Digital Plus
*/2
: Can be selected.
2ch 1/0, 1+1
Multichannel
except
*/2
*2
*/2
*2
2ch 1/0, 1+1
✔✔
✔✔
✔✔
✔✔
79
DTR-6.8_En.book Page 80 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
TrueHD and DTS Sources
*1
Tru eH D
Source format
Media
Button
[Direct] Direct
[Stereo] Stereo
[THX]
*1. For 96 kHz TrueHD sources, only the Tone audio adjust function is available. 192 kHz TrueHD sources are not supported. *2. If there are no surround back speakers, or Powered Zone 2 is being used, DTS is used. *3. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *4. Available only when using surround speakers. *5. For T-D, Mono Movie, Orchestra, Unplugged, Studio-Mix, and TV Logic, DTS 96/24 is processed as DTS.
Listening Mode
Multichannel
Dolby D
Dolby D Plus
DTS, DTS 96/24
DTS-ES Discrete/Matrix
DTS-HD High Resolution DTS-HD Master Audio
Tru eH D
DSD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/
[Surround]
Dolby PLIIx Music*3 Dolby PLII Game/
Dolby PLIIx Game*3
Dolby Digital EX/Dolby EX
Neo:6
Neo:6 Cinema
Neo:6 Music
Neural THX 5.1
Neural THX 7.1
THX Cinema Dolby PLII/
Dolby PLIIx THX
Neo:6 THX
Dolby PLII THX Games Mode
Neo:6 THX Games Mode
THX Surround EX
THX Select2 Cinema
THX Music Mode
THX Games Mode
Mono
*5
[]/[]
Listening Mode
Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.
Requires 7.1 speakers. Not available while Powered Zone 2 is being used.
Mono Movie Orchestra Unplugged Studio-Mix TV Logic
Onkyo
All Ch Stereo
Original DSP
Full Mono T- D
*3
*4
*4
Multichannel
except */
2
*/2
Blu-ray, HD DVD DVD, CD, etc.
2ch 1/0, 1+1
✔✔✔✔✔✔✔✔ ✔
✔✔✔✔✔✔✔✔ ✔
✔✔
✔✔
✔✔
✔✔
✔✔
✔✔ ✔✔
✔✔✔✔✔✔✔✔ ✔
Multichannel
except */
2
✔✔
✔✔✔✔ ✔
DTS, DTS96/24
2ch 1/0
*/2
: Can be selected.
DTS-ES
Discrete/
Matrix
*2
80
DTR-6.8_En.book Page 81 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
DTS-HD Sources
: Can be selected.
DTS-HD High Resolution
Source format
Media
Button
[Direct] Direct
[Stereo] Stereo
*1. For 96 kHz DTS-HD Master Audio sources, only the Tone audio adjust function is available. 192 kHz DTS-HD Master Audio sources are processed
*2. If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used. *3. Depending on the source (e.g., 96 kHz sources), processing may be performed after DTS decoding. *4. Available only when using surround speakers.
Listening Mode
Multichannel
Dolby D
Dolby D Plus
DTS, DTS 96/24
DTS-ES Discrete/Matrix
DTS-HD High Resolution
DTS-HD Master Audio
Tru eH D
DSD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/
[Surround]
Dolby PLIIx Music*2 Dolby PLII Game/
Dolby PLIIx Game*2
Dolby Digital EX/Dolby EX
Neo:6
Neo:6 Cinema
Neo:6 Music
Neural THX 5.1
Neural THX 7.1
THX Cinema*2
Dolby PLII/ Dolby PLIIx THX
Neo:6 THX
Dolby PLII THX Games Mode
[THX]
Neo:6 THX Games Mode
THX Surround EX
THX Select2 Cinema
THX Music Mode
THX Games Mode
Mono
Mono Movie Orchestra
Unplugged
[]/[]
Listening Mode
at 96 kHz.
Requires 6.1/7.1 speakers. Not available while Powered Zone 2 is being used.
Requires 7.1 speakers. Not available while Powered Zone 2 is being used.
Studio-Mix TV Logic
Onkyo
All Ch Stereo
Original DSP
Full Mono T- D
*2
*4
Multichannel
except */2 */2 except */2 */2
Blu-ray, HD DVD Blu-ray, HD DVD
2ch 1/0
✔✔✔✔✔✔✔✔
✔✔✔✔✔✔✔✔
✔✔
*3
*3
*3
*3
*3
*3
*3
*3
*3
✔✔
✔✔ ✔✔
*3
*3
*3
*3
✔✔✔✔✔✔✔✔
DTS-HD Master Audio
Multichannel
2ch 1/0
✔✔
✔✔✔✔
*1
81
DTR-6.8_En.book Page 82 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
About the Listening Modes
The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.
Direct
In this mode, audio from the input source is output directly with minimal processing, providing high-fidel­ity reproduction. All of the source’s audio channels are output as they are.
Stereo
Sound is output by the front left and right speakers and subwoofer.
Mono
Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.
Dolby Pro Logic IIx
Dolby Pro Logic II
Dolby Pro Logic IIx expands any 2-channel source for
7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.
• Dolby PLIIx Movie
Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).
• Dolby PLIIx Music
Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).
• Dolby PLIIx Game
Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.
Dolby Digital
Use this mode with DVDs that bear the Dolby Digital logo, and Dolby Digital TV broadcasts. This is the most common digital surround-sound format, and it’ll put you right in the middle of the action, just like being in a movie theater or concert hall.
5.1-channel source + Dolby EX
These modes expand 5.1-channel sources for 6.1/7.1­channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.
Dolby Digital Plus
Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest mul­tichannel audio format from Dolby. It supports up to 7.1 channels with 48 kHz sampling rate.
Dolby TrueHD
Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc for­mats, this new Dolby format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-chan­nels with 192 kHz sampling rate.
For the signals supported by the AV receiver, see page 80.
5.1-channel source + Dolby PLIIx Music
These modes use the Dolby Pro Logic IIx Music mode to expand 5.1-channel sources for 6.1/7.1-channel play­back.
5.1-channel source + Dolby PLIIx Movie
These modes use the Dolby Pro Logic IIx Movie mode to expand 5.1-channel sources for 7.1-channel playback.
DTS
The DTS digital surround-sound format supports up to
5.1 discrete channels and uses less compression for high­fidelity reproduction. Use it with DVDs and CDs that bear the DTS logo.
DTS 96/24
This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.
DTS-ES Discrete
This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/
7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS­ES logo, especially those with a DTS-ES Discrete soundtrack.
82
DTR-6.8_En.book Page 83 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
DTS-ES Matrix
This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1­channel playback. Use it with DVDs that bear the DTS­ES logo, especially those with a DTS-ES Matrix soundtrack.
DTS Neo:6
This mode expands any 2-channel source for 7.1-chan­nel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.
•Neo:6 Cinema
Use this mode with any stereo movie (e.g., TV, DVD, VHS).
• Neo:6 Music
Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).
5.1-channel source + Neo:6
This mode uses Neo:6 to expand 5.1-channel sources for
6.1/7.1-channel playback.
DTS-HD High Resolution Audio
Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest mul­tichannel audio format from DTS. It supports up to 7.1 channels with 96 kHz sampling rate.
DTS-HD Master Audio
Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc for­mats, this new DTS format offers up to 7.1 discrete chan­nels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.
For the signals supported by the AV receiver, see page 81.
Neural THX 5.1/7.1
Neural-THX Surround employs psychoacoustic fre­quency domain processing, which allows delivery of a more detailed sound stage, with superior channel separa­tion and localization of audio elements. The Neural THX
5.1 and Neural THX 7.1 modes can expand any 2-chan-
nel stereo source for 5.1- or 7.1-channel playback, respectively. Use them with CD, radio, cassette, TV, VHS, DVD, and other 2-channel stereo sources, includ­ing video games. Neural-THX Surround can also be used by broadcasters to encode and transmit surround­sound content over a stereo signal, which listeners can enjoy as either surround sound or normal stereo. XM Satellite Radio, for example, is using Neural-THX Sur­round on select channels, which the AV receiver can expand from 5.1 channels to 7.1 channels.
DSD
DSD stands for Direct Stream Digital and is the format used to store digital audio on Super Audio CDs (SACD). This mode can be used with SACDs that feature multi­channel audio.
THX
Founded by George Lucas, THX develops stringent stan­dards that ensure movies are reproduced in movie the­aters and home theaters just as the director intended.
• THX Cinema
This mode is for watching movies, which are typi­cally recorded and edited on the assumption that they will be played in a sizable place like a movie theater.
It carefully optimizes the tonal and spatial character­istics of the soundtrack for reproduction in the smaller home-theater environment. It can be used with 2-channel sources processed with other formats, and multichannel sources. Surround back speaker output depends on the source material and the selected listening mode.
• THX Select2 Cinema
This mode expands Dolby Digital and DTS 5.1­channel sources for 7.1-channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to pro­duce the surround back channel output. This is a new and improved mode especially for home theater use.
• THX Music Mode
This mode is designed for use with music. It expands
5.1-channel sources for 7.1-channel playback.
• THX Games Mode
This mode is designed for use with video games. It can expand 2-channel and 5.1-channel sources for
6.1/7.1-channel playback.
• THX Surround EX
This mode expands 5.1-channel sources for 6.1/7.1­channel playback. It’s especially suited to Dolby Dig­ital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.
83
DTR-6.8_En.book Page 84 Wednesday, June 20, 2007 4:16 PM
Using the Listening Modes—Continued
Onkyo Original DSP Modes
Mono Movie
This mode is suitable for old movies and other mono sources. The center speaker outputs the sound as it is, while reverb is applied to the sound output by the other speakers, giving presence to even mono material.
Orchestra
Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.
Unplugged
Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.
Studio-Mix
Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acous­tic image, like being at a club or rock concert.
TV Logic
This mode adds realistic acoustics to TV shows pro­duced in a TV studio, surround effects to the entire sound, and clarity to voices.
All Ch Stereo
Ideal for background music, this mode fills the entire lis­tening area with stereo sound from the front, surround, and surround back speakers.
Full Mono
In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

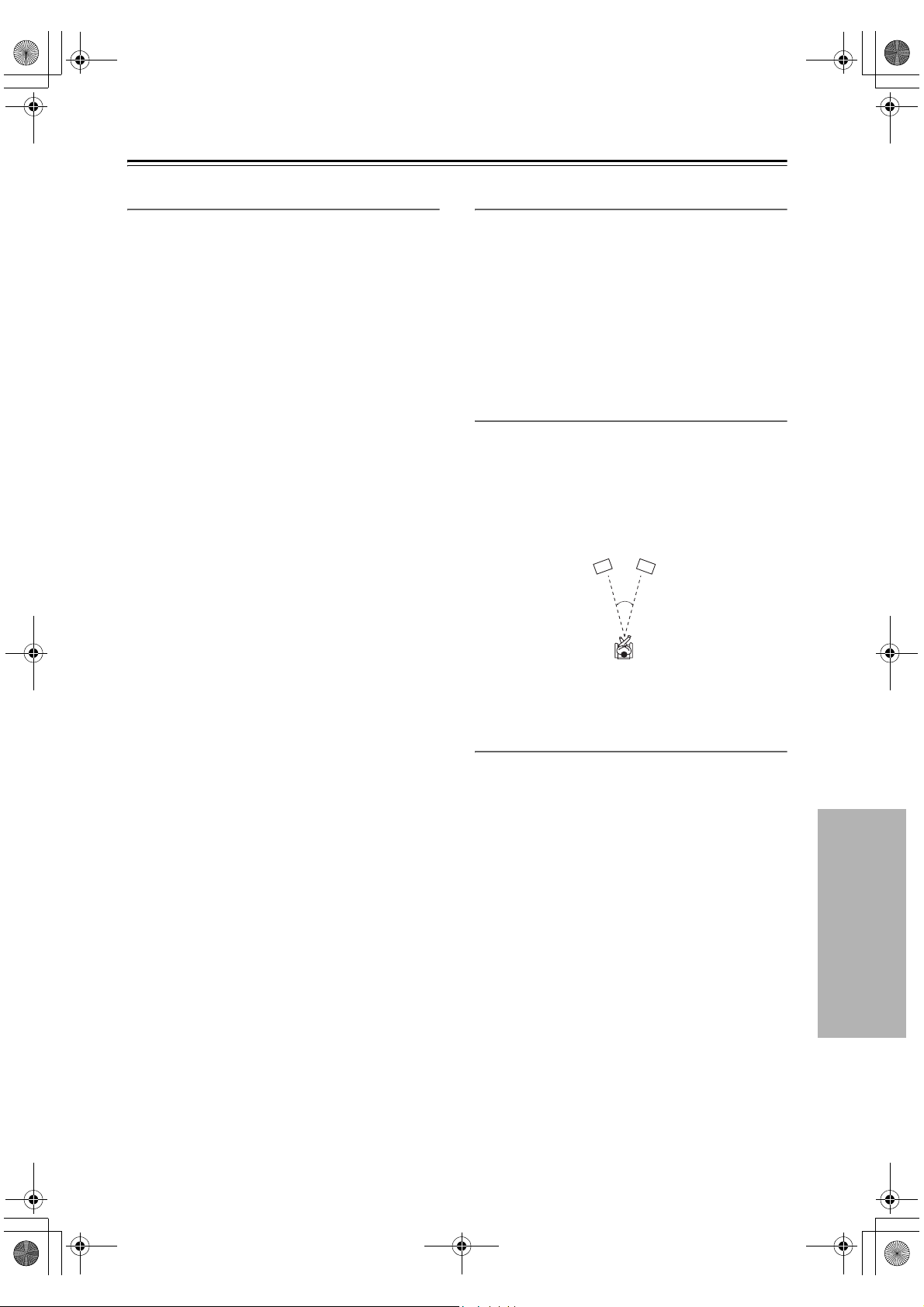

T-D (Theater-Dimensional)
With this mode you can enjoy a virtual 5.1 surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.
84
DTR-6.8_En.book Page 85 Wednesday, June 20, 2007 4:16 PM
Recording
This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.
Notes:
• The surround sound and DSP listening modes cannot be recorded.
• Copy-protected DVDs cannot be recorded.
• You cannot record from the DVD analog multichannel input.
• Various restrictions apply to digital recording. Refer to the manuals supplied with your digital recording equipment for more details.
• Digital input signals are output by only the digital out­puts, and analog input signals are output by only the analog outputs. There is no internal conversion from digital to analog or vice versa.
• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

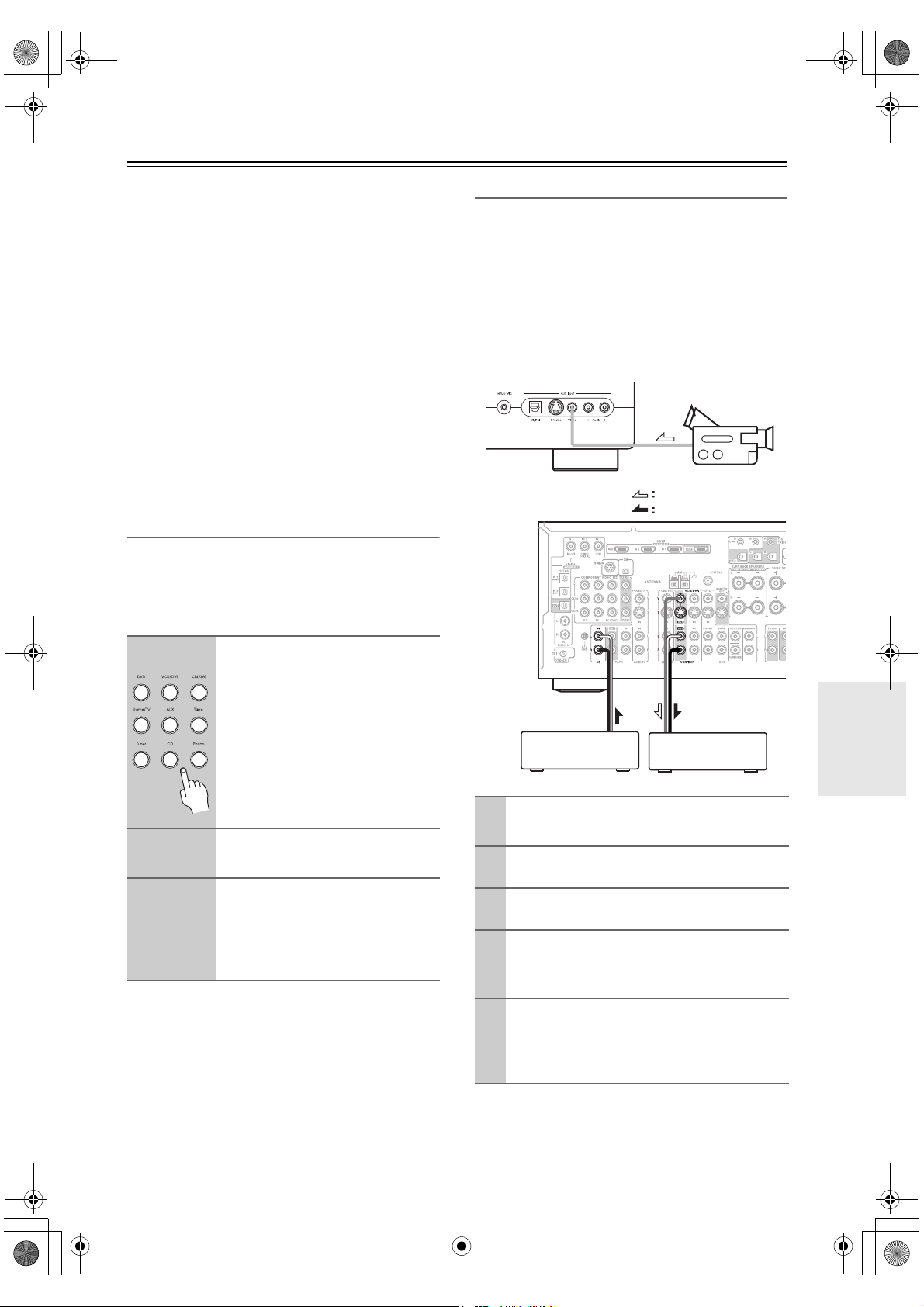

AV Recording
Audio sources can be recorded to a recorder (e.g., cas­sette deck, CDR, MD) connected to the TAPE OUT jack. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the to VCR/DVR OUT jack. See pages 25 to 41 for hookup information.
Recording Separate AV Sources
Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (i.e., TAPE, TUNER, CD or PHONO) is selected, the video input source remains unchanged.
In the following example, audio from the CD player con­nected to the CD IN, and video from the camcorder con­nected to the AUX Input Video jack are recorded by the VCR connected to the VCR/DVR OUT jacks.
Camcorder
video signal audio signal
1
2
3
Use the input selector buttons to select the source that you want to record.
You can watch the source while record­ing. The AV receiver’s Master Volume control has no effect on recording.
On your recorder, start record­ing.
On the source component, start playback.
If you select another input source dur­ing recording, that input source will be recorded.
VCRCD player
Prepare the camcorder and CD player for
1
playback.
Prepare the VCR for recording.
2
Press the [AUX] input selector button.
3
Press the [CD] input selector button.
4
This selects the CD player as the audio source, but leaves the camcorder as the video source.
Start recording on the VCR and start play-
5
back on the camcorder and CD player.
The video from the camcorder and the audio from the CD player are recorded by the VCR.
85
DTR-6.8_En.book Page 86 Wednesday, June 20, 2007 4:16 PM
Advanced Operations
Receiver
CH Sel
L Night
Level –/+ Re-EQ
Using the Re-EQ Function
With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing. This function can be used with the following listening modes: Dolby Digital, Dolby Digital EX, Dolby Pro Logic II Movie, Dolby Pro Logic IIx Movie, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24, THX Cin­ema, THX Surround EX, THX Select2 Cinema, and Multichannel.
Press the [Receiver] Remote Mode button, followed by the [Re­EQ] button.
Press the [Re-EQ] button again to turn off the Re-EQ function.
Using the Late Night Function (Dolby Digital, Dolby Digital Plus, and Dolby TrueHD only)
With the Late Night function, you can reduce the dynamic range of Dolby Digital, Dolby Digital Plus, and Dolby TrueHD material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone.
Press the [Receiver] button, and then press the [L Night] button repeatedly to select:
Dolby Digital, Dolby Digital Plus:
Off: Late Night function off
(default).
Low: Small reduction in dynamic
range.
High: Big reduction in dynamic
range.
Dolby TrueHD:
Aut o: The Late Night function is set
to On or Off automatically (default).
Off: Late Night function off. On: Late Night function on.
Adjusting Individual Speaker Levels
You can adjust the level of individual speakers during playback. These adjustments are temporary and will be cancelled when the AV receiver is set to Standby.
Press the [Receiver] button, use the [CH Sel] button to select each speaker, and use the [Level–] and [Level+] buttons to adjust the volume.
Speakers are selected in the following order: Front Left Right
Surr Right Surr Back
Surr Back Left Surr Left
Right
Subwoofer.
You can adjust the volume of each speaker from –12 dB to +12 dB (–15 dB to +12 dB for the subwoofer) in 1 dB steps.
The name of the currently selected speaker and its volume appear on the display, as shown.
Center Front
Notes:
• Depending on the design of the contents, there are some materials that will show no effect even when the Late Night mode is operating.
• The Late Night function resets to the default when the AV receiver is set to Standby.
86
Notes:
• You cannot use this function while the AV receiver is muted.
• Speakers that are set to No or None in the Speaker Configuration cannot be adjusted.
DTR-6.8_En.book Page 87 Wednesday, June 20, 2007 11:54 PM
Advanced Setup
About the Onscreen Setup Menus
The onscreen setup menus are displayed on the connected TV and provide a convenient way to change the AV receiver’s settings.
Submenus Submenus
p. 4 5 p. 49
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
5. Listening Mode Preset
1. DVD
2. VCR/DVR
3. CBL/SAT
4. GAME/TV
5. AUX
6. TAPE
7. TUNER
8. CD
9. PHONO
p. 9 8
p. 8 8 p. 94
p. 4 4
p. 9 6 p. 97
p. 99 p. 10 0
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
3. Audio Adjust
1. Tone Control
2. Multiplex/Mono
3. PLII
x/Neo:6
4. Dolby EX
5. Theater-Dimensional
6. LFE Level
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
p. 10 3 p. 1 04
p. 11 4
p. 10 5
p. 11 0
p. 5 1
Main menu
Menu
1. Input/Output Assign
2. Speaker Setup
3. Audio Adjust
4. Source Setup
5. Listening Mode Preset
6. Miscellaneous
7. Hardware Setup
8. Lock Setup
6. Miscellaneous
1. Volume Setup
2. OSD Setup
3. 12V Trigger A Setup
4. 12V Trigger B Setup 5 . 12V Trigger C Setup
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
p. 9 5
p. 10 5 p. 1 06
p. 10 7
DVD
8. Lock Setup
Lock Unlocked
p. 10 7
87
DTR-6.8_En.book Page 88 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued

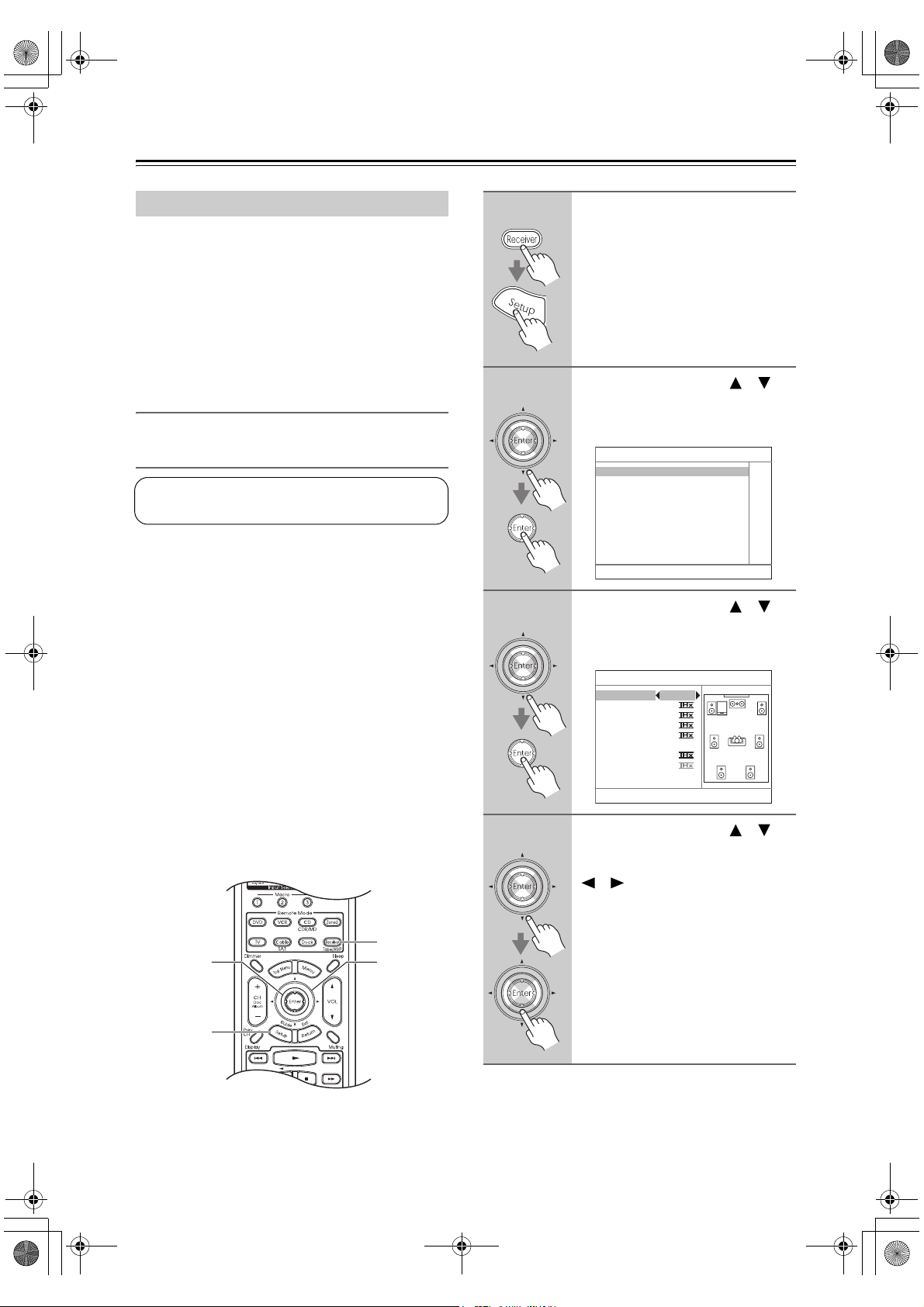

Speaker Setup
Some of the settings in this section are set automatically by the Automatic Speaker Setup function (see page 52).
Here you can check the settings made by the Automatic Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using the Automatic Speaker Setup function.
Note:
The Speaker Setup cannot be carried out while head­phones are connected to the AV receiver.
Speaker Settings
See “Speaker Settings” on page 44.
Speaker Configuration
This setting is set automatically by the Automatic Speaker Setup function (see page 52).
With these settings, you can specify which speakers are connected and a crossover frequency for each speaker.
The following crossover frequencies can be specified: Full Band, 40 Hz, 45 Hz, 50 Hz, 55 Hz, 60 Hz, 70 Hz, 80 Hz (THX), 90 Hz, 100 Hz, 110 Hz, 120 Hz, 130 Hz,150 Hz, or 200 Hz.
Specify Full Band for speakers that can output low-fre­quency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover fre­quency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies.
Please note that any THX main speakers should be set to Small [80 Hz (THX)]. If you set up your speakers using the Automatic Speaker Setup function, please make sure manually that any THX speakers are set to Small with 80 Hz (THX) crossover.
1
2, 3
2-11
1
2
3
4
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Config,” and then press [Enter].
The Speaker Config menu appears.
2–2. Speaker Config
Subwoofer Yes Front 80Hz Center 80Hz Surround 80Hz Surr Back 80Hz Surr Back Ch 2ch LPF of LFE 80Hz
Double Bass Off
Use the Up and Down [ ]/[ ] buttons to select “Subwoofer,” and then use the Left and Right
[ ]/[ ] buttons to select:
Ye s : Select if a subwoofer is con-
nected.
No: Select if no subwoofer is con-
nected.
88
1, 12
DTR-6.8_En.book Page 89 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
5
6
Use the Up and Down [ ]/[ ] buttons to select “Front,” and
then use the Left and Right [ ]/ [ ] buttons to select a crossover
frequency.
Note:
If the Subwoofer setting in step 4 is set to No, this setting is fixed at Full Band.
Use the Up and Down [ ]/[ ] buttons to select “Center,” and
then use the Left and Right [ ]/ [ ] buttons to select a crossover
frequency.
If no center speaker is connected, select None.
Note:
If the Front setting in step 5 is set to anything other than Full Band, Full Band cannot be selected here.
9
Use the Up and Down [ ]/[ ] buttons to select “Surr Back Ch,” and then use the Left and Right [ ]/[ ] buttons to select:
1ch: Select if one surround back
speaker is connected.
2ch: Select if two (left and right)
surround back speakers are connected.
Note:
If the Surr Back Setting in step 8 is set to None, this setting cannot be selected.
Continue with step 10 below.
Low-Pass Filter for the LFE Channel
This setting is not set automatically by the Automatic Speaker Setup function (see page 52).
With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel.
*If you’re using THX-certified speakers, select 80 Hz (THX).
7
8
Use the Up and Down [ ]/[ ] buttons to select “Surround,” and then use the Left and Right
[ ]/[ ] buttons to select a crossover frequency.
If no surround left and right speakers are connected, select None.
Note:
If the Front setting in step 5 is set to anything other than Full Band, Full Band cannot be selected here.
Use the Up and Down [ ]/[ ] buttons to select “Surr Back,” and then use the Left and Right
[ ]/[ ] buttons to select a crossover frequency.
If no surround back speakers are con­nected, select None.
Notes:
If the Surround setting in step 7 is set to
• None, this setting cannot be selected.
• If the Surround setting in step 7 is set to anything other than Full Band, Full Band cannot be selected here.
10
Use the Up and Down [ ]/[ ] buttons to select “LPF of LFE,” and then use the Left and Right
[ ]/[ ] buttons to select a low­pass filter frequency.
The following low-pass filter frequen­cies can be selected: 80 Hz (THX), 90 Hz, 100 Hz, 110 Hz, or 120 Hz. Continue with step 11 on page 90.
89
DTR-6.8_En.book Page 90 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
Double Bass
This setting is not set automatically by the Automatic Speaker Setup function (see page 52).
With the Double Bass function, you can boost bass out­put by feeding bass sounds from the front left and right channels to the subwoofer. This function can be set only if the Subwoofer setting in step 4 is set to Yes, and the Front setting in step 5 is set to Full Band.
In the speaker setup screen, you can choose how bass information is distributed to your speakers only if you have large front left and right speakers and a subwoofer.
*If you’re using THX-certified speakers, select Off (THX).
11
12
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Use the Up and Down [ ]/[ ] buttons to select “Double Bass,” and then use the Left and Right
[ ]/[ ] buttons to select:
On: Double Bass function on
(default). Front left and right bass also goes to the sub­woofer simultaneously.
Off (THX): Double Bass function off.
Press the [Setup] button.
The setup menu closes.
90
DTR-6.8_En.book Page 91 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued

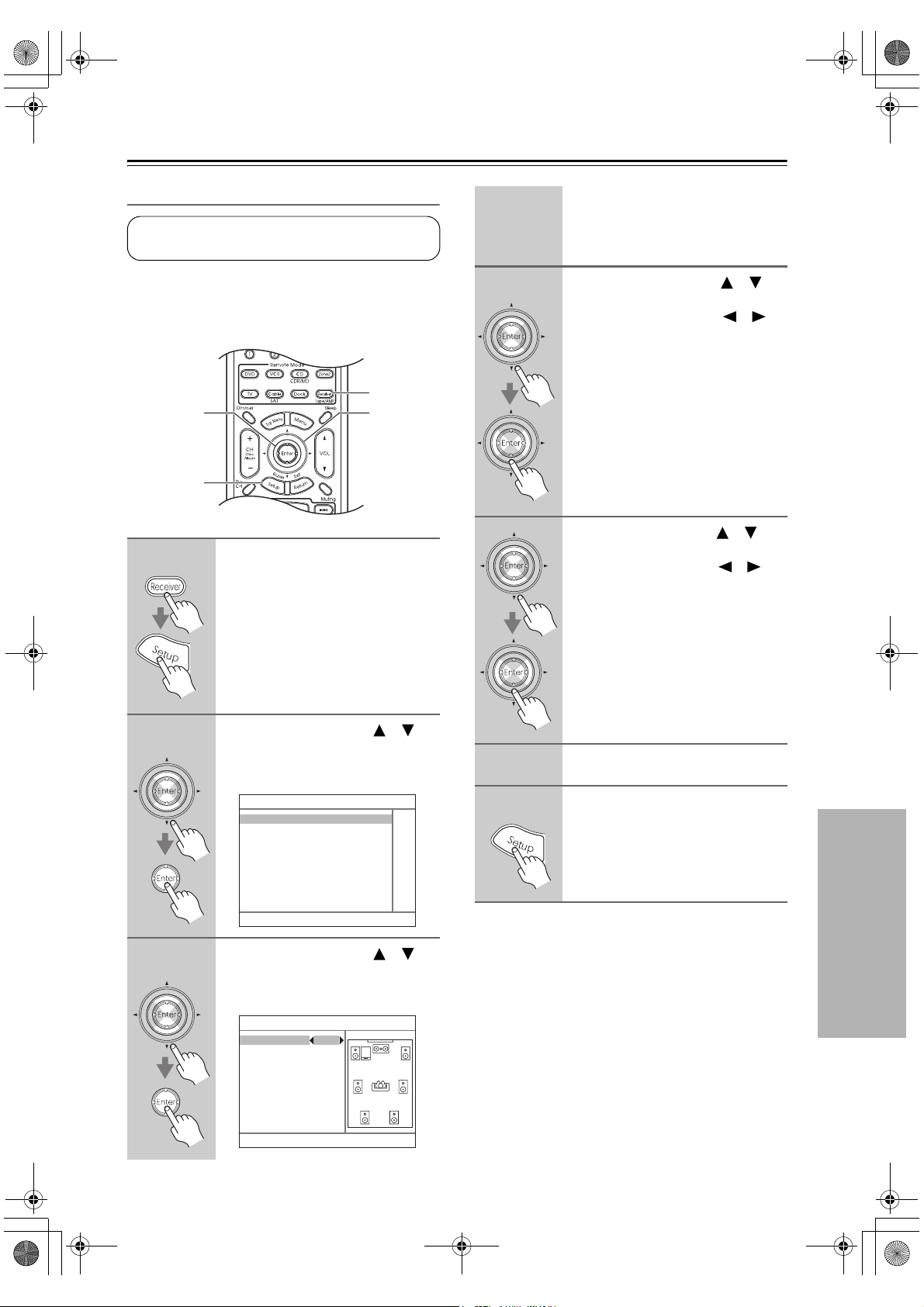

Speaker Distance
This setting is set automatically by the Automatic Speaker Setup function (see page 52).
Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.
1
2, 3
2-6
1, 7
1
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
4
5
Note:
Speakers that you set to No or None on the Speaker Configuration page (page 88) cannot be selected.
Use the Up and Down [ ]/[ ] buttons to select “Unit,” and then
use the Left and Right [ ]/[ ] buttons to select:
feet:
Select if you want to enter dis­tances in feet. Can be set from
0.2 to 30 feet in 0.2-feet steps.
meters: Select if you want to enter
distances in meters. Can be set from 0.06 to 9 meters in
0.06-meter steps.
Use the Up and Down [ ]/[ ] buttons to select “Left,” and then
use the Left and Right [ ]/[ ] buttons to specify the distance.
Specify the distance from the front left speaker to your listening position.
2
3
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
Use the Up and Down [ ]/[ ] buttons to select “3. Speaker Dis­tance,” and then press [Enter].
The Speaker Distance menu appears.
2–3. Speaker Distance
Unit feet Left 12.0ft Center 12.0ft Right 12.0ft Surr Right 7.0ft Surr Back R 7.0ft Surr Back L 7.0ft Surr Left 7.0ft Subwoofer 12.0ft
6
7
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Repeat step 5 for all speakers.
Press the [Setup] button.
The setup menu closes.
91
DTR-6.8_En.book Page 92 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued

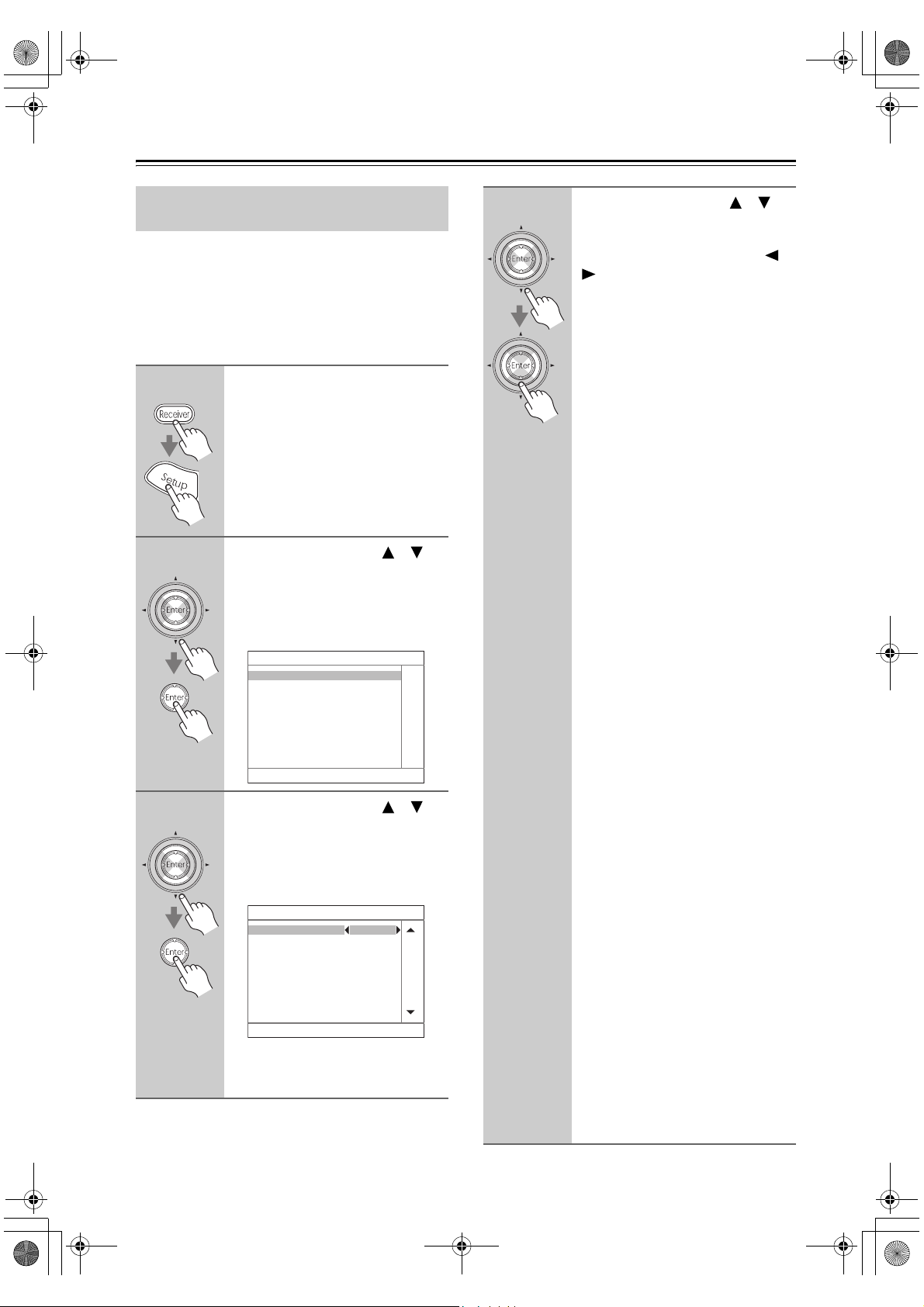

Speaker Level Calibration
This setting is set automatically by the Automatic Speaker Setup function (see page 52).
Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.
Notes:
• The speakers cannot be calibrated while the output of the AV receiver is muted.
• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you nor­mally listen at volume settings below this, be careful because the test tone will be much louder.
1
2, 3
2-5
1, 6
3
4
Use the Up and Down [ ]/[ ] buttons to select “4. Level Cali­bration,” and then press [Enter].
The Level Calibration menu appears and the pink noise test tone is output by the front left speaker.
2–4. Level Calibration
Left 0dB Center 0dB Right 0dB Surr Right 0dB Surr Back R 0dB Surr Back L 0dB Surr Left 0dB Subwoofer 0dB
Note:
Speakers that you set to No or None on the Speaker Configuration page (page 88) cannot be selected.
Use the Up and Down [ ]/[ ] buttons to select each speaker,
and use the Left and Right [ ]/ [ ] buttons to set the volume.
The volume can be adjusted from –12 to +12 dB (–15 dB to +12 dB for the subwoofer) in 1 dB steps.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
5
6
Notes:
This procedure can also be performed by using the [Test
• Tone] button, [Level–] and [Level+] buttons. First press the [Test Tone] button to output the test tone. Use the [Level–] and [Level+] buttons to set the volume, and use the [CH Sel] button to select the speakers.
• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Repeat step 4 until the volume of the test tone from each speaker is the same.
If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listen­ing position, measured with C-weight­ing and slow reading.
Press the [Setup] button.
The setup menu closes.
92
DTR-6.8_En.book Page 93 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
Equalizer Setting
This setting is set automatically by the Automatic Speaker Setup function (see page 52).
Here you can adjust the EQ of individual speakers. To set the volume of individual speakers see page 92.
1
2, 3
2-7
1, 8
1
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
4
5
Use the Left and Right [ ]/[ ] buttons to select:
Off: Tone off, response flat.
Audyssey: The tone for each speaker
is set automatically by the Automatic Speaker Setup function. Be sure to select this set­ting after having per­formed the Automatic Speaker Setup.
Manual: You can adjust the EQ of
each speaker manually.
If you select Manual, continue with this procedure. If you select Off or Audys­sey, go to step 8.
Use the Down [ ] button to select “Channel,” and then use
the Left and Right [ ]/[ ] but­tons to select a speaker.
2–5. Equalizer Settings
Equalizer Manual Channel Front 25Hz 0dB 40Hz 0dB 63Hz 0dB 100Hz 0dB 160Hz 0dB 250Hz 0dB 400Hz 0dB
2
3
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
Use the Up and Down [ ]/[ ] buttons to select “5. Equalizer Settings,” and then press [Enter].
The Equalizer Settings menu appears.
2–5. Equalizer Settings
Equalizer Off
6
Use the Up and Down [ ]/[ ] buttons to select a frequency, and then use the Left and Right
[ ]/[ ] buttons to adjust the level at that frequency.
You can select: 25 Hz, 40 Hz, 63 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz,
630 Hz, 1000 Hz, 1600 Hz, 2500 Hz, 4000 Hz, 6300 Hz, 10000 Hz, or
16000 Hz. And for the subwoofer, 25 Hz, 40 Hz, 63 Hz, 100 Hz, or 160 Hz. The volume at each frequency can be adjusted from –6 to +6 dB in 1 dB steps. Tip: Low frequencies (e.g., 160 Hz) affect bass sounds; high frequencies (e.g., 6300 Hz) affect treble sounds.
93
DTR-6.8_En.book Page 94 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
7
8
Notes:
• When the listening mode is set to Direct, no effect will be produced.
• Depending on the input source or listening mode, the Equalizer settings may not produce the desired effect.
• This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Use the Up and Down [ ]/[ ] buttons to select “Channel,” and
then use the Left and Right [ ]/ [ ] buttons to select another
speaker.
Repeat step 6 and 7 for each speaker.
Press the [Setup] button.
The setup menu closes.
THX Audio Setup
This setting is not set automatically by the Automatic Speaker Setup function (see page 52). When the bi-amping connections (see page 22) have been made, this setting cannot be performed.
With the Surr Back Sp Spacing setting, you can specify the distance between your surround back speakers.
1
Press the [Receiver] Remote Mode button, followed by the [Setup] button.
The main menu appears onscreen.
2
3
4
5
Use the Up and Down [ ]/[ ] buttons to select “2. Speaker Setup,” and then press [Enter].
The Speaker Setup menu appears.
2. Speaker Setup
1. Speaker Settings
2. Speaker Config
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
Use the Up and Down [ ]/[ ] buttons to select “6. THX Audio Setup,” and then press [Enter].
The THX Audio Setup screen appears.
2–6. THX Audio Setup
Surr Back Sp Spacing <1ft
Use the Left and Right [ ]/[ ] buttons to specify the distance between your surround back speakers:
< 1 ft (< 0.3 m) (Default): Select this if your surround back speakers are between 0 and 1 foot (0–30 cm) apart. 1–4 ft (0.3–1.2 m): Select this if your surround back speakers are between 1 and 4 feet (0.3–1.2 m) apart. >4 ft (>1.2 m): Select this if your sur­round back speakers are more than 4 feet (1.2 m) apart.
Note:
This setting is only available if the Surr Back Ch setting in the Speaker Config­uration is set to 2ch (page 89).
Press the [Setup] button.
The setup menu closes.
94
Note:
• This procedure can also be performed on the AV
receiver by using its [Setup], [Enter], and arrowbut- tons.
DTR-6.8_En.book Page 95 Wednesday, June 20, 2007 11:55 PM
Advanced Setup—Continued
Multichannel DVD Input Settings
Subwoofer Input Sensitivity
Some DVD players output the LFE channel from their subwoofer output at 15 dB higher than normal. You can change the subwoofer sensitivity to match your DVD player. Note that this setting only affects signals con­nected to the SUBWOOFER input jack of the multichan­nel DVD input.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “7. Hardware Setup,” and then press [Enter].
The Hardware Setup menu appears.
7. Hardware Setup
1. Remote Control
2. Zone2
3. Tuner
4. Analog Multich
5. HDMI
6. Network
5
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
Press the [Setup] button.
The setup menu closes.
3
4
Use the Up and Down [ ]/[ ] buttons to select “4. Analog Mul­tich,” and then press [Enter].
The Analog Multich menu appears.
7–4. Analog Multich
Subwoofer Input Sensitivity 0dB
Use the Left and Right [ ]/[ ] buttons to select a value.
You can select 0 dB, 5 dB, 10 dB, or 15 dB.
If you find that your subwoofer is too loud, try the 10 dB or 15 dB setting.
95
DTR-6.8_En.book Page 96 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
Audio Adjust Functions
Here you can set listening mode-related settings and functions.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “3. Audio Adjust,” and then press [Enter].
The Audio Adjust menu appears.
3. Audio Adjust
1. Tone Control
2. Multiplex/Mono
3. PL
II
x/Neo:6
4. Dolby EX
5. Theater-Dimensional
6. LFE Level
5
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
The Audio Adjust functions are explained below.
When you’ve finished, press the [Setup] button.
The setup menu closes.
Tone Control Settings
You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.
Bass
You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.
Treble
You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10dB in 2dB steps.
Multiplex/Mono Settings
3
4
Use the Up and Down [ ]/[ ] buttons to select the functions, and then press [Enter].
The function menu you selected appears.
Use the Up and Down [ ]/[ ] buttons to select the settings,
and use the Left and Right [ ]/ [ ] buttons to set them.
The settings are explained below.
Multiplex Input Ch
This setting determines which channel is output from a stereo multiplex source. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.
Main: The main channel is output (default).
Sub: The sub channel is output.
Main/Sub: Both the main and sub channels are output.
Mono Input Ch
This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2­channel analog/PCM source in the Mono listening mode.
L+R: Both the left and right channels are output
(default).
L: Only the left channel is output.
R: Only the right channel is output.
Output Speaker
This setting determines which speakers output mono audio when the Mono listening mode is selected.
L/R: Mono audio is output by the front left and right
speakers.
C: Mono audio is output by the center speaker
(default).
96
˚
DTR-6.8_En.book Page 97 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
PLIIx/Neo:6 Music Mode Settings
These settings provide for playing any 2-channel digital source such as Dolby Digital, or 2-channel analog/PCM source in the Dolby PLIIx Music listening mode.
Panorama
With this function, you can broaden the width of the front stereo image when using the Dolby Pro Logic II Music or Dolby Pro Logic IIx Music listening mode.
On: Panorama function on. Off: Panorama function off (default).
Dimension
With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic II Music or Dolby Pro Logic IIx Music listening mode. It can be adjusted from –3 to +3 (default is 0). Lower settings move the sound field forward. Higher settings move it backward.
If the stereo image feels too wide, or there is too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it is in mono, or there is not enough surround sound, move it backward.
Center Width
With this function, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic
II Music or Dolby Pro Logic IIx Music listening mode. Normally, if you are using a center speaker, the center channel sound is output by only the center speaker. (If you are not using a center speaker, the center channel sound will be distributed to the front left and right speak­ers to create a phantom center.) This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound. It can be adjusted from 0 to 7 (default is 3).
When set to 0, there will output from the center speaker only.
When set to 7, the entire signal from the center channel will be divided between the left and right front speakers. There will be no output from the center speaker.
Center Image
The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel (stereo) sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. It can be adjusted from 0 to 5 (default is 2). This setting is unavailable if no surround speakers are connected. When set to 0, the front left and right channel output is attenuated by half (–6 dB), giving the impression that the sound is located centrally. This setting works well when the listening position is considerably off center. When set to 5, the front left and right channels are not attenu­ated, maintaining the original stereo balance.
Dolby EX Input Signal Setting
Dolby EX
This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back speakers are connected. This setting is effective with Dolby Digital and Dolby Digital Plus only.
Auto: If the source signal contains a Dolby EX flag,
the Dolby EX or THX Surround EX listening mode is used (default).
Manual: You can select any available listening mode.
T-D (Theater-Dimensional) Listening Setting
Listening Angle
With this setting, you can specify the angle of the front left and right speakers relative to the listening position. Processing for the Theater-Dimensional listening mode is based on this setting. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.
Front left speaker
Narrow: Select if the listening angle is 20 degrees.
Wide: Select if the listening angle is 40 degrees
(default).
Front right speaker
20/40
LFE Level Settings
With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for Dolby
Digital, DTS, multichannel PCM, Dolby TrueHD, DTS­HD Master Audio, and DSD sources. The level can be
, –20 dB, –10 dB, or 0 dB (default).
set to – If you find that low-frequency effects are too loud when using one of these sources, change the setting to –20 dB or dB.
Dolby Digital
Sets the level of the LFE channel for Dolby Digital sources.
DTS
Sets the level of the LFE channel for DTS sources.
Multich PCM
Sets the level of the LFE channel for multichannel PCM sources. (Multichannel PCM is input via HDMI.)
Dolby TrueHD
Sets the level of the LFE channel for Dolby TrueHD sources.
DTS-HD Master Audio
Sets the level of the LFE channel for DTS-HD Master Audio sources.
DSD
Sets the level of the LFE channel for DSD (SACD) sources.
97
DTR-6.8_En.book Page 98 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
Assigning Listening Modes to Input Sources
You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes dur­ing playback, but the mode specified here will be resumed once the AV receiver has been set to Standby.
1
2
3
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “5. Listening Mode Preset,” and then press [Enter].
The Listening Mode Preset menu appears.
5. Listening Mode Preset
1. DVD
2. VCR/DVR
3. CBL/SAT
4. GAME/TV
5. AUX
6. TAPE
7. TUNER
8. CD
9. PHONO
Use the Up and Down [ ]/[ ] buttons to select the input source that you want to set, and then press [Enter].
The signal format selection menu appears.
5–1. Listening Mode Preset – DVD –
Analog/PCM Last Valid
Dolby Digital Last Valid
DTS Last Valid
D.F. 2ch Last Valid
D.F. Mono Last Valid
For input selectors that have no digital input jacks, only “Analog” will be available.
4
Use the Up and Down [ ]/[ ] buttons to select the signal for­mat that you want to set, and
then use the Left and Right [ ]/ [ ] buttons to select a listening
mode.
Only listening modes that can be used with each input signal format can be selected.
The Last Valid option means that the listening mode selected last will be used.
Analog/PCM: With this setting, you can specify the listening mode to be used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played. Dolby Digital: With this setting, you can specify the listening mode to be used when a Dolby Digital format digi­tal audio signal is played (DVD, etc.). DTS: With this setting, you can specify the listening mode to be used when a DTS format digital audio signal is played (DVD, LD, CD, etc.). D.F. 2ch: With this setting, you can specify the listening mode to be used when a 2-channel (2/0) digital audio signal (Dolby Digital, DTS) is played (DVD, etc.). D.F. Mono: With this setting, you can specify the listening mode to be used when a mono digital audio signal is played (DVD, etc.). Multich PCM: Specifies the default listening mode for multichannel PCM sources input via a HDMI IN, such as DVD-Audio. 192k/176.4k: Specifies the default lis­tening mode for high resolution
176.4 kHz and 192 kHz digital audio sources such as DVD-Audio. Dolby TrueHD: Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI). DTS-HD Master Audio: Specifies the default listening mode for DTS-HD Master Audio sources, such as Blu-ray or HD DVD (input via HDMI).
DSD: Specifies the default listening mode for DSD multichannel sources, such as SACD.
98
DTR-6.8_En.book Page 99 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
5
Note:
This procedure can also be performed on the AV receiver by using its [Setup] button, arrow buttons, and [Enter] button.
When you’ve finished, press the [Setup] button.
The setup menu closes.
Source Setup
3
1
2, 4
2, 4, 5
2
3
4
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
Use the Input Selector buttons on the remote controller to select the input source that you want to set.
Use the Up and Down [ ]/[ ] buttons to select “1. IntelliVolume,” and then press [Enter].
The IntelliVolume menu appears.
4–1. IntelliVolume
IntelliVolume 0dB
DVD
DVD
1, 6
IntelliVolume
You can set the input level for each input source. This is useful if some of your AV components are louder or qui­eter than others. IntelliVolume does not affect Zone 2.
While this menu is shown onscreen, you can select each input source and set the levels while listening to and comparing them.
1
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
5
6
If a component is too loud com­pared to your other components,
use the Left [ ] button to adjust the level. If it’s too quiet, use the
Right [ ] button.
• The level can be set from –12 dB to +12 dB in 1 dB steps.
When you’re finished, press the [Setup] button.
The setup menu closes.
99
DTR-6.8_En.book Page 100 Wednesday, June 20, 2007 4:16 PM
Advanced Setup—Continued
Correcting Sound and Picture Sync
When using progressive scanning on your DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. You can set it from 0 to 250 milliseconds (msec) in 5 millisecond steps.
1
2
Press the [Receiver] button fol­lowed by the [Setup] button.
The main menu appears onscreen.
Use the Up and Down [ ]/[ ] buttons to select “4. Source Setup,” and then press [Enter].
The Source Setup menu appears.
4. Source Setup
1. IntelliVolume
2. A/V Sync
3. Name Edit
DVD
4
5
Use the Up and Down [ ]/[ ] buttons to select “2. A/V Sync,” and then press [Enter].
The A/V Sync menu appears.
4–2. A/V Sync
A/V Sync 20msec
(HDMI Lip Sync 0msec)
If HDMI Lip Sync is enabled (see page 105), and your TV or display sup­ports HDMI Lip Sync, the HDMI Lip Sync delay time is displayed under­neath in parentheses.
Press [Enter] to view the TV pic­ture, and use the Left and Right
[ ]/[ ] buttons to adjust the delay from 0 to 250 milliseconds in 5 millisecond steps.
DVD
Press Enter to see picture.
3
Use the Input Selector buttons on the remote controller to select the input source that you want to correct.
Notes:
• This setting is not available when the Direct listening mode is used with an analog input signal.
• This procedure can also be performed on the remote controller by using Input Selector buttons. Press and hold, for more than 5 seconds, the Input Selector button for the input source that you want to correct. Use the Left and Right [ ]/[ ] buttons to adjust the delay.
100
