DTR-20.7

Basic Manual

The Basic Manual includes information needed

when starting up and also instructions for frequently used operations� The Advanced

Manual has more detailed information and

advanced settings�

Front Panel �� 3 Rear Panel�� 4 Display �� 5

Step 1: Connections ��6

1 Connecting speakers�� 6

･ Speaker layout �� 6 ･ Height speaker types �� 6 ･ Instructions on how to connect speakers �� 8

2 Connecting the TV and players �� 9

･ HDMI cable connection �� 9 ･ Connecting Components without HDMI �� 10

3 Other connections ��11

Step 2: Initial Setup ��12

1 AccuEQ Room Calibration �� 12 2 Source Connection �� 13 3 Remote Mode Setup �� 14 4 Network Connection �� 14

Step 3: Playing Back ��16

1 Basic Operations �� 16

･ Part names and functions of the remote controller �� 16 2 Network Functions �� 17 3 AirPlay® �� 17 4 Bluetooth® �� 18 5 AM/FM Radio �� 18 6 Multi-zone �� 19

･ Making Multi-zone Connection �� 19

･ Performing Multi-zone Playback �� 20 7 Quick Setup Menu �� 20 8 Other useful functions �� 21

Troubleshooting �� 22 Specifications �� 23 Table of image resolutions �� 24 Resolutions supported by HDMI �� 24 Supplied Accessories ��Back cover

Features

● Equipped with 7 ch amplifier

● Supports playback in Dolby Atmos format which

provides 360-degree placement and movement of sounds including overhead sound

● Dolby Surround listening mode expands 2 ch, 5�1 ch or

7�1 ch source to available speaker configurations

● Equipped with 4K compatible HDMI IN/OUT jacks

● Supports the HDMI Standby Through function which

allows signal transmission from players to the TV in standby state

● Supports HDCP2�2, a strict copy-protection for providing

high quality content (HDMI IN1 to IN3/HDMI OUT)

● Supports ARC (Audio Return Channel)

● Supports USB storage playback

● Supports variety of network functions such as Internet

Radio, DLNA, AirPlay etc�

● Supports Wi-Fi and Bluetooth

● Bi-Amping capability

● A/V Sync Function to correct deviation of audio and

video

● Multi-zone function which allows you to play a different

source in another room from the main room

● 32 bit DSP (Digital Signal Processor) with excellent

calculation performance

● Music Optimizer™ for compressed digital music files

● Phase Matching Bass System

● Automatic speaker setup available using supplied

calibrated microphone (AccuEQ Room Calibration)

● Supports playback of MP3, WMA, WMA Lossless,

FLAC, WAV, Ogg Vorbis, Apple Lossless, DSD, Dolby TrueHD via network and USB storage device (the supported formats will differ depending on the use environment)

Refer to the back cover for supplied accessories�

En-2

1234 56 78 9FGH

LM NO P QK

Front Panel

1 zOn/Standby button: Turns the unit on or into standby

mode�

2 Dolby Atmos indicator: Lights when playing Dolby

Atmos�

3 Tone and Tone Level buttons: Adjust the high tone

and low tone�

4 Remote control sensor: Receives signals from the

remote controller�

5 Display 6 Listening Mode buttons: Allow you to select the

listening mode�

7 Dimmer button (North American models): Switches

the brightness of the display� RT/PTY/TP button (Australian models): Can be used when receiving the station transmitting text information�

8 Memory button: Registers or deletes a station� 9 Tuning Mode button: Switches the tuning mode� F Display button: Switches the information on the

(Australian models)

display�

G Setup button: Used when making settings� H Cursor buttons, Tuning

button and Enter button: Move the cursor and confirms the selection� When listening to AM/FM broadcasting, tune in to the station with Tuningjl or select the registered station with Preset

button, Preset

d c

�

I Return button: Returns the display to the previous

state�

J Master Volume: Allows you to adjust the volume� K Zone 2 button and Off button: Controls the multi-zone

function�

L Zone 2 Level

speaker volume of a separate room�

/

button: Allows you to adjust the

M Phones jack: Stereo headphones with a standard plug

are connected�

N Hybrid Standby indicator: Lights if the unit enters

standby mode when the HDMI Standby Through, USB

Power Out at Standby, Network Standby or Wakeup from Bluetooth function is enabled�

O Input selector buttons: Switch the input to be played� P AUX Input Audio/Video jack: A video camera or such

other device is connected�

Q Setup Mic jack: The supplied speaker setup

microphone is connected�

En-3

19G

90°

2 3

5 764

Rear Panel

1 RI REMOTE CONTROL jack: An Onkyo product with RI

jack can be connected and synchronized with this unit�

2 TUNER AM/FM (75Ω) terminal: The supplied antennas

are connected�

3 USB port: A USB storage device is connected so that

music files stored in it can be played� USB devices can be supplied with power when connected with a USB cable�

4 COMPONENT VIDEO IN jack: Component video input

jack

5 ETHERNET port: Used for LAN connection 6 VIDEO IN jacks: Composite video signals are input� 7 RS232 port: Connected to the home control system�

()

8 IR IN A/B, IR OUT jack: Connected to the multiroom

remote control kit� ()

9 12V TRIGGER OUT A/B/C jacks: Allows you to connect

a device with trigger input jack to enable power link operation between the device and the unit� ()

¼ Special devices or cable connections are necessary to use the

control functions 7 to 9� Contact the specialized stores for more information�

F HDMI IN/OUT jacks: Digital video signals and audio

signals are transmitted between the unit and the connected devices�

G Wireless antenna: Used for Wi-Fi connection or when

using a Bluetooth-enabled device� Adjust their angles according to the connection status�

180°

H SPEAKERS terminals: Speakers

are connected� To use the Multi-zone function, connect the speakers in the separate room to the ZONE2 speaker terminals�

I AC INLET: The supplied power cord is connected� J DIGITAL IN COAXIAL/OPTICAL jacks: Digital audio

signals are input�

K AUDIO IN jacks: Analog audio signals are input�

H I

L PRE/LINE OUT ZONE 2 jack: Audio output jack

connected to the power amplifier and pre-main amplifier for multi-zone playback in a separate room�

M PRE OUT SUBWOOFER jack: A subwoofer with built-in

amplifier is connected�

90°

180°

En-4

14 623 75

Display

1 Lights in the following conditions� "Z2": Zone 2 output

is on� / "HDMI": HDMI signals are input and HDMI input selector is selected� / "ARC": Audio signals are input from ARC compatible TV and TV input selector is selected� / "3D": Input signals are 3D� / "USB" (): When input is "NET" and USB is connected and selected� / "NET" (): "NET" input is selected and the unit is connected to the network� / "DIGITAL": Digital signals are input and the digital input selector is selected� / Cursor indicators: NET or USB is controlled�

¼ "USB" and "NET" will flash if the connection is not correct�

2 Stays lit when headphones are connected� 3 Lights when playing NET or USB� 4 Lights according to the type of input digital audio signals

and the listening mode�

5 Stays lit when Music Optimizer is enabled� 6 Lights in the following conditions� "AUTO": Tuning mode

is auto� / "TUNED": Receiving AM/FM radio�  flashes while tuning is automatically performed� / "FM STEREO": Receiving FM stereo� / "RDS" (Australian models): Receiving RDS broadcasting�

7 Flashes when muting is on� 8 Lights in the following conditions� "SLEEP": Sleep timer

has been set� / "ASb" (Auto Standby): Auto Standby is on� / "ch": Channel is being set� / "Hz": Crossover frequencies are being set� / "m/ft": Speaker distances are being set� / "dB": Speaker volume is being set�

9 Displays various information of the input signals�

Pressing Display displays the type of input digital signals and the listening mode�

En-5

Step 1: Connections

1 Connecting speakers

Speaker layout

Important: The power cord must be connected only after all other connections are completed�

Front speakers ● To enjoy the Dolby Atmos listening

" #

Center speaker

Surround speakers

% &

Subwoofer

Back speakers

7 8

Height speakers (Front High)

9 F

Height speakers (Rear High)

G H

● 5�1 ch: "#$%&'

● 7�1 ch: "#$%&'+78 or

"#$%&'+9F or "#$%&'+GH

78 speakers, 9F speakers and GH speakers share the same speaker

terminals� Select either of the groups�

mode, height speakers or back speakers need to be installed� There are a variety of height speakers apart from this type� see the next section for details�

● To use the multi-zone function, see "6

Multi-zone" in "Step 3: Playing Back"�

Characteristics of speaker types

"# output front stereo sound and $ output center sound such as dialogs and vocals� %& create back sound field� ' reproduces bass sounds and creates rich sound field� Connecting 78 speakers, 9F speakers or GH speakers enables playback in 7�1 ch configuration� 78 (back) speakers improve sense of envelopment created by back sound field as well as seamlessness of back sounds, providing more natural sound experiences in the sound field� 9F or GH (height) speakers produce surround effects on a height plane� This unit can perform optimal sound field processing for the type of height speakers actually installed and registered in "Initial Setup"�

Height speaker types

Installing speakers in ceiling

c d

a b

Top Front

a b

Top Middle

c d

Top Rear

e f

Ceiling speakers, etc� are used for maximizing effects in Dolby Atmos or

Dolby Surround listening mode� Install Top Front speakers so that they are positioned at a point between directly above the listening position and directly above the front speakers� Install Top Middle speakers so they are directly above the listening position� Install Top Rear speakers so they are positioned at a point between directly above the listening position and directly above the back speakers� You can select (a)(b), (c)(d) or (e)(f) on the unit� For connection with the unit, use the SPEAKERS BACK or HEIGHT terminals�

● Dolby Laboratories recommends

placing the speakers as described in “Installing speakers in ceiling” to obtain the best Dolby Atmos effect�

Using Dolby Enabled Speakers

g h i j

Dolby Enabled Speakers (Front) Dolby Enabled Speakers (Surround)

A Dolby Enabled Speaker is specially designed to be used as a height speaker� There are two types of Dolby Enabled Speakers; one type is designed to be placed on top of other speakers such as front speakers and surround speakers,

En-6

and the other type is designed to be integrated with normal speakers� Dolby Enabled Speakers placed with their diaphragms facing toward the ceiling create higher effect in the Dolby Atmos and Dolby Surround listening modes by providing sounds echoing off the ceiling� You can select (g)(h) or (i)(j) on the unit� For connection with the unit, use the SPEAKERS BACK or HEIGHT terminals�

When playing Dolby Atmos, the speakers required depend on how you have setup your back speakers or height speakers� The following shows combinations of speakers for reproducing Dolby Atmos�

Connection

pattern

1 Back 2 Front High 3 Rear High 4 Top Front 5 Top Middle 6 Top Rear 7 Dolby Enabled Speaker (Front) 8 Dolby Enabled Speaker (Surround)

: Required, : Optional

 Connection of a subwoofer is optional�

Important:

Connect speakers with 6 Ω to 16 Ω impedance. Using a

speaker with less impedance than the supported value may result in failure�

Back or Height

Front

Center

             

Surround

8FH

Right back

Or right height

Front R

Center

Front L

Step 1: Connections

79G

Left back

Or left height

A speaker configuration where only one back speaker is connected is not supported�

Subwoofer with built-in

power amplifier

Surround R

Surround L

En-7

Instructions on how to connect speakers

Cut and remove the plastic coating from the end of the speaker cable, twist the core and connect it to the terminal� Be sure to make correct connection between the unit's jacks and speaker's jacks (+ to + and - to -) for each channel� If connection is wrong, a bass sound may become poor due to reverse phase� Up to two subwoofers with builtin power amplifier can be connected to the SUBWOOFER jacks� Set the cut-off filter selection switch of the subwoofer to DIRECT� If the subwoofer does not have a cut-off filter selection switch but has a cut-off frequency adjusting dial, turn it to the maximum frequency� If your subwoofer does not have built-in power amplifier, you can connect a power amplifier between the unit and the subwoofer�

● The speaker setting is 7�1 channels at the time of

purchase� You can change it manually or by using automatic speaker setting�

● Short-circuiting the + cable and - cable or contacting

the cable core to the rear panel of the unit may cause failure� Also do not connect two or more cables to one speaker terminal or one speaker to several terminals�

Step 1: Connections

When using commercially available banana plugs: tighten the speaker terminals to the end and then insert the banana plugs� Do not insert the core of speaker cable directly into the hole for banana plug of speaker terminal� (North American models)

En-8

2 Connecting the TV and players

Step 1: Connections

HDMI

To use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an appropriate setting on the unit� See "2 Source

Connection" of "Step 2: Initial Setup"�

HDMI

OUT

Blu-ray Disc/

DVD player

set-top box, etc�

HDMI cable connection

The unit has many HDMI jacks on its rear panel and each of them corresponds to an input selector button of the same name on the front panel� For example, a Blu-ray Disc player will be connected to the HDMI IN1 jack and the BD/ DVD button on the front panel will be used to listen to the playback sound (if the player is CEC compliant, input will be switched automatically when play is started)� If you add another Blu-ray Disc player, you can use any other jack than HDMI IN1� It is possible to change assignment of the input jacks and input selector buttons� For how to make settings, see the Advanced Manual�

To connect the TV and the unit, connect the HDMI OUT jack of the unit and the HDMI IN jack of the TV using a HDMI cable� With this connection, it becomes possible to display the setting screen of the unit on the TV or transmit

HDMI cable

HDMI

OUT

video/audio signals from the player to the TV� If your TV supports ARC (Audio Return Channel), it is possible to play the TV sound with the AV receiver's speakers with this connection only� If your TV does not support ARC, you need, in addition to the HDMI OUT jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the AUDIO IN TV jack of the unit�

HDMI

OUT

HDMI

OUT

Game console

HDMI

OUT

Personal computer

Streaming media player, etc�Satellite/Cable

¼z Audio connection with a TV not supporting ARC

¼ Select an appropriate

connection for your TV�

DIGITAL OPTICAL

OUT

AUDIO

OUT

The unit supports the HDMI Standby Through function that allows video and audio signal transmission from players to the TV even if the unit is in standby� You have to

En-9

modify the settings to enable the input selection link with CEC (Consumer Electronics Control) compliant device, connection with ARC compatible TV, and HDMI Standby Through function� See "2 Source Connection" of "Step 2:

Initial Setup"�

● To enjoy HDCP2�2 protected video, connect the player

to one of the HDMI IN1 to IN3 jacks and connect the unit and the TV via HDMI� You will be unable to view images protected by HDCP2�2 if your TV does not have a HDCP2�2 compatible input jack�

● To play 4K or 1080p video, use a high speed HDMI

cable or high speed HDMI with Ethernet cable�

Connecting Components without HDMI

If your AV component does not have HDMI jack, use an available jack of your component for cable connection with this unit�

1 23

1 A player with a digital audio out jack can be connected�

Digital optical cable (OPTICAL)

¼ As the digital in optical jack of the unit has a

cover, push in the cable against the cover as it is turned inside�

Digital coaxial cable (COAXIAL)

2 A player with component video output jacks can be

connected�

Component video cable

¼ Its transmitted video has higher quality than

that of composite video cable�

3 A player with a composite video output jack can be

connected�

Composite video cable

4 A player with analog audio out jacks can be connected�

When using jacks 2 and 3 for video input, connect to the audio input jacks corresponding to the jacks connected at 2 and 3� (For example, when video input connection is to the 2 BD/DVD jack, the audio input connection should also be to the 4 BD/DVD jacks�)

¼ It is possible to change assignment of the input jacks and input

selector buttons� For how to make settings, see the Advanced Manual�

¼ To enjoy multi-zone playback with a player, connect player to 4

jacks�

Analog audio (RCA) cable

Step 1: Connections

Video upconversion function

Video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jacks will be upconverted to HDMI signals and then output from the HDMI output jack�

AV Receiver

¼ When you upconvert video signals input to

the COMPONENT VIDEO IN jacks and output them from the HDMI OUT jack, set the output resolution of the player to 480i or 576i� If the input has 480p/576p or higher resolution, a message prompting you to change the resolution setting will appear� If your player does not support 480i or 576i output, use the VIDEO IN jack�

¼ If multiple video signal inputs are put into one input

system, HDMI signal output is prioritized�

En-10

3 Other connections

AM/FM antenna connections

Connect the antennas to listen to AM/FM broadcast� When listening to the broadcast for the first time, adjust the antenna position and orientation to get the best reception�

Step 1: Connections

Network connection

You can enjoy Internet radio, DLNA and AirPlay by connecting the unit to LAN� The unit can be connected to the router with an Ethernet cable or to the wireless LAN router with Wi-Fi connection� In case of wired connection, connect the Ethernet cable to the Ethernet port� See "4

Network Connection" of "Step 2: Initial Setup" for Wi-Fi

settings�

AM loop antenna (supplied)

Indoor FM antenna (supplied)

(North American models)

Assemble the AM loop antenna (supplied)�

(Australian models)

Fix with a tack on the wall�

Internet radio

Router

NAS

Headphones connection

Connect stereo headphones with a standard plug (1/4 inch or ø 6�3 mm) to the Phones jack on the front panel� Sound from the speakers will be off while you are using the headphones�

● If you selected any other listening mode than Stereo,

Mono and Direct, connecting headphones will switch the listening mode to Stereo�

Power cord

This unit includes a removable power cord� Connect the power cord to AC INLET of the unit and then connect to the outlet� Always disconnect the outlet side first when disconnecting the power cord� When the unit is turned on, a large instantaneous current may flow affecting functionality of the computer and other devices, so it is recommended to use a separate outlet�

En-11

Step 2: Initial Setup

"Initial Setup" automatically starts on the TV when you first turn the unit on�

Initial Setup

Language Select

English

Deutsch

Français

Español

Italiano

Nederlands

Svenska

SETUP

Exit

Settings proceed in the following order:

1 AccuEQ Room Calibration

● Automatic calibration for optimum speaker settings

2 Source Connection

● Checking that each input source is connected correctly

● HDMI link function settings

3 Remote Mode Setup

● Settings required to operate other AV Components with

the Remote Controller

Before Start

Setup is performed as a series of responses to questions asked by the unit� Select the item with the cursors of the remote controller and press Enter to confirm your selection� To return to the previous screen, press Return�

● Switch the input on the TV to that assigned to the unit�

Select the language first� Next, a summary of the initial settings is displayed� Select "Yes" in this screen and press Enter on the remote controller�

Initial Setup

Welcome to initial setup.

Have you connected all the speakers and devices?

Before starting, please connect speakers and sources.

Now, would you like to start initial setup?

1st Step : AccuEQ Room Calibration

2nd Step : Source Connection

3rd Step : Remote Mode Setup

4th Step : Network Connection

Yes

SETUP

Exit

1 AccuEQ Room Calibration

The test tone coming from each speaker will be measured to enable setting of the number of speakers, volume level, each speaker's optimum crossover frequencies, and distance from the primary listening position, and also enable correction of distortion caused by the room acoustic environment�

● You cannot return to the previous screen during speaker

setup, even if you press Return�

1� Place the speaker setup microphone�

Initial Setup

AccuEQ Room Calibration

This step you can automatically calibrate your room to get correct surround sound. Would you like to calibrate your room now or later?

Do it Now

Do it Later

SETUP

Exit

When the screen above is displayed, before starting the procedure, place the supplied speaker setup microphone at the measurement position  by referring to the following figure�

4 Network Connection

● Checking network connections

● Wi-Fi settings

¼ Firmware update notification: If the unit is connected via LAN and there

is firmware update available, the "Firmware Update Available" message will appear� To execute updating, select "Update Now" with the cursor buttons of the remote controller and press Enter� When "Completed!" appears, press zOn/Standby on the main unit to turn the unit into standby mode� Then updating will be completed� (The unit automatically turns itself into standby mode after about 3 minutes even if

you do not press zOn/Standby, and updating will be complete�)

En-12

Re-doing initial setup: If you terminate the

procedure on the way or change the setting made in the initial setup and want to call up the setup wizard again, press remote controller, select "8� Miscellaneous" - "Initial

Receiver and then Setup on the

Setup", and press Enter�

Listening area

¼ Correct measurement will not be possible if the microphone is held

by hand� Measurement is not possible if headphones are being used�

Measurement position with microphone

¼ The subwoofer sound may not be detected since it is extremely

low frequencies� Set the subwoofer volume to around the half of its maximum volume�

¼ Measurement may be interrupted if there is ambient noise or radio

frequency interference� Close the window and turn off the home appliance and fluorescent light�

2� After placing the microphone at the measurement

position, select "Do it Now" with the cursors and press Enter�

3� When "Please plug microphone that came in a

box with AV receiver" is displayed, connect the microphone to the Setup Mic jack of the unit�

Setup Mic jack

Calibration microphone

4� Select the settings for the connected speakers, the

type of the height speakers, and other appropriate settings�

AccuEQ Room Calibration

Speaker Channels

Subwoofer

Height Speaker

Bi-Amp

Powered Zone2

Select how many speakers you have.

7.1ch

Yes

-----

ENTER

When the screen above is displayed, set the items with the cursor buttons on the remote controller� Refer to the on-screen diagram for "Speaker Channels", which changes each time a different number of channels is selected� When all the items have been set, press Enter on the remote controller� After that, follow the guidance displayed on the TV screen to operate the unit�

● Refer to the content of an item, which appears on

the lower left of the screen when the cursor is on the item�

5� The test tones sound from the connected speakers

and automatic speaker setting starts�

Measurement will be made 3 times or more for each speaker� It takes several minutes to be completed� Keep the room as quiet as possible during measurement� If any of the speakers do not produce the test tone, check for disconnection�

● During measurement, each speaker outputs the test

tones at a high volume� Be careful of sound leak that may disturb your neighbors, or be careful not to frighten young children�

6� When the measurement is completed, the

measurement result is displayed�

Press

t/u

on the remote controller to check the settings� Press Enter with "Save" selected� To have the settings reflected for all the speakers, select "On (All Channels)" in the next screen and press Enter on the remote controller�

● Select "On (Except Front Left / Right)" to disable just

the front speakers�

● If there is an error message, follow the on-screen

instruction to remove the error cause� If the subwoofer was not detected, turn the volume of the subwoofer up to maximum and then select "Retry"�

7� When "Please unplug setup microphone�" is

displayed, disconnect the microphone�

2 Source Connection

You can check the connections on the different inputs and make HDMI link function settings�

1� When the Source Connection start screen is

displayed, select "Yes, Continue" with the cursors and press Enter�

Initial Setup

Source Connection

This step will start to check if the

connections were made correctly.

Would you like to continue?

Yes. Continue

No. Skip

SETUP

Exit

Step 2: Initial Setup

2� Select the desired input to check the connection and

press Enter�

Start playback of the selected device� If connection is correct, video/audio of the input source selected on the unit will be played�

3� After checking the connection, select "Yes" with the

cursors and press Enter�

● If you select "No" and press Enter, the error cause

will be displayed� Follow the guidance to remove the error cause and check the connection again�

4� Select "Yes" with the cursors and press Enter on the

remote controller to check the connection of other inputs or select "No, Done Checking" and press Enter to skip�

If you select "Yes", you will return to the screen of step 2� If you select "No, Done Checking", you will proceed to step 5�

5� Set the CEC link function�

Select "Yes" to enable the HDMI link function with CECcompliant equipment, then select "Yes" again in the next screen�

Source Connection

The following CEC-compatible devices are found;

Do you wish to turn on the CEC link?

xxxxxxxxxxx

Yes

SETUP

Exit

If you select "Yes", the connection with ARC compatible TV and HDMI Standby Through function will be set to "On" and enabled�

En-13

3 Remote Mode Setup

Initial Setup

Remote Mode Setup

Preprograming remote will give you control

of other devices from AV receiver remote.

Would you like to setup your remote to

control your devices? This may take a while

depending on what and how many you have

connected. You can always come back to remote

setup from setup “7-2 Remote Mode”.

Yes, Continue

No, Skip

SETUP

Exit

You can enable operation of the other components using the remote controller of the unit� When the Remote Mode Setup start screen is displayed, select "Yes, Continue" with the cursors and press Enter on the remote controller� Follow the guidance to select the desired Remote Mode button and in the keyboard screen, enter the first three characters of the brand name of the device you are going to program and search for the remote control code� The guidance will also explain how to set the remote controller�

4 Network Connection

Initial Setup

Network Connection

Do you want to connect network connection?

It gives you network services that our AV

receiver support. If you wish to skip this step.

select “No. Skip”.

Yes

No, Skip

You can check the network connection and make the Wi-Fi setting� When the Network Connection start screen is displayed, select "Yes" with the cursors and press Enter on the remote controller� If you select "Wired" in the next screen, you can view the LAN cable connection status� To make the Wi-Fi setting, select "Wireless", press Enter on the remote controller and follow the sections below�

SETUP

Exit

Make the following preparations�

Wi-Fi connection requires an access point such as wireless LAN router ()� Write down the SSID and password (key) of the access point if they are shown in the label of the main body� If the access point has an automatic setting button (may be called differently according to the manufacturer), you can set up without inputting the password� For how to use the automatic setting button of the access point, refer to its instruction manual�

¼ The unit supports Wi-Fi connection with 2�4 GHz

access point�

1� Select the method of Wi-Fi connection with the

cursors and press Enter� Scan Networks: Use this unit to search for and connect

to a wireless LAN router or other access point� Use iOS Device (iOS7 or later): Select this method to let this unit share the Wi-Fi settings with your iOS device and establish a Wi-Fi connection with ease�

 If you selected "Scan Networks"

2� Select the SSID of the access point to be connected

with the cursor buttons and press Enter�

When the SSID of the access point appears on the TV screen, select the desired access point�

● If you changed the initial setting of the access point to

skip password entry, step 3 is unnecessary�

● If you changed the initial setting of the access point

to hide the SSID, see "When the access point is not displayed"�

3� Select and set the authentication method�

The "Enter Password" screen may be displayed automatically if the wireless LAN router does not have an automatic setting button�

Wi-Fi Setup

Select the authentication method.

Enter Password

Push Button

PIN code

When this screen is displayed, select and set one of the three authentication methods: "Enter Password", "Push Button" and "PIN code"� See below for details of and

Step 2: Initial Setup

how to set each method�

Enter Password: Enter the password of the access point to establish connection�

1 Select "Enter Password" with the cursor buttons and

press Enter�

2 Enter the password () on the keyboard screen, select

"OK" with the cursor buttons and press Enter�

¼ Select "A/a" and press Enter to toggle between upper and lower

case� Select " the selected direction� Select character at the left of the cursor position� To select whether to mask the password with "" or display it in plain text, press D on the remote control� Press +10 on the remote controller to switch between upper and lower case� Press CLR to delete all the input characters�

3 If the security method of the access point to be

connected is WEP, select "Default Key ID", select "OK" and press Enter�

Push Button: Use the automatic setting button of the access point to establish connection�

1 Select "Push Button" with the cursor buttons and press

Enter�

2 Hold down the automatic setting button of the access

point for the necessary seconds, select "OK" with the cursor buttons and press Enter�

PIN code: Select this method when the automatic setting button of the access point is beyond the reach� Select "PIN code" with the cursor buttons and press Enter to display the 8-digit PIN code� Register the displayed PIN code to the access point, select "OK" with the cursor buttons and press Enter� For how to register the PIN code to the access point, refer to its instruction manual�

4� Select "Yes, Start to Check" in the network

connection confirmation screen�



" or "" and press Enter to move the cursor to

and press Enter to delete the

En-14

Step 2: Initial Setup

When the access point is not displayed

Select "Other��" with the

cursor on the remote controller and press Enter to display the keyboard screen� Input the SSID and password� Make the following settings according to the router setting�

 WPA/WPA2 method

Select "WPA" or "WPA2" in "Security Method", select "OK" and press Enter�

 WEP method

Select "WEP" in "Security Method" and select "Default Key ID"� Then select "OK" and press Enter�

● If encryption setting has not been made on the

wireless LAN router, select "None" in "Security Method", select "OK" and press Enter�

 If you selected "Use iOS Device (iOS7 or

later)"

2� On the iOS device, go to "Settings"-"Wi-Fi" and turn

on the setting, then select this unit in "SETUP NEW AIRPLAY SPEAKER"�

3� Tap "Next"�

4� Select "Yes, Start to Check" in the network

connection confirmation screen�

 Privacy policy

A confirmation screen asking you to agree to the privacy policy is displayed during network setting� Select "Yes" and press Enter to indicate agreement�

ONKYO PRIVACY STATEMENT

To improve our products and services of Onkyo Corporation,

Onkyo may collect information about your receiver usage.

To know more about what type of information we collect and

how we use it please review Onkyo’s Privacy Policy at

http://www.onkyo.com/privacy/

I have read Onkyo’s Privacy Policy and agree to its terms.

Yes

 When connection is successful

"Successfully Connected" is displayed on the screen�

Network Connection

MAC Address xxxxxxxxxxx

IP Address, Subnet Mask, Gateway, DNS Server

Gateway Ping

Internet Service Test

Successfully connected.

SETUP

Exit

If the screen is not displayed, try doing the setting again� If "Push Button" connection with the wireless LAN router does not work, try "Enter Password"�

 Terminating initial setup

After finishing the initial setup, keep "Finished" selected and press Enter on the remote controller� Connection and setting of the unit is now complete�

Audio output of connected players

To enjoy digital surround sound including Dolby Digital and DTS, audio output should be set to "Bitstream output" on the connected Blu-ray Disc Player or other device� Depending on the settings on the Blu-ray Disc Player, there may be cases when Dolby TrueHD, Dolby Atmos, and DTSHD Master Audio is not output according to the format of the source� In this case, in the Blu-ray Disc Player settings try setting "BD video supplementary sound" (or secondary sound) to "Off"� Change the listening mode after changing the setting to confirm�

En-15

Step 3: Playing Back

1 Basic Operations

z When using the remote controller to operate the AV receiver: The remote controller of this unit

has the remote mode function for controlling other devices� You cannot control this unit when the remote controller is in the remote mode other than RECEIVER mode (for controlling this unit)� Be sure to press 3 Receiver to select the RECEIVER mode before starting operation�

1� Turning the power on�

Press 1 z Receiver on the remote controller to turn the power on�

● Switch the input on the TV to that assigned to the

unit� Use the TV's remote controller�

2� Select the input on the unit�

Press the 2 Input Selector button for the player you want to listen to� Press TV to listen to the TV's sound� You can also use the input selector buttons on the main unit�

● Input will automatically be selected if the TV or player

is CEC compliant and connected to the unit with HDMI cable�

3� Select the desired listening mode�

After pressing 3 Receiver, press the 6 listening mode buttons to switch the mode so that you can enjoy different listening modes�

4� Adjust the volume with G VOL�

En-16

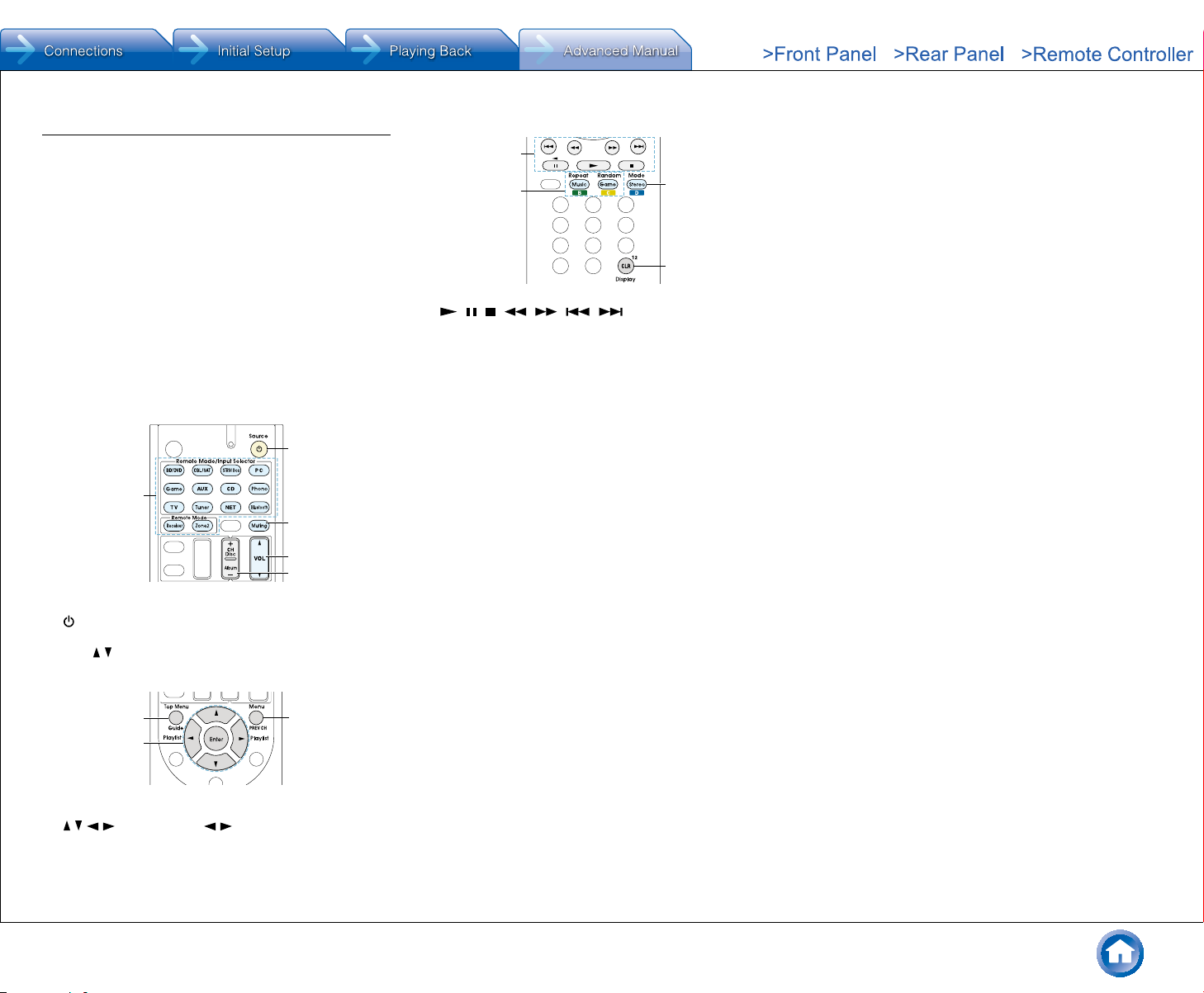

Part names and functions of the remote controller

1 z Receiver button: Turns the unit on or into standby

mode�

2 Remote Mode/Input Selector buttons: Switch the

input to be played� Furthermore, by registering a particular remote control code to a button, you can switch the remote control mode to operate other equipment by pressing that button�

¼ Phono button can not be used with this unit�

3 Receiver button: Switches the remote controller to the

mode for operating this unit�

4 Cursor buttons and Enter button: Move the cursor

and confirms the selection�

5 Setup button: Displays the screen for making various

settings for this unit�

6 Listening mode buttons: Allow you to select the

listening mode� Movie/TV button: You can select a listening mode suitable for movies and TV programs� Music button: You can select a listening mode suitable for music� Game button: You can select a listening mode suitable for games� Stereo button: You can select a listening mode for stereo and all channel stereo sources�

● For details on the listening modes, see the Advanced

Manual�

7 Dimmer button: Switches the brightness of the display� 8 Zone2 button: For use when the unit is connected with

a pre-main amplifier or speakers in a separate room and sound is played there�

9 Music OPT button: Turns on/off the MUSIC

OPTIMIZER function that improves the quality of the compressed audio�

F Muting button: Temporarily mutes audio� Press again

to cancel muting�

G Volume buttons: Allow you to adjust the volume� This

button also cancels the muting�

H Return button: Returns the display to the previous

state�

I Q button: Displays the Quick Setup menu that allows

you to quickly access the frequently used setting items including sound quality adjustment�

J Display button: Switches the information on the

display�

2 Network Functions

You can enjoy sources such as Internet radio by connecting the unit to a network� For details on the operation, see the Advanced Manual�

● OSDs (the feature to show information such as setting

menus on the TV) are not displayed when the OSD language is set to Chinese� Operate by confirming the display on the main unit�

Press NET on the remote controller to display the NET TOP screen on the TV� Select the item with the cursors of the remote controller and press Enter to confirm your selection�

¼ To return to the previous screen, press Return� ¼ Available services may vary depending on your area of residence�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

Internet radio services

The unit comes preset with Internet radio services such as TuneIn Radio� After selecting the desired service, follow the on-screen instructions, using the cursors to select radio stations and programs, then press Enter to play�

● Network services or contents may become unavailable if

the service provider terminates its service�

● This unit needs to be connected to the same router as a

computer or NAS device�

Home media

You can play music files in a shared folder on the computer or NAS device connected to the network� Select the server with the cursors, select the desired music file and press Enter to start playback�

● This unit needs to be connected to the same router as a

computer or NAS device�

USB

You can play music files on a USB storage device� Connect the USB storage device to the USB port on the rear of the unit, select the desired folder or music file with the cursors, and press Enter to confirm and start playback�

3 AirPlay

You can enjoy the audio from iPhone®, iPod touch®, iPad® and PCs with iTunes�

Important: This unit needs to be connected to the network through the same router as the iOS terminal or PC�



Playing music files from an iPhone, iPod touch, or iPad

Update the OS version on your iOS device to the latest version before connecting it to this unit�

1� Press NET on the remote controller�

2� Tap the AirPlay icon, select this unit from the list of

devices displayed, and click "Done"�

Step 3: Playing Back

swipe from the bottom of the screen of the iOS device�

● If the AirPlay icon is not displayed, confirm that this unit

and the iOS device are both connected to the router correctly�

3� Play music files from an iPhone, iPod touch, or iPad�

 Playing music files from a computer

● AirPlay is compatible with iTunes 10�2 or later�

1� Press NET on the remote controller�

2� Turn on your computer and start iTunes�

3� Click the AirPlay icon of iTunes and select this unit

from the list of devices displayed�

4� Play iTunes music files�

● If "6� Hardware"-"Power Management"-"Network

Standby" is set to on in the Setup menu, then once AirPlay starts, this unit turns on automatically and the "NET" input source is selected� Even if this setting is "Off", if the unit is already on then the "NET" input source can be selected�

● Due to the characteristics of AirPlay wireless technology,

the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device�

● Information such as the name of the track is displayed

on the unit's display during AirPlay playback�

● There may be some differences in how operations are

performed depending on the iOS or iTunes version�

● The on-screen displays are not displayed when the

OSD language is set to Chinese� Operate by confirming the display on the main unit�

Volume: The volume of this unit and the AirPlayenabled device are linked� Take care that the volume does not become too loud when you adjust the volume on the AirPlay-enabled device� You may damage the unit or the speakers� Stop play on the AirPlay-enabled device immediately if the volume becomes too loud at any point�

DLNA

You can play music files stored in the computer or NAS device connected to the network� Select the server with the cursors, select the desired music file and press Enter to start playback�

● The AirPlay icon is displayed in the control center if you

are using iOS 7 and later� To display the control center,

En-17

4 Bluetooth

TUNED

FM STEREO

You can wirelessly enjoy music files stored in a smartphone or other Bluetooth-enabled device� The coverage area is 48 feet (15 meters)�

● The Bluetooth-enabled device needs to support the

A2DP profile�

● Note that connection is not always guaranteed with all

Bluetooth-enabled devices�

 Pairing

Pairing is necessary when connecting the Bluetoothenabled device for the first time� Before starting the procedure, learn how to enable the Bluetooth setting function and to connect with other devices on the Bluetooth-enabled device�

1� Press Bluetooth on the remote controller�

The unit begins pairing and "Now Pairing��" is displayed�

low, the sound will not be output from this unit�

● Due to the characteristics of Bluetooth wireless

technology, the sound produced on this unit may slightly be behind the sound played on the Bluetooth-enabled device�

● The on-screen displays are not displayed when the

OSD language is set to Chinese� Operate by confirming the display on the main unit�

5 AM/FM Radio

The Basic Manual explains the method using automatic tuning� For manual tuning, see the Advanced Manual�

1� Press Tuner on the main unit several times to select

either "AM" or "FM"�

2� Press Tuning Mode on the unit, so that the "AUTO"

indicator on the display lights�

3� Press Tuning

The automatic tuning to a radio station starts� Searching stops when one is tuned� When tuned into a radio station, the "cTUNEDd" indicator on the display lights� The "FM STEREO" indicator lights if the radio station is an FM radio station�

on the unit�

Step 3: Playing Back

● To delete a preset station, after selecting the preset

number you want to delete with Preset unit, press Tuning Mode while holding down Memory on the main unit� When the preset number is deleted, it disappears from the display�

AM/FM frequency step setting

It may be necessary for you to change the frequency step to tune the radio in your area� Change the step with the following procedure� Note that when this setting is changed, all radio presets are deleted�

1� After pressing

controller, press Setup�

2� Use the cursor buttons to select "6� Hardware"

and press Enter� 3� Select "Tuner" with the cursor and press Enter� 4� Select "AM / FM Frequency Step" (North

American models) or "AM Frequency Step"

(Australian models) with the cursor and select

the frequency step for your area�

Receiver on the remote

d c

on the main

2� While "Now Pairing��" is on the display, complete

connection on the Bluetooth-enabled device in the nearby area within about 2 minutes�

If the name of this unit is displayed on the Bluetoothenabled device's display, select this unit� Paring will end after a short time�

● If a password is requested, enter "0000"�

● You can pair with another Bluetooth-enabled device

by pressing and holding the Bluetooth button until "Now Pairing��" is on the display� This unit can store the data of up to 8 paired devices�

 Playing Bluetooth-enabled devices

If the unit is on and the Bluetooth-enabled device is connected, the input will be automatically switched to BLUETOOTH� Play music in this state�

● It may take about a minute until connection is

established when the unit is on since the Bluetooth function takes some time to start up�

● If the volume setting on the Bluetooth-enabled device is

En-18

AUTO

Actual display varies depending on the country or the region

Registering a radio station: You can register up to 40 of your favorite AM/FM radio stations�

1� Tune into the AM/FM radio station you want to

2� Press Memory on the unit so that the preset number

on the display flashes�

3� Press Preset

a number between 1 and 40 while the preset number is flashing (about 8 seconds)�

4� Press Memory again on the main unit to register the

station�

When registered, the preset number stops flashing� To select a preset radio station, press Preset

the main unit or CH +/− on the remote controller.

d c

on the unit several times to select

d c

Step 3: Playing Back

6 Multi-zone

You can listen to audio in a room (called Zone 2) other than the one where this unit is located (called the main room)�

 Sources you can playback

● External players (1)

● NET (2)

● Bluetooth

● AM/FM Radio



1 Only analog audio signals can be output to Zone 2�



2 DSD and Dolby TrueHD audio signals cannot be output to Zone 2�

Important: Connection with external players To listen to a player in Zone 2, you must connect using an RCA cable� Some players may require analog audio output setting�

AUDIO

OUT

Making Multi-zone Connection

There are the following two methods of connection: a� Connecting with a pre-main amplifier or a power amplifier

in a separate room

b� Connecting with speakers in a separate room

 a� Connecting with a pre-main amplifier in a

separate room

It is possible to play 2 ch source in a separate room while 7�1 ch source is being played in the main room� Connect the PRE/LINE OUT ZONE2 jacks of the unit and the line-in jacks of the pre-main amplifier in a separate room with an RCA cable�

Main room

 b� Connecting with speakers in a separate

room

Connect the speakers in another room to the SPEAKERS ZONE2 jacks of the unit using speaker cables� Note that 5�1 ch will be the maximum () in the main room during Zone 2 playback� No sound will be output from the back speakers and height speakers�

¼ In this case, the Dolby Atmos listening mode cannot be selected�

Main room

Zone 2

● Settings are required in order to control volume and

sound quality on this unit� To adjust it with the unit, press

Receiver and then Setup on the remote controller,

select "3 Audio Adjust" - "Multi Zone" - "Zone 2 Out" and set the setting to "Variable"� If you connect a power amplifier, be sure to make the setting and adjust the volume on this unit�

These settings are required: After connecting the speakers, press on the remote controller, select "2� Speaker" "Configuration" and set "Powered Zone2" to "Yes"�

Receiver and then Setup

En-19

Performing Multi-zone Playback

Quick Setup

Listening Mode

Audio

HDMI

Information

MOVIE/TV

MUSIC

GAME

BD/DVD

It is possible to perform playback in the main room and a separate room at the same time, for example by playing the Blu-ray Disc player in the main room where the unit is placed while playing Internet radio in a separate room� It is also possible to perform playback only in a separate room�

● With external players, it is possible to play the same

source or different sources in the main room and separate room�

● With "NET" and "BLUETOOTH", you cannot select

different inputs for the main room and separate room� For example, if "NET" has been selected in the main room and then "BLUETOOTH" is selected as playback source in the separate room, the input in the main room will change to "BLUETOOTH" accordingly�

● You cannot select separate network services for the

main room and another room with the "NET" input�

● When listening to AM/FM broadcasting, you cannot

select different stations for the main room and separate room� Therefore broadcasting of the same station will be heard in the both rooms�

Playing Back

1� Press Zone2 on the remote controller, point the

remote controller at the main unit and press zReceiver�

"Z2" lights on the main unit display and the multi-zone function is enabled� (Zone 2 is now on�)

2� Press Zone2 again on the remote controller and

press Input Selector of the input to be played in a separate room�

● If you turn the unit to standby during multi-zone

playback, the Z2 indicator is dimmed and the playback mode is switched to playback in a separate room only� Performing steps 1 and 2 while the unit is in standby also switches the playback mode to playback in a separate room only� To play the same source in the main room and separate room, hold down Zone2 for approximately 3 seconds�

To control on the main unit: press Zone2 and within 8 seconds, press the input selector button of the source to be played in the other room� (To play the same source in the main room and separate room, press Zone2 twice�)

To adjust the volume on the main unit

To adjust the volume, press Zone2 on the remote controller and then adjust with VOLj/l� Level/ on the main unit�

Alternatively press Zone2

You can mute the sound by

pressing Muting on the remote controller�

To adjust the sound quality on the main unit

As for the operation, press Zone 2 on the main unit and press Tone several times to display "Bass", "Treble" or "Balance" on the main unit display� Display the desired

setting on the display and adjust it with + or −.

To turn off the function

After pressing Zone2 on the remote controller, press zReceiver� Alternatively press Off on the main unit�

● If ZONE 2 is on, power consumption during standby

becomes larger than normal�

● While ZONE 2 is on, the RI linked system function

(interlink between Onkyo components) is disabled�

● Pressing Input Selector on the remote controller while

you are using the remote controller for Zone 2 will switch the controlled target to the main room� To control Zone 2 again, press the Zone2 button to enter the Zone control mode�

7 Quick Setup Menu

You can perform common settings on the TV screen while playing�

1� Press Q on the remote controller�

The Quick Setup menu is displayed on the connected TV's screen�

Step 3: Playing Back

2� Select the item with the cursors of the remote

controller and press Enter to confirm your selection�

● To return to the previous screen, press Return�

3� Select the setting with the cursors buttons of the

remote controller�

 Listening Mode: Select the listening mode from the categories of "MOVIE/TV", "MUSIC" and "GAME"� After selecting the Listening Mode, press Enter button to confirm�

● It cannot be set when audio is played from the TV's

speakers�

 Audio: You can perform various audio settings including audio quality and speaker level adjustment�

● You cannot select this item when audio is output from

the TV's speakers�

Bass, Treble: Adjust volume of the front speaker�

● It cannot be set if the listening mode is Direct�

Phase Matching Bass: Suppress phase shift in the midrange to enhance bass sound� Thus smooth and powerful bass sound can be obtained�

● It cannot be set if the listening mode is Direct�

Center Level, Subwoofer Level: Adjust the speaker level while listening to the sound� The adjustment you made will be reset to the previous status when you turn the unit to standby mode�

● Changes may not be possible depending on the

settings in speakers�

● This setting is not possible during Muting or when

using headphones�

A/V Sync: If the video is behind the audio, you can delay the audio to offset the gap� Different settings can be set for each input selector�

● It cannot be set if the listening mode is Direct�

AccuEQ Room Calibration: Enable or disable the settings made by automatic speaker setting� To enable them, you should normally select "On (All Ch)", and to disable just the front speakers, you should select "On (ex� L/R)"� The setting can be separately set to each input selector�

● This setting cannot be selected if the automatic

speaker setting has not been performed�

● It cannot be set if headphones are connected or the

listening mode is Direct�

Music Optimizer: Improve the quality of the compressed audio� Playback sound of lossy

En-20

compressed files such as MP3 will be improved� The setting can be separately set to each input selector�

● The setting is effective in the signals of 48 kHz or

less� The setting is not effective in the bitstream signals�

● It cannot be set if the listening mode is Direct�

Late Night: Make small sounds to be easily heard� It is useful when you need to reduce the volume while watching a movie late night� You can enjoy the effect only with Dolby Digital, Dolby Digital Plus, and Dolby TrueHD sources�

● Turning the unit to standby mode will set the setting

to "Off"� In case of Dolby TrueHD, the setting will be set to "Auto"�

● The setting cannot be used if "Loudness

Management" is set to "Off" when playing Dolby Digital Plus or Dolby TrueHD�

Cinema Filter: Adjust the soundtrack that was processed to enhance its treble, in order to make it suitable for home theater�

● This function can be used in the following listening

modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express, DSD�

Center Spread: Adjust the width of the sound field of the front channel when playing in the Dolby Surround listening mode� To spread the width of the sound field to the left and right, set to "On"� To concentrate sound in the center, set to "Off"�

● This setting may be "Off" depending on the settings

in speakers�

 Information:

Audio: Displays the audio input source, format, number

of channels, sampling frequency, listening mode, and number of output channels�

Video: Displays information such as the video input source, resolution, color space, color depth, 3D information, Aspect and output�

Tuner: Displays information such as the band, frequency, and preset number� This is displayed only when "TUNER" is selected as the input source�

8 Other useful functions

To adjust the sound quality

It is possible to enhance or moderate the bass and treble of front speakers� Press Tone on the main unit several times to select the desired setting from "Bass", "Treble" and "Phase Matching Bass", and adjust with +/-�

● It cannot be set if the listening mode is Direct�

"Bass": Allows you to enhance or moderate the bass� "Treble": Allows you to enhance or moderate the treble� "Phase Matching Bass": Allows you to keep the clear

midrange and effectively enhance the bass�

Checking the Input Format

Press Display on the remote controller several times to switch the display of the main unit in order of:

Input source & volume

Listening mode

Signal format

(Audio)

Sampling frequency

Input signal resolution

● If "Dolby D 5�1" is displayed in Signal format, the

Dolby Digital 5�1 ch signals are being input� When listening to AM/FM radio, the band, frequency and preset number are displayed�

Playing Audio and Video from Separate Sources

It is possible to play audio and video from different sources� For example, you can play audio from the CD player and video from the BD/DVD player� In this case, press BD/DVD and then CD� Then start playback on the BD/DVD player

(Video)

Step 3: Playing Back

and CD player� This function is effective when an input with audio only has been selected (CD, NET, BLUETOOTH, or TUNER in the initial setting)�()

¼ When NET or BLUETOOTH is selected, press Mode on the remote

controller after pressing NET or Bluetooth on the remote controller�

En-21

Others

Troubleshooting

Before starting the procedure

Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure� Try the simple measures on both the unit and the connected device� If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it� When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well� After reconnecting, turn off and on the unit and the connected device�

The AV receiver turns off unexpectedly�

● The AV receiver will automatically enter standby mode when

Auto Standby or Sleep Timer is set and launched�

● The protection circuit may have been activated� If this is the

case, when you turn the unit on again, “AMP Diag Mode” will appear on the main unit’s display� The unit will then enter a mode that detects abnormal conditions� If no problems are detected, “AMP Diag Mode” will disappear and the unit will return to a normal state� If “CHECK SP WIRE” appears on the display, the speaker cables may be short-circuited� Turn the unit off, and check to see if the cable core of any of the speaker cables is in contact with that of another speaker cable or with the rear panel� After that, turn the unit on again� If “NG” appears, unplug the power cord immediately and contact your dealer�

There’s no sound, or it’s very quiet�

● A wrong input selector button has been selected� Select a

correct input for the player� Also check that muting is not on�

● Not all listening modes use all speakers�

There’s no picture�

● A wrong input selector button has been selected�

● To display video from the connected player on the TV screen

while the unit is in standby, you need to enable HDMI Standby Through function�

● When the TV image is blurry or unclear, power cord or

connection cables of the unit may have interfered� In that case, keep distance between TV antenna cable and cables of the unit�

● If you connect a player supporting HDCP2�2, be sure to connect

it to one of the HDMI IN1 to IN3 jacks of the unit�

Video and audio are out of synch�

● Video may be delayed relative to audio depending on the

settings and connections with your TV� Adjust in

"Step 3:

Playing Back", "7 Quick Setup Menu", "A/V Sync"�

Cannot play digital surround�

● To enjoy digital surround sound including Dolby Digital and

DTS, audio output should be set to "Bitstream output" on the connected Blu-ray Disc Player or other device�

Cannot output audio such as Dolby Atmos according to the format of the source�

● If you cannot output audio according to the format of the

source (Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, etc�), in the Blu-ray Disc Player settings try setting "BD video supplementary sound" (or secondary sound) to "Off"� Change the listening mode for each source after changing the setting to confirm�

HDMI control does not function correctly�

● Set the CEC link function of the unit to on� It is also necessary

to make the HDMI linked system setting on the TV� See the TV's instruction manual for details�

Cannot access to network�

● Try plugging/unplugging the unit or the wireless LAN router or

check their power-on status� This will work well in many cases�

● If the desired wireless LAN router is not in the access point list,

it may be set to hide SSID or the ANY connection may be off� Change the setting and try again�

 Resetting the unit

Resetting the unit to the status at the time of shipment may solve the problem� If the measures above do not solve the problem, reset the unit with the following procedure� If you reset the unit status, your preferences will be reset to the defaults� Note them down before starting reset�

● How to reset:

1�

While holding down CBL/SAT on the main unit (note that step 2 must be performed with this button pressed down)

2� Press zOn/Standby on the main unit ("Clear" appears on

the display and the unit returns to standby)�

● Do not unplug the power cord until "Clear" disappears from

the display�

While holding

Press zOn/Standby�

2�

1�

down CBL/SAT,

● How to reset the remote controller:

1�

While holding down Receiver on the remote controller, press Q until the remote indicator stays lit (about 3 seconds)�

2� Within 30 seconds, press Receiver again�

Remote indicator

Receiver

En-22

Specifications

Amplifier Section

Rated Output Power (North American) With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 65

watts per channel minimum RMS power, with no more than 0�7% total

harmonic distortion from 250 milliwatts to rated output� Surround Mode Output Power () (6 ohms, 1 kHz THD 0�9%) 115 W per channel

¼ Reference output for each speakers� Depending on the source and the listening mode settings, there may be no sound output� Rated Output Power (Others) 7 ch × 100 W at 6 ohms, 1 kHz, 1 ch driven of 1% (IEC) Dynamic Power ()

¼ IEC60268-Short-term maximum output power

160 W (3 Ω, Front) 125 W (4 Ω, Front) 85 W (8 Ω, Front)

THD+N (Total Harmonic Distortion+Noise) 0�08% (20 Hz - 20 kHz, half power) Input Sensitivity and Impedance (Unbalance)

200 mV/47 kΩ (LINE, 1 kHz 100 W/8 Ω)

Rated RCA Output Level and Impedance 1 V/470 Ω (SUBWOOFER PRE OUT)

100 mV/2.3 kΩ (ZONE2 LINE OUT) 1V/2.3 kΩ (ZONE2 PRE OUT)

Frequency Response 5 Hz - 100 kHz/+1 dB, –3 dB (Direct mode) Tone Control Characteristics ±10 dB, 20 Hz (BASS) ±10 dB, 20 kHz (TREBLE) Signal to Noise Ratio 100 dB (LINE, IHF-A) Speaker Impedance

6 Ω - 16 Ω

Video Section

Signal level

1.0 Vp-p/75 Ω (Component Y)

0.7 Vp-p/75 Ω (Component Pb/Cb, Pr/Cr)

1.0 Vp-p/75 Ω (Composite)

Correspoinding maximum resolution 480i/576i (Component)

Tuner Section

FM Tuning Frequency Range 87�5 MHz - 107�9 MHz (North American) 87�5 MHz - 108�0 MHz, RDS (Others) AM Tuning Frequency Range 522/530 kHz - 1611/1710 kHz Preset Channel 40

Network Section

Ethernet LAN 10BASE-T/100BASE-TX Wireless LAN IEEE 802�11 b/g/n standard

(Wi-Fi 2�4 GHz band: 1 - 11 ch (North American) 1 - 13 ch (Others) (Wi-Fi

standard)

Bluetooth Section

Communication system

Bluetooth Specification version 2�1 +EDR (Enhanced Data Rate)

Maximum communication range

Line of sight approx� 15 m ()

Frequency band

2�4 GHz band

Modulation method

FHSS (Freq Hopping Spread Spectrum)

Compatible Bluetooth profiles

A2DP 1�2 (Advanced Audio Distribution Profile) AVRCP 1�3 (Audio Video Remote Control Profile)

Supported Codecs

SBC

Transmission range (A2DP)

20 Hz - 20,000 Hz (Sampling frequency 44�1 kHz)

¼ The actual range will vary depending on factors such as obstacles between

devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna’s performance, operating system, software application, etc�

General

Power Supply AC 120 V, 60 Hz (North American) AC 220 - 240 V, 50/60 Hz (Others) Power Consumption 4�3 A (North American) 430 W (Others) 0�1 W (Stand-by, North American)

0�15 W (Stand-by, Others)

2�6 W (Network Standby) 60 W (No-sound) Dimensions (W × H × D) 435 mm × 174 mm × 326�5 mm 17-1/8" × 6-7/8" × 12-7/8" Weight 8�8 kg (19�4 lbs�) (North American) 9�0 kg (19�8 lbs�) (Others)

Others

● HDMI

Input IN1 (BD/DVD, HDCP2�2), IN2 (CBL/SAT, HDCP2�2), IN3 (STRM BOX,

HDCP2�2), IN4 (PC), IN5 (GAME), IN6 Output OUT Video Resolution 4K 60 Hz (RGB/YCbCr4:4:4/YCbCr4:2:2, 24 bit) Audio Format Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD

Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS,

DTS Express, DSD, Multichannel PCM (up to 8ch) Supported 3D, Audio Return Channel, Deep Color, x�v�Color™, LipSync, CEC, 4K,

Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601),

Content Type, 3D Dual View, 21:9 Aspect Ratio Video Format

● Video Inputs

Component IN1 (BD/DVD), IN2 (GAME) Composite IN1 (CBL/SAT), IN2 (STRM BOX), IN3 (PC), AUX INPUT (front)

● Audio Inputs

Digital OPTICAL 1 (CD), 2 (TV)

COAXIAL (BD/DVD) Analog BD/DVD, CBL/SAT, STRM BOX, PC, GAME, TV, CD, AUX INPUT (front)

● Audio Outputs

Analog ZONE2 PRE/LINE OUT 2 SUBWOOFER PRE OUT Speaker Outputs FRONT L/R, CENTER, SURROUND L/R, BACK or HEIGHT or Bi-AMP

L/R, ZONE2 L/R Phones PHONES (Front, ø 6�3)

● Others

Setup Mic 1 (Front) RS232 1 RI REMOTE CONTROL 1 USB 1 (Ver�1�1, 5 V/1 A) Ethernet 1 IR IN 2 (A/B)/IR OUT 1 12V TRIGGER OUT 3 (A: 100 mA, B: 25 mA, C: 25 mA)

Supports multi-language on-screen display (North American) English, German, French, Spanish, Italian, Dutch,

Swedish, Chinese () (Others) English, German, French, Spanish, Italian, Dutch, Swedish,

Russian, Chinese ()

¼ OSD is not displayed when the input selector is "NET" or

"BLUETOOTH"� Use the display on the main unit when operating the unit�

Specifications and features are subject to change without notice�

En-23

Others

Table of image resolutions

Refer to the following table for information about the image formats and resolutions output by this unit in response to input signals

HDMI

Input

HDMI

Component

Composite 480i/576i

Output

4K 1080p/24 1080p 1080i 720p 480p/576p 480i/576i 1080p 1080i 720p 480p/576p 480i/576i

4K 1080p/24 1080p 1080i 720p



480p/576p 480i/576i



 

Resolutions supported by HDMI

Input

support

HDMI input IN1 to IN3

HDMI input IN4 to IN6

Content

protection

technology

HDCP1�4 HDCP2�2

HDCP1�4

Display

resolution

720×480i 60 Hz 720×576i 50 Hz 720×480p 60 Hz 720×576p 50 Hz 1920×1080p 50/60 Hz 1280×720p 24/25/30/50/60 Hz 1680×720p 24/25/30/50/60 Hz 1920×1080p 24/25/30/50/60 Hz

2560×1080p

4K (3840×2160p)

4K SMPTE (4096×2160p)

720×480i 60 Hz 720×576i 50 Hz 720×480p 60 Hz 720×576p 50 Hz 1920×1080i 50/60 Hz 1280×720p 24/25/30/50/60 Hz 1680×720p 24/25/30/50/60 Hz 1920×1080p 24/25/30/50/60 Hz

2560×1080p

4K (3840×2160p)

4K SMPTE (4096×2160p)

Frame rate Color space Color Depth Remarks

RGB/YCbCr4:4:4/ YCbCr4:2:2

24/25/30 Hz 50/60 Hz

24/25/30 Hz

50/60 Hz

24/25/30 Hz

50/60 Hz

24/25/30 Hz

50/60 Hz

24/25/30 Hz

50/60 Hz YCbCr4:2:0 8 bit

24/25/30 Hz

50/60 Hz YCbCr4:2:0 8 bit

RGB/YCbCr4:4:4/ YCbCr4:2:2

RGB/YCbCr4:4:4 8 bit YCbCr4:2:2 12 bit YCbCr4:2:0 8/10/12/16 bit RGB/YCbCr4:4:4/

YCbCr4:2:2 RGB/YCbCr4:4:4 8 bit YCbCr4:2:2 12 bit YCbCr4:2:0 8/10/12/16 bit

RGB/YCbCr4:4:4/ YCbCr4:2:2

RGB/YCbCr4:4:4 8 bit YCbCr4:2:2 12 bit

8/10/12/16 bit

8/10/12 bit



En-24

¼ With YCbCr4:2:2, Color Depth supported is 12 bit only�

Precautions

For European Models

Declaration of Conformity

We declare, under our sole responsibility, that this product complies with the standards:

– Safety – Limits and methods of measurement of

radio disturbance characteristics – Limits for harmonic current emissions – Limitation of voltage changes, voltage

fluctuations and flicker – RoHS Directive, 2011/65/EU

– Hereby, Onkyo Corporation, declares that this DTR-20�7 is in compliance

with the essential requirements and other relevant provisions of Directive

1999/5/EC� – С настоящето, Onkyo Corporation, декларира, че DTR-20.7 е в

съответствие със съществените изисквания и другитеприложими

разпоредби на Директива 1999/5/EC. – Onkyo Corporation tímto prohlašuje, že DTR-20.7 splňuje základní

požadavky a všechna příslušná ustanoveni Směrnice 1999/5/ES. – Undertegnede Onkyo Corporation erklærer herved, at følgende udstyr

DTR-20.7 overholder de væsentlige krav og øvrige relevante krav i direktiv

1999/5/EF� – Hiermit erklärt Onkyo Corporation, dass sich das Gerät DTR-20�7 in

Übereinstimmung mit den grundlegenden Anforderungen und den übrigen

einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet� – Käesolevaga kinnitab Onkyo Corporation seadme DTR-20�7 vastavust

direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele� – ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ Onkyo Corporation ΔΗΛΩΝΕΙ

ΟΤΙ DTR-20.7 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ

ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ

– Por la presente, Onkyo Corporation, declara que este DTR-20�7 cumple

con los requisitos esenciales y otras exigencias relevantes de la Directiva

1999/5/EC� – Par la présente, Onkyo Corporation déclare que l’appareil DTR-20.7 est

conforme aux exigences essentielles et aux autres dispositions pertinentes

de la directive 1999/5/CE� – Con la presente Onkyo Corporation dichiara che questo DTR-20�7 è

conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite

dalla direttiva 1999/5/CE� – Ar šo Onkyo Corporation deklarē, ka DTR-20.7 atbilst Direktīvas 1999/5/EK

būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

– Šiuo Onkyo Corporation deklaruoja, kad šis DTR-20.7 atitinka esminius

reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas� – A Onkyo Corporation ezzennel kijelenti, hogy a DTR-20.7 típusú beren-

dezés teljesíti az alapvető követelményeket és más 1999/5/EK irányelvben

meghatározott vonatkozó rendelkezéseket.

– Hierbij verklaart Onkyo Corporation dat het toestel l DTR-20�7 in

overeenstemming is met de essentiële eisen en de andere relevante

bepalingen van richtlijn 1999/5/EG� – Niniejszym Onkyo Corporation deklaruje że DTR-20.7 jest zgodny

z zasadniczymi wymaganiami i innymi właściwymi postanowieniami

Dyrektywy 1999/5/EC� – Eu, Onkyo Corporation, declaro que o DTR-20�7 cumpre os requisitos

essenciais e outras provisões relevantes da Directiva 1999/5/EC�

– Prin prezenta, Onkyo Corporation, declară că aparatul DTR-20.7 este

în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale

Directivei 1999/5/CE�

– Onkyo Corporation týmto vyhlasuje, že DTR-20.7 a spĺňa základné

požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

– Onkyo Corporation izjavlja, da je ta DTR-20�7 v skladu z bistvenimi

zahtevami in drugimi relevantnimi določili direktive 1999/5/ES.

– Onkyo Corporation vakuuttaa täten että DTR-20�7 tyyppinen laite on

direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen�

– Härmed förklarar Onkyo Corporation att denna DTR-20�7 följer de

väsentliga kraven och andra relevanta stadgar i Direktiv 1999/5/EC�

– Hér með lýsir Onkyo Corporation því yfir að varan DTR-20.7 er í samræmi

við grunnkröfur og aðrar kröfur sem gerðar eru í tilskipun 1999/5/EC.

– Onkyo Corporation erklærer herved at denne DTR-20.7 er i

overensstemmelse med vesentlige krav og andre relevante bestemmelser i direktiv 1999/5/EC�

– Ovime Onkyo Corporation, potvrđuje da je DTR-20.7 u suglasnosti sa

osnovnim zahtjevima i ostalim relevantnim odredbama Direktive 1999/5/ EC�

Others

En-25

License and Trademark Information

Manufactured under license from Dolby Laboratories� Dolby, Dolby Atmos, Dolby Surround and the double-D symbol are trademarks of Dolby Laboratories�

For DTS patents, see http://patents�dts�com� Manufactured under license from DTS, Inc� DTS, the Symbol, DTS in combination with the Symbol, the DTS-HD logo, and DTS-HD Master Audio are registered trademarks or trademarks of DTS, Inc� in the United States and/or other countries� © DTS, Inc� All Rights Reserved�

"CINEMA FILTER" and "CINEMA FILTER (logo)" are trademarks of Onkyo Corporation�

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries�

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance®�

AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc�, registered in the U�S� and other countries�

iPad Air and iPad mini are trademarks of Apple Inc�

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards� Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards�

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance�

AirPlay works with iPhone, iPad, and iPod touch with iOS 4�3�3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10�2�2 or later�

Apple, Apple TV and Safari are trademarks of Apple Inc�, registered in the U�S� and other countries�

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc� and any use of such marks by Onkyo is under license� Other trademarks and trade names are those of their respective owners�

Onkyo does not guarantee Bluetooth compatibility between the AV receiver and all Bluetooth-enabled devices� For compatibility between the AV receiver and another device with Bluetooth technology, consult the device’s documentation and dealer� In some countries, there may be restrictions on using Bluetooth devices� Check with your local authorities�

DLNA

, the DLNA Logo and DLNA CERTIFIED® are trademarks, service

marks, or certification marks of the Digital Living Network Alliance� This product is protected by certain intellectual property rights of Microsoft� Use

or distribution of such technology outside of this product is prohibited without a license from Microsoft�

Windows and the Windows logo are trademarks of the Microsoft group of companies�

QR Code is a registered trademark of DENSO WAVE INCORPORATED� "x�v�Color" and "x�v�Color" logo are trademarks of Sony Corporation� DSD and the Direct Stream Digital logo are trademarks of Sony Corporation� MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and

Thomson� AccuEQ, Music Optimizer, RIHD and WRAT are trademarks of Onkyo

Corporation�

"All other trademarks are the property of their respective owners�"

DISCLAIMER

Through this device you are able to link to other services or websites which are not under the control of any company which has designed, manufactured or distributed/have distributed this device, and its affiliates (collectively, "Company")� We have no control over the nature, content and availability of those services� The inclusion of any links does not necessarily imply a recommendation or endorse the views expressed within them� All information, content and services available through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws of applicable countries� The information, content and services provided through this device are for your personal, noncommercial use only� Any information, content or services may not be used in any manner other than previously approved by the appropriate content owner or service provider�

Others

You may not modify, copy, republish, translate, exploit, create derivative works, upload, post, transmit, sell or distribute in any manner any information, content or services available through this device, unless expressly permitted by the appropriate copyright, patent, trademark and/or other intellectual property owner, including, without limitation, content owner or service provider� THE CONTENT AND SERVICES AVAILABLE THROUGH THIS DEVICE ARE PROVIDED “AS IS”� COMPANY DOES NOT WARRANT INFORMATION, CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE� COMPANY EXPRESSLY DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF TITLE, NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE� Company makes no representation or warranty of any kind, express or implied, about the completeness, accuracy, validity, legality, reliability, suitability or availability with respect to the information, content or services available through this device� Company shall not be liable, whether in contract or tort, including negligence and strict liability, for any direct, indirect, special, incidental or consequential damages or any other damages arising out of, or in connection with, any information contained in, or as a result of the use of any content or service by you or any third party, even if Company has been advised of the possibility of such damages, nor shall Company be liable for any third party claims against users of this device or any third party�

In no event shall Company be responsible nor liable for, without limiting the generality of the foregoing, any interruption or suspension of any information, content or service available through this device� Company is neither responsible nor liable for customer service related to the information, content and services available through this device� Any question or request for service relating to the information, content or services should be made directly to the appropriate content owners and services providers�

En-26

GNU License

Important Notice Regarding Software

The software package installed in this product includes software licensed to Onkyo Corporation (hereinafter, called "Onkyo") directly or indirectly by third party developers� Please be sure to read this notice regarding such software�

Notice Regarding GNU GPL/LGPL-applicable Software

This product includes the following software that is covered by GNU General Public License (hereinafter, called "GPL") or by GNU Lesser General Public License (hereinafter, called "LGPL")� Onkyo notifies you that, according to the attached GPL/LGPL, you have right to obtain, modify, and redistribute software source code for the listed software�

Package List

linux uClibc busybox libgcc libstdc++ libmms compat-wireless wpa_supplicant dnsmasq libiconv bluez dbus iperf faad

GNU LESSER GENERAL PUBLIC LICENSE

Version 2�1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc� 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed� [This is the first released version of the Lesser GPL� It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2�1�]

Preamble

The licenses for most software are designed to take away your freedom to share and change it� By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users� This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it� You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below� When we speak of free software, we are referring to freedom of use, not price� Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things� To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights� These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it� For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you� You must make sure that they, too, receive or can get the source code� If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it� And you must show them these terms so they know their rights� We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library� To protect each distributor, we want to make it very clear that there is no warranty for the free library� Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others� Finally, software patents pose a constant threat to the existence of any free program� We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder� Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license� Most GNU software, including some libraries, is covered by the ordinary GNU General Public License� This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License� We use this license for certain libraries in order to permit linking those libraries into non-free programs� When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library� The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom� The Lesser General Public License permits more lax criteria for linking other code with the library� We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License� It also provides other free software developers Less of an advantage over competing non-free programs� These disadvantages are the reason we use the ordinary General Public License for many libraries� However, the Lesser license provides advantages in certain special circumstances� For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard� To achieve this, non-free programs must be allowed to use the library� A more frequent case is that a free library does the same job as widely used non-free libraries� In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License� In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software� For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system� Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library� The precise terms and conditions for copying, distribution and modification follow� Pay close attention to the difference between a "work based on the library" and a "work that uses the library"� The former contains code derived from the library, whereas the latter must be combined with the library in order to run�

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0� This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License")� Each licensee is addressed as "you"� A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables� The "Library", below, refers to any such software library or work which has been distributed under these terms� A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language� (Hereinafter,

translation is included without limitation in the term "modification"�) "Source code" for a work means the preferred form of the work for making modifications to it� For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library� Activities other than copying, distribution and modification are not covered by this License; they are outside its scope� The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it)� Whether that is true depends on what the Library does and what the program that uses the Library does� 1� You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library� You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee� 2� You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library� b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change� c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful� (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application� Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots�) These requirements apply to the modified work as a whole� If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works� But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it� Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library� In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License� 3� You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library� To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License� (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish�) Do not make any other change in these notices� Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy� This option is useful when you wish to copy part of the code of the Library into a program that is not a library� 4� You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange� If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code� 5� A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library"� Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License� However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library"� The executable is therefore covered by this License� Section 6 states terms for distribution of such executables� When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not� Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library� The threshold for this to be true is not precisely defined by law� If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work� (Executables containing this object code plus portions of the Library will still fall under Section 6�) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6� Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself� 6� As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications� You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License� You must supply a copy of this License� If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License� Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library� (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions�) b) Use a suitable shared library mechanism for linking with the Library� A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with� c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials

Others

specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution� d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place� e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy� For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it� However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable� It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system� Such a contradiction means you cannot use both them and the Library together in an executable that you distribute� 7� You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities� This must be distributed under the terms of the Sections above� b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work� 8� You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License� Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License� However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance� 9� You are not required to accept this License, since you have not signed it� However, nothing else grants you permission to modify or distribute the Library or its derivative works� These actions are prohibited by law if you do not accept this License� Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it� 10� Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions� You may not impose any further restrictions on the recipients' exercise of the rights granted herein� You are not responsible for enforcing compliance by third parties with this License� 11� If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License� If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all� For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library� If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances� It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices� Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice� This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License� 12� If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded� In such case, this License incorporates the limitation as if written in the body of this License� 13� The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time� Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns� Each version is given a distinguishing version number� If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation� If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation� 14� If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission� For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this� Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally�

NO WARRANTY

15� BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW� EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE� THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU� SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION� 16� IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES�

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change� You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License)�

En-27

To apply these terms, attach the following notices to the library� It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found� <one line to give the library's name and an idea of what it does�> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2�1 of the License, or (at your option) any later version� This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE� See the GNU Lesser General Public License for more details� You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc�, 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail� You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary� Here is a sample; alter the names: Yoyodyne, Inc�, hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by James Random Hacker� signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That's all there is to it! GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc�59 Temple Place - Suite 330, Boston, MA 02111-1307, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed� Preamble The licenses for most software are designed to take away your freedom to share and change it� By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users� This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it� (Some other Free Software Foundation software is covered by the GNU Library General Public License instead�) You can apply it to your programs, too� When we speak of free software, we are referring to freedom, not price� Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things� To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights� These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it� For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have� You must make sure that they, too, receive or can get the source code� And you must show them these terms so they know their rights� We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software� Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software� If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations� Finally, any free program is threatened constantly by software patents� We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary� To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all� The precise terms and conditions for copying, distribution and modification follow� TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License� The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language� (Hereinafter, translation is included without limitation in the term "modification"�) Each licensee is addressed as "you"� Activities other than copying, distribution and modification are not covered by this License; they are outside its scope� The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program)� Whether that is true depends on what the Program does� You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program� You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee� You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change� b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License� c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License� (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement�) These requirements apply to the modified work as a whole� If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works� But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it� Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program� In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License� You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more

than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code� (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above�) The source code for a work means the preferred form of the work for making modifications to it� For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable� However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable� If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code� You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License� Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License� However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance� You are not required to accept this License, since you have not signed it� However, nothing else grants you permission to modify or distribute the Program or its derivative works� These actions are prohibited by law if you do not accept this License� Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it� Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions� You may not impose any further restrictions on the recipients' exercise of the rights granted herein� You are not responsible for enforcing compliance by third parties to this License� If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License� If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all� For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program� If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances� It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices� Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice� This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License� If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded� In such case, this License incorporates the limitation as if written in the body of this License� The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time� Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns� Each version is given a distinguishing version number� If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation� If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation� If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission� For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this� Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally� NO WARRANTY BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW� EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE� THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU� SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION� IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES� END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms� To do so, attach the following notices to the program� It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found� <one line to give the program's name and an idea of what it does�> Copyright (C) <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version� This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE� See the GNU General Public License for more details� You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc�, 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA� Also add information on how to contact you by electronic and paper mail� If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'� This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details� The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License� Of course,

Others

the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program� You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary� Here is a sample; alter the names: Yoyodyne, Inc�, hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker� <signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs� If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library� If this is what you want to do, use the GNU Library General Public License instead of this License� Notice Regarding Third-party Software This product includes the following software that is directly or indirectly licensed to Onkyo by third-party developers� 1� bfsh-sk 2� ixml 3� libcurl 4� libFLAC 5� libjpeg 6� libogg 7� libpng 8� libvorbis 9� ntp 10� OpenSSL 11� popt 12� RSA Data Security, Inc� MD5 Message-Digest Algorithm 13� thttpd 2�25b 14� zlib 15� Apple Lossless 16� Boost 17� Expat 18� FastDelegate 19� Tremolo 20� Tremor 21� Mersenne Twister 22� cURL 23� c-ares 24� LZ4

In response to requests from the copyright owners of each piece of software, Onkyo notifies you of the following: 1� bfsh-sk 2� ixml 3� libcurl 4� libFLAC 5� libjpeg 6� libogg 7� libpng 8� libvorbis 9� ntp 10� OpenSSL 11� popt 12� RSA Data Security, Inc� MD5 Message-Digest Algorithm 13� thttpd 2�25b 14� zlib 15� Apple Lossless 16� Boost 17� Expat 18� FastDelegate 19� Tremolo 20� Tremor 21� Mersenne Twister 22� cURL 23� c-ares 24� LZ4

(1) bfsh-sk Copyright (c) 2007 Samuel KABAK Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT� IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� (2) ixml Copyright (c) 2000-2003 Intel Corporation All rights reserved� Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer� * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� * Neither name of Intel Corporation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission� THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

En-28

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (3) libcurl COPYRIGHT AND PERMISSION NOTICE Copyright (c) 1996 - 2007, Daniel Stenberg, <daniel@haxx�se>� All rights reserved� Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS� IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder� (4) libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer�

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution�

- Neither the name of the Xiph�org Foundation nor the names of itsy be us contributors may be used to endorse or promote products derived from this software without specific prior written permission� THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (5) libjpeg The authors make NO WARRANTY or representation, either express or implied, with respect to this software, its quality, accuracy, merchantability, or fitness for a particular purpose� This software is provided "AS IS", and you,its user, assume the entire risk as to its quality and accuracy� This software is copyright (C) 1991-1998, Thomas G� Lane� All Rights Reserved except as specified below� Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose, without fee, subject to these conditions: If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no-warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly indicated in accompanying documentation� If only executable code is distributed, then the accompanying documentation must state that "this software is based in part on the work of the Independent JPEG Group"� Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NO LIABILITY for damages of any kind� These conditions apply to any software derived from or based on the IJG code, not just to the unmodified library� If you use our work, you ought to acknowledge us� Permission is NOT granted for the use of any IJG author's name or company name in advertising or publicity relating to this software or products derived from it� This software may be referred to only as "the Independent JPEG Group's software"� We specifically permit and encourage the use of this software as the basis of commercial products, provided that all warranty or liability claims are assumed by the product vendor� ansi2knr�c is included in this distribution by permission of L� Peter Deutsch, sole proprietor of its copyright holder, Aladdin Enterprises of Menlo Park, CA� ansi2knr�c is NOT covered by the above copyright and conditions, but instead by the usual distribution terms of the Free Software Foundation; principally, that you must include source code if you redistribute it� (See the file ansi2knr�c for full details�) However, since ansi2knr�c is not needed as part of any program generated from the IJG code, this does not limit you more than the foregoing paragraphs do� The Unix configuration script "configure" was produced with GNU Autoconf� It is copyright by the Free Software Foundation but is freely distributable� The same holds for its supporting scripts (config�guess, config�sub, ltconfig, ltmain�sh)� Another support script, install-sh, is copyright by M�I�T� but is also freely distributable� It appears that the arithmetic coding option of the JPEG spec is covered by patents owned by IBM, AT&T, and Mitsubishi� Hence arithmetic coding cannot legally be used without obtaining one or more licenses� For this reason, support for arithmetic coding has been removed from the free JPEG software� (Since arithmetic coding provides only a marginal gain over the unpatented Huffman mode, it is unlikely that very many implementations will support it�) So far as we are aware, there are no patent restrictions on the remaining code� The IJG distribution formerly included code to read and write GIF files� To avoid entanglement with the Unisys LZW patent, GIF reading support has been removed altogether, and the GIF writer has been simplified to produce "uncompressed GIFs"� This technique does not use the LZW algorithm; the resulting GIF files are larger than usual, but are readable by all standard GIF decoders� We are required to state that "The Graphics Interchange Format(c) is the Copyright property of ompuServe Incorporated� GIF(sm) is a Service Mark property of CompuServe Incorporated�" (6) libogg Copyright (c) 2002, Xiph�org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer�

CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (7) libpng COPYRIGHT NOTICE, DISCLAIMER, and LICENSE: If you modify libpng you may insert additional notices immediately following this sentence� This code is released under the libpng license� libpng versions 1�2�6, August 15, 2004, through 1�4�0, January 3, 2010, are Copyright (c) 2004, 2006-2007 Glenn RandersPehrson, and are distributed according to the same disclaimer and license as libpng-1�2�5 with the following individual added to the list of Contributing Authors: Cosmin Truta libpng versions 1�0�7, July 1, 2000, through 1�2�5 - October 3, 2002, are Copyright (c) 2000-2002 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1�0�6 with the following individuals added to the list of Contributing Authors: Simon-Pierre Cadieux Eric S� Raymond Gilles Vollant and with the following additions to the disclaimer: There is no warranty against interference with your enjoyment of the library or against infringement� There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs� This library is provided with all faults, and the entire risk of satisfactory quality, performance, accuracy, and effort is with the user� libpng versions 0�97, January 1998, through 1�0�6, March 20, 2000, are Copyright (c) 1998, 1999 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-0�96, with the following individuals added to the list of Contributing Authors: Tom Lane Glenn Randers-Pehrson Willem van Schaik libpng versions 0�89, June 1996, through 0�96, May 1997, are Copyright (c) 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng-0�88, with the following individuals added to the list of Contributing Authors: John Bowler Kevin Bracey Sam Bushell Magnus Holmgren Greg Roelofs Tom Tanner libpng versions 0�5, May 1995, through 0�88, January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc� For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals: Andreas Dilger Dave Martindale Guy Eric Schalnat Paul Schmidt Tim Wegner The PNG Reference Library is supplied "AS IS"� The Contributing Authors and Group 42, Inc� disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose� The Contributing Authors and Group 42, Inc� assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG Reference Library, even if advised of the possibility of such damage� Permission is hereby granted to use, copy, modify, and distribute this source code, or portions hereof, for any purpose, without fee, subject to the following restrictions: The origin of this source code must not be misrepresented� Altered versions must be plainly marked as such and must not be misrepresented as being the original source� This Copyright notice may not be removed or altered from any source or altered source distribution� The Contributing Authors and Group 42, Inc� specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products� If you use this source code in a product, acknowledgment is not required but would be appreciated� (8) libvorbis Copyright (c) 2002-2004 Xiph�org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer�

Others

[1]Mark Andrews <mark_andrews@isc�org> Leitch atomic clock controller [2]Bernd Altmeier <altmeier@atlsoft�de> hopf Elektronik serial line and PCI-bus devices [3]Viraj Bais <vbais@mailman1�intel�com> and [4]Clayton Kirkwood <kirkwood@striderfm�intel�com> port to WindowsNT 3�5 [5]Michael Barone <michael,barone@lmco�com> GPSVME fixes [6]Jean-Francois Boudreault <Jean-Francois�Boudreault@viagenie�qc�ca>IPv6 support [7]Karl Berry <karl@owl�HQ�ileaf�com> syslog to file option [8]Greg Brackley <greg�brackley@bigfoot�com> Major rework of WINNT port� Clean up recvbuf and iosignal code into separate modules� [9]Marc Brett <Marc�Brett@westgeo�com> Magnavox GPS clock driver [10]Piete Brooks <Piete�Brooks@cl�cam�ac�uk> MSF clock driver, Trimble PARSE support [11]Reg Clemens <reg@dwf�com> Oncore driver (Current maintainer) [12]Steve Clift <clift@ml�csiro�au> OMEGA clock driver [13]Casey Crellin <casey@csc�co�za> vxWorks (Tornado) port and help with target configuration [14]Sven Dietrich <sven_dietrich@trimble�com> Palisade reference clock driver, NT adj� residuals, integrated Greg's Winnt port� [15]John A� Dundas III <dundas@salt�jpl�nasa�gov> Apple A/UX port [16]Torsten Duwe <duwe@immd4�informatik�uni-erlangen�de> Linux port [17]Dennis Ferguson <dennis@mrbill�canet�ca> foundation code for NTP Version 2 as specified in RFC-1119 [18]John Hay <jhay@icomtek�csir�co�za> IPv6 support and testing [19]Glenn Hollinger <glenn@herald�usask�ca> GOES clock driver [20]Mike Iglesias <iglesias@uci�edu> DEC Alpha port [21]Jim Jagielski <jim@jagubox�gsfc�nasa�gov> A/UX port [22]Jeff Johnson <jbj@chatham�usdesign�com> massive prototyping overhaul [23]Hans Lambermont <Hans�Lambermont@nl�origin-it�com> or [24]<H�Lambermont@chello�nl> ntpsweep [25]Poul-Henning Kamp <phk@FreeBSD�ORG> Oncore driver (Original author) [26]Frank Kardel [27]<kardel (at) ntp (dot) org> PARSE <GENERIC> driver (>14 reference clocks), STREAMS modules for PARSE, support scripts, syslog cleanup, dynamic interface handling [28]William L� Jones <jones@hermes�chpc�utexas�edu> RS/6000 AIX modifications, HPUX modifications [29]Dave Katz <dkatz@cisco�com> RS/6000 AIX port [30]Craig Leres <leres@ee�lbl�gov> 4�4BSD port, ppsclock, MagnavoxGPS clock driver [31]George Lindholm <lindholm@ucs�ubc�ca> SunOS 5�1 port [32]Louis A� Mamakos <louie@ni�umd�edu> MD5-based authentication [33]Lars H� Mathiesen <thorinn@diku�dk> adaptation of foundation code for Version 3 as specified in RFC-1305 [34]Danny Mayer <mayer@ntp�org>Network I/O, Windows Port, Code Maintenance [35]David L� Mills <mills@udel�edu> Version 4 foundation: clock discipline, authentication, precision kernel; clock drivers: Spectracom, Austron, Arbiter, Heath, ATOM, ACTS, KSI/Odetics; audio clock drivers: CHU, WWV/H, IRIG [36]Wolfgang Moeller <moeller@gwdgv1�dnet�gwdg�de> VMS port [37]Jeffrey Mogul <mogul@pa�dec�com> ntptrace utility [38]Tom Moore <tmoore@fievel�daytonoh�ncr�com> i386 svr4 port [39]Kamal A Mostafa <kamal@whence�com> SCO OpenServer port [40]Derek Mulcahy <derek@toybox�demon�co�uk> and [41]Damon Hart-Davis <d@hd�org> ARCRON MSF clock driver [42]Rainer Pruy <Rainer�Pruy@informatik�uni-erlangen�de> monitoring/trap scripts, statistics file handling [43]Dirce Richards <dirce@zk3�dec�com> Digital UNIX V4�0 port [44]Wilfredo Sanchez <wsanchez@apple�com> added support for NetInfo [45]Nick Sayer <mrapple@quack�kfu�com> SunOS streams modules [46]Jack Sasportas <jack@innovativeinternet�com> Saved a Lot of space on the stuff in the html/pic/ subdirectory [47]Ray Schnitzler <schnitz@unipress�com> Unixware1 port [48]Michael Shields <shields@tembel�org> USNO clock driver [49]Jeff Steinman <jss@pebbles�jpl�nasa�gov> Datum PTS clock driver [50]Harlan Stenn <harlan@pfcs�com> GNU automake/autoconfigure makeover, various other bits (see the ChangeLog) [51]Kenneth Stone <ken@sdd�hp�com> HP-UX port [52]Ajit Thyagarajan <ajit@ee�udel�edu>IP multicast/anycast support [53]Tomoaki TSURUOKA <tsuruoka@nc�fukuoka-u�ac�jp>TRAK clock driver [54]Paul A Vixie <vixie@vix�com> TrueTime GPS driver, generic TrueTime clock driver [55]Ulrich Windl <Ulrich�Windl@rz�uni-regensburg�de> corrected and validated HTML documents according to the HTML DTD References mailto: mark_andrews@isc�org mailto: altmeier@atlsoft�de mailto: vbais@mailman1�intel�co mailto: kirkwood@striderfm�intel�com mailto: michael�barone@lmco�com mailto: Jean-Francois�Boudreault@viagenie�qc�ca mailto: karl@owl�HQ�ileaf�com mailto: greg�brackley@bigfoot�com mailto: Marc�Brett@westgeo�com mailto: Piete�Brooks@cl�cam�ac�uk mailto: reg@dwf�com mailto: clift@ml�csiro�au mailto: casey@csc�co�za mailto: Sven_Dietrich@trimble�COM mailto: dundas@salt�jpl�nasa�gov mailto: duwe@immd4�informatik�uni-erlangen�de mailto: dennis@mrbill�canet�ca mailto: jhay@icomtek�csir�co�za mailto: glenn@herald�usask�ca mailto: iglesias@uci�edu mailto: jagubox�gsfc�nasa�gov mailto: jbj@chatham�usdesign�com mailto: Hans�Lambermont@nl�origin-it�com mailto: H�Lambermont@chello�nl mailto: phk@FreeBSD�ORG http://www4�informatik�uni-erlangen�de/%7ekardel mailto: kardel(at)ntp(dot)org mailto: jones@hermes�chpc�utexas�edu mailto: dkatz@cisco�com mailto: leres@ee�lbl�gov mailto: lindholm@ucs�ubc�ca mailto: louie@ni�umd�edu mailto: thorinn@diku�dk mailto: mayer@ntp�org mailto: mills@udel�edu

En-29

mailto: moeller@gwdgv1�dnet�gwdg�de mailto: mogul@pa�dec�com mailto: tmoore@fievel�daytonoh�ncr�com mailto: kamal@whence�com mailto: derek@toybox�demon�co�uk mailto: d@hd�org mailto: Rainer�Pruy@informatik�uni-erlangen�de mailto: dirce@zk3�dec�com mailto: wsanchez@apple�com mailto: mrapple@quack�kfu�com mailto: jack@innovativeinternet�com mailto: schnitz@unipress�com mailto: shields@tembel�org mailto: pebbles�jpl�nasa�gov mailto: harlan@pfcs�com mailto: ken@sdd�hp�com mailto: ajit@ee�udel�edu mailto: tsuruoka@nc�fukuoka-u�ac�jp mailto: vixie@vix�com mailto: Ulrich�Windl@rz�uni-regensburg�de (10) OpenSSL LICENSE ISSUES ============== The OpenSSL toolkit stays under a dual license, i�e� both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit� See below for the actual license texts� Actually both licenses are BSD-style Open Source licenses� In case of any license issues related to OpenSSL please contact openssl-core@openssl�org� OpenSSL License

--------------============================================ Copyright (c) 1998-2007 The OpenSSL Project� All rights reserved� Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer� Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit� (http://www�openssl�org/)" The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission� For written permission, please contact openssl-core@openssl�org� Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project� Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www�openssl�org/)" THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� ============================================ This product includes cryptographic software written by Eric Young (eay@cryptsoft�com)� This product includes software written by Tim Hudson (tjh@cryptsoft�com)� Original SSLeay License

--------------------------Copyright (C) 1995-1998 Eric Young (eay@cryptsoft�com) All rights reserved� This package is an SSL implementation written by Eric Young (eay@cryptsoft�com)� The implementation was written so as to conform with Netscapes SSL� This library is free for commercial and non-commercial use as long as the following conditions are aheared to� The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc�, code; not just the SSL code� The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft�com)� Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed� If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used� This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package� Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer� Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� All advertising materials mentioning features or use of this software must display the following acknowledgement: "Eric Young (eay@cryptsoft�com)" The word `cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-)� If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft�com)" THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� ============================================ (11) popt

Copyright (c) 1998 Red Hat Software Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT� IN NO EVENT SHALL THE X CONSORTIUM BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� Except as contained in this notice, the name of the X Consortium shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from the X Consortium� (12) RSA Data Security, Inc� MD5 Message-Digest Algorithm Copyright (C) 1991-2, RSA Data Security, Inc� Created 1991� All rights reserved� License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc� MD5 MessageDigest Algorithm" in all material mentioning or referencing this software or this function� License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc� MD5 Message-Digest Algorithm" in all material mentioning or referencing the derived work� RSA Data Security, Inc� makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose� It is provided "as is" without express or implied warranty of any kind� These notices must be retained in any copies of any part of this documentation and/or software� (13) thttpd 2�25b Copyright c 2000 by Jef Poskanzer <jef@mail�acme�com>� All rights reserved� Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer� Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (14) zlib zlib�h -- interface of the `zlib' general purpose compression library version 1�1�4, March 11th, 2002 Copyright (C) 1995-2002 Jean-loup Gailly and Mark Adler This software is provided `as-is', without any express or implied warranty� In no event will the authors be held liable for any damages arising from the use of this software� Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions: The origin of this software must not be misrepresented; you must not claim that you wrote the original software� If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required� Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software� This notice may not be removed or altered from any source distribution� Jean-loup Gailly Mark Adler jloup@gzip�org madler@alumni�caltech�edu

The data format used by the zlib library is described by RFCs (Request for Comments) 1950 to 1952 in the files ftp://ds�internic�net/rfc/rfc1950�txt (zlib format), rfc1951�txt (deflate format) and rfc1952�txt (gzip format)� (15) Apple Lossless Apache License Version 2�0, January 2004 http://www�apache�org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

Definitions�

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document�

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License�

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity� For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity�

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License�

"Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files�

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types�

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below)�

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship� For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof�

Others

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner� For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution�"

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work�

Grant of Copyright License�

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form�

Grant of Patent License�

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted� If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed�

Redistribution�

You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

You must give any other recipients of the Work or Derivative Works a copy of this License; and

You must cause any modified files to carry prominent notices stating that You changed the files; and

You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear� The contents of the NOTICE file are for informational purposes only and do not modify the License� You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License�

You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License�

Submission of Contributions�

Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions� Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions�

Trademarks�

This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file�

Disclaimer of Warranty�

Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE� You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License�

Limitation of Liability�

In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages�

Accepting Warranty or Additional Liability�

While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License� However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability�

En-30

END OF TERMS AND CONDITIONS

APPENDIX: How to apply the Apache License to your work�

To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets "[]" replaced with your own identifying information� (Don't include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format� We also recommend that a file or class name and description of purpose be included on the same "printed page" as the copyright notice for easier identification within third-party archives�

Licensed under the Apache License, Version 2�0 (the "License"); you may not use this file except in compliance with the License� You may obtain a copy of the License at

http://www�apache�org/licenses/LICENSE-2�0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied� See the License for the specific language governing permissions and limitations under the License� (16) Boost http://www�boost�org/ Boost Software License - Version 1�0 - August 17th, 2003 Permission is hereby granted, free of charge, to any person or organization obtaining a copy of the software and accompanying documentation covered by this license (the "Software") to use, reproduce, display, distribute, execute, and transmit the Software, and to prepare derivative works of the Software, and to permit third-parties to whom the Software is furnished to do so, all subject to the following: The copyright notices in the Software and this entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Software, in whole or in part, and all derivative works of the Software, unless such copies or derivative works are solely in the form of machine-executable object code generated by a source language processor� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NONINFRINGEMENT� IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� (17) Expat http://www�jclark�com/xml/expat�html Expat License� Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT� IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� (18) FastDelegate http://www�codeproject�com/KB/cpp/FastDelegate�aspx THE WORK (AS DEFINED BELOW) IS PROVIDED UNDER THE TERMS OF THIS CODE PROJECT OPEN LICENSE ("LICENSE")� THE WORK IS PROTECTED BY COPYRIGHT AND/OR OTHER APPLICABLE LAW� ANY USE OF THE WORK OTHER THAN AS AUTHORIZED UNDER THIS LICENSE OR COPYRIGHT LAW IS PROHIBITED� BY EXERCISING ANY RIGHTS TO THE WORK PROVIDED HEREIN, YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE� THE AUTHOR GRANTS YOU THE RIGHTS CONTAINED HEREIN IN CONSIDERATION OF YOUR ACCEPTANCE OF SUCH TERMS AND CONDITIONS� IF YOU DO NOT AGREE TO ACCEPT AND BE BOUND BY THE TERMS OF THIS LICENSE, YOU CANNOT MAKE ANY USE OF THE WORK� Definitions� a� "Articles" means, collectively, all articles written by Author which describes how the Source Code and Executable Files for the Work may be used by a user� b� "Author" means the individual or entity that offers the Work under the terms of this License� c� "Derivative Work" means a work based upon the Work or upon the Work and other pre-existing works� d� "Executable Files" refer to the executables, binary files, configuration and any required data files included in the Work� e� "Publisher" means the provider of the website, magazine, CD-ROM, DVD or other medium from or by which the Work is obtained by You� f� "Source Code" refers to the collection of source code and configuration files used to create the Executable Files� g� "Standard Version" refers to such a Work if it has not been modified, or has been modified in accordance with the consent of the Author, such consent being in the full discretion of the Author� h� "Work" refers to the collection of files distributed by the Publisher, including the Source Code, Executable Files, binaries, data files, documentation, whitepapers and the Articles� i� "You" is you, an individual or entity wishing to use the Work and exercise your rights under this License� Fair Use/Fair Use Rights� Nothing in this License is intended to reduce, limit, or restrict any rights arising from fair use, fair dealing, first sale or other limitations on the exclusive rights of the copyright owner under copyright law or other applicable laws� License Grant� Subject to the terms and conditions of this License, the Author hereby grants You a worldwide, royalty-free, nonexclusive, perpetual (for the duration of the applicable copyright) license to exercise the rights in the Work as stated below: a� You may use the standard version of the Source Code or Executable Files in Your own applications� b� You may apply bug fixes, portability fixes and other modifications obtained from the Public Domain or from the Author� A Work modified in such a way shall still be considered the standard version and will be subject to this License� c� You may otherwise modify Your copy of this Work (excluding the Articles) in any way to create a Derivative Work, provided that You insert a prominent notice in each changed file stating how, when and where You changed that file� d� You may distribute the standard version of the Executable Files and Source Code or Derivative Work in aggregate with other (possibly commercial) programs as part of a larger (possibly commercial) software distribution� e� The Articles discussing the Work published in any form by the author may not be distributed or republished without the Author's consent� The author retains copyright to any such Articles� You may use the Executable Files and Source Code pursuant to this License but you may not repost or republish or otherwise distribute or make available the Articles, without

the prior written consent of the Author� Any subroutines or modules supplied by You and linked into the Source Code or Executable Files this Work shall not be considered part of this Work and will not be subject to the terms of this License� Patent License� Subject to the terms and conditions of this License, each Author hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, import, and otherwise transfer the Work� Restrictions� The license granted in Section 3 above is expressly made subject to and limited by the following restrictions: a� You agree not to remove any of the original copyright, patent, trademark, and attribution notices and associated disclaimers that may appear in the Source Code or Executable Files� b� You agree not to advertise or in any way imply that this Work is a product of Your own� c� The name of the Author may not be used to endorse or promote products derived from the Work without the prior written consent of the Author� d� You agree not to sell, lease, or rent any part of the Work� This does not restrict you from including the Work or any part of the Work inside a larger software distribution that itself is being sold� The Work by itself, though, cannot be sold, leased or rented� e� You may distribute the Executable Files and Source Code only under the terms of this License, and You must include a copy of, or the Uniform Resource Identifier for, this License with every copy of the Executable Files or Source Code You distribute and ensure that anyone receiving such Executable Files and Source Code agrees that the terms of this License apply to such Executable Files and/or Source Code� You may not offer or impose any terms on the Work that alter or restrict the terms of this License or the recipients' exercise of the rights granted hereunder� You may not sublicense the Work� You must keep intact all notices that refer to this License and to the disclaimer of warranties� You may not distribute the Executable Files or Source Code with any technological measures that control access or use of the Work in a manner inconsistent with the terms of this License� f� You agree not to use the Work for illegal, immoral or improper purposes, or on pages containing illegal, immoral or improper material� The Work is subject to applicable export laws� You agree to comply with all such laws and regulations that may apply to the Work after Your receipt of the Work� Representations, Warranties and Disclaimer� THIS WORK IS PROVIDED "AS IS", "WHERE IS" AND "AS AVAILABLE", WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS OR GUARANTEES� YOU, THE USER, ASSUME ALL RISK IN ITS USE, INCLUDING COPYRIGHT INFRINGEMENT, PATENT INFRINGEMENT, SUITABILITY, ETC� AUTHOR EXPRESSLY DISCLAIMS ALL EXPRESS, IMPLIED OR STATUTORY WARRANTIES OR CONDITIONS, INCLUDING WITHOUT LIMITATION, WARRANTIES OR CONDITIONS OF MERCHANTABILITY, MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTY OF TITLE OR NON-INFRINGEMENT, OR THAT THE WORK (OR ANY PORTION THEREOF) IS CORRECT, USEFUL, BUG-FREE OR FREE OF VIRUSES� YOU MUST PASS THIS DISCLAIMER ON WHENEVER YOU DISTRIBUTE THE WORK OR DERIVATIVE WORKS� Indemnity� You agree to defend, indemnify and hold harmless the Author and the Publisher from and against any claims, suits, losses, damages, liabilities, costs, and expenses (including reasonable legal or attorneys' fees) resulting from or relating to any use of the Work by You� Limitation on Liability� EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL THE AUTHOR OR THE PUBLISHER BE LIABLE TO YOU ON ANY LEGAL THEORY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES ARISING OUT OF THIS LICENSE OR THE USE OF THE WORK OR OTHERWISE, EVEN IF THE AUTHOR OR THE PUBLISHER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES� Termination� a� This License and the rights granted hereunder will terminate automatically upon any breach by You of any term of this License� Individuals or entities who have received Derivative Works from You under this License, however, will not have their licenses terminated provided such individuals or entities remain in full compliance with those licenses� Sections 1, 2, 6, 7, 8, 9, 10 and 11 will survive any termination of this License� b� If You bring a copyright, trademark, patent or any other infringement claim against any contributor over infringements You claim are made by the Work, your License from such contributor to the Work ends automatically� c� Subject to the above terms and conditions, this License is perpetual (for the duration of the applicable copyright in the Work)� Notwithstanding the above, the Author reserves the right to release the Work under different license terms or to stop distributing the Work at any time; provided, however that any such election will not serve to withdraw this License (or any other license that has been, or is required to be, granted under the terms of this License), and this License will continue in full force and effect unless terminated as stated above� Publisher� The parties hereby confirm that the Publisher shall not, under any circumstances, be responsible for and shall not have any liability in respect of the subject matter of this License� The Publisher makes no warranty whatsoever in connection with the Work and shall not be liable to You or any party on any legal theory for any damages whatsoever, including without limitation any general, special, incidental or consequential damages arising in connection to this license� The Publisher reserves the right to cease making the Work available to You at any time without notice� Miscellaneous a� This License shall be governed by the laws of the location of the head office of the Author or if the Author is an individual, the laws of location of the principal place of residence of the Author� b� If any provision of this License is invalid or unenforceable under applicable law, it shall not affect the validity or enforceability of the remainder of the terms of this License, and without further action by the parties to this License, such provision shall be reformed to the minimum extent necessary to make such provision valid and enforceable� c� No term or provision of this License shall be deemed waived and no breach consented to unless such waiver or consent shall be in writing and signed by the party to be charged with such waiver or consent� d� This License constitutes the entire agreement between the parties with respect to the Work licensed herein� There are no understandings, agreements or representations with respect to the Work not specified herein� The Author shall not be bound by any additional provisions that may appear in any communication from You� This License may not be modified without the mutual written agreement of the Author and You� (19) Tremolo http://wss�co�uk/pinknoise/tremolo Copyright (C) 2002-2009 Xiph�org Foundation Changes Copyright (C) 2009-2010 Robin Watts for Pinknoise Productions Ltd Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer�

Others

(20) Tremor http://wiki�xiph�org/index�php/Tremor Copyright (c) 2002, Xiph�org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer�

- Neither the name of the Xiph�org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission� THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (21) Mersenne Twister http://www�math�sci�hiroshima-u�ac�jp/~m-mat/MT/MT2002/CODES/mt19937ar�c Copyright (C) 1997 - 2002, Makoto Matsumoto and Takuji Nishimura, All rights reserved� Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer� Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� The names of its contributors may not be used to endorse or promote products derived from this software without specific prior written permission� THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE� (22) cURL http://curl�haxx�se COPYRIGHT AND PERMISSION NOTICE Copyright (c) 1996 - 2011, Daniel Stenberg, <daniel@haxx�se>� All rights reserved� Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies� THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS� IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE� Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder� (23) c-ares http://c-ares�haxx�se Copyright 1998 by the Massachusetts Institute of Technology� Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M�I�T� not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission� M�I�T� makes no representations about the suitability of this software for any purpose� It is provided "as is" without express or implied warranty� (24)LZ4 Copyright (c) 2011-2014, Yann Collet All rights reserved� Redistribution and use in source and binary forms, with or without modification,are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer� * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution� THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED� IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THISSOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE�

En-31

F1505-0

SN 29401992

Integra Division of

18 park W T

http://www.integrahometheate

Integra Division of

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY T

http://www.integra.eu

Integra Division of

302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032, T

http://www.integra.com.c

Integra Division of

Kitahama Chuo Bldg, 2-2-22 Kitahama, Chuo-ku, OSAKA 541-0041, JA T

http://www.integraworldwide.com

Supplied Accessories

How to use the remote controller

Indoor FM antenna --- (1)

AM loop antenna --- (1)

Remote controller (RC-899M) --- (1) Batteries (AA/R6) --- (2)

Power cord --- (1)

Speaker setup microphone --- (1)

¼ The number in parenthesis indicates the quantity� On packaging, the

letter at the end of the product name indicates the color�

ay, Upper Saddle River, N.J. 07458, U.S.A.

el: 800-225-1946, 201-818-9200 Fax: 201-785-2650

el: +49-8142-4401-0 Fax: +49-8142-4208-213

r.com

Remote control sensor

Batteries (AA/R6)

¼ If you do not use the remote controller for a long time, remove the

batteries to prevent leakage�

¼ Note that keeping consumed batteries inside may cause corrosion

resulting in damage of the remote controller�

AV Receiver

Approx� 16 ft� (5 m)

el: 86-21-52131366 Fax: 86-21-52130396

el: 072-831-8023 Fax: 072-831-8163

PAN

* 2 9 4 0 1 9 9 2 *

CONTENTS

DTR-20.7

Advanced Manual

The Basic Manual includes information needed

when starting up and also instructions for frequently used operations� The Advanced

Manual has more detailed information and

advanced settings�

Details on AM/FM reception 2

Tuning into a Radio Station 2 Presetting an AM/FM Radio Station 2 Using RDS (Australian models) 3

Playing Music Files on a USB Storage Device 4 Listening to Internet Radio 5

About Internet Radio 5 TuneIn Radio 5

Pandora New Zealand only) 6 Spotify 7 SiriusXM Internet Radio (North American only) 7 Slacker Personal Radio (North American only) 8 Registering Other Internet Radios 9

Playing Music with DLNA 11

About DLNA 11 Configuring the Windows Media DLNA Playback 11 Controlling Remote Playback from a PC 12

Playing Music Files in a Shared Folder 13

About Shared Folder 13 Setting PC 13 Playing from a Shared Folder 13

–Getting Started (U�S�, Australia and

Player 11

Operating Music Files with the Remote Controller 15

About the Remote Controller 15 Remote Controller Buttons 15 Icons Displayed during Playback 15

Using the Listening Modes 16

Selecting Listening Mode 16 Listening Mode Types 16 Selectable Listening Modes 18 Checking the Input Format 26

Advanced Settings (Setup Menu) 27

How to Set 27 1� Input/Output Assign 28 2� Speaker 30 3� Audio Adjust 33 4� Source 34 5� Listening Mode Preset 36 6� Hardware 36 7� Remote Controller 46 8� Miscellaneous 47

Operating Other Components with the Remote Controller 48

Functions of Remote Mode Buttons 48 Programming Remote Control Codes 48 TV operation 50

Blu-ray Disc player/DVD player/DVD recorder operation 50 VCR/PVR operation 51 Satellite receiver / Cable receiver operation 51 CD player operation 52 Cassette tape deck operation 52 To operate CEC-compatible components 52

Advanced speaker connections 53

Connecting Bi-amp Speakers 53

Connecting and Operating Onkyo RI Components 54

About RI Function 54 RI Connection and Setting 54

iPod

/iPhoneR Operation 55

Control Function between the Unit and External Component 56

Firmware Update 57

About Firmware Update 57 Updating the Firmware via Network 57 Updating the Firmware via USB 58

Troubleshooting 60 Reference Information 65

Details on AM/FM reception

¼ Tuning manually

1� Press Tuner on the main unit several times to select

either "AM" or "FM"�

Tuning into a Radio Station

¼ Tuning automatically

1� Press Tuner on the main unit several times to select

either "AM" or "FM"�

2� Press Tuning Mode so that the "AUTO" indicator on the

display lights�

3� Press Tuning to start automatic tuning�

● Searching automatically stops when a station is found� When tuned into a radio station, the " TUNED " indicator on the display lights� When tuned into an FM radio station, the "FM STEREO" indicator lights�

● No sound is output while the " TUNED " indicator is off�

When the signal from an FM radio station is weak: Radio wave may be weak depending on the building structure and environmental conditions� In that case, perform the manual tuning procedure as explained in the next section, "Tuning manually", to manually select the desired station�

2� Press Tuning Mode so that the "AUTO" indicator on the

display goes off�

3� Press Tuning to select the desired radio station�

● The frequency changes by 1 step each time you press the button� The frequency changes continuously if the button is held down and stops when the button is released� Tune by looking at the display�

To return to automatic tuning: Press Tuning Mode on the main unit again� The unit automatically tunes into a radio station� Normally "AUTO" should be displayed�

¼ Tuning to the frequency directly

It allows you to directly enter the frequency of the radio station you want to listen to�

1� Press Tuner on the remote controller several times to

select either "AM" or "FM"�

3� Using the number buttons, enter the frequency of the

radio station within 8 seconds�

● To enter 87�5 (FM), for example, press 8, 7, 5, or 8, 7, 5, 0� If you entered the wrong number, press D�TUN and enter the correct one�

Presetting an AM/FM Radio Station

It allows you to register up to 40 of your favorite AM/FM radio stations� Registering radio stations in advance allows you to tune into your radio station of choice directly�

¼ Registration Procedure

1� Tune into the AM/FM radio station you want to register� 2� Press Memory on the unit so that the preset number on

the display flashes�

3� Press Preset several times to select a number

between 1 and 40 while the preset number is flashing (about 8 seconds)�

En-2

2� Press D�TUN�

4� Press Memory again to register the station�

● When the station is registered, the preset number stops flashing�

● Repeat this procedure for all of your favorite AM/FM radio stations�

¼ Selecting a Preset Radio Station

1� Press CH +/- on the remote controller to select a preset

number�

● Alternatively you can press Preset on the main unit� You can also select by directly entering the preset number with the number buttons on the remote controller�

¼ Deleting a Preset Radio Station

1� Press CH +/- on the remote controller to select the

preset number to delete�

2� Press and hold Memory on the main unit and press

Tuning Mode to delete the preset number�

● When deleted, the number on the display goes off�

Using RDS (Australian models)

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals�

● RDS works only in areas where RDS broadcasts are available�

● In some cases, the text information appeared on the display is not identical to the content transmitted by the RDS station� Furthermore, unexpected characters may be displayed when the unit receives unsupported characters� However, this is not a malfunction�

● If the signal from an RDS station is weak, the RDS data may be displayed continuously or not at all�

PS (Program Service): Tuning into a radio station distributing Program Service information displays the radio station name� Pressing Display displays the frequency for 3 seconds�

RT (Radio Text): Tuning into a radio station transmitting Radio Text information displays text on the display of the unit�

PTY (Program Type): Allows you to search for RDS stations by program type�

TP (Traffic Program): Allows you to search for radio stations transmitting traffic information�

¼ Displaying Radio Text (RT)

1� Press RT/PTY/TP on the main unit once�

● The Radio Text (RT) is displayed scrolling across the display� "No Text Data" is displayed when no text information is available�

¼ Searching by Type (PTY)

1� Press RT/PTY/TP on the main unit twice�

● The current program type appears on the display�

Details on AM/FM reception

2� Press Preset to select the type of program to search

for�

● The following RDS station types are displayed: None News (News reports) Affairs (Current affairs) Info (Information) Sport Educate (Education) Drama Culture Science (Science and technology) Varied Pop M (Pop music) Rock M (Rock music) Easy M (Middle of the road music) Light M (Light classics) Classics (Serious classics) Other M (Other music) Weather Finance Children (Children's programmes) Social (Social affairs) Religion Phone In Travel Leisure Jazz (Jazz music) Country (Country music) Nation M (National music) Oldies (Oldies music) Folk M (Folk music) Document (Documentary)

En-3

3� Press Enter to search the radio stations of the selected

type�

Details on AM/FM reception / Playing Music Files on a USB Storage Device

Playing Music Files on a USB

Storage Device

4� When such a radio station is found, the indication on the

display flashes� Then, press Enter again�

● If no stations are found, the message "Not Found" is displayed�

¼ Listening to Traffic Information (TP)

1� Press RT/PTY/TP on the main unit three times�

● "[TP]" will be displayed if traffic information is transmitted by the radio station you are tuned in� "TP" only is displayed if no traffic information is available�

2� Press Enter to search a radio station distributing traffic

information�

3� When a radio station is found, searching stops and

traffic information is received�

● "Not Found" is displayed if no radio station distributing traffic information is found�

● Operation: You can set up by viewing the guidance displayed on the TV screen (OSD)� Select the item with the cursor buttons of the remote controller and press Enter to confirm your selection� To return to the previous screen, press Return�

● If the OSD language is set to Chinese, the operations in this section are not displayed on the TV� Operate by looking at the display on the main unit� Note that the display on the main unit does not support the display of Chinese characters� Characters that cannot be displayed are replaced with asterisks ( )�

¼ Playing Back

1� Plug your USB storage device with the music files into

the USB port on the rear of the unit�

2� Press NET on the remote controller to display the NET

TOP screen�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

3� Select "USB" with the cursors and press Enter�

● If the "USB" indicator on the display flashes, check whether the USB storage device is plugged in properly�

● Do not unplug the USB storage device while "Connecting��" is on the display� This may cause data corruption or malfunction�

4� Press Enter again in the next screen� The list of

folders and music files on the USB storage device are displayed� Select the folder with the cursors and press Enter to confirm your selection�

5� With the cursors, select the music file to play, and then

press Enter or

to start playback�

En-4

Listening to Internet Radio

About Internet Radio

Listening to Internet Radio

● The USB port of this unit conforms with the USB 1�1 standard� The transfer speed may be insufficient for some content you play, which may cause some interruption in sound�

The unit comes preset with Internet radio stations such as TuneIn Radio for you to enjoy these services, just by connecting the unit to the Internet�

● Network services or contents may become unavailable if the service provider terminates its service�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

TuneIn Radio

With more than 70,000 radio stations and 2 million ondemand programs registered, TuneIn Radio is a service where you can enjoy music, sports and news from all over the world�

)�

¼ Playing Back

1� Press NET on the remote controller to display the NET

TOP screen�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� Select "TuneIn Radio" with the cursors and press Enter

to display the TuneIn Radio top screen�

3� With the cursors, select a radio station or program and

press Enter to start playing�

En-5

Listening to Internet Radio

¼ Regarding the TuneIn Radio Menu

To display the TuneIn menu, press Menu or Enter while playing a radio station� Selecting the corresponding menu item with the cursors and pressing Enter allows you to perform the following operations:

Add to My Presets: Registers the radio station or program being broadcast in "My Presets"� Once registered, "My Presets" is displayed in the level under TuneIn Radio� To play, select the program from "My Presets"�

Remove from My Presets: Deletes a radio station or program from your "My Presets" within TuneIn Radio�

Report a problem: Reports a problem or interactively solves a problem related to TuneIn Radio�

View Schedule: Displays the radio station or program schedule�

Clear recents: Clears all radio stations and programs from the "Recents" within TuneIn Radio� (This menu is displayed only when a radio station or program inside the "Recents" is being played�)

Add to My Favorites: Registers the radio station or program being broadcast in "My Favorites"� "My Favorites" are displayed in the level under the one displayed when you press NET� To play, select the program from "My Favorites"�

¼ Regarding the TuneIn Radio Account

Creating an account on the TuneIn Radio website (tunein�com) and logging in it from the unit allows you to automatically add radio stations and programs to your "My Presets" on the unit as you follow them on the website� "My Presets" are displayed in the level under TuneIn Radio� To display a radio station registered in "My Presets", you must log into TuneIn Radio from the unit� To log in, select "Login" - "I have a TuneIn account" in the "TuneIn Radio" top list on the unit, and then enter your user name and password�

● If you associate the device on My Page within the TuneIn Radio website using the registration code obtained by selecting "Login" - "Login with a registration code" on the unit, you can log in without entering the user name and password�

PandoraR–Getting Started (U�S�, Australia and New Zealand only)

Pandora is a free, personalized Internet radio service that plays the music you know and helps you discover music you’ll love�

)�

¼ Playing Back

1� Press NET on the remote controller to display NET TOP

screen�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� With the cursors on the remote controller, select

"Pandora", and then press Enter�

3� Use

/ to select "I have a Pandora Account" or "I’m new to Pandora" and then press Enter� If you are new to Pandora select "I’m new to Pandora"� You will see an activation code on your TV screen� Please write down this code� Go to an Internet connected computer and point your browser to www� pandora�com/onkyo� Enter your activation code and then follow the instructions to create your Pandora account and your personalized Pandora stations� You can create your stations by entering your favorite tracks and artists when prompted� After you have created your account and stations you can return to your Integra/Onkyo receiver and press Enter to begin listening to your personalized Pandora� If you have an existing Pandora account, you can add your Pandora account to your Integra/Onkyo receiver by selecting "I have a Pandora Account" and logging in with your email and password�

● If you want to use multiple user accounts, see "Using Multiple Accounts"� Login can be made from the "Users" screen�

4� To play a station, use

/ to select the station from your station list, and then press Enter� Playback starts and the playback screen appears�

¼ Create a New Station

Enter the name of a track, artist, or genre and Pandora will create a unique radio station for you based on the musical qualities of that track, artist, or genre�

I like this track: Give a track "thumbs-up" and Pandora will play more music like it�

I don’t like this track: Give a track "thumbs-down" and Pandora will ban that track from the current station�

En-6

Why is this track playing?: Discover some of the

musical attributes that Pandora uses to create your personal radio stations�

I’m tired of this track: If you are tired of a track, you can put the track to sleep and Pandora will not play it for one month�

Create station from this artist: Creates a radio station from this artist�

Create station from this track: Creates a radio station from this track�

Delete this station: This will permanently delete a station from your Pandora account� All of your thumbs feedback will be lost should you choose to re-create the station with the same track or artist�

Rename this station: Lets you rename the current radio station�

Bookmark this artist: Pandora will bookmark your favorite artist for your profile on www�pandora�com�

Bookmark this track: Pandora will bookmark the current track and allow you to buy them all from Amazon or iTunes in one step!

Add to My Favorites: Adds a station to My Favorites list�

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc� Used with permission�

Spotify

This unit is compatible with Spotify Connect� To enable Spotify Connect, install the Spotify application on your smartphone or tablet and create a Spotify premium account�

● Refer to the following for the procedures for configuring Spotify: www�spotify�com/connect/

● The Spotify software is subject to third party licenses found here: www�spotify�com/connect/third-party-licenses

¼ Playing Back

Just by clicking the Connect icon in the playback screen of the Spotify application and selecting this unit, you can automatically turn this unit on (auto power on function), switch input to the NET position, and start playback of highquality streaming from Spotify� To enable the auto power on function, make sure the "Network Standby" setting item in this unit's Setup is "On"�

¼ Notes for using the multi-zone function

● To enjoy Spotify music in a separate room, select

Zone 2, and manually select "NET" as the input of the separate room� Also select this unit in the Spotify application�

● Volume adjustment with the Spotify application is possible only for the equipment connected to the ZONE2 speaker terminals� If any other terminal is used for connection, adjust the volume on the audio equipment placed in a separate room�

● To enjoy Spotify music in the main room after playing it in a separate room, select "NET" as the input of the main room�

Listening to Internet Radio

SiriusXM Internet Radio (North American only)

If you want to listen to the service, you must subscribe� To subscribe go to www�siriusxm�com/internetradio with your computer� When you subscribe, you will be provided with a username and password which has to be entered into the AV receiver� To use SiriusXM Internet Radio, you must have your AV receiver connected to the Internet� Using the remote control, follow these steps:

)�

En-7

¼ Playing Back

1� Press NET on the remote controller to display NET TOP

screen�

Network

Listening to Internet Radio

control the tracks with the buttons on the remote control� Enabled buttons: , , ,

Add to My Favorites: Adds a channel to My Favorites list�

Add to Presets: Adds the currently playing station to presets list�

Delete from Presets: Deletes the currently playing station from presets list�

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� With the cursors on the remote controller, select

"SiriusXM Internet Radio", and then press Enter�

3� Select "Sign In", and then press Enter� If you have an

existing SIRIUS account, you can sign in by selecting "Sign In"� Enter your user name and password in the next keyboard screen, or in Web Setup� If you do not know your username or password, call Sirius XM at (888) 539-7474 for assistance�

● If you want to use multiple user accounts, see "Using Multiple Accounts"� Login can be made from the "Users" screen�

Using the keyboard screen

1 Use / / / and Enter to enter your user name and

password�

2 Select "OK"� 3 Press Enter� The "Confirm your entries" screen

appears�

4 Press Enter� "Please wait��" appears and then

"SiriusXM Internet Radio" screen appears which displays the category available for selection�

4� Use / to select the category and then press Enter� The

channel list screen for the selected category appears�

5� Use

/ to select the desired channel and then press Enter� The playback screen for the selected channel appears and you can listen to SiriusXM Internet Radio� You can

SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and Conditions (see www�sirius�com)� Be sure to read this agreement before you purchase your subscription� Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc� and its subsidiaries� All rights reserved�

Slacker Personal Radio (North American only)

¼ Playing Back

1� Press NET on the remote controller to display NET TOP

screen�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� With the cursors on the remote controller, select

"Slacker Personal Radio", and then press Enter�

3� If you do not have an account, create one on the Slacker

website (www�slacker�com) with your computer� If you already have a Slacker account, select "Sign in to your account" and then press Enter� The keyboard screen appears� You can enter information from the remote control or the keys on the main unit�

En-8

4� If there are no mistakes in the information you have

entered, use / / / to select "OK" then press Enter� An account information confirmation screen appears�

5� If you do not have an account, select "Access without

● If you want to use multiple user accounts, see "Using Multiple Accounts"� Login can be made from the "Users" screen�

6� Use

/ to select a menu item and then press Enter� To sign out, use / to select "Sign out" from this screen and then press Enter�

7� Use

/ to select a station and then press Enter or to start playback from the station� The playback screen appears�

8� You can control the tracks with the buttons on the

remote control� Enabled buttons:

, , ,

Rate Song as Favorite: Stores information to server, making it more likely that the song will be played again�

Ban Song: Stores information to server, making it less likely that the song will be played again�

Ban Artist: Stores information to server, making it less likely that the songs from this artist will be played again�

Mark Favorite: Adds the currently playing station to your favorites�

Unmark Favorite: Deletes the currently playing station from your favorites�

Add song to Library: Adds the currently playing track to your library�

Delete song from Library: Deletes the currently playing track from your library�

Add to My Favorites: Adds a station or song to My Favorites list�

Using Multiple Accounts: The AV receiver supports multiple user accounts, which means you can freely switch between several logins� After registering user accounts, login is performed from the "Users" screen� Press Menu while the Users screen is displayed� "Add new user", "Remove this user" menu appear� You can either store a new user account, or delete an existing one�

● Some of the services do not allow the use of multiple user accounts�

● You can store up to 10 user accounts�

● To switch between accounts you must first log out from

the current account, and log in again on the "Users" screen�

Registering Other Internet Radios

To listen to other Internet radio program, register the program in the "My Favorites" list as described in the next section� "My Favorites" are displayed in the level under the one displayed when you press NET�

● You can register up to 40 Internet radio stations�

● The unit supports Internet radio stations stored in the

following formats: PLS (URL ending in �pls), M3U (URL ending in �m3u) and RSS (URL ending in rss/rdf/xml)� Depending on the data type and playback format, there may be some you cannot play�

● Available services may vary depending on your area of residence�

)�

Listening to Internet Radio

¼ Registration Procedure

Before Performing any Operation: The name and URL

of the radio station that you want to add are required for registration� Check the specifications before use�

1� Press NET on the remote controller to display the NET

TOP screen�

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� Select "My Favorites" with the cursors and press Enter

to display the "My Favorites" list screen�

3� With the cursors, select a blank area of "My Favorites"

and press Menu to display the menu screen�

En-9

4� Select "Create new station" with the cursors and press

Enter to display the keyboard screen�

5� Enter the name and URL of the radio station to add�

● Select "A/a" and press Enter to toggle between

upper and lower case. Select "←" or "→" and press

Enter to move the cursor to the selected direction� Select " to the left of the cursor position�

" and press Enter to delete one character

¼ Registering a Station with PC

Before Performing any Operation: The name and URL

of the radio station that you want to add are required for registration� Check the specifications before use� Also, make sure this unit and a computer are connected to the same router�

1� Press Receiver on the remote controller�

● Always press Receiver first to change the remote controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component�

4� Open the Internet browser on your PC or smartphone

and enter the IP address of the unit in the URL field�

● When using Internet Explorer, you can alternatively select "Open" in the "File" menu to enter the IP address�

● Information of the unit is displayed on the browser� ("WEB Setup")

5� Click "

6� Click "Save" to register the entered Internet radio station

To rename the registered radio station: Select the radio station in the "My Favorites" list and press Menu to display the menu screen� Select "Rename this station" with the cursors and press Enter to display the keyboard screen� Rename the station as desired�

● Radio stations can be renamed also from "WEB Setup"�

" tab, then enter the name and URL of the

Internet radio station�

in "My Favorites"�

¼ Playing a Registered Radio Station

1� Press NET on the remote controller to display the NET

TOP screen�

Listening to Internet Radio

to display the registered Internet radio stations�

3� With the cursors, select the radio station to delete and

press Menu to display the menu screen�

4� With the cursors, select "Delete from My Favorites", and

then press Enter� A confirmation screen will appear�

5� With the cursors, select "OK", and then press Enter to

delete the radio station�

● Select "Back" to return to the previous screen�

● Radio stations can be deleted also from "WEB

Setup"�

2� Press Setup to display the Setup menu�

3� With the cursors, select "6� Hardware" - "Network" -"IP

Address" to display the IP address�

● Take note of the IP address since you will need it later�

En-10

2� Select "My Favorites" with the cursors and press Enter

to display the registered Internet radio stations�

3� With the cursors, select a radio station and press Enter

to start playing�

¼ Deleting a Registered Radio Station

1� Press NET on the remote controller to display the NET

TOP screen�

2� Select "My Favorites" with the cursors and press Enter

Playing Music with DLNA

Router

NAS

Playing Music with DLNA

About DLNA

Digital Living Network Alliance (DLNA) can be referred to as a technology standard or the industry group to develop the technology standard to interconnect and use AV components, computers and other devices in a home network� This unit allows you to use DLNA to play music files stored on a computer or a hard disk connected to your home network (NAS device)� Make sure this unit and a computer or NAS device are connected to the same router�

Internet radio

● To stream a music file, you need a NAS device with DLNA server functions or a PC where a player (e�g�, Windows MediaR Player 11 or Windows MediaR Player

12) with DLNA server functions is installed� To enable streaming with Windows MediaR Player 11 or Windows MediaR Player 12, you must first configure the settings�

Configuring the Windows MediaR Player

¼ Windows Media

Player 11

1� Turn on your PC and start Windows MediaR Player 11� 2� In the "Library" menu, select "Media Sharing" to display

a dialog box�

3� Select the "Share my media" check box, and then click

"OK" to display the compatible devices�

4� Select this unit, and then click "Allow"�

● When it is clicked, the corresponding icon is checked�

5� Click "OK" to close the dialog�

● Depending on the version of Windows Media

Player, the names of the items you need to select may differ from the explanation here�

¼ Windows MediaR Player 12

1� Turn on your PC and start Windows MediaR Player 12� 2� In the "Stream" menu, select "Turn on media streaming"

to display a dialog box�

● If media streaming is already turned on, select "More streaming options��" in the "Stream" menu to list players in the network, and then go to step 4�

3� Click "Turn on media streaming" to list players in the

network�

4� Select this unit in "Media streaming options" and check

that it is set to "Allow"�

5� Click "OK" to close the dialog�

● Depending on the version of Windows Media the names of the items you need to select may differ from the explanation here�

Player,

DLNA Playback

¼ Playing Back

1� Start the server (Windows MediaR Player 11, Windows

MediaR Player 12, or NAS device) containing the music files to play�

2� Press NET on the remote controller to display the NET

TOP screen�

● If the "NET" indicator on the display flashes, the unit is not properly connected to the network� Check the connection�

En-11

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

3� Select "DLNA" with the cursors and press Enter� 4� Select the target server with the cursors and press Enter

to display the items list screen�

● Searching does not work in servers that do not support search functions�

● The unit cannot access pictures and videos stored on servers�

● Contents stored on the server may not be displayed depending on the server sharing settings�

5� With the cursors, select the music file to play, and then

press Enter or

to start playback�

● If "No Item" is displayed, check whether the network is properly connected�

Controlling Remote Playback from a PC

You can use this unit to play music files stored on your PC by operating the PC inside your home network� The unit supports remote playback with Windows MediaR Player 12� To use the remote playback function with Windows MediaR Player 12, Windows MediaR Player 12 must be configured in advance�

● Using a DLNA-compatible controller (such as an Android application), you can select a music file stored on Windows MediaR Player 12 and stream to this unit by operating the controller� For information on how to remotely play using the controller, refer to the controller's instruction manual�

¼ Setting PC

1� Turn on your PC and start Windows MediaR Player 12� 2� In the "Stream" menu, select "Turn on media streaming"

to display a dialog box�

● If media streaming is already turned on, select "More streaming options��" in the "Stream" menu to list players in the network, and then go to step 4�

3� Click "Turn on media streaming" to list players in the

network�

4� Select this unit in "Media streaming options" and check

that it is set to "Allow"� 5� Click "OK" to close the dialog box� 6� Open the "Stream" menu and check that "Allow remote

control of my Player��" is checked�

● Depending on the version of Windows Media the names of the items you need to select may differ from the explanation here�

Player,

Playing Music with DLNA

● Operations during remote playback are possible from the "Play to" window on the PC� The playback screen is displayed on the TV connected to the HDMI output of the unit� If your PC is running on Windows 8

5� Adjust the volume using the volume bar on the "Play to"

window�

● Sometimes, the volume displayed on the remote playback window may differ from that appeared on the display of the unit�

● When the volume is adjusted from the unit, the value is not reflected in the "Play to" window�

● This unit cannot play music files remotely in the following conditions�

− It is using a network service�

− It is playing a music file on a USB storage

● Depending on the version of Windows Media

the names of the items you need to select may differ from the explanation here�

device�

, click "Play to", and then select this unit�

Player,

En-12

¼ Remote playback

1� Turn on the power of the unit� 2� Turn on your PC and start Windows Media 3� Select and right-click the music file to play with Windows

Media

Player 12�

● To remotely play a music file on another server, open the target server from "Other Libraries" and select the music file to play�

4� Select this unit in "Play to" to open the "Play to" window

of Windows Media

Player 12 and start playback on the

unit�

Player 12�

Playing Music Files in a Shared Folder

Router

NAS

Playing Music Files in a Shared

Folder

About Shared Folder

A shared folder is configured in a network device such as a PC or NAS (hard disk connected to your home network) for access from other users� You can play music files in a shared folder on your PC or NAS connected to the same home network as that of the unit� To play music files in a shared folder, you must first configure WindowsR 8 or WindowsR 7, Make sure the unit and PC or NAS device are connected to the same router�

Internet radio

Setting PC

¼ Configuring the Sharing Options

1� Select "Choose home group and sharing options" on the

"Control Panel"�

● If the menu is not displayed, check whether "View by" is set to "Category"�

2� Select "Change advanced sharing settings"� 3� Check whether the following radio buttons are selected

in "Home or Work": "Enable network discovery" "Turn on file and printer sharing" "Turn on sharing so anyone with network access can read and write files in the Public folders�" "Turn off password protected sharing"

4� Select "Save Changes" and click "OK" on the dialog box�

¼ Creating a Shared Folder

1� Select and right-click the folder to share� 2� Select "Properties"� 3� Select "Advanced Sharing" on the "Sharing" tab� 4� Select the "Share this folder" check box and click "OK"� 5� Select "Share" for "Network File and Folder Sharing"� 6� Select "Everyone" from the pull-down menu� Click "Add",

and then "Share"�

● To set user name and password to a shared folder, set "Permissions" in "Advanced Sharing" on the "Sharing" tab�

● Check whether a workgroup is set�

Playing from a Shared Folder

¼ Playing Back

1� Press NET on the remote controller to display the NET

TOP screen�

● If the "NET" indicator on the display flashes, the unit is not properly connected to the network� Check the connection�

● The sharing options must be configured and a shared folder created on the PC in advance�

● For information on how to configure the NAS device and create a shared folder, refer to the NAS device's instruction manual�

En-13

Network

TuneIn Radio

Pandora

Spotify

SiriusXM Internet Radio

Slacker Personal Radio

Deezer

AirPlay

2� With the cursors, select "Home Media", and then press

Enter�

3� With the cursors, select the target server, and then press

Enter�

● You can check the server name of your PC from the PC properties�

4� With the cursors, select the target shared folder, and

then press Enter�

5� If a username and password is required, enter the

necessary login information�

● The login information is the account information set at the time of creating the shared folder�

● Once entered, the login information will be remembered from the next time onward�

6� With the cursors, select the music file to play, and then

press Enter or

to start playback�

Playing Music Files in a Shared Folder

En-14

Operating Music Files with the

8 9

3 4

K L

G H

Remote Controller

About the Remote Controller

The remote controller of this unit allows you to play music files stored on USB storage devices, Internet radio, PCs and NAS devices on your home network, as well as on Bluetooth-enabled devices� It also allows you to view information of the music file being played and perform various other operations�

● Available buttons may vary depending on the service and device to play�

● Some buttons cannot be used with Bluetooth-enabled devices� Furthermore, the Bluetooth-enabled devices must support the AVRCP profile� Some devices may not be operated, even when they support AVRCP profile�

Remote Controller Buttons

1� Press Input Selector (NET, or Bluetooth) appropriate for

the input source on the remote controller�

2� Operate the remote controller by referring to the name

and function of each of the buttons�

1 Top Menu: This button displays the top menu for

each media or server�

2 / , Enter: These buttons navigate through items

and activate the selected item�

/ : These buttons allow you to navigate to other

pages when the list continues on other pages�

3 : This button fast-reverses the current track� This

button is not operable from 10 seconds before the playback ends�

4 : This button plays the current track from the

beginning� Pressing this button twice plays the previous track�

5 +/– button: Moves the cursor up or down on the

Internet radio stations list in "My Favorites"�

6 Menu: This button displays the menu of each Internet

radio service�

7 Return: This button returns to the previous screen� 8 : This button fast-forwards the current track� This

button is not operable from 10 seconds before the playback ends�

9 : This button plays the next track�

F : This button starts the playback� G : This button pauses the playback� H Search: This button toggles between the playback

screen and list screen during playback�

I : This button stops the playback�

Operating Music Files with the Remote Controller

J Mode: This button displays the video from the input

selected in "Video Select"� Each press of the button displays or turns off the video� You can change the display position of the OSD by pressing Enter while the video is displayed on the screen�

● These buttons are disabled when the OSD language is set to Chinese�

K Random: This button performs random playback� L Repeat: This button replays the track(or tracks)�

Pressing this button repeatedly cycles through the repeat modes�

M Display: This button changes the displayed track

information during playback� Pressing this button when the list screen is displayed toggles the screen to playback�

● Bluetooth-enabled devices: Usable buttons are

, , , , , , and �

Icons Displayed during Playback

Icons are displayed on the display during music file playback� The meaning of each icon is as follows:

: Folder

: Track

: Play

: Pause

: Fast-forward

: Fast-reverse

: Artist

: Album

: Repeat one track

: Repeat within a folder

: Repeat

: Shuffle

En-15

Using the Listening Modes

Selecting Listening Mode

The listening modes allow you to select the best sound effect for your input source�

1� After pressing Receiver on the remote controller, press

one of the following four buttons�

2� Press the selected button repeatedly to switch the

modes displayed on the display of the unit�

● Set the listening mode of your choice by listening to the actual sound�

For details on the listening modes see "Listening Mode Types"� For listening modes selectable with each button, refer to "Selectable Listening Modes"�

Listening Mode Types

In alphabetical order

¼ All Ch Stereo

Ideal for background music, this mode fills the entire listening area with stereo sound�

¼ Direct

In this mode, audio from the input source is output as-is� For example, if a 2 ch source from a music CD is input, the output will be stereo, or if Dolby Digital signal is input, the sound field will be controlled in accordance with the number of channels present�

¼ Dolby Atmos

Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of dimension and immersion to the Home Theater experience� Dolby Atmos is an adaptable and scalable object based format that reproduces audio as independent sounds (or objects) that can be accurately positioned and move dynamically throughout the 3 dimensional listening space during playback� A key ingredient of Dolby Atmos is the introduction of a height plane of sound above the listener�

¼ Dolby D (Dolby Digital)

Mode suitable for playing sources recorded in Dolby Digital�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ Dolby D+ (Dolby Digital Plus)

Mode suitable for playing sources recorded in Dolby Digital Plus�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ Dolby Surround

Dolby surround is a next generation surround technology that intelligently up mixes stereo; 5�1 and 7�1 content for playback through your surround speaker system� Dolby surround is compatible with traditional speaker layouts, as well as Dolby Atmos enabled playback systems that employ inceiling speakers or products with Dolby speaker technology�

¼ Dolby TrueHD

Mode suitable for playing sources recorded in Dolby TrueHD�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS

Mode suitable for playing sources recorded in DTS�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS 96/24

Mode suitable for playing sources recorded in DTS 96/24� With 96 kHz sampling rate and 24-bit resolution, it provides superior fidelity�

● Depending on the settings, this listening mode becomes DTS�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS Express

Mode suitable for playing sources recorded in DTS Express�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS-HD HR (DTS-HD High Resolution Audio)

Mode suitable for playing sources recorded in DTS-HD High Resolution Audio�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS-HD MSTR (DTS-HD Master Audio)

Mode suitable for playing sources recorded in DTS-HD Master Audio�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

¼ DTS Neo:6

This mode expands any 2 ch source for 5�1 ch multichannel

En-16

surround playback� It offers full-bandwidth on all channels, with great independence between the channels� There are two variants for this mode: one ideal for movies and another ideal for music�

– Neo:6 Cinema: Use this mode with any 2 ch movie� – Neo:6 Music: Use this mode with any 2 ch music

source�

¼ ES Discrete (DTS-ES Discrete)

This mode is for use with DTS-ES Discrete sources and enables 6�1 ch or 7�1 ch playback using back channel� Completely discrete seven channels will improve spatial imaging and enable 360-degree sound localization producing a sound crossing between the surround channels�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

● Use on the DVD with DTS ES logo, particularly on the software containing DTS-ES Matrix soundtrack�

¼ ES Matrix (DTS-ES Matrix)

This mode is for use with DTS-ES Matrix soundtrack and enables 6�1 ch or 7�1 ch playback using matrix-encoded back channel�

● This listening mode can be selected only if your Blu-ray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream�

● Use on the CD, DVD or LD with DTS ES logo, particularly on the software containing DTS-ES Matrix soundtrack�

¼ Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room�

¼ Game-Action

In this mode, sound localization is distinct with emphasis on bass�

¼ Game-Rock

In this mode, sound pressure is emphasized to heighten live feel�

¼ Game-RPG

In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra mode�

¼ Game-Sports

Suitable for audio source with much reverberation�

¼ Mono

Use this mode when watching an old movie with a mono soundtrack, or use it to separately reproduce soundtracks in two different languages recorded in the left and right channels of some movies� It is also suitable for DVDs or other sources containing multiplexed audio�

¼ Multich (Multichannel)

Mode suitable for playing sources recorded in PCM multichannel�

¼ Orchestra

Suitable for classical or operatic music� This mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall�

¼ Stereo

In this mode, sound is output from the front left and right speakers and subwoofer�

¼ Studio-Mix

Suitable for rock or pop music, Listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert�

¼ T-D (Theater-Dimensional)

In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers� This works by controlling how sounds reach the listener’s left and right ears�

¼ TV Logic

Suitable for TV shows produced in a TV studio� This mode enhances the surround effects to the entire sound to give clarity to voices and create a realistic acoustic image�

Using the Listening Modes

¼ Unplugged

Suitable for acoustic instruments, vocals and jazz� This mode emphasizes the front stereo image, giving the impression of being right in front of the stage�

En-17

Using the Listening Modes

Selectable Listening Modes

Listening modes that can be selected with the listening mode buttons will differ depending on the input signal format and actual speaker configuration� Also note that depending on the player settings and content, some listening modes may not be available for selecting�

● Listening modes available when headphones are connected are: Mono, Direct, and Stereo�

¼ Movie/TV button

You can select a mode suitable for movies and TV programs�

Input Format Listening Mode

Analog Direct

Mono Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono T-D

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

1

2

3

Input Format Listening Mode

PCM Direct

Mono Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

1

2

3

T-D

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Multich PCM Direct

Mono

1

Multich Dolby Surround TV Logic All Ch Stereo Full Mono

2

3

T-D

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DSD Direct

Mono Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

1

2

3

T-D

1

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Dolby Atmos

● The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected�

Direct Mono Dolby Atmos TV Logic All Ch Stereo Full Mono T-D

En-18

Using the Listening Modes

Input Format Listening Mode

Dolby D Direct

Mono

1 2

Dolby D Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Dolby D+ Direct

Mono Dolby D+

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Dolby TrueHD Direct

Mono Dolby TrueHD

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS Direct

Mono

1 2

DTS Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS 96/24 Direct

Mono DTS 96/24

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS Express Direct

Mono DTS Express

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

En-19

Using the Listening Modes

Input Format Listening Mode

DTS-HD HR Direct

Mono DTS-HD HR

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS-HD MSTR Direct

Mono DTS-HD MSTR

1 2

Dolby Surround Neo:6 Cinema TV Logic All Ch Stereo Full Mono

3

4

5

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS-ES Direct

Mono

1

DTS ES Matrix ES Discrete Dolby Surround TV Logic All Ch Stereo Full Mono

2

3

4

5

T-D

1

Can only be selected when the back speakers are not installed�

2

Back speakers need to be installed�

3

Height speakers need to be installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

En-20

Using the Listening Modes

¼ Music button

You can select a mode suitable for music�

Input Format Listening Mode

Analog Direct

Stereo Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

PCM Direct

Stereo Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

1

2

3

1

2

3

Input Format Listening Mode

Multich PCM Direct

Stereo

1

Multich Dolby Surround Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

2

3

Input Format Listening Mode

DSD Direct

Stereo Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

1

2

3

Input Format Listening Mode

Dolby Atmos

● The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected�

Direct Stereo Dolby Atmos Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

Input Format Listening Mode

Dolby D Direct

Stereo

1 2

Dolby D Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

En-21

Using the Listening Modes

Input Format Listening Mode

Dolby D+ Direct

Stereo Dolby D+

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

Dolby TrueHD Direct

Stereo Dolby TrueHD

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

DTS Direct

Stereo

1 2

DTS Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

DTS 96/24 Direct

Stereo DTS 96/24

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

DTS Express Direct

Stereo DTS Express

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

DTS-HD HR Direct

Stereo DTS-HD HR

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

En-22

Using the Listening Modes

Input Format Listening Mode

DTS-HD MSTR Direct

Stereo DTS-HD MSTR

1 2

Dolby Surround Neo:6 Music Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Can only be selected when the input format is 2 ch and a center speaker

or surround speakers are installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

3

4

5

Input Format Listening Mode

DTS-ES Direct

Stereo

1

DTS ES Matrix ES Discrete Dolby Surround Orchestra Unplugged Studio-Mix All Ch Stereo Full Mono

1

Can only be selected when the back speakers are not installed�

2

Back speakers need to be installed�

3

Height speakers need to be installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

2

3

4

5

En-23

Using the Listening Modes

¼ Game button

You can select a mode suitable for games�

Input Format Listening Mode

Analog Direct

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono T-D

1

Surround speakers or height speakers need to be installed�

2

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

PCM Direct

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono T-D

1

Surround speakers or height speakers need to be installed�

2

Center speaker, surround speakers or height speakers need to be

installed�

1

2

1

2

Input Format Listening Mode

Multich PCM Direct

1

Multich Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

2

3

T-D

1

Center speaker or surround speakers need to be installed�

2

Surround speakers or height speakers need to be installed�

3

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DSD Direct

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

1

2

T-D

1

Surround speakers or height speakers need to be installed�

2

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Dolby Atmos

● The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected�

Direct Dolby Atmos Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono T-D

Input Format Listening Mode

Dolby D Direct

1 2

Dolby D Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

En-24

Using the Listening Modes

Input Format Listening Mode

Dolby D+ Direct

Dolby D+

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

Dolby TrueHD Direct

Dolby TrueHD

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS Direct

1 2

DTS Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS 96/24 Direct

DTS 96/24

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS Express Direct

DTS Express

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS-HD HR Direct

DTS-HD HR

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

En-25

Using the Listening Modes

Input Format Listening Mode

DTS-HD MSTR Direct

DTS-HD MSTR

1 2

Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

3

4

T-D

1

Cannot be selected when the input format is monaural or 2 ch�

2

Center speaker or surround speakers need to be installed�

3

Surround speakers or height speakers need to be installed�

4

Center speaker, surround speakers or height speakers need to be

installed�

Input Format Listening Mode

DTS-ES Direct

1

DTS ES Matrix ES Discrete Dolby Surround Game-RPG Game-Action Game-Rock Game-Sports All Ch Stereo Full Mono

2

3

4

5

T-D

1

Can only be selected when the back speakers are not installed�

2

Back speakers need to be installed�

3

Height speakers need to be installed�

4

Surround speakers or height speakers need to be installed�

5

Center speaker, surround speakers or height speakers need to be

installed�

¼ Stereo button

You can select a listening mode for stereo and all channel stereo sources�

Input Format Listening Mode

All format Stereo

All Ch Stereo

1

Center speaker, surround speakers or height speakers need to be

installed�

1

Checking the Input Format

While audio from the player is being input, press Display on the remote controller several times to switch the information shown on the main unit display� For example, if "Dolby D 5�1" is displayed, the Dolby Digital 5�1 ch signals are being input�

● The number of channels is not displayed when the input signal is "Dolby Atmos" format�

En-26

Advanced Settings (Setup Menu)

How to Set

The unit allows you to configure advanced settings in order to provide even better experience�

¼ Operation

1� Press Receiver on the remote controller�

● Always press Receiver first to change the remote controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component�

2� Press Setup to display the Setup menu�

3� Press / to select the desired menu, and then press

Enter�

Setup

1. Input/Output Assign

2. Speaker

3. Audio Adjust

4. Source

5. Listening Mode Preset

6. Hardware

7. Remote Controller

8. Miscellaneous

4� Press / to select the item, and then press Enter�

1. TV Out

2.HDMI Input

3. Video Input

4. Digital Audio Input

5� With the

/ / / cursors, select the item to configure

the settings�

1-1. TV Out

OSD Language

Impose OSD

Screen Saver

English

3 minutes

To exit the setup menu, press Setup�

Overview of the Setup menu:

1� Input/Output Assign

Make settings to assign the various jacks and for the onscreen display function on the TV when you use the setting menu, for example�

2� Speaker

Make advanced settings for the speakers�

3� Audio Adjust

Make a variety of settings related to sound�

4� Source

Make settings for input sources, such as volume difference adjustments for each input selector for the connected equipment�

5� Listening Mode Preset

You can preset your favorite listening mode�

6� Hardware

Make a variety of settings such as for linked operation with connected HDMI equipment, the standby mode and network connection for this unit�

7� Remote Controller

Make settings related to the remote controller�

8� Miscellaneous

Update the firmware and perform initial settings, etc�

En-27

Advanced Settings (Setup Menu)

1� Input/Output Assign

TV Out

Make settings for the on-screen display function on the TV when you use the setting menu, for example�

Setting Item Default Value Setting Details

OSD Language English Select the on-screen display language�

Select from English, German, French, Spanish, Italian, Dutch, Swedish, Russian (Australian models), or Chinese�

Impose OSD On Set whether or not to display the information on

the TV when the volume is adjusted or input is changed, for example� "On": OSD will be displayed on the TV� "Off": OSD will not be displayed on the TV�

● The OSD may not be displayed depending on the input signal even if "On" is selected� If the operation screen is not displayed, change the resolution of the connected device�

Screen Saver 3 minutes Set the time to start the screen saver� Select

a value from "3 minutes", "5 minutes", "10 minutes" and "Off"�

HDMI Input

You can change input assignment between the input selectors and HDMI IN jacks�

Setting Item Default Value Setting Details

BD/DVD HDMI 1 (HDCP

2�2)

CBL/SAT HDMI 2 (HDCP

2�2)

STRM BOX HDMI 3 (HDCP

2�2)

PC HDMI 4 "HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a

GAME HDMI 5 "HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a

CD ----- "HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a

TV ----- "HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a

"HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a desired HDMI IN jack to the BD/DVD button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

"HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a desired HDMI IN jack to the CBL/SAT button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

"HDMI 1 (HDCP 2�2)" to "HDMI 7": Assign a desired HDMI IN jack to the STRM Box button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

desired HDMI IN jack to the PC button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

desired HDMI IN jack to the Game button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

desired HDMI IN jack to the CD button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

desired HDMI IN jack to the TV button� If you do not assign a jack, select "-----"� To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first�

En-28

Advanced Settings (Setup Menu)

Video Input

You can change assignment of the COMPONENT VIDEO IN 1 and 2 jacks and the VIDEO IN 1 to 3 jacks between the input selectors� If you do not assign a jack, select "-----"�

Setting Item Default Value Setting Details

BD/DVD COMPONENT 1"COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the BD/DVD button� "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the BD/DVD button�

CBL/SAT VIDEO 1 "COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the CBL/SAT button� "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the CBL/SAT button�

STRM BOX VIDEO 2 "COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the STRM Box button� "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the STRM Box button�

PC VIDEO 3 "COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the PC button� "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the PC button�

GAME COMPONENT 2"COMPONENT 1", "COMPONENT 2": Assign

the COMPONENT VIDEO IN jacks to the Game button� "VIDEO 1" to "VIDEO 3": Assign a desired

VIDEO IN jack to the Game button� AUX ----- The setting cannot be changed� CD ----- "COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the CD button�

"VIDEO 1" to "VIDEO 3": Assign a desired

VIDEO IN jack to the CD button� TV ----- "COMPONENT 1", "COMPONENT 2": Assign the

COMPONENT VIDEO IN jacks to the TV button�

"VIDEO 1" to "VIDEO 3": Assign a desired

VIDEO IN jack to the TV button�

Digital Audio Input

You can change input assignment between the input selectors and DIGITAL IN COAXIAL/ OPTICAL 1 to 2 jacks� If you do not assign a jack, select "-----"�

Setting Item Default Value Setting Details

BD/DVD COAXIAL "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the BD/DVD button�

CBL/SAT ----- "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the CBL/SAT button�

STRM BOX ----- "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the STRM Box button�

PC ----- "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the PC button�

GAME ----- "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the Game button�

CD OPTICAL 1 "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the CD button�

TV OPTICAL 2 "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a

desired DIGITAL IN jack to the TV button�

● Sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44�1 kHz, 48 kHz, 88�2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit�

● When you convert video signals input to the COMPONENT VIDEO IN jacks and output them from the HDMI OUT jack, set the output resolution of the player to 480i or 576i� If the input has 480p/576p or higher resolution, an error message will appear�

En-29

Advanced Settings (Setup Menu)

2� Speaker

Allows you to change the speaker configuration such as presence or not of subwoofer, crossover frequency, and so on� Settings are automatically configured if you use the Automatic Speaker Setup� This setting cannot be selected if headphones are connected or audio is output from the speakers of the TV�

Configuration

You can change the number of speaker channels connected, the type of front speaker connection, the height speaker type, and other speaker settings�

Setting Item Default Value Setting Details

Speaker Channels 7�1 ch Select "2�1 ch", "3�1 ch", "4�1 ch", "5�1 ch", "6�1 ch",

"7�1 ch", "2�1�2 ch", "3�1�2 ch", "4�1�2 ch", or "5�1�2 ch" to suit the number of speaker channels connected�

Subwoofer Ye s Set whether a subwoofer is connected or not�

"Yes": When subwoofer is connected "No": When subwoofer is not connected

Height Speaker Front High Set the speaker type if height speakers are

connected to the BACK or HEIGHT terminals� Select "Front High", "Top Front", "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", or "Dolby Speaker (Surr)" according to the connected speaker type and location�

● If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels�

Bi-Amp No Set whether your front speaker connection is bi-

amp� "No": When front speakers are connected in a normal manner "Yes": When front speakers are bi-amp connected

● If an item cannot be selected even though

connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels�

Setting Item Default Value Setting Details

Powered Zone 2 No Set the connection of speakers to Zone 2 speaker

terminals� "Yes": When speakers are connected to ZONE2 speaker terminals "No": When speakers are not connected to ZONE2 speaker terminals

● This item will be set to "No" when "Bi-Amp" is set to "Yes"�

Crossover

Allows you to change speaker configurations, such as crossover frequency� Settings are automatically configured if you use the Automatic Speaker Setup� Audio will not be output while you are making this setting�

Setting Item Default Value Setting Details

Front 100 Hz Select the crossover frequency from "40Hz" to

"200Hz" to start outputting frequencies for each channel� "Full Band": Full band will be output�

● If "Configuration" - "Subwoofer" is set to "No", "Front" will be fixed to "Full Band" and the low pitched range of the other channels will be output from the front speakers� Refer to the instruction manual of your speakers to make the setting�

Center 100 Hz Select the crossover frequency from "40Hz" to

"200Hz" to start outputting frequencies for each channel� "Full Band": Full band will be output�

● "Full Band" can be selected only when "Front" is set to "Full Band"�

● If an item cannot be selected even though connection is correct, check that the settings in "Configuration" - "Speaker Channels" matches the number of connected channels�

En-30

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

Height 100 Hz Select the crossover frequency from "40Hz" to

"200Hz" to start outputting frequencies for each channel� "Full Band": Full band will be output�

● "Full Band" can be selected only when "Front" is set to "Full Band"�

● If an item cannot be selected even though connection is correct, check that the settings in "Configuration" - "Speaker Channels" matches the number of connected channels�

Surround 100 Hz Select the crossover frequency from "40Hz" to

"200Hz" to start outputting frequencies for each channel� "Full Band": Full band will be output�

● "Full Band" can be selected only when "Front" is set to "Full Band"�

● If an item cannot be selected even though connection is correct, check that the settings in "Configuration" - "Speaker Channels" matches the number of connected channels�

Back 100 Hz Select the crossover frequency from "40Hz" to

"200Hz" to start outputting frequencies for each channel� "Full Band": Full band will be output�

● This cannot be selected in the following conditions�

– The setting for "Configuration" - "Bi-Amp" is

"Yes"

– "Configuration" - "Powered Zone 2" is set to

"Yes" and ZONE 2 is on

● "Full Band" can be selected only when "Surround" is set to "Full Band"�

● If an item cannot be selected even though connection is correct, check that the settings in "Configuration" - "Speaker Channels" matches the number of connected channels�

LPF of LFE 120Hz Set the low-pass filter for LFE (low-frequency effect)

signals in order to pass lower frequency signals than the set value and thus cancel unwanted noises� The low-pass filter will be effective only on sources with LFE channel� The value from "80Hz" to "120Hz" can be set� "Off": Do not use this function

Setting Item Default Value Setting Details

Double Bass On This can only be selected when "Configuration" -

"Subwoofer" is set to "Yes" and "Front" is set to "Full Band"� Boost bass output by feeding bass sounds from the front left and right, and center speakers to the subwoofer� "On": Bass output will be boosted� "Off": Bass output will not be boosted�

● The setting will not automatically be configured even if you performed the automatic speaker setup�

Distance

Set the distance from each speaker to the listening position� Settings are automatically configured if you use the automatic speaker setup�

Setting Item Default Value Setting Details

Unit feet/meters Specify the unit of distance for configuring

settings� "feet": When setting in feet (0�1 ft to 30�0 ft, in increments of 0�1 ft) "meters": When setting in meters (0�03 m to 9�00 m, in increments of 0�03 m)

Front Left 12�0ft/3�60m Specify the distance between each speaker and

the listening position�

Center 12�0ft/3�60m Specify the distance between each speaker and

the listening position�

Front Right 12�0ft/3�60m Specify the distance between each speaker and

the listening position�

Height Left 9�0ft/2�70m Specify the distance between each speaker and

the listening position�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Height Right 9�0ft/2�70m Specify the distance between each speaker and

the listening position�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Surround Right 7�0ft/2�10m Specify the distance between each speaker and

the listening position�

En-31

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

Back Right 7�0ft/2�10m Specify the distance between each speaker and

the listening position�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Back Left 7�0ft/2�10m Specify the distance between each speaker and

the listening position�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Surround Left 7�0ft/2�10m Specify the distance between each speaker and

the listening position�

Subwoofer 12�0ft/3�60m Specify the distance between each speaker and

the listening position�

● Default values vary depending on the regions�

● The speaker "Distance" may be unable to be changed depending on the settings in "Configuration" -

"Speaker Channels" / "Subwoofer"�

Level Calibration

Adjust the level of each speaker with the built-in test tone� Settings are automatically configured if you use the Automatic Speaker Setup�

Setting Item Default Value Setting Details

Front Left 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

Center 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

Front Right 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

Height Left 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Setting Item Default Value Setting Details

Height Right 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Surround Right 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

Back Right 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Back Left 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

● This setting cannot be changed if "Configuration" - "Powered Zone 2" is set to "Yes" and Zone2 is set to on�

Surround Left 0 dB Select a value between "-12 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

Subwoofer 0 dB Select a value between "-15 dB" and "+12 dB"�

A test tone will be output each time you change the value� Select the desired level�

● The speaker "Level Calibration" may be unable to be changed depending on the settings in "Configuration" - "Speaker Channels" / "Subwoofer"�

● "Level Calibration" cannot be changed while muting is on�

En-32

Advanced Settings (Setup Menu)

3� Audio Adjust

Configure various settings related to sound, such as settings for listening to multiplex audio or multilingual TV broadcasts and sound field settings for listening modes�

Multiplex/Mono

Setting Item Default Value Setting Details

Multiplex Input Channel

Mono Input Channel

Main Set the audio channel or language to be output

when playing multiplex audio or multilingual TV broadcasts etc� "Main": Main channel only "Sub": Sub channel only "Main/Sub": Main and sub channels will be output at the same time�

● If multiplex audio is being played, "1+1" will be displayed when Display is pressed�

Left+Right Set the input channel to use for playing any 2

ch digital source such as Dolby Digital, or 2-ch analog/PCM source in the Mono listening mode� "Left": Left channel only "Right": Right channel only "Left + Right" : Left and right channels

Dolby

Make the settings for Dolby listening mode�

Setting Item Default Value Setting Details

Loudness Management

On Enable the Late Night function that allows

you to enjoy surround sound of Dolby TrueHD playback even in low volume� "On": Use this function "Off": Do not use this function

DTS

Make the settings for DTS Neo:6 Music listening mode�

Setting Item Default Value Setting Details

Neo:6 Music Center Image

2 Adjust the width of the sound field of the front

channel when playing in the DTS Neo:6 Music listening mode� "0" to "5": Selecting a smaller value brings the sound field of the front channel to the center while selecting a larger value spreads the sound field of the front channel to left and right�

Theater-Dimensional

Make the settings for Theater-Dimensional listening mode�

Setting Item Default Value Setting Details

Listening Angle Wide To enhance the effect of Theater-Dimensional,

select the actual angle of the left and right front speakers as it appears from the listening position� "Narrow": Less than 30° "Wide": Greater than 30°

● Position the front speakers 20° to the listening position if you have selected "Narrow" in "Listening Angle" and 40° if you have selected "Wide"�

Volume

Make the detailed volume setting of the unit�

Setting Item Default Value Setting Details

Maximum Volume Off Set the maximum value to avoid too high volume�

Select a value from "Off", "30" to "79"�

Power On Volume Last Set the volume level of when the power is turned

on� Select a value from "Last" (Volume level before entering standby mode), "Min", "1" to "79" and "Max"�

● You cannot set a higher value than that of "Maximum Volume"�

Headphone Level 0 dB Adjust the output level of the headphones�

Select a value between "-12 dB" and "+12 dB"�

En-33

Advanced Settings (Setup Menu)

Multi Zone

Setting Item Default Value Setting Details

Zone 2 Out Fixed Select which of the integrated amplifier in a

separate room or this unit should be used to adjust the volume when Zone 2 is active� "Fixed": Adjust on the Integrated amplifier in a separate room "Variable": Adjust on the unit

Zone 2 Maximum Volume

Zone 2 Power On Volume

Off Set the maximum value for Zone 2 to avoid too

high volume� Select a value from "Off", "30" to "79"�

Last Set the Zone 2 volume level of when Zone2 is

set to on� Select a value from "Last" (Volume level when the unit was turned off), "Min", "1" to "79" and "Max"�

● You cannot set a higher value than that of "Zone 2 Maximum Volume"�

4� Source

Make settings for input sources, such as volume difference adjustments for each input selector for the connected equipment� Select the input selector to configure�

IntelliVolume

Setting Item Default Value Setting Details

IntelliVolume 0 dB Adjust the volume level difference between the

devices connected to the unit� Select a value between "-12 dB" and "+12 dB"� Set a negative value if the volume of the target device is larger than the others and a positive value if smaller�

When you select a desired input to check the audio, start playback of the connected device�

● This function is not effective in Zone 2�

Name Edit

Set an easy name to each input� The set name will be shown on the main unit display� Select the input selector to configure�

Setting Item Default Value Setting Details

Name Input name 1� Select a character or symbol with the

cursors and press Enter� Repeat it to input 10 or less characters� "A/a": Switches between upper and lower cases� (Pressing +10 on the remote controller also toggles between upper and lower cases�)

"←" "→": Moves the cursor to the arrow

direction�

": Removes a character on the left of the

" cursor� "Space": Puts a space�

● Pressing CLR on the remote controller will remove all the input characters�

2� After inputting, select "OK" with the cursors

and press Enter� The input name will be saved�

En-34

● To name a preset radio station, press Tuner on the remote controller, select AM/FM and select the

preset number�

● It cannot be set if the "NET" or "BLUETOOTH" input is selected�

Audio Select

Make the audio input setting� The setting can be separately set to each input selector button� Select the input selector to configure�

Setting Item Default Value Setting Details

Audio Select BD/DVD:

HDMI CBL/SAT: HDMI STRM BOX: HDMI PC: HDMI GAME: HDMI CD: OPTICAL TV: OPTICAL

PCM Fixed Mode Off Select whether to fix input signals to PCM

Select the priority for input selection when multiple audio sources are connected to one input selector, such as connections to both the "BD/DVD" of HDMI IN jack and "BD/DVD" of AUDIO IN jack� You cannot select a jack that is not associated with the currently selected input�

● The priority is HDMI → COAXIAL/OPTICAL →

Analog if this setting is not changed� ARC: When giving priority to input signal from ARC compatible TV�

● The setting can be selected only when "HDMI"

- "Audio Return Channel" is set to "Auto" and

also the "TV" input is selected� HDMI: When giving priority to input signal from HDMI jacks

● The setting can be selected only when the input is assigned to the HDMI IN jack in the "HDMI Input" setting�

"COAXIAL (Coaxial input)": When giving priority to input signal from DIGITAL IN COAXIAL jacks�

● The setting can be selected only when the input is assigned to the COAXIAL jack in the "Digital Audio Input" setting�

"OPTICAL (Optical input)": When giving priority to input signal from DIGITAL IN OPTICAL jacks�

● The setting can be selected only when the input is assigned to the OPTICAL jack in the "Digital Audio Input" setting�

"Analog": To always output analog audio independently of the input signal

(except multi-channel PCM) when you have selected "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting� Set this item to "On" if noise is produced or truncation occurs at the beginning of a track when playing PCM sources� Select "Off" normally�

● Changing "Audio Select" changes the setting to "Off"�

Advanced Settings (Setup Menu)

● The setting cannot be changed when "TUNER", "NET", or "BLUETOOTH" input is selected�

Video Select

Setting Item Default Value Setting Details

Video Select Last Select the video input played along with

audio output when either "TUNER", "NET" or "BLUETOOTH" is selected�

● This setting is effective only for an input selector which is assigned in "HDMI Input" or "Video Input"�

"Last": Select the video input played immediately prior� "BD/DVD", "CBL/SAT", "STRM BOX", "PC", "GAME", "AUX", "CD", "TV": Play the video from the selected input�

● The setting cannot be changed when input other than "TUNER", "NET" or "BLUETOOTH" is selected�

● When input is "NET" or "BLUETOOTH", switch between displaying and not displaying video by

pressing Mode on the remote controller�

En-35

Advanced Settings (Setup Menu)

5� Listening Mode Preset

You can preset your favorite listening mode to each input� (For example, you can always apply straight decode to the Dolby TrueHD source of Blu-ray Disc to play it in unchanged sound field�) When the list of input sources is displayed, set the signal type and listening mode�

Although it is possible to select the listening mode during playback, the selected mode will be reset when the unit enters standby mode�

Setting Item Default Value Setting Details

Analog/PCM All Ch Stereo Set the listening mode for playing PCM signals

of CD and analog signals of record and cassette tape�

Mono/Multiplex Full Mono Set the listening mode for playing Dolby Digital

and other digital signals recorded in monaural or multiplex audio�

2 ch Source Dolby Surround Set the listening mode for playing Dolby Digital

and other digital signals recorded in 2 channels�

Dolby D/Dolby D+/ TrueHD

DTS/DTS-ES/ DTS-HD

Other Multich Source Dolby Surround Set the listening mode for playing DVD-Audio

Dolby Surround Set the listening mode for playing Dolby Digital,

Dolby Digital Plus and Dolby TrueHD signals�

● Input signals are played as they are input if you select "Straight Decode"�

Straight Decode

Set the listening mode for playing digital audio signals in DTS and DTS-HD High Resolution formats� Select the listening mode specified for Blu-ray or such other DTS-HD Master Audio source�

● Input signals are played as they are input if you select "Straight Decode"�

that are input from HDMI IN jack�

● Input signals are played as they are input if you select "Straight Decode"�

6� Hardware

Tuner

Setting Item Default Value Setting Details

AM/FM Frequency Step (North American models)

AM Frequency Step (Australian models)

10kHz/0�2MHz Select a frequency step depending on your

area of residence� Select "10kHz/0�2MHz" or "9kHz/0�05MHz"�

● When this setting is changed, all radio presets are deleted�

9kHz Select a frequency step depending on your

area of residence� Select "10kHz" or "9kHz"�

● When this setting is changed, all radio presets are deleted�

● Available listening modes vary depending on speaker configuration and the input signal�

● Setting "Last Valid" will always select the last selected mode�

● Only "Analog" can be set to the "TUNER" input�

● "Digital" and "TrueHD" can be set to the "NET" input�

● Only "Digital" can be set to the "BLUETOOTH" input�

En-36

Advanced Settings (Setup Menu)

HDMI

Setting Item Default Value Setting Details

HDMI CEC (RIHD) Off Setting to "On" enables the input selection link

and other link functions with HDMI connected CEC compliant device� "On": Use this function "Off": Do not use this function When changing this setting, turn off and then on again the power of all connected components�

● Depending on the TV set, a link may need to be configured on the TV�

● When this setting is "On", the names of the CEC-compatible components and "CEC On" are displayed after this operation screen is closed�

● Power consumption in standby mode may increase if this setting is "On"� (Depending on the TV status, the unit will enter the normal standby mode�)

● If you operate the MASTER VOLUME control on the unit when this setting is "On" and audio is output from the TV speakers, audio will be output also from the speakers connected to the unit� If you want to output from only either of them, change the unit or TV settings, or reduce the volume of the unit�

● If abnormal operation occurs when you set the setting to "On", set it to "Off"�

● When connecting a non-CEC compatible component, or when you are not sure whether it is compatible, set the setting to "Off"�

Setting Item Default Value Setting Details

HDMI Standby Through

Off When this is set to anything other than "Off",

you can play the video and audio of an HDMI connected player on the TV even if the unit is in standby mode� Only "Auto" and "Auto(Eco)" can be selected if "HDMI CEC (RIHD)" is set to "On"� If you select anything else, set "HDMI CEC (RIHD)" to "Off�"

● Power consumption in standby mode increases if set to anything other than "Off"�

"BD/DVD", "CBL/SAT", "STRM BOX", "PC", "GAME", "AUX", "CD", "TV": For example, if you select "BD/DVD", you can play the equipment connected to the "BD/DVD" terminal on the TV even if the unit is in standby mode� Select this setting if you have decided which player to use with this function� "Last": You can play the video and audio of the input selected immediately prior to the unit being switched to standby on the TV� "Auto", "Auto (Eco)": Select one of these settings when you have connected equipment that conforms to the CEC standard� You can play the video and audio of the input selected on the TV, irrespective of what input was selected immediately prior to the unit being switched to standby, using the CEC link function�

● To play players on the TV that do not conform to the CEC standard, you will need to turn the unit on and switch to the relevant input�

● When using a TV that conforms to the CEC standard, you can reduce the power consumption in standby mode by selecting "Auto (Eco)"�

En-37

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

Audio TV Out Off You can enjoy audio through the speakers of the

HDMI connected TV while this unit is on� "On": Use this function "Off": Do not use this function

● To select "On", set "HDMI CEC (RIHD)" to "Off"�

● The setting is fixed to "Auto" if "HDMI CEC" is set to "On"�

● Listening mode cannot be changed while "Audio TV Out" is set to "On" and audio is being output through the speakers of the TV�

● Depending on your TV set or input signal of the component, audio may not output through the speakers of the TV even if this setting is set to "On"� In such case, audio is output from the speakers of the unit�

● If you operate the MASTER VOLUME control on the unit when "Audio TV Out" or "HDMI CEC (RIHD)" is "On" and audio is output from the TV speakers, audio will be output from the unit� If you do not want to output audio from the unit, change the unit or TV settings, or reduce the volume of the unit�

Audio Return Channel

Auto LipSync On This setting automatically corrects any

Auto You can enjoy sound of the HDMI connected

ARC compatible TV through the speakers connected to the unit� To use this function, set "HDMI CEC (RIHD)" to "On" in advance� "Auto": When enjoying the TV sound through the speakers connected to the unit "Off": When not using the ARC function

desynchronization between the video and audio signals based on data from the HDMI LipSync compatible TV� "On": Automatic correction will be enabled� "Off": Automatic correction will be disabled�

Power Management

Setting Item Default Value Setting Details

Sleep Timer Off Select to turn the unit into standby mode

automatically when the specified time elapses� Select a value between "10 minutes" to "90 minutes"� "Off": Select if you do not want the unit to automatically switch to standby�

Auto Standby On/Off This setting places the unit on standby

automatically after 20 minutes of inactivity without any video or audio input� "On": The unit will automatically enter standby mode ("ASb" will light�) "Off": The unit will not automatically enter standby mode�

● "Auto Standby" is appeared on the display and TV screen 30 seconds before the Auto Standby comes on�

● "Auto Standby" does not work when Zone 2 is active�

● Default values vary depending on the regions�

Auto Standby in HDMI Standby Through

USB Power Out at Standby

Off Enable or disable "Auto Standby" while "HDMI

Standby Through" is on� "On": The setting will be enabled� "Off": The setting will be disabled�

● This setting cannot be set to "On" if "Auto Standby" is set to "Off"�

Off When this function is "On", you can still have

equipment connected to the USB port supplied with power even when this unit is in standby�

● When this function is being used, the power consumption increases even when the unit is on standby� However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating�

En-38

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

Network Standby Off When this function is "On", you can turn on

the power of the unit via network using an application such as Integra Remote�

● When "Network Standby" is used, the power consumption increases even when the unit is on standby� However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating�

Bluetooth Wakeup Off

● Wait for a while if "Network Standby" or "Bluetooth Wakeup" cannot be selected� It will appear when the network function is started up�

This function wakes up the unit on standby by connecting a Bluetooth-enabled device� "On": Use this function "Off": Do not use this function

● Setting to "On" increases the power consumption even when the unit is on standby� However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating�

● This setting is fixed to "Off" if "Bluetooth" - "Auto Input Change" is set to "Off"�

Network

Make the network setting�

● When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically� ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway�

Setting Item Default Value Setting Details

Wi-Fi Off (Wired) Connect the unit to network via wireless LAN

router� "On": Wireless LAN connection "Off (Wired)": Wired LAN connection

Wi-Fi Setup – You can configure wireless LAN settings by

pressing Enter when "Start" is displayed�

Wi-Fi Status – The information of the connected access point

will be displayed� "SSID": SSID of the connected access point� "Signal": Signal strength of the connected access point� "Status": Status of the connected access point�

MAC Address – This is the MAC address of the AV receiver�

This value is specific to the component and cannot be changed�

DHCP Enable "Enable": Auto configuration by DHCP

"Disable": Manual configuration without DHCP

● If selecting "Disable", you must set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually�

IP Address – Displays/Sets the IP address� Subnet Mask – Displays/Sets the subnet mask� Gateway – Displays/Sets the gateway�

DNS Server – Displays/Sets the primary DNS server� Proxy URL – Displays/Sets the proxy server URL� Proxy Port – Displays/Sets the proxy server port number when

you enter "Proxy URL"�

En-39

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

Friendly Name DTR-20�7 Change the name for this unit to a simple one for

display on the equipment connected by network� 1� Press Enter to display the Edit screen� 2� Select a character or symbol with the cursors

and press Enter� Repeat it to input 31 or less characters� "A/a": Switches between upper and lower cases� (Pressing +10 on the remote controller also toggles between upper and lower cases�)

"←" "→": Moves the cursor to the arrow

direction�

": Removes a character on the left of the

" cursor� "Space": Puts a space�

● Pressing CLR on the remote controller will remove all the input characters�

3� After inputting, select "OK" with the cursors

and press Enter� The input name will be saved�

AirPlay Password ----- You can enter a password (maximum of 31

places) so that only the entered user can use AirPlay�

1� Press Enter to display the Edit screen� 2� Select a character or symbol with the cursors

and press Enter� Repeat it to input 31 or less characters� "A/a": Switches between upper and lower cases� (Pressing +10 on the remote controller also toggles between upper and lower cases�)

"←" "→": Moves the cursor to the arrow

direction�

": Removes a character on the left of the

" cursor� "Space": Puts a space�

● Pressing D on the remote controller will switch whether to mask the password with " " or display in the plain text�

● Pressing CLR on the remote controller will remove all the input characters�

3� After inputting, select "OK" with the cursors

and press Enter� The input password will be saved�

Setting Item Default Value Setting Details

Usage Data No As a means of improving the quality of our

products and services, Onkyo may collect information about your usage over the network� Select "Yes" if you agree to our collecting this information� Select "No" if you do not want us to collect this information�

● You can set this after confirming the Privacy Policy� When you select "Usage Data" and press Enter, the Privacy Policy is displayed� (The same screen is displayed once also when setting up the network connection�) If you agree to the collection of the information, this setting also becomes "Yes"� Note that if you agree to the Privacy Policy but select "No" for this setting, the information will not be collected�

Network Check – You can check the network connection�

Press Enter when "Start" is displayed�

● Wait for a while if "Network" cannot be selected� It will appear when the network function is started up�

En-40

Advanced Settings (Setup Menu)

Bluetooth

Setting Item Default Value Setting Details

Bluetooth On Select whether or not to use the Bluetooth

function� "On": Enables connection with a Bluetoothenabled device by using the Bluetooth function� Select "On" also when making various Bluetooth settings� "Off": When not using the Bluetooth function

Auto Input Change On The input of the unit will automatically be

switched to "BLUETOOTH" when connection is made from a Bluetooth-enabled device to the unit� "On": The input will automatically become "BLUETOOTH" when a Bluetooth-enabled device is connected� "Off": The function is disabled�

● If the input is not switched automatically, set to "Off" and change the input manually�

Auto Reconnect On This function automatically reconnects to the

Bluetooth-enabled device connected last when you change the input selector to "BLUETOOTH"� "On": Use this function "Off": Do not use this function

● This may not work with some Bluetooth- enabled devices�

Pairing Information – The information of the previous pairing stored in

this unit will be initialized� Pressing Enter when "Clear" is displayed initializes the pairing information stored in this unit�

● This function does not initialize the pairing information on the Bluetooth-enabled device� When pairing the unit again with the device, be sure to clear the pairing information on the Bluetooth-enabled device in advance� For information on how to clear the pairing information, refer to the Bluetooth-enabled device's instruction manual�

Device – Displays the name of the Bluetooth-enabled

device connected to the unit�

● The name is not displayed when "Status" is "Ready" or "Pairing"�

Setting Item Default Value Setting Details

Status – Displays the status of the Bluetooth-enabled

device connected to the unit� "Ready": Not paired "Pairing": Pairing "Connected": Successfully connected

● Wait for a while if "Bluetooth" cannot be selected� It will appear when the Bluetooth function is started up�

12V Trigger A

Set when outputting the control signal (maximum 12 V/100 mA) through the 12V TRIGGER OUT A jack� Different settings can be set for each input selector� You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack�

Setting Item Default Value Setting Details

Delay 0 sec Set after how many seconds the 12V trigger

output will occur in response to the unit's operation� As some devices cause a large current when they turn on, delay the output if such devices are connected� Select a value between "0 sec" to "3 sec"�

BD/DVD Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "BD/DVD" is selected as input for main room� "Zone2": Output when "BD/DVD" is selected as input for ZONE2� "Main/Zone2": Output when "BD/DVD" is selected as input for main room or ZONE2�

En-41

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

CBL/SAT Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "CBL/SAT" is selected as input for main room� "Zone2": Output when "CBL/SAT" is selected as input for ZONE2� "Main/Zone2": Output when "CBL/SAT" is selected as input for main room or ZONE2�

STRM BOX Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "STRM BOX" is selected as input for main room� "Zone2": Output when "STRM BOX" is selected as input for ZONE2� "Main/Zone2": Output when "STRM BOX" is selected as input for main room or ZONE2�

PC Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "PC" is selected as input for main room� "Zone2": Output when "PC" is selected as input for ZONE2� "Main/Zone2": Output when "PC" is selected as input for main room or ZONE2�

GAME Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "GAME" is selected as input for main room� "Zone2": Output when "GAME" is selected as input for ZONE2� "Main/Zone2": Output when "GAME" is selected as input for main room or ZONE2�

Setting Item Default Value Setting Details

AUX Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "AUX" is selected as input for main room� "Zone2": Output when "AUX" is selected as input for ZONE2� "Main/Zone2": Output when "AUX" is selected as input for main room or ZONE2�

CD Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "CD" is selected as input for main room� "Zone2": Output when "CD" is selected as input for ZONE2� "Main/Zone2": Output when "CD" is selected as input for main room or ZONE2�

TV Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "TV" is selected as input for main room� "Zone2": Output when "TV" is selected as input for ZONE2� "Main/Zone2": Output when "TV" is selected as input for main room or ZONE2�

TUNER Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "TUNER" is selected as input for main room� "Zone2": Output when "TUNER" is selected as input for ZONE2� "Main/Zone2": Output when "TUNER" is selected as input for main room or ZONE2�

En-42

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

NET Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "NET" is selected as input for main room� "Zone2": Output when "NET" is selected as input for ZONE2� "Main/Zone2": Output when "NET" is selected as input for main room or ZONE2�

BLUETOOTH Main Set the 12V trigger output setting to each

input� "Off": No output "Main": Output when "BLUETOOTH" is selected as input for main room� "Zone2": Output when "BLUETOOTH" is selected as input for ZONE2� "Main/Zone2": Output when "BLUETOOTH" is selected as input for main room or ZONE2�

12V Trigger B

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT B jack� Different settings can be set for each input selector� You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack�

Setting Item Default Value Setting Details

Delay 1 sec Set after how many seconds the 12V trigger

BD/DVD Zone2 Set the 12V trigger output setting to each

CBL/SAT Zone2 Set the 12V trigger output setting to each

STRM BOX Zone2 Set the 12V trigger output setting to each

En-43

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

PC Zone2 Set the 12V trigger output setting to each

GAME Zone2 Set the 12V trigger output setting to each

AUX Zone2 Set the 12V trigger output setting to each

CD Zone2 Set the 12V trigger output setting to each

Setting Item Default Value Setting Details

TV Zone2 Set the 12V trigger output setting to each

TUNER Zone2 Set the 12V trigger output setting to each

NET Zone2 Set the 12V trigger output setting to each

BLUETOOTH Zone2 Set the 12V trigger output setting to each

En-44

Advanced Settings (Setup Menu)

12V Trigger C

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT C jack� Different settings can be set for each input selector� You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack�

Setting Item Default Value Setting Details

Delay 2 sec Set after how many seconds the 12V trigger

BD/DVD Main/Zone2 Set the 12V trigger output setting to each

CBL/SAT Main/Zone2 Set the 12V trigger output setting to each

STRM BOX Main/Zone2 Set the 12V trigger output setting to each

Setting Item Default Value Setting Details

PC Main/Zone2 Set the 12V trigger output setting to each

GAME Main/Zone2 Set the 12V trigger output setting to each

AUX Main/Zone2 Set the 12V trigger output setting to each

CD Main/Zone2 Set the 12V trigger output setting to each

En-45

Advanced Settings (Setup Menu)

Setting Item Default Value Setting Details

TV Main/Zone2 Set the 12V trigger output setting to each

TUNER Main/Zone2 Set the 12V trigger output setting to each

NET Main/Zone2 Set the 12V trigger output setting to each

BLUETOOTH Main/Zone2 Set the 12V trigger output setting to each

7� Remote Controller

Setting Item Default Value Setting Details

Remote ID 1 Select an ID for the unit's remote controller from

"1", "2", and "3" to prevent interference between the unit and other Integra/Onkyo components that are installed in the same room� After changing the ID on the main unit, change the ID on the remote controller accordingly with the following procedure�

1� While holding down Receiver, press and

hold Setup for about 3 seconds until the remote indicator lights�

2� With the number buttons, press one of 1, 2,

and 3� The remote indicator flashes twice�

Remote Mode – Input and register the remote controller code of

other devices�

● For registration of the remote control code, refer to the next section, "Operating Other Components with the Remote Controller"�

En-46

8� Miscellaneous

Firmware Update

Setting Item Default Value Setting Details

Update Notice Enable Availability of a firmware update will be notified

via network� "Enable": Notify updates "Disable": Do not notify updates

Version – The current firmware version will be displayed�

Update via NET – Press Enter to select when you want to update

the firmware via network�

● You will not be able to select this setting if you do not have Internet access or there is nothing to update�

Update via USB – Press Enter to select when you want to update

the firmware via USB�

● You will not be able to select this setting if a USB storage device is not connected or there is nothing to update in the USB storage device�

● Wait for a while if "Firmware Update" cannot be selected� It will appear when the network function is started up�

Initial Setup

You can make the initial setup from the setup menu�

● Wait for a while if "Initial Setup" cannot be selected� It will appear when the network function is started up�

Advanced Settings (Setup Menu)

Lock

Setting Item Default Value Setting Details

Setup Parameter Unlocked Lock the Setup menu to protect the settings�

"Locked": The menu is locked� "Unlocked": The menu is unlocked�

En-47

Operating Other Components with

the Remote Controller

Functions of Remote Mode Buttons

You can control any other device than this unit by programming a specified remote control code to a Remote Mode button of the remote controller� Register a remote control code to a desired Remote Mode button and press it to enter the remote mode that allows you to operate the corresponding device�

¼½ The Receiver and Zone2 buttons cannot be programmed�

Operating Other Components with the Remote Controller

Programming Remote Control Codes

¼ Searching in the Setup Menu

You can search a remote control code and register it to a desired Remote Mode button in the unit's Setup menu�

1� After pressing Receiver on the remote controller, press

Setup�

2� With the cursors, select "7� Remote Controller" -

"Remote Mode" and press Enter�

3� With the cursors, select the Remote Mode button for

which you want to register a remote control code and press Enter to display the subcategory selection screen�

4� With the cursors, select the target subcategory, and then

press Enter to display the brand name input screen�

5� Select a character with the cursors and press Enter�

Repeat it to enter the first three characters of the brand name�

6� Select "Search" with the cursors and press Enter�

● After a search is done, the list of possible brand names is displayed� If the brand name list is not displayed, select "Not Listed" with the cursors and press Enter to return to the brand name input screen in step 5�

7� With the cursors, select the target brand name, and then

press Enter�

● When the brand name is specified, the remote control code of the brand and how to register it will be displayed on the TV screen�

8� Follow the guidance displayed on the TV screen� 9� If the component can successfully be operated with its

registered remote control code, select "OK" with the cursors and press Enter�

● Only TV remote control codes can be entered for TV�

● Program a remote control code in accordance

with the input since each button also works as the input selector� (For example, when the CD player is connected to the CD jack, program the remote control code for the CD player to CD)

● If the component cannot be operated, select "Try Next Code" with the cursors and press Enter to display another code�

En-48

Operating Other Components with the Remote Controller

¼ Consulting the Remote Control Code List

Find the remote control code in the remote control code list� 1� Refer to the Remote Control Codes at the back of the

manual for the corresponding remote control code�

● The codes in the Remote Control Code List are those known as of the date of publication and may be changed�

● The following Remote Mode buttons are preprogrammed with remote control codes� BD/DVD: Integra/Onkyo Blu-ray Disc/DVD player CD: Integra/Onkyo CD player STRM Box: Apple TV

● Only TV remote control codes can be entered for TV�

● Program a remote control code in accordance

with the input since each button also works as the input selector� (For example, when the CD player is connected to the CD jack, program the remote control code for the CD player to CD)

2� Press and hold Display for 3 or more seconds while

holding down the Remote Mode button to which you want to program the remote control code�

● The remote indicator lights in the input mode�

3� With the number buttons, enter the 5-digit remote control

code within 30 seconds�

● Programming is complete when the remote indicator flashes twice� The remote indicator flashes once slowly when programming the remote control code fails� Try programming again�

¼ Remapping the Colored Buttons

The colored button assignment on the AV receiver's remote controller can be remapped to match that on the remote controller of the component whose remote control code you programmed to Remote Mode� However, you will not be able to remap the colored buttons if Zone 2 is selected�

1� Hold down the Remote Mode button to map and A (Red)

simultaneously until the remote indicator lights (about 3 seconds)�

● Remapping is possible only for codes included in the categories of the Remote Control Code List (DVD player, TV, etc�)

2� Within 30 seconds, press the colored buttons from left to

right, in the order you want to remap�

● For example, if the colored buttons on the remote controller of the other component are yellow, green, blue, and red from left to right, press the buttons on the AV receiver's remote controller in that order�

● Programming is complete when the remote indicator flashes twice� The remote indicator flashes once slowly when programming the remote control code fails� Try programming again�

● Pressing any other button than a colored button cancels the remap operation�

¼ Resetting the Remote Mode Buttons

You can reset the remote control code registered in the Remote Mode button to its default status� This operation can be executed on a single Remote Mode button�

1� Press and hold Q for 3 or more seconds while holding

down the Remote Mode button you want to reset�

● The remote indicator will light�

2� Within 30 seconds, press the Remote Mode button

again�

● Resetting is complete when the remote indicator flashes twice�

To reset all the remote controller settings: While holding down Receiver, press and hold Q for 3 or more seconds until the remote indicator stays lit� Within 30 seconds, press Receiver again� Resetting is complete when the remote indicator flashes twice�

En-49

TV operation

Press the Remote Mode button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component� Then, operate by using the corresponding buttons� Available buttons vary depending on the product category of the component� Operation may be incorrect or impossible depending on the product�

F , , , , , , () G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 I CLR, Display

¼½ Not CEC-compatible�

Blu-ray Disc player/DVD player/DVD recorder operation

Operating Other Components with the Remote Controller

5 Top Menu 6 / / / , Enter 7 Home 8 Menu 9 Return

1 Remote Mode 2 , Input, VOL / 3 Muting 4 CH +/–

5 Guide 6 / / / , Enter 7 Home 8 PREV CH 9 Return

En-50

1 Remote Mode 2 Source 3 Muting 4 CH +/–, Disc +/–

F , , , , , , G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 () I CLR, Display

¼½ Not CEC-compatible�

VCR/PVR operation

1 Remote Mode 2 Source 3 Muting 4 CH +/–

Operating Other Components with the Remote Controller

F , , , , , , G Number 1 to 9, 0, +10 H CLR, Display

Satellite receiver / Cable receiver operation

5 Guide 6 / / / , Enter 7 Home 8 PREV CH 9 Return

F , , , , , , G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 I CLR, Display

5 Guide 6 / / / , Enter 7 Home 8 PREV CH 9 Return

1 Remote Mode 2 Source 3 Muting 4 CH +/–

En-51

Operating Other Components with the Remote Controller

CD player operation

1 Remote Mode 2 Source 3 Muting 4 Disc +/–

7 , , , , , , 8 Search, Repeat, Random, Mode 9 Number 1 to 9, 0, +10 F CLR, Display

Cassette tape deck operation

To operate CEC-compatible components

If this unit is connected via HDMI to a TV or BD/DVD player, you may be able to control the devices using the remote controller of this unit with CEC (Consumer Electronics Control) linked operation� TV: The TV button on the remote controller is preprogrammed with remote control codes for linked operation of some CEC(Consumer Electronics Control)compatible TV sets�

● If you cannot operate your CEC-compatible TV, program one of the following remote control codes (11807/13100/13500) to the TV button�

BD/DVD player: By registering a remote control code (32910/33101/33501/31612) in the BD/DVD button, your remote controller will be able to take advantage of linked operation with CEC-compatible BD/DVD players�

5 / / / , Enter 6 Home

En-52

1 Remote Mode 2 Source 3 Muting

4 , (Reverse Playback), , , , ,

Advanced speaker connections

Front R Front L

Connecting Bi-amp Speakers

It is possible to connect speakers supporting bi-amping to improve quality of the bass and treble� Up to 5�1 ch will be played in bi-amping�

¼ Connections

1� Connect as below using the FRONT terminals and

BACK or HEIGHT terminals�

Tweeter

(high pitched tone)

Woofer

(low pitched tone)

Advanced speaker connections

● Before bi-amping, be sure to remove the short- circuit connector that connects the tweeter (treble) jack and the subwoofer (bass) jack�

● Use speakers supporting bi-amping only� For details, refer to the speakers' instruction manual�

2� Turn the unit on and make the bi-amping setting�

1 After pressing Receiver on the remote controller,

press Setup�

2 With the cursors, select "2� Speaker" -

"Configuration" - "Bi-Amp"�

3 Select "Yes" with the cursors�

En-53

Connecting and Operating

Onkyo RI Components

Connecting and Operating Onkyo RI Components

RI Connection and Setting

About RI Function

Connecting an Onkyo component with RI jack such as the separately sold RI Dock to the unit by using an RI cable and an analog audio cable enables the following RI functions:

System On / Auto Power On: Starting playback on a component connected via RI when the unit is on standby mode, automatically turns on the unit to select the relevant component as its input source�

Direct Change: When playback is started on a component connected via RI, the unit selects that component as the input source�

Remote Controller Operation: Allows you to operate RI-compatible Onkyo components using the AV receiver's remote controller� Point the remote controller at remote control sensor of the unit� This operation is possible only when the RI remote control code is programmed�

● Some components may not support all RI functions�

● These functions do not work when Zone 2 is turned on�

● For information on the RI functions, also refer to each

component's instruction manual�

Connect an Onkyo component with RI jack to this unit using an RI cable and an analog audio cable� For details, refer to the instruction manual of the component with RI jack� The RI cable can be connected in any order� When there are two RI jacks, both jacks work in the same way and are interchangeable� To connect the RI Dock or cassette tape deck via RI, the following settings are required�

¼ Rename the input selector

To make the RI functions work, you must rename the input selectors on the unit� Press CD or Game to display "CD" or "GAME" on the main unit display� Then press and hold CD or Game 3 seconds or more to switch the display to "DOCK" or "TAPE"�

¼ To program the RI remote control code

Program the remote control code to any Remote Mode button on the remote controller� This will allow you to operate the component by pointing the remote controller at the unit instead of the component� 1� Press and hold Display for 3 or more seconds while

holding down the Remote Mode button to which you want to program the remote control code�

● The remote indicator will light�

● The Receiver and Zone2 buttons cannot be

programmed�

2� With the number buttons, enter the following 5-digit

remote control code within 30 seconds� RI Dock: 81993 Cassette tape deck with RI jack: 42157

● Programming is complete when the remote indicator flashes twice� The remote indicator flashes once slowly when programming the remote control code fails� Try programming again�

Input selector on the RI Dock: Switch to "DOCK" or "TAPE"� For details, refer to the RI Dock's instruction manual�

To operate Onkyo components directly or Onkyo components that are not connected via RI, use the following remote control codes: Onkyo DVD player: 30627 Onkyo CD player: 71817 RI Dock: 82990

● With some models, operation may be not possible in part or not possible at all�

En-54

iPodR/iPhoneR Operation

4 5

The RI Dock allows you to use the AV receiver's remote controller to operate and play music on your iPod/iPhone� Moreover, it also allows you to view videos on your iPod/ iPhone on the screen of your TV, as well as perform RI operations if connected via RI� This operation is possible only when the RI remote control code is programmed�

Before performing any operation: Make sure the OS for your iPod/iPhone is updated to the latest version� Certain buttons may not work for some iPod/iPhone models and generations, or RI Dock� For details on the operation, refer to the RI Dock's instruction manual�

Switch the remote controller mode by pressing the Remote Mode button programmed with the remote control code for the iPod/iPhone, and operate by using the corresponding buttons� Point the remote controller at the unit�

Connecting and Operating Onkyo RI Components

9 , , , , , , F Repeat, Random G Mode H Display

● Pressing Display turns on the backlight for a few seconds�

● Mode allows you to use the Resume function�

1 Remote Mode 2 Source 3 Muting 4 VOL / 5 Album +/–

6 Top Menu 7 / / / , Enter, Playlist / 8 Menu

En-55

Control Function between the Unit

and External Component

You can enable the control functions between the unit and external devices using the terminals below� Special devices or cable connections are necessary to enable the functions� For more information about preparation, contact the specialized stores�

¼ RS232 port

Use the port for connection with a commercially available integrated control system that can enable home automation� Some integrated control systems provide a centralized operation with a single touch panel controller in order to control audio and video home appliances and security devices together� For more information about adopting an integrated control system, contact the specialized stores�

Control Function between the Unit and External Component

¼ IR jack

If you use a multiroom remote control kit with this jack, you can operate the unit with the remote controller even when you are in a separate room, or operate the unit with the remote controller even if its remote control sensor is difficult to see� You can also connect a device with the unit and operate it with the remote controller� For more information about adopting a multiroom remote control kit, contact the specialized stores�

Connecting block

Remote controller

Main room Zone

Signal flow

IR receiver

En-56

¼ 12V trigger output jack

You can enable power link operation when you connect the unit and an external device such as power amplifier equipped with 12V input jack� When the desired input is selected on the unit, power link operation will be activated with a control signal of maximum 12 V/100 mA from the 12V TRIGGER OUT A jack (maximum 12 V/25 mA for the 12V TRIGGER OUT B or C jack)� Each input can be set to output a control signal in any case of "Main", "Zone2" or "Main/Zone2"� For connection, use a monaural mini plug cable�

Updating the Firmware via Network

Firmware Update

The Setup menu is displayed on the TV screen�

Firmware Update

About Firmware Update

There are two methods for updating the firmware; via network and via USB� Use the one that best suits your environment�

● For the latest information on updates, visit the Onkyo website�

● Before updating, make sure that the speaker setup microphone is not connected�

● During an update, do not

– Disconnect and reconnect any cable, USB storage

device, speaker setup microphone or headphones, or perform any operation on the component such as turn off its power

– Access to this unit from a PC or smartphone using

Android application

● The update may take about 30 minutes to complete for either method: via network or via USB� Furthermore, existing settings are guaranteed regardless of the method used for update�

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk� Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract� In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever�

Before Starting

● Check that the unit is turned on, and the connection to

the Internet is secured�

● Turn off the controller component (PC etc�) connected to the network�

● Stop any playing Internet radio, USB storage device, or server content�

● If the multi-zone function is active, press Off on the main unit to turn it off�

● If "HDMI CEC (RIHD)" is set to "On", set it to "Off" (default value)�

– After pressing Receiver on the remote controller,

press Setup� Then, after selecting "6� Hardware"

- "HDMI" and pressing Enter, select "HDMI CEC (RIHD)" to select "Off"�

¼½ The description may differ from the on-screen display but that will not

change the way to operate or the function�

¼ Update

1� After pressing Receiver on the remote controller, press

Setup�

Setup

1. Input/Output Assign

2. Speaker

3. Audio Adjust

4. Source

5. Listening Mode Preset

6. Hardware

7. Remote Controller

8. Miscellaneous

1. TV Out

2.HDMI Input

3. Video Input

4. Digital Audio Input

2� With the cursors, select "8� Miscellaneous" - "Firmware

Update" - "Update via NET", and then press Enter�

Setup

1. Input/Output Assign

2. Speaker

3. Audio Adjust

4. Source

5. Listening Mode Preset

6. Hardware

7. Remote Controller

8. Miscellaneous

1. Firmware Update

2. Initial Setup

3. Lock

● If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up�

● You will not be able to select "Update via NET" if there is nothing to update�

3� Press Enter with "Update" selected to start update�

● During the update, the TV screen may go black depending on the updated program� In that case, check the progress on the display of the unit� The TV screen will remain black until the update is complete and the power is turned on again�

● "Completed!" is displayed when the update is complete�

4� Press

On/Standby on the main unit to turn the unit into standby mode� The process is completed and your firmware is updated to the latest version�

● Do not use Receiver on the remote controller�

En-57

¼ If an Error Message is Displayed

When an error occurs, "*-** Error!" is displayed on the unit� ("*" represents an alphanumeric character�) Check the following:

Error Code

● *-01, *-10:

Ethernet cable not found� Connect the Ethernet cable properly�

● *-02, *-03, *-04, *-05, *-06, *-11, *-13, *-14, *-16, *-17, *-18, *-20, *-21:

Internet connection error� Check the following:

– Whether the router is turned on – Whether this unit and router are connected to the

network Try to disconnect and then connect again the power to the unit and router� This may solve the problem� If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down� Check the service status with your ISP provider�

● Others

First disconnect then reconnect the AC power cord, and then retry from the beginning�

Updating the Firmware via USB

Before Starting

● Prepare a 64MB or larger USB storage device�

– Media inserted in a USB card reader may not be

used for this function�

– USB storage devices with security function are not

supported�

– USB hubs and USB devices with hub function are not

supported� Do not connect these devices to the unit�

● Delete any data stored on the USB storage device�

● Turn off the controller component (PC etc�) connected to

the network�

● Stop any playing Internet radio, USB storage device, or server content�

● If the multi-zone function is active, press Off on the main unit to turn it off�

● If "HDMI CEC (RIHD)" is set to "On", set it to "Off" (default value)�

– After pressing Receiver on the remote controller,

press Setup� Then, after selecting "6� Hardware"

- "HDMI" and pressing Enter, select "HDMI CEC (RIHD)" to select "Off"�

¼½ Some USB storage devices may take long to load, may not be loaded

correctly, or may not be correctly fed depending on the device or their content�

¼½ Onkyo will not be liable whatsoever for any loss or damage of data, or

storage failure arising from the use of the USB storage device with this AV receiver� Thank you for your understanding�

¼½ The description may differ from the on-screen display but that will not

change the way to operate or the function�

¼ Update

1� Connect the USB storage device to your PC� 2� Download the firmware file from the Onkyo website to

your PC and unzip� Firmware files are named in the following way: ONKAVR****_************�zip Unzip the file on your PC� The number of unzipped files and folders varies depending on the model�

3� Copy all unzipped files and folders to the root folder of

the USB storage device�

● Make sure to copy the unzipped files�

4� Connect the USB storage device to the USB port of the

unit�

● If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it�

Firmware Update

● If the USB storage device has been partitioned, each section will be treated as an independent device�

5� After pressing Receiver on the remote controller, press

Setup�

En-58

The Setup menu is displayed on the TV screen�

Setup

1. Input/Output Assign

2. Speaker

3. Audio Adjust

4. Source

5. Listening Mode Preset

6. Hardware

7. Remote Controller

8. Miscellaneous

1. TV Out

2.HDMI Input

3. Video Input

4. Digital Audio Input

6� With the cursors, select "8� Miscellaneous" - "Firmware

Update" - "Update via USB", and then press Enter�

Setup

1. Input/Output Assign

2. Speaker

3. Audio Adjust

4. Source

5. Listening Mode Preset

6. Hardware

7. Remote Controller

8. Miscellaneous

1. Firmware Update

2. Initial Setup

3. Lock

● If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up�

● You will not be able to select "Update via USB" if there is nothing to update�

7� Press Enter with "Update" selected to start update�

● During the update, do not turn off, or disconnect and reconnect the USB storage device�

● "Completed!" is displayed when the update is complete�

8� Disconnect the USB storage device from the unit� 9� Press

On/Standby on the main unit to turn the unit into standby mode� The process is completed and your firmware is updated to the latest version�

● Do not use Receiver on the remote controller�

Firmware Update

¼ If an Error Message is Displayed

When an error occurs, "*-** Error!" is displayed on the unit� ("*" represents an alphanumeric character�) Check the following:

Error Code

● *-01, *-10:

USB storage device not found� Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit� Connect the USB storage device to an external power source if it has its own power supply�

● *-05, *-13, *-20, *-21:

The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model� Retry from the download of the firmware file�

● Others

First disconnect then reconnect the AC power cord, and then retry from the beginning�

En-59

Troubleshooting

Before starting the procedure

● The AV receiver contains a microPC for signal processing and control functions� In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup� In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in�

● Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction� Before you record important data, make sure that the material will be recorded correctly�

Resetting the unit

Resetting the unit to the status at the time of shipment may solve the problem� If the measures mentioned in the troubleshooting do not solve the problem, reset the unit with the following procedure� If you reset the unit status, your preferences will be reset to the defaults� Note them down before starting reset�

¼ How to reset

1� While holding down CBL/SAT on the main unit (note

that step 2 must be performed with this button pressed down)

2� Press

appeared on the display and the unit will enter standby

On/Standby on the main unit� "Clear" is

mode�

Clear

¼ How to reset the remote controller

1� While holding down 1 Receiver on the remote

controller (note that step 2 must be performed with this button pressed down)

2� Press and hold

remote indicator stays lit� Within 30 seconds, press 1 Receiver again�

Power

¼ Cannot turn on the unit

● Make sure that the power cord is properly plugged into

the wall outlet�

● Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again�

¼ The unit turns off unexpectedly

● The AV receiver will automatically enter standby mode

when Auto Standby or Sleep Timer is set and launched�

● The protection circuit may have been activated� If this is the case, when you turn the unit on again, "AMP Diag Mode" will appear on the main unit’s display� The unit will then enter a mode that detects abnormal conditions�

2 Q for 3 or more seconds until the 3

Troubleshooting

If no problems are detected, "AMP Diag Mode" will disappear and the unit will return to a normal state� If "CHECK SP WIRE" appears on the display, the speaker cables may be short-circuited� Turn the unit off, and check to see if the cable core of any of the speaker cables is in contact with that of another speaker cable or with the rear panel� After that, turn the unit on again� If "NG" appears, unplug the power cord immediately and contact your dealer�

WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or our support�

Audio

● Make sure that the speaker setup microphone is not still

connected�

● Check that the output jack of the connected equipment and the input jack of this unit are connected correctly�

● Make sure that none of the connecting cables are bent, twisted, or damaged�

● If the MUTING indicator on the display flashes, press Muting on the remote controller to unmute the unit�

● While headphones are connected to the Phones jack, no sound is output from the speakers�

● If "Audio Select" - "PCM Fixed Mode" is set to "On", set it to "Off"�

If the above does not solve the problem, check the following�

¼ There is no sound from the television

● The input selector of this unit needs to be in the position

that corresponds to the jack where the television is connected�

● If your TV does not support ARC, you need, in addition to the HDMI OUT jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the AUDIO IN TV jack of the unit�

¼ There is no sound from the connected player

● The input selector of this unit needs to be in the

position that corresponds to the jack where the player is connected�

● Check the digital audio output setting on the connected component� On some game consoles, such as those

En-60

that support DVD, the default setting is off�

● With some DVD-Video discs, you need to select an audio output format from a menu�

¼ One of the speakers produces no sound

● Make sure that the polarity of the speaker cables is

correct, and that no bare wires are in contact with the metal part of speaker terminals�

● Make sure that the speaker cables are not shorting�

● Make sure the speakers are configured correctly�

¼ Only the front speakers produce sound

● When the Stereo or Mono listening mode is selected,

only the front speakers and subwoofer produce sound�

¼ Only the center speaker produces sound

● If you use the Dolby Surround listening mode with a

mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker�

¼ The surround speakers produce no sound

● When the T-D (Theater-Dimensional), Stereo or Mono

listening mode is selected, the surround speakers produce no sound�

● Depending on the source and current listening mode, not much sound may be produced by the surround speakers� Try selecting another listening mode�

¼ The center speaker produces no sound

● When the Stereo or Mono listening mode is selected,

the center speaker produces no sound�

¼ No sound from the back speakers and height

speakers

● Depending on the source and current listening mode,

not much sound may be produced by the speakers� Try selecting another listening mode�

¼ The subwoofer produces no sound

● When the input signal does not include a subwoofer

audio element (LFE), the subwoofer may not produce sound�

¼ Volume is low

● Check the volume� The volume level is adjustable

between Min, 1 to 79, Max (80)� A level of around 40 is normal in a domestic environment�

¼ Noise can be heard

● Using cable ties to bundle audio cables with power

cords, speaker cables, etc� may degrade the audio performance, so refrain from doing it�

● An audio cable may be picking up interference� Try repositioning your cables�

¼ The sound changes when I connect my headphones

● When a listening mode other than Direct, or Mono is

selected, connecting a headphone automatically selects Stereo�

¼ About DTS signals

● When DTS program material ends and the DTS

bitstream stops, the unit remains in DTS listening mode and the dts indicator remains on� This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player� If you switch your player from DTS to PCM, you may not hear any sound because the unit does not switch formats immediately� In such case, you should stop your player for about 3 or more seconds and then resume playback�

● With some CD and LD players, you will not be able to playback DTS material properly even though your player is connected to a digital input on the unit� This is usually because the DTS bitstream has been processed (e�g�, output level, sampling rate, or frequency response changed) and the unit does not recognize it as a genuine DTS signal� In such cases, you may hear noise�

● When playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise� This is not a malfunction�

¼ The beginning of audio received by an HDMI IN

cannot be heard

● Since it takes longer to identify the format of an HDMI

signal than it does for other digital audio signals, audio output may not start immediately�

¼ Cannot increase volume when playing AirPlay,

Spotify, or DLNA

● You can set the upper limit for the volume in "WEB

Setup"� After pressing the Receiver button on the remote controller, press the Setup button, select "6� Hardware"

- "Network" - "IP Address" to display the IP address� After connecting the unit and your PC or smartphone to the same router, open the browser, enter the IP address of the unit in the URL field to display the "WEB Setup" screen� Change the value for "Max Volume" in " WEB Setup" and click "Save"�

Troubleshooting

Listening Mode

● When listening to Dolby Digital and/or DTS sound,

digital connection is necessary�

● Check the digital audio output setting on the connected component� On some game consoles, such as those that support DVD, the default setting is off�

● After pressing Receiver on the remote controller, repeatedly press Display to switch the display on the main unit� You can see the input format�

If the above does not solve the problem, check the following�

¼ Cannot select a desired listening mode

● Depending on the connecting status of the speaker,

some listening modes may not be selected� Check the details in "Selectable Listening Modes" section�

¼ There is no sound with Dolby Atmos

● You need to have either back speakers or height

speakers connected� After connecting each of the speakers, make sure the connection settings in "Configuration" - "Speaker Channels" are correct�

● Dolby Atmos play is only possible when the input signal is Dolby Atmos�

Video

● Check that the output jack of the connected equipment

and the input jack of this unit are connected correctly�

● Make sure that none of the connecting cables are bent, twisted, or damaged�

● Make sure the switching of input screens is proper at the monitor side such as a TV�

If the above does not solve the problem, check the following�

¼ There is no picture from a source connected to an

HDMI IN

● The input selector of this unit needs to be in the

position that corresponds to the jack where the player is connected�

● Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed� In this case, the TV does not support the resolution of the video input from the player� Change the setting on the player�

● Reliable operation with an HDMI-to-DVI adapter is not

En-61

guaranteed� In addition, video signals from a PC are not supported�

● Try switching off the DeepColor function� To turn off the DeepColor function, simultaneously press the STRM Box and On/Standby buttons on the main unit� While holding down STRM Box, press On/Standby repeatedly until "Deep Color:Off" appears on the display� To reactivate the DeepColor function, repeat the above described step until "Deep Color:On" is appeared on the display�

¼ There is no picture from a source connected to the

component video input jack

● If multiple video inputs are put into one input, the output

will be made in the order of HDMI, COMPONENT VIDEO/composite video� In this case, to output composite video, set "HDMI Input" to "-----"�

¼ Images flicker

● It is possible that the resolution of the player is not

compatible with the TV's resolution� If you have connected the player to this unit with an HDMI cable, try changing the output resolution on the player� There also may be an improvement if you change the screen mode on the TV�

Linked operation

¼ There is no HDMI linked operation with CEC-

compliant equipment such as a television

● Set the HDMI CEC (RIHD) setting of the unit to "On"�

Press Receiver and then Setup on the remote controller, select "Setup" - "6� Hardware" - "HDMI" - "HDMI CEC (RIHD)" and set to "Yes"�

● It is also necessary to make the HDMI linked system settings on the CEC-compliant equipment� Check the operating instructions�

¼ The RI functions do not work

● To use RI, you must make an RI connection and an

analog audio connection (RCA) between the component and AV receiver�

● While Zone 2 is selected, the RI functions do not work�

Tuner

¼ Reception is noisy, FM stereo reception is noisy, or

the "FM STEREO" indicator does not stay lit

● Re-check the antenna connection�

● Relocate your antenna�

● Move the unit away from your TV or PC�

● Passing cars and airplanes can cause interference�

● Concrete walls weaken radio signals�

● Listen to the station in mono�

● When listening to an AM station, operating the remote

controller may cause noise�

Bluetooth

● Try plugging/unplugging the power of the unit and try

turning on/off the Bluetooth-enabled device� Re-startup of the Bluetooth-enabled device may be effective�

● The Bluetooth-enabled devices must support the A2DP profile�

● Near components such as microwave oven or cordless phone, which use the radio wave in the 2�4 GHz range, a radio wave interference may occur, which disables the use of this unit�

● If there is a metallic object near the unit, Bluetooth connection may not be possible as the metal can effect on the radio wave�

If the above does not solve the problem, check the following�

¼ Cannot connect with this unit

● The Bluetooth function of the Bluetooth-enabled

device is not enabled� Refer to the user manual of the Bluetooth-enabled device for how to enable the Bluetooth function�

● When building a Bluetooth connection between this unit and your Bluetooth-enabled device for the first time, if the connection fails, select "6�Hardware" - "Bluetooth", execute "Clear" in "Pairing Information", turn off and then on again your Bluetooth-enabled device to clear the device name, and build the Bluetooth connection again�

● If the wireless LAN and Bluetooth connections are used at the same time, try connecting the ETHERNET port and router with the Ethernet cable after selecting "6� Hardware" - "Network" and changing "Wi-Fi" to "Off(Wired)" for a better connection�

Troubleshooting

¼ Music playback is unavailable on the unit even after

successful Bluetooth connection

● When the audio volume of your Bluetooth-enabled

device is set low, the playback of audio may be unavailable� Increase the volume of the Bluetoothenabled device�

● Depending on the Bluetooth-enabled device, Send/ Receive selector switch may be provided� Select Send mode�

● Depending on the characteristics or specifications of your Bluetooth-enabled device, playback on the unit is not guaranteed�

¼ Sound is interrupted

● Problem may be occurring at the Bluetooth-enabled

device� Check the information on a web page�

¼ The audio quality is poor after connection with a

Bluetooth-enabled device

● The Bluetooth reception is poor� Move the Bluetooth-

enabled device closer to the unit or remove any obstacle between the Bluetooth-enabled device and this unit�

¼ "Bluetooth" - "Auto Reconnect" does not work

● This may not work with some Bluetooth-enabled

devices� In that case, pair the unit and the Bluetooth-enabled device and then play again�

Network function

● "Network Setup" becomes selectable after the network

starts up even if it cannot be selected first� It may take about a minute to start up�

● When NET is blinking, the AV receiver is not properly connected to the home network�

● Try unplugging the power supply of this unit and the router, and then plugging in again� Try rebooting the router�

If the above does not solve the problem, check the following�

¼ Cannot access the Internet radio

● Certain network service or contents available through

the unit may not be accessible in case the service provider terminates its service�

● Make sure that your modem and router are properly connected, and make sure they are both turned on�

● Make sure that the router LAN side port is properly

En-62

connected to the AV receiver�

● Make sure that connecting to Internet from other components is possible� If connecting is not possible, turn off all components connected to the network, wait for a while, and then turn on the components again�

● If a specific radio station is unavailable for listening, make sure the registered URL is correct, or whether the format distributed from the radio station is supported by this unit�

● Depending on ISP, setting the proxy server is necessary�

● Make sure that the used router and/or modem is

supported by your ISP�

¼ Cannot access the network server

● This unit needs to be connected to the same router as

the network server�

● Make sure your network server has been started up�

● Make sure your network server is properly connected to

the home network�

● Make sure your network server is correctly set�

● Make sure that the router LAN side port is properly

connected to the AV receiver�

¼ Playback stops while listening to music files on the

network server

● Make sure the network server is compatible with this

unit�

● When the PC is serving as the network server, try quitting any application software other than the server software (Windows Media

● If the PC is downloading or copying large files, the playback may be interrupted�

Player 12 etc�)�

USB storage device

¼ USB storage device is not displayed

● Check whether the USB storage device or USB cable is

correctly inserted to the USB port of the unit�

● Remove the USB storage device from the AV receiver once, and then try re-connecting�

● Performance of the hard disk that receive power from the USB port of the unit is not guaranteed�

● Depending on the type of format, the playback may not be performed normally� Check the type of the file formats that is supported�

● USB storage devices with security functions may not be played�

Wi-Fi (Wireless LAN) Network

● Try plugging/unplugging the power supply of wireless

LAN router and the unit, check the wireless LAN router power-on status, and try reboot of the wireless LAN router�

If the above does not solve the problem, check the following�

¼ Cannot access to Wi-Fi (Wireless LAN) network

● The wireless LAN router setting may be switched to

Manual� Return the setting to Auto�

● Try the manual set-up� The connection may succeed�

● When the wireless LAN router setting is at stealth mode

(mode to hide the SSID key) or when ANY connection is off, the SSID is not displayed� Change the setting and try again�

● Check if SSID and encryption settings (WEP, etc�) are correct� Make sure the network settings of the unit is properly set�

● Connection to an SSID that includes multi-byte characters is not supported� Name the SSID of the wireless LAN router using single-byte alphanumeric characters only and try again�

¼ Playback is interrupted and communication does

not work

● Cannot receive signals due to a bad connection�

Shorten the distance from wireless LAN access point or remove obstacles for a good visibility, and try again� Place the unit away from microwave ovens or other access points� It is recommended to place the Wi-Fi router (access point) and the unit in the same room�

● If there is a metallic object near the unit, wireless LAN connection may not be possible as the metal can effect on the radio wave�

● 2�4 GHz band for wireless LAN may not be enough� Connect ETHERNET port of the unit and the router via an Ethernet cable after selecting "6� Hardware" "Network" and changing "Wi-Fi" to "Off(Wired)"�

● When other wireless LAN devices are used near the unit, several issues such as interrupted playback and communication may occur� You can avoid these issues by changing the channel of your Wi-Fi router� For instructions on changing channels, see the instruction manual provided with your Wi-Fi router�

Troubleshooting

Multi-zone Function

¼ There is no zone output from the connected player

● With multi-zone function, sound is output only when the

signal input source is an external component connected to the analog audio input jacks, "NET", "BLUETOOTH", "AM" or "FM"� Multi-zone output is not possible if the player and the unit are connected via HDMI cable� Connect the player using RCA cable� Also, some players require audio output setting�

● Only analog audio signals can be output from an external component to Zone 2�

● When the "NET" input source is selected, DSD and Dolby TrueHD audio signals cannot be output to Zone 2�

Remote Controller

● Make sure that the batteries are installed with the

correct polarity�

● Install new batteries� Do not mix different types of batteries, or old and new batteries�

● Make sure that the remote controller is not too far away from the unit, and that there is no obstruction between the remote controller and the remote control sensor of the unit�

● Make sure that the unit is not subjected to direct sunshine or inverter-type fluorescent lights� Relocate if necessary�

● If the unit is installed in a rack or cabinet with colored- glass doors or if the doors are closed, the remote controller may not work reliably�

If the above does not solve the problem, check the following�

¼ The remote controller does not work

● Before operating this unit with the remote controller, be

sure to press Receiver�

¼ Operating other Onkyo component by using a RI

remote control code is not available

● Make sure that the Onkyo component is properly

connected with RI cable� When RI cable is used for connection, make sure to connect analog audio cable as well� (Connecting only an RI cable will not be enough�)

● Make sure you have selected the correct remote controller mode�

● When the RI remote control code is input, point the remote controller at remote control sensor of the unit�

En-63

● Make sure that the input display is correctly set�

● Input the RI remote control code again�

¼ Cannot operate Onkyo components (ones without RI

connection) and components of other makers

● Operate the remote controller by setting toward the light

receiving section of each component�

● When using the remote controller to control other manufacturers' AV components, some buttons may not work as expected� Also, some components may not operate at all�

● Make sure you have selected the correct remote controller mode�

● Make sure you have entered the correct remote control code�

● Make sure to set the same ID on both the unit and remote controller�

● Input a correct remote control code again� If there are several codes, try each code�

Display and OSD

¼ The display does not light

● Make sure that Dimmer function is not working� Press

Dimmer button and change the brightness level of the display�

¼ The on-screen menus do not appear

● On your TV, make sure that the video input to which this

unit is connected is selected�

● Set "TV Out" - "Impose OSD" to "On"�

● The guidance displayed on the TV screen (OSD) are not

displayed when the OSD language is set to Chinese if the input selector is "NET" or "BLUETOOTH"� Operate by confirming the display on the main unit� Note that the display on the main unit does not support the display of Chinese characters� Characters that cannot be displayed are replaced with asterisks (

)�

Try reconnecting your iPod/iPhone�

● Make sure your iPod/iPhone is actually playing�

If the above does not solve the problem, check the following�

¼ There is no sound

● Try resetting your iPod/iPhone�

¼ There is no video

● Make sure the correct input is selected on your TV or

the unit�

● Make sure that your iPod/iPhone model's TV OUT setting is set to On�

● Some versions of the iPod/iPhone do not output video�

¼ The AV receiver's remote controller does not control

your iPod/iPhone

● The iPod/iPhone cannot be operated while it is

displaying the Apple logo�

● Make sure you have selected the correct remote controller mode�

● When you use the AV receiver's remote controller, point it toward this unit�

● Before operating with the remote controller, you may need to play on your iPod/iPhone to make the input selector be recognized�

● Depending on your iPod/iPhone model and generation, some buttons may not work as expected�

● Try resetting your iPod/iPhone�

¼ The unit unexpectedly selects your iPod/iPhone as

the input source

● Always pause iPod/iPhone playback before selecting

a different input source� If playback is not paused, the Direct Change function may select your iPod/iPhone as the input source by mistake during the transition between tracks�

Others

Troubleshooting

too high�" is displayed�

● This can be caused by a malfunction in your speaker

unit� Check if the unit produces normal sounds�

¼ The Late Night function does not work

● Make sure the source material is Dolby Digital, Dolby

Digital Plus, Dolby TrueHD, or DTS�

¼ The Cinema Filter function does not work

● This function can be used in the following listening

modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express�

¼ How do I change the language of a multiplex source

● Select "Main" or "Sub" for "3� Audio Adjust" - "Multiplex/

Mono" - "Multiplex Input Channel"�

¼ Cannot connect to the AV receiver from a Web

browser

● Make sure that the IP address of the AV receiver is

correctly input to the Internet browser�

● When DHCP is used for allocating the IP address, the IP address of this AV receiver may have been changed�

● Make sure that both AV receiver and PC are properly connected to the network�

¼ Power consumption in standby mode

● In the following cases, the power consumption in

standby mode may reach up to a maximum of 4�4 W:

– When "Network Standby" in "6� Hardware" - "Power

Management" - "Network" is set to "On"�

– When "HDMI CEC (RIHD)" is set to "On"� (Depending

on the TV status, this unit will enter normal standby mode�)

– The "HDMI Standby Through" setting is set to other

than "Off"�

– When "Bluetooth Wakeup" in "6� Hardware" - "Power

Management" is set to "On"�

– When "USB Power Out at Standby" is set to "On"

RI Dock

● Make sure the unit is turned on, the correct input source

is selected, and the volume is turned up�

● Make sure cord and cable plugs are properly plugged in�

● Make sure your iPod/iPhone is properly inserted in

the Dock� If your iPod/iPhone is in a case, it may not connect properly to the Dock� Always remove your iPod/ iPhone from the case before inserting it into the Dock�

En-64

¼ Strange noises can be heard from the unit

● If you have connected another unit to the same wall

outlet as this unit, this noise may be an effect from the other unit� If the symptoms improve by unplugging the power cord of the other unit, use different wall outlets for this unit and the other unit�

¼ When performing Automatic Speaker Setup, the

measurement fails and the message "Ambient noise is

Reference Information

Linked Operation with CEC-compatible Components

Link operation with a product conforming to the CEC of the HDMI standard� Note that linked operation is not always guaranteed with all CEC devices�

Operation has been confirmed on the following devices (as of February 2015)�

TV (Random order):

● Toshiba TV sets

● Sharp TV sets

Players/Recorders (Random order):

● Onkyo and Integra RIHD-compatible players

● Toshiba players and recorders

● Sharp players and recorders (only when used together with

Sharp TV sets)

Caution: For linking functions to work properly, do not connect more RIHD-compatible components than the quantities specified below, to the HDMI jacks� Linking functions are not guaranteed when more RIHD-compatible components than the below mentioned quantities are connected� Furthermore, do not connect the AV receiver to another AV receiver/AV amplifier via HDMI�

● Blu-ray Disc/DVD players: up to 3�

● Blu-ray Disc/DVD recorders: up to 3�

● Cable TV tuner, terrestrial digital tuner, and satellite broadcasting

tuner: up to 4 units�

Checking whether the HDMI Linked Operation Settings Are Enabled

1� Turn on the power of all connected components� 2� Turn off the power of the TV, and confirm that the power

of the connected components is turned off automatically with the link operation�

3� Turn on the power of the Blu-ray Disc/DVD player/

recorder�

4� Start playback on the Blu-ray Disc/DVD player/recorder,

and verify the following:

● The AV receiver automatically turns on, and selects the input to which the Blu-ray Disc/DVD player/ recorder is connected�

● The TV automatically turns on, and selects the input to which the AV receiver is connected�

5� Following the instruction manual of the TV, select "Use

the TV speakers" from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver�

6� Select "Use the speakers connected from the AV

receiver" from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers�

Caution:

● Even if you set to output audio on the TV speakers, audio will

be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver� To output audio from the TV speakers, redo the corresponding operations on the TV�

● In case of an RIHD connection with RI and RI EX audio control compatible components, do not connect the RI cable at the same time�

● On the TV, when you select anything other than the HDMI jack to which the AV receiver is connected, the input on the AV receiver will be switched to "TV"�

● The AV receiver will automatically power on in conjunction when it determines it to be necessary� Even if the AV receiver is connected to an RIHD compatible TV or player/recorder, it will not power on if it is not necessary� It may not power on in conjunction when the TV is set to output audio from the TV�

● Linked system functions with the AV receiver may not work depending on the component model connected� In such cases, operate the AV receiver directly�

● When the player/recorder cannot be operated with the remote controller of the AV receiver, the corresponding component may not be programmed to support the remote controller operation of CEC� Program the remote control code of the component maker to the remote controller for using�

About HDMI

HDMI (High-Definition Multimedia Interface) is a digital

Reference Information

interface standard for connecting TVs, projectors, Bluray Disc/DVD players, set-top boxes, and other video components� Until now, several separate video and audio cables have been required to connect AV components� With HDMI, a single cable can carry control signals, digital video and digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM)� The HDMI video stream (i�e�, video signal) is compatible with DVI (Digital Visual Interface) (*1), so TVs and displays with a DVI input can be connected by using an HDMI-toDVI adapter cable� (This may not work with some TVs and displays, resulting in no picture�) This unit supports HDCP (High-bandwidth Digital Content Protection) (*2), so it can display picture only on HDCPcompatible components� HDMI of the unit supports the following functions� Audio Return Channel, 3D, x�v�Color, Deep Color, LipSync, 4K (Passthrough)

Audio Formats Supported by The Unit:

● 2-channel linear PCM (32 - 192 kHz, 16/20/24 bit)

● Multichannel linear PCM (up to 7�1 ch, 32 - 192 kHz,

16/20/24 bit)

● Bitstream (Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)

● DSD (2 channels)

Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats�

About Copyright Protection: The unit supports Revision 1�4 and Revision 2�2 (HDMI OUT MAIN and HDMI IN1 to 3 only) of the HDCP (Highbandwidth Digital Content Protection) (*2), a copyprotection system for digital video signals� Other devices connected to the unit must also support HDCP�

*1 DVI (Digital Visual Interface): The digital display interface standard set

by the DDWG (*3) in 1999�

*2 HDCP (High-bandwidth Digital Content Protection): The video

encryption technology developed by Intel for HDMI/DVI� It is designed to protect video content and requires a HDCP-compatible HDMI/DVI receiver to display the encrypted video�

*3 DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu,

Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group's objective is to address the industry's requirements for a digital connectivity specification for high-performance PC and digital displays�

En-65

Caution:

● There are some content that can be played only with HDCP Rev�

2�2 compatible devices� To play such content, connect an HDCP Rev�2�2 compatible TV or player to the HDMI OUT MAIN jack or HDMI IN1 to 3 jacks of the unit�

● The HDMI video stream (i�e�, video signal) is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable� (Note that DVI connections only carry video, so you will need to make a separate connection for audio�) However, reliable operation with such an adapter is not guaranteed� In addition, video signals from a PC are not supported�

● The HDMI audio signal (sampling rate, bit length, etc�) may be restricted by the connected source component� If the picture is poor or there is no sound from a component connected via HDMI, check its setup� Refer to the connected component’s instruction manual for details�

Home network (LAN)

The connection of several components via cables enabling the mutual communication is called a network� At households, many families create (generally, the term "build" is used) a network to connect PC and gaming machines to the Internet and to exchange data between PC� The network established in a relatively narrow area such as one household is called a LAN (Local Area Network)� In this manual, a term "home network" (network for a family) is used instead of "LAN", so this LAN becomes more familiar� By connecting this unit with the network server such as a PC, playing music files in the network server (in the PC) is possible� Moreover, by connecting to the Internet, listening to the Internet radio is also possible� This unit, PC, and Internet are not directly connected� When connecting with a PC and/or Internet, several components (network components) are necessary�

Components necessary for establishing a home network (LAN):

Components necessary for the home network (LAN) for using the NET function of this unit are as follows�

¼ Router

A router is a device that controls information (data) flow between the unit, PC, and the Internet� As a network term, the flow of information (data) is called

"traffic"� The router has a role to control the information flow as the traffic control, between connected components�

● A router with a built-in 100Base-TX switch is recommended�

● In addition, if your router has the DHCP function, facilitating the network setting becomes possible�

● Some routers have a built-in modem, and some Internet Service Providers (ISP) require you to use specific routers�

Please consult your ISP or PC dealer if you are unsure�

¼ CAT5 Ethernet cable

The Ethernet cable is a cable that actually connects components that comprise the network� There are straight type and cross type Ethernet cables�

● Use a shielded CAT5 Ethernet cable (straight-type) to connect the unit to your home network�

Consult your cable store for details of Ethernet cable�

¼ Network server (When PC etc�/network server is

used)

Component that stores music files and provides the unit with those files at the time of playback�

● Requirements for use with this unit depend on the component that is used as a network server�

● Conditions for pleasant playback of music files on the unit depend on the using network server (PC performance)� See instruction manuals of using components�

¼ Modem (when Internet radio is used)

Device that connects home network (LAN) and Internet There are many kinds of modems depending on the forms of Internet connection� In addition, when connecting to the Internet, it is required to conclude an agreement with a company that provides Internet connection service, called ISP (Internet Service Provider)� Use a modem that is recommended by your ISP company for the Internet connection� There are some devices that have both router and modem functions� Within above network components, prepare a router, Ethernet cable, and network server when the NET function "network server" is used� For enjoying the NET function "Internet radio", it is necessary to use the router, Ethernet cable, and modem (and agreement with ISP)�

Server Requirements

Reference Information

¼ Server playback

This unit can play digital music files stored on a PC or media server and supports the following technologies:

● Windows MediaR Player 11

● Windows MediaR Player 12

● DLNA-certified media server

The network server must be connected to the same network as this unit� Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep�

Caution: Depending on the media server, the unit may not recognize it, or may not be able to play its music files�

¼ Remote playback

Remote playback is the function that enables this unit to play music files saved in different components by operating the DLNA-compliant controller component and PC in the home network�

● Windows MediaR Player 12

● DLNA-certified (within DLNA Interoperability Guidelines

version 1�5) media server or controller component�

¼½ The setting varies depending on the media server or controller

components� Refer to your components’ instruction manual for details�

If the operating system of your personal PC is WindowsR 8/WindowsR 7, Windows MediaR Player 12 is already installed� For more information, see the Microsoft web site�

USB Storage Device Requirements

● USB Mass Storage device class (but not always

guaranteed)�

● FAT16 or FAT32 file system format�

● If the USB storage device has been partitioned, each

section will be treated as an independent device�

● Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep�

● USB hubs and USB storage devices with hub functions are not supported� Do not connect these devices to the unit�

Caution:

● If the media you connect is not supported, the message "No

Storage" will be displayed�

● Sound files that are protected by copyright cannot be played�

● When the USB audio player and this unit are connected, the

En-66

audio player screen and the screen of the unit may be different� In addition, control functions of the audio player (classifying and sorting music files and adding information, etc�) are not available on this unit�

● Do not connect a PC to the USB port of the unit� Inputting sound to the USB port of the unit from a PC is not possible�

● Media inserted to the USB card reader may not be available in this function�

● Some USB storage devices and its contents may require some time to be read�

● Depending on the USB storage device, proper reading of the contents and proper supply of the power supply may not be possible�

● Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB storage device when that device is used with this unit� We recommend that you back up your important music files beforehand�

● Performance of the hard disk that receive power from the USB port of the unit is not guaranteed�

● If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it�

● When an audio player that are operated with batteries is used, make sure that the batteries have enough remaining power�

● This unit does not support USB storage devices with security functions�

Supported Audio Formats

● For server playback and playback from a USB storage

device, this unit supports the following music file formats�

● Music files of the following formats that can be played depend on the network server� For example, when using Windows MediaR Player 12, not all music files in the PC can be played� The music files that can be played are the ones registered to the Windows MediaR Player 12 library�

● Variable bit-rate (VBR) files are supported� However, playback times may not be displayed correctly�

● This unit supports the gapless playback of the USB storage device in the following conditions� When WAV, FLAC and Apple Lossless files are continuously played back with the same format, sampling frequency, channels and quantization bit rate�

● Remote playback does not support the gapless playback�

● For playback via wireless LAN, the sampling rate of 88�2 kHz or higher, DSD and Dolby TrueHD are not supported�

Caution:

● With remote playback on this unit the following formats are not

supported:

− FLAC, Ogg Vorbis, DSD and Dolby TrueHD�

¼ MP3 (�mp3/�MP3)

● Supported formats: MPEG-1/MPEG-2 Audio Layer 3

● Supported sampling rates: 8 kHz, 11�025 kHz, 12 kHz,

16 kHz, 22�05 kHz, 24 kHz, 32 kHz, 44�1 kHz, 48 kHz

● Supported bitrates: Between 8 kbps and 320 kbps� Incompatible files cannot be played�

¼ WMA (�wma/�WMA) WMA stands for Windows Media Audio and is an audio compression technology developed by Microsoft Corporation� Audio can be encoded in WMA format by using Windows Media

Player�

● Supported sampling rates: 8 kHz, 11�025 kHz, 16 kHz,

22�05 kHz, 32 kHz, 44�1 kHz, 48 kHz

● Supported bitrates: Between 5 kbps and 320 kbps� Incompatible files cannot be played�

● WMA Pro/Voice formats are not supported�

¼ WMA Lossless (�wma/�WMA)

● Supported sampling rates: 44�1 kHz, 48 kHz, 88�2 kHz,

96 kHz

● Quantization bit: 16 bit, 24 bit

¼ WAV (�wav/�WAV)

WAV files contain uncompressed PCM digital audio�

● Supported sampling rates: 8 kHz, 11�025 kHz, 12 kHz, 16 kHz, 22�05 kHz, 24 kHz, 32 kHz, 44�1 kHz, 48 kHz, 64 kHz, 88�2 kHz, 96 kHz, 176�4 kHz, 192 kHz

● Quantization bit: 8 bit, 16 bit, 24 bit

¼½ For playback from a USB storage device, sampling rates of 176�4 kHz

and 192 kHz are not supported�

¼½ For playback from a USB storage device, 5�1 ch is not supported�

¼ AAC

(�aac/�m4a/�mp4/�3gp/�3g2/�AAC/�M4A/�MP4/�3GP/�3G2)

● Supported formats: MPEG-2/MPEG-4 Audio

● Supported sampling rates: 8 kHz, 11�025 kHz, 12 kHz,

16 kHz, 22�05 kHz, 24 kHz, 32 kHz, 44�1 kHz, 48 kHz, 64 kHz, 88�2 kHz, 96 kHz

● Supported bitrates: Between 8 kbps and 320 kbps� Incompatible files cannot be played�

¼ FLAC (�flac/�FLAC) FLAC is a file format for lossless audio data compression�

Reference Information

● Supported sampling rates: 8 kHz, 11�025 kHz, 12 kHz, 16 kHz, 22�05 kHz, 24 kHz, 32 kHz, 44�1 kHz, 48 kHz, 64 kHz, 88�2 kHz, 96 kHz, 176�4 kHz, 192 kHz

● Quantization bit: 8 bit, 16 bit, 24 bit

¼½ For playback from a USB storage device, sampling rates of 176�4 kHz

and 192 kHz are not supported�

¼½ For playback from a USB storage device, 5�1 ch is not supported�

¼ Ogg Vorbis (�ogg/�OGG)

● Supported sampling rates: 8 kHz, 11�025 kHz, 16 kHz, 22�05 kHz, 32 kHz, 44�1 kHz, 48 kHz

● Supported bitrates: Between 32 kbps and 500 kbps�

● Incompatible files cannot be played�

¼ LPCM (Linear PCM)

● Supported sampling rates: 44�1 kHz, 48 kHz

● Quantization bit: 16 bit

¼½ Only for playback via DLNA�

¼ Apple Lossless (�m4a/�mp4/�M4A/�MP4)

● Supported sampling rates: 8 kHz, 11�025 kHz, 12 kHz, 16 kHz, 22�05 kHz, 24 kHz, 32 kHz, 44�1 kHz, 48 kHz, 64 kHz, 88�2 kHz, 96 kHz

● Quantization bit: 16 bit, 24 bit

¼ DSD (�dsf/�DSF)

● Supported sampling rates: 2�8224 MHz, 5�6448 MHz

¼½ For playback from a USB storage device, 5�6448 MHz is not supported�

¼ Dolby TrueHD (�vr/�mlp/�VR/�MLP)

● Supported sampling rates: 48 kHz, 64 kHz, 88�2 kHz, 96 kHz, 176�4 kHz, 192 kHz

¼½ Only sampling rates of 48 kHz is supported for playback from USB� ¼½ Playback via DLNA is not supported� ¼½ For playback from a USB storage device, 7�1 ch is not supported�

Radio Wave Caution

The AV receiver uses a 2�4 GHz radio wave frequency, which is a band used by other wireless systems as 1 and 2 described below�

1� Devices which use a 2�4 GHz radio wave frequency

● Cordless phones

● Cordless facsimiles

● Microwave ovens

● Wireless LAN devices (IEEE802�11b/g/n)

● Wireless AV equipment

● Wireless controllers for game systems

● Microwave oven-based health aids

● Video transmitter

● Specific type of external monitor and LCD display

En-67

2� Less common devices which use a 2�4 GHz radio wave

frequency

● Anti-theft systems

● Amateur radio stations (HAM)

● Warehouse logistic management systems

● Discrimination systems for train or emergency

vehicles If these devices and the AV receiver are used at the same time, the audio may be undesirably stopped or disturbed due to a radio wave interference� Suggestions for improvement

● Switch off the devices which emit the radio wave�

● Place the interfering devices away from the AV

receiver�

● The AV receiver uses radio wave, and a third person can receive the wave on purpose or accidentally� Do not use the communication for important or fatal matters�

● We assume no responsibility whatsoever for any error or damage of network environment or access device resulting from the use of this apparatus� Confirm with the provider or access device maker for more information�

Reference Information

Radio Wave Reflections

The radio waves received by the AV receiver include the radio wave coming directly from the devices and waves coming from various directions due to reflections by walls, furniture and building (reflected waves)� The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations� If the audio cannot be received properly due to this phenomenon, try moving the location of the wireless LAN device a little� Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between the AV receiver and the wireless LAN device�

● We assume no responsibility whatsoever for any damages resulting from the use of this apparatus except in the cases deemed acceptable under the applicable laws and regulations�

● Operation in all environment is not guaranteed for wireless LAN� The communication may not be possible or have desirable communication speed�

Scope of Operation

Use of the AV receiver is limited to home use� (Transmission distances may be reduced depending on communication environment�) In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped:

● In reinforced concrete buildings or steel framed or iron framed buildings�

● Near large metallic furniture�

● In a crowd of people or near a building or obstacle�

● In a location exposed to the magnetic field, static

electricity or radio wave interference from radio communication equipment using the same frequency band (2�4 GHz) as the AV receiver, such as a 2�4 GHz wireless LAN device (IEEE802�11b/g/n) or microwave oven�

● If you live in a heavily populated residential area (apartment, townhouse, etc�) and if your neighbor’s microwave oven is placed near your AV receiver, you may experience radio wave interference� If this occurs, move your AV receiver to a different place� When the microwave oven is not in use, there will be no radio wave interference�

En-68

Precautions

● Do not use this apparatus near an electronic device

handling high-accuracy controls or weak signals� Doing so may cause an accident due to a malfunction of the device�

● Do not use this apparatus in use prohibited location such as an aircraft equipment or a hospital� Doing so may cause an accident due to a malfunction of an electronic device or an electro-medical apparatus� Follow the instructions of the medical facilities�

¼ Electronic device which requires cautions

Hearing aid, pace maker, other medical electronic devices, fire alarm, automatic door, and other automatic control device� When using a pace maker or other medical electronic devices, confirm with the medical electronic device maker or dealer for the effect of the radio wave�

Integra DTR-20.7 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Front Panel

Rear Panel

Display

Step 1: Connections

1 Connecting speakers

Speaker layout

Height speaker types

Instructions on how to connect speakers

2 Connecting the TV and players

Connecting Components without HDMI

3 Other connections

Step 2: Initial Setup

1 AccuEQ Room Calibration

2 Source Connection

3 Remote Mode Setup

4 Network Connection

Step 3: Playing Back

1 Basic Operations

Part names and functions of the remote controller

2 Network Functions

5 AM/FM Radio

Making Multi-zone Connection

Performing Multi-zone Playback

7 Quick Setup Menu

8 Other useful functions

Troubleshooting

Specifications

Table of image resolutions

Resolutions supported by HDMI

Supplied Accessories

Details on AM/FM reception

Tuning into a Radio Station

Presetting an AM/FM Radio Station

Using RDS (Australian models)

Listening to Internet Radio

About Internet Radio

TuneIn Radio

Spotify

SiriusXM Internet Radio (North American only)

Slacker Personal Radio (North American only)

Registering Other Internet Radios

Playing Music with DLNA

About DLNA

Configuring the Windows MediaR Player

DLNA Playback

Controlling Remote Playback from a PC

Playing Music Files in a Shared Folder

About Shared Folder

Setting PC

Playing from a Shared Folder

About the Remote Controller

Remote Controller Buttons

Operating Music Files with the Remote Controller

Icons Displayed during Playback

Using the Listening Modes

Selecting Listening Mode

Listening Mode Types

Selectable Listening Modes

Checking the Input Format

Advanced Settings (Setup Menu)

How to Set

1� Input/Output Assign

2� Speaker

3� Audio Adjust

4� Source

5� Listening Mode Preset

6� Hardware

7� Remote Controller

8� Miscellaneous

Functions of Remote Mode Buttons

Operating Other Components with the Remote Controller

Programming Remote Control Codes

TV operation

Blu-ray Disc player/DVD player/DVD recorder operation

VCR/PVR operation

Satellite receiver / Cable receiver operation
