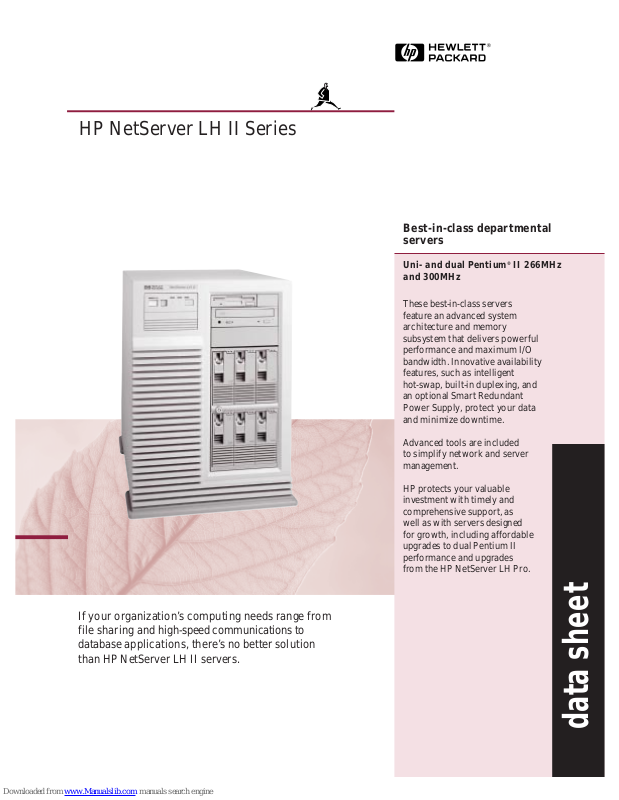

Page 1
HP NetServer LH II Series
Best-in-class departmental
servers
These best-in-class servers
feature an advanced system
architecture and memory
subsystem that delivers powerful
performance and maximum I/O
bandwidth. Innovative availability
features, such as intelligent
hot-swap, built-in duplexing, and
an optional Smart Redundant
Power Supply, protect your data
and minimize downtime.
Advanced tools are included
to simplify network and server
management.
HP protects your valuable
investment with timely and
comprehensive support, as
well as with servers designed
for growth, including affordable
upgrades to dual Pentium II
performance and upgrades
from the HP NetServer LH Pro.
data sheet
If your organization’s computing needs range from
file sharing and high-speed communications to
database applications, there’s no better solution
than HP NetServer LH II servers.
Uni- and dual Pentium®II 266MHz
and 300MHz
Page 2
HP NetServer LH II Series
PERFORMANCE
AVAILABILITY
MANAGEABILITY
HP’s MAP strategy ensures that your enterprise networking solution
delivers the highest levels of Manageability, Availability, and
Performance, all backed with industry-leading support. So you can
count on optimum, easy-to-achieve results over the life of your
server. Maximum system uptime and data protection in your
business-critical environment. And the most advanced technology
available today—with plenty of headroom for future growth.
Rear panel:
• 1 External Ultra/Wide SCSI port
• 2 Serial ports
• 1 Parallel port
• 1 Video port
• Keyboard and mouse ports
Technical information
labels and diagnostic
diskette
Control panel:
• Keyboard lock
• Reset button
• On/off switch
1.44MB Flexible
disk drive
CD-ROM
Half-height,
non-hot-swap shelf
Fans
2 Integrated PCI
Ultra/Wide SCSI controllers
1 PCI/EISA bus master
shared I/O slot
4 PCI bus master I/O slots
2 Ultra/Wide SCSI connectors
4 EISA bus master I/O slots
Pentium II processors
(with integrated write-back cache)
DIMM memory slots
LH II
Processor board
Up to 6 hot-swap
disk modules
with dual SCSI
backplane
Page 3
Features
Processor Intel®Pentium II 266MHz and 300MHz, upgradable to dual SMP
Cache 512KB write-back per processor (integrated on processor)
ECC Memory 512MB; 60 ns DIMM
DIMM Memory 32MB, 64MB, 128MB, 256MB
Controller Two PCI Ultra/Wide SCSI controllers integrated on system board
Smart Redundant Power Supply Optional RPS with status monitoring and reporting
Video • Integrated 1024x768, 16-color, noninterlaced
• 512KB standard video memory
• Super VGA drivers available with operating system or from HP electronic support service
CD-ROM 12x Max CD-ROM
Flexible Disk Drive 1.44MB flexible disk drive
Mass Storage System Nine front-accessible shelves: one 3.5-inch 1.44MB flexible disk drive (included); one for CD-ROM (included);
one standard half-height (non-hot-swap); six hot-swap (must use hot-swap drives)
Keyboard and Mouse Localized keyboard and two-button mouse
Clustering Support Supports HP High-Availability solution which is built around the server industry standard
Microsoft
®
Cluster Server (MSCS)
Disk Array Controller • HPNetRAID PCI Disk Array Controller with three Ultra/Wide SCSI channels
• HP NetRAID-1 PCI Disk Array Controller with one Ultra/Wide SCSI channel
• Hot-swap and hot-spare capabilities
• Supports RAID 0, 1, 3, 5, 10, 30, 50
• Provides online capacity expansion and RAID level migration
• Battery backup for cache memory
Power Supply Optional RPS with status monitoring and reporting
Cooling Dual fans provide extra cooling for internal components; superior airflow design
Up and running quickly • HP NetServer Navigator with automated, menu-driven system setup and configuration
• Guided Network Operating System installation
• Automatic installation of monitoring tools
• IntranetWare
™
from Novell®distributed with every system (requires customer purchase for activation)
Management and administration • HP TopTools for servers facilitates remote administration and problem resolution
• Extensive built-in management capabilities based on SNMP standards
• Bundled or optional HP Remote Assistant provides remote access, regardless of system state, for
faster troubleshooting
• File transfer capabilities for secure and easy remote updates
• Industry-leading HP OpenView
™
for complete network management
• Easy integration with other leading network and system management products
I/O Expansion • 4 PCI
• 4 EISA
• 1 shared PCI/EISA
Built-In I/O Ports • Ultra/Wide external SCSI port
• One 25-pin parallel port
• Two 9-pin RS-232 serial ports
• Video port
• Mini-DIN keyboard and mouse ports
Performance
Availability
Manageability
Expandability
Page 4
Supported Operating Systems Banyan®VINES®, IBM®OS/2®Warp Server, Microsoft®MS-DOS®, Microsoft Windows®NT™Server,
Novell
®
NetWare®, Novell NetWare SFT™III, Novell IntranetWare,™SCO®OpenServer™, and SCO UnixWare
®
Supported SMP Operating Systems IBM OS/2 Warp Server SMP, Microsoft Windows NT Server, Novell NetWare SMP, SCO OpenServer MPX,™ and
SCO UnixWare
Rackmounting Optional rackmount solutions to save valuable space in multiserver environment
Security • Startup password
• Network server mode
• Keyboard lock button with optional screen blanking
• Server case lock
• EISA configuration protection password
• Enable or disable serial port, flexible disk drives, and write operations to flexible disk drives
Warranty Three-year, next-business-day, on-site limited warranty from HP or authorized resellers
(standard business hours) worldwide
Support Options • Optional 4-hour response during standard business hours, or 24 hours a day, 7 days a week available
as HP SupportPack from resellers
• Free telephone support for basic setup, installation, and troubleshooting in U.S., Canada, and Europe
during warranty
• Network phone-in support (advanced NOS and network support) available in U.S., Canada, Europe, and
Australia as optional HP SupportPack from resellers
Operating Temperature 41°to 95°F (5°to 35°C)
Operating Humidity 20% to 80% noncondensing
Acoustic Emissions Sound level (LpA): <58 dB(A)
Power Supply Nominal range 100–127/200–240 VAC, 50–60Hz; 90–140/180–264 VAC, 47–63Hz
Power Availability 410W continuous
Power Consumption 645/614W maximum with 110/220V supply
A/C Load 2200 BTU/hr (560 KCAL/hr) maximum
System Dimensions 19.3"H x 13.7"W x 18.1"D (49cm x 34.8cm x 46cm)
System Weight 50–70lb (22.7–31.8kg), depending on configuration
Electromagnetic Compliance • CISPR 22 Class B (International)
• EN 55022 Class B (EU Countries)
• EN 50082-1, Generic Immunity (EU Countries), includes: IEC 801-2, ESD; IEC 801-3, RI; IEC 801-4, FT
• FCC Class B Verified (USA—Self-Declaration)
• M of C Class A (Korea)
• VCCI Class B (Japan)
• EN61000-3-2 Harmonic Current
• EN61000-3-3 Flicker/Voltage Fluctuation
• BCIQ Class B (Taiwan)
• C-TICK Class B (Australia)
Safety Compliance • CSA Certified (Canada, File LR106647)
• EN 60950 Compliance (International)
• TÜV Certified (Germany)
• UL Listed (USA, File E139742)
• NOM-1-NYCE Certified (Mexico)
Features
Flexibility
Security and Safety
Specifications
Service and Support
Regulatory Compliance
Page 5
Memory • HP 32MB 60ns EDO DIMM D4295A
• HP 64MB 60ns EDO DIMM D4296A
• HP 128MB 60ns EDO DIMM D4297A
• HP 256MB 60ns EDO DIMM D4926A
Storage Devices • 2.1GB, 5400rpm Fast SCSI-2 disk drive
2
D2077A
• 4.2GB, 7200rpm Fast SCSI-2 disk drive
2
D4956A
• 2.1GB, 7200rpm hot-swap Ultra/Wide SCSI disk module D3582C
• 4.2GB, 7200rpm hot-swap Ultra/Wide SCSI disk module D3583C
• 4.2GB, 10,000rpm hot-swap Ultra/Wide SCSI disk module D4903A
• 9.1GB, 7200rpm hot-swap Ultra/Wide SCSI disk module D4289A
• 18.2GB, 7200rpm hot-swap D5039A
• HP SureStore DAT8i Internal DDS3 Drive (8GB) C1528H
• HP SureStore DAT8e External DDS3 Drive (8GB) C1529H
• HP SureStore DAT24i Internal DDS3 Drive (24GB)
3
C1555B
• HP SureStore DAT24e External DDS3 Drive (24GB) C1556B
• HP SureStore DAT24x6e External DDS3 Autoloader (144GB) C1559A
• HP SureStore DLT30e External DLT Drive (30GB) C1549A
• HP SureStore DLT40e External DLT Drive (40GB) C1579A
• HP SureStore DLT70e External DLT Drive (70GB) C5658A
• 3.5-inch hard disk drive mounting trays (3-pack, non-hot-swap)
2
D2198B
• Tape/DAT/CD-ROM mounting trays (3-pack, no front panel)
2
D2199A
• HP NetServer hot-swap tray (for selected non-HP drives only, refer to HP electronic D3349B
services for supported drives)
• Cable kit D4845A
External Storage Solution • HP NetServer Storage Rack System/6 D3604B
• HP NetServer Rack Storage/8 D4902A
Disk Array Controller • HP NetRAID PCI Disk Array Controller with three Ultra/Wide SCSI channels
3
D4943A
• HP NetRAID-1 PCI Disk Array Controller with one Ultra/Wide SCSI channel D4992A
Redundant Power Supply Smart RPS with status monitoring and reporting D4921A
Uninterruptible Power Supplies UPS devices are available from APC. For additional information, contact your local APC reseller,
or see APC’s web page at http://www.apcc.com
Network Connectivity • HP DeskDirect 10/100VG PCI LAN adapter J2585B
• HP NetServer 10/100TX PCI LAN adapter D5013A
Monitor • HP 14" Super VGA Display D2821A
• HP 15" Low Emission Display D2825A
• HP 15" Ergo Ultra VGA Display D2830A
• HP 17" Ultra VGA Display D2835A
HPNetServer Racks4and • 2-meter rack with side panels and rear door J1487B
Accessories
5
• 2-meter rack only J1488A
• 8-port HP Console switchbox J1497A
• 4-port HP Console switchbox J1493A
• HP NetServer Storage System/6 Rack kit J1492A
• HP NetServer LH Plus/LH Pro Rackmount kit
4
J1491A
HP Remote Assistant EISA server management card for remote diagnostic and environmental monitoring of server
• HP Remote Assistant (with modem) for U.S./Canada/Latin America D2968C
• HP Remote Assistant (with modem) for Europe/Asia Pacific D2969C
• HP Remote Assistant (without modem) for outside of U.S./Canada/Latin America D2967C
Upgrades • HP Pentium II/266MHz CPU Chip D4995A
• HP Pentium II/300MHz CPU Chip D4996A
• HP NetServer LH II processor board upgrade kit D5952A
1
Please see the
HP NetServers Configuration Guide
for important technical information when choosing your accessories
2
For use in standard half-height shelf only (one shelf available)
3
Must order cable kit (D4845A)
4
For additional information about HP rackmounting products, see http://www.hp.com/go/enclosures
5
For additional information, call HP FAX Response System at 1-208-344-4809
(worldwide from fax only) and request document #7433
Accessories
Product Accessory
1
Product No.
Page 6
HP NetServer LH II Series
Model Processor Cache ECC Memory Product No.
HP NetServer LH II Model 1 Pentium II 266MHz 512KB 64MB D5017A
HP NetServer LH II Model 1 Pentium II 266MHz 512KB 64MB D5953A
w/bundled Remote Assistant
1
HP NetServer LH II Model 12A
2
Pentium II 266MHz 512KB 128MB D5974A
HP NetServer LH II Model 1 Pentium II 300MHz 512KB 64MB D5021A
HP NetServer LH II SMP Model 1 Pentium II 300MHz, dual 512KB 64MB D5023A
1
Requires additional purchase of modem.
2
Includes three 4.2GB drives and HP NetRAID-1 DAC.
Configuration and Models
Banyan and VINES are registered trademarks of
Banyan Systems Inc. OpenView is a trademark of
Hewlett-Packard Company. IBM and OS/2 are registered
trademarks of IBM Corporation. Microsoft, MS-DOS,
and Windows are registered trademarks of, and
Windows NT is a trademark of, Microsoft Corporation.
Novell and NetWare are registered trademarks of, and
IntranetWare and NetWare SFT are trademarks of,
Novell Inc. Intel, Pentium, and the Intel Inside logo are
registered trademarks of Intel Corporation. SCO and
UnixWare are registered trademarks of, and OpenServer
and MPX are trademarks of, the Santa Cruz Operation.
For Additional Information
HP WWWeb Server http://www.hp.com/go/netserver
http://www.hp.com/go/storage
HP NetServer FTP Server ftp://ftp.hp.com/pub/servers
HP NetServer BBS 1-208-344-1691
HP FAX Response System 1-208-344-4809 (worldwide
from fax only)
Information in this document is subject to
change without notice.
© Copyright Hewlett-Packard Company 1997.
All Rights Reserved. Reproduction, adaptation,
or translation without prior written permission
is prohibited, except as allowed under the
copyright laws.
Printed in USA M1097
HPSupportPack is an easy way for you to buy prepackaged service and support from your HP Authorized Reseller. A wide variety of services are
available, from enhanced hardware support to telephone assistance for network operating systems and software applications.
HP SupportPack Order Number
3-year, next-business-day, on-site Standard Warranty
3-year, on-site service with 4-hour response
2
(Standard Business Hours) H5518A
3-year, on-site service with 4-hour response
2
(24 hours/day, 7 days/week) H5513A
On-site installation and network configuration H5751A
Remote NOS, Application, LAN, WAN, and Management Phone Support H1847AA
1
One HP SupportPack per server on the network.
2
Includes NOS Restoration.
HP SupportPack Offering
1
Loading...
