Maintenance and Service Guide

HP Compaq nx8220 Notebook PC HP Compaq nw8240 Notebook PC HP Compaq nc8230 Notebook PC

Document Part Number: 372658-002

October 2005

This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing computer disassembly procedures.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Maintenance and Service Guide HP Compaq nx8220 Notebook PC HP Compaq nw8240 Notebook PC HP Compaq nc8230 Notebook PC Second Edition October 2005 First Edition March 2005 Document Part Number: 372658-002

1 Product Description

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–5

1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6

1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20

2 Troubleshooting

2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Accessing Computer Setup . . . . . . . . . . . . . . . . . . . . 2–2

Computer Setup Defaults . . . . . . . . . . . . . . . . . . . . . 2–2

Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–3

Selecting from the Security Menu . . . . . . . . . . . . . . 2–4

Selecting from the Tools Menu. . . . . . . . . . . . . . . . . 2–5

Selecting from the Advanced Menu . . . . . . . . . . . . . 2–6

2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–7

3 Software Update and Recovery

3.1 Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Accessing Computer Information . . . . . . . . . . . . . . . 3–2

Obtaining the Support Software CD . . . . . . . . . . . . . 3–3

Software Updates and the HP Web Site . . . . . . . . . . 3–3

Maintenance and Service Guide iii

Contents

3.2 System Recovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6

Safeguarding Your Data . . . . . . . . . . . . . . . . . . . . . . 3–7

Using Altiris Local Recovery . . . . . . . . . . . . . . . . . . 3–7

Using System Restore Points . . . . . . . . . . . . . . . . . . 3–8

Reinstalling Applications . . . . . . . . . . . . . . . . . . . . . 3–9

Repairing the Operating System . . . . . . . . . . . . . . . 3–10

Reinstalling the Operating System . . . . . . . . . . . . . 3–12

Reinstalling Device Drivers and Other Software . . 3–14

4 Illustrated Parts Catalog

4.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 4–1

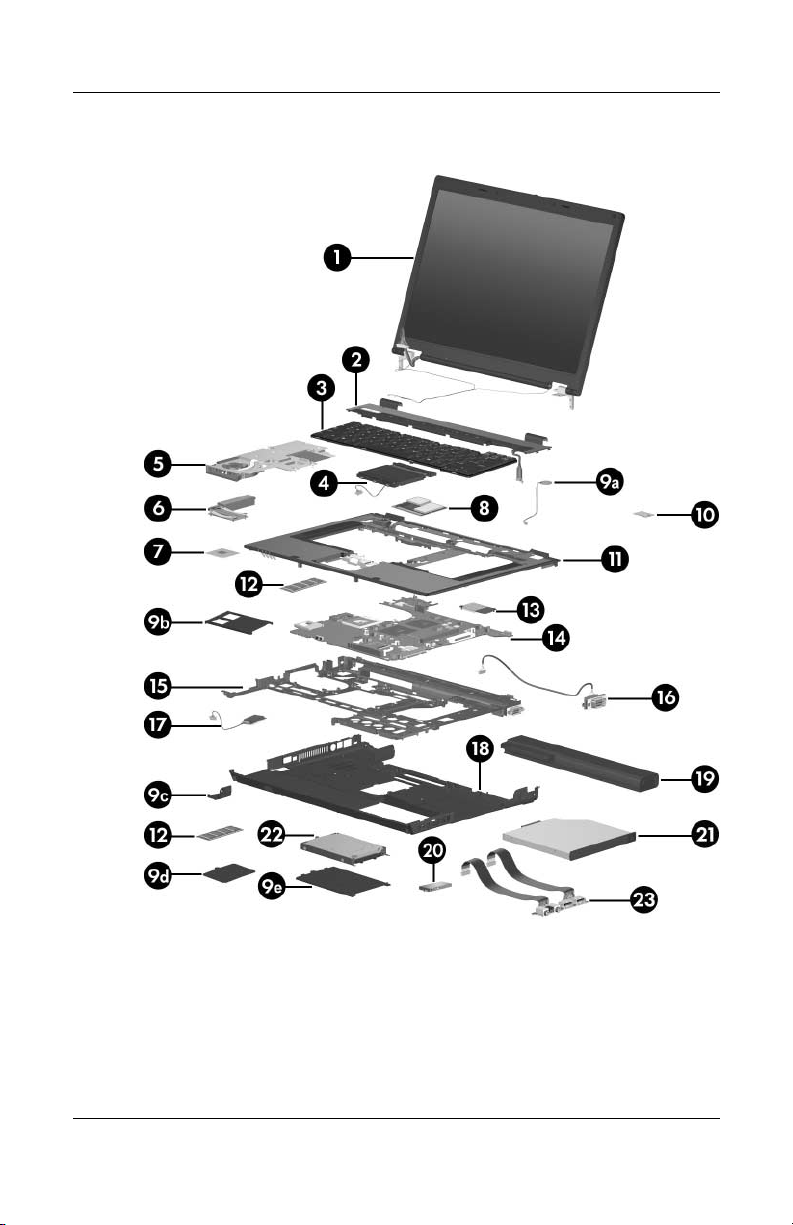

4.2 Computer Major Components. . . . . . . . . . . . . . . . . . 4–2

4.3 Miscellaneous Plastics Kit . . . . . . . . . . . . . . . . . . . 4–14

4.4 Miscellaneous Cable Kit . . . . . . . . . . . . . . . . . . . . . 4–15

4.5 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 4–16

4.6 Miscellaneous (Not Illustrated). . . . . . . . . . . . . . . . 4–17

4.7 Sequential Part Number Listing . . . . . . . . . . . . . . . 4–19

5 Removal and Replacement Preliminaries

5.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 5–2

Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.3 Preventing Damage to Removable Drives . . . . . . . . 5–3

5.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 5–4

5.5 Packaging and Transporting Precautions . . . . . . . . . 5–5

5.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 5–6

5.7 Grounding Equipment and Methods . . . . . . . . . . . . . 5–7

iv Maintenance and Service Guide

6 Removal and Replacement Procedures

6.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 6–3

6.3 Preparing the Computer for Disassembly . . . . . . . . . 6–5

6.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

6.6 MultiBay II Device . . . . . . . . . . . . . . . . . . . . . . . . . 6–11

6.7 External Memory Module . . . . . . . . . . . . . . . . . . . . 6–12

6.8 Bluetooth Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–15

6.9 Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17

6.10 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–22

6.11 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–26

6.12 Thermal Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–27

6.13 Heat Sink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–29

6.14 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–32

Contents

6.15 TPM Security Module. . . . . . . . . . . . . . . . . . . . . . 6–34

6.16 Internal Memory Module . . . . . . . . . . . . . . . . . . . 6–35

6.17 TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–37

6.18 Mini PCI Communications Module . . . . . . . . . . . 6–40

6.19 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 6–42

6.20 Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–46

6.21 Modem Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–50

6.22 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–52

6.23 System Board Frame. . . . . . . . . . . . . . . . . . . . . . . 6–59

6.24 Push Button Module . . . . . . . . . . . . . . . . . . . . . . . 6–63

6.25 Serial Connector Module . . . . . . . . . . . . . . . . . . . 6–65

6.26 Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–67

Maintenance and Service Guide v

Contents

7 Specifications

A Connector Pin Assignments

B Power Cord Set Requirements

C Screw Listing

D Display Component Recycling

Index

vi Maintenance and Service Guide

Product Description

The HP Compaq nx8220, nw8240, and nc8230 Notebook PCs offer advanced modularity, Intel® Pentium® M processors, and extensive multimedia support.

HP Compaq nx8220, nw8240, and nc8230 Notebook PCs

Maintenance and Service Guide 1–1

Product Description

1.1 Features

■ Intel Pentium M 2.13-, 2.00-, 1.86-, 1.73-, or 1.60-GHz

processors, varying by computer model

■ The following displays are available, varying by

computer model:

❏ 15.4-inch, UXGA, TFT (1600 × 1200) with over

16.8 million colors

❏ 15.4-inch, WSXGA, TFT (1680 × 1050) with over

16.8 million colors

❏ 15.4-inch, WXGA, TFT (1366 × 768) with over

16.8 million colors

■ 80-, 60-, or 40-GB high-capacity hard drive, varying by

computer model

■ 256-MB DDR2 synchronous DRAM (SDRAM) at 400 and

533 MHz, expandable to 2.0 GB

■ Microsoft® Windows® XP Home Edition or Windows XP

Professional, varying by computer model

■ Full-size Windows keyboard with embedded numeric keypad

■ TouchPad and pointing stick pointing devices, including a

dedicated vertical scroll region.

■ Integrated 10Base-T/100Base-TX Ethernet local area

network (LAN) network interface card (NIC) with RJ-45 jack

■ Integrated high-speed 56K modem with RJ-11 jack

■ Integrated wireless support for Mini PCI IEEE 802.11a/b and

802.11a/b/g WLAN device

■ Support for one Type I or Type II PC Card slot, with support

for both 32-bit (CardBus) and 16-bit PC Cards

1–2 Maintenance and Service Guide

Product Description

■ External 90-watt AC adapter with 3-wire power cord

■ 8-cell Li-Ion battery pack

■ Stereo speakers

■ Volume up, volume mute, and volume down buttons

(full-featured models only)

Numerous references are made throughout this Maintenance

✎

and Service Guide to “full-featured” and “defeatured” units. A computer model is considered to be full-featured if it has 3 Universal Serial Bus ports and the following components:

■ Volume control buttons

■ Quick Launch buttons

■ Infrared port

■ SD Memory Card slot

■ Serial port

■ S-Video-out port

■ Docking connector

A computer model is considered to be defeatured if it has only 2 Universal Serial Bus ports and none of the components listed above.

Maintenance and Service Guide 1–3

Product Description

■ Support for the following optical drives:

❏ DVD-ROM drive

❏ DVD+RW/R and CD-RW Combo Drive

❏ DVD/CD-RW Combo Drive

■ Connectors:

❏ Infrared (full-featured models only)

❏ Audio-out (headphone)

❏ Audio-in (microphone)

❏ Universal Serial Bus (USB) v. 2.0 (3 ports on full-featured

❏ Serial port (full-featured models only)

❏ Power

❏ External monitor

❏ RJ-45 (network)

❏ RJ-11 (modem)

❏ S-Video-out (full-featured models only)

❏ IEEE 1394

❏ PC Card

computer models, 2 ports on defeatured computer models)

❏ Smart card

❏ SD Memory Card (full-featured models only)

❏ Parallel port (full-featured models only)

❏ Primary battery

❏ Travel battery

❏ Docking connector (full-featured models only)

1–4 Maintenance and Service Guide

1.2 Resetting the Computer

If the computer you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS:

1. Prepare the computer for disassembly (refer to Section 6.3,

“Preparing the Computer for Disassembly,” for more

information).

2. Remove the real-time clock (RTC) battery (refer to

Section 6.11, “RTC Battery,” for more information on

removing and replacing the RTC battery).

3. Wait approximately 5 minutes.

4. Replace the RTC battery and reassemble the computer.

5. Connect AC power to the computer. Do not reinsert any battery packs at this time.

6. Turn on the computer.

All passwords and all CMOS settings have been cleared.

Product Description

1.3 Power Management

The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features:

■ Standby

■ Hibernation

■ Setting customization by the user

■ Hotkeys for setting the level of performance

■ Battery calibration

■ Lid switch standby/resume

■ Power button

■ Advanced Configuration and Power Management (ACPM)

compliance

Maintenance and Service Guide 1–5

Product Description

1.4 External Components

The external components on the front of the computer are shown below and described in Table 1-1.

Front Components

Tabl e 1-1

Front Components

Item Component Function

1 Wireless light On: an integrated wireless device (selected

models only) has been turned on.

2Power light

1–6 Maintenance and Service Guide

■ On: The computer is on.

■ Blinking: The computer is in

standby mode.

Tabl e 1-1

Product Description

Front Components

(Continued)

Item Component Function

3Battery light ■ Amber: A battery pack is charging.

■ Green: A battery pack is close to full

charge capacity.

■ Blinking amber: A battery pack that is the only available power source has reached a low-battery condition. When the battery reaches a critical low-battery condition, the battery light blinks more quickly.

■ Off: If the computer is connected to external power, the light is turned off when all batteries in the computer are fully charged. If the computer is not connected to external power, the light is turned off until the battery reaches a low-battery condition.

4 Integrated Drive

Electronics (IDE) drive light

5 Infrared port

(full-featured models only)

6 Display release latch Opens the computer.

On: A drive in the hard drive bay or MultiBay II is being accessed.

Provides wireless communication between the computer and an optional IrDA-compliant device.

Maintenance and Service Guide 1–7

Product Description

The external components on the left side of the computer are shown below and described in Table 1-2.

Left-Side Components

Tabl e 1-2

Left-Side Components

Item Component Function

1 Security cable slot Attaches an optional security cable to the

2 RJ-45 (network) jack Connects a network cable.

3 RJ-11 (modem) jack Connects the modem cable.

4 S-Video-out jack

(full-featured models only)

1–8 Maintenance and Service Guide

computer.

Security solutions are designed to

act as deterrents. These deterrents may not prevent a product from being mishandled or stolen.

Is a 7-pin, dual-purpose jack. It connects an optional S-Video device,

such as a television, VCR, camcorder, overhead projector, or video capture card with an optional, standard (4-pin) S-Video cable.

The extra 3 pins also enable an optional S-Video-to-composite adapter to be used with the computer.

Tabl e 1-2

Product Description

Left-Side Components

(Continued)

Item Component Function

5 Vent Enables airflow to cool internal

components.

To prevent overheating, do not

obstruct vents. Do not allow a hard surface, such as a printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.

6 1394 port (4 pin) Connects an optional 4-pin 1394 device,

such as a camcorder.

7 USB port Connects USB 1.1- and 2.0-compliant

devices to the computer using a standard USB cable, or connects an optional External MultiBay or External MultiBay II to the computer. The External MultiBay must be connected to an external power source.

8 Smart card reader Accepts smart cards.

9 SD Memory Card slot Accepts Secure Digital (SD) Memory

Cards.

10 PC Card slot Supports optional Type I or Type II

PC Card.

11 PC Card eject button Ejects PC Cards from the PC Card slot.

Maintenance and Service Guide 1–9

Product Description

The external components on the right side of the computer are shown below and described in Table 1-3.

Right-Side Components

Tabl e 1-3

Right-Side Components

Item Component Function

1Audio-out

(headphone) jack

2 Internal microphone Records sound.

3Audio-in

(microphone) jack

4 USB ports (2)

(full-featured models only)

5 MultiBay II Holds an optional MultiBay II device.

6Serial port

(full-featured models only)

1–10 Maintenance and Service Guide

Produces system sound when connected to optional powered stereo speakers, headphones, headset, or television audio.

Connects an optional monaural microphone.

Connect USB 1.1- and 2.0-compliant devices to the computer using a standard USB cable, or connects an optional External MultiBay or External MultiBay II to the computer. The External MultiBay must also be connected to an external power source.

Connects an optional serial device.

Product Description

The external components on the rear panel of the computer are shown below and described in Table 1-4.

Rear Panel Components

Table 1-4

Rear Panel Components

Item Component Function

1 Primary battery bay Holds the primary battery pack.

2 Power connector Connects an AC adapter or an optional

3 External monitor port Connects an optional external VGA

Maintenance and Service Guide 1–11

automobile or aircraft adapter.

monitor or projector.

Product Description

The standard keyboard components of the computer are shown below and described in Table 1-5.

Standard Keyboard Components

1–12 Maintenance and Service Guide

Table 1-5

Standard Keyboard Components

Item Component Function

Product Description

1 Function keys

(f3,

f4, f8–f11)

2 caps lock key Enables caps lock and turns on the caps

3 fn

4 Windows logo key Displays the Windows Start menu.

5Windows

6 Arrow keys Moves the cursor around the screen.

7 Keypad keys (15) Can be used like the keys on an external

8 num lock key Enables numeric lock, turns on the

key Executes frequently used system

applications key

Execute frequently used system functions when pressed in combination with the fn key.

lock light.

functions when pressed in combination with a function key or the esc key.

Displays a shortcut menu for items beneath the pointer.

numeric keypad.

embedded numeric keypad, and turns on the num lock light.

Maintenance and Service Guide 1–13

Product Description

The computer top components are shown below and described in Table 1-6.

Top Components, Part 1

Table 1-6

Top Components, Part 1

Item Component Function

1 Display lid switch Initiates standby if the display is closed

while the computer is turned on.

2 Power button When the computer is:

■ Off, press to turn on the computer.

■ On, briefly press to initiate hibernation.

■ In standby, briefly press to resume from

standby.

■ In hibernation, briefly press to restore from hibernation.

If the system has stopped

✎

responding and Microsoft Windows shutdown procedures cannot be used, press and hold the power button for at least 4 seconds to turn off the computer.

1–14 Maintenance and Service Guide

Table 1-6

Product Description

Top Components, Part 1

(Continued)

Item Component Function

3 Info Center button Enables you to view a list of commonly

used software solutions.

4 Wireless button

Wireless light

5 Presentation mode

button

6 Caps lock light On: caps lock is on.

7 Num lock light On: num lock or the numeric keypad is on.

8 Volume mute button

(full-featured models only)

9 Volume down button

(full-featured models only)

10 Volume up button

(full-featured models only)

Enables and disables wireless LAN or Bluetooth® devices (select models only).

On: A wireless LAN or Bluetooth device is hardware enabled.

Turns on Presentation mode.

Turns off computer sound.

Decreases system sound.

Increases system sound.

Maintenance and Service Guide 1–15

Product Description

The computer top components are continued below and described in Table 1-7.

Top Components, Part 2

1–16 Maintenance and Service Guide

Table 1-7

Top Components, Part 2

Item Component Function

Product Description

1 Pointing stick

(select models only)

2 Speakers Produce stereo sound.

3 Pointing stick buttons

(select models only)

4 TouchPad scroll zone Scrolls up or down.

5 TouchPad buttons Function like the buttons on an

6 TouchPad Moves the pointer and selects or activates

Moves the pointer and selects or activates items on the screen.

Function like the buttons on an external mouse.

external mouse.

items on the screen. Can be set to perform other mouse functions, such as scrolling, selecting, and double-clicking.

Maintenance and Service Guide 1–17

Product Description

The external components on the bottom of the computer are shown below and described in Table 1-8.

Bottom Components

Table 1 -8

Bottom Components

Item Component Function

1 Primary battery bay Holds the primary battery pack.

2 Primary battery locking

latch

1–18 Maintenance and Service Guide

Secures the primary battery pack into the battery bay. This latch must be set to unlock to release the battery.

Table 1 -8

Product Description

Bottom Components

(Continued)

Item Component Function

3 Travel battery connector Connects an optional travel battery.

4 Memory module

compartment

5 Hard drive bay Holds the primary hard drive.

6 Vents (5) Enable airflow to cool internal

7 Primary battery release

latch

8 Docking connector

(full-featured models only)

Contains one memory module slot.

components.

To prevent overheating, do not

✎

obstruct vents. Do not allow a hard surface, such as a printer, or a soft surface, such as pillows or thick rugs or clothing, to block airflow.

Releases the primary battery pack from the battery bay. The primary battery locking latch must be in the unlocked position.

Connects the computer to an optional docking device.

Maintenance and Service Guide 1–19

Product Description

1.5 Design Overview

This section presents a design overview of key parts and features of the computer. Refer to Chapter 4, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 6, “Removal and

Replacement Procedures,” for disassembly steps.

The system board provides the following device connections:

■ Audio

■ Display

■ Hard drive

■ Intel Pentium M processors

■ Keyboard

■ Memory module

■ Mini PCI communications devices

■ PC Card

■ Pointing stick

■ To uc hP ad

■ Trusted platform module (TPM) security module

CAUTION: To properly ventilate the computer, allow at least a 7.6--cm

(3-inch) clearance on the left and right sides of the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to be turned on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software applications. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

1–20 Maintenance and Service Guide

Troubleshooting

WARNING: Only authorized technicians trained by HP should repair

this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly-/module-level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.

2.1 Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load. If the operating system is working, the computer restarts the operating system after you exit Computer Setup.

Pointing devices are not supported in Computer Setup; you

✎

must use the keyboard to navigate and make selections.

The menu tables later in this chapter provide an overview of Computer Setup options.

Maintenance and Service Guide 2–1

Troubleshooting

Accessing Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, To ol s, and Advanced menus.

1. Open Computer Setup by turning on or restarting the computer. Press displayed in the lower-left corner of the screen.

❏ To change the language, press f2.

❏ To view navigation information, press f1.

❏ To return to the Computer Setup menu, press esc.

2. Select the File, Security, Tools, or Advanced menu.

3. To exit Computer Setup, choose one of the following:

❏ To exit without saving any changes, use the arrow keys to

select File > Ignore changes and exit, and then follow the instructions on the screen.

❏ To exit and save all the settings you have entered, use the

arrow keys to select File > Save changes and exit, and then follow the instructions on the screen.

Your preferences are set when you exit Computer Setup and take effect when the computer restarts.

f10 while the F10 = Based Setup message is

Computer Setup Defaults

To return all settings in Computer Setup to the values that were set at the factory:

1. Open Computer Setup by turning on or restarting the computer. Press displayed in the lower-left corner of the screen.

❏ To change the language, press f2.

❏ To view navigation information, press f1.

2. Use the arrow keys to select File > Restore defaults.

3. Select the Restore Defaults check box.

2–2 Maintenance and Service Guide

f10 while the F10 = Based Setup message is

Troubleshooting

4. To confirm the restoration, press f10.

5. Select File > Save changes and exit, and then follow the instructions on the screen.

When the computer restarts, the factory settings are restored, and any identification information you have entered is saved.

Selecting from the File Menu

Table 2 -1

File Menu

Select To Do This

System Information ■ View identification information about the

computer and any battery packs in the system.

■ View specification information about the processor, memory and cache size, video revision, keyboard controller version, and system ROM.

Save to floppy Save system configuration settings to a diskette.

Restore from floppy Restore system configuration settings from a

diskette.

Restore defaults Replace configuration settings in Computer Setup

with factory default settings. (Identification information is retained.)

Ignore changes and exit Cancel changes entered during the current

session. Then exit and restart the computer.

Save changes and exit Save changes entered during the current session.

Then exit and restart the computer. The changes you save are in effect when the computer restarts.

Maintenance and Service Guide 2–3

Troubleshooting

Selecting from the Security Menu

Table 2 -2

Security Menu

Select To Do This

Administrator password Enter, change, or delete an HP Administrator

password.

Power-on password Enter, change, or delete a power-on password.

Password options ■ Enable/Disable stringent security.

■ Enable/Disable required password on restart.

DriveLock passwords Enable/disable DriveLock; change a DriveLock

user or master password.

DriveLock Settings are accessible only

✎

when you enter Computer Setup by turning on (not restarting) the computer.

Smart Card security Enable/disable power-on support for smart cards.

This feature is supported by select Smart

✎

Card readers only.

Embedded security ■ Enable/Disable the embedded security chip.

■ Restore embedded security chip to factory settings.

■ Enable/Disable power-on authentication support.

■ Enable/Disable automatic DriveLock.

■ Reset power-on authentication credential

Embedded Security settings are accessible

✎

only if the computer is equipped with an embedded security chip.

Device security ■ Enable/Disable devices in the system.

■ Enable NIC for inclusion in MultiBoot.

System IDs Enter user-defined identification values.

2–4 Maintenance and Service Guide

Troubleshooting

Selecting from the Tools Menu

Table 2 -3

Tools M enu

Select To Do This

HDD Self Test options Run a quick or comprehensive self-test on any

hard drive in the system.

Battery Information View information about any battery packs in the

computer.

Memory Check ■ Run a self-test on memory modules in the

computer.

■ View information about memory modules installed in the computer.

Maintenance and Service Guide 2–5

Troubleshooting

Selecting from the Advanced Menu

Table 2 -4

Advanced Menu

Select To Do This

Language (ore press

Boot options ■ Enable/Disable MultiBoot, which sets a startup

f2) Change the Computer Setup language.

sequence that can include most bootable devices and media in the system.

■ Set the boot order.

Device options ■ Swap the functions of the

ctrl key.

■ Enable/Disable multiple pointing devices at startup. (To set the computer to support only a single, usually nonstandard, pointing device at startup, select Disable.)

■ Enable/Disable USB legacy support for a USB keyboard, mouse, and hub. When USB legacy support is enabled

❐ A USB keyboard, mouse, and hub work

even when a Windows operating system is not loaded.

❐ The computer starts from a bootable hard

drive, diskette drive diskette, or CD, CD-RW, or DVD inserted into a drive connected by a USB connector to the computer or to an optional docking device.

■ Select a parallel port mode: EPP (Enhanced Parallel Port), standard, bidirectional, or ECP (Enhanced Capabilities Port).

■ Enable/Disable all settings in the SpeedStep window. (When Disable is selected, the computer runs in Battery Optimized mode.)

fn key and left

2–6 Maintenance and Service Guide

Troubleshooting

2.2 Troubleshooting Flowcharts

Tabl e 2-5

Troubleshooting Flowcharts Overview

Flowchart Description

2.1 “Flowchart 2.1—Initial Troubleshooting”

2.2 “Flowchart 2.2—No Power, Part 1”

2.3 “Flowchart 2.3—No Power, Part 2”

2.4 “Flowchart 2.4—No Power, Part 3”

2.5 “Flowchart 2.5—No Power, Part 4”

2.6 “Flowchart 2.6—No Video, Part 1”

2.7 “Flowchart 2.7—No Video, Part 2”

2.8 “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”

2.9 “Flowchart 2.9—No Operating System (OS) Loading”

2.10 “Flowchart 2.10—No OS Loading, Hard Drive, Part 1”

2.11 “Flowchart 2.11—No OS Loading, Hard Drive, Part 2”

2.12 “Flowchart 2.12—No OS Loading, Hard Drive, Part 3”

2.13 “Flowchart 2.13—No OS Loading, Diskette Drive”

Maintenance and Service Guide 2–7

Troubleshooting

Tabl e 2-5

Troubleshooting Flowcharts Overview

Flowchart Description

2.14 “Flowchart 2.14—No OS Loading, Optical Drive”

2.15 “Flowchart 2.15—No Audio, Part 1”

2.16 “Flowchart 2.16—No Audio, Part 2”

2.17 “Flowchart 2.17—Nonfunctioning Device”

2.18 “Flowchart 2.18—Nonfunctioning Keyboard”

2.19 “Flowchart 2.19—Nonfunctioning Pointing Device”

2.20 “Flowchart 2.20—No Network/Modem Connection”

(Continued)

2–8 Maintenance and Service Guide

Flowchart 2.1—Initial Troubleshooting

Begin

troubleshooting.

Go to Is there power?

Beeps,

LEDs, or error

messages?

Is there video?

(no boot)

Is the OS

loading?

Is there

sound?

“Flowchart

2.2—No Power, Par t 1.”

Check

LED board,

speaker

connections.

Go to

“Flowchart

2.6—No Video, Part 1.”

Go to

“Flowchart

2.9—No Operating System (OS)

Loading.”

Go to

“Flowchart

2.15—No Audio, Par t 1.”

All drives working?

Keyboard/

pointing

device work-

ing?

Connecting

to network

or modem?

End

Troubleshooting

Go to

“Flowchart

2.17—Nonfunctioning Device.”

Go to

“Flowchart

2.18—Nonfunc-

tioning Keyboard”

or “Flowchart

2.19—Nonfunctioning Pointing

Device.”

Go to

“Flowchart

2.20—No

Network/Modem

Connection.”

Maintenance and Service Guide 2–9

Troubleshooting

Flowchart 2.2—No Power, Part 1

No power

(power LED

is off).

Remove from

docking device

(if applicable).

Go to

“Flowchart

2.3—No Power, Par t 2.”

Go to

“Flowchart

2.4—No Power, Part 3.”

Power up

on battery

power?

Power up

on AC

power?

Reset

power.*

Power up

on battery

power?

Reset

power.*

Power up

on AC power?

Power up in

docking device?

1. Reset the power cables in the docking device and at the AC outlet.

2. Ensure the AC power source is active.

3. Ensure that the power strip is working.

Done

Power up

in docking

device?

*NOTES

1. On select models, there is a separate reset button.

2. On select models, the computer can be reset using the standby switch and either the lid switch or the main power switch.

Go to

“Flowchart

2.8—Nonfunction-

ing Docking Device

(if applicable).”

2–10 Maintenance and Service Guide

Flowchart 2.3—No Power, Part 2

Continued from

“Flowchart

2.2—No Power, Par t 1.”

Visually check for

debris in battery

socket and clean

if necessary.

Troubleshooting

Power on?

Check battery by

recharging it,

moving it to

another computer,

or replacing it.

Done

Power on?

Replace

power supply

(if applicable).

Go to

Done

Power on?

“Flowchart

2.4—No Power, Part 3.”

Done

Maintenance and Service Guide 2–11

Troubleshooting

Flowchart 2.4—No Power, Part 3

Continued from

“Flowchart

2.3—No Power, Part 2.”

Plug directly

into AC outlet.

Power LED

on?

Reseat AC adapter

in computer and

at power source.

Power on?

Power outlet

active?

Replace

power cord.

Power on?

Done

External

Try different

outlet.

Internal or

external AC

adapter?

Internal

Go to

“Flowchart

2.5—No Power, Part 4.”

Replace external

AC adapter.

Power on?

Done

2–12 Maintenance and Service Guide

Flowchart 2.5—No Power, Part 4

Continued from

“Flowchart

2.4—No Power, Par t 3.”

Open

computer.

Troubleshooting

Loose or

damaged

parts?

computer and

retest.

Power on?

Done

Reseat loose

components and

boards and

replace damaged

items.

Replace the following items (if applicable). Check computer operation after each replacement:

1. Internal DC-DC converter*

2. Internal AC adapter

3. Processor board*

4. System board*

*NOTE: Replace these items as a set to prevent shorting out among components.

Maintenance and Service Guide 2–13

Troubleshooting

Flowchart 2.6—No Video, Part 1

No video.

Docking Device

Stand-alone

or docking

device?

Go to

“Flowchart

2.7—No Video, Part 2.”

*NOTE: To change from internal to external display, use the hotkey combination.

Stand-alone

Internal or

external

display*?

External

Adjust

brightness.

Internal

Video OK? Done

Check for bent

pins on cable.

Video OK?

Adjust

brightness.

Video OK? Done

Press lid

switch to ensure

operation.

Video OK? Done

Replace the following one at a time. Test after each replacement.

1. Cable between computer and computer display (if applicable)

2. Display

3. System board

Try another display.

Internal and

external

video OK?

Replace

system

board.

Done

2–14 Maintenance and Service Guide

Flowchart 2.7—No Video, Part 2

Continued from

“Flowchart

2.6—No Video, Part 1.”

Remove

computer from dock-

ing device,

if connected.

Troubleshooting

Adjust

display

brightness.

Video OK?

Check that computer is properly

seated in docking device, for

bent pins on cable, and for

monitor connection.

Video OK?

Adjust external

monitor display.

Go to “A” in

“Flowchart

2.6—No Video, Part 1.”

Done

Check brightness

of external

monitor.

Video OK?

Try another

external monitor.

Internal

and external

video OK?

Go to

“Flowchart

2.8—Nonfunction-

ing Docking Device

(if applicable).”

Done

Maintenance and Service Guide 2–15

Troubleshooting

Flowchart 2.8—Nonfunctioning Docking Device (if applicable)

Nonfunctioning

docking device.

Reset power cord in

docking device and

power outlet.

Check voltage

setting on docking

device.

Reset monitor

cable connector at

docking device.

Docking

device

operating?

Remove

computer, reset

all internal parts,

and replace any

damaged items in

docking device.

Reinstall

computer into dock-

ing device.

Docking

device

operating?

Done

Replace the following docking device components one at a time. Check computer operation after each replacement.

1. Power supply

2. I/O board

3. Backplane board

4. Switch box

5. Docking device motor mechanism

Done

2–16 Maintenance and Service Guide

Troubleshooting

Flowchart 2.9—No Operating System (OS) Loading

No OS

loading.*

Reset power

cord in docking

device and

power outlet.

No OS loading from hard drive,

“Flowchart 2.10—No OS Loading,

go to

Hard Drive, Part 1.”

No OS loading from diskette drive,

“Flowchart 2.13—No OS Loading, Dis-

kette Drive.”

No OS loading from CD-ROM or DVD-ROM

drive, go to

go to

*NOTE: Before beginning troubleshooting, always check cable connections, cable ends, and drives for bent or damaged pins.

“Flowchart 2.14—No OS Load-

ing, Optical Drive.”

No OS loading from network,

“Flowchart 2.20—No Network/Modem

Connection.”

Maintenance and Service Guide 2–17

Troubleshooting

Flowchart 2.10—No OS Loading, Hard Drive, Part 1

OS not

loading from

hard drive.

Nonsystem

disk message?

Reseat

external

hard drive.

OS loading?

Boot

from

CD?

Check the Setup utility for correct

booting order.

Boot from

hard drive?

Done

Go to

“Flowchart

2.11—No OS Load-

ing, Hard Drive,

Part 2.”

Done

Boot from

diskette?

Change boot priority through the Setup utility

and reboot.

Go to

“Flowchart

2.13—No OS Loading, Dis-

kette Drive.”

Boot from

hard drive?

Go to

“Flowchart

2.17—Nonfunctioning Device.”

2–18 Maintenance and Service Guide

Troubleshooting

Flowchart 2.11—No OS Loading, Hard Drive, Part 2

Continued from

“Flowchart

2.10—No OS Loading,

Hard Drive, Part 1.”

CD or

diskette in

drive?

Remove

diskette and

reboot.

1. Replace

2. Replace system

hard drive.

board.

Reseat

hard drive.

Hard drive

accessible?

Run FDISK.

Done

from diskette

Boot from

hard drive?

Boot

drive?

Done

Go to

“Flowchart

2.13—No OS Loading, Dis-

kette Drive.”

Hard drive

partitioned?

Hard drive

formatted?

Create partition, and then format

hard drive to boot-

able

C:\ prompt.

Format hard drive

and bring to

abootable

C:\ prompt.

computer

booted?

Load OS using Oper-

ating System disc (if

applicable).

Hard drive

accessible?

Done

Go to

“Flowchart

2.12—No OS Loading, Hard Drive,

Part 3.”

Maintenance and Service Guide 2–19

Go to

“Flowchart

2.12—No OS Loading, Hard Drive,

Par t 3.”

Troubleshooting

Flowchart 2.12—No OS Loading, Hard Drive, Part 3

Continued from

“Flowchart

2.11—No OS Loading, Hard Drive,

Par t 2.”

System

files on hard

drive?

Install OS

and reboot.

Virus

hard drive?

Run SCANDISK and

check for

bad sectors.

Can bad

sectors

be fixed?

Fix bad

sectors.

Clean virus.

loading from

hard drive?

Done

Diagnostics on diskette?

Replace

hard drive.

Replace

hard drive.

Run diagnostics

and follow

recommendations.

Boot from

hard drive?

Replace

hard drive.

Done

2–20 Maintenance and Service Guide

Troubleshooting

Flowchart 2.13—No OS Loading, Diskette Drive

OS not loading

from

diskette drive.

Reseat

diskette drive.

loading?

Done

Nonsystem

disk message?

Bootable

diskette

in drive?

Install bootable

diskette and

reboot computer.

Boot

from another

device?

Go to

“Flowchart

2.17—Nonfunctioning Device.”

Diskette

drive enabled

in the Setup

utility?

Enable drive

and cold boot

computer.

Reset the computer.

Is diskette

drive boot order cor-

rect?

Refer to

Section 1.2, “Resetting the Computer,”

instructions.

for

Check diskette

for system files.

Try d iff er ent

diskette.

Nonsystem disk error?

loading?

1. Replace diskette

2. Replace system

drive.

board.

Done

Change boot priority using

the Setup utility.

Go to

“Flowchart

2.17—Nonfunctioning Device.”

Maintenance and Service Guide 2–21

Troubleshooting

Flowchart 2.14—No OS Loading, Optical Drive

loading from

CD-ROM or

DVD-ROM drive.

Boots from

CD or DVD?

Reseat

No OS

drive.

bootable disc.

Disc

in drive?

Install

Bootable

disc in drive?

Try another

bootable disc.

Install bootable

disc and

reboot

computer.

Done

Boots from

CD or DVD?

Done

Booting

from another

device?

Go to

“Flowchart

2.17—Nonfunctioning Device.”

Reset the computer.

Booting

correct?

Correct boot

order using

the Setup utility.

order

Refer to

Section 1.2, “Resetting the Computer,”

instructions.

for

Go to

“Flowchart

2.17—Nonfunctioning Device.”

2–22 Maintenance and Service Guide

Flowchart 2.15—No Audio, Part 1

Turn up audio

No audio.

internally or

externally.

Audio? Done

Troubleshooting

computer in

docking device

(if applicable)?

Undock

Internal

audio?

Go to

“Flowchart

2.16—No Audio, Par t 2.”

Go to

“Flowchart

2.16—No Audio, Par t 2.”

Replace the following docking device components one at a time, as applicable. Check audio status after each change.

1. Reset docking device audio cable.

2. Replace audio cable.

3. Replace speaker.

4. Replace docking device audio board.

5. Replace backplane board.

6. Replace I/O board.

Go to

“Flowchart

2.17—Nonfunctioning Device.”

Audio? Done

Maintenance and Service Guide 2–23

Troubleshooting

Flowchart 2.16—No Audio, Part 2

Continued from

“Flowchart

2.15—No Audio, Part 1.”

Audio driver in OS configured?

Correct

drivers for

application?

Connect to

external

speaker.

Reload

audio drivers.

Load drivers and set configuration

in OS.

Replace audio

board and

Audio?

speaker connections in computer

(if applicable).

Audio? Done

1. Replace internal speakers.

2. Replace audio board (if applicable).

3. Replace system board.

2–24 Maintenance and Service Guide

Flowchart 2.17—Nonfunctioning Device

Nonfunctioning

device.

Reseat device.

Unplug the nonfunctioning device from the computer

and inspect cables and plugs for bent or broken

Clear

CMOS.

Reattach device.

Close computer,

plug in power,

and reboot.

pins or other damage.

Any physical

device detected?

Replace hard drive.

ing System (OS)

Troubleshooting

Fix or

replace

broken item.

Go to

“Flowchart

2.9—No Operat-

Loading.”

Device

boots

properly?

Replace NIC.

If integrated NIC,

replace system

board.

Done

Maintenance and Service Guide 2–25

Replace diskette

drive.

Device

boots

properly?

Done

Troubleshooting

Flowchart 2.18—Nonfunctioning Keyboard

Keyboard

not operating prop-

erly.

Connect computer

to good external key-

board.

External

device

works?

Reseat internal key-

board

connector

(if applicable).

OK?

Done Done

Replace

system

board.

Replace internal

keyboard or

cable.

OK?

Replace

system

board.

2–26 Maintenance and Service Guide

Troubleshooting

Flowchart 2.19—Nonfunctioning Pointing Device

Pointing device

not operating

properly.

Connect computer

to good external pointing device.

External

device

works?

Reseat internal pointing device

connector

(if applicable).

Replace

system

board.

OK?

Replace internal

pointing device

or cable.

Done Done

OK?

Replace

system

board.

Maintenance and Service Guide 2–27

Troubleshooting

Flowchart 2.20—No Network/Modem Connection

No network

or modem connec-

tion.

Network

or modem jack

active?

Digital

line?

Replace jack

or have jack acti-

vated.

Connect

to nondigital

line.

Done

Disconnect all

the computer

NIC/modem

configured

in OS?

power from

and open.

drivers and recon-

Reload

figure.

OK?

Replace NIC/modem

(if applicable).

Reseat NIC/modem

(if applicable).

OK? Done

Replace

system

board.

2–28 Maintenance and Service Guide

Software Update and

3.1 Software Updates

To stay current with the newest technology and maintain optimal performance, install the latest versions of HP software on your computer as they become available.

To update HP software:

1. Identify your computer model, product category, and series or family. Prepare for a system ROM update by identifying the ROM version currently installed on the computer. For more information, refer to “Accessing Computer

Information.”

CAUTION: If your computer is connected to a network, it is

recommended that you consult with your network administrator before installing any software updates, especially system ROM updates.

Recovery

The computer system ROM stores the BIOS software. The

✎

BIOS initializes the operating system, determines how the computer will interact with the hardware devices, and provides for data transfer among hardware devices, including the time and date.

2. Access the updates through the HP Web site by visiting

http://www.hp.com or by obtaining the Support Software CD

(purchased separately). For information about obtaining the Support Software CD, refer to “Obtaining the Support

Software CD.”

3. Install the updates.

Maintenance and Service Guide 3–1

Software Update and Recovery

Accessing Computer Information

Before you access the updates for your computer, collect the following information:

■ The product category is Notebook.

■ The product family name and series number are printed on

the display bezel.

■ Model information is provided on the serial number label on

the bottom of the computer.

To determine whether available ROM updates contain later ROM versions than those currently installed on the computer, you need to know the version of the system ROM currently installed.

ROM version information (also known as ROM date and System BIOS) can be displayed by pressing Microsoft Windows) or by opening Computer Setup.

To use Computer Setup for displaying ROM information:

1. Open Computer Setup by turning on or restarting the computer, and then pressing Based Setup” message is displayed in the lower-left corner of the screen.

fn+esc (if you are already in

f10 while the “F10 = ROM

2. Use the arrow keys to select File > System Information, and then press

enter.

ROM date information is displayed.

3. To exit Computer Setup, use the arrow keys to select File > Ignore changes and exit. Then follow the instructions on the screen.

3–2 Maintenance and Service Guide

Software Update and Recovery

Obtaining the Support Software CD

The Support Software CD provides HP software updates and installation instructions. The CD includes device drivers, ROM updates, and utilities.

To purchase the current Support Software CD or a subscription that provides both the current version and future versions of the CD, visit the HP Web site at

http://www.hp.com.

Software Updates and the HP Web Site

Most software on the HP Web site is packaged in compressed files called SoftPaqs. Some ROM updates may be packaged in compressed files called ROMPaqs.

Most download packages contain a file named Readme.txt. A Readme.txt file contains information regarding installing and troubleshooting the file. The Readme.txt files included with ROMPaqs are provided in English only.

Downloading a ROM Update

CAUTION: To prevent damage to the computer or an unsuccessful

installation, download and install a ROM update only when the computer is connected to reliable external power using the AC adapter. Do not download or install a ROM update while the computer is running on battery power, docked in an optional docking device, or connected to an optional power source. During the download and installation:

■ Do not disconnect power from the computer by unplugging the

power cord from the AC outlet.

■ Do not shut down the computer or initiate standby or hibernation.

■ Do not insert, remove, connect, or disconnect any device, cable,

or cord.

Maintenance and Service Guide 3–3

Software Update and Recovery

To download a ROM update:

1. Access the page on the HP Web site that provides software for your computer:

❏ Select Start > Help and Support, and then click a

software update link.

– or –

❏ Visit the HP Web site at http://www.hp.com/support.

2. Follow the instructions on the screen to identify your computer and access the ROM update you want to download.

3. At the download area:

a. Identify the ROM update that is later than the ROM

version currently installed on your computer. Make a note of the date, name, or other identifier. You may need this information to locate the update later, after it has been downloaded to your hard drive.

b. Follow the instructions on the screen to download your

selection to the hard drive.

Make a note of the path to the location on your hard

✎

drive to which the ROM package will be downloaded. You may need to access the ROM package after it has been downloaded.

Installing a ROM Update

If your computer is connected to a network, it is recommended

✎

that you consult with your network administrator before installing any software updates, especially system ROM updates.

3–4 Maintenance and Service Guide

Software Update and Recovery

ROM installation procedures vary. Follow any instructions that are displayed on the screen after the download is complete. If no instructions are displayed:

1. Open Windows Explorer by selecting Start > All Programs > Accessories > Windows Explorer.

2. In the left pane of the Windows Explorer window:

a. Click My Computer and then your hard drive

designation. (The hard drive designation is typically Local Disk C.)

b. Open the folder on your hard drive that contains the

update.

Follow the path you made a note of before you

✎

downloaded the update.

3. Double-click the file with an .exe extension (for example, filename.exe).

The ROM installation begins.

4. Complete the installation by following the instructions on the screen.

After a message on the screen reports a successful installation,

✎

you may delete the downloaded file from your hard drive.

Downloading Other Software

To download and install software other than a ROM update:

1. Access the page on the HP Web site that provides software for your computer:

❏ Select Start > Help and Support, and then click a

software update link.

– or –

❏ Visit the HP Web site at http://www.hp.com/support and click

Download drivers and software to download the software for your computer model.

Maintenance and Service Guide 3–5

Software Update and Recovery

2. Follow the instructions on the screen to find the software you want to update.

3. At the download area, select the software you want and follow the download instructions on the Web page.

Make a note of the path to the location on your hard drive to

✎

which the ROM package will be downloaded. You may need to access the ROM package after it has been downloaded.

4. When the download is complete, open Windows Explorer by selecting Start > All Programs > Accessories > Windows Explorer.

5. In the left pane of the Windows Explorer window, click My Computer and then your hard drive designation. (The hard drive designation is typically Local Disk C.)

Follow the path you made a note of earlier to the folder on

✎

your hard drive that contains the update.

6. Open the folder and double-click the file with an .exe extension (for example, filename.exe).

The installation begins.

7. Complete the installation by following the instructions on the screen.

After a message on the screen reports a successful installation,

✎

you may delete the download package from your hard drive.

3.2 System Recovery

The computer system recovery process provides several ways to recover optimal system functionality. For best results, attempt to recover optimal computer functionality by using the following procedures in the order described here.

3–6 Maintenance and Service Guide

Safeguarding Your Data

Software or devices added to the computer can cause your system to become unstable. To safeguard your documents, store personal files in the My Documents folder and periodically create a backup copy of the My Documents folder.

Using Altiris Local Recovery

Altiris Local Recovery is a preloaded application that protects the files on your computer by storing copies of files, called snapshots. If files on your computer are accidentally deleted or corrupted, you can easily restore the files yourself. You can also restore your complete file system to a previous state.

Altiris Local Recovery provides protection of files by backing up files to a hidden Altiris recovery partition. When you install the software, the Recovery Agent Partition Wizard guides you through the process of creating the recovery partition. After the partition is created, the computer restarts and creates the first snapshot. After the snapshot is created, the computer restarts, making the snapshot available for recovery through Windows.

By default, Local Recovery automatically takes snapshots of your files on a regular basis. You can change the snapshot schedule. For more information, refer to the Altiris Local Recovery Help.

To access your snapshots in the Altiris Recovery Agent folder:

Software Update and Recovery

1. Right-click the Altiris Recovery Agent icon on your desktop.

2. Click Open.

To restore one of the listed snapshots, drag the snapshot file to the appropriate location on your hard drive.

For more information on configuring and using Altiris Local Recovery, visit the HP Web site at or open the software and click Help on the menu bar.

Maintenance and Service Guide 3–7

http://www.hp.com/go/easydeploy,

Software Update and Recovery

Using System Restore Points

System Restore is a Windows operating system feature that allows you to reverse undesirable changes to your computer by restoring the computer to an earlier state, called a restore point. A restore point is a “snapshot” of your software, drivers, and operating system files at a particular time. The computer automatically creates restore points at regular intervals and may create additional restore points when you change your personal settings or add software or hardware.

You can manually create additional restore points to provide increased protection for your system files and settings. It is recommended that you manually create restore points

■ Before you add or extensively modify software or hardware.

■ Periodically, whenever the system is performing optimally.

Restoring to any restore point does not affect your data files. For example, restoring your system software to an earlier state will not affect documents or e-mails that you saved after that time.

If you do not like the results of your restoration, you can

✎

reverse the restoration.

Creating a System Restore Point

To create a system restore point:

1. Select Start > Help and Support.

2. Click System Restore.

The System Restore window opens.

3. Click Create a restore point, and then click Next.

4. Follow the on-screen instructions.

3–8 Maintenance and Service Guide

Restoring to a Restore Point

To restore the computer to a previous date and time when it was functioning optimally:

1. Select Start > Help and Support.

2. Click System Restore.

The System Restore window opens.

3. Click Restore my computer to an earlier time, and then click Next.

4. Follow the on-screen instructions.

Reinstalling Applications

Applications preinstalled or preloaded on your computer can be reinstalled by using the Recovery disc or a third-party software disc.

In most cases, the applications preloaded on your computer,

✎

such as those available in the Software Setup utility, can be reinstalled from your hard drive. To access the Software Setup utility, select Start > All Programs > Software Setup.

Software Update and Recovery

The application reinstallation process replaces corrupted system files within the application and reinstalls deleted system files within the application.

■ In most cases: If the application you are reinstalling is still

installed on your computer, the reinstallation process does not affect your settings within the application.

■ In all cases: If an application has been deleted from your

computer, the reinstallation process reinstalls the application or utility to the factory image but cannot restore your personal settings.

Maintenance and Service Guide 3–9

Software Update and Recovery

Reinstalling Applications from the Hard Drive

To reinstall a preloaded application or utility from your hard drive:

1. Select Start > All Programs > Software Setup, and then follow the instructions on the screen.

2. When you are prompted to select the software you want to reinstall, select or clear the appropriate check boxes.

Reinstalling Applications from Discs

To reinstall applications from discs:

1. Insert the disc into the optical drive.

❏ If autorun is enabled, an installation wizard opens.

❏ If autorun is disabled, select Start > Run. Enter

x:\setup.exe

where x is your optical drive designation

and then select OK.

2. When the installation wizard opens, follow the installation instructions on the screen.

3. Restart the computer if prompted.

Repairing the Operating System

To attempt an operating system repair without deleting your personal data, use the Operating System disc that was shipped with the computer:

If your computer does not have an internal optical drive,

✎

connect an optional external optical drive.

3–10 Maintenance and Service Guide

Software Update and Recovery

1. Connect the computer to external power through the AC adapter and turn on the computer.

2. Immediately insert the Operating System disc into the computer.

3. Press and hold the power button for at least 5 seconds to turn off the computer.

4. Press the power button again to turn on the computer.

5. When prompted, press any key to start from the disc.

After a few minutes, you may need to select your language, and then the Setup Wizard opens.

On the “Welcome to Setup” page, do not press R (step 8 in

✎

this procedure) until you have completed steps 6 and 7.

6. Press enter to continue.

A licensing agreement page is displayed.

7. Press

f8 to accept the agreement and continue.

The “Setup” page is displayed.

8. Press

R to repair the selected Windows installation.

The repair process begins. This process takes 1 to 2 hours to complete.

The computer restarts in Windows after the process is complete.

Maintenance and Service Guide 3–11

Software Update and Recovery

Reinstalling the Operating System

CAUTION: To protect your personal data and the software installed

on the computer, back up your data before reinstalling the operating system. See the Windows online Help utility to learn more about backing up your files. Select Start > Help and Support. Then type “backup” in the Search box.

If other recovery efforts do not successfully repair the operating system, you can reinstall it.

To reinstall the operating system:

During the reinstallation, you may be prompted for your

✎

Product Key. Your Product Key is provided on the Microsoft Certificate of Authenticity label on the bottom of the computer.

If your computer does not have an internal optical drive,

✎

connect an optional external optical drive.

1. Connect the computer to external power through the AC adapter and turn on the computer.

2. Immediately insert the Operating System disc into the computer.

3. Press and hold the power button for at least 5 seconds to turn off the computer.

3–12 Maintenance and Service Guide

Software Update and Recovery

4. Press the power button again to turn on the computer.

5. When prompted, press any key to start from the disc.

After a few minutes, you may need to select your language, and then the Setup Wizard opens.

6. Press

enter to continue.

A licensing agreement page is displayed.

7. Press

f8 to accept the agreement and continue.

The “Setup” page is displayed.

8. Press

esc to continue installing a new copy of the operating

system instead of repairing it.

9. Press

10. Press

enter to set up the operating system.

C to continue setup using this partition.

11. Select Format the partition using the NTFS file system (Quick), and then press

Formatting this drive deletes all current files.

enter.

12. Press F to format the drive.

The reinstallation process begins. This process takes 1 to 2 hours to complete.

The computer restarts in Windows when the process is complete.

Maintenance and Service Guide 3–13

Software Update and Recovery

Reinstalling Device Drivers and Other Software

After the operating system installation process is complete, you must reinstall drivers.

To reinstall drivers, use the Recovery disc included with the computer:

1. While running Windows, insert the Recovery disc into the optical drive.

If your computer does not have an internal optical drive,

✎

connect an optional external optical drive.

2. If you do not have autorun enabled:

a. Select Start > Run.

b. Then type D:\SWSETUP\APPINSTL\SETUP.EXE

where D indicates the optical drive.

3. Follow the on-screen instructions for installing the drivers.

After the drivers are reinstalled, you must reinstall any software you added to the computer. Follow the installation instructions provided with the software.

3–14 Maintenance and Service Guide

Illustrated Parts Catalog

This chapter provides an illustrated parts breakdown and a reference for spare part numbers.

4.1 Serial Number Location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial Number Location

Maintenance and Service Guide 4–1

Illustrated Parts Catalog

4.2 Computer Major Components

Computer Major Components

4–2 Maintenance and Service Guide

Illustrated Parts Catalog

Table 4 -1

Spare Parts: Computer Major Components

Spare Part

Item Description

1 Display assemblies (include wireless antenna boards and cables)

15.4-inch, WSXGA, TFT

15.4-inch, WXGA, TFT

15.4-inch, UXGA, TFT

2 Switch covers (include LED board and LED board cable)

For use only with HP Compaq nw8240 and nc8230 models

For use only with HP Compaq nx8220 models

3 Keyboards, with pointing stick

Belgium Brazil Czech Republic Denmark France French Canada Germany Greece Hungary Iceland International Israel Italy Japan Korea

378203-181 378203-201 378203-221 378203-081 378203-051 378203-121 378203-041 378203-151 378203-211 378203-DD1 378203-002 378203-BB1 378203-061 378203-291 378203-AD1

Latin America Norway Portugal Russia Saudi Arabia Slovakia Slovenia Spain Sweden Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States

Number

382684-001 382682-001 382683-001

382680-001

384133-001

378203-161 378203-091 378203-131 378203-251 378203-171 378203-231 378203-BA1 378203-071 378203-101 378203-111 378203-AB1 378203-281 378203-141 378203-031 378203-001

Maintenance and Service Guide 4–3

Illustrated Parts Catalog

Computer Major Components

4–4 Maintenance and Service Guide

Table 4 -1

Illustrated Parts Catalog

Spare Parts: Computer Major Components

(Continued)

Spare Part

Item Description

3 Keyboards, without pointing stick

Belgium Brazil Czech Republic Denmark France French Canada Germany Greece Hungary Iceland International Israel Italy Japan Korea

4 TouchPads (include TouchPad cable)

With TouchPad buttons and pointing stick buttons With TouchPad buttons

5 Thermal plate (includes fan and thermal paste) 382674-001

385548-181 385548-201 385548-221 385548-081 385548-051 385548-121 385548-041 385548-151 385548-211 385548-DD1 385548-002 385548-BB1 385548-061 385548-291 385548-AD1

Latin America Norway Portugal Russia Saudi Arabia Slovakia Slovenia Spain Sweden Switzerland Ta i wa n Thailand Tu r ke y United Kingdom United States

Number

385548-161 385548-091 385548-131 385548-251 385548-171 385548-231 385548-BA1 385548-071 385548-101 385548-111 385548-AB1 385548-281 385548-141 385548-031 385548-001

382675-001 382676-001

6 Heat sink (includes thermal paste) 379799-001

7 Processors (include thermal paste)

Intel Pentium M 770 (2.13-GHz) Intel Pentium M 760 (2.00-GHz) Intel Pentium M 750 (1.86-GHz) Intel Pentium M 740 (1.73-GHz) Intel Pentium M 730 (1.60-GHz)

Maintenance and Service Guide 4–5

378224-001 378223-001 378222-001 378221-001 378220-001

Illustrated Parts Catalog

Computer Major Components

4–6 Maintenance and Service Guide

Table 4 -1

Illustrated Parts Catalog

Spare Parts: Computer Major Components

Item Description

8 Mini PCI communications modules

802.11b/g Mini PCI modem, for use in most of the world

802.11b/g Mini PCI modem, for use in the rest of the world

802.11b/g combination wireless local access network (WLAN) module, for use internationally

802.11b/g combination WLAN module, for use in Japan

802.11b/g combination WLAN module, for use in the United States

802.11a/b/g combination WLAN communications module, for use internationally

802.11a/b/g combination WLAN communications module, for use in Japan

802.11a/b/g combination WLAN communications module, for use in the United States

802.11a/b/g Mini PCI WLAN communications module, for use in Europe, the Middle East, and Africa

802.11a/b/g Mini PCI WLAN communications module, for use in Japan

802.11a/b/g Mini PCI WLAN communications module, for use in most of the world

802.11a/b/g Mini PCI WLAN communications module, for use in the rest of the world

(Continued)

Spare Part Number

381582-001

381583-001

373032-002

373032-291 373032-001

373033-002

373033-291

373033-001

373900-021

373900-291

373900-001

373901-001

Maintenance and Service Guide 4–7

Illustrated Parts Catalog

Computer Major Components

4–8 Maintenance and Service Guide

Table 4 -1

Illustrated Parts Catalog

Spare Parts: Computer Major Components

(Continued)

Spare Part

Item Description

Miscellaneous Plastics Kit 382691-001

Includes: 9a 9b 9c 9d 9e

RTC battery

PC Card slot space savers (2)

Bluetooth cover (includes 1 captive screw)

Memory module compartment cover (includes 1 captive screw)

Hard drive cover (includes 2 captive screws)

Not illustrated:

Number

Computer feet

10 TPM security module 379807-001

11 Top covers (include speakers)

For use only with HP Compaq nw8240 models

For use only with HP Compaq nc8230 and

nx8220 models

12 Memory modules

DDR2, PC2-4200, CL3, 533 MHz

1024 MB 512 MB 256 MB

DDR2, PC2-3200, CL3, 400 MHz

1024 MB 512 MB 256 MB

13 Modem board (high-speed 56K) 325521-001

382679-001 382678-001

373121-001 373120-001 373119-001

391021-001 391020-001 391019-001

Maintenance and Service Guide 4–9

Illustrated Parts Catalog

Computer Major Components

4–10 Maintenance and Service Guide

Table 4 -1

Illustrated Parts Catalog

Spare Parts: Computer Major Components

(Continued)

Item Description

14 System boards

With 128-MB video memory, for use only with

HP Compaq nw8240 models

With 128-MB video memory, for use only with

HP Compaq nc8320 and nx8220 models

With 64-MB video memory, for use only with

HP Compaq nc8230 and nx8220 models

15 System board frame (includes RJ-11 connector

module and cable)

16 Serial connector module (includes serial connector

module cable)

17 Broadcomm Bluetooth wireless board (includes

Bluetooth board cable)

18 Base enclosures

For use only with HP Compaq nw8240 models

For use only with HP Compaq and nc8230 and

nx8220 models

Spare Part Number

382686-001

382687-001

382688-001

382689-001

382690-001

367871-001

384132-001 382681-001

Maintenance and Service Guide 4–11

Illustrated Parts Catalog

Computer Major Components

4–12 Maintenance and Service Guide

Table 4 -1

Illustrated Parts Catalog

Spare Parts: Computer Major Components

(Continued)

Spare Part

Item Description

19 Battery packs

8-cell, 4.8-AHr

8-cell, travel battery

20 Push button module 382693-001

21 MultiBay II devices

8X Max DVD-ROM drive

DVD+RW/R and CD-RW Combo Drive

DVD/CD-RW Combo Drive

22 Hard drives (include frame and connector)

7200-rpm

60-GB 380950-001

23 Audio board (includes audio board cable and

USB board cable)

5400-rpm

80-GB 60-GB 40-GB

Number

372771-001 367456-001

373314-001 375557-001 373315-001

379810-001 379809-001 379808-001

382677-001

Maintenance and Service Guide 4–13

Illustrated Parts Catalog

4.3 Miscellaneous Plastics Kit

Table 4-2

Spare Part Number 382691-001

Item Description

1 Hard drive cover (includes 2 captive screws)

2 Bluetooth cover (includes 1 captive screw)

3 Memory module compartment cover (includes 1 captive screw)

4 PC Card slot space saver

5 Computer feet (4)

6 RTC battery

4–14 Maintenance and Service Guide

4.4 Miscellaneous Cable Kit

Illustrated Parts Catalog

Tabl e 4-3

Spare Part Number 389014-001

Item

1 LED board cable

2 Bluetooth cable

3 TouchPad cable

4 RJ-11 connector module and cable

5 Serial connector board cable

6 Audio board cable

7 USB board cable

Maintenance and Service Guide 4–15

Description

Illustrated Parts Catalog

4.5 Mass Storage Devices

Tabl e 4-4

Spare Part Number Information

Spare Part

Item Description

1 Hard drives (include frame and connector)

7200-rpm

60-GB 380950-001

2 Optical drives (include bezel)

8X Max DVD-ROM drive

DVD+RW/R and CD-RW Combo Drive

DVD/CD-RW Combo Drive

4–16 Maintenance and Service Guide

5400-rpm

80-GB 60-GB 40-GB

Number

379810-001 379809-001 379808-001

373314-001 375557-001 373315-001

Illustrated Parts Catalog

4.6 Miscellaneous (Not Illustrated)

Tabl e 4-5

Spare Part Information

Spare Part

Description

Adjustable Notebook Stand 372420-001

Advanced Docking Station 374804-001

Docking Station 374803-001

Docking Station Miscellaneous Plastics Kit 380045-001

Carrying cases

Number

Nylon top load

Nylon entry level

USB 1.1 diskette drive 359118-001

Maintenance and Service Guide 4–17

325815-001 and 325815-002

325814-001

Illustrated Parts Catalog

Tabl e 4-5

Spare Part Information

Description

Power supply, 90 watt, slim line profile 374791-001

Power cords

For use in:

Australia and New Zealand 246959-011

Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden

Brazil 246959-201

Canada, French Canada, Latin America, Taiwan, Thailand, and the United States

Denmark 246959-081

Hong Kong and the United Kingdom 246959-031

Israel 246959-BB1

Italy 246959-061

Japan 246959-291

Korea 246959-AD1

Sweden 246959-AG1

(Continued)

Spare Part Number

246959-021

246959-001

4–18 Maintenance and Service Guide

Tabl e 4-5

Illustrated Parts Catalog

Spare Part Information

Description

Screw Kit (includes the following screws; refer to

Appendix C, “Screw Listing,” for more information on

specifications and usage)

■ Hex socket HM5.0×12.0 screw lock

■ Phillips PM3.0×5.0 screw

■ Phillips PM3.0×4.0 screw

■ Phillips PM2.5×13.0 spring-loaded

screw

■ Phillips PM2.0×10.0 spring-loaded screw

■ Phillips PM2.0×8.0 shoulder screw

■ Phillips PM2.0×6.0 screw

(Continued)

Spare Part Number

382692-001

■ Phillips PM2.0×5.0 screw

■ Phillips PM2.0×4.0 screw

■ Phillips PM2.0×2.0 screw

■ Phillips PM1.5×4.0 screw

■ Phillips PM1.5×3.0 screw

■ Torx 8 M2.0×9.5 screw

■ Torx 8 M2.0×6.0 screw

■ Torx 8 M2.0×4.0 screw

4.7 Sequential Part Number Listing

Table 4 -6

Sequential Part Number Listing

Spare Part Number Description

246959-001 Power cord for use in Canada, French Canada, Latin America,

Taiwan, Thailand, and the United States

246959-011 Power cord for use in Australia and New Zealand

246959-021 Power cord for use in Belgium, Europe, Finland, France,

Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden

246959-031 Power cord for use in Hong Kong and the United Kingdom

Maintenance and Service Guide 4–19

Illustrated Parts Catalog

Table 4 -6

Sequential Part Number Listing

(Continued)

Spare Part Number Description

246959-061 Power cord for use in Italy

246959-081 Power cord for use in Denmark

246959-201 Power cord for use in Brazil

246959-291 Power cord for use in Japan

246959-AD1 Power cord for use in Korea

246959-AG1 Power cord for use in Sweden

246959-BB1 Power cord for use in Israel

325521-001 Modem board (high-speed 56K)

325814-001 Nylon entry level carrying case

325815-001 Nylon top load carrying case

325815-002 Nylon top load carrying case

359118-001 USB 1.1 diskette drive

367456-001 8-cell travel battery pack

367871-001 Broadcomm Bluetooth wireless board, includes cable

372420-001 Adjustable Notebook Stand

372771-001 8-cell, 4.8-AHr battery pack

373032-001 802.11b/g combination WLAN Mini PCI communications

module for use in the United States

373032-002 802.11b/g combination WLAN Mini PCI communications

module for use internationally

373032-291 802.11b/g combination WLAN Mini PCI communications

module for use in Japan

373033-001 802.11a/b/g combination WLAN module Mini PCI

communications module for use in the United States

4–20 Maintenance and Service Guide

Table 4 -6

Illustrated Parts Catalog

Sequential Part Number Listing

(Continued)

Spare Part Number Description

373033-002 802.11a/b/g combination WLAN Mini PCI communications

module for use internationally

373033-291 802.11a/b/g combination WLAN Mini PCI communications

module for use in Japan

373119-001 256-MB memory module (DDR2, PC2-4200, CL3, 533 MHz)

373120-001 512-MB memory module (DDR2, PC2-4200, CL3, 533 MHz)

373121-001 1024-MB memory module (DDR2, PC2-4200, CL3, 533 MHz)

373314-001 8X DVD-ROM drive

373315-001 24X DVD/CD-RW Combo Drive

373900-001 802.11a/b/g combination WLAN module Mini PCI

communications module for use in most of the world

373900-021 802.11a/b/g combination WLAN Mini PCI communications

module for use in Europe, Middle East, and Africa

373900-291 802.11a/b/g combination WLAN Mini PCI communications

module for use in Japan

373901-001 802.11a/b/g High Band combination WLAN Mini PCI

communications module

374791-001 90 watt, slim line profile power supply

374803-001 Docking Station

374804-001 Advanced Docking Station

375557-001 DVD+RW/R and CD-RW Combo Drive

378203-001 Keyboard, with pointing stick for use in the United States

378203-002 Keyboard, with pointing stick for use internationally

378203-031 Keyboard, with pointing stick for use in the United Kingdom

378203-041 Keyboard, with pointing stick for use in Germany

Maintenance and Service Guide 4–21

Illustrated Parts Catalog

Table 4 -6

Sequential Part Number Listing

(Continued)

Spare Part Number Description

378203-051 Keyboard, with pointing stick for use in France

378203-061 Keyboard, with pointing stick for use in Italy

378203-071 Keyboard, with pointing stick for use in Spain

378203-081 Keyboard, with pointing stick for use in Denmark

378203-091 Keyboard, with pointing stick for use in Norway

378203-101 Keyboard, with pointing stick for use in Sweden

378203-111 Keyboard, with pointing stick for use in Switzerland

378203-121 Keyboard, with pointing stick for use in French Canada

378203-131 Keyboard, with pointing stick for use in Portugal

378203-141 Keyboard, with pointing stick for use in Turkey

378203-151 Keyboard, with pointing stick for use in Greece

378203-161 Keyboard, with pointing stick for use in Latin America

378203-171 Keyboard, with pointing stick for use in Saudi Arabia

378203-181 Keyboard, with pointing stick for use in Belgium

378203-201 Keyboard, with pointing stick for use in Brazil

378203-211 Keyboard, with pointing stick for use in Hungary

378203-221 Keyboard, with pointing stick for use in Czech Republic

378203-231 Keyboard, with pointing stick for use in Slovakia

378203-251 Keyboard, with pointing stick for use in Russia

378203-281 Keyboard, with pointing stick for use in Thailand

378203-291 Keyboard, with pointing stick for use in Japan

378203-AB1 Keyboard, with pointing stick for use in Taiwan

4–22 Maintenance and Service Guide

Table 4 -6

Illustrated Parts Catalog

Sequential Part Number Listing

(Continued)

Spare Part Number Description

378203-AD1 Keyboard, with pointing stick for use in Korea

378203-BA1 Keyboard, with pointing stick for use in Slovenia

378203-BB1 Keyboard, with pointing stick for use in Israel

378203-DD1 Keyboard, with pointing stick for use in Iceland

378220-001 Intel Pentium M 1.60-GHz processor, includes thermal paste

378221-001 Intel Pentium M 1.73-GHz processor, includes thermal paste

378222-001 Intel Pentium M 1.86-GHz processor, includes thermal paste

378223-001 Intel Pentium M 2.00-GHz processor, includes thermal paste

378224-001 Intel Pentium M 2.13-GHz processor, includes thermal paste

379799-001 Heat sink (includes thermal paste)

379807-001 Trusted Platform Module (TPM) security module

379808-001 5400-rpm, 40-GB hard drive (includes frame and connector)

379809-001 5400-rpm, 60-GB hard drive (includes frame and connector)

379810-001 5400-rpm, 80-GB hard drive (includes frame and connector)

380045-001 Docking Station Miscellaneous Plastics Kit

380950-001 7200-rpm, 60-GB hard drive (includes frame and connector)

381582-001 802.11b/g WLAN Mini PCI communications module for use

in most of the world

381583-001 802.11b/g WLAN Mini PCI communications module for use

in the rest of the world

382674-001 Thermal plate (includes fan and thermal paste)

382675-001 TouchPad with TouchPad buttons and pointing stick buttons

(includes TouchPad cable)

382676-001 TouchPad with TouchPad buttons (includes TouchPad cable)

Maintenance and Service Guide 4–23

Illustrated Parts Catalog

Table 4 -6

Sequential Part Number Listing

(Continued)

Spare Part Number Description

382677-001 Audio board (includes audio board cable and USB board

cable)

382678-001 Top cover for use only with HP Compaq nc8230 and

nc8220 models (includes speakers)

382679-001 Top cover for use only with HP Compaq nw8240 models

(includes speakers)

382680-001 Switch cover for use only with HP Compaq nw8240 and

nc8230 models (include LED board and LED board cable)

382681-001 Base enclosure for use only with HP Compaq and nc8230 and

nc8220 models

382682-001 Display assembly, 15.4-inch, WXGA, TFT (includes wireless

antenna boards and cables)

382683-001 Display assembly, 15.4-inch, UXGA, TFT (includes wireless

antenna boards and cables)

382684-001 Display assembly, 15.4-inch, WSXGA, TFT (includes wireless

antenna boards and cables)

382686-001 System board with 128-MB video memory, for use only with

HP Compaq nw8240 models

382687-001 System board with 128-MB video memory, for use only with

HP Compaq nc8230 and nc8220 models

382688-001 System board with 64-MB video memory, for use only with

HP Compaq nc8230 and nc8220 models

382689-001 System board frame (includes RJ-11 connector module and

cable)

382690-001 Serial connector module (includes serial connector

module cable)

382691-001 Miscellaneous Plastics Kit

4–24 Maintenance and Service Guide

Table 4 -6

Illustrated Parts Catalog

Sequential Part Number Listing

(Continued)

Spare Part Number Description

382692-001 Miscellaneous Screw Kit

382693-001 Push button module

384132-001 Base enclosure for use only with HP Compaq nw8240 models

384133-001 Switch cover for use only with HP Compaq nc8220 models

(include LED board and LED board cable)

385548-001 Keyboard, without pointing stick for use in the United States

385548-002 Keyboard, without pointing stick for use internationally

385548-031 Keyboard, without pointing stick for use in the United Kingdom

385548-041 Keyboard, without pointing stick for use in Germany

385548-051 Keyboard, without pointing stick for use in France

385548-061 Keyboard, without pointing stick for use in Italy

385548-071 Keyboard, without pointing stick for use in Spain

385548-081 Keyboard, without pointing stick for use in Denmark

385548-091 Keyboard, without pointing stick for use in Norway

385548-101 Keyboard, without pointing stick for use in Sweden

385548-111 Keyboard, without pointing stick for use in Switzerland

385548-121 Keyboard, without pointing stick for use in French Canada

385548-131 Keyboard, without pointing stick for use in Portugal

385548-141 Keyboard, without pointing stick for use in Turkey

385548-151 Keyboard, without pointing stick for use in Greece

385548-161 Keyboard, without pointing stick for use in Latin America

385548-171 Keyboard, without pointing stick for use in Saudi Arabia

385548-181 Keyboard, without pointing stick for use in Belgium

Maintenance and Service Guide 4–25

Illustrated Parts Catalog

Table 4 -6

Sequential Part Number Listing

(Continued)

Spare Part Number Description

385548-201 Keyboard, without pointing stick for use in Brazil

385548-211 Keyboard, without pointing stick for use in Hungary

385548-221 Keyboard, without pointing stick for use in Czech Republic

385548-231 Keyboard, without pointing stick for use in Slovakia

385548-251 Keyboard, without pointing stick for use in Russia

385548-281 Keyboard, without pointing stick for use in Thailand

385548-291 Keyboard, without pointing stick for use in Japan

385548-AB1 Keyboard, without pointing stick for use in Taiwan

385548-AD1 Keyboard, without pointing stick for use in Korea

385548-BA1 Keyboard, without pointing stick for use in Slovenia

385548-BB1 Keyboard, without pointing stick for use in Israel

385548-DD1 Keyboard, without pointing stick for use in Iceland

389014-001 Miscellaneous Cable Kit

390119-001 256-MB memory module (DDR2, PC2-3200, CL3, 400 MHz)

390120-001 512-MB memory module (DDR2, PC2-3200, CL3, 400 MHz)

390121-001 1024-MB memory module (DDR2, PC2-3200, CL3, 400 MHz)

4–26 Maintenance and Service Guide

Removal and Replacement

This chapter provides essential information for proper and safe removal and replacement service.

5.1 Tools Required

You will need the following tools to complete the removal and replacement procedures:

■ Magnetic screwdriver

■ Phillips P0 screwdriver

■ Torx T8 screwdriver

■ 5.0-mm socket for system board locks

■ Flat-bladed screwdriver

■ Tool kit—includes connector removal tool, loopback plugs,

and case utility tool

Preliminaries

Maintenance and Service Guide 5–1

Removal and Replacement Preliminaries

5.2 Service Considerations

The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures.

As you remove each subassembly from the computer, place

✎

the subassembly (and all accompanying screws) away from the work area to prevent damage.

Plastic Parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and Connectors

CAUTION: When servicing the computer, ensure that cables are

placed in their proper locations during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Ensure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

5–2 Maintenance and Service Guide

Removal and Replacement Preliminaries

5.3 Preventing Damage to Removable Drives

Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions:

■ Before removing or inserting a hard drive, shut down the

computer. If you are unsure whether the computer is off or in hibernation, turn the computer on, and then shut it down through the operating system.

■ Before removing a diskette drive or optical drive, ensure that

a diskette or disc is not in the drive and ensure that the optical drive tray is closed.

■ Before handling a drive, ensure that you are discharged of

static electricity. While handling a drive, avoid touching the connector.

■ Handle drives on surfaces covered with at least one inch

of shock-proof foam.

■ Avoid dropping drives from any height onto any surface.

■ After removing a hard drive, an optical drive, or a diskette

drive, place it in a static-proof bag.

■ Avoid exposing a hard drive to products that have magnetic

fields, such as monitors or speakers.

■ Avoid exposing a drive to temperature extremes or liquids.

■ If a drive must be mailed, place the drive in a bubble pack

mailer or other suitable form of protective packaging and label the package “FRAGILE: Handle With Care.”

Maintenance and Service Guide 5–3

Removal and Replacement Preliminaries

5.4 Preventing Electrostatic Damage

Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

A sudden discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs.

An electronic device exposed to electrostatic discharge may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

5–4 Maintenance and Service Guide

Removal and Replacement Preliminaries

5.5 Packaging and Transporting Precautions

Use the following grounding precautions when packaging and transporting equipment:

■ To avoid hand contact, transport products in static-safe

containers, such as tubes, bags, or boxes.

■ Protect all electrostatic-sensitive parts and assemblies with

conductive or approved containers or packaging.

■ Keep electrostatic-sensitive parts in their containers until

the parts arrive at static-free workstations.

■ Place items on a grounded surface before removing items

from their containers.

■ Always be properly grounded when touching a sensitive

component or assembly.

■ Store reusable electrostatic-sensitive parts from assemblies

in protective packaging or nonconductive foam.

■ Use transporters and conveyors made of antistatic belts and

roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Maintenance and Service Guide 5–5

Removal and Replacement Preliminaries

5.6 Workstation Precautions

Use the following grounding precautions at workstations:

■ Cover the workstation with approved static-shielding material

(refer to

■ Use a wrist strap connected to a properly grounded work

surface and use properly grounded tools and equipment.

■ Use conductive field service tools such as cutters,

screwdrivers, and vacuums.

■ When fixtures must directly contact dissipative surfaces, use

fixtures made only of static-safe materials.

■ Keep the work area free of nonconductive materials such

as ordinary plastic assembly aids and Styrofoam.

■ Handle electrostatic-sensitive components, parts, and

assemblies by the case or PCM laminate. Handle these items only at static-free workstations.

■ Avoid contact with pins, leads, or circuitry.

■ Turn off power and input signals before inserting or removing

connectors or test equipment.

Table 4-2, “Static-Shielding Materials”).

5–6 Maintenance and Service Guide

Hp NC8230 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Product Description

1.1 Features

1.2 Resetting the Computer

1.3 Power Management

1.4 External Components

1.5 Design Overview

Troubleshooting

2.1 Computer Setup

Accessing Computer Setup

Computer Setup Defaults

Selecting from the File Menu

Selecting from the Security Menu

Selecting from the Tools Menu

Selecting from the Advanced Menu

2.2 Troubleshooting Flowcharts

3.1 Software Updates

Accessing Computer Information

Obtaining the Support Software CD

Software Updates and the HP Web Site

3.2 System Recovery

Safeguarding Your Data

Using Altiris Local Recovery

Using System Restore Points

Reinstalling Applications

Repairing the Operating System

Reinstalling the Operating System

Reinstalling Device Drivers and Other Software

Illustrated Parts Catalog

4.1 Serial Number Location

4.2 Computer Major Components

4.3 Miscellaneous Plastics Kit

4.4 Miscellaneous Cable Kit

4.5 Mass Storage Devices

4.6 Miscellaneous (Not Illustrated)

4.7 Sequential Part Number Listing

5.1 Tools Required

5.2 Service Considerations

Plastic Parts

Cables and Connectors

5.3 Preventing Damage to Removable Drives

5.4 Preventing Electrostatic Damage

5.5 Packaging and Transporting Precautions

5.6 Workstation Precautions
