Honeywell TH8110, TH8320, TH8321 User Manual

68-0280-01

VisionPRO™ 8000 Touchscreen

Programmable Thermostat

APPLICATION

The VisionPRO 8000 Touchscreen Programmable Thermostat is an effortless, 7-Day programmable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program.

PRODUCT DATA

FEATURES

• Large, clear display with backlight shows the current and set temperature and time—even in the dark.

• Menu-driven programming make setup effortless.

• Beautiful ergonomic design is smart and sophisticated to match your customers’ lifestyle.

• Touchscreen interaction

• Real-time clock keeps time during power failures and automatically updates to daylight savings.

• "Saving Changes" notification lets you know when the schedule changes have been saved.

• Change/check reminders let you know when to service or replace filters or batteries.

• Various Hold options allow you to override the program schedule, as desired.

• Speedy same-schedule programming—no need to copy multiple days.

• Armchair programming allows you to remove the thermostat from the wall for programming.

• Programmable fan offers increased air quality when combined with a Honeywell whole-house air cleaner.

The TH8110 Thermostats provide temperature control for gas, oil, electric and heat pumps for 1 heat, 1 cool systems.

The TH8320 Thermostats provide temperature control for gas, oil, electric and heat pumps for up to 3 heat, 2 cool systems including dual fuel operation.

The TH8321 Thermostats provide temperature control for gas, oil, electric and heat pumps for up to 3 heat, 2 cool systems including dual fuel operation plus dehumidification control.

Contents

Application/Features..........................................................1

Specifications/Ordering Information ..................................2

Installation .........................................................................4

Wiring ................................................................................5

Power the Thermostat .......................................................11

Installer Setup ...................................................................15

Installer System Test .........................................................20

Operation...........................................................................21

Programming.....................................................................23

Troubleshooting.................................................................38

VisionPRO

8000 Touchscreen Programmable Thermostat

SPECIFICATIONS

Thermostat Description:

Feature Description

Powering methods • Battery only

• Common wire only

• Common wire with battery backup

System types (up to 3 heat/2 cool or up to 1heat/1cool, depending on model)

Changeover Manual or Auto changeover selectable

System setting Heat-Off-Cool-Auto (Em. Heat for heat

Fan setting Auto-On-Circ

Electrical Ratings:

Terminal Voltage (50/60 Hz) Running Current

W Heating 20 - 30 Vac .02 - 1.0A

W Heating (Powerpile)

Y Cooling 20 - 30 Vac .02 - 1.0A

G Fan 20 - 30 Vac .02 - .60A

Temperature Setting Range:

Heating: 40°F to 90°F(4.5°C to 32°C). Cooling: 50°F to 99°F (10°C to 37°C).

Operating Ambient Temperature:

TH8000 VisionPRO™ Thermostats: 0°F to 120°F

(-18°C to 49°C). C7089U: -40°F to 120°F (-40°C to 49°C). C7189U: 45°F to 88°F (7.2°C to 32°C).

• Gas, oil or electric heat with air conditioning

• Warm air, hot water, high-efficiency furnaces, heat pumps, steam and gravity

• Heat only—includes power to open and power to close zone valves (series 20) and normally-open zone valves

• Heat only with fan

• Cool only

• 750 mV heating systems

pumps)

750 mV dc 100 mA dc

Shipping Temperature:

TH8000 VisionPRO™ Thermostats: -30 °F to 150 °F

(-34.4°C to 65.6°C).

Operating Relative Humidity (Non-condensing):

TH8000 VisionPRO Thermostats: 5% to 90%. C7089U: 5% to 95%. C7189U: 5% to 95%.

Humidity Setting Range (TH8321 models only):

Cooling: 40% to 80% RH.

Humidity Display Range (TH8321 models only):

0% to 99%.

Cycle Rates (at 50% Load):

Heating: Selectable 1 - 12 cycles per hour. Cooling: Selectable 1 - 6 cycles per hour.

Finish:

TH8000 VisionPRO™ Thermostats: Premier White® color. C7189U Wall Mount Remote Indoor Sensor: Premier White®

color.

Clock Accuracy: +/- 1 minute per month.

Batteries:

Three replaceable AAA alkaline batteries: Power thermostats

when 24 Vac common is not used. Non-replaceable lithium battery with ten-year life under normal use to hold calendar and time settings. Alkaline batteries keep calendar and time after lithium battery is no longer functional.

Resistance Characteristics of Remote Sensors:

C7089U Outdoor Sensor: Negative temperature coefficient

(NTC) means that resistance decreases as the temperature increases. See Table 13 in the Operation section for sensor resistance characteristics.

C7189U Remote Indoor Sensor: Negative temperature

coefficient (NTC), means that resistance decreases as the temperature increases. See Table 14 in the Operation section for sensor resistance characteristics.

Cool Indication:

TH8000 VisionPRO™ Touchscreen Thermostats show "Cool

On" on the screen when Cool is activated.

Heat Indication:

TH8000 VisionPRO™ Touchscreen Thermostats show “Heat

On” on the screen when Heat is activated.

ORDERING INFORMATION

When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the TRADELINE® Catalog or price sheets for complete ordering number.

If you have additional questions, need further information, or would like to comment on our products or services, please write or phone:

1. Your local Honeywell Automation and Control Products Sales Office (check white pages of your phone directory).

2. Honeywell Customer Care

1985 Douglas Drive North

Minneapolis, Minnesota 55422-4386 In Canada—Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V 4Z9. International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.

68-0280—01 2

Auxiliary Heat Indication:

M22421

6 (152)

THERMOSTAT

4-9/16

(116)

3-3/8 (86)

WALLPLATE

3-3/8 (86)

THERMOSTAT

AND WALLPLATE

1-3/8 (35)

TH8000 VisionPRO™ Touchscreen Thermostats show “Aux.

Heat On” on the screen when Auxiliary Heat is activated.

Emergency Heat Indication:

TH8000 VisionPRO™ Touchscreen Thermostats show “Heat

On” on the screen when Emergency Heat is activated and the System mode is in the Em. Heat position.

Calibration:

C7089U, C7189U and TH8000 VisionPRO™ Touchscreen

Thermostats are factory-calibrated and require no field calibration.

Interstage Differential:

TH8000 VisionPRO™ Touchscreen Thermostats operate with

droopless control. Once the thermostat senses that 1st stage is running at 90% capacity, the thermostat energizes 2nd stage.

Nomenclature:

VisionPRO

8000 Touchscreen Programmable Thermostat

Series

VisionPRO™ 8000 Touchscreen

System

Stages Application

11 - 1H/1C 32 - 3H/2C

0 - Standard 1 - Humidity

Sensor

Power and System

Changeover

U - Universal (Auto

changeover and/or manual changeover) dual powered, system flexibility, schedule flexibility.

Mounting Means:

TH8000 VisionPRO™ Touchscreen Thermostat: Mounts

directly on the wall in the living space using mounting screws and anchors provided. Fits a vertical or horizontal 2 x 4 in. junction box.

C7089U Outdoor Sensor: Mounts outside of living space with

mounting clip and screws provided.

C7189U Remote Indoor Sensor: Mounts directly on the wall

using mounting screws and anchors provided. Fits a vertical 2 x 4 in. junction box.

Cover Plate:

32003796-001 Cover Plate is used to cover marks left on the

wall by the old thermostat.

Dimensions:

TH8000 Touchscreen Thermostat: see Fig. 1. C7089U Outdoor Sensor Mounting Clip: see Fig. 2. 32003796-001 Cover Plate: see Fig. 3. C7189U Remote Indoor Sensor: see Fig. 4.

Fig. 1. TH8000 Touchscreen Thermostat

dimensions in in. (mm).

1-1/2 (38)

M4488

Fig. 2. C7089U Outdoor Sensor Mounting Clip

dimensions in in. (mm).

7-7/8 (200)

3-5/16 (84)

5-1/2

(140)

3-5/16

(84)

M22139

Fig. 3. 32003796-001 Cover Plate dimensions in in. (mm).

3 68-0280—01

VisionPRO

CAUTION

5 FEET

[1.5 METERS]

YES

M19925

8000 Touchscreen Programmable Thermostat

4-5/8 (117)

2-3/4 (70)

M4465

FRONT VIEW SIDE VIEW FRONT VIEW (COVER OFF)

Fig. 4. C7189U Remote Indoor Sensor dimensions in in. (mm).

INSTALLATION

When Installing this Product...

1. Read these instructions carefully. Failure to follow the instructions can damage the product or cause a hazardous condition.

2. Check the ratings given in the instructions to make sure the product is suitable for your application.

3. Installer must be a trained, experienced service technician.

4. After completing installation, use these instructions to check out the product operation.

Selecting Location

Install the thermostat about 5 ft. (1.5m) above the floor in an area with good air circulation at average temperature. See Fig. 5.

4-5/8

1-1/8

(29)

(117)

3-1/4

(83)

2-3/4 (70)

Do not install the thermostat where it can be affected by: — Drafts or dead spots behind doors and in corners. — Hot or cold air from ducts. — Radiant heat from sun or appliances. — Concealed pipes and chimneys. — Unheated (uncooled) areas such as an outside wall behind

the thermostat.

Installing Wallplate

Electrical Hazard. Can cause electrical shock or equipment damage.

Disconnect power before wiring.

The thermostat can be mounted horizontally on the wall or on a 4 in. x 2 in. (101.6 mm x 50.8 mm) wiring box.

68-0280—01 4

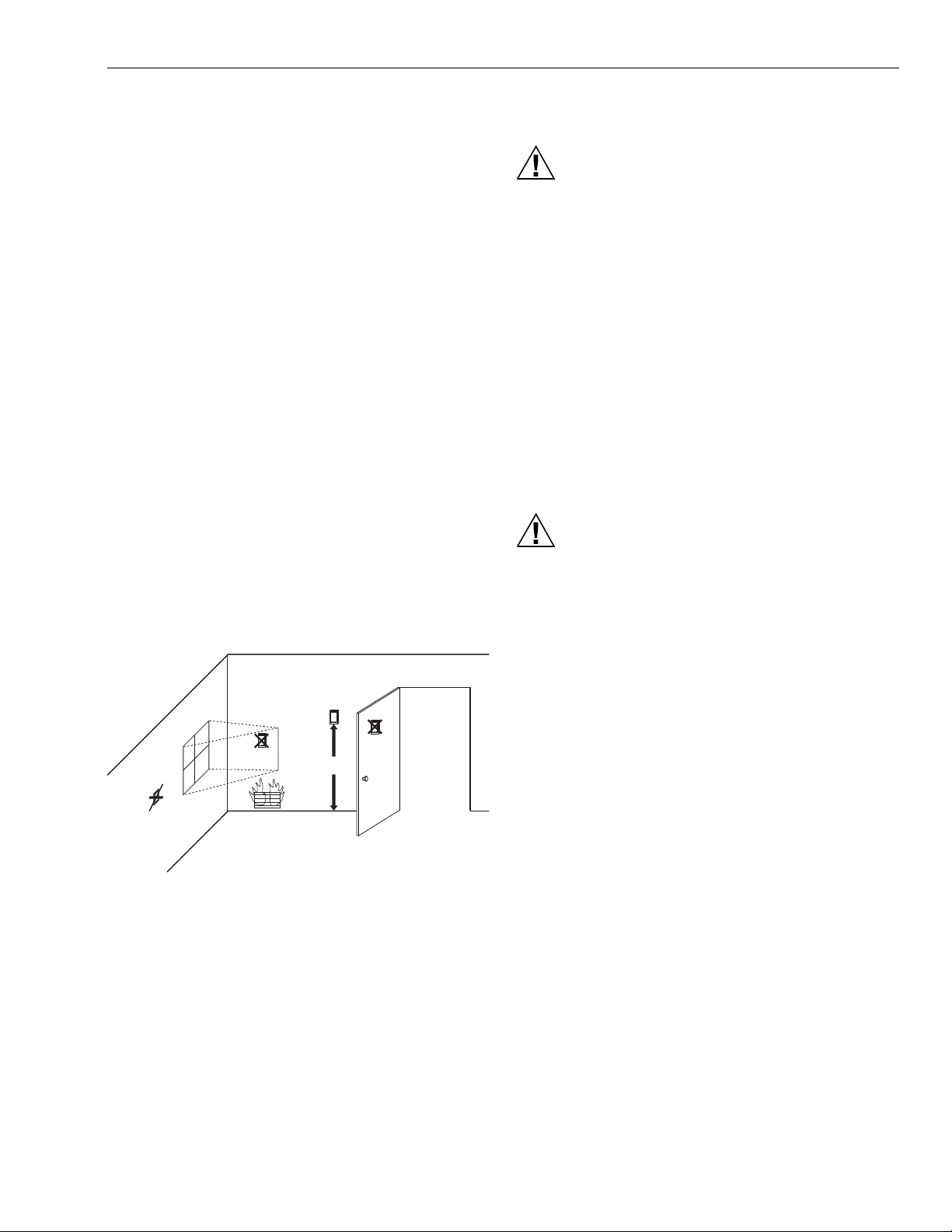

Fig. 5. Selecting thermostat location.

1. Position and level the wallplate (for appearance only).

2. Use a pencil to mark the mounting holes.

3. Remove the wallplate from the wall and, if drywall, drill

two 3/16-in. holes in the wall, as marked. For firmer material such as plaster, drill two 7/32-in. holes. Gently tap anchors (provided) into the drilled holes until flush with the wall.

4. Position the wallplate over the holes, pulling wires

WALL

MOUNTING HOLES

M19916

MOUNTING SCREWS (2)

WALL ANCHORS (2)

WIRES THROUGH WALL AND WIRE SLOT

UMP

M19917

through the wiring opening. See Fig. 6.

5. Insert the mounting screws into the holes and tighten.

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 1. Selecting Terminal Identifications for

System Type.

Fig. 6. Mounting wallplate.

WIRING (FIG. 9 - 21)

All wiring must comply with local electrical codes and ordinances.

1. Select set of terminal identifications (Table 1) that corresponds with system type (conventional or heat pump in Fig. 7).

2. Loosen the screws for the appropriate system type selected; see Table 1. See Table 2 for terminal designation descriptions. Insert wires in the terminal block under the loosened screw. See Fig. 8.

3. Securely tighten each screw.

4. Push excess wire back into the hole.

5. Plug the hole with nonflammable insulation to prevent

drafts from affecting the thermostat.

6. See Fig. 9 through 21 for typical wiring hookups.

Wiring

Diagram

Reference

System Type

Wallplate

Ter min al

Identifications

Standard Heat/Cool Conventional 9, 10

Heat Only Conventional 11

Heat Only with Fan Conventional 12

Heat Only (Series 20)

Conventional 13 Power to open and power to close zone valves

Normally Open Zone

Conventional 14 Valves—Heat Only

Cool Only Conventional 15

Standard Multistage up

Conventional 16, 17 to 2 Heat/2 Cool

Heat Pump with No

Heat Pump 18, 19 Auxiliary Heat

Heat Pump with

Heat Pump 20, 21 Auxiliary Heat

EAT P NVENTIONA

AUX

REW TERMINAL

O/B

M19951

Fig. 7. Selecting terminal identifications for

system type.

Fig. 8. Inserting wires in terminal block.

IMPORTANT

Use 18 gauge thermostat wire.

5 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 2. Terminal Designation Descriptions.

Terminal

Designation Description

Rc (see Note 1)Power for cooling--connect to

secondary side of cooling system transformer

R (see Note 1) Power for heating--connect to

secondary side of heating system transformer

C (see Note 2) Common wire from secondary side of

cooling system transformer

W Heat relay

Y Compressor contactor

GFan relay

Y2 Second stage cooling

W2 Second stage heat relay

O/B (see Note 3)Changeover valve for heat pump

systems

AUX Auxiliary heat relay for heat pump

systems

E Emergency heat relay for heat pump

systems

L (see note 4) Equipment monitor for heat pump

systems

S1, S2 Optional outdoor or indoor remote

sensor

NOTES:

1. When used in a single-transformer system, leave metal jumper wire in place between Rc and R. If used on a two-transformer system, remove metal jumper wire between Rc and R.

2. Common wire is optional when thermostat is used with batteries.

3. If thermostat is configured for a heat pump system in the Installer Setup, configure changeover valve for cool (O-factory setting) or heat (B).

4. L terminal is an input (system monitor) when the System mode is in the Heat, Off, Cool or Auto position. L terminal is a 24 Vac output when System mode is Emergency Heat. Must connect the 24 Vac Common when using the L terminal. See LED Indication section for more details.

CONVENTIONAL

W2 S1

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

Y G C

FAN

RELAY

COMPRESSOR

CONTACTOR

HEAT RELAY

OPTIONAL

24 VAC

COMMON

CONNECTION

M19895

Fig. 9. Typical hookup of conventional single-stage heat

and cool system with single transformer

(1H/1C conventional).

CONVENTIONAL

W2 S1

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

REMOVE FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

Y G C

FAN

RELAY

COMPRESSOR

CONTACTOR

HEAT RELAY

OPTIONAL

24 VAC

COMMON

CONNECTION

M19896

Fig. 10. Typical hookup of conventional single-stage heat

and cool system with two transformers

(1H/1C conventional).

68-0280—01 6

VisionPRO

M19897

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y G C

CONVENTIONAL

M19898

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y G C

CONVENTIONAL

8000 Touchscreen Programmable Thermostat

CONVENTIONAL

Fig. 11. Typical hookup of heat-only system

(1 H conventional).

W2 S1

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

Y G C

W BR

SERIES 20

MOTOR OR

VALVE

M19899

Fig. 13. Typical hookup of heat only power to open and

power to close zone valve (Series 20) system.

CONVENTIONAL

Fig. 12. Typical hookup of heat only system with fan

(1H conventional).

W2 S1

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

CONFIGURE SYSTEM TYPE TO HEAT ONLY WITH NORMALLY OPEN

ZONE VALVES IN INSTALLER SETUP.

Y G C

CONNECTION

NORMALLY OPEN

ALVE

ZONE V

OPTIONAL

24 VAC

COMMON

M22422

Fig. 14. Typical hookup of heat only system with normally

open zone valves.

7 68-0280—01

VisionPRO

M19900

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

Y G C

CONVENTIONAL

COMPRESSOR

CONTACTOR

M22438B

HEAT RELAY 2

COOL RELAY 2

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

FAN

RELAY

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OPTIONAL

24 VAC

COMMON

CONNECTION

MUST COME

FROM THE

COOLING

TRANSFORMER.

Y G

CONVENTIONAL

COOL RELAY 1

HEAT RELAY 1

8000 Touchscreen Programmable Thermostat

CONVENTIONAL

Fig. 15. Typical hookup of cool only system

(1C conventional).

W2 S1

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

HEAT RELAY 2

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD

PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE

ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

Y G C

COOL RELAY 2

HEAT RELAY 1

CONNECTION

MUST COME

TRANSFORMER.

FAN

RELAY

COOL RELAY 1

OPTIONAL

24 VAC

COMMON

FROM THE

COOLING

M19902B

Fig. 17. Typical hookup of conventional multistage

two-stage heating and two-stage cooling in a

two-transformer system (2H/2C, 2H/1C or

1H/2C conventional).

Fig. 16. Typical hookup of conventional multistage

two-stage heating and two-stage cooling in a

68-0280—01 8

single-transformer system

(2H/2C, 2H/1C or 1H/2C conventional).

VisionPRO

COMPRESSOR 1COMPRESSOR 2

M19904

CHANGEOVER

VALV E

FAN RELAY

OPTIONAL 24 VAC

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS A 24 VAC OUTPUT. SEE "HEAT PUMP LED" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

8000 Touchscreen Programmable Thermostat

EAT PUM

OPTIONAL 24 VAC MMON CONNECTI

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE

FROM THE THERMOSTAT CABLE.

CHANGEOVER

VALV E

FAN RELAY

COMPRESSOR

RELAY

M19903B

Fig. 18. Typical hookup of single-stage heat pump with no auxiliary/backup heat (1H/1C heat pump).

EAT PUM

Fig. 19. Typical hookup of multistage heat pump with no auxiliary/backup heat (2H/2C heat pump).

9 68-0280—01

MMON CONNECTI

VisionPRO

COMPRESSOR

RELAY

M19905

CHANGEOVER

VALV E

FAN RELAY

HEAT 2 RELAY

(AUXILIARY HEAT)

OPTIONAL 24 VAC

EQUIPMENT

MONITOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OUTDOOR SENSOR REQUIRED IN SYSTEM WITH FOSSIL FUEL BACKUP HEAT THAT IS NOT USING AN EXTERNAL FOSSIL FUEL KIT.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS A 24 VAC OUTPUT. SEE "HEAT PUMP LED" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

EMERGENCY

HEAT RELAY

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

COMPRESSOR 2 COMPRESSOR 1

M19906

CHANGEOVER

VALV E

FAN RELAY

HEAT 2 RELAY

(AUXILIARY HEAT)

OPTIONAL 24 VAC

EQUIPMENT

MONITOR

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

FACTORY INSTALLED JUMPER.

OUTDOOR SENSOR REQUIRED IN SYSTEM WITH FOSSIL FUEL BACKUP HEAT THAT IS NOT USING AN EXTERNAL FOSSIL FUEL KIT.

OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

MUST CONNECT THE 24 VAC COMMON WHEN USING L. THE TERMINAL IS SHOWN AS EQUIPMENT MONITOR, CAN ALSO BE USED AS A 24 VAC OUTPUT. SEE "HEAT PUMP LED" SECTION FOR MORE INFORMATION.

"O/B" TERMINAL SET TO CONTROL AS EITHER "O" OR "B" IN THE INSTALLER SETUP.

EMERGENCY

HEAT RELAY

OUTDOOR/INDOOR

TEMPERATURE

SENSOR

8000 Touchscreen Programmable Thermostat

EAT PUM

MMON CONNECTI

Fig. 20. Typical hookup of single-stage heat pump with auxiliary/backup heat (2H/1C heat pump).

EAT PUM

68-0280—01 10

Fig. 21. Typical hookup of multistage heat pump with auxiliary/backup heat (3H/2C heat pump).

MMON CONNECTI

POWER THE THERMOSTAT

M22213

PINS ON

BACK OF

THERMOSTAT

WALLPLATE

TERMINAL SCREW BLOCK

VisionPRO

8000 Touchscreen Programmable Thermostat

You can choose from three methods to power the thermostat:

• Batteries only (AAA alkaline).

• 24 Vac common wire only.

• 24 Vac common wire with battery backup (AAA alkaline).

Wiring 24 Vac Common

• Single-Transformer System—Connect the common side of the transformer to the C screw terminal of the thermostat wallplate. Leave the metal jumper wire in place between Rc and R.

• Two-Transformer System—Connect the common side of the cooling transformer to the C screw terminal of the thermostat wallplate. Remove the metal jumper wire between Rc and R.

Installing Batteries

1. Install three AAA alkaline batteries on the back of the thermostat as marked on the thermostat. See Fig. 22.

2. Locate and remove the tab labeled, Remove, in the lower left corner on the thermostat back. See Fig. 23.

REMOVE TAB

INSTALLATION

REMOVE DURING

INSTALLATION

REMOVE DURING

Fig. 23. Remove tab labeled, Remove, on

thermostat back.

Mount Thermostat to Wallplate

1. Align the terminal screw blocks with the pins on the back of the thermostat. Push the thermostat straight onto the wallplate until it snaps into place. See Fig 24.

M19920

BATTERIES (3)

Fig. 22. Installing batteries.

M19918

Fig. 24. Mount thermostat to wallplate.

11 68-0280—01

VisionPRO

CAUTION

M7514

8000 Touchscreen Programmable Thermostat

Locate and Mount C7089U Outdoor Temperature Sensor (Optional)

Mount the sensor where (see Fig. 25):

• cannot tamper with settings.

• there is good air circulation.

• it can measure true outdoor ambient temperature.

• surface is flat.

• wire distance between C7089 and thermostat is less than 200 feet.

Do not mount the sensor:

• in direct sunlight.

• where hot or cold air blows on the sensor. Discharge line from an outdoor compressor unit, vent or fan causes inaccurate temperature readings.

• where snow, ice or debris can cover it.

Use the following steps to mount the sensor:

1. Remove the sensor from the mounting clip.

2. Mark the area on the location selected for mounting the

sensor mounting clip.

3. Mount the clip.

IMPORTANT

Erratic temperature readings from a sensor can occur as a result of any of the wiring practices described below. Avoid these practices to assure correct operation. Use shielded cable to reduce interference if rerouting sensor wiring is not possible.

— Be sure wires have a cable separate from the

thermostat cable.

— Do not route temperature sensor wiring with building

power wiring, next to control contactors or near light dimming circuits, electric motors or welding

equipment. — Avoid poor wiring connections. — Avoid intermittent or missing building earth ground.

Electrical Shock Hazard. Can cause electrical shock or equipment damage.

Disconnect power supply before connecting wiring.

Wiring must comply with applicable codes, ordinances and regulations:

1. Wire C7089 Outdoor Sensor to S1and S2 terminals on the thermostat. If leadwire provided is not long enough (60 in.), run a cable to a hole at C7089 location. a. Using color-coded, 18-gauge thermostat wire is

recommended. For example of general wiring of C7089, see Fig. 26.

b. Pigtail wiring can be used.

2. Mount C7089 in its mounting clip.

3. Plug wiring hole using nonhardening caulk or putty.

Fig. 25. Typical locations for C7089U Outdoor Sensor.

Wire C7089U Outdoor Sensor

Electrical Interference (Noise) Hazard. Can cause erratic system operation.

Keep wiring at least one foot away from large inductive loads such as motors, line starters, lighting ballasts and large power distribution panels. Use shielded cable to reduce interference when rerouting is not possible.

C7089

USE APPROPRIATE MOUNTING MEANS FOR THE TYPE OF STRUCTURE.

PLUG WIRING HOLE WITH NON-HARDENING CAULK OR PUTTY.

WIRING HOLE THROUGH

STRUCTURE

M19970

Fig. 26. Wire C7089 Outdoor Sensor to the thermostat.

68-0280—01 12

VisionPRO

CAUTION

5 FEET

(1.5 METERS)

YES

M4476

8000 Touchscreen Programmable Thermostat

Locate and Mount C7189U Remote Indoor Temperature Sensor (Optional)

1. Choose a location (see Fig. 27) for mounting the sensor on an inside wall about 5 ft (1.5m) above the floor. A vertically-mounted standard 2 x 4 in. (51 x 102 mm) junction box can also be used.

2. Be sure wire distance between C7189 and thermostat is less than 200 feet.

3. Make sure there is good air circulation at average temperature at the chosen location. Avoid the following locations because they can introduce errors in sensor measurements. See Fig. 27. a. Hot areas caused by:

(a) Concealed pipes or ducts. (b) Drafts from fireplaces or other heat sources. (c) Convection or radiant heat from the sun or

electrical equipment.

b. Cold areas caused by:

(a) Concealed pipes or ducts. (b) Drafts from windows and doors. (c) Unheated areas on the other side of the wall

location.

c. Dead air areas:

(a) Behind doors, furniture and curtains. (b) In corners and alcoves.

4. Mark the area on the wall selected for mounting the C7189 Sensor or junction box.

5. Run wire cable to a hole at the selected wall location. Pull approximately three inches of wire through the opening. Color-coded, 18-gauge thermostat wire is recommended.

Wire C7189 Indoor Sensor

Electrical Interference (Noise) Hazard. Can cause erratic system operation.

Keep wiring at least one foot away from large inductive loads such as motors, line starters, lighting ballasts and large power distribution panels.

IMPORTANT

Erratic temperature readings from a sensor can occur as a result of any of the wiring practices described below. Avoid these practices to assure correct operation.

— Be sure wires have a cable separate from the

thermostat cable.

— Do not route temperature sensor wiring with building

power wiring, next to control contactors or near light dimming circuits, electric motors or welding

equipment. — Avoid poor wiring connections. — Avoid intermittent or missing building earth ground.

Electrical Shock Hazard. Can cause electrical shock or equipment damage.

Disconnect power supply before connecting wiring.

Wiring must comply with applicable codes, ordinances and regulations.

1. Wire C7189 Indoor Sensor to S1and S2 terminals on the thermostat. For an example of general wiring of C7189, see Fig. 28 to wire one sensor and 29 to wire multiple sensors.

2. Push excess wire back into the hole. Plug the hole using nonhardening caulk, putty or insulation to prevent drafts from affecting performance.

3. Remove C7189 cover.

4. Mount C7189 to the wall or junction box using the

screws and anchors provided.

5. Level the C7189 for appearance only. Device functions correctly even when not level.

6. Install C7189 cover.

Fig. 27. Typical location for C7189 Indoor Sensor.

13 68-0280—01

VisionPRO

M19973

SENSORS MUST BE ARRANGED IN THIS CONFIGURATION TO OPERATE CORRECTLY.

WIRES MUST HAVE A CABLE SEPARATE FROM THE THERMOSTAT CABLE.

C7189

C7189 C7189

C7189

C7189 C7189

C7189

C7189 C7189 C7189

8000 Touchscreen Programmable Thermostat

C7189

Set Calendar and Time

Thermostat keeps current time and day for up to ten years under normal use after the calendar is set.

When the thermostat is first powered, the display is ready to set the calendar and time.

NOTE: Calendar can also be set in the Installer Setup.

1. Press the arrow keys to set the year, month and day.

2. Press the Done key.

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND

OVERLOAD PROTECTION AS REQUIRED.

IF MORE THAN ONE C7189 REMOTE SENSOR IS REQUIRED,

REFER TO FIGURE 3.

WIRES MUST HAVE A CABLE SEPARATE FROM THE

THERMOSTAT CABLE.

Fig. 28. Wiring a single C7189 Indoor Sensor.

SET CURRENT DAY SET MONTH

M19972

USE ARROWS TO SET YEAR AND TIME

M22424

3. Press the arrow keys to set the current time.

4. Press the Done Key.

USE ARROWS TO SET YEAR AND TIME

Fig. 29. Wiring Multiple C7189 Sensors.

68-0280—01 14

DON

M22425

INSTALLER SETUP

CANCEL

edule

M19923

VisionPRO

8000 Touchscreen Programmable Thermostat

Follow these steps to enter the Installer Setup:

1. Press and release the System Key.

FAN

Inside

AUTO

SYSTEM

EM HEAT

OFF

COOL

SCHED HOLD CLOCK SCREE

THU

Set To

Following Schedule

A M

M22426

2. Press and hold the two blank keys on either side of the center blank key for approximately five seconds until screen changes.

Insi

YSTE

t T

Followin

3. Release the two blank keys when the screen on the thermostat matches the screen below.

DONE

M22442

4. See screen below to review how the thermostat keys are used during Installer Setup. See Tables 3-5 for the Installer Setup Numbers and Settings.

ADVANCE TO NEXT

INSTALLER SETUP NUMBER

INSTALLER SETUP

CURRENT SETTING

DON

PRESS TO EXIT INSTALLER SETUP

CHANGE THE CURRENT SETTING

M22443

5. Press the Done key to exit the Installer Setup screen.

15 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 3. Installer Setup Menu.

Installer Setup

Number Installer Setup Name Settings Notes

0120 Date (Year Upper) Select first two digits of current calendar year (2005, etc) 2001 - 2178 available

0130 Date (Year Lower) Select last two digits of current calendar year (05 for year

2001 - 2178 available

2005, etc)

0140 Date (Month) Select number that represents current calendar month —

0150 Date (Day) Select number that represents current calendar date —

0160 Schedule Options 0—nonprogrammable

—

4—7-day programmable

0170 System Type Selection 1—1 heat/1 cool conventional (factory setting)

2—single-stage heat pump (no auxiliary heat) 3—heat only conventional (no fan) Also for 750mV. 4—heat only conventional (with fan) 5—heat only (power to open and power to close zone

valves or normally-open zone valves)

6—cool only conventional 7—2 heat/1 cool heat pump (with auxiliary heat)

Available options and defaults vary by thermostat. System selection automatically modifies some default settings and/or hides other Installer Setup options.

8—2 heat/2 cool multistage conventional 9—2 heat/1 cool multistage conventional 10—1 heat/2 cool multistage conventional 11—2 heat/2cool heat pump (no auxiliary heat) 12—3 heat/2cool heat pump (with auxiliary heat)

0180 Fan Control in Heating 0—gas or oil furnace equipment controls fan in heating

(factory setting) 1—electric furnace—thermostat controls fan in heating

Only shown if conventional system is selected. If heat pump is chosen, fan defaults to electric.

0190 Changeover Valve—O/B

Terminal Energized in Heating or Cooling (Heat Pumps Only)

0200 Backup Heat Source

(Auxiliary Heat)

0210 External Fuel Fossil

Fuel Kit

0—changeover valve—O/B terminal is energized in cooling (factory setting) 1—changeover valve—O/B terminal is energized in heating

0—heat pump backup heat source is electric (factory setting)

1—heat pump backup heat source is fossil fuel

0—no external fossil fuel kit is controlling heat pump

backup heat. This thermostat controls the dual fuel. Must install outdoor sensor and set Installer Setup Number

Only shown if heat pump system is chosen.

Only shown if 2 heat/ 1 cool or 3 heat/2 cool heat pump is chosen

Only shown if fossil fuel is chosen as backup heat

source. 0340 to number 2. 1—external fossil fuel kit is controlling heat pump backup heat

0220 Cycles per hour (cph) for

1st Stage Compressor

0230 Cycles per hour (cph) for

2nd Stage Compressor

0240 Cycles per hour (cph) for

1st Stage Conventional Heat

3—cph recommended for compressors (factory setting) 1, 2, 4, 5, 6—

other cycle rate settings

3—cph recommended for compressors (factory setting) 1, 2, 4, 5, 6—other cycle rate settings

1— 1 cph used for steam and gravity 3—3 cph used for hot water system and high efficiency

(90% or better) furnaces 5—5 cph used for standard fossil fuel forced air (less than 80% efficient) systems (factory setting) 9—9 cph used for electric furnaces

—

Only shown if two stages

of cool are selected.

Not shown if system

selection is heat pump.

Selection in this stage

changes default cph for

2nd stage heat. 2, 4, 6, 7, 8, 10, 11, 12—other cycle rate settings

0250 Cycles per hour (cph) for

2nd Stage Heat (Aux Heat for 2H/1C Heat Pumps)

1—1 cph used for steam and gravity 3—3 cph for hot water systems and high efficiency (90%

or better) furnaces 5—5 cph for standard fossil fuel forced air (less than 90%

Only shown if two stages

of heat are selected.

efficient) systems (factory setting) 9—9 cph used for electric furnaces or electric auxiliary heat for heat pump systems 2, 4, 6, 7, 8, 10, 11, 12—other cycle rate settings

68-0280—01 16

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 3. Installer Setup Menu. (Continued)

Installer Setup

Number Installer Setup Name Settings Notes

0260 Cycles per hour (cph) for

3rd Stage Heat (Aux Heat for 3H/2C Heat Pumps)

1—1 cph used for steam and gravity 3—3 cph for hot water systems and high efficiency (90%

or better) furnaces 5—5 cph for standard fossil fuel forced air (less than 90%

Only shown if 3H/2C heat pump is selected.

efficient) systems (factory setting) 9—9 cph used for electric furnaces or electric auxiliary heat for heat pump systems 2, 4, 6, 7, 8, 10, 11, 12—other cycle rate settings

0270 Cycles per hour (cph) for

Em Heat

3—3 cph for hot water systems and high efficiency (90% or better) furnaces 5—5 cph for standard fossil fuel forced air (less than 90%

Only shown if 2H/1C or 3H/2C heat pump is

selected. efficient or better) systems 9—9 cph for electric strip heat for heat pumps

0280 Continuous Backlight 0—Backlight not on continuously. Thermostat backlight

comes on with each key press. 1—Backlight is on continuously (thermostat must have a common wire attached for this function).

Option is always shown;

however, continuously on

backlight works only if

thermostat is wired with

24 Vac Common.

0300 Changeover 0—manual changeover (factory setting)

— 1—auto changeover

0310 Deadband Heating and cooling setpoints can be set no closer than

chosen valu e:

2—2

F (1.5°C)

Shown only if automatic

changeover is selected.

3—3°F (2°C)

4—4

F (2.5°C)

5—5°F (3°C) 6—6°F (3.5°C)

7—7

F (4°C)

8—8°F (4.5°C) 9—9°F (5°C)

0320 Temperature Indication

Scale

0—fahrenheit temperature display (factory setting) 1—celsius temperature display

—

0330 Daylight Savings 1—daylight savings is on (factory setting).

0—daylight savings is off.

0340 Remote Temperature

Sensor (Outdoor or Indoor)

0—no remote temperature sensor 1— o u t d o o r t e m p e r a t u r e s e n s o r f o r d i s p l a y o n l y . 2—outdoor temperature sensor for control. Outdoor

sensor used for Heat Pump Lockout settings. (See Heat Pump Temperature Lockout section for more details.) 3—indoor temperature sensor

0350 Heat Pump Compressor

Lockout or (Balance

Point)

0—n o compr essor l o ckout .

F (-9.5°C)

F (-6.5°C)

F (-4°C)

F (-1°C)

F (1.5°C)

F (4.5°C)

F (7°C)

17 68-0280—01

Set to 0 in areas that do

not follow daylight

savings.

Defaults and Options

depend on System Type

selection.

Indoor Temperature

Sensor uses an averaging

network and does not

include on-board sensor.

Default depends on other

selections. Shown if

Outdoor Temperature for

control is selected. (See

Advanced Features

section for more

information.)

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 3. Installer Setup Menu. (Continued)

Installer Setup

Number Installer Setup Name Settings Notes

0360 Heat Pump Auxiliary

Lockout

0380 Indoor Dehumidification

Control

0—n o aux iliar y he at lock out . 40°F (4.5°C) 45°F (7°C)

F (10°C) 55°F (13°C) 60°F (15.5°C)

0—No indoor dehumidification control. 1—Dehumidification control activated.

Shown if electric is chosen for backup heat source and outdoor temperature sensor for control is selected. (See Advanced Features section for more information.)

Available on select models.

If dehumidification control is activated and autochangeover is selected in Installer Setup Number 0300, the deadband minimum is defaulted to

F (3°C) in Number

0310.

0500 Furnace Change

Reminder

0—furnace filter reminder off 1—10 run time days

Run time based on call for fan.

2—30 run time days 3—60 run time days 4—90 run time days 5—120 run time days 6—365 run time days

0510 Humidifier Pad

Replacement Reminder

0—humidifier pad replacement reminder off 1—9 0 c a l e n d a r d a y s

—

2—1 8 0 c a l e nd a r d ay s 3—365 calendar days

0520 UV Lamp Replacement

Reminder

0—UV lamp replacement reminder off 1—365 calendar days

—

0530 Adaptive Intelligent

Recovery™

1—Adaptive Intelligent Recovery™ control is activated (system starts early so setpoint is reached by start of program period). 0—Conventional Recovery (system starts recovery at programmed time)

0540 Number of Periods 2—two periods available (Wake and Sleep)

4—four periods available (Wake, Leave, Return and Sleep)

0580 Minimum Compressor

Off Time

5—five-minute compressor off-time setting (factory setting) 0, 2, 3, 4—other compressor off-time settings

0600 Heat Temperature

Range Stop

0610 Cool Temperature

Range Stop

40-90—temperature range (1°F increments) of heating setpoint.

50-99—temperature range (1°F increments) of cooling setpoint.

0640 Clock Format 12—12 hour clock (factory setting)

24—24 hour clock

—

Not shown if nonprogrammable is selected. 2 or 4 applies to all days of the week.

—

Shown in 1/2 °C.

—

68-0280—01 18

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 3. Installer Setup Menu. (Continued)

Installer Setup

Number Installer Setup Name Settings Notes

0650 Extended Fan OnTime

Heat

0660 Extended Fan On Time

Cool

0—no extended fan operation after call for heat ends 90— fan operation is extended 90 seconds after call for

heat ends.

0—no extended fan operation after call for cool ends 90—fan operation is extended 90 seconds after call for

Not shown if fan operation is set to fossil fuel or in Cool Only Systems

Not shown in Heat Only Systems.

cool ends.

0670 Keypad Lockout 0—unlocked keypad

1—partially locked keypad 2—fully locked keypad

Unlocked—all functions are available. Partially locked—only temperature up and down keys and ability to enter and modify Installer Setup m o d e a r e a v a i l a b l e . Fully locked—only ability to enter and modify Installer Setup mode are available.

0680 Temperature Control in

Heat

1—less aggressive temperature control (could cause temperature undershoot) 2—Standard temperature control in heating (factory

Applies to recovery ramp and use of auxiliary heat

during recovery. setting) 3—more aggressive temperature control (could cause temperature overshoot)

Choose 1 if getting

temperature overshoot.

0690 Temperature Control in

Cool

1—less aggressive temperature control (could cause temperature undershoot) 2—Standard temperature control in cooling (factory setting) 3—more aggressive temperature control (could cause temperature overshoot)

0700 Temperature Display

Offset

-3 —

F (-1.5°C)

-2 —°F (-1°C)

-1 —°F (-.5°C) 0 —°F (0. °C) — (no difference in displayed temperature

a nd ac t u al r oo m t em pe r a tu r e )

1 —°F (.5°C) 2 —°F (1°C 3 —°F (1.5°C)

0710 Reset Thermostat 0—no thermostat reset.

1—resets all Installer Setup Options to default values and

resets schedule to default setting.

Choose 3 if getting

temperature undershoot.

Applies to recovery ramp.

Choose 1 if getting

temperature overshoot.

Choose 3 if getting

temperature undershoot.

—

Only calendar settings

and time are retained.

19 68-0280—01

VisionPRO

CAUTION

8000 Touchscreen Programmable Thermostat

INSTALLER SYSTEM TEST

Use the Installer System Test to test the heating, cooling and fan (and emergency heat for heat pump systems).

Equipment Damage Hazard. Minimum compressor off time is bypassed during Installer System Test

Avoid cycling compressor quickly.

How to Use the Installer System Test

The Installer Test is part of the Installer Setup Menu.

1. Enter the Installer System Test by entering the Installer Setup.

2. Note that the test appears at the end of the Installer Setup Numbers.

3. See Fig. 30 to review how the thermostat buttons are used during the Installer System Test. See Table 6 for available Installer System Tests.

SYSTEM TEST NUMBER

DONE KEY

EXITS INSTALLER SYSTEM TEST

SYSTEM STATUS NUMBER

UP ARROW KEY

ADVANCES TO NEXT SYSTEM TEST NUMBER

UP ARROW

TURNS THE SYSTEM ON

DOWN ARROW

TURNS THE SYSTEM OFF

M22428

Installer System Tests

IMPORTANT

Use the Installer System Test to test the heating, cooling, fan and emergency heat. The setting you choose for System Type (Installer Setup Number 0170) may prevent some System Test Numbers from appearing.

System Test Number Test Type System Status Number and Description

Test 1 Cooling System Test 1—Cool stage 1 turns on.

Test 2 Fan System Test 1—Fan turns on.

Test 3 Heating System Test 1—Heat stage 1 turns on.

Test 4 Emergency Heat Test 1—Emergency heat turns on.

Fig. 30. Review thermostat buttons used during Installer

System Test.

Table 4. Installer System Test.

2—Cool stage 1 and stage 2 turn on. 0—Cool is off.

0—Fan turns off.

2—Heat stage 1 and stage 2 (aux heat) turn

on.

0—Heat is off.

2—Emergency heat and auxiliary heat turn on. 0—Emergency heat turns off.

Press the Next button to go to the beginning of the Installer Setup or press the Done button to exit the Installer System Test.

68-0280—01 20

VisionPRO

OCK

edule

M22444

FAN

SELECTS ON/AUTO/CIRC

SYSTEM

SELECTS EM. HEAT/HEAT/OFF/COOL

UP ARROW

RAISES TEMPERATURE

DOWN ARROW

LOWERS TEMPERATURE SETTING

SCHED

ENTERS SCHEDULING MODE

SHOWS ADDITIONAL ACCESSORY AND MAINTENANCE OPTIONS

SCREEN

LOCKS OUT THE SCREEN TO ALLOW FOR CLEANING

CLOCK

SETS THE TIME FORWARD OR BACK

HOLD

SETS A PERMANENT HOLD AND ACTIVITIES VACATION HOLD

DLOCK

edule

M22239

FAN

SHOWS FAN SETTING

TUE

SHOWS CURRENT DAY OF THE WEEK

SYSTEM

SHOWS CURRENT SYSTEM POSITION

TIME

DISPLAY CURRENT TIME OF DAY, HOLD TIME REMAINING OR NUMBER OF VACATION DAYS REMAINING

INSIDE TEMPERATURE

SHOWS THE CURRENT INSIDE TEMPERATURE

SET TO TEMPERATURE

SHOWS THE CURRENT SET

FOLLOWING SCHEDULE

SHOWS THE THERMOSTAT IS FOLLOWING THE PROGRAMMED SCHEDULE

8000 Touchscreen Programmable Thermostat

OPERATION

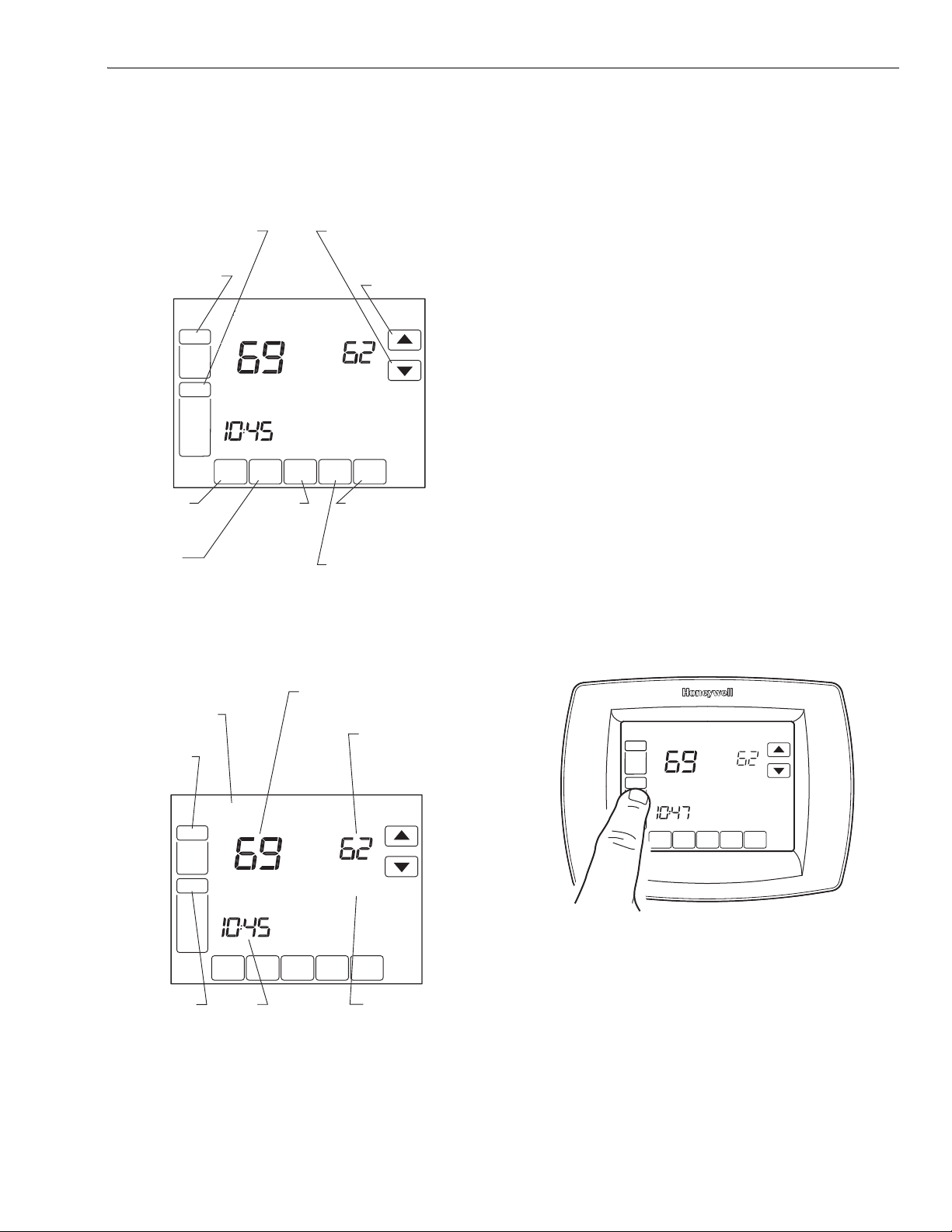

Thermostat Keys

AUT

YSTE

HEDHOLDL

t T

Followin

REENMOR

ETTIN

System and Fan Settings

System

The System key selections vary based on your heating and/or cooling system type.

Heat — Thermostat controls the heating system. Off — Both heating and cooling systems are off. Cool — Thermostat controls the cooling system. Auto — Thermostat automatically changes between heating

and cooling operation, depending on indoor temperature. Em. Heat — Emergency heat cycles to maintain temperature. Compressor is locked out (used only for 2H/1C or 3H/2C heat pump systems) and auxiliary heat turns on as second stage if needed.

Fan

The Fan key selections vary based on the heating and/or cooling system type.

On — Fan runs continuously. Use this setting for improved air circulation or for more efficient central air cleaning.

Auto — fan follows the fan program schedule. Circ — fan runs randomly approximately 35% of the time.

Use this setting for improved air circulation or for more efficient central air cleaning when you do not want the fan running continuously.

Thermostat Display

Insi

AUT

YSTE

et T

Followin

REENMOR

TEMPERATURE

User Setup

Follow these steps to enter the User Setup:

1. Press and release the System key.

FAN

Inside

AUTO

SYSTEM

EM HEAT

OFF

COOL

SCHED HOLD CLOCK SCREE

THU

Set To

Following Schedule

A M

M22426

21 68-0280—01

VisionPRO

CANCEL

TUE

SYSTEM

EM HEAT

CHANGE FILTER UV LAMP HUMIDIFIER PAD

Following Schedule

Inside

Set To

M22439

M22440

8000 Touchscreen Programmable Thermostat

2. Press and hold the center blank key for approximately five seconds until the screen changes.

DON

3. Release the center blank key when the screen on the thermostat matches the screen below.

4. See the screen below to review how the thermostat keys are used during the User Setup. See Table 5 for the User Setup numbers and settings.

ADVANCE TO NEXT

USER SETUP NUMBER

PRESS TO EXIT USER SETUP

USER SETUP

CURRENT SETTING

CHANGE THE CURRENT SETTING

M19922

5. Press the Done key to exit the User Setup screen.

Table 5. User Setup Settings.

DONE

User

Setup

Number

0120 Date (first two

User Setup

Name Settings

Select first two digits of

digits of year)

current calendar year (20 for year 2005, etc)

0130 Date (last two

digits of year)

Select last two digits of current calendar year (05 for year 2005, etc)

0140 Date (month) Select number of current

calendar month (1-12)

0150 Date (day) Select number of current

calendar date (1-31)

0160 Schedule options 0—Non-programmable

4—7-day programmable (factory setting)

0320 Display

temperature in °F or °C

0330 Daylight savings

time

0—°F setting (factory setting)

1—°C setting

1—Daylight savings is on

(factory setting) 0—Daylight savings is off

68-0280—01 22

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 5. User Setup Settings.

User

Setup

Number

User Setup

Name Settings

0500 Furnace air filter 0—off (factory setting)

1—10 fan run time days (about one month) 2—30 fan run time days (about three months) 3—60 fan run time days (about six months) 4—90 fan run time days (about nine months) 5—120 fan run time days (about one year) 6—365 fan run time days (about three years)

0510 Humidifier pad

reminder

0—off 1—3 months 2—6 months 3—12 months

0520 UV lamp reminder 0—off (factory setting)

1—1 year

0540 Number of

schedule periods available

2—two (Wake and Sleep) 4—four (Wake, Leave, Return, Sleep)—factory setting

0640 Clock format 12—12-hour clock

(factory setting) 24—24-hour clock

0670 Screen lockout 0—all keys available;

screen is unlocked (factory setting) 1—screen is partially locked. All key functions locked except Temperature Up and Down keys and Cancel key. 2—screen is fully locked

PROGRAMMING

Preprogrammed Energy-saving Settings

Table 6 shows default program settings.

Table 6. Energy-saving Default Program Settings.

(21

62°F (16.5

(21°C)

62°F (16.5

Setpoints

78 (25.5

(29.5

78°F (25.5°C)

(28

Fan

SettingHeat Cool

Auto

Schedule

Period Time

Wake 6:00AM

Leave 8:00AM

Return 6:00PM

Sleep 10:00PM

Program Heating and Cooling Schedule

Your thermostat can control up to four different schedule periods per day: Wake—Period when you awaken and want your home at a comfortable temperature. Leave—Period when you are away from home and want an energy-saving temperature. Return—Period when you return home and want your home back to a comfortable temperature. Sleep—Period when you are asleep and want an energysaving temperature.

NOTE: Schedule times are in 15-minute intervals.

23 68-0280—01

VisionPRO

SCHED

HOLD

SCHED

HOLD

8000 Touchscreen Programmable Thermostat

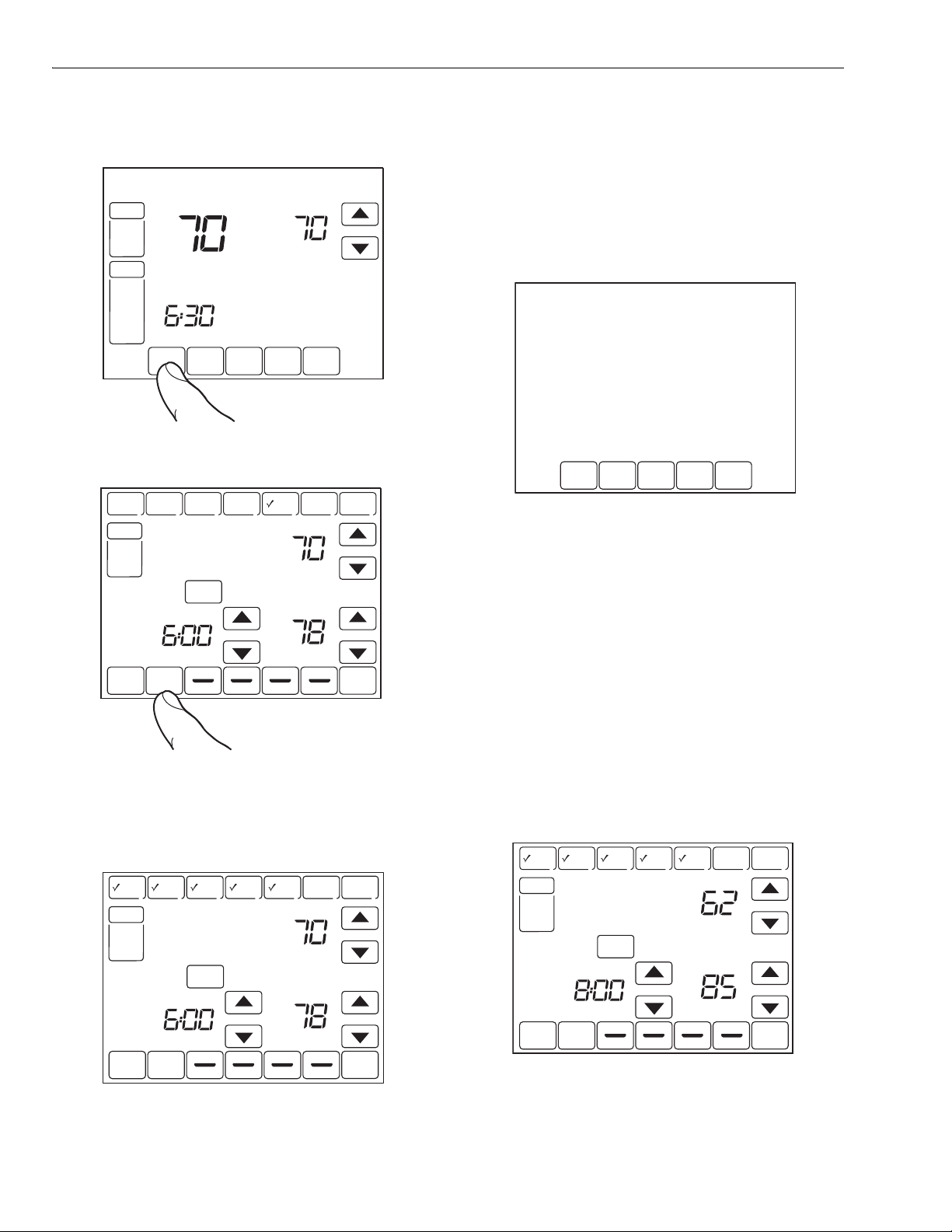

Edit Schedule

1. Press Sched key.

FRI

FAN

Inside

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN

2. Press Edit key.

TUE WED THU FRI SAT SUN

MON

OK TO PICK MULTIPLE DAYS SCREEN LOCKED

FAN

Inside

AUTO

SCHED

EDIT

CANCEL PERIOD

HOLD

WAKE

SYSTEM

EM HEAT

HEAT

OFF COOL AUTO

DONE

3. It is OK to pick multiple days. Select any combination of days to edit. These days are scheduled with the same times and temperatures. Check marks appear next to days selected.

TUE WED THU FRI SAT SUN

MON

OK TO PICK MULTIPLE DAYS

FAN

AUTO

CIRC

CANCEL

PERIOD

DONE WAKE LEAVE RETURN SLEEP CANCEL

4. Press Wake key. Once pressed, Wake flashes to show it is selected.

5. Press Up and Down keys to modify time and heat and cool temperatures from this screen.

68-0280—01 24

Set To

Following Schedule

M22445

Set To

Following Schedule

CLOCK SCREEN

LEAVE RETURN SLEEP CANCEL

HEAT

COOL

M22553

HEAT

COOL

M19955

NOTE: The Fan setting can be programmed for On, Auto, or

Circ for each period selected. See Fan Schedule section for more information.

6. Press Leave key and repeat step 5.

7. Press Return key and repeat step 5.

8. Press Sleep key and repeat step 5.

9. When complete, press Done key. “Saving Changes”

appears on the screen to indicate changes are being saved to the day(s) modified.

TUE WED THU FRI

MON

SAVING

CHANGES

M19956

NOTE: To set a Program Schedule for the remaining days of

the week, repeat steps 1-9. Example: If Mon - Fri was selected first, go back and repeat steps 1-9 for Sat and Sun.

10. To exit schedule without saving changes, press Cancel key any time.

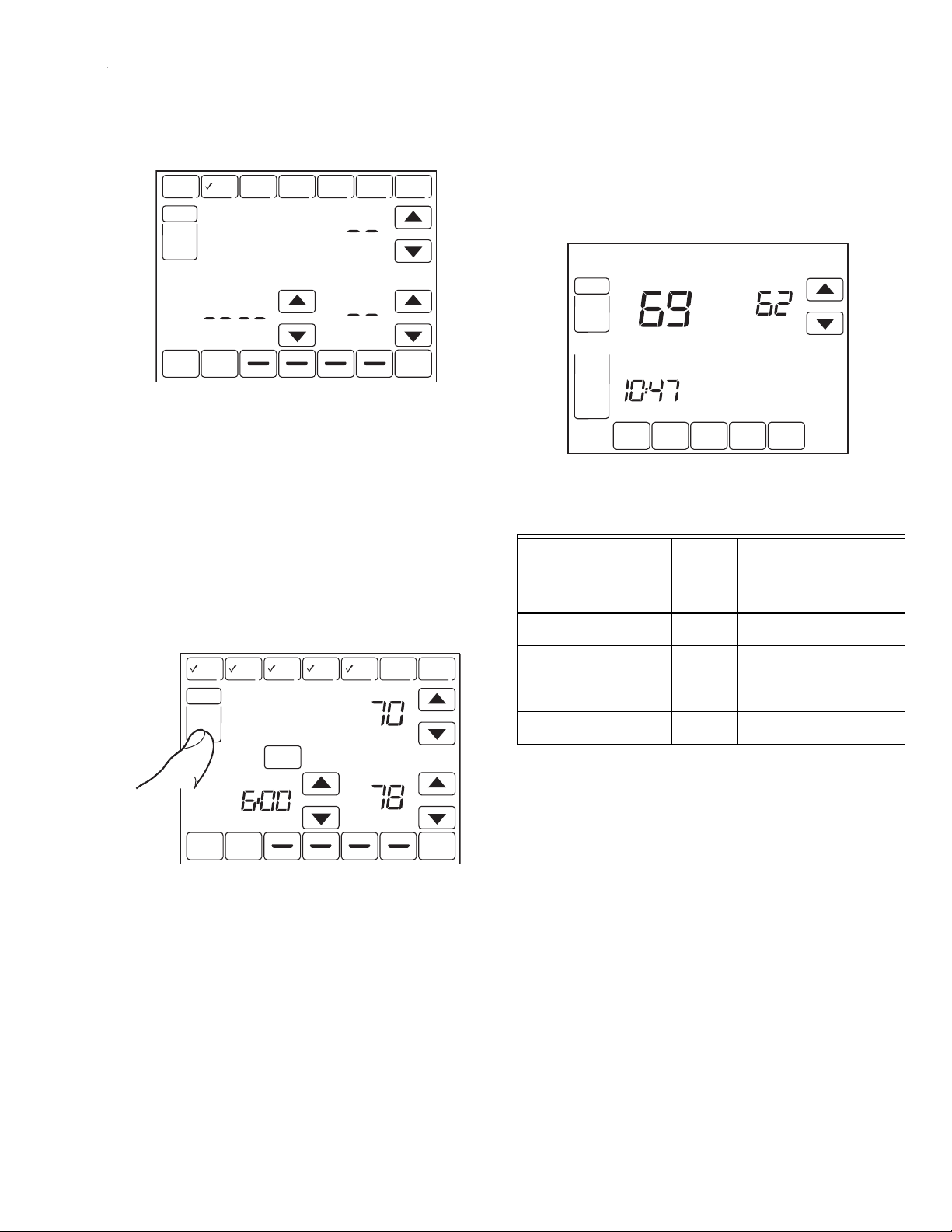

Cancel a Schedule Period

1. Press Sched key.

2. Press Edit key.

3. Select the Day(s) of the week desired.

4. Press schedule period you want to cancel (Wake,

Leave, Return or Sleep). Once selected, the period flashes.

5. Press Cancel Period key.

TUE WED THU FRI SAT SUN

MON

OK TO PICK MULTIPLE DAYS SCREEN LOCKED

FAN

Inside

AUTO

SCHED

CANCEL PERIOD

HOLD

WAKE

SYSTEM

EM HEAT

HEAT

OFF COOL AUTO

DONE

6. The time, temperature(s) and fan setting disappear. The bar above the selected period is removed, indicating the scheduled period was cancelled.

Set To

Following Schedule

CLOCK SCREEN

LEAVE RETURN SLEEP CANCEL

HEAT

COOL

M22446

VisionPRO

SCHEDSCHED HOLDHOLD CLOCK SCREEN

DONE

WAKE

LEAVE RETURN SLEEP CANCEL

MON

TUE WED THU FRI SAT SUN

PMPM

FAN

AUTO

SYSTEM

EM HEAT

HEAT

OFF

COOL

AUTO

CANCEL PERIOD

HEAT

COOL

Following

Schedule

Inside

Set To

OK TO PICK MULTIPLE DAYS SCREEN LOCKED

M22447

8000 Touchscreen Programmable Thermostat

NOTE: To reinstate a schedule period, press arrow keys to

set desired time and temperatures.

TUE WED THU FRI SAT SUN

MON

OK TO PICK MULTIPLE DAYS

FAN

HEAT

COOL

DONE WAKE LEAVE RETURN SLEEP CANCEL

M19957

7. Press Done key.

Fan Schedule

Press Fan key while in the Scheduling Screen to program the System Fan. Choices available from the Scheduling Screen: Auto (default position)—fan runs with equipment. Programmable for all schedule periods (Wake, Leave, Return and Sleep). On—fan runs continuously (programmable for all schedule periods). Circ—fan runs randomly for approximately 35% of schedule period (programmable for all schedule periods).

Fan Control (Table 7)

If the Fan program is scheduled, Auto is shown and any programmable mode that is set; for example, if during Wake period, Fan is set to Auto, only Auto is shown in the Fan area. However, if during the Wake period, fan is scheduled to On, both Auto and On are shown. Auto indicates fan is running its schedule; On indicates Fan schedule is set to On.

THU

FAN

Inside

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN

Table 7. Fan Program Operation and Screen Status.

Fan

Setting

Program

Schedule

Auto Auto None None Auto

Call

for

Action

Set To

Energize Ter min al

Following

Schedule

M19962

Fan

Status

shown on

Screen

Auto On Fan G Auto/On

Auto Circ None None Auto/Circ

Auto Circ Fan G Auto/Circ

25 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

Manual Override of Fan Schedule (Table 8)

Auto—fan is automatically following the Fan schedule (choices are Auto, On or Circulate).

On—overrides Fan schedule. Fan is continuously On. Circ—overrides Fan schedule. Fan circulates randomly for

approximately 35% of time until the Auto position is selected.

Table 8. Manual Override of Fan Schedule Operation.

Screen

Fan

Setting

Auto On Fan G On

Auto Circ None None Circ

Auto Circ Fan G Circ

Schedule

Override

Setting

Auto

Call

for

Action

—— —

Energize Terminal

On Circ None None Circ

On Circ Fan G Circ

Circ

Auto

—— —

Circ On Fan G On

Auto Override resumes the Fan Program in each schedule

period (Wake, Leave, Return and Sleep)

Message

Under

Fan

Setting

Operate VisionPRO™ 8000 Touchscreen

Set Time

1. Press Clock.

2. Use arrows to set current time.

TUE

DONE CANCEL

M19958

3. Press Done key.

IMPORTANT

The current day of the week should already be set correctly. If not, see Installer Setup to set the day.

Set Temperature Overrides

The thermostat has three temperature override options: Hold Temperature Until, Permanent Hold and Vacation Hold.

HOLD TEMPERATURE UNTIL (TEMPORARY HOLD)

Holds temperature temporarily until the next scheduled period time or until the time the user sets.

1. Press Up or Down arrow next to the temperature you want to adjust. “Hold Temperature Until” time appears on the screen. The Hold Temperature Until time defaults to the start time of the next scheduled period.

NOTE: The Time Up and Down arrows are shown for

approximately seven seconds. Pressing on the screen time (where the Hold Temperature Until time is shown) allows the arrows to reappear.

68-0280—01 26

VisionPRO

SCHED CLOCK SCREEN

CANCEL

THU

FAN

AUTO

SYSTEM

HEAT

Inside

DAYS

Hold Temperature

Until

Set To

M19961

8000 Touchscreen Programmable Thermostat

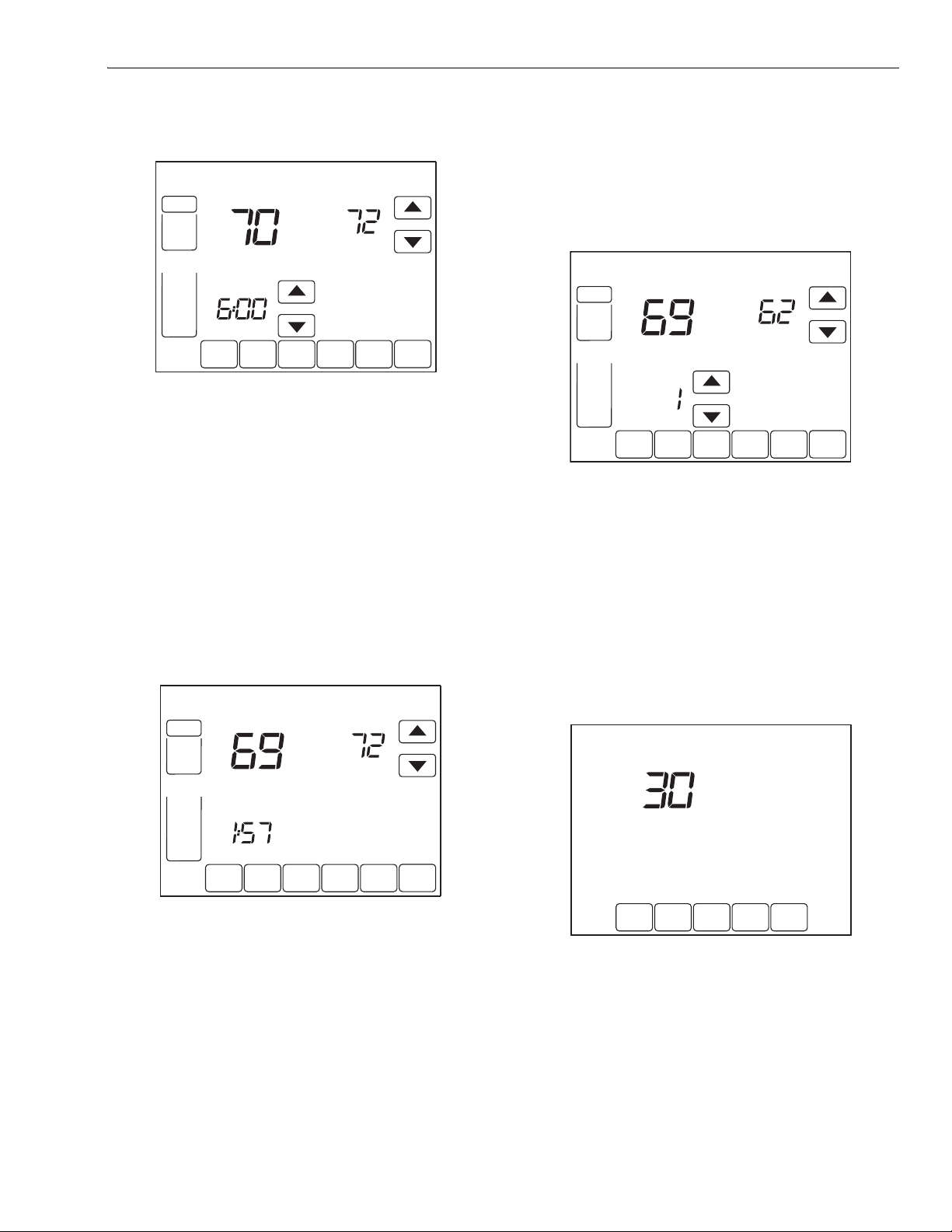

2. Press Up or Down arrow next to the Time key to set desired time for the thermostat to resume schedule.

TUE

FAN

Inside

AUTO

SYSTEM

Hold Temperature

HEAT

Until

SCHED HOLD CLOCK SCREEN

Set To

CANCEL

M19959

3. Press the Cancel or Sched key to cancel “Hold Temperature Until” and resume schedule.

NOTE: Once “Hold Temperature Until” time is reached, the

thermostat shows “Following Schedule” on the screen to indicate that “Temporary Hold” has ended.

PERMANENT HOLD

Permanent Hold changes the temperature setting until Permanent Hold is cancelled.

1. Press Hold key. “Permanent Hold” appears on the screen.

2. Press Up or Down arrow next to the temperature you want to set during “Hold.”

TUE

3. Press Up and Down arrow keys to change the number of Days you desire thermostat to override the schedule.

NOTE: Days Up and Down arrows appear for approximately

seven seconds. Pressing just below Hold Temperature Until on the screen allows the Days Up and Down arrows to reappear.

4. To cancel the Vacation Hold override early, press the Cancel key.

NOTE: When the number of days of Vacation Hold expires,

the screen shows “Following Schedule” to indicate that Vacation Hold has ended.

Clean Thermostat Screen

The thermostat has a touch screen interaction. Follow these steps to clean the screen without making thermostat changes:

1. Press the Screen key. Thermostat locks out all touch keys for 30 seconds to allow for cleaning.

VACATION HOLD

Changes temperature setting for a designated number of days.

FAN

Inside

AUTO

SYSTEM

HEAT

Permanent

Hold

SCHED HOLD CLOCK SCREEN

Set To

CANCEL

M19960

3. Press Cancel key to cancel “Permanent Hold” and resume the schedule.

1. Press the Up and Down arrow keys to set the desired temperature while away on vacation. Notice that “Hold Temperature Until” time is shown on the screen. (This is the time the Vacation Hold override expires after the number of days ends.)

2. Press Hold key twice. Screen shows “Hold Temperature Until” one day.

OK TO

CLEAN

SCREEN

M19964

2. Use damp cloth slightly moistened with water or household glass cleaner to clean the screen.

3. Repeat the above steps, as necessary.

IMPORTANT

Do not spray any type of liquid directly on the thermostat itself. If using household glass cleaner, spray cleaner on cloth. Then use a cloth to clean the thermostat screen.

4. Press the Done key to return to the Home Screen and normal operation.

27 68-0280—01

VisionPRO

M19963

M22430

WALL

M22213

PINS ON

BACK OF

THERMOSTAT

WALLPLATE

TERMINAL SCREW BLOCK

8000 Touchscreen Programmable Thermostat

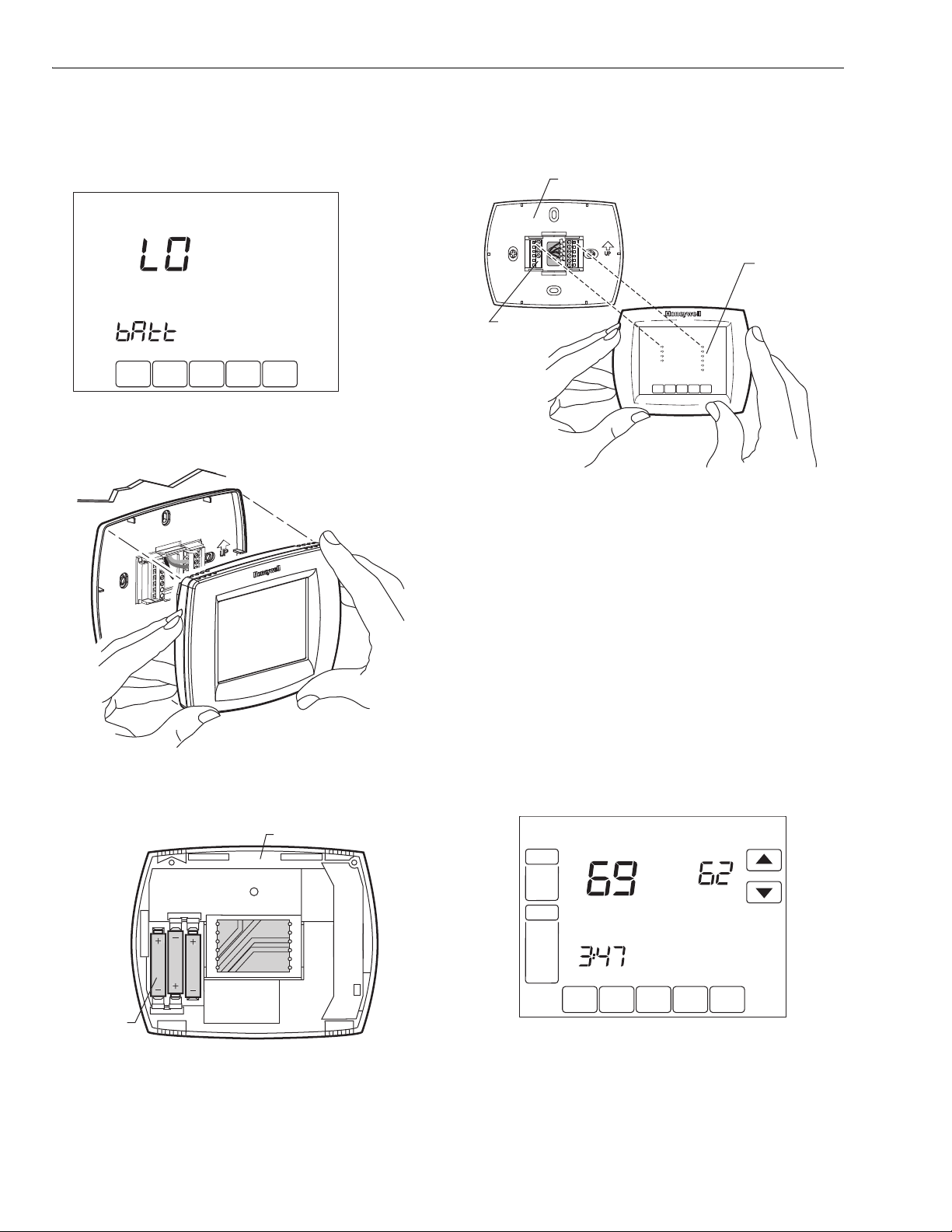

Replace Batteries

1. When the LO Battery indicator is flashing, replace the batteries promptly with three fresh AAA alkaline batteries

2. Remove thermostat from the wallplate by pulling straight out.

4. Align the screw blocks with the pins on the back of the thermostat.

5. Push the thermostat straight onto the wallplate until it snaps into place.

3. Remove the old batteries and insert three fresh AAA alkaline batteries, as marked on the thermostat.

BACK OF THERMOSTAT

BATTERIE

(3)

M22212

Battery Tips

1. Replace the batteries as soon as LO Batt flashes in the display. The LO Battery indicator flashes in the display one month before the batteries run down completely.

2. Always use fresh AAA alkaline batteries. Non-alkaline batteries do not last as long and can leak, causing thermostat damage.

3. Although the thermostat has a Low Battery indicator, replace the batteries once a year to prevent the thermostat and heating/cooling system from shutting down due to lack of battery power.

Screen Locks

TUE

FAN

Inside

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

SCREEN LOCKED

Set To

Following

Schedule

M19965

68-0280—01 28

VisionPRO

SCHED HOLD CLOCK SCREEN MORE

SYSTEM

HEAT

Following Schedule

Outside

M22453

SCHED

HOLD

SCHED HOLD CLOCK SCREEN MORE

AUTO

SYSTEM

HEAT

RESET

UV LAMP HUMIDIFIER PAD

Following

Schedule

M19975

8000 Touchscreen Programmable Thermostat

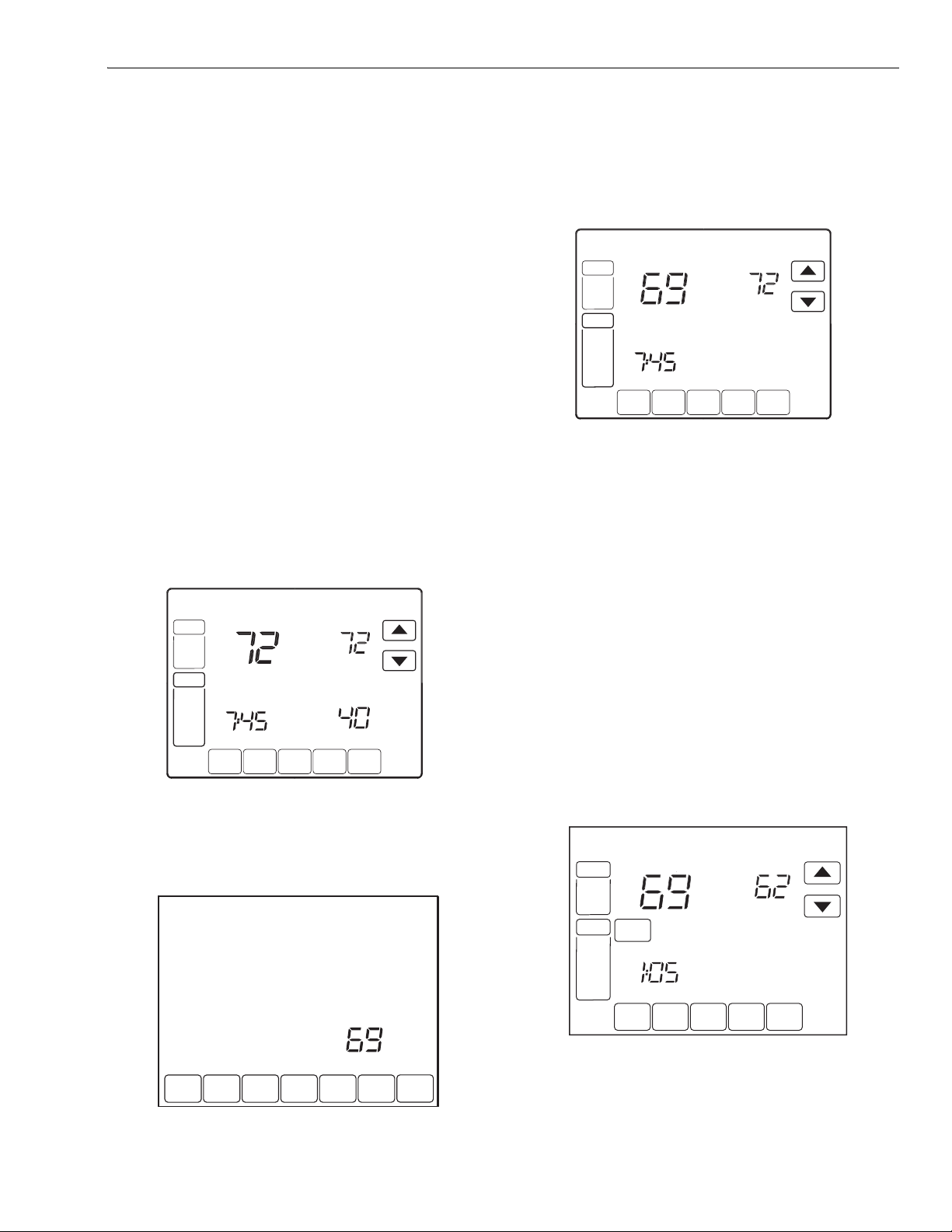

Partially Locked Screen

When partially locked, the screen indicates Screen Locked for 5 to 7 seconds whenever the user attempts to press a key that is locked. Pressing a locked key, while Screen Locked is shown, flashes “Screen Locked” on the screen.

In this mode, all keys are locked except the Temperature Up and Down arrow keys:

— User can change temperature up or down but cannot

change schedule settings.

— Temporary temperature change lasts until next scheduled

period and that time shows on screen.

— To cancel temperature override and begin following

schedule, press Cancel key.

— To unlock screen, see Installer Setup section.

Fully Locked Screen

In this mode, all keys are locked and not functional. To unlock screen, see Installer Setup section. The screen continuously displays “Screen Locked.”

Outdoor Temperature

If an outdoor temperature sensor is installed, the thermostat displays the outside temperature in the lower right corner of the Home Screen.

Remote Indoor Temperature

If a remote indoor temperature sensor is installed, the thermostat displays the inside temperature on the screen from the remote sensor(s).The thermostat internal temperature sensor is not used.

Insi

AUT

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

ONE REMOTE INDOOR SENSOR INSTALLED (OPTIONAL)

If one remote indoor temperature sensor is used, the screen showing the Inside temperature reading shows the temperature at the indoor remote sensor location. The thermostat internal temperature sensor is not used.

t T

Heat

Following

Schedule

M19974

Insi

AUT

t T

If thermostat is set to Auto Changeover System mode, press the More key until the outside temperature is shown on the screen.

TUE WED THU FRI SAT SUN

MON

MULTIPLE REMOTE INDOOR SENSORS INSTALLED (OPTIONAL)

If more than one remote indoor sensor is used, the screen showing Inside temperature reading shows the average of all the remote indoor sensors. The thermostat internal temperature sensor is not used.

Indoor Air Quality Reminders

Filter Change Reminder

The filter change reminder must be turned on from the Installer Setup. Once expired, the screen flashes, “Change Filter” and a Reset key appears. Press the Reset key to reset the change reminder.

K TO PICK MULTIPLE DAYS SCREEN LOCKE

HAN

Insi

et T

Outside

SCHED

HOLD

CLOCK SCREEN

DONE

WAKE

LEAVE RETURN SLEEP CANCEL

M22448

NOTE: The days are counted as fan run time, so anytime

the fan is running, the reminder is counting that time against the number of days selected.

29 68-0280—01

VisionPRO

SCHED

HOLD

SCHED

HOLD

SCHED

HOLD

SCHED

HOLD

8000 Touchscreen Programmable Thermostat

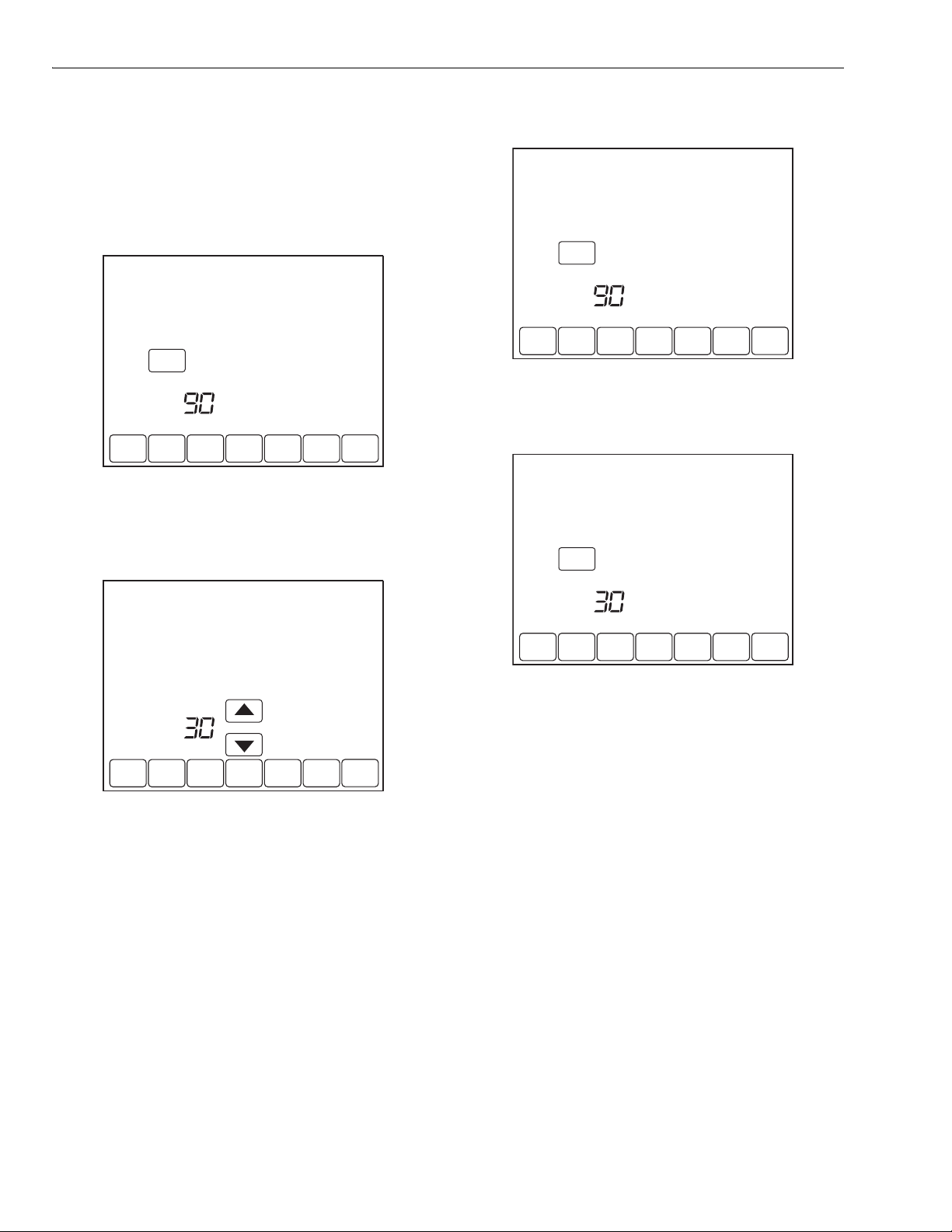

The remaining run time days can be viewed by pressing the More key; the remaining days can be edited using the More key or from the Installer Setup. To view or reset the reminder before it expires, follow these steps using the More key:

1. Press the More key until the filter reminder appears on the screen. This is the number of fan run-time days remaining on the filter reminder.

TUE WED THU FRI SAT SUN

MON

CHANGE FILTER UV LAMP HUMIDIFIER PAD

RESET

DAYS

SCHED

HOLD

CLOCK SCREEN MORE

DONE

WAKE

LEAVE RETURN SLEEPEDIT CANCEL

M22449

2. Press the Edit key.

3. Use the Up and Down keys to change the number of

run-time days.

4. Press the Done key to go back to the viewing screen.

TUE WED THU FRI SAT SUN

MON

CHANGE FILTER UV LAMP HUMIDIFIER PAD

RESET

DAYS

SCHED

HOLD

CLOCK SCREEN MORE

DONE

WAKE

LEAVE RETURN SLEEPEDIT CANCEL

M22449

5. Press the Reset key to activate the new number of days selected in the previous screen.

TUE WED THU FRI SAT SUN

MON

CHANGE FILTER UV LAMP HUMIDIFIER PAD

RESET

TUE WED THU FRI SAT SUN

MON

CHANGE FILTER UV LAMP HUMIDIFIER PAD

DAYS

SCHED

HOLD

CLOCK SCREEN

DONE

WAKE

LEAVE RETURN SLEEP CANCEL

M22450

DAYS

SCHED

HOLD

CLOCK SCREEN MORE

DONE

WAKE

LEAVE RETURN SLEEPEDIT CANCEL

M22451

6. Press the Done key to return to the Home screen.

68-0280—01 30

VisionPRO

8000 Touchscreen Programmable Thermostat

Humidifier Pad Reminder

The Humidifier Pad change reminder must be turned on from the Installer Setup. Once expired, the screen flashes, “Change Humidifier Pad” and a Reset key appears. Press the Reset key to reset the change reminder.

The remaining calendar days can be viewed by pressing the More key. The remaining days can be edited using the More key or from the Installer Setup. To view or reset the reminder before it expires, follow these steps using the More key:

1. Press the More key until the Humidifier Pad change reminder appears on the screen. This is the number of calendar days remaining on the Humidifier Pad reminder.

2. Press the Edit key.

3. Use the Up and Down keys to change the number of

calendar days.

4. Press the Done key to go back to the viewing screen.

5. Press the Reset key to activate the new number of days

selected in the previous screen.

6. Press the Done key to return to the Home Screen.

UV Lamp Reminder

The UV Lamp change reminder must be turned on from the Installer Setup. Once expired, the screen flashes, “Change UV Lamp” and a Reset key appears. Press the Reset key to reset the change reminder.

1. Press the More key until the UV Lamp change reminder appears on the screen. This is the number of calendar days remaining on the UV Lamp reminder.

2. Press the Edit key.

3. Use the Up and Down keys to change the number of

calendar days.

4. Press the Done key to go back to the viewing screen.

5. Press the Reset key to activate the new number of days

selected in the previous screen.

6. Press the Done key to return to the Home Screen.

Temperature Recovery

The thermostat feature, Adaptive Intelligent Recovery™, eliminates all guesswork when setting the thermostat schedule.

Simply set the program schedule to the time that the comfort temperature is desired. The thermostat then turns on the heating or cooling at just the right time to have the home reach the scheduled temperature at the scheduled time.

For example—get up at 6:00 AM and want the temperature to be 70°F. Set the Wake period for 6:00 AM and 70°F. The thermostat then turns on the heat before 6:00 AM to raise the temperature to 70°F by 6:00 AM.

The thermostat alerts that the heating or cooling system is coming on before a scheduled time by showing “Recovery” on the screen.

TUE

FAN

Inside

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

Set To

Following Schedule

Recovery

M22301

NOTE: It takes about a week for the thermostat to adjust to

local weather, the schedule, the construction of the home and the heating and/or cooling system. Each day it adjusts the next day’s recovery start time accordingly.

P+I Control

The thermostat microprocessor-based control requires that the user understands temperature control and thermostat performance. A conventional mechanical or electronic thermostat does not control temperature precisely at setpoint. Typically there is an offset (droop) in the control point as the system load changes. This is a phenomenon that most people in the industry know and accept. Many factors contribute to offset including switch differential, thermal lag, overshoot, cycle rates and system load.

The thermostat microprocessor simultaneously gathers, compares and computes data. Using this data, it controls a wide variety of functions. The special proprietary algorithm (program) in the thermostat eliminates the factors causing offset. This makes temperature control more accurate than the conventional mechanical or electronic thermostats. The temperature control algorithm is called proportional plus integral (P+I) control.

The thermostat sensor, located on the thermostat or remote, senses the current space temperature. The proportional error is calculated by comparing the sensed temperature to the programmed setpoint. The deviation from the setpoint is the proportional error.

The thermostat also determines integral error, which is a deviation based on the length of error time. The sum of the two errors is the (P+I) error. The cycle rate used to reach and maintain the setpoint temperature is computed using the P+I. The additon of the integral error is what differentiates the thermostat from many other electronic and mechanical thermostats. See Fig. 31.

31 68-0280—01

VisionPRO

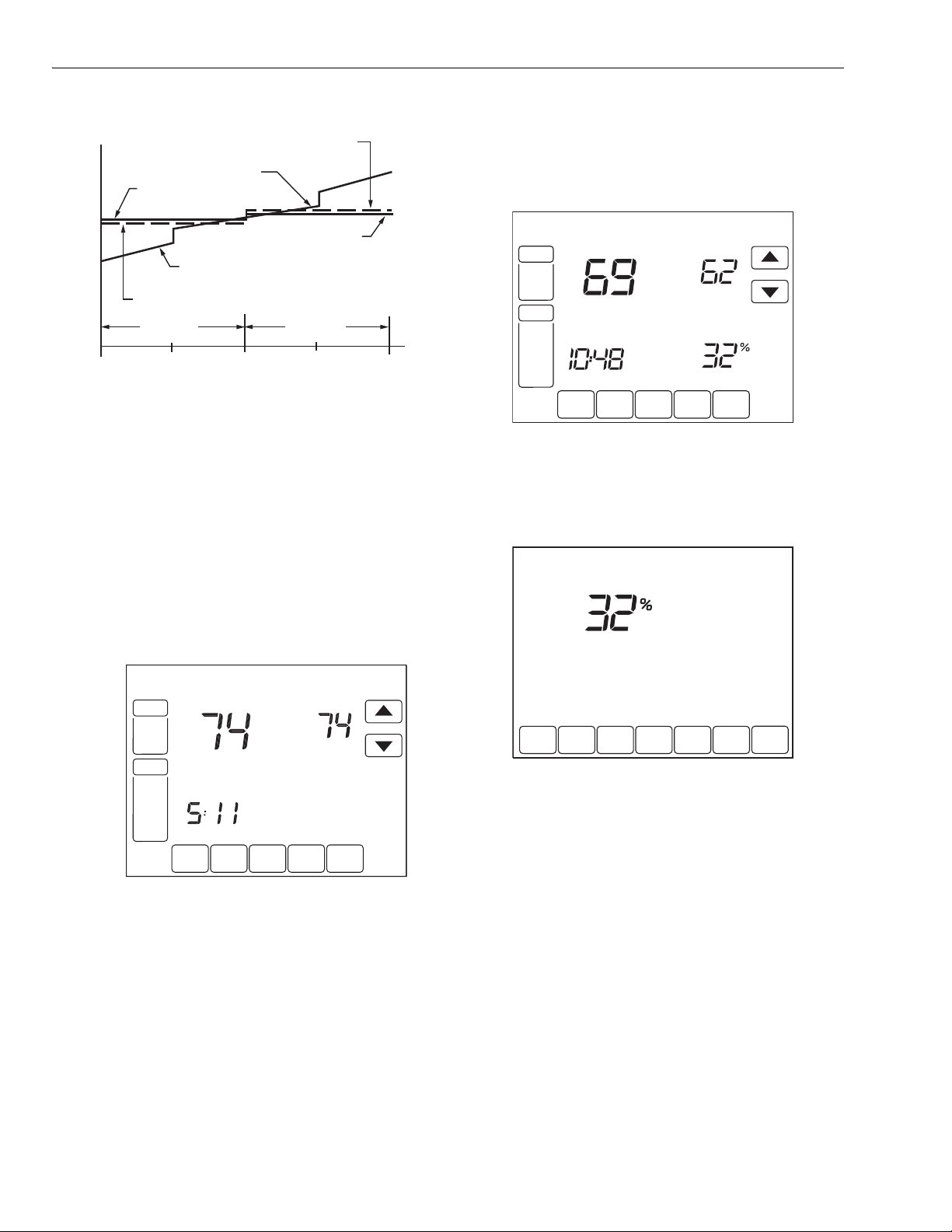

HEATING

COOLING

PERCENT LOAD

TEMPERATURE

THERMOSTAT HEAT SETPOINT

P+I CONTROL POINT

PROPORTIONAL COOL CONTROL POINT

THERMOSTAT COOL SETPOINT

P+I CONTROL POINT

PROPORTIONAL HEAT CONTROL POINT

M4414

100 50 0 50 100

OCK

edule

SCHED

HOLD

8000 Touchscreen Programmable Thermostat

Inside Humidity Level

Select models can sense the humidity level in the home. The humidity level in the home is shown in the lower right corner of the Home Screen.

TUE

FAN

AUTO

Inside

Set To

Fig. 31. Proportional temperature control versus P+ I

temperature control.

Minimum Off-Timer

The Thermostat has built-in compressor protection (minimumoff timer) that prevents the compressor from restarting too early after a shutdown.

The minimum-off timer is activated after the compressor turns off.

If there is a call during the minimum-off timer, the thermostat shows “Wait” in the display.

Insi

AUT

YSTE

et T

Waitoo

Followin

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

Following

Schedule

Humidity

M19966

If thermostat is set to Auto Changeover System mode, press the More key until the humidity level is shown on the screen.

TUE WED THU FRI SAT SUN

MON

Inside

SCHED

HOLD

CLOCK SCREEN

DONE

WAKE

LEAVE RETURN SLEEP CANCEL

M22452

HEDHOLDL

When the minimum-off timer expires, “Cool On” or “Heat On” appears solidly in the display and the compressor and fan turn on.

_________

68-0280—01 32

Heat Pumps only.

REENMOR

222

VisionPRO

DONE CANCEL

DEHUMIDIFIER

Inside

Humidity

M19967

M19907

EQUIPMENT

MONITOR

L TO R

TO C

M22441

BALANCE POINT

COMPRESSOR ONLY

FOSSIL FUEL ONLY

OUTDOOR TEMPERATURE

8000 Touchscreen Programmable Thermostat

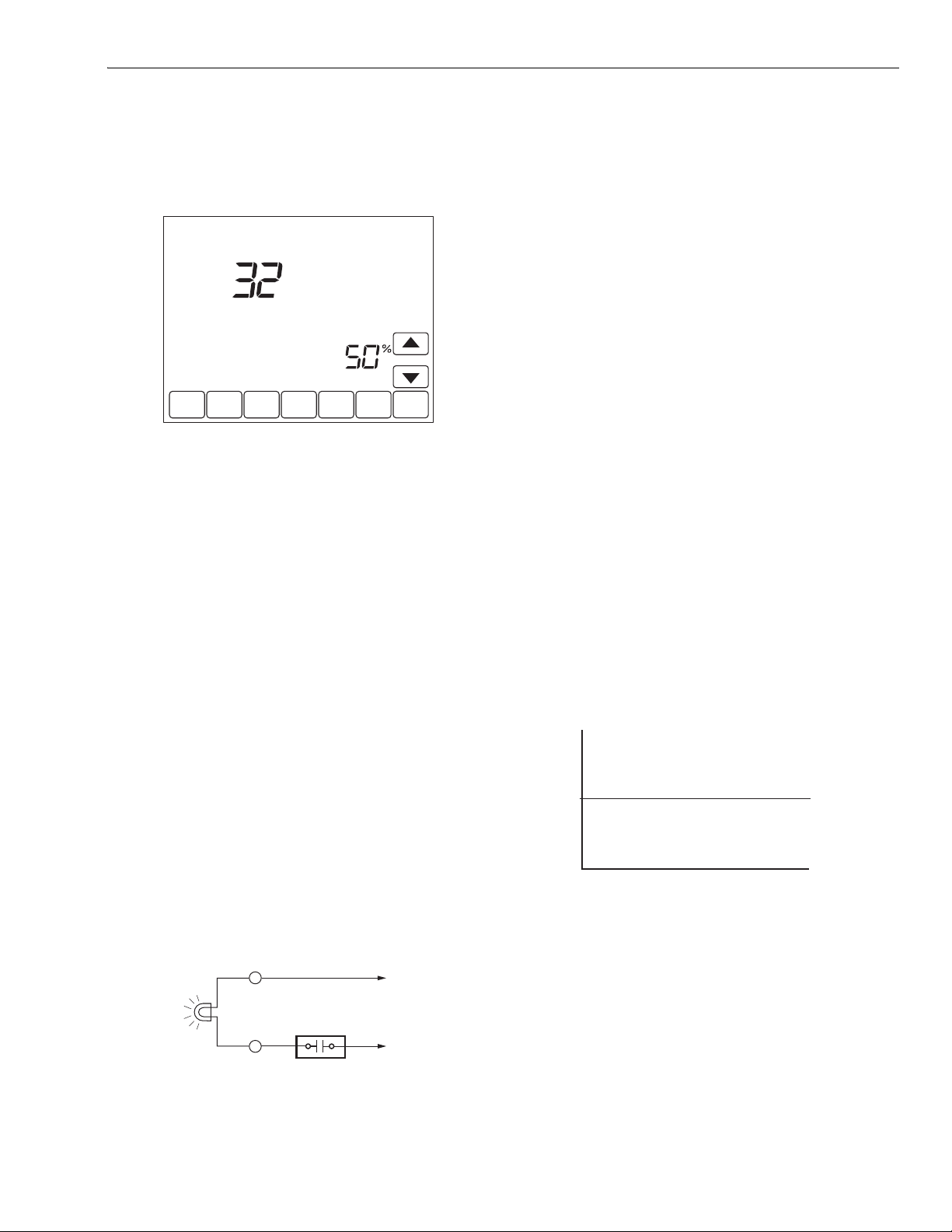

Control Dehumidification Setting (Select Models)

Select models read the inside humidity level and allow for a dehumidification setting:

1. Press the More key until the inside humidity percent and dehumidification setpoint are shown.

2. Use Up and Down arrow keys, located to the right of the dehumidifier setpoint, to set desired humidity level for dehumidification in the summer.

3. Press Done key.

Dehumidification Droop Control

The dehumidification control attempts to control to the user's humidity setpoint by turning on the air conditioner. In extremely high humidity conditions, the thermostat keeps the air conditioner running (energizing Y and G) for up to 3°F below the temperature setpoint. It does this while trying to achieve the desired humidity setpoint and balancing that with the temperature setpoint. The thermostat controls up to 3° F below the temperature setting until either the humidity is satisfied or conditions change.

Heat Pump Emergency Heat LED Indication (Requires 24 Vac Common Connection)

The thermostat uses a red LED indicator that lights when the thermostat is in the Emergency Heat mode. The LED is located in the upper right corner of the thermostat. It is visible only when on. When the thermostat is in the Em. Heat system mode, the L terminal is continuously energized and the LED is on.

Heat Pump Temperature Lockouts

Dual Fuel Heat Pump and Outdoor Temperature Sensor

In this operation, there is no external fossil fuel kit (dual fuel kit) installed; the thermostat controls this function.

1. Choose correct heat pump application in Installer Setup Number 0170.

2. Choose Fossil Fuel Option as the backup heat source in Installer Setup Number 0200.

3. Choose No External Fossil Fuel Kit Option is controlling back up heat in Installer Setup Number 0210.

4. Choose Outdoor Temperature Sensor for Heat Pump Temperature Lockouts Option in Installer Setup Num-

ber 0340.

5. Choose appropriate Balance Point Temperature in Installer Setup Number 0350.

OPERATION IN HEAT MODE ABOVE BALANCE POINT (OUTDOOR TEMPERATURE)

When the outdoor temperature is above the selected Balance Point Temperature (ISU 0350), only the compressor operates and the fan (G terminal) energizes when the thermostat calls for heat. See Fig. 33.

Special Heat Pump Operation

Heat Pump LED Indication (Requires 24 Vac Common Connection)

A red LED indication is located in the upper right corner of the thermostat. It is only visible when lighted.

When the L terminal is wired to an equipment monitor, the LED signals when a check or fail signal is sent to the thermostat from the system. This is operational in the Heat, Off, Cool or Auto positions. See Fig. 32.

Fig. 32. L terminal switch to R (power) side of system

transformer.

Fig. 33. Dual Fuel Heat Pump Operation in Heat mode with

Balance Point Set.

OPERATION IN HEAT MODE BELOW BALANCE POINT (OUTDOOR TEMPERATURE)

When the outdoor temperature is below the selected Balance Point Temperature (ISU 0350), only the Fossil Fuel (auxiliary heat) operates and the fan (G terminal) does not energize when the thermostat calls for heat.

33 68-0280—01

VisionPRO

M19950

COMPRESSOR LOCKOUT TEMPERATURE

AUXILIARY LOCKOUT TEMPERATURE

COMPRESSOR ONLY

BOTH COMPRESSOR AND

AUXILIARY HEAT

AUXILIARY ONLY

OUTDOOR TEMPERATURE

8000 Touchscreen Programmable Thermostat

OPERATION IN EMERGENCY HEAT MODE

The balance point (outside) temperature is not used in the Emergency heat mode. When the thermostat is moved to the Emergency Heat position, the compressor is locked out. The first stage of heat is whatever is connected to the E terminal. The second stage of heat is what is connected to the Aux. terminal. Often there is only one source of non-compressor heat and the E terminal is jumped to the Aux. terminal.

Heat Pump with Electric Auxiliary (Backup) Heat and Outdoor Temperature Sensor

1. Choose correct heat pump application in Installer Setup Number 0170.

2. Choose Electric as Auxiliary (Backup) Heat Source in Installer Setup Number 0200.

3. Choose Outdoor Temperature Sensor for Control Option in Installer Setup Number 0340.

4. Choose Compressor Lockout Temperature in

Installer Setup Number 0350.

5. Choose Auxiliary Lockout Temperature in Installer Setup Number 0360.

NOTE: There is a 5°F deadband between the Compressor

and Auxiliary Heat Lockout Temperatures.

Operation in Heat Mode

When the outdoor temperature is below the Compressor Lockout Temperature, only the Auxiliary Heat operates.

When the outdoor temperature is above the Auxiliary Lockout Temperature, only the Compressor operates. See Fig. 34.

Fig. 34. Heat Pump Operation with Lockout

Temperatures Set.

When the outdoor temperature is between the two temperatures, both the Compressor and Auxiliary Heat operate.

Operation in Emergency Heat Mode

Once the thermostat is placed into the Emergency Heat mode, the compressor and auxiliary lockout features are turned off. In the Emergency heat mode, the compressor is locked out. The first stage of heat is whatever is connected to the E terminal. The second stage of heat is connected to the Aux. terminal. Usually the emergency and auxiliary heat sources are electric strip heat in these cases.

Operating Sequence

The thermostat energizes specific terminal(s), depending on the demand for heating, cooling or fan. The thermostat screen shows the time, inside temperature, system and fan selections. Additional indicators are shown when the heating, cooling or fan is energized. See Tables 9 - 11 for specification information.

Table 9. Sequence of Operation for Conventional Systems.

System Setting Fan Setting Call for Action Energize Terminals Screen Message

Off Auto None None None

Cool Auto None

Cool or Auto Auto Stage 1 Cooling Y, G Cool On

Cool or Auto Auto Stage 1 and Stage 2 Cooling

Heat Auto None

Heat or Auto Auto Stage 1 Heating

Heat or Auto Auto Stage 1 and Stage 2 Heating

G energizes only if Installer Setup number 0180 is set to Electric.

If Installer Setup System type is set to two stages of cooling.

If Installer Setup System type is set to two stages of heating.

68-0280—01 34

None

Y, Y 2

None

W, G

W, W 2

None

, G

Cool On

None

, G

Heat On

VisionPRO

8000 Touchscreen Programmable Thermostat

Table 10. Sequence of Operation for Power Open and Power Closed Valves or Normally Open Valves.

System Setting Fan Setting Call for Action Energize Terminals Screen message

Off N/A None Y None

Heat N/A None Y None

Heat N/A Heat W Heat On

Table 11. Sequence of Operation for Heat Pump Systems.

System Setting Fan Setting Call for Action Energize Terminals Screen message

Off Auto None

Cool Auto None

Cool or Auto Auto Stage 1 Cooling

Cool or Auto Auto Stage 1 and Stage 2 Cooling

Heat Auto None

Heat or Auto Auto Stage 1 Heating

Heat or Auto Auto Stage 1 and Stage 2 Heating

Heat or Auto Auto Stage 1, 2 and 3 Heating

Em. Heat Auto None

Em. Heat Auto Stage 1 Heating

Em. Heat Auto Stage 1 and Stage 2 Heating

Configure O/B in Installer Setup. Based on last piece of equipment called (cooling = O or heating = B).

Red LED is on. See LED Indication section for more details.

If Installer Setup System Type is set to 2Heat/1Cool Heat Pump with Auxiliary Heat.

If Installer Setup System Type is set to 3Heat/2Cool Heat Pump with Auxiliary Heat.

This terminal does not energize if Installer Setup System type is set to 2 Heat/2 Cool Heat Pump with no Auxiliary Heat.

O/B

Y, G, O/B

Y, Y 2

O/B

Y, G, O/B

Y, A UX

Y, Y 2

Lb, O/B

E, G, L

, G, O/B

, AUXe, G, O/B

, O/B

E, AUX, G, L

, O/B

None

Cool On

None

Heat On

Aux Heat On

None

Heat On

Aux. Heat On

Second Stage Heat and Cool Control

While maintaining setpoint, several factors affect when 2nd stage energizes such as load conditions, environmental conditions, P+I control, and home insulation. The second stage energizes when the thermostat senses 1st stage is running at 90% capacity. This operation is droopless control.

35 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

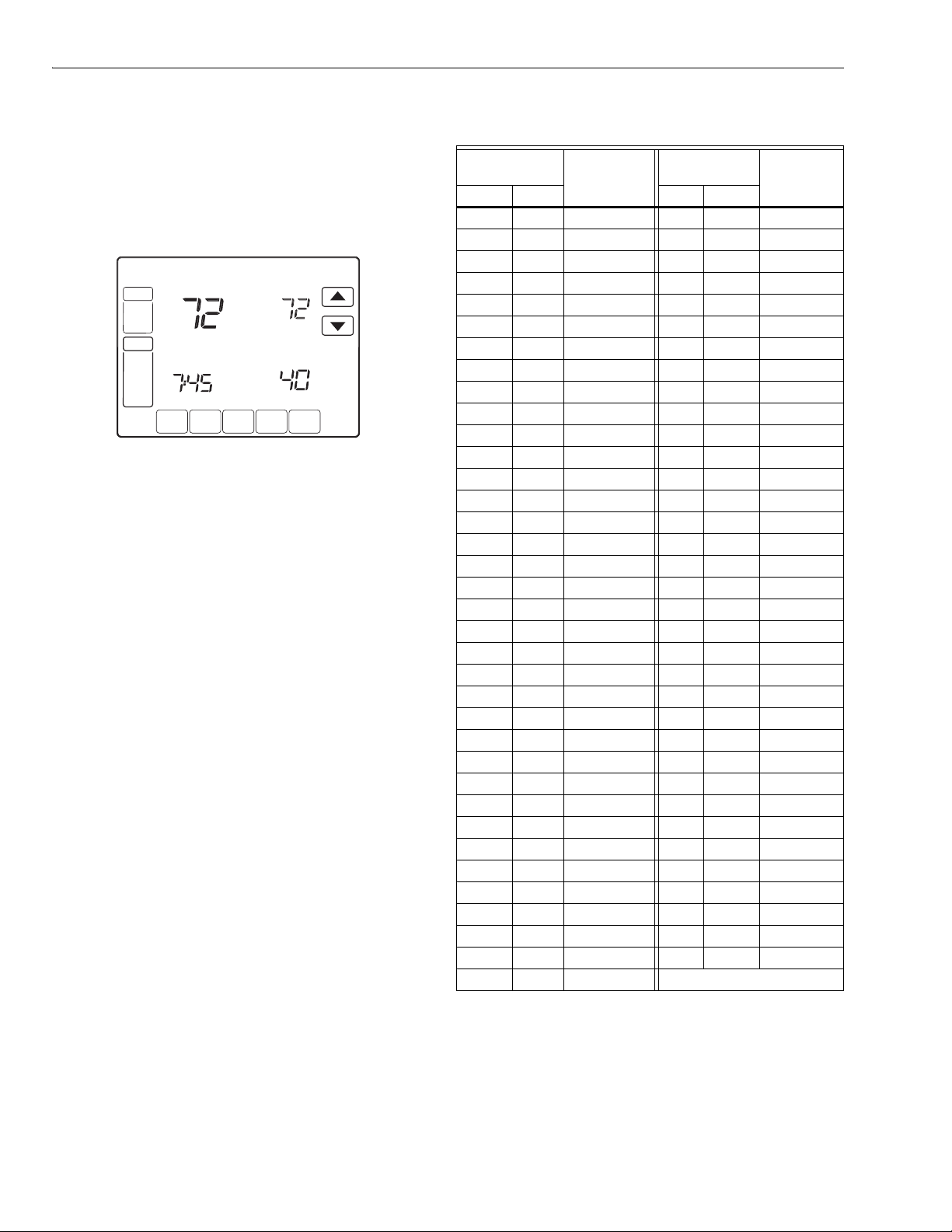

C7089U Outdoor Temperature Sensor

Operation

When installed with Thermostat Installer Setup Number 0340 set to 1 or 2, the outside temperature can be displayed on the thermostat. See Fig. 35.

Insi

AUT

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

Fig. 35. Outside temperature reading on

TH8000 Series Thermostat.

The C7089 Outdoor Sensor converts outdoor ambient temperature to a resistance that the thermostat can interpret.

The C7089 has a negative temperature coefficient (TC), which means that resistance decreases as the temperature increases. See Table 12.

Checkout

Allow C7089U Outdoor Sensor to absorb outdoor air for a minimum of twenty minutes before taking a reading.

With an accurate thermometer (±1°F [0.5°C]) measure the temperature at the sensor location, allowing time for the thermometer to stabilize before reading.

To verify sensor resistance, remove one wire from one of the C7089 60-in. leadwires. Use an ohmmeter to measure the resistance across the sensor. Then verify the sensor accuracy with the temperature/resistance in Table 12.

Calibration

The C7089 Outdoor Sensor is calibrated at the factory and cannot be recalibrated in the field.

t T

Following

Schedule

Outside

M22453

Table 12. Sensor Resistance at Outdoor Temperature.

Outdoor

Temperature

Ohms of

Resis-

tance

Outdoor

Temperature

Ohms of

Resis-

tance°F °C °F °C

-20 -28.9 106926 52 11.1 17136

-18 -27.8 100923 54 12.2 16387

-16 -26.7 95310 56 13.3 15675

-14 -25.6 90058 58 14.4 14999

-12 -24.4 85124 60 15.6 14356

-10 -23.3 80485 62 16.7 13743

-8 -22.2 76137 64 17.8 13161

-6 -21.1 72060 66 18.9 12607

-4 -20.0 68237 68 20.0 12081

-2 -18.9 64631 70 21.1 11578

0 -17.8 61246 72 22.2 11100

2 -16.7 58066 74 23.3 10644

4 -15.6 55077 76 24.4 10210

6 -14.4 53358 78 25.6 9795

8 -13.3 49598 80 26.7 9398

10 -12.2 47092 82 27.8 9020

12 -11.1 44732 84 28.9 8659

14 -10.0 42506 86 30.0 8315

16 -8.9 40394 88 31.1 7986

18 -7.8 38400 90 32.2 7672

20 -6.7 36519 92 33.3 7372

22 -5.6 34743 94 34.4 7086

24 -4.4 33063 96 35.6 6813

26 -3.3 31475 98 36.7 6551

28 -2.2 29975 100 37.8 6301

30 -1.1 28558 102 38.9 6062

32 0.0 27219 104 40.0 5834

34 1.1 25949 106 41.1 5614

36 2.2 24749 108 42.2 5404

38 3.3 23613 110 43.3 5203

40 4.4 22537 112 44.4 5010

42 5.6 21516 114 45.6 4826

44 6.7 20546 116 46.7 4649

46 7.8 19626 118 47.8 4479

48 8.9 18754 120 48.9 4317

50 10.0 17926 —

68-0280—01 36

VisionPRO

SCHED HOLD CLOCK SCREEN MORE

SYSTEM

HEAT

Following Schedule

M19974

8000 Touchscreen Programmable Thermostat

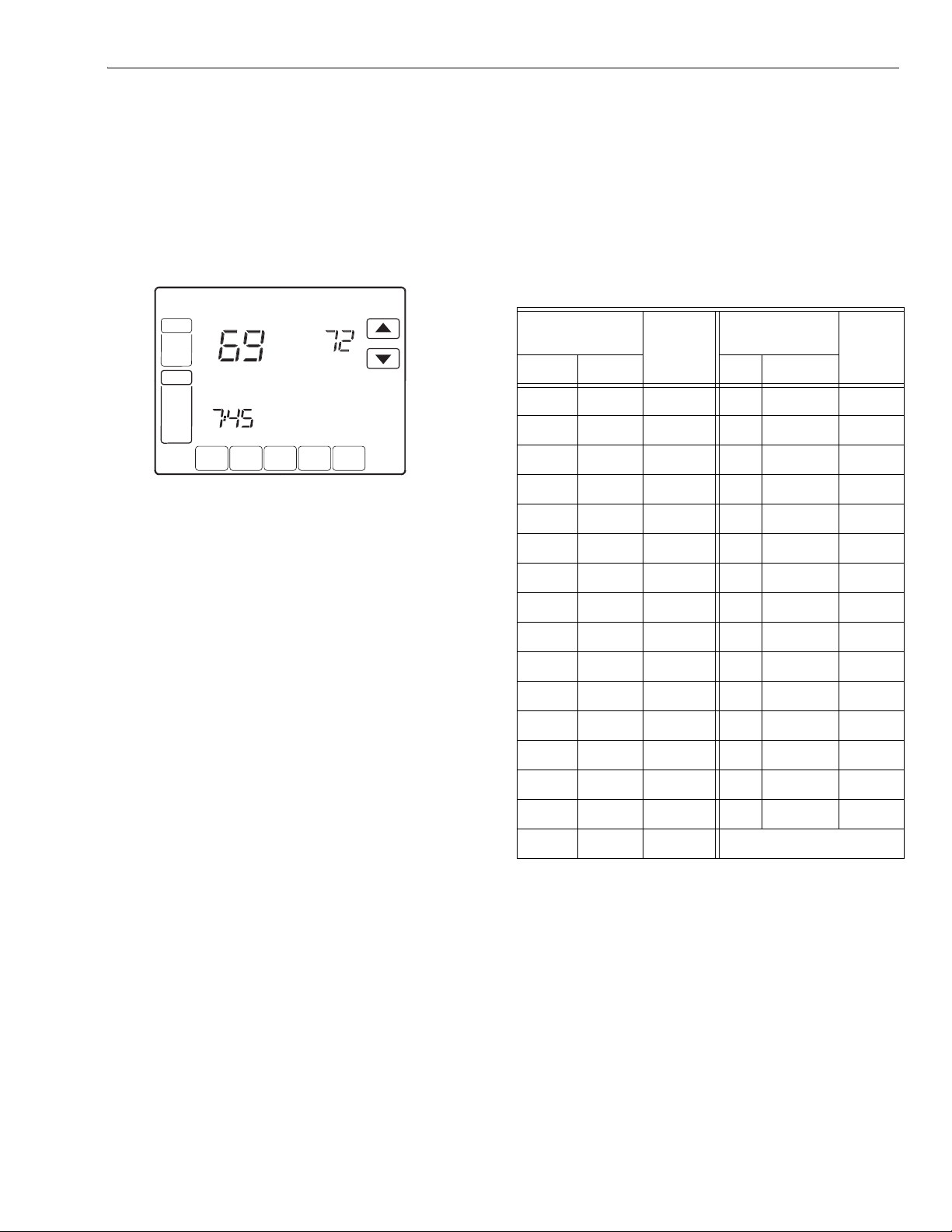

C7189U Remote Indoor Temperature Sensor

Operation

When installed with Thermostat Installer Setup Number 0340 set to 3, the remote inside temperature is displayed on the Thermostat Home Screen as Inside Temperature. The thermostat internal temperature sensor is not used. See Fig.

36.

Insi

AUT

Fig. 36. Inside temperature reading on

TH8000 Series Thermostat.

t T

Heat

To verify sensor resistance, remove one wire from one of C7189 wiring terminals. Use an ohmmeter to measure the resistance across the sensor. Then verify the sensor accuracy with the temperature/resistance in Table 13.

Calibration

The C7189 Wall Mount Temperature Sensor is calibrated at the factory and cannot be recalibrated in the field.

Table 13. Sensor Resistance at Room Temperature.

Room

Temperature

40 4.4 22537 72 22.2 11100

42 5.6 21516 74 23.3 10644

44 6.7 20546 76 24.4 10210

46 7.8 19626 78 25.6 9795

48 8.9 18754 80 26.7 9398

50 10.0 17926 82 27.8 9020

Ohms

Resis-

tance

Room

Temperature

Ohms

Resis-

tance°F °C °F °C

The C7189 Wall Mount Temperature Sensor converts room temperature to a resistance that the thermostat can interpret.

The C7189 has a negative temperature coefficient (NTC), which means that resistance decreases as the temperature increases. See Table 13.

The C7189 can be used to provide one remote sensor input (see Fig. 28) or as a temperature averaging network with multiple C7189 Sensors connected, as shown in Fig. 29.

Checkout

For best results, allow C7189 Wall Mount Temperature Sensor to absorb the air moving through the room for a minimum of twenty minutes before taking a resistance measurement.

With an accurate thermometer (±1°F [0.5°C]) measure the temperature at the sensor location, allowing time for the thermometer to stabilize before reading.

52 11.1 17136 84 28.9 8659

54 12.2 16387 86 30.0 8315

56 13.3 15675 88 31.1 7986

58 14.4 14999 90 32.2 7672

60 15.6 14356 92 33.3 7372

62 16.7 13743 94 34.4 7086

64 17.8 13161 96 35.6 6813

66 18.9 12607 98 36.7 6551

68 20.0 12081 100 37.8 6301

70 21.1 11578 —

37 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

TROUBLESHOOTING (TABLE 14)

Table 14. Troubleshooting.

Symptom Possible Cause Action

Display does not come on. Thermostat is not being powered. Check for 24 Vac between C and Rc.

Check that AAA batteries are installed correctly and are good.

Temperature settings do not change.

Heating or cooling does not come on.

Thermostat is calling for Heat (Heat on) or Cool (Cool on) but no heating or cooling is running.

Heat does not turn on (Heat On is solid in the display).

The upper or lower temperature limits were reached.

The keypad is fully locked. Check Installer Setup Number 0670 to

Thermostat minimum off-time is activated.

System selection is not set to Heat or Cool.

System type Selection is incorrect. Check Installer Setup Number 0170 and

Heating or cooling equipment is not operating.

Heating equipment failure. Check for 24 Vac at the equipment on the

Check temperature setpoints. Check Installer Setup Numbers 0600 and 0610; modify as needed.

change keypad locked options.

Wait up to five minutes for the system to respond.

Set system Selection to correct position.

make sure correct System type is chosen.

Check wiring. Check Installer Setup Number 0170 and make sure correct system type is chosen. Verify operation of equipment in System Test mode.

secondary side of the transformer between power and common. If voltage is not present, check the heating equipment to find the cause of the problem.

Cooling does not turn on (Cool On is solid in the display).

Fan does not turn on in a call for heat (electric furnace).

Check for 24 Vac between the heat terminal (W) and transformer common. If 24 Vac is present, the thermostat is functional. Check the heating equipment to find the cause of the problem.

Loose or broken wire connection between thermostat and heating equipment.

Cooling equipment failure. Check for 24 Vac at the equipment on the

Loose or broken wire connection between thermostat and cooling equipment.

Fan Control in Heating is set to Gas or Oil Furnace (Setting 0180).

Check for 24 Vac between the heat terminal (W) and transformer common. If voltage is not present, check wire connection (loose or broken) between the thermostat and the heating equipment.

secondary side of the transformer between power and common. If voltage is not present, check the cooling equipment to find the cause of the problem.

Check for 24 Vac between the cool terminal (Y) and transformer common. If 24 Vac is present, the thermostat is functional. Check the cooling equipment to find the cause of the problem.

Check for 24 Vac between the cool terminal (Y) and transformer common. If voltage is not present, check the wire connection (loose or broken) between the thermostat and the cooling equipment.

Set Fan Control in Heating to Electric Furnace (Setting 0180).

68-0280—01 38

Symptom Possible Cause Action

Heat pump puts out cool air in the heat mode and warm air in the cool mode.

Both the heating and cooling equipment are running at the same time.

Heating equipment is running in the cool mode.

Heating equipment does not turn off and heat temperature setting is set below room temperature (Heat On is not in the display).

Cannot set the system setting to Heat.

VisionPRO

Table 14. Troubleshooting. (Continued)

Changeover Valve (Installer Setup Number 0190) is not configured to match the changeover required by the installed heat pump.

The heating equipment is not a heat pump but the System Type (Installer Setup Number 0170) is set to Heat Pump.

Heating and cooling wires are shorted together.

Heating equipment is not a heat pump but System Type (Installer Setup Number 0170) is set to Heat Pump.

System Type (Installer Setup Number

0170) is set to Cool Only.

8000 Touchscreen Programmable Thermostat

Set Changeover Valve (Installer Setup Number 0190) to match the changeover required by the installed heat pump.

Set System Type (Installer Setup Number

0170) to match the installed heating and/or cooling equipment.

Separate the shorted heating and cooling wires.

Set System Type (Installer Setup Number

0170) to match the installed heating and/or cooling equipment.

Set System Type (Installer Setup Number

0170) to match the installed heating and/or cooling equipment.

Set System Type (Installer Setup Number

0170) to match the installed heating and/or cooling equipment.

Cannot set the system setting to Cool.

System Type (Installer Setup Number

0170) is set to Heat Only or Heat Only with Fan.

Heat On is not in the display. System setting is not set to Heat and/or

temperature setting is not set above room temperature.

Cool On is not in the display. System setting is not set to Cool and/or

the temperature setting is not set below room temperature.

Wait is in the display. Compressor minimum off timer is

active.

“Screen Locked” appears on

The keypad is fully or partially locked. Check Installer Setup Number 0670 to the screen and all or some of the keys do not respond.

Set System Type (Installer Setup Number

0170) to match the installed heating and/or cooling equipment.

Set the system setting to Heat and set the temperature setting above the room temperature.

Set the system setting to Cool and set the temperature setting below the room temperature.

Wait up to five minutes for the cooling or heating (heat pump) equipment to turn on.

change keypad locked options.

39 68-0280—01

VisionPRO

8000 Touchscreen Programmable Thermostat

Automation and Control Solutions

Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Toronto, Ontario

M1V 4Z9

68-0280—01 M.S. Rev. 03-11 Printed in U.S.A. www.honeywell.com/yourhome

Honeywell TH8110, TH8320, TH8321 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

APPLICATION

FEATURES

SPECIFICATIONS

INSTALLATION

When Installing this Product...

Selecting Location

Installing Wallplate

WIRING (FIG. 9 - 21)

POWER THE THERMOSTAT

Wiring 24 Vac Common

Installing Batteries

Mount Thermostat to Wallplate

Locate and Mount C7089U Outdoor Temperature Sensor (Optional)

Wire C7089U Outdoor Sensor

Locate and Mount C7189U Remote Indoor Temperature Sensor (Optional)

Wire C7189 Indoor Sensor

Set Calendar and Time

INSTALLER SETUP

INSTALLER SYSTEM TEST

How to Use the Installer System Test

Installer System Tests

OPERATION

Thermostat Keys

System and Fan Settings

Thermostat Display

User Setup

PROGRAMMING

Preprogrammed Energy-saving Settings

Program Heating and Cooling Schedule

Edit Schedule

Cancel a Schedule Period

Operate VisionPRO™ 8000 Touchscreen

Set Time

Set Temperature Overrides

Clean Thermostat Screen

Replace Batteries

Battery Tips

Screen Locks

Outdoor Temperature

Remote Indoor Temperature

Indoor Air Quality Reminders

Temperature Recovery

P+I Control

Minimum Off-Timer

Dehumidification Droop Control

Heat Pump Emergency Heat LED Indication (Requires 24 Vac Common Connection)

Heat Pump Temperature Lockouts

Special Heat Pump Operation

Heat Pump LED Indication (Requires 24 Vac Common Connection)

C7089U Outdoor Temperature Sensor

C7189U Remote Indoor Temperature Sensor

TROUBLESHOOTING (TABLE 14)
