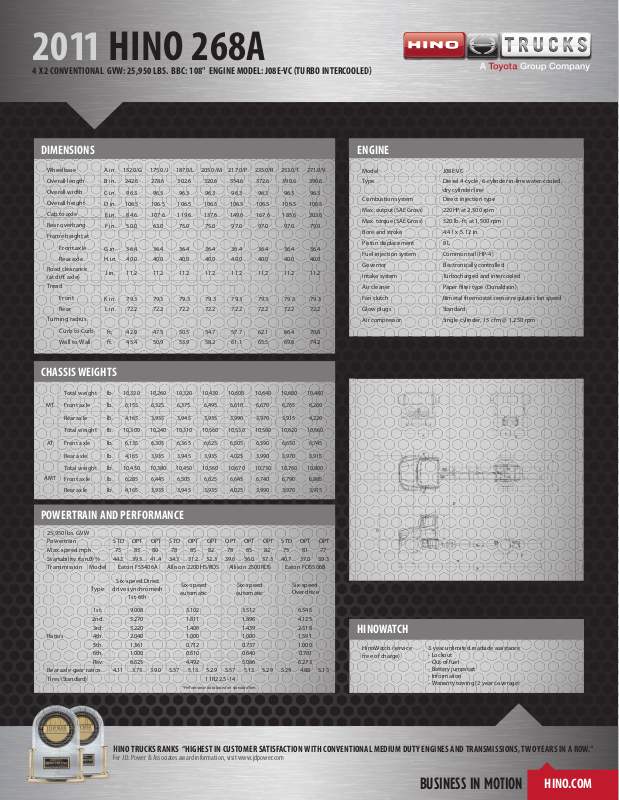

2011 HINO 268A

HinoWatch (service

3 year unlimited roadside assistance

dry cylinder line

4 X 2 CONVENTIONAL GVW: 25,950 LBS. BBC: 108" ENGINE MODEL: J08E-VC (TURBO INTERCOOLED)

DIMENSIONS

Wheelbase

Overall len gth

Overall wi dth

Overall h eight

Cab to axle

Rear overh ang

Frame hei ght at

Front axle

Rear axle H in. 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0

arance

Road cle (at di. a xle)

Tread

Front

Rear L in . 72.2 72.2 72.2 72.2 72.2 72.2

Turnin g radius

Curb to Curb

Wall to Wall ft. 45.4 50.9 53.9 58.2 61.1 65.5 69.8 74.2

A in. 152.0/G 175.0/J 187.0/L 205.0/M 217.0/P 235.0/R 253.0/T 271.0/V

B in . 242.6 278.6 302.6 320.6 354.6 372.6 390.6 390.6

C in. 96.3 96.3 96.3 96.3 96.3 96.3 96.3 96.3

D in. 106.5 106.5 106.5 106.5 106.5 106.5 106.5 106.5

E in. 84.6 107.6 119.6 137.6 149.6 167.6 185.6 203.6

F in. 50.0 63.0 75.0 75.0 97.0 97.0 97.0 79.0

G in. 36.4

J in. 11.2 11.2 11.2 11.2 11.2 11.2 11.2 11.2

K in . 79.3 79.3 79.3 79.3 79.3 79.3 79.3 79.3

36.4 36.4

36.4 36.4 36.436.4

CHASSIS WEIGHTS

Total w eight lb. 10,320 10,260 10,320 10,430 10,600 10,640 10,680 10,480

Front axle lb. 6,155 6,325 6,375 6,495 6,610 6,670 6,765 6,260

Rear axle lb. 4,165 3,935 3,945 3,935 3,990 3,970 3,915 4,220

Total w eight lb. 10,300 10,240 10,310 10,560 10,530 10,580 10,620 10,660

Front axle lb. 6,135 6,305 6,365 6,625 6,505 6,590 6,650 6,745

Rear axle lb. 4,165 3,935 3,945 3,935 4,025 3,990 3,970 3,915

Total w eight lb. 10,450 10,380 10,450 10,560 10,670 10,730 10,760 10,800

AMT

ront a xle lb. 6,285 6,445 6,505 6,625 6,645 6,740 6,790 6,885

ar ax le lb. 4,165 3,935 3,945 3,935 4,025 3,990 3,970 3,915

36.4

72.2 72.2

70.850.5 54.7 57.7 62.1 66.4ft. 42.0 47.5

ENGINE

Model J08E-VC

Type

Combustion system

Max. output (SAE Gross)

Max. torque (SAE Gross)

Bore and stroke

Piston displacement

Governor

Intake system

Air cleaner

Fan clutch

Glow plugs

Air compressor

Diesel 4 -cycle, 6-cylinder in-line water-cooled,

Direct injection type

220HP at 2,5 00 rpm

520 lb.-ft. at 1,500 rpm

4.41 x 5.12 in.

8 L

Common rail (HP-4)Fuel injection system

Electronically controlled

Turbocharged and intercooled

Paper lter type (Donaldson)

Bimetal thermostat sensor regulates fan speed

Standard

Single cylinder, 15 cfm @ 1,250 rpm

POWERTRAIN AND PERFORMANCE

25,950 lbs. GVW Powertrain Max. sp eed mph 75 83 80 78 85 82 78 85 82 75 81 77 Startabili ty (tan.θ) % 44.2 39.3 41.4 34.3 31.2 32.3 39.6 36.0 37.3 40.7 37.0 39.3 Transmis sion

Ratios

Rear axle gear ratios Tires (Standard) 11R22. 5-14

STD OPT OPT STD OPT OPT OPT OPT OPT STD OPT OPT

Model

Eaton FS5406A Allison 2500RDS Eaton FO5506B

Six-sp eed Direct

Type

drive s ynchromesh

1st-6th

1st. 2nd. 3rd. 4th. 5th. 6th. Rev.

9.008 3.5123.102

5.270

3.220 1.439 2.5181.406

2.040 1.000 1.5911.000

1.361 0.737

1.000 0.640 0.781

8.625 5.086

4.11 3.73 3.90 5.57 5.13 5.29 5.57 5.13 5.29 5.29 4.88 5.13

HINO TRUCKS RANKS “HIGHEST IN CUSTOMER SATISFACTION WITH CONVENTIONAL MEDIUM DUTY ENGINES AND TRANSMISSIONS, TWO YEARS IN A ROW.“

For J.D. Power & Assoc iates award information, visit www.jdpower.com

Allison 2200 HS/RDS

Six-sp eed automati c

1.811

0.712

0.610

4.492

*Performance data based on standard tires.

Six-sp eed automati c

1.896 4.125

Six-speed Over drive

6.545

1.000

6.273

HINOWATCH

free of charge)

- Lockout

- Out of fuel

- Battery jumpstart

- Information

- Warranty towing (2 year coverage)

BUSINESS IN MOTION

HINO.COM

2011 HINO 268A

Front axle lbs. 10,000

6.7: Eaton FO5406A

bunk

mounted under cab (driver sid e)

WEIGHT CAPACITIES

Rear axle lbs. 19,000 Front spring lbs. 12,000

Front spring

Rear spring lbs. 21,000

(option)

lbs. 8,000

LIQUID CAPACITIES

Fuel ta nk gal. 52

Coolin g system gal.

Engine oil qt. 16.2

AXLE/SUSPENSION

Front axle

Front spring

Rear axle

Rear spring

MFS-10 series reversed Ell iot, "I" beam (oil lubricated type)

Taper-leaf springs shock absorbe

RS19-145 series Fu ll-oating , single reduction Sin gle-speed by hypoid gearings

Semi-elliptic main

FRAME

Ladder type Straight C Cha nnel

Width in. 34

Yield strength PSI 80,000

Resisting bending moment (one sid e)

in.-lbs.

STEERING

Steering column

Steering system

Tilt an d telescopic with lock adjusta bility

TRW recirculating ball, with hydrau lic booster, integral ty pe

CLUTCH

Type

Facing material

Facing outsid e (in.)

Control

Dry si ngle plate wi th damper springs Eato n-Spicer SAS1401

Cerametallic

13.8

Hydrau lic

BRAKES

Service brak e

Disc diameter

x pad area (in. x thickness (in.) Control

Parking brake

Exhau st brake Electric-pn eumatic with valve in

Full air, dual circuit, "S" cam type, leading and trailing s hoes, with automatic adjus tment

Front: 15 x 4 x 0.73

)

Rear: 16.5 x 8.625 x 0.73

Full air dual circuit with Antilock Brake System (ABS)

Spring brake acting on rear wheel

exhau st pipe

CHASSIS EQUIPMENT

Radiator grille

Fuel ta nk

Fuel p re-lter

Reectors

Tow h ook

Air dryer

Air tank

NOTES: All specications of the products are with normal manufacturing allowances and tolerances. Hino Motors Sales U.S.A., Inc. reserves the right to alter

specications at any time without previous notice. Some optional items of equipment many require extra time due to the need for their adaption on the product line.

Chrome

Aluminum

Heated pre-lter (dust) an d sedimenter (water)

Two rea r, two f ront side

One at f ront

NABCO, heated

68L

6.6: Allison 2200HS

1,031,900

(no rein forcement)

CAB EQUIPMENT

Air conditi oning Standard

Cab construction All steel weld ed

Cigarette lighter Equipped

Coat h ook One (rear pa nel)

Cruise control Standard

Cup h olders Standard

Door pockets Two

Driver's seat

Heater/Defro ster 18,357 BTU/h Mirrors , outsi de rearview

Overhead consoles Two

Passenger's seat

Seat belts 3-point type (driver an d

Seating capacity Three

Speakers Two

Sun visors Two

Ventilator Electric fo rced air

Windshi eld Laminated

Windshi eld wipers

2-way adjustab le seat with arm rest and air suspension, covered with vinyl

Four, 1- at and 1-convex at each side

Bench type, covered with vinyl

passeng er), one 2-p (center)

Dual el ectric, 2-speed an d intermittent

oint type

DASH INSTRUMENTATION

Meters a nd gauges f t. lb. system

Speedometer-mph (km/h)

Odometer (mile)

Fuel g auge / DEF gauge

Coolan t temperature ga uge

Engine tachometer

Warning and pilot lamps and buzzers/au dio

ssure warning lamp and buzzer

Oil pre

Brake pressure warn ing lamp a nd buzzer

Coolan t level warn ing lamp and bu zzer

Battery chargin g warning lamp

High beam indicator lamp

Turn signal pilot lamp

Parking brake warning la mp

Engine control sys tem warning lamp

ABS warn ing lamp

DEF qu antity and quality a udio

Driver In formation Display (multil ingual)

Instant and trip fuel consump tion

DPR monitor

Mainten ance

Engine/vehicle dia gnostics

ELECTRICAL EQUIPMENT

Batteries Two, parallel connection ,

Capacity 1200 CCA

Alternator 12 V, 130 A, brush Delco

Starter 12 V, 4.8 kW Dens o

Car au dio AM/FM radio with CD

Headlamps Daytime r unning

Stop/Tail lamps

Back-u p lamps

Side- asher lamp

Dome lamp

Front side marker l amps

Trucklite LED marker lamps (fro nt)

Electric horn (dual)

each 12V

WHEELS/TIRES

6 Wheels 22.5 x 8.25 10-stud disc.

Wheel sty le Steel, powder coated

6 Tires 11R22.5(G)

Tire bran d and pattern

Bridgestone Fr-rib Rr-lug type

CAB CONFIGURATION OPTIONS

Extended Cab 30" cab exten sion, availa ble with

Right ha nd drive, dual- steer sit down Right ha nd drive, dual- steer, stand up

Clean Chassis CA Stan dard with 50 gal fuel tank

full width bench seat or 26" da y

Driver con trols moun ted on both sides of cab

Driver con trols moun ted on both sides of cab, right hand side of cab designed fo r operation while standin g with eas y entry/exit

OPTIONAL EQUIPMENT

Air horn

Air ri de suspension - Hendrickson

Air ri de suspension dump valve - Electri c

Alte rnator - 12 V, 130 A, brushless Delco

Anti-Siphon device insert in fuel tank

Back-up aid alarm

Batter y - Absorbed glass mat (AGM) 31 conguration, 1800 CCA

Batter y - Two or three paralle l connection each 12 V (GR27x3)

Batter y - Three paralle l connection each 12 V (GR31 type)

Bump

er, front - Black and 4 inch extension (available 3 piece )

Bumper, front - White and 4 inch extension (available 3 pie ce)

Bumper, front - White 3 piece (available with one or two tow hooks)

Bumper, front - Chrome and 4 inch extension

Bumper, front - Chrome (available with one or two tow hooks)

Cab paint, exteri or - Black or Red

Clutch - Eaton 1401 sel f-adjusting solo

Clutch - Eaton 1402 twi n plate self-adjusting solo

Cold weather package

- Power heated mir rors (available in chrome)

- Engine block heater

- Bendix air dryer

Diere ntial lock with controls

Engine block heater

Engine idle shutdown

Exhaust system - Verti cal stack type (NA with 95 gal. fuel tank)

Fuel tank - Dual 52 gal (NA on G wheelbase)

Fuel tank - Single 95 gal.

Mirr ors, fender - Chrome (both sides or passenger only)

Mirr ors, outside rearvie w - Chrome

Mirr ors, out

side rearvie w - Chrome, heated with marker light

Mirr ors, outside rearvie w - Heated with marker light

Mirr ors, power heated (available in Chrome)

Power windows

Seats - Fabric with recli ning single per son passenger seat

Seats - Vinyl with rec lining single person passenger seat

Seats - Fabric with two person bench seat

Sears seat - vinyl black (upgrade driver seat only or with passenger seat upgr

Sears seat - fabric black/silver (upgrade driver seat only or with passenger seat upgrade)

Shock absorbers, rear

Stabilize r, rear (leaf suspension only)

Synthetic uids - Auto transmission and rear dierent ial

Tire patter n - Rib on rear

Tire size - 255/70R 22.5-16(H) Bridgestone

Tire size - 295/75R 22.5-14(G) Bridgestone

Tire size - 255/80R 22.5-14(G) Michelin

Transmission, automatic - Allison 2200 HS/RDS

Transmission, manual - Eaton FS5406A

Transmission, automatic

Wheels - Alcoa polished aluminum

and power door locks (available with keyless entry)

ade)

- Eaton Ultrashift Highway Value
