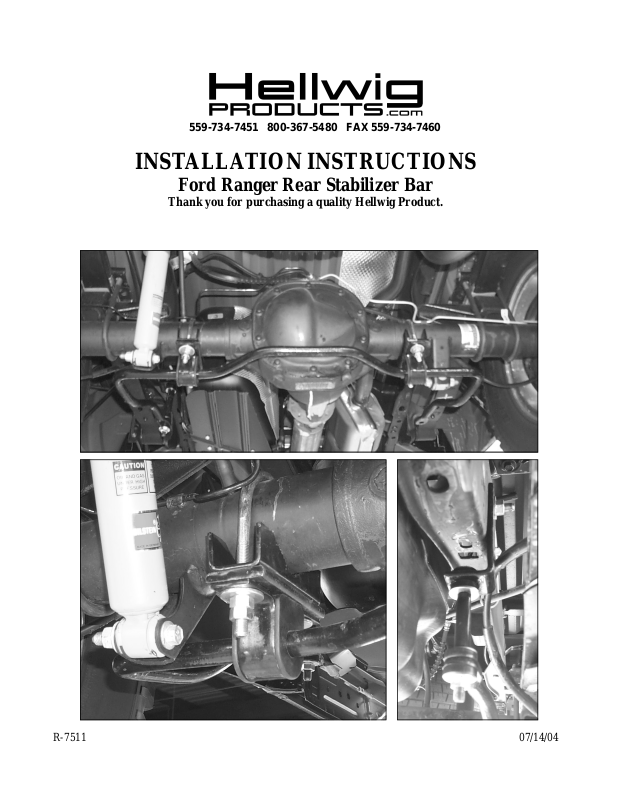

INSTALLATION INSTRUCTIONS

Ford Ranger Rear Stabilizer Bar

Thank you for purchasing a quality Hellwig Product.

R-7511 07/14/04

ATTENTION INSTALLER: PLEASE MAKE SURE CUSTOMER RECEIVES THIS INSTRUCTION SHEET,

559-734-7451 800-367-5480 FAX [phone]

TORQUE TABLE

Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs

SAFETY: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE AND CHOCK THE

WHEELS.

NOTE: TO EASE INSTALLATION AND PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHICLE MUST

BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE THE VEHICLE BY THE FRAME.

1. Lubricate the D-bushings and place them onto the straight areas of the bar on each side of the center hump as shown in the pho­tos.

2. Hold bar up to the axle and locate the position on the axle tubes to mount the u-bolts. Be sure to put the U-Bolts Under Any
Brake Lines, Wires or Hoses on the Axle to Avoid Any Possible Damage. The threads of the U-Bolts will point down.

3. Place saddle brackets onto the U-Bolts on the axle tubes. Place the U-Plates over the D shaped bushings on the bar and attach
the bar to the U-Bolts and saddle brackets with the flat washers and nuts provided. LEAVE LOOSE AT THIS TIME to allow
for adjustment later.

4. Adjust sway bar so that the end links are parallel with the ground and center the bar side to side. Chose the spacer tube and bolt
that best fits the vehicle and assemble end links to frame bracket as shown in photos using 4 bushings and 4 washers per end
link. Ensure that the end links are installed square to the mounting brackets and the ends of the sway bar.

5. Attach frame bracket to frame rail using the 1/2” X 1-1/2” bolt and 1/2” locknut. Install bolt with the large diameter flat washer
mounted to the inside of the frame rail.

6. Tighten nut on end link until the bushings start to bulge slightly.

7. Adjust sway bar on axle so that there is at least 1/2” clearance between the bar and the axle. Ensure adequate clearance between
the sway bar and all shock absorbers, brake lines, hoses, cables and electrical connections. When all clearances are confirmed,
tighten U-bolts to 35-40 ft-lb. Double nut and tighten.

8. Bounce vehicle and check for clearance on all undercarriage components. Recheck installation, look for clearance on gas lines,
exhaust pipes, brake lines, wiring, etc.

9. Drive vehicle for a few miles, then recheck for position and tightness, readjust and retorque as needed. Then recheck periodi­cally thereafter.

ALL IMPORTANT NOTE CARDS, WARNING CARDS AND THE WARRANTY
FORM

R-7511 07/14/04
