Hellwig 6909 User Manual

559-734-7451 800-367-5480 FAX 559-734-7460

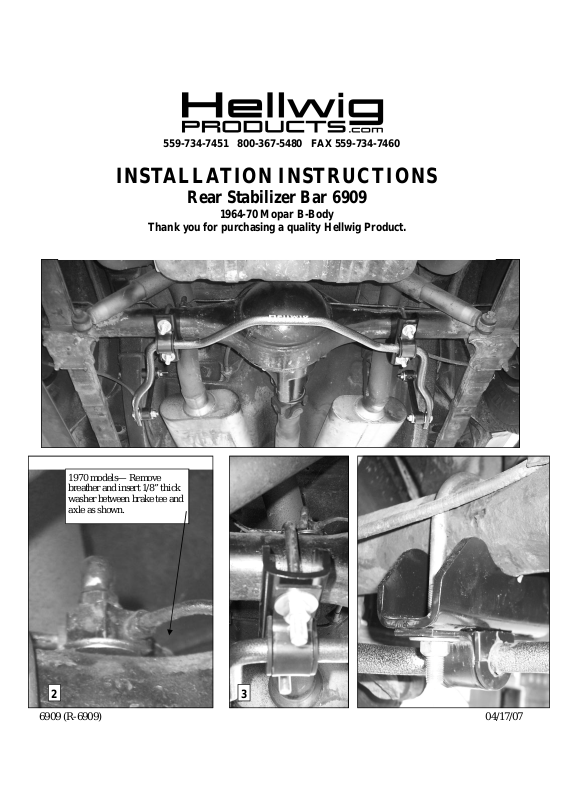

INSTALLATION INSTRUCTIONS
Rear Stabilizer Bar 6909
1964-70 Mopar B-Body
Thank you for purchasing a quality Hellwig Product.
1970 models— Remove breather and insert 1/8” thick washer between brake tee and axle as shown.
2
6909 (R-6909) 04/17/07
3
559-734-7451 800-367-5480 FAX 559-734-7460
Spacer for brake line clearance

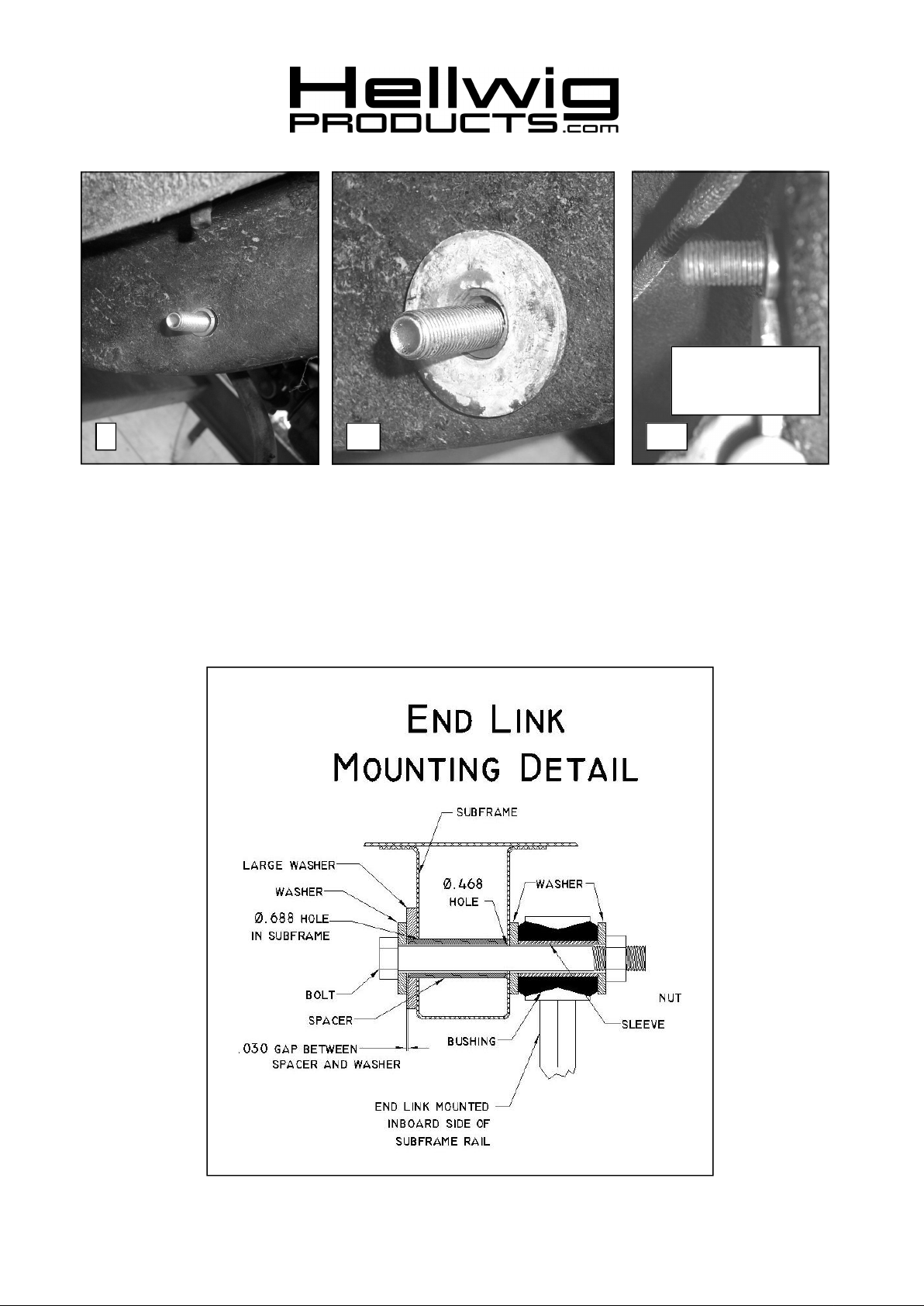

4
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs
SAFETY: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE AND CHOCK THE WHEELS.
NOTE: TO EASE INSTALLATION AND PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHI­CLE MUST BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE THE VEHI­CLE BY THE FRAME.

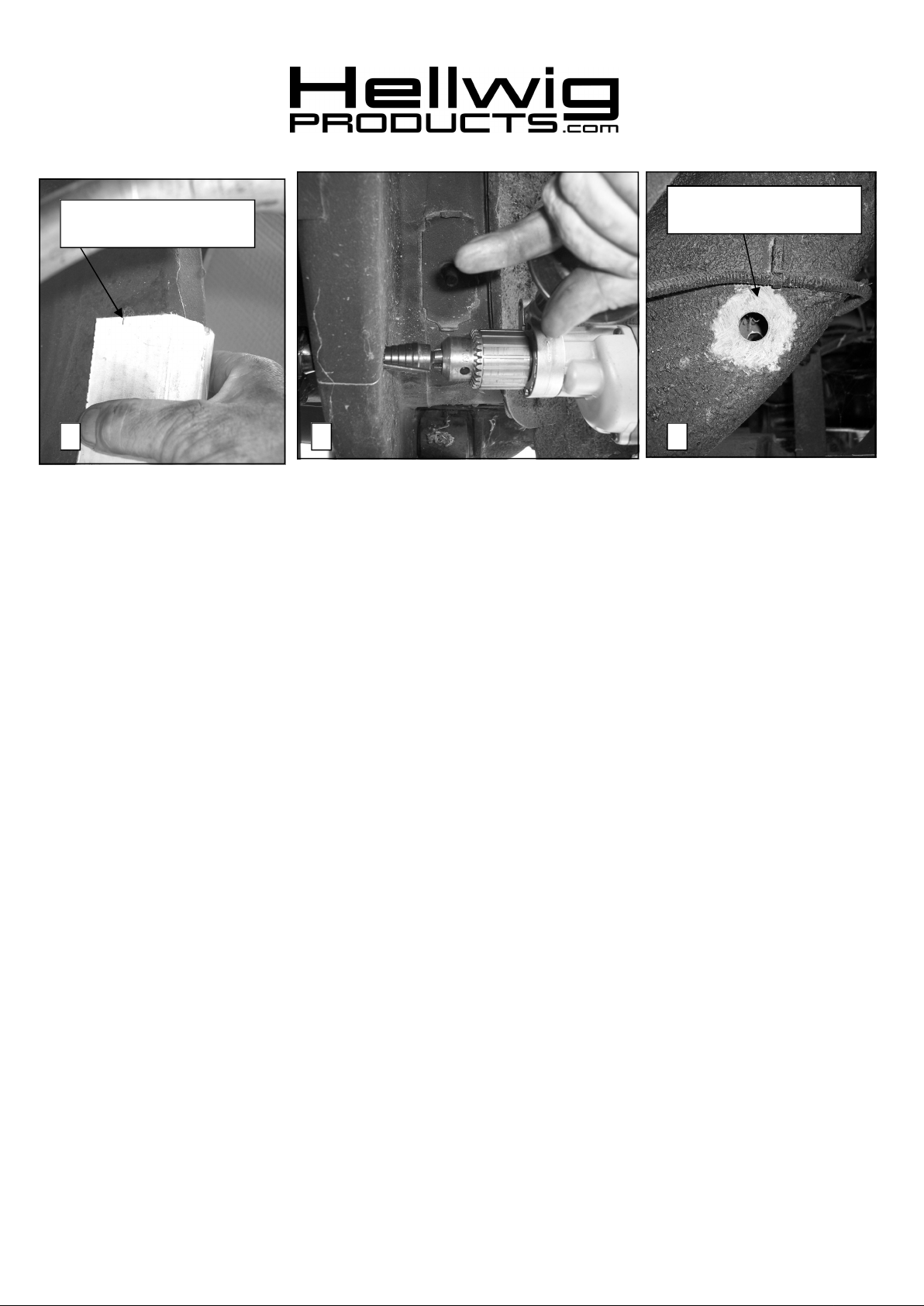

NOTE: THIS KIT REQUIRES DRILLING THE FRAME RAIL AND POSSIBLE RELOCATION OF FUEL AND BRAKE LINES. INSTALLER MUST ENSURE THAT THE SWAY BAR KIT WILL NOT INTER­FERE WITH ANY FUEL OR BRAKE LINES OR HOSES.
Driver’s Side shown
TORQUE TABLE

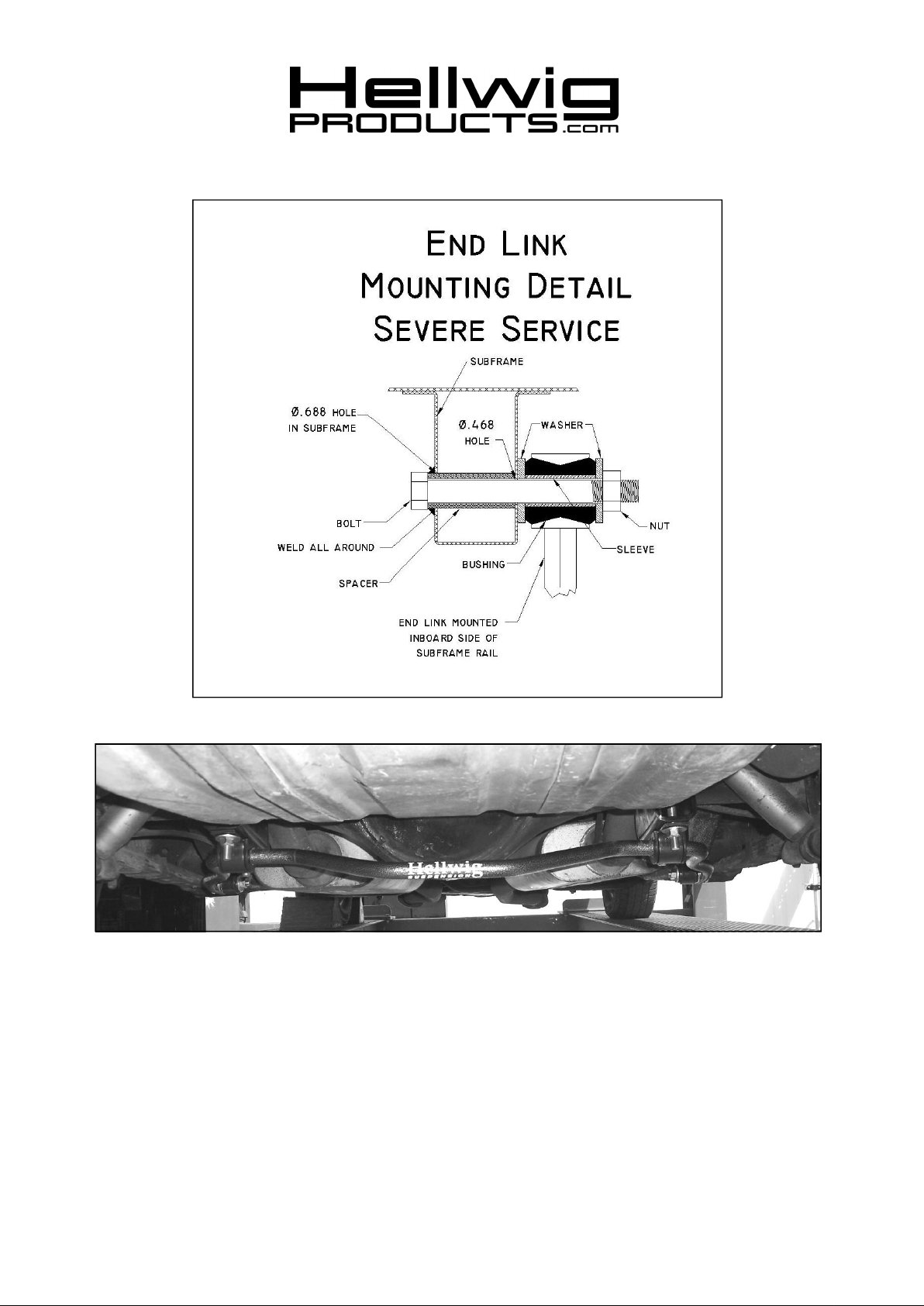

5
Bottom of sway bar arm to be even with bot­tom of subframe.

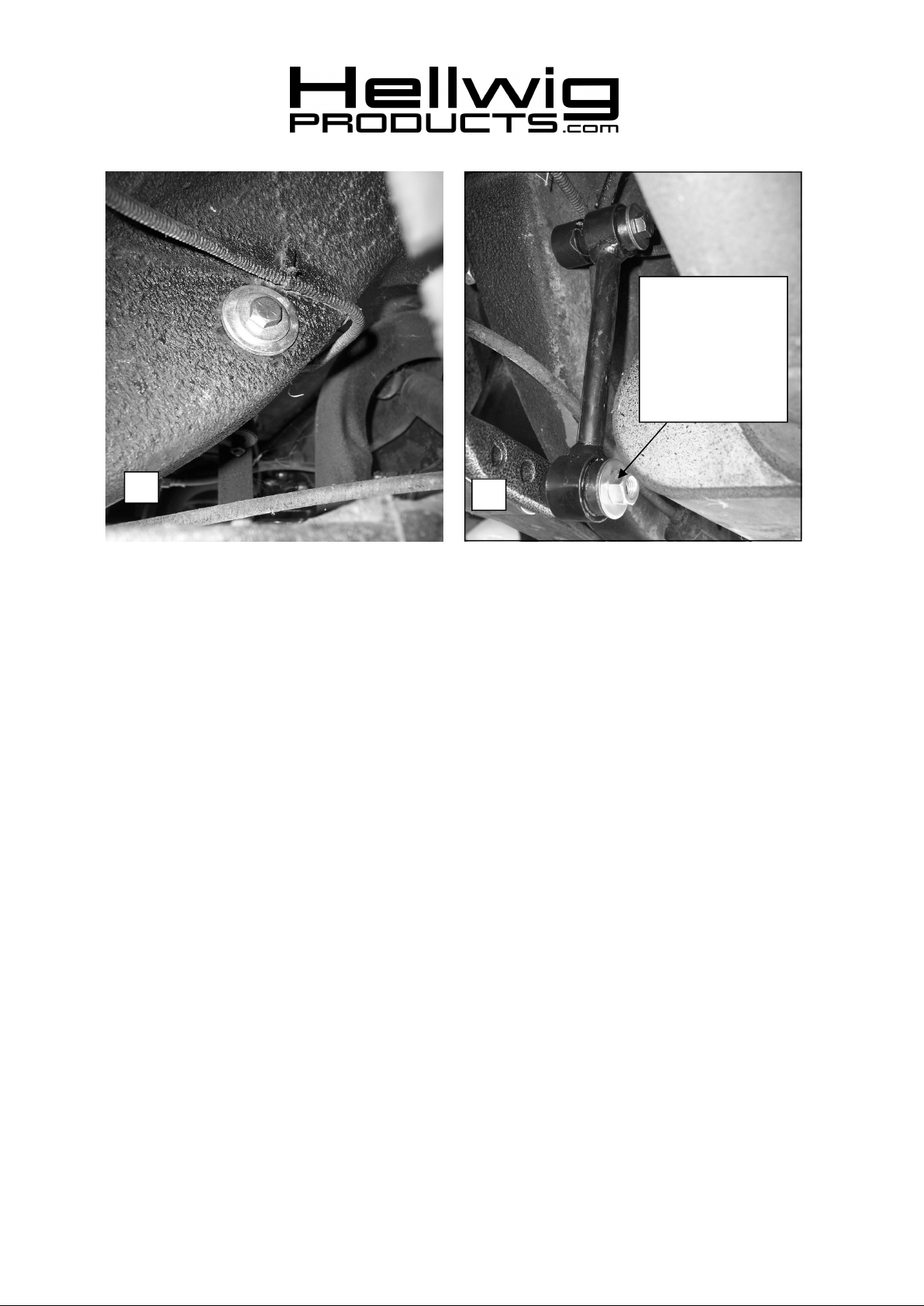

IMPORTANT NOTE: SWAY BAR END LINKS MUST BEATTACHED ON OUTER HOLE PRIOR TO INITIAL USE. SEE PHOTO 12.
1. Lubricate the D shaped bushings and place them onto the straight areas of the bar on each side of the center hump as close to the outside bend as possible.
2. 1970 models only. Remove the breather vent bolt from axle. Place spacer washer under brake line tee and re attach vent bolt as shown in PHOTO 2. This will provide adequate room for the axle u-bolts to be placed under the brake lines.
3. Hold bar up to the axle and locate the position on the axle tubes to mount the u-bolts. Be sure to putthe U-Bolts Under Any Brake Lines, Wires or Hoses on the Axle to Avoid Any Possible Damage. The
threads of the U-Bolts will point down. See PHOTO 3.
6909 (R-6909) 04/17/07
