Multi-Channel Function Generator
MFG-2000 Series
User Manual
GW INSTEK PART NO.82MF32K000EE1
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing. However, Good Will continues to improve its products and therefore reserves the right to change the specifications, equipment, and maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
Table of Contents |
|
Table of Contents |
|
SAFETY INSTRUCTIONS.................................. |
6 |
GETTING STARTED ....................................... |
11 |
Main Features ........................................................... |
12 |
Panel Overview ......................................................... |
14 |
Setting Up the function Generator ............................ |
25 |
QUICK REFERENCE ....................................... |
27 |
How to use the Digital Inputs ................................... |
29 |
How to use the Help Menu ....................................... |
30 |
Display area allocation ............................................. |
33 |
Selecting a Waveform ............................................... |
34 |
Sweep ....................................................................... |
45 |
Burst ........................................................................ |
47 |
ARB .......................................................................... |
49 |
Utility Menu ............................................................. |
53 |
Menu Tree ................................................................ |
54 |
Default Settings ........................................................ |
72 |
OPERATION .................................................. |
74 |
CH1/CH2 Channel .................................................... |
76 |
RF Channel ............................................................... |
90 |
Pulse Channel......................................................... |
102 |
Power Amplifier ...................................................... |
114 |
MODULATION............................................. |
117 |
Amplitude Modulation(AM).................................... |
120 |
Amplitude Shift Keying(ASK) .................................. |
127 |
Frequency Modulation(FM) .................................... |
132 |
Frequency Shift Keying(FSK) ................................... |
141 |
Phase Modulation(PM)........................................... |
148 |
|
3 |
|
MFG - 2000 Series User Manual |
|
|
|
|
Phase Shift Keying(PSK) |
......................................... 155 |
Pulse Width Modulation ......................................... |
160 |
SUM modulation .................................................... |
166 |
Frequency Sweep .................................................... |
173 |
Burst Mode ............................................................. |
183 |
SECONDARY SYSTEM FUNCTION SETTINGS
.................................................................... |
194 |
Save and Recall ....................................................... |
195 |
Selecting the Remote Interface ............................... |
198 |
System and Settings ............................................... |
202 |
CHANNEL SETTINGS .................................. |
207 |
DUAL CHANNEL OPERATION ..................... |
211 |
ARBITRARY WAVEFORMS............................ |
217 |
Inserting Built-In Waveforms .................................. |
218 |
Display an Arbitrary Waveform ................................ |
220 |
Editing an Arbitrary Wavefrom ................................ |
227 |
Ouput an Arbitrary Waveform ................................. |
237 |
Saving/Recalling an Arbitrary Waveform ................. |
239 |
REMOTE INTERFACE ................................... |
247 |
Establishing a Remote Connection.......................... |
248 |
Web Browser Control Interface ............................... |
253 |
Command List ........................................................ |
261 |
System Commands ................................................. |
265 |
Status Register Commands ..................................... |
269 |
System Remote Commands .................................... |
272 |
Apply Commands.................................................... |
273 |
Output Commands ................................................. |
279 |
Pulse Configuration Commands.............................. |
288 |
Amplitude Modulation (AM) Commands ................ |
292 |
4 |
|
Table of Contents |
|
Amplitude Shift Keying (ASK) Commands............... |
297 |
Frequency Modulation (FM) Commands ................. |
300 |
Frequency-Shift Keying (FSK) Commands ............... |
305 |
Phase Modulation (PM)Commands ........................ |
308 |
Phase Shift Keying (PSK)Commands....................... |
313 |
SUM Modulation (SUM) Commands ..................... |
316 |
Pulse Width Modulation (PWM)Commands ............ |
321 |
Frequency Sweep Commands .................................. |
325 |
Burst Mode Commands .......................................... |
335 |
Arbitrary Waveform Commands .............................. |
345 |
COUNTER .............................................................. |
353 |
PHASE .................................................................... |
355 |
COUPLE ................................................................. |
356 |
Save and Recall Commands .................................... |
359 |
Error Messages....................................................... |
361 |
SCPI Status Register ............................................... |
375 |
APPENDIX ................................................... |
381 |
Specifications ......................................................... |
381 |
EC Declaration of Conformity ................................. |
391 |
GLOBL HEADAQARTERS ........................................ |
392 |
ARB Built-In Waveforms.......................................... |
393 |
INDEX ......................................................... |
401 |
5
MFG-2000 Series User Manual
This chapter contains important safety instructions that should be followed when operating and storing the function generator. Read the following before any operation to ensure your safety and to keep the function generator in the best condition.
These safety symbols may appear in this manual or on the instrument.
Warning: Identifies conditions or practices that
WARNING |
could result in injury or loss of life. |
|
|
||
CAUTION |
Caution: Identifies conditions or practices that |
|
could result in damage to the function generator or |
||
|
||
|
to other objects or property. |
|
|
DANGER High Voltage |
|
|
Attention: Refer to the Manual |
|
|
Protective Conductor Terminal |
|
|
Earth (Ground) Terminal |
|
|
DANGER Hot Surface |
6
SAFETY INSTRUCTIONS
Double Insulated
Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.
General
Guideline
CAUTION
Do not place heavy objects on the instrument.
Do not place flammable objects on the instrument.
Avoid severe impact or rough handling that may damage the function generator.
Avoid discharges of static electricity on or near the function generator.
Use only mating connectors, not bare wires, for the terminals.
The instrument should only be disassembled by a qualified technician.
(Measurement categories) EN 61010-1:2010 (Third Edition)specifies the measurement categories and their requirements as follows. The MFG-2000 falls under category II.
Measurement category IV is for measurement performed at the source of a low-voltage installation.
Measurement category III is for measurement performed in a building installation.
Measurement category II is for measurement performed on circuits directly connected to a low voltage installation.
Measurement category I is for measurements performed on circuits not directly connected to Mains.
7
|
|
|
MFG-2000 Series User Manual |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Supply |
|
AC Input voltage: 100 ~ 240V AC, 50 ~ 60Hz. |
|
|
|
WARNING |
|
Or 100 ~ 120V AC, 220 ~ 240V AC,50 ~ 60Hz |
|
|
|
(With power amplifier) |
|
|
|
|
|
|
|
|
|
Connect the protective grounding conductor of |
|
|
|
|
|
the AC power cord to an earth ground to |
|
|
|
|
prevent electric shock. |
|
Fuse |
|
Fuse type: T0.5A/250V. T1A/250V(With power |
|
|
|
|
|
amplifier). |
|
|
WARNING |
|
Only qualified technicians should replace the |
|
|
|
|
||
|
|
|
fuse. |
|
|
|
To ensure fire protection, replace the fuse only |
|
|
|
|
|
with the specified type and rating. |
|
|
|
Disconnect the power cord and all test leads |
|
|
|
|
|
before replacing the fuse. |
|
|
|
Make sure the cause of fuse blowout is fixed |
|
|
|
|
|
before replacing the fuse. |
|
|
|
|
|
|
|
Cleaning the |
|
Disconnect the power cord before cleaning the |
|
|
function |
|
function generator. |
|
|
generator |
|
Use a soft cloth dampened in a solution of mild |
|
|
|
|
||
|
|
|
detergent and water. Do not spray any liquid |
|
|
|
|
into the function generator. |
|
|
|
Do not use chemicals containing harsh products |
|
|
|
|
|
such as benzene, toluene, xylene, and acetone. |
|
|
|
|
|
|
|
Operation |
|
Location: Indoor, no direct sunlight, dust free, |
|
|
Environment |
|
almost non-conductive pollution (Note below) |
|
|
|
|
and avoid strong magnetic fields. |
|
|
|
Relative Humidity: < 80% |
|
|
|
|
|
Altitude: < 2000m |
|
|
|
Temperature: 0°C to 40°C |
|
8
SAFETY INSTRUCTIONS
(Pollution Degree) EN 61010-1:2010(Third Edition)specifies pollution degrees and their requirements as follows. The function generator falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
|
|
conductive pollution occurs which becomes conductive due to |
|
|
condensation which is expected. In such conditions, equipment |
|
|
is normally protected against exposure to direct sunlight, |
|
|
precipitation, and full wind pressure, but neither temperature |
|
|
nor humidity is controlled. |
Storage |
|
Location: Indoor |
environment |
|
Relative Humidity: < 70% |
|
||
|
|
Temperature: -10°C to 70°C |
Disposal |
Do not dispose this instrument as unsorted |
|
|
municipal waste. Please use a separate collection |
facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
9
MFG-2000 Series User Manual
When using the function generator in the United Kingdom, make sure the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow: |
Earth |
Blue: |
Neutral |
Brown: |
Live (Phase) |
As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the supplier.
This cable/appliance should be protected by a suitably rated and approved HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.
10
GETTING STARTED |
|
The Getting started chapter introduces the |
|
function generator’s main features, appearance, set |
|
up procedure and power-up. |
|
Main Features ................................................................... |
12 |
Panel Overview .................................................................. |
14 |
MFG-2260MRA/2260MFA Front Panel.................................................... |
14 |
MFG-2160MR/2160MF Front Panel ........................................................ |
14 |
MFG2120MA/2130M Front Panel ......................................................... |
15 |
MFG2110/2120 Front Panel................................................................... |
15 |
MFG2260M/2230M Front Panel............................................................ |
16 |
MFG-2120MA Rear Panel......................................................................... |
19 |
MFG-2160MR/2160MF/2130M Rear Panel............................................. |
20 |
MFG-2260M/2230M Rear Panel .............................................................. |
20 |
MFG-2110/2120 Rear Panel ..................................................................... |
21 |
Display ...................................................................................................... |
24 |
Setting Up the function Generator ..................................... |
25 |
11
|
|
|
|
|
|
|
|
|
|
|
|
MFG-2000 Series User Manual |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main Features |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
MFG-2000 series specific functions |
|
|
|
|
|
||||||||||
|
|
|
|
CH1 |
|
|
CH2 |
|
25MHz |
|
RF |
|
|
|
|
Modulation |
||||
|
|
|
Function With |
|
|
Function With |
|
|
Generator |
|
Power |
|
||||||||
|
|
|
|
|
|
Pulse |
|
|
|
/Sweep/Burst/ |
||||||||||
|
|
|
200MSa/sARB |
|
|
200MSa/sARB |
|
|
(function |
|
Amplifier |
|
||||||||
|
|
|
|
|
|
Generator |
|
|
|
Frequency.Counter |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
with ARB) |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
MFG-2110 |
|
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
|
|||
|
|
|
●10MHZ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
MFG-2120 |
|
●20MHZ |
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
MFG-2120MA |
|
|
|
|
|
|
● |
|
|
|
|
● |
|
● |
|||||
|
|
|
●20MHZ |
|
|
|
|
|
|
|
|
|
|
|||||||
|
MFG-2130M |
|
●30MHZ |
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
MFG-2160MF |
|
|
|
|
|
|
● |
|
●160MHZ |
|
|
|
|
● |
|||||
|
|
|
●60MHZ |
|
|
|
|
|
|
|
|
|
|
|||||||
|
MFG-2160MR |
|
●60MHZ |
|
|
|
|
|
● |
|
|
●320MHZ |
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
MFG-2230M |
|
●30MHZ |
|
|
●30MHZ |
|
● |
|
|
|
|
|
|
|
● |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
MFG-2260M |
|
●60MHZ |
|
|
●60MHZ |
|
|
● |
|
|
|
|
|
|
|
|
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
MFG-2260MFA |
|
●60MHZ |
|
|
●60MHZ |
|
● |
|
●160MHZ |
|
● |
|
● |
||||||
|
|
|
|
|
|
|
|
|
||||||||||||
|
MFG-2260MRA |
|
●60MHZ |
|
|
●60MHZ |
|
|
● |
|
|
●320MHZ |
|
|
● |
|
|
● |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Performance DDS Function Generator series
1μHz high frequency resolution maintained at full
|
|
range |
|
|
20ppm frequency stability |
|
|
Arbitrary Waveform Capability |
|
200 MSa/s sample rate |
|
|
100 MSa/s repetition rate |
|
|
16k-point waveform length |
|
|
10 groups of 16k waveform memories |
|
|
True waveform output to display |
|
|
User-defined output section |
|
|
User-defined marker output section |
|
|
DWR (Direct Waveform Reconstruction) capability |
|
|
Ability to edit waveforms without a PC |
|
|
-60dBc low distortion sine wave |
|
Features |
|
Sine, Square, Ramp, Pulse, Noise waveforms |
Internal and external LIN/LOG sweep with marker output
12
GETTING STARTED
|
Int/Ext AM, FM, PM, FSK, SUM, PWM modulation |
|
|
Burst function with internal and external triggers |
|
|
42Vpk signal ground chassis isolation |
|
|
Pulse waveform with configurable rise times & fall |
|
|
|
times |
|
Store/recall 10 groups of setting memories |
|
|
|
Output overload protection |
Interface |
|
USB interface as standard, LAN interface (MFG- |
|
|
22XX only) |
4 inch Color TFT LCD (480 X 272) graphical user interface
AWES (Arbitrary Waveform Editing Software) PC software
13
MFG-2000 Series User Manual
M F G -2 2 6 0 M R A / 2 2
|
|
|
|
|
M F G -2 2 6 0 M R A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
M F G -2 1 6 0 M R / 2 1 6
|
|
|
|
|
|
|
|
|
||||
|
|
M F G -2 1 6 0 M R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14
|
|
|
|
|
|
|
|
|
|
GETTING STARTED |
|
|
|
|
|
|
|
|
|
|
|
M F G -2 1 2 0 M |
|
MFG2120MA/2130M Front Panel |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||
|
|
M F G -2 1 2 0 M A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
M F G -2 1 1 0 |
|
MFG2110/2120 Front Panel |
|
|
|
|
|
|
|
|
|
|
|
|
M F G -2 1 1 0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15
MFG-2000 Series User Manual
M F G -2 2 6 0 M /
MFG2260M/2230M Front Panel
|
|
|
|
|
|
|
M FG -2 2 6 0 M |
|
|
|
|
|
||
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LCD Display TFT color display, 480 x 272 resolution.
Function |
|
Activates functions that |
|
Keys |
appear on the bottom of the |
||
|
|||
F1~F6 |
|
LCD screen. |
Operation
Keys
Q
The waveform key is used to select a type of waveform.
The FREQ/Rate key is used to set the frequency or sample rate.
AMPL sets the waveform amplitude.
Sets the DC offset.
The UTIL key is used to access the save and recall options, update and view the firmware version, access the calibration options, system setting, Dual channel functions and frequency meter.
16
GETTING STARTED
|
|
|
|
|
|
|
|
|
|
|
|
ARB is used to set the arbitrary waveform parameters.
The MOD, Sweep and Burst keys are used to set the modulation, sweep and burst settings and parameters.
|
|
|
|
|
|
|
|
|
|
The preset key is used to |
|
Preset Key |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
recall a preset state. |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
||||||
|
Output Key |
|
|
|
|
|
|
The Output key is used to |
||
|
|
|
|
|
|
|
|
|
/ |
turn on or off the waveform |
|
|
|
|
|
|
|
output. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
Channel |
|
|
|
|
The channel select key is used |
||||
|
|
|
|
|||||||
|
Select Keys |
|
|
|
|
|
|
to switch between the four |
||
|
|
|
|
|
|
|
|
|
|
output channels. |
|
|
|
|
|
|
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
CH1: Channel 1 output port |
|
|
ports |
|
|
|
|
|
|
|
CH2: Channel 2 output port |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
Pulse: Pulse output port |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
RF: RF output port |
|
Power |
|
|
/ |
|
|
|
|
Turns the power on or off. |
|
|
|
|
|
|
|
|
|
|
||
|
Button |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
USB Host |
|
|
|
|
|
|
USB type-A host port. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Arrow Keys |
|
|
|
|
|
|
Used to select digits when |
||
|
|
|
|
|
|
|
|
|
|
editing parameters. |
|
Scroll Wheel |
|
|
|
|
|
The scroll wheel is used to |
|||
|
|
|
|
|
|
|
|
|
|
edit values and parameters. |
Decrease Increase
17
MFG-2000 Series User Manual
Keypad
|
|
|
|
|
|
|
|
|
|
|
/ |
The digital keypad is used to enter values and parameters. The keypad is often used in conjunction with the arrow keys and variable knob.
18
GETTING STARTED
2 6 0 M R A / 2 2 6 0 M F A
MFG-2260MRA/2260MFA Rear Panel
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
||||||||
M F G -2 1 2 0 M A |
|
|
|
|
|
|
|
|
|
|
|
MFG-2120MA Rear Panel |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
19
MFG-2000 Series User Manual
1 6 0 M R / 2 1 6 0 M F
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F G -2 2 6 0 M / 2 2 3 0 M |
|
|
|
|
|
|
MFG-2260M/2230M Rear Panel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20
M F G -2 1 1 0 / 2 1 2 0 |
|
GETTING STARTED |
|
|
|
|
|
|
MFG-2110/2120 Rear Panel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Trigger
Please refer to the tables on page 23.
Sync
Please refer to the tables on page 23.
Fan
|
|
|
Fan. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Input |
|
Socket |
|
|
|
Power input: 100~240V AC 50~60Hz. Or 100~120V AC 220~240V AC 50~60Hz.
|
21 |
|
|
|
|
|
|
|
||
|
|
|
MFG-2000 Series User Manual |
|
||||
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Selects AC voltage: 100V~120V |
|
||
|
|
|
|
|
|
|
||
|
Power Switch |
Or 220V~240V. |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
This function can only be used |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
in the models with power |
|
|
|
|
|
|
|
amplifier machines such as |
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
MFG-2120MA, MFG-2260MFA, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MFG-2260MRA |
|
|
|
|
|
|
|
|
The LAN port is used for |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
||||
|
LAN Port |
|
|
|
|
|
||
|
|
|
|
|
|
remote control over a network |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
(MFG-22XX only) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB Device
Port
|
|
|
|
|
USB type-B device port is used
to connect the function
generator to a PC for remote
control.
Counter Input
SB port
SYNCFrequencyinputcounter input.
LAN
|
|
|
|
|
|
|
|
MOD Input |
|
|
Please refer to the tables on |
|
|
||
|
|
|
|
|
|
|
page 23. |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Power |
|
|
Power Amplifier input port |
|
|
||
Amplifier in |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power |
|
|
Power Amplifier output port |
Amplifier out |
|
||
|
|
|
22 |
|
|
|
|
|
GETTING STARTED |
|
|
|
|
|
|
|
|
|
|
|
|
21XX: |
|
|
|
|
|
|
|
|
|
Terminal |
Function |
Mode |
|
|
Trigger |
Trigger in(EXT) |
CH1:FSK,SWEEP,BURST |
|
|
|
|
RF:ASK,FSK,PSK,BURST |
|
|
|
Trigger out |
CH1:BURST |
|
|
|
Marker |
CH1:SWEEP,ARB |
|
|
|
|
|
|
|
MOD IN |
EXT |
CH1:AM,FM,PM,SUM,PWM |
|
|
|
|
|
|
|
SYNC |
Sync signal output |
CH1 |
|
|
22XX: |
|
|
|
|
|
|
|
|
|
Terminal |
Function |
Mode |
|
|
Trigger |
|
CH1/CH2:FSK,SWEEP,BURST |
|
|
|
|
RF:ASK,FSK,PSK,SWEEP,BUR |
|
|
|
|
ST |
|
|
MOD IN |
EXT |
CH1/CH2:AM,FM,PM,SUM,B |
|
|
|
|
URST |
|
|
SYNC |
Trigger out |
CH1/CH2:SWEEP.BURST |
|
|
|
Marker |
CH1/CH2:SWEEP.ARB |
|
|
|
Sync signal output |
CH1,CH2 |
|
23
MFG-2000 Series User Manual
Parameter |
The Parameter display and edit window. |
Windows |
|
Status Tabs |
Displays the current channel and setting status. |
Waveform Display Used to display the waveform
Soft Menu Keys The function keys (F1~F6) under the LCD display correspond directly to the soft menu keys.
24
GETTING STARTED
Background This section describes how to adjust the handle and power up the function generator.
Adjusting the Pull out the handle Handle sideways and rotate it.
Place the MFG-2000 horizontally,
Or tilt the stand.
Place the handle vertically to hand carry.
Power Up |
1. Connect the power cord to |
|
the socket on the rear panel. |
25
MFG-2000 Series User Manual
2. Turn on the power switch on the front panel.
3.When the power switch is turned on the screen displays the loading screen.
The function generator is now ready to be used.
26
QUICK REFERENCE |
|
This chapter describes the operation shortcuts, |
|
built-in help and factory default settings. This |
|
chapter is to be used as a quick reference, for |
|
detailed explanations on parameters, settings and |
|
limitations, please see the operation chapters. |
|
How to use the Digital Inputs ........................................... |
29 |
How to use the Help Menu ............................................... |
30 |
Display area allocation ...................................................... |
33 |
Selecting a Waveform ........................................................ |
34 |
Square Wave ............................................................................................. |
34 |
Ramp Wave............................................................................................... |
34 |
Sine Wave ................................................................................................. |
35 |
AM Modulation ........................................................................................ |
35 |
ASK Modulation ....................................................................................... |
37 |
FM Modulation......................................................................................... |

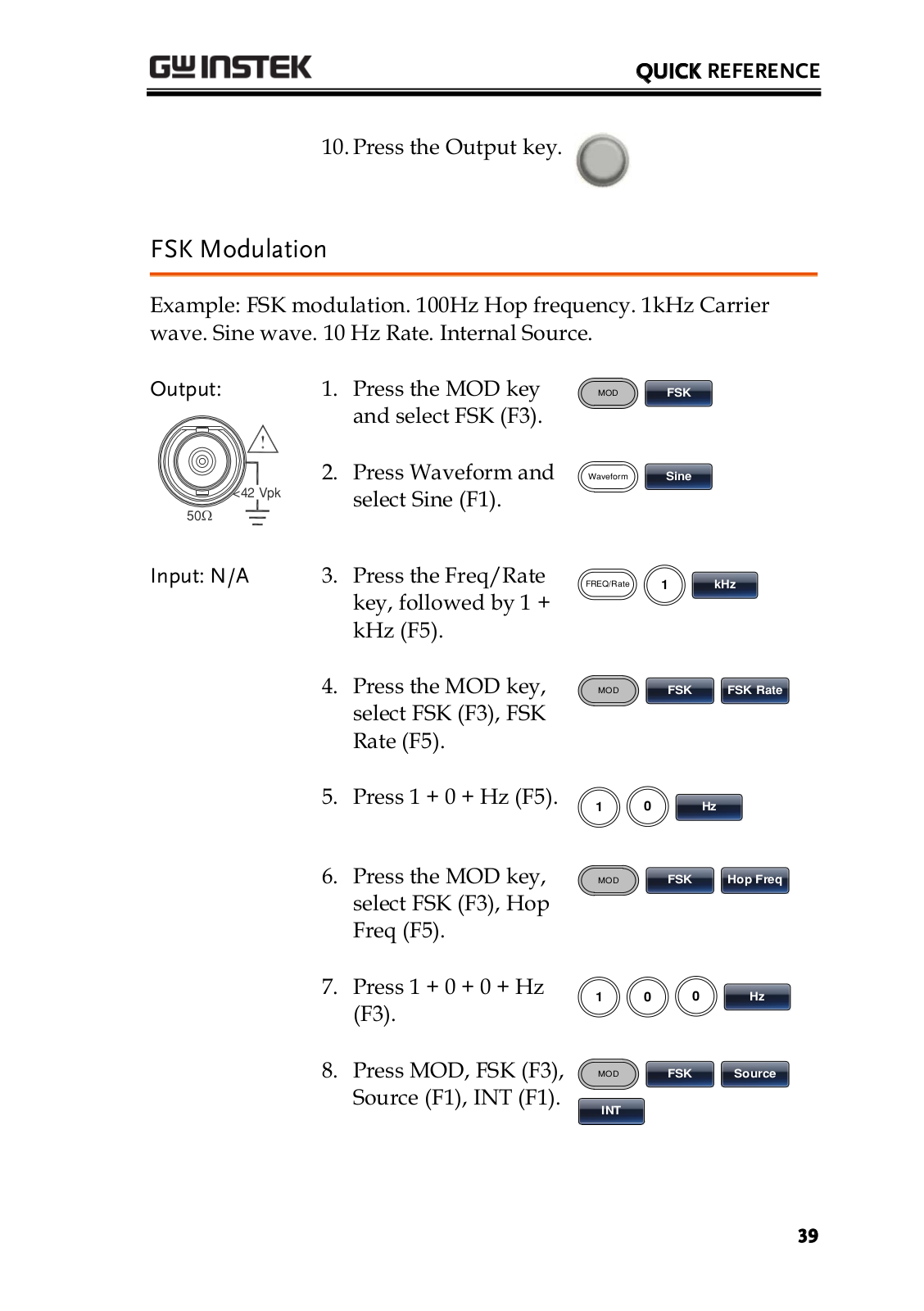

38 |
FSK Modulation........................................................................................ |
39 |
PM Modulation......................................................................................... |
40 |
PSK Modulation....................................................................................... |
41 |
PWM Modulation ..................................................................................... |
42 |
SUM Modulation...................................................................................... |
43 |
Sweep................................................................................ |
45 |
Burst ................................................................................. |
47 |
ARB ................................................................................... |
49 |
ARB–Add Built-In Waveform.................................................................... |
49 |
ARBAdd Point ......................................................................................... |
49 |
ARBAdd Line........................................................................................... |
50 |
ARB– Output Section ............................................................................... |
50 |
ARB– Output N Cycle ............................................................................... |
51 |
ARB – Output Infinite Cycles.................................................................... |
52 |
ARB–Output Marker................................................................................. |
52 |
Utility Menu ...................................................................... |
53 |
Save........................................................................................................... |
53 |
|
27 |
|
MFG-2000 Series User Manual |
Recall ........................................................................................................ |
53 |
Menu Tree ......................................................................... |
54 |
Waveform ................................................................................................. |
55 |
ARB-Display.............................................................................................. |
56 |
ARB-Edit ................................................................................................... |
57 |
ARBBuilt In ............................................................................................. |
58 |
ARB-Save .................................................................................................. |
59 |
ARB-Load.................................................................................................. |
60 |
ARB-Output .............................................................................................. |
60 |

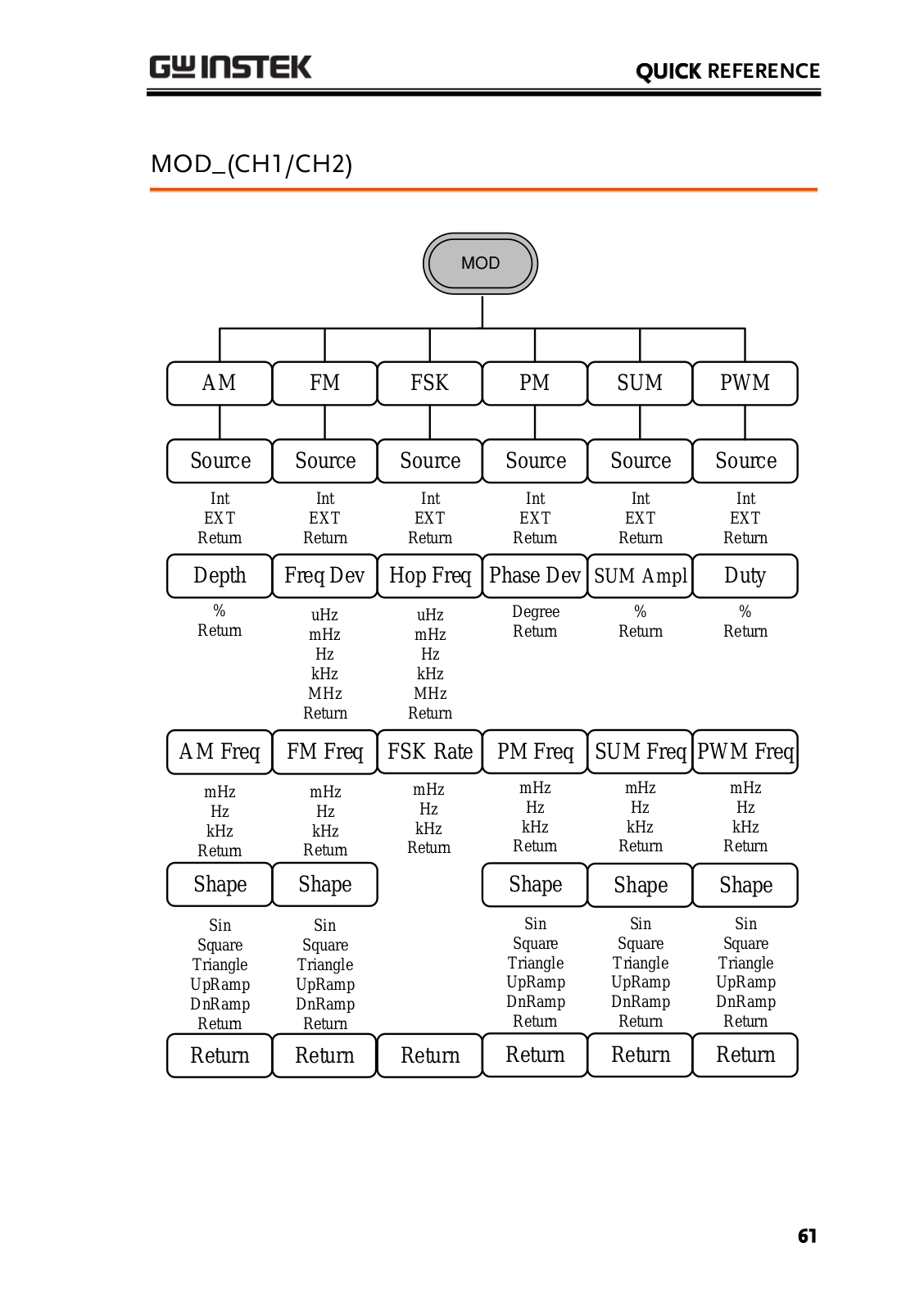

MOD_(CH1/CH2) ................................................................................... |
61 |

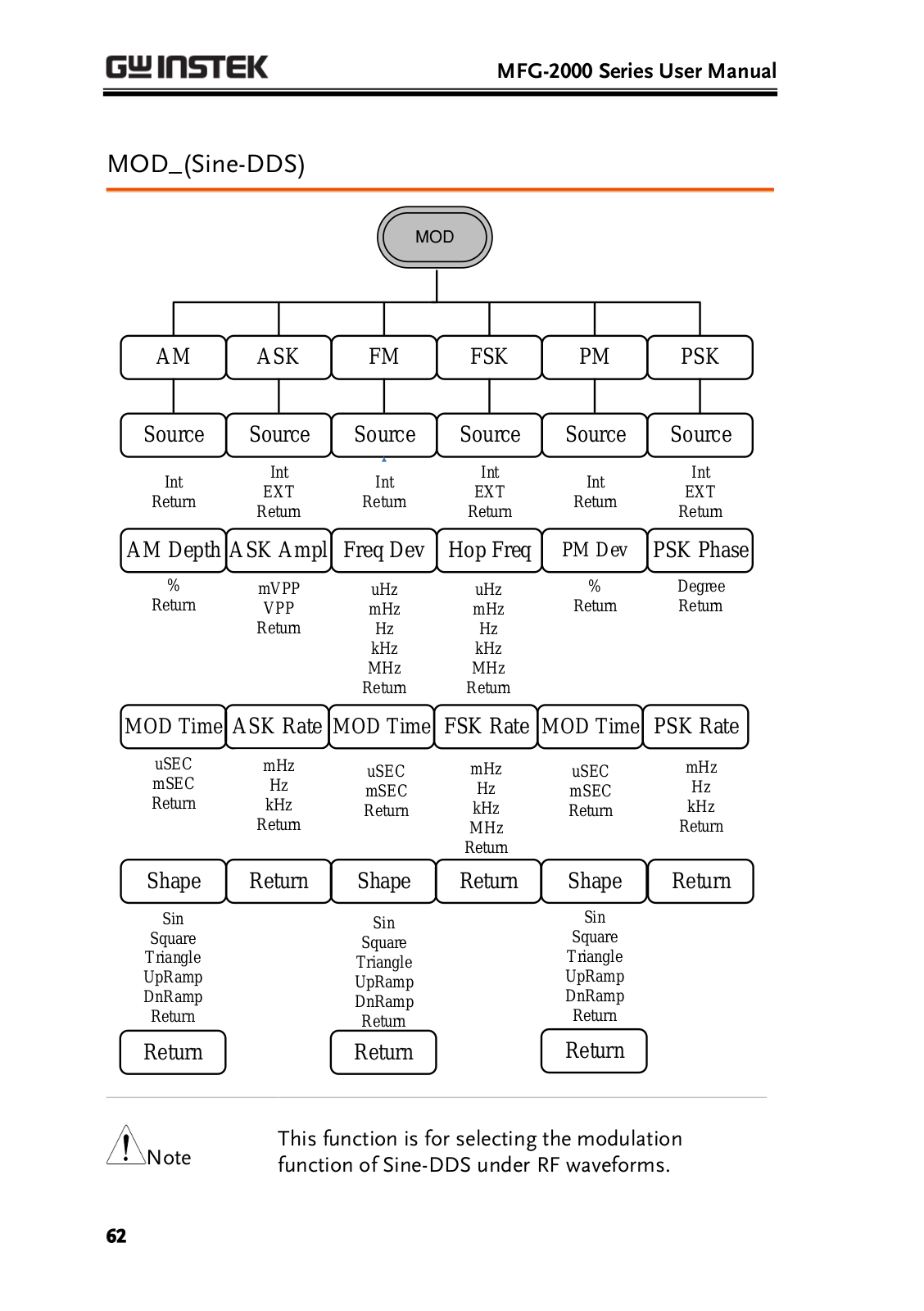

MOD_(Sine-DDS) .................................................................................... |
62 |
MOD_(Sine-ARB)..................................................................................... |
63 |
SWEEP ...................................................................................................... |
64 |
Burst- N Cycle........................................................................................... |
65 |
Burst – Gate ............................................................................................. |
66 |
UTIL_(22XX)............................................................................................. |
67 |
UTIL_(21XX)............................................................................................. |
70 |
CH1/CH2.................................................................................................. |
71 |
Pulse/RF ................................................................................................... |
71 |
Default Settings................................................................. |
72 |
28
MFG-2000 Series User Manual
Background The MFG-2000 has three main types of digital inputs: the number pad, arrow keys and scroll wheel. The following instructions will show you how to use the digital inputs to edit parameters.
1.To select a menu item, press the corresponding function keys below (F1~F6). For example the function key F1 corresponds to the Soft key
“Sine”.
2.To edit a digital value, use the arrow keys to move the cursor to the digit that needs to be edited.
3.Use the scroll wheel to edit the parameter. Clockwise increases the value, counter clockwise decreases the value.
4.Alternatively, the number
pad can be used to set the value of a highlighted parameter.
29
MFG-2000 Series User Manual
Background Every key and function has a detailed description in the help menu.(Take the MFG-22XX series as example)
1.Press UTIL
2.Press System (F4)
3.Press Help (F3)
UTIL
System
Help |
F 3 |
4. Use the scroll wheel to navigate to a help item. Press Select to choose the item.
Keypad |
Provides help on any front panel |
|
key that is pressed. |
Create Arbitrary |
Provides help on creating |
Waveform |
arbitrary waveforms. |
Modulation |
Explains how to create |
Function |
Modulated waveforms. |
30
