General 50-460R, 50-450R User Manual

SETUP & OPERATION MANUAL
FEATURES
Solid wide stance cast-iron trunnions ensure blade alignment and allow for stable vibration free cuts.
Extra large precision ground 31 1/2” x 44” cast-iron table including two 10” full cast-iron extension wings.
Quick release combination riving style splitter and blade guard with anti-kickback pawls.
Deluxe Excalibur sliding rip fence system with 50” rails.
Magnetic 2-step safety switch to prevent unintentional start-up is equipped with an extra-large easy access stop panel and a lock-out key to prevent unauthorized use of the saw.
Wide motor cover door for full, easy access to motor and belts.
Bevelled front table edge for smoother stock feeding.
Deluxe cast-iron miter gauge included.
Arbor lock allows faster safer blade changes using only one wrench.
Poly V-Belt drive for longer belt life and more efficient transfer of power.
Onboard storage mounts for fence, miter gauge and arbor wrench.
12” HEAVY-DUTY CABINET SAW
SPECIFICATIONS
• Blade diameter 12” (305 mm)
• Arbor diameter 1” (25.4 mm)
• Arbor tilt range 0º To 45º (right) - 50-450R 0º To 45º (left) - 50-460R
• Max. depth of cut at 90° and 45° 4” (102 mm) / 2 13/16” (72 mm)
• Dust port diameter 4” (102 mm)
• Arbor speed 4300 rpm
• Table height 33 3/4” (857 mm)
• Table size (w/extension) 44” x 31 1/2” (1120 x 800 mm)
• Table size (w/o extension) 24” x 31 1/2” (612 x 800 mm)
• Base dimensions (L x W) 24 1/2” x 25” (625 x 635 mm)
• Motor M1: 6 HP, 220 V, 1 Ph, 24.5 A M2: 7.5 HP, 220 V, 3 Ph, 18 A M3: 7.5 HP, 600 V, 3 Ph, 6 A
• Weight 506 LBS (230 kg)
Version 2_Revision 3 - (S/NO 53929613) - June 17, 2015
© Copyright General International
* Model shown 50-460R (left tilt) ; model not shown 50-450R (right tilt)
MODEL
#50-450R/460R*
GENERAL® INTERNATIONAL
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Telephone (514) 326-1161 • Fax (514) 326-5555 • www.general.ca
THANK YOU for choosing this General
®
International model 50-450R/460R 12” cabinet saw. This saw has been carefully tested and inspected before shipment and if properly used and maintained, will provide you with years of reliable service. For your safety, as well as to ensure optimum performance and trouble-free operation, and to get the most from your investment, please take the time to read this manual before assembling, installing and operating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic function, and fea­tures of this saw as well as the set-up, maintenance and identification of its parts and com­ponents. This manual is not intended as a substitute for formal woodworking instruction, nor to offer the user instruction in the craft of woodworking. If you are not sure about the safety of performing a certain operation or procedure, do not proceed until you can confirm, from knowledgeable and qualified sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for future reference.
Disclaimer: The information and specifications in this manual pertain to the unit as it was supplied from the factory at the time of printing. Because we are com­mitted to making constant improvements, General Inter-national reserves the right to make changes to components, parts or features of this unit as deemed necessary, without prior notice and without obligation to install any such changes on previously delivered units. Reasonable care is taken at the factory to ensure that the specifications and information in this manu­al corresponds with that of the unit with which it was
®
supplied. However, special orders and “after factory” modifications may render some or all information in this manual inapplicable to your machine. Further, as several generations of this model of saw and several versions of this manual may be in circulation, if you own an earlier or later version of this unit, this manual may not depict your machine exactly. If you have any doubts or questions contact your retailer or our support line with the model and serial number of your unit for clarification.
GENERAL® INTERNATIONAL WARRANTY
All component parts of General® International and Excalibur by General International® products are carefully inspected during all stages of production and each unit is thoroughly inspected upon com­pletion of assembly.
Limited Lifetime Warranty
Because of our commitment to quality and customer satisfaction, General® International agrees to repair or replace any part or component which upon examination, proves to be defective in either workmanship or material to the original purchaser for the life of the tool. However, the Limited Lifetime Warranty does not cover any product used for professional or commercial production purposes nor for industrial or educational applications. Such cases are covered by our Standard 2-year Limited Warran­ty only. The Limited Lifetime Warranty is also subject to the “Conditions and Exceptions” as listed below.
Standard 2-Years Limited Warranty
All products not covered by our lifetime warranty including products used in commercial, industrial and educational applications are warranted for a period of 2 years (24 months) from the date of pur­chase. General® International agrees to repair or replace any part or component which upon exam­ination, proves to be defective in either workmanship or material to the original purchaser during this 2-year warranty period, subject to the “conditions and exceptions” as listed below.
To file a Claim
To file a claim under our Standard 2-year Limited Warranty or under our Limited Lifetime Warran­ty, all defective parts, components or machinery must be returned freight or postage prepaid to General® International, or to a nearby distributor, repair center or other location designated by General® International. For further details call our service department at 1-888-949-1161 or your local distributor for assistance when filing your claim.
Along with the return of the product being claimed for warranty, a copy of the original proof of pur­chase and a “letter of claim” must be included (a warranty claim form can also be used and can be obtained, upon request, from General® International or an authorized distributor) clearly stating the model and serial number of the unit (if applicable) and including an explanation of the complaint or presumed defect in material or workmanship.
CONDITIONS AND EXCEPTIONS:
This coverage is extended to the original purchaser only. Prior warranty registration is not required but documented proof of purchase i.e. a copy of original sales invoice or receipt showing the date and location of the purchase as well as the purchase price paid, must be provided at the time of claim.
Warranty does not include failures, breakage or defects deemed after inspection by General® International to have been directly or indirectly caused by or resulting from; improper use, or lack of or improper maintenance, misuse or abuse, negligence, accidents, damage in handling or transport, or normal wear and tear of any generally considered consumable parts or components.
Repairs made without the written consent of General® International will void all warranty.
TABLE OF CONTENTS
Rules for safe operation ..................................................................................................... 5
Electrical requirements ...................................................................................................... 6
Identification of main parts and components .................................................................. 7
Basic functions ................................................................................................................... 8
Installation ......................................................................................................................... 8
Placement within the shop ................................................................................................................................ 8
Esablishing a safety zone ................................................................................................................................... 8
Unpacking .......................................................................................................................... 9
Clean up .......................................................................................................................... 10
Assembly instructions ................................................................................................. 10-12
Install the blade tilt adjustment handwheel .................................................................................................. 10
Install miter gauge & fence storage brackets .............................................................................................. 11
Mount the switch ............................................................................................................................................... 11
Install the table extension wings ..................................................................................................................... 11
Install the motor cover...................................................................................................................................... 11
Install the fence assembly ............................................................................................... 12
Front fence rail .................................................................................................................................................. 12
Rear fence rail ................................................................................................................................................... 12
Connecting to dust collector ........................................................................................... 13
Install/remove a saw blade ............................................................................................13
Install and adjust riving knife .......................................................................................... 14
Select a riving knife .......................................................................................................................................... 14
Riving knife removal/Installation .................................................................................................................... 15
Blade cover and riving knife assembly ......................................................................................................... 15
Adjustment/alignment ..................................................................................................................................... 16
Setting the splitter/knife 90° to the table ........................................................................................................ 16
Setting the splitter/knife parallel and centered on the blade .................................................................... 16
Level the table insert ......................................................................................................................................... 17
Basic adjustments and controls ...................................................................................... 17
Connecting to a power source .......................................................................................................................17
ON/OFF magnetic power switch .................................................................................................................... 17
Blade height adjustment ................................................................................................................................. 18
Blade tilt(bevel) adjustment ............................................................................................................................ 18
Operating instructions ..................................................................................................... 18
Types of cuts ............................................................................................................... 19-20
Adjusting and using the miter gauge .............................................................................. 20
Using a dado blade ......................................................................................................... 22
Maintenance and adjustments ....................................................................................... 22
Recommended optional accessories ............................................................................. 24
Parts list & diagrams ................................................................................................... 25-33
Contact information ........................................................................................................ 34
RULES FOR SAFE OPERATION
To help ensure safe operation, please take a moment to learn the machine’s applications and limitations, as well as potential hazards. General® International disclaims any real or implied warranty and holds itself harmless for any injury that may result from the improper use of it’s equipment.
1. Do not operate the saw when tired, distracted, or
under the effects of drugs, alcohol or any medica­tion that impairs reflexes or alertness.
2. The work area should be well lit, clean and free of
debris.
3. Keep children and visitors at a safe distance when
the saw is in operation; do not permit them to oper­ate the saw.
4. Childproof and tamper proof your shop and all
machinery with locks, master electrical switches and switch keys, to prevent unauthorized or unsu­pervised use.
5. Stay alert! Give your work your undivided attention.
Even a momentary distraction can lead to serious injury.
6. Fine particulate dust is a carcinogen that can be
hazardous to health. Work in a well-ventilated area and whenever possible use a dust collector and wear eye, ear and respiratory protection devices.
7. Do not wear loose clothing, gloves, bracelets, neck-
laces or other jewelry while the saw is in operation. Wear protective hair covering to contain long hair and wear non-slip footwear.
8. Be sure that adjusting wrenches, tools, drinks and
other clutter are removed from the machine and/ or the feed table surface before operating.
9. Keep hands well away from the blade and all mov-
ing parts. Use a brush, not hands, to clear away chips and dust.
10. Be sure that the blade is securely installed and in
proper cutting direction before operation.
11. Be sure the blade has gained full operating speed
before beginning to cut.
12. Always use a clean, properly sharpened blade.
Dirty or dull blades are unsafe and can lead to ac­cidents.
13. If using a power feeder, stop the feeder before stop-
ping the table saw.
14. Do not push or force stock into the blade. The saw
will perform better and more safely when working at the rate for which it was designed.
15. Use suitable support when cutting stock that does
not have a flat surface. Always hold stock firmly against the fence when ripping, or against the miter gauge when cross cutting.
16. To minimize risk of injury in the event of workpiece
kickback, never stand directly in-line with the blade or in the potential kickback path of the workpiece.
17. Avoid working from awkward or off balance posi-
tions. Do not overreach while cutting; keep both feet on floor. Never lean over or reach over the blade and never pull the workpiece over the blade from behind. Use out feed support or have an assis­tant help when ripping long material.
18. Keep blade guards in place and in working order.
If a guard must be removed for maintenance or cleaning, be sure it is properly re-attached before using the tool again.
19. Never leave the machine unattended while it is run-
ning or with the power on.
20. Use of parts and accessories NOT recommended
by GENERAL® INTERNATIONAL may result in equip­ment malfunction or risk of injury.
21. Never stand on machinery. Serious injury could re-
sult if the tool is tipped over or if the blade is uninten­tionally contacted.
22. Always disconnect tool from power before servic-
ing or changing accessories such as blades, or before performing any maintenance, cleaning or adjustments, or if the machine will be left unattend­ed.
23. Make sure that switch is in “OFF” position before
plugging in the power cord.
24. Make sure the tool is properly grounded. If equipped
with a 3-prong plug it should be used with a three­pole receptacle. Never remove the third prong.
25. Do not use this saw for any purpose other than
its intended use. If used for other purposes, GENERAL® INTERNATIONAL disclaims any real im­plied warranty and holds itself harmless for any in­jury, which may result from that use.
5
ELECTRICAL REQUIREMENTS
BEFORE CONNECTING THE MACHINE TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE OF YOUR POWER SUPPLY CORRESPONDS WITH THE VOLTAGE SPECIFIED ON THE MOTOR I.D. NAMEPLATE. A POWER SOURCE WITH GREATER VOLTAGE THAN NEEDED CAN RESULT IN SERIOUS INJURY TO THE USER AS WELL AS DAMAGE TO THE MACHINE. IF IN DOUBT, CONTACT A QUALIFIED ELECTRICIAN BEFORE CONNECTING TO THE POWER SOURCE.
THIS TOOL IS FOR INDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN WET OR DAMP LOCATIONS.
Note: voltage requirements and amperage draw for M2 & M3 3-phase motors may not be fully described in this manual. For complete electrical requirements refer to the mo­tor I.D. name plate on the machine. If in doubt consult a licensed qualified electrician before proceeding.
CIRCUIT CAPACITY
Make sure that the wires in your circuit are capable of handling the amperage draw from your machine, as well as any other machines that could be operating on the same circuit. If you are unsure, consult a qualified electrician. If the circuit breaker trips or the fuse blows regularly, your machine may be operating on a circuit that is close to its amperage draw capacity. However, if an unusual amperage draw does not exist and a pow­er failure still occurs, contact a qualified technician or our service department.
ELECTRICAL CONNECTIONS
Both a manual circuit breaker (or similar device) as well as an electrical plug are recommended and should be installed by a qualified electrician. Use locally ap­proved wire that includes a separate grounding wire and a 3-prong grounding type plug A with a matching receptacle B .
GROUNDING INSTRUCTIONS
In the event of an electrical malfunction or short circuit, grounding reduces the risk of electric shock to the op­erator. The motor of the “M1” model of this machine is wired for 220V single phase operation.
As with many stationary industrial type machines, be­cause each installation situation is unique, this machine is supplied without a power cord or plug.
The installation of an appropriate power cord and plug must be performed by a qualified electrician. The ma­chine must be connected to an electrical source using a power cord that has a grounding wire, which must also be properly connected to the grounding prong on the plug. The outlet must be properly installed and grounded and all electrical connections must be made in accordance with all local codes and regulations.
EXTENSION CORDS
The use of an extension cord is not generally recom­mended for 220V equipment. If you find it necessary, use only 3-wire extension cords that have 3-prong grounding plug and a matching 3-pole receptacle that accepts the tool’s plug. Repair or replace a damaged extension cord or plug immediately.
Make sure the cord rating is suitable for the amper­age listed on the motor I.D. plate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The accompany­ing chart shows the correct size extension cord to be used based on cord length and motor I.D. plate amp rating. If in doubt, use the next heavier gauge. The smaller the number, the heavier the gauge.
TABLE - MINIMUM GAUGE FOR CORD
AMPERE
RATING
< 5
6 TO 10
10 TO 12 12 TO 16
* NR = Not Recommended
220 VOLTS 50 FEET 100 FEET 200 FEET 300 FEET
------->
------->
------->
------->
TOTAL LENGTH OF CORD IN FEET
AWG
18 16 16 14
18 16 14 12
16 16 14 12
14 12 * NR * NR
6
IDENTIFICATION OF MAIN PARTS AND COMPONENTS
FRONT VIEW
D
O
C
A
B
I
M
N
L
E
K
F
G
H
A. LEFT TABLE EXTENSION WING
B. MITER GAUGE
C. MAIN TABLE
D. SPLITTER/BLADE COVER
E. PUSH STICK
F. RIP FENCE
G. RIGHT TABLE EXTENSION WING
H. FRONT FENCE RAIL
J
I. FENCE LOCKING LEVER
J. FENCE STORAGE BRACKETS
K. BLADE TILT ADJUSTMENT HANDWHEEL
L. BEVEL ANGLE SCALE
M. BLADE HEIGHT ADJUSTMENT HANDWHEEL
N. MOTOR COVER
O. MAGNETIC SAFETY SWITCH
7
BASIC FUNCTIONS
25"
85"
34"
24 ½"
31 ½"
The General International model 50-450R (right tilt) - 50-460R (left tilt) cabinet saw is available with various motor size and electrical voltage requirement options (see manual coverpage for complete list).
This cabinet saw has been designed for cutting solid wood as well as manufactured wood materials such as ply­wood, wood paneling, particleboard, mdf and other wood based by-products.
This saw is not designed for cutting metals nor for cutting any materials other than wood or wood based stock.
This saw is designed for use with maximum 12” (305 mm) diameter blades having a center hole diameter of 1” (25.4 mm).
The blade can be raised to cut a maximum stock thickness of 4” (102 mm) with the blade set 90° to the table. The blade can be tilted up to 45° to the left for bevel cuts to a maximum stock thickness of 2 13/16” (72 mm).
Using any standard after market 8”diameter stacked dado blade set (not included), the maximum dado cutting capacity of this saw is 13/16” (21 mm). Note: for safe dado cutting, an optional dado adapter kit (#50-455 ou
#50-465) is required and can be purchased through your General International distributor.
To encourage safety through the proper use of either the supplied riving style splitter/blade guard assembly or the European style riving knife the 50-450R/460R is designed with a quick install/quick release feature allowing the user to install or remove either of these safety components in seconds.
INSTALLATION
THIS MODEL 50-450R/460R 12” CABINET SAW IS HEAVY. DO NOT OVER-EXERT. A HOIST OR FORKLIFT WITH STRAPS SHOULD BE USED TO LIFT THIS MACHINE. TO LIMIT THE RISK OF SERIOUS INJURY OR DAMAGE TO THE MACHINE, ANY EQUIPMENT USED TO LIFT THIS MACHINE SHOULD HAVE A RATED CAPACITY IN EXCESS OF 506 LBS (230 KG).
PLACEMENT WITHIN THE SHOP
This machine should be installed and operated only on a solid, flat and stable floor that is able to support the weight of the machine (506 lbs - 230 kg) and the operator.
Using the dimensions shown as a guideline, plan for placement within your shop that will allow the operator to work unencumbered and unobstructed by foot traffic (either passing shop visitors or other shop workers) or other tools or machinery.
ESTABLISHING A SAFETY ZONE*
For shops with frequent visitors or multiple oper­ators, it is advisable to establish a safety zone around shop machinery. A clearly defined “no­go” zone on the floor around each machine can help avoid accidents that could cause injury to either the operator or the shop visitor.
It is advisable to take a few moments to either paint (using non-slip paint) or using tape, define on the floor the limits or perimeter of each ma­chines safety zone.
Take steps to ensure that all operators and shop visitors are aware that these areas are off limits whenever a machine is running for everyone but the individual operating the unit.
* Shown using left tilt model
8
UNPACKING
Carefully unpack and remove the saw and its components from the shipping crate and check for damaged or missing items as per the list of contents below.
NOTE: PLEASE REPORT ANY DAMAGED OR MISSING ITEMS TO YOUR GENERAL® INTERNATIONAL DISTRIBUTOR IMMEDIATELY.
LIST OF CONTENTS QTY
A. SAW (NOT SHOWN) ................................................................. 1
B. MOTOR COVER ....................................................................... 1
C. TABLE EXTENSION ................................................................... 2
D. BLADE COVER/SPLITTER .......................................................... 1
E. RIVING KNIFE ........................................................................... 1
F. BLADE TILT ADJUSTMENT HANDWHEEL .................................... 1
G. MITER GAUGE .......................................................................... 1
H. BLADE TILT HANDWHEEL LOCK KNOB ..................................... 1
I. FENCE STORAGE BRACKET ...................................................... 2
J. MITER GAUGE STORAGE BRACKET.......................................... 1
K. ARBOR WRENCH ..................................................................... 1
Note: The Excalibur SLF35T52 rip fence and rails are pack­aged separately.
B
ADDITIONAL REQUIREMENTS FOR SET UP
EXTRA PERSON FOR HELP WITH LIFTING
A. B. PHILLIPS SCREWDRIVER C. COMBINATION WRENCHES 10 MM AND 7/16” D. 3 MM AND 4 MM ALLEN KEYS E. STRAIGHTEDGE F. MACHINIST SQUARE OR TRIANGLE SQUARE
A
E
B
C
D
C
D
E
F
I
G
H
G
J
K
9
CLEAN UP
The protective coating on the saw table prevents rust from forming during shipping and storage. Remove it by rubbing with a rag dipped in kerosene, mineral spir­its or paint thinner. (Dispose of potentially flammable solvent-soaked rags according to manufacturer’s safe­ty recommendations).
A putty knife, held flat to avoid scratching the surface, may also be used to scrape off the coating followed by clean-up with solvent. Avoid rubbing the saw’s painted surfaces, as many solvent-based products will remove paint.
To prevent rust, apply a light coating of paste wax or use regular applications of any after-market surface protectant or rust inhibitor.
ASSEMBLY INSTRUCTIONS
BEFORE STARTING THE ASSEMBLY, MAKE SURE THAT THE SWITCH IS IN THE “OFF” POSITION AND THAT THE POWER CORD IS UNPLUGGED. DO NOT PLUG IN OR TURN ON THE SAW UNTIL YOU HAVE COMPLETED THE ASSEMBLY AND IN­STALLATION STEPS DESCRIBED IN THIS SECTION OF THE MANUAL.
TIP: WITH A SCREWDRIVER, PUSH A SOLVENT-SATURATED RAG INTO THE T-SLOTS TO REMOVE THE GREASE.
INSTALL THE BLADE TILT ADJUSTMENT HANDWHEEL*
RIGHT SIDE VIEW
B
C
A
1. Install the blade tilt adjustment handwheel A
onto the shaft B on the right or left side of the saw.
Note: First remove the adhesive tape C that holds the key in the shaft.
Note: To limit the potential for damage in transport, this table saw is shipped from the factory with the motor sit­ting on a styrofoam block G for support.
Turn the handwheel H, located on the right or left side of the saw, counter-clockwise to raise the motor enough to remove the styrofoam block
F
D
E
2. Tighten the screw D to secure the handwheel on
the shaft using a 4 mm Allen key, then thread the lock knob E into the handwheel shaft F to secure the handwheel in place.
* Shown using left tilt model
10
H
G
INSTALL MITER GAUGE & FENCE STORAGE BRACKETS
Install the miter gauge storage bracket J (the smaller one) and the fence storage brackets K on the right or left side of the saw as shown in L, using the screws M already mounted on the right side of the cabinet.
MOUNT THE SWITCH*
J
M
K
L
P
O
N
1. Loosen the two bolts on front of the saw N and re-
move the two bolts on the right or left side of the saw
O.
INSTALL THE TABLE EXTENSION WINGS*
R
Level here
S
Q
2. Slide the switch mounting bracket onto the front
bolts P and tighten from inside the cabinet with a 10 mm socket wrench, then re-install and tighten the side bolts Q.
INSTALL THE MOTOR COVER*
V
W
T
Flush here
Attach the table extension wings to the main table us­ing the 7/16” mm hex head bolts (3 per wing) already mounted on both sides of the main table R. Align the table extensions with the table and loosely attach the bolts. Place a straightedge on the table and extension as shown S to align the extension table and then tight­en down the bolts.
Note: Be sure that the table extension wings are flush with front edge of table T.
* Shown using left tilt model
Install the motor cover door on the right or left side of the saw by inserting the pins V into the hinge sockets W.
11
INSTALL THE FENCE ASSEMBLY*
NOTE: THERE ARE DETAILED INSTALLATION AND OPERATING INSTRUCTIONS IN THE SLF35T52 MANUAL SUPPLIED IN THE BOX WITH THE EXCALIBUR SLF35T52 RIP FENCE.
FRONT FENCE RAIL*
1. Install the front guide rail on the front of the saw aligning the holes in the rail with those on the the saw as
shown below.
5/8"
2. Adjust the rail height until the top of the rail is ap-
proximately 5/8” below the top of the table and level from one end of the table to the other.
Hold the nuts firm with a wrench and tighten the
screws closest to the ends of the table (left and right) first. Then tighten the center screws only af­ter double-checking the height all along the rail and at both ends.
REAR FENCE RAIL*
1. Install the rear guide rail on the rear of the saw aligning the holes in the rail with those on the saw as shown.
3. Assemble the guide tube A to the front fence rail
using the 8 short hex head bolts with lock washers and flat washers B to the underside of the rail.
Note: When the tube is attached, there will be a gap of about 1” between it and the rail, C, in which part of the fence will ride.
C
A
B
* Shown using left tilt model
12
CONNECTING TO A DUST COLLECTOR
ALWAYS TURN ON THE DUST COLLECTOR BEFORE STARTING THE SAW AND ALWAYS STOP THE SAW BEFORE TURNING OFF THE DUST COLLECTOR.
1. There is a 4” dust outlet A located on the rear of the
saw cabinet allowing for the connection to a dust collector (not included).
2. Be sure to use appropriate size hose and fittings
and check that all connections are sealed tightly to mini-mize airborne dust.
3. If you do not already own a dust collection system-
consider contacting your General® International distributor for information on our complete line of dust collection systems and accessories or visit our website at www.general.ca
A
INSTALL / REMOVE A SAW BLADE
NOTE: This saw is intended for use with 12” (305 mm) diameter or less saw blades having a center hole diameter of 1”. There are many types of blades available to perform specific cutting jobs, such as crosscuts or ripping only, or for use with plywood, panelling and other products. A good quality specialty blade can produce a finer finish, be more efficient and place less strain on the saw. Use only saw blades designed for operating speeds of 4300 RPM or higher. Saw blades should be kept clean and sharp. Never store saw blades by stacking them directly in contact with each other. Place a layer of cardboard or similar material between the blades to keep them from coming into contact with each other.
BE SURE THE SAW IS UNPLUGGED AND COMPLETELY DISCONNECTED FROM THE POWER SOURCE WHENEVER INSTALLING OR REMOVING A SAW BLADE!
A B
C
G
E
D
F
1. Lift the table insert up A and loosen the lock lever B, then pull the splitter or riving knife up out of its mounting bracket C.
D
2. Press on the arbor lock button G so the blade &
arbor won’t turn as you tighten the arbor nut clock­wise (toward the rear of the saw) D with the sup­plied arbor wrench E. Remove the flange F.
13

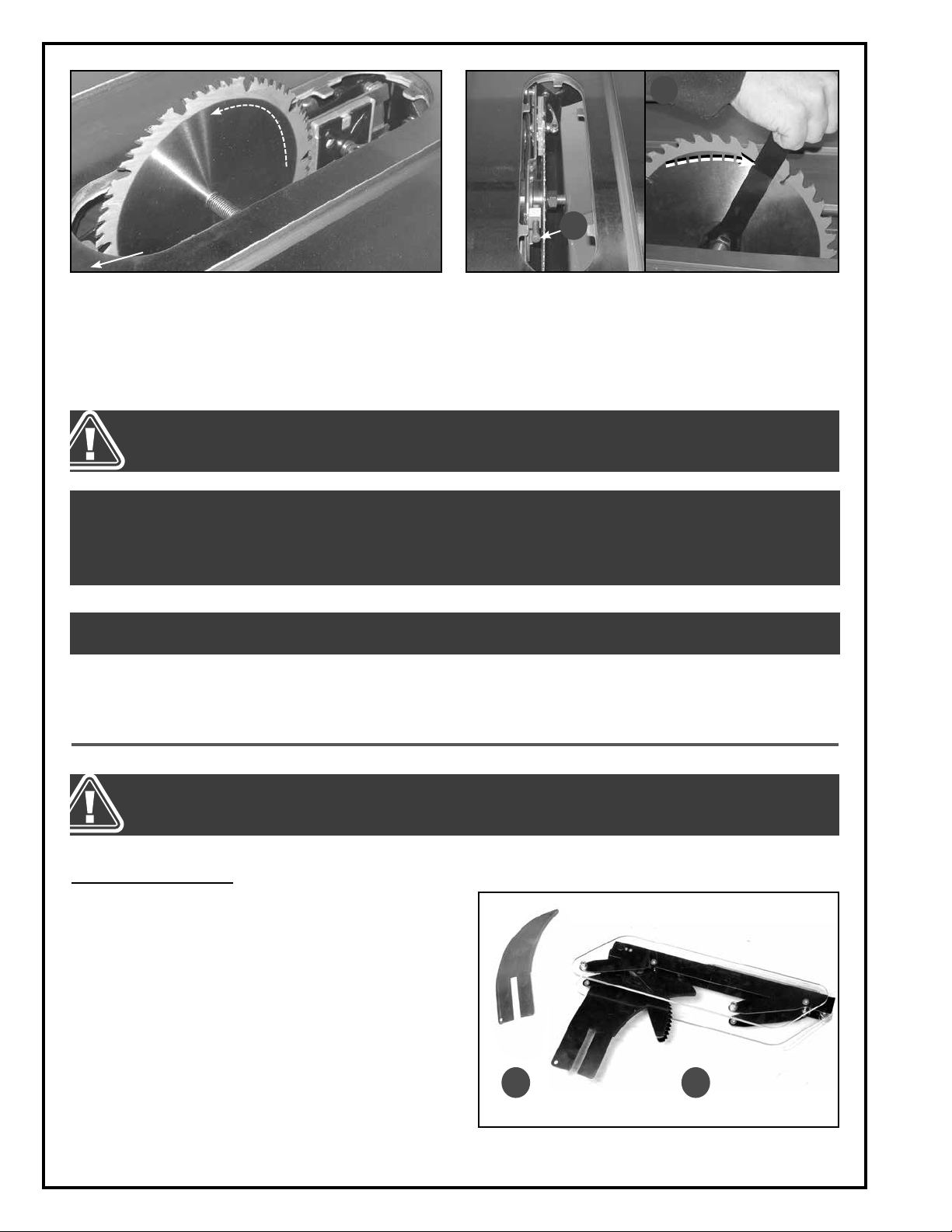

BLADE DIRECTION
FRONT
H
E
3. Install a saw blade on the arbor so that the openings
between the teeth face the front of the saw (the bla­de spins in the counter-clockwise direction), then replace the flange and arbor nut.
4. Press down on the red arbor lock button G so the
blade and arbor won’t turn as you tighten the arbor nut clockwise H (toward the rear of the saw) with the supplied arbor wrench.
5. To remove a saw blade: perform the same procedure turning the arbor nut in the opposite direction.
BEFORE TURNING ON THE SAW, MAKE SURE THE ARBOR LOCK IS DISENGAGED (POPS UP) BY TURNING THE BLADE A FRACTION TO UNLOCK. TURN THE BLADE BY HAND ONE FULL ROTATION TO MAKE SURE THE ARBOR/BLADE TURNS FREELY.
NOTE: WHEN TIGHTENING THE ARBOR NUT, TAKE CARE NOT TO OVER TIGHTEN AS THIS WILL MAKE IT VERY DIFFICULT TO REMOVE LATER. BECAUSE THE ROTATION OF THE BLADE RUNS COUNTER TO THE DIRECTION OF THE THREADS ON THE NUT, THE BLADE IS ESSENTIALLY TIGHTENING ITSELF TO THE NUT WHENEVER THE SAW IS RUNNING. THOUGH THERE ARE NO HARD AND FAST RULES FOR HOW MUCH TORQUE IS REQUIRED, THE ARBOR NUT SHOULD BE ALWAYS TIGHTENED HAND-TIGHT AND JUST SLIGHTLY BEYOND “SNUG”.
NOTE: IF USING THE SAW WITH 10" BLADES, THE OPTIONAL 10" RIVING KNIFE #50-456 IS REQUIRED
INSTALL AND ADJUST RIVING KNIFE
THE BLADE MUST NEVER REMAIN EXPOSED WHEN USING THE SAW. TO PREVENT THE RISK OF SERIOUS INJURIES, ALWAYS COVER THE BLADE WITH A BLADE GUARD.
SELECT A RIVING KNIFE
Two riving knives are provided:
- A European style riving knife without blade guard A;
- A combination riving style splitter and blade cover with anti-kickback pawls B.
The riving knife must always be used wit h a blade cover. If you already own an independently attached blade cover such as our Excalibur 50-EXBC10, use the riving
BA
knife A. If you do not already own a blade cover, use the splitter/blade guard assembly B
14
.
RIVING KNIFE REMOVAL / INSTALLATION
ALWAYS TURN OFF AND UNPLUG THE SAW BEFORE REMOVING / INSTALLING A RIVING KNIFE.
TABLE INSERT REMOVED FOR CLARITY
B
B
A
Set the blade to 90º and raise it to its highest position (Refer to “Blade height and tilt adjustment” instructions). Lift the table insert. If already installed, remove the splitter or riving knife by loosening the lock lever A then pulling the splitter or riving knife up out of its mounting bracket B.
To install: Re-install the table insert and fit the bottom end of the splitter or riving knife into the slot in the mountin g bracket and push downward until it bottoms out. Lift the table insert and tighten the lock lever to lock it in place.
BLADE COVER AND RIVING KNIFE ASSEMBLY
ALWAYS TURN OFF AND UNPLUG THE SAW BEFORE REMOVING / INSTALLING A RIVING KNIFE.
BA
1. Push and hold in the pin on at the end of the blade
cover and manually remove the blade cover
TIP: FOLLOW THE PREVIOUS STEPS IN REVERSE ORDER TO ASSEMBLE THE BLADE COVER. A “CLICK” OF THE LOCKING PIN CONFIRMS THAT THE ANTI-KICKBACK FINGERS AND BLADE COVER ARE SECURED PROPERLY ON THE SPLITTER.
2. Push and hold in the pin holding the anti-kickback fingers A and remove it manually as shown, B.
15
ADJUSTMENT / ALIGNMENT
C
A
B
D
D
E
E
ALWAYS TURN OFF AND UNPLUG THE SAW BEFORE PERFORMING ANY ADJUSTMENTS.
The riving knife mounting block is already factory set, and should not require adjustment out of the box. How­ever with use over time, re-alignment may be required periodically.
The splitter/knife mounting bracket consists of a rocker arm A, a spacer B, and a hold-down block C. This as­sembly is held together by two locking screws D. Both 90º to the table and parallel/centered to the blade alignments can be achieved by adjusting the four set screws E. In order to be able to adjust the set screws, the locking screws D must first be loosened (with a 4 mm Allen key) – 1/4 turn or more, depending upon how much adjustment is required.
TIP: TIGHTEN EACH LOCKING SCREW IMMEDIATELY AFTER ADJUSTING ITS CORRESPONDING SET SCREW TO AVOID UNDO­ING THE PREVIOUS ADJUSTMENT.
SETTING THE SPLITTER/KNIFE 90º TO THE TABLE
1. With the blade set to 90º to the table, using a
square, verify the perpendicular alignment of the splitter/knife to the table, A.
2. If needed, loosen or tighten (with a 3 mm allen key) the two upper B and/or lower C set screws on the splitter/knife mounting bracket, until the split­ter/knife is 90º to the table.
SETTING THE SPLITTER/KNIFE PARALLEL TO AND CENTERED ON THE BLADE
A
A
TABLE REMOVED FOR CLARITY ONLY
C
B
D
90º
B
C
B
C
1. Place a straightedge against the splitter/knife A.
2. If needed, loosen or tighten one or both set screws
on both left B and right C side of the splitter/knife­mounting bracket until the splitter/knife is parallel to the blade D.
16
3. Use a feeler gauge to measure the clearance be-
tween the straightedge and the blade. The width of the gap must be more or less the same on each side of the splitter/knife. If needed, re-adjust the set screws on both right and left side of the splitter/ knife mounting bracket to increase or decrease the clearance between the straight edge and the blade.
STOP

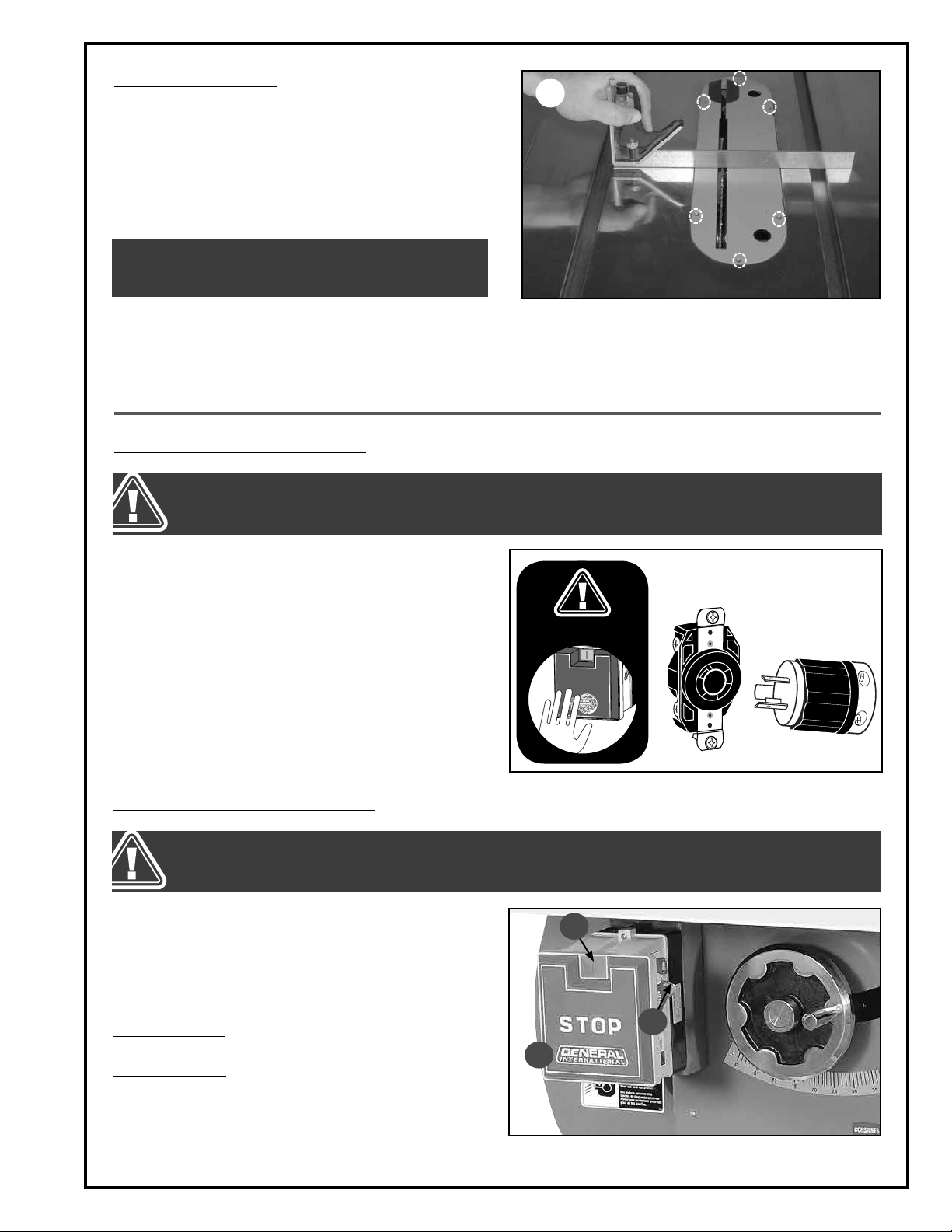

LEVEL THE TABLE INSERT
Place the insert into the table and use a straightedge to determine whether the insert is level with the table top. Turn each of the 6 adjusting screws A with the a 3 mm Allen key until done.
Note: If the saw blade has already been installed, use the raising handwheel to lower the blade below the table sur­face before leveling the insert.
TIP: START BY ADJUSTING ONE REAR SCREW AND ITS DI­AGONAL OPPOSITE IN FRONT, THEN TWEAK THE REMAIN­ING SCREWS.
BASIC ADJUSTMENTS & CONTROLS
CONNECTING TO A POWER SOURCE
TO AVOID UNINTENTIONAL START-UP, MAKE SURE THAT THE POWER SWITCH ON THE SAW IS IN THE OFF POSITION BEFORE CONNECTING TO A POWER SOURCE. TO AVOID RISK OF SHOCK OR FIRE DO NOT OPERATE THE UNIT WITH A DAMAGED POWER CORD OR PLUG. REPLACE DAMAGED CORD OR PLUG IMMEDIATELY.
A
Once the assembly steps have been completed, plug the power cord into an appropriate outlet. Refer back to the section entitled “ELECTRICAL REQUIREMENTS” and make sure all requirements and grounding instructions are followed. When cutting operations have been completed unplug the saw from the power source.
ON/OFF MAGNETIC POWER SWITCH*
TO PREVENT UNWANTED OR UNAUTHORIZED START-UP OR USAGE, REMOVE THE LOCK-OUT KEY AND STORE IT IN A SAFE PLACE, OUT OF THE REACH OF CHILDREN, WHENEVER THE SAW IS NOT IN USE.
This model 50-450R/460R is equipped with a Magnetic 2-step safety switch to prevent unwanted or uninten­tional start-up and unauthorized use of the saw.
The switch assembly is equipped with a GREEN “START” button A, an extra-large easy access RED stop panel B, and a lock-out key C.
To start the saw: Insert the lock-out key C and press on the GREEN “START” button A.
To stop the saw: Press on the RED “STOP” panel, B.
Once the RED “STOP” panel has been pressed, the saw can only be started by pressing once again on the RED “STOP” panel to release the green button, then by pressing on the green button.
* Shown using left tilt model
SWITCH OFF
A
C
B
17
BLADE HEIGHT ADJUSTMENT*
1/4”
The blade height adjustment handwheel is located on the front of the saw A and there is a lock knob B on the handwheel that allows you to lock the wheel and secure the blade at the desired height.
To raise or lower the blade:
1. Loosen the blade height lock knob B by turning
counter clockwise.
2. To raise the blade: turn the handwheel A clockwise. To lower the blade: turn the handwheel A counter- clockwise.
3. With the blade set to the desired height, tighten the lock knob B by turning clockwise to lock the blade.
BLADE TILT (BEVEL) ADJUSTMENT*
B
A
1/4”
The blade tilt (bevel) adjustment handwheel is located on the side of the saw C and there is a lock knob D on the handwheel that allows you to lock the wheel and secure the blade at the desired angle.
To change the angle of the blade:
1. Loosen the bevel lock knob D by turning it counter­ clockwise.
2. Turn the handwheel C left or right as required to set the blade to the desired angle. The blade can be tilt­ ed to the left anywhere from 0° (90° to the table) to 45°.
TO LIMIT YOUR EXPOSURE TO THE BLADE AND ALSO TO MAXIMISE THE EFFECTIVENESS OF THE ANTI-KICK­BACK PAWLS (WHEN USING THE RIVING STYLE SPLITTER & BLADE GUARD), NEVER TAKE MORE BLADE HEIGHT THAN IS REQUIRED TO COMPLETE THE CUT. WHEN SETTING THE BLADE HEIGHT FOR THROUGH-CUTS (CUTS ALL THE WAY THROUGH THE THICKNESS OF A BOARD) SET THE HEIGHT OF THE BLADE TO ROUGHLY 1/4” HIGHER THAN THE THICKNESS OF THE BOARD.
3. With the blade tilted to the desired angle, tighten the
lock knob by turning it clockwise to lock the tilting mechanism and secure the blade.
OPERATING INSTRUCTIONS
D
C
VERIFY ALL CHECK POINTS BEFORE STARTING. FAILURE TO COMPLY CAN RESULT IN SERIOUS INJURIES.
Make sure that the arbor nut is secure and that the blade is firmly tightened snug on the arbor.
• Make sure that the arbor lock is disengaged and the blade spins unobstructed when rotated by hand.
• Check that the blade angle and height lock knobs are tight. If ripping, make sure the fence lock lever is en­gaged and that the fence is parallel to the blade.
• If cross cutting, make sure the miter gauge is locked tight.
• While using the saw, be sure to wear safety glasses at all times.
• Make sure that the blade guard/splitter assembly or riving knife is properly installed and aligned with the blade, and that the anti-kickback pawls are functioning.
• If the saw is installed on a mobile base, make sure that the wheels have been completely locked.
* Shown using left tilt model
18
TYPES OF CUTS
NEVER REACH IN TOWARDS THE BLADE WHILE THE BLADE IS STILL SPINNING! WHENEVER A RIP CUT IS COMPLETED, TURN OFF THE SAW AND WAIT FOR THE BLADE TO COME TO A COMPLETE STOP BEFORE REACHING IN TO REMOVE THE WORKPIECE OR THE WASTE MATERIAL.
RIPPING*
Cutting a wood plank or sheet of plywood lengthwise to reduce its width is called “ripping.” To rip stock, hold the work with both hands pushing it into the blade as well as firmly against the rip fence so that it is cut straight A.
• The work to be cut must have a straight edge to ride the fence and must be flat to make solid contact with the table during the cut in order to avoid “kick­back” (a blade jam causing the wood to fly back­wards and hit you).
• Never rip or cut wood without using the fence or mi­ter gauge to guide it because the stock could kick­back.
• Always use the blade guard and splitter/riving knife assembly when cutting wood. The anti-kickback fingers and splitter/riving knife prevent the saw “kerf” (the slit cut by the blade) from closing and binding the blade, which can overload and/or stall the motor or cause the blade to lift and eject the workpiece towards the front of the saw at very high speeds. The blade guard keeps your fingers away from the blade and also reduces the amount of sawdust flying free.
Although certain operations require the removal of the blade guard and splitter assembly, it should always be replaced for regular cutting.
• Never stand in the line of the blade when ripping.
• Raise the saw blade only about 1/4” higher than the workpiece to be cut.
As you complete the rip, the wood will either remain on the table, tilt up to be caught on the end of the guard, or fall onto the floor (or outfeed table). The waste part of the stock remains on the table to be removed only after the saw is stopped (unless it is large enough for immediate safe removal).
A
A
NEVER REACH IN TOWARDS THE BLADE WHILE THE BLADE IS STILL SPINNING! WHENEVER A RIP CUT IS COMPLETED, TURN OFF THE SAW AND WAIT FOR THE BLADE TO COME TO A COMPLETE STOP BEFORE REACHING IN TO REMOVE THE WORKPIECE OR THE WASTE MATERIAL.
If the work to be ripped is narrow, it is safer to use the supplied push stick, rather than hands, to feed it into the blade B.
When ripping extremely narrow stock that may not clear the width of the blade guard, or very thin material such as paneling, which may slip between the underside of the fence and the table surface, a strip of wood as an auxiliary guide can be attached to the fence.
BEVEL RIPPING
Bevel ripping is performed the same as ripping but with the saw blade set to an angle not perpendicular to the table surface. After changing the bevel angle verify the alignment of the guard and splitter; make sure there is clearance with the saw blade.
RIPPING SMALL WORK PIECES
Do not attempt rip cuts if the work piece is too small, as this will oblige you to place your hands too close to the blade and put you at serious risk of injury. When ripping narrower widths; use a push block or a push stick in order to avoid placing hands near the blade.
* Shown using left tilt model
B
19
CROSS CUTTING*
Cutting against the grain, to shorten the length of a board is crosscutting. With some smaller-sized and rect­angular pieces, you often have the choice of ripping or crosscutting.
Always use the miter gauge C when crosscutting; never cut a piece unsupported. The miter gauge may be used in either slot, but most operators prefer the left groove for typical work. When the blade is tilted for bevel cutting, use the table slot that does not cause interference with your hand or the blade guard.
To begin crosscutting, place the work on the miter gauge and, with the motor OFF, slide it up close to the blade to align the outer edges of the teeth with your cut mark D.
Keep a firm grip as you pull the miter gauge and the wood back away from the blade. Turn on the saw and make the cut. When the work is cut through, move one or both cut pieces — if long enough to handle without danger — immediately off to the side, away from the turning blade. Turn off the motor.
BEVEL CROSS CUTTING
This procedure is the same as cross cutting except that the blade is set to an angle other than 0. After changing the bevel angle, verify the alignment of the blade cover and splitter and verify that there is clearance with the saw blade.
C
D
ADJUSTING AND USING THE MITER GAUGE
ADJUSTING THE MITER GAUGE
The miter gauge supplied with your saw has accurately adjusted index stops at 90° and 45° to the right and left, with a 30° maximum.
To use a setting other than 90°, loosen the lock knob A by turning it counterclockwise, flip down the stop-lock tab B and rotate the miter head to 45°, or any angle shown on the numerical guide. Turn the lock knob clockwise to tighten it.
To check the accuracy of the miter gauge’s factory settings, set it at 90° and check it with an L-square or T-square. To verify the setting, make a test cut in scrap stock and then use a square to check the cut piece.
If the miter gauge needs adjusting, manually turn the head so the pointer is where you think it ought to be, tighten the lock knob and loosen the nut C. Turn the adjusting screw until it touches the stop-lock tab. Tighten down the nut. Recheck the angle by making another test cut. Repeat, if necessary, until a true 90° is achieved.
A
B
C
* Shown using left tilt model
20
ADDING AN AUXILIARY FENCE TO THE MITER GAUGE
To ensure a true 90° cross cut, especially with longer pieces of wood that need more support than the nar­row miter gauge head can provide, an auxiliary wood fence can be attached.
Make sure the wood for the fence is straight, not bowed. It should be about 2” wide and extend about 12” from either side of the miter head. Drill 2 holes in the wood corresponding to those on the miter head and use bolts and nuts to secure the wood fence to the head A.
To use the miter gauge with an auxiliary fence, first notch the fence with the saw blade a bit higher than the workpiece B. Measure and draw a cutline on your wood C then place it on the miter fence. Position your cutline against the notch. Turn on the saw, slide the work up until it is cut through (but don’t cut off the fence).
Marking Wood. If you measure a cut for 24”, line up the blade on the waste side of the mark.
Don’t cut through the middle of the measurement line or you’ll reduce your desired board length by half the width of the saw blade! For accurate work, don’t mark your cut with a fat pencil line D. A narrow dash, with a sharp pencil point is best E.
FOCUS
A
B
C
FRONT VIEW
G
F
Encircle the dash so you’ll find it again and add a small “x” to indicate the waste or cut-off side F. Pencils, like saw blades, have thickness.
When squaring off from the cut mark, align your square to allow for pencil clearance, which will be about 1/16” away from the drawing edge of the square G.
MITER CUTS
This operation is the same as cross cutting, except the miter gauge is set to an angle other than 0. Hold the workpiece firmly against the miter gauge and feed the workpiece slowly into the blade to prevent it from mov­ing during the cut I.
COMPOUND MITERING
This is a combination of bevel cross cutting and mitering. It is infrequently used. Follow instructions for both bevel cutting and mitering.
D
I
E
21
USING A DADO BLADE
ALWAYS VERIFY THE DADO BLADE CLEARANCE BEFORE CONNECTING THE SAW TO THE POWER SOURCE. RE-ATTACH THE GUARD AND ADJUST AFTER DADO CUT IS FINISHED. THE MAXIMUM DADO HEAD WIDTH FOR THIS SAW IS 13/16” AND THE MAXIMUM DADO BLADE DIAMETER IS 8”.
Dadoing is cutting a “rabbet” or a wide groove into the work. A dado blade A (not supplied with your saw) usually consists of two outer blades and several interior cutters. These can be adjusted to cut grooves from 1/8” to 13/16” for making shelves, joints and tenoning. Set the blade’s width according to the instructions supplied with your dado blade.
After adjusting its width, mount the dado blade on your saw just like a regular blade. You’ll need an optional dado adapter kit B (Item #50-455R for #50-450R or #50­465R for 50-460R). Use the fence to line up the cut. The blade guard/splitter must be removed when dadoing. Never use the dado blade in a bevel position.
A B
MAINTENANCE & ADJUSTMENTS
MAKE SURE THE SAW HAS BEEN TURNED OFF AND UNPLUGGED FROM THE POWER SOURCE BEFORE PERFORMING ANY MAINTE­NANCE.
PERIODIC MAINTENANCE
• Inspect/test the ON/OFF switch before each use. Do not operate the saw with a damaged switch - replace a damaged switch immediately
• Inspect the saw blade for damage or chipped teeth before each use. Replace a damaged or chipped blade immediately. Never operate the saw with a damaged or chipped blade
• Keep the saw table clean and free of dust, pitch or glue. An occasional light coating of paste wax can be used to protect the cast-iron surface. Ask our local distributor for suggestions on table top cleaners and cast-iron sur­ face protection based on what is readily available in your area.
• Occasionally open the cabinet door and brush off and vacuum out accumulated dust from inside the cabi­ net and on the blade tilting gears, and on or around the motor.
• Periodically inspect the power cord and plug for damage. To minimize the risk of electric shock or fire, never operate the saw with a damaged power cord or plug. Replace a damaged power cord or plug at the first sign of damage.
• To minimize airborne dust particles periodically inspect all dust collection fittings – re-tighten as needed.
LUBRICATION
Keep the blade height adjustment mechanism A as well as the blade tilt mechanism B (both accessible by the motor cover door) well lubricated and free of dust or de­bris. Clean and remove dust, debris, and old grease as needed depending on frequency of use. After cleaning, re-apply grease as needed. The motor and all bearings are sealed and permanently lubricated – no further lubrication is required. No other part of this table saw needs lubrication.
Note: Use any all-purpose grease, available at any hard­ware store.
A
B
22
ADJUSTING THE 90° BEVEL STOP
A
1. Raise the blade to its highest position and lift the
blade guard.
2. Loosen the bevel lock knob and turn the blade tilting
D
C
handwheel clockwise until it stops.
3. Verify the 90° angle of the blade with a combina­tions quare from the left side of the blade, keep the square flat against the table and against the flat part of the blade - Do not touch the teeth or the table insert A.
90°
If the blade angle is incorrect, adjust the 90° stop lo­cated inside the cabinet, on the left side of the saw. Proceed as follows:
1. Loosen the jam-nut C using a 5/8” open end wrench.
2. Adjust the height of the 90° stop bolt D until the blade is 90° to the table when the 90° stop bolt touches the
stop. Re-tighten the jam-nut.
ADJUSTING THE BEVEL ANGLE POINTER*
The bevel pointer should read “0” when the blade is at 90° to the table. If not, proceed as follows:
A
1. With the blade set 90° vertical to the table, loosen
the set screw on the front handwheel shaft using a Allen key, remove the handwheel lock knob A
and pry the handwheel off its shaft.
ADJUSTING THE 45° BEVEL STOP
Verify the 45° setting by tilting the blade as far as possible to the left or right and using a square to check the angle A. If needed adjust as for the 90° stop, this time using the stop screw B inside the cabinet, at the front of the saw.
C
B
2. Once the handwheel has been removed, loosen
the screw B on the pointer mounting bracket (us­ ing a 10 mm wrench) and manually align the pointer with the zero on the bevel scale C, then re­ tighten the screw and re-attach the handwheel.
A
B
* Shown using left tilt model
23
RECOMMENDED OPTIONAL ACCESSORIES
Here is a sampling of optional accessories available from your local General International dealer that can be used with this product.
For more information about our products, please visit our website at www.general.ca
item #50-455R
DADO ADAPTOR KIT (FOR 50-450R TILT RIGHT)
item #50-456
EUROPEAN STYLE RIVING KNIFE
For model: 50-450R and 50-460R. For use only with
10” blade.
item #50-465R
DADO ADAPTOR KIT (FOR 50-460R TILT LEFT)
item #50-SLT60P or 50-SLT 40P
SLIDING TABLE
For accurate cross cut­ting or mitering of wide panels; 49” for SLT40P or up to 72” for SLT60P. Fea­turing a stable rock sol­id design that runs on smooth roller bearings allowing the user to walk large panels through the cut with ease.
item #50-050
TENONING JIG
Solid cast iron. Fits left or right tilt saws for safe and accurate tenoning.
DUST COLLECTORS
We have a wide selection of dust collectors to suit all your shop needs. Dust collectors contribute to a cleaner and more health­ful workshop en- viron­ment.
item #50-EXBC10
BLADE COVER – WITH DUST COLLECTION CAPABILITY
Maximize dust collection without compromising safety. Easy to install and simple to use, see-through blade cover. Unique design mounting bracket: piv­ots away or removes completely in seconds
item #55-185
7 PIECE DELUXE 8” DADO BLADE SET
(2) 24 tooth exterior blades. Standard 5/8” (16 mm) bore. Maxi-mum 6000 RPM. Makes 1⁄8” to 13⁄16” (3 to 21 mm) grooves. Anti-kickback design. Convenient & sturdy wooden storage case in­cluded. Note: Requires 50-
455R or 50-465R.
.
24
DIAGRAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15L
21
20
19
16
17
18
27
26
23
23
24
23
25
49
22
30
31
32N
33N
28
29
38
37
53
52
35
34
36
40
41
42
18
39
48
23
26
43
44
45
46
47
1A
54
DIAGRAM
CABINET AND TABLE (#50-460R)
CABINET AND TABLE - LEFT TILT (#50-460R)
18
17
16
15R
51
50
25
PARTS LIST
CABINET AND TABLE - LEFT TILT (#50-460R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART# REF. # DESCRIPTION SPECIFICATIONS QTY
50460R-1A 50-145 MITER GAUGE ASSEMBLY 1 50460R-1 50175-032 HANDLE 1 50460R-2 50175-035 MITER GAUGE BODY 1 50460R-3 50175-033 HEX NUT M5 3 50460R-4 50175-040 POINTER 1 50460R-5 50175-039 STOP PLATE 1 50460R-6 50175-041 SET SCREW M5 X 5 1 50460R-7 50175-041A PIN M3 X 6 1 50460R-8 50175-034 SET SCREW M5 X 20 3 50460R-9 50175-03 8 GUIDE BAR 1 50460R-10 50175-037 GUIDE WASHER 1 50460R-11 50175-03 6 FLAT HEAD SCREW M6 X 8 11 50460R-12 UOTS10L -12 SET SCREW 1/4” X 3/8” 6 50460R-13 TSCE12L -13 TABLE INSERT 1 50460R-14 TSCE12L -14 MAIN TABLE 1 50460R-15R TSCE12L -15 EXTENSION WING RIGHT 1 50460R-15L TSCE12L -15 EXTENSION WING LEFT 1 50460R-16 UOTS10L -16 HEX HEAD BOLT 7/16” X 1-1/2” 6 50460R-17 UOTS10L -17 LOCK WASHER 7/16” 6 50460R-18 UOTS10L -18 FLAT WASHER 7/16” 6 50460R-19 TSCE12L -19 MOTOR COVER DOOR 1 50460R-20 UOTS10L -20 FLANGE NUT M6 1 50460R-21 UOTS10L -21 HANDLE 1 50460R-22 UOTS10L -22 FOAM STRIP 1 50460R-23 UOTS10L -23 FLAT WASHER 1/4” 12 50460R-24 UOTS10L -24 SPRING 1 50460R-25 UOTS10L -25 HEX HEAD BOLT M6 X 50 1 50460R-26 UOTS10L -26 LOCK WASHER 1/4” 10 50460R-27 UOTS10L-27 HEX NUT 1/4” 4 50460R-28 UOTS10L -28 ANGLE INDICATOR SCALE 1 50460R-29 UOTS10L -29 LOGO PLATE 1 50460R-30 TSCE12L -30 POWER CORD 1 50460R-31 UOTS10L -31 CARRIAGE BOLT 1/4” X 3/4” 4 50460R-32N TSCE10L-3 2N SWITCH MOUNTING PLATE 1 50460R-33M1 UOTS10L-33A MAGNETIC SWITCH ASSEMBLY 50460R-33M2 UOTS10L-33B MAGNETIC SWITCH ASS’Y 50460R-33M3 UOTS10L-33C MAGNETIC SWITCH ASS’Y 50460R-34 UOTS10L -34 PHILLIPS HEAD SCREW 3/16” X 3/4” 2 50460R-35 UOTS10L -35 FLAT WASHER 3/16” 2 50460R-36 UOTS12L -36 POWER CORD TO MOTOR 1 50460R-37 UOTS10L -37 STRAIN RELIEF 3 50460R-38 UOTS10L -38 CORD BUSHING 1/2” 2 50460R-39 TSCE10L -39 NYLOCK NUT 1/4” 3 50460R-40 UOTS10L -40 WARNING LABEL 1 50460R-41 TSCE12L- 41 CABINET 1 50460R-42 TSCE10L -42 FENCE STORAGE BRACKET 2 50460R-43 TSCE10L -43 PHILLIPS HEAD SCREW 1/4” X 3/4” 6 50460R-44 TSCE10L -44 MITER GAUGE HOOK 1 50460R-45 TSCE10L -45 DUST HOSE ADAPTER 1 50460R-46 TSCE10L -46 HEX SCREW 1/4” X 5/8” 3 50460R-47 UOTS10L -47 CAP SCREW 7/16” X 3/4” 4 50460R-48 TSCE10L -48 SPECIAL NUT 1/4” 6 50460R-49 TSCE10L -49 CORD CONNECT BOX 1 50460R-50 TSCE12L -50 LOWER PANEL 1 50460R-51 UOTS10L -51 SELF TAPPING SCREW M5 X 10 4 50460R-52 UOTS10L-52 HOOK 1 50460R-53 UOTS10L-53 NUT 1 50460R-54 UOTS10L-54 KEY 2
(FOR M1 ONLY) 220V.1PH.NTH-25 1
(FOR M2 ONLY) NOT SHOWN 220V.3PH.NTH-21 1
(FOR M3 ONLY) NOT SHOWN 600V.3PH.NTH-8 1
26
DIAGRAM
DIAGRAM
CABINET AND TABLE (#50-450R)
CABINET AND TABLE - RIGHT TILT (#50-450R)
1
17
16
18
15L
12
13
14
51
9
10
11
8
15R
16
17
18
2
3
4
5
6
7
19
1A
21
20
46
45
43
26
49
44
18
47
23
42
41
50
40
48
27
39
26
23
25
28
53
29
23
24
52
23
30
38
54
37
22
31
32N
33N
36
35
34
27
PARTS LIST
CABINET AND TABLE - RIGHT TILT (#50-450R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART# REF. # DESCRIPTION SPECIFICATIONS QTY
50450R-1A 50-145 MITER GAUGE ASSEMBLY 1 50450R-1 50175-032 HANDLE 1 50450R-2 50175-03 5 MITER GAUGE BODY 1 50450R-3 50175-03 3 HEX NUT M5 3 50450R-4 50175-04 0 POINTER 1 50450R-5 50175-03 9 STOP PLATE 1 50450R-6 50175-041 SET SCREW M5 X 5 1 50450R-7 50175-041A PIN M3 X 6 1 50450R-8 50175-03 4 SET SCREW M5 X 20 3 50450R-9 50175-038 GUIDE BAR 1 50450R-10 50175-037 GUIDE WASHER 1 50450R-11 50175-03 6 FLAT HEAD SCREW M6 X 8 11 50450R-12 UOTS10-12 SET SCREW 1/4” X 3/8” 6 50450R-13 TSCE12-13 TABLE INSERT 1 50450R-14 TSCE12-14 MAIN TABLE 1 50450R-15R TSCE12-15 EXTENSION WING RIGHT 1 50450R-15L TSCE12-15 EXTENSION WING LEFT 1 50450R-16 UOTS10-16 HEX HEAD BOLT 7/16” X 1-1/2” 6 50450R-17 UOTS10-17 LOCK WASHER 7/16” 6 50450R-18 UOTS10-18 FLAT WASHER 7/16” 6 50450R-19 TSCE12-19 MOTOR COVER DOOR 1 50450R-20 UOTS10-20 FLANGE NUT M6 1 50450R-21 UOTS10-21 HANDLE 1 50450R-22 UOTS10-22 FOAM STRIP 1 50450R-23 UOTS10-23 FLAT WASHER 1/4” 12 50450R-24 UOTS10-24 SPRING 1 50450R-25 UOTS10-25 HEX HEAD BOLT M6 X 50 1 50450R-26 UOTS10-26 LOCK WASHER 1/4” 10 50450R-27 UOTS10-27 HEX NUT 1/4” 4 50450R-28 UOTS10-28 ANGLE INDICATOR SCALE 1 50450R-29 UOTS10-29 LOGO PLATE 1 50450R-30 TSCE12-30 POWER CORD 1 50450R-31 UOTS10-31 CARRIAGE BOLT 1/4” X 3/4” 4 50450R-32N TSCE10-32N SWITCH MOUNTING PLATE 1 50450R-33M1 UOTS10-33A MAGNETIC SWITCH ASSEMBLY 50450R-33M2 UOTS10-33B MAGNETIC SWITCH ASS’Y 50450R-33M3 UOTS10-33C MAGNETIC SWITCH ASS’Y 50450R-34 UOTS10-34 PHILLIPS HEAD SCREW 3/16” X 3/4” 2 50450R-35 UOTS10-35 FLAT WASHER 3/16” 2 50450R-36 UOTS12-36 POWER CORD TO MOTOR 1 50450R-37 UOTS10-37 STRAIN RELIEF 3 50450R-38 UOTS10-38 CORD BUSHING 1/2” 2 50450R-39 TSCE10-39 NYLOCK NUT 1/4” 3 50450R-40 UOTS10-40 WARNING LABEL 1 50450R-41 TSCE12-41 CABINET 1 50450R-42 TSCE10-42 FENCE STORAGE BRACKET 2 50450R-43 TSCE10-43 PHILLIPS HEAD SCREW 1/4” X 3/4” 6 50450R-44 TSCE10-44 MITER GAUGE HOOK 1 50450R-45 TSCE10-45 DUST HOSE ADAPTER 1 50450R-46 TSCE10-46 HEX SCREW 1/4” X 5/8” 3 50450R-47 UOTS10-47 CAP SCREW 7/16” X 3/4” 4 50450R-48 TSCE10-48 SPECIAL NUT 1/4” 6 50450R-49 TSCE10-49 CORD CONNECT BOX 1 50450R-50 TSCE12-50 LOWER PANEL 1 50450R-51 UOTS10-51 SELF TAPPING SCREW M5 X 10 4 50450R-52 UOTS10-52 HOOK 1 50450R-53 UOTS10-53 NUT 1 50450R-54 UOTS10-54 KEY 2
(50-450R M1 ONLY ) 220V.1PH. NTH-25 1 (50-450R M2 ONLY) NOT SHOWN 220V. 3PH. NTH-21 1 (50-450R M3 ONLY) NOT SHOWN 600V. 3PH. NTH-8 1
28
DIAGRAM
DIAGRAM
NION (#50-460R)
MOTOR AND TRUNNIONS (#50-460R)
156
145
155
162
109
163
146
159
142
164
165
138
143
147
160
158
169
148
152
153
154
113
135
132
136
140
200
166
167
132
144
146-1
148
123
160
109
147
124
120
159
155
113
134
161
154
157
153
156
145
118
119
141
107
143
138
122
126
142
105
116
168
117
109
139
115
110
136
106
109
113
111
121
135
138
149
107
137
128
114
132
133
113
134
150
151
171
132
113
112
106
108
107
172
129
173
174
175 176 177
181
149
129
128
157
181
178
182
186
179
183
180
184
202
201
185
203
187
188
196
128 129
130
189
194
131
191
198
199
190197
206
105
192
104
193
205
127
125
170
195
204
102
101
29
PARTS LIST
MOTOR AND TRUNNIONS (#50-460R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART # REF # DESCRIPTION SPECIFICATIONS QTY
50460R-101 UOTS12L-101 ARBOR NUT 1 50460R-102 UOTS12L-102 ARBOR FLANGE 1 50460R-104 UOTS12L-104 ARBOR 1 50460R-105 UOTS12-105 KEY 1/4”X1-3/4” 1 50460R-106 UOTS12-106 BEARING 6005ZZ 2 50460R-107 UOTS12-107 BEARING LOAD SPRING 4 50460R-108 UOTS12L-108 BEARING LOAD SPACER 1 50460R-109 UOTS10-109 SET SCREW 1/4” X 3/8” 10 50460R-110 UOTS12L-110 ARBOR PULLEY 1 50460R-111 UOTS12-111 COLLAR 1 50460R-112 UOTS10-112 KEY 1/4” X 1/4” X 45 1 50460R-113 UOTS10-113 LOCK WASHER 3/8” 9 50460R-114 UOTS12L-114 ARBOR BRACKET 1 50460R-115 UOTS12-115 ARBOR BUSHING 1 50460R-116 UOTS12L-116 ARBOR RETENTION NUT 3/4”” 1 50460R-117 UOTS10-117 SPRING PIN M6 X 50 1 50460R-118 UOTS10-118 KEY 1/4” X 1/4” X 2-5/16” 1 50460R-119 UOTS10-119 FLAT WASHER 7/16” 1 50460R-120 UOTS10-120 CAP SCREW 7/16” X 1” 2 50460R-121 UOTS10L-121 SHAFT 1 50460R-122 UOTS10-122 MOTOR BRACKET 1 50460R-123 UOTS10-123 PIN 1 50460R-124 UOTS10-124 COTTER PIN 2 50460R-125 UOTS12L-125 POLY V-BELT PJ250 1 50460R-126 UOTS10L-126 MOTOR MOUNTING PLATE 1 50460R-127 UOTS10L-127 MOTOR PULLEY 1 50460R-128 UOTS10-128 FLAT WASHER 5/16” 14 50460R-129 UOTS10-129 LOCK WASHER 5/16” 10 50460R-130 UOTS10-130 HEX HEAD BOLT 5/16” X 3/4” 4 50460R-131 UOTS12L-131M1 MOTOR 6 HP. 1PH. 220V 1 50460R-131 UOTS12L-131M2 MOTOR 7.5 HP. 3PH. 220V 1 50460R-131 UOTS12L-131M3 MOTOR 7.5 HP. 3PH. 600V 1 50460R-132 UOTS10-132 CAP SCREW 3/8” X 1-1/2” 7 50460R-133 UOTS10L-133 REAR TRUNNION BRACKET 1 50460R-134 UOTS10-134 HEX NUT 3/8” 5 50460R-135 UOTS10-135 CAP SCREW 3/8” X 1” 4 50460R-136 UOTS10-136 SPRING PIN M8 X 25 4 50460R-137 UOTS10-137 HEX NUT 3/4” 1 50460R-138 UOTS10-138 FIBER WASHER 3/4” 4 50460R-139 UOTS10L-139 REAR TRUNNION 1 50460R-140 UOTS10-140 BUSHING 1 50460R-141 UOTS12L-141 YOKE 1 50460R-142 UOTS10-142 SET SCREW 5/16” X 1/4” 2 50460R-143 UOTS10-143 COLLAR 2 50460R-144 UOTS12L-144 SHAFT 1 50460R-145 UOTS10-145 SPRING PIN M5 X 30 2 50460R-146 UOTS10-146 WORM GEAR 1 50460R-146-1 UOTS10-146-1 LIFTING WORM GEAR 1 50460R-147 UOTS10-147 LOCK PIN 4 50460R-148 UOTS10-148 KEY M5 X 35 2 50460R-149 UOTS10L-149 CAP SCREW 5/16” X 1/2” 2 50460R-150 UOTS10L-150 DUST SHROUD 1 50460R-151 UOTS10L-151 HOSE CLAMP M100 2 50460R-152 UOTS10L-152 FRONT TRUNNION 1 50460R-153 UOTS10-153 HEX HEAD BOLT 5/16” X 5/8” 2 50460R-154 UOTS10-154 HEX NUT 5/16” 2 50460R-155 UOTS10-155 LOCK KNOB 2 50460R-156 UOTS10-156 FIBER WASHER 3/4” 2
30
PARTS LIST
MOTOR AND TRUNNIONS (#50-460R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART # REF # DESCRIPTION SPECIFICATIONS QTY
50460R-157 UOTS10-157 CAP SCREW 5/16” X 1” 4 50460R-158 UOTS10L-158 FRONT TRUNNION BRACKET 1V 50460R-159 UOTS10-159 HANDWHEEL HANDLE 2 50460R-160 UOTS10-160 HANDWHEEL 2 50460R-161 UOTS10-161 GUIDE PLATE 1 50460R-162 UOTS10-162 HEX HEAD BOLT 1/4” X 3/8” 1 50460R-163 UOTS10-163 POINTER 1 50460R-164 UOTS10-164 POINTER BRACKET 1 50460R-165 UOTS10-165 PHILLIPS HEAD SCREW 3/16” X 2” 2 50460R-166 UOTS10L-166 GUIDE BLOCK 1 50460R-167 UOTS10-167 FLAT WASHER 3/8” 1 50460R-168 UOTS10-168 BUSHING 1 50460R-169 UOTS12L-169 TILT SHAFT 1 50460R-170 UOTS12L-170 ARBOR WRENCH 1 50460R-171 UOTS10L-171 DUST HOSE 1 50460R-172 UOTS10L-172 "L" BRACKET 1
50460R-173 UOTS10L-173 CAP SCREW 5/16” X 3/4” 3 50460R-174 UOTS12L-174 DUST PLATE 1 50460R-175 UOTS10L-175 FLAT WASHER 3/16” 3 50460R-176 UOTS10L-176 LOCK WASHER 3/16” 3 50460R-177 UOTS10L-177 HEX HEAD BOLT 3/16” X 3/8” 3 50460R-178 UOTS10L-178 HEX HEAD BOLT 1 50460R-179 UOTS10L-179 LOCK PIN 1 50460R-180 UOTS10L-180 SPRING 1 50460R-181 UOTS10L-181 NYLOCK NUT 1/4” 3 50460R-182 UOTS10L-182 SPRING 2 50460R-183 UOTS10L-183 GUIDE BRACKET 1 50460R-184 UOTS10L-184 FLAT HEAD SCREW 1/4” X 1” 2 50460R-185 UOTS10L-185 SCREW 1 50460R-186 UOTS10L-186 LINK PLATE 1 50460R-187 UOTS10L-187 NYLOCK NUT M6 1 50460R-188 UOTS10L-188 PLATE 1 50460R-189 UOTS12L-189 RIVING KNIFE SUPPORT PLATE 1 50460R-190 UOTS10L-190 FLAT HEAD SOCKET SCREW M5 X 12 2 50460R-191 UOTS10L-191 RIVING KNIFE HOLDER 1 50460R-192 UOTS10L-192 SPRING 1 50460R-193 UOTS10L-193 CLAMPING PLATE 1 50460R-194 UOTS10L-194 FLAT HEAD SOCKET SCREW M6 X 20 2 50460R-195 UOTS10L-195 LOCK LEVER 1 50460R-196 UOTS10L-196 NYLOCK NUT M8 1 50460R-197 UOTS12L-197 SHIM RING 1 50460R-198 UOTS12L-198 SNAP RING S58 1 50460R-199 UOTS10L-199 SET SCREW M5 X 12 4 50460R-200 UOTS10L-200 GUIDE BLOCK 1 50460R-201 UOTS10L-201 LOCK PIN BRACKET 1 50460R-202 UOTS10L-202 SET SCREW M4 X 8 1 50460R-203 UOTS10L-203 CAP SCREW M5 X 20 2 50460R-204 UOTS12L-204 ADAPTER ARBOR 1 50460R-205 UOTS12L-205 DRAWBAR 1 50460R-206 UOTS12L-206 NUT 1
31
DIAGRAM
MOTOR AND TRUNNION (#50-450R)
106
132
133
113
134
150
151
171
112
107
DIAGRAM
MOTOR AND TRUNNIONS (#50-450R)
136
135
113
139
117
109
142
116
105
138
122
126
141
143
107
145
118
119
144
146-1
123
120
159
138
137
111
106
109
168
115
110
132
113
108
128
114
149
121
107
124
155
148
147
109
160
153
156
154
157
113 134
161
152
140
166
167
132
200
153
154
132
148
113
136
135
169
158
160
143
147
138
142
164
165
146
163
159
145
162
156
109
155
170
101
102
125
204
205
195
127
193
104
192
105
199
190
206
131
191
198
194
189
197
128 129
130
188
196
187
203
185
184
201
202
183
180
182
186
179
178
181
157
128
149
129
181
181
175 176
177
173
174
129
172
32
PARTS LIST
MOTOR AND TRUNNIONS (#50-450R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART # REF # DESCRIPTION SPECIFICATIONS QTY
50450R-101 UOTS12-101 ARBOR NUT 1 50450R-102 UOTS12-102 ARBOR FLANGE 1 50450R-104 UOTS12-104 ARBOR 1 50450R-105 UOTS12-105 KEY 1/4”X1-3/4” 1 50450R-106 UOTS12-106 BEARING 6203ZZ 2 50450R-107 UOTS12-107 BEARING LOAD SPRING 4 50450R-108 UOTS12-108 BEARING LOAD SPACER 1 50450R-109 UOTS10-109 SET SCREW 1/4” X 3/8” 10 50450R-110 UOTS12-110 ARBOR PULLEY 1 50450R-111 UOTS12-111 COLLAR 1 50450R-112 UOTS10-112 KEY 1/4” X 1/4” X 45 1 50450R-113 UOTS10-113 LOCK WASHER 3/8” 9 50450R-114 UOTS12-114 ARBOR BRACKET 1 50450R-115 UOTS12-115 ARBOR BUSHING 1 50450R-116 UOTS12-116 ARBOR RETENTION NUT 3/4”” 1 50450R-117 UOTS10-117 SPRING PIN M6 X 50 1 50450R-118 UOTS10-118 KEY 1/4” X 1/4” X 2-5/16” 1 50450R-119 UOTS10-119 FLAT WASHER 7/16” 1 50450R-120 UOTS10-120 CAP SCREW 7/16” X 1” 2 50450R-121 UOTS10-121 SHAFT 1 50450R-122 UOTS10-122 MOTOR BRACKET 1 50450R-123 UOTS10-123 PIN 1 50450R-124 UOTS10-124 COTTER PIN 2 50450R-125 UOTS12-125 POLY V-BELT PJ250 1 50450R-126 UOTS10-126 MOTOR MOUNTING PLATE 1 50450R-127 UOTS10-127 MOTOR PULLEY 1 50450R-128 UOTS10-128 FLAT WASHER 5/16” 14 50450R-129 UOTS10-129 LOCK WASHER 5/16” 10 50450R-130 UOTS10-130 HEX HEAD BOLT 5/16” X 3/4” 4 50450R-131 UOTS12-131M1 MOTOR 6 HP. 1PH. 220V 1 50460R-131 UOTS12-131M2 MOTOR 7.5 HP. 3PH. 220V 1 50450R-131 UOTS12-131M3 MOTOR 7.5 HP. 3PH. 600V 1 50450R-132 UOTS10-132 CAP SCREW 3/8” X 1-1/2” 7 50450R-133 UOTS10-133 REAR TRUNNION BRACKET 1 50450R-134 UOTS10-134 HEX NUT 3/8” 5 50450R-135 UOTS10-135 CAP SCREW 3/8” X 1” 4 50450R-136 UOTS10-136 SPRING PIN M8 X 25 4 50450R-137 UOTS10-137 HEX NUT 3/4” 1 50450R-138 UOTS10-138 FIBER WASHER 3/4” 4 50450R-139 UOTS10-139 REAR TRUNNION 1 50450R-140 UOTS10-140 BUSHING 1 50450R-141 UOTS12-141 YOKE 1 50450R-142 UOTS10-142 SET SCREW 5/16” X 1/4” 2 50450R-143 UOTS10-143 COLLAR 2 50450R-144 UOTS12-144 SHAFT 1 50450R-145 UOTS10-145 SPRING PIN M5 X 30 2 50450R-146 UOTS10-146 WORM GEAR 1 50450R-146-1 UOTS10-146-1 LIFTING WORM GEAR 1 50450R-147 UOTS10-147 LOCK PIN 4 50450R-148 UOTS10-148 KEY M5 X 35 2 50450R-149 UOTS10-149 CAP SCREW 5/16” X 1/2” 2 50450R-150 UOTS12-150 DUST SHROUD 1 50450R-151 UOTS10-151 HOSE CLAMP M100 2 50450R-152 UOTS10-152 FRONT TRUNNION 1 50450R-153 UOTS10-153 HEX HEAD BOLT 5/16” X 5/8” 2 50450R-154 UOTS10-154 HEX NUT 5/16” 2 50450R-155 UOTS10-155 LOCK KNOB 2 50450R-156 UOTS10-156 FIBER WASHER 3/4” 2
33
PARTS LIST
MOTOR AND TRUNNIONS (#50-450R)
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART # REF # DESCRIPTION SPECIFICATIONS QTY
50450R-157 TSCE12-157 CAP SCREW 5/16” X 1” 4 50450R-158 TSCE12-158 FRONT TRUNNION BRACKET 1 50450R-159 UOTS10-159 HANDWHEEL HANDLE 2 50450R-160 UOTS10-160 HANDWHEEL 2 50450R-161 UOTS10-161 GUIDE PLATE 1 50450R-162 UOTS10-162 HEX HEAD BOLT 1/4” X 3/8” 1 50450R-163 UOTS10-163 POINTER 1 50450R-164 UOTS10-164 POINTER BRACKET 1 50450R-165 UOTS10-165 PHILLIPS HEAD SCREW 3/16” X 2” 2 50450R-166 TSCE12-166 GUIDE BLOCK 1 50450R-167 UOTS10-167 FLAT WASHER 3/8” 1 50450R-168 UOTS10-168 BUSHING 1 50450R-169 TSCE12-169 TILT SHAFT 1 50450R-170 UOTS12-170 ARBOR WRENCH 1 50450R-171 TSCE10-171 DUST HOSE 1 50450R-172 TSCE10-172 "L" BRACKET 1 50450R-173 TSCE10-173 CAP SCREW 5/16” X 3/4” 3 50450R-174 TSCE10-174 DUST PLATE 1 50450R-175 TSCE10-175 FLAT WASHER 3/16” 3 50450R-176 TSCE10-176 LOCK WASHER 3/16” 3 50450R-177 TSCE10-177 HEX HEAD BOLT 3/16” X 3/8” 3 50450R-178 TSCE10-178 HEX HEAD BOLT 1 50450R-179 TSCE10-179 LOCK PIN 1 50450R-180 TSCE10-180 SPRING 1 50450R-181 TSCE10-181 NYLOCK NUT 1/4” 3 50450R-182 TSCE10-182 SPRING 2 50450R-183 TSCE12-183 GUIDE BRACKET 1 50450R-184 TSCE10-184 FLAT HEAD SCREW 1/4” X 1” 2 50450R-185 TSCE10-185 SCREW 1 50450R-186 TSCE10-186 LINK PLATE 1 50450R-187 TSCE10-187 NYLOCK NUT M6 1 50450R-188 TSCE10-188 PLATE 1 50450R-189 TSCE12-189 RIVING KNIFE SUPPORT PLATE 1 50450R-190 TSCE10-190 FLAT HEAD SOCKET SCREW M5 X 12 2 50450R-191 TSCE10-191 RIVING KNIFE HOLDER 1 50450R-192 TSCE10-192 SPRING 1 50450R-193 TSCE10-193 CLAMPING PLATE 1 50450R-194 TSCE10-194 FLAT HEAD SOCKET SCREW M6 X 20 2 50450R-195 TSCE10-195 LOCK LEVER 1 50450R-196 TSCE10-196 NYLOCK NUT M8 1 50450R-197 TSCE12-197 SHIM RING 1 50450R-198 TSCE12-198 SNAP RING S58 1 50450R-199 TSCE12-199 SET SCREW M5 X 12 4 50450R-200 TSCE10-200 GUIDE BLOCK 1 50450R-201 TSCE12-201 LOCK PIN BRACKET 1 50450R-202 TSCE12-202 SET SCREW M4 X 8 1 50450R-203 TSCE12-203 CAP SCREW M5 X 20 2 50450R-204 UOTS12-204 ADAPTER ARBOR 1 50450R-205 UOTS12-205 DRAWBAR 1 50450R-206 UOTS12-206 NUT 1
34
14NA
DIAGRAM - PARTS LIST
RIVING KNIFE AND BLADE GUARD
19
16
17
19
10
11
16
14
17
9
17
16
15
19
8
27
2
20
19
16
24
23
17
17
11
5
13
151213
28
16
15
6
19
16
17
19
7
5
17
15
16
18
4
3
14
19
16
17
19
1
21
22
26
7
25
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired.
PART # REF # DESCRIPTION SPECIFICATIONS QTY
50450RBG-01N 12400415N SPLITTER 1 50450RBG-02N 12400403N BLADE GUARD BODY 1 50450RBG-03N 10900402L BUSHING (L) 1 50450RBG-04N 10900402R BUSHING (R) 1 50450RBG-05N 905M03010 FLAT HEAD SCREW M3 X 10 4 50450RBG-06N 10900416 LOCK PIN 1 50460RBG-07N 10400423 SPRING 2 50450RBG-08N 12400413-01 FRONT SHIELD 1 50450RBG-09N 917M05025 ROLL PIN M5 X 25 1 50450RBG-10N 10400415 TOP SIGHT SHIELD 1 50450RBG-11N 906M04008B ROUND HEAD SCREW M4 X 8 2 50450RBG-12N 10400414 BUSHING 1 50450RBG-13N 917M05008 ROLL PIN M5 X 8 2 50450RBG-14N 12400401-01 BLADE GUARD SIDE SHIELD 2 50450RBG-14NA 50460R-BG BLADE GUARD ASSEMBLY 1 50450RBG-15N 12400412N LINKING PLATE 4 50450RBG-16N 10900412A FLAT HEAD SOCKET SCREW M6 X 16 8 50450RBG-17N 914M061302 FLAT WASHER M6 8 50450RBG-18N 908M04010 SET SCREW M4 X 10 1 50450RBG-19N 912M06000 NYLON INSERT LOCK NUT M6 8 50450RBG-20N 917M04030 ROLL PIN M4 X 30 1 50450RBG-21 TSCE12G-14 RIVING KNIFE 1 50450RBG-22N 12400417N ANTI-KICKBACK PAWL (R) 1 50450RBG-23N 12400418N ANTI-KICKBACK PAWL (L) 1 50450RBG-24N 10400421 FLANGE(L) 1 50450RBG-25N 10400422 LOCK PIN 1 50450RBG-26N 10400420 FLANGE 1 50450RBG-27N 919E00500 E-CLIP E5 1 50450RBG-28N 10400419 PAWL BASE 1
35
220 V, 1 P hase
WIRING DIAGRAM
A1
A2
36
6
54
5
502
7.5HP, 220 V, 3 P hase
WIRING DIAGRAM
POWER CORD
WIRING DIAGRAM
220
37
7.5V, HP, 600 V, 3 P hase
POWER CORD
WIRING DIAGRAM
38
600
NOTES
39
40
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Tel.: (514) 326-1161
Fax: (514) 326-5565 - Parts & Service / (514) 326-5555 - Order Desk
orderdesk@general.ca
www.general.ca
*Model 50-460R shown
Follow us:
Loading...
